Küppersbusch Upright refrigerator-freezer User manual

Instructions for use
Upright
refrigerator
- freezer

142468
142468
Thank you for your condence in buying our
appliance and congratulations on the excellent
choice. We hope it will successfully serve its
purpose for many years.
Upright refrigerator - freezer (hereinafter: the
appliance) is combined from two parts: top part is
refrigerator and bottom part is upright freezer.
Refrigerator is used in households for storage of
fresh food at temperatures above 0°C).
Freezer is used in households for freezing fresh
food and storage of frozen food for up to one year
(depending on the type of food).
Before rst operation ...................................... 3
Description of the appliance ........................... 5
Location and installation ................................. 6
Reverse door swing ......................................... 8
Control panel .................................................... 9
Storage of food in the refrigerator................. 12
Freezing and storage of frozen food ............. 15
Defrosting ........................................................ 18
Cleaning ........................................................... 19
Troubleshooting guide.................................... 20
Noise information............................................ 22
2
3

142468
142468
• Before connecting the appliance read these
instructions carefully. They describe the appliance
and provide instructions for its safe and correct
use. The instructions are prepared for different
types and models of the appliance so they may
contain descriptions of functions and components
your appliance may not have.
Instructions also contain the NO FROST freezer
version, with integrated fan and automatic defrost.
• Remove the wrapping protecting the appliance
during transport.
• Door corners are tted with protective spacers.
Remove the spacers and replace them with the
attached pegs.
• Before connecting the appliance to the mains
supply, leave it in upright position for about 2
hours. This will reduce possibility of malfunctions
in the cooling system resulting from prior transport
and handling.
• The appliance must be connected to the
mains supply in accordance with the standing
regulations and local requirements.
• The appliance must not be used in open air or
exposed to weather precipitation.
• Always disconnect the appliance from power
supply (pull the power cord from wall socket)
before cleaning and before replacing the light
bulb.
• If the power supply cord is damaged, in order to
avoid hazard it must be replaced by the service or
by qualied personnel.
• In event of long periods without use, switch off
the appliance off with the ON/OFF button and
disconnect it from mains supply. Empty the
appliance, clean the interior and leave the door
ajar.
• For the protection of environment, please contact
local Borough or Council for correct disposal
arrangements.
2
3
Before rst operation

142468
142468
• Wrappings contain environmentally friendly
materials which can be recycled, recovered or
disposed without threat to the environment.
• To prevent any pollution be careful not to damage
the insulation or refrigeration tubes at the rear wall
during the installation, cleaning and disposal of
the appliance.
• Never let the children play with the appliance.
• Self closing door hinge (certain models only) pulls
the door to the cabinet just before closing, thereby
preventing the door to remain ajar. Equally it limits
the door opening angle and prevents damage to
adjacent elements.
• Rating plate with basic information is located in
the interior of the appliance. If the sticker plate is
not suitable for your language, replace it with the
attached one.
The symbol on the product or on its
packaging indicates that this product
may not be treated as household
waste. Instead it shall be handed over
to the applicable collection point for the
recycling of electrical and electronic
equipment. By ensuring this product
is disposed of correctly, you will help
prevent potential negative consequences
for the environment and human health,
which could otherwise be caused
by inappropriate waste handling of
thisproduct. For more detailed information
about recycling of this product, please
contact your local city ofce, your
household waste disposal service or the
shop where you purchased the product.
4
5

142468
142468
• Interior accessories of the appliance may vary according to the model.
• Drawers are protected against accidental extraction. To extract the drawer from the appliance,
open it and lift front part upwards, then pull it out. Certain models are tted with pull-out slide
guides which facilitate opening. Pull-out guide drawers (or shelves) are extracted by lifting the rear
end and pulling out inclined under the 45° angle. Reinsert in opposite sequence.
• Pull-out guide drawers (or shelves) are extracted by lifting the rear end and pulling out inclined
under the 45° angle. Reinsert in opposite sequence.
* Certain models only.

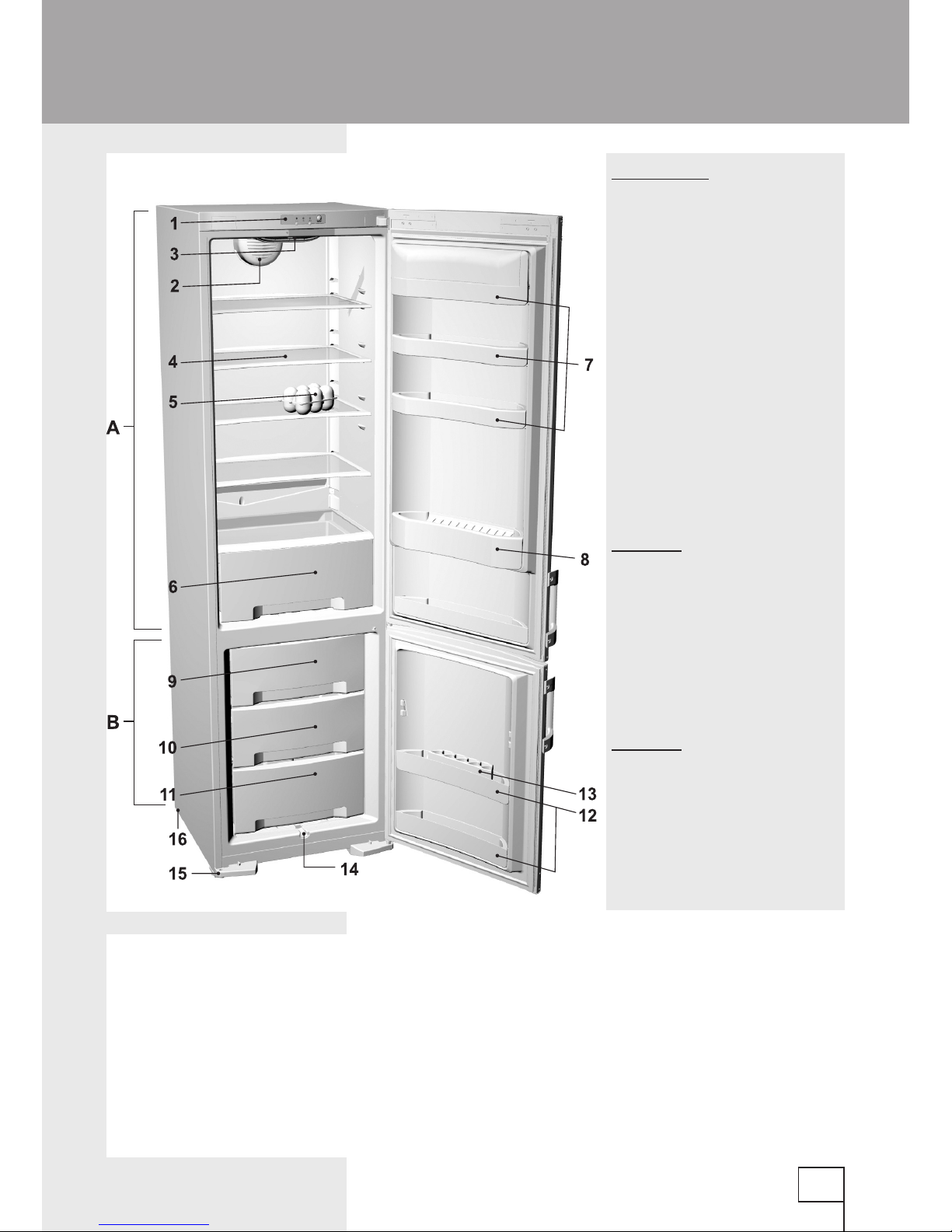

A Refrigerator (traditional and
NO FROST appliance)
1 Control panel
2 Fan*
3 Interior illumination light
4 Shelf (adjustable height)
5 Foldable egg tray
(closed 6, open 12 eggs)
6 Crisp tray
7 Door trays (options: deep,
shallow, cover or no cover)
8 Bottle tray with holder
15 Leg
16 Wheel
B Freezer (traditional appliance)
9 Freeze drawer
10 Storage drawer
11 Storage drawer
12 Door tray
13 Ice tray
14 Defrost water groove*
B Freezer (NO FROST
appliance)
9 Storage drawer
10 Freeze drawer
11 Storage drawer
4
5
Description of the appliance

142468
142468
• Place the appliance in dry and well aired room.
The appliance operates best at temperature
ranges indicated in the chart below. Relevant
class of the appliance is indicated on the rating
plate.
Positioning the appliance requires two persons in
order to avoid injuries or damage to the appliance.

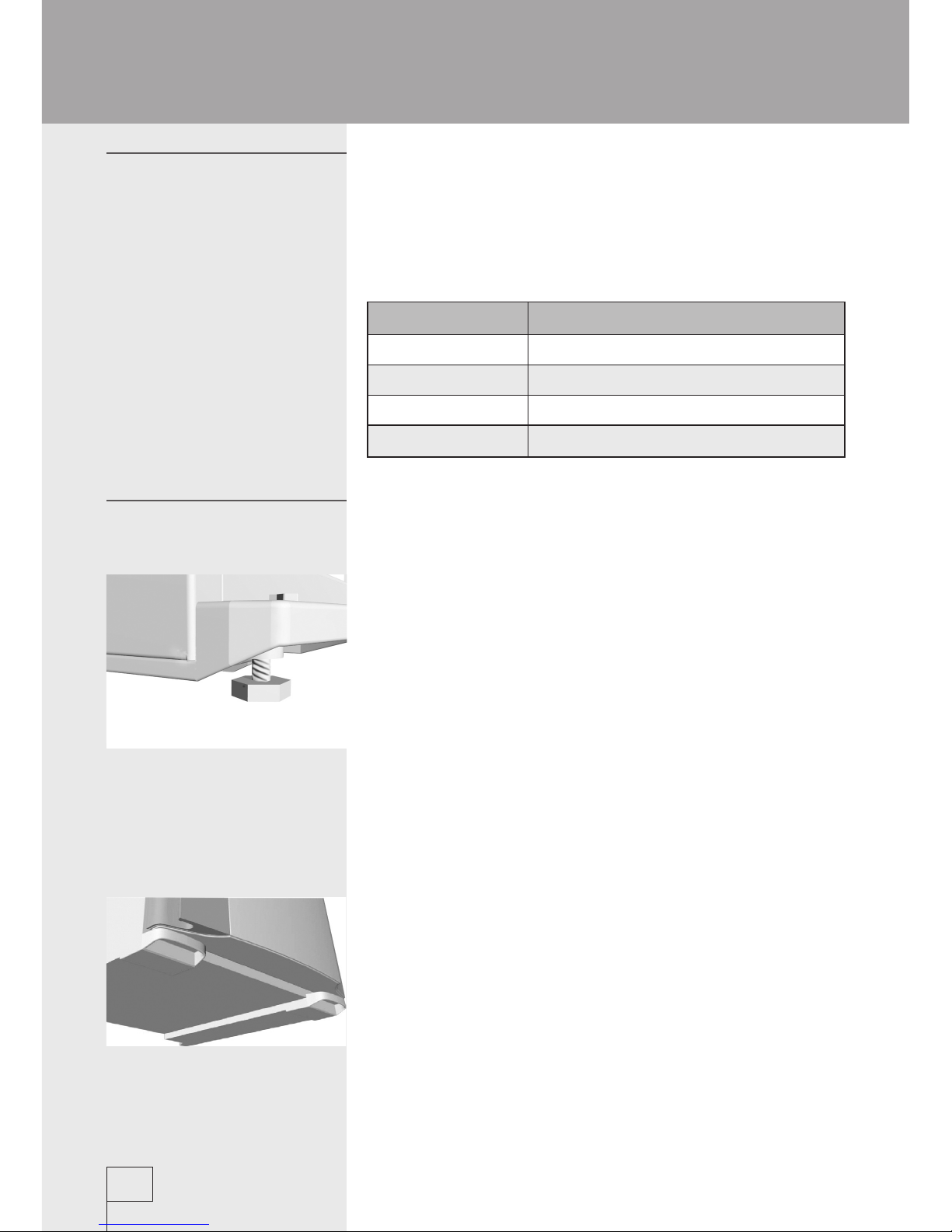

• Place the appliance atly and rmly on a solid
base. The appliance is tted with adjustable feet
on the front side, used to level the appliance.
Rear side of the appliance is tted with wheels
(certain models only) facilitating the positioning of
the appliance at the preselected place.
• The element above the appliance must be at
least 5 cm away to allow sufcient cooling of the
condenser.
• Avoid exposing the appliance to direct sunlight
or heat sources. If this is not possible, install
insulation plate between the appliance and
adjacent heat source.
• Bottom front corners of the appliance is tted with
handles to facilitate moving. The appliance may
stand independently or adjacent to a furniture
element or wall. Be sure to leave enough space
for the opening of the door, to avoid damage to
the appliance or personal injury. Also leave ample
space for extracting shelves (see installation
diagram).
6
7
Class Ambient temperature
SN (subnormal) from +10°C to +32°C
N (normal) from +16°C to +32°C
ST (subtropical) from +18°C to +38°C
T (tropical) from +18°C to +43°C
Installation and connection
Selecting the location
Positioning the
appliance

142468
142468
• Use the power cord to connect the appliance to
the mains power. Wall outlet must be tted with
ground terminal (safety socket). Nominal voltage
and frequency are indicated on the relevant label
or rating plate of the appliance.
• Mains power connection and grounding must be
in accordance to standing regulations and local
requirements.
The appliance is able to accommodate minor
temporary voltage uctuations, which do not exceed
-10% to +6%.
6
7
Connecting to power
supply

142468
142468
Required tools; socket spanner nr. 8,
screwdriver, torx 25.
Caution! After unscrewing of before xing hinges,
hold the door to prevent it from falling and
damaging.
1. Remove upper hinge cover (save it for eventual
later use), remove also the cover on the opposite
side of the upper hinge cover (on the opposite
side you will insert the attached cover during the
assembly), and remove the cover on the opposite
side of the upper part of the door.
2. Unscrew upper hinge screws and remove the
upper door from the middle hinge.
3. On the bottom side of the upper door unscrew the
swing stopper screws and remove the stopper
(A). Keep this for eventual use later on. Fix the
attached stopper with its bearing on the opposite
side of the door.
4. Unscrew the forced door closure system (B)
and x it to the opposite side of the door (certain
models only).
5. Unscrew middle hinge screws, remove the door
from bottom hinge.
6. Unscrew leg holder xing screws.
7. Tilt the appliance backward (max. 35°) to lean
to the rear side of the cabinet. Unscrew the
leg support screws (C) - left and right, and
remove the leg support cover (D) and place it to
the opposite side. Unscrew and remove, then
reciprocally replace the position of end switch (E)
and decorative peg (F) (for models with forced
door closing system). Unscrew three screws
xing the bottom hinge (save the hinge for later
use), and x the attached bottom hinge on the
opposite side.
8. Repeat the procedure 3 and 4 on the bottom
door. In case there is no bottom door limit peg,
transfer the bearing (G) and washer to the
opposite side of the door.
9. Proceed with the assembly procedure in opposite
sequence.
8
9
Reverse door swing

142468
142468

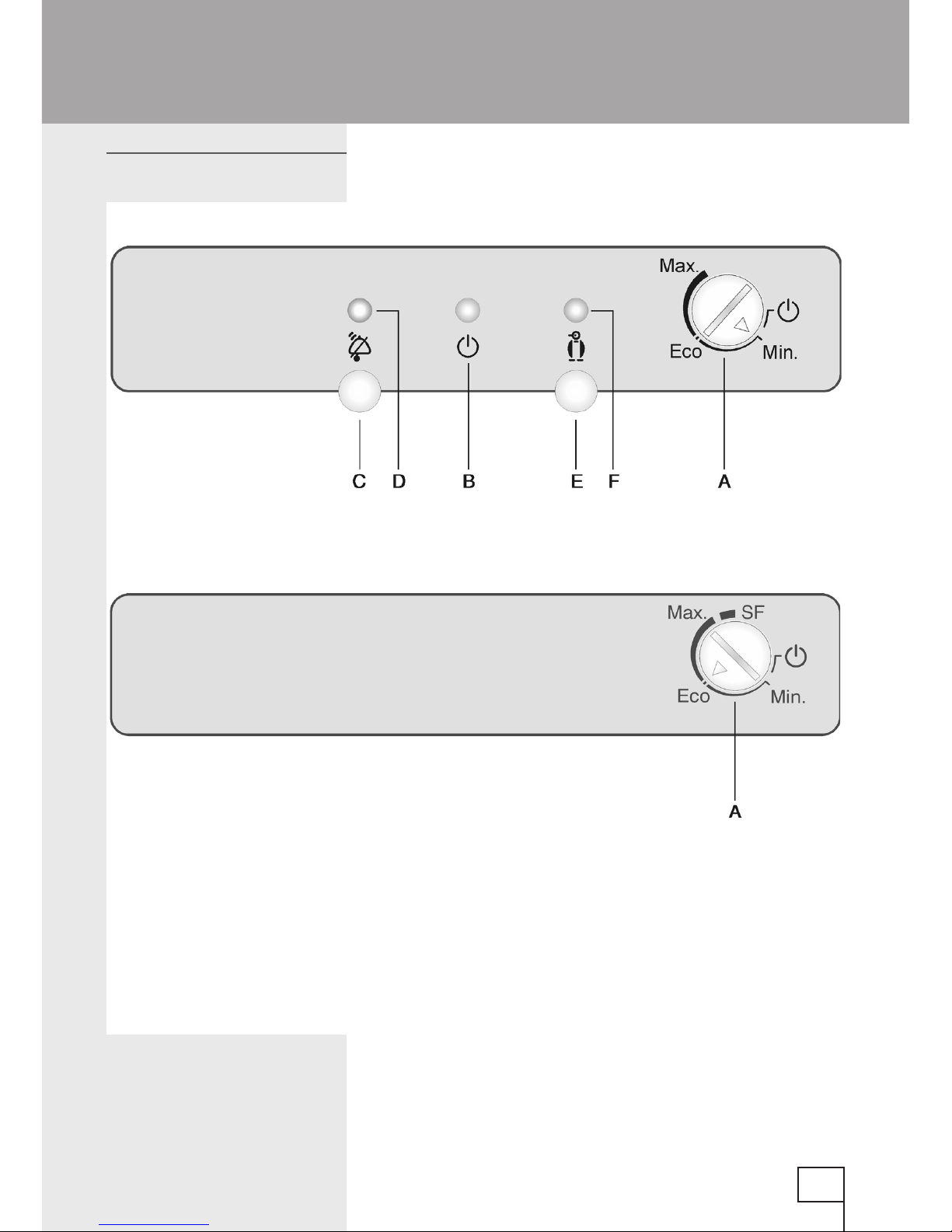

A Temperature selector and ON/OFF button
B Green LED: illuminated when the appliance is in operation*
C Freezer alarm off button*
D Red LED: ashing with freezer alarm*
E Fast freeze button*
F Orange LED: on during fast freezing procedure*
* Certain models only.
MODEL WITH KNOBS
MODEL WITHOUT KNOBS
8
9
Control unit I.
Control panel

142468
142468

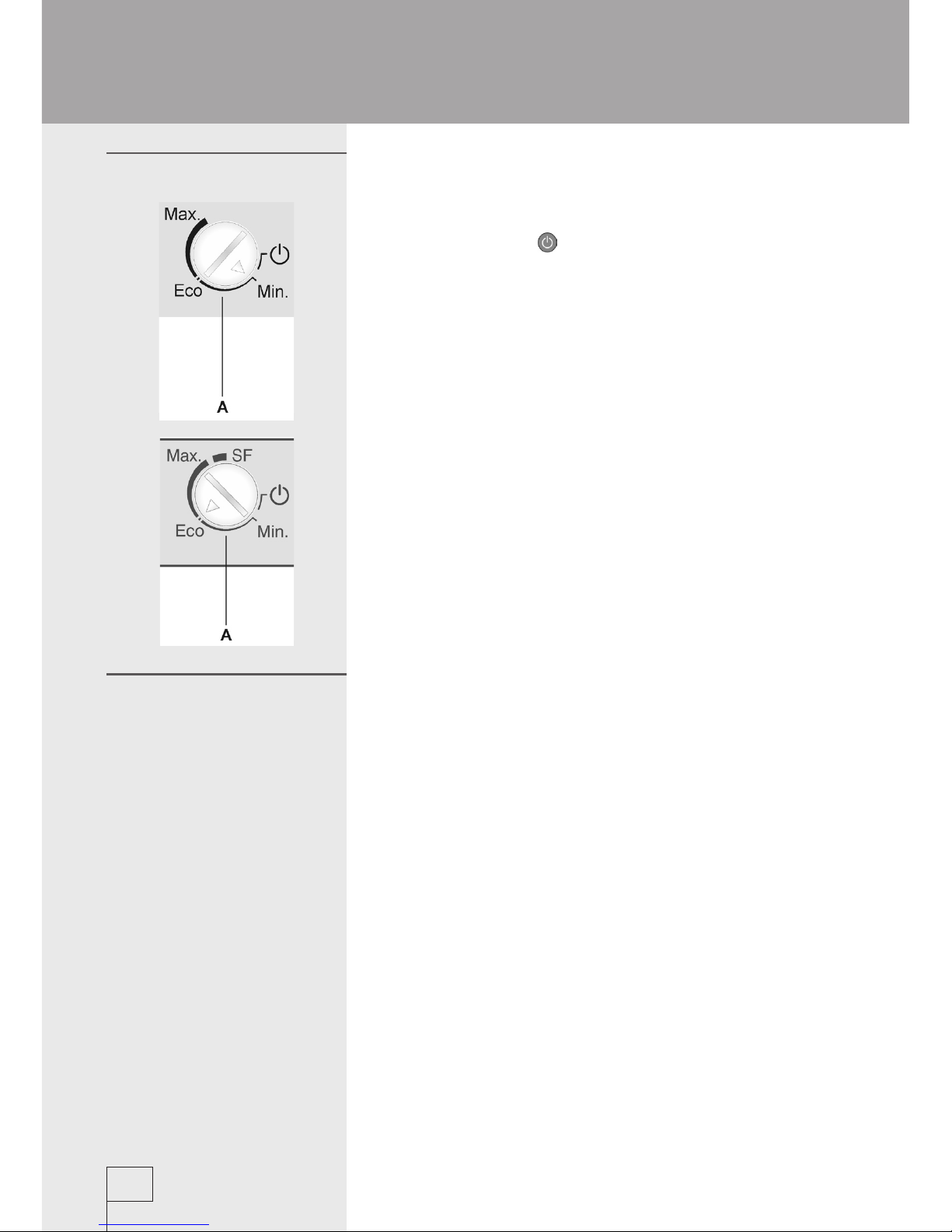

The appliance is switched on by turning the button
A towards Max. Green LED is on. The appliance is
switched off when the arrow on the button points to
the ON/OFF mark (the appliance, however, is still
under mains power).
• Temperature of the appliance is set by turning the
button A to the position between the Min and Max
span.
• Recommended setting of the thermostat knob is
to Eco position.
• If the room temperature, in which the appliance is
installed, is lower than 16°C, the recommended
setting of the thermostat knob is to the Max..
10
11
The ON/OFF button
Setting freezer
temperature

142468
142468

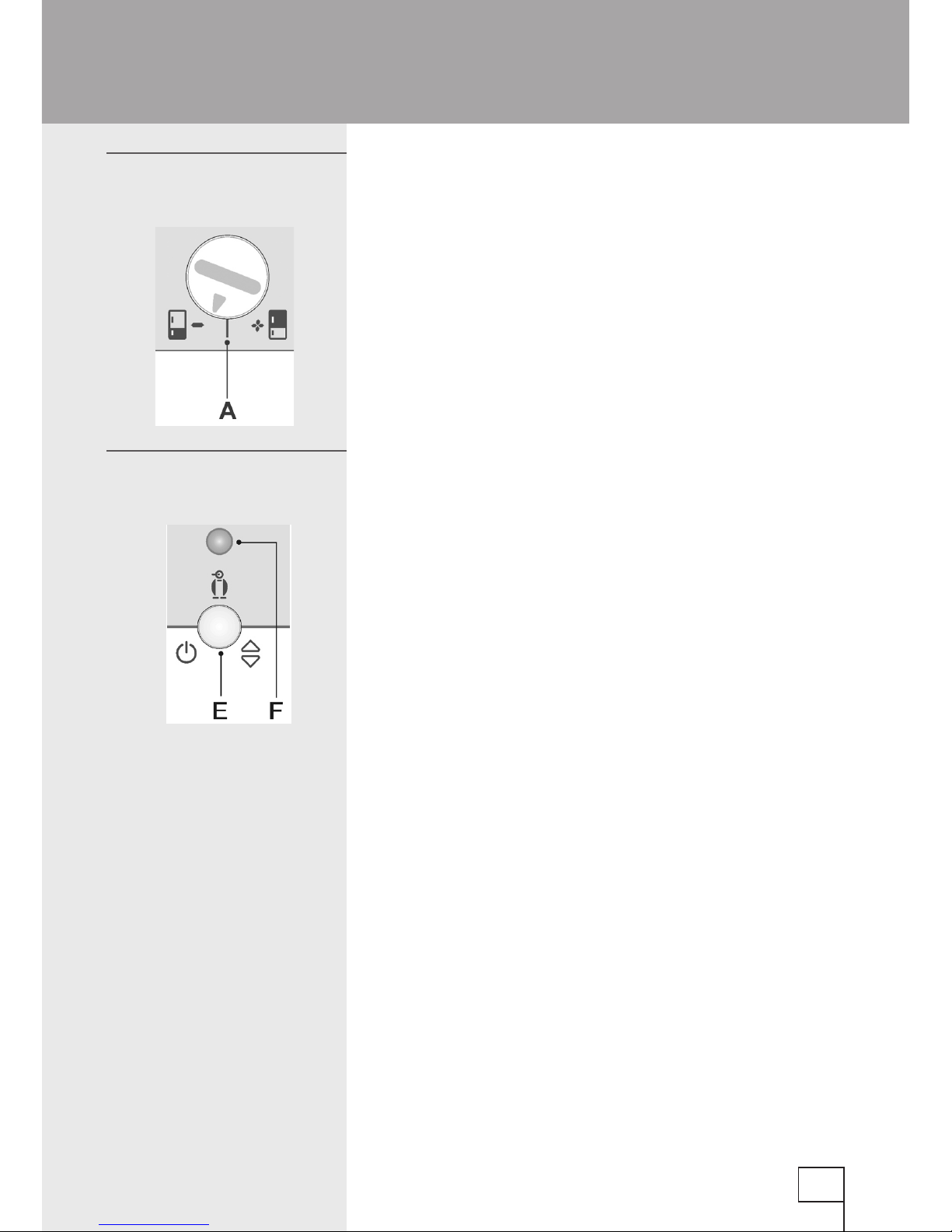

In models with knobs activate continuous freezing
by pressing the knob E, and in models without
knobs by the button A (position SF). In models
with knobs orange lamp (F) is on. If this option
is not switched off manually, it is switched off
automatically (after approximately two days).
• The function is used with the rst start of the
appliance, before cleaning, and when larger
quantities of fresh food are placed in the
appliance.
No button model:
• After the Intensive freezing option is switched
off automatically the appliance operates at Max.
setting.
• To repeat the Intensive freezing option turn the
knob A from the position SF to the position Eco,
then back to SF!
The sound alarm is activated if the freezer
temperature rises above the allowed level
(intermittent tone) and red lamp is ashing (D).
• The alarm can be turned off by pressing the
Alarm Off button C, while the red light goes off
automatically when the temperature inside the
freezer reaches desired level and there is no
danger for perishable goods.
• If the temperature in the freezer compartment fails
to reach the required level even 24 hours after
the alarm had been shut down, the alarm sounds
again and shuts off automatically when the freezer
compartment cools down to the required level and
there is no danger for perishable food.
• After the rst start, the appliance has a 24-hour
default temperature alarm delay, since the freezer
is not able to reach the required low temperature
immediately. This is to prevent the alarm
sounding.
10
11
Fast freeze function
Freezer Alarm (certain
models only)

142468
142468
APPLIANCE WITH THE VALVE AND TEMPERATURE DISPLAY
A Refrigerator/freezer selector switch
B Green light lit: appliance is in operation.
C Freezer sound alarm switch off button.
D Red light ashing: freezer temperature excessively high
E ON/OFF button and temperature setting
F Orange light lit: Intensive freezing option is on
G Digital temperature display: indicates actual refrigerator temperature from
+1°C to + 9°C, for freezer from - 16°C to - 24°C and SF (intensive freezing).
12
13
Control panel II.

142468
142468
Use the rotating switch A to select the appliance
section whose temperature you wish to see on the
display, and whose temperature you may set by
using the knob E.
ON/OFF button
Use the knob A to select the freezer, and switch the
appliance on with a 3-second long press of the knob
E. Both the refrigerator and the freezer are switched
on, and the operation mode is indicated by the lit
green light. Subsequent 3-second long press of the
same button switches the entire appliance off.
Refrigerator switch on/off
Model tted with temperature display enables the
fridge to be switched off while the freezer keeps
operating. Use the rotating switch A to select the
refrigerator, and press the knob E for 3 seconds
to switch the refrigerator off. Subsequent 3-
second long press of the same button switches the
refrigerator back on.
Temperature selection
Use rotating knob A to select refrigerator or freezer,
and press knob E to set the desired temperature.
Setting is changed in circular sense from the
position Max. to Min. (up to intensive freezing in
case of freezer). After 5 seconds the temperature
setting is automatically saved, and the display
indicates current temperature in the selected
section of the appliance.
12
13
ON/OFF button and
temperature selector
Refrigerator/freezer
selector

142468
142468
Intensive freezing
Use the rotating switch to select the freezer. By
short consecutive pressing of the knob E select
the intensive freezing option (SF) and wait for 5
seconds for the setting to be saved. Orange light (F)
is lit. If the setting is not switched off manually, it will
be switched off automatically after approximately
two days.
Use this option with the rst start of the appliance,
before cleaning, and prior inserting large quantities
of fresh food into the freezer.
Sound alarm starts in case of excessively high
temperature of the freezer (intermittent beep), red
light (D) is ashing.
• Alarm is switched of by pressing the knob C.
Red light goes off automatically when the freezer
is cooled sufciently and there is no danger for
stored food to get foul.
• If the temperature in the freezer is not at the level
required for the preservation of stored food, the
alarm will be switched on every 24 hours to alert
you of this condition.
• At the rst start of the appliance the alarm has a
24-hour temperature alarm delay, because the
freezer has not reached the required temperature
level. This prevents the unnecessary alarm
operation.
Indicates current temperature in the refrigerator
(positive single digit numeral), or in the freezer
(negative double digit numeral).
During the setting procedure the display ashes and
indicates momentary temperature setting. It also
ashes if the freezer temperature is so high that
there is danger for stored food to become foul.
14
15
High temperature
freezer alarm
Digital display

142468
142468
VALVE AND NO FROST SYSTEM APPLIANCE
A Freezer ON/OFF button
B Green signal lamp: indicates freezer operation
C Refrigerator ON/OFF button
D Green signal lamp: indicates refrigerator operation
E Intensive freezing ON/OFF button
F Orange signal lamp: intensive freezing in operation
G Intensive cooling ON/OFF button
H Orange signal lamp: intensive cooling in operation
I Sound alarm and child lock ON/OFF button
J Red signal lamp: alarm is active
K Freezer temperature setting button
L Freezer temperature digital display: indicates temp. range
-16°C to -24°C.
M Refrigerator temperature setting button
N Refrigerator temperature digital display: indicates temp. range
+1°C do +9°C.
14
15
Control panel III.

142468
142468
Before the rst use of the appliance rst plug the
power cable into the wall socket. Display indicates
dashes for both the refrigerator and the freezer.
• Switch the appliance on/off by pressing the
button A for 3 seconds. Both the refrigerator and
the freezer are started, green signal lamps B
and D are on. In this mode you can switch off
the refrigerator only by pressing button C for 3
seconds (green signal lamp 2 is off).
• Display indicates temperature in the refrigerator
+9°C and in the freezer 0°C. These values remain
on the display until the actual temperature within
the respective space falls below these values.
• The appliance has been preset in the factory to
the recommended temperatures of the refrigerator
to +5°C and freezer to -18°C.
Temperature setting range of the refrigerator:
+1°C do +9°.
Temperature setting range of the freezer:
-16°C do -24°C.
• Freezer temperature is set by pressing button K,
and refrigerator temperature by pressing button
M.
• After pressing the temperature setting button
the display starts ashing and indicates the last
selected setting.
• Temperature setting is changed by short
consecutive pressing of the button in 1°C steps.
During the setting procedure all other buttons are
idle.
• Approximately 5 seconds after the setting button
is released the display indicates the actual
temperature.
16
17
Temperature setting
Switching the
appliance ON/OFF

142468
142468
Alarm
Continuous sound - open refrigerator door
alarm
If the refrigerator door is open for more than one
minute, the sound alarm is turned on (continuous
tone) and red signal lamp J is on. The alarm is
automatically switched off when the door is closed,
but you can also switch it off by pressing the alarm
off button (I).
Intermittent sound - freezer/refrigerator
temperature is too high
Sound alarm is also activated in case of elevated
temperature (intermittent tone), and the temperature
on the display is ashing.
• Sound alarm is switched off by pressing button
I. Red signal lamp and temperature ashing
are stopped automatically when the freezer/
refrigerator is cooled enough that there is no more
risk of food becoming foul.
• If the freezer temperature fails to arrive at the
adequate level 24 hours after the alarm had
been switched off it is activated again, and again
switched off automatically when the freezer is
cooled enough for safe storage of food. During the
rst start of the appliance there is a 24 hour delay
of the temperature alarm to avoid unnecessary
alarm operation..
Intermittent alarm sound - power failure signal
If the temperature of the refrigerator or freezer is
raised too much as a consequence of power failure,
sound alarm is activated (intermittent tone),
red signal lamp is on, and the display ashes the
highest temperature digit (in case of refrigerator
maximum 9°C).
16
17
Other settings

142468
142468

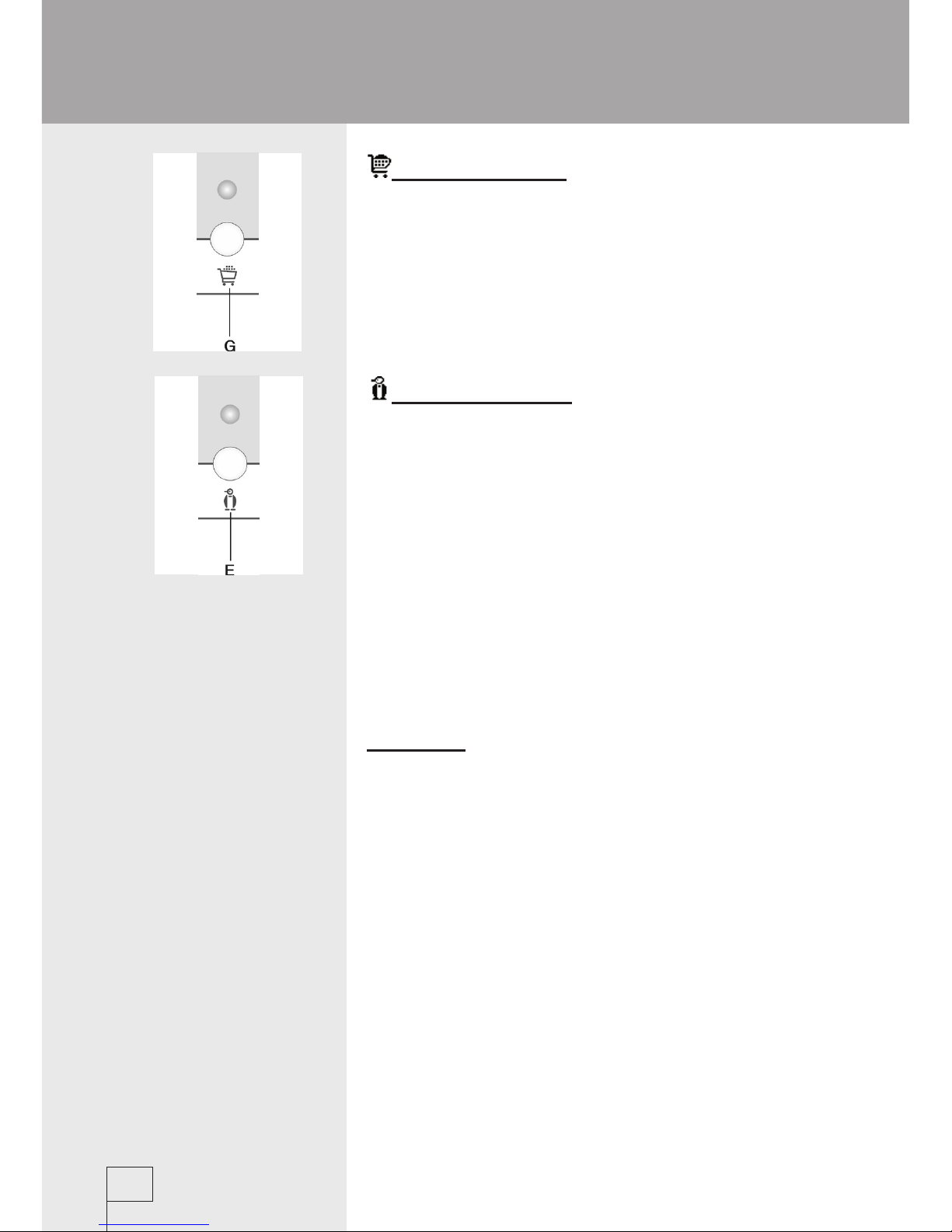

Intensive cooling
Intensive cooling of the refrigerator is activated by
pressing the button G (orange signal lamp H is on).
It is automatically switched off after 6 hours, and
the selection is set back to the pervading value. It
is intended for fast cooling of large quantity of
inserted food.
Intensive freezing
It is activated by pressing the button E (orange
signal lamp F is on), and the intensive cooling of
the freezer starts. If the setting is not deactivated
manually by pressing the same button adjacent to
the symbol again, it is switched off automatically
approximately two days after the activation. Setting
is intended for fast freezing of large quantities
of inserted food. In case of power failure the fast
freezing process is repeated. Use the setting also
with the rst start of the appliance, before intended
cleaning, and in case of large quantities of food
inserted in the appliance.
Child lock
Integrated child lock protects the appliance from
accidental temperature setting changes or even
switching the appliance off. You can activate or
deactivate the child lock by pressing the alarm
button (I) for 3 seconds (both displays ash ‘LL’ and
‘L’ for 3 seconds). Once the child lock is activated,
only the alarm button is active. Pressing any other
button provokes the letters ‘LL’ and ‘L’ to appear on
the display.
18
19

142468
142468
Refrigerator compartments:
- top section: canned food, bread, wine, cake, …
- middle section: dairy products, cheese,
readymade food, desserts, juices, beer, TV-
dinners, …
- bottom section: meat, meat products,
delicatessen, …
- crisp pan: resh fruit, vegetables, salads,
appliances without ZERO’N’FRESH drawer
also: root vegetables, potatoes, onions, garlic,
tomatoes, tropical fruit, sauerkraut, turnips, …
- ZERO’N’FRESH drawer: fresh meat, meat
products, sh, seafood, dairy products, salads,
fruit, vegetables, mayonnaise, dips and
sauces, …
Refrigerator door lining compartments:
- top/middle section: eggs, butter, cheese, …
- bottom section: beverages, cans, bottles, …
Freezer sections:
- door compartments: packed vegetables, ice
cream, ice,...
- other compartments: freezing, storing frozen
food or quick cooling of bottles (see section
“Freezing and storing frozen food”, setting “Quick
cooling of drinks in the freezer”,...)
18
19
Recommended
distribution of food
Recommended distribution of food

142468
142468
Proper use of the appliance, adequately
packed food, correct temperature and
hygienic precautions have substantial
impact on the quality of stored food.
Always respect the best before date,
printed on the packaging.
Food to be stored in the refrigerator
should be properly packed as to prevent
absorbing of moisture and building of
odors.
Never store inammable, volatile or
explosive substances.
Beverages with high alcohol percentage
shall be stored in tightly sealed bottles in
upright position.
Some organic solutions e.g: strong oils
in lemon/orange peel and acids in butter
etc. can cause damage through prolonged
contact with plastic surfaces or gaskets,
they can cause accelerated ageing of the
plastic material.
Unpleasant odour inside the refrigerator is
a sign that something is wrong with food
or that your refrigerator needs cleaning
(see chapter on Cleaning).
If you are away for a lengthy time, please
remove all perishables beforehand.
20
21
Storing fresh food
Important precautions
for storing fresh food
