CONTENTS
Dear Customer,
If you follow the recommendations contained
in this Instruction Manual, your appliance
will give you constant high performance and
will remain efficient for many years to come.
RECOMMENDATIONSANDSUGGESTIONS 17
CHARACTERISTICS 18
INSTALLATION 20
USE 24
MAINTENANCE 25

17GB
650 mm min.
RECOMMENDATIONS AND SUGGESTIONS
INSTALLATION
• The manufacturer will not be held liable for any damages
resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the
extractor hood is 650 mm.
• Check that the mains voltage corresponds to that indicated on
the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply
guarantees adequate earthing.
Connect the extractor to the exhaust flue through a pipe of
minimum diameter 120 mm. The route of the flue must be as
short as possible.
• Do not connect the extractor hood to exhaust ducts carrying
combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical
appliances (e.g. gas burning appliances), a sufficient degree
of aeration must be guaranteed in the room in order to prevent
the backflow of exhaust gas. The kitchen must have an opening
communicating directly with the open air in order to guarantee
the entry of clean air.
USE
• The extractor hood has been designed exclusively for domestic
use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has
ben designed.
• Never leave high naked flames under the hood when it is in
operation.
• Adjust the flame intensity to direct it onto the bottom of the
pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use:
overheated oil can burst into flames.
• The hood should not be used by children or persons not
instructed in its correct use.
MAINTENANCE
• Switch off or unplug the appliance from the mains supply
before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period.
• Clean the hood using a damp cloth and a neutral liquid
detergent.

18GB
CHARACTERISTICS

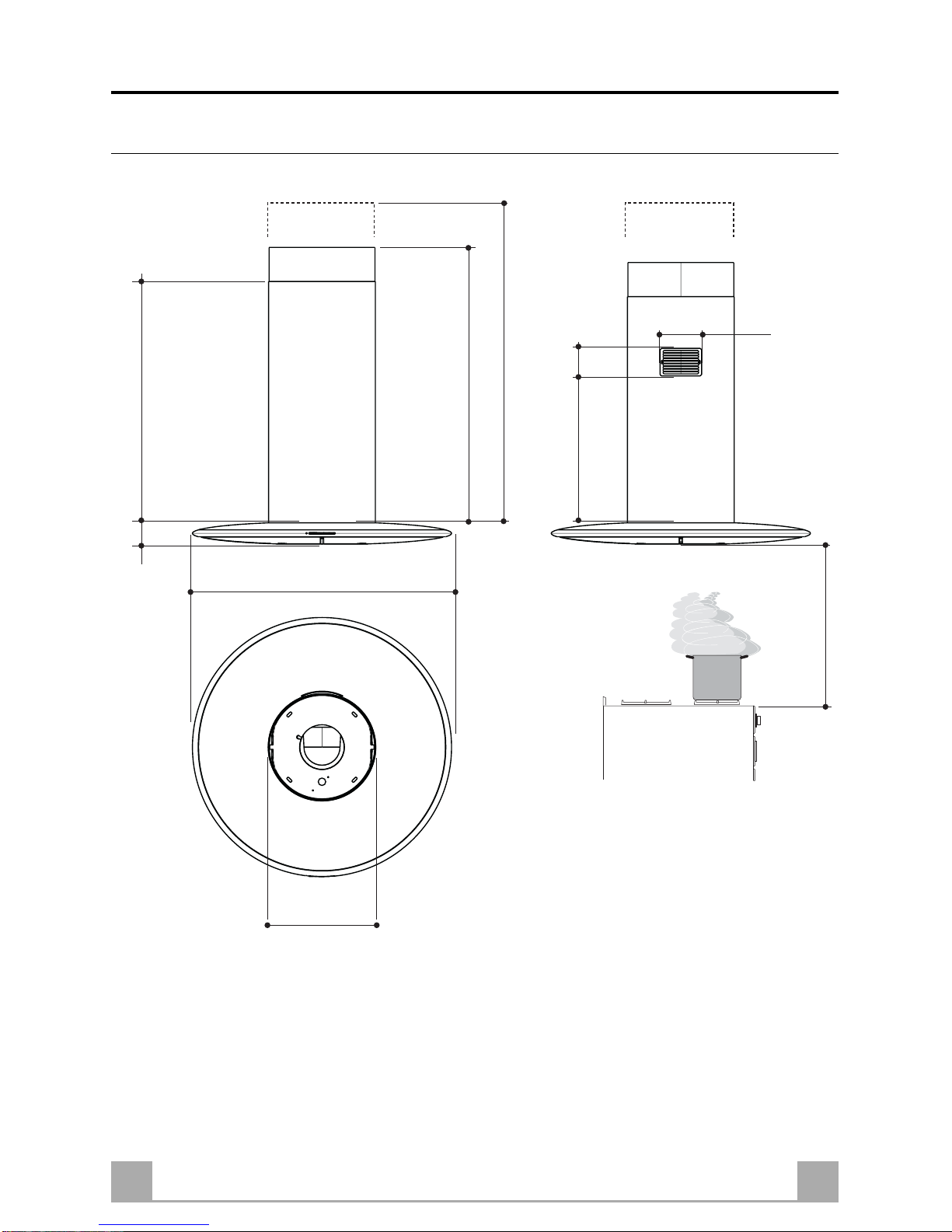

Dimensions
370
898
75 890
min. 890
max. 1170
650 min.
509 96
144

19GB
12f
2
2.1
2.2
11
12h
22
23
21
7.1
1
12g
14
9
25
8
7.1a
7.1b
34
15
14.1
14.2

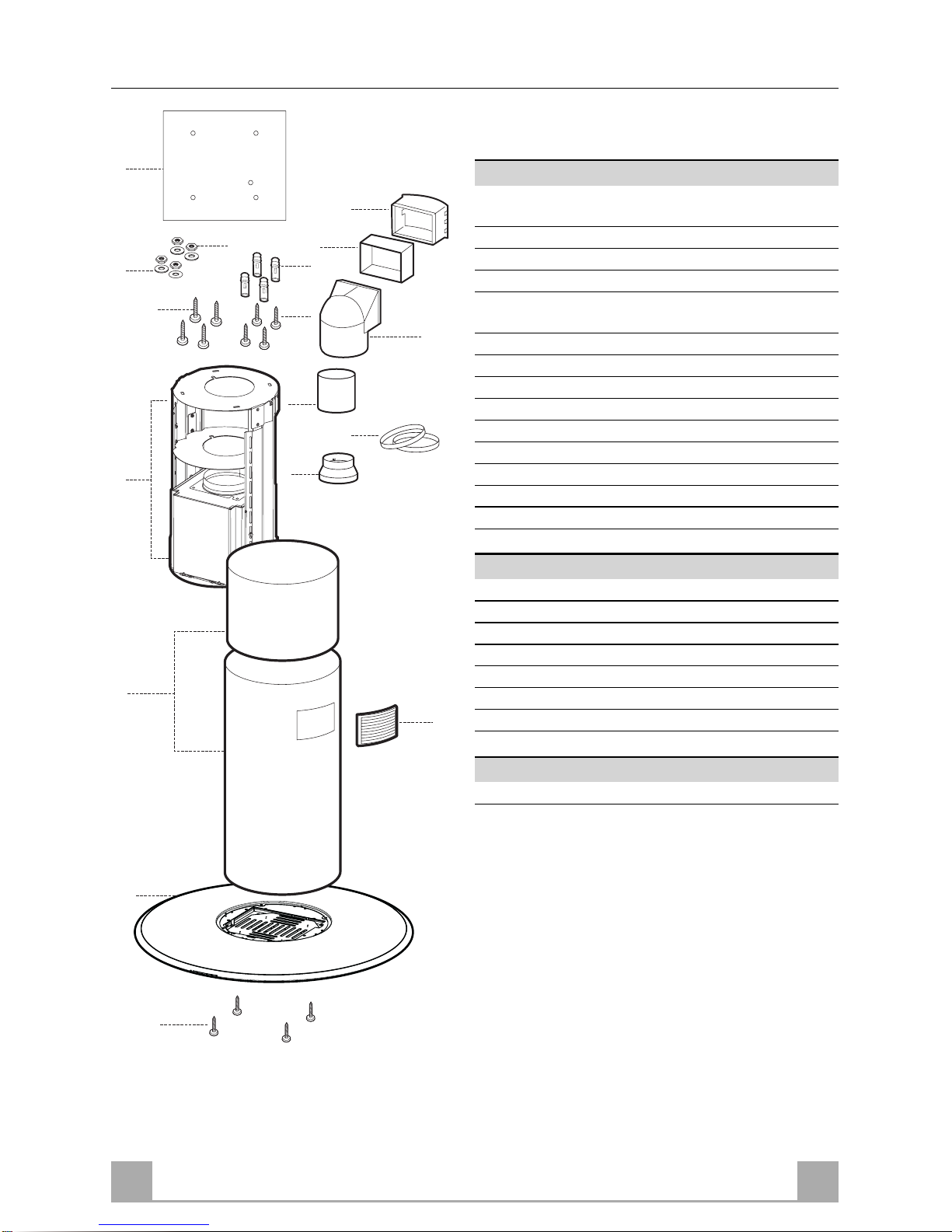

Components
Ref. Q.ty Product Components
11 Hood Body, complete with: Controls, Light,
Blower, Filters
21 Telescopic Chimney comprising:
2.1 1 Upper Section
2.2 1 Lower Section
7.1 1 Telescopic frame complete with extractor,
consisting of:
7.1a 1 Upper frame
7.1b 1 Lower frame
81 Air Outlet Grill
91 Reducer Flange ø 150-120 mm
14 1 Hood BodyAir Outlet Extension Piece
14.1 1 Air Outlet Connection Extension
14.2 1 Air Outlet Extension
15 1 Air Outlet Connection
25 2 Pipe clamps
Ref. Q.ty Installation Components
11 4 Wall Plugs ø 10
12f 4 Screws M6 x 10
12g 4 Screws M6 x 80
12h 4 Screws 5,2 x 70
21 1 Drilling template
22 4 6.4 mm int. dia washers
23 4 M6 nuts
Q.ty Documentation
1 Instruction Manual

20GB
INSTALLATION
Drilling the Ceiling/shelf and fixing the frame
Before starting installation, remove the Comfort Panels to prevent them from being damaged during
installation itself. Please consult the section on Maintenance on how to remove the panels.
DRILLING THE CEILING/SHELF

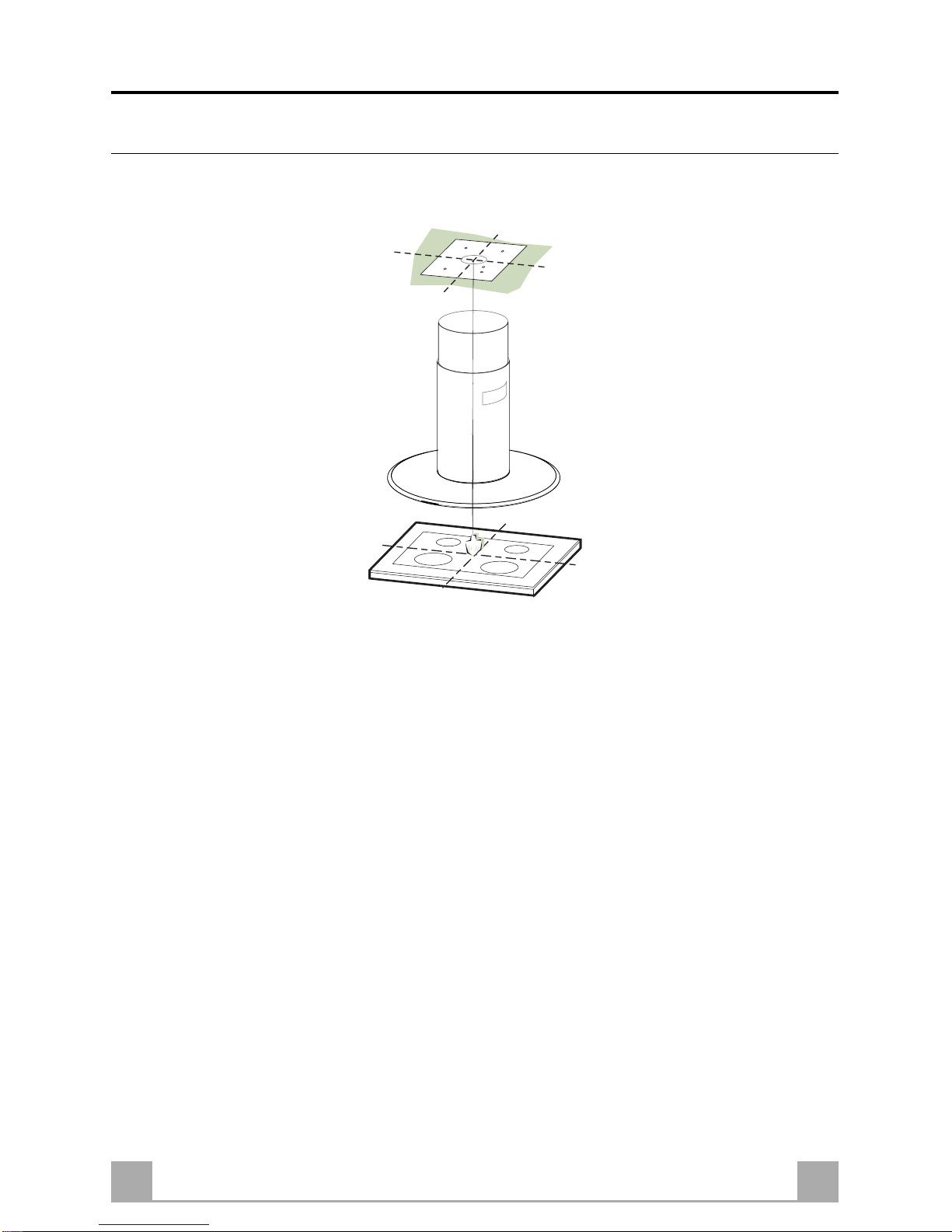

• Use a plumb line to mark the centre of the hob on the ceiling/support shelf.
• Place the drilling template 21 provided on the ceiling/support shelf, making sure that the template
is in the correct position by lining up the axes of the template with those of the hob.
• Mark the centres of the holes in the template.
• Drill the holes at the points marked:
• For concrete ceilings, drill for plugs appropriate to the screw size.
• For hollow brick ceilings with wall thickness of 20 mm: drill ø 10 mm(immediately insert the
Dowels 11 supplied).
• For wooden beam ceilings, drill according to the wood screws used.
• For wooden shelf, drill ø 7 mm.
• For the power supply cable feed, drill ø 10 mm.
• For the air outlet (Ducted Version), drill according to the diameter of the external air exhaust
duct connection.
• Insert two screws of the following type, crossing them and leaving 4-5 mm from the ceiling:
• For concrete ceilings, use the appropriate plugs for the screw size (not provided).
• for Cavity ceiling with inner space, with wall thickness of approx. 20 mm, Screws 12h, supplied.
• For wooden beam ceilings, use 4 wood screws (not provided).
• For wooden shelf, use 4 screws 12g with washers 22 and nuts 23, provided.

21GB
FIXING THE FRAME
• Unfasten the two screws fastening the upper
chimney stack 2.1 to the frame, and remove the
chimney from the upper stack.
If you wish to adjust the height of the frame,
proceed as follows:
• Unfasten the four safety screws located at the
top in the frame separation area. (A)
• Unfasten the eight metric screws joining the two
columns, located at the sides of the frame. (B)
• Adjust the frame to the height required, then
replace all the screws removed as above.
• To guarantee greater stability in the frame,
replace the four safety screws in the last hole
available.
• Insert the upper chimney stack from above, and
leave it running free on the frame.
• Lift the frame up, making sure that the index
over the frame plate is turned to the front.
• Fit the frame slots onto the two screws inserted
in the ceiling as above, and turn until reaching
the centre of the adjustment slot.
• Tighten the two screws and fasten the other two
screws provided; before locking the screws
completely, it is possible to adjust the frame by
turning it, making sure that the screws do not
come out of their housing in the adjustment slot.
• The Frame must be securely fastened so as to support both the weight of the Hood and the stress
caused by occasional axial pressure against the fitted Appliance. After fixing, make sure that the
base is stable even when the Frame is subjected to lateral stress.
• If the Ceiling is not strong enough in the area where the hood is to be fixed, the Installer must
strengthen the area using suitable plates and counterplates anchored to resistant structures.
Connections
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to the chimney using either a flexible or rigid
pipe ø 150 or 120 mm, the choice of which is left to the installer.
• To install a ø 120 mm air exhaust connection,
insert the reducer flange 9on the hood body
outlet.
• Fix the pipe using the pipe clamps 25 provided.
• Remove any activated charcoal filters.
A
B
2
1
12
9
ø 120ø 150

22GB
15
14
914.1
14.2

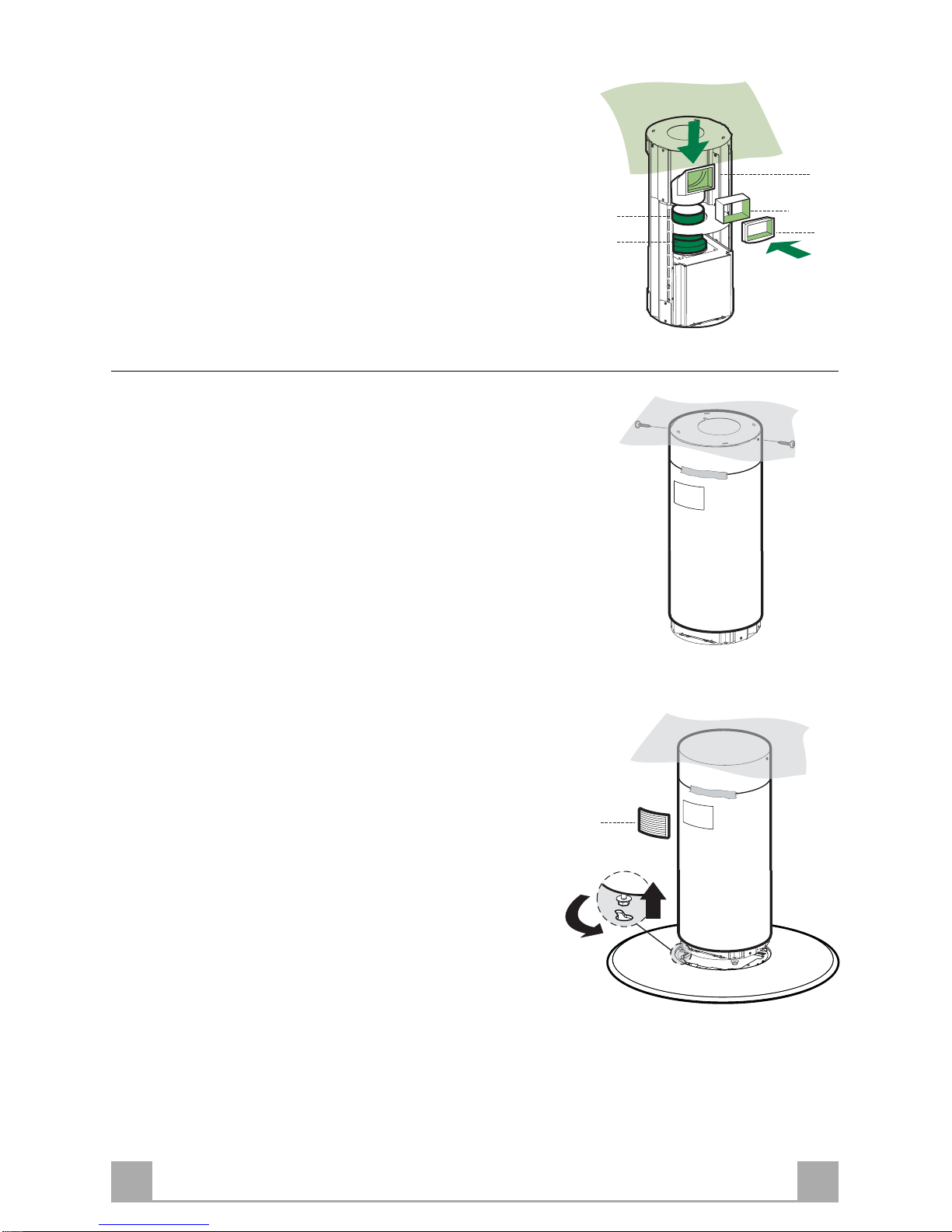

RECIRCULATION VERSIONAIR OUTLET
• Insert reducer flange 9on the extractor outlet.
• Push fit the extension piece 14 onto the flange.
• Push fit connector 15 onto the extension piece.
• Insert extension piece 14.2 laterally on
connector 15
• Insert extension piece/connector 14.1 laterally
on extension 14.2, ensuring that the outlet is in
line with the chimney intake.
Flue assembly - Mounting the hood body
• Position the upper chimney stack and fix the top of it
to the frame using 2 of the screws removed as above.
• Insert the lower chimney stack into the frame, holding
it in place with adhesive tape in the area separating
the lower chimney stack from the upper one.
Recirculation version
• Make sure that the outlet of the extension piece 14.1
is horizontally and vertically aligned with the chimney
outlet.
• If this is not the case, remove the lower Chimney Stack
and adjust the position of Extension 14; replace the
elements as described above.
Before fixing the Hood Canopy to the Frame:
• Remove the lighting unit; by turning the handle and
sliding the lever out of the fixing pin.
• Remove the activated charcoal filters, if fitted.
• Check that the screws provided to fix the hood canopy
to the frame have at least 4-5 mm between the head of
the screw and the frame plate.
• Hook the hood canopy to the frame and turn it to the
left until it reaches the stop, then lock the screws
immediately to prevent the hood canopy from falling
out accidentally.
• Remove the adhesive tape fixed to the lower chimney
stack as above, and rest the lower chimney stack
against the hood canopy.
• For the Recirculation Version, fit the directional grill
8into the housing provided. Also make sure that it is
properly fitted into connector 15.
8b
2
1

23GB
Lux
Cmd
ELECTRICALCONNECTION
• Connect the Hood to the mains power supply, inserting
a two-pole cut-out switch with contact aperture of at
least 3 mm along the line.
• Remove the lighting unit, by turning the knob and
sliding the fixing pin lever.
• Ensure that the supply cable connector is properly
inserted into the Suction device socket
• Hook up the Commands connector Cmd.
• Hook up the Spotlights connector Lux to the socket
provided behind the lighting unit cover.
• For the Recirculation Version, fit the Activated
Charcoal Odour Filter.
• Replace the lighting unit.

24GB
USE
Control panel

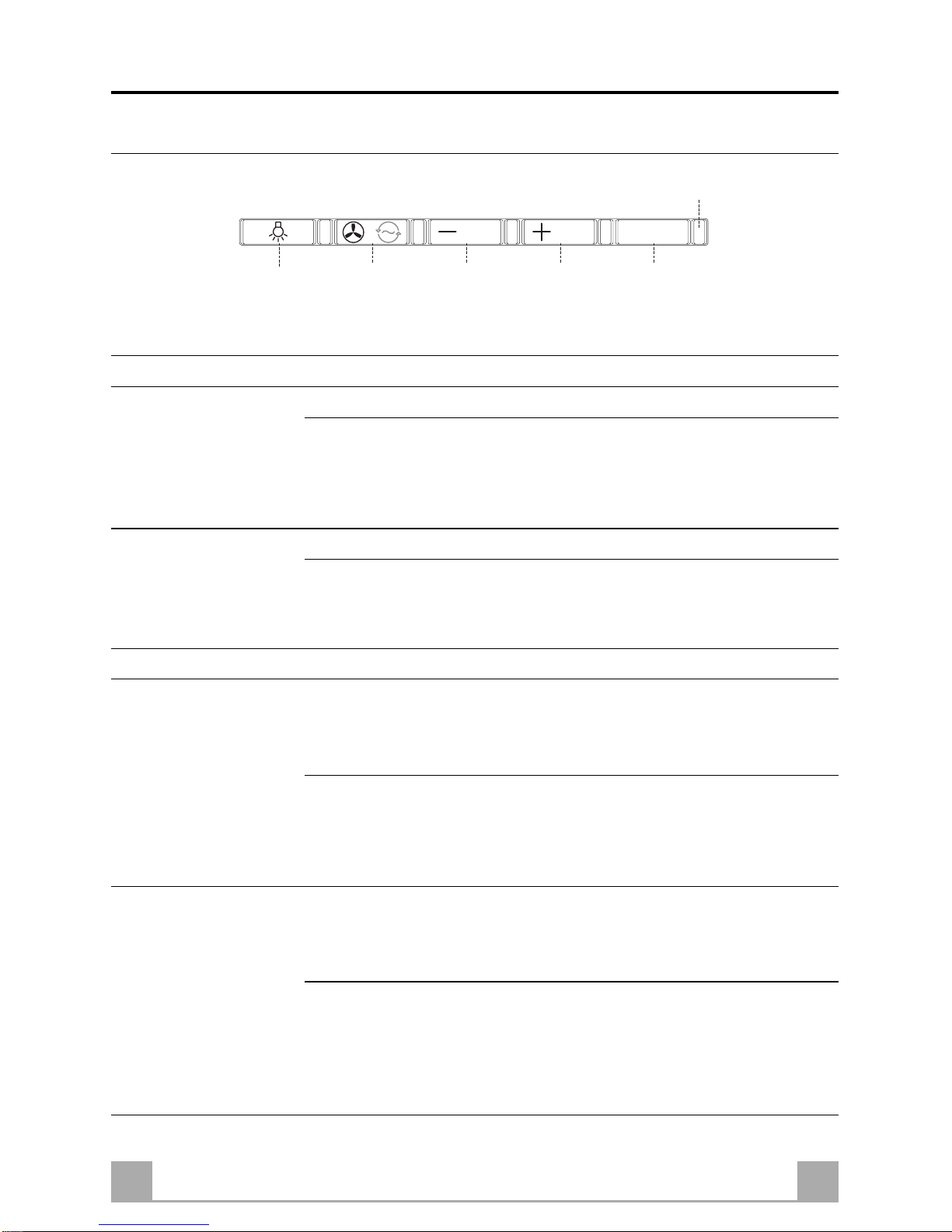

BUTTON LED FUNCTIONS
L- Turns the lighting system on and off.
T1 0/1 Motor Fixed Turns the motor on and off.
Flashing 24h Exchange
Enabled by pressing and holding the button for approx. 3”.
Provides 100 m3/h suction with a noise level of just
28dB(A). To disable, press the button again and hold for
approx. 3”.
T2 Speed Decreases the working speed.
Flashing Delay (30’)
Press and hold the button for approx. 2” to enable a 30’
automatic delayed shutdown. Suitable to complete elimi-
nation of any residual fumes.
T3 Speed Increases the working speed.
T4 Speed Fixed Intensive speed.
Suitable to deal with maximum vapour emission, this turns
off automatically ten minutes after starting operation. It can
be disabled by pressing the button T4.
Flashing POWER function (maximum suction power)
Press T4 for approximately 3 seconds to enable the Power
function (maximum suction power), which is indicated by
flashing of the LED. This function will be revert to inten-
sive speed after 5 minutes or when T4 is pressed again.
S1 Led Fixed Signals triggering of the Metal Grease Filters saturation
alarm, indicating that the filters need washing. The alarm
is triggered after the Hood has been operating for 100 work-
ing hours. (Reset see paragraph on Maintenance)
Flashing When enabled, signals triggering of theActivated Charcoal
Filter, which must be replaced; the Metal Grease Filters
must also be washed. TheActivated Charcoal Filter satura-
tion alarm is triggered after the Hood has been operating
for 200 working hours. (Enabling and Reset see paragraph
on Maintenance)
I/P
resetdelay
T1 T2 T3 T4
S1
L

25GB
REMOTE CONTROL (OPTIONAL)

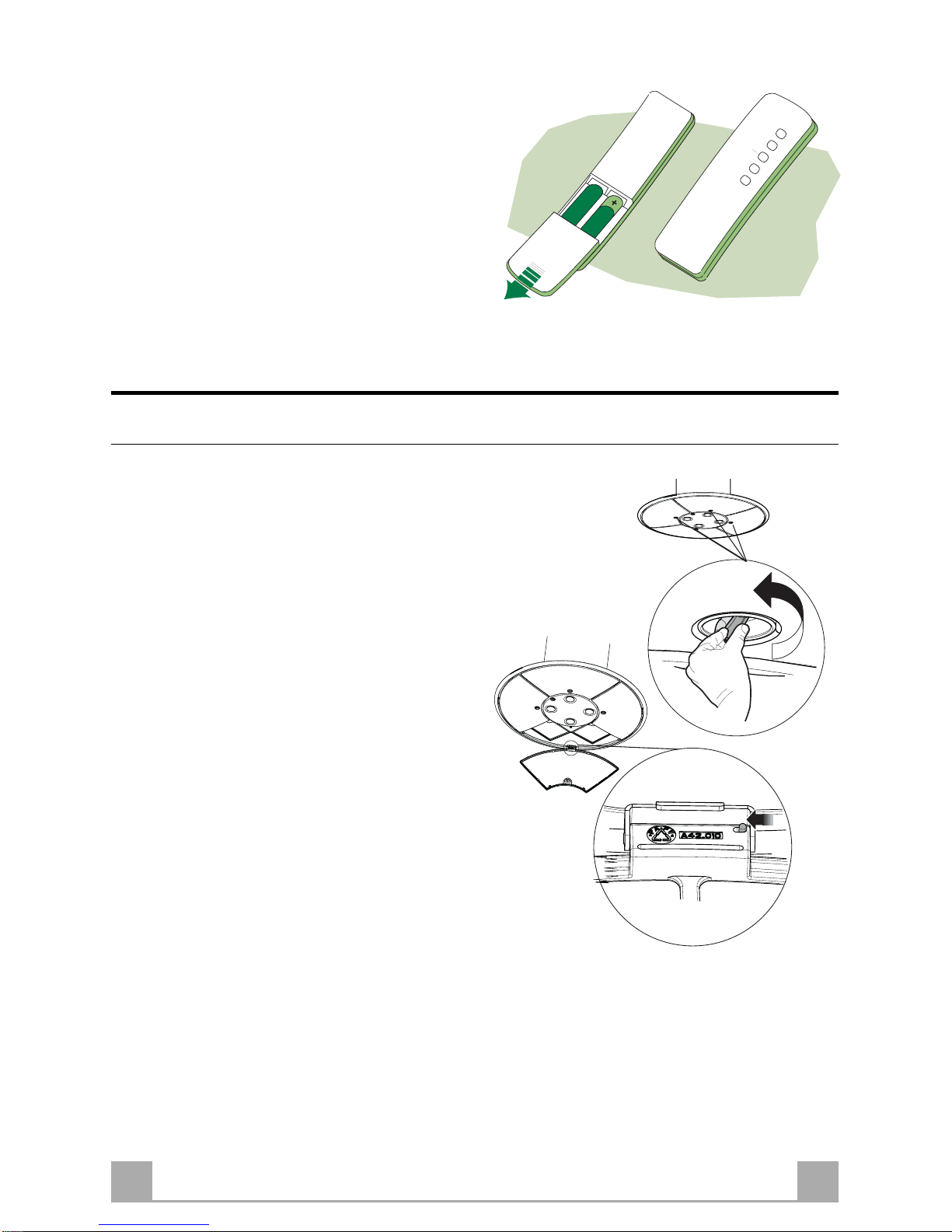

The appliance can be controlled using a remote
control powered by a 1.5 V carbon-zinc alkaline
batteries of the standard LR03-AAA type.
• Do not place the remote control near to heat
sources.
• Used batteries must be disposed of in the proper
manner.
MAINTENANCE
Cleaning the Comfort Panels
• Open the Comfort Panel using the knobs
provided.
• Disconnect the panel from the hood canopy by
sliding the fixing pin lever.
• The comfort panel must never be washed in a
dishwasher.
• Clean the outside using a damp cloth and neutral
liquid detergent.
• Clean the inside as well using a damp cloth and
neutral detergent; do not use wet cloths or
sponges, or jets of water; do not use abrasive
substances.
• When the above operation has been completed,
hook the panel back to the hood canopy and
close it by turning the knob in the opposite
direction.

26GB
Grease filters
Alarm signal reset
• Turn the Lights and the suction Motor off, and disable the 24h function if it has been enabled.
• Press T3 for at least 3 seconds, until indicators flash to confirm.
Cleaning the filters
• The filters must be cleaned every 2 months of
operation, or more frequently for particularly
heavy usage, and can be washed in a dishwasher.
• Open the Comfort Panel using the knobs
provided.
• Remove the filters one at a time by pushing them
towards the back of the group and pulling down
at the same time.
• Wash the Filters without bending them, and leave
them to dry thoroughly before replacing. ( The
surface of the filter may change colour after a
time, but this has absolutely no effect on its
efficiency.)
• When refitting the filters, make sure that the
handle is visible on the outside.
• Close the comfort panel.
Activated charcoal filter (Recirculation version)
• The filter is not washable and cannot be regenerated. It must be replaced when led S1 flashes or
at least every 4 months. The alarm signal will only light up when the extractor motor is switched
on.
Alarm signal activation
In Recirculation version Hoods, the Filter saturation alarm can be enabled on installation or at a
later date.
• Turn the Lights and the suction Motor off.
• Press and hold the T3 button for at least 10 seconds, until the LEDs start to flash. Note the
number of flashes:
- 2 flashes of the LED Activated charcoal filter saturation alarm ENABLED.
- 1 flash of the LED Activated charcoal filter saturation alarm DISABLED;

27GB
Alarm signal reset
• Turn the Lights and the suction Motor off, and
disable the 24h function if it has been enabled.
• Press T3 for at least 4 seconds, until indicators
T1 and T4 flash to confirm.
Replacing the Filter

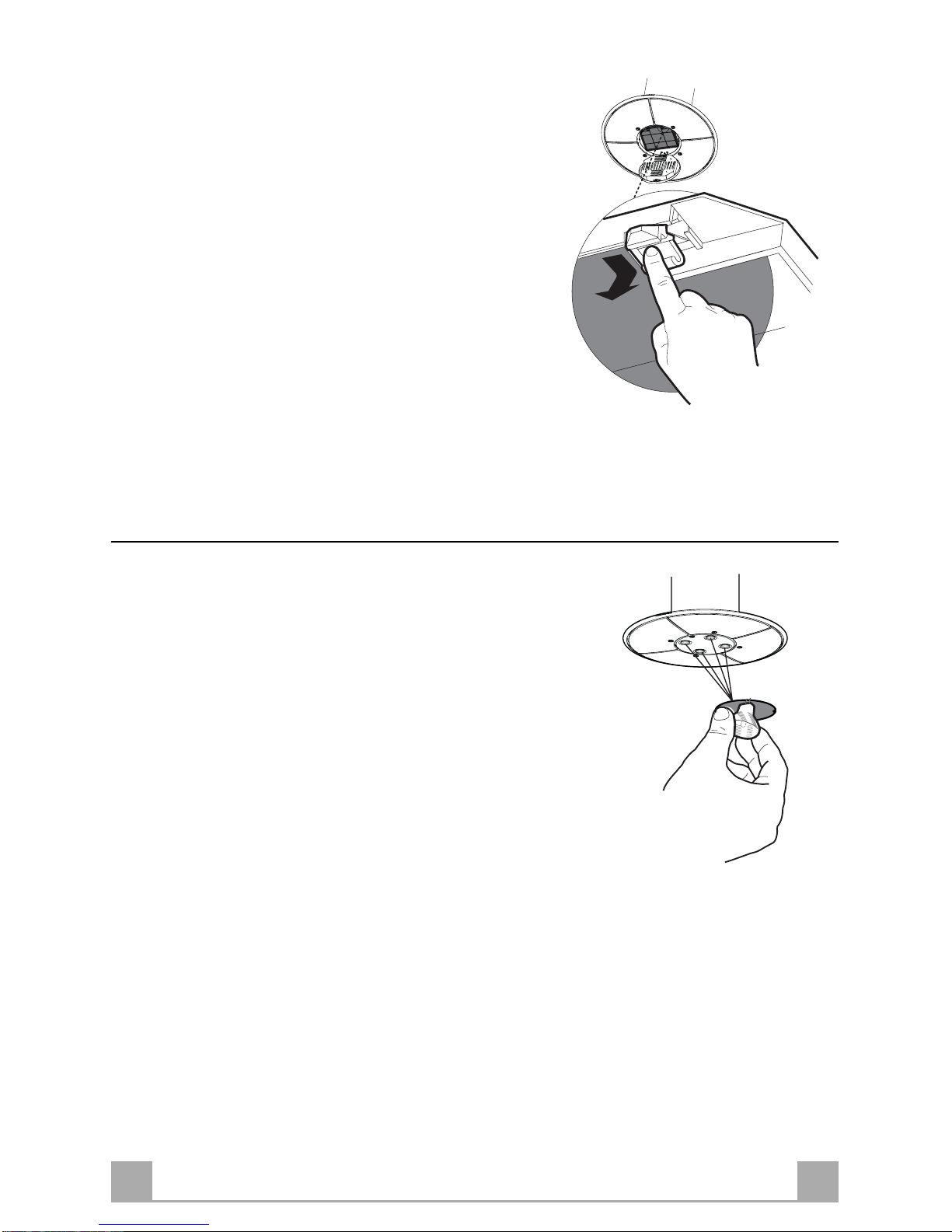

• Open the lighting unit by turning the knob
provided.
• Remove the saturated activated carbon filter by
releasing the fixing hooks
• Fit the new filter by hooking it into its seating
• Replace the lighting unit.
Lighting
LIGHT REPLACEMENT
20 W halogen light.
• Extract the lamp from the lamp holder by pulling
gently.
• Replace with another of the same type, making
sure that the two pins are properly inserted in
the lamp holder socket holes.
