Kaiser Baas KBA04043 User manual

let’s get started.

Contents
1 Introduction
1 Features
2 Product specifications
3 Safety notice
4 What’s in the box
5 Product description
7 Remote control
8 Getting started
13 Setup
20 Transferring your media files
25 Playing a slideshow
33 Playing a slideshow with music
34 Playing video files
37 Playing music files
39 File mode
43 Clock and Calendar
44 Contact us
44 Frequently asked questions

1
Introduction
Congratulations on the purchase of your 15” Digital Photo Frame Ultra-Slim. This user
guide will help you with the setup and playback of your photo, music and video collection.
Features
• 15inchTFTdigitaldisplaywitha1024x768resolutionand4:3aspectratio
• 2GBinternalmemory,copyfilesfromyourcomputer,memorycardorUSB
memory stick directly to the internal memory
• Playphotos,videosandmusicfromtheinternalmemory,memorycard
 orUSBmemorystick
• Playaphotoslideshowwithtransitionsandbackgroundmusic
• Built-inclockandcalendarwithslideshowfunction
• WallmountablewithanintegratedKensingtonSlot
• Includesaminiremotecontrol-selectadifferentphoto,pausea
slideshow, zoom, rotate and other functions available
• Built-inschedulefunctiontoturntheDigitalPhotoFrameonand off at designated times

2
Product specifications
Screen size 15 inch
Screen type TFT digital display
Resolution  1024x768
Aspect ratio  4:3
Brightness 200cd/m²
Contrast  500:1
Viewing angle  60°(left/right/vertical),40°(horizontal)
USB  USB2.0Host,MiniUSB
Audio output 3.5 mm stereo plug
Speaker  Stereo(2Watts)
Picture format BMP,JPEG(maximumresolution8000x8000)
Picture capacity  Maximum1000picturefiles
Video format  MPEG-1,MPEG-2,MPEG-4,M-JPEG,Xvid,AVI(maximum 
 resolution1024x768)
Audio format  MP3,WMA
Memory cards  MMC,MS,SD,SDHC(maximum16GB)
Language  English,French,German,Italian,Spanish
Working temperature  0°C~40°C,Humidity10-85%

3
Safety notice
DonotplaceyourKaiserBaas15”DigitalPhotoFrameUltra-Sliminplacesthatareexposed to oil,
water or dust.
KeepyourKaiserBaas15”DigitalPhotoFrameUltra-Slimawayfromheatsourcessuch
as heaters.
DonottryanddisassembleorremodeltheKaiserBaas15”DigitalPhotoFrame
Ultra-Slim. Doing so my cause the unit to malfunction and may void the warranty.
Do not touch the power cable with wet hands or use defective power cables as it may cause
electric shocks or fire.
DonotdroptheKaiserBaas15”DigitalPhotoFrameUltra-Slimasitmaycauseseriousdamage and
may void the warranty.
PlaceallmagnetiseddevicessuchasspeakersawayfromtheKaiserBaas15”DigitalPhotoFrame
Ultra-Slim as it may erase or cause damage to the on-board memory.

4
What’s in the box
OK
POWERBGM MUTE
MENU RETURN
SETUPPLAY/PAUSE
VOL- VOL+ ZOOM
ROTATE
OK
POWERBGM MUTE
MENU RETURN
SETUPPLAY/PAUSE
VOL- VOL+ ZOOM
ROTATE
OK
POWERBGM MUTE
MENU RETURN
SETUPPLAY/PAUSE
VOL- VOL+ ZOOM
ROTATE
OK
POWERBGM MUTE
MENU RETURN
SETUPPLAY/PAUSE
VOL- VOL+ ZOOM
ROTATE
OK
POWERBGM MUTE
MENU RETURN
SETUPPLAY/PAUSE
VOL- VOL+ ZOOM
ROTATE
OK
POWERBGM MUTE
MENU RETURN
SETUPPLAY/PAUSE
VOL- VOL+ ZOOM
ROTATE
OK
POWERBGM MUTE
MENU RETURN SETUPPLAY/PAUSE
VOL- VOL+ ZOOM
ROTATE
15” Digital Photo Frame Ultra-Slim USBcable Power adaptor
User guide Warranty card
Bracket
Remote control

5
Product description
Right side
Memorycardslot
USBinput
MiniUSB
Headphone/speakeroutput
DC input

6
Rear
DRACSM/CMM/DS BSU
INIM
BSU
MENU
Power button
Left / volume –
Right / volume +
Up / previous photo / previous
music track / previous video
Down / next photo / next
music track / next video
Menu
Ok / play / pause

7
Remote control
POWER Turn the device on or off
BGM Press this button to play a slideshow with music
MUTE Press to mute the audio
MENU Press to access the main menu
UP Directional button, press to display a previous
photo or play a previous music track
RETURN Press to go to the previous screen or to
stop playing a slideshow, music track or video file
LEFT Directional button, press to display a previous
photo or play a previous music track
OK Confirm selection
RIGHT Directional button, press to display the next
photo or play the next music track
SETUP Press to access the on-screen menu when
playing a slideshow or video file
DOWN Directional button, press to display the next
photo or play the next music track
PLAY/PAUSE Play or pause a slideshow,
music track or video file
VOL- Press to decrease the volume
VOL+ Press to increase the volume
ZOOM Press to magnify a photo or video
Press to display a previous photo, play a
previous music track or play a previous video file
Press to display the next photo, play the
next music track or play the next video file
ROTATE Presstorotatethephotoby90°,180°and270°
OK
POWERBGM MUTE
MENU RETURN
SETUP PLAY/PAUSE
VOL- VOL+ ZOOM
ROTATE
1 2 3
4 5 6
7 8 9
10 11 12
13 1114 1215
1016 11
17 1218
1
2
3
4
5
6
7
8
9
10
11
12
13
1114
1215
16
11
17
1218
OK
POWERBGM MUTE
MENU RETURN
SETUP PLAY/PAUSE
VOL- VOL+ ZOOM
ROTATE
OK
POWERBGM MUTE
MENU RETURN
SETUP PLAY/PAUSE
VOL- VOL+ ZOOM
ROTATE

8
Getting started
To prevent scratches on the display during transport, there is a protective plastic sheet covering the
screen. Please remove this before use –

9
Connect the power adaptor to the DC input located on the right hand side of the frame -
DRACSM/CMM/DS BSU
INIM
BSU
MENU

10

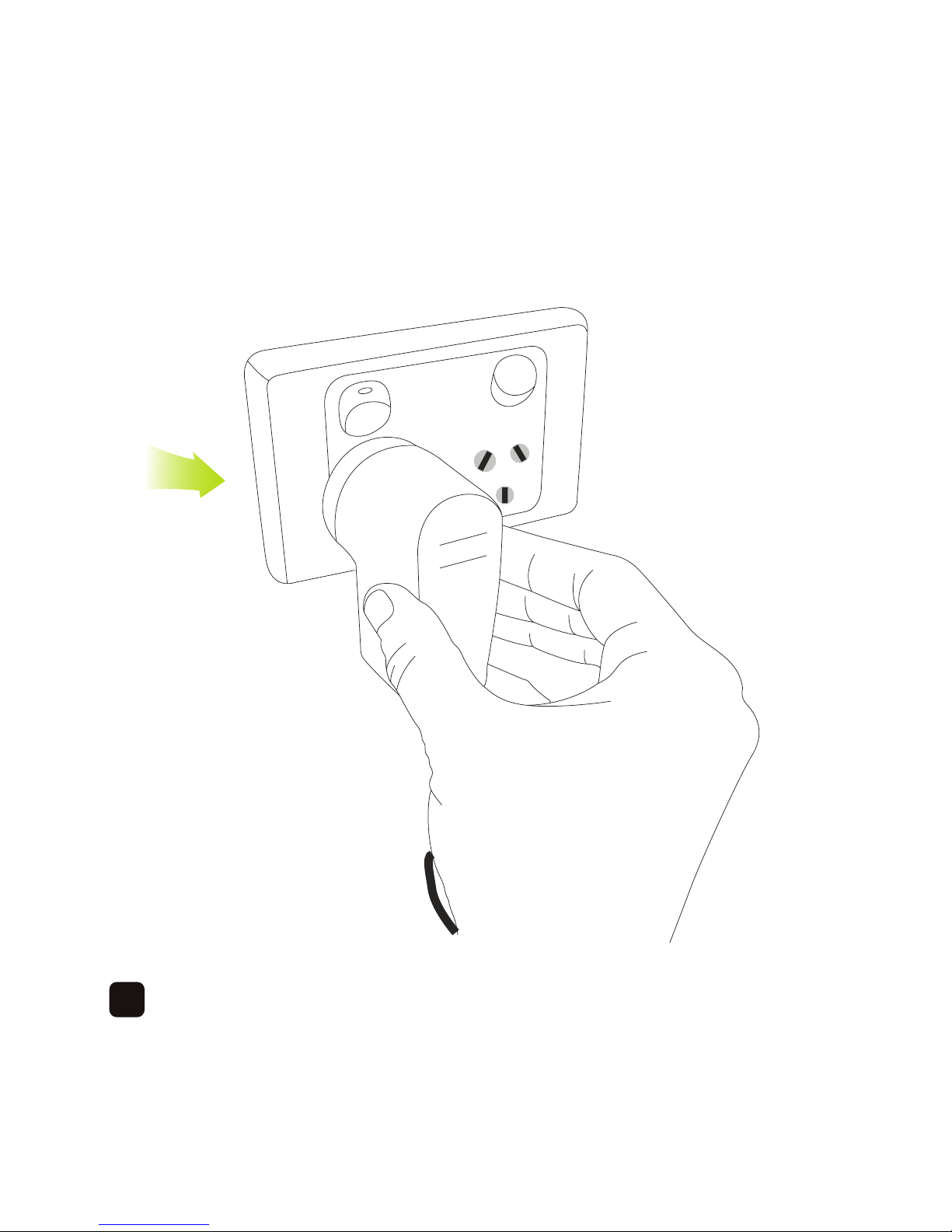

Connect the other end into the mains power point –

11

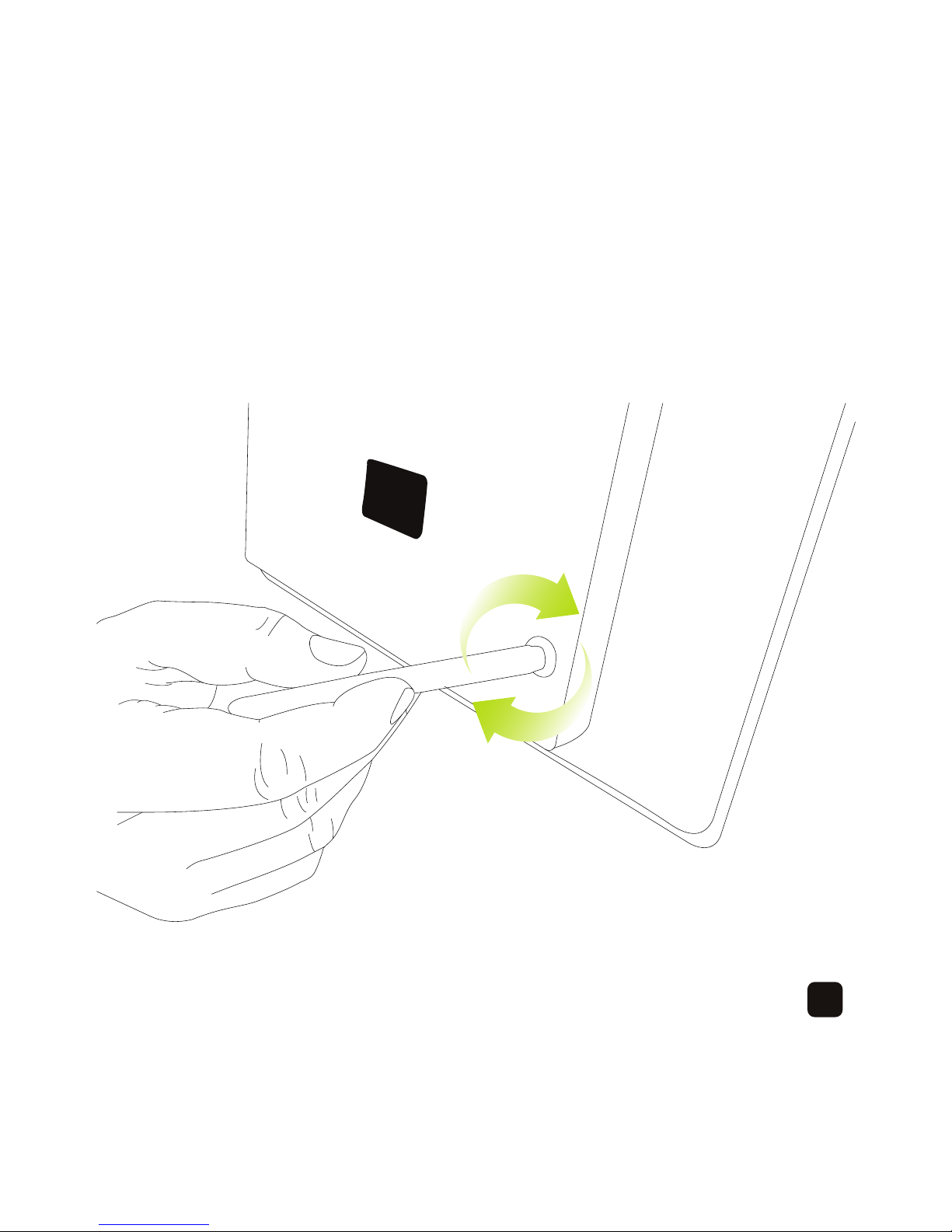

Insert the bracket into the rear of the frame and screw in securely -

12
Remove the plastic tab from the remote control before use -
OK
POWERBGM MUTE
MENU RETURN
SETUP PLAY/PAUSE
VOL- VOL+ ZOOM
ROTATE

13
Setup
To turn on the frame, press the power button on the remote control or the power button
located on the back of the frame -
DRACSM/CMM/DS BSU INIM
BSU
MENU
OK
POWERBGM MUTE
MENU RETURN
SETUP PLAY/PAUSE
VOL- VOL+ ZOOM
ROTATE

You will see the ‘Kaiser Baas’ logo and a slide show will start playing.
There are a number of picture files on the on-board memory for demonstration purposes.
 Thefilescanbedeletediftheyarenolongerrequired.(seepage39forinstructions).
Press the ‘MENU’ button to exit the slide show.
You will now see the following screen -
Press the directional button to select ‘Setup’ and press ‘OK’ to confirm.
14

There are a number of options that you can change -
Language Change the on-screen language
Slideshow Time Change the time that each picture is displayed
Slideshow Mode Change the type of transitions that you want displayed
between each picture
Music Repeat Mode Change the repeat mode when playing music tracks
Movie Repeat Mode Change the repeat mode when playing video files
Slideshow Option Change the slideshow display from random to sequence
Time Change the date and time
15

16
Display Mode This will change how a photo or video is displayed –
Wide mode

17
Normal mode

18
Alarm  Adailyoronceonlyalarmcanbeenabled
Brightness Change the brightness level
Contrast Change the contrast level
Saturation Change the saturation level
Auto Power On  Enabletheframetobeturnedonataparticulartime
Auto Power Off Enabletheframetobeturnedoffataparticulartime
AutoPlay Choose what to display first when the frame is turned on
Default Return to factory default settings
