KAL-FIRE G Series User manual

User
instructions
BALANCED-FLUE GAS FIRES
DON’T COMPROMISE.
EN

Balanced-flue gas fires Kalfire G
G60/48F, G65/44C, G70/44S
G80/48F, G85/44C, G90/44S
G100/41F, G105/37C, G110/37S
G120/41F, G125/37C, G130/37S
G160/41F, G165/37C, G170/37S
for gas type: G20, G25 and G30
Balanced-flue gas fires Kalfire GP
GP60/59F, GP65/55C, GP70/55S
GP60/79F, GP65/75C, GP70/75S
GP75/59F, GP80/55C, GP85/55S
GP80/54T, GP85/50R
GP105/59F, GP110/55C, GP115/55S
for gas type: G20, G25 and G30
and
GP105/79F, GP110/75C, GP115/75S
for gas type: G20 and G25
Version 01-2019

5
4.12 Setting the Natural
Spark Generator 21
4.13 Fill the Natural
Spark Generator 21
4.14 Configure the iMatch app 21
4.15 iMatch app settings 22
4.16 Resetting the iMatch
interface 22
4.17 Using the iMatch app
through the iMatch interface 23
5. Maintenance 24
5.1 Maintenance 24
5.1.1 Cleaning the (standard)
ceramic windows. 24
5.1.2 Cleaning instructions
anti-reflective glass 24
5.1.3 Door dismantling and assembly
(corner and three-sided
appliances) 26
5.1.4 Door dismantling and assembly
(front and tunnel fireplaces) 27
5.2 Malfunctions 28
5.2.1 Removing or resetting
a malfunction. 28
5.2.2 Error codes iMatch
remote control 29
5.2.3 Error code iMatch interface 33
5.3 Malfunctions Natural
Spark Generator 33
A. Appendices 34
A.1 Product card 35
A.2 Wiring diagram 36
A.3 Certificate of compliance 37
Contents
1. General information 7
1.1 Foreword 7
1.2 Pictograms 8
1.3 Warranty 8
1.4 Compatibility iMatch interface 9
2. Safety 11
2.1 Safety instructions for
decorative elements 11
2.2 Safety related to use 11
2.3 Three safety measures
for the gas fire 12
3. Description 14
3.1 Gas fire description 14
4. Operation 16
4.1 Replacing the batteries 16
4.2 Using the iMatch
remote control 16
4.3 Setting day and time 17
4.4 Checking transmission
strength 17
4.5 Switching the appliance
on and o 18
4.6 Setting the flame intensity 18
4.7 Selecting the thermostat or
manual operating programme 18
4.8 Setting the flame intensity
by thermostat 19
4.9 Programming time segments 19
4.10 Programme choice for
the hybrid LED lighting 20
4.11 Activating/deactivating the
hybrid LED lighting and
adjusting the lighting intensity 20

6

7
The gas fire and accompanying remote
control may only be used in accordance
with the reason it was designed and
after review of the Installation Manual
and user instructions.
Modifications of whatever nature can
also affect the safety of the gas fire.
Alterations can nullify the warranty and
the periodic inspection of the gas fire
will come to lapse.
If the gas fire is not installed correctly,
all warranty and/or damage claims
against Kalfire will be declared null and
void.
This gas fire has been tested and
approved according to CE standard
EN-613. Every gas fire that leaves the
factory has been tested for technical
and functional adherence to relevant
quality standards in force.
This user instruction is available in va-
rious languages on www.kalfire.com,
or through your installation bureau.
All translated instructions have been
translated from a Dutch instruction,
which is the original document.
Disclaimer
All rights reserved. No part of this
manual may be copied, distributed or
translated into other languages, in full
or in part, without the prior written per-
mission of Kalfire. Kalfire reserves the
right to make changes to the manual.
Kalfire, however, cannot provide any
warranty, implicitly or explicitly, for this
1. General information
The following sections provide general
information about the gas fire:
- Foreword
- Pictograms
- Warranty
- iMatch interface compatibility
1.1 Foreword
About this manual
This user instruction has been written
for the users of the gas fire. A seperate
Installation Manual accompanies this
User Instructions. The user instructions
should remain in the vicinity of the gas
fire so that they are readily available for
fireplace users.
The gas fire may only be installed by
qualified technicians complying with all
relevant national or local regulations.
The current technology status, the
provisions of the Building & Housing
Inspectorate and the national and Eu-
ropean regulations should be taken into
account with regard to the installation
work and the operation of the gas fire
once fully connected.
Maintenance and repair work may only
be carried out by authorised technical
fitters.
Effective use
This gas fire has been designed as am-
biance heating and has not been desig-
ned to be used as the principal heating
unit for part of a house or throughout
the house.

8
Warranty conditions
1. The warranty period for Kalfire gas
appliances amounts to two years
from the procurement date, that
must be clearly legible on the proof
of purchase.
2. The two-year warranty period
does not apply to discouloration of
the paint on the flat or design rear or
side interior, as a one-year warranty
period applies in such cases.
3. The gas fire must be installed by a
technical fitter approved by Kalfire
according to the accompanying In-
stallation Manual and in compliance
with all relevant national and regional
standards in force.
4. Kalfire assumes no responsibility
for errors or defects related to the
installation of the gas fire. Placing
of the appliance, the quality and
material choice of the finished pro-
duct and a check as to the correct
operation of the concentric flue duct
system are the responsibility of the
technical fitter approved by Kalfire.
5. The warranty covers no right what-
soever to compensation in the event
that the appliance cannot be used.
6. Glass, tubing and rubbers as well as
physical and chemical external in-
fluences during transport, storage or
installation fall outside the scope of
the warranty.
7. Should disruption occur within the
warranty period caused by a manu-
facturing error or material defect,
Kalfire will deliver the components
needed for repair to the technical
fitter of the gas fire, without paying
compensation for dismantling or as-
manual. Any risk is fully for the account
of the user.
Copyright @ 2018 Kalfire B.V.
Geloërveldweg 21, Belfeld,
The Netherlands
1.2 Pictograms
The following pictograms are used in
this manual;
IMPORTANT Warning for flamma-
ble material. Mitigate the risk of
an explosion by carrying out these
instructions carefully in the vicinity
of explosive materials.
DANGER! Warning for flammable
material. Follow instructions to
ensure that the possibility of fire
thanks to the sudden ignition of
flammable materials is prevented.
WARNING General warning. Miti-
gate the risk of injury by carrying
out the instructions carefully.
CAREFUL! General warning. Miti-
gate the risk of material damage by
following the instructions diligently.
1.3 Warranty
Kalfire products are manufactured with
meticulous precision from premium
materials. Despite this, should an error
or defect become apparent, Kalfire will
provide warranty coverage according to
the following provisions.

9
to the user instructions.
5. Should deviation from the Kalfire
specifications have occurred in any
way or form during installation of the
concentric flue duct system.
6. Should deviation from the Kalfire
specifications have occurred in any
way or form during configuration of
the decorative elements, including
possible ceramic wood logs on the
burner bed.
7. Damage attributable to external
causes (shocks, lightning, falling,
flooding or overheating of the appli-
ance) during transport, storage or
installation.
8. Should the appliance be impacted
by neglect, improper use and/or
gross negligence.
9. If the repair or delivery of individual
parts be carried out by another
manufacturer or by a professional
technical fitter who has not been ap-
proved by Kalfire.
1.4 Compatibility iMatch interface
The iMatch interface enables the ap-
pliance to be operated by an external
application such as a tablet or smart-
phone. The iMatch interface ensures
that connection is made between the
local Wi-Fi network and the appliance.
In some cases it can happen that the
interface does not function adequate-
ly. This can be caused by insufficient
coverage (signal) by the Wi-Fi network
or because the appliances connected
to one another (including telephone,
tablet or router) are incompatible.
The iMatch interface and your external
sembly.
8. Renewing or replacing components
that fall under the scope of the gua-
rantee do not extend the duration of
the warranty.
9. Should the technical fitter approved
by Kalfire be unable to rectify the
problem covered by the warranty,
then he is entitled upon his own
express desire to request Kalfire to
assume responsibility for doing so
(only valid in the Benelux, Germany
and France).
10. Verification or repair of an entire gas
fire or parts thereof can only take
place by appointment, after prior
consultation between Kalfire and the
technical fitter approved by Kalfire.
11. A dated proof of purchase must
be presented to Kalfire should a
possible home repair service (only
available in the Benelux, Germany
and France) be carried out within
the warranty period.
12. In the event of home repair service
outside the warranty period, materi-
al costs, working hours and call-out
charges will apply.
The warranty is not applicable in the
following circumstances:
1. If the warranty provisions have not
been complied with, in part or in full.
2. If alterations to the appliance have
been brought about without Kalfire’s
written permission to do so.
3. If the appliance passes into new
ownership.
4. If the appliance has not been fitted
according to the Installation Manual
and/or has not been used according

10
appliance must be connected to the
same router (through the same net-
work). The Wi-Fi signal can be checked
in advance and can be improved if
required. With regard to the huge
diversity of appliances, their compati-
bility can regrettably not be confirmed
beforehand. Only after installation
of the interface can compatibility be
confirmed. Kalfire accepts no liability
for the non-functioning, or insufficient
functioning, of the iMatch interface as
a consequence of the cause described
above.

11
CAREFUL! During operation of
the appliance, small hairline cracks
may develop in the ceramic logs.
These have no negative impact on
the operation or flame profile of
the appliance. Hairline cracks do
not fall under the warranty.
CAREFUL! When heated, the gas
fires’s internal metal lining can
expand. This can cause the layer of
paint on the metal to deform, re-
sulting in damage or imperfections.
The spray paint supplied with the
gas fire allows any paint damage to
be fixed.

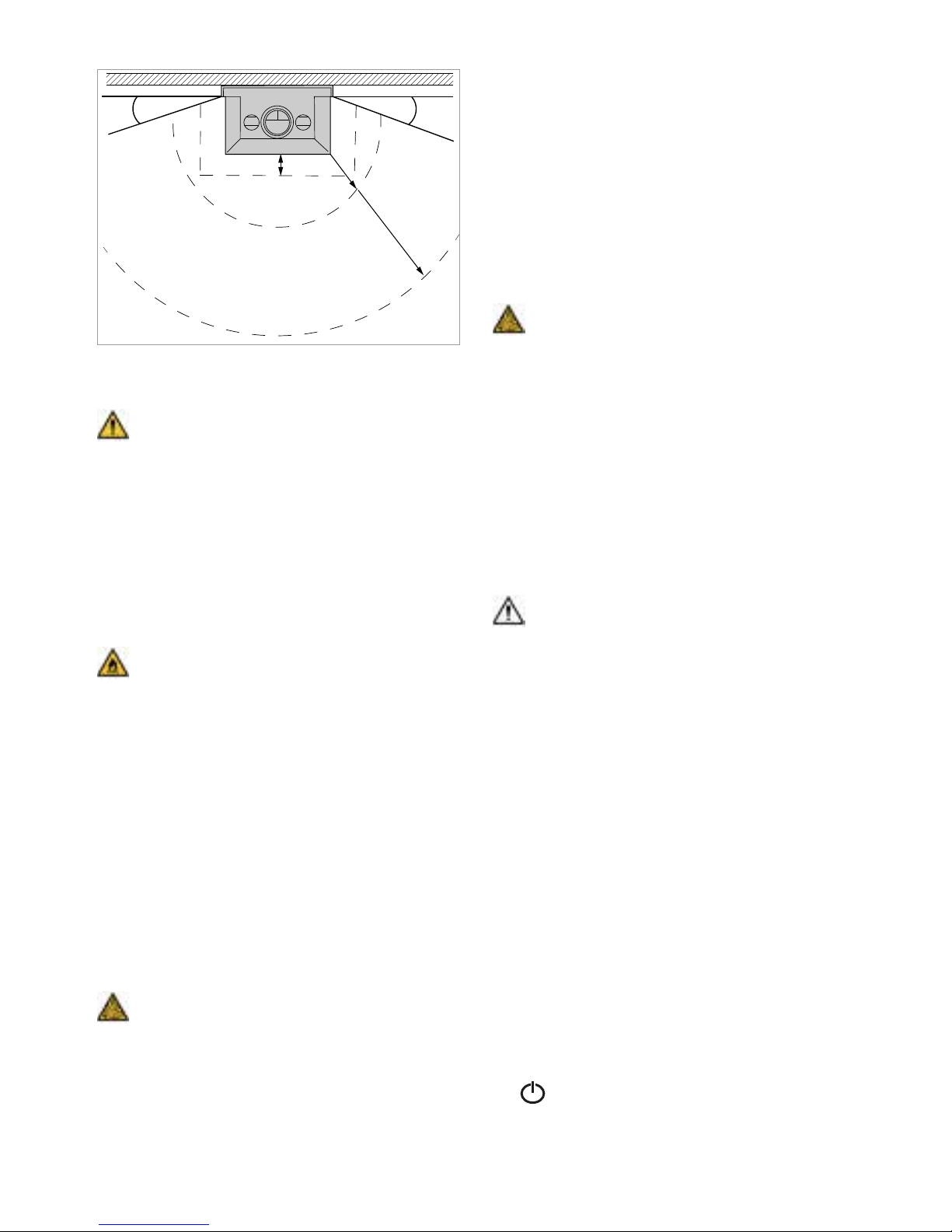

2.2 Safety related to use
There are risks attached to using a gas
fire. The temperature of all visible parts
of the gas fire can rise steeply and the-
re is a risk of fire or combustion. Be sure
that the following safety precautions
have been taken:
WARNING: The gas fire needs a
permanent power supply. When
interrupting the power supply,
previously stored errors are dele-
ted. Interrupting the power supply
regularly affects the safety provisi-
ons, which can result in dangerous
situations.
Fire hazard
WARNING Make sure that flam-
mable materials such as curtains
and furniture are at least 100 cm
from the fireplace. If a fireguard is
used, this distance must be at least
40 cm.
2. Safety
The following sections provide safety
information about the gas fire:
- Safety regulations for decorative
elements
- Safety related to use
- Three safety measures for the gas fire
2.1 Safety instructions for
decorative elements
FIRE HAZARD! The decorative
elements must be placed according
to the instructions. It is prohibited
to alter the number of decorative
elements or the configuration
thereof. Such alterations can lead
to hazardous situations in terms of
fire safety.
WARNING The ignition or ionisa-
tion rods must be left uncovered.
Ensure this is the case when
placing the decorative elements.
Careless decoration of the gas fire
can cause incorrect ignition, an
error code (08A or 08F) or a hazar-
dous situation.
WARNING If the fireplace is de-
livered with the Natural Spark
Generator, the adhesive tape with
which the iron filter cap has been
secured should be removed during
installation. During installation of
the fireplace components, the filter
cap is covered with a ceramic wood
log or a piece of ceramic charcoal
(depending on the Kalfire GP mo-
del).

12
If you notice fumes or gas, take the fol-
lowing precautions:
1. Switch off the gas fire.
2. Close the main gas valve.
3. Open windows and doors.
4. Advise an approved installer of the
issue.
DANGER OF EXPLOSION! Should
damage occur, close the gas valve.
Do not use the gas fire if a glass
panel is cracked, is not in place or
incorrectly mounted.
The gas fire needs a permanent power
supply. Interrupting the power supply
can impact safety precautions.
The risk of discolouration
CAREFUL! After the convection
system of the fireplace has been
heated, air particles, cigarette
smoke, candles and oil lamps can
cause discolouration of walls and
ceilings. Ensure sufficient ventilati-
on in the room in which the gas fire
is installed.
2.3 Three safety measures for the
gas fire
1. The flame is detected due to elec-
tronic ionisation measurement
Should the gas fire be unable to de-
tect a flame during ignition, the gas
supply will be interrupted for one
minute. A new ignition attempt will
follow automatically. To interrupt au-
tomatic ignition attempts: Press the
button to switch off the fireplace
directly and depress this button for
approximately 10 seconds.
Fig. 1: Safe zone
WARNING Should the floor in front
of the fireplace consist of com-
bustible material and the distance
from the underside of the combus-
tion chamber to the floor be smaller
than 10 cm, a heat-resistant fire-
guard floor plate larger than 30 cm
or a stone should be placed.
Danger of combustion
FIRE HAZARD! Do not touch the
appliance! The gas fire is hot when
switched on or just switched off.
Ensure extra safety precauti-
ons and safety measures if less
able-bodied persons, elderly peo-
ple and/or children have access
to the fireplace. Only the remote
control and the technical unit can
be used without fear of danger due
to combustion.
Danger caused by fumes or gas leaks
DANGER OF EXPLOSION!
Fumes and/or gas leaks can cau-
se life-threatening situations.
Fumes can be the cause of carbon
monoxide poisoning and gas leaks
are an explosion risk.
30 cm
40 cm
100 cm
20°
20°

13
2. 24 hour security
The appliance will stay in a blocked
position if no flame is detected after
three automatic ignition attempts
(error code 08A). The block will take
effect after one ignition attempt with
gas type G30. This block can twice be
unlocked manually with the remote
control. If no flame is detected after
two manual releases, the appliance
will remain blocked for 24 hours (a
‘lock-out’, code 08F). In that case,
you may not use the gas fire for
24 hours.
3. Overpressure protection
The gas fire is equipped with over-
pressure protection to minimise risk.
Should explosive ignition occur, the
glass panel on the front topside will
open to reduce the pressure.

14
also be switched on separately without
engaging the Prestige burner.
The Kalfire G with a 3D burner ge-
nerates an elongated and horizontal
flame pattern, well suited to a modern
household interior. The 3D burner offers
a particularly attractive and true-to-life
flame pattern. Kalfire G gas fires are
delivered with a standard or optional
luxury ceramic log set, white stones,
grey pebbles or cryptonite.
Smooth transition between gas fire
and surround
The balanced-flue gas fires are easy to
align with the household interior during
installation. The gas fire stone, often
made from natural stone, can continue
along the outer edge of the gas fire with
the help of stone supports. The side
walls can be fluidly finished in the sur-
round of the gas fire. The back wall can
be extended to outside the gas fire, me-
aning the metal lining remains invisible.
Operation
The balanced-flue gas fire can be ope-
rated with the iMatch remote control
as standard. This enables the gas fire
to be switched on or off and the height
of the flames can be adjusted. A choice
can be made from eight modes as well
as an ECO-line. The ECO-line automati-
cally generates a varied and alternating
flame pattern. This reduces gas use
considerably.
If the house is equipped with a home
automation system, then operation
of the appliance can be integrated
3. Description
The following sections describe the
gas fire:
- Description of the gas fire.
3.1 Gas fire description
Kalfire gas fires are internationally
renowned for their realistic, enchanting
flames. Kalfire appliances are easy to
operate and maintain. Kalfire balan-
ced-flue gas fires are equipped with
an innovative Prestige or 3D burner,
enhancing their environmental friend-
liness, sustainability and economy.
Balanced-flue gas fires
The patented Prestige burner radiates
a realistic impression of wood fire. The
Prestige burners are integrated in the
ceramic log sets stacked in the appli-
ance in pyramid form. This creates the
impression of a high and voluminous
flame pattern.
The Kalfire GP can be delivered with
the Natural Spark Generator (optional).
This ensures that sparks emanate from
the burning flames in a natural manner,
and continue to burn slowly. This spark
generator option is mounted inside the
gas fire during manufacture by Kalfire
and cannot be added at a later stage.
The Kalfire GP can also be delivered
with an optional hybrid function. The
gas fire’s fuel bed is equipped with LED
lighting that simulates a bed of natu-
ral embers. The lighting generates an
atmospheric imitation of the glow of a
real wood fire. The hybrid function can

15
into that system. The gas fire can also
be controlled by the iMatch App on a
smartphone or tablet. This is only pos-
sible if the gas fire is equipped with the
optional iMatch interface, that serves
as the receiver.

16
3. Place the two batteries on the com-
partment floor as indicated.
4. Close the compartment cover.
5. Press the centre button and the
display will light up.
4.2 Using the iMatch remote
control
Range of the RF signal
The iMatch remote control uses a ra-
dio-frequency (RF) signal to transfer
information to the gas fire. The RF
signal is a safe signal for wireless com-
munication. The signal has a range of
approximately 10 metres as long as
there are no obstacles between the
remote control and the gas fire. Obsta-
cles such as walls and/or furniture can
negatively impact range. In some cases,
it can happen that the gas fire takes
longer to react. If the screen of the re-
mote control illuminates after a button
is pressed, this indicates that the RF
signal has been sent.
Key of symbols:
1. Indicates the time and status when
switching the appliance on or off:
•OK - the fireplace is switched on.
•WARM - the ignition programme
has been activated.
•WAIT - the ignition programme is
starting up.
2. Day of the week in numbers
(1-7, Monday is 1).
a. (glow lamp) Indicator for the LED
lighting.
3. RF-signal, a flashing icon indicating
that the appliance is beyond the re-
ach of the remote control.
4. flame intensity indicator (hybrid fire)
4. Operation
The upcoming sections provide infor-
mation about the use of the gas fire:
- Replacing the batteries
- Using the iMatch remote control
- Setting the day and time
- Confirming the transmission
strength
- Switching the gas fire on and off
- Adjusting the flame intensity
- Selecting the thermostat or manual
operating programme
- Regulate the flame intensity by ther-
mostat
- Programming time segments
- Programme choice for the hybrid
LED lighting
- Activate/deactivate the hybrid LED
lighting and adjust
- Set the Natural Spark Generator
- Filling the Natural Spark Generator
- Configuring the iMatch app
- iMatch app settings
- Resetting the iMatch interface
- the iMatch app through the iMatch
interface
4.1 Replacing the batteries
Insert or replace the remote control AA
batteries.
A battery compartment is located at
the rear of the remote control. This can
hold two AA batteries. If the batteries
are almost flat, the battery icon beco-
mes visible or all symbols on the display
start to flash. Follow the steps below to
replace the batteries:
1. Slide the compartment cover down.
2. Remove the batteries (if in place).

17
Buttons:
a. + and - buttons
b. Left button and right
c. Centre button
d. On/off button
e. Parameter configuration button P
4.3 Setting day and time
Setting day and time.
Carry out the following steps to change
the day and time settings:
1. Hold down the Pbutton until the
time display starts flashing.
2. Change the hour with the +or-
button and confirm the change by
pressing the centre button.
The minutes will then begin to flash.
3. Change the minutes with the +or -
button and confirm the change by
pressing the centre button. The
number indicating the day of the
week will then begin to flash
(1 = Monday).
4. Change the day with the +or-button
and confirm the change by pressing
the centre button.
5. To exit the parameters menu, press P.
6. Wait for 30 seconds while the infor-
mation is transmitted.
4.4 Checking transmission strength
Carry out the following steps in order
to modulate transmission strength bet-
ween gas fire and the remote control.
1. Press Puntil the transmission
strength flashes at the top left of the
display.
2. Press the right button until RFCK
appears in the display.
5. The flame is ignited if the icon is
alight, if this icon is flashing one of
the following notifications requires
your attention: heat adequacy, igni-
tion attempt or reignition attempt.
6. The ECO mode is activated.
7. Batteries are flat.
8. Room temperature and other
notifications such as disruptions.
9. Warning signals related to
disruptions.
10. Time segments
11. Thermostat mode.
12. Manual programme (default mode).
1 2
3
4
5
6
7
8
10
9
11
12
e.
d.
c.
b.
a.

18
flame intensity can also be displayed by
the flame intensity indicator.
The ECO mode has a modulating effect
on flame intensity (higher or lower).
This accentuates the visual effect
and user comfort of the flames, while
reducing the fire’s heat emission and
gas consumption by approximately
40%. Use the remote control to set the
flame intensity in “ECO mode” to 9,
after which the double flame icon will
display on the screen. Adjust the flame
intensity as follows:
1. Press +or -to adjust flame intensity.
2. Release the +or -button.
3. Press the +button until the number 9
appears to switch on the ECO mode.
4.7 Selecting the thermostat or
manual operating programme
The flame intensity and the resulting
room temperature can be adjusted by
setting the remote control in manual or
thermostat mode. To ensure an accura-
te temperature reading, make sure the
remote control is outside of the fire’s
radiation range. For security reasons,
the thermostat mode will be automati-
cally switched off after 24 hours. If the
flames in the gas fire have been swit-
ched off, the programme will restart in
manual mode automatically when next
switched on.
1. By pressing Puntil the icon for
thermostat or manual mode
begin to flash.
2. Press Pagain to selec the icon of
your choice.
3. Briefly press to exit the menu.
3. Walk around the appliance at a dis-
tance of 3 to 4 metres to measure
the RFCK. If the RFCK shows a value
of 4, the transmission strength of the
remote control is good. If the value
shows as 2 or 3, the RFCK values are
acceptable. Transmission strength is
insufficient at a RFCK value of 1.
4. Confirm with to exit the menu.
4.5 Switching the appliance on and o
Carry out the following steps to turn
the appliance on or off:
1. Press until the >OK< icon in the
display appears and starts to flash.
2. Continue to press and then press
briefly on to activate the ignition
programme.
3. Release both buttons.
The word >WARM< will flash at the
top left of the display as confirmati-
on of activation.
4. Wait a number of seconds until you
hear a beep and the word >WAIT<
appears. The ignition programme will
start and the burner will automati-
cally ignite after approximately
20 seconds.
5. Wait until you hear a second beep.
The word >WAIT< will stop flashing
after the ignition programme.
6. The gas fire flame is alight and ope-
rational.
7. Press for approximately two seconds
to extinguish the gas fire flame.
4.6 Setting the flame intensity
The height of the flames can be adjus-
ted from high to low and is indicated on
the display by numbers 1 through 8. The

19
“TCOM” (temperature comfort).
TCOM indicates the maximum
temperature during all set time
segments.
5. Set the desired temperature with the
+ or - buttons at increments of 0.5°C.
6. Confirm by pressing the (centre
button).
7. “TECO” (temperature ECO) will now
appear in the display. TECO is the
minimum temperature between the
time segments. This minimum tem-
perature will be maintained all day
with the exception of the set time
segments.
8. Set the desired temperature with the
+ or - buttons at increments of 0.5°C.
9. Confirm by pressing the (centre
button).
10. Press the right button , so that a
flashing time in hours and minutes
appears in the top left-hand corner,
while “ON 1” appears in the middle
of the display (this is the first “on”
time).
11. Use the + and - buttons to set the
first “on” time at increments of
15 minutes.
12. Confirm by pressing the centre but-
ton if you are happy with
the time.
13. “OFF 1” will then appear (this is the first
“Out” time).
14. Use the + and - buttons to set the
first “out” time, at increments of
15 minutes.
15. Confirm by pressing the button.
16. Programme the other times in the
three segments in this way; should
you not require all time segments,
these other segments should be set
4.8 Setting the flame intensity by
thermostat
The remote control measures the
temperature and the flame intensity is
modulated accordingly. To ensure an
accurate temperature reading, make
sure the remote control is outside of
the fire’s radiation range.
1. Select the thermostat programme
as indicated in paragraph Selecting
the thermostat or manual operating
programme on page 18.
2. Press the button with the +or with
the -so that the temperature indica-
tor on the display starts to flash.
3. Set the desired temperature with the
+and -buttons.
4. Wait for 10 seconds before using the
remote control to save the set tem-
perature.
4.9 Programming time segments
The thermostat function can be com-
bined with a timer programme that
allows for up to three time segments to
be programmed. These are indicated by
switch-on times ON 1, 2, 3 and switch-
off times OFF 1, 2, 3. The set program-
me will run daily.
1. Check if the hand transmitter is set
at the right time (if you are not hap-
py with the time, see: 4.3 Day and
night settings)
2. Press the Pbutton (hold down brie-
fly).
3. Let go of Button Pwhen the time
starts to flash in the top left-hand
corner of the display.
4. Press the right button to display

20
desired “P” programme is displayed.
3. Wait until the home screen appears.
4.11 Activating/deactivating
the hybrid LED lighting and
adjusting the lighting intensity
If the gas fire is equipped with hybrid
LED lighting, it will be automatically ac-
tivated as soon as the fire is turned on.
The number of horizontal bars at the
bottom of the screen indicate the level
of brightness of the LED lights. LED
lighting can also be activated when the
fire is not on. Carry out the following
steps to activate only the LED lighting:
1. Press to turn on the screen.
2. Press the right button until “P1, P2
or P3” appears in the centre of the
screen.
3. Press to activate the LED ighting
or increase its intensity.
4. Press to deactivate the LED
at identical switch-on times.
17. Press Pto exit the programme.
18. The and icons on the remote
control indicate that the time seg-
ments have been programmed.
4.10 Programme choice for the
hybrid LED lighting
If the gas fire is equipped with a hybrid
LED lighting function, it is possible to
vary the lighting effects. The different
parameters controlling the LED lighting
allow the oscillation, intensity and co-
lour to be set. In every programme, se-
lection of the word “AUTO” provides the
highest and clearest lighting intensity.
Carry out the following steps to adjust
the LED lighting programme:
1. Press the right button until a “P1,
P2 or P3” appears in the middle of
the display.
2. Press a number of times until the
Table: LED programme
Programme Reacts to Light clear variation
P1
Setting AUTO and Modulating
between high and low
10% to 90%, fading reddish LED
colour.
P2
Setting AUTO and Modulating
between high and low
10% to 90%, yellowish and reddish
LED colour, alternately on the
left and right-hand sides of the
appliance.
P3 Setting AUTO and Modulating
between high and low
Combination between Programme
P1 en P2
