Heat-N-Glo HV-CDN Assembly instructions

1
- Do not store or use gasoline or other flam-
mablevaporsandliquidsinthevicinityofthis
orany otherappliance.
-What to do if you smell gas
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
thefiredepartment.
- Installationandservicemustbeperformedbya
qualified installer, service agency, or the gas
supplier.
Model:
HV-CDN Installers Guide
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURY OR PROPERTY DAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE ORADDITIONAL INFOR-
MATION CONSULT A QUALIFIED IN-
STALLER, SERVICEAGENCY, OR THE
GAS SUPPLIER.
Underwriters
Laboratories Listed
589-900D 07/01 Rev F
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THIS APPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTUREREFERENCE.
1.This appliance may be installed in an af-
termarket,permanentlylocated,manufac-
tured(mobile)home,wherenotprohibited
bylocalcodes.
2. Thisapplianceisonlyforusewiththetype
of gas indicated on the rating plate. This
appliance is not convertible for use with
othergases,unlessacertifiedkitisused.
Please contact your Heat-N-Glo dealer with any
questions or concerns. For the number of your
nearestHeat-N-Glodealer,pleasecall952-985-6000.
Printedin U.S.A. Copyright 2001,
Heat-N-Glo,adivision of HearthTechnologiesInc.
20802KensingtonBoulevard,Lakeville,MN55044
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, AFIRE OR
EXPLOSION MAY RESULT CAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.

2
These units MUST use one of the vent systems
described in the Installing the Fireplace section of
the Installers Guide.NO OTHER vent systems or
components MAY BE USED.
This gas fireplace and vent assembly MUST be
vented directly to the outside and MUST NEVER be
attached to a chimney serving a separate solid fuel
burning appliance. Each gas appliance MUST USE
a separate vent system. Common vent systems are
PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris is interfering with the air
flow.
The glass door assembly MUST be in place and
sealed, and the trim door assembly MUST be in
place on the fireplace before the unit can be placed
into safe operation.
DO NOT OPERATE this appliance with the glass
door removed, cracked, or broken. Replacement of
the glass door should be performed by a licensed
or qualified service person. DO NOT strike or slam
the glass door.
The glass door assembly SHALL ONLY be
replaced as a complete unit, as supplied by the gas
fireplace manufacturer. NO SUBSTITUTE material
may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass
door when it is hot.
Turn off the gas before servicing this appliance. It is
recommended that a qualified service technician
perform an appliance check-up at the beginning of
each heating season.
Any safety screen or guard removed for servicing
must be replaced before operating this appliance.
DO NOT place furniture or any other combustible
household objects within 36 inches of the fireplace
front.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO
FOLLOW these installation instructions may result
in a possible fire hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Using Your Fireplace section of the Owners Guide.
DO NOT USE this appliance if any part has been
under water. Immediately CALL a qualified service
technician to inspect the unit and to replace any part
of the control system and any gas control which has
been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting
system should be INSPECTED before initial use
and at least annually by a professional service
person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding
material, etc. It is IMPERATIVE that the unit’s
control compartment, burners, and circulating air
passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance
CLEAR of all obstacles and materials for servicing
and proper operations.
Due to the high temperature, the appliance should
be LOCATED out of traffic areas and away from
furniture and draperies. Clothing or flammable
material SHOULD NOT BE PLACED on or near the
appliance.
Children and adults should be ALERTED to the
hazards of high surface temperature and should
STAY AWAY to avoid burns or clothing ignition.
Young children should be CAREFULLYSUPERVISED
when they are in the same room as the appliance.
!
!
!
!
!
!
!
!!
!
!
!
!
!
!
!
!
SAFETY AND WARNING INFORMATION
!
!

3
TABLE OF CONTENTS
Safety and Warning Information ............................................... 2
Service Parts List...................................................................... 4
Section 1: Approvals and Codes .............................................. 6
Appliance Certification ................................................................. 6
Installation Codes ........................................................................ 6
HighAltitude Installations.............................................................. 6
Section 2: Getting Started ........................................................ 7
Introducing the Heat-N-Glo Gas Fireplaces.................................. 7
Pre-installation Preparation.......................................................... 7
Section 3: Installing the Fireplace ........................................... 9
Constructing the Chase ............................................................... 9
Step1 Locating the Fireplace .................................................. 9
Step2 Framing the Fireplace................................................. 10
Step3 Installing the Vent System ........................................... 12
A. Vent System Approvals.......................................... 12
B. Installing Vent Components ................................... 17
C. VentTermination.................................................... 20
Step4 Positioning,Leveling, and
Securing the Fireplace................................................ 23
Step5 The Gas Control Systems .......................................... 23
Step6 The Gas Supply Line .................................................. 24
Step7 Gas Pressure Requirements...................................... 24
Step8 Wiring the Fireplace.................................................... 25
Step 9 Finishing ..................................................................... 26
Step10 Installing Trim, Logs, and Ember Material ................... 27
InstallingtheTrim........................................................ 27
Placing the Ember Material and Vermiculite................ 27
Glass Specifications ................................................... 27
Log Placement Instructions ........................................ 28
Step11 Before Lighting the Fireplace ...................................... 30
Step 12 Lighting the Fireplace.................................................. 30
Afterthe Installation.................................................................... 30
Section 4: Maintaining and Servicing Your Fireplace ......... 31
= Contains updated information.













6
Appliance Certification
TheHeat-N-Glo fireplacemodel discussed in this Installers
Guidehas been testedto certification standardsand listed
by the applicable laboratories.
Certification
MODEL: HV-CDN
LABORATORY: UnderwritersLaboratories
TYPE: Direct Vent Gas Fireplace
STANDARD: ANSI Z21.50-1998/CSA 2.22-M98
ANSI Z21.50b-2000/CSA 2.22b-2000
UL307B
NOTE: THIS MODEL IS UL LISTED TO UL307B, THE
STANDARDFOR GAS-BURNING HEATINGAPPLIANCES
FOR MANUFACTURED HOMES AND RECREATIONAL
VEHICLES.
Installation Codes
Thefireplaceinstallationmustconformtolocalcodes.Before
installing the fireplace, consult the local building code
agency to ensure that you are in compliance with all
applicable codes, including permits and inspections.
Intheabsence oflocalcodes, thefireplaceinstallation must
conformto the NationalFuel GasCodeANSIZ223.1(inthe
United States) or the CAN/CGA-B149 Installation Codes
Approvals and
Codes
(in Canada). The appliance must be electrically grounded
in accordance with local codes or, in the absence of local
codes with the National Electric Code ANSI/NFPA No. 70
(intheUnitedStates),ortothe CSAC22.1CanadianElectric
Code(in Canada).
Thesemodels may be installed ina bedroomor bed-sitting
room in the U.S.A. and Canada.
HighAltitudeInstallations
U.L. Listed gas fireplaces are tested and approved for
elevations from 0 to 2,000 feet in the U.S.A. and from 0 to
4,500feet in Canada.
When installing this fireplace at an elevation above 2,000
feet(in theUnited States),it may benecessary todecrease
the input rating by changing the existing burner orifice to a
smallersize. Input should be reducedfour percent(4%) for
each1,000feet above sealevel,unless the heatingvalueof
the gas has been reduced, in which case this general rule
will not apply. To identify the proper orifice size, check with
the local gas utility.
Wheninstallingthis fireplaceatan elevation between2,000
and4,500feet(inCanada),the inputratingmustbereduced
by ten percent (10%).
When installing this fireplace at an elevation above 4,500
feet (in Canada), check with local authorities.
Consult your local gas utility for assistance in determining
theproper orifice foryour location.

7
Getting Started
Introducing the Heat-N-Glo Gas Fireplaces
Heat-N-Glodirect ventgas fireplaces aredesigned tooper-
ate with all combustion air siphoned from outside of the
building and all exhaust gases expelled to the outside.
The information contained in this Installers Guide, unless
noted otherwise, applies to all models and gas control

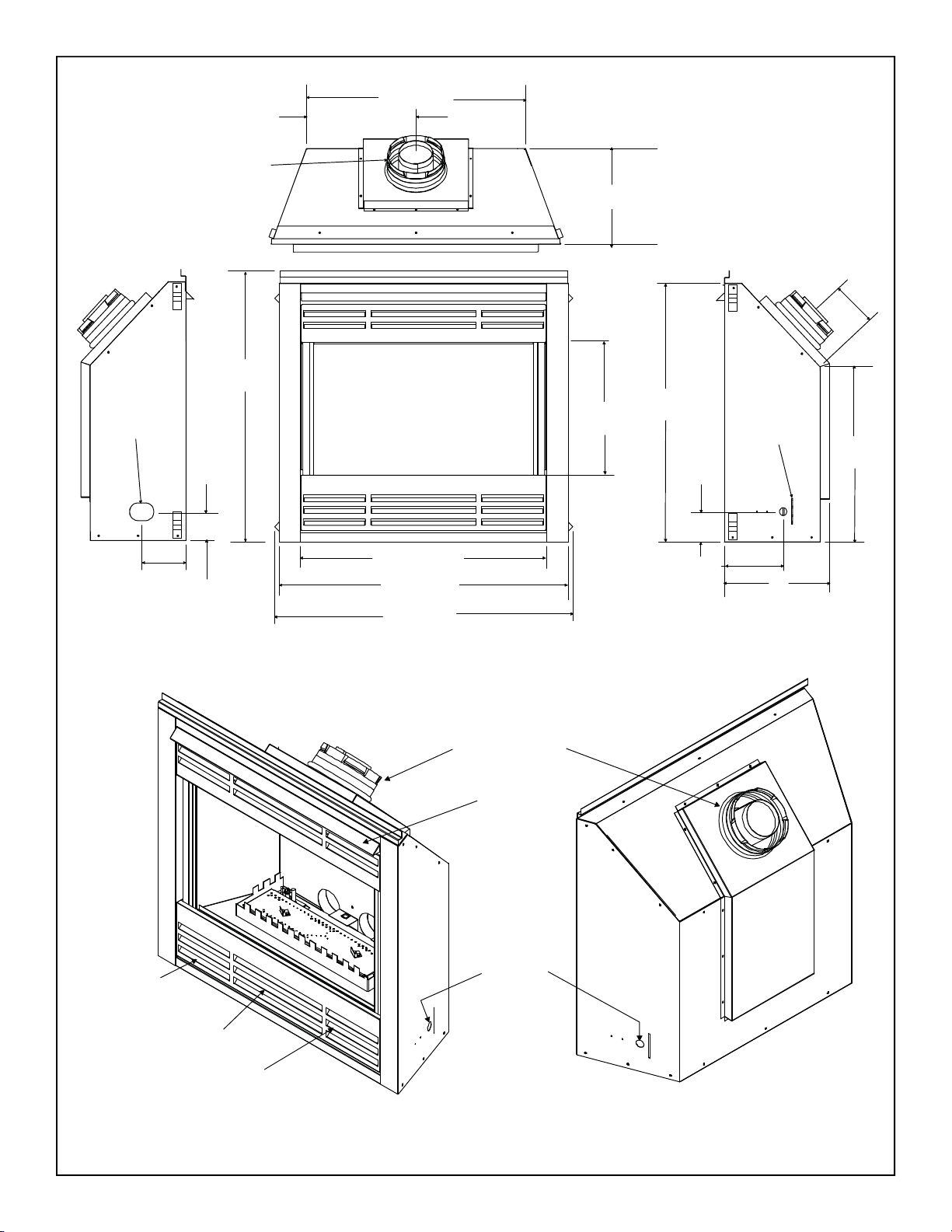

systems.Gasfireplace diagrams,includingthe dimensions,
are shown in this section.
Pre-install Preparation
Thisgas fireplace and itscomponents are tested and safe
when installed in accordance with this Installers Guide.
Report to your dealer any parts damaged in shipment,
particularly the condition of the glass. Do not install any
unit with damaged, incomplete, or substitute parts.
The vent system components and optional trim doors are
shippedin separate packages.The gaslogsare packaged
separately and must be field installed.
Read all of the instructions before starting the
installation. Follow these instructions carefully during
the installation to ensure maximum safety and benefit.
Failure to follow these instructions will void the
owner’s warranty and may present a fire hazard.
TheHeat-N-GloWarrantywill be voidedby,andHeat-N-Glo
disclaims any responsibility for, the following actions:
• Installation of any damaged fireplace or vent system
component.
• Modification of the fireplace or direct vent system.
• Installation other than as instructed by Heat-N-Glo.
• Improper positioning of the gas logs or the glass door.
• Installationand/or useof any component part notmanu-
factured and approved by Heat-N-Glo, not withstanding
anyindependenttestinglaboratoryorotherpartyapproval
of such component part or accessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE
HAZARD.
When planning a fireplace installation, it’s necessary to
determine:
•Where the unit is to be installed.
•The vent system configuration to be used.
•Gas supply piping.
•Electrical wiring.
•Framingand finishing details.
•Whether optional accessories—devices such as a fan,
wall switch, or remote control—are desired.
If the fireplace is to be installed on carpeting or tile, or on
any combustible material other than wood flooring, the
fireplace should be installed on a metal or wood panel that
extends the full width and depth of the fireplace.

8
Figure 1. Diagram of the HV-CDN
ELECTRICAL
ACCESS
HOOD
V
ENT COLLARS
RATING PLATES
& LABELS
GAS CONTROLS
BOTTOM GRILL
31
(787mm)
29 1/2
(751mm)
15 1/8
(385mm)
5 1/8 (129mm)
20
(509mm)
3 3/8
(87mm)
6 3/4 (171mm)
12
(305mm)
ELECTRICAL
ACCESS
Ø6 5/8
(168mm)
11 (278mm)
25 (636mm)
12 1/2 (317mm)
GAS LINE
ACCESS
5 (128mm)
3 1/8
(80mm)
28 1/8 (713mm)
33 (840mm)
34 (865mm)

9
Installing the Fireplace
Step 1. Locating the Fireplace
Figure 2 shows space and clearance requirements for lo-
cating a fireplace within a room.
A25”
B35”
C49”
D39 1/2”
Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass Front ........................36..................... 914
Floor ....................................0........................ 0
Rear ................................... 1/2 ..................... 13
Sides ................................. 1/2 ..................... 13
Top....................................1 1/2.................... 38
Ceiling* ............................35 1/2 .................. 902

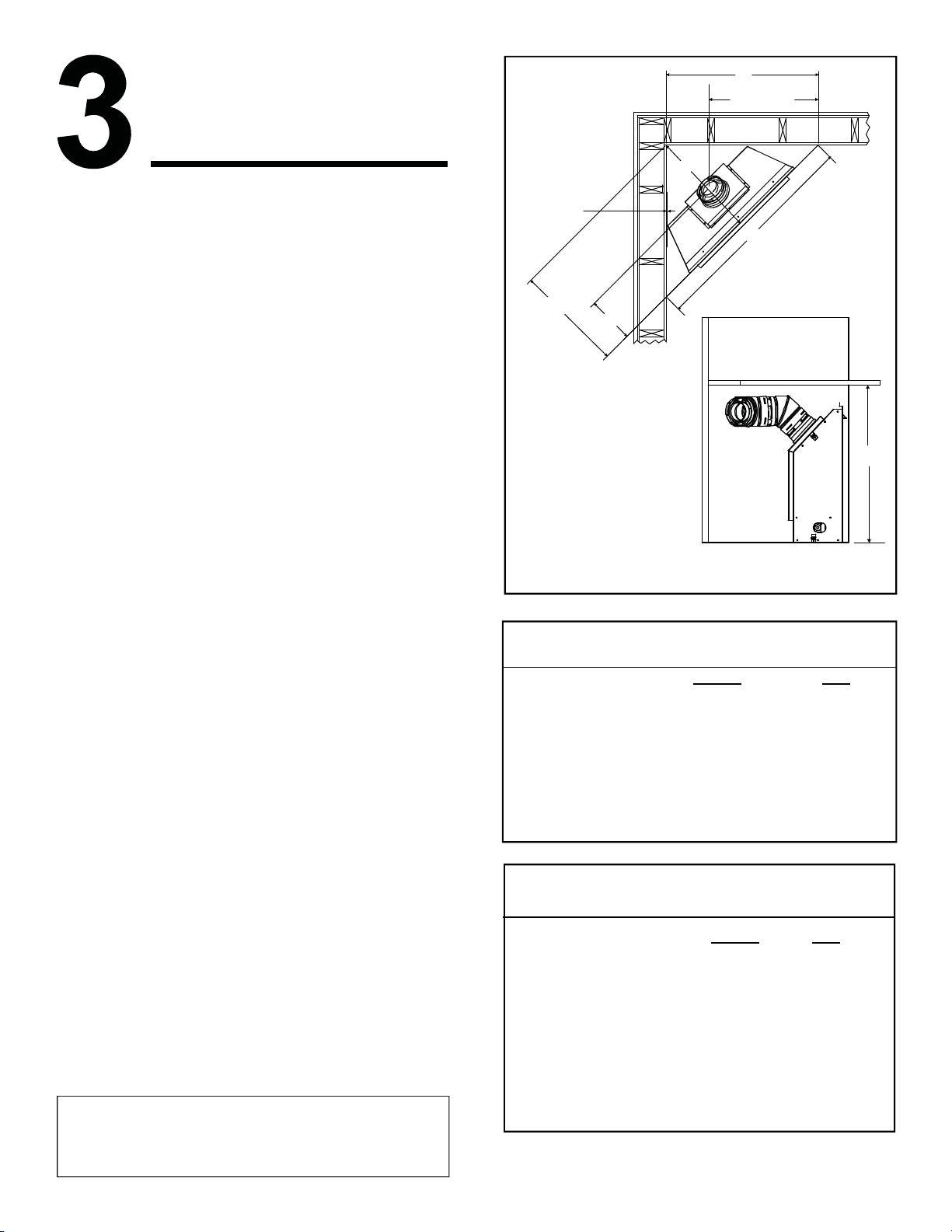

Figure 2. Fireplace Dimensions, Locations,
and Space Requirements
For minimum clearances, see the direct vent termination
clearancediagrams (Figures20 and21).
Minimum Clearances
from the Vent Pipe to Combustible Materials
Inches mm
Vertical Sections...............1................. 25
Horizontal Sections
Top...................................... 3................. 75
Bottom................................1................. 25
Sides ..................................1................. 25
At Wall Firestops
Top................................... 2 1/2.............63.7
Bottom.............................. 1/2 ............... 13
Sides ..................................1................. 25
* The clearance to the ceiling is measured from the top of
the unit (see Figure 28).
CORNER INSTALLATION
(TWO 45OELBOWS
REQUIRED)
SIDE VIEW
TOP VIEW
Clearance Requirements
Thetop and back of thefireplace aredefined by stand-offs.
The minimum clearance to a perpendicular wall extending
past the face of the fireplace is 3 inches (76.2mm). The
back of the fireplace may be recessed 17 1/2 inches
(445mm)into combustible construction.
Thedistance fromthe unitto combustibleconstruction
is to be measured from the unit outer wrap surface to
the combustible construction, NOT from the screw
heads that secure the unit togther.
Constructing the Chase
A chase is a vertical box-like structure built to enclose the
gas fireplace and/or its vent system. Vertical vents that run
on the outside of a building may be, but are not required to
be, installed inside a chase.
CAUTION: TREATMENT OF FIRESTOP SPACERS AND
CONSTRUCTIONOF THECHASE MAYVARYWITHTHE
TYPE OF BUILDING. THESE INSTRUCTIONS ARE NOT
SUBSTITUTES FOR THE REQUIREMENTS OF LOCAL
BUILDINGCODES. THEREFORE, YOUR LOCAL BUILD-
ING CODES MUST BE CHECKED TO DETERMINE THE
REQUIREMENTS FOR THESE STEPS.
Factory-builtfireplace chasesshould be constructed in the
manner of all outside walls of the home to prevent cold air
drafting problems. The chase should not break the outside
buildingenvelope inany manner.
Thismeans thatthe walls, ceiling, base plateand cantilever
floorof thechase shouldbe insulated.Vapor and airinfiltra-
tionbarriers shouldbe installedin thechase asper regional
codesfor therest ofthe home.Additionally, Heat-N-Glorec-
ommendsthattheinsidesurfacesbesheetrockedand taped
for maximum air tightness.
Tofurther prevent drafts, the firestopsshould becaulked to
seal gaps. Gas line holes and other openings should be
caulkedorstuffed withinsulation.If theunitis beinginstalled
onacement slab,werecommend thatalayer ofplywoodbe
placed underneath to prevent conducting cold up into the
room. Be sure to include spark arrestors for woodburning
units if they are required.
THECHASESHOULD BE CONSTRUCTED SO THATALL
CLEARANCESTOTHEFIREPLACEAREMAINTAINEDAS
SPECIFIED WITHIN THIS INSTALLERS GUIDE.
24 1/4 (617mm)
3/8
(9mm)
25
(635mm) 10
(264mm)
A
B
C
D

10

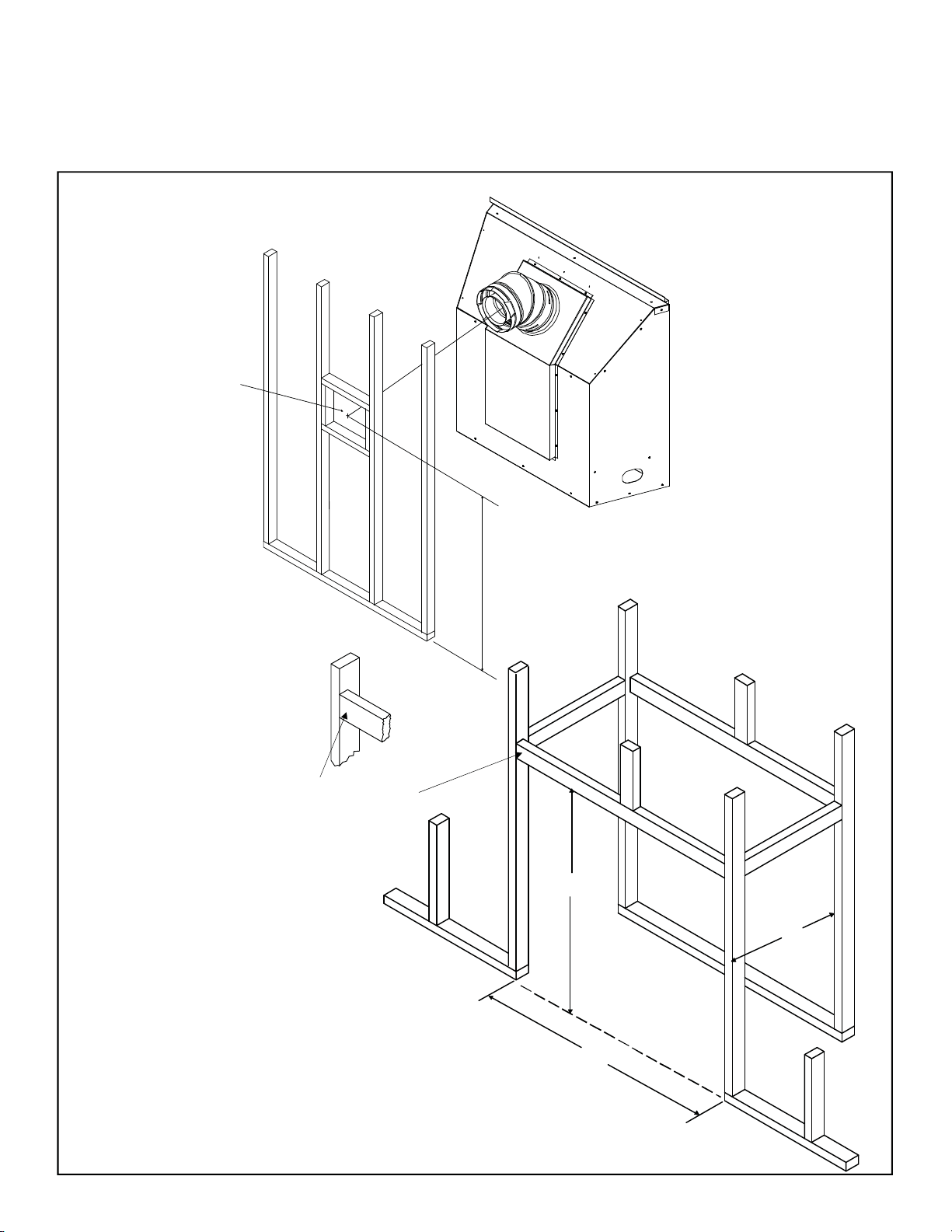

Figure 3. Framing Dimensions
AB CD
450Elbow (Horizontal) 34” 35 1/2” 15 1/2” 28 1/4”
450Elbow (Vertical) 34” 33” 17 1/2” -
Framing should be constructed of 2 X 4
lumber or heavier. The framing headers may
rest on the fireplace stand-offs.
WARNING: To ensure proper clearances the front
framing header must be installed on its narrow edge
and to the front of the frame.
Note: The center of the
vent framing hole is 1
inch (25mm) above the
center of the horizontal
vent pipe.
VENT
FRAMING
HOLE
D
Step 2. Framing the Fireplace
Fireplaceframing canbe builtbefore orafter thefireplace is
set in place. Framing should be positioned to accommo-
date wall coverings and fireplace facing material. The dia-
grambelowshows framing referencedimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFY FRAMING METHODS AND WALL COVERING
DETAILS BEFORE FRAMING.
A
B
C

11
NOTE: PIPES OVERLAP 1-3/8 INCHES (34.93mm) AT EACH JOINT.
Figure 4.
SL-Series and SL-Flex Series Direct Vent Component Specifications (4-inch inner pipe / 6 5/8-inch outer pipe)
120”
(3048mm)
24”
(610mm)
36”
(914mm)
60”
(1524mm)
9 1/4
6 5/8
6 1/2 6 3/8
6 1/2 9 5/8
9 5/8
6 5/8
6 3/8
8 3/4
SL-09D
12-17
SL-12/17D (SL12-17D) SL-24D SL-36D SL-48D
47 3/4
35 3/4
23 3/4
SL-45D
SL-90D
SL-17/24D
(SL17-24D)
17-24
SL-06D
SL-12D
5 3/4
6 5/8
6 1/2
11 3/4
SL-FLEX-2
SL-FLEX-10
SL-FLEX-5
SL-FLEX-3

12
!

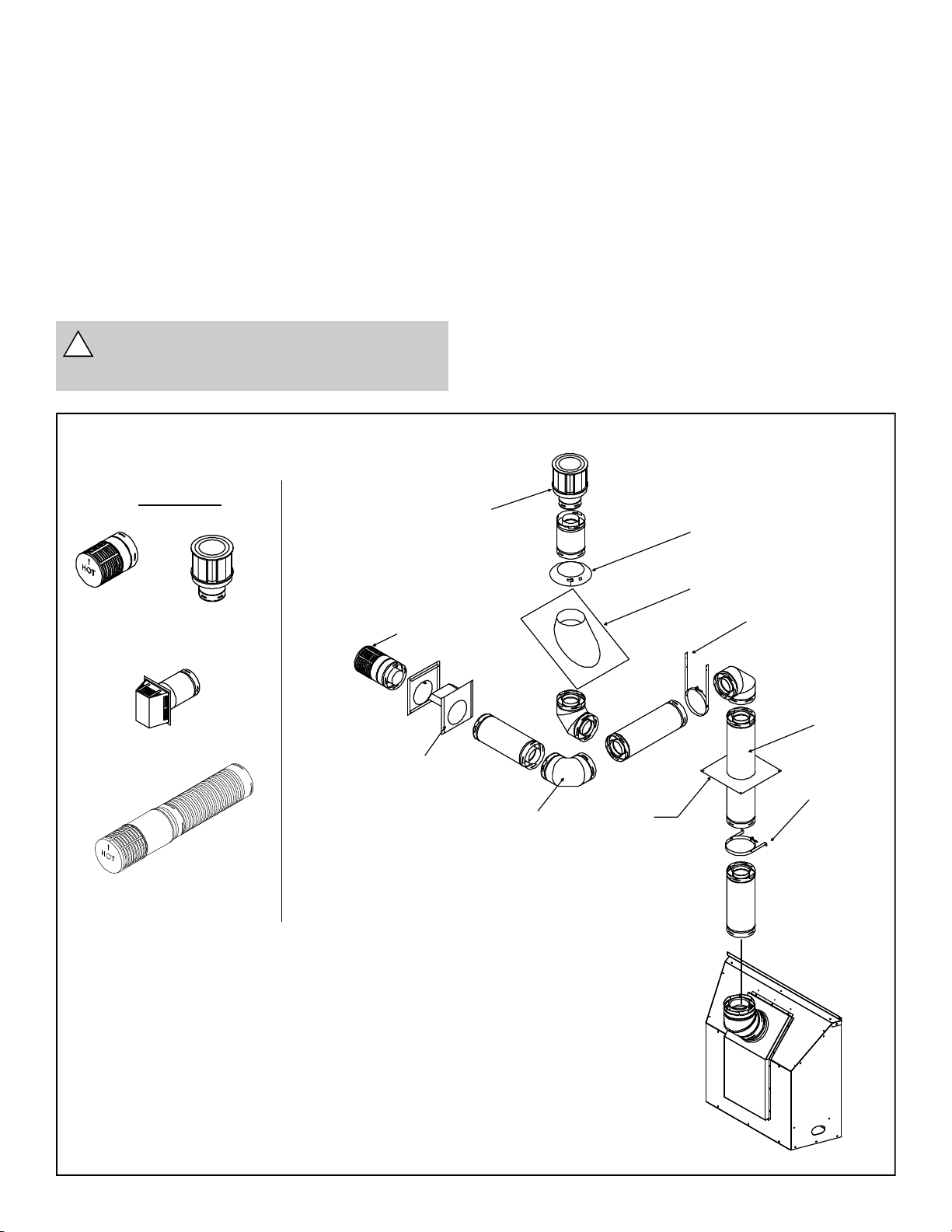

Figure 5. Vent Components and Terminations
Step 3. Installing the Vent System
A. Vent System Approvals
Thismodel hasvent startingcollars on the back of the unit.
This model uses SL D-series direct vent and SL-Flex vent
components(see Figures 4and 5).Approved ventsystem
componentsare labeled for identification. Thispipe is test-
ed and listed as an approved component of the fireplace.
Thepipe is testedto be runinside an enclosed wall. There
isnorequirementforinspectionopeningsateachjointwithin
thewall. There is no requiredpitch forhorizontal vent runs.
NOOTHER VENTINGSYSTEMSOR COMPONENTS MAY
BEUSED.
WARNING:YOU MUSTNOTMIXD-SERIESAND
SLD-SERIES COMPONENTS INANYVENTSYS-
TEMCONFIGURATION.
Detailedinstallation instructions areincluded witheachvent
termination kit and should be used in conjunction with this
Installers Guide.
Theflameandemberappearancemayvarybasedonthetype
offuelburnedandtheventingconfigurationused.
Identifying Vent Components
The vent systems installed on this gas fireplace may in-
clude one, two, or three 90°elbow assemblies. The rela-
tionships of vertical rise to horizontal run in vent configura-
tions using 90° elbows MUST BE strictly adhered to. The
rise to run relationships are shown in the venting drawings
andtables.Referto thediagramsonthe next severalpages.
NOTE: Two 45° elbows may be used in place of one
90° elbow. You MUST always maintain the MAXIMUM
and MINIMUM rise-to-run ratios in the vent system when
using 45° elbows.
Vent System
Termination Kits
SLD-SERIES
HORIZONTAL
TERMINATION
WALL FIRESTOP
90 DEGREE
ELBOW
VERTICAL
TERMINATION STORM COLLAR
ROOF FLASHING
HORIZONTAL PIPE
SUPPORT
PIPE LENGTH
WALL BRACKET
CEILING
FIRESTOP
SLK-01D SLK-TVCD
SLK-01TRD
SLK-FLEX3-02D

13
VERTICALVENTING
WITH ONE 45OELBOW
V(FT.)

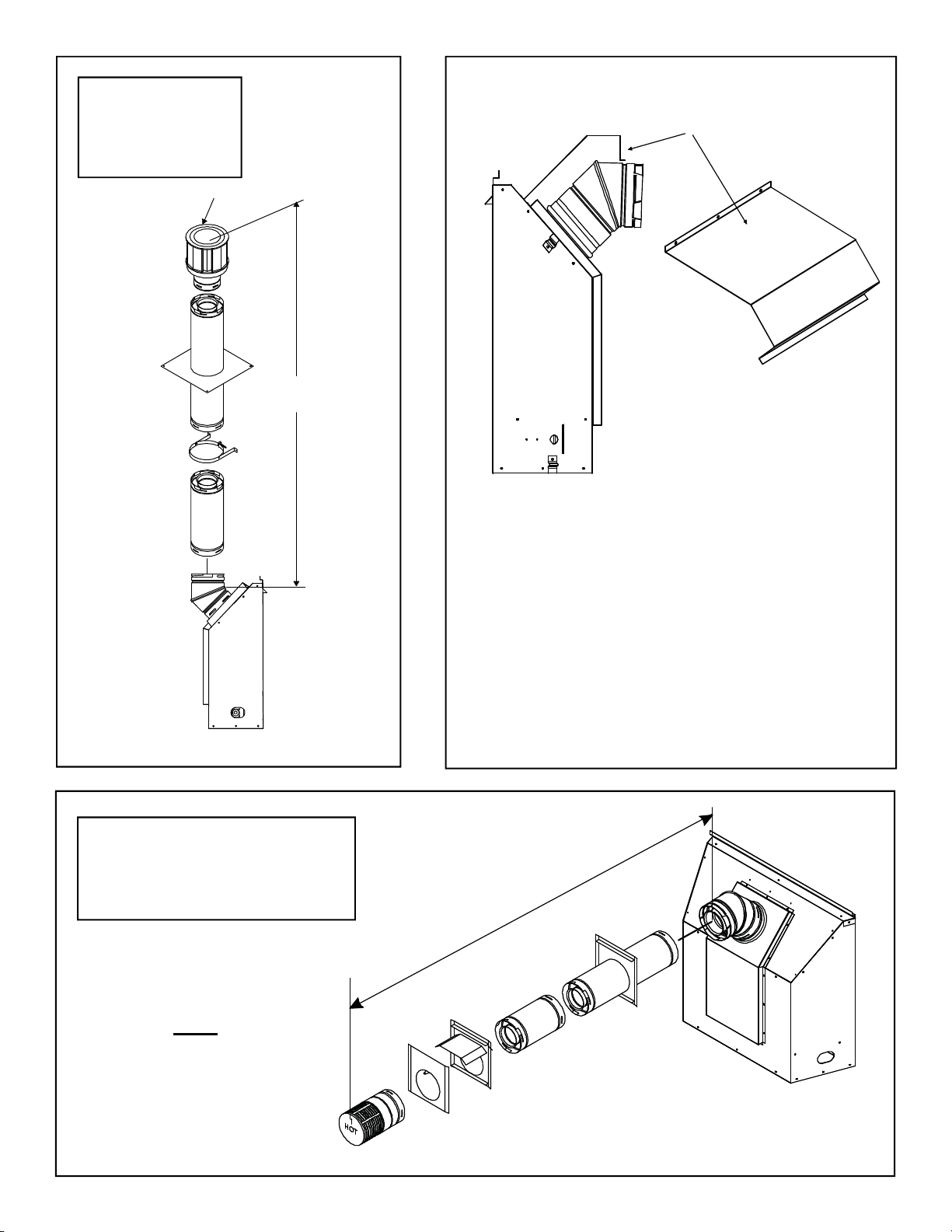

48 Ft. (14.6m) MAX.

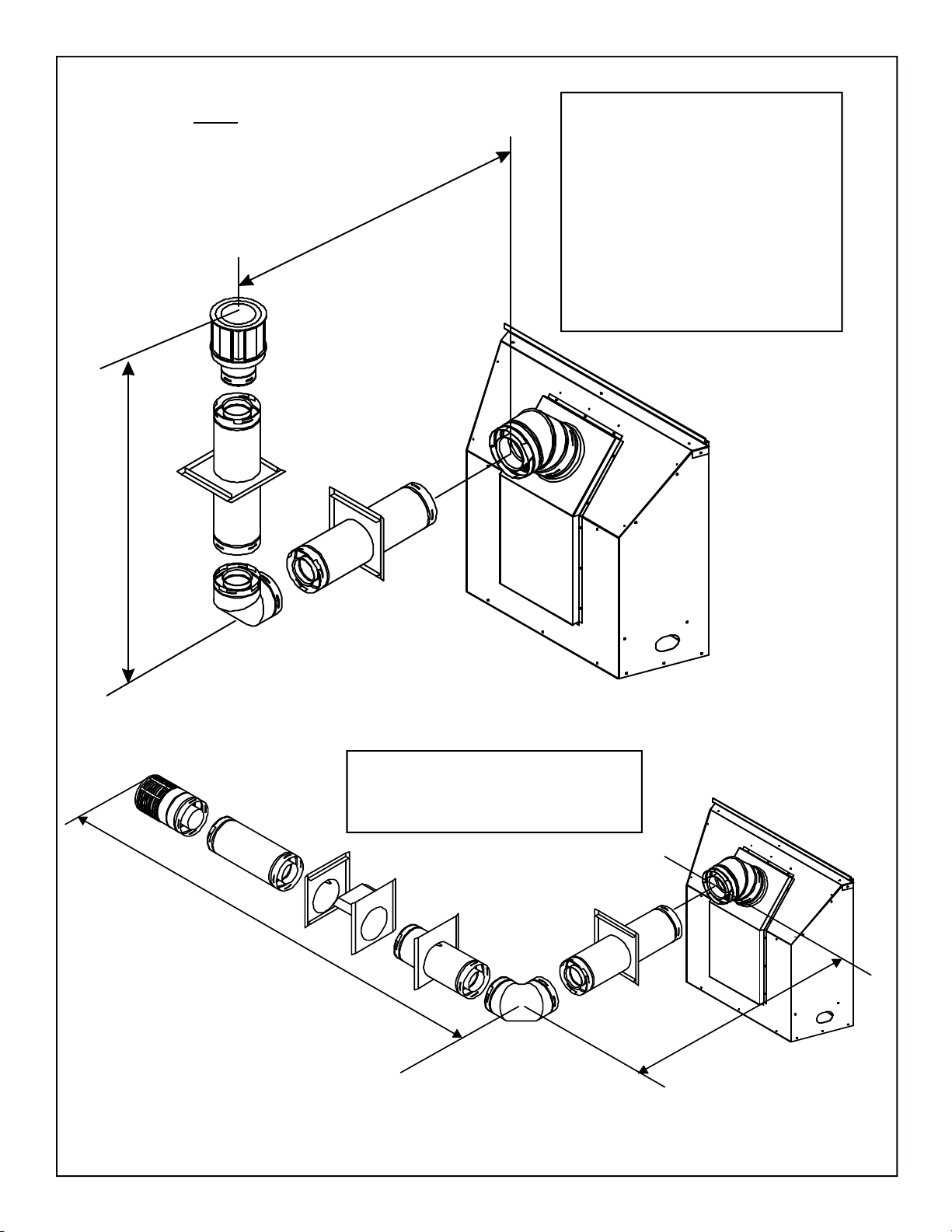

Figure 6. Vertical Venting One 45OElbow
Use SL D-Series
components only.
Figure 7.
Horizontal Venting with
One 45° Elbow
H (MAX.)
3.0 FT (.91m)
NOTE:For horizontal venting
with enclosed elbow at unit
an Elbow Heat Shield is
required. See Figure 8.
NOTE: There MUST be a
25% reduction in total H
when using flex vent.
HORIZONTALVENTINGWITH
ONE 45oELBOW
Use SL D-Series
components only.
Figure 8. Elbow Heat Shield
NOTE: Forhorizontal ventingwith
enclosed elbow at unit an Elbow Heat Shield
is required.Attach to unit as shown.
V
CAP
ELBOW
HEAT SHIELD
H

14

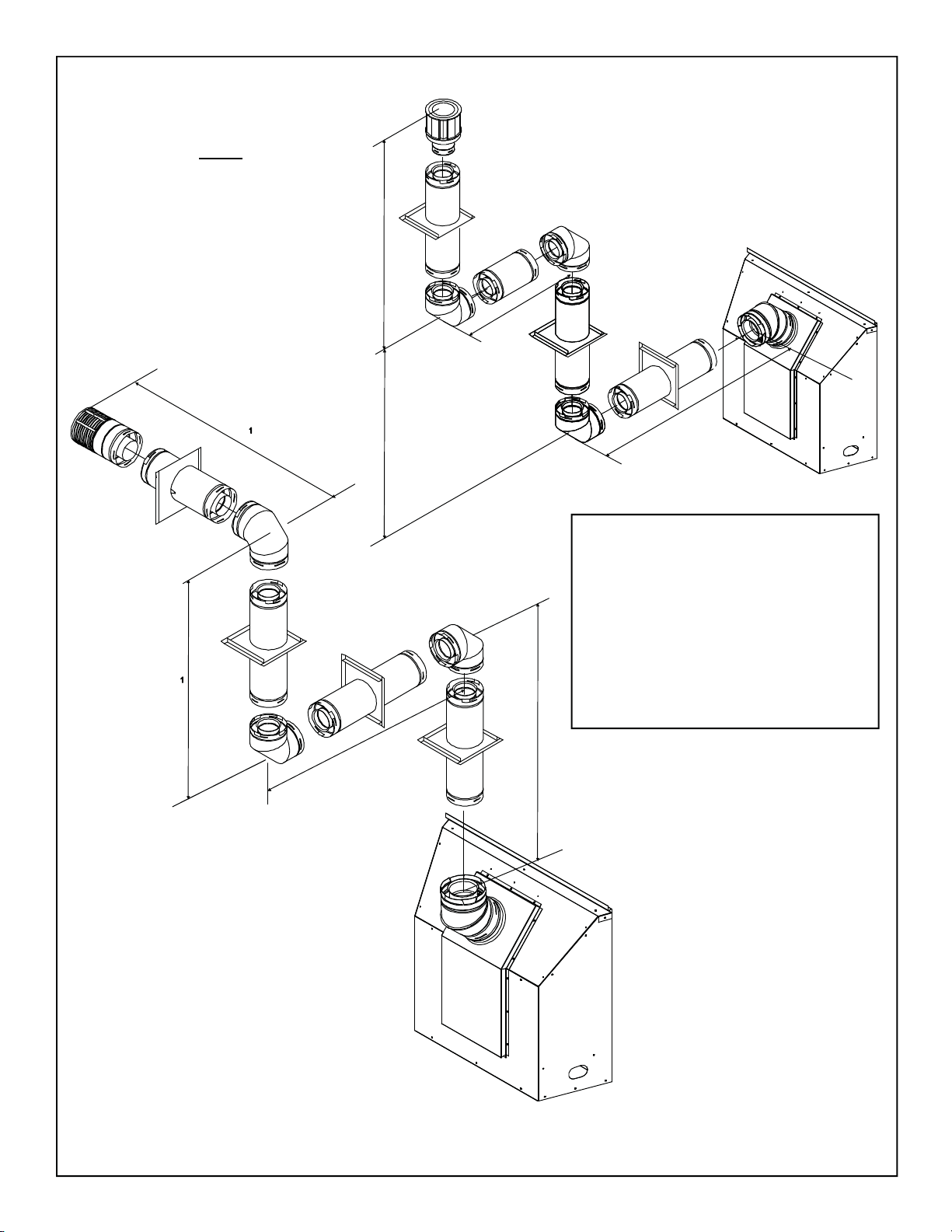

Figure 9. Venting with (1) 450Elbow and (1) 900Elbow.
V (MIN.) H (MAX.)
1 FT (305mm) 3.5 FT (1.0m)
2 FT (610mm) 4 FT (1.22m)
3 FT (914mm) 6 FT (1.86m)
4 FT (1.22m) 8 FT (2.48m)
5 FT (1.52m) 16 FT (4.8m)
VENTING WITH (1) 45oELBOW
and
(1) 90oELBOW
H MAX. = 16 FT (4.8m)
V + HMAX. = 40 FT (12.2m)
Use SL D-Series
components only.
H + H1(MAX.)
2.5 FT (762mm)
VENTING WITH (1) 45Oand (1) 90OELBOW
NOTE: For horizontal vent-
ing with enclosed elbow at
unit an Elbow Heat Shield is
required. See Figure 8.
NOTE: There MUST be a 25% reduction in
total H when using flex vent.
H
V
H
1
H

15
Figure 10. Venting with (1) 45° Elbow and (3) 90° Elbows.
Use SL D-Series
components only.
VENTING WITH (1) 45oELBOW
and (3) 90oELBOWS
H + H1MAX. = 16 FT (4.8m)
V + V1+ H + H1MAX. = 40 FT (12.2m)
V + V1(MIN.) H (MAX.) H + H1(MAX.)
3FT(914mm) 3FT(914mm) 6FT(1.8m)
4FT (1.22m) 4FT(1.22m) 8FT(2.4m)
5FT (1.52m) 5FT(1.52m) 10 FT (3.0m)
6FT(1.8m) 8FT(2.4m) 16FT (4.8m)
NOTE: For horizontal
venting with enclosed
elbow at unit an Elbow
Heat Shield is required.
See Figure 8.
NOTE: There MUST be a
25% reduction in total H
when using flex vent.
H
1
VH
V
1
H
V
V
H

16
Use SL D-Series
components only.
Figure 11. Venting with (1) 45° Elbow and (2) 90° Elbows.
V (MIN.) H + H1(MAX.)
1 FT (305mm) 3.5 FT (1.0m)
2 FT (610mm) 6 FT (1.8m)
3 FT (914mm) 8FT (2.4m)
4 FT (1.22m) 10FT (3.0m)
5 FT (1.52m) 16 FT (4.8m)
VENTING WITH (1) 45OELBOW
and (2) 90oELBOWS
H + H1MAX. = 16 FT (4.8m)
V + H + H1MAX. = 40 FT (12.2m)
NOTE: For horizontal venting
with enclosed elbow at unit
an Elbow Heat Shield is
required. See Figure 8.
NOTE: There MUST be a 25% reduction in
total H when using flex vent.
H
1
H
V
H
1
H
V

17
B. Installing Vent Components
1. Attach the First Vent Component to the
Starting Collars
To attach the first vent component to the starting collars
ofthe fireplace:
• Apply a 3/8 inch (9.5mm) bead of stove cement around
thefireplace inner vent starting collar.
• Lockthe vent componentsinto place bysliding the con-
centricpipe sections with four(4) equally spaced interi-
or beads intothefireplacecollarorpreviouslyinstalledcom-
ponentendwithfour(4)equallyspacedindentedsections.
• When the internal beads of each outer pipe line up, ro-
tate the pipe section clockwise about one-quarter (1/4)
turn.Theventpipeisnow lockedtogether.
!

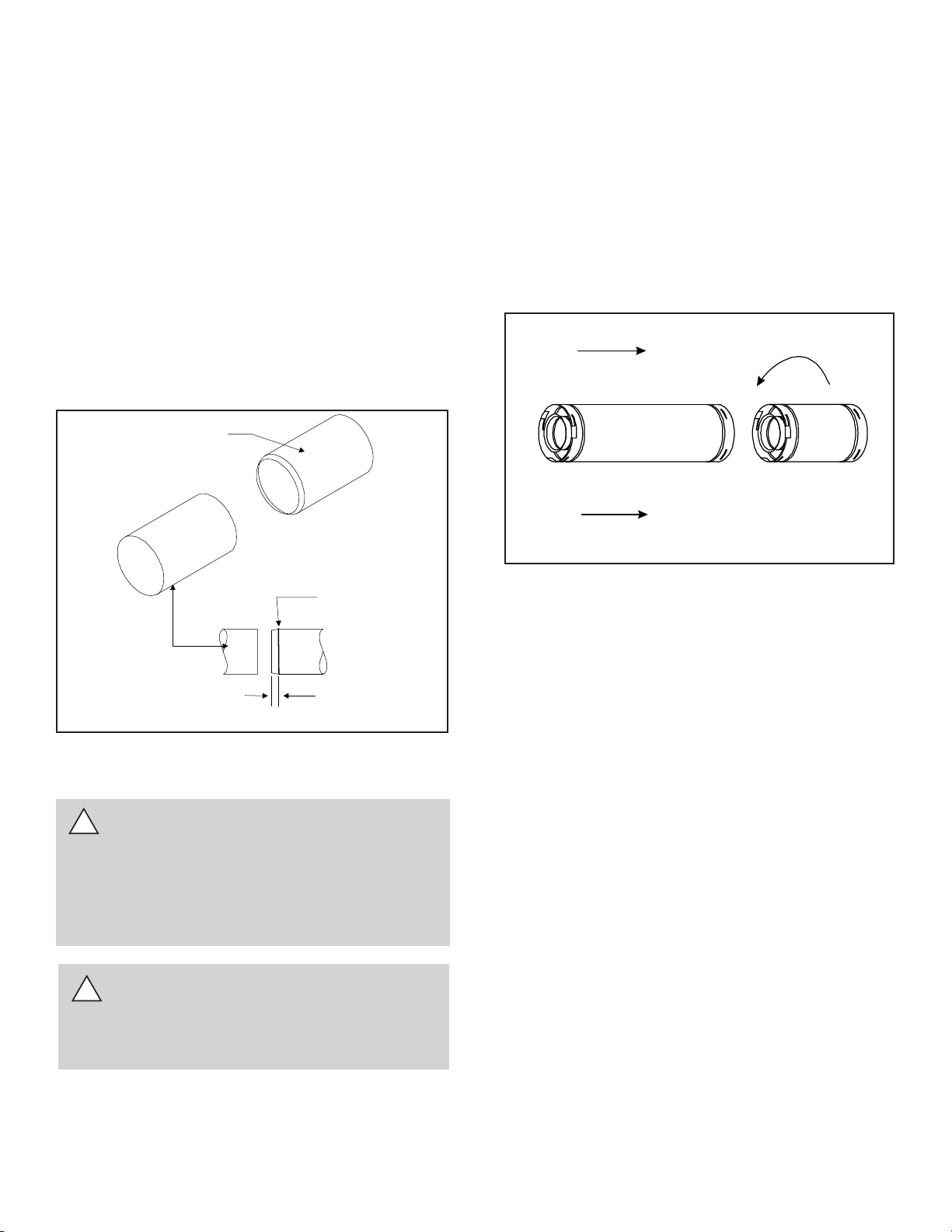

Figure 12. Attaching the First Vent Component
to the Starting Collars
WARNING: A 3/8 INCH (9.5 MM) BEAD OF
STOVECEMENT MUST BE PLACED AROUND
THEFIREPLACEINNERVENTSTARTINGCOLLAR
BEFORE ATTACHING THE FIRST VENT COMPO-
NENT. FAILURETOSEALTHIS JOINT MAY CAUSE
THEFIREPLACE TOOPERATE IMPROPERLY. SEE
THE DIAGRAM .
STARTING
COLLAR
STOVE
SEALANT
BEAD
1 INCH
(25.4mm)
FIRST VENT
COMPONENT
!
WARNING: ENSURE THAT THE FIBER-
GLASS ROPE GASKET SUPPLIED WITH
THE FIREPLACE SEALS BETWEEN THE FIRST
VENTCOMPONENTANDTHEOUTER FIREPLACE
WRAP.
If the installation is for a termination cap attached directly
tothe fireplace, skip to thesections, Install Firestops and
Vent Termination.
2. ContinueAdding Vent Components
3. Install Support Brackets
For Horizontal Runs - Theventsystemmust besupported
everyfive(5)feetofhorizontalrunbyahorizontalpipesupport.
To install support brackets for horizontal runs:
• Place the pipe supports around the vent pipe.
• Nail the pipe supports to the framing members.
Figure 13. Adding Venting Components
• Continue adding vent components, locking each suc-
ceedingcomponent into place.
• Ensurethateach succeeding ventcomponentis secure-
lyfitted and lockedinto the precedingcomponent in the
vent system.
• 90° elbows may be installed and rotated to any point
around the preceding component’s vertical axis. If an
elbow does not end up in a locked position with the
precedingcomponent, attachwith aminimum oftwo (2)
sheet metal screws.

18
For Vertical Runs - The vent system must be supported
everyeight (8)feet (2.4m)above the fireplace flue outletby
wall brackets.
To install support brackets for vertical runs:
• Attach wall brackets to the vent pipe and secure the wall
bracket to the framing members with nails or screws.
Figure 14. Installing Support Brackets
4. Install Firestops
For Horizontal Runs - Firestops are REQUIRED on both
sidesof a combustible wall throughwhich thevent passes.
NOTE: Model SLK-01TRD does not need an exterior
firestop on an exterior combustible wall.
To install firestops for horizontal runs that pass through
either interior or exterior walls:
• Cuta 10-inchby 10-inch(254mm X254mm) holefor SL-
D series pipe.
NOTE: The center of the hole is one (1) inch (25.4mm)
above the center of the horizontal vent pipe.
• Position the firestops on both sides of the hole previ-
ously cut and secure the firestops with nails or screws.
• The heat shields of the firestops MUST BE placed to-
wards the top of the hole.
• Continuethe vent run through the firestops.
Figure 15. Hole and Vent Pipe
Figure 16. Heat Shield, Interior & Exterior Firestops
V
ENT PIPE
1" (25.4 mm)
10"
(254mm)
10"
(254mm)
TRIM HEAT
SHIELD IF TOO
LONG, ADD TO
SHIELD IF TOO
SHORT
EXTERIOR
FIRESTOP
INTERIOR
FIRESTOP
HEAT SHIELD
NOTE: There must be NO INSULATION or other
combustibles inside the framed firestop opening.
WALL
BRACKET
WALL STUD
8 FT
(2.4mm)
FLUE
OUTLET
1”MIN.
(25.4mm)

19
For Vertical Runs - One ceiling firestop is REQUIRED at
the hole in each ceiling through which the vent passes.
Toinstallfirestopsforverticalruns thatpassthroughceilings:
• Positiona plumb bob directly over the centerof the verti-
calvent component.
• Mark the ceiling to establish the centerpoint of the vent.
• Drill a hole or drive a nail through this centerpoint.
• Check the floor above for any obstructions, such as wir-
ing or plumbing runs.
• Reposition the fireplace and vent system, if necessary,
to accommodate the ceiling joists and/or obstructions.
• Cutan10-inchX10-inch(254mmX254mm) hole through
the ceiling, using the centerpoint previously marked.
• Framethe hole with framing lumberthe samesize as the
ceiling joists.
Figure 18. Ceiling Firestop (Ceiling Side)
If the area above the ceiling is NOT an attic, position and
securetheceilingfirestoponthe ceilingsideofthepreviously
cut and framed hole.
Figure 17. Hole & New Framing Members
Ifthe area above the ceilingIS an attic,position andsecure
the firestop on top of the previously framed hole.
NOTE: Keep insulation away from the vent pipe at least
1 inch (25mm).
Figure 19. Attic Firestop
JOIST
CEILING FIRESTOP
CEILING
NAILS (4 REQUIRED)
CEILING
CEILING FIRESTOP
RAFTER
NAILS (4 REQUIRED)
CEILING
NEW
FRAMING
MEMBERS
EXISTING CEILING
JOISTS
CHIMNEY
HOLE
10" (254mm) 10" (254mm)
NOTE: There must be NO INSULATION or other
combustibles inside the framed firestop opening.

20
!
C. Vent Termination
For Horizontal Terminations - To attach and secure the
termination to the last section of horizontal vent:
• Rotateand interlock the ends asdescribed atthe begin-
ning of the Installing Vent Components section.
• Theterminationkit shouldpass through thewall firestops
fromthe exterior ofthe building.
• Adjustthe termination capto its final exterior positionon
the building.
WARNING: THETERMINATION CAP MUSTBE
POSITIONED SO THAT THE ARROW IS
POINTING UP.
For roundcap termination kits:
• Usethe exterior pipelockhole onthe round flangeof the
wall firestop to secure the vent pipe in place.
For trapezoidal cap termination kits:
• Usingscrews secure thecap to the exterior wallthrough
the flanges in the cap.
Figure 20. Round & Trapezoid Termination Caps
!
WARNING: THE BOTTOM OF THE VENT
TERMINATION CAP MUST BE A MINIMUM
OF 12 INCHES (305 MM) ABOVE GROUND LEVEL
(GRADE). THE TOP OF THE CAP MUST BE A MIN-
IMUM OF 18 INCHES (457 MM) BELOW COMBUS-
TIBLE MATERIAL, SUCH AS A DECK. THE SIDE
OF THE CAP MUST BE A MINIMUM OF 6 INCHES
(152 MM) AWAY FROM A PARALLEL OUTSIDE
WALL. VENTING TERMINALS SHALL NOT BE RE-
CESSED INTOAWALL OR SIDING. SEE THE FOL-
LOWING DIAGRAM FOR VENT TERMINATION
CLEARANCES.
ROUND CAP TERMINATION
PERFORATION CANNOT BE
INSIDE THE WALL
7 1/2"
(191mm)
MINIMUM
TRAPEZOID CAP TERMINATION
7 1/4"
(184mm)

21
V=VENT TERMINAL X=AIR SUPPLY INLET =AREA WHERE TERMINAL IS NOT PERMITTED
*30” minimum for vinyl clad soffits.
** a ventshall notterminate directlyabove asidewalk orpaved driveway which is locatedbetween twosingle family
dwellingsand serves both dwellings.
*** only permitted if veranda, porch, deck or balcony is fully open on a minimum of 2 sides beneath the floor.
NOTE: Localcodes orregulations mayrequire different clearances.

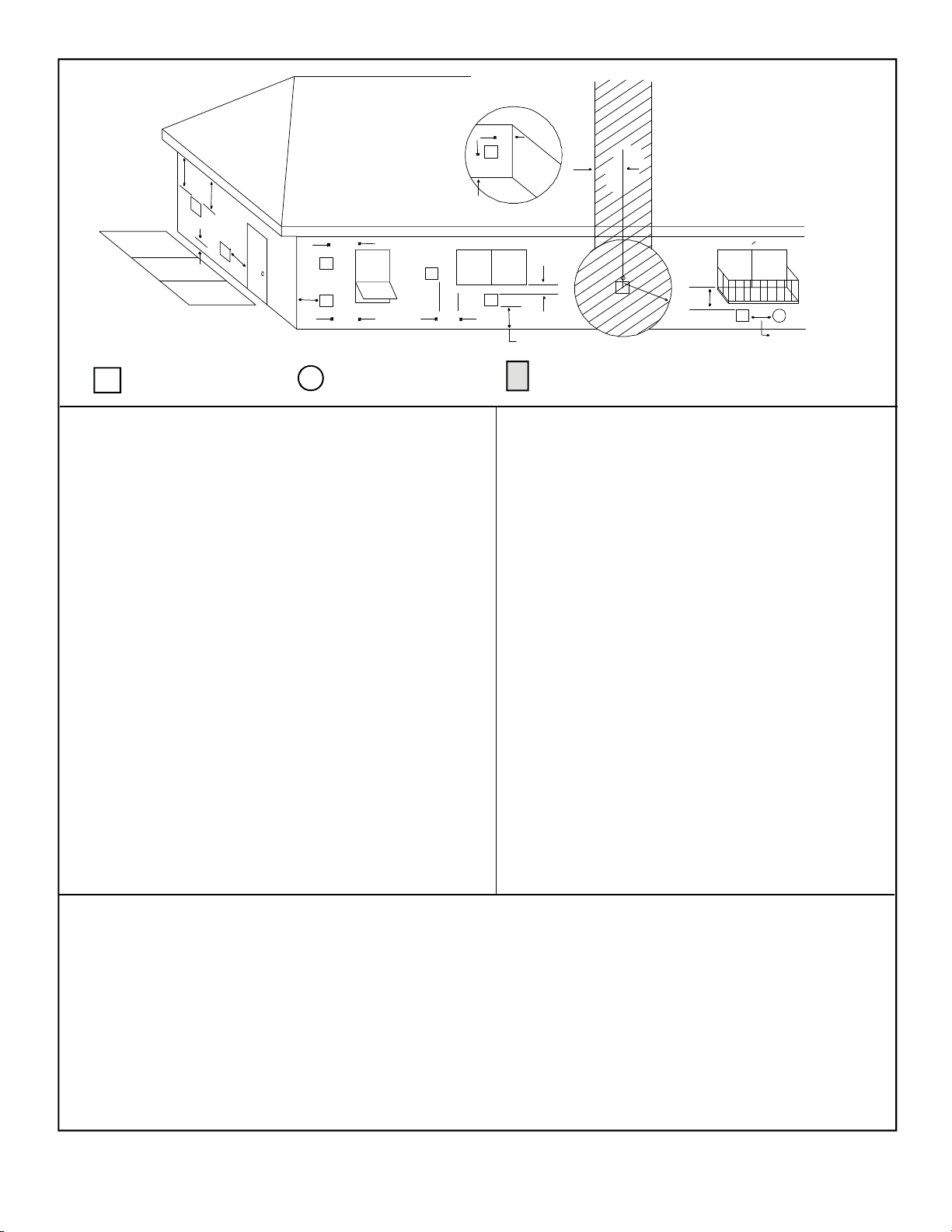

Figure 21. Vent Termination Minimum Clearances
CAUTION: IF EXTERIOR WALLS ARE FINISHED WITH VINYL SIDING, IT IS NECESSARY TO INSTALL THE VINYL
PROTECTOR KIT TO THE TOP OF THE EXTERIOR FIRESTOP (FOR ALL ROUND TERMINATION CAPS).
A = 12" ..................... clearancesabovegrade,veran-
da, porch, deck or balcony
B = 12" ..................... clearances to window or door
that may be opened
C = 9" (U.S.A.)
12"(Canada) ..... clearance to permanently
closed window.
*D = 18" ..................... verticalclearance toventilated
soffit located above the termi-
nalwithin a horizontaldistance
of2 feet(60 cm) from the cen-
ter-lineof the terminal
*E = 18" ..................... clearanceto unventilatedsoffit
F = 9"...................... clearance to outside corner
G = 6" ....................... clearance to inside corner
H = 3 ft.(Canada)..... not to be installed above a gas
meter/regulatorassemblywith-
in3feet(90cm)horizontallyfrom
thecenter-lineoftheregulator
I = 3 ft. (U.S.A.)
6ft.(Canada) ..... clearancetoservice regu-
latorvent outlet.
J = 9" (U.S.A.)
12"(Canada) .....clearancetonon-mechan-
ical air supply inlet to
buildingorthecombustion
air inlet to any other ap-
pliance
K = 3 ft. (U.S.A.)
6ft.(Canada) ...... clearancetoamechanical
air supply inlet
**L = 7 ft. .................... clearance above paved
sidewalkorapaved drive-
way located on public
property
***M = 18" ..................... clearance under veranda,
porch, deck or balcony
DE
B
L
v
v
v
v
v
v
v
v
openable
C
BB
B
fixed closed
A
H
M
X
J or K
I
A
G
F

22
For Vertical Terminations - To locate the vent and install
the vent sections:
• Locate and mark the vent centerpoint on the underside
ofthe roof, anddrive a nail through thecenterpoint.
• Makethe outline ofthe roof hole around the centerpoint
nail.
• Thesizeoftheroofholeframingdimensionsdependonthe
pitchoftheroof.ThereMUST BEa1-inch(25.4mm)clear-
ancefromthe vertical ventpipeto combustible materials.
• Mark the roof hole accordingly.
• Coverthe opening ofthe installed ventpipes.
• Cut and frame the roof hole.
• Use framing lumber the same size as the roof rafters
and install the frame securely. Flashing anchored to the
frame must withstand heavy winds.
• Continue to install concentric vent sections up through
theroof hole andup past theroof line untilyou reach the
appropriatedistance abovethe roof.
WARNING: MAJOR U.S. BUILDINGCODES
SPECIFY MINIMUM CHIMNEY AND/OR
VENTHEIGHTABOVE THEROOFTOP. THESE MIN-
IMUM HEIGHTS ARE NECESSARY IN THE INTER-
ESTOF SAFETY. SEE THEFOLLOWING DIAGRAM
FOR MINIMUM HEIGHTS, PROVIDED THE TERMI-
NATION CAP ISAT LEAST TWO (2) FEET FROM A
VERTICAL WALLAND 2-FEETBELOW AHORIZON-
TALOVERHANG.
NOTE: This also pertains to vertical vent systems in-
stalled on the outside of the building.
!
RoofPitch H (min.) ft.
flat to 6/12 1.0
6/12 to 7/12 1.25
over 7/12 to 8/12 1.5
over 8/12 to 9/12 2.0
over9/12 to 10/12 2.5
over10/12 to 11/12 3.25
over 11/12to 12/12 4.0
over12/12 to 14/12 5.0
over14/12 to 16/12 6.0
over16/12 to 18/12 7.0
over18/12 to 20/12 7.5
over20/12 to 21/12 8.0
Figure 22. Minimum Height from Roof to
Lowest Discharge Opening
To seal the roof hole, and to divert rain and snow from the
vent system:
• Attach a flashing to the roof using nails, and use a non-
hardening mastic around the edges of the flashing base
where it meets the roof.
• Attach a storm collar over the flashing joint to form a
water-tightseal. Place non-hardeningmastic around the
joint, between the storm collar and the vertical pipe.
• Slide the termination cap over the end of the vent pipe
and rotate the pipe clockwise 1/4 turn.
HORIZONTAL
OVERHANG
V
ERTICAL
WALL
TERMINATION
CAP
12 X
ROOF PITCH
IS X/ 12
LOWEST
DISCHARGE
OPENING
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
2 FT.
MIN. 2 FT. MIN.
