Kanaan KN40573 User manual

User's Manual
6x2 Matrix Switch for HDMI 4K*2K
Product num er: KN40573

Thank you for purchasing the HDMI Matrix Switch from KanaaN.
We hold several brands to produce and distribute our products: LEICKE (power
adapters, batteries), KanaaN (adapters/converters, charging cables etc ), Sharon
(iPad cases with keyboard, fans etc ), Hebron (protective cases, docking stations,
screen protectors etc ), Manna (cases for tablets and smartphones)
We continuously work on the development of our products, our customer support
and innovations Our products have a long service life, are eco-friendly and high
performing Furthermore, every day we do our very best to satisfy you as our
customer That is why you, no matter if private or business customer, are in the
focus of our company’s efforts We take your reviews and proposals seriously and
evaluate them continuously That way, we get to know you and your demands on
our products and services better and thus allow for positive enhancements
To discover more about LEICKE products, or if you have any questions about this
product, visit our website www leicke com
Dear customer,
This 6x2 HDMI Matrix Switch from our brand KanaaN is speciall designed for either
home or professional application. It enables ou to connect multiple HDMI devices
to two displa devices without having to change an cables for usage.
The included remote control enables ou to switch easil . The matrix switch
supports the new resolutions UHD and 4K*2K. However, older formats as 720p or
1080p are supported as well. The PIP (Picture in Picture) function makes it possible
to let a second input signal be shown on our main picture.
Additionall , a separate audio output allows for a sound output analogue in stereo
via a 3.5mm jack plug or digital up to Dolb 5.1. Selectable regardless of the HDMI
Output A –B with the remote control.
This Matrix Switch allows ou to return the TV audio out via the ARC HDMI out (if
our TV supports ARC) back to the A/V HiFi amplifier.
Your LEICKE Team!

PA KAGE ONTENTS
Before attempting to use this device, please check the packaging and make sure the
following items are contained in the package:
Number of
Pieces
Name Note
1KanaaN 6x2 HDMI 4K*2K Matrix
Switch -
1 Power Adapter DC 5V/1A
1 Remote control battery included
1 User's Manual -
TE HNI AL DETAILS
HDMI version HDMI 1 4a, ARC, 3D supported
HDMI resolution 4k*2k / 3D /1080p /1080i /720p / 576p /
576i / 480p / 480i @ 24/25/60 Hz
Maximum data throughput 9 0 Gbps
Colour depth 24/30/36/48 bit
Band width up to 300 MHz
Supported audio formats DTS-HD/Dolby-TrueHD/LPCM
7 1/DTS/Dolby-AC3/DSD-HD (HBR)
Maximum cable length input/output ≤15m/25m ( HDMI AWG26 )
Input video signal (TDMS) 0 5~1 5V p-p
Input DDC signal 5V p-p (TTL)
Maximum current consumption 700 mA
power supply AC: (50Hz,60Hz) 100V-240V DC: 5V, 2A
Size (LxWxH) 205x74x26 (mm)
Weight 440 g

ONNE TION AND OPERATION
Step 1: Connect your source devices and displays to the KanaaN Matrix Switch
Please notice, that the additional audio outs can be use regardless of
HDMI out A an B to output the audio signal HDMI output A additionally possesses
the ARC function compared to HDMI output B
Step 2: Connect the 5 V power supply to the HDMI 6x2 Splitter and switch it on
Step 3: Choose the right combination of inputs and outputs with the remote control
(pull plastic flap out first) or directly at the switch As soon as the connection is
established, the LEDs of the inputs and outputs will glow
Step 4: Now you additionally have the possibility to use the PIP function to view the
input source as a small window in your display One main picture and five additional
pictures in one, chosen freely from the HDMI inputs
Step 5: If you have connected an amplifier to the matrix switch, you can adjust the
audio output according to your wishes via the "audio" button Please note, the the
analogue output can only do stereo If 5 1CH is adjusted sound will be put out
incompletely Via the ARC key you can activate the audio back channel, to e g
provide amplifiers with a HDMI input with audio signals You can choose the
required output (digital / analogue / advanced audio) with the SPDIF key
Note: For the protection of the switch and other devices, please make sure, that the
switch is switched off before connecting the other devices Please insert and extract
all cables gently

REMOTE ONTROL (IR)
Red key with ON/OFF symbol: Switch on and off
Audio: Choose between 2 0, 5 1, ADV
ARC: ARC function on or off
PIP: PIP function on or off
Select: to choose the PIP input signal
Enter: enter
A-B: The Switch Button for Output A, Output B Audio Extract
OUT A: Output A port ON/OFF key
OUT B: Output B port ON/OFF key
Note:
1 PIP function can only be used with source devices with a resolution of 1080p or
lower
2 When PIP is used, the small image will be displayed on the left side of the
main image
3 The size is fixed and cannot be changed

ONNE TION DIAGRAM
Connection example

Panel and Labels
Front Panel
• HDMI IN6: HDMI Input 6
• HDMI IN5: HDMI Input 5
• A (1-6): Status of inputs allocated to output A
• B (1-6): Status of inputs allocated to output B
• A-B: HDMI Output A-/B audio output status LED
• ARC: Status LED Audio Return Channel
• 2CH: Status LED for analogue 3 5mm stereo out
• 5 1CH: Status LED for digital 5 1 signal
• ADV: Status LED Advance audio, HDMI amplifier
can tell output device which formats are supported
• IR: Remote control (infra-red)
• A: Key to select HDMI output A
• B: Key to select HDMI output B
• ARC: ARC function (must be supported by the TV)
• Audio: Key to select audio outs
• POWER: status LED (red light)
• ON/OFF: On-/Off switch of the Matrix

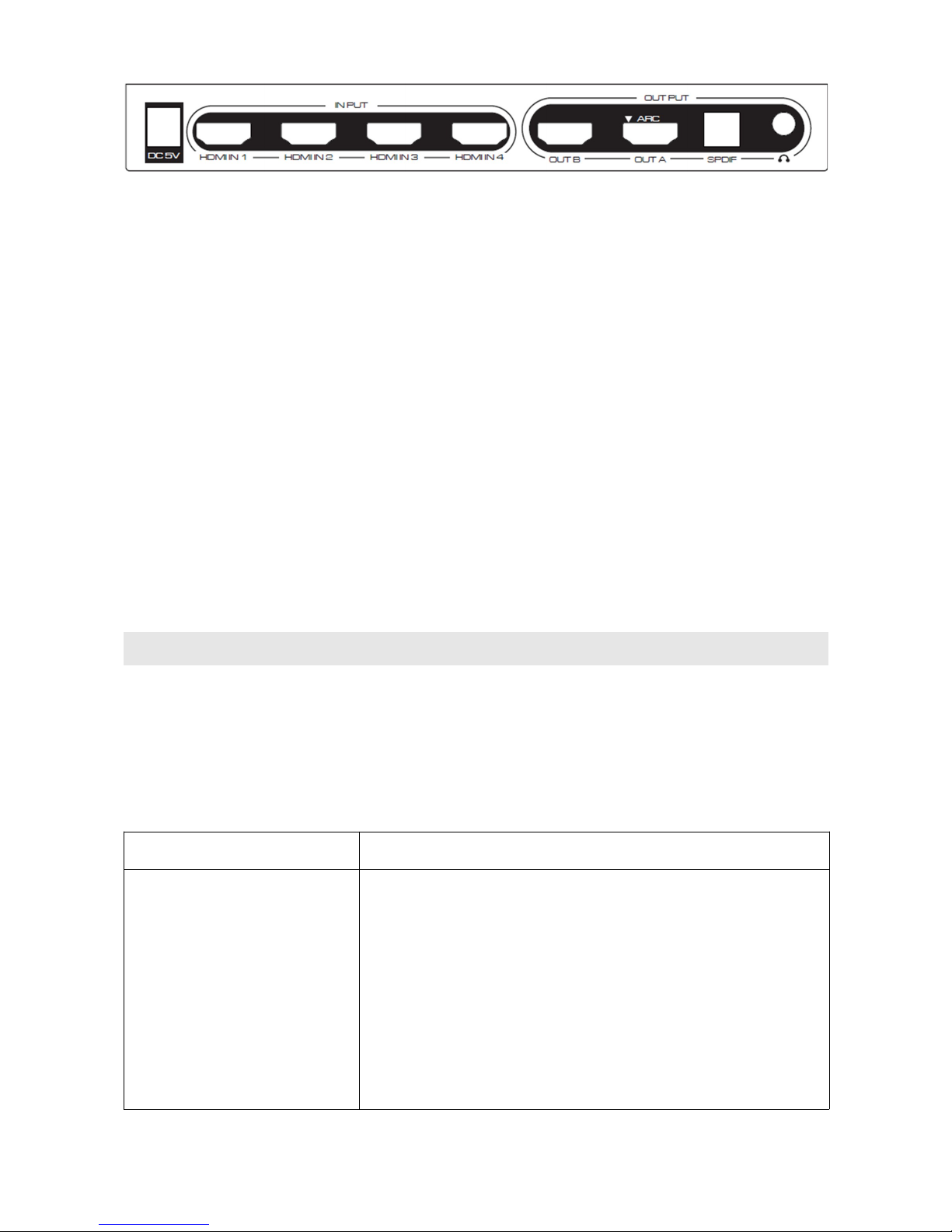

Back:
• DC5V: Input power supply 5V/2A
• HDMI-IN 1-4: HDMI inputs
• OUT-B: HDMI out B
• OUT-A: HDMI output A (supports ARC function)
• SPDIF: optical SPDIF output, digital (selectable regardless of the HDMI
Output A –B with the remote control)
• Audio-out: 3 5mm stereo out, analogue (selectable regardless of the HDMI
Output A –B with the remote control)
TROUBLE SHOOTING
Please check the connection carefully before turning on the device Please check, if
all cables are correctly connected The LEDs will help you to localise any cable
problems as fast as possible
Problem Possible ause/Possible Solution
No image • Is the power LED on? (check power supply)
• Are the channels correctly adjusted? (Check
configuration)
• Do both devices support the output format?
(choose the lower one if not)
• Is the cable quality good enough? (use shorter/higher
screened cable)

Problem Possible ause/Possible Solution
No audio • Audio out chosen correctly? (change with SPDIF key
until right output is activated)
• Is the audio format supported? (if necessary,
check your audio device for the format); analogue:
stereo PCM, digital: PCM, Dolby 5 1
Audio and image troubles • Are the used cables of poor quality
or maybe too long?
• Are input device and output device compatible with
each other?
• Are the plugs correctly connected?
• When using two output devices
(splitting) problems may occur
with differing resolutions
• Check power supply If necessary, choose another
wall outlet
• Loosen HDMI cable and plug in again
Remote control
is not working
• Has the plastic strap been removed?
• Is the remote controls battery low?
Our customer's support will be glad to help you under [e-mail].

SAFETY NOTES
For your own safety and for long enjoyment of our product, please follow the
following safety instructions:
Please use device as described in the manual
To avoid damages to the video system by inrush current, please switch the
amplifier/TV off before installing the converter Non-compliance may cause
damages to TV, amplifier system and your hearing! The amplifier is to be
switched on last, after signal source and converter are already switched on
If the converter does not work normally, please disconnect the power adapter
from the circuit and try to find the cause
Use original factory power adapter Do not attempt to use the converter with
other power adapters Despite of matching plug connectors it may still
damage the converter, the signal source and the sound system!
Warning: Power adapters with a higher voltage may damage the converter
Do not pull on power cord when taking off the wall socket
Turn off power when device is not in use for a longer time
Do not open cover and do not touch inner parts
Please keep power adapter and converter dry and just use in dry
environment
Keep away from damp, high temperature, dusty, erosive and oxidative
environment
Do not touch with wet hands
Keep safe from being hit or falling down

FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules
These limits are designed to provide reasonable protection against harmful interference in a
residential installation This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications However, there is no guarantee that interference will not
occur in a particular installation If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures: - Reorient or
relocate the receiving antenna - Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected - Consult the dealer or an experienced radio/TV technician for help
This device complies with Part 15 of the FCC Rules Operation is subject to the following
conditions:
1 This device may not cause harmful interference, and
2 this device must accept any interference received, including interference that may
cause undesired operation
FCC-Caution: FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment
IMPORTANT NOTE:
Radiation Exposure Statement:
1 This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment End users should follow the specific instructions in the user's
manual to comply with the FCC rules
2 This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter
DISPOSAL
This device contains materials that must not be disposed of as household
waste. Please check local laws concerning the applicable disposal regulations.
Protect the environment b participating in rec cling programs!

ONTA T
If you have any questions, please feel free to contact us.
PRODU TION & WHOLESALE
LEI KE GmbH
Dohnanyistr 28
04103 Leipzig
Germany
Web: www.leicke.com
Mail: inf[email protected]m
