K&H IN-DD18-120S Operator's manual

User Instruction Manual
Double slim induction cooker IN-DD18-120S
Dimensions: 600 x 375mm

2
CONTENTS
BEFORE USE ................................................................................................................................................................ 3
SAFETY INSTRUCTIONS ........................................................................................................................................... 3
ELECTRICAL CONNECTION ..................................................................................................................................... 5
INSTRUCTION FOR USE ............................................................................................................................................ 6
TEMPERATURE LEVEL TABLE ................................................................................................................................ 8
TECHNICAL INFORMATION ...................................................................................................................................... 9
CLEANING ..................................................................................................................................................................... 9
TROUBLESHOOTING GUIDE .................................................................................................................................... 9
NOISES MADE BY THE HOB ................................................................................................................................... 10
AFTER-SALES SERVICE .......................................................................................................................................... 10

3
BEFORE USE
IMPORTANT: The cooking zones will not switch on if pots are not the right size. Only use pots bearing the
symbol “INDUCTION SYSTEM” (Figure below) or enameled pots. Place the pot on the required cooking
zone before switching the hob on.
EXISTING POTS AND PANS
Use a magnet to check if the pot is suitable for the induction hob: pots and pans are unsuitable if not
magnetically detectable.
! Make sure pots have a smooth bottom, otherwise they could scratch the hob. Check dishes.
! Never place hot pots or pans on the surface of the hob’s control panel. This could result in damage.
! The bottom diameter of pots or pans should be at least 10cm.
CORD INSTRUCTIONS
! Short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping
over a longer cord.
! Longer detachable power-supply cords or extension cords are available and may be used if care is
exercised in their use.
! If a longer detachable power-supply cord or extension cord is used:
1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical
rating of the appliance;
2) The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled
on by children or tripped over unintentionally.
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric
shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully
into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to
modify the plug in any way.

4
IMPORTANT SAFEGUARDS
YOUR SAFETY AND THAT OF OTHERS IS VERY IMPORTANT
When using electrical appliances, basic safety precautions should always be followed including the
following:.
! Read all instructions.
! Do not touch hot surfaces. Use handles or knobs.
! To protect against electrical shock do not immerse cord, plugs, or the cover in water or other liquid.
! Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off
parts.
! Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has
been damaged in any manner. Return appliance to the nearest authorized service facility for
examination, repair, or adjustment.
! The use of accessory attachments not recommended by the appliance manufacturer may cause
injuries.
! Do not use outdoors.
! Do not let cord hang over edge of table or counter, or touch hot surfaces.
! Do not place on or near a hot gas or electric burner, or in a heated oven.
! Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
! Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control
to “off”, then remove plug from wall outlet.
! Do not pull the appliance’s power cable.
! Do not use appliance for other than intended use. The appliance is designed solely for domestic use for
cooking food. No other use is permitted (e.g. heating rooms). The Manufacturer declines any liability for
inappropriate use or incorrect setting of the controls.
! WARNING: The appliance and its accessible parts become hot during use. Care should be taken to
avoid touching heating elements. Children shall be kept away unless continuously supervised.
! The accessible parts can become very hot during use. Children must be kept away from the appliance
and watched over to ensure they do not play with it. Close supervision is necessary when any appliance
is used by or near children.
! Do not touch the appliance heating elements during and after use. Do not allow the appliance to come
into contact with cloths or other flammable materials until all the components have cooled sufficiently.
! Do not place flammable materials on or near the appliance.
! Overheated oils and fats catch fire easily. Pay attention when cooking food products rich in fat and oil.
! This appliance can be used by children and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
! If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
! The appliance is not intended to be operated by means of an external timer or separate remote control
system.
! WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a
lid or a fire blanket.
! WARNING: Danger of fire: do not store items on the cooking surfaces.
! Do not use steam cleaners.
! Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since
they can get hot. !!! Don't use the cooktop on metal base !!!
! After use, switch off the hob element by its control and do not rely on the pan detector.

5
! CAUTION! Surface remains hot after use! Do not touch the top plate right after removing the
pot or the pan, as the top plate will still be very hot.
! Do Not Cook on Broken Cook-Top – If cook-top should break, cleaning solutions and spillovers may
penetrate the broken cook-top and create a risk of electric shock.
! Clean Cook-Top with Caution – If a wet sponge or cloth is used to wipe spills on a hot cooking area,
be careful to avoid steam burn, some cleaners can produce noxious fumes if applied to a hot surface.
SAVE THESE INSTRUCTIONS

6
ELECTRICAL CONNECTION
! Disconnect the appliance from the power supply.
! The manufacturer declines all liability for injury to persons or animals and for damage to property
resulting from failure to observe the regulations provided in this chapter.
! Make sure the voltage specified on the rating label located on the bottom of the appliance is the same
as that of the home.
INSTRUCTION FOR USE

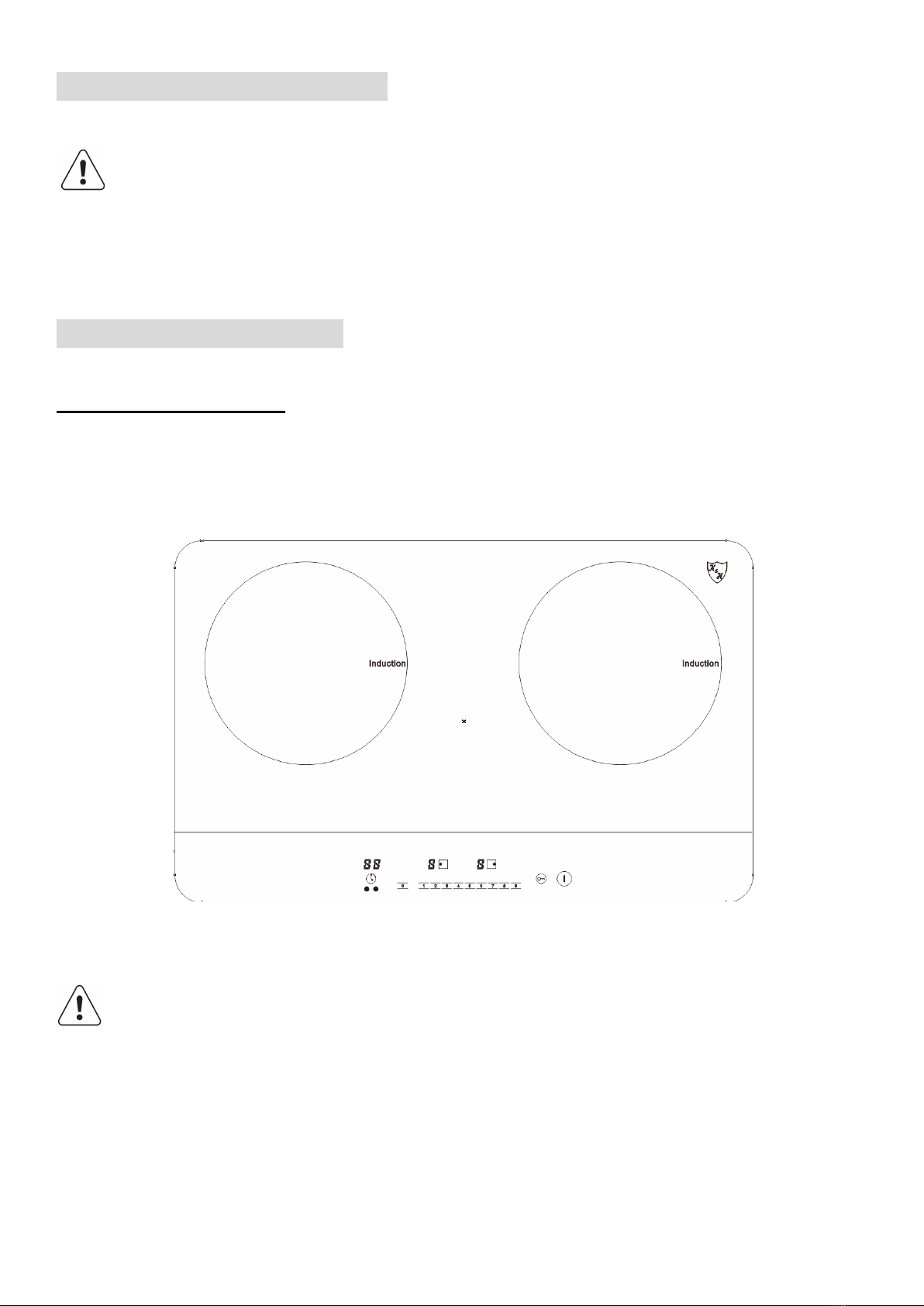

GENERAL OVERVIEW
To avoid permanently damaging t h e g l a s s-ceramic top, do not use:
! Pots with bottoms that are not perfectly flat.
! Metal pots with enameled bottom.

7

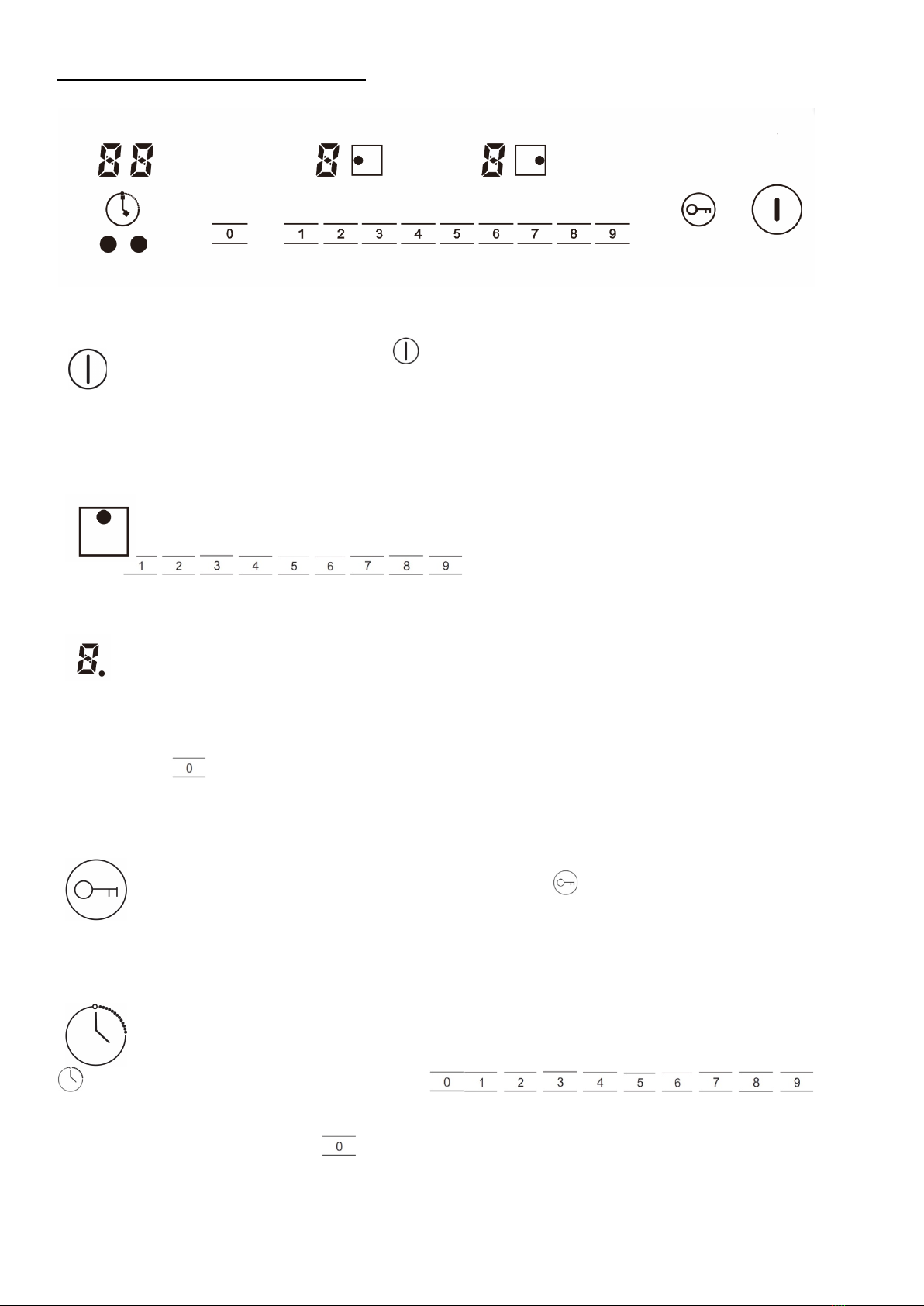

CONTROL PANEL LAYOUT
Switching the hob On/Off
To switch the hob on, press the button and the cooking zone displays light up. To switch off,
press the same button until the displays switch off. All the cooking zones are deactivated
If the hob has been in use, the residual heat indicator “H” remains lit until the cooking zones have cooled
down.
If within 120 seconds of switching on, no heating zone is selected, the hob switches off automatically.
Switching on and adjusting cooking zones
Once the hob is switched on and the pan is positioned on the chosen cooking zone, select the
zone using the corresponding button: the display shows level 0.
Each cooking zone has various power levels, adjustable with the
/ / / / / / / / buttons, going from “1”: min. level, to “9”: max. level.
Specifically function
Select the cooking zone you wish, and press the same number level button twice; the point
corresponding display shows . The cooking zone will work high level . Push the number level again,
Then the cooking zone will recover to previous level.
Deactivation of cooking zones
Select the cooking zone you wish to switch off. Press the corresponding button.
Press the key “ ” to set the level to “0”. The cooking zone switches off and the residual heat indicator “H”
lights up.
Child lock
This function locks the controls to prevent accidental switching on of the hob. To activate the
child lock function, switch on the hob and hold button for three seconds; the timer shows Lo.
Then the control panel is locked.
To deactivate the control panel lock, repeat the activation procedure. The Lo goes off and the hob is active
again.
Timer
The timer can be used to set cooking time for a maximum of 99 minutes (1 hour and 39 minutes)
for all cooking zones.
Select the cooking zone to be used with the timer, press the button with the clock symbol
then set the desired cooking time using the / / / / / / / /
buttons of the timer function (see figure). After a few seconds, the timer begins the countdown. Once the set
time has elapsed, an acoustic signal sounds and the hob switches off automatically.
To deactivate the timer, press the “ ” button to set the display showing “00” or hold the button with the
clock symbol for at least 4 seconds.

8
Auto switch off
The hob will automatically switch off in 120 minutes when you did not set cooking time, forgot to switch off
the hob, and did not operate the hob at all.
CONTROL PANEL WARNINGS
Residual heat indicator
The hob is fitted with a residual heat indicator for each cooking zone. These indicators alert the user
when cooking zones are still hot.
If the display shows , the cooking zone is still hot. If the residual heat indicator of a given cooking zone is
lit, that zone can be used, for example, to keep a dish warm or to melt butter.
When the cooking zone cools down, the display goes off.
Incorrect or missing pot indicator – Error code “E0”
If you are using a pot that is not suitable, not correctly positioned or not of the correct dimensions for
your induction hob, the symbol ”E0” mean “no pot” will appear in the display (see figure at side). If
no pot is detected within 180 seconds, the hob switches off.
TEMPERATURE LEVEL TABLE
Temperature level
Type of cooking
Level use
(indicating cooking experience and habits)
Max level
9
Frying - boiling
Ideal for browning, starting to cook, frying deep frozen products,
fast boiling
High level
7-8
Browning -
sautéing - boiling
- grilling
Ideal for sautéing, maintaining a lively boil, cooking and grilling
6-7
Browning –
cooking – stewing
- sautéing -
grilling
Ideal for sautéing, maintaining a light boil, cooking and grilling ,
preheating accessories
Medium
level
4-5
Cooking –
stewing -
sautéing - grilling
Ideal for stewing, maintaining a gentle boil, cooking (for a long
period of time). Creaming pasta
3-4
Cooking –
simmering –
thickening -
creaming
Ideal for long-cooking recipes (rice, sauces, roasts, fish) with
liquids (e.g. water, wines, broth, milk),
creaming pasta
2-3
Ideal for long-cooking recipes (less than a liter in volume: rice,
sauces, roasts, fish) with liquids (e.g.
water, wines, broth, milk)
Low level
1-2
Melting –
defrosting –
keeping – food
warm - creaming
Ideal for softening butter, gently melting chocolate, thawing small
products and keeping just-cooked
food warm (e.g. sauces, soups, minestrone)
1
Ideal for keeping just-cooked food warm, for creaming risottos and
for keeping serving dishes warm
(with induction-suitable accessory)
Power off
0/H
Support surface
Hob in stand-by or off mode (possible end-of-cooking residual
heat, indicated by an “H”)
Note: The data in the table is for guidance only. The relation between the heat setting and the
cooking zone consumption of power is not linear. When you increase the heat setting it is not
proportional to the increase of the cooking zone consumption of power.
The power of the cooking zones can be different in some small range. It changes with the material and
dimensions of the cookware.

9
TECHNICAL INFORMATION
Voltage: 120V/60 Hz
Max. power: 1800W
CLEANING & User Maintenance
! Do not use steam cleaners.
! Before cleaning, make sure the cooking zones are switched off and that the residual heat
indicator (“H”) is not displayed.
IMPORTANT: Do not use abrasive sponges or scouring pads. Their use could eventually ruin the glass.
! After each use, clean the hob (when it is cool) to remove any deposits and stains due to food residuals.
! Sugar or foods with a high sugar content damage the hob and must be immediately removed.
! Salt, sugar and sand could scratch the glass surface.
! Use a soft cloth, absorbent kitchen paper or a specific hob cleaner (follow the Manufacturer’s
instructions).
! Any other servicing should be performed by an authorized service representative.
TROUBLESHOOTING GUIDE
! Read and follow the instructions given in the section “Instructions for use”.
! Check that the electricity supply has not been shut off.
! Dry the hob thoroughly after cleaning it.
! If, when the hob is switched on, alphanumeric codes appear on the display, consult the following table
for instructions.
! If the hob cannot be switched off after using it, disconnect it from the power supply.
Error
code
Possible Cause
Remedy
E0
No Pan or did not detect the pan
Put on the pan
E2
NTC short or open
Contact the after-sales service and specify the
error code
E3
High voltage
Contact the after-sales service and specify the
error code
E4
Low voltage
Contact the after-sales service and specify the
error code
E5-E8
A lot of possibilities, the cooktop must
be sent in for repair
Contact the after-sales service and specify the
error code
• C/CC Error: automatic safety shut-off for liquid overflow
This means that the touch panel was watered with liquid.

10
NOISES MADE BY THE HOB
Induction hobs can make whistling or crackling sounds during normal operation, these actually come from
the pots and pans as a result of the characteristics of the bottoms (for example, bottoms made of several
layers of material, or uneven bottoms). These noises vary depending on the pots and pans used and the
amount of food they contain, and are not indicative of a defect of any kind.
In addition, the induction hob is equipped with an internal cooling system to control the temperature of
electronic parts; as a result, during operation and for several minutes after the hob has been switched off,
the noise of the cooling fan will be audible. This is perfectly normal and indeed essential for proper
functioning of the appliance.
AFTER-SALES SERVICE
Before contacting the After-sales Service:
1. See if you can solve the problem yourself with the help of the “Troubleshooting guide”.
2. Switch the appliance off and then on again it to see if the problem has been eliminated.
If the problem persists after the above checks, contact the nearest After-Sales Service.
Always specify:
! a brief description of the fault
! the product type and exact model
! your full address
! your telephone number
If any repairs are required, contact an authorized After-Sales Service Centre (to ensure the use of original
spare parts and correct repairs). Spare parts are available.
Energy saving
For optimum results, it is advisable to:
! Use pots and pans with bottom width equal to that of the cooking zone.
! Only use flat-bottomed pots and pans.
! When possible, keep pot lids on during cooking.
! Use a pressure cooker to save even more energy and time.
! Place the pot in the middle of the cooking zone marked on the hob.
