Karat DIAMOND User manual

-1-
BEFORE YOU BEGINBEFORE YOU BEGIN
·Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation . This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler Co. reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·These instructions contain important care, cleaning, and
warranty information-please leave instructions for the
consumer.
·Turn off the water supply.
·The pluming installation must comply with Water Supply
Regulations/Bye-laws, Building Regulations or any
particular regulations and practices, specified by the local
water company or water undertakers. The installation
should be carried out by a plumber.
·Before installation carefully inspect the new fixture for any
signs of damage.
·Please ensure the electric work is finished before starting
to install the furniture.
·
·
·
·-
·
·
·
SAFETY: WARNINGS
Karat products are precision-engineered and should give
continued superior and safe performance, provided:
1. They are installed, commissioned, operated and
maintained in accordance with the recommendations given
in this Manual.
2. Periodic attention is given, as necessary, to maintain the
product in good functional order. Recommended
guidelines are given in the MAINTENANCE section.
Carefully inspect the new fixture for any signs of damage.
When installing Karat Products, manufacturers guidelines for
power tool safety should be followed.
1.
2.
DIAMOND
FLOOR-STANDING WOODEN CABINET
45545T-F92

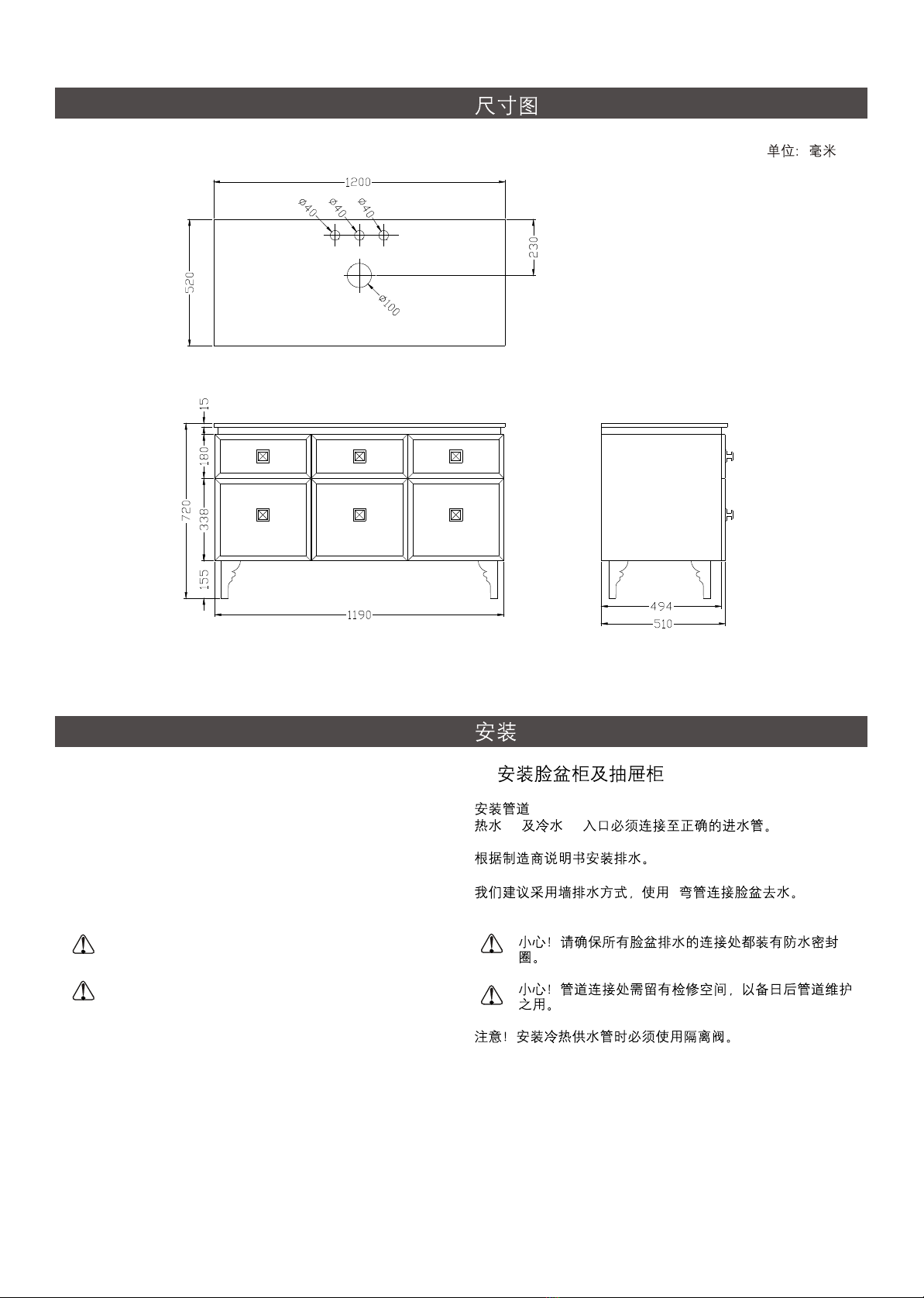

ROUGHING-INROUGHING-IN
-2-
UNIT : mm
INSTALLATIONINSTALLATION
A. Install Washbasin Cabinet
Install the services.
Hot (H) and Cold (C) inlets must be connected to the correct
inlet pipes.
Install the drain in accordance with the manufacturer s
instructions.
We suggest using P-trap drain. Connect P-trap pipe with
washbasin drain.
Caution!Make sure a watertight seal exisits on all
washbasin drain connections.
Caution!Provide access to the plumbing connections
for future plumbing maintenance.
The hot and cold water supplies must be installed with
isolating valves.
A.
(H) (C)
P

-3-
Fig.2
2
1. 4
1. remove the washbasin cabinet top carefully and put it aside.
Install the adjustable support legs as illustrated. UNIT : mm
Fig.1
1
7.
7. Adjust cabinet, Ensure that the washbasin cabinet is level
and appressed to the wall as shown in the illustration.

6.6. Put the top,lavatory on the cabinet, Be sure the lavatory
adjusted level .
1. (P )
/
Connect Drainage
1. Inwall drainage (P-Trap)
Please install the drain assembly and faucet as shown.
Please set the water supply and drainage position
according to the suppliers instructions. You can adjust the
height of shelf to fit the drain assembly.
Supply Lines
Shut-off Valve
Drain Assembly
-4-

2. S2. Floor drainage (S-Trap)
Please install the drain assembly and faucet as shown.
Please set the water supply and drainage position
according to the suppliers instructions.
Supply Lines
Shut-off Valve
Drain Assembly
Outlet
1.
2.
3.
4.
5.
6.
7.

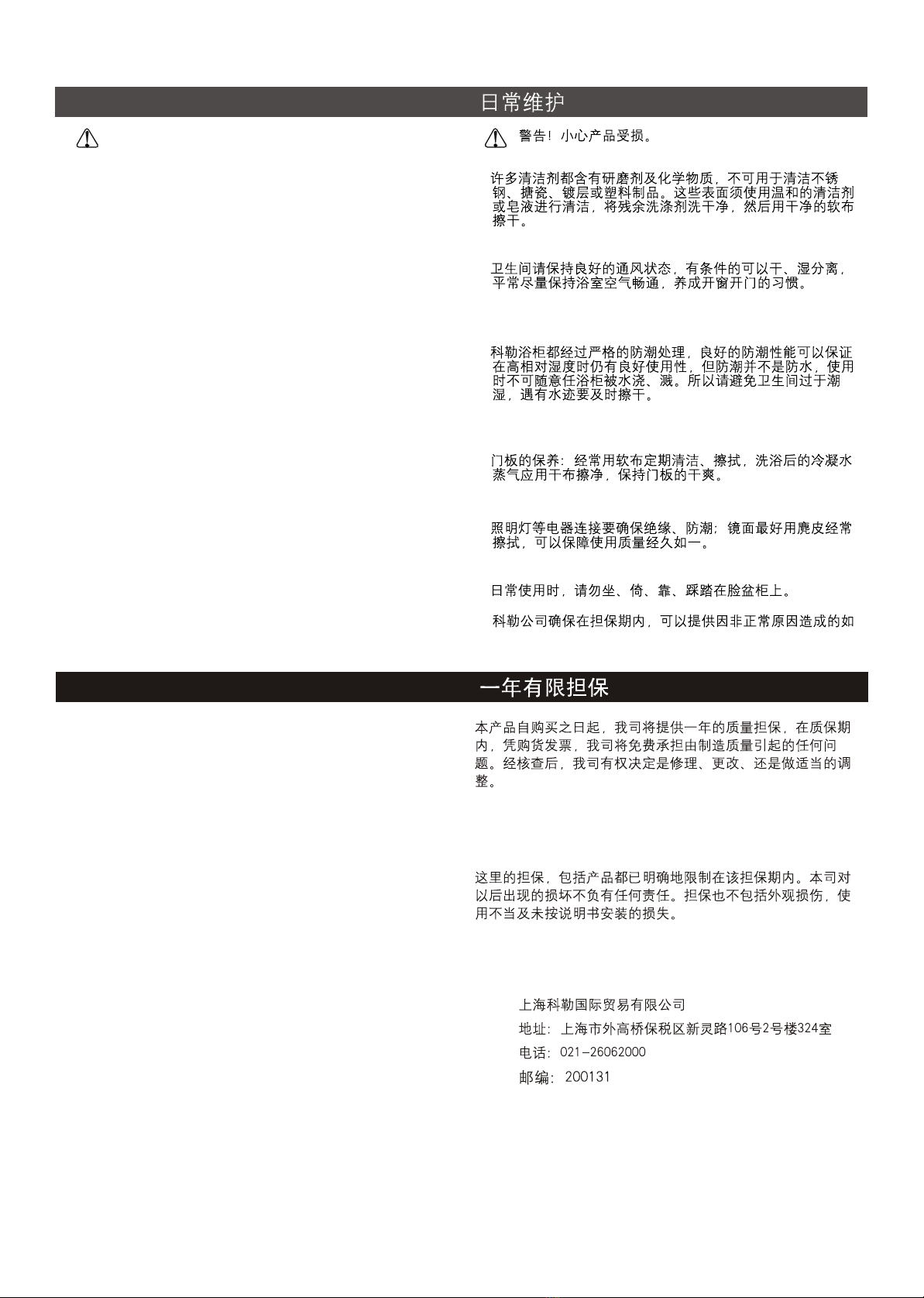

USER MAINTENANCEUSER MAINTENANCE
Warn! Risk of product damage.
1.
2.
3.
4.
5.
6. Please do not sit , lean or step out the basin cabinet.
7. If any fixtures caused by abnormal reasons, Kohler China
can supply paid replacement for service parts caused by
abnormal reasons as shown in the next page in the limited
Many cleansers contain abrasive and chemical substance
which is not suitable for cleaning stainless steel, enamel,
plating or plastic products. You may use mild cleansers or
soaps to clean the surfaces. Wipe any splashes of cleaner
solutions from the surface with clean soft cloth.
Maintain ventilation in the bathroom, and separate the dry
area from the damp one if conditions permit. Try to open
the door and windows of the bathroom and maintain good
ventilation.
Kohler bathroom cabinet are dealt with strict procedures
for damp-proof, whose good damp-proof function ensures
good performance even in bathroom of huge humidity. Yet
do not splash and pour water directly on the bathroom
cabinet. Make sure that the bathroom is not over damp
and wipe any splashes from surfaces immediately.
Maintenance of door board: Clean and wipe door board
regularly, and wipe the condensation vapor with dry and
soft cloth.
Ensure that electrical connections for appliances such as
head lamp is insulated wipe mirror surface with chamois
regularly to guarantee the persistent excellent performance.
-5-

-6-
Shanghai Kohler International Trade Co., Ltd.,
Address: Room324, 2 Xinlin Rd, Waigaoqiao Free
Trade Zone, Shanghai
Tel: [phone]
Postcode: 200131
Our company provides one year warranty for its cabinet free
during normal residential use. Our company will be
responsible any problens caused by manufacturing defects
provided with the invoice. Our company will,at itselection
,repair ,replace or make appropriate adjustment where our
company inspection discloses any such defects occurring in
normal usage within warranty.
The warranty, including products, is limited clearly. Our
company is not responsible for other damages appeared after
the warranty. Also,the warranty dose not cover problems
arising from labor charges,incorrect use and installation.
ONE -YEAR WARRANTY

DIAMOND
FLOOR-STANDING WOODEN CABINET
45545T-F92
1181115
Drawer runner
1181488
Panel of drawer
1181487
p cabinet CPanel of )
CP
1181492
Drawer
1181486
Vanity top
Left door
1181491
1181100
Hinge
door
1181490
right
door
1181490
right
1181493
Leg
1181489
handel
-7-

-1-

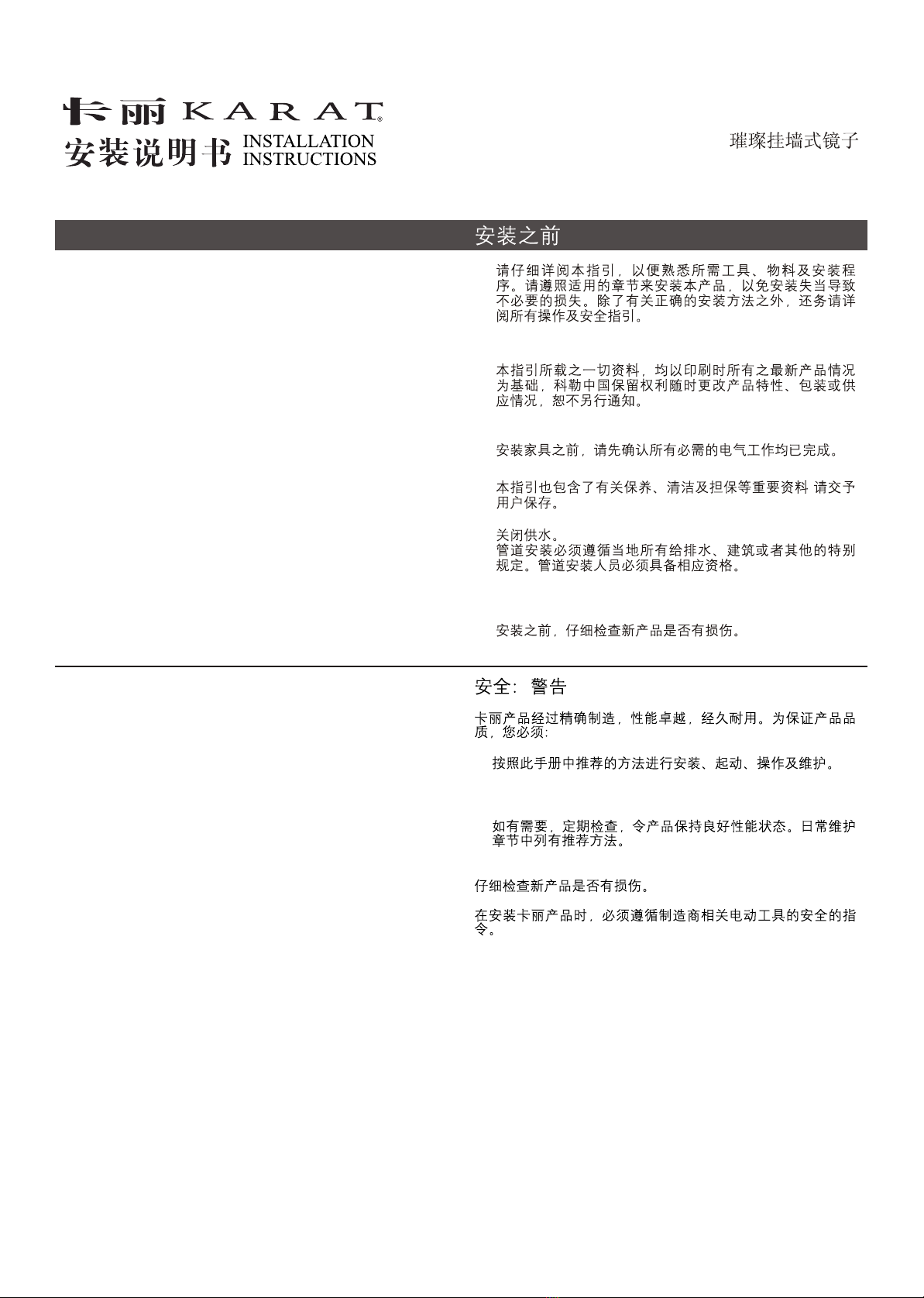

BEFORE YOU BEGINBEFORE YOU BEGIN
·Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation . This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler Co. reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·These instructions contain important care, cleaning, and
warranty information-please leave instructions for the
consumer.
·Turn off the water supply.
·The pluming installation must comply with Water Supply
Regulations/Bye-laws, Building Regulations or any
particular regulations and practices, specified by the local
water company or water undertakers. The installation
should be carried out by a plumber.
·Before installation carefully inspect the new fixture for any
signs of damage.
·Please ensure the electric work is finished before starting
to install the furniture.
·
·
·
·-
·
·
·
SAFETY: WARNINGS
Karat products are precision-engineered and should give
continued superior and safe performance, provided:
1. They are installed, commissioned, operated and
maintained in accordance with the recommendations given
in this Manual.
2. Periodic attention is given, as necessary, to maintain the
product in good functional order. Recommended
guidelines are given in the MAINTENANCE section.
Carefully inspect the new fixture for any signs of damage.
When installing Karat Products, manufacturers guidelines for
power tool safety should be followed.
1.
2.
DIAMOND WALL-HUNG MIRROR
45546T-F92

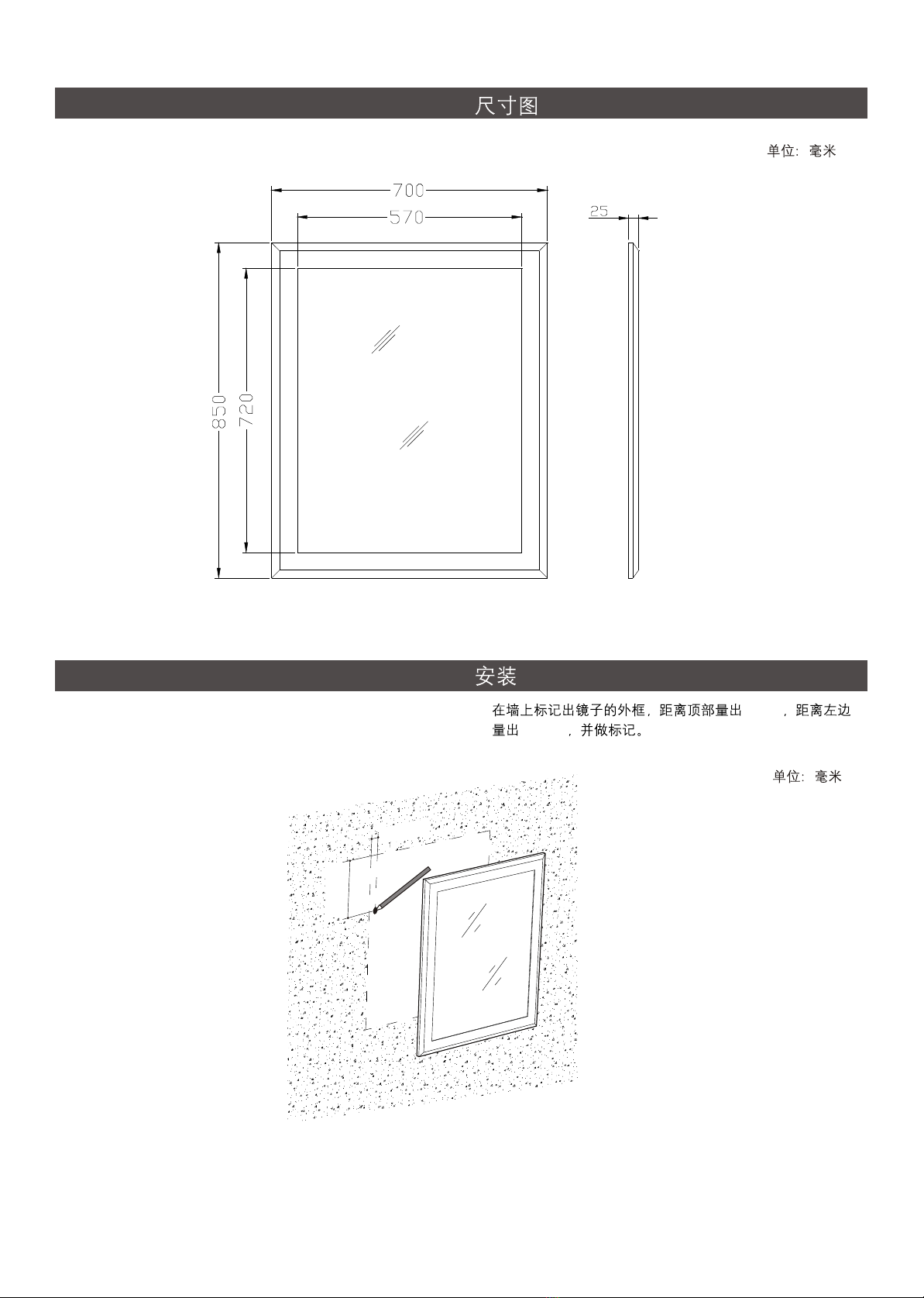

ROUGHING-INROUGHING-IN
-2-
UNIT : mm
INSTALLATIONINSTALLATION
1. 20mm
350mm
1. Set mirror aside ,measure and mark 20mm from left line,
and measure and mark 350mm down from top line.
UNIT : mm
350mm
20mm

-3-
Fig.2
2

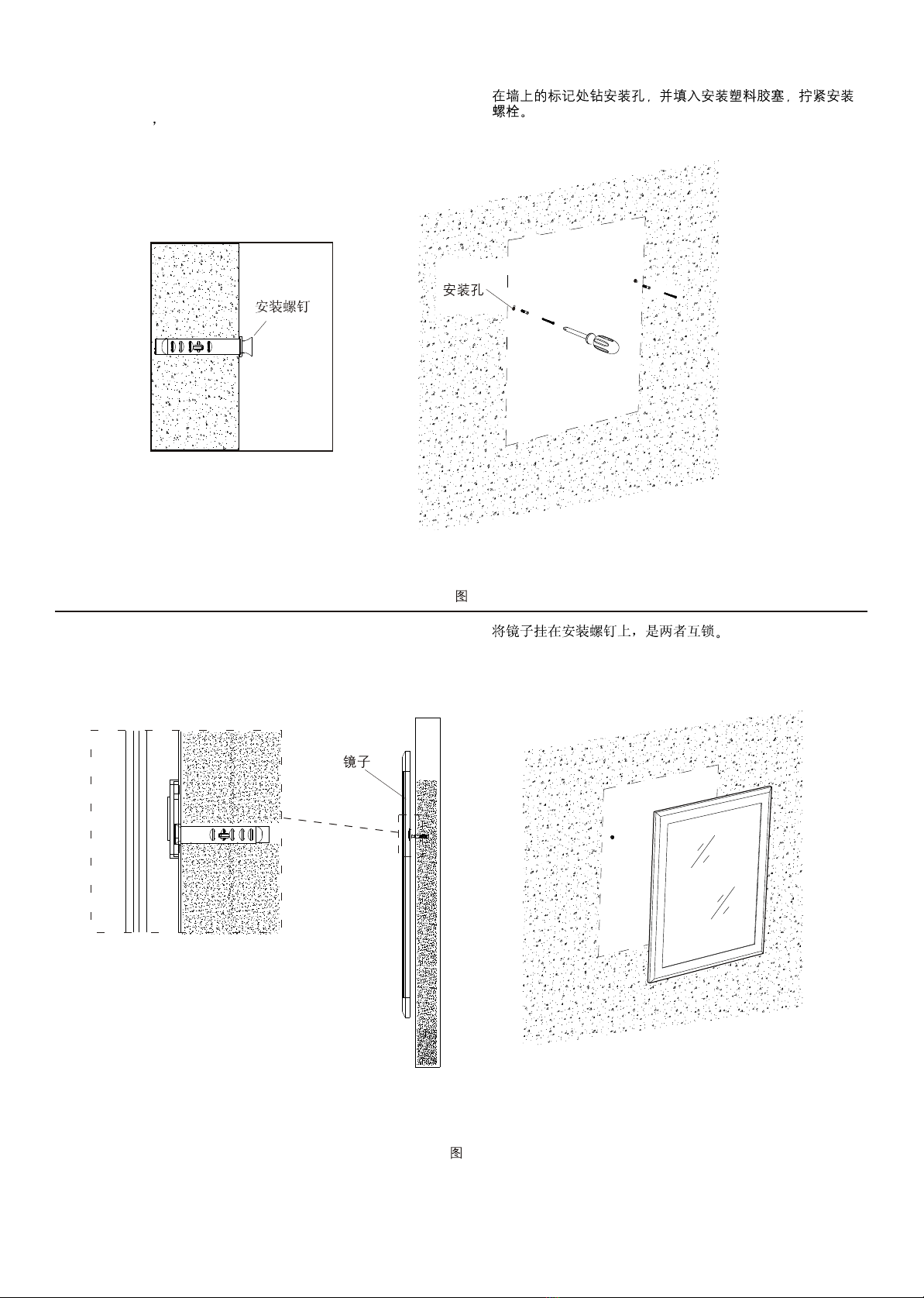

2.
2. Drill holes for fixing hanged and low pull into the wall at the
mark place tighen the screw .
Fig.1
1
3.
3. Hang the mirror to the hanged screw. And interlock
hangers to mount mirror.
Install hole
Screw
Mirror

1.
2.
3.
4.
5.
6.
7.
USER MAINTENANCEUSER MAINTENANCE
Warn! Risk of product damage.
1.
2.
3.
4.
5.
6. Please do not sit , lean or step out the basin cabinet.
7. If any fixtures caused by abnormal reasons, Kohler China
can supply paid replacement for service parts caused by
abnormal reasons as shown in the next page in the limited
Many cleansers contain abrasive and chemical substance
which is not suitable for cleaning stainless steel, enamel,
plating or plastic products. You may use mild cleansers or
soaps to clean the surfaces. Wipe any splashes of cleaner
solutions from the surface with clean soft cloth.
Maintain ventilation in the bathroom, and separate the dry
area from the damp one if conditions permit. Try to open
the door and windows of the bathroom and maintain good
ventilation.
Kohler bathroom cabinet are dealt with strict procedures
for damp-proof, whose good damp-proof function ensures
good performance even in bathroom of huge humidity. Yet
do not splash and pour water directly on the bathroom
cabinet. Make sure that the bathroom is not over damp
and wipe any splashes from surfaces immediately.
Maintenance of door board: Clean and wipe door board
regularly, and wipe the condensation vapor with dry and
soft cloth.
Ensure that electrical connections for appliances such as
head lamp is insulated wipe mirror surface with chamois
regularly to guarantee the persistent excellent performance.
-4-

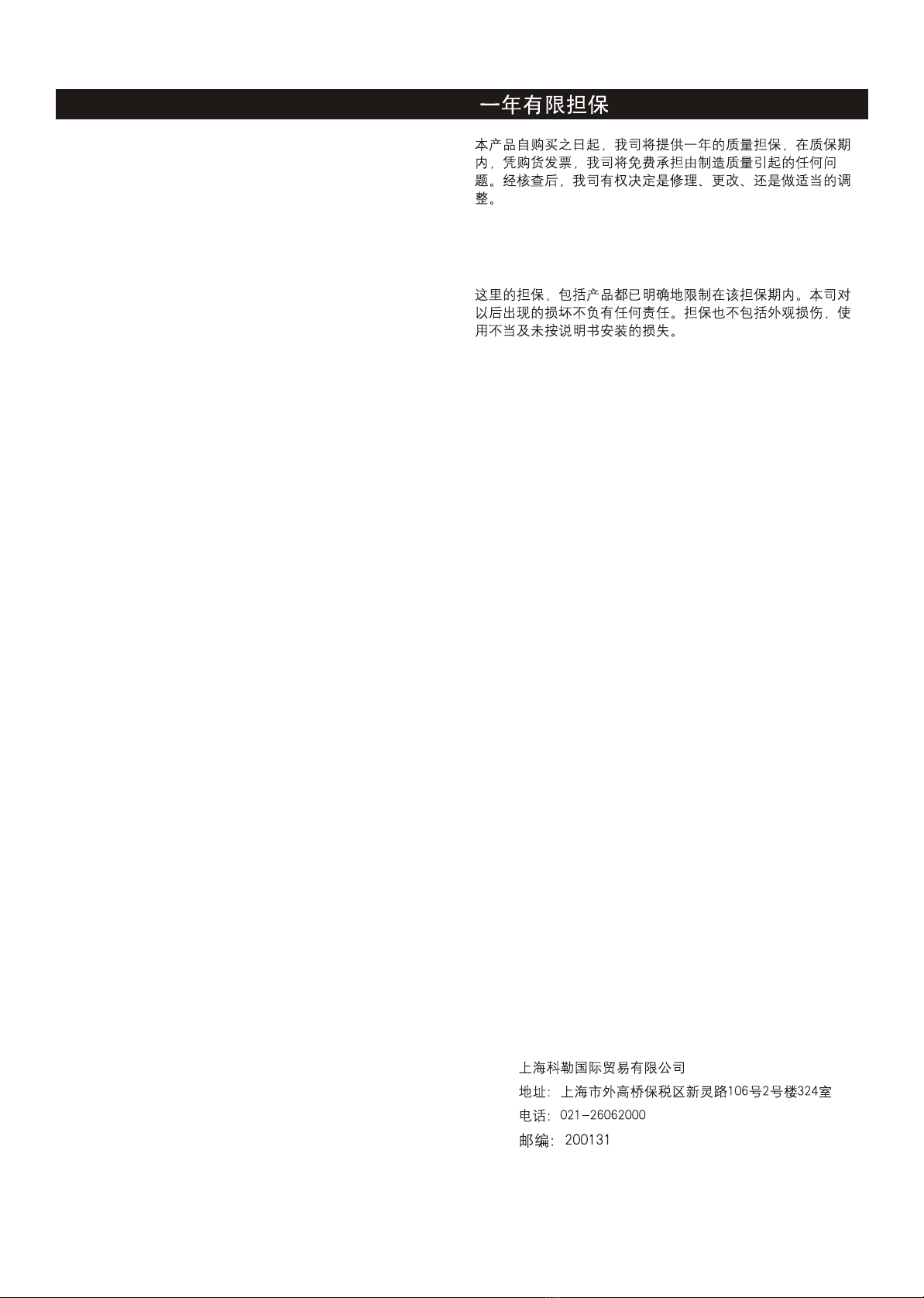

Our company provides one year warranty for its cabinet free
during normal residential use. Our company will be
responsible any problens caused by manufacturing defects
provided with the invoice. Our company will,at itselection
,repair ,replace or make appropriate adjustment where our
company inspection discloses any such defects occurring in
normal usage within warranty.
The warranty, including products, is limited clearly. Our
company is not responsible for other damages appeared after
the warranty. Also,the warranty dose not cover problems
arising from labor charges,incorrect use and installation.
ONE -YEAR WARRANTY
Shanghai Kohler International Trade Co., Ltd.,
Address: Room324, 2 Xinlin Rd, Waigaoqiao Free
Trade Zone, Shanghai
Tel: [phone]
Postcode: 200131

-5-

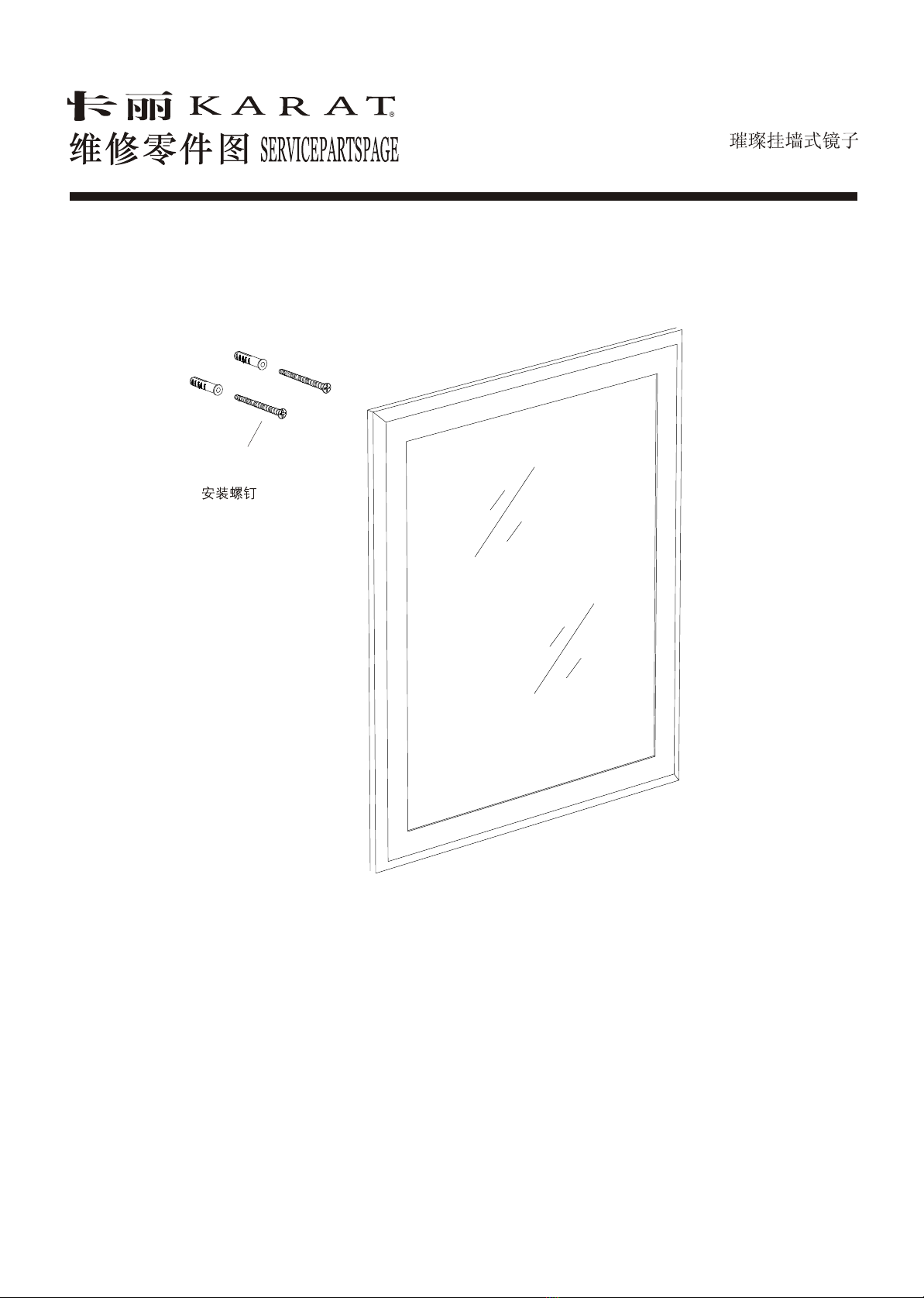

DIAMOND WALL-HUNG MIRROR
45546T-F92
1181506
Install screw
