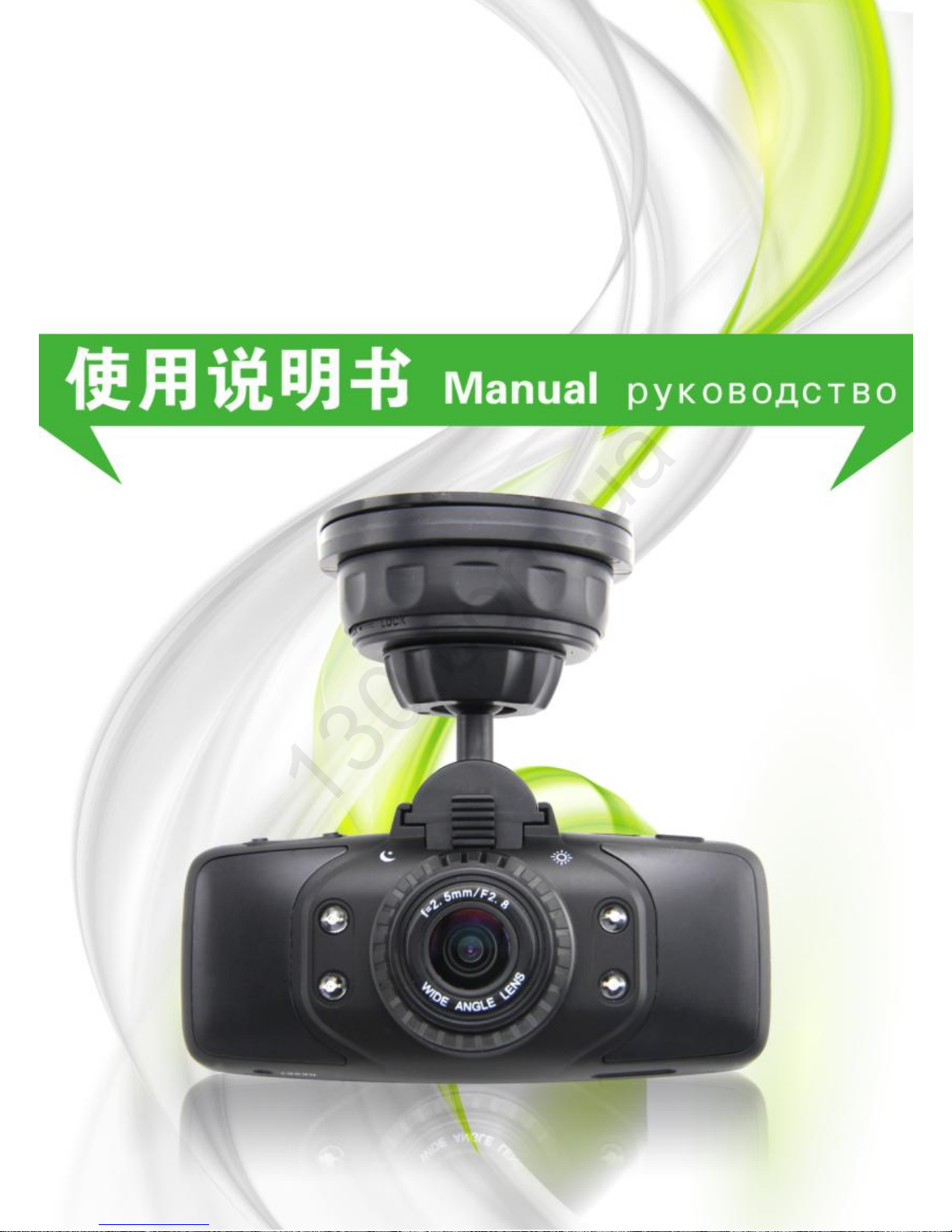

Welcome to use car black box, which not only has all the
excellent functions, but also breaks through lots of high-level
configuration .Built-in 256M large cache memory、256Mhz
ultra-high performance CPU、video up to 60fps、170°
ultra-wide angle、2.7’’ultra-wide narrow side design LCD
screen、extraordinary honorable!
Not only a professional HD car video recorder, it also
can be used as a normal HD camera. The resolution up
to 1920*1080P, and also can take static images up to 12 million
pixels, TF card as storage device, smart size, power saving,
easy to carry. Compared with traditional camera, it can take
HD video, and record more meticulous and perfect video, you
can also transfer the video to the high-definition LCD TV by
HDMI interface to make high resolution play.
Use this product, enjoy the real life of HD and high quality
130.com.ua
Autogood products «130»

Catalogue
01 Product feature and specification----------------------------- 17
02 Product structure-------------------------------------------------- 18
03 Button---------------------------------------------------------------- 19
04 Function------------------------------------------------------------- 20
05 operation instruction--------------------------------------------- 23
06 Product parameter------------------------------------------------ 27
07 Q&A-------------------------------------------------------------------- 27
08 The install and use of play software--------------------------- 29
130.com.ua
Autogood products «130»

product features
170°ultra wide record angle, Black and white night
filter switch
1920*1080P HD resolution
Advanced H.264 video compression technology
2.7’’ HD LCD screen, you can watching while
recording
With IR night vision light support, Black and white
night
lens filter switch
HDMI、AVOUT HD video transfer
Four resolution, free control storage space
Fluid video with 30/60 fps
Chuck bracket, easy to install and use
GPS module, record speed and travel track(optional)
G-Sensor gravity-sensor, force to save the current
video once the emergency
Automatically start when car start
130.com.ua
Autogood products «130»

Automatically record function, automatically cycle
recording
Time watermark shows on the picture
Charge & data transfer by USB interface
You can watching the video while recording, support
field playback
High capacity storage TF device which up to 32GB
Product structure:
130.com.ua
Autogood products «130»

Button
MODE mode switch button: long press mode for 3
seconds, it will turn to menu state, press OK button to select
menu item, Press the MODE into the preview mode.
Up button：I n the menu state, used for menu choice; The
playback state, used to browse pictures. In video playback state,
slow drop operation；
Down button: In the menu state, used for menu choice;
The playback state, used to browse pictures. In video playback
130.com.ua
Autogood products «130»

state, for fast forward operation.
ON/OFF button: Long press to turn on/off. In standby and
recording state, short press to convert the infrared lamp. Press
in video playback mode,it make the sound lounder.
REC/OK button: record button, to start/stop record; in
menu state, used to confirm the menu settings; In video
playback state, used to start, pause playback.
Photo button: press the button to take pictures of 3 million pixels,
in the process of photography press it can turn on/off the
recording. When playback, press it to reduce the sound.
Function
1, In record state, press REC button to start record, and press
REC button to stop. In the process of video, red mark will show
on the screen.
2, Automatically open infrared light under dark environment.
3,Resolution, Choose the video resolution: 1920*1080
60I/1920*1080 30P，1280*720 60P，1280*720 30P.
130.com.ua
Autogood products «130»

4. Quality: best/better/standard
5, Audio: open and close the MIC for recording voice if the video
file is included
6,Cycle recording: Set the 3/5/10 minutes .
7.Zoom：off/10X/120X.
8. Date/time stamp: set the date/time/date/time, use the up and
down button to add and subtract, press the "OK" key to confirm
and set to the next item
9. Lane departure detection: on/off
10. Lane departure correction:
11. The white balance: automatic/incandescent lamp/D4000 /
D5000 / sunny/cloudy day
12. The picture effect: closed/art stalgic/negative/black and
white and bright
13. Contrast: standard/high/soft
14. Sharpness: standard/high/soft
15. Metering sensitivity: automatic / 100/200/100/200
16. Ae deviation rate: - 2 to + 2
130.com.ua
Autogood products «130»

17. Backlight compensation: on/off
18. Language: language setting
19. TV system: NTSC/PAL
20. Reset file number: Reset the number/serial number
21. The set time (date) (month) (year)
22. Format: yes
23. The default Settings: yes
24. LCD set: brightness/contrast
25. Automatic shutdown: 3/5 minutes
26. The flash: / auto/on
27. The volume: 0-64
28 key voice: a closed/open
29. The acceleration sensor, 1-7
30. Automatic off screen, a third minute
31, delay shutdown: set up after the car flameout whether delay
shutdown
32. GPS: on/off
33. Pla. Stamp:
130.com.ua
Autogood products «130»

34. The version number:
Operation instruction
Used as driving recorder, car charger USB port should plug into
the port of the GPS bracket, so when the car start, the video
recording will automatically start; when car stop, it will
automatically stop and save the video recording files.
TIPS: Please use the standard car charger to the machine, or
this could result in damage.
The usage of TF card
The insertion direction of TF card, insert the direction is not
correct, may damage the unit and TF card;
Memory card on the machine used for the first time, please use
this machine for formatting. Often press MODE key 3 seconds to
enter the menu, press OK under the two keys to the tools, and
then press the button formatting, press OK key to confirm into
formatting, according to the key to choose whether or not the
formatting, press OK key to perform selected formatting.
130.com.ua
Autogood products «130»

Reset the system
Long press MODE key 3 seconds to enter the menu, press OK
under the two keys to the tools, and then press the button to
choose the default setting, press OK key to confirm to the
default setting, press the up and down key to choose whether or
not the default setting, press OK key to perform the default
Settings will be selected system parameter is set to the original
value.
Automatic shutdown
Used to set the automatic shutdown when stop recording.
Frequency
Used to select the frequency of the alternating current, if choose
the wrong frequency of light, the image will appear interference
in China should be set to 50 HZ.
Automatic off the screen
Set a time off the screen automatically, press any key to wake
up the LCD screen
Acceleration sensor
130.com.ua
Autogood products «130»

Used to monitor from the collision of traffic, if there is a collision,
the automatic trigger forced saving functions, the lower left
corner will appear a lock symbol, saved file, will not be loop
video deleted.
Protect files
Automatic protection files can set the sensitivity accelerometer,
the option has can celled 1/2/3/4/5/6/7, a total of seven options,
set to cancel automatically when the trigger file protection
function to cancel, the impact strength 1 is the lowest, 7 is the
highest (to avoid because the card size and influence the video,
the total file size limit for the lock document 1 G) manual file
protection function: in the process of recording, press mode key
manually force to protect the current video, if you have to protect
the state, and then press the mode button to cancel the
mandatory protection function.
GPS (optional)

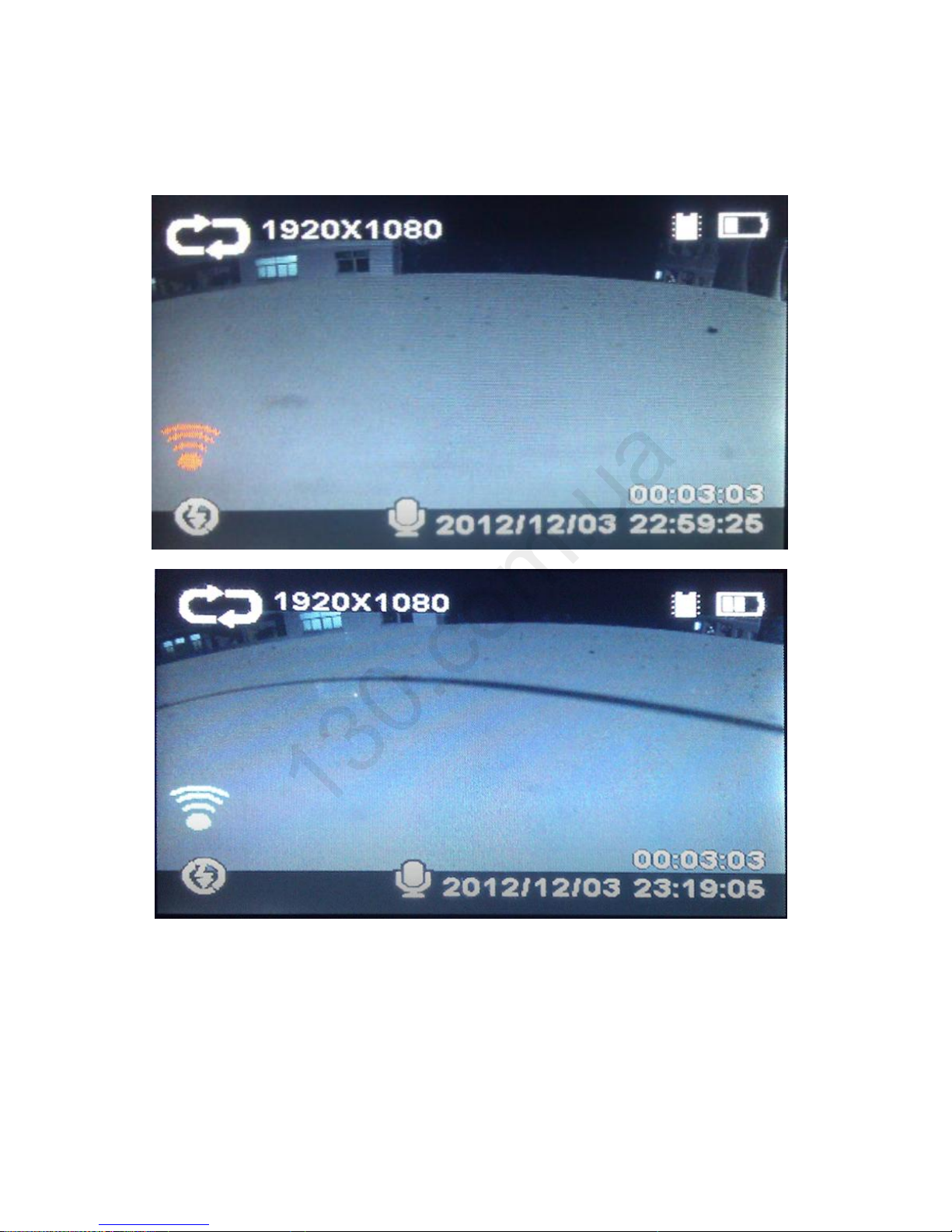

Will support the GPS module link icon, to screen the bottom left
corner will appear red signals when the signal icon into a green,
it is normal to receive GPS signals
130.com.ua
Autogood products «130»

130.com.ua
Autogood products «130»

Product instructions
Sensors: 5 m COMS sensor, 1/3 inch light-sensing surface area
Lens: the aperture of 2.8, the focal length of 2.5 mm
Zoom: 10 x digital zoom
LCD screen: 2.7 inch TFT LCD
Video output: AV composite NTSC/PAL TV signal output, TV
HDMI output: 1920 * 1920 p
Audio: built-in MIC and speakers
Memory: support 32 GB TF card
Photo: JPG format, the highest 12 million pixels
MOV (h. 264) video format
The shutter electronic shutter
Fill electronic infrared light as the fill light
Polymer battery 300 ma, 3.7 v, rechargeable batteries
Special features black and white night filter options
FAQ
If the device has problem with the correct operation, please refer
130.com.ua
Autogood products «130»

to the solution as below:
1. Can‘t take pictures or record video, Check the TF card
whether has sufficient space
2. When recording, it will auto-stop half way, Because the
capacity of the HD video data is huge, please check whether
your TF card support high-speed transmission for
SDHC(marked with C4 pr C6),suggest format the card before
using
3, No image display on the high-definition television,
Confirm that AV/HDMI TV plug connection is correct, whether
the Setting on television is under AV/HDMI state.
4. Video or pictures are blurry,This is because the lens is not
clean. Please check the lens if there are unclean things or
fingerprints. Please clean up the lens with lens tissue before
using.
5, interfering with horizontal stripes in the image, this is due
to set optical frequency error, according to the local power
supply frequency set to 50 HZ or 60HZ
130.com.ua
Autogood products «130»

The installation and using of play software
You need to install the professional player to view GPS
information if you are using
1. Install the software installation CD, please provide
QUICKTIMEINSTALLER.EXE
2. Copying software package, please copy the
CARDV_R folder on the CD to your computer
Using the player software
Double-click the folder CARDV_R CARDVC2. Exe, then choose
the folder you
130.com.ua
Autogood products «130»

Обзор продукта
Благодарим вас за приобретение видеорегистратора.
Этот продукт является использование новейших технологий
для разработки камеры высокого разрешения1920*1080P ,
как и обычная камера HD в использовании, а также
является профессиональным автомобильным
видеорегисраторам. 170 градусов высокого разрешения и
широкоугольной камерой, 2,7-дюймовый с высоким
разрешением ЖК-экран, 256Mhzвысокие
эксплуатационные характеристики CPU, самое быстрое
видео 60 кадров в секунду, встроенная память 256M,
настоящий 12 млн пикселей и можно стрелять 12 -млн
мегапиксельных фотографий.TF карт в качестве
запоминающего устройства, небольшой
размер,энергосберегающий, и легко носить. По сравнению
с традиционными камеры для записи изображения с
высоким разрешением данного продукта, вы можете
записать более подробные отличный экран видео,
видео-кадры могут также быть использованы HDMI кабелю
130.com.ua
Autogood products «130»

передается непосредственно высокой четкости
ЖК-телевизор, чтобы сделать высокое разрешение
воспроизведения. Использование этого продукта, и
наслаждайтесь реальной HD жизнью высокого качества.
130.com.ua
Autogood products «130»

Каталог
01 Особенность и функция---------------------------------------- 33
02 Структура продукция--------------------------------------------- 34
03 Клавиша-------------------------------------------------------------- 35
04Функция--------------------------------------------------------------- 36
05 Руководство к употреблению---------------------------------- 39
06 Технические характеристики---------------------------------- 43
07Возможные проблемы и их причины------------------------- 44
08Установка и использование------------------------------------- 45
130.com.ua
Autogood products «130»
