KARE design 20306 User manual

Manual for Display Signage (20306)
1
© KARE Design GmbH
User Manual

Manual for Display Signage (20306)
2
© KARE Design GmbH
Index
(wir bei der fertigen Version erstellt)
Enclosed content
1x Display
1x Foot
8x Screws for foot
1x Hex-wrench
1x key for each of the flap on the backside (one big and one small)

Manual for Display Signage (20306)
3
© KARE Design GmbH

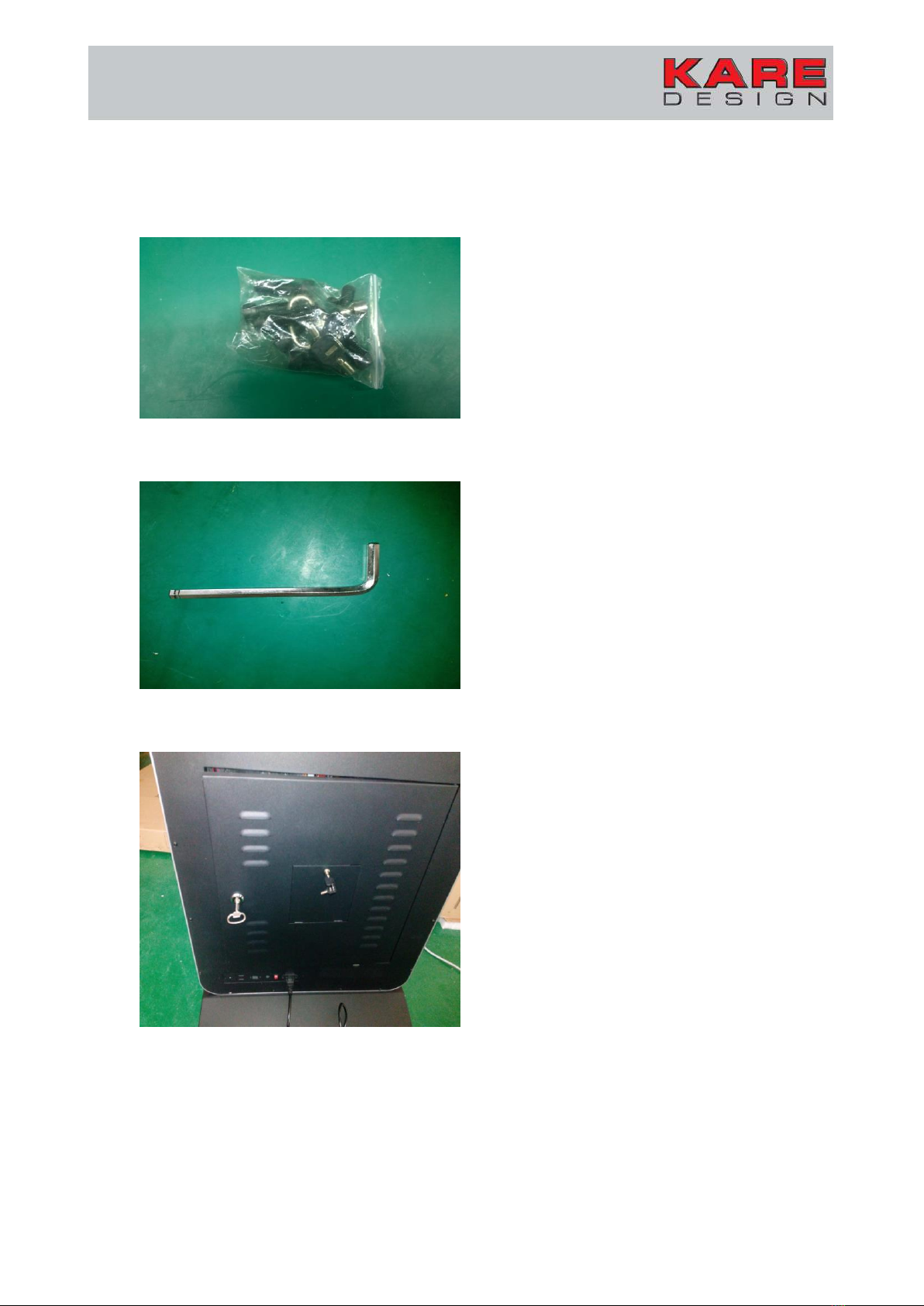

1. How to connect the foot with the display
Please find all related accessory in the small packet.
Please use the hex-wrench (see picture below) to tighten the 8 screws into the foot.
Deploy the display upright and connect the power cable.
Use the key to open the rear door. You will see a USB port and a RJ45 network port. You can
connect the Ethernet network via RJ45 port or with your W-Lan.

Manual for Display Signage (20306)
4
© KARE Design GmbH
2 Connect the display with your WLAN network.
Plug your mouse (USB-port necessary) into the display.
Click the right key on your mouse to exit the running system and click “ok” to get to the sreen
desktop.
Then click the following icon on screen to open the menu.(down in the middle of the screen)

Manual for Display Signage (20306)
5
© KARE Design GmbH

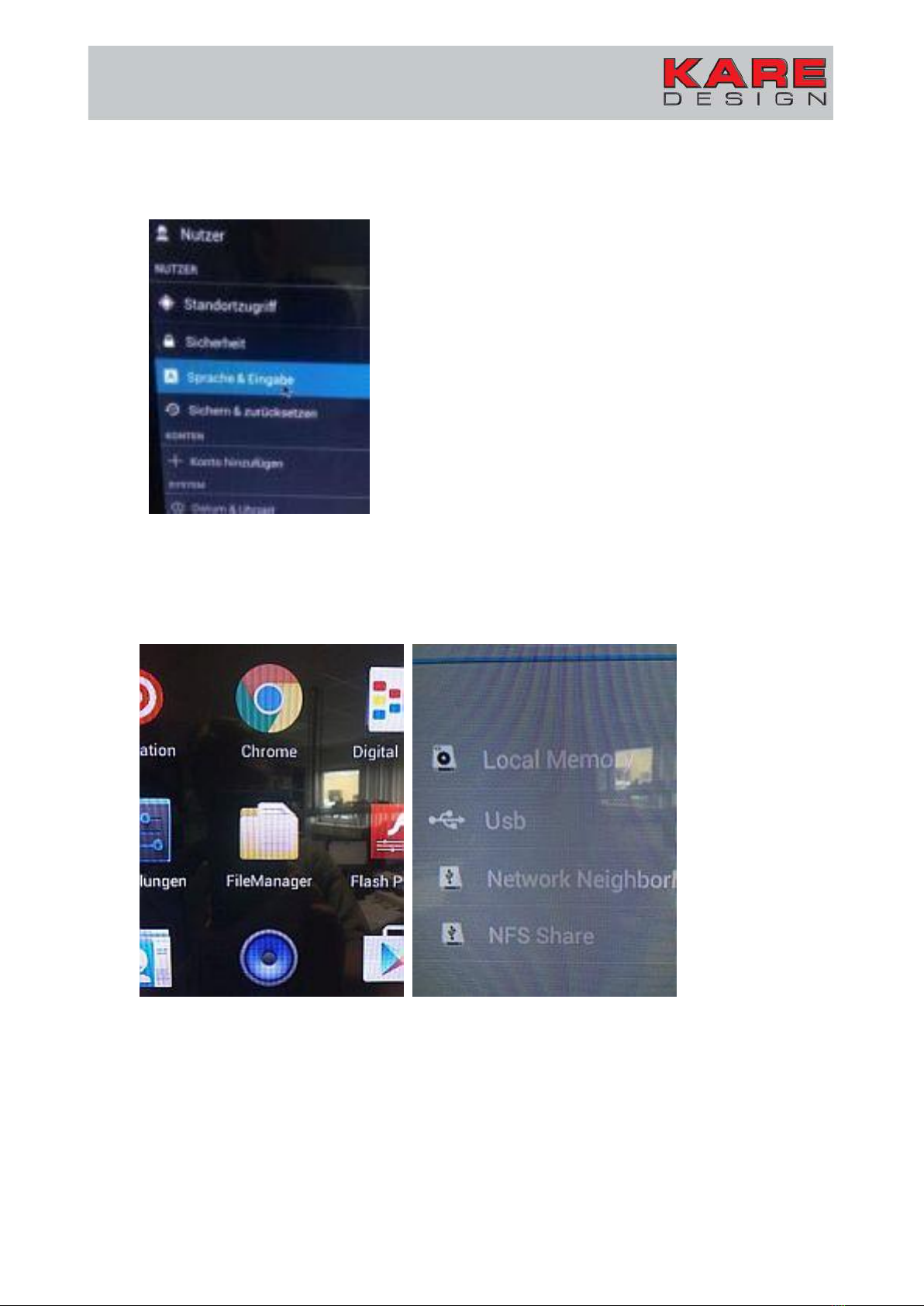

Now choose your language.
You can play videos and presentations from USB. Just download the content, put the content you
like to play on the USB-stick and plug it to the USB-Port on the backside of the display.
Then go to “FileManager”, click on the line “USB” and choose the content you want to play

Manual for Display Signage (20306)
6
© KARE Design GmbH
If you like to use the Digital Signage Software via LAN or WLAN, go to “settings”/WLAN and click
on your WLAN IP. Then enter your Password and click “save”.
Please note down your WLAN IP for connection with your Server / PC!
3 Register Server IP address in system.
You see the following image on the bottom of the screen, click the “back-icon”(first sign on the
left) to exit the system setup menu.
Then choose digital signage with left mouse click.

Manual for Display Signage (20306)
7
© KARE Design GmbH
Now please press the middle roller on your mouse. You will see the right image on the bottom of
screen, and then click “register”with left key on mouse.
Click “change account” and set your server PC’s IP address into the first blank. Then name this
machine, f.e. “001”. Click “register“, and then exit the system with a click on middle roller.
Finally choose “exit” on the bottom and “ok”.
To leave the menu click on the “house-icon” on the left on top of the screen.
ATTENTION: Make sure your Server / PC is in the same WLAN as the Display

Manual for Display Signage (20306)
8
© KARE Design GmbH
4. Install digital signage software on your server PC
Now you need a PC as server PC with win7 system (notice: windows server 2008 will be better).

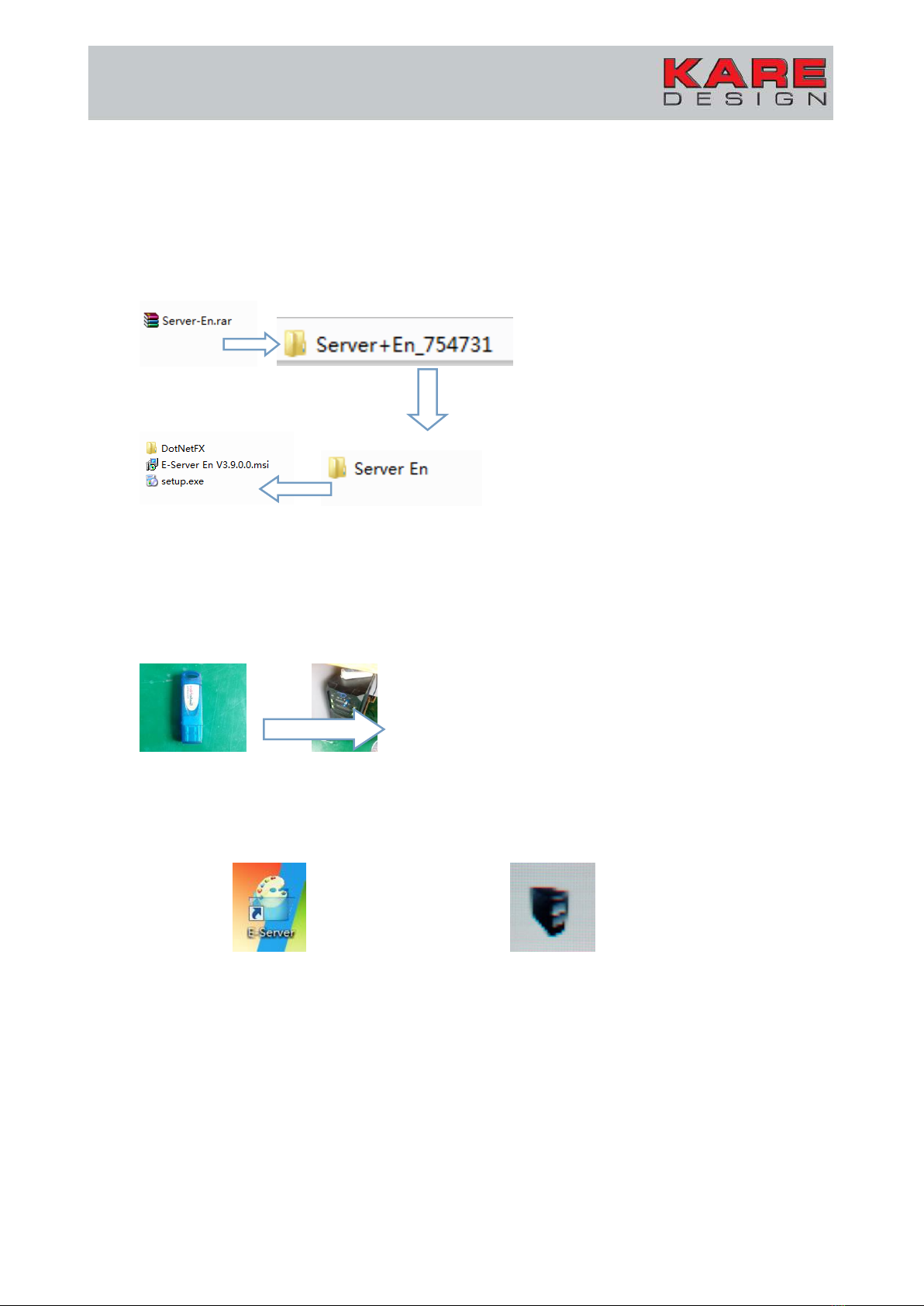

To install our digital signage software, unzip the digital signage software on your computer.
Attention: Before you install the digital signage software on your computer, you need to close
your Anti-virus system software!
Install the update version E-Server EN V 3.9.2.msi with the setup.exe-file. You will find it on the
KARE ftp-server in the public folder (Login data can be requested through [e-mail])
After you install the digital signage software on your server PC, you can see the digital signage
software icon(left image) on your computer desktop. Please make sure there is the server
software icon( right image) on the right bottom corner of the screen.
You can click the E-Server software icon to enter into the software system.

Manual for Display Signage (20306)
9
© KARE Design GmbH

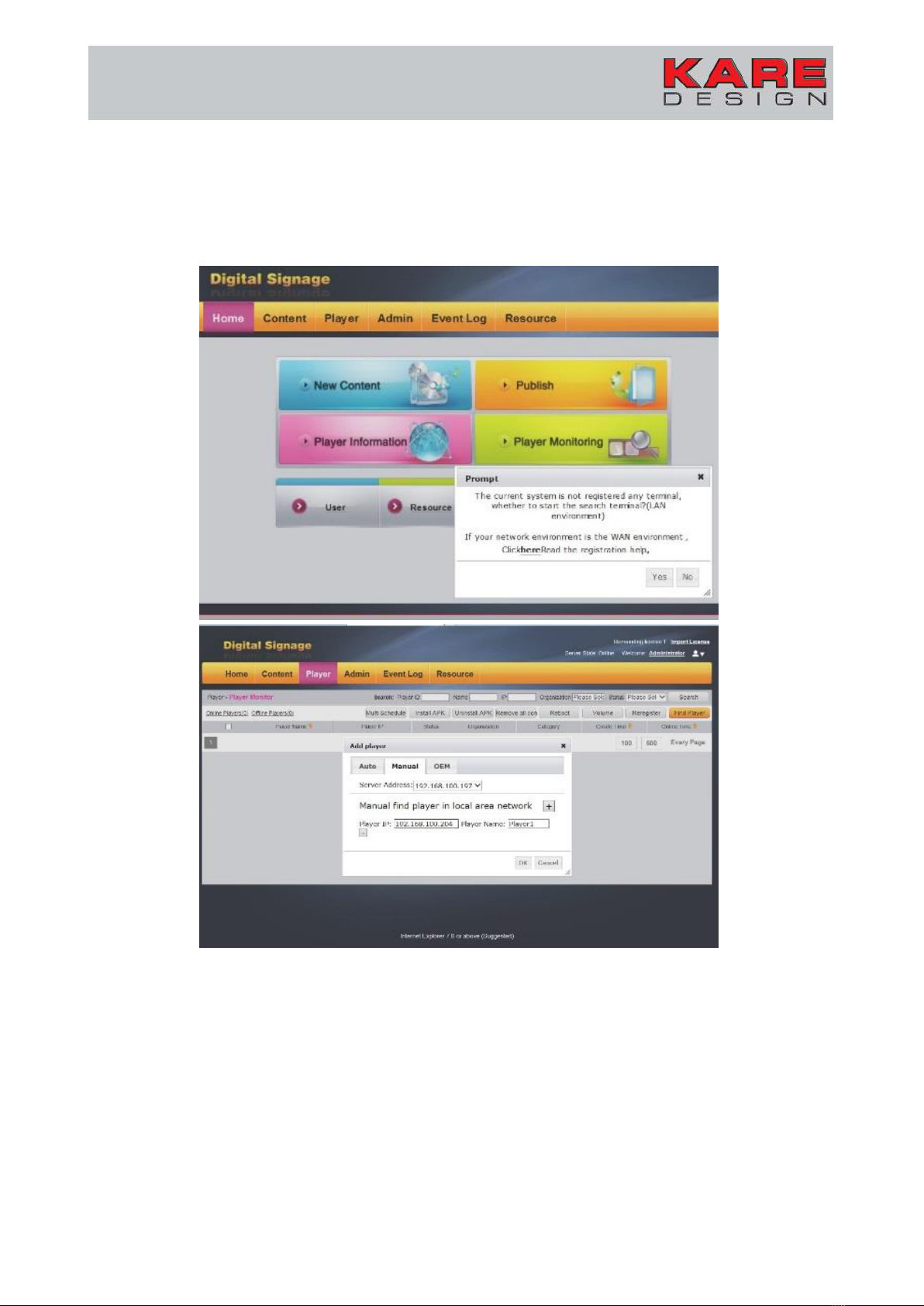

A prompt will occur, please answer it with yes and choose the task bar “player”. To add a new
player please choose Server Address and type in the Players WLAN IP, which you already used in
the KIOSK WLAN menu.
ATTENTION:
The connection will only work, if the Digital Signage Software is already working on the Display
and the Server/PC and the KIOSK machine are in the same WLAN network!
(bis hier erstellt!)

Manual for Display Signage (20306)
10
© KARE Design GmbH
Operating digital signage software on PC.
To launch Signagelink software, click Digital Signage icon on
your computer desktop. If you are logging from the computer other than
the server, launch Internet Explorer and type url http://serverIP/webedit
There is a pre-define Admin account “sa”. The default password is 123456.
After you sign in the system, you can change the password for this account.

Manual for Display Signage (20306)
11
© KARE Design GmbH
System Administration
1.1 New User Account
To create a new user account, click Admin →User→New. Enter User ID and Name.
And then choose an organization and assign appropriate roles. When you have done,
click Submit.
1.2 Delete User Account
To delete a user account, click Admin →User→Select User→Click Delete
8

Manual for Display Signage (20306)
12
© KARE Design GmbH

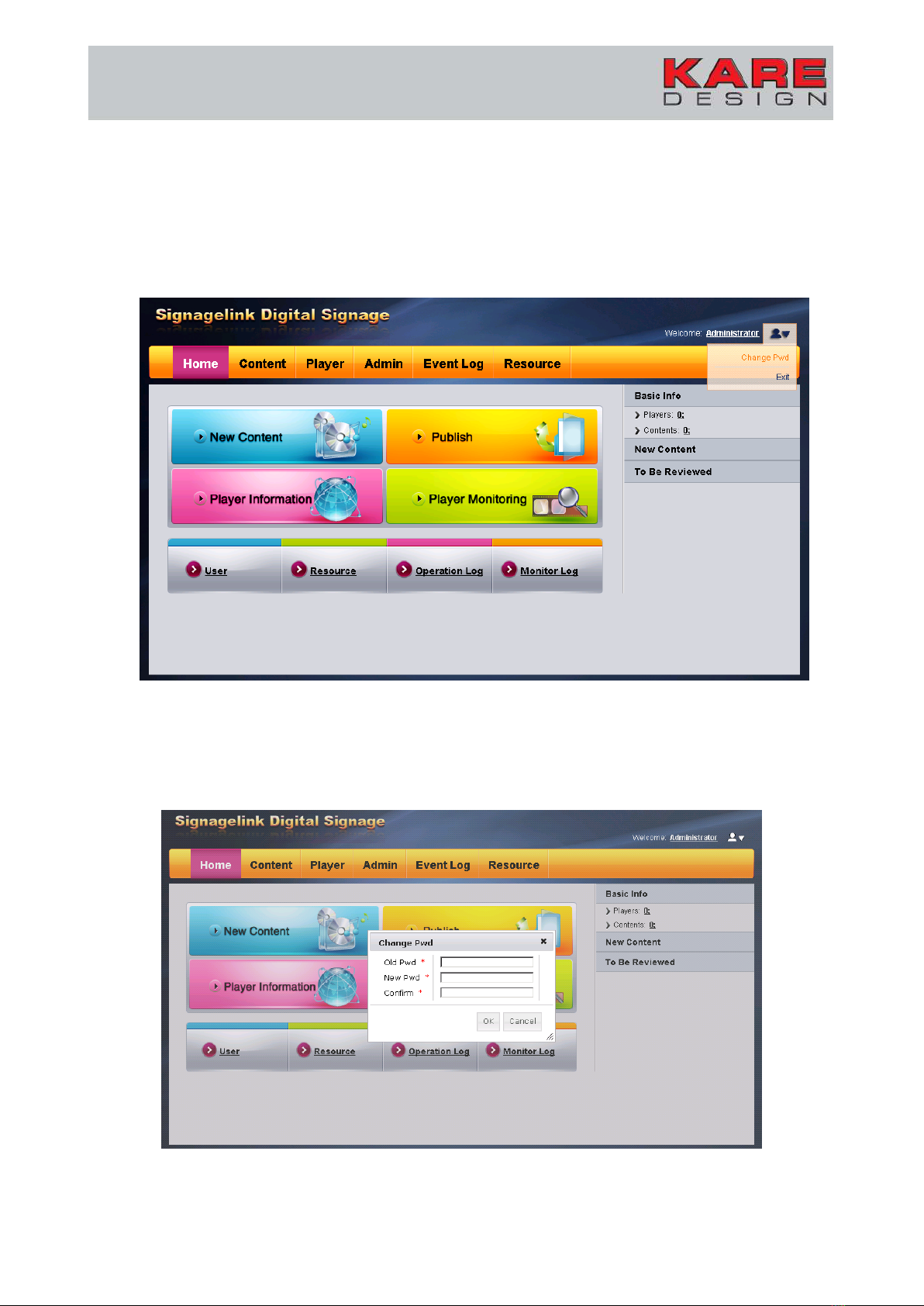

1.3 Change Password
To change password for a user, login with the User ID, then click change
Pwd
You need to enter the old password, new password and confirm password.
And then click Ok.

Manual for Display Signage (20306)
13
© KARE Design GmbH
9

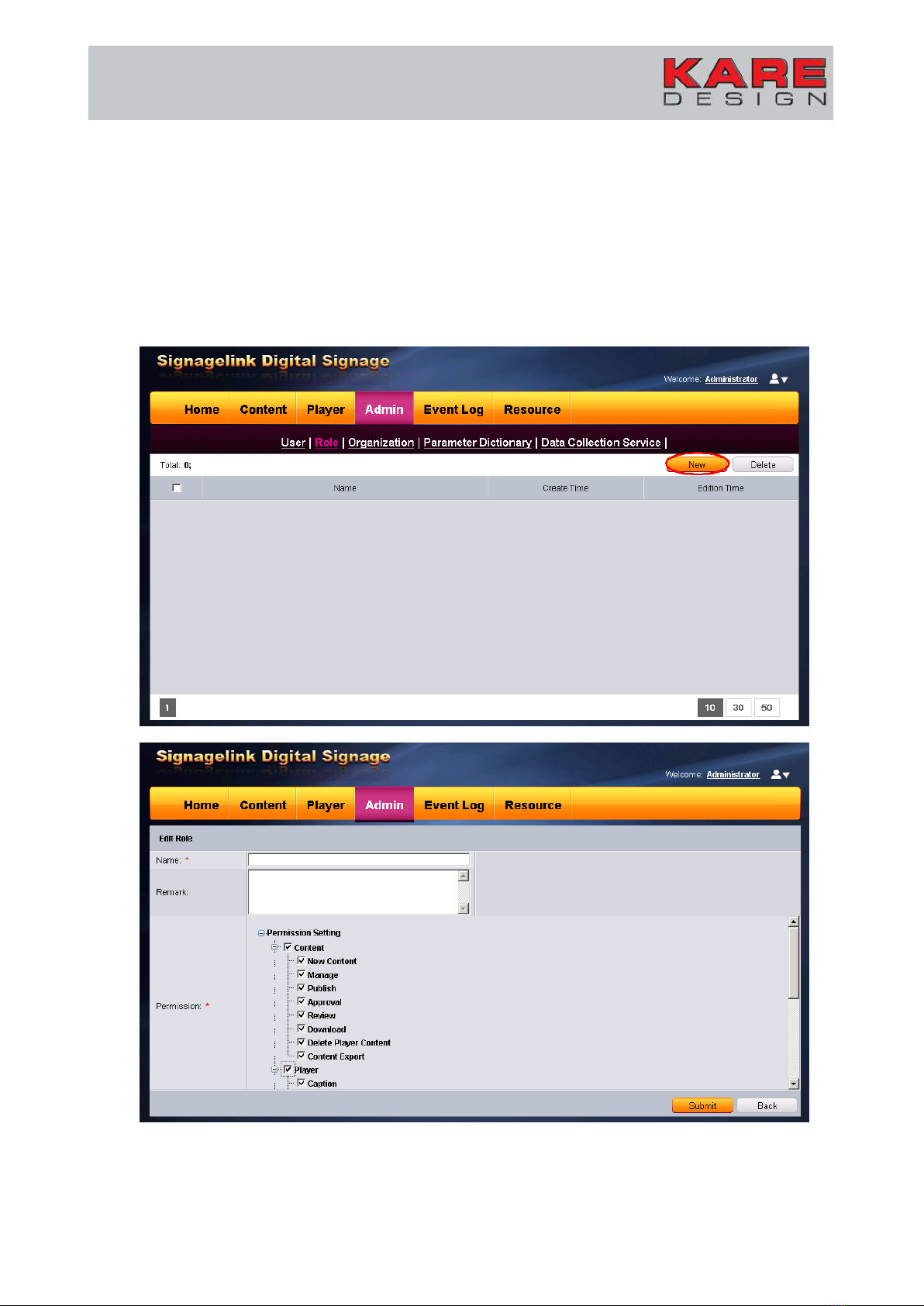

1.4 Create New Role
Click Admin →Role→ New, Enter name, apply level and then choose the
permission for the role. Click submit

Manual for Display Signage (20306)
14
© KARE Design GmbH
10
1.5 Parameter dictionary

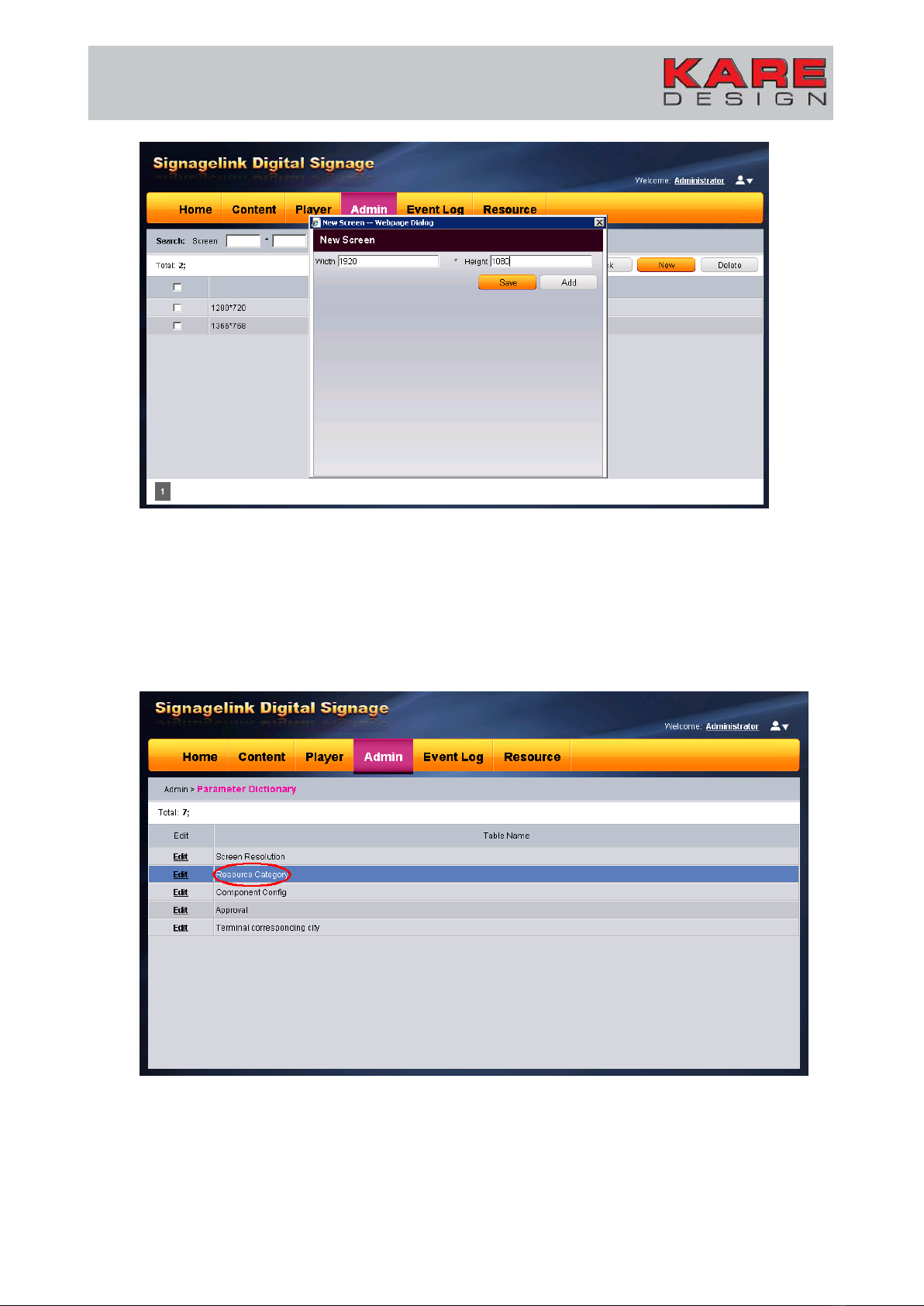

1.5.1 Create Screen Resolution
Click Edit→New→Enter Width and Height →Save. If you click add, you can continue
to add new resolutions

Manual for Display Signage (20306)
15
© KARE Design GmbH
11
1.5.2 Resource Category
Click edit→New→Enter new folder name and select classification→ Save

Manual for Display Signage (20306)
16
© KARE Design GmbH
12

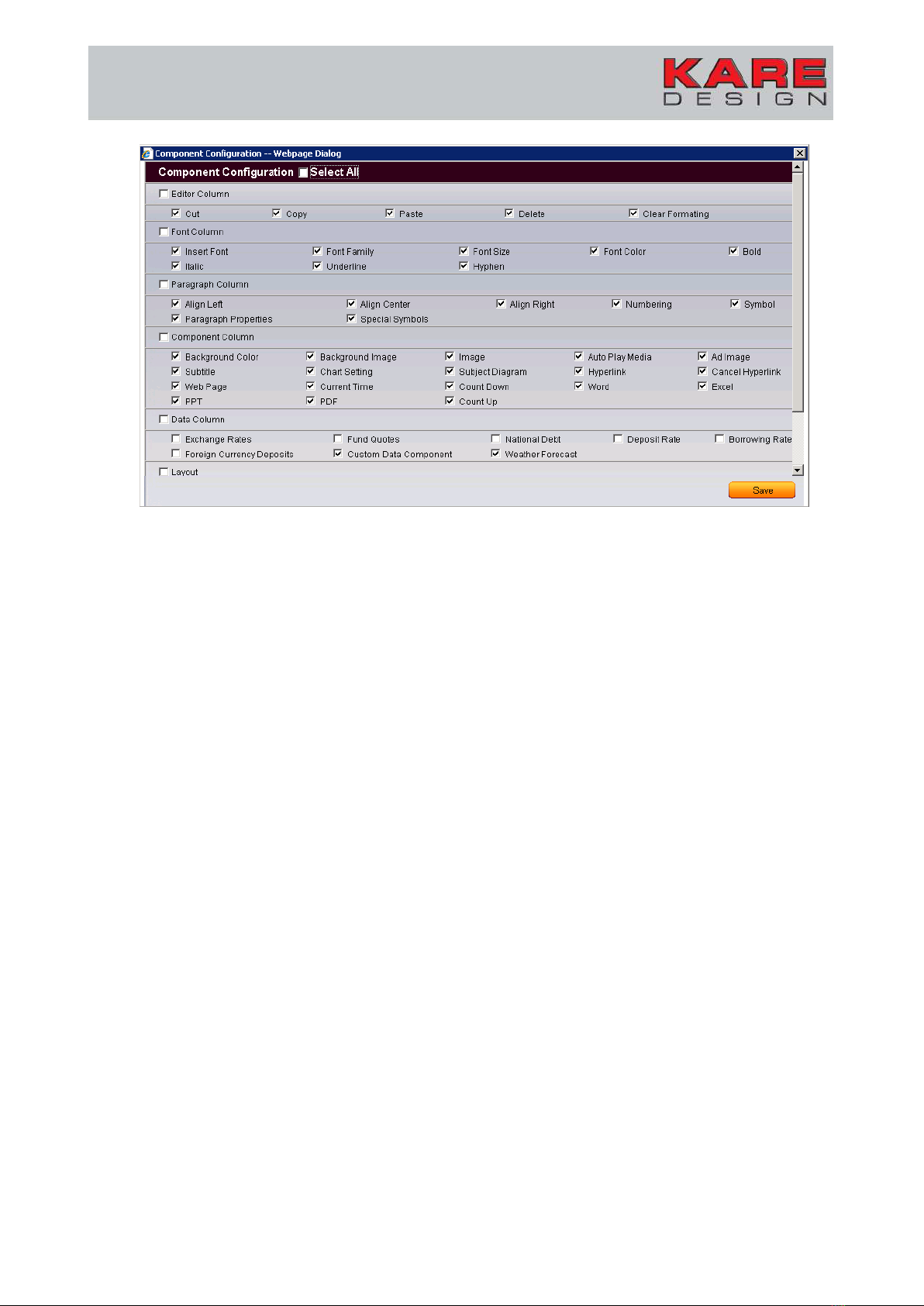

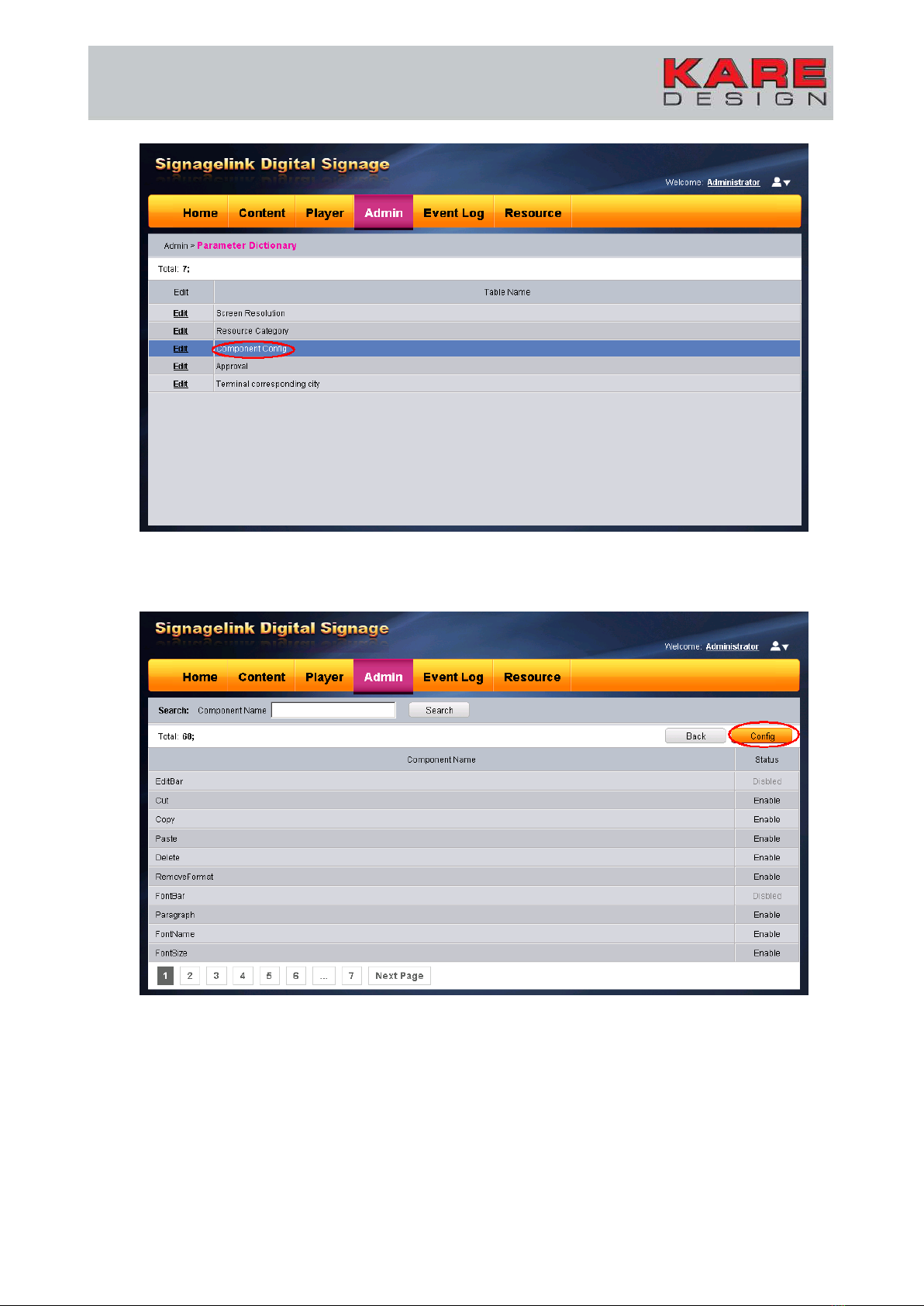

1.5.3 Component Config
Click edit→Config→Select the components→Save

Manual for Display Signage (20306)
17
© KARE Design GmbH

Manual for Display Signage (20306)
18
© KARE Design GmbH

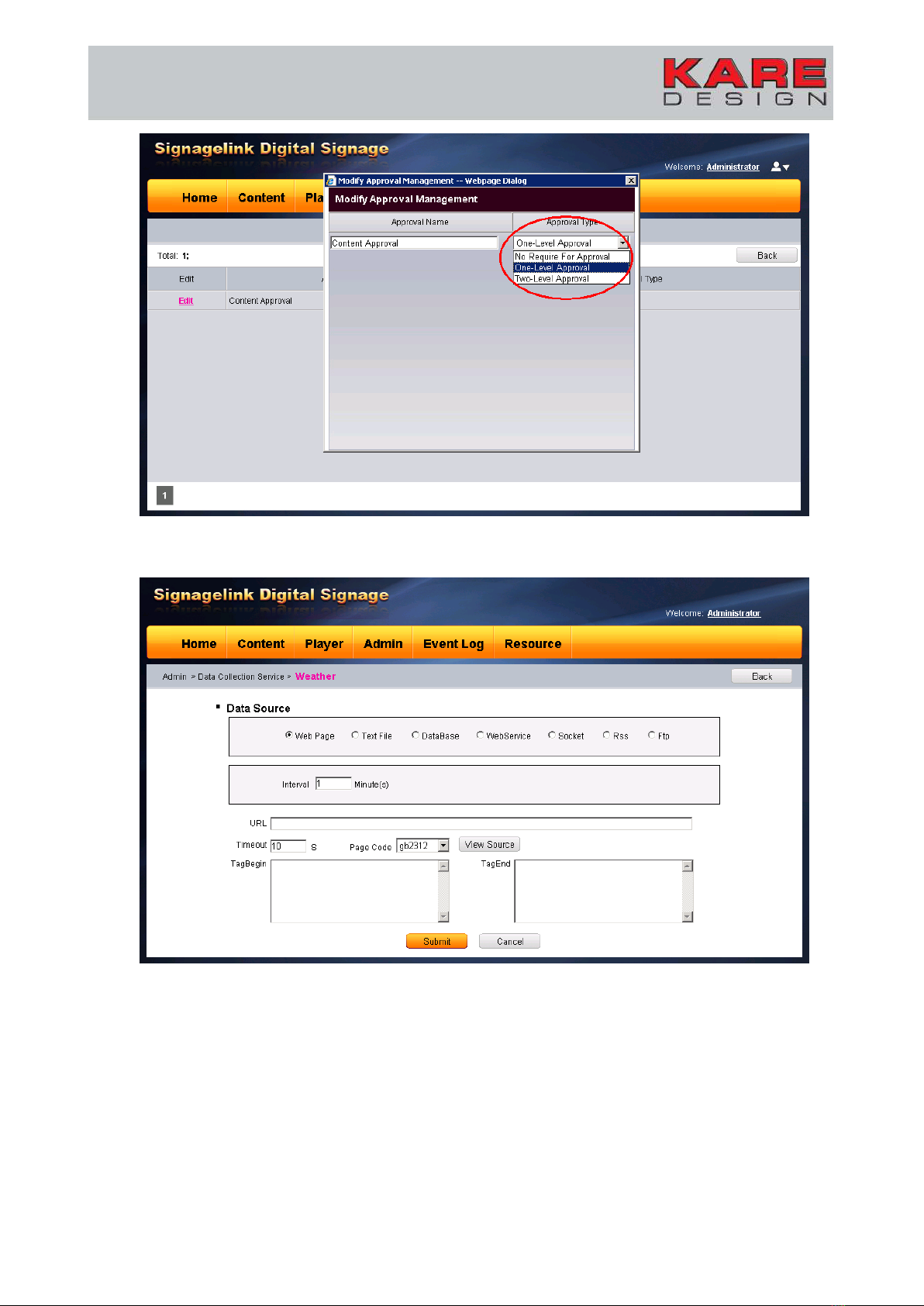

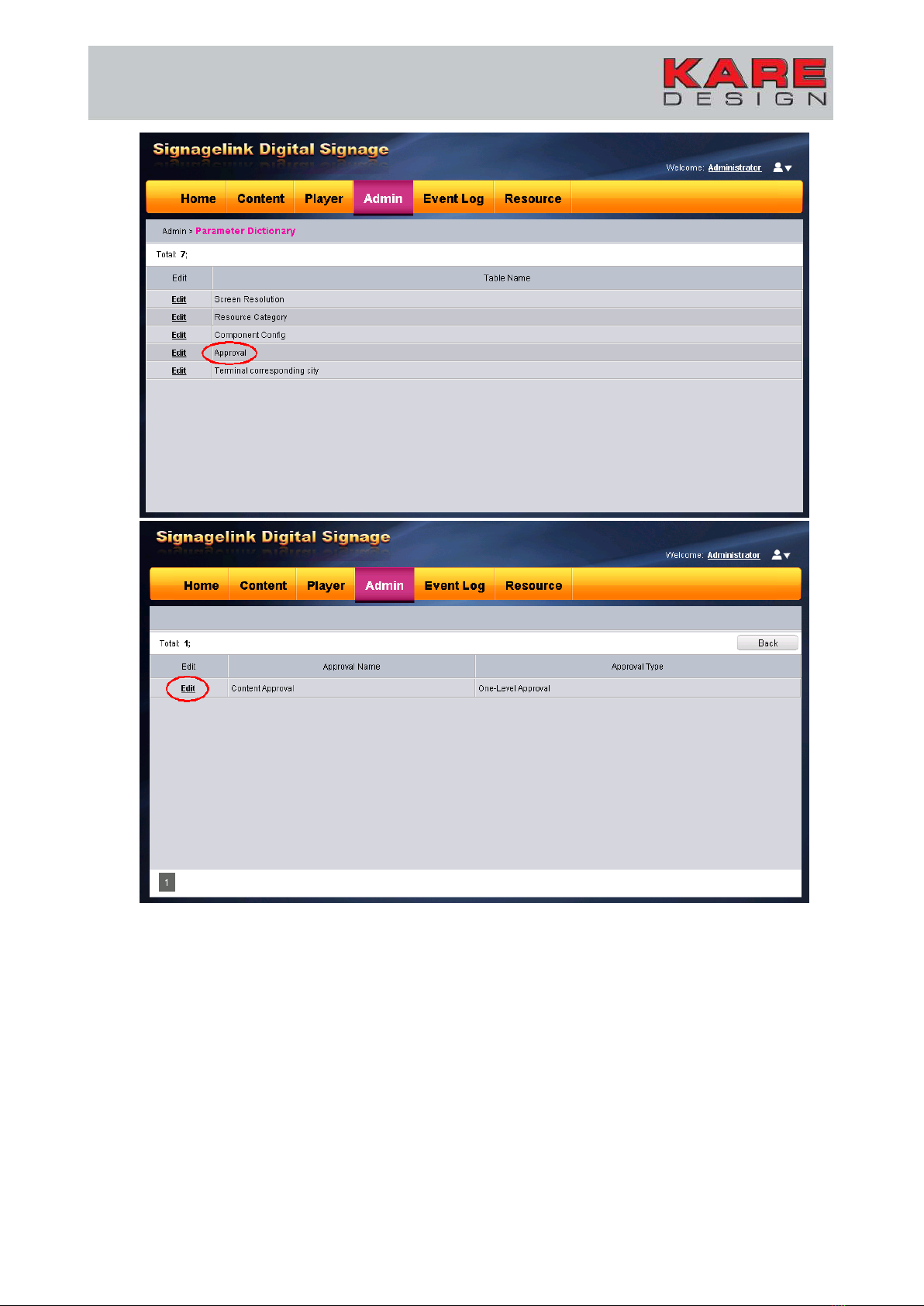

1.5.4 Edit Approval
Click Edit→Edit→Choose the approval type (default type is Level one
approval)→Save
You can choose Level one approval、Level two approval and No approval
required.

Manual for Display Signage (20306)
19
© KARE Design GmbH

Manual for Display Signage (20306)
20
© KARE Design GmbH
1.5.5 Data Collection Service
If you have any real time data want to show in the content, you could use the
customer Data Service.
