Kawai MR270 User manual

s Manual
SR
BEN
x
i
KE;
Owner

WARNING: This equipment generates, uses, and can radiate radio frequency
energy. If not installed and used in accordance with the instruction manual, it
can cause interference to radio communications. The rules with which it must
comply afford reasonable protection against interference when used in most
locations. However, there can be no guarantee that such interference will not
occur in a particular installation. If this equipment does not cause interference to
radio or the equipment off and on, the user is encouraged to try correct the
interference by one or more of the following measures:
reorient the receiving antenna.
move the receiver away from the digital piano.
plug the digital piano into a different outlet so that digital piano and receiver
are on different branch circuits.
consult the dealer or an experienced radio television technician.
This digital piano should be not commercial use but household use.

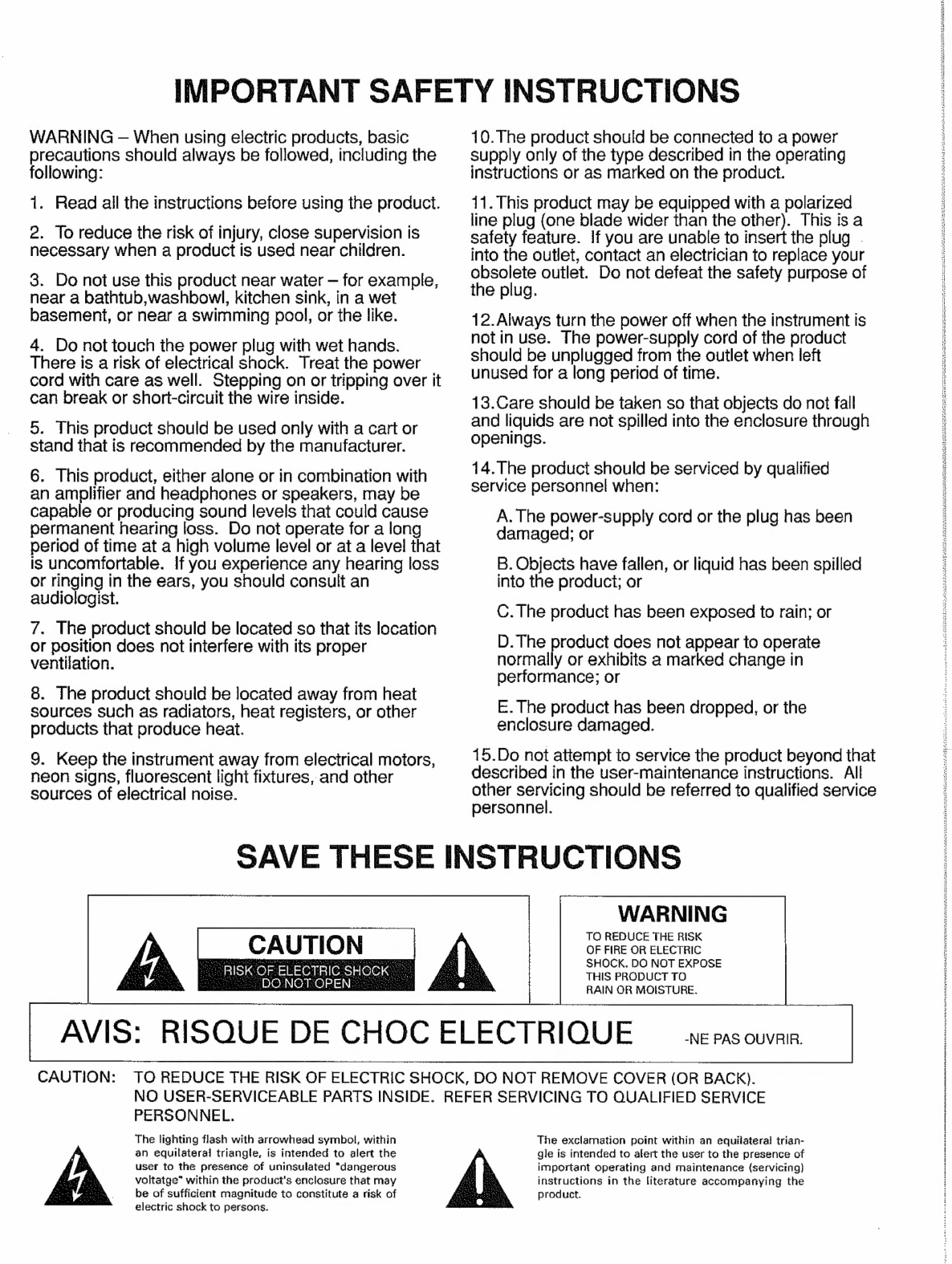

IMPORTANT SAFETY INSTRUCTIONS
WARNING — When using electric products, basic
precautions should always be followed, including the
following:
1. Read all the instructions before using the product.
2. To reduce the risk of injury, close supervision is
necessary when a product is used near children.
3. Do not use this product near water — for example,
near a bathtub,washbowl, kitchen sink, in a wet
basement, or near a swimming pool, or the like.
4. Do not touch the power plug with wet hands.
There is a risk of electrical shock. Treat the power
cord with care as well. Stepping on or tripping over it
can break or short-circuit the wire inside.
5. This product should be used only with a cart or
stand that is recommended by the manufacturer.
6. This product, either alone or in combination with
an amplifier and headphones or speakers, may be
capable or producing sound levels that could cause
permanent hearing loss. Do not operate for a long
period of time at a high volume level or at a level that
is uncomfortable. If you experience any hearing loss
or ringing in the ears, you should consult an
audiologist.
7. The product should be located so that its location
or position does not interfere with its proper
ventilation.
8. The product should be located away from heat
sources such as radiators, heat registers, or other
products that produce heat.
9. Keep the instrument away from electrical motors,
neon signs, fluorescent light fixtures, and other
sources of electrical noise.
SAVE THESE
CAUTION
RISK-OF ELECTRIC SHOCK =:
‘DO:NOT;OREN i
AVIS: RISQUE DE CHOC ELECTRIQUE nepras ouvarn
10.The product should be connected to a power
supply only of the type described in the operating
instructions or as marked on the product.
11. This product may be equipped with a polarized
line plug (one blade wider than the other). This is a
safety feature. If you are unable to insert the plug |
into the outlet, contact an electrician to replace your
obsolete outlet. Do not defeat the safety purpose of
the plug.
12. Always turn the power off when the instrument is
not in use. The power-supply cord of the product
should be unplugged from the outlet when left
unused for a long period of time.
13.Care should be taken so that objects do not fall
and liquids are not spilled into the enclosure through
openings.
14. The product should be serviced by qualified
service personnel when:
A. The power-supply cord or the plug has been
damaged; or
B. Objects have fallen, or liquid has been spilled
into the product; or
C. The product has been exposed to rain; or
D. The product does not appear to operate
normaily or exhibits a marked change in
performance; or
E. The product has been dropped, or the
enclosure damaged.
15.Do not attempt to service the product beyond that
described in the user-maintenance instructions. All
other servicing should be referred to qualified service
personnel.
INSTRUCTIONS
WARNING
TO REDUCE THE RISK
OF FIRE OR ELECTRIC
SHOCK. DO NOT EXPOSE
THIS PRODUCT TO
RAIN OR MOISTURE.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lighting flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the
user to the presence of uninsulated “dangerous
voltatge” within the product's enclosure that may
be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral trian-
gle is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
product.

Thank you for purchasing a KAWAI Digital Piano!
The Kawai digital piano MR270 is a revolutionary new keyboard
instrument that combines the latest in electronic advances with
traditional craftsmanship inherited from Kawai's many years of
experience in building fine pianos. lts wooden keys provide the touch
response and full dynamic range required for a superb performance on
the piano, harpsichord, organ, and other instrument presets. Moreover,
the newly-added reverb effect gives you even deeper resonance.
Industry-Standard MIDI (Musical Instrument Digital Interface) jacks are
included which allow you to play other electronic instruments at the
same time - opening a whole new world of musical possibilities.
This Owner's Manual contains valuable information that will help you
make full use of this instrument's many capabilities. Read it carefully
and keep it handy for further reference.
Table of Contents
MH Basic Controls ....sesssccssscssscsscsssnenssccnsccsssesznereneevoncucaacozess 1
M NOUS PIS A A led 4
E Advanced Features...............::::::sscesceesessensesecusazenvansvessens 5
1) Programming Mode ...coconccoccononococoncacnnononnnoronraosanerriracnncnonarareneras 5
2): TONNO inanan ck antes ca EEE oc nace bua tecwssansewanndeneseuniavacaneaannastes 6
3) Temperaments sii isscccincived co decavcburvaveincuscnsndcnssoiusantoccccadendsscadnasctents 7
E MIDI Interface iii 9

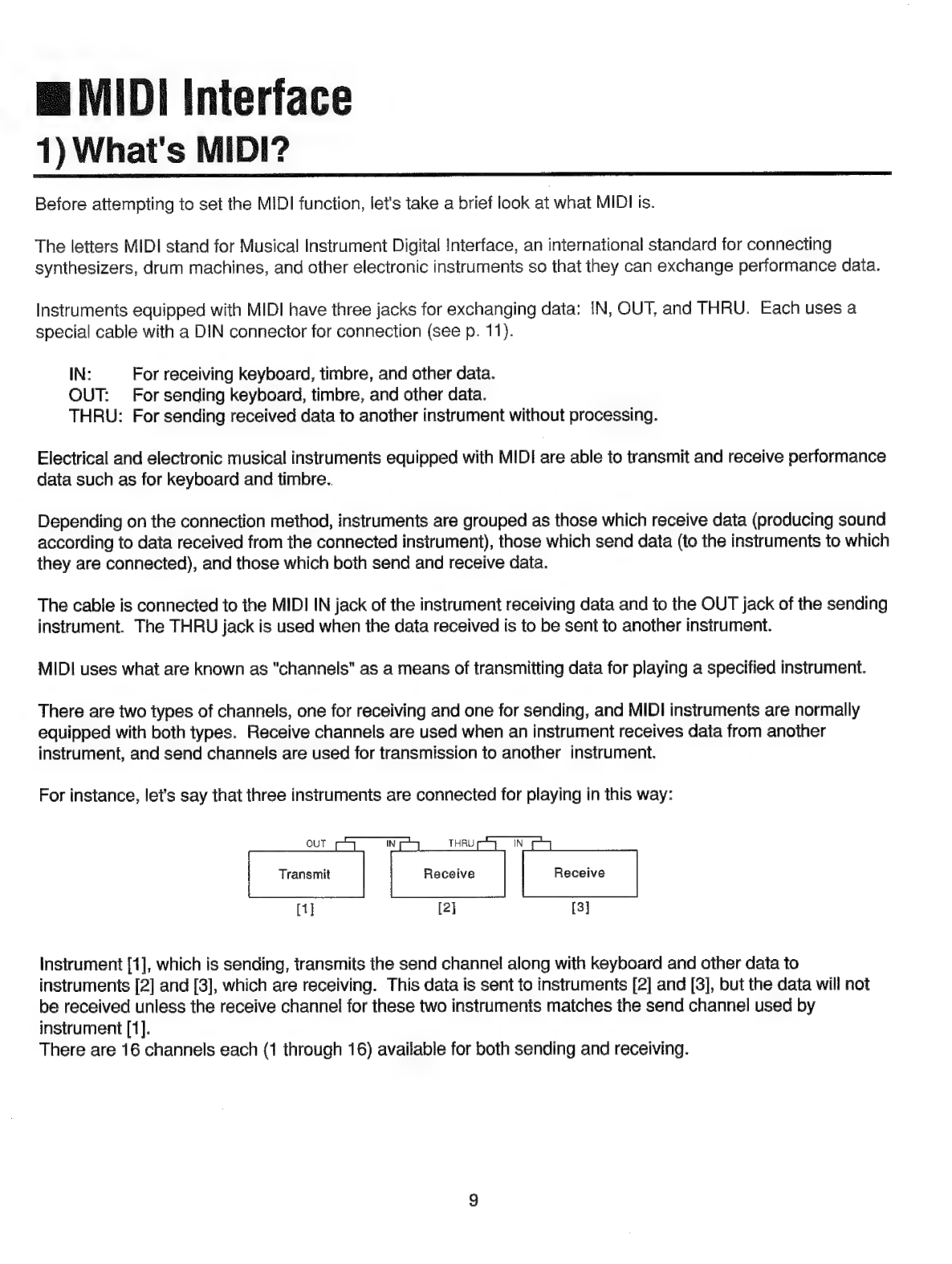

1) What's MIDI? A brandens gren 9

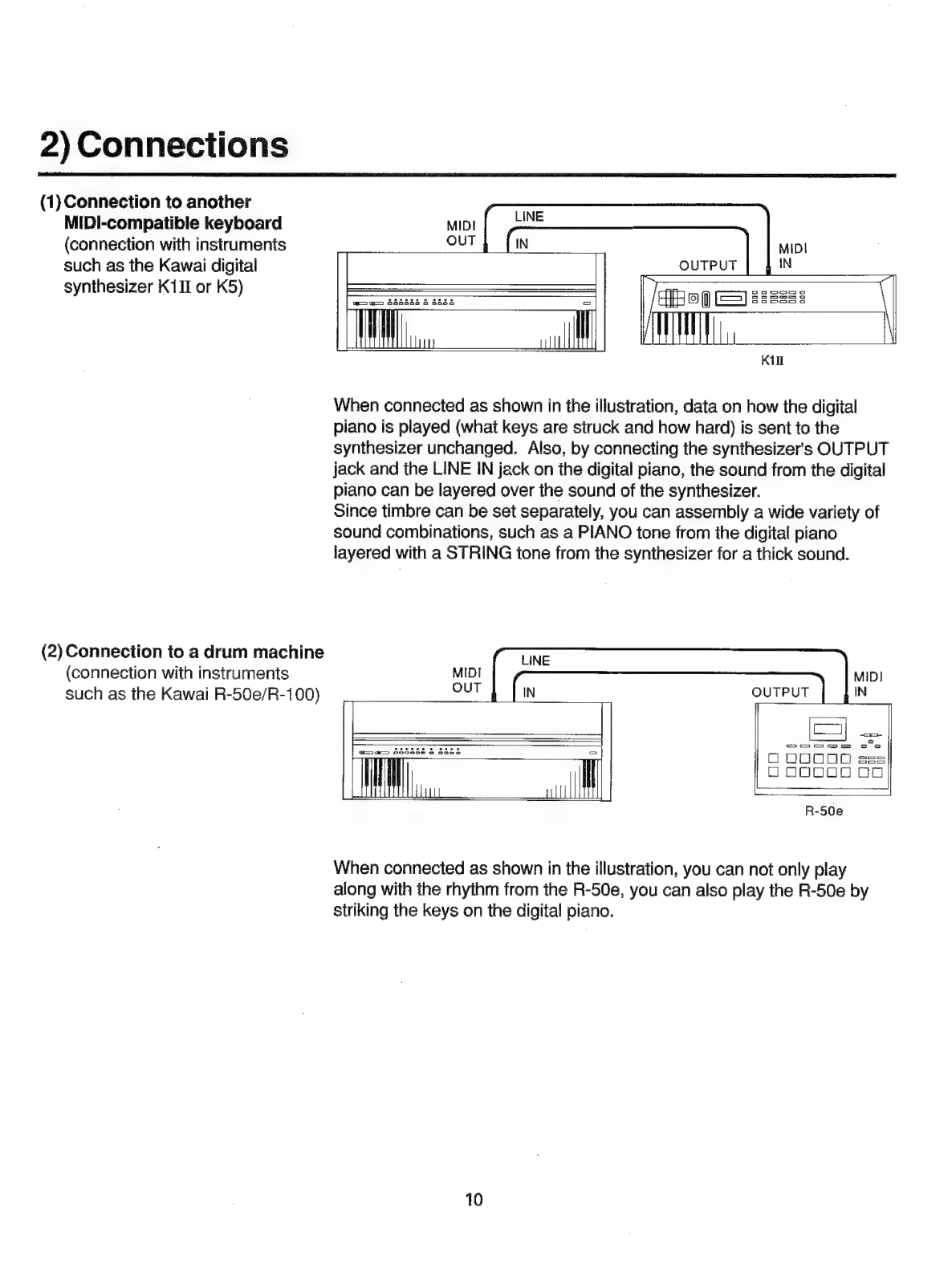

2) COMME Sana 10
3) MIDI Implementation ...............-.essssersnnneuusnonnunnenonunnennunnannnunnenen 12
4) :MIDLOperallon: anna RUNE alan ern nun 13
(A) Setting the channel .........nnnessesneneenennnnonannannanennennnnansannnannnnn 13

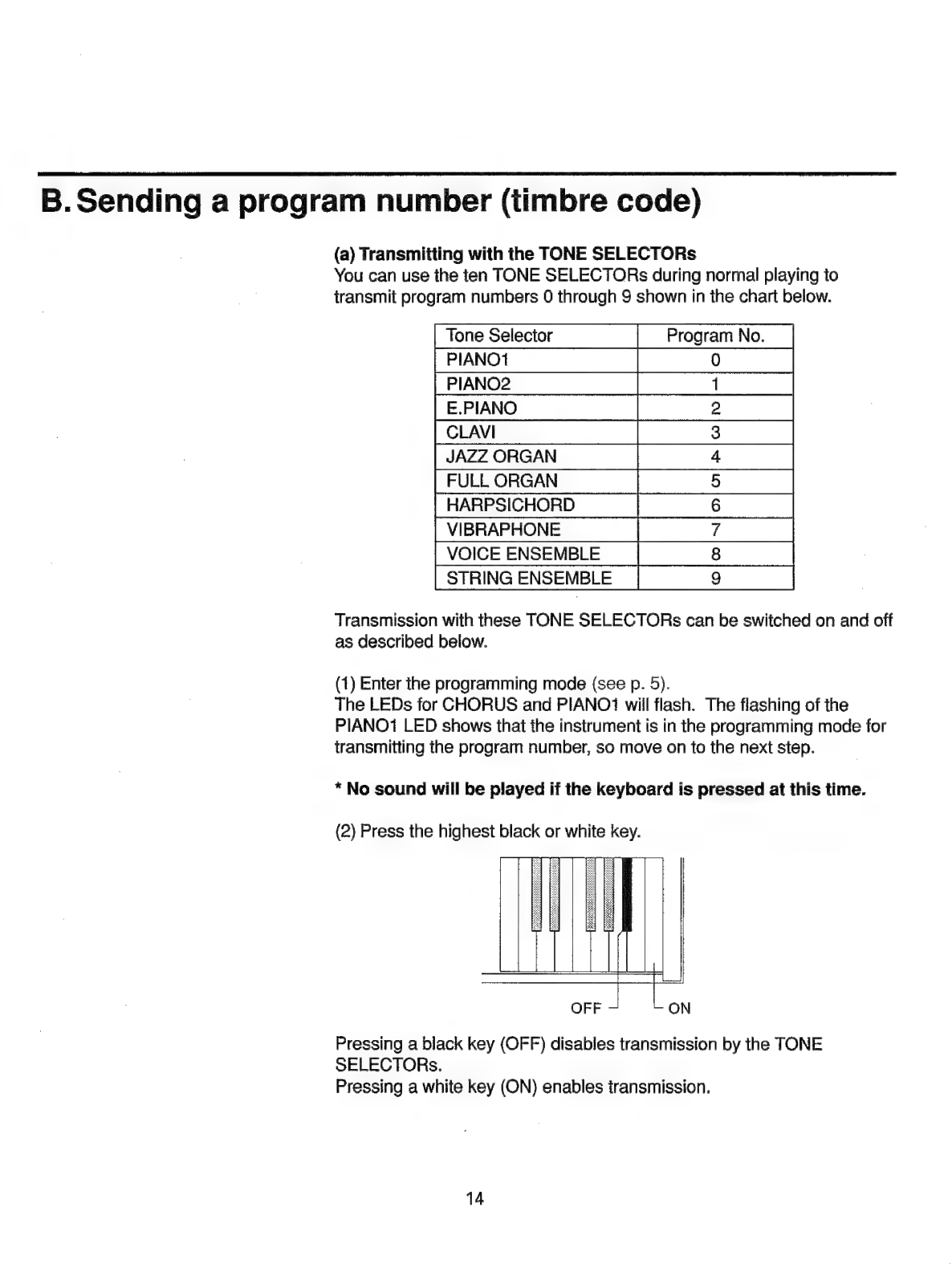

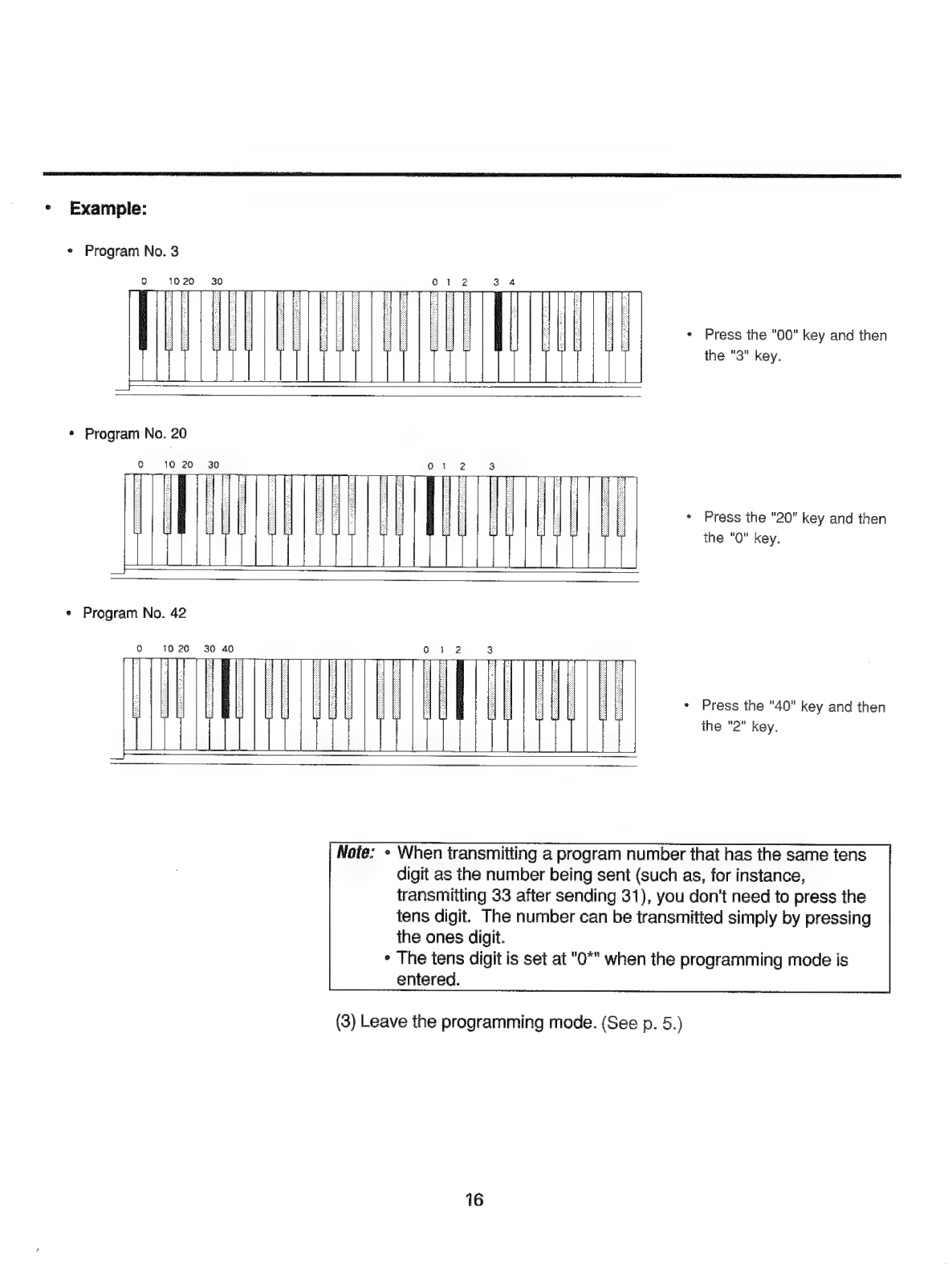

(B) Sending a program number ................... cc ceeeessenessssescenvsneveees 14
(C) Turning MULTI TIMBRE on and off .....aeeenssnensseeanneenannneenennn 17

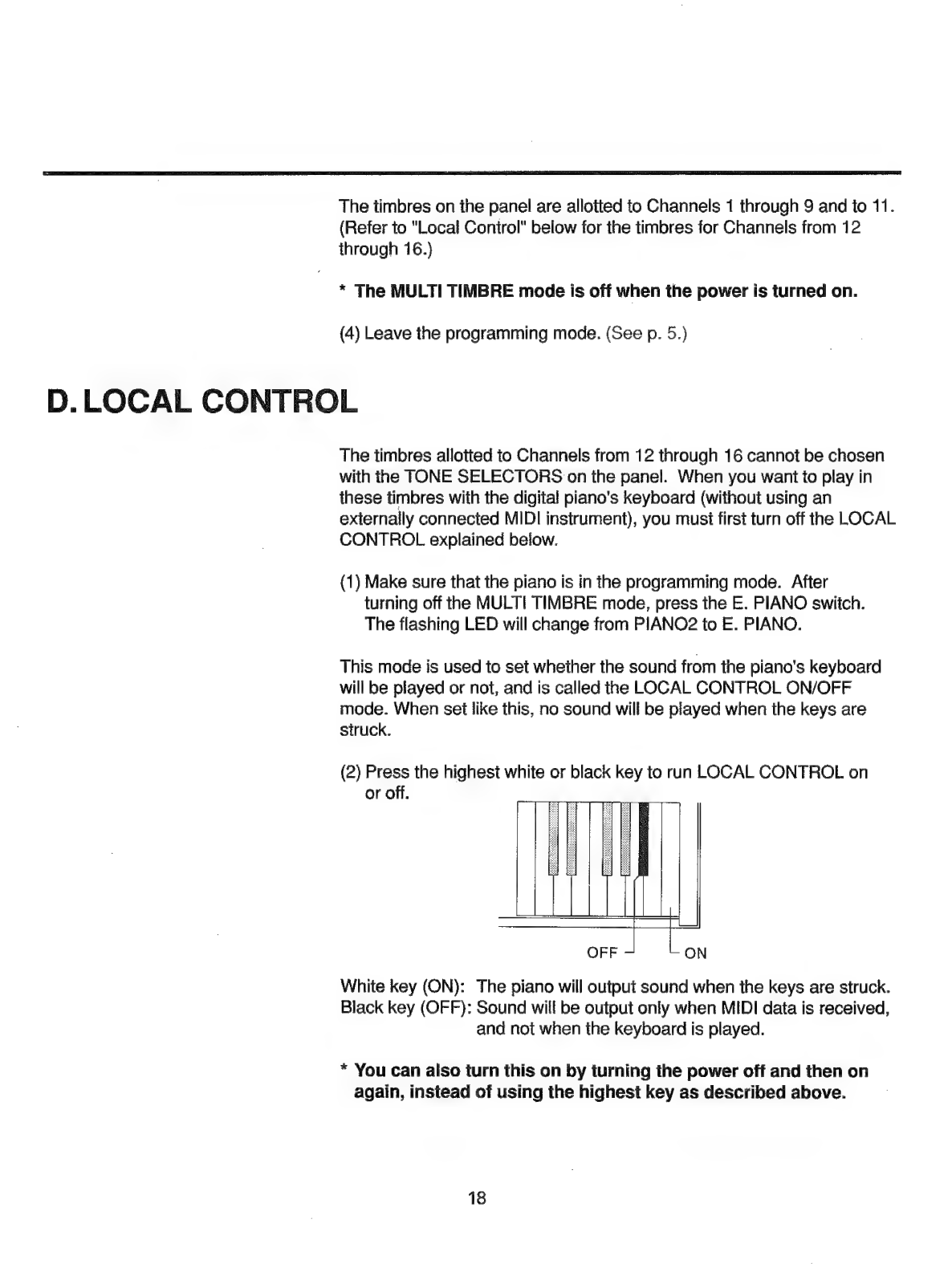

(DF LOCAL CONTRO Lira 18
M SHEEIIEAHONS ara 20
E MIDI Implementation Chart ..oooocccconaniccnnnoraconennnaranaannnss 21

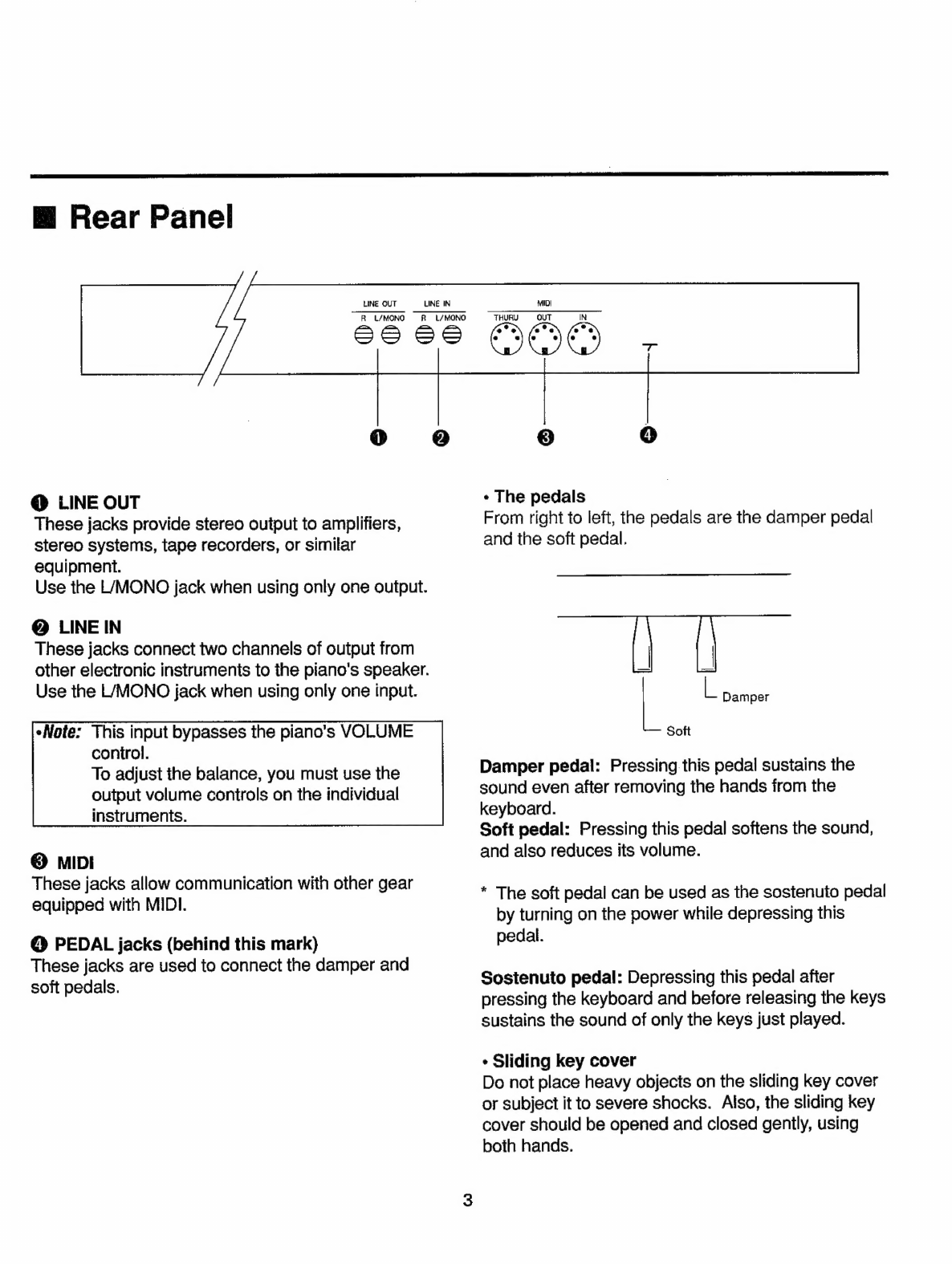

Æ Rear Panel
LINE OUT
R L/MONG
@ LINE OUT
These jacks provide stereo output to amplifiers,
stereo systems, tape recorders, or similar
equipment.
Use the L/MONO jack when using only one output.
@ LINE IN
These jacks connect two channels of output from
other electronic instruments to the piano's speaker.
Use the L/MONO jack when using only one input.
«Note: This input bypasses the piano's VOLUME
control.
To adjust the balance, you must use the
output volume controls on the individual
instruments.
® MIDI
These jacks allow communication with other gear
equipped with MIDI.
© PEDAL jacks (behind this mark)
These jacks are used to connect the damper and
soft pedals.
LINE IN
R L/MONO
Sse
MIDI
THURU OUT IN
« The pedals
From right to left, the pedals are the damper pedal
and the soft pedal.
i L Damper
Soft
Damper pedal: Pressing this pedal sustains the
sound even after removing the hands from the
keyboard.
Soft pedal: Pressing this pedal softens the sound,
and also reduces its volume.
* The soft pedal can be used as the sostenuto pedal
by turning on the power while depressing this
pedal.
Sostenuto pedal: Depressing this pedal after
pressing the keyboard and before releasing the keys
sustains the sound of only the keys just played.
+ Sliding key cover
Do not place heavy objects on the sliding key cover
or subject it to severe shocks. Also, the sliding key
cover should be opened and closed gently, using
both hands.

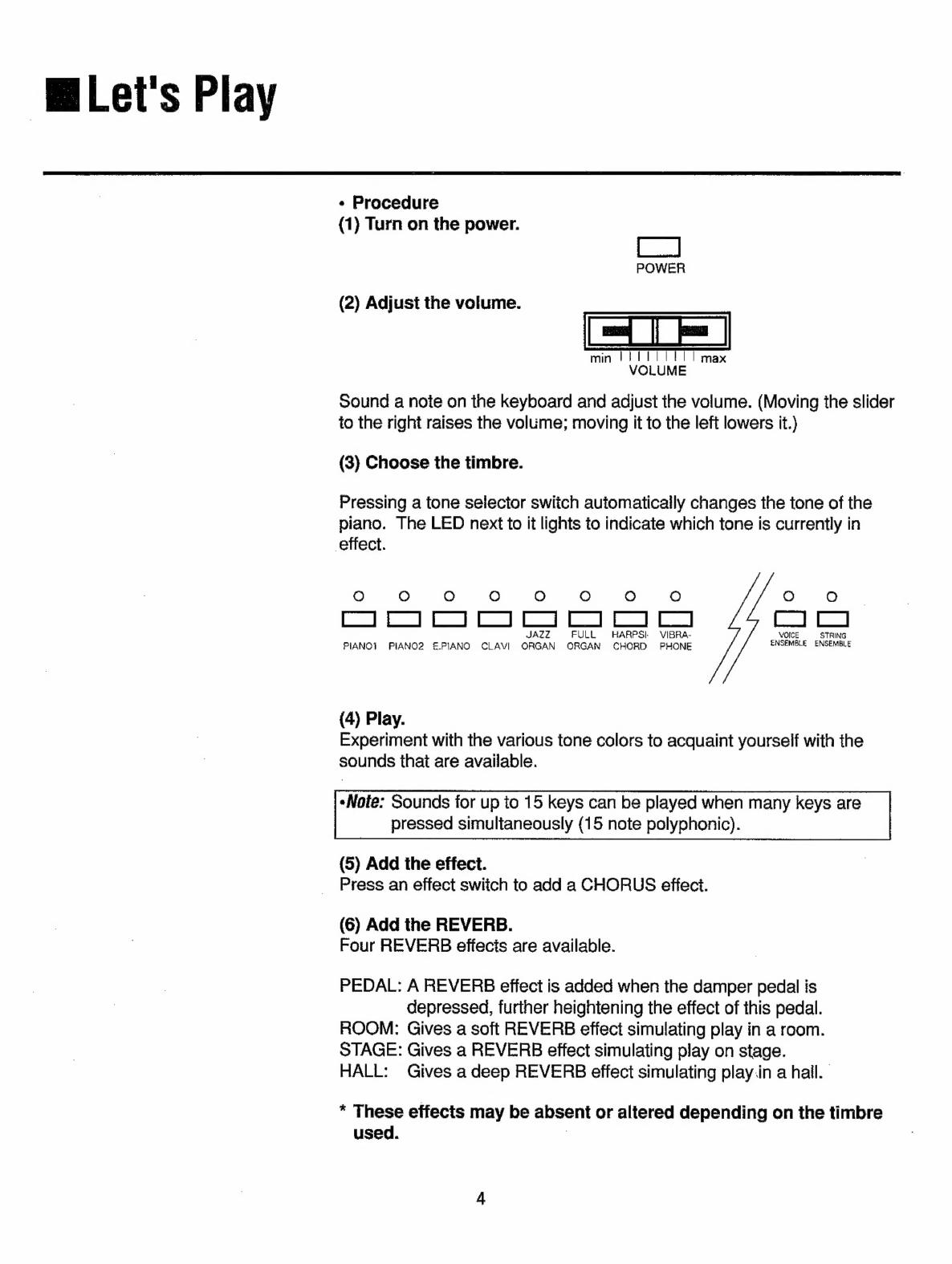

E Let's Play
« Procedure
(1) Turn on the power.
POWER
min I III III I max
VOLUME
(2) Adjust the volume.
Sound a note on the keyboard and adjust the volume. (Moving the slider
to the right raises the volume; moving it to the left lowers it.)
(3) Choose the timbre.
Pressing a tone selector switch automatically changes the tone of the
piano. The LED next to it lights to indicate which tone is currently in
effect.
O O O O O O O O O O
JA FULL HARPSI VIBRA- VOICE STRING
PIANOI PIANO2 E.PIANO CLAVI ORGAN ORGAN CHORD PHONE ENSEMBLE ENSEMBLE
(4) Play.
Experiment with the various tone colors to acquaint yourself with the
sounds that are available.
«Note: Sounds for up to 15 keys can be played when many keys are
pressed simultaneously (15 note polyphonic).
(5) Add the effect.
Press an effect switch to add a CHORUS effect.
(6) Add the REVERB.
Four REVERB effects are available.
PEDAL: A REVERB effect is added when the damper pedal is
depressed, further heightening the effect of this pedal.
ROOM: Gives a soft REVERB effect simulating play in a room.
STAGE: Gives a REVERB effect simulating play on stage.
HALL: Gives a deep REVERB effect simulating play in a hail.
* These effects may be absent or altered depending on the timbre
used.

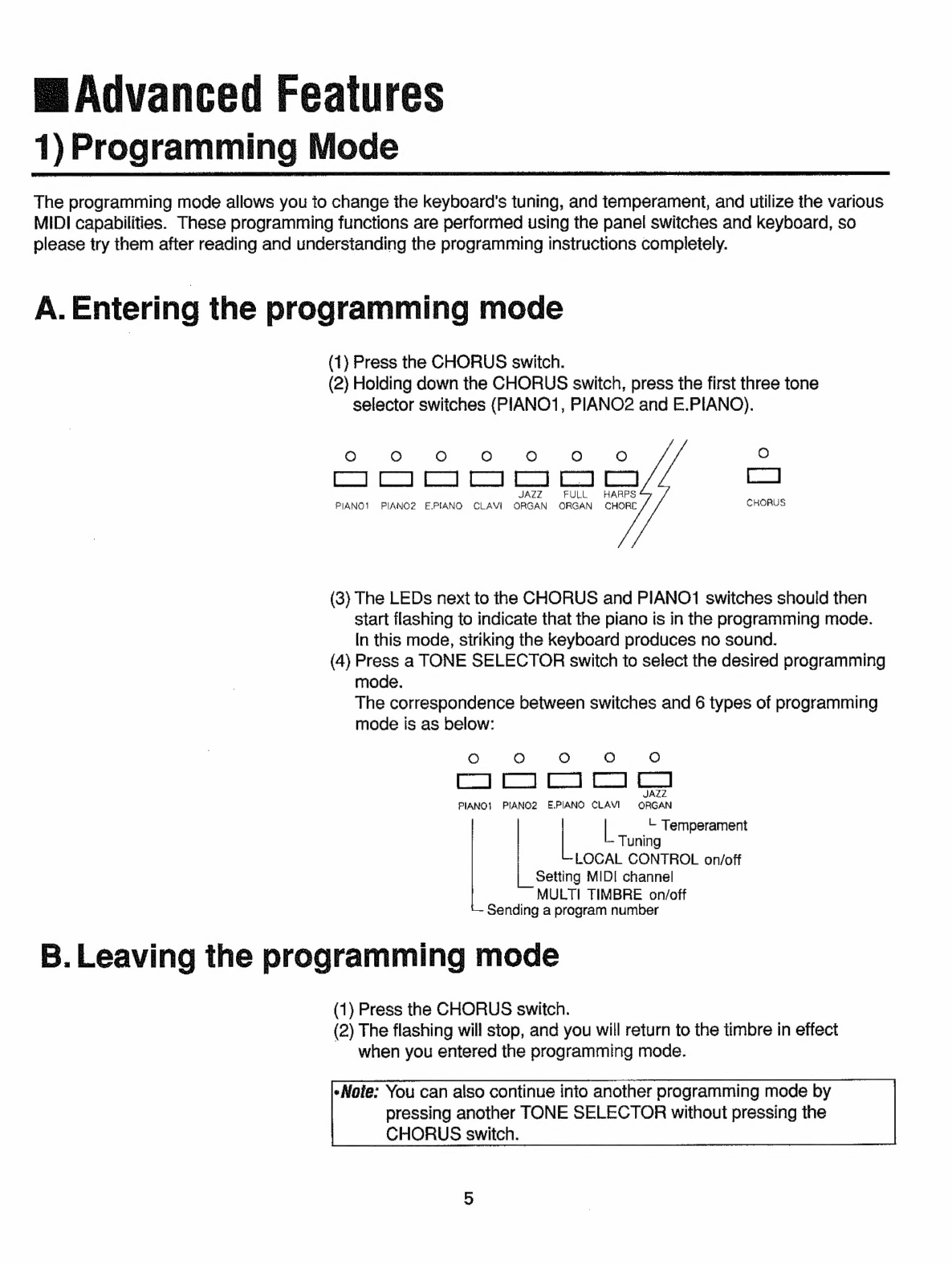

E Advanced Features
1) Programming Mode
The programming mode allows you to change the keyboard's tuning, and temperament, and utilize the various
MIDI capabilities. These programming functions are performed using the panel switches and keyboard, so
please try them after reading and understanding the programming instructions completely.
A. Entering the programming mode
(1) Press the CHORUS switch.
(2) Holding down the CHORUS switch, press the first three tone
selector switches (PIANO1, PIANO2 and E.PIANO).
O O O O O O O O
ESTE Ee) Cs) E TE E
JAZZ FULL HARPS
PIANO! PIANO2 E.PIANO CLAVI ORGAN ORGAN CHORE CHORUS
(3) The LEDs next to the CHORUS and PIANO1 switches should then
start flashing to indicate that the piano is in the programming mode.
In this mode, striking the keyboard produces no sound.
(4) Press a TONE SELECTOR switch to select the desired programming
mode.
The correspondence between switches and 6 types of programming
mode is as below:
PIANO! PIANO2 EPIANO CLAVI ORGAN
l: L Temperament
Tuning
LOCAL CONTROL on/off
Setting MIDI channel
MULTI TIMBRE on/off
Sending a program number
B. Leaving the programming mode
(1) Press the CHORUS switch.
(2) The flashing will stop, and you will return to the timbre in effect
when you entered the programming mode.
«Note: You can also continue into another programming mode by
pressing another TONE SELECTOR without pressing the
CHORUS switch.

2) Tuning
+ Procedure
(1) Make sure that the piano is in the programming mode.
(2) Press the CLAVI switch so that it flashes to indicate that the
piano is ready to be tuned.
viz
SS Ir
O”
CLAVI
(3) Unlike the other functions in ine programming mode, this one
produces sound so that you can compare the piano's pitch with
another instrument.
«Note: Playing the keyboard when set up this way produces the timbre
selected before entering the programming mode. Tuning is done
using this timbre. If you want to change the timbre, leave the
programming mode (see p. 5), select the new timbre, and repeat
steps (1) and (2).
(4) Press the highest black key to lower the pitch.
Or press the highest white one to raise it.
lt may be necessary to press these key repeatedly to achieve proper
mæ
(5) Leave the programming mode.
«Note: Momentarily turning off the power restores the original pitch.

3) Temperaments
Your Kawai digital piano offers not only equal temperament (the modern standard) but also immediate access
to those popular during the Renaissance and Baroque period.
«Procedure
(1) Make sure that the piano is in the programming mode.
(2) Press the JAZZ ORGAN switch so that it flashes to indicate that
the piano is waiting for a temperament specification.
(3) Press one of the seven white keys at the lower end of the keyboard
to select one of these corresponding temperamenis.
. Equal temperament without the tuning curve
. Mersenne pure temperament
. Pythagorean temperament
. Meantone temperament
. Werckmeister Il temperament
. Kirnberger Ill temperament
. Equal temperament with the tuning curve
“IOook oh mk
(4) Leave the programming mode.
«Note: When the power is first applied or reapplied after a short break,
the piano returns to the modern standard (equal temperament
with the tuning curve = #7).
Key set function is also available at this point. As you know, limitless
modulation of the key became available only after the inventation of
Equal temperament. When we use a temperament except Equal
temperament, we must carefully choose the key signature to play in.
To select the key signature setting, simply press one of the key. For
example, if the tune you are going to play is written in D major, press D
key to set the keys.
Please note that this will only change the "balance" of the tuning, and
the pitch of the keyboard will remain unchanged. Use the TRANSPOSE
control to change the pitch of the whole keyboard.

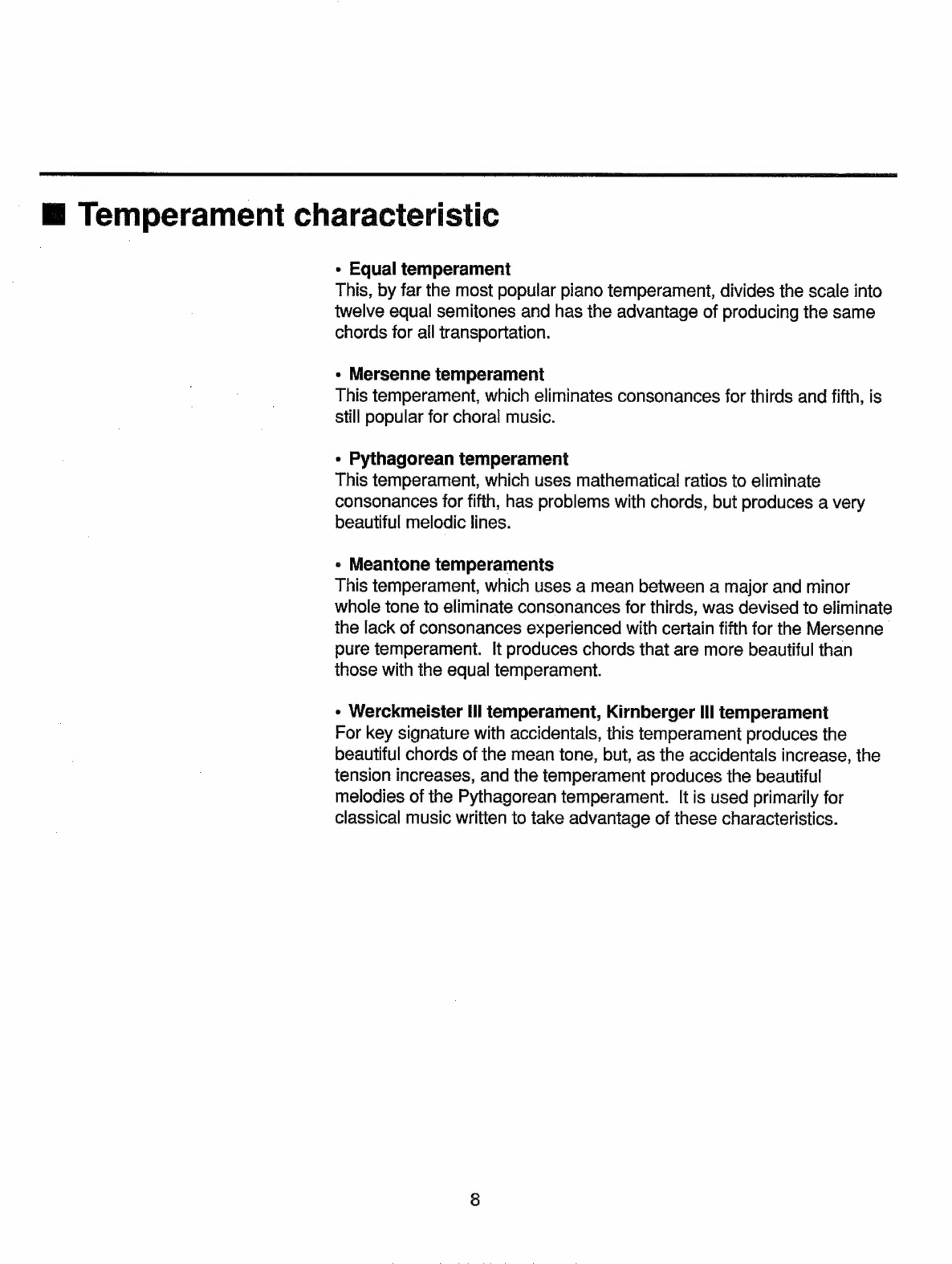

E Temperament characteristic
+ Equal temperament
This, by far the most popular piano temperament, divides the scale into
twelve equal semitones and has the advantage of producing the same
chords for all transportation.
« Mersenne temperament
This temperament, which eliminates consonances for thirds and fifth, is
still popular for choral music.
+ Pythagorean temperament
This temperament, which uses mathematical ratios to eliminate
consonances for fifth, has problems with chords, but produces a very
beautiful melodic lines.
+ Meantone temperaments
This temperament, which uses a mean between a major and minor
whole tone to eliminate consonances for thirds, was devised to eliminate
the lack of consonances experienced with certain fifth for the Mersenne
pure temperameni. It produces chords that are more beautiful than
those with the equal temperament.
« Werckmeister Il temperament, Kirnberger lll temperament
For key signature with accidentals, this temperament produces the
beautiful chords of the mean tone, but, as the accidentals increase, the
tension increases, and the temperament produces the beautiful
melodies of the Pythagorean temperament. It is used primarily for
classical music written to take advantage of these characteristics.
