KAYA Komodo CoaXPress II User manual

Komodo II CoaXPress Frame Grabber
Hardware Reference and Installation
Guide
(Part-No. KY-FGKII)
December 2018
20 aMesila St., N e s h e r 3 6 88520, Is r a e l
P O B 2 5 0 0 4 , H a i f a 3 1 2 5 0 0 1 , I s r a e l
T el:( +9 72 ) -72- 2 72 3 5 0 0 F a x: ( + 97 2 ) - 72-2 7 2 3 5 1 1
www.kayainstruments.com

Komodo II CoaXPress Frame Grabber Hardware and Installation Guide
1
Figures and Tables.................................................................................................................................2
Introduction............................................................................................................................................3
Safety Precautions................................................................................................................................3
Disclaimer............................................................................................................................................4
Key Features..........................................................................................................................................6
3.1 Overview..............................................................................................................................................6
3.2 Features................................................................................................................................................6
3.3 Product Applications............................................................................................................................7
3.4 Related documents and accessories .....................................................................................................8
System Description................................................................................................................................9
4.1 Example System Block Diagram.........................................................................................................9
4.2 External View of the Board..................................................................................................................10
Mechanical Specifications.....................................................................................................................11
5.1 Essentials to get started........................................................................................................................11
5.2 Power supplies .....................................................................................................................................11
5.3 Mechanical dimensions........................................................................................................................13
Installation and Configurations..............................................................................................................14
6.1 Installation instructions........................................................................................................................14
6.2 Connecting to CoaXPress output connectors.......................................................................................14
6.3 Komodo II LEDs..................................................................................................................................15
6.4 Komodo II Hardware Reference..........................................................................................................16
6.5 Komodo II Board Block Diagram........................................................................................................17
6.6 Video stream acquisition......................................................................................................................18
6.7 Auxiliary Input/Output signals.............................................................................................................18
6.8 Absolute maximum ratings..................................................................................................................22
6.9 Electrical characteristics for board IO’s:..............................................................................................22
Contents

Komodo II CoaXPress Frame Grabber Hardware and Installation Guide
2
Figures
FIGURE 1:COAXPRESS SYSTEM BLOCK DIAGRAM............................................................................................ 9

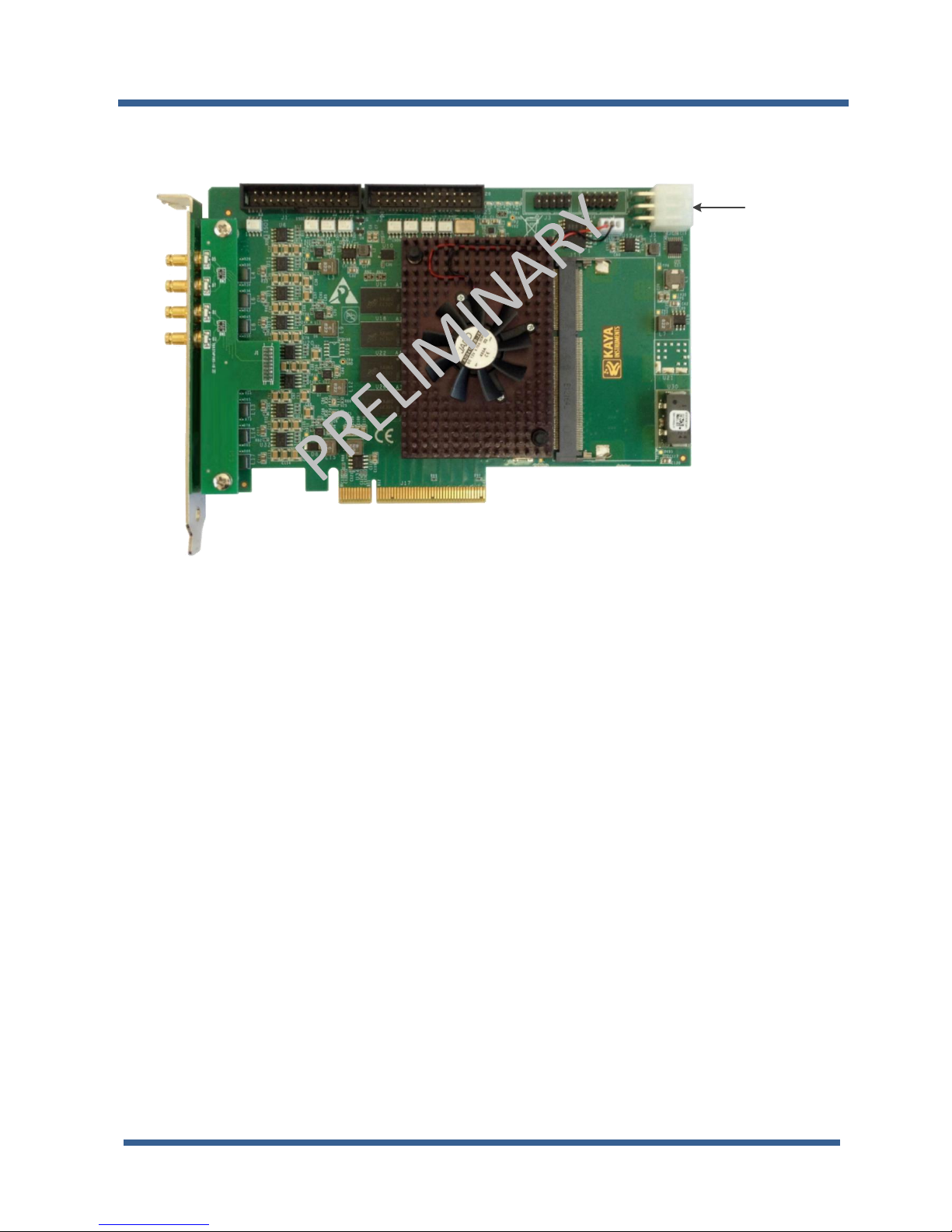

FIGURE 2: KOMODO II BOARD EXTERNAL VIEW.............................................................................................. 10
FIGURE 3:EXTERNAL POWER SUPPLY CONNECTOR ........................................................................................ 12

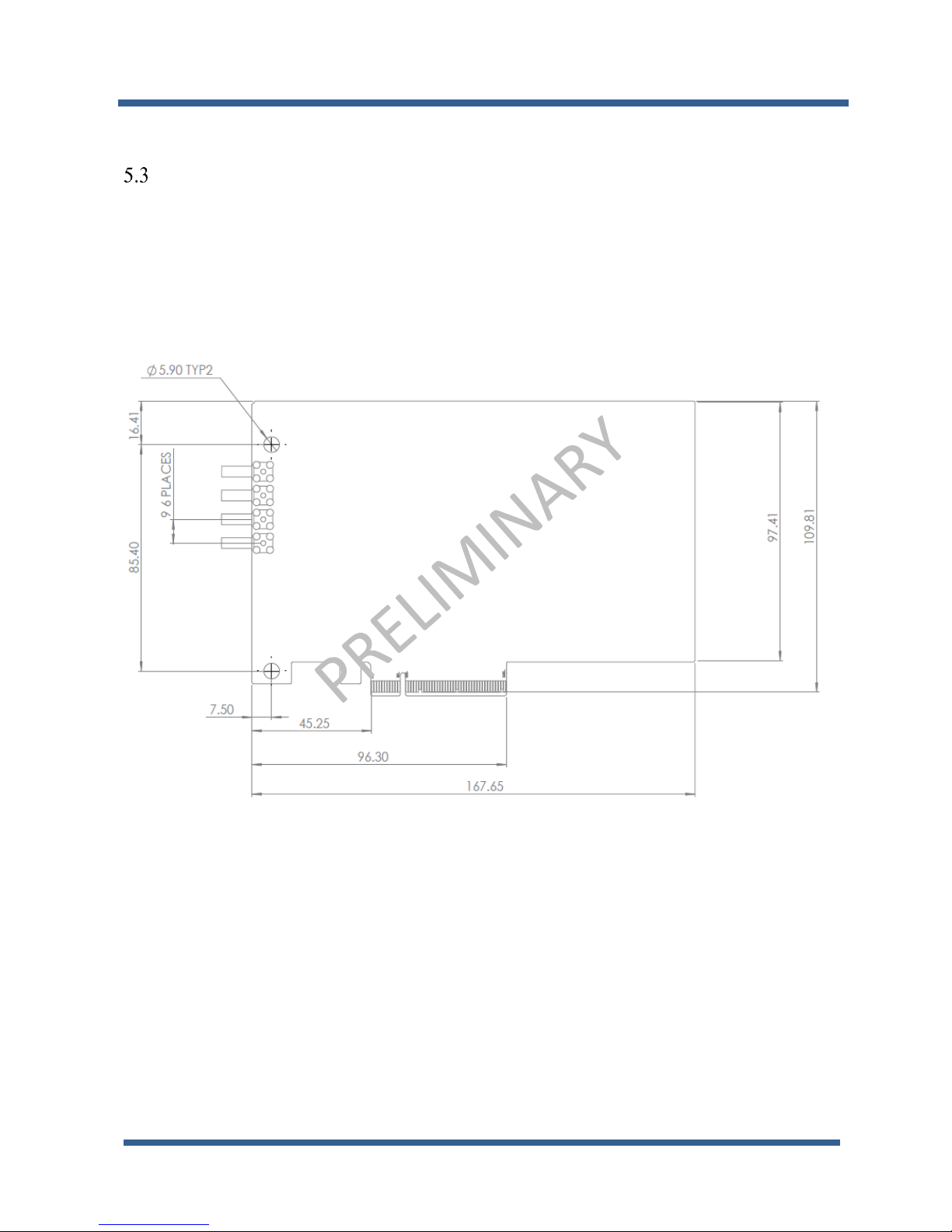

FIGURE 4: PCB MECHANICAL DIMENSIONS.................................................................................................... 13
FIGURE 5: KOMODO II BOARD LED’S LOCATIONS.......................................................................................... 16
FIGURE 6: KOMODO II BOARD BLOCK DIAGRAM ........................................................................................... 17
FIGURE 7: GPIO CONNECTORS LOCATION....................................................................................................... 19
FIGURE 8: GPIO CONNECTORS SCHEMATIC .................................................................................................... 20
FIGURE 9: LEVEL SHIFTERS SCHEMATIC.......................................................................................................... 20
Tables
TABLE 1: COAXPRESS LINKS STATUS LED’S.................................................................................................. 15
TABLE 2: BOARD STATUS LED’S..................................................................................................................... 16
TABLE 3: GPIO CONNECTOR PINOUT .............................................................................................................. 21
TABLE 4: ABSOLUTE MAXIMUM RATINGS ....................................................................................................... 22
TABLE 5: ABSOLUTE MAXIMUM RATINGS FOR GPIO...................................................................................... 22
TABLE 6: LVDS OUTPUT DC SPECIFICATIONS (DRIVER OUTPUTS)............................................................... 23
TABLE 7: LVDS INPUT DC SPECIFICATIONS (RECEIVER INPUTS)................................................................... 23
TABLE 8: LVTTL INPUT SPECIFICATIONS........................................................................................................ 23
TABLE 9: LVTTL OUTPUT SPECIFICATIONS .................................................................................................... 23
TABLE 10: TTL INPUT SPECIFICATIONS........................................................................................................... 24
TABLE 11: TTL OUTPUT SPECIFICATIONS........................................................................................................ 24
Revision History
Version
Date
Notes
1.0
02/12/18
Initial Release
2.0
19/02/19
Minor corrections
Figures and Tables

Komodo II CoaXPress Frame Grabber Hardware and Installation Guide
3
Safety Precautions
With your Komodo II CoaXPress Frame Grabber board in hand, please take a minute to
read carefully the precautions listed below in order to prevent unnecessary injuries to you
or other personnel or cause damage to property.
Before using the product, read these safety precautions carefully to assure correct
use.
These precautions contain serious safety instructions that must be observed.
After reading through this manual, be sure to act upon it to prevent misuse of
product.
Caution
In the event of a failure, disconnect the power supply.
If the product is used as is, a fire or electric shock may occur. Disconnect the power supply
immediately and contact our sales personnel for repair.
If an unpleasant smell or smoking occurs, disconnect the power supply.
If the product is used as is, a fire or electric shock may occur. Disconnect the power supply
immediately. After verifying that no smoking is observed, contact our sales personnel for repair.
Do not disassemble, repair or modify the product.
Otherwise, a fire or electric shock may occur due to a short circuit or heat generation. For
inspection, modification or repair, contact our sales personnel.
Do not touch a cooling fan.
As a cooling fan rotates in high speed, do not put your hand close to it. Otherwise, it may cause
injury to persons. Never touch a rotating cooling fan.
Do not place the product on unstable locations.
Otherwise, it may drop or fall, resulting in injury to persons or failure.
If the product is dropped or damaged, do not use it as is.
Otherwise, a fire or electric shock may occur.
Do not touch the product with a metallic object.
Otherwise, a fire or electric shock may occur.
Do not place the product in dusty or humid locations or where water may splash.
Otherwise, a fire or electric shock may occur.
Do not get the product wet or touch it with a wet hand.
Otherwise, the product may break down or it may cause a fire, smoking or electric shock.
Do not touch a connector on the product (gold-plated portion).
Otherwise, the surface of a connector may be contaminated with sweat or skin oil, resulting in
contact failure of a connector or it may cause a malfunction, fire or electric shock due to static
electricity.
Introduction

Komodo II CoaXPress Frame Grabber Hardware and Installation Guide
4
Do not use or place the product in the following locations.
● Humid and dusty locations
● Airless locations such as closet or bookshelf
● Locations which receive oily smoke or steam
● Locations close to heating equipment
● Closed inside of a car where the temperature becomes high
● Static electricity replete locations
● Locations close to water or chemicals
Otherwise, a fire, electric shock, accident or deformation may occur due to a short circuit or heat
generation.
Do not place heavy things on the product.
Otherwise, the product may be damaged.
Be sure to drain static electricity from body before you touch any electronics component
The electronic circuits in your computer and the circuits on Komodo II board are sensitive to
static electricity and surges. Improper handling can seriously damage the circuits. In addition, do
not let your clothing come in contact with the circuit boards or components.
Otherwise, the product may be damaged.
Disclaimer
This product should be used for interfacing of CoaXPress camera and acquiring of
CoaXPress video streams. KAYA Instruments assumes no responsibility for any damages
resulting from the use of this product for purposes other than those stated.
Even if the product is used properly, KAYA Instruments assumes no responsibility for any
damages caused by the following:
- Earthquake, thunder, natural disaster or fire resulting from the use beyond our
responsibility, acts caused by a third party or other accidents, the customer’s willful or
accidental misuse or use under other abnormal conditions.
- Secondary impact arising from use of this product or its unusable state (business
interruption or others).
- Use of this product against the instructions given in this manual or malfunctions due to
connection to other devices.
Introduction

Komodo II CoaXPress Frame Grabber Hardware and Installation Guide
5
KAYA Instruments assumes no responsibility or liability for:
- Erasure or corruption of data arising from use of this product.
- Any consequences or other abnormalities arising from use of this product, or damage of
this product not due to our responsibility or failure due to modification.
Repair of this product is carried out by replacing it on a chargeable basis, not repairing the
faulty devices. However, non-chargeable replacement is offered for initial failure if such
notification is received within two weeks after delivery of the product.
Introduction

Komodo II CoaXPress Frame Grabber Hardware and Installation Guide
6
Overview
Komodo II is best in its class Frame Grabber supporting CoaXPress standard. The
Komodo II is capable of receiving video streams from up to 4 CoaXPress links in single,
dual or quad modes. It is used for simultaneous capture from up to two dual link cameras.
Each link supports standard CoaXPress bitrates up to 12.5 Gbps. This CoaXPress Frame
Grabber is ideally suited for industrial, defense and aerospace Machine Vision Systems
and applications. The Komodo II can easily receive video streams on the CoaXPress links
and transmit them to computer memory through the PCIe interface. This product also
provides an external on bracket GPIO for machine control signals, such as triggers, shaft
encoders, exposure control and general I/O, which can be control aside video stream
receive.
The Komodo II uses standard Micro-BNC connectors as a CoaXPress interface to the
camera. The Frame Grabber utilizes PCIe Gen3 x8 links for communication with Host PC
for video uploading and configuration.
Features
1 to 4 CoaXPress links support
PCIe Gen3 x8 Half-length card
Multi-stream support
Camera controls and triggers
Per-link LED indication on card bracket
CoaXPress V2.0 compliant
On board image processing
Power over CoaXPress with 19W per link
Flexible GPIO interface on front bracket panel
Multiple Camera synchronization
Multiple Frame Grabbers synchronization
Micro-BNC connectors for CoaXPress links
GUI interface
CoaXPress drivers for loopback function
Key Features

Komodo II CoaXPress Frame Grabber Hardware and Installation Guide
7
Supporting Windows and Linux OS
API for developing custom applications
Plug-ins modules for Matlab, HALCON and Labview
Gen<i>Cam compliant
GenTL support
4Gb image buffer
Data rates up to 12.5 Gbps per link
PCI Express Transfer Rate of up to 50 Gbps
0°C to 55°C operating environment temperature
Flexible machine I/O:
4 TTL configurable I/Os
4 LVCMOS configurable I/Os
2 LVDS inputs
2 LVDS outputs
4 opto-isolated outputs
4 opto-isolated inputs
4 quadrature rotary encoders
Integrated strobe controller
4 timers
Product Applications
AOI
Printing inspection
3D
Broadcasting and sports analytics
High-speed DVRs
Key Features

Komodo II CoaXPress Frame Grabber Hardware and Installation Guide
8
Related documents and accessories
Documents:
Vision Point App User Manual
Vision Point API Reference Book
CoaXPress standard 2.0
KAYA Frame Grabbers Programming Guide
Accessories:
CoaXPress cables (Micro-BNC to Micro-BNC)
CoaXPress cables (Micro-BNC to BNC)
CoaXPress cables (Micro-BNC to DIN)
Key Features

Komodo II CoaXPress Frame Grabber Hardware and Installation Guide
9
Example System Block Diagram
The Komodo II Frame Grabber supports multiple modes of configuration and system topology.
Few of these are presented in following diagrams.
Single Camera Topology:
Single, Dual or Quad CoaXPress links
with up to 12.5 Gb per link topology.
Maximum throughput to PCIe of
55 Gb/sec.
Quad Camera Topology:
Two Single or Dual CoaXPress links
with up to 12.5 Gb per link topology.
Maximum throughput to PCIe of
55 Gb/sec.
Quad Camera Topology:
Four Single CoaXPress links with up
to 12.5 Gb per link topology.
Maximum throughput to PCIe of
55 Gb/sec.
Figure 1: CoaXPress system block diagram
System Description
