Kaysun COMPAK KHP 15/190 ACS1 User manual

Te c h nica l Ma nu a l
Combo Type Heat Pump Water Heater
COMPAK KHP 15/190 ACS1
Kaysun reserves the right to discontinue or change specification or designs at any time without notices and
without incurring obligations

TSM 2017-09 ………….. Kaysun combo type KHP 15/190 ACS1 Manual
1
Content
Part 1 General information ........................ 2
Part 2 Performance .................................... 4

Kaysun combo type KHP 15/190 ACS1 Manual MCAC-RTSM-2017-09
2
Part 1 General information
1. Measurements .......................................................................... 3
2. External appearance ................................................................ 3

TSM 2017-09 ………….. Kaysun combo type KHP 15/190 ACS1 Manual
3
1. Measurements
Model
Net/Gross weight (kg)
Dimension (mm, D×H)
Power Supply
KHP 15/190 ACS1
107/120
Ф560×1,760
220-240V~, 50Hz, 1Ph
2. External appearance

Kaysun combo type KHP 15/190 ACS1 Manual MCAC-RTSM-2017-09
4
Part 2 Performance
1. Features .................................................................................... 5
2. Refrigerant circuit ..................................................................... 6
3. Unit structure ............................................................................ 7
4. Specifications ........................................................................... 8
5. Dimension ...............................................................................10
6. Performance diagram .............................................................10
7. Wiring diagram .......................................................................13
8. Installation...............................................................................14
9. Water affusion and effusion ....................................................20
10. Trial run .................................................................................21
11. Maintenance .........................................................................22
12. Troubleshooting ....................................................................23
13. Function ................................................................................27
14. Operation ..............................................................................32
15. Accessories...........................................................................39
16. Resistance characteristic of temperature sensor .................40

TSM 2017-09 ………….. Kaysun combo type KHP 15/190 ACS1 Manual
5
1. Features
² Safety:
1. Complete isolation between water and electricity without electric shock problem, more safety.
2. No fuel tubes and storage, no potential danger from oil leakage, fire, explosion, and so on.
3. No cross contamination potential, the condenser coil is wrapped around the enameled inner tank.
² The maximum outlet water temperature: 70°C. The system makes the water be heated stably and
quickly with innovative heating methods of combination the electric heating and heat pump heating
properly.
² Flexible installation achieves by long air inlet and outlet duct with pressure. 25Pa air flow pressure
enables ducted length up to 10 meters.
Note: A≤10m or A+B≤10m
² Automatic startup and shutdown, automatic defrosting by revising refrigerant cycle to save the extra
operation.
² According to the heat pump principle, the unit absorbs heat from outdoor air and produce heat water;
thermal efficiency can be up to 3.8(Under the condition A15/12 W15/45).
² CE and NF certification.
² Within the temperature range from -20 °C to 43 °C, the unit will not be affected by night, cloudy sky,
rain even snow weather.

Kaysun combo type KHP 15/190 ACS1 Manual MCAC-RTSM-2017-09
6
2. Refrigerant circuit
Compressor: RJSM125V1WFZ, R134a high efficiency compressor, supplied by GMCC.
Evaporator: copper tube and aluminum fin type heat exchanger.
EXV: electronic expansion valve, the opening is regulated according to the discharge air temperature
of compressor.
Fan: centrifugal fan, there is three speeds. The motor is supplied by Welling.
ATCO (Temperature Switch): If the water temperature is too high, or higher than 78 °C, the ATCO
will automatically shut off the compressor and E-heater’s power supply, and turn it on if the
temperature falls down below 68 °C.
TCO (Temperature Switch): If the water temperature is higher than 85 °C, the TCO will
automatically shut off the compressor and E-heater’s power supply, it must turn on by manual.
High Pressure Switch: When the discharge pressure of compressor is 2.76MPa or higher, the
protection switch will be triggered, and if the discharge pressure is down to 2.07MPa, the protection
switch will be recovered.

TSM 2017-09 ………….. Kaysun combo type KHP 15/190 ACS1 Manual
7

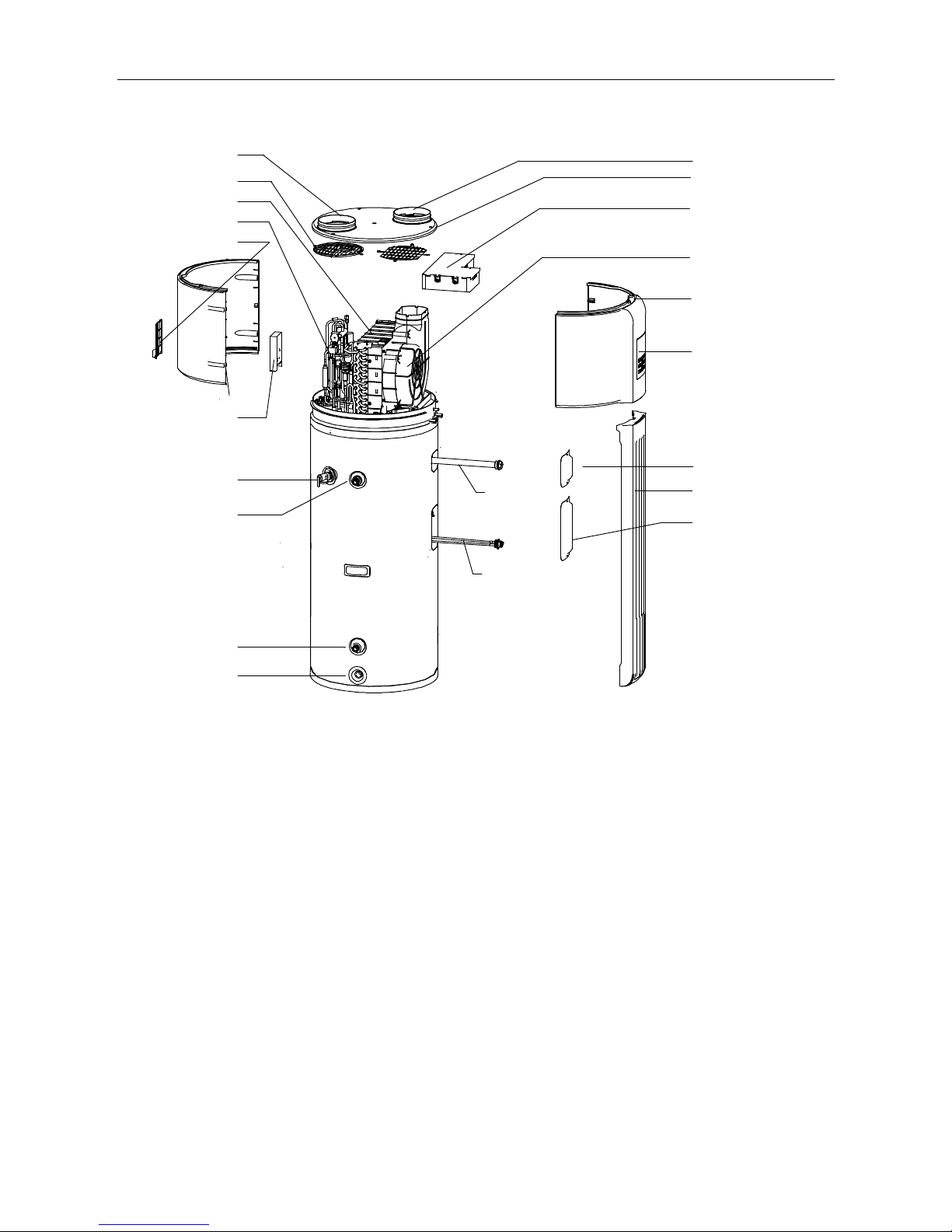

3. Unit structure
Front Cover
Electronic Control Box
Compressor
Display
Cover(Electric Heater)
Front Decorative Board
Cover(Anode Rod)
Electric Heater
PT Valve
Water Outlet
Rear Cover
Junction Box
Junction Box Cover
Top Cover
Air Outlet
Fan Assy
Evaporator
Filter
Air Inlet
Water Inlet
Anode Rod
Drain Pipe

Kaysun combo type KHP 15/190 ACS1 Manual MCAC-RTSM-2017-09
8
4. Specifications
Model
KHP 15/190 ACS1
Running mode
Economy
E-heater
Running ambient temperature
°C
-743
-2043
Output water temperature
°C
Default 60°C,38°C70°C
Power supply
Ph, V, Hz
1, 220-240~, 50
Storage size
Ltr
180
Water heating
Capacity
kW
1.45
3.15
COP
kW/kW
3.8
1.0
Max. current
A
16
Unit
Dimension (D×H)
mm
Ф560×1,760
Packing (W×H×D)
mm
695×1,805×685
Net/gross weight
kg
107/120
Sound pressure level
dB(A)
41.2
Sound power level
dB(A)
56.6
Refrigerant type/quantity
kg
R134a/1.0
Refrigerant design pressure
MPa
3.0/1.2
Throttling type
\
Electric expansion valve
System protection
\
TCO, ATCO, PTR valve, automatic defrosting, over-load
protector, etc.
Air flow
m³/h
270/230/182
Compressor
Model
\
RJSM125V1WFZ
Type
\
Rotary
Brand
\
GMCC
Capacity
kW
1.450
Input
kW
0.495
Rated current(RLA)
A
2.3
Locked rotor Amp(LRA)
A
15
Thermal protector
\
BF520-MA (Externa)l
Capacitor
\
20μF/450V
Refrigerant oil
ml
ESTEL OIL VG74 / 350ml
Evaporator coil
Number of rows
\
3.7
Tube pitch(a)x row pitch(b)
mm
25.4×22
Fin spacing
mm
1.5
Fin type (code)
\
Hydrophilic aluminum
Tube outside dia. and type
mm
Φ9.52 Inner groove copper tube
Coil length x height
mm
402×305
Number of circuits
\
3
Fan motor
Model
\
YDK12-6A
Brand
\
Welling
Input
W
28/26/26
Speed
r/min
900/815/680

TSM 2017-09 ………….. Kaysun combo type KHP 15/190 ACS1 Manual
9
Output
W
12
Locked rotor Amp(LRA)
A
0.12
Capacitor
\
1.2μF/450V
Water pipeline
Water inlet pipe
\
DN20
Water outlet pipe
\
DN20
Drainage pipe
\
DN20
PTR valve joint
\
DN20
Max. operating pressure
MPa
1.0
Heat exchanger
Dividing wall type heat exchanger
E-heater
kW
3.00×1
Hot water yield
m³/h
0.043
0.086
Loading Quantity
20'/40'/40H
Pcs
24/51/51
Notes:
1. The test conditions: outdoor temperature 15/12°C (DB/WB), inlet water temperature 15°C, outlet water
temperature 45°C.
2. Sound pressure value test conditions: four side of the unit, distance is 1m, and height is 1m + half of the unit’s
height. The sound pressure level is following this procedure:
3. The above data test reference standard EN16147:2011; EN60379:2004; EN12103:2011; (EU)No:812:2013;
(EU)No:814:2013.
4. The specification may be changed for product improvement, please refer to the nameplate.

Kaysun combo type KHP 15/190 ACS1 Manual MCAC-RTSM-2017-09
10
5. Dimension (Unit: mm)
6. Performance diagram
The unit has two modes: E-heater and Heat pump. Modes will be automatically selected by unit, and
manually mode selection is unavailable.
Operation range
E-heater running ambient temperature range: -20~45°C.
Heat pump running ambient temperature range: -7~43°C.
Setting water temperature target range: 38~70°C.
Unit: °C
Ambient temperature (T4)
T4≤-7
-7≤T4<-2
-2≤T4<2
2≤T4<43
43≤T4
Max. temperature (Heat pump)
-
45
60
70
-
Max. temperature (E-heater)
70
70
70
70
70

TSM 2017-09 ………….. Kaysun combo type KHP 15/190 ACS1 Manual
11

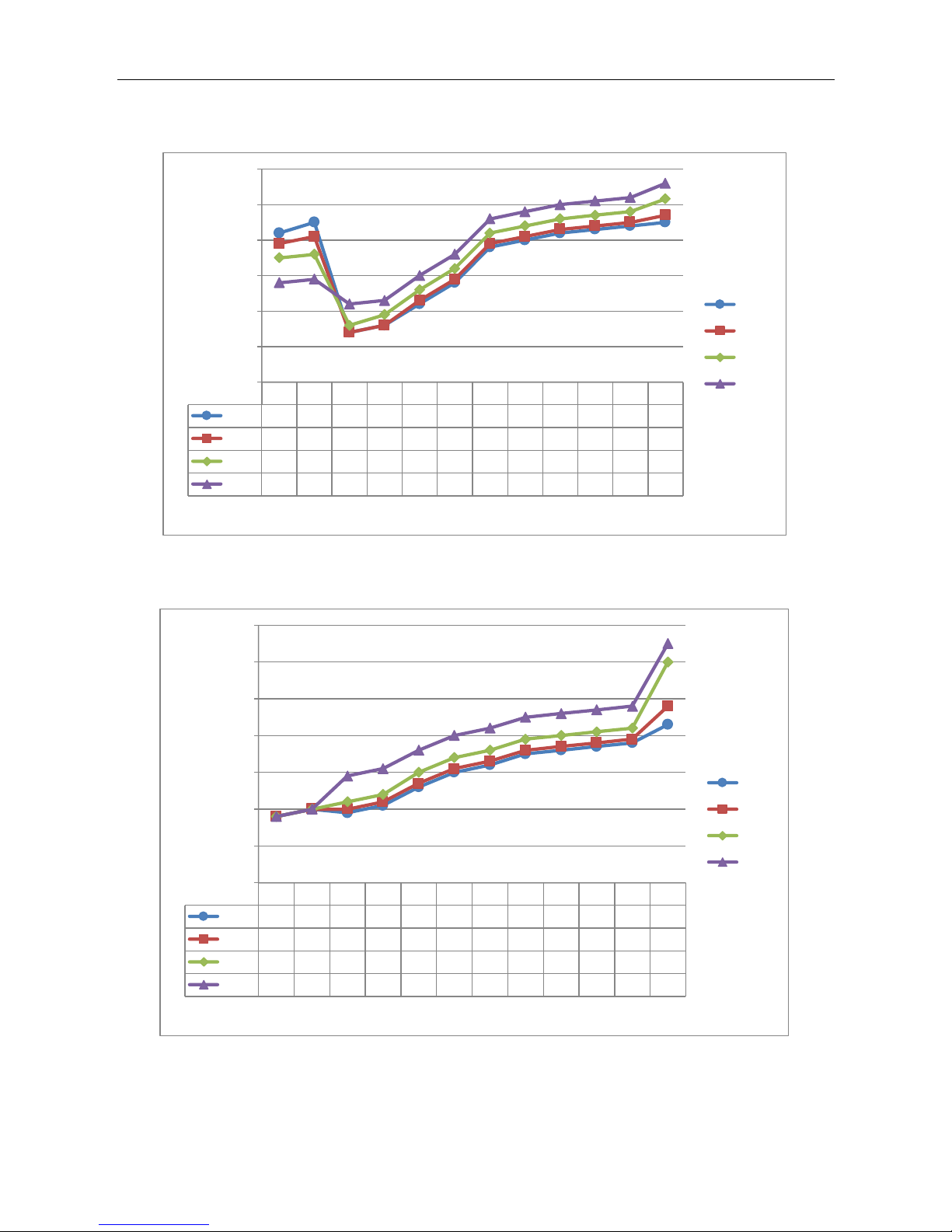

The curve between capacity and ambient temperature
The curve between COP and ambient temperature
-7 -5 2 7 15 20 25 30 32 35 40 45
15-70 2100 2250 700 800 1100 1400 1900 2000 2100 2150 2200 2250
15-65 1950 2050 700 800 1150 1450 1950 2050 2150 2200 2250 2350
15-55 1750 1800 800 950 1300 1600 2100 2200 2300 2350 2400 2580
15-45 1400 1450 1100 1150 1500 1800 2300 2400 2500 2550 2600 2800
0
500
1000
1500
2000
2500
3000
Capacity

W)
Ambient Temp
8℃9
15-70
15-65
15-55
15-45
-7 -5 2 7 15 20 25 30 32 35 40 45
15-70 1,8 21,9 2,1 2,6 33,2 3,5 3,6 3,7 3,8 4,3
15-65 1,8 2 2 2,2 2,7 3,1 3,3 3,6 3,7 3,8 3,9 4,8
15-55 1,8 22,2 2,4 33,4 3,6 3,9 44,1 4,2 6
15-45 1,8 22,9 3,1 3,6 44,2 4,5 4,6 4,7 4,8 6,5
0
1
2
3
4
5
6
7
COP
Ambient Temp
8℃9
15-70
15-65
15-55
15-45

Kaysun combo type KHP 15/190 ACS1 Manual MCAC-RTSM-2017-09
12

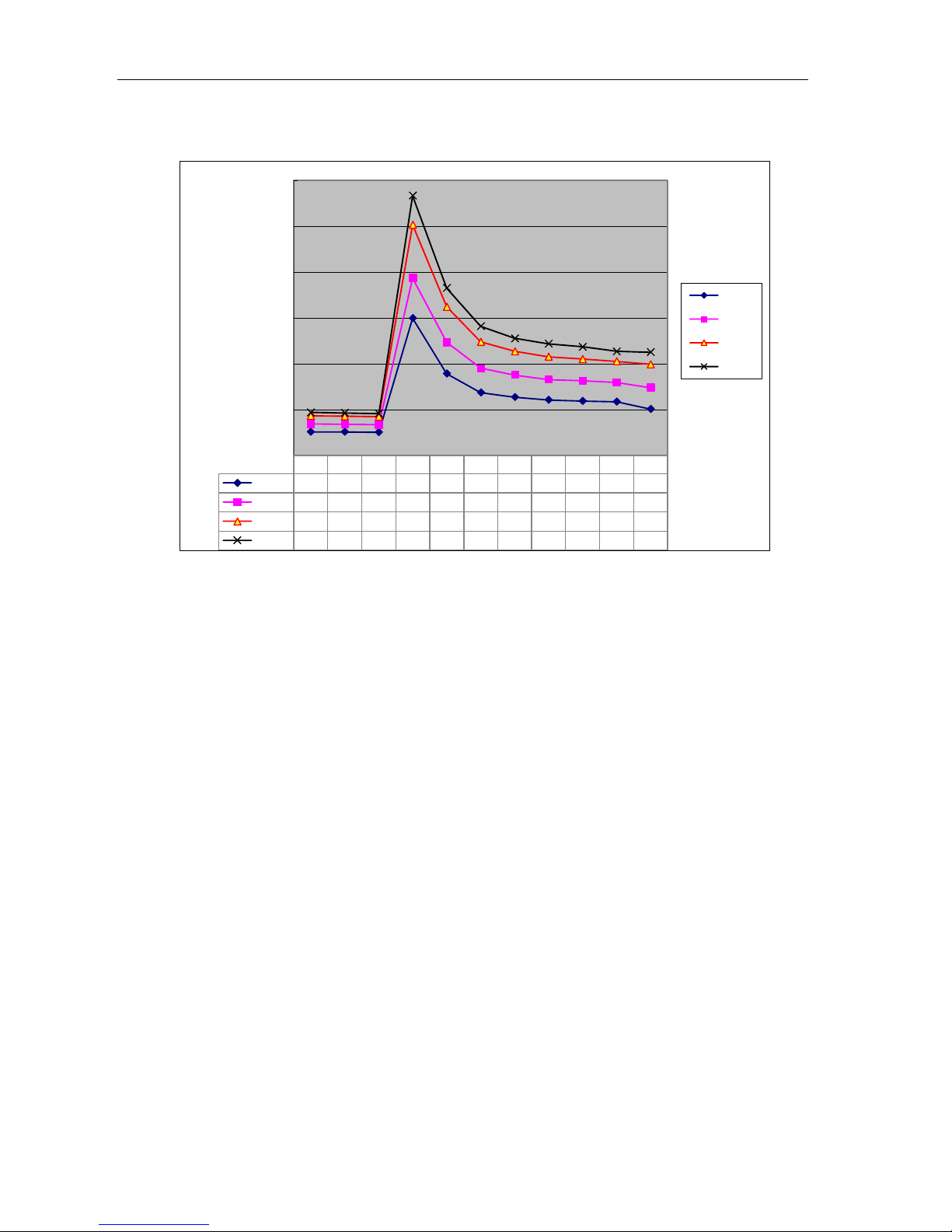

The curve between heat-up time and ambient temperature
 (    (   (  (
((    (, (  (    
(((  (   ,  (  (  ,(
()(   )  ) ,( (    ,
(  (    () (   ( (



)



2301
-3204660357
((
(((
()(
(

Kaysun combo type KHP 15/190 ACS1 Manual MCAC-RTSM-2017-09

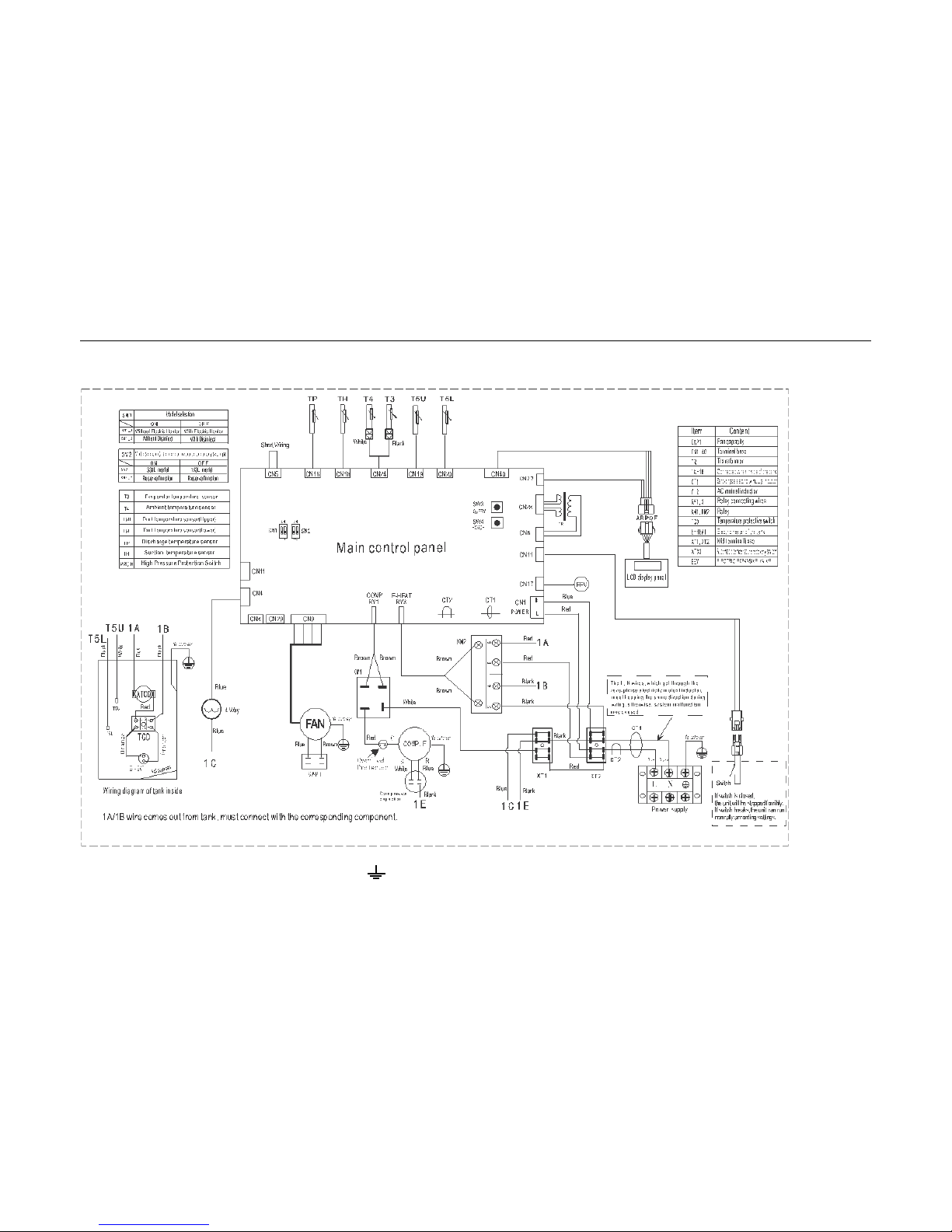

7. Wiring diagram
T3: Evaporator Temp. Sensor T4: Ambient Temp. Sensor T5U: Tank Temp. Sensor (upper) T5L: Tank Temp. Sensor (lower)
TP: Discharge Temp. Sensor TH: Suction Temp. Sensor
Earthing

Kaysun combo type KHP 15/190 ACS1 Manual MCAC-RTSM-2017-09
8. Installation
Transport
² The unit is so heavy that it should be carried by two or more persons. Otherwise, it might
cause injury and damage.
Location of installation
² Enough space for installation and maintenance shall be preserved.
² The air inlet and outlet should be free from obstacles and strong wind.
² The base surface should be flat, which should be inclined no more than 2°, and able to bear
the weight of the unit.
² If the unit has to be installed in the indoor space, the unit might cause indoor temperature
decreased and noise, please take preventive measures for this.
² If the unit has to be installed on a metal part of building, make sure the well electric
insulation which should meet the relevant local electric standard.

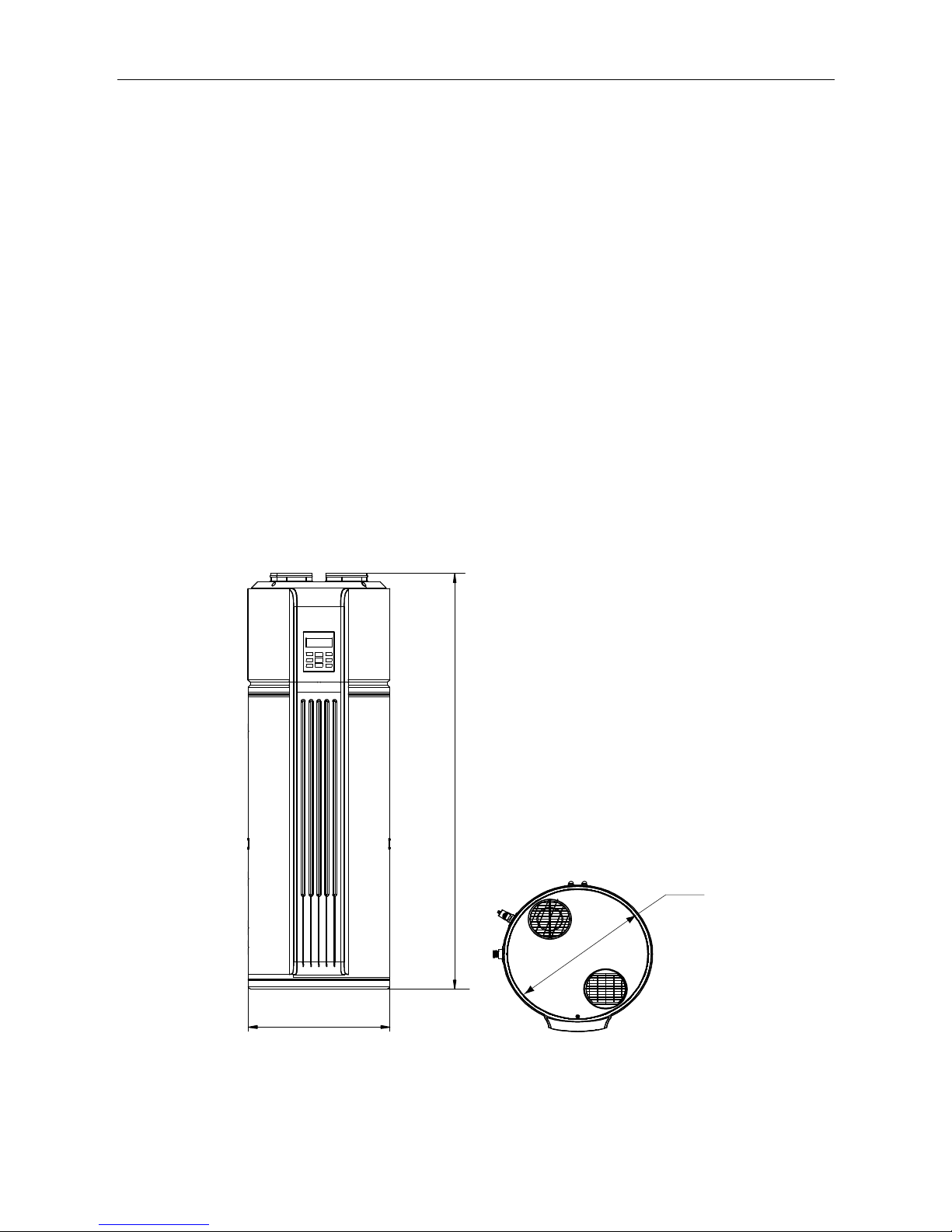

Maintenance space (Unit: mm)
1760
560
Φ560

TSM 2017-09 ………….. Kaysun combo type KHP 15/190 ACS1 Manual
15

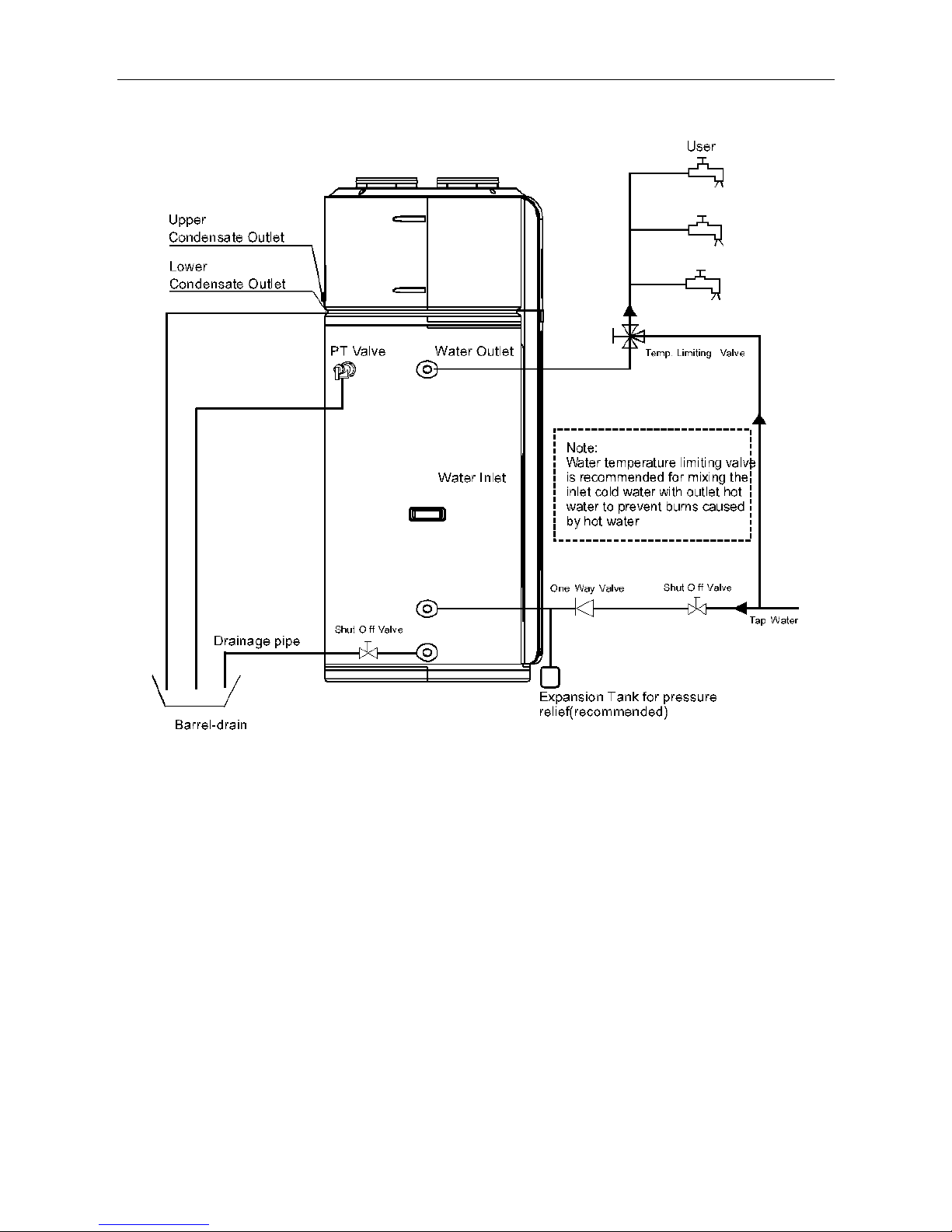

Water system piping
² In case of installing the unit at a place where outside temperature below freezing point,
insulation must be provided for all hydraulic components.
² Water inlet or outlet pipes: The specification of the water inlet or outlet thread is RC3/4”,
which is external thread. Pipes should be heat-insulated well.
² Installation of the one way valve: The specification of the valve thread in accessories is
RC3/4”. It is used to prevent water from flowing backwards.
² The drainage pipe should be insulated to prevent water inside pipe from freezing in cold
weather.
² Do not dismantle the PT Valve, and do not block off the drainage pipe.
² After water system piping connection, turn on the inlet and outlet valve to effuse the tank.
When water flow smoothly out from outlet pipe, the tank is full, turn off all valves to check
the pipeline leakage.
² If the inlet water pressure is less than 0.15MPa, a pump should be installed at the water
inlet. If the water supply hydraulic is higher than 0.65MPa, a reducing valve should be

Kaysun combo type KHP 15/190 ACS1 Manual MCAC-RTSM-2017-09
16
installed at the water inlet pipe.
² Condensate may be leaked from unit if drainage pipe is blocked, so a drainage pan should
be installed.
² To smoothly drain condensate, the unit should be installed at a horizontal floor. Otherwise,
the drain vent is ensured at the lowest place, and recommending the inclination angle of unit
to the ground should be no more than 2°.

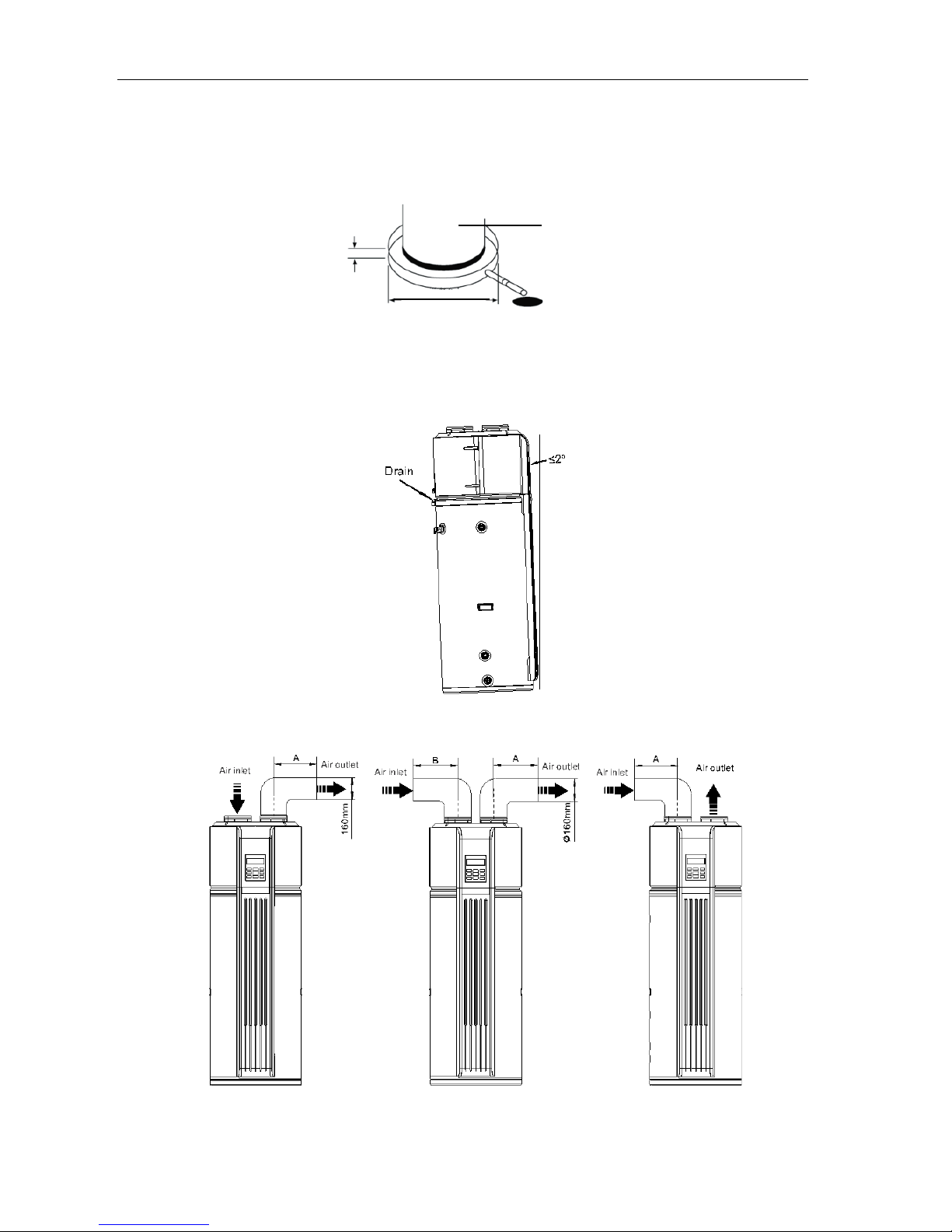

Air duct connection
① ② ③
50mm larger than
the dia. of unit
Max.22mm
Heat Pump
Water Heater

TSM 2017-09 ………….. Kaysun combo type KHP 15/190 ACS1 Manual
17
①
Air inlet and outlet with duct
A+B≤10m
②
Only air outlet with duct
A≤10m
It is recommended to install unit by this way in winter,
where there is other heat source in the room.
③
Only air inlet with duct
A≤10m
It is recommended to install unit by this way in
summer that could charge fresh air into room.
Duct description
Round duct
Rectangle duct
Dimension (mm)
Ф160
160×160
Straight-line pressure drop (Pa/m)
≤2
≤2
Straight-line length (m)
≤10
≤10
Bent pressure drop (Pa)
≤2
≤2
Bent’s quantity
≤5
≤5
² The duct’s resistance will decrease air-flow-rate, and capacity of unit will be decreased.

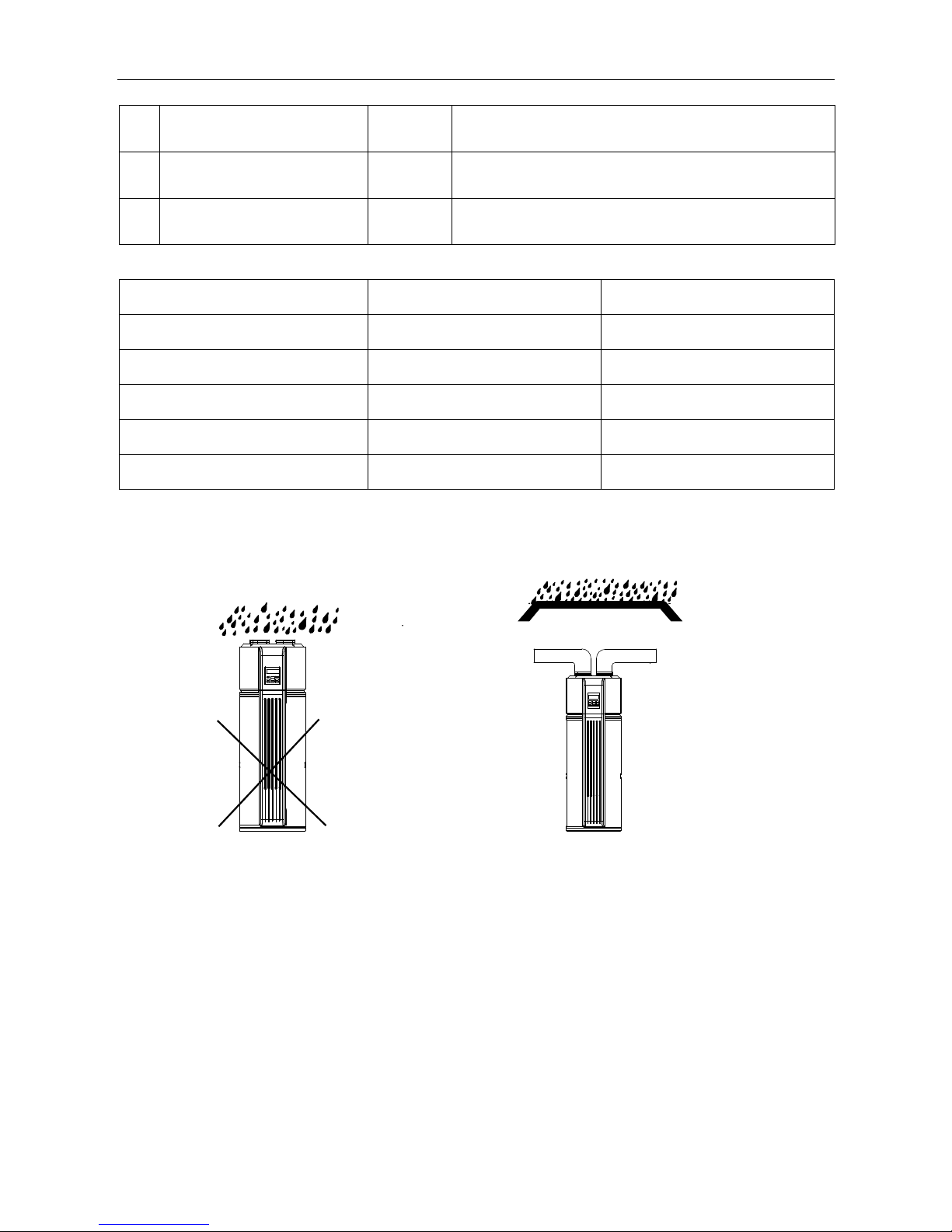

² It is recommended to install the unit in the indoor space. It is not allow installing the unit at
the rainy space.
² In terms of the unit connect with duct reaching to outdoor, and then a reliable water-resistant
measure must be conduct on the duct, to prevent water from dropping into internal of the
unit.
² Filter should be installed at the unit inlet, if the air inlet is not connected with duct. In terms of
the unit with duct, filter should be put on the position of duct inlet.
Unit
Rain
Rain
Weather shed
Unit

Kaysun combo type KHP 15/190 ACS1 Manual MCAC-RTSM-2017-09
18
Electric connection
² If the power supply is not earthed well, the unit should be not installed.
² The reliable earthing connection and the installation of the unit should be done by a
qualified person.
² The power supply should be an independent circuit with rated voltage.
² An all-pole disconnection device which has at least 3mm separation distance in all pole and
a residual current device (RCD) with the rating of above 10mA shall be incorporated in the
fixed wiring according to the national rule.
² Set the electric leakage protector according to the relevant electric technical standards of
the local.
² The power cord and the signal cord shall be laid out neatly and properly without mutual
interference or contacting the connection pipe or valve.
² After wire connection, check it again and make sure the correctness before power on.
Filter
inlet oulet

TSM 2017-09 ………….. Kaysun combo type KHP 15/190 ACS1 Manual
19

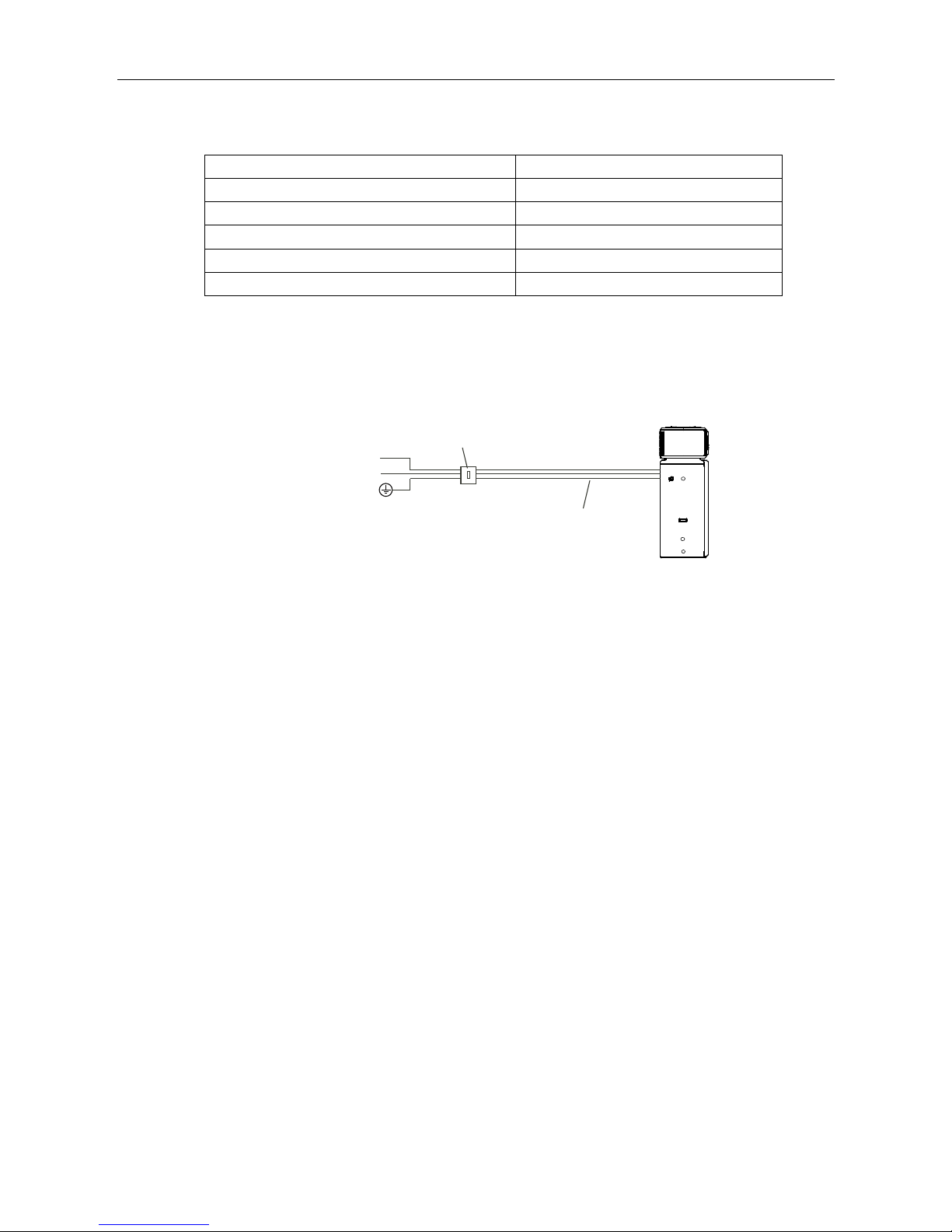

Specifications of power supply
Model name
KHP 15/190 ACS1
Power supply
220-240V~, 50Hz, 1Ph
Min. diameter of power supply cord (mm2)
4
Earth cord (mm2)
4
Manual switch capacity (A)/Fuse (A)
25/20
Creepage breaker
30Ma, ≤0.1sec
² Choosing the power cord according to above table, and it should comply with local electric
standard.
² The power cord model, recommended power cord mode is H05RN-F.
GND
Power Cable with
Creepage Breaker
Creepage Protector
Power Supply
