KD One NAVIEN UHA-742SG/M User manual

DIGITAL COLOR LCD HANDS FREE
VIDEO PHONE
UHA-742SG/M
• Please carefully read this User’s Guide (in particular,
precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents
caused by abnormal operation of the product.

Warning and important safeguards
Components
Installation
Product specications
Operation
Manager mode
Manager mode(Video memory equipped model)
Wiring diagram
Warranty
4
8
9
10
11
13
17
20
21
Contents



• To prevent injury, the following safety precaution should be observed during
installation, use and servicing of the unit.
Apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus.
Note : Change or modification not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This manual is based on the date as shown in the right and specification are
subject to change without notice for quality improvement
This symbol is intended to alert the user to the presence of
uninsulated “dangerous voltage”within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
CAUTION
RISK OF ELECTRIC SHOCKS
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE, REFER SERVING
TO QUALIFIED SERVICE PERSONNEL


For the customers
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communication.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning equipment on and o, the user is
encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit dierent from that to which
the receiver is connected
- Consult the dealer or an experienced radio/TV technician for help



1. Read Instructions
All the safety and operating instructions should be read before the unit is operated.
2. Retain Instructions
The safety and operating instructions should be retained for future reference.
3. Follow Instructions
All operating instructions, maintenance and all warnings should be followed.
4. Cleaning
Turn o the power of unit before cleaning. Do not use liquid or aerosol cleaners.
Use a dry cloth for the body of unit.
5. Attachments
Do not use attachments not recommended by the unit product manufacturer,
as they may be hazardous or cause damage.
6. Heat and Moisture
Do not expose this unit direct sunlight and rain for reliable operation.
7. Installation
Do not install this unit on an unstable place (hot, cold, humid or excessive dust).
Use only with a mounting accessory recommended by the manufacturer or sold
with the unit.
Installing this unit should follow instructions of manufacturer and qualied service
personnel.
8. Ventilation
Slot and opening in the cabinet are provided for ventilation to ensure reliable
operation of the unit and to protect it from overheating.
These openings must not be blocked or covered. Never place your unit on a bed,
sofa, rug, or similar surface ;or on near a radiator or heat register.
This unit should not be placed in a built-in installation such as a bookcase or rack
unless proper ventilation is provided.
9. Power Sources
This unit should be operated only from the type of power source indicated on the
label. If you are not sure of the type of power supply to your home, consult your
appliance dealer or local power company.
To operate the unit by battery or other power source, consult the operating
instructions.


10. Grounding and Polarization
This unit may be equipped with either a polarized 2-wire AC line plug (a plug
having one blade wider than the other) or a 3-wire grounding type plug, a plug
having a third (grounding) pin. The 2-wire polarized plug will t into the power
outlet only one way. This is a safety feature. If you are unable to insert the plug
fully into the outlet, try reversing the plug. If the plug still fails to t, contact
your electrician to replace your outlet.
Do not defeat the safety purpose of the polarized plug.
11. Overloading
When using this product, do not overload the power outlets or extension cords
as this could cause re or electric shock.
12. Accessories
Do not place this unit on an unstable cart, stand, tripod, bracket, or table.
If the unit falls, it could cause injury or damage to the system.
13. Object and Liquids
Never push objects of any kind into this unit through the openings.
Never spill liquid of any kind on the unit.
14. Servicing
Do not attempt to service this unit yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to
qualied service personnel.
15. Power Line
The system should not be located near power lines or electric light
or power circuits.
16. Damage Requiring Service
Unplug this unit from the wall outlet and refer to servicing to a qualied
service technician if any of the following occur.
a. If the power supply cord or plug is damaged
b. If any liquid has been spilled into objects have fallen in the unit
c. If the unit has been exposed to rain or water
d. If the unit has been dropped or otherwise damaged
e. If the equipment exhibits a distinct change in performance
17. Replacement Part
When replacement parts are required, use replacement parts specied by the
manufacturer.



■
 Fixing Bracket
■
 Mounting Hardware & Cable
■ Main body






























②
③ ④ ⑤ ⑥ ⑦
⑨
⑧
⑩
⑫


⑪





■
 Standard height of video phone
1. After determining the mounting locations for
both the outside camera and inside monitor
2. At the selected monitor mounting location,
1,450mm is suggested from the bottom.
<Caution>
Install the monitor away from the heat,
moisture and direct sun rays.

■ Specications


DIV.
Power Source
Wiring
System Composition
Distance
Video
Memory
(Option)
Still Cut
Movie
LCD
Video
input
Temp.
Humidity
Size
Weight
LCD
Screen
Environmental
Circumstance
Dimensions
Mounting
Specication
AC 100~240(50/60Hz)
Doorphone : 4 wires in polarity
Intercom : 8 wires in polarity
- 2 Doorphones + Additional 3 intercoms
- DOOR : TIV 0.5(28M), TIV 0.65(50M), TIV 0.8(70M)
(Up to the last Intercom)
256 Cuts
5f/s, 5sec, 32clips
7" Color TFT LCD
1Vp-p/75Ω, Composite
NTSC/PAL(Color)
0℃∼40℃
Less than 90% (Relative humidity)
254.5(W) x 135.5(H) x 32.0(D)mm
UHA-742SG : 792g
UHA-742SGM : 815g
Wall surface mounted



■ When using the Monitoring function
■ When a visitor pushes a Call Button
When a visitor pushes the Call Button on the door-phone at the front door, the call is
transferred to the Videophone
Call signal is ringing on
the videophone, while
“Talk” button is ickering,
and the image of the visit
appears on the screen.
When Talk button is
pressed, the conversation
with the visitors starts,
and “Talk” button LED
illuminates.
If you press the “Talk”
button while talking
with the visitor or the
time limit of 1 minute
is reached, the screen
goes blank and the
conversation ends.
If you press the
“Door Open” button,
the relevant door
opens and the
conversation ends.
‘DOOR#1’ or ‘DOOR#2’ appears at the top of the screen
‘DOOR#1’ or ‘DOOR#2’ appears at the top of the screen
If there’s no input from the door phone camera, the “No Signal” message appears,
which means there is no video signal.
If you press the
“Monitoring” button,
pictures captured by the
door-phone at the front
door will appear on the
screen.
If two door-phones are
installed, door-phone #2
can also be monitored by
pressing the “Monitornig”
button once more.
If you press the “Talk”
button while using the
monitoring function,
talking activated through
the door-phone
that is currently installed.
If you press the
“Door Open” button
during monitoring,
the relevant door opens
and monitoring ends.



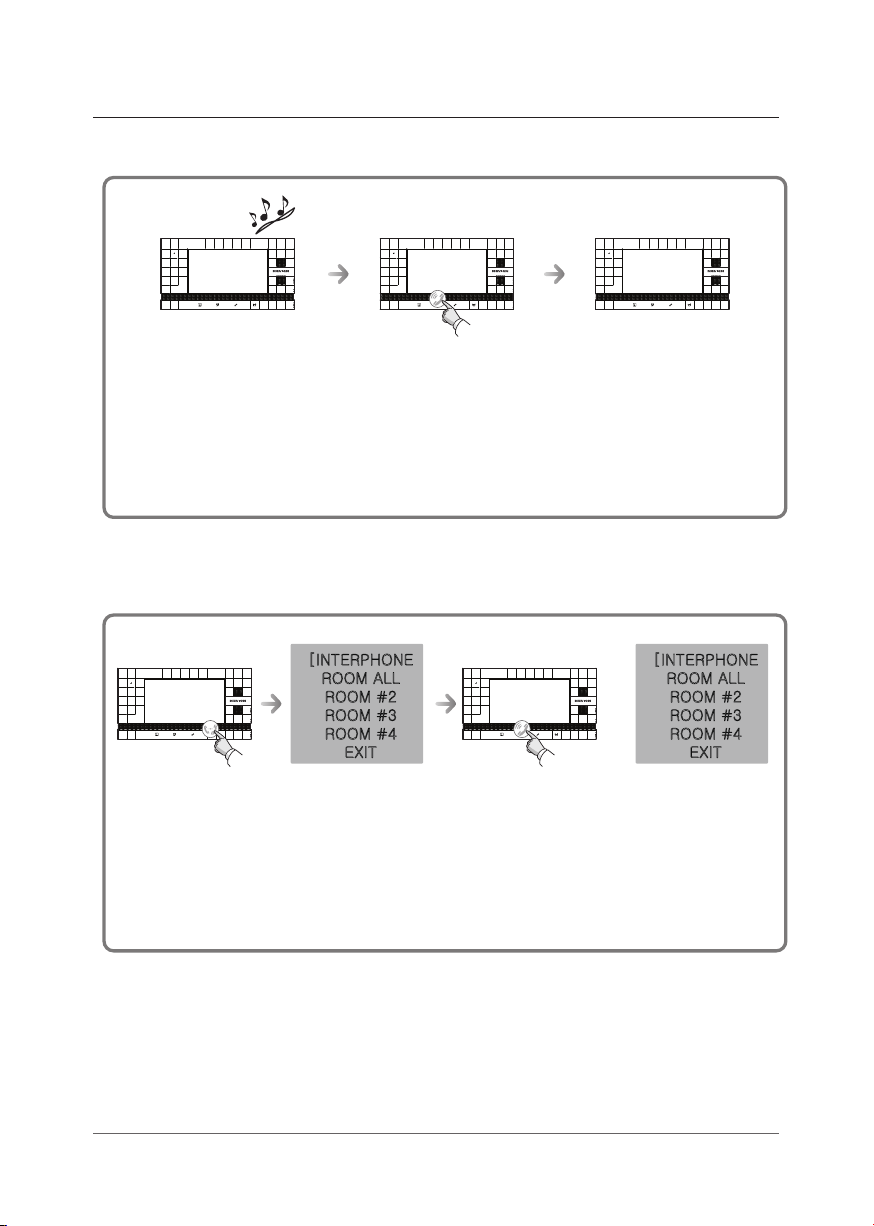

■ Call signaling to another videophone
■ Intercommunication between videophones (when they are connected)
When a call signal comes
from another videophone,
Talk LED ickers and home
call melody rings.
(about 30 seconds)
When the “Talk” button is
pressed. Talk LED is lit and
talking starts.
When the “Talk” button is
pressed during
communication or the talk
duration(up to 1 minute).
the screen goes blank and
conversation ends.
To call the designated
device. please select and
press “INTERCOM” button.
Select the ID of the
designated device
to call on the menu.
When the user select and
press “Talk” button,
it activates calling and LED
of Talk button is ickering.
Also the call melody sounds
out.
In case of all intercom,
please select and
push “ROOM ALL”
[INTERPHONE
ROOM ALL
ROOM #2
ROOM #3
ROOM #4
EXIT
[INTERPHONE
ROOM ALL
ROOM #2
ROOM #3
ROOM #4
EXIT



How to control the volume for bell, talk and display
The user can adjust and set the volume of bell during call from door or additional intercom
The user can adjust and set the volume during talk between monitor and door.
The user can adjust and set the display status on LCD screen
1. Adjust the volume of the bell
- When the user pushes the button of “UP or “DOWN” during the call from door or intercom,
the status of the volume of bell on the down sided of screen.
- Using “UP” and “DOWN” button, the user can adjust the level of the volume by 1~8 steps.
After adjustment of the volume, push “SET” button to complete the adjustment.
2. Adjust the volume of the talk
- When the user pushes the button of “UP or “DOWN” during the talk with door or Intercom,
the status of the volume of bell on the down sided of screen.
- Using “UP” and “DOWN” button, the user can adjust the level of the volume by 1~3 steps.
After adjustment of the volume, push “SET” button to complete the adjustment.
3. Adjust the display status
- When the user pushes the button of “SET” button while the picture on, the adjustment
status of the picture by [Bri] on the down sided of screen.
- Using “UP” and “DOWN” button, the user can adjust the level of the brightness by 0~8 steps.
After adjustment of the brightness, the user push “SET” button to complete the adjustment
of the brightness and goes to the next procedure of the adjustment of contrast by [Con].
- Using “UP” and “DOWN” button, the user can adjust the level of the contrast by 0~8 steps.
After adjustment of the brightness, the user push “SET” button to complete the adjustment
of the contrast and goes to the next procedure of the adjustment of color by [Col].
- Using “UP” and “DOWN” button, the user can adjust the level of the color by 0~8 steps.
After adjustment of the color, the user push “SET” button to complete the adjustment of the
Color.
※[Bri] : Brightness, [Con] : Contrast, [Col] : Color



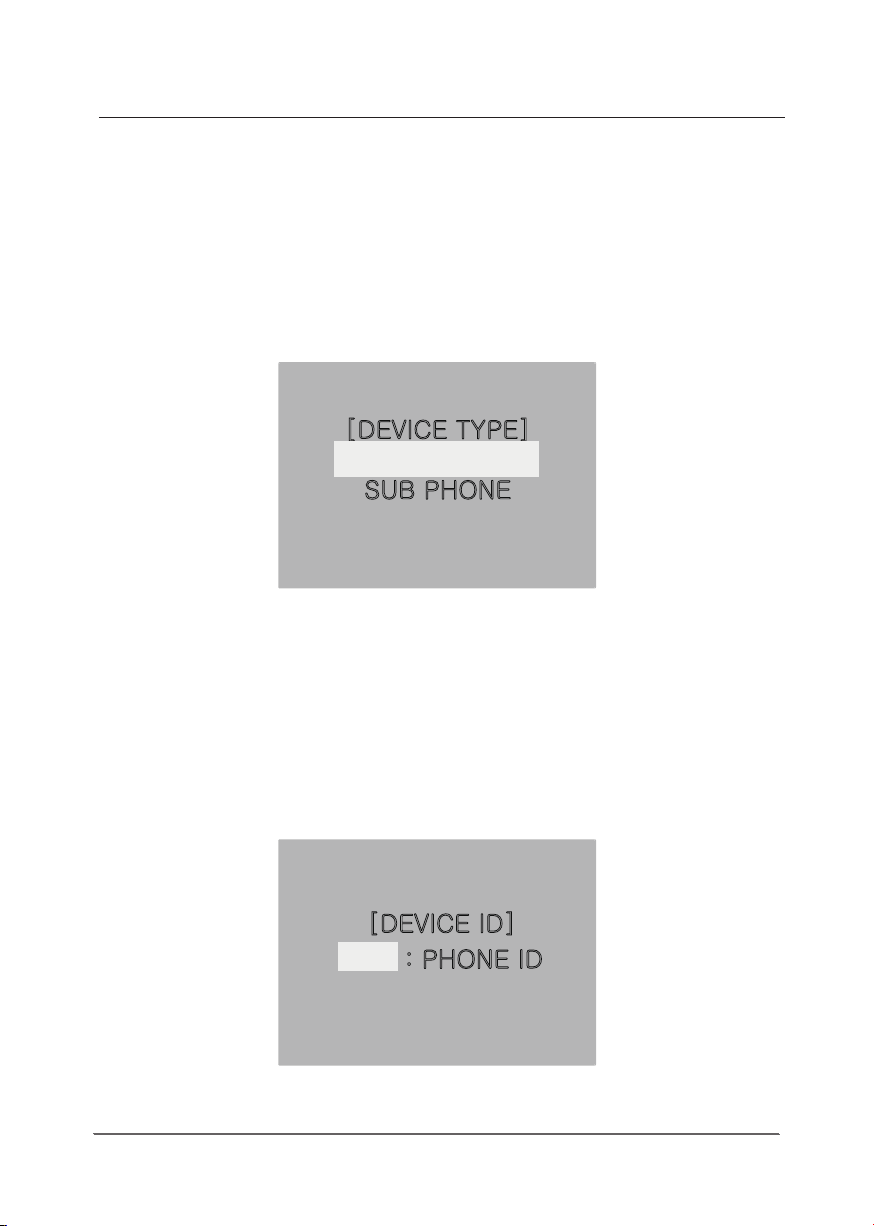

Manager mode is the product setting mode that allows a installer to congure the device.
environment(setting door-phone number and the type of door-phone camera) needed for operation.
*Manager mode ends automatically and standby mode is on when about 1 minute passes without
button input.
• When you are in Manager mode, you will not receive any door-phone, extension or interphone call.
※The product must be turned o and on again to save and apply the conguration changed in
Manager mode .
※When power is OFF →ON in the middle of changing the conguration on Manager mode, the
modication may fail to be applied.
To select MANAGER MENU
- Enter “MANAGER” mode by pressing and holding the Door Open button for more than 3 seconds in
a standby state after power is on.
[Initial screen after it is switched on ]
[MANAGER MODE SCREEN]
UHA-742SG/SGM
[MAIN PHONE]
www.kdone.co.kr
[MANAGER]
DEVICE TYPE
PHONE ID
CAMERA NUM
CAMERA TYPE
EXIT


Set the type of device
* Setting mode for MAIN Videophone and SUB Videophone.
* Enter “MANAGER” mode by pressing and holding the Door Open button for more than 3 seconds
in a standby state after power is on.
• In the menu of [MANAGER], when the user selects [DEVICE TYPE] by “Up” or “DOWN” and push
“SET” button, the menu of [DEVICE TYPE] popped up on the screen.
• To use “Up” or “DOWN” button, the user can select MAIN PHONE.
• After selection, to nish the setting, push “SET”. And menu of [MANAGER] popped up again.
Set the PHONE ID
• If [DEVICE TYPE] is set as MAIN PHONE, the setting of PHONE ID is not possible.
(ID of MAIN PHONE is 0)
* If [DEVICE TYPE] is set as SUB PHONE, the user can set ID of SUB PHONE.
(In case of SUB PHONE, default is 1)
• In the menu of [MANAGER], when the user selects [PHONE ID] by “Up” or “DOWN” and push “SET”
button, the menu of [PHONE ID] popped up on the screen.
• To use “Up” or “DOWN” button, the user can select the designated ID by the changing of digit. After
selection of ID, the user may push “SET” button to nish. (IDs of SUB Videophone are 3 from 01 to 03)
• After selection of ID of sub videophone, to nish the setting, push “SET”.
And menu of [MANAGER] popped up again.
After setting of ID of videophone, please turn on the power denitely to keep the previous setting
and changing.
[DEVICE TYPE]
SUB PHONE
MAIN PHONE
[DEVICE ID]
00 :PHONE ID


Setting CAMERA NUM (setting the number of door-phones in line with the videophone)
*This is the mode that allows you to set the number of door-phones in line with the videophone.
*Set up as Door-phone 1 by default.
- Select [CAMERA NUM] from the [MANAGER] MENU using the “UP” and “DOWN” buttons .
If you push the “SET” button, [CAMERA NUM] appears, which indicates the current setup.
- Select the number of door-phones to be connected with videophone using the “UP” and
“DOWN” buttons at the bottom, and then push the “SET” button.
- If you push the “SET” button, after completing the settings, the [MANAGER] MENU screen will
appear again.
Setting CAMERA TYPE (setting the type of the door-phone camera)
*This is a mode that allows you to set the type of the door-phone camera to be connected with
the videophone.
*Set up as PAL by default.
- Select [CAMERA TYPE] from [MANAGER] MENU using the “UP” and “DOWN” buttons, and then
If you push the “SET” button, [CAMERA TYPE] menu appears, which indicates current set up.
- Select the type of the door-phone camera to be connected with the videophone using the
“UP” and “DOWN” buttons at the bottom and then push the “SET” button.
If you push the “SET” button, after the completion of settings, the [MANAGER] MENU screen
appears again.
The changed conguration will be applied only after power is OFF/ ON one again.
※Caution: The camera must be connected that matches the conguration setup.
If you fail to do this, (e.g., connecting PAL camera while set up as NTSC) the screen image
may not appear correctly. Then, the screen is returned to the normal state when the power is
OFF →ON
[CAMERA NUM]
1 CAMERA
2 CAMERA
[CAMERA TYPE]
PAL
NTSC


Storing images of a visitor
* Storing, identifying and deleting images of visitors.
Storing images
- Storing of images is done automatically during call signaling to the door-phone, depending
on how the user has set up STILL/VIDEO storing in the user menu.
- If there’s no storage space, it overwrites to make the new capacity of recording.
(VIDEO : 5sec 32cut (5frames/1sec), STILL:256cut)
Playing images
- If VMM module is installed and there are stored images, push the ‘UP’ key on the right and
enter ‘PLAY’ mode. By pushing the ‘UP’ and ‘DOWN’ keys, the stored images can be
played in order.
- If VMM module is not installed, an Error sound may occur when you push the ‘UP’ and
‘DOWN’ keys on the right.
- If VMM module is installed and there’s no stored image, “NO Image” appears.
- If image storage type is set up as STILL, only STILL images are stored and played; if set up
as VIDEO, only video images are stored and played.
- If you push “SET” button on an image playing screen about 10 seconds passes, playing
ends automatically.
User menu (VMM setting menu)
- You can enter the User menu, by pushing the “SET” button while in standby.
- User menu is set up in association with VMM, so if VMM is not installed an ERROR sound
may occur when you pushing the “SET” button while in standby.
- User menu ends automatically if about 30 seconds passes without pushing a button.
- While you are in User menu, call signaling to door-phone or extensions.
EXIT : menu closing
TIME : VMM time setting (for indication of storage time during playing of images)
SAVE : STILL/VIDEO
DELETE : deleting all the images and videos
※While you are in User menu, call signaling from other videophones or door-phone so only
when the connected videophones are all in standby, it is possible.
※When power is OFF →ON during setting data at User menu, the set data value may fail to
be applied.
※



■ Additional functions (Video memory equipped model)
Setting the year
- When the “SET” button(one the right) is pushed from the standby screen, the User menu
screen appears.
- If you select “SET” using the “UP” and “DOWN” buttons (on the right) on the Menu screen
and push the “SET” button, YEAR, MONTH, DATE, HOUR and MINUTE appears.
- You can set the year using the “UP” and “DOWN” buttons, and if you push the “SET” button,
you will move to Setting the month.
Setting the month
- Year setting is followed by Month setting.
- You can set the month using the “UP” and “DOWN” buttons, and if you push the “SET” button,
you move to Setting the date.
Setting the date
- Month setting is followed by date setting.
- You can set the date using the “UP” and “DOWN” buttons, and if you push the “SET” button,
you move to Setting the time.
Setting the hour
- Date setting is followed by time setting.
- You can set the hour using the “UP” and “DOWN” buttons, and if you push the “SET” button,
you move to Setting the minute.
Setting the minute
- Hour setting is followed by minute setting.
- You can set the minute using the “UP” and “DOWN” buttons, and if you push the “SET”
button, setup is complete and the data are stored.
Ending setup
- When minute setting is complete, the User menu screen appears again.
※If time set mode ends without completion of minute setting, the data being set up may
not be stored.
[USER MENU]
TIME
SAVE
DELETE
EXIT
[TIME SET]
: YEAR
: MONTH
: DATE
: HOUR
: MINUTE
00
00
00
00
00


■ User menu (Video memory equipped model)
* Video storage type setup mode
- If you push the “SET” (on the right) button from the standby screen, the User
menu screen appears.
- Select “SAVE” on the menu screen pushing the “UP” and “DOWN” buttons on
the right, and push the “SET” button.
- The present storage type appears under selection.
- Select either VIDEO or STILL as storage type using “UP” or “DOWN”.
(VIDEO : video(5 seconds) storage / STILL : still image storage)
- If you push the “SET” button, the User menu appears again.
- If you push the “SET” button on the standby screen, the User menu screen
appears.
- Select “DELETE” on the menu screen using the “UP” and “DOWN” buttons,
and push the “SET” button.
- Select either YES or NO using the “UP” and “DOWN” buttons and push the
“SET” button.
(YES : delete all images / NO : Do not delete images)
- User menu screen appears again after the operation is completed.
[SAVE]
STILL
VIDEO
[ALL DELETE?]
NO
YES



■ System Wiring
■ Doorphone Wiring
 











If UTP CABLE[CAT.5] is used, use 5th lines for GND line
Note :
Arbitrarily installed additional monitors occur the lower quality of video and
voice transmission.
Intercom 1
Intercom 2
Intercom 3
c
o
l
o
r
D
o
o
r
C
a
m
e
r
a
c
o
l
o
r
D
o
o
r
C
a
m
e
r
a


 




