kdgarden 20’x10’ Carport Canopy User manual

MODEL : L20' x W10' x H8'
20’ x 10’ Carport Canopy
Assembly Manual

READ ALL THE INSTRUCTIONS BEFORE ASSEMBLY !
Thanks for your purchase of kdgarden Outdoor 20’x10’ Carport Canopy! This unit features
excellent quality and design. It is comprised of a rigid frame and a durable water resistant and
UV-treated cover. To make assembly much easier, all frame parts have been marked with assorted
maintenance.
anchored.
THIS IS A TEMPORARY STRUCTURE AND NOT RECOMMENDED AS A PERMANENT STRUCTURE.
Before your start: 2 or more individuals recommended for assembly.
Allow approximately 15 minutes for every foot in building length.
ATTENTION:
damage caused by sun, light rain, tree sap, animal - bird excrement and light snow. Please anchor
this structure properly. See manual for more anchoring details. Proper anchoring, keeping cover
DANGER:
wires before you dig. DO NOT install near roof lines or other structures that could shed snow, ice
or excessive run off onto your shelter. DO NOT hang objects from the roof or support cables.
WARNING:
Risk of fire. Do not smoke or use open flame devices (including grills, fire pits, deep fryers, smokers
or lanterns) in or around the shelter. DO NOT store flammable liquids (gasoline, kerosene,
propane, etc.) in or around your shelter. Do not expose top or sides of the shelter to open fire or
other flame source.

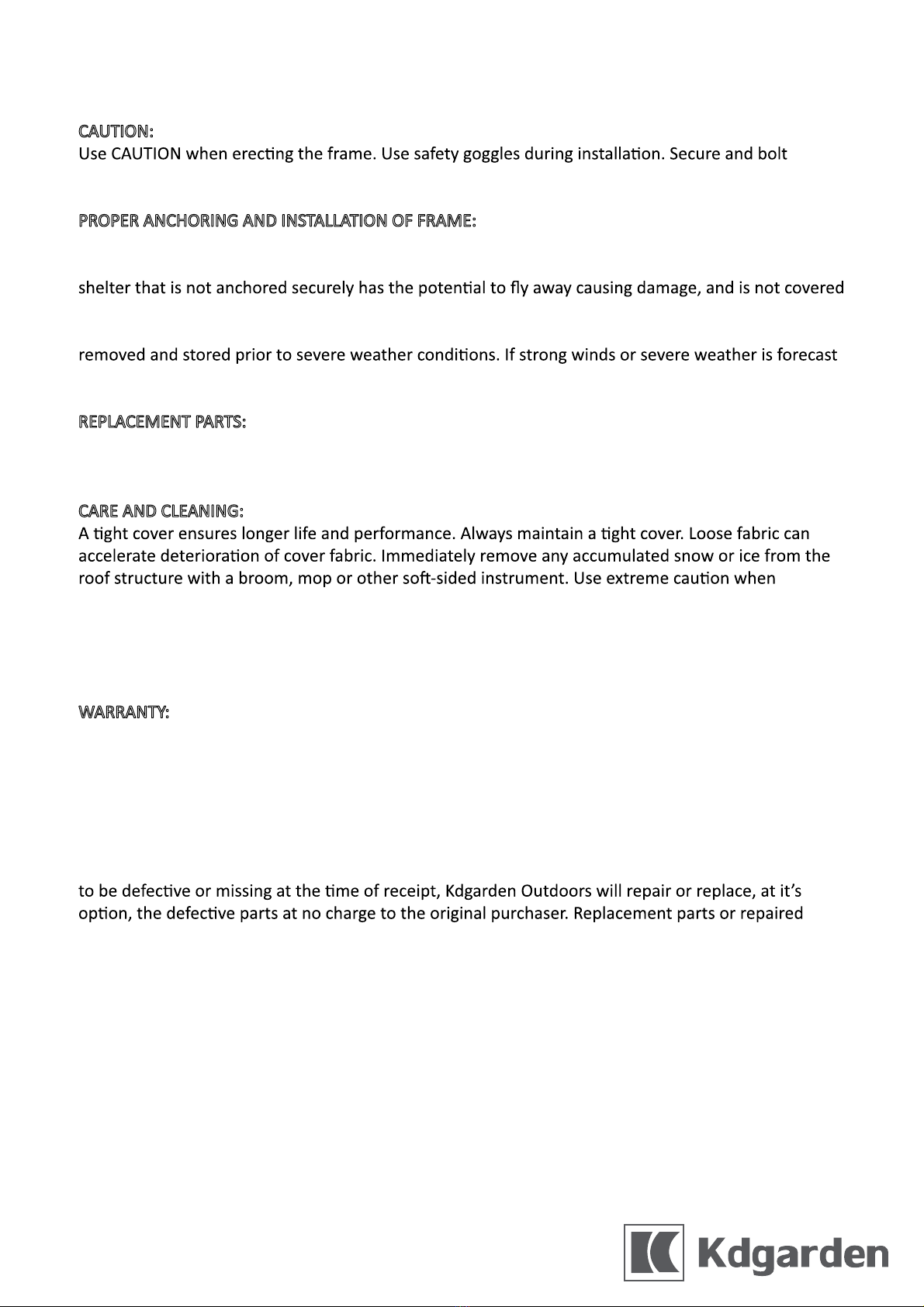

CAUTION:
together overhead poles during assembly. Beware of pole ends.
PROPER ANCHORING AND INSTALLATION OF FRAME:
PROPER ANCHORING OF THE FRAME IS THE RESPONSIBILITY OF THE CONSUMER.
Kdgarden Outdoors is not responsible for damage to the unit or the contents from acts of nature. Any
under the warranty. Periodically check the anchors to ensure stability of shelter. Kdgarden Outdoors
cannot be responsible for any shelter that blows away. NOTE: Your shelter’s cover can be quickly
in your area, we recommend removal of cover.
REPLACEMENT PARTS:
Kdgarden Outdoors offers replacement parts and accessories freely and all the replacements need to
be prepared within a week and are shipped from factory direct to your door.
CARE AND CLEANING:
removing snow from cover- always remove from outside the structure. DO NOT use hard-edged tools
or instruments like rakes or shovels to remove snow. This could result in punctures to the cover. DO
NOT use bleach or harsh abrasive products to clean the fabric cover. Cover is easily cleaned with mild
soap and water.
WARRANTY:
This shelter carries a full limited warranty against defects in workmanship. Kdgarden Outdoors
warrants to the Original Purchaser that if properly used and installed, the product and all associated
parts, are free from manufacturer’s defects for a period of:
1 Year For Cover Fabric, End Panels and Framework.
Warranty period is determined by date of shipment. If this product or any associated parts are found
parts shall be covered for the remainder of the Original Limited Warranty Period.

Part Code Descrip on Quan
1Curved 3 way f ng 2
1A Shoulder 3way f ng 4
2Curved 4 way f ng 3
2A Straight 4way f ng 6
3Roof Tube 10
4Upper standing tube 10
5Lower standing tube 6
5A Lower standing tube front and back panel 4
6Horizontal wall and roof purlins 12
7Lower tensioning tube(middle) 4
7A Lower tensioning tube 4
8U-type stake pag 10
9 Carriage bolt M6x50mm 10
10 Plas c cap 10
11
Roof cover
1
12
Front andBack cover
2
14 Elas c Ball Bungee Connectors 34/4
15 Rope 2
16 "S" hooks 4
Packing List

7A
8
Figure 1 Sketch of
The W3×L 6.1×H2.4mTrussed Frame Shelter
① 20’x10’ Frame Assembly
Lay out frame parts as shown. Simply assemble the steel frame in accordance with the assorted
ASSEMBLY PROCEDURE
number marked on the steel pipes.
7
5
2A
4
5A
1
1A
2
3
6
9
9

②FRONT AND BACK DOOR PANEL ASSEMBLY
Tie the front and back door panel with bungees cords.
12
Figure 2 Front an
Figure 3 Tarp Cover
d Back Cover
14
Figure out the right posion of the tarp cover and assembly correctly.
The size of the tarp cover is 22.3. X 20.7.(6.8m x 6.3m). The longer side(22.3.) should be put at the
wide frame of 10’/3m. While the shorter side with holes should be put at the long frame of 20’/6m.
③TOP TARP COVER ASSEMBLY
Front
Rear
Left
Right
Front

④ INSTALL AUGER ANCHORS
Anchors must be placed inside shelter at the corner legs. If the ground is too hard, dig a hole with a shovel or
Figure 4 Roof Cover
Figure 5 Install U-Type Ground Stakes
11
15
16

MAINTENANCE AND CARE
If some parts or the cover were accidentally damaged during the usage, contact Kdgarden
Outdoor customer service for replacements, so that to prevent from further damage and keep the
When replacing the parts, male certain the whole frame and the parts connected to the
replaced parts be well fixed or supported.
Remember to choose a windless day to replace the cover. Begin with making certain all the
bolts of the frame and the tension equipment be well fixed. When taking off the cover, make sure the
related ropes, etc. Have been taken off, and the cover will not be blocked during the way. Avoid taking
off the cover with heavy big power equipment.
helps the mechanical door to work for a longer life.
To elongate the life of the cover, put small duct tape or foam rubber(provide it by yourself)on
the frame that comes to in contact with cover. The tape and foam rubber acts as a cushion to avoid
rubbing damage to the cover over years.
maintained internally and externally to make certain the building remains properly installed and
secured. Including: check all bolts and hardware connectors to be certain they are in place and
cover irreparably.
Thanks for choosing kdgarden Outdoor products. We’d love to hear your thoughts, and so would
Mail to kdgarden.customer[email protected] and we will reply to you within 24 business hours.
