KEC 29GG400 User manual

DIGITAL READY TV
WWW.KEC.CO.KR
MODEL: 29GG400
INSTRUCTION MANUAL

FEATURES
640 480 Resolution !
Flickerless picture and NTSC image conversion to progressive scan!
You can view an analog broadcasts with the best picture quality .
Receive digital broadcasts by connecting with a ATSC set-top box!
High-performance adaptive 4H comb filters and vertical peaking create vivid pic-
tures ever for the sub display window.
Motion adaptive spatial and temporal noise reduction(3D-NR) reduces a lot of noise
in the picture!
Scan velocity modulation circuit improves the contour between black and white pic-
tures!
ABC Circuit(Automatic Brightness Control) always enables you to see the best pic-
ture regardless of the surrounding brightness conditions.
A digital sound processor.
Sound output power equal to a mini component.
BTSC(MTS M) Stereo signal decoder!
Spatial surround effect for a spectacular listening experience!
Loudness effect a grand bass sound.
AVC(Automatic Volume Correction) equalizes varying sound volume levels.
Independent volume and source control for headphones!
EXCELLENT SOUND QUALITY
EXCELLENT PICTURE QUALITY
3
EXCELLENT PICTURE AND SOUND QUALITY, MULTIPLE FUNCTION
READY TELEVISION FOR DIGITAL BROADCASTING
TABLE OF CONTENTS
FEATURES 3~5
PRECAUTIONS 6~8
LOCATION OF CONTROLS 9~10
USE OF THE REMOTE CONTROLLER 11~12
ANTENNA CONNECTION 13~14
POWER SUPPLY 15
VIDEO / AUDIO CONNECTION 16~18
STARTING OPERATION 19

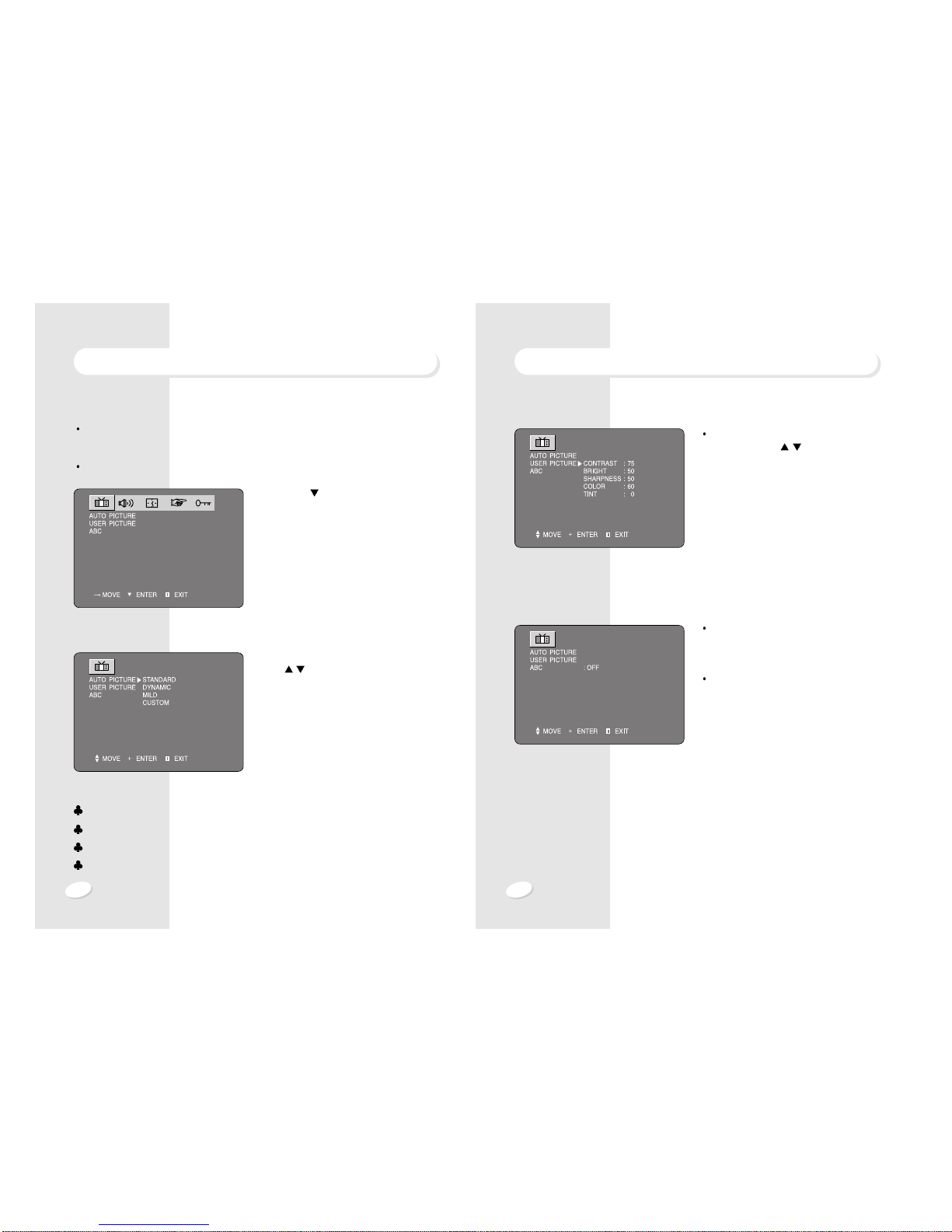

PICTURE ADJUSTMENT 20~21
SOUND ADJUSTMENT 22~25
CLOCK SETTING 26~28
SETUP 29~31
PICTURE-IN-PICTURE OPERATION 32~35
FUNCTION 36~38
DOUBLE WINDOW 39~42
COMPATIBILITY WITH PERSONAL COMPUTER 43~45
RECEIVING DIGITAL BROADCASTS 46
V-CHIP FUNCTION 47~56
SLEEP FUNCTION 57
DISPLAY FUNCTION 57
QUICK VIEW FUNCTION 57
MUTE FUNCTION 57
RECEPTION DISTURBANCE 58
TROUBLE-SHOOTING GUIDE 59
PRODUCT SPECIFICATIONS 60
BEFORE USING THIS PRODUCT
MISCELLANEOUS
APPLICATION
PERFORMANCE

45
MISCELLANEOUS FUNCTIONSMISCELLANEOUS FUNCTIONS
Closed Caption Decoder : A Built-In Closed Caption Decoder(CCD) detects broadcasts
with encoded closed caption signals and displays their content on the screen.
Built-In V-Chip(Violence Chip) : This "Blocking V-Chip" Allows adults to block television
programs, movies, and videos which they feel are inappropriate for children.
Power saving function : The power consumption in the stand-by state is below 3 watts!
DOUBLE WINDOW
PERSONAL
COMPUTER INPUT
WIDE
BOOSTER
TILT
CLOCK AND
TIMER
SLEEP
AUTOMATIC
POWER-OFF
DISPLAY
QUICK VIEW
PIP
CHANNEL INDEX
STROBE
Watch main and sub picture simultaneously!
It can display a 640 480 VGA PC signal!
Watch TV at wide display state.
When the antenna input signal is weak, booster amplifies the
power of signal!
compensates for the picture display for tilting to either the left or
right because of the geomagnetic effects.
Set the time, minutes and then use like a clock and timer!
The television automatically turns off after the set sleep time.
Turned off automatically after 15 minutes in the absence of pic-
ture signal!
Display the channel number, picture and sound state, mts and
clock!
Switches the current channel to the previously viewed channel.
Two tuner PIP allows simultaneously display of VIDEO and TV,
TV and TV, 2 VIDEO sources.
Check other broadcasting pictures in sequence while watching
the main picture!
View the action frame by frame in still quick hots!

67
PRECAUTIONSPRECAUTIONS
Don’t open the rear cover.
This may expose you to very high voltages and other haz-
ards.
Avoid changing the direction of the TV set in a state of
power-on, any color-blur may happen.
In such case, plug it off and plug it on after an hour.
Avoid places that has much moisture and dust.
Place TV set on a flat and stable spot.
Separate TV set from magnetic materials like speaker, tele-
phone.
Take due care not to use this TV close to other electric appa-
ratus.
Select an area where sunlight or bright indoor illumination
will not fall directly on the picture screen.
Keep TV set away from an iron.
Don’t place heavy objects on the TV.
Don’t cover air holes with a towel or any materials.
When there is thunder and lightning or when you don't watch
for a long time, pull the power plug out.
Don’t pull the power cord out.
Don’t use a volatile solvents like benzene in cleaning.
Clean TV with a piece of dry cloth.

8

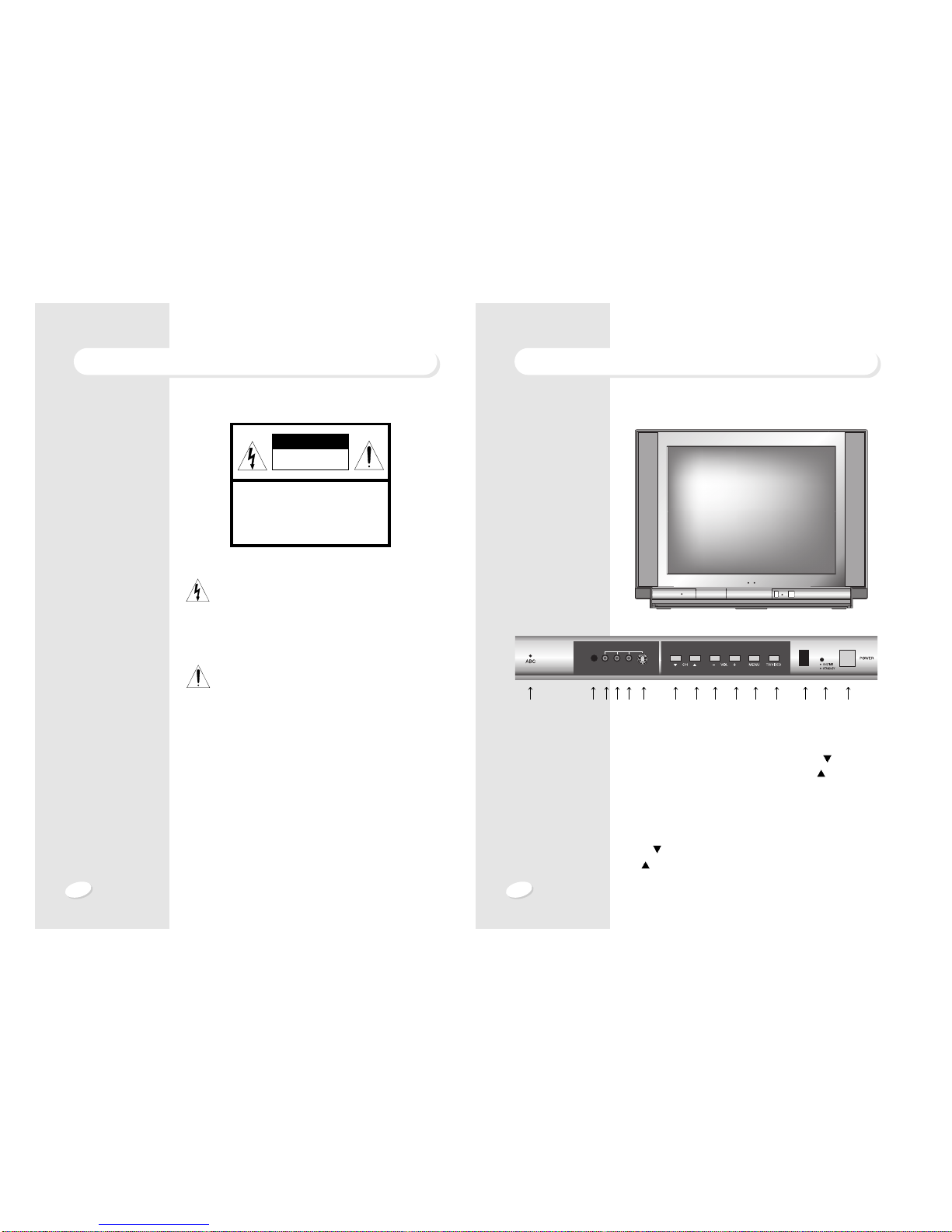

LOCATION OF CONTROLS
9
PRECAUTIONS
FRONT PANEL VIEW(LIST OF KEY SWITCHES, CONNECTORS)GRAPHICAL SYMBOLS EXPLANATION
This lightning flash with arrowhead symbol, within an
equilateral triangle is intended to alert the user to the
presence of uninsulated "dangerous voltage" within
the product's enclosure that may be of sufficient mag-
nitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (Servicing) instructions in
the literature accompanying the appliance.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN.
CAUTION : TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK)
NO PARTS INSIDE.
REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
123456789101112 13 14 15
1. ABC Sensor
2. Headphone Terminal
3. R Sound Input Terminal(3)
4. L Sound Input Terminal(3) : MONO
5. Video Input Terminal(3)
6. S-VHS Input Terminal(3)
7. Channel Down( ) Button
8. Channel Up( ) Button
9. Volume Down( ) Button
10.Volume Up( ) Button
11. Menu Button
12. TV/Video Button
13. Remote Controller Sensor
14. Stand-by Indicator
15. Power Button

THE USE OF THE REMOTE CONTROLLERLOCATION OF CONTROLS
10 11
REAR PANEL VIEW
Point to the remote controller sensor of the TV set.
The maximum operatable distance is approximately 20 feet from the remote controller
sensor, and not more than 30 to either side of the center.
The operation of the remote controller is most effective when there's no obstruction
between it and the remote controller sensor.
The duration of the batteries is approximately 6 months to 1 year.
Replace the batteries when the remote operation becomes unstable.
BATTERY INSTALLATION
Open up the cover.
Correctly install the batteries, observing (+/-) polarity as shown in the compartment.
Do not use a combination of old and new batteries or different type of batteries.
If batteries become weak, remove and replace them soon.
When battery leakage occurs, clean the battery compartment with a soft cloth and
replace the batteries.
2R
G
B
2 RGBIN
2
ANT
PCIN
2
2R
G
B
2 RGB IN
2
ANT
PC IN
2
123456789
1. Antenna Input(75 ohm)
2. Video/Audio Output Terminals
3. Video/Audio Input Terminals(1)
4. Video/Audio Input Terminals(2)
5. S-VHS Input Jack(2)
6. Component Video Input Terminals(DVD IN)
7. Audio Input Jacks(In Case of DVD, RGB, PC Mode)
8. R, G, B Input Terminals
9. Personal Computer Input Terminal
(D-Sub Connector)

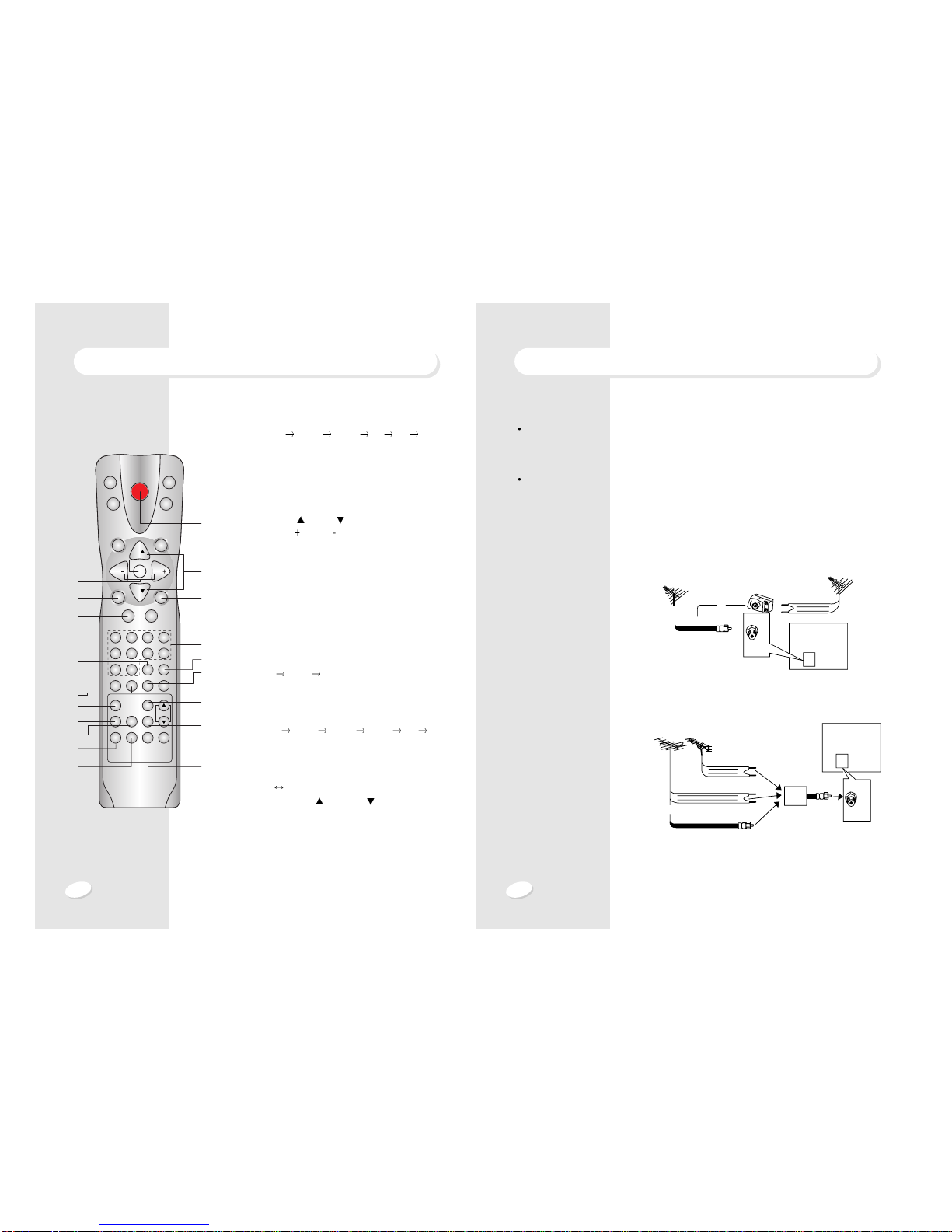

ANTENNA CONNECTION THE FUNCTIONS OF THE REMOTE CONTROLLER
12 13
1. P.C Mode Selection Button
2. Video Mode Selection Button
(VIDEO1 VIDEO2 VIDEO3 YUV RGB TV)
3. Power Button
4. Surround Button
5. Double Window Button
6. Mute Button
7. Quick View Button
8. Channel Up( ) / Down( ) Button
9. Volume Up( ) / Down( ) Button
10. Menu Button
11. Sleep Button
12. Wide Display Button
13. Sound Standard Button
14. Picture Standard Button
15. 10 Digit Keys
16. CATV 100 Channel Selection Key
17. State Display Button
18. Channel Add/Delete Button
19. Mono Stereo SAP Selection Button
20. Picture State Control Button
21. Automatic Brightness Control Button
22. PIP On/Off Button
23. PIP TV VIDEO1 VIDEO2 VIDEO3 YUV
RGB Selection Button
24. PIP Position Selection Button
25. PIP Window Size Selection Button
26. Main Sub Window Swap Button
27. PIP Channel Up( ) and Down( ) Button
28. V-CHIP Button
29. PIP Channel Index Button
30. PIP Strobe Button
31. PIP Still Button
POWER
VIDEO
DOUBLE
MUTE
SLEEP WIDE
P.STD
DISPLAY
ABCPICTUREMTSADD/DEL
POSITION
V-CHIP STILL INDEX STROBE
SIZE SWAP CH
TV/VIDEO
S.STD
Q.VIEW
MENU
VOL
CH
CH
VOL
P. C
SURROUND
1234
5678
90
100
PIP
2
3
1
4
6
10
9
11
13
18
19
16
22
24
31
25
28
5
7
8
12
14
15
17
21
20
27
26
23
30
29
A. Combination VHF/UHF Antennas
B. Separated VHF/UHF Antennas
VHF ANTENNA UHF ANTENNA
300-ohm
twin-lead
300-ohm
twin-lead
75-ohm
coaxial cable
ANT/
CABLE
75Ω
IN OUT
COMBINER
(not supplied)
REAR OF TV
or
VHF/UHF ANTENNA
300/75-ohm
ADAPTER
(Not supplied) 300-ohm
twin-lead
75-ohm coaxial cable
ANT/
CABLE
75Ω
or
VHF/UHF ANTENNA
REAR OF TV
OUTDOOR ANTENNA CONNECTION
Use one of the following two diagrams if you connect an outdoor antenna.
A. Using a VHF/UHF combination outdoor antenna.
B. Using separate VHF AND/OR UHF outdoor antenna.
Connect an outdoor antenna cable LEAD-IN to the coaxial cable connector on the rear
of the TV set.

15
ANTENNA CONNECTION
14

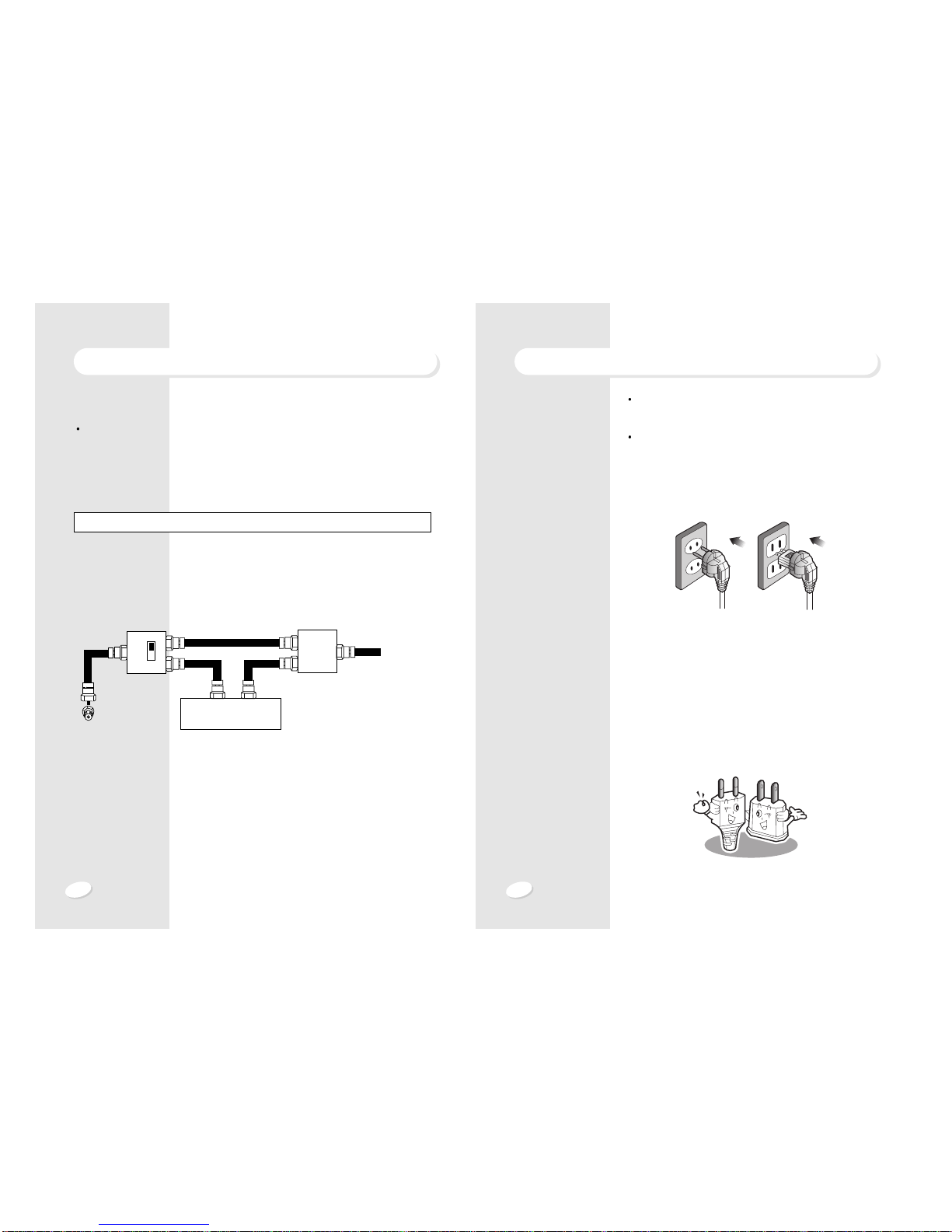

POWER SUPPLY
220V INPUT 110V INPUT
INSERT 110V ADAPTER INTO AC POWER PLUG.
Cable TV line
TV OUT IN
Cable TV converter/
descrambler
Two-set
signal
splitter
(not supplied)
RF switch (not supplied)
A
OUT IN
B
"A" position on the RF switch (not supplied)
:You can view all unscrambled channels using the TV's channel keys.
"B" position on the RF switch (not supplied)
:You can view the scrambled channels via the converter/descrambler using the con-
verter's channel keys.
NOTE : An RF switch equipped with position A/B (not provided) is required .
CABLE TV(CATV) CONNECTION
Some cable TV companies offer premium pay channels.
Since the signals of these premium pay channels are scrambled, a cable TV converter /
descrambler is generally provided to the subscriber by the cable TV company. This con-
verter / descrambler is necessary for normal watching of the scrambled channels.
In case that the power cord is 110V AC, Insert the AC cord
plug into a standard 110V polarized AC outlet.
In case that the type of power cord is like as shown below,
insert the AC cord plug into the AC outlet. The input power
supply of this television is automatically regulated.
It is designed for convenient use in any 110V/220V power
source without switching an input voltage selector.

17
16

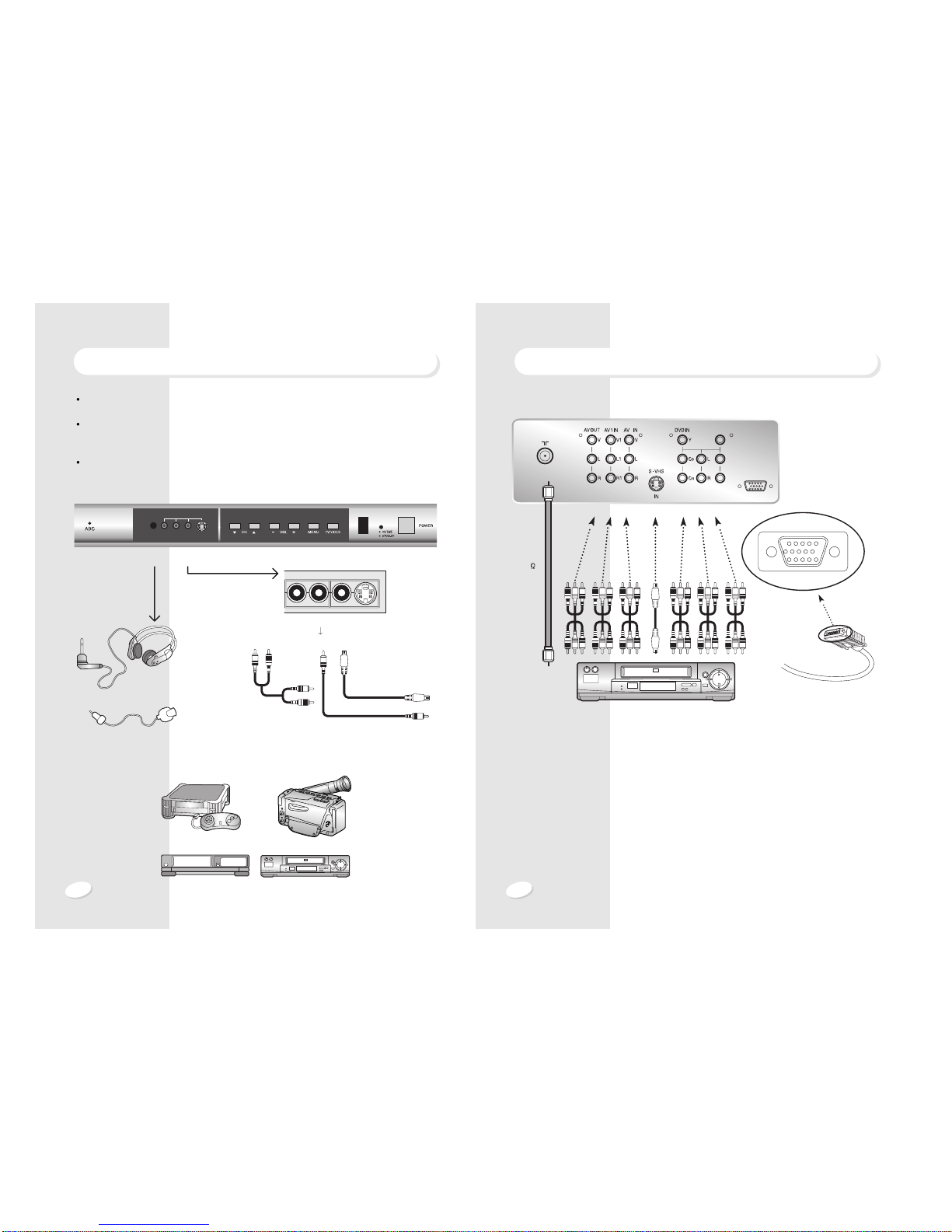

VIDEO /AUDIO CONNECTION
1. A/V OUT : Connect this A/V output terminals to another monitor input.
2. A/V 1 IN : Push the video button in sequence until VIDEO 1 appears on the picture.
Source input for composite video and audio signal of VCR, LDP(Laser Disc Player) or
set-top box.
3. A/V 2 IN : Push the video button in sequence until VIDEO 2 appears on the picture.
Source input for composite video and audio signal of VCR, LDP(Laser Disc Player) or
set-top box.
2R
G
B
2 RGB IN
2
ANT
PC IN
2
75
COXIAL
CABLE
VIDEO /AUDIO CONNECTION
AUDIO
HEADPHONE
OR
EARPHONE S-VHS
VIDEO
R-AUDIO-L VIDEO 3 IN S-VHS
(MONO)
VCR/VDP/LDP/CAMCORDER/DVD
GAME-PLAYER
15PIN D-SUB
CONNECTOR
15
610
11 15
Please use the front terminals(VIDEO 3) for a GAME-PLAYER or CAMCODER.
S-VHS Input has priority over VIDEO 3 input.
Push the video button in sequence until VIDEO 3 appears on the picture.
Listen to the sound of main picture or sub picture with headphone or earphone.

19
18
STARTING OPERATION
1. Push the power button on the front panel or on the remote controller.
If power plug is inserted into an AC outlet, the stand-by indicator will be red.
2. Select the channel you want to watch by CH /button or 10 digit keys.
Channels can be selected directly by using 10 digit keys.
For example, to select channel 5, press “0”first, then press “5”.
For channel 120 in CATV mode, press 100 button first, then press “2”, then “0”.
3. Adjust the volume of sound.
NOTE : Certain channels have been pre-set at the factory.
It may be necessary to add or delete some channels.
See “MENU / SETUP / ANTENNA / AUTOPROGRAM”on page 29 for adding
channels in memory.
VIDEO /AUDIO CONNECTION
4. S-VHS IN : At either video 2 or video 3 mode, insert S-VHS cable from set-top box or
VCR into S-VHS terminal.
And the display will change from video 2 to S-VHS 2 or video 3 to S-VHS 3.
S-VHS input has priority over video 2 input.
5. DVD IN : Insert A/V cables from DVD player. Be Careful in connecting the jacks for
Y,CB,CR.
6. L,R : In case of DVD, RGB or PC mode, input the audio signals into this L,R JACKS if
necessary.
7. RGB IN : Insert A/V cables from DVD player or set-top box.
8. PC IN : Connect personal computer to the TV set via a D-SUB connector.
Set PC with 640 480 mode.
9. YOU CAN ALSO CONNECT A HOME VCR TO TV.
Connect the antenna lead-in cable from antenna to the RF IN socket of VCR.
and then connect the coaxial cable from the RF OUT socket of the VCR to the antenna
socket of TV set.
ANTENNA To "RF IN"
To antenna socket
To "RF OUT"
Coaxial cable
NOTE : The SYNC signal is on G SIGNAL and the input frequency is 15.734KHZ.
