Keison AT-320 IAX2 User manual
AT-320 IAX2 Phone User Manual (V1.43)
AT-320 IAX2 Phone User Manual
1. AT-320 IP PHONEAPPEARANCE INTRODUCTION .............................. 3
1.1 Function Keys of AT-320 IP Phone Introduction (Normal State):.........................4
2. FEATURES....................................................................................................... 5
2.1 Hardware....................................................................................................................5
2.2 Software.....................................................................................................................5
2.3 Standard and Protocol .............................................................................................5
2.4 Operating requirements...........................................................................................6
2.5 Electric requirements...............................................................................................6
2.6 Size.............................................................................................................................6
2.7 Installation.................................................................................................................6
3. CONFIGURATION ......................................................................................... 7
3.1 Phone Keypad setup ................................................................................................7
3.1.1 Function Keys Introduction: .................................................................................... 7
3.1.2 Keypad setup step by step:......................................................................................11
3.2 Configured by WEB................................................................................................12
3.2.1 Network Setting................................................................................................... 13
3.2.2 Audio Setting....................................................................................................... 14
3.2.3 Dial plan Setting................................................................................................. 16
3.2.4 IAX2 Protocol Settings........................................................................................ 18
3.2.5 Other settings:........................................................................................................ 19
3.3 Configured by PalmTool.........................................................................................22
3.4 Telnet Configuration...............................................................................................23
3.4.1 AT-320 Telnet Commands Explanation .................................................................. 23
4. UPGRADE AT-320 IP PHONE .................................................................. 33
4.1 Use IE browse to upgrade the IP phone...............................................................33
4.2 Use the PalmTool to upgrade the IP phone..........................................................33
4.3 Use FTP to upgrade the phone..............................................................................33
5. USAGE OF THE PHONE ............................................................................. 35
5.1 Receiving calls........................................................................................................35
5.2 Place a call...............................................................................................................36
5.3 View Records ..........................................................................................................38
6. RESETAT-320 TO FACTORY DEFAULT.................................................. 39
AT-323 IAX2 Phone User Manual (V1.43)
2
7. FAQ.................................................................................................................. 40
Q1 For two ports of the AT-320/AT-323, what is the function for the other port? ..40
Q2 Why I can’t see the complete setting page when access the AT-320 by IE?....40
Q3 How to use the PalmTool to upgrade the IP phone?...........................................40
Q4 Why the Palmtool shows “can’t connect to palm1” message box? .................40
Q5 How to update the protocol for the AT-320/AT-323?............................................41
Q6 After updating AT-320/AT-323 ,the LCD shows "■■" and stops ,how to deal with
it? 41
Q7 Why is the local IP 0.0.0.0?....................................................................................41
Q8 Why is the local IP 255.255.255.255?....................................................................41
Q9 How to reset the AT-320/AT-323 to the factory default?......................................41
Q10 How to use the fast dial-up function? ....................................................................41
Q11 Why is there no sound after pressing the speaker button while using MGCP
protocol?..............................................................................................................................42
Q12 Why does the other side feel my voice is very weak?..........................................42
Q13 Why do AT-320/AT323 IP phone and AG-168V gateway disconnect while calling
each other, but it rings?......................................................................................................42
Q14 What is Dial Plan used for? How to configure it?.................................................42
Q15 What is "inner line"?................................................................................................43
Q16 Why does it take so long before the phone logins to the server? How to speed it
up? 43
Q17 How to set TOS field? ..............................................................................................44
Q18 How to use call transfer function? .........................................................................44
AT-323 IAX2 Phone User Manual (V1.43)
3
1. AT-320 IP phone Appearance Introduction
●AT-320 IP Phone Front Illustration (Refer to Fig 1.1):
Fig 1.1 AT-320 IP Phone Illustration
AT-323 IAX2 Phone User Manual (V1.43)
4
1.1 Function Keys of AT-320 IP Phone Introduction (Normal State):
Keys Function
LOCIP With handset hung, press this key to get local IP address of the phone
NUMBER With handset hung, press this key to get phone number
SERIP With handset hung, press this key to get service IP
ANSCAL With handset hung, press this key to review received number
MISCAL With handset hung, press this key to review missed number
FWD Call transfer key
HOLD Call hold key
Speed Speed Dial Key
DIACAL With handset hung, press this key to review dialed number
Vol+ Increase the volumes of handset or speaker; turn over the record backward
Vol- Decrease the volumes of handset or speaker; turn over the record forward
Redial While reviewing missed, received or dialed number, press this key to dial current number
Speaker Press this key to have a call without lifting the handset
SET Enter setting mode
OK Confirm change, enter submenu
EXIT Back to the parent menu
AT-323 IAX2 Phone User Manual (V1.43)
5
2. Features
2.1 Hardware
●Main chip—PA1688 50MHz
●Data Memory—16MB SDRAM
●Program Memory—8 MB Flash memory
●Ethernet Jack—1/2 10/100M jacks
●AC/DC adapter—Output 12V DC, 450mA
2.2 Software
●DHCP support for LAN or Cable modem
●PPPoE support for ADSL or Cable modem
●Set phone by HTTP web browser (IE6.0) or Telnet
●Upgrade by FTP
●Support major G.7XX; GSM 610; iLBC audio Codec
●VAD (Voice Active Detect)
●CNG (Comfort noise generation)
●Dynamic voice jitter buffer
●G.168/165 compliant 16ms echo cancellation
●Tone generation and Local DTMF re-generation according with ITU-T
●E.164 dial plan and customized dial rules
●100 entries for quick dial
●80 entries each for missed calls, answered calls and dialed calls
●Adjustable volume for both handset and speaker
●Voice prompt
●Hotline
●Support adjustable user password and super password
2.3 Standard and Protocol
AT-320 IP Phone supports following standard and protocol:
●IEEE 802.3 /802.3 u 10 Base T / 100Base TX
●Major G.7XX; GSM610 iLBC audio Codec
●IAX2 (Inter-Asterisk-eXchange V2)
●TCP/IP: Internet transfer and control protocol
●RTP: Real-time Transport Protocol
●RTCPReal-time Control Protocol
●VAD/CNG save bandwidth
●DHCPDynamic Host Configuration Protocol
●PPPoEPPP Protocol over Ethernet
●DNSDomain Name Server
AT-323 IAX2 Phone User Manual (V1.43)
6
●TelnetInternet's remote login protocol
●FTPFile Transfer protocol
●HTTPHyper Text Transfer protocol
2.4 Operating requirements
●Operation temperature: 0 to 40° C (32° to 104° F)
●Storage temperature: -30° to 65° C (-22° to 149° F)
●Humidity: 10 to 90% no dew
2.5 Electric requirements
●Voltage: 9V~24V
●Power adapter: output DC 12V/450mA
●Network interface:1/2X RJ-45 Ethernet Connectors
2.6 Size
200 X 195 X 87 mm (L x W x H)
2.7 Installation
1Connect handset to base: insert handset cord into handset cord jack at the
left side of the base.
2Connect IP phone to Internet: plug the RJ-45 Ethernet cable into the
Ethernet Jack. Plug the other end of the cable into HUB.
3Power on IP phone: plug the power cord adapter into the Power Jack. Then
plug the other end of the power cord adapter into the appropriate wall
outlet.
AT-323 IAX2 Phone User Manual (V1.43)
7
3. Configuration
Four different ways can be used to configure AT-320 IP phone: phone
keypad, web browser, Telnet commands and PalmTool configuration tool on
computer.
3.1 Phone Keypad setup
3.1.1 Function Keys Introduction:
When using keypad and LCD to configure the settings of IP phone,
following keys will be used:
Keys Function Keys Function
SET/LOCIP Enter setting mode OK/Speaker Enter submenu; confirm change
VOL+ Turn over menu
backward VOL- Turn over menu forward; move
cursor backward
Digital key Modify values EXIT/Redial Exit current menu; exit setting mode
●Enter the keypad setting mode
Press “Speaker” keyÆenter “1234#”Æyou can see LCD display
password”Æenter “1234”Æpress “speaker” key to confirm.
●Select the submenu
After entering the main menu, press “VOL+”or “VOL-”to page the menu up
or page the menu down; when you want to set the submenu item to be
displayed, press “OK/speaker”to enter the submenu.
●Enter the EDIT mode
After entering the submenu, when you want to set the submenu item to be
selected, press “Set”to enter EDIT mode.
●Enter the settings
Once the phone enters EDIT mode, enter the settings by numeric keypad
respectively, then press “OK/speaker”key to confirm.
●Modify enter error
If the errors come forth when you enter the settings, press“VOL-”key to
delete it and enter the settings again
●Abort the settings
If there is no need for the modified settings, press “EXIT”key to
return to the main menu, and press “VOL+”or “VOL-”to page the menu up
or page the menu down; When “exit settings”submenu item is selected,
press “OK/speaker”key to confirm, AT-320 IP phone will reboot and be
used the current settings.
AT-323 IAX2 Phone User Manual (V1.43)
8
●Save the settings
When all parameters have modified, press “EXIT”key to return to the main
menu, and press “VOL+”or “VOL-”to page the menu up or page the menu
down; When “save settings”submenu item is selected, press
“OK/speaker”key to confirm,AT-320 IP phone will reboot and use the
already modified setting.
Refer to above operation; you can reach any menu to modify any value.
Please refer to following structure illustrations to learn the values of each
menu item. As for the meaning of each item and value, please refer to Web
Browser Setting chapter.
AT-323 IAX2 Phone User Manual (V1.43)
9
¾Menu Structure:
AT-323 IAX2 Phone User Manual (V1.43)
10
AT-323 IAX2 Phone User Manual (V1.43)
11
3.1.2 Keypad setup step by step:
For example, you want to setup jack’s number 56712389 as speed dial
number, you can:
Step 1. Enter setup mode: press “Speaker” keyÆenter “1234#”Æyou
can see LCD display “password”Æenter “1234”Æpress “Speaker” key to
confirm.
Step 2. Set speed dial number: use “Vol +/-“ key to choose the “speed
dial setting” menuÆpress “speaker” enter its submenu and choose “memory
1”Æpress “Local IP” key and enter “jack” to modifyÆpress “Speaker” to
confirmÆchoose “number 1”Æpress “Local IP” key and enter “56712389” to
modifyÆpress “Speaker” to confirm.
Step 3. Save your setting: use “redial” key return to main
menuÆchoose “save setting”Æpress “Speaker” to confirm the change.
AT-323 IAX2 Phone User Manual (V1.43)
12
3.2 Configured by WEB
Double click icon to open the IE browser. Input the IP address of the
phone into address bar ( ), and then input password
of the phone into the following page. Default password 1234 is ordinary
password and super password is 12345678. With Debug set 0[disable],
please input super password; while Debug is not set as 0[disable], please
input ordinary password. Then click button. The following
configured page wills pop up. Refer to Fig 3.1 please.
Fig 3.1 Http Setting
AT-323 IAX2 Phone User Manual (V1.43)
13
3.2.1 Network Setting

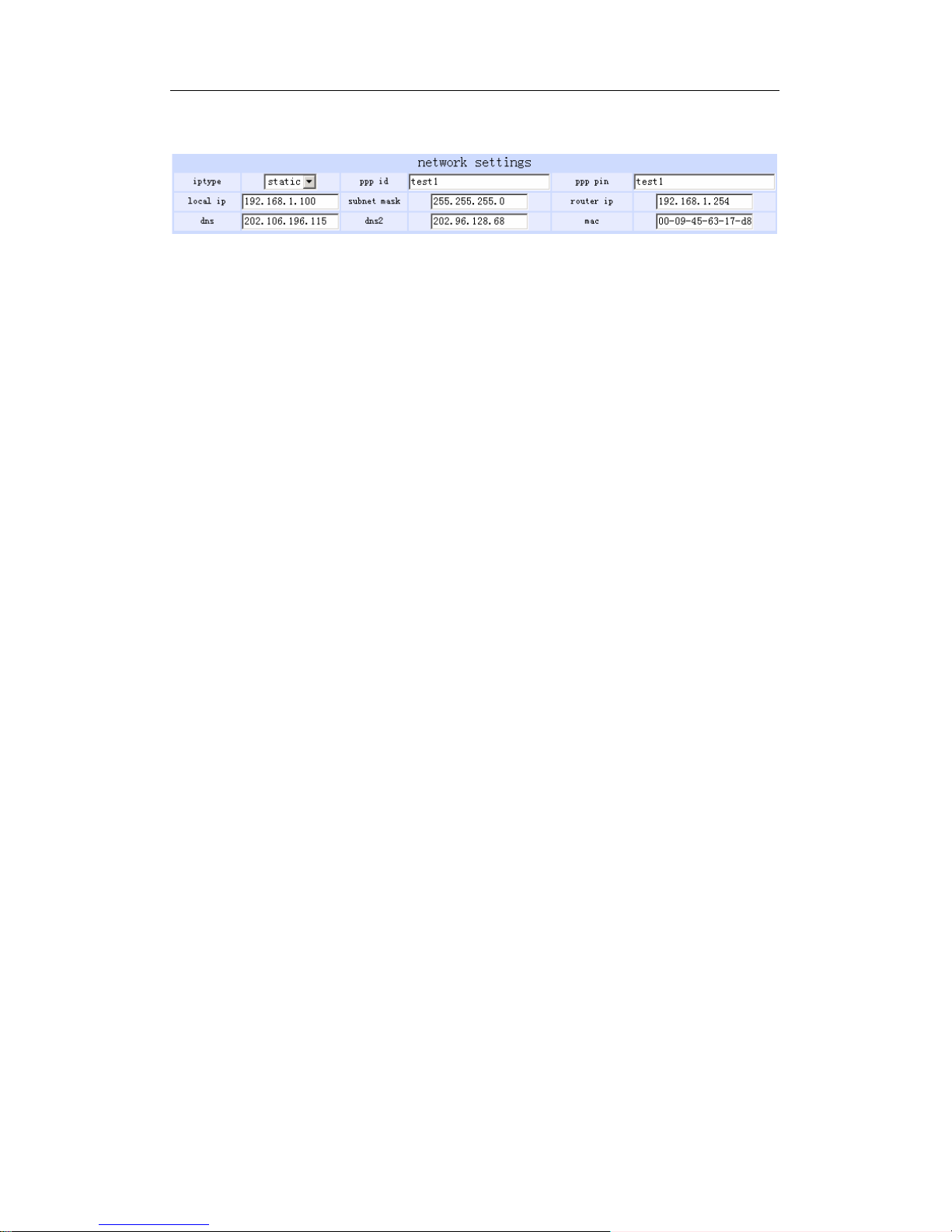

Fig 3.2 Network Setting
●IPtype: Set how IP phone gets relevant network parameters by selecting
corresponding item from drop down list.
static IP: Select this item to authorize users set IPaddress, subnet mask
and router IP address of IP phone manually.
dhcp: Select this item to enable DHCP mode. With this system, your
LAN or router automatically assigns all the required network parameters
to any device connected to it when the device log on. AT-320 IP phone
is shIPped from the factory with DHCP on. So, if your LAN or router is
configured to use DHCP addressing, the IPphone’s LAN parameters will
automatically be configured as soon as it is connected to the LAN or
router and powered up.
PPPoEThose ADSLand Cable Modem users please select this item for
it is a protocol especially designed for them. With this system, ADSL ISP
automatically assigns all the required IP parameters to any device
connected to it when the device log on.
modemIf the IP phone used with modem, please select this item to get
relevant network parameters auto. Then please fill ID and pin into ppp id
and ppp pin fields.
●ppp id: With PPPoE or modem selected in IPtype drop down list, please
enter the user name here.
●ppp pin: With PPPoE or modem selected in IPtype drop down list,
please enter the password here.
●local IP: With static IP selected in IPtype drop down list, please enter IP
address of IP phone here.
●subnet mask: With static IP selected in IPtype drop down list, please
enter subnet mask of IP phone here.
●router IP: With static IP selected in IPtype drop down list, please enter
router IP address of IP phone here.
AT-323 IAX2 Phone User Manual (V1.43)
14
●dns: With static IP selected in IPtype drop down list, please enter IP
address of DNS server here.
●dns 2: With static IP selected in IPtype drop down list, please enter IP
address of backup DNS server here.
●mac: MAC address is the physical address supplied by the Ethernet
NIC. AT-320 phone is shIPped from the factory with a unique algorism
MAC address printed on the back of the base.
Note To avoid colliding with other device in network, please don’t change the MAC
address arbitrarily. If you have use “* and power on twice” method to enter the
safe mode of your phone, remember to change the phone’s MAC to factory
default after safe mode.
3.2.2 Audio Setting
Fig 3.3 Audio Setting
●codec1: Set the priority 1 of the audio compression algorithm. The
options are g729g7231g711ug711a , gsm and iLBC.
●codec2: Set the priority 2 of the audio compression algorithm. The
options are g729g7231g711ug711a , gsm and iLBC.
●codec3: Set the priority 3 of the audio compression algorithm. The
options are g729g7231g711ug711a , gsm and iLBC.
●codec4: Set the priority 4 of the audio compression algorithm. The
options are g729g7231g711ug711a , gsm and iLBC.
●codec5: Set the priority 5 of the audio compression algorithm. The
options are g729g7231g711ug711a , gsm and iLBC.
●codec5: Set the priority 6 of the audio compression algorithm. The
options are g729g7231g711ug711a , gsm and iLBC.
AT-323 IAX2 Phone User Manual (V1.43)
15
●vad: Enable/disable VAD (voice activity detection).
●agc: Enable/disable AGC.
●aec: Enable/disable AEC.
●g.723.1 high rate: enable/disable g.723.1 high rate. G.723.1 high rate is
6.3kbps, low rate is 5.3kbps.
●audio frame: Set audio frames in RTP package. Minimum is 1 and
maximum is 8.
●jitter size : Set buffer size of RTP package. The value range is 0-32.
●ilbc payload : Set the payload type of RTP package when ILBC codec
selected to DTMF delay. The value range is 96-255.
●handset in: Drag the slider to adjust the volume of handset input. Drag it
to the left to reduce the volume; while drag it to the right to increase the
volume.
●handset out: Drag the slider to adjust the volume of handset output. Drag
it to the left to reduce the volume; while drag it to the right to increase the
volume.
●ring type: Set ring type by selecting corresponding item from drop down
list.
dtmf: Set ring as ordinary rings in different frequency
not disturb: Set the phone do not ring by selecting this item.
Advanced: Set ring used the individualized tone provided by system
(need system support).
user defineSet ring as music saved by user by selecting this item.
●speaker in: Set the volume of handfree input.
●speaker out: Set the volume of handfree output.
AT-323 IAX2 Phone User Manual (V1.43)
16
3.2.3 Dial plan Setting
Fig 3.4 Dial Plan Setting
●use dialplan: Set whether use dial plan or use dial number by selecting
the corresponding item in drop down list.
disable: Do not use dial plan or dial number by selecting this item.
enable: Use dial plan by selecting this item.
dialnum: Use dial number by selecting this item. With this item
selected, please enter the dial prefix into dial number field.
prefix: Use specially service by selecting this item.
Hotline: Use Hotline function by selecting this item. With this item
selected, please enter the hotline number into dial number field.
●dial number: With dialnum selected in use dialplan drop down list,
please enter the dial prefix into this field according to requirement of log in
server. For example, with eTalk card used, enter 00 here.
●ddd code: With enable or dialnum selected in use dialplan drop down
list, set area code according to E.164 dial rule. For example, Beiing 10;
Shanghai 21.
●idd code: With enable or dialnum selected in use dialplan drop down
list, set country code according to E.164 dial rule. For example, China 86;
U.S.A .1.
●idd prefix: With enable or dialnum selected in use dialplan drop down
list, set international call prefix according to E.164 dial rule, such as 00.
●ddd prefix: With enable or dialnum selected in use dialplan drop
down list, set long distance call prefix according to E.164 dial rule, such as
0.
Note With dialnum seletcted in use dialplan drop down list, you can also set dddcode,
iddcode, iddprefix and dddprefix according to requirement of system.
●innerline: Enable/disable multi-settings by selecting corresponding items
from dropdown list. AT-320 IP phone allows saving 5 settings totally.
disable: Disable multi-settings by selecting this item, then the phone
AT-323 IAX2 Phone User Manual (V1.43)
17
will call out using current setting.
enable: Use designated system to place calls by selecting this item.
innerlineprefix: With enable selected in innerline dropdown list, please
fill the prefix number pick up to inner line, such as 0.
●Use digitmap: Enable/disable digit map by checking/unchecking the box.
●Call waiting: Enable/disable call waiting by checking/unchecking the box.
●forward number: Enter receiving forwarded calls phone number into this
field; If the IP phone used with modem, with modem item selected in
IPtype list box, and then fill ISP number into this field.
●fwd poweroff: Forward calls if power off by checking this box. Please
enter receiving forwarded calls phone number into fwd number field.
●fwd noanswer: Forward calls without replying by checking this box.
Please enter receiving forwarded calls phone number into fwd number
field.
●fwd always: Forward all calls by checking this box. Please enter
receiving forwarded calls phone number into fwd number field.
●fwd busy: Forward calls if busy by checking this box. Please enter
receiving forwarded calls phone number into fwd number field.
●answer: Enter a number from 0 through 60 to set the entries of the
seconds before the phone answer the call auto or forward the calls.
Note please refer to FAQ for more information of dial plan
AT-323 IAX2 Phone User Manual (V1.43)
18
3.2.4 IAX2 Protocol Settings
Fig 3.5 IAX2 Protocol Settings
●service addr: Please set the URI (domain name/IP address : service port)
of the asterisk server into “service addr”. When the default service port
4569 is used, “: service port”can be omitted.
●register ttl : IP phone will send a keep-alive registration message to
theasterisk server every “register ttl”seconds. The minimum value is 10,
maximum value is 65535. Default is 60.
●phone number: The local phone number or username of this phone,
usually is allocated by system.
●account: With the asterisk server which requires authentication, please
put the username/account into this field.
●pin: With the asterisk server which requires authentication, please put the
password into this field.
●local port: The local UDP port registered with the asterisk server to
accept incoming handshaking messages. The default port number is
4569.
●dtmf: Set DTMF signal sending way by selecting inband audio, outband
audio from list box.
●tos: Set the TOS field of the IP header of the RTP packets. The bigger this
value is 0, the higher priority the packet is .
●super password: Set the super password of the phone.(Default super
password is 12345678).
●debug: Set the debug level of the phone.
disable: Disable output the debug message by selecting this item.
output: Output the operation information to the window, such as
register, input by selecting this item.
output all: Output all debug information and data in test window by
selecting this item.
remote debug: Save the debug information in SDRAM of IP phone by
AT-323 IAX2 Phone User Manual (V1.43)
19
selecting this item.
no check: Disable checking firmware tags when upgrading. This is not
suggested, because it will increase the risk of upgrading the wrong
firmware into the phone.
3.2.5 Other settings:
Fig 3.6 Other Setting Page
●password: Set the password of the phone. (Default password is 1234).
●upgradetype: Set the auto-upgrade type of the phone.
disable : Disable auto-upgrade .
all: AT320 will find matching firmware binary file and configuration file
of the hardware type only at the FTP server specify by upgradeaddr
item .
mac: AT320 phone will find matching firmware binary file and
configuration file of the MAC address only at the FTP server specify by
upgradeaddr item .
ppp id: AT320 phone will find matching firmware binary file and
configuration file of the ppp id only at the FTP server specify by
upgradeaddr item .
account: AT320 phone will find matching firmware binary file and
configuration file of the account only at the FTP server specify by
upgradeaddr item .
phonenumber: AT320 phone will find matching firmware binary file
and configuration file of the phone only at the FTP server specify by
upgradeaddr item .
●upgrade addr: Put IP address or domain name obtained by ISP of FTP
server supplying upgrade program into this field.
●sntp IP: Fill IP address of time server here. When network without
Internet connect, Fill special IP address 255.255.255.255.
●use daylight: Enable/disable daylight.
●timezone: Select correct time zone in list box.
When debug set as 0[disable], if input ordinary password (default one is 1234),
then following page will pop up after clicking . And only those
AT-323 IAX2 Phone User Manual (V1.43)
20
parameters can be modified.
Fig 3.7 Setting Page using ordinary pin with Debug set as 0 [disable]
●Save Settings : Click this button to save the configuration and the phone
will reboot. Once the phone reboots successfully, the new configuration is
effective.
Note After entering set page, if save settings button is not clicked within 10 minutes,
then when you click it again, the index page asking for pin will pop up again. Then please
input the password again to enter the set page and then click save settings button to
confirm the modification.
●Address Book: Click this button to open the speed dial settings page.
Please refer to Fig 3.8. In this page, you can set and save the speed dial
number by typing the name into the Name field and then entering the
corresponding number following the name. For example, input Jack in
Name field following 001, and then input 5989426454 into Phone
number field. Then Jack’s number 5989426454 is saved in phone book.
Then please click Save/Back button. In normal state, you can use speed
dial to call numbers saved in phone book.
Table of contents
