Keith RUNNING FLOOR II DX User manual

RUNNING FLOOR II® DX/DXE
KEITH Manufacturing Co.
www.KeithWalkingFloor.com
World Headquarters
Toll-Free: 800-547-6161
Phone: [phone]
Fax: [phone]
OWNER / OPERATOR MANUAL
Original Instructions
©2018 KEITH Manufacturing Co. All Rights Reserved. KEITH, KEITH logo and WALKING FLOOR are registered trademarks of KEITH
Manufacturing Co. Equipment manufactured by KEITH Manufacturing Co. is protected by numerous patents both domestic and foreign.
DOC06179 Rev. B
10002001

i DOC06179 Rev. B
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX / DXE
Table of Contents
Introduction iii
Declaration of Incorporation iv
KEITH WALKING FLOOR®Drive Unit Limited Warranty v
Warranty Registration Card vii
1.0 Safety 1
1.1 General Safety 1
1.1.1 Intended Function and Expected Use: 1
1.1.2 Improper Use 1
1.1.3 Training 2
1.1.4 Personal Protective Equipment 2
1.1.5 Airborne Noise Emission 2
1.1.6 Temperature 2
1.1.7 Lighting 3
1.1.8 Movement Around the System 3
1.1.9 Hydraulic Oil Safety 3
1.2 Design / Installation Safety 3
1.2.1 Kit Components 3
1.2.2 Installation 3
1.2.3 Danger Zones 3
1.2.4 Electric Components and Installation 4
1.2.5 Hydraulics 4
1.2.6 Controls 4
1.3 Marking of Machinery 5

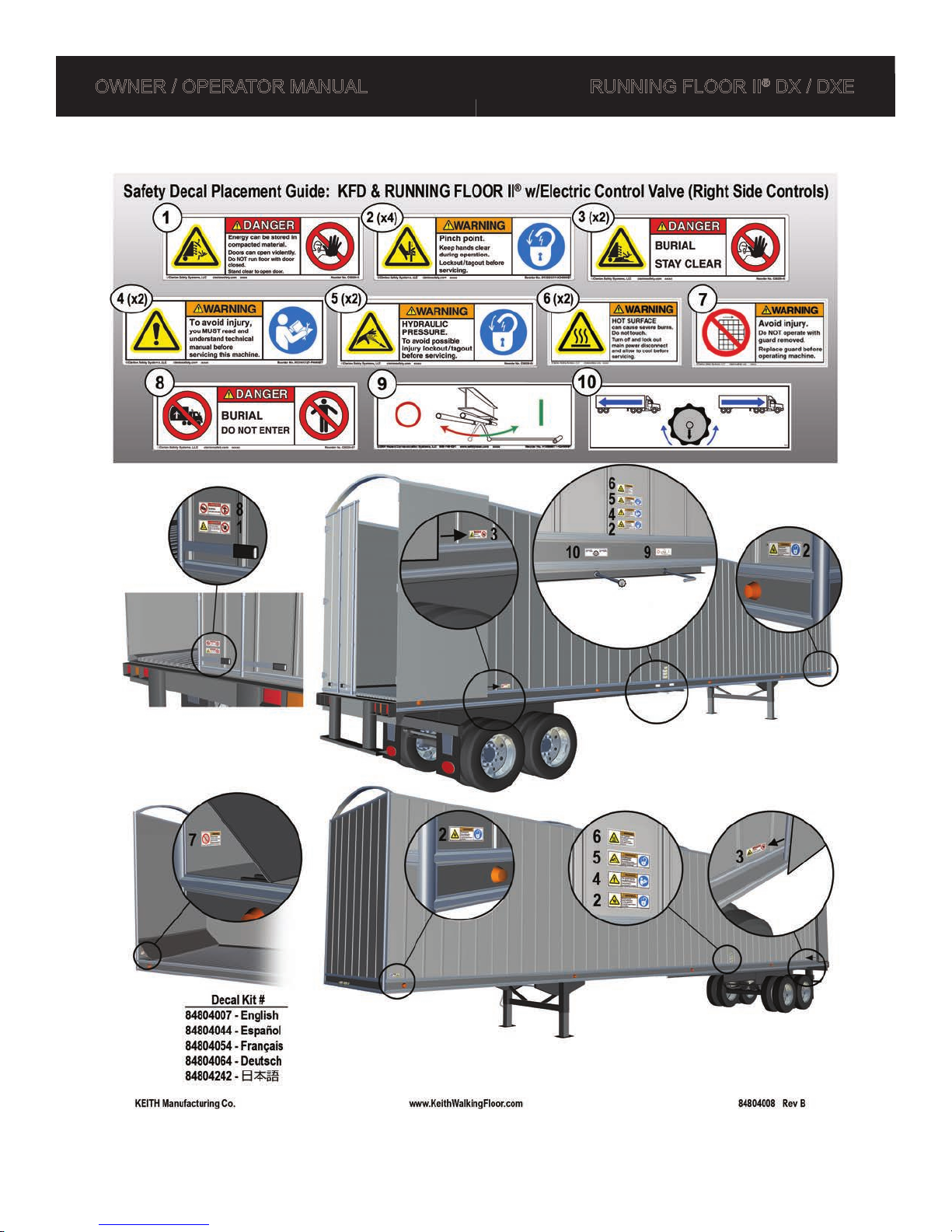

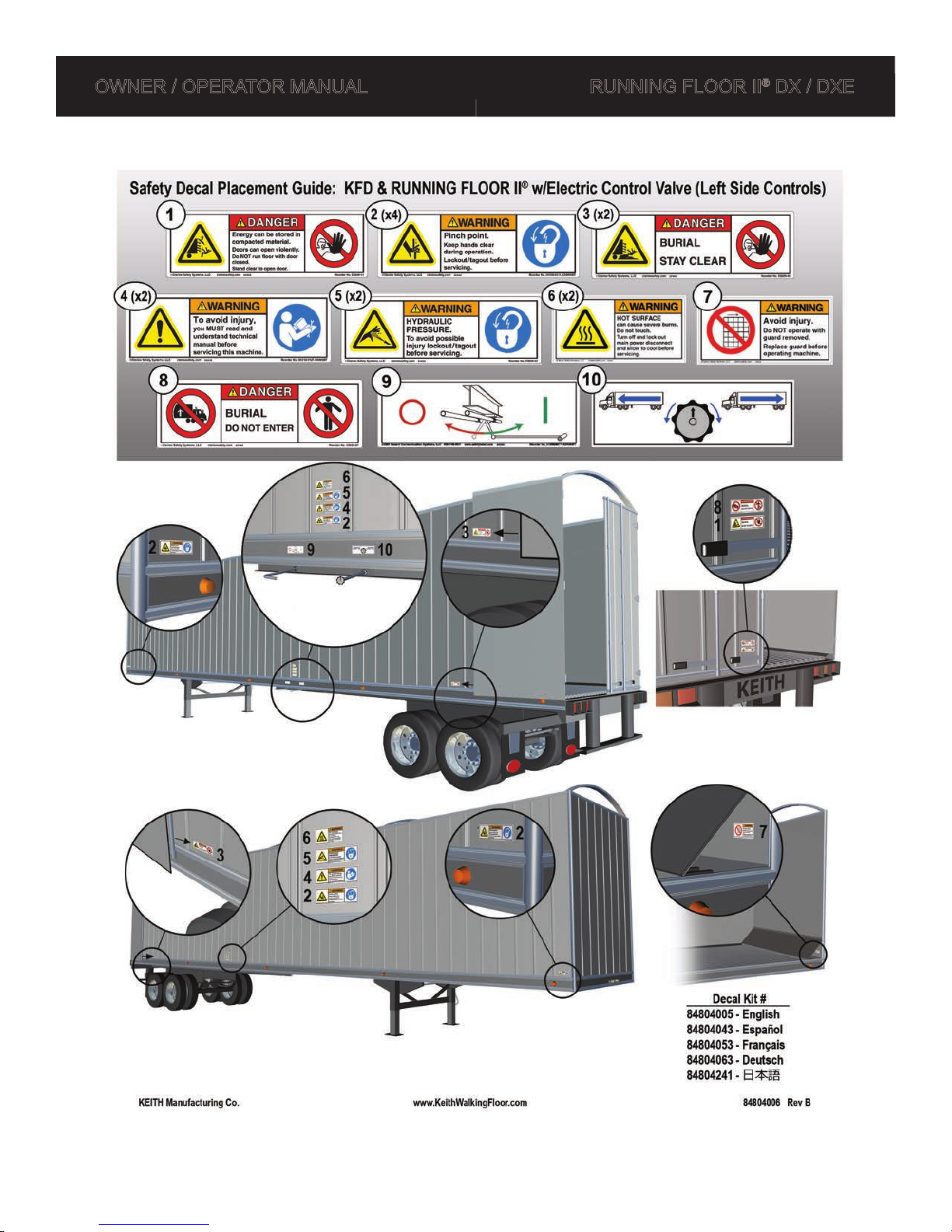

1.3.1 Safety Decals 5
1.3.2 Serial Plates 9
2.0 Specications 10
2.1 Hydraulic Drive Unit 10
2.2 General Wet Kit Specications 11
2.3 Floor to Wet Kit Connection Diagram 12
3.0 Operation 13
3.1 How It Works 13
3.2 Oil Flow Diagrams 14
3.3 Component Location Guides 16
3.4 Drive Component Identication 19
3.5 Start-Up Operation 20
3.5.1 Before initial start-up: 20
3.5.2 After initial 6 working hours OR rst week of operation: 20
3.6 Pre-Trip Checklist 20
3.7 Manual Controls 21
3.8 Electric On/Off, Manual Load/Unload - Wireless Remote Control 22
3.8.1 4 Channel Remote Control Transmitter 22
3.8.2 4 Channel Remote Control Receiver 24

ii DOC06179 Rev. B
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX / DXE
3.9 Electric On/Off & Electric Load/Unload - Wireless Remote Control 25
3.9.1 4 Channel Remote Control Transmitter 25
3.9.2 4 Channel Remote Control Receiver 27
3.10 Electric On/Off & Electric Load/Unload - Cabled Remote Control 28
3.11 Manual Override of Electric Controls 29
4.0 Maintenance 31
4.1 Life Extending Conditions 31
4.2 Preventative Maintenance 31
4.2.1 Monthly Service (25 operating hours) 31
4.2.2 6-Month Service (150 operating hours) 31
4.3 Bolt Torque Requirements 32
4.4 Cross-Drive Wear Component Diagram 33
4.5 Flooring Wear Component Diagrams 34
5.0 Troubleshooting 35
5.1 Check List 35
5.2 Problem / Solution - Troubleshooting 35
5.3 Adjustments & Repairs 35
5.4 Technical Support 35
6.0 Contact Information 36

iii DOC06179 Rev. B
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX / DXE
Introduction
We at KEITH Manufacturing Co. are very happy that you have decided to equip your trailer with the KEITH®
RUNNING FLOOR II®DX/DXE unloading system. We take great pride in the fact that we manufacture the
simplest and lowest maintenance self-unloading system available. Installing the KEITH®RUNNING FLOOR
II®DX/DXE unloader in your trailer provides you with the versatility to load or unload virtually any type of
material.
The following pages contain information on the operation of your KEITH®RUNNING FLOOR II®DX/DXE
unloader.
In addition, we have provided general information on the type of hydraulic wet kit that will be needed on your
tractor.PleasecontactaKEITHManufacturingCo.representativeorvisitourwebsitewww.KeithWalkingFloor.
com for more specic recommendations regarding pumps, lters and pressure relief valves and approved
equivalent equipment. It is critical to adhere to the outlined hydraulic wet kit specications. Failure to follow
the guidelines concerning required operation pressures can lead to your system operating improperly.
Please review the entire manual before operating the KEITH®RUNNING FLOOR II®DX/DXE unloading
system. If you have any questions or concerns, do not hesitate to contact our factory toll-free at 800-547-
6161 or via email at [e-mail] where our trained personnel will be happy to assist
you.
Thank you again for equipping your trailer with a KEITH®RUNNING FLOOR II®DX/DXE unloader.
Sincerely,
Keith Foster R. Mark Foster
Founder President

iv DOC06179 Rev. B
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX / DXE
Declaration of Incorporation
Declaration of Incorporation
Manufacturer:
KEITH Manufacturing Co.
401 NW Adler Street
Madras, OR 97741
USA
Hereby declares that the following partly complete machinery,
KEITH® RUNNING FLOOR II®DX/DXE system mobile kit, serial numbers from year
2017 onward
Complies with the following essential health and safety requirements of Directive 2006/42/EC:
1, 2, 3, 4, 1.1.1, 1.1.2, 1.1.3, 1.1.5, 1.1.6, 1.1.7, 1.3.1, 1.3.2, 1.3.4, 1.3.6, 1.3.9, 1.5.3, 1.5.4,
1.5.5, 1.5.6, 1.5.8, 1.5.9, 1.5.15, 1.6.1, 1.6.2, 1.6.4, 1.7.1, 1.7.1.1, 1.7.2, 1.7.3, 1.7.4
The relevant technical documentation is compiled in accordance with part B of annex VII.
In response to a reasoned request by national authorities, relevant information on the partly
complete machinery will be transmitted as hard copies or digital files, unconstrained by
intellectual property rights.
This partly completed machinery must not be put into service until the final machinery into which
it is to be incorporated has been declared in conformity with the provisions of Directive
2006/42/EC.
The person authorized to compile the technical file is:
KEITH WALKING FLOOR Europe
Harselaarsweg 113
3771 MA Barneveld
The Netherlands
_________________________________
R. Mark Foster
President
Madras, Oregon, USA April 5, 2017
DOC06199 Rev A

v DOC06179 Rev. B
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX / DXE
KEITH WALKING FLOOR®Drive Unit Limited Warranty
KEITH®WALKING FLOOR®Drive Unit
Limited Warranty
A summary of the warranty conditions are as follows:
•The warranty period is for the first equipment owner only.
•A warranty card must be filled out and returned to KEITH.
•The standard warranty period is for (1) one year for the Drive system (for non-hydraulic components only, such as
electrical components, drive frame, cross drives, floor shoes, flooring and components from other suppliers) from date
of sale by trailer manufacturer.
•The limited hydraulic warranty period is for (2) two years for the hydraulic parts and components from date of sale by
trailer manufacturer.
•The Drive system must be installed by your trailer builder according to recommended KEITH installation instructions
and procedures.
•KEITH maintenance and operating procedures have been properly followed.
•In the case of a malfunction, the trailer manufacturer, and KEITH must be informed immediately.
The following issues are not covered by the warranty:
•Malfunction of equipment, or problems caused by equipment, which was not supplied by KEITH.
•Malfunction caused by the use of dirty oil, or oil of the wrong type.
•Malfunction caused by overheated oil: maximum temperature 140 °F [60 °C].
•Malfunction caused by corrosive materials.
•Malfunction caused by overloading or improper use as stated in KEITH manuals.
•Malfunction caused by improper repair work, or repair work which is carried out by third parties.
•Filter elements and components are subject to normal wear-and-tear and are not warranty items.
•Defects in electrical components caused by incorrect connection and/or incorrect voltage levels.
The warranty is void if:
•The Drive system is used for purposes which have not been recommended by KEITH.
•The wet kit is not as recommended in KEITH manuals.
•The Drive system is not installed properly.
•Loads in excess of legal limits are moved as defined in KEITH manuals and operating instructions.
•Hydraulic components are damaged by excessive heat: 140 °F [60 °C].
•Heat damage caused by a bad hydraulic pump on the truck or hydraulic wet kit.
•Damage caused by using an end dump or dump truck wet kit.
•Heat damage caused by not fully opening and closing the ball valve.
Warranty Information:
Two Year Limited Hydraulic Warranty
KEITH Manufacturing Co. hereby warrants, only to the first owner of a new KEITH®Drive system from the factory
or selling distributor, that the Drive system hydraulic parts and hydraulic components shall be warranted as free
from defects in material and workmanship for a period of two years to the first registered owner from the date of
the sale.
This warranty does not cover normal wear and tear, maintenance, or heat damage. It is not to be construed as a
service contract.
Owners Obligation: To qualify for warranty coverage, a warranty card must be completed and the equipment
must be subject to normal use and service as described in KEITH manuals and warranty information.
Note: Prevention of excessive heat in the hydraulic system is the single most important factor for long system
life. Bad pumps, improper wet kits and hydraulic restrictions cause excessive heat and will damage the hydraulic
system. Heat damage will void the warranty.

vi DOC06179 Rev. B
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX / DXE
One Year Limited Non-Hydraulic Component Warranty
KEITH Manufacturing Co. hereby warrants, only to the first owner of a new KEITH®Drive system from the factory or
selling distributor that the product (for non-hydraulic components only, such as electrical components, drive frame, cross
drives, floor shoes, flooring and components from other suppliers) shall be free from defects in material and workmanship
for a period of one year after delivery or sale to the first registered owner.
Definition of Normal Use and Service: Normal use and service means the loading and/or unloading of uniformly
distributed, non-corrosive material, properly restrained and secured, on properly maintained public roads, with gross
vehicle weights not in excess of factory rated capacity. For stationary installations, normal use and service means the
conveying of uniformly distributed, noncorrosive materials, with weights not in excess of factory rated capacity.
Sole and Exclusive Remedy: If the product covered hereby fails to conform to the above stated warranty, KEITH
Manufacturing Co.’s sole liability under this warranty and the owner’s sole and exclusive remedy is limited to repair or
replacement of the defective part(s) at a facility authorized by KEITH Manufacturing Co. This is the owner’s sole and
exclusive remedy for all contract claims, and all tort claims including those based on the strict liability in tort and
negligence. Any defective part(s) must be shipped freight prepaid to the nearest KEITH North America/South America
facility or nearest KEITH Europe facility. Please contact KEITH for additional information on proper locations.
Except As Expressly Set Forth Above, KEITH Manufacturing Co. Makes No Warranties:
Express, implied or statutory, specifically: No warranties of fitness for a particular purpose or warranties of merchantability
are made. Further, KEITH Manufacturing Co. will not be liable for incidental damages or consequential damages such
as, but not limited to, loss of use of the product, damage to the product, towing expenses, attorney’s fees and the liability
you may have in respect to any other reason.
Tort Disclaimer: KEITH Manufacturing Co. shall not have any liability in tort with respect to the products, including any
liability based on strict liability in tort and negligence.
If This Warranty Violates Law: To the extent any provision of this warranty, contravenes the law of any jurisdiction, that
provision shall be inapplicable in such jurisdiction and the remainder of the warranty shall not be affected thereby.
Warranty Return Policy
1.) Contact KEITH Manufacturing Co. at 1-800-547-6161 or [e-mail] for a “Returned Goods
Authorization” (RGA) number before returning any item for repair or replacement. The following information is needed
to ensure parts are returned as quickly as possible.
a. Company name e. Part number
b. Contact name f. Quantity
c. Address g. Reason for return
d. Phone number h. Customer’s account number
2.) Prior approval and a RGA number is needed when returning any unused product for credit. Make sure the RGA
number is on the outside of the shipping carton and all paperwork is included. Return all material on a Freight Prepaid
Basis.
Revision Date April 2017 DOC06222 Rev. A

vii DOC06179 Rev. B
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX / DXE
Warranty Registration Card
Note: To validate the warranty, the registration information must be lled out completely and returned to
KEITH Manufacturing Co. within ten (10) days of purchase and/or installation.
Please ll out the Warranty Registration form on our website at www.KeithWalkingFloor.com or ll out the
Warranty Registration Card below and mail, fax or email it to:
KEITH Manufacturing Co.
P.O. Box 1
Madras, OR 97741-0001
Fax: [phone]
[e-mail]
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
This warranty registration card must be completed and on le at KEITH Manufacturing Co. in order for
the warranty period to begin on the purchase date. If no purchase date is registered, the beginning of the
warranty will automatically revert to the manufacture date.
Name / Company Name: _______________________________________________________________
Address: ____________________________________________________________________________
City, State / Prov.: ___________________________________________ Postal Code: ______________
Country:____________________________________________________________________________
Tel: _______________________________________ Fax: ____________________________________
E-Mail: _____________________________________________________________________________
SYSTEM DATA:
Date of Purchase: ____________________________________________________________________
Model / Serial Number: ________________________________________________________________
Purchased From: ____________________________________________________________________
Type of Material Loaded/Unloaded: ______________________________________________________
I have fully read the KEITH Manufacturing Co. warranty information and fully understand and agree to the
terms of the warranty.
Name: ___________________________ Date: __________ Signature: __________________________

1 DOC06179 Rev. B
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX / DXE
1.0 Safety
1.1 General Safety
1.1.1 Intended Function and Expected Use:
1.1.1.1. The KEITH®RUNNING FLOOR II® DX/DX-Europe system is a reciprocating slat
conveyor primarily intended to load, hold, or unload bulk materials. It can also handle
unit loads such as pallets by using special handling techniques and possibly additional
safety controls. The system is supplied as a kit primarily intended for installation into
mobile trailers or truck bodies. The oor is often loaded through an open trailer top
or through the rear doors. The oor typically discharges material out the rear door. It
is hydraulically actuated, powered by a pump mounted either to a PTO or an electric
motor. The basic system is controlled by mechanically-actuated valves, but has the
option for electrically-actuated valves. The system is compatible with options and
accessories to improve performance. For example, it can be electrically controlled
by hardwired switches or a wireless remote. A CleenSweep® device can improve
clean out. Floor slat styles are selected based on the materials to be conveyed. The
standard system handles a wide array of materials in a non-hazardous, non-explosive
environment. Special modications may be required for special environments like food-
grade applications or explosive conditions.
1.1.2 Improper Use
1.1.2.1. This equipment has been manufactured in accordance with state-of-the-art technology
and the acknowledged safety regulations. Nevertheless, dangerous situations could
arise from improper use, which could endanger life and limbs of personnel and cause
severe damage to the equipment and other assets. This equipment may only be used
for its intended purpose. It may only be operated in impeccable technical condition and
in accordance with the proper use and this user manual. Problems, which could affect
safety, must be resolved immediately. The manufacturer is not liable for any damage
caused by improper use or arbitrary modications. The installation, commissioning,
operation, and maintenance instructions must be followed as outlined in this manual.
1.1.2.2. Personnel must not enter the danger zone(s) when the system is enabled. Specically,
nobody should be inside, under, or behind the trailer in the unloading zone during
operation. Additionally, no one should be in a full or lling trailer. Lock-out and tag-out
procedures must be followed before accessing the drive area.
1.1.2.3. The maximum load capacity must not be exceeded. (See Specications section)
1.1.2.4. The hydraulic power source must not exceed the pressure and ow ratings. Install a
relief valve to ensure the maximum pressure is not exceeded.
1.1.2.5. Control circuitry must not be altered or bypassed.
1.1.2.6. Safeguards must not be altered or bypassed.
1.1.2.7. The oor structure must not be altered.
1.1.2.8. The oor should not be used to handle any material other than specied.
1.1.2.9. The user and system designer must understand the characteristics and safe handling
requirements of the material that is being conveyed.

2 DOC06179 Rev. B
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX / DXE
1.1.2.10. Bulk materials are by nature unstable and owable. Avoid burial by avoiding contact with
the material.
1.1.3 Training
1.1.3.1. Operators must read and understand this manual before operating or maintaining the
machine. Only qualied, trained personnel may execute commissioning, operation, and
maintenance of the system.
1.1.4 Personal Protective Equipment
1.1.4.1. Always wear protective equipment appropriate for risks associated with each phase of
the system’s life, including transportation, installation, assembly, operation, inspection,
maintenance, and dismantling, disabling, and scrapping. As a minimum, this includes
the following personal protective equipment:
• Safety glasses
• Gloves
• Welding/grinding protection
• Thermal protection such as coats
• Protective/traction shoes
• Helmets
• Hearing Protection
1.1.5 Airborne Noise Emission
1.1.5.1. There is not a dened workstation; sound pressure levels emitted by the WALKING
FLOOR
® modules were measured at a height of 1.6 meters from the oor surface and
a distance of 1 meter from the surface of the WALKING FLOOR
®system at the drive
area.
• The A-weighted emission sound pressure level = 74.8 dB.
• The peak C-weighted instantaneous emission sound pressure level = below 63 Pa.
1.1.5.2. Slower oor speeds result in less noise.
1.1.6 Temperature
1.1.6.1. Operation of the system generates heat in the hydraulic oil. Hot oil can damage the
internal seals, resulting in a failure to operate.
1.1.6.2. Overheated oil can degrade rapidly. Hot oil and the resulting hot surfaces can cause
burns. Do not allow the oil temperature to exceed 140 °F [60 °C].
1.1.6.3. KEITH recommends some or all of the following temperature control measures
depending on the circumstances. High duty cycle systems and hot environments will
require more control measures.
• Maintain adequate oil level in the reservoir.
• Install a thermometer or sensor to monitor oil temperature.
• Install a cooler.
• Set a sensor to automatically shut down the system if oil temperature exceeds
140 °F [60 °C].

3 DOC06179 Rev. B
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX / DXE
1.1.7 Lighting
1.1.7.1. Do not use or service the system in an environment of insufcient light.
1.1.8 Movement Around the System
1.1.8.1. Hydraulic oil can be slippery. Clean up oil spills immediately.
1.1.9 Hydraulic Oil Safety
1.1.9.1. See the MSDS for the oil used in your system for further information about hydraulic oil
safety.
1.1.9.2. In an accident involving high pressure equipment, this product may be injected under
the skin. Such an accident may result in a small, sometimes bloodless, puncture wound.
However, due to the system’s driving force, material injected into a ngertip can be
deposited into the palm of the hand. Within 24 hours, there is usually a great deal of
swelling, discoloration, and intense throbbing pain. Immediate treatment at a surgical
emergency center is recommended.
1.1.9.3. Do not use high pressure systems in the vicinity of ames, sparks, and hot surfaces.
Use only in well ventilated areas.
1.1.9.4. Use only designated appropriate ll and drain ports for the oil.
1.2 Design / Installation Safety
1.2.1 Kit Components
1.2.1.1. The kit consists of a drive unit, ooring, and miscellaneous boxed parts. These modules
are intended to be anchored in a shipping frame or stacked at and braced with
dunnage for shipping and storage.
1.2.2 Installation
1.2.2.1. Use designated lifting points as provided.
1.2.2.2. Only use equipment with appropriate capacity ratings to lift and handle
components.
1.2.2.3. Use appropriate lifting procedures when handling loose or boxed components.
1.2.2.4. The oor must be installed far enough away from other equipment or xtures to prevent
the moving parts of the oor module from creating a crush or pinch hazard.
1.2.3 Danger Zones
1.2.3.1. The reciprocating action of the oor creates pinch and shear points by nature.
Specically, drive area cylinder, cross-drive, and slats approaching each other,
frame components, or walls. These and any other relevant exposed areas must be
guarded.
1.2.3.2. The oor must be incorporated into surroundings such that movement of the material
on the oor does not create crushing, burial, drawing in, or entrapment hazards. The
system must be designed to limit access to the material ow path.

4 DOC06179 Rev. B
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX / DXE
1.2.4 Electric Components and Installation
1.2.4.1. KEITH recommends connecting to earth ground (whenever possible).
1.2.4.2. Wiring must be connected consistent with local codes and regulations, including
electromagnetic interference regulations.
1.2.4.3. Adequate electric overcurrent protection must be provided.
1.2.5 Hydraulics
1.2.5.1. Hydraulic piping and components must be constructed of materials that are rated for
system pressures, and must be installed with best industry practices. Follow all pipe,
tubing, tting, and hose manufacturer installation and routing guidelines.
1.2.5.2. Hydraulic piping should be supported and isolated from vibration. Contact a KEITH
representative for recommendations on installation.
1.2.5.3. Place protective shrouds around the hydraulic tubing in any areas that may have
operators or people frequently nearby.
1.2.6 Controls
1.2.6.1. The control panel must be located such that it is easily accessible for all sizes and
capacities of people, and allows the operator to move freely (whenever applicable).
1.2.6.2. Control devices must be located outside of danger zones, such that any exposed
persons in danger zones are visible from the control station.
1.2.6.3. An acceptable means must be provided to monitor the status and movement of the
load.
1.2.6.4. The oor can generate enormous horizontal force which can destroy improperly
designed surroundings. The oor module must not be allowed to compact material
against an end wall or door, or end walls and doors must be designed to absorb these
forces.
1.2.6.5. Do not allow the oor to move material toward the front of the trailer when material is
contacting the front wall. KEITH recommends installing limit switches to prevent this. In
the absence of a sensor switch, the operator must be keenly aware of the load position,
and the control system must require the operator to hold the run signal in the on
position to continue running, such that releasing the run signal causes the oor to stop
(momentary signal).
1.2.6.6. Material compacted against closed doors can force the doors open dangerously fast
when the door latch is released. The impact can cause serious injury or death. Do not
allow the oor to run when the doors are closed. Do not open a door when it is possible
that material may be compacted against it. KEITH strongly recommends installing a
control interlock switch to prevent the oor from running when the door is closed. KEITH
also recommends a door latch that can be remotely actuated by someone away from
the door area unload zone.

5 DOC06179 Rev. B
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX / DXE
1.3 Marking of Machinery
1.3.1 Safety Decals

6 DOC06179 Rev. B
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX / DXE

7 DOC06179 Rev. B
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX / DXE

8 DOC06179 Rev. B
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX / DXE

9 DOC06179 Rev. B
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX / DXE
1.3.2 Serial Plates
Please ll in the information from the serial plate attached to your drive system. Overtime these
plates become difcult to read or even locate and this information is crucial in determining the specic
replacement parts for your system.

10 DOC06179 Rev. B
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX / DXE

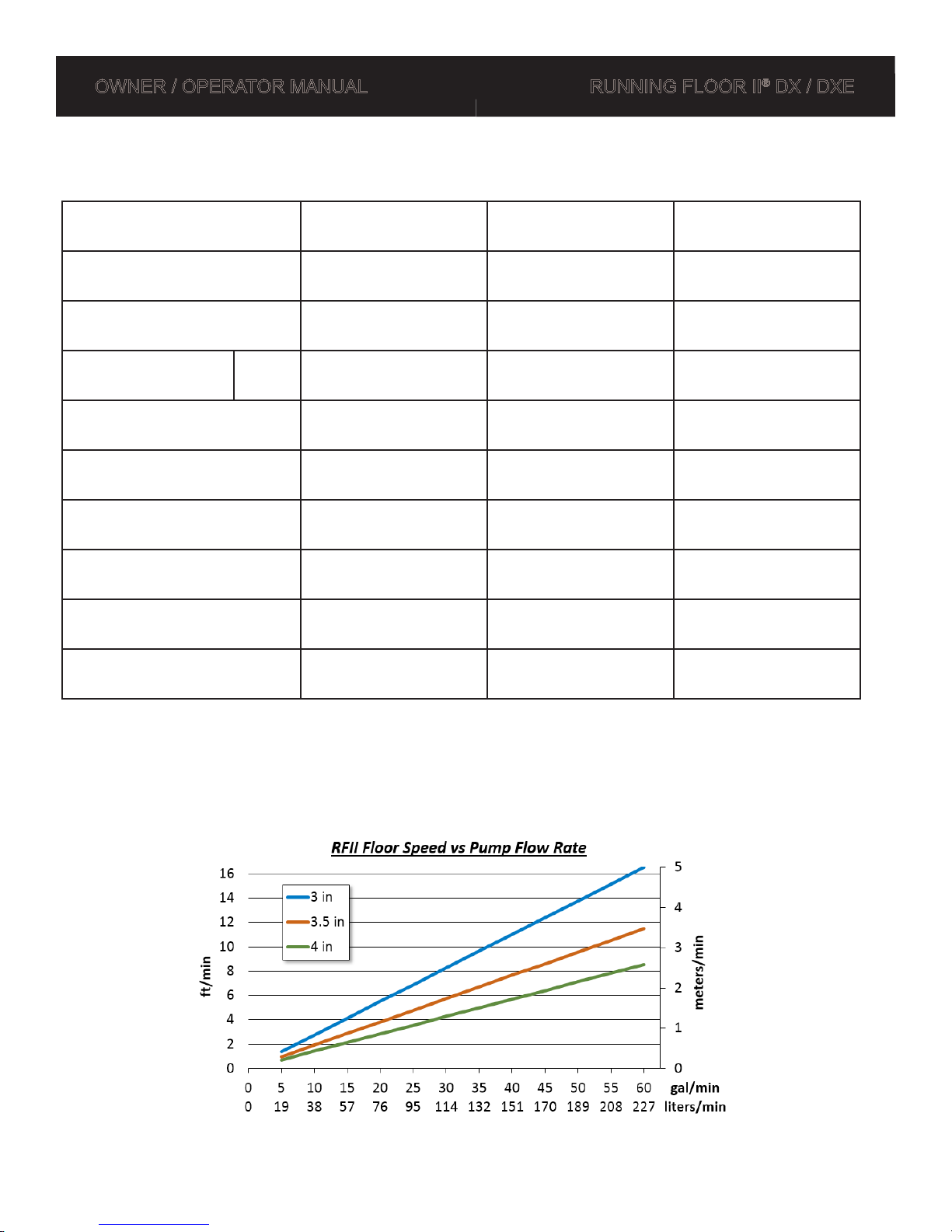

2.0 Specications
2.1 Hydraulic Drive Unit
Drive Style: KRFII-3 KRFII-3.5 KRFII-4
Cylinder Bore Diameter: 3.0 in
[76 mm] 3.5 in [89 mm] 4 in [102 mm]
Cylinder Stroke: 6.0 - 10.0 in
[152 - 254 mm] 6.0 - 10.0 in [152 - 254 mm] 6.0 in [152 mm]
Relief Valve
Pressure Range: Min: Max: 2,800 PSI [193 bar] 3,000 PSI [207 bar] 2,800 PSI [193 bar] 3,000 PSI [207 bar] 2,800 PSI [193 bar] 3,000 PSI [207 bar]
Load Capacity: 35 tons
[31.75 tonnes] 50 tons [45.5 tonnes] 75 tons [68 tonnes]
Pump Flow Rate: 5 - 60 gal/min
[19 - 227 liters/min] 5 - 60 gal/min [19 - 227 liters/min] 5 - 60 gal/min [19 - 227 liters/min]
Recommended Pump Flow
Rate: 40 - 45 gal/min [151 - 170 liters/min] 40 - 45 gal/min [151 - 170 liters/min] 40 - 45 gal/min [151 - 170 liters/min]
* Floor Speed: 1 - 16.5 ft/min
[0.3 - 5 meters/min] 1 - 11.5 ft/min [0.3 - 3.5 meters/min] 1 - 8.5 ft/min [0.3 - 2.6 meters/min]
Max Temperature: 140 °F
[60 °C] 140 °F [60 °C] 140 °F [60 °C]
** Drive Weight: 850 - 1700 lbs
[386 - 771 kg] 950 - 1825 lbs [431 - 828 kg] 1500 - 2100 lbs [680 - 953 kg]
* Floor Speed (Load/Unload times) vary with pump ow rate, length of trailer, material type or other
environmental variables.
** Varies by drive conguration and application.

11 DOC06179 Rev. B
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX / DXE
2.2 General Wet Kit Specications
Oil: ISO-L-HM 46 hydraulic oil (As per ISO 11158).
PTO and
Pump: *
The PTO and Pump must be capable of producing a minimum ow rate of 5
gal/min at 3000 PSI [19 liters/min at 207 bar] for proper operation. KEITH
recommends a PTO and Pump capable of producing between 40 and 60 gal/min at
less than 3000 PSI [151-227 liters/min at less than 207 bar] for optimal operation.
NOTE: Pumps with built-in pressure relief valves are NOT recommended.
See the Wet Kit RUNNING FLOOR II® document available on the KEITH website
www.KeithWalkingFloor.com or contact a KEITH Manufacturing Co. representative
for specic recommendations on selecting a wet kit.
Do not exceed the maximum ow rate.
Do not exceed the maximum pressure.
Filter: Filter should be double element, 10 to 25 µm, on the return line.
(The lter element should be changed after the initial 6 hours of operation, then
every 6 months thereafter. This may vary with the operating environment).
Hydraulic
Reservoir:
Sized to desired ow rate. Should hold approximately 1 gallon of oil for every gallon
per minute you plan to pump, i.e. 40 gal/min = 40 gallon reservoir. Minimum 40
gallons [151 liters]
Suction Line: Suction hose from the reservoir tank to the pump should be no more than 5 ft [1.5 m]
in length and a minimum of 2 inch [51 mm] inside diameter.
KEITH recommends using SAE100R4 (This type of hose has a spiral wire to keep
the hose from collapsing under suction).
Pressure Line: Hose from wet kit to oor should be 1 in [-16] SAE-100R2.
Return Line: Hose from oor to wet kit lter should be 1 in [-16] SAE-100R1.
Hose from lter to reservoir tank should be 1¼ in [-20] SAE-100R1.
Pressure
Relief Valve: *
High quality valve with the ability to relieve full pump ow at 3000 PSI [207 bar].
NOTE: Relief valve must be set above 2800 PSI [193 bar] and no higher than 3000
PSI [207 bar]
* If the information about your pump and pressure relief valve is not known, have a pressure/ow
check done by a professional.

12 DOC06179 Rev. B
OWNER / OPERATOR MANUAL RUNNING FLOOR II®DX / DXE
2.3 Floor to Wet Kit Connection Diagram
Filters
1" Return
Hose
1" Male
Quick Coupler
Internal
Baffle
Sight
Gauge
Pressure
Relief
Valve
P.T.O.
Pressure
Return
Suction
1" Female
Quick Coupler
1" Pressure
Hose
2" Suction
Hose
1" Pressure
Relief Hose Pump
1-1/4" Return
Hose
1" Male
Quick Coupler
1" Female
Quick Coupler
Switching
Valve
Ball
Valve
PUMP
RES RES
CYL CYL
FLOOR WET KIT
PRESSURE FLOW
RETURN FLOW
Reservoir
Tank
PUMP
RES RES
CYL CYL
IMPORTANT
To ensure proper operation of your KEITH® WALKING FLOOR®, the
specifications and following diagram must be followed. Failure to
comply with these instructions may void the KEITH® Warranty.
46093
