kenall SSIS SERIES User manual

www. kenall.com P: 800-4-Kenall F: 847-360-1781 1020 Lakeside Drive Gurnee, Illinois 60031
1
INSTALLATION INSTRUCTIONS
SSIS-F4515_110113
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions
should always be followed, including the following:
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE
APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH
THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND
THE HAZARDS INVOLVED. DISCONNECT POWER TO ALL CIRCUITS
BEFORE WIRING FIXTURE. INSTALL IN ACCORDANCE WITH
ALL NATIONAL, STATE, AND LOCAL CODES. DO NOT CONNECT
TO AN UNGROUNDED SUPPLY. READ ALL FIXTURE MARKINGS
AND LABELS TO ENSURE CORRECT INSTALLATION OF FIXTURE.
SUPPLEMENTAL INSTRUCTIONS MAY BE LOCATED ON THE
FIXTURE, IN ADDITION TO THIS INSTRUCTION SHEET, REGARDING
ORIENTATION, OR MOUNTING RESTRICTIONS.
SAVE THESE INSTRUCTIONS
INSTALLATION

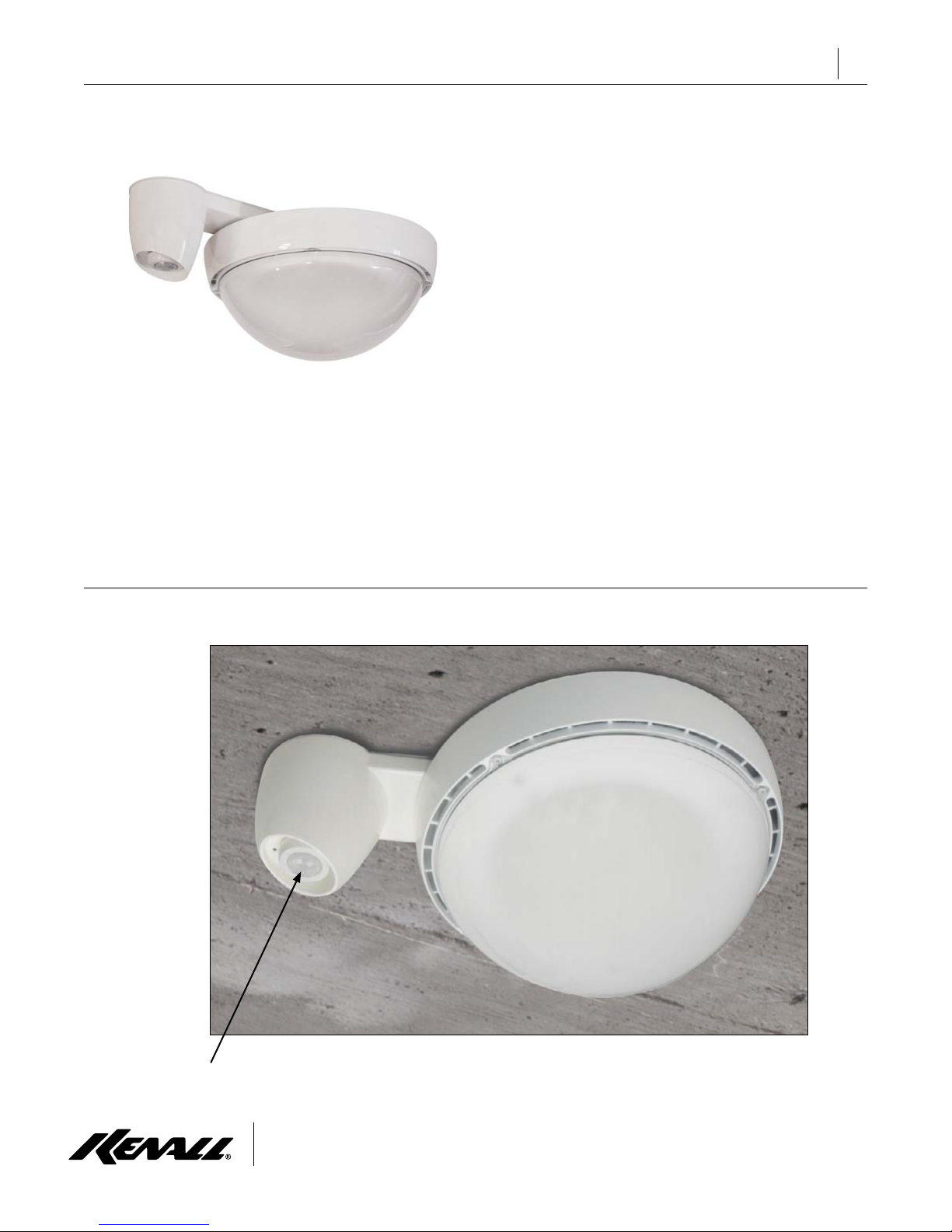

Install luminaire (example below) per dedicated luminaire instructions, with Occupancy Sensor facing drive lane
or walkway.
SSIS SERIES
SmartSense™ Micro Individual Sensor for
TEKDEK™ LED
Occupancy Sensor Lens

www. kenall.com P: 800-4-Kenall F: 847-360-1781 1020 Lakeside Drive Gurnee, Illinois 60031
2
INSTALLATION INSTRUCTIONS
SSIS-F4515_110113
Once installed, apply power to the system. The
system mode LED should illuminate and remain
solid green when occupancy is detected, and
ash green in periods of non-occupancy. Now
the luminaire will dim during non-occupancy
and when additional daylight contribution exists.
Time Delay adjustment is completed when the lens is
removed. A small screwdriver when rotated to the
left will reduce time delay (30s-30m), and rotation to
the right will increase delay as shown below.
TIME DELAYNORMAL MODE
Preset
12 min.
18 min.
28 min.
30 min.
30 sec.
6 min.
1.5 min.
1) For dimming adjustment, remove the lens,
then remove these screws and plate shown
above.
2) Adjust Potentiometer dimming level by turning
counter clockwise for less dimming. Factory level
is set at Full Dimming which equals 15-20%
light output.
DIMMING ADJUSTMENT

www. kenall.com P: 800-4-Kenall F: 847-360-1781 1020 Lakeside Drive Gurnee, Illinois 60031
3
INSTALLATION INSTRUCTIONS
SSIS-F4515_110113
OPTIONAL FEATURE: Zonal Occupancy via Interconnect
INTERCONNECT - OPTIONAL
Connect the red (Interconnect +) and blue (Low Voltage Ground -) wires between luminaires as seen below:
Occupancy detection will be communicated between interconnected luminaires (i.e. zonal occupancy) and therefore
eliminate the “Cascade-ON” effect.
*Note: Cap unused Interconnect and Low-voltage ground wires.

www. kenall.com P: 800-4-Kenall F: 847-360-1781 1020 Lakeside Drive Gurnee, Illinois 60031
4
INSTALLATION INSTRUCTIONS
SSIS-F4515_110113
www. kenall.com P: 800-4-Kenall F: 847-360-1781 1020 Lakeside Drive Gurnee, Illinois 60031
INSTALLATION INSTRUCTIONS
F-4556_041013
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should
always be followed, including the following:
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE
INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND
OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
CE PRODUIT ÊTRE INSTALLÉ SELON LE CODE D’INSTALLATION PERTINENT, PAR UNE
PERSONNE QUI CONNAÍT BIEN LES PRODUIT ET SON FONCTIONNEMENT
AINSI QUE LES RISQUES INHÉRENTS
DISCONNECT POWER TO ALL CIRCUITS BEFORE WIRING FIXTURE. INSTALL IN
ACCORDANCE WITH ALL NATIONAL, STATE, AND LOCAL CODES. DO NOT
CONNECT TO AN UNGROUNDED SUPPLY. READ ALL FIXTURE MARKINGS AND
LABELS TO ENSURE CORRECT INSTALLATION OF FIXTURE. SUPPLEMENTAL
INSTRUCTIONS MAY BE LOCATED ON THE FIXTURE, IN ADDITION TO THIS
INSTRUCTION SHEET, REGARDING ORIENTATION, OR MOUNTING RESTRICTIONS.
SAVE THESE INSTRUCTIONS

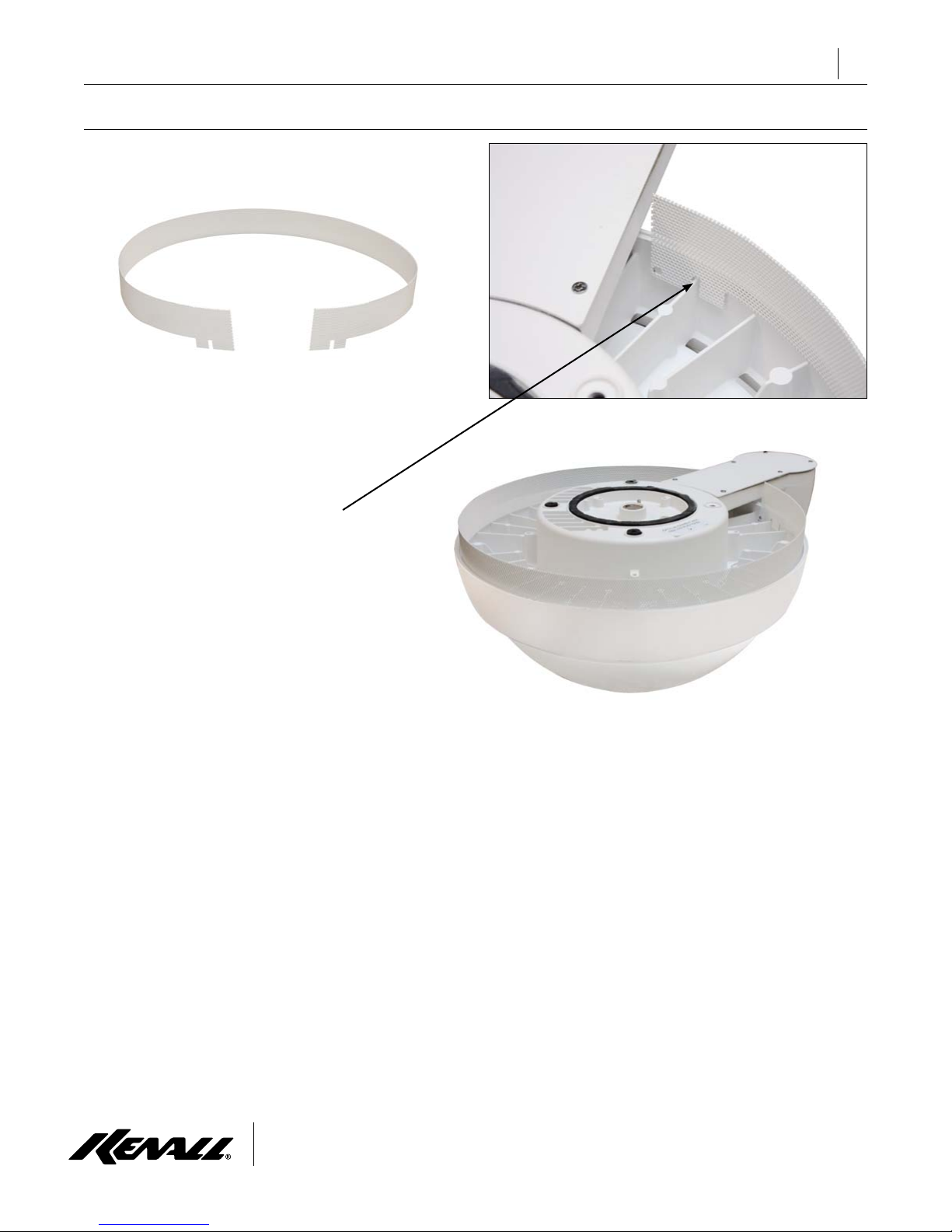

BIRD GUARD INSTALLATION
1: No tools required. Must install
before xture is mounted.
2: Align slot and lay in bird guard.
SSIS SERIES
SmartSense™ Micro Individual Sensor for
TEKDEK™ LED
DIRECT TO SURFACE WITH SSIS OPTION

www. kenall.com P: 800-4-Kenall F: 847-360-1781 1020 Lakeside Drive Gurnee, Illinois 60031
5
INSTALLATION INSTRUCTIONS
SSIS-F4515_110113
5
The TekDek™SSL product and SmartSense™control system is warranted by Kenall to be free of defects in
workmanship and materials for a period of one year from the date of invoice. Kenall warrants LED lamps and
internal power regulation components for a period of ten (10) years from the date of the invoice against defects
in materials and workmanship that result in a xture lumen depreciation of 30% or greater. Lumen depreciation
is compared to the published lumen output of the product on the date of manufacture per IESNA LM-79 reporting
procedures. Normal accumulation of particulates on the optical surfaces shall not be factored into the lumen
depreciation.
Kenall reserves the right to issue credit, repair, or replace the defective merchandise, at its discretion, upon
notication and conrmation by its local representative of the defect. Kenall also reserves the right to test and
examine the defective product if the defect is questionable and to deny the warranty herein for any product
altered, improperly installed, installed in applications for which it is not intended. This includes operation in
ambient temperatures above stated limits for any length of time. Failure by electrical surge shall not be covered
Kenall assumes no responsibility for labor or freight costs incurred in connection with the installation, removal, or
replacement of products determined to be defective or any other consequential or incidental damages arising from
the use of the product. Kenall’s entire liability on any claim of loss or damage resulting from a defective product is
limited to the replacement price of the product.
For technical assistance, call 1-800-4KENALL (1-800-453-6255).
WARRANTY
CUSTOMER SERVICE
