Kenmore 29" User manual

Dryer Installation Instructions
Instrucciones de instalaci6n de (a secadora
(nstructions d'(nsta((ation de (a s_cheuse
English /EspaSo( /Fran_:ais
Table of Contents /indice /Table des Matieres ......4
Ke reo
29" Wide Gas (UoSoAoand Canada} & E)ect_ic (Canada On)y} D_yer
Modell!os de 29" a gas (EE_UU_y Canada) y EIIl@ct_'ica(Solllo ÷n Canada)
Mod@ll!es de 29" de Ilia_geu_'@gas (E_,,,,U_÷t Canada) ÷t EIIl÷ct_'iqu÷ (Canada uniquement)
P/N W10096996A
Sears Brands Management Corporation
Hoffman Estates, IL 60179 U.S.A.
www.kenmore.com
www.sears.com
Sears Canada Inc.
Toronto, Ontario, Canada MSB 2B8
www.sears.ca

iNSTALLATiON NOTES
Date of purchase:
Date of installation:
Installer:
Model number:
Serial number:
NOTAS SOBRE LA INSTALACION
Fecha de compra:
Fecha de instalaci6n:
Instalador:
N_mero de modelo:
NQmero de serie:
NOTES CONCERNANT
L'INSTALLATION
Date d'achat :
Date d'installation :
Installateur :
Num_ro de module :
Num_ro de s_rie :
DRYERSAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
WARNING -"Risk of Fire"
-Clothes dryer installation must be performed by a qualified installer,
- install the clothes dryer according to the manufacturer's instructions and local codes.
- Do not install aclothes dryer with fle×ible plastic venting materials, if fle×ible metal
(foil type) duct is installed, it must be of a specific type identified by the appliance
manufacturer as suitable for use with clothes dryers. Fle×ible venting materials are
known to coflapse, be easily crushed, and trap lint. These conditions will obstruct
clothes dryer airflow and increase the risk of fire.
- To reduce the risk of severe injury or death, follow all installation instructions.
- Save these instructions.
2

iMPORTANT: The gas installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas
Code, ANSi Z223.1iNFPA 54 or the Canadian Natural Gas and Propane Installation Code, CSA B149.1.
The dryer must be electrically grounded in accordance with local codes, or in the absence of local codes, with the National
Electrical Code, ANSIiNFPA 70 or Canadian Electrical Code, CSA C22.1.
WARNING: For your safety, the information in this manual must be followed to minimize
the risk of fire or e×plosion, or to prevent property damage, personal injury, or death.
-Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
-WHAT TO DO iF YOU SMELL GAS:
• Do not try to light any appliance.
•Do not touch any electrical switch; do not use any phone in your building.
=Clear the room, building, or area of all occupants.
•Immediately call your gas supplier from aneighbor's phone. Follow the gas supplier's
instructions.
=if you cannot reach your gas supplier, call the fire department.
-Installation and service must be performed by aqualified installer, service agency, or
the gas supplier.
WARNING: Gas leaks cannot always be detected by smell.
Gas suppliers recommend that you use a gas detector approved by UL or CSA.
For more information, contact your gas supplier.
If a gas leak is detected, follow the "What to do if you smell gas" instructions.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the dryer, follow basic precautions,
including the following:
[] Read all instructions before using the dryer.
[] Do not place items exposed to cooking oils in your dryer.
Items contaminated with cooking oils may contribute to
a chemical reaction that could cause a load to catch fire.
[] Do not dry articles that have been previously cleaned in,
washed in, soaked in, or spotted with gasoline, dry-
cleaning solvents, or other flammable or explosive
substances as they give off vapors that could ignite or
explode.
[] Do not allow children to play on or in the dryer. Close
supervision of children is necessary when the dryer is
used near children.
[] Before the dryer is removed from service or discarded,
remove the door to the drying compartment.
[] Do not reach into the dryer if the drum is moving.
[] Do not install or store the dryer where it will be exposed
to the weather.
[] Do not tamper with controls.
[] Do not repair or replace any part of the dryer or attempt
any servicing unless specifically recommended in this
Use and Care Guide or in published user-repair
instructions that you understand and have the skills to
carry out.
[] Do not use fabric softeners or products to eliminate static
unless recommended by the manufacturer of the fabric
softener or product.
[] Do not use heat to dry articles containing foam rubber or
similarly textured rubber=like materials.
[] Clean lint screen before or after each load.
[] Keep area around the exhaust opening and adjacent
surrounding areas free from the accumulation of lint, dust,
and dirt.
[] The interior of the dryer and exhaust vent should be
cleaned periodically by qualified service personnel.
[] See "Electrical Requirements" located in the installation
instructions for grounding instructions.
SAVE THESE INSTRUCTIONS

In the State of Massachusetts, the following installation instructions apply:
[] Installations and repairs must be performed by a qualified or licensed contractor, plumber, or gasfitter qualified or licensed by
the State of Massachusetts.
[] If using a ball valve, it shall be a T-handle type.
[] A flexible gas connector, when used, must not exceed 3 feet.
State of California Proposition 65 Warnings:
WARNING: This product contains a chemical known to the State of California to cause cancer.
WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm.
IMPORTANT SAFETY INSTRUCTIONS
When discarding or storing your old clothes dryer, remove the door.
SAVE THESE INSTRUCTIONS

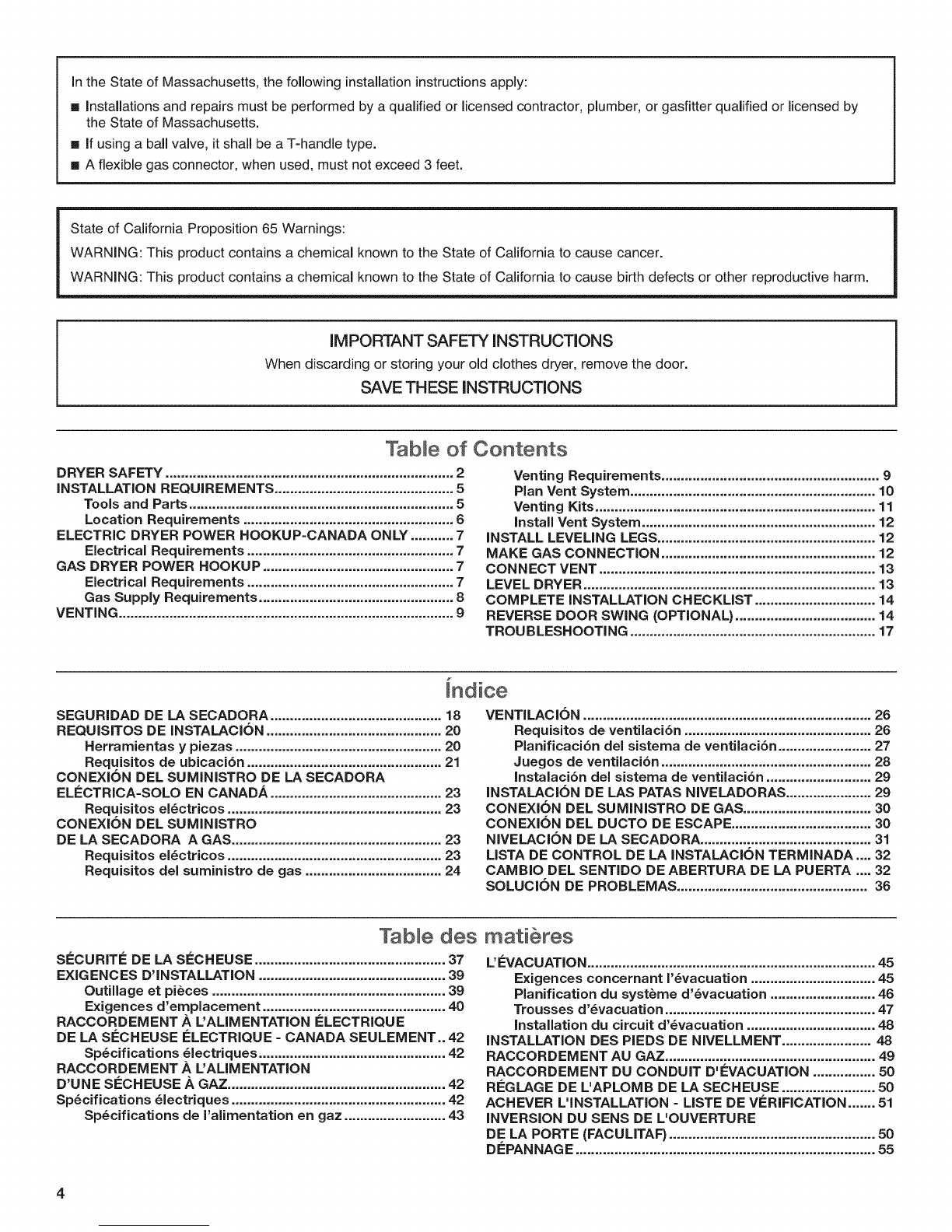

Table of
DRYER SAFETY .......................................................................... 2
iNSTALLATiON REQUIREMENTS .............................................. 5
Tools and Parts .................................................................... 5
Location Requirements ...................................................... 6
ELECTRIC DRYER POWER HOOKUP-CANADA ONLY ........... 7
Electrical Requirements ..................................................... 7
GAS DRYER POWER HOOKUP ................................................. 7
Electrical Requirements ..................................................... 7
Gas Supply Requirements .................................................. 8
VENTING ...................................................................................... 9
Contents
Venting Requirements ........................................................ 9
Plan Vent System ............................................................... 10
Venting Kits ........................................................................ 11
install Vent System ............................................................ 12
iNSTALL LEVELING LEGS ........................................................ 12
MAKE GAS CONNECTION ....................................................... 12
CONNECT VENT ....................................................................... 13
LEVEL DRYER ........................................................................... 13
COMPLETE INSTALLATION CHECKLIST ............................... 14
REVERSE DOOR SWING (OPTIONAL} .................................... 14
TROUBLESHOOTING ............................................................... 17
SEGURIDAD DE LA SECADORA ............................................ 18
REQUISITOS DE INSTALACI6N ............................................. 20
Herramientas y piezas ..................................................... 20
Requisitos de ubicaci6n .................................................. 21
CONEXION DEL SUMINISTRO DE LA SECADORA
EMeCTRICA=SOLO EN CANADA ............................................ 23
Requisitos el_ctricos ....................................................... 23
CONEXION DEL SUMINISTRO
DE LA SECADORA A GAS ...................................................... 23
Requisitos el_ctricos ....................................................... 23
Requisitos del suministro de gas ................................... 24
VENTILACION .......................................................................... 26
Requisitos de ventiiaci6n ................................................ 26
Planificaci6n del sistema de ventilaci6n ........................ 27
Juegos de ventilaci6n ...................................................... 28
Instalaci6n del sistema de ventilaci6n ........................... 29
INSTALACION DE LAS PATAS NIVELADORAS ...................... 29
CONEXION DEL SUMINISTRO DE GAS ................................. 30
CONEXION DEL DUCTO DE ESCAPE .................................... 30
NIVELACION DE LA SECADORA ............................................ 31
LISTA DE CONTROL DE LA INSTALACION TERMINADA .... 32
CAMBIO DEL SENTIDO DE ABERTURA DE LA PUERTA .... 32
SOLUCION DE PROBLEMAS ................................................. 36
Table des mati res
SLeCURITE DE LA SLeCHEUSE ................................................. 37
EXIGENCES D'INSTALLATION ................................................ 39
Outillage et pi_ces ............................................................ 39
Exigences d'emplacement ............................................... 40
RACCORDEMENT AUALIMENTATION leLECTRIQUE
DE LA SECHEUSE ELECTRIQUE -CANADA SEULEMENT .. 42
Sp6cifications _lectriques ................................................ 42
RACCORDEMENT AUALIMENTATION
D'UNE SECHEUSE A GAZ ........................................................ 42
Specifications _lectriques ....................................................... 42
Specifications de I'alimentation en gaz .......................... 43
L'EVACUATION .......................................................................... 45
Exigences concernant I'_vacuation ................................ 45
Planification du syst_me d'_vacuation ........................... 46
Trousses d'_vacuation ...................................................... 47
Installation du circuit d'_vacuation ................................. 48
iNSTALLATiON DES PIEDS DE NIVELLMENT ....................... 48
RACCORDEMENT AU GAZ ...................................................... 49
RACCORDEMENT DU CONDUIT DqeVACUATION ................ 50
REGLAGE DE L'APLOMB DE LA SECHEUSE ........................ 50
ACHEVER L'INSTALLATION = LISTE DE VleRIFICATION ....... 51
iNVERSiON DU SENS DE L'OUVERTURE
DE LA PORTE (FACULITAF) ..................................................... 50
DLePANNAGE ............................................................................. 55
4

iNSTALLATiON REQUIREMENTS
Tools and Parts
Gather the required tools and parts before starting installation.
Tools needed for all installations: Tools needed for gas installations:
Flat-blade screwdriver #2 Phillips screwdriver 8" or 10" pipe wrench 8" or 10" adjustable wrench
(for gas connections)
1/4" nut driver or socket
wrench (recommended)
Tape measure
F® ® @--!
Level
Adjustable wrench that
opens to 1" (25 mm) or
hex-head socket wrench
Tin snips (new vent
installations)
Vent clamps
Pliers
Caulking gun and compound
(for installing new exhaust vent)
Pipe-joint compound
resistant to LP gas
Parts supplied:
[
Leveling legs (4)
Parts package is located in dryer drum. Check that all parts
are included.
Parts needed:
Check local codes. Check existing electrical supply and venting.
See "Electrical Requirements" and "Venting Requirements"
before purchasing parts.
Mobile home installations require metal exhaust system
hardware. For more information, see "Assistance or Service"
section in your "Use and Care Guide".
Optional Equipment: (Not supplied with dryer)
Refer to your "Use and Care Guide" for information about
accessories available for your dryer.
Utility knife

Location Requirements
Explosion Hazard
Keep flarnnmable materials and vapors, such as
gasoline, away from dryer,
Place dryer at least 18 inches (460 mrn) above the floor
for agarage installation.
Failure to do so can result in death, explosion, or fire.
You will need:
[] A location allowing for proper exhaust installation.
See "Venting Requirements."
[] A separate 30 amp circuit for electric dryers.
[] A separate 15 or 20 amp circuit for gas dryers.
[] If you are using power supply cord, a grounded electrical
outlet located within 2 ft. (610 mm) of either side of dryer.
See "Electrical Requirements."
[] A sturdy floor to support dryer and a total weight (dryer
and load) of 200 Ibs. (90.7 kg). The combined weight of a
companion appliance should also be considered.
[] Level floor with maximum slope of 1" (25 mm) under entire
dryer. If slope is greater than 1" (25 mm), install Extended
Dryer Feet Kit, Part Number 279810. If not level, clothes
may not tumble properly and automatic sensor cycles may
not operate correctly.
Do not operate your dryer at temperatures below 45°F (7°C). At
lower temperatures, the dryer might not shut off at the end of an
automatic cycle. Drying times can be extended.
The dryer must not be installed or stored in an area where it will
be exposed to water and/or weather.
Check code requirements. Some codes limit, or do not permit,
installation of the dryer in garages, closets, mobile homes, or
sleeping quarters. Contact your local building inspector.
NOTE: No other fuel-burning appliance can be installed in the
same closet as a dryer.
installation clearances:
The location must be large enough to allow the dryer door to
open fully.
Most installations require a minimum 51/2"(140 mm) clearance
behind the dryer for the exhaust vent with elbow. See "Venting
Requirements."
Dryer Dimensions
433/8 n
(1102ram)
!
*26"
(660 tara)
(737Atara) (737_m}
43%"i
(1102ram)
.273/4,'!_
(705rara)
_1- 223/'" __ .... JJ-_
....... 1 78raral43w,i
(1102mm) _
(705rara)½ ......
(737mm} (737mra)
C D
*Required spacing
A. Large opening side-swing door
B. Large opening side-swing door
C. Wide opening side-swing door
D. Wide opening hamper door
Installation Spacing
_=410,"max," _-_ in_*
_ I1_ mm (310cm)_-
[_ 24in:*-
-._ ._ (155cm)_
1"-_'t t<- 29"-_ _ 1" -_I"*F 273_"_5V2"I_-
(25rnm) (737mm) (25ram)(25rnrn)(705mrn)(140mm)
A B
A. Recessed area
B. Side view -closet or confined area
C. Closet door with vents
3]1,
(76rnm)
-f
3H*
(76ram)
T
*Required spacing
Installation spacing for recessed area or closet
The dimensions shown are for the minimum spacing allowed.
[] Additional spacing should be considered for ease of
installation and servicing.
[] Additional clearances might be required for wall, door,
and floor moldings.
[] Additional spacing of 1" (25 mm) on all sides of the dryer
is recommended to reduce noise transfer.
[] For closet installation, with a door, minimum ventilation
openings in the top and bottom of the door are required.
Louvered doors with equivalent ventilation openings are
acceptable.
[] Companion appliance spacing should also be considered.
6

Mobile home =Additional installation requirements
This dryer is suitable for mobile home installations. The
installation must conform to the Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part 3280
(formerly the Federal Standard for Mobile Home Construction
and Safety, Title 24, HUD Part 280) or the Canadian
Manufactured Home Standard CAN/CSA-Z240 MH.
[] Metal exhaust system hardware, available for purchase.
For further information, please reference the "Assistance or
Service" section of your "Use and Care Guide".
[] Special provisions must be made in mobile homes to
introduce outside air into the dryer. The opening (such as a
nearby window) should be at least twice as large as the dryer
exhaust opening.
ELECTRIC DRYER POWER
HOOKUP - CANADA ONLY
EMectdca Requirements
Electrical Shock Hazard
Plug into agrounded 4prong outlet.
Failure to do so can result in death or electrical shock.
it is your responsibility:
[] To contact a qualified electrical installer.
[] To be sure that the electrical connection is adequate
and in conformance with the Canadian Electrical Code,
C22.1 -latest edition and all local codes. A copy of the
above codes standard may be obtained from: Canadian
Standards Association, 178 Rexdale Blvd., Toronto, ON
M9W 1R3 CANADA.
[] To supply the required 4 wire, single phase, 120/240 volt,
60 Hz., AC only electrical supply on a separate 30-amp
circuit, fused on both sides of the line. A time-delay fuse or
circuit breaker is recommended. Connect to an individual
branch circuit.
[] This dryer is equipped with a CSA International Certified
Power Cord intended to be plugged into a standard 14-30R
wall receptacle. The cord is 5 ft. (1.52 m) in length. Be sure
wall receptacle is within reach of dryer's final location.
4-wire receptacle (14-30R)
[] Do not use an extension cord.
If using a replacement power supply cord, it is recommended
that you use Power Supply Cord Replacement Part Number
3394208. For further information, please reference the
"Assistance or Service" section of your "Use and Care Guide".
GROUNDING INSTRUCTIONS
m For a grounded, cord-connected dryer:
This dryer must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current.
This dryer is equipped with a cord having an equipment-
grounding conductor and a grounding plug. The plug must
be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes
and ordinances.
WARNING: Improper connection of the equipment-
grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or service representative
or personnel if you are in doubt as to whether the dryer is
properly grounded. Do not modify the plug provided with
the dryer: if it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
SAVE THESE INSTRUCTIONS
GAS DRYER POWER
HOOKUP
EMectdca Requ
Electrical Shock Hazard
Plug into agrounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
[] 120 Volt, 60 Hz., AC only, 15- or 20-amp fused electrical
supply is required. A time-delay fuse or circuit breaker is
recommended. It is also recommended that a separate
circuit serving only this dryer be provided.

GROUNDING iNSTRUCTiONS
[] For a grounded, cord-connected dryer:
This dryer must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current.
This dryer is equipped with a cord having an equipment-
grounding conductor and a grounding plug. The plug must
be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes
and ordinances.
WARNING: Improper connection of the equipment-
grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or service representative
or personnel if you are in doubt as to whether the dryer is
properly grounded. Do not modify the plug provided with
the dryer: if it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
SAVE THESE INSTRUCTIONS
Explosion Hazard
Use a new CSA International approved gas supply line.
Install ashut=off valve.
Securely tighten all gas connections,
if connected to LP, have a qualified person make sure
gas pressure does not exceed 13" (330 ram) water
column.
Examples of a qualified person include:
licensed heating personnel,
authorized gas company personnel, and
authorized service personnel.
Failure to do so can result in death, explosion, or fire.
Gas type
Natural gas:
This dryer is equipped for use with Natural Gas. It is design-
certified by CSA international for LP (propane or butane) gases
with appropriate conversion.
[] Your dryer must have the correct burner for the type of gas
in your home. Burner information is located on the rating
plate in the door well of your dryer. If this information does
not agree with the type of gas available, please reference the
"Assistance or Service" section of the "Use and Care Guide".
LP gas conversion:
Conversion must be made by a qualified technician.
No attempt shall be made to convert the dryer from the gas
specified on the model/serial rating plate for use with a different
gas without consulting the serving gas supplier.
IMPORTANT: The gas installation must conform with local codes,
or in the absence of local codes, with the National Fuel Gas
Code, ANSi Z223.1/NFPA 54 or the Canadian Natural Gas and
Propane installation Code, CSA B149.1.
Gas supply line
[] 1/2" NPT pipe is recommended.
[] 3/8" approved tubing is acceptable for lengths under
20 ft. (6.1 m) if local codes and gas supplier permit.
[] Must include 1/8" NPT minimum plugged tapping accessible
for test gauge connection, immediately upstream of the gas
connection to the dryer (see illustration).
[] Must include a shutoff valve:
in the U.S.A.:
An individual manual shutoff valve must be installed within
six (6)feet (1.8 m) of the dryer in accordance with the
National Fuel Gas Code, ANSI Z223.1.
in Canada:
An individual manual shutoff valve must be installed in
accordance with the B149.1, Natural Gas and Propane
Installation Code. It is recommended that an individual
manual shutoff valve be installed within six (6) feet (1.8 m)
of the dryer.
The shut off valve location should be easy to reach for opening
and closing.
E
B
A. 3/8" flexible gas connector
B.3/8" pipe to flare adapter fitting
C. 1/8" NPT minimum plugged tapping
D. 1/2" NPT gas supply line
E. Gas shutoff valve
Gas supply connection requirements
There are many methods by which your gas dryer can be
connected to the gas supply. Listed here are some guidelines
for two different methods of connection.
Option 1 (Recommended Method}
Flexible stainless steel gas connector:
[] If local codes permit, use a new flexible stainless steel gas
connector (Design Certified by the American Gas Association
or CSA International) to connect your dryer to the rigid gas
supply line. Use an elbow and a 3/8" flare x 3/8" NPT adapter
fitting between the stainless steel gas connector and the
dryer gas pipe, as needed to prevent kinking.
8

Option 2 (Alternate Method}
Approved aluminum or copper tubing:
[] Lengths under 20 ft. (6.1 m) can use 3/8" approved tubing
(if codes and gas supplier permit).
[] If you are using Natural Gas, do not use copper tubing.
[] 3/8" flare x 3/8" NPT adapter fitting between dryer pipe and
3/8" approved tubing.
[] Lengths over 20 ft. (6.1 m) should use larger tubing and a
different size adapter fitting.
[] If your dryer has been converted to use LP gas, 3/8" LP
compatible copper tubing can be used. If the total length
of the supply line is more than 20 ft. (6.1 m), use larger pipe.
NOTE: Pipe joint compounds that resist the action of LP
gas must be used. Do not use TEFLON _'*_ttape.
Dryer gas pipe
[] The gas pipe that comes out through the rear of your dryer
has a 3/8" male pipe thread.
VENTING
Venting Requirements
Fire Hazard
Use a heavy metal vent.
Do not use aplastic vent.
Do not use a metal foil vent.
Failure to follow these instructions can result in death
or fire.
11/4"
(32 ram}
{
WARNING: To reduce the risk of fire, this dryer MUST BE
EXHAUSTED OUTDOORS.
IMPORTANT: Observe all governing codes and ordinances.
//
A"_'---9¼"---_
(235 rara}
A, 3/8" NPTdryer pipe
Burner input requirements
Elevations up to 10,000 ft. (3,048 an}:
[] The design of this dryer is certified by CSA International for
use at altitudes up to 10,000 ft. (3,048 m), above sea level at
the B.T.U. rating indicated on the model/serial number plate.
Burner input adjustments are not required when the dryer is
operated up to this elevation.
Elevations above 10,000 ft. (3,048 an}:
[] When installed above 10,000 ft. (3,048 m) a 4% reduction
of the burner B.T.U. rating shown on the model/serial
number plate is required for each 1,000 ft. (305 m)
increase in elevation.
Gas supply pressure testing
[] The dryer must be disconnected from the gas supply piping
system during pressure testing at pressures greater than
1/2 psi.
Dryer exhaust must not be connected into any gas vent,
chimney, wall, ceiling, attic, crawlspace, or a concealed space
of a building. Only rigid or flexible metal vent shall be used for
exhausting.
(102ram)
4" (102 ram) heavy metal exhaust vent
[] Only a 4" (102 mm) heavy metal exhaust vent and clamps
may be used.
[] Do not use plastic or metal foil vent.
Rigid metal vent:
[] Recommended for best drying performance and to avoid
crushing and kinking.
Flexible metal vent: (Acceptable only if accessible to clean)
[] Must be fully extended and supported in final dryer location.
[] Remove excess to avoid sagging and kinking that may result
in reduced airflow and poor performance.
[] Do not install in enclosed walls, ceilings, or floors.
[] The total length should not exceed 7 3/4ft. (2.4 m).
NOTE: If using an existing vent system, clean lint from entire
length of the system and make sure exhaust hood is not plugged
with lint. Replace plastic or metal foil vents with rigid metal or
flexible metal vents. Review Vent System Chart and if necessary,
modify existing vent system to achieve best drying performance.
1-®)TEFLON is a registered trademark of E.I. Du Pont De Nemours and Company.

Exhaust hoods:
[] Must be at least 12" (305 ram) from ground or any object
that may obstruct exhaust (such as flowers, rocks, bushes,
or snow).
Recommended Styles:
Louvered Hood
Acceptable Style:
Box Hood
Angled Hood
Elbows:
[] 45° elbows provide better airflow than 90° elbows.
Good ....... _ Be
Clamps:
[]
[] Use clamps to seal all joints. Exhaust vent must not be connected or secured with screws
or other fastening devices that extend into interior of duct
and catch lint. Do not use duct ta }e.
improper venting can cause moisture and lint to collect
indoors, which may result in:
[] Moisture damage to woodwork, furniture, paint, wallpaper,
carpets, etc.
[] Housecleaning problems and health problems.
P an Vent System
Recommended exhaust installations
Typical installations vent the dryer from the rear of the dryer.
Other installations are possible.
A. Dryer
B. Elbow
C. Wall
D. Exhaust hood
B
B
11/}iii{.......
H
E.Clamps
F. Rigid metal or flexible metal vent
G.Ventlength necessary to connect elbows
H.Exhaustoutlet
Optional exhaust installations:
Each kit includes step-by-step instructions. For ordering
information, see "Venting Kits".
Fire Hazard
Cover unused exhaust holes with amanufacturer's
exhaust cover kit.
Contact your local dealer.
Failure to follow these instructions can result in death,
fire, electrical shock, or serious injury.
Standard rear offset exhaust installation
See "Venting Kits" for more information.
10

Alternate insta{{ations for c{ose clearances
Venting systems come in many varieties. Select the type best
for your installation. Two close-clearance installations are shown.
Refer to the manufacturer's instructions.
Special provisions for mobile home installations:
The exhaust vent must be securely fastened to a noncombustible
portion of the mobile home structure and must not terminate
beneath the mobile home. Terminate the exhaust vent outside.
Over-The-Topinstallation (alsoavailablewith oneoffset elbow)
Periscope installation
NOTE: The following kits for close clearance alternate
installations are available for purchase.
Venting Kits
For more information, call 1-800-469-4663, or visit us
at www.sears.com. In Canada, call
1-800-469-4663 or visit us at www.sears.ca.
::::::::::::::::::::_H_H_HHHHHHHHHHHHHr_HHHHHHHHHHHHHHHHHHHHHHHHr_HHHHHHHHHHHHHH_HHHHHH_H_HHH_HHHHHHHHH_HHHHH_HHH_HHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHH_`j_HHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHH_
Part Number Descriptions
8171587RP 0-5" Metal vent periscope
4396037RP 0"-18" Metal vent periscope
4396011RP 18" - 29" Metal vent periscope
4396014 29" - 50" Metal vent periscope
4392892 In-Wall metal DuraVent TM Periscope
4396028 Sure Connect TM venting kit
(over-the-top installation)
4396009RP 5' Universal connect vent, flexible dryer venting
4396010RP 6' SecureConnect TM vent, flexible dryer venting
4396013RB Dryer vent installer's kit
4396033RP 5' flexible dryer venting with clamps
4396727RP 8' flexible dryer venting with clamps
4396004 Dryer offset elbow
4396005 Wall offset elbow
4396006RW DuraSafe TM close elbow
4396007RW Through-the-wall vent cap
4396008RP 4" steel dryer venting clamps - 2 pack
8212662 Flush mounting Iouvered vent hood 4"
Determine vent path:
[] Select route that will provide straightest and most direct
path outdoors.
[] Plan installation to use fewest number of elbows and turns.
[] When using elbows or making turns, allow as much room
as possible.
[] Bend vent gradually to avoid kinking.
[] Use as few 90° turns as possible.
Determine vent length and elbows needed for best
drying performance:
[] Use following Vent System Chart to determine type of vent
material and hood combinations acceptable to use.
NOTE: Do not use vent runs longer than those specified
in Vent System Chart. Exhaust systems longer than those
specified will:
[] Shorten life of dryer.
[] Reduce performance, resulting in longer drying times
and increased energy usage.
The Vent System Chart provides venting requirements that
will help achieve best drying performance.
Vent System Chart
Number of Type Box/iouvered Angled
90 ° turns or of vent hoods hoods
elbows
Rigid metal 64 ft. (20 m) 58 ft. (17.7 m)
Rigid metal 54 ft. (16.5 m) 48 ft. (14.6 m)
Rigid metal 44 ft. (13.4 m) 38 ft. (11.6 m)
3Rigid metal 35 ft. (10.7 m) 29 ft. (8.8 m)
4 Rigid metal 27 ft. (8.2 m) 21 ft. (6.4 m)
NOTE: Side and bottom exhaust installations have a 90° turn
inside the dryer. To determine maximum exhaust length, add
one 90° turn to the chart.
11

install Vent System
1, install exhaust hood
_ 12" rnin.
(305 mm)
Install exhaust hoocl and use caulking compound to seal
exterior wall opening around exhaust hood.
2, Connect vent to exhaust hood
Vent must fit inside the exhaust hood. Secure vent to exhaust
hood with 4" (102 mm) clamp. Run vent to dryer location
using straightest path possible. Avoid 90° turns. Use clamps
to seal all joints. Do not use duct tape, screws, or other
fastening devices that extend into interior of vent to secure
vent, because they can catch lint.
INSTALL LEVELING LEGS
Excessive Weight Hazard
Use two or more people to move and install dryer.
Failure to do so can result in back or other injury.
2, Screw in leveling legs
diamond
marking
Examine leveling legs, find diamond marking. Screw legs into
leg holes by hand, use a wrench to finish turning legs until
diamond marking is no longer visible.
Now stand the dryer on its feet. Slide the dryer until it is close
to its final location. Leave enough room to connect the exhaust
vent.
For mobile home use
Gas dryers must be securely fastened to the floor.
Mobile home installations require a Mobile Home installation
Hold-down Kit. For ordering information please sse your
"Use and Care Guide".
MAKE GAS CONNECTION
• Connect gas supply to dryer
Flared
male fitting ........
Non-flared
male fitting
Prepare dryer for leveling legs Remove red cap from gas pipe. Using a wrench to tighten,
connect gas supply to dryer. Use pipe-joint compound
on threads of all non-flared male fittings. If flexible metal
tubing is used, be sure there are no kinks.
NOTE: For LP gas connections, you must use pipe-joint
compound resistant to action of LP gas. Do not use
TEFLON _'*_ttape.
To avoid damaging floor, use a large flat piece of cardboard
from dryer carton; place under entire back edge of dryer.
Firmly grasp dryer body (not console panel) and gently lay
dryer down on cardboard.
12
1®TEFLON is a registered trademark of E.I. Dupont De Nemours and Company.

2, Plan pipe fitting connection
B C
A. 3/8" flexible gas connector C. 3/8" to 3/8" pipe elbow
B. 3/8" dryer pipe D. 3/8" pipe-to-flare adapter fitting
A combination of pipe fittings must be used to connect dryer
to existing gas line. A recommended connection is shown.
Your connection may be different, according to supply line
type, size, and location.
3. Open shut=off valve
Closed_ Open valve
Open shut-off valve in supply line; valve is open when handle
is parallel to gas pipe. Then, test all connections by brushing
on an approved noncorrosive leak-detection solution.
Bubbles will show a leak. Correct any leaks found.
CONNECT VENT
Using a 4" (102 mm) clamp, connect vent to exhaust outlet
in dryer. If connecting to existing vent, make sure vent is
clean. Dryer vent must fit over dryer exhaust outlet and
exhaust hood. Check that vent is secured to exhaust hood
with a 4" (102 mm) clamp.
Move dryer to final location. Avoid crushing or kinking vent.
After dryer is in place, remove cardboard from under the dryer.
LEVEL DRYER
fl, Level dryer
Place level here Place level here
Check levelness of dryer from side to side. Repeat from
front to back.
NOTE: The dryer must be level for the moisture sensing
system to operate correctly.
Not Level LEVEL Not Level
13

2, Adjust leveling legs REVERSE DOOR SWING
(OPTIONAL)
If your door is the Large Side-Swing Door,
follow steps 1-6.
If dryer is not level, prop up using a wood block, use wrench
to adjust legs up or down, and check again for levelness.
Once legs are level, make sure all four legs are snug against
the floor.
COMPLETE INSTALLATION
CHECKLIST
[_ Check that all parts are now installed. If there is an extra
part, go back through steps to see what was skipped.
[_ Check that you have all of your tools.
[_ Dispose of/recycle all packaging materials.
[_ Check dryer's final location. Be sure vent is not crushed
or kinked.
[_ Check that dryer is level. See "Level Dryer".
[_ Remove film on console and any tape remaining on dryer.
[_ Wipe dryer drum interior thoroughly with a damp cloth
to remove any dust.
[_ Read "Dryer Use" in your "Use and Care Guide".
[_ Set the dryer on a full heat cycle (not an air cycle) for
20 minutes and start the dryer.
if the dryer will not start, check the following:
[] Dryer is plugged into a grounded 3 prong outlet.
[] Electrical supply is connected.
[] Household fuse is intact and tight, or circuit breaker
has not tripped.
[] Dryer door is closed.
[_ When the dryer has been running for 5 minutes, open
the dryer door and feel for heat. If you feel heat, cancel
cycle and close the door.
If you do not feel heat, turn the dryer off and check
to see whether gas supply line shutoff valve is open.
[] If the gas supply line shutoff valve is closed, open
it,then repeat the 5-minute test as outlined above.
[] If the gas supply line shutoff valve is open, contact
a qualified technician.
NOTE: You may notice an odor when the dryer is first heated.
This odor is common when the heating element is first used.
The odor will go away.
If your door is the Super Wide Side-Swing Door,
follow steps 1-13.
NOTE: Magnetized screw driver is helpful.
Large SideoSwing Door
, Place towel on dryer
Place towel on top of dryer to avoid damaging the surface.
Open dryer door. Remove bottom screws from dryer cabinet
side of hinges. Loosen (do not remove) top screws from dryer
cabinet side of hinges.
14

3. Lift door off top screws
Lift door until top screws in cabinet are in large part of hince
slot. Pull door forward off screws. Set door on top of dryer.
Remove top screws from dryer cabinet.
Close door and check that door strike aligns with door
catch. If needed, slide door catch left or right within slot
to adjust alignment.
hole plugs
Use a small, flat-blade screwdriver to gently remove 4 hinge
hole plugs on left side of dryer cabinet. Insert plugs into hinge
holes on opposite side of dryer cabinet.
dryer cabinet
Super Wide Side-Swing Door
"!, Place towel on dryer
Place towel on top of dryer to avoid damaging the surface.
NOTE: Two people may be needed to reinstall door.
Insert screws into bottom holes on left side of dryer cabinet.
Tighten screws halfway. Position door so large end of door
hinge slot is over screws. Slide door up so screws are in
bottom of slots. Tighten screws, insert and tighten top
screws in hinges.
Open dryer door. Remove bottom screws from dryer cabinet
side of hinges. Loosen (do not remove) top screws from
dryer cabinet side of hinges.
15

3. Lift door off top screws 6, Rotate outer door
Take outer door and rotate in 180° and set it back down on
inner door. Be certain to keep cardboard spacer centered
between doors. Reattach outer door panel to inner door
panel so handle is on the side where hinges were just
removed, insert 4 door screws.
Lift door until top screws in dryer cabinet are in large part of
hinge slot. Pull door forward off screws. Set door (handle side
up) on top of dryer. Remove top screws from dryer cabinet.
4, Remove screws from hinges
i "
Remove screws attaching hinges to door.
5, Remove screws from door
Remove screws at top, bottom, and side of door
(4 screws). Keep door screws separate from hinge screws
as they are diferent sizes. Holding door over towel on dryer,
grasp sides of outer door and lift to separate it from inner
door.
NOTE: Do not pry apart with putty knife or screwdriver.
Do not pull on door seal or plastic door catches.
16
Flip door over so handle side is down.
f
8, Attach door hinges
Reattach door hinges to dryer door so that the larger hole is
at the bottom of the hinge.

9, Remove door strike
Remove door strike from dryer cabinet and set aside.
hinge hole plugs
1 2, Remove door strike plug
Remove door strike plug. Insert the door strike removed in
Step 9 into hole and secure with screw. Insert door strike
plug into original door strike hole and secure with screw.
Use a small, flat-blade screwdriver to gently remove 4 hinge
hole plugs on left side of dryer cabinet. Transfer plugs into
hinge holes on opposite side of dryer cabinet.
1 1, Insert screws in hinge holes on
dryer cabinet
Close door and check that door strike aligns with door
catch. If it is needed, slide door catch left or right within slot
to adjust alignment.
TROUBLESHOOTING
See the "Use and Care Guide" or visit our website and reference
Frequently Asked Questions to possibly avoid the cost of a
service call.
NOTE: Two people may be needed to reinstall door.
Insert screws into the bottom holes on left side of dryer
cabinet. Tighten screws halfway. Position door so large end
of door hinge slot is over screws. Slide door up so screws
are in bottom of slots. Tighten screws. Insert and tighten top
screws in hinges.
17

SEGURIDAD DE LA SECADORA
Su seguridad y la seguridad de los demos es muy importante.
Hemos incluido muchos mensajes importantes de seguridad en este manual y en su electrodomestico. Lea y obedezca siempre
todos los mensajes de seguridad.
Este es el s{mbolo de advertencia de seguridad.
Este simbolo le llama la atenci6n sobre peligros potenciales que pueden ocasionar la muerte o una lesi6n a
usted y a los demAs.
Todos los mensajes de seguridad irAn a continuaci6n del simbolo de advertencia de seguridad y de la palabra
"PELIGRO" o "ADVERTENCIA". Estas palabras significan:
Si no sigue las instrucciones de inmediato, usted puede
merit o sufrir una lesi6n grave.
Si no sigue las instrucciones, usted puede morir o sufrir
una lesi6n grave.
Todos los mensajes de seguridad le dir&n el peligro potencial, le dir&n c6mo reducir las posibilidades de sufdr una lesi6n y Io que
puede suceder si no se siguen las instrucciones.
""Riesgo de incendio"
m
m
m
La instalaci6n de la secadora de ropa debe estar a cargo de un instalador competente.
Instale la secadora de ropa segQn las instrucciones del fabricante y los c6digos locales.
No instale una secadora de ropa con materiales de ventilaci6n de pl_stico flexible.
Si se usa un conducto de metal flexible (de hoja de metal), 6ste deber_ set de un tipo
especifico, que est_ identificado pot el fabricante de electrodom_sticos como apto
para set usado con secadoras de ropa. Es sabido que los materiales de ventilaci6n
flexible se derrumban, se aplastan con facilidad y atrapan pelusa. Estas condiciones
obstruir_n el flujo de aire de la secadora de ropa yaumentar_n el riesgo de incendio.
Para reducir el riesgo de lesiones severas o la muerte, siga todas las instrucciones
de instalacibn.
-Guarde estas instrucciones.
IMPORTANTE: La instalaci6n de gas debe hacerse de acuerdo con los c6digos locales, o si no los hay, con el C6digo Nacional
de Gas Combustible (National Fuel Gas Code), ANSi Z223.1/NFPA 54.
La secadora debe estar conectada a tierra de acuerdo con los c6digos locales, o si no los hay, con el C6digo Nacional de
Electricidad (National Electrical Code), ANSVNFPA 70.
18

ADVERTENCIA: Para su seguridad, la inforrnaci6n en este manual debe ser observada
para rninirnizar el riesgo de incendio o explosi6n, o para prevenir dahos apropiedades,
heridas o la muerte.
- No alrnacene o use gasolina u otros liquidos y vapores inflarnables cerca de _ste u otto
aparato electrodorn_stico.
- PASOS QUE USTED DEBE SEGUIR SI HUELE A GAS:
® No trate de encender ning_n aparato electrodom6stico.
oNo toque ning_n interruptor el_ctrico; no use ning_n tei_fono en su edificio.
®Desaloje a todos los ocupantes del cuarto, edificio o brea.
=Llame inmediatamente a su proveedor de gas desde el tel6fono de un vecino.
Siga las instrucciones de su proveedor de gas.
®Si usted no puede cornunicarse con su proveedor de gas, llarne al departamento
de bornberos.
- La instalaci6n y el servicio deben set efectuados por un instalador calificado, una
agencia de servicio o por el proveedor de gas.
ADVERTENCIA: Las p6rdidas de gas no siempre se pueden detectar por el olfato.
Los proveedores de gas recomiendan que usted use un detector de gas aprobado por UL (Laboratorio de normalizaci6n) o
CSA (Asociacion canadiense de seguridad).
Para obtener mAs informaci6n, p6ngase en contacto con su proveedor de gas.
Si se detecta una fuga de gas, siga las instrucciones de "Pasos que usted debe seguir si huele a gas".
INSTRUCCIONES IMPORTANTES DE SEGURIDAD
ADVERTENCIA: A fin de reducir el nesgo de incendio, descarga electrica o de daSo alas personas que usen
la secadora, deben seguirse las precauciones bAsicas, incluidas las siguientes:
[] Lea todas las instrucciones antes de usar la secadora.
[] No coloque los objetos expuestos a aceite para cocinar
en su secadora. Los objetos expuestos a aceites para
cocinar pueden contribuir a una reacci6n quimica que
podrfa causar que una carga se inflame.
[] No seque artfculos que ya se hayan limpiado, lavado,
remojado o manchado con gasolina, disolventes de
limpieza en seco, u otras sustancias infiamables o
explosivas ya que despiden vapores que pueden
encenderse o causar una explosi6n.
[] No permita que jueguen los niSos sobre o dentro de la
secadora. Es necesaria la cuidadosa vigilancia de los
niSos toda vez que se use la secadora cerca de ellos.
[] Quite la puerta de la secadora al compartimiento de secado
antes de poneda fuera de funcionamiento o de descartada.
[] No introduzca las manos en la secadora cuando el tambor
estA en movimiento.
[] No instale o almacene esta secadora donde estarA
expuesta a agua o a la intemperie.
[] No trate de forzar los controles.
[] No repare o reemplace ninguna pieza de la secadora ni
trate de reparada a menos que esto se recomiende
especificamente en este Manual de uso y cuidado o en
instrucciones de reparaci6n publicadas para el usuario
que usted comprenda y s61o si cuenta con la experiencia
necesaria para Ilevar a cabo dicha reparaci6n.
[] No utilice suavizantes de telas o productos para eliminar
el estatico de prendas a menos que Io recomiende el
fabricante del suavizante de telas o las instrucciones del
producto en uso.
[] No utilice calor para secar prendas que contengan espuma
de caucho o materiales de caucho con textura similar.
[] Limpie el filtro de pelusa antes o depu6s de cada carga
de ropa.
[] Mantenga el Area alrededor de la apertura de ventilaci6n
ylas Areas adyacentes a esta apertura sin pelusa, polvo
o tierra.
[] La parte interior de la secadora y el ducto de escape se
deben limpiar peri6dicamente. Esta limpieza la debe Ilevar
a cabo un reparador calificado.
[] Para obtener informaci6n respecto alas instrucciones de
conexi6n a tierra, consulte "Requisitos electricos" en las
instrucciones de instalaci6n.
GUARDE ESTAS INSTRUCCIONES
19

En el estado de Massachusetts se aplican las siguientes instrucciones de instalaci6n:
[] Las instalaciones y reparaciones se deben efectuar por un contratista, plomero o gasista calificado o licenciado por el estado
de Massachusetts.
[] Si se usa una v_.lvula de bola, debe set un tipo de manigueta T.
[] Si se usa un conector de gas flexible no debe exceder de 3 pies.
Advertencias de la Proposici6n 65 del estado de California:
ADVERTENClA: Este producto contiene una sustancia qufmica identificada por el estado de California como causante de
c_.ncer.
ADVERTENCIA: Este producto contiene una sustancia qufmica identificada por el estado de California como causante de
defectos congenitos o algOn otro tipo de da_os en la funcion reproductora.
INSTRUCCIONES IMPORTANTES DE SEGURIDAD
Antes de guardar o descartar su vieja secadora, quitele la puerta.
GUARDE ESTAS INSTRUCCIONES
f
REQUISITOS DE INSTALACION
Herramientas y piezas
ReOna las herramientas y piezas necesarias antes de comenzar
la instalaci6n.
Herramientas necesarias para todas
las instalaciones:
Destornillador de hoja
plana
Llave de tuercas de 1/4"
se recomienda)
Cinta de medir
Destornillador Phillips # 2
Tijeras de lata (instalaciones
del nuevo ducto de escape)
Abrazaderas para ducto
Nivel
Llave ajustable que se
abra a 1" (25 mm) o
Ilave de cubo de cabeza
hexagonal (para regular
las patas de la secadora)
Pinzas
Pistola y masilla para calafateo
(para instalar el nuevo ducto de
escape)
Cuchillo para uso general
2O
