Kenmore 721.80032 Quick start guide

Models/Modelos
721.80032
721.80033
721.80034
721.80039
721.80042
721.80043
721.80044
721.80049
721.81043
721.85032
721.85033
721.85039
Read and save these
installation instructions,
Lea y guarde estas
instrucciones de
instalaci6n
iNSTALLATiON
iNSTRUCCIONES
iNSTRUCTiONS
!
DEINSTALACION
i
i
Microwave Hood Combination
Combinaci6nMicroondasCampana
Part No. MFL39433001 Sears, Roebuck and Co., Hoffman Estates,IL 60179 www.sears.com

YOUR SAFETY FIRST

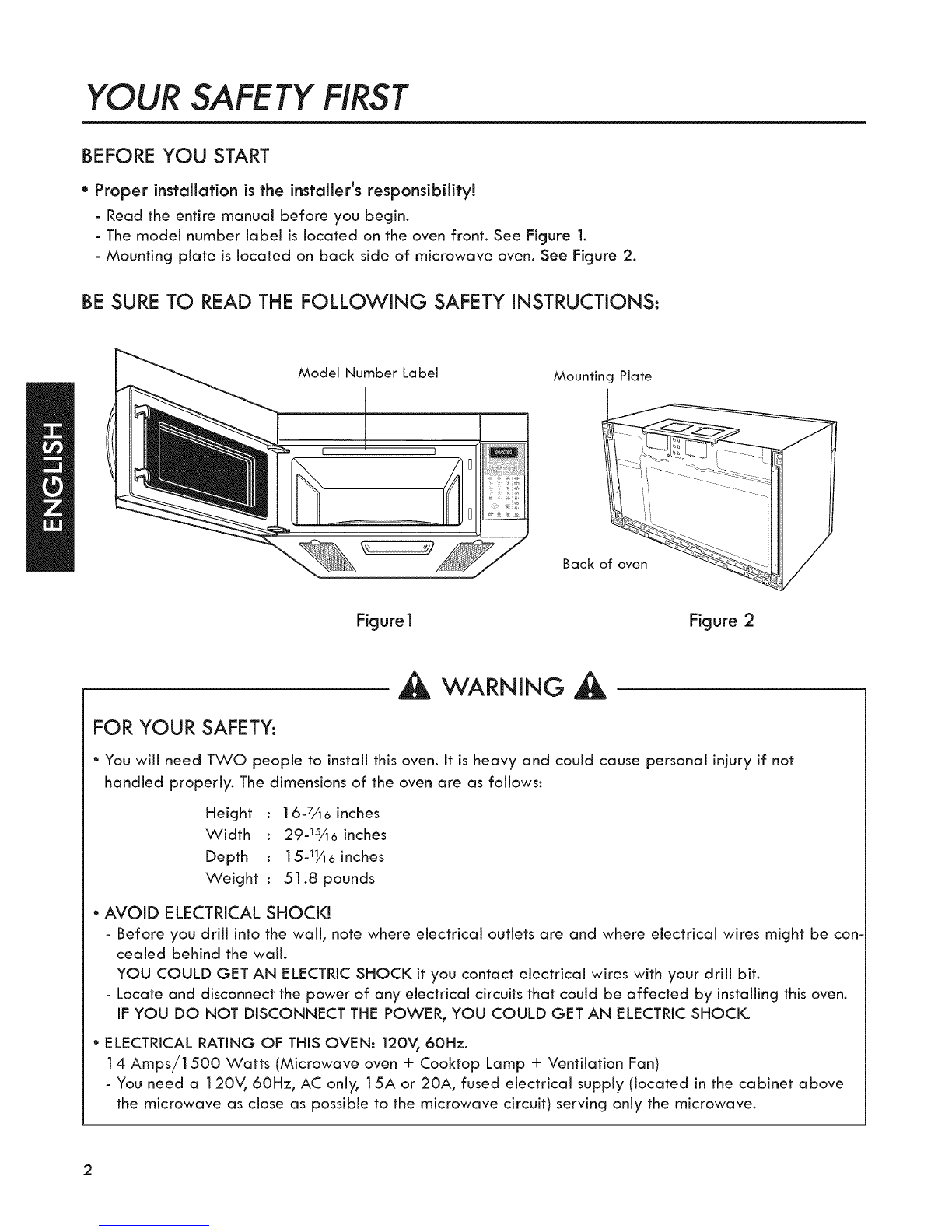

BEFORE YOU START
*Proper installation is the installer's responsibility!
-Read the entire manual before you begin.
- The model number label is located on the oven front. See Figure 1.
- Mounting plate is located on back side of microwave oven. See Figure 2.
BE SURE TO READ THE FOLLOWING SAFETY iNSTRUCTiONS:
Model Number Label
! J
Figurel
Mountinc Hate
Back of
Figure 2
WARNING
FOR YOUR SAFETY:
•You wiii need TWO people to install this oven. It is heavy and could cause personal injury if not
handled properly. The dimensions of the oven are as follows:
Height : 16-7,46 inches
Width : 29Js,46 inches
Depth : 15-1¼6 inches
Weight : 51.8 pounds
•AVOID ELECTRICAL SHOCK!
- Before you drill into the wail, note where electrical outlets are and where eiectricai wires might be con-
ceaied behind the wail.
YOU COULD GET AN ELECTRIC SHOCK it you contact electrical wires with your drill bit.
- Locate and disconnect the power of any electrical circuits that could be affected by installing this oven.
IF YOU DO NOT DISCONNECT THE POWER, YOU COULD GET AN ELECTRIC SHOCK.
• ELECTRICALRATING OF THiS OVEN: 120V, 60Hz.
14 Ampsi1500 Watts (Microwave oven + Cooktop Lamp + Ventilation Fan)
- You need a 120V, 60Hz, AC only, 15A or 20A, fused electrical supply (located in the cabinet above
the microwave as close as possible to the microwave circuit) serving only the microwave.

YOUR SAFETY FIRST
• THIS APPLIANCE MUST BE GROUNDED!
- if there is an electrical short circuit, grounding reduces the risk of electrical shock by providing an
escape wire for the electric current. This appliance is equipped with a cord having a grounding
wire with a grounding plug. PROPERLYPOLARIZED AND
• Place the plug into a properly installed and grounded outlet. GROUNDED OUTLET
See Figure 3.
• Do not use an extension cord.
• Keep the power cord dry and do not pinch or crush it.
• DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE
THE POWER SUPPLY CORD GROUNDING PRONG!
This appliance MUST be grounded! Three-Pronged (Grounding) plug
Figure 3
WARNING
Jf you use the grounding plug improperly, you risk electric shock!
- Check with a qualified electrician if you are not sure whether the oven is properly grounded or if you
do not completely understand the grounding instructions.
DO NOT USE A FUSE IN THE NEUTRAL OR GROUNDING CIRCUIT.
WARNING
improper grounding could result in electric shock or other personal injury.
SAVE THESE INSTRUCTIONS FOR THE LOCAL ELECTRICAL INSPECTOR'S USE.
•DO NOT EXPOSE YOURSELF TO EXCESSIVE MICROWAVE ENERGY!
- DO NOT try to operate the microwave oven with the door open.
- DO NOT tamper with or defeat the safety interlocks.
- DO NOT place objects between the microwave oven front face and the door.
- DO NOT allow soil or cleaner residue to build up on the flat surfaces around the microwave oven door.
- DO NOT operate the microwave oven if it is damaged.
- The microwave oven door must close properly to operate safely.
- DO NOT use the microwave oven:
• If the door is bent.
• If the hinges or latches are broken or loose.
• If the door seals, sealing surfaces or glass is broken.
- DO NOT attempt to adjust or repair the oven yourself!
It should be adjusted and repaired by a qualified technician who can check for microwave leakage
afterrepairing the oven.
WARNING
Jf you do not use the microwave oven as instructed, you could be exposed to
excessive microwave energy.

YOUR SAFETY FIRST

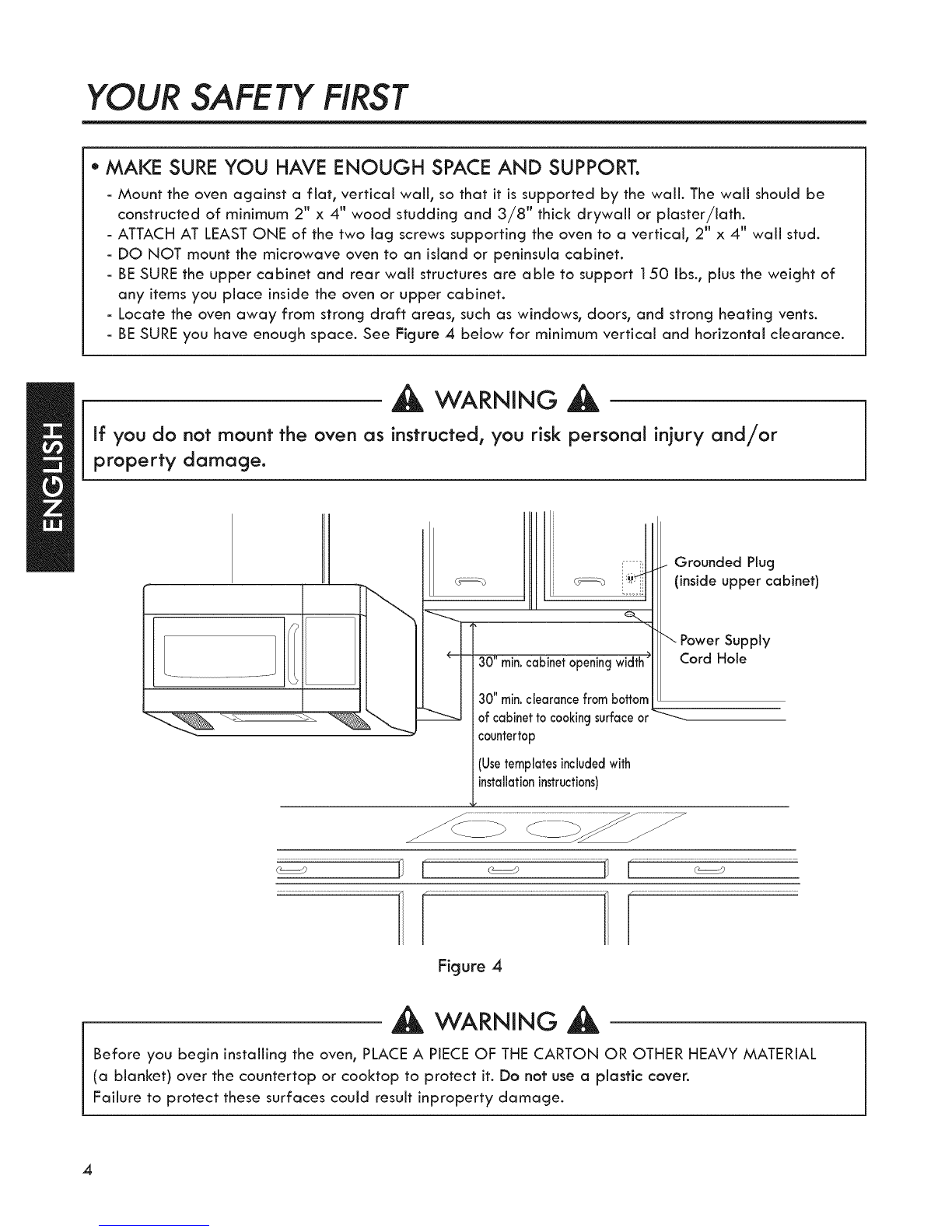

• MAKE SURE YOU HAVE ENOUGH SPACE AND SUPPORT.
- Mount the oven against a flat, vertical wail, so that it is supported by the wail. The wall should be
constructed of minimum 2" x 4" wood studding and 3/8" thick drywall or piaster/lath.
- ATTACH AT LEAST ONE of the two lag screws supporting the oven to a vertical, 2" x 4" waJJ stud.
- DO NOT mount the microwave oven to an island or peninsula cabinet.
- BESURE the upper cabinet and rear wail structures are able to support 150 Ibs., plus the weight of
any items you place inside the oven or upper cabinet.
- Locate the oven away from strong draft areas, such as windows, doors, and strong heating vents.
- BESURE you have enough space. See Figure 4below for minimum vertical and horizontal clearance.
WARNING
if you do not mount the oven as instructed, you risk personal injury and/or
property damage.
i._ Grounded Plug
30" rain°cabinet opening width
30"rain.clearancefrom bottom
of cabinetto cookingsurfaceor
countertop
(Use templatesincludedwith
installationinstructions)
Figure 4
WARNING
Before you begin installing the oven, PLACE A PIECE OF THE CARTON OR OTHER HEAVY MATERIAL
(a blanket) over the countertop or cooktop to protect it. Do not use a plastic cover.
Failure to protect these surfaces could result inproperty damage.
4

PARTS, TOOLS, MATERIALS
THE FOLLOWING PARTS ARE SUPPLIED WiTH THE OVEN:
NOTE: Depending on your ventilation requirements, you may not use all of these parts.
Damper/duct connector
(for roof vented or wall vented installation).
Not Actual Size
One power cord clamp and
One dark-colored mounting screw
(to hold the power cord).
Actual Size
One power cord clamp bushing - Actual Size
(for the cord hole in a metal upper cabinet).
Four 1/4" x 2" lag screws - Actual Size
(for wall stud holes). Four 1/4" x 3" toggle bolts - Actual Size (for drywall holes).
Four 1/4" x 3" bolts -Actual Size
(for securing to the upper cabinet).
OR
Four spring toggle heads - Actual Size
(for the toggle bolts).
Two tapping screws - Actual Size
(for attaching the damper duct connector)
One upper cabinet template
- Not Actual Size
One rear wall template - Not Actual Size
i
!
NOTE: You need to install at least one lag screw into a 2" x 4" stud and four anchor bolts into the wall,
and the mounting area must meet the 150 Ibs. weight requirement.
5

PART TOOL MATERIALS
YOU WILL NEED THE FOLLOWING TOOLS AND MATERIALS FOR THEINSTALLATION:
Carton or other heavy material for covering the counter top.
Clear tape Stud finder or thin nail.
(for taping the templates to the wail).
Saber saw
(for cutting vent holes for roof or wail venting).
Phillips screwdriver (for the screws).
Pencil
Fiat blade screwdriver (for the bolts).
Key hole saw (for the power cord hole).
3/8" and 3/4" wood drill bits
1/2" and 3/1 6"
drill bits
Plumb line
Measuring tape (metal preferred). Duct Tape
Small side cutters or tin snips Caulking gun
• If you have brick or masonry wails, you need special hardware and tools.
• The ductwork you need for the installation is not included. Aii wail and roof caps must have a back-draft
damper.

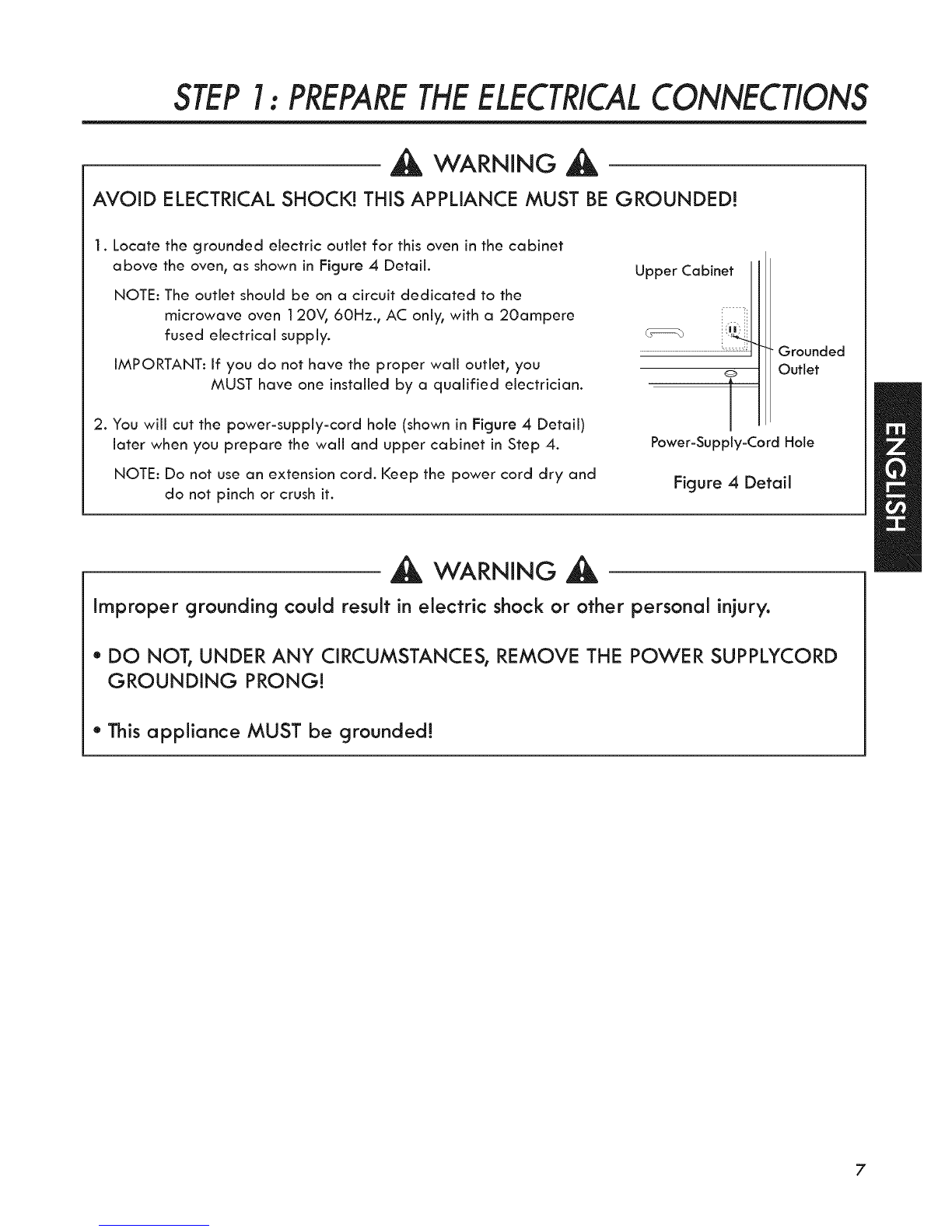

STEP1: PREPARETHEELECTRICALCONNECTIONS
WARNING
AVOID ELECTRICAL SHOCK[ THIS APPLIANCE MUST BE GROUNDED[
1. Locate the grounded electric outlet for this oven in the cabinet
above the oven, as shown in Figure 4Detail.
NOTE: The outlet should be on a circuit dedicated to the
microwave oven 120V, 60Hz., AC only, with a 20ampere
fused electrical supply.
IMPORTANT: If you do not have the proper wail outlet, you
MUST have one installed by a qualified electrician.
2. You will cut the power-supply-cord hole (shown in Figure 4Detail)
later when you prepare the wail and upper cabinet in Step 4.
NOTE: Do not use an extension cord. Keep the power cord dry and
do not pinch or crush it.
Upper Cabinet
...................................
01
Power-Supply-Cord Hole
Grounded
Outlet
Figure 4 Detai[
_, WARNING
improper grounding could result in electric shock or other personal injury.
• DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE POWER SUPPLYCORD
GROUNDING PRONG[
This appliance MUST be grounded[
7

STEP2 : PREPARETHEVENtiNG SYSTEM
NOTE: The ductwork you need for outside ventilation is not included with your oven.
The standard ductwork fittings and length are shown in Figure 9, page 9.
WARNING-FIRE HAZARD
THIS OVEN MUST BE PROPERLY VENTED!
You may vent your oven in one of three ways:
Roof Venting: If your oven is located on an outside wall near the roof, as in Figure 6 (3-1/4" x 10" duct)
and Figure 8 (6" round duct.)
Wall Venting: If your oven is located on an outside wail on the first floor of your house, as in Figure 5
(3-1/4" x 10" duct) and Figure 8 (6" round duct.)
Room Venting: If your oven is located on an inside wail of your house, as in Figure 7.
NOTE: if you choose the rear exhaust method (roof or wall venting), be sure there is enough
clearance within the wall for the exhaust duct.
Wall Venting
_-Wall cap
Figure 5
Through-the-wall
Roof Venting
Ca _i Roof ca_<_
3-1/4"x10"I I I
duct [_
Oven" _: IIJl Through-the-wall
Wall venting
Figure 6
REMEMBER AS YOU INSTALL THE VENTING:
Keep the length of the ductwork and the number
of elbows to a minimum to ventilate your oven
efficiently. See examples on page 9.
Keep the size of the ductwork the same.
Do not install two elbows together.
Use duct tape to seal aJJjoints in the duct system.
Use caulking to seal the exterior waJJ or roof
opening around the cap.
Room Venting
Cabinet
Figure 7
Roof_j>
6" min. _v...---'rf
diameter _._ J Wall cap
roundduct I-_'t ...... ".'7_!
E,bow'T --'.'
3-1/4"to _-_ I:__"
round duct f(_*_
transition 3-1/4" to round
ductwork transition
Figure 8

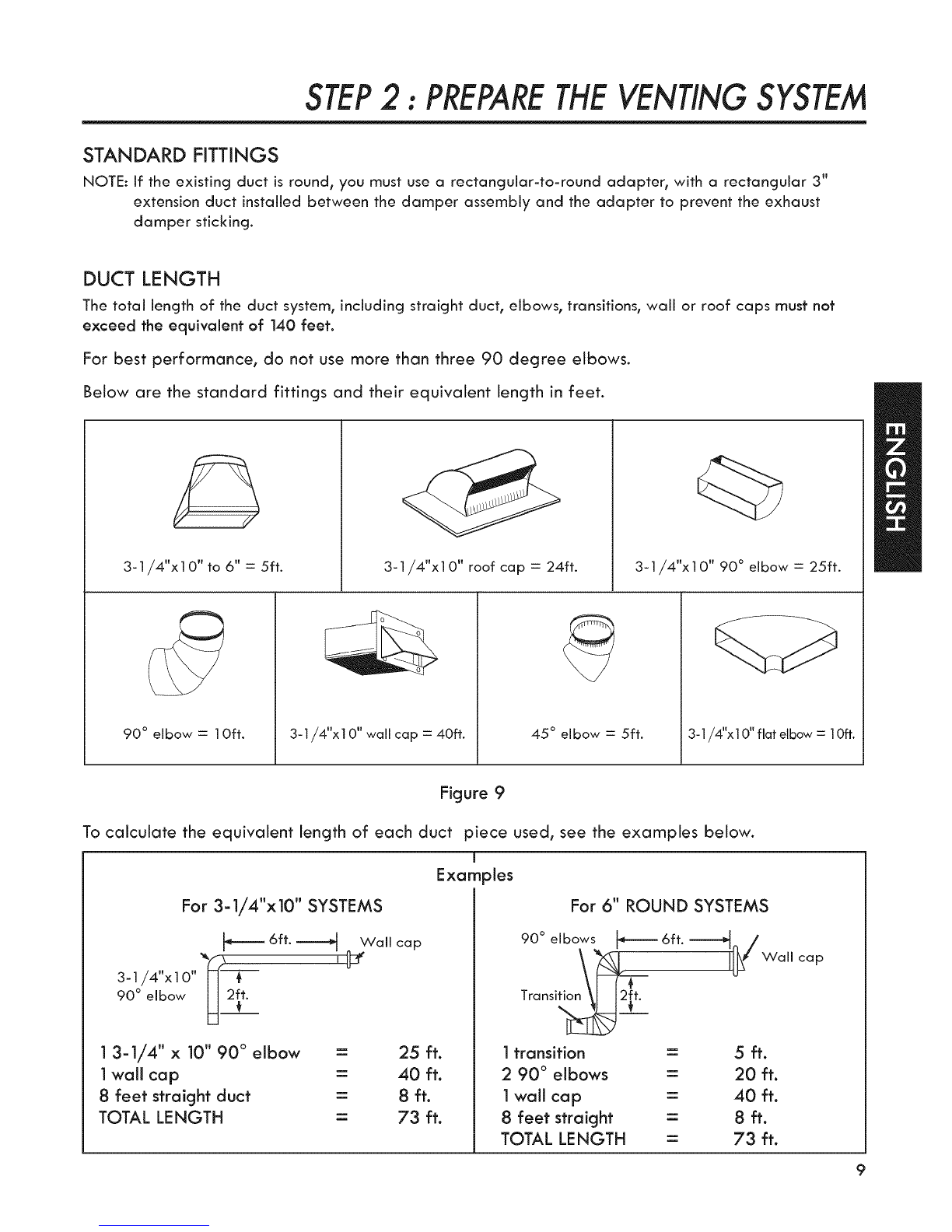

STEP2 : PREPARETHEVENTINGSYSTEM
STANDARD FiTTiNGS
NOTE: If the existing duct is round, you must use a rectangular-to-round adapter, with a rectangular 3"
extension duct installed between the damper assembly and the adapter to prevent the exhaust
damper sticking.
DUCT LENGTH
The total length of the duct system, including straight duct, elbows, transitions, wail or roof caps must not
exceed the equivalent of 140 feet.
For best performance, do not use more than three 90 degree elbows.
Below are the standard fittings and their equivalent length in feet.
3-1/4"x 10" to 6" : 5ft. 3-1/4"xl O" roof cap : 24ft. 3-1/4"xl 0" 90 ° elbow : 25ft.
90 ° elbow -- I Oft. 3-1/4"xt 0" wall cap : 40ft. 45 °elbow = 5ft. 3-1/4"xl 0" flat elbow = 1Oft.
Figure 9
To calculate the equivalent length of each duct piece used, see the examples below.
Exam
For 3-1/4"x10" SYSTEMS
6ft. | Wall cap
90 ° elbow
1 3-1/4" x 10" 90 ° elbow =25 ft.
1wall cap =40 ft.
8 feet straight duct = 8 ft.
TOTAL LENGTH = 73 ft.
)Jes
For 6" ROUND SYSTEMS
90° elb°ws | 6ft" ----_/Wall ca p
Transition__2f_t.
t....
1 transition = 5 ft.
2 90 ° elbows = 20 ft.
1 wall cap = 40 ft,
8 feet straight = 8 ft.
TOTAL LENGTH = 73 ft.
9

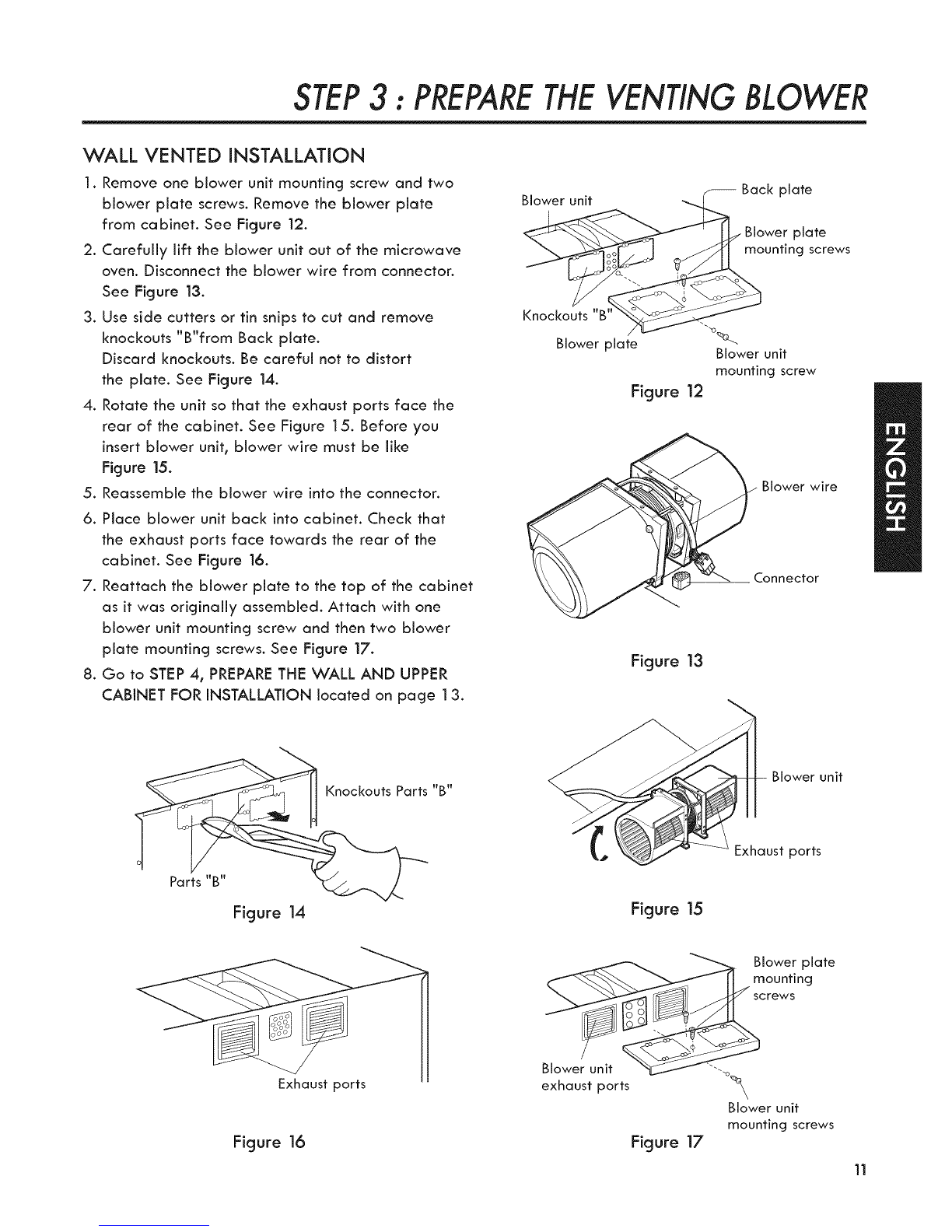

STEP3 : PREPARETHEVENtiNG BLOWER
Your microwave oven is shipped with the blower assembled for room venting (recirculafing).
You need to adjust the blower if you want wail vented or roof vented installation.
WARNING
ELECTRICAL SHOCK HAZARD! UNPLUG UNiT BEFORE WORKING ON iT+
DO NOT PULL OR STRETCH THE BLOWER WtRtNG! Pulling and stretching the blower wiring could result
in electrical shock.
1. Remove any shipping materials and parts from inside
the microwave oven.
2. Cover the counter top or cooktop with a thick,
protective covering to protect it from damage and
dirt. See Figure 10.
NOTE: if you have a free-standing range, disconnect
it, move it onto a piece of cardboard or
hardboard and puil it away from the wail,
so that you can get closer to the upper
cabinet and back wail for easier measuring
and drilling.
3. Remove mounting plate 2 screws from the mounting
plate as shown and discard them. (See Figure 11.)
4. The mounting plate wiil also be used to locate and
mark the mounting holes on the rear wail.
5. Locate exhaust adaptor, grease filters and
hardware packet.
6. At this point, remove any adhesive tape
(if there is any), on the exhaust adaptor, the grease
filters and the power supply cord.
Figure 10
A thick, protective
covering
Mounting plate
-4
Mounting plate
screw (2 screws)
trol Panel Side
Figure 11
ROOM VENTED INSTALLATION:
Go to STEP 4, PREPARE THE WALL AND UPPER CABINET FOR INSTALLATION
located on page 13.
10

STEP3 : PREPARETHEVENtiNG BLOWER
WALL VENTED iNSTALLATiON
1. Remove one blower unit mounting screw and two
blower plate screws. Remove the blower plate
from cabinet. See Figure 12.
2. Carefully lift the blower unit out of the microwave
oven. Disconnect the blower wire from connector.
See Figure 13.
3. Use side cutters or tin snips to cut and remove
knockouts "B"from Back plate.
Discard knockouts. Be careful not to distort
the plate. See Figure 14.
4. Rotate the unit so that the exhaust ports face the
rear of the cabinet. See Figure 15. Before you
insert blower unit, blower wire must be like
Figure 15.
5. Reassemble the blower wire into the connector.
6. Place blower unit back into cabinet. Check that
the exhaust ports face towards the rear of the
cabinet. See Figure 16.
7. Reattach the blower plate to the top of the cabinet
as it was originally assembled. Attach with one
blower unit mounting screw and then two blower
plate mounting screws. See Figure 17.
8. Go to STEP 4, PREPARE THE WALL AND UPPER
CABINET FOR INSTALLATION located on page 13.
BaCk plate
Blower plate
unting screws
_. . /-_I-_ ".o
Bower p ate -_
Blower unit
mounting screw
Figure 12
Blower wire
Connector
Figure 13
_ "B"
Figure 14 Figure 15
Blower unit
Exhaust ports
Exhaust ports
Figure 16
B_cOWer plate
m?unJ_ng
Blower unit _ "-o
exhaust ports Blower unit
mounting screws
Figure 17 11

STEP3 : PREPARETHEVENtiNG BLOWER
ROOF VENTED iNSTALLATiON
1. Remove one blower unit mounting screw and two
blower plate screws. Remove the blower plate
from cabinet. See Figure 18.
2. Carefully lift the blower unit out of the microwave
oven.
3. Rotate blower unit 90 ° so the exhaust ports face
the top of the cabinet. See Figure 19.
4. Place blower unit back into microwave oven.
Blower plate
unting screws
Blower plate Blower unit
mounting screws
Figure 18
5. Use side cutters or tin snips to cut and remove
knockouts '_A'_from blower plate.
Discard knockouts. Be careful not to distort the
plate. See Figure 20.
6. Reattach blower plate to microwave oven.
Attach with the one blower unit mounting screw
and then the two blower plate mounting screws.
See Figure 21. Figure 19
Blower unit
Knockots "A"
Blower plate
Figure 20
Blower unit
Blower plate
-. mo_unting screws
Blower plate Blower unit
mounting screws
Figure 21
12

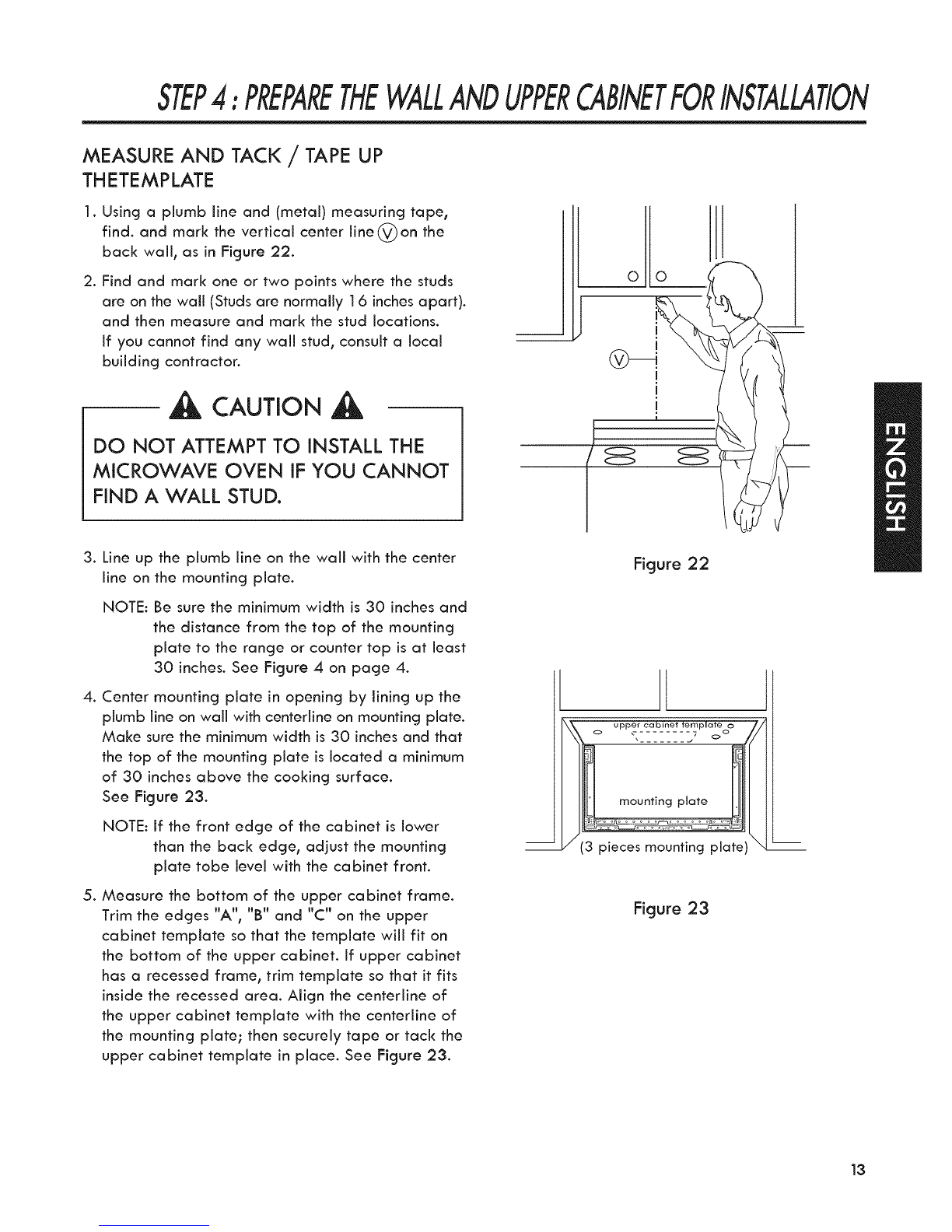

STEP4: PREPARETHEWALLANDUPPERCABINETFOR/NSTALLATiON
MEASURE AND TACK /TAPE UP
THETEMPLATE
1. Using o plumb line and (metal) measuring tope,
find. and mark the vertical center line(_)on the
back wail, as in Figure 22.
2. Find and mark one or two points where the studs
ore on the wall (Studs ore normally 16 inches apart).
and then measure and mark the stud locations.
if you cannot find any wall stud, consult o local
building contractor.
CAUTION
DO NOT ATTEMPT TO iNSTALL THE
MICROWAVE OVEN iF YOU CANNOT
FiND A WALL STUD.
O
3. Line up the plumb line on the wail with the center
line on the mounting plate.
NOTE: Be sure the minimum width is 30 inches and
the distance from the top of the mounting
plate to the range or counter top is at least
30 inches. See Figure 4on page 4.
4. Center mounting plate in opening by lining up the
plumb line on wail with centeriine on mounting plate.
Make sure the minimum width is 30 inches and that
the top of the mounting plate is located o minimum
of 30 inches above the cooking surface.
See Figure 23.
NOTE: if the front edge of the cabinet is lower
than the back edge, adjust the mounting
plate tobe level with the cabinet front.
5. Measure the bottom of the upper cabinet frame.
Trim the edges "A", "B" and "C" on the upper
cabinet template so that the template wJJJfit on
the bottom of the upper cabinet, if upper cabinet
has o recessed frame, trim template so that it fits
inside the recessed area. Align the centeriine of
the upper cabinet template with the centeriine of
the mounting plate; then securely tape or tack the
upper cabinet template in place. See Figure 23.
Figure 22
upper cabinet templafe o
o ,-_._._-_? o o
J! (3 Diecesmountina _ate/ "4
__ (3 pieces mounting plate) --
Figure 23
13

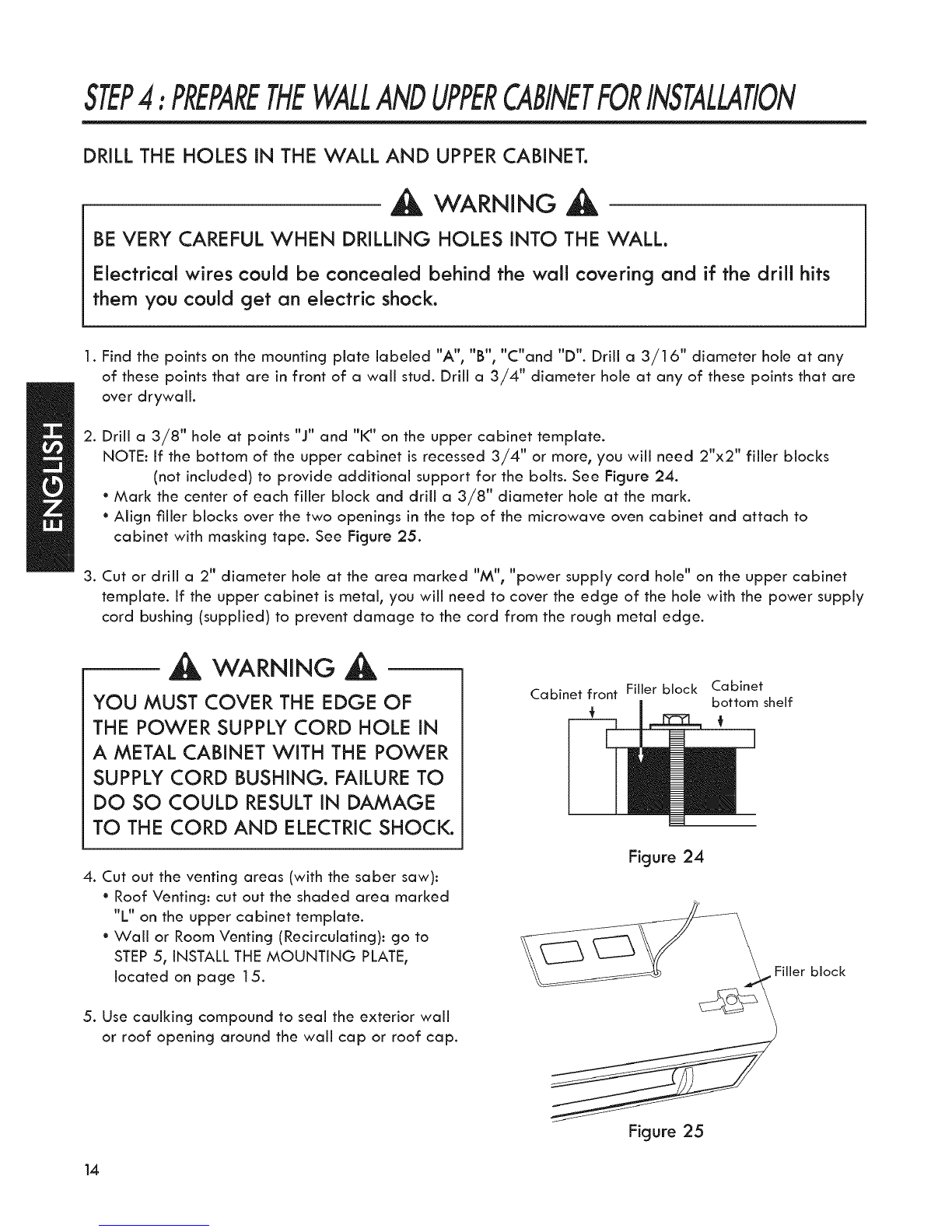

STEP4: PREPARETHEWALLANDUPPERCABINETFORINSTALLATION
DRILL THE HOLES iN THE WALL AND UPPER CABINET.
WARNING
BE VERY CAREFUL WHEN DRiLLiNG HOLES iNTO THE WALL.
Electrical wires could be concealed behind the wall covering and if the drill hits
them you could get an electric shock.
1. Find the points on the mounting plate Jabeled "A', "B', "C"and "D". Drill a 3/16" diameter hole at any
of these points that are in front of a waJJ stud. DrHJ a 3/4" diameter hoJe at any of these points that are
over drywaJL
2. DriJJ a 3/8" hoJe at points "J" and "K" on the upper cabinet template.
NOTE: If the bottom of the upper cabinet is recessed 3/4" or more, you wHJ need 2"x2" filler blocks
(not incJuded) to provide additionaJ support for the boJts. See Figure 24.
•Mark the center of each filler block and driJl a 3/8" diameter hoJe at the mark.
•AJign fiiJer blocks over the two openings in the top of the microwave oven cabinet and attach to
cabinet with masking tape. See Figure 25.
3. Cut or driJJ a 2" diameter hoJe at the area marked "M', "power supply cord hoJe" on the upper cabinet
template. If the upper cabinet is metaJ, you wiJJ need to cover the edge of the hoJe with the power supply
cord bushing (supplied) to prevent damage to the cord from the rough metal edge.
WARNING
YOU MUST COVER THE EDGE OF
THE POWER SUPPLY CORD HOLE iN
A METAL CABINET WITH THE POWER
SUPPLY CORD BUSHING. FAILURE TO
DO SO COULD RESULT iN DAMAGE
TO THE CORD AND ELECTRIC SHOCK°
4. Cut out the venting areas (with the saber saw):
•Roof Venting: cut out the shaded area marked
"L" on the upper cabinet tempJate.
WaJJ or Room Venting (RecircuJating): go to
STEP 5, INSTALL THE MOUNTING PLATE,
Jocated on page 15.
5. Use caulking compound to seal the exterior wail
or roof opening around the waJJ cap or roof cap.
Cabinet front Filler block Cabinet
bottom shelf
ff
Figure 24
Filler block
Figure 25
14

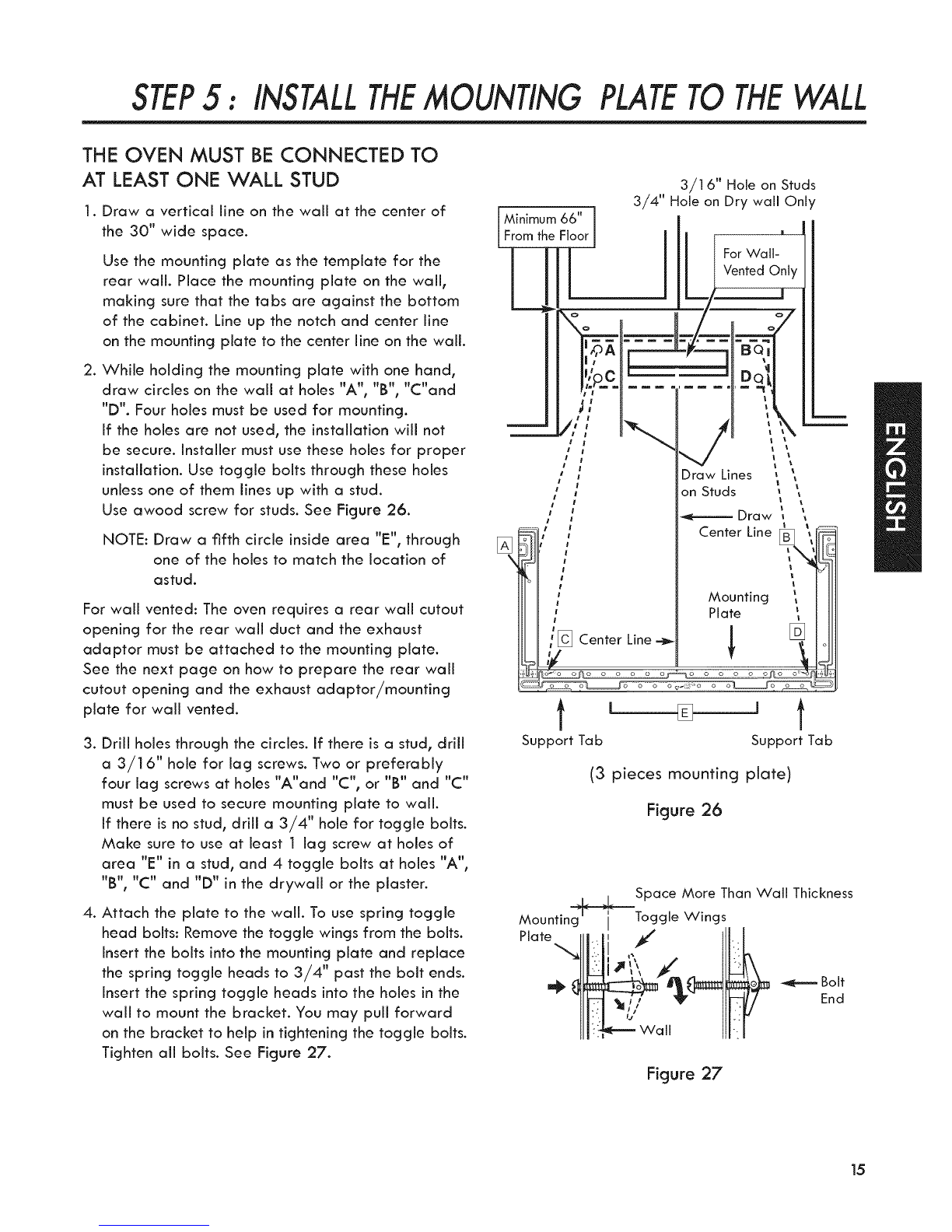

STEP5 • INSTALLTHEMOUNTING PLATETO THEWALL
THE OVEN MUST BE CONNECTED TO
AT LEAST ONE WALL STUD
1. Draw a vertical line on the wall at the center of
the 30" wide space.
Use the mounting plate as the template for the
rear wall. Place the mounting plate on the wall,
making sure that the tabs are against the bottom
of the cabinet. Line up the notch and center line
on the mounting plate to the center line on the wall.
2. While holding the mounting plate with one hand,
draw circles on the wall at holes "A", "B", "C"and
"D". Four holes must be used for mounting.
If the holes are not used, the installation will not
be secure. Installer must use these holes for proper
installation. Use toggle bolts through these holes
unless one of them lines up with a stud.
Use awood screw for studs. See Figure 26.
NOTE: Draw a fifth circle inside area "E", through
one of the holes to match the location of
astud.
For wall vented: The oven requires a rear wall cutout
opening for the rear wall duct and the exhaust
adaptor must be attached to the mounting plate.
See the next page on how to prepare the rear wail
cutout opening and the exhaust adaptor/mounting
plate for wail vented.
3. Drill holes through the circles. If there is a stud, drill
a 3/16" hole for lag screws. Two or preferably
four lag screws at holes "A"and "C", or "B" and "C"
must be used to secure mounting plate to wall.
If there is no stud, drill a 3/4" hole for toggle bolts.
Make sure to use at least I lag screw at holes of
area "E" in a stud, and 4 toggle bolts at holes "A",
"B", "C" and "D" in the drywall or the plaster.
4. Attach the plate to the wall. To use spring toggle
head bolts: Remove the toggle wings from the bolts.
Insert the bolts into the mounting plate and replace
the spring toggle heads to 3/4" past the bolt ends.
Insert the spring toggle heads into the holes in the
wall to mount the bracket. You may pull forward
on the bracket to help in tightening the toggle bolts.
Tighten all bolts. See Figure 27.
Minimum
he
3/1 6" Hole on Studs
3/4" Hole on Dry wall Only
66" i
l I II ForWoU-
| III enteOn,y
LT! °7"
I'!pcl_-" _1 o41
;:/I I)t
/Draw Lines , \
/on Studs i \
t i _ J t
Support Tab Support Tab
(3 pieces mounting plate)
Figure 26
, Space More Than Wall Thickness
Mounting-_Toggle Wings
Hate f
_ Bolt
End
Wall
Figure 27
15

STEP5" INSTALLTHEMOUNTING PLATETO THEWALL
TO PREPARE THE REAR WALL CUTOUT
OPENING AND EXHAUST ADAPTOR//
MOUNTING PLATE FOR WALL VENTING
AND ROOF VENTING:
NOTE: if room vented installation is used, skip this step.
1. Using the Wail-template. This template wiii give the
location and size of the box cutout for the rear wail
duct as described in step 5 item 1(page 15)
2. Using apencil, put dots through slots "F"and "G",
and through holes "H" and "i". Remove the mounting
plate and draw lines extending through the points.
This will give the location and size of the box cutout
for the rear wall duct. See Figure 28.
Attach the exhaust adaptor to the rear mounting
plate by sliding it into the guides at the top center
of the plate on the wail side. Push in securely unfi
lit is past the top locking tabs and in the lower
locking tabs. Take care to assure the damper
hinge is installed so that it is at the top and that
the damper swings freely.
•Carefully guide the exhaust adaptor, now atached
to the mounting plate, into the house duct, before
using the screws to attach the plate to the wall.
This wiil assure proper alignment for installation.
See Figure 29.
• Return to step 5, item 3 (page 15) to continue.
After completing the installation of the mounting
plate, again check the rear damper for free
movement to assure it will operate properly.
t
REAR WALLTEMPLATE
Figure 28
Adaptor
Slide exhaust
adaptor into
guides on rear i
panel.
Damper
(hinge side up)
Mounting Hate
(wall side)
Guide
Figure 29
16

STEP6 :ATTACHTHEOVENTO THEWALL
_, WARNING _,
You will need two people to lift this
microwave. Failure to use more than
one person could result in personal
injury.
1. Carefully lift microwave oven and hang it on
support tabs (See Figure 26) at the bottom of the
mounting plate. Reaching through upper cabinet,
thread power supply cord through the power supply
cord hole in the bottom of the upper cabinet.
See Figure 30.
2. Rotate the microwave oven upward so the top of
oven is against the bottom of the upper cabinet or
cabinet frame.
3. Then insert a bolt down through each hole in the
upper cabinet bottom. See Figure 31.
Tighten the bolts until the gap between the upper
cabinet and microwave oven is closed.
4. If wail vented or room vented installation is used,
go to No. 7on the next page.
II
Power cord
\
Figure 30
cord
hoie
Figure 31
17

STEP6 :ATTACHTHEOVEN TOTHEWALL
5. Roof vented installation: See Figure 32.
Install ductwork through the vent opening in the
upper cabinet. Complete the venting system through
the roof according to the method needed.
See _°PREPARETHE VENTING SYSTEM," STEP 2 on
the page 8. Use caulking to seal exterior roof
opening around the exhaust cap. See Figure 6 on
page 8.
6. Use power supply cord damp to bundle the power
supply cord. Install the power supply cord damp,
using a screw as shown in Figure 33, to inside of
the cabinet.
Figure 32
7. To install the grease filter: Slide it into the sJide sJot,
then push up and toward oven center to lock.
See Figure 34.
8. Plug in the power supply cord.
9. Read your Owner's Manual, then check the
operation of your microwave oven.
i I IM /_l P°wer
clamp
Figure 33
Figure 34
18

Printed in china
