Kenmore 22-46762 User manual

page 1 of 2
Effective 09/14/09
09909
Because of our continuous program of product improvement, Sears
reserves the right to change materials and specications without
notice. Consult installation instructions packed with the product for
nal dimensional data. For complete warranty information, contact
your local Sears Commercial Account Manager.
22-4676X.PDF

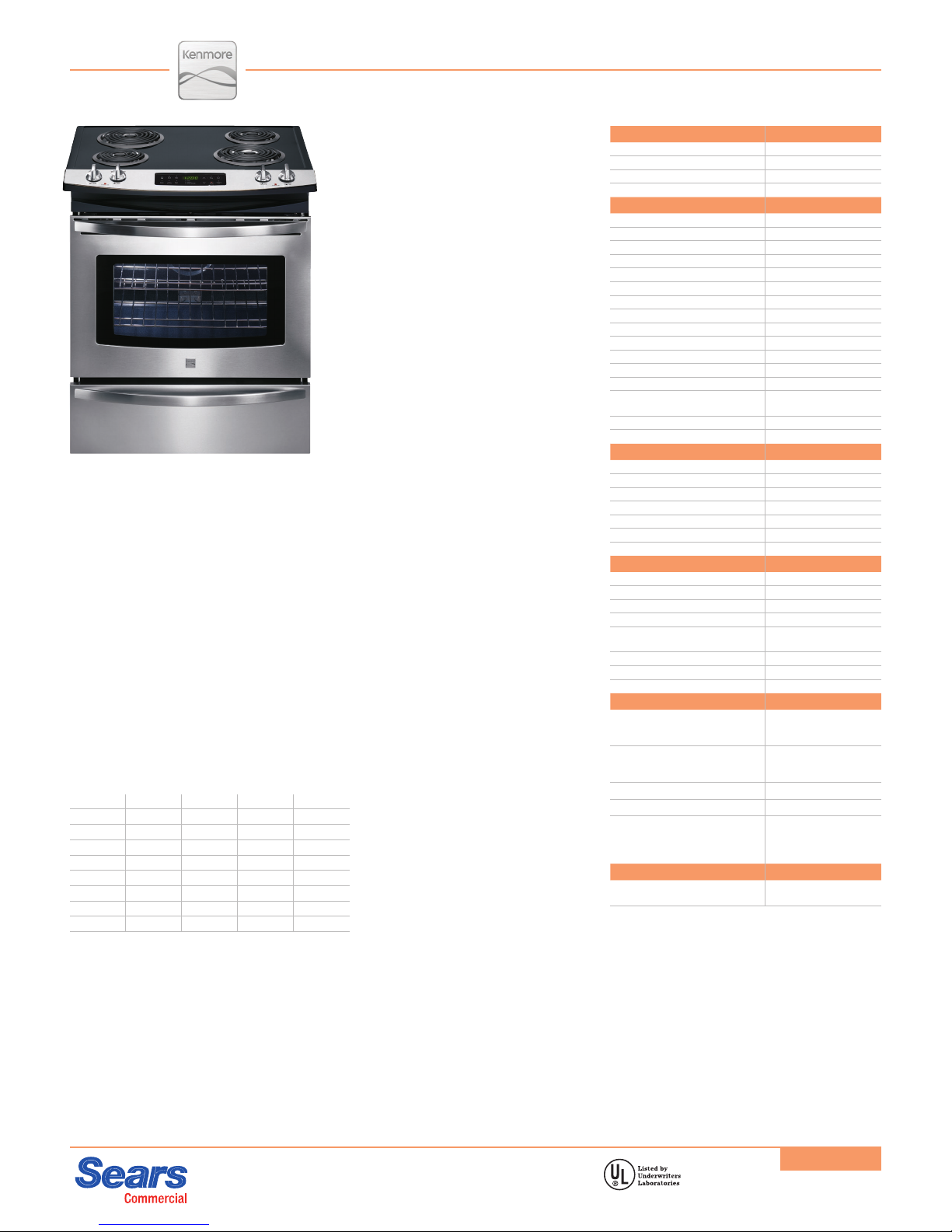

Kenmore 30-Inch Electric Coil Slide-In Range
22-46762 – White
22-46763 – Stainless
22-46764 – Bisque
22-46769 – Black
• 4.2 cu. ft. self-clean oven
• Two 8" @ 2,600W and two 6" @ 1,500W coil elements
• Porcelain drip pans
• Easy Set™ 335 controls
• Two integrated handle racks
• Sleek looking full glass oven door (46763: stainless door)
• Easy-clean control panel
• Storage drawer
• Includes rear top ller kit
slide-in ranges | 22-46762/3/4/9
Because of our continuous program of product improvement, Sears
reserves the right to change materials and specications without
notice. Consult installation instructions packed with the product for
nal dimensional data. For complete warranty information, contact
your local Sears Commercial Account Manager.
Model 22-46762 22-46763 22-46764 22-46769
Overall White Stainless Bisque Black
Console White Stainless Bisque Black
Knobs White Stainless Bisque Black
Door White Stainless Bisque Black
Drawer White Stainless Bisque Black
Handle White Stainless Bisque Black
Surface White Black Bisque Black
Pans Grey Black Bisque Black
Selection
White 22-46762
Stainless 22-46763
Bisque 22-46764
Black 22-46769
Oven Features Self-Clean
Oven Capacity (cu. ft.) 4.2
Variable Time Self-Cleaning 2–3–4 Hrs.
Electronic Oven Controls Easy Set™335
Oven Control Lockout •
Temperature Recall •
Cook & Hold Warm Oven •
Delay Start Cook & Clean
Automatic Oven Shutoff •
Sabbath Mode* •
Variable Broiling System Hi / Lo
Total Adjustable Oven Racks 2
Integrated Handle Racks 2
Oven Light Auto and Manual
Removable Glass Door
•
(46783: Stainless)
Window X-Large
Oven Interior WxHxD (In.) 24 1/8x 16 1/2x 18 1/32
Cooktop Features Deluxe Coil
8-in. (Watts) 2 @ 2,600
6-in. (Watts) 2 @ 1,500
Cooktop Surface Porcelain
Cast Metal Knobs •
Drip Pans Porcelain
Lift-up Cooktop •
Cooktop On Indicator Lights 2
General Features
Oven Door Handle Material Metal
Drawer Storage
Storage Drawer Handle Material Metal on 46763 Only
Power Rating (kW) @ 240V / 208V 11.6 / 8.7
Bake / Broil @ 240V
(Watts or BTU / Hr.) 3,400 / 2,750
Bake / Broil @ 208V(Watts) 2,253 / 2,065
Breaker / Copper Wire Size (240V)
†40 / 8
Shipping Weight (Approx. Lbs.) 175
Accessories
Backguard
White: 22-628-903046-9011
Bisque: 22-628-903046-9014
Black: 22-628-903046-9010
Side Panel Kit**
White: 22-628-903066-9011
Bisque: 22-628-903066-9014
Black: 22-628-903066-9010
Rear Top Filler Kit Included
Leveling Leg Extension Kit 22-628-903065-9010
Range Cord (Required)
49614– 4 Ft., 3 Wire, 40 Amp
49616– 6 Ft., 3 Wire, 40 Amp
49624– 4 Ft., 4 Wire, 50 Amp
49626– 6 Ft., 4 Wire, 50 Amp
Warranty
1-Year Limited Warranty –
Entire Appliance Parts & Labor
If used for other than private family purposes, warranty applies for only
90 days.
*Sabbath Mode overrides auto oven shutoff
†Always consult local and national electrical codes
**Kit includes two full size (right and left) panels. NOTE: Product is
shipped with 4 1/2" minimum depth panels. Order this full size kit as
needed.

28
5
/ 16 "
Side Panel
Door Open+
21
3
/ 4 "
35
5
/
8
" -
36
3
/ 8 "
30"
31
5
/ 16 "
Min.
cutout
width
3
/ 4 "
3
/ 4 "
31
1
/
2
"Formed or tiled
countertop
trimmed 3/4" back
at front corners of
countertop opening.
21
3
/ 4 " min.**
22
1
/ 8 " max.
CABINET
FRONT
1
1
/ 8 "
22
7
/ 8 " min.
††
23
1
/
4
" max.
COUNTERTOP PREPARATION
The cooktop sides of the range fit over the cutout edge of your countertop. Countertop must be level.
If you have a square finish (flat) countertop, no countertop preparation is required. Cooktop sides lay directly on edge of countertop.
Formed front-edged countertops must have molded edge shaved flat 3/4" from each front corner of opening.
Tile countertops may need trim cut back 3/4" from each front corner and/or rounded edge flattened.
If the existing cutout width is greater than 30 1/16", reduce the 3/4" dimension.
Shave Raised
Edge To Clear
31
1
/ 2 " Wide
Cooktop.
1
1
/ 2 " Max.
13"
30" Min.
For existing 29" cutout width
opening, you must call the Sears Service
Center for optional thinner side panels.
Also you must prepare the countertop
edge as shown in “Counterdepth
Preparation”.
Locate Cabinet
Doors 1" Min. From
Cutout Opening
18" Min.
Approx. 1
7
/ 8 "
30" Min.*
30"
†
±
1
/ 16 "
35
5
/ 8 " Min.
36
5
/ 8 " Max.
24" Min.
21
3
/ 4 "
Min.**
22
1
/ 8 "
Max.
Grounded Junction Box or Wall Outlet Should Be
Located 8" to 17" (20.3 - 43.2 cm) From Right of Cabinet
and 2" to 4" From Floor
††For cutouts below 22 7/8", applaince will slightly show out of the cabinet.
**Note: Minimum cutout depth is increased to 24" with optional backguard.
Note: Rear Top Filler Kit ships with product
Do not pinch the power supply cord or flexible gas conduit between the range and the wall.
Do not seal the range to the side cabinets.
*Note: 24" min. clearance between the cooktop and the bottom of the cabinets when the bottom
of the wood or metal cabinet is protected by not less than 1/4" flame retardant millboard covered
with not less than No. 28 MSG sheet metal, 0.015" stainless steel, 0.024" aluminum, or 0.020"
copper. 30" min. clearance when the cabinet is unprotected.
†Note: To avoid cooktop glass breakage for cutout with more than 30 1/16", make sure appliance
is centered in the counter opening while pushing it in. Raise leveling legs at maximum position,
insert the appliance in the counter and then level. Make sure the unit is supported by the leveling
legs and not by the cooktop glass itself.
+Allow at least 19 1/4" clearance for door depth when it is open.
page 2 of 2
Effective 09/14/09
09909
Because of our continuous program of product improvement, Sears
reserves the right to change materials and specications without
notice. Consult installation instructions packed with the product for
nal dimensional data. For complete warranty information, contact
your local Sears Commercial Account Manager.
22-4676X.PDF
slide-in ranges | 22-46762/3/4/9
Because of our continuous program of product improvement, Sears
reserves the right to change materials and specications without
notice. Consult installation instructions packed with the product for
nal dimensional data. For complete warranty information, contact
your local Sears Commercial Account Manager.
22-49614,
22-49616
22-49624,
22-49626 All ranges are equipped with an
Anti-Tip device. The installation of
this device is an important, required
step in the installation of the range.
RANGE CORD REQUIRED
Order Wire Length
22-49614 3 4 ft.
22-49616 3 6 ft.
22-49624* 4 4 ft.
22-49626* 4 6 ft.
