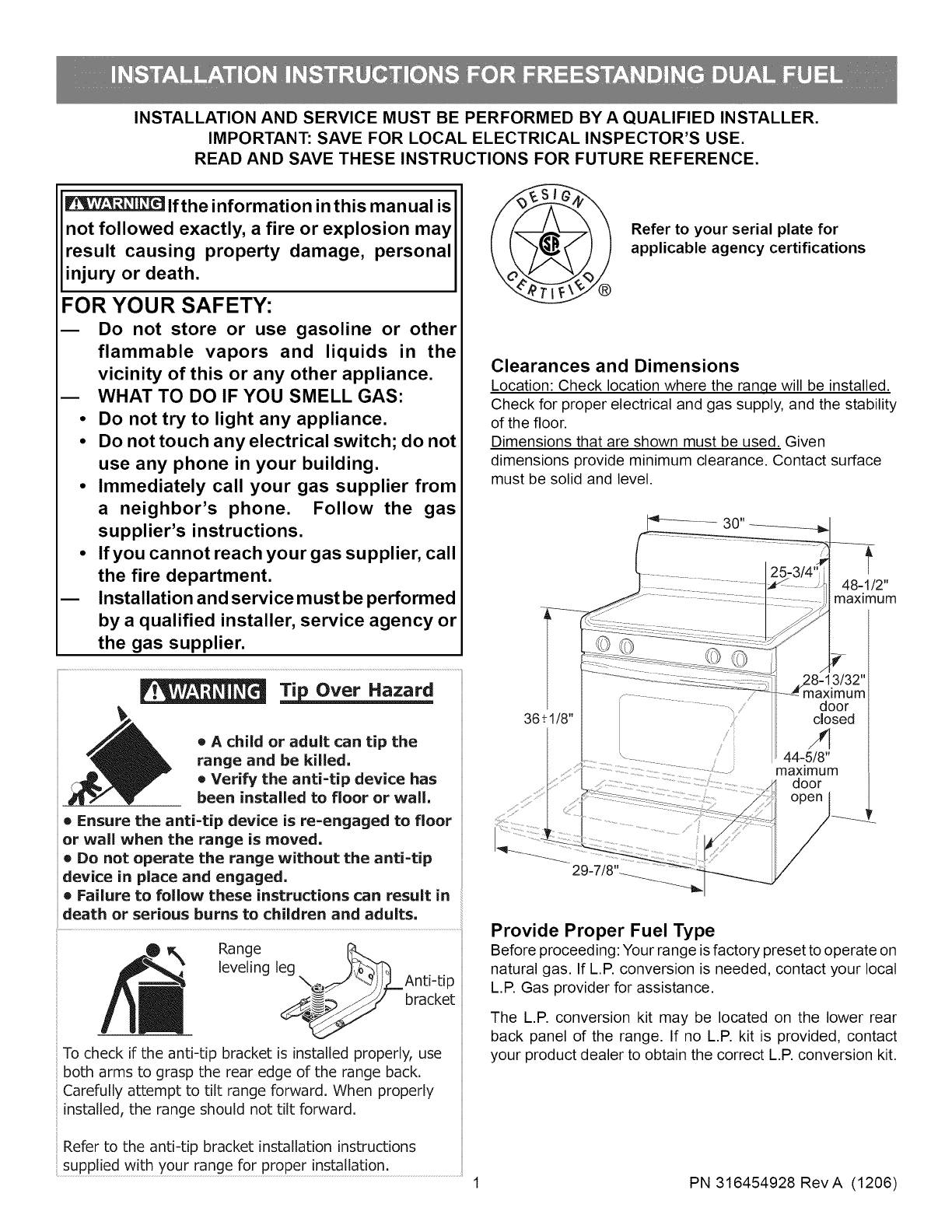

Kenmore Elite 79075353314 User manual

INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR’S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
PNAS |f the information in this manual is
not followed exactly, a fire or explosion may
result causing property damage, personal
injury or death.
FOR YOUR SAFETY:
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DOIF YOU SMELL GAS:
* Do not try to light any appliance.
* Donottouch any electrical switch; do not
use any phone in your building.
* Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
¢ If you cannot reach your gas supplier, call
the fire department.
— Installation andservice must be performed
by a qualified installer, service agency or
the gas supplier.
IVAN) Tip Over Hazard
e A child or adult can tip the
range and be killed.
® Verify the anti-tip device has
been installed to floor or wall.
e Ensure the anti-tip device is re-engaged to floor
or wall when the range is moved.
® Do not operate the range without the anti-tip
device in place and engaged.
® Failure to follow these instructions can result in
death or serious burns to children and adults.
¥
&e
© Range
SQ leveling leg . 1) antict
ncaa ao nti-tip
Ze bracket
To check if the anti-tip bracket is installed properly, use
both arms to grasp the rear edge of the range back.
Carefully attempt to tilt range forward. When properly
installed, the range should not tilt forward.
Refer to the anti-tip bracket installation instructions
supplied with your range for proper installation.
Refer to your serial plate for
applicable agency certifications
Clearances and Dimensions
Location: Check location where the range will be installed.
Check for proper electrical and gas supply, and the stability
of the floor.
Dimensions that are shown must be used. Given
dimensions provide minimum clearance. Contact surface
must be solid and level.
£28713/32"
—~A maximum
door
closed
3641/8"
44.5/8"
maximum
door
open
a
a
Provide Proper Fuel Type
Before proceeding: Your range is factory preset to operate on
natural gas. If L.P. conversion is needed, contact your local
L.P. Gas provider for assistance.
The L.P. conversion kit may be located on the lower rear
back panel of the range. If no L.P. kit is provided, contact
your product dealer to obtain the correct L.P. conversion kit.
PN 316454928 RevA (1206)

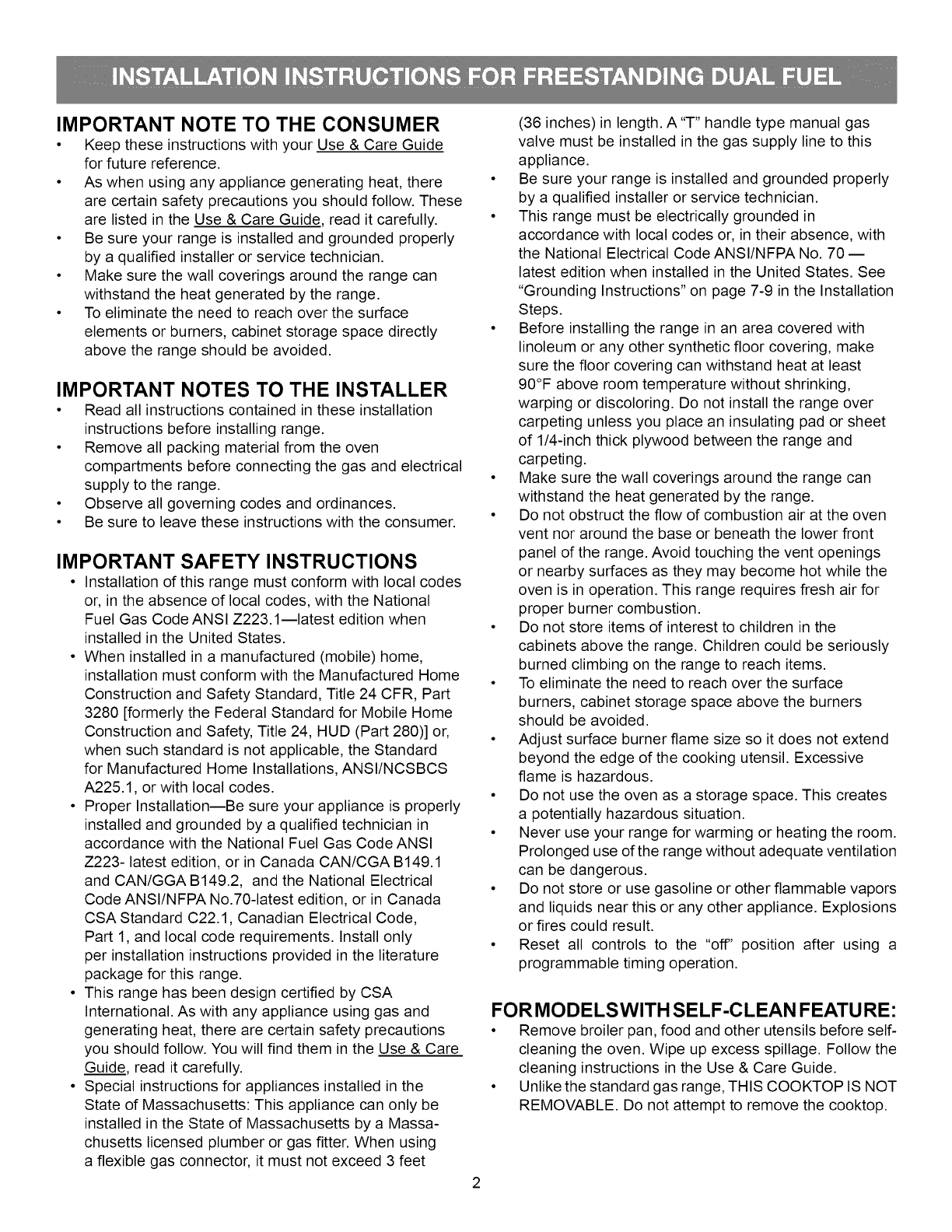

IMPORTANT NOTE TO THE CONSUMER
Keep these instructions with your Use & Care Guide
for future reference.
As when using any appliance generating heat, there
are certain safety precautions you should follow. These
are listed in the Use & Care Guide, read it carefully.
Be sure your range is installed and grounded properly
by a qualified installer or service technician.
Make sure the wall coverings around the range can
withstand the heat generated by the range.
To eliminate the need to reach over the surface
elements or burners, cabinet storage space directly
above the range should be avoided.
IMPORTANT NOTES TO THE INSTALLER
Read ail instructions contained in these installation
instructions before installing range.
Remove all packing material from the oven
compartments before connecting the gas and electrical
supply to the range.
Observe all governing codes and ordinances.
Be sure to leave these instructions with the consumer.
IMPORTANT SAFETY INSTRUCTIONS
* Installation of this range must conform with local codes
or, in the absence of local codes, with the National
Fuel Gas Code ANSI Z2223.1—latest edition when
installed in the United States.
When installed in a manufactured (mobile) home,
installation must conform with the Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part
3280 [formerly the Federal Standard for Mobile Home
Construction and Safety, Title 24, HUD (Part 280)] or,
when such standard is not applicable, the Standard
for Manufactured Home Installations, ANSI/NCSBCS
A225.1, or with local codes.
Proper Installation—Be sure your appliance is properly
installed and grounded by a qualified technician in
accordance with the National Fuel Gas Code ANSI
2223- latest edition, or in Canada CAN/CGA B149.1
and CAN/GGA B149.2, and the National Electrical
Code ANSI/NFPA No.70-latest edition, or in Canada
CSA Standard C22.1, Canadian Electrical Code,
Part 1, and local code requirements. Install only
per installation instructions provided in the literature
package for this range.
This range has been design certified by CSA
International. As with any appliance using gas and
generating heat, there are certain safety precautions
you should follow. You will find them in the Use & Care
Guide, read it carefully.
Special instructions for appliances installed in the
State of Massachusetts: This appliance can only be
installed in the State of Massachusetts by a Massa-
chusetts licensed plumber or gas fitter. When using
a flexible gas connector, it must not exceed 3 feet
(36 inches) in length. A“T” handle type manual gas
valve must be installed in the gas supply line to this
appliance.
* Be sure your range is installed and grounded properly
by a qualified installer or service technician.
* This range must be electrically grounded in
accordance with local codes or, in their absence, with
the National Electrical Code ANSI/NFPA No. 70 —
latest edition when installed in the United States. See

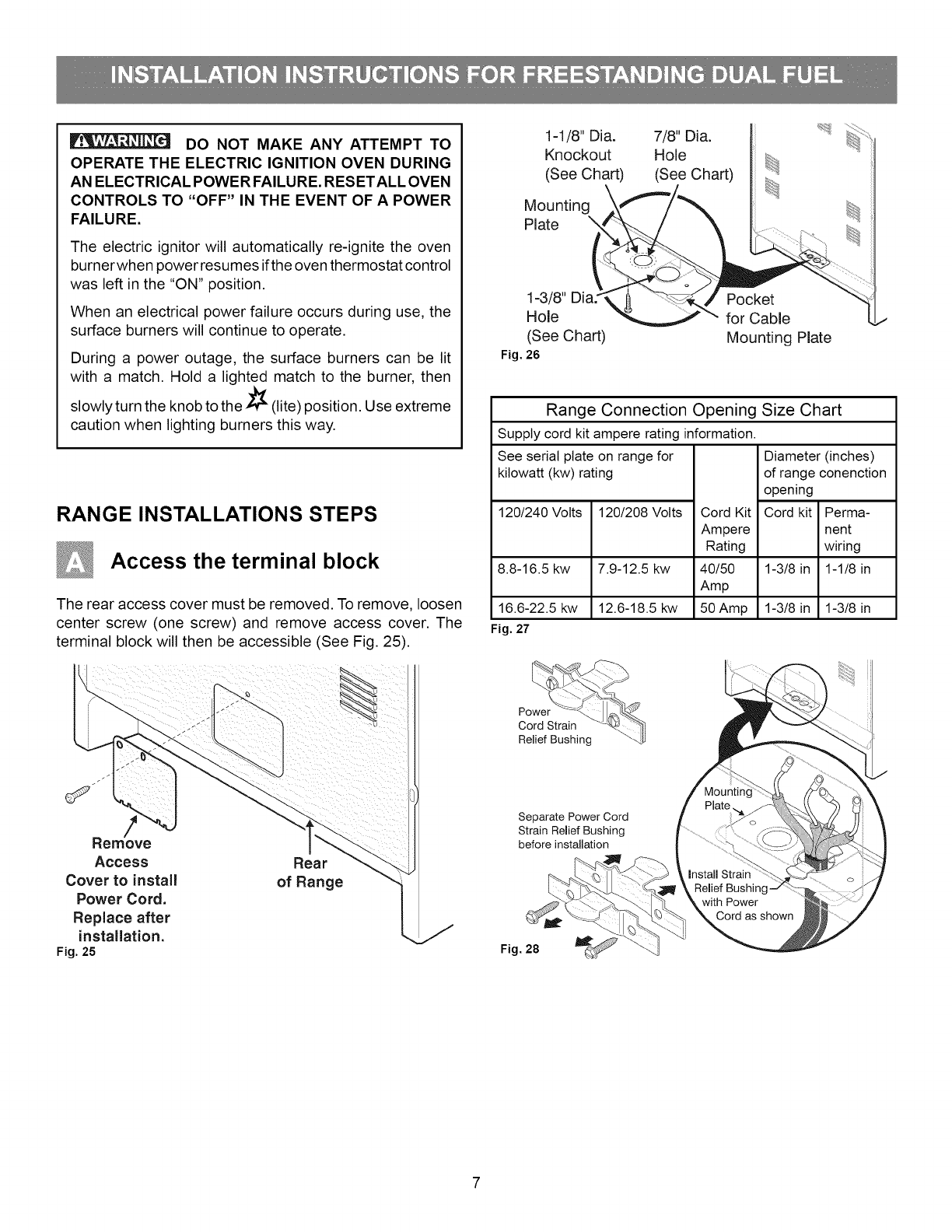

“Grounding Instructions” on page 7-9 in the Installation
Steps.
*« Before installing the range in an area covered with
linoleum or any other synthetic floor covering, make
sure the floor covering can withstand heat at least
90°F above room temperature without shrinking,
warping or discoloring. Do not install the range over
carpeting unless you place an insulating pad or sheet
of 1/4-inch thick plywood between the range and
carpeting.
*« Make sure the wall coverings around the range can
withstand the heat generated by the range.
* Do not obstruct the flow of combustion air at the oven
vent nor around the base or beneath the lower front
panel of the range. Avoid touching the vent openings
or nearby surfaces as they may become hot while the
oven is in operation. This range requires fresh air for
proper burner combustion.
* Do not store items of interest to children in the
cabinets above the range. Children could be seriously
burned climbing on the range to reach items.
* To eliminate the need to reach over the surface
burners, cabinet storage space above the burners
should be avoided.
« Adjust surface burner flame size so it does not extend
beyond the edge of the cooking utensil. Excessive
flame is hazardous.
* Donot use the oven as a storage space. This creates
a potentially hazardous situation.
* Never use your range for warming or heating the room.
Prolonged use of the range without adequate ventilation
can be dangerous.
« Do not store or use gasoline or other flammable vapors
and liquids near this or any other appliance. Explosions
or fires could result.
* Reset all controls to the “off position after using a
programmabie timing operation.
FOR MODELSWITH SELF-CLEAN FEATURE:
Remove broiler pan, food and other utensils before self-
cleaning the oven. Wipe up excess spillage. Follow the
cleaning instructions in the Use & Care Guide.
« Unlike the standard gas range, THIS COOKTOP IS NOT
REMOVABLE. Do not attempt to remove the cooktop.

Tools you will need
(Wear safety glasses when using tools):
For leveling legs and Anti-Tip Bracket:
*« Adjustable wrench or channel lock pliers (Fig. 1).
« 1/4” & 5/16” Nutdriver or flat head screwdriver (Fig. 2).
« Electric drill & 1/8” dia. bit (5/32” Masonry drill bit if
installing in concrete (Fig. 3).
* Level (Fig. 4).
For gas supply connection:
* Pipe wrench (Fig. 5).
For burner flame adjustment:
* Phillips head and small blade-type screwdrivers (Fig. 6
and Fig. 7).
For gas conversion (LP/Propane or Natural):
* Open end wrench - 1/2” (Fig. 8).
Additional materials you may need:
Anti-Tip Template (Fig. 9), Anti-Tip bracket, 2 mounting
screws (bracket and screws are supplied with range -
Fig. 10) and masking tape (Fig. 11).
* Pipe joint sealant that resists action of LP/Propane gas
(Fig. 12).
* Gas line manual shut-off valve (Fig. 13).
* 1/2” NPT 90° black pipe elbow (Fig. 14).
* Anew flexible metal appliance conduit (1/2” NPT
x 3/4” or 1/2” |.D.) must be design certified by CSA
International (Fig. 15). Because solid pipe restricts
moving the range we recommend using a new flexible
conduit (48” MAXIMUM LENGTH)for each new
installation and additional reinstallations.
* Always use the (2) new flare adapters (1/2” NPT x 3/4”
or 1/2” |.D.) supplied with the new flexible appliance
conduit for connection of the range (Fig. 16).
* Power cord (40/50 ampere rated Cord Kit - 48”
MAXIMUM LENGTH - Fig. 17).
* 4or3 wire, 40/50 ampere rated wall receptacle and
mounting plate (Fig. 18).
* Copper electrical wiring and metal conduit (for hard
wiring installation only).
Fig. 8
Fig. 4
Materials
Fig. 16
4 or 3 Wire Cord Kit
48” MAXIMUM LENGTH

To eliminate the risk of burns
or fire by reaching over
heated surface units, cabinet
storage space located above
the surface units should be
avoided. If cabinet storage
is to be provided, the risk
can be reduced by installing
a range hood that projects
horizontally a minimum of
5” beyond the bottom of the
cabinets.

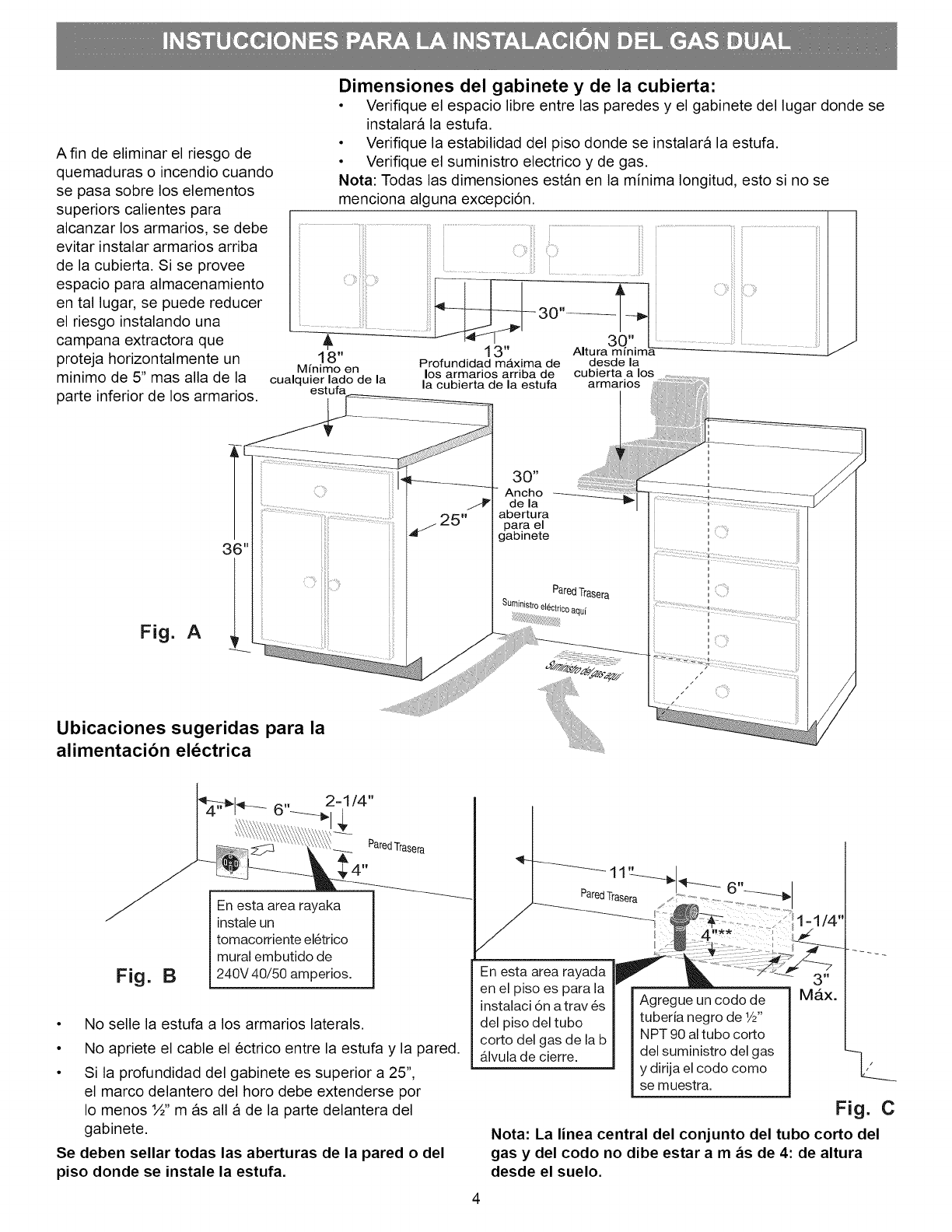

Cabinet and countertop dimensions
*« Check for wall and cabinet clearances where the range will be installed.
*« Check the stability of the floor where the range will be installed.
* Check for proper electrical and gas supply.
Note: All dimensions provided are minimal unless otherwise stated.
Ae 13" Mou
we Maximum height from
Minimum on depth for cabinets cooktop
either side of above ramge top to cabinets,
range
ee
30”
r Gabinet —
ening ae
| idth? |
1
i
t
Ne
ee
a
oe
Ee
ae
ae
oe
ee
ee
ae
ee
Fig. A
2-1/4"
NY Back Wall
ta
Install a flush mount
240V 40/50 ampere
electrical wall outlet
in the shaded area.
Fig.
B
This
shaded
floor
area
is
for
thru
the
.
-
floor
connection
of
nee
we
.
*
Do
not
seal
the
range
to
side
cabinets.
gas
pipe
stub
and
the,
Re
oi
,
*
Do
not
pinch
the
power
supply
cord
between
the
range
_
|
shut-off
valve.
stub
and
lent
the
and
the
wall.
Fig.
C
elbow
as
shown.
bk
* If cabinet depth is greater than 25”, the oven front
frame must extend beyond cabinet front by 1/2”
minimum.
All openings in the wall or floor where the range is
to be installed must be sealed.
Note: The gas supply pipe stube and elbow assembly
centerline should not exceed 4” height form the floor.

Installation with cabinets and wall
Minimum clearance to
side wall on either side of
range is 5”
Fig. D
Anti-tip installation
IMPORTANT SAFETY WARNING!
To reduce the risk of tipping of the range, the range must
be secured to the floor by properly installed anti-tip bracket
and screws packed with the range. Failure to install the
anti-tio bracket will allow the range to tip over if excessive
weight is placed on an open door or if a child climbs upon
it. Serious injury might result from spilled hot liquids or
from the range itself.
If range is ever moved to a different location, the anti-tip
brackets must also be moved and installed with the range.
Instructions are provided for installation in wood or cement
fastened to either the floor or wall. When installed to the
wall, make sure that screws completely penetrate dry wall
and are secured in wood or metal. When fastening to the
floor or wall, be sure that screws do not penetrate electrical
wiring or plumbing.
Anti-tip bracket installation
Place the Bracket Using the Template - Bracket
may be positioned on either the left or right side of the
range. Refer to Fig. 19, Fig. 20, and Fig. 22 to position
the bracket if template is not available.
Mark the floor or wall where left or right side of the
range will be located.
If rear of range is against wall or no further than 1-1/4”
from wall when installed, you may use the wall or floor
mount method (Fig 19).
For wall mount (Fig. 19), locate the bracket by placing
the back edge of the template against rear wall
and the side edge of template on the mark made
referencing the side of the range. Place bracket on
top of template and mark location of the screw holes
in wall. lf rear of range is further than 1-1/4” from wall
when installed, attach bracket to the floor.
FASTEN BRACKET (watt or FLooR MOUNTING)
. —p| |e 1-1/4" Max.
Leveling Leg ~
-Wall Mount
Rear
of
Range
| | ———
_ as OT fp, -Wall Plate
|
if
Nu,
Floor Mount ——¥ | Lanti-tip Bracket
Fig 19
. For floor mount (Fig. 20), locate
the bracket by placing back edge of the template
where the rear of the range will be located. Mark the
location of the screw holes shown in template.
If molding is installed and does not allow the bracket to
fit flush against wall, remove molding or mount bracket
to floor (Fig. 20).
FASTEN BRACKET (Floor mountiING ONLY)
; —p .q— Viore Than
Leveling Leg 4-1/4"
5
c
=
6
z
- *— wall
i 4
| |
Floor Mount We Lanti-tip Bracket
ig 20

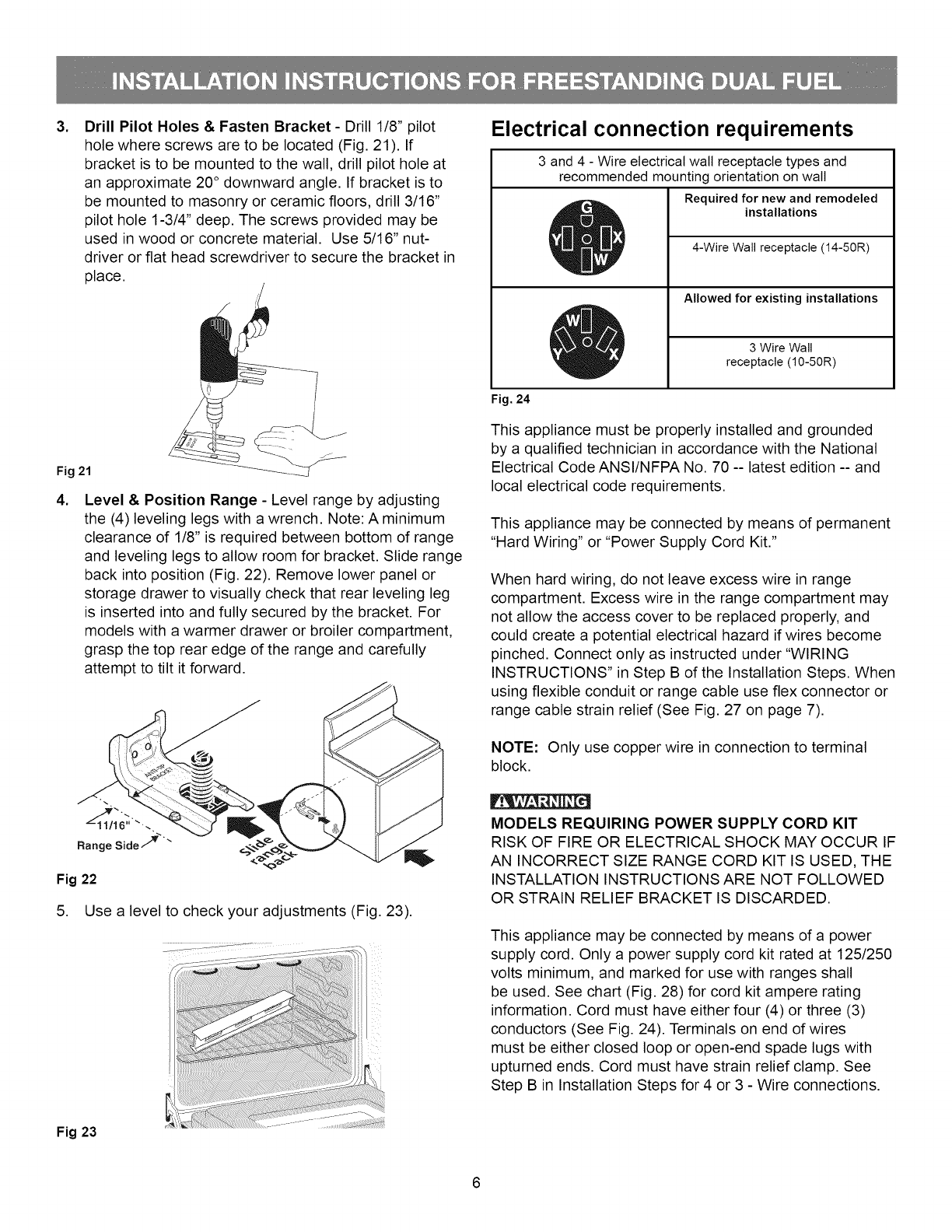

3. Drill Pilot Holes & Fasten Bracket - Drill 1/8” pilot
hole where screws are to be located (Fig. 21). If
bracket is to be mounted to the wail, drill pilot hole at
an approximate 20° downward angle. If bracket is to
be mounted to masonry or ceramic floors, drill 3/16”
pilot hole 1-3/4” deep. The screws provided may be
used in wood or concrete material. Use 5/16” nut-
driver or flat head screwdriver to secure the bracket in
place.
Fig 21
4. Level & Position Range - Level range by adjusting
the (4) leveling legs with a wrench. Note: A minimum
clearance of 1/8” is required between bottom of range
and leveling legs to allow room for bracket. Slide range
back into position (Fig. 22). Remove lower panel or
storage drawer to visually check that rear leveling leg
is inserted into and fully secured by the bracket. For
models with a warmer drawer or broiler compartment,
grasp the top rear edge of the range and carefully
attempt to tilt it forward.
TN"
Range Side ~
Fig 22
5. Use a level to check your adjustments (Fig. 23).
Fig 23
Electrical connection requirements
3 and 4 - Wire electrical wall receptacle types and
recommended mounting orientation on wall
Required for new and remodeled
G installations
<
¥(| a 4-Wire Wall receptacle (14-50R)
Allowed for existing installations
3 Wire Wall
receptacle (10-50R)
Fig. 24
This appliance must be properly installed and grounded
by a qualified technician in accordance with the National
Electrical Code ANSI/NFPA No. 70 -- latest edition -- and
local electrical code requirements.
This appliance may be connected by means of permanent
“Hard Wiring” or “Power Supply Cord Kit.”
When hard wiring, do not leave excess wire in range
compartment. Excess wire in the range compartment may
not allow the access cover to be replaced properly, and
could create a potential electrical hazard if wires become
pinched. Connect only as instructed under “WIRING
INSTRUCTIONS?’ in Step B of the Installation Steps. When
using flexible conduit or range cable use flex connector or
range cable strain relief (See Fig. 27 on page 7).
NOTE: Only use copper wire in connection to terminal
block.
MODELS REQUIRING POWER SUPPLY CORD KIT
RISK OF FIRE OR ELECTRICAL SHOCK MAY OCCUR IF
AN INCORRECT SIZE RANGE CORD KIT IS USED, THE
INSTALLATION INSTRUCTIONS ARE NOT FOLLOWED
OR STRAIN RELIEF BRACKET IS DISCARDED.
This appliance may be connected by means of a power
supply cord. Only a power supply cord kit rated at 125/250
volts minimum, and marked for use with ranges shall
be used. See chart (Fig. 28) for cord kit ampere rating
information. Cord must have either four (4) or three (3)
conductors (See Fig. 24). Terminals on end of wires
must be either closed loop or open-end spade lugs with
upturned ends. Cord must have strain relief clamp. See
Step B in Installation Steps for 4 or 3 - Wire connections.

Bl
DO NOT MAKE ANY ATTEMPT TO
OPERATE THE ELECTRIC IGNITION OVEN DURING
AN ELECTRICAL POWER FAILURE. RESETALL OVEN
CONTROLS TO “OFF” IN THE EVENT OF A POWER
FAILURE.
The electric ignitor will automatically re-ignite the oven
burner when power resumes ifthe oven thermostat control
was left in the “ON” position.
When an electrical power failure occurs during use, the
surface burners will continue to operate.
During a power outage, the surface burners can be lit
with a match. Hold a lighted match to the burner, then
slowly turn the knob to the x (lite) position. Use extreme
caution when lighting burners this way.
1-1/8" Dia. 7/8" Dia.
Knockout Hole
(See Chart) (See Chart)
Mounting
1-3/8" Dia:
Hole
for
Cable
le
(See
Chart)
Mounting
Plate
Fig.
26
Range Connection Opening Size Chart
Supply cord kit ampere rating information.
RANGE INSTALLATIONS STEPS
Access the terminal block
The rear access cover must be removed. To remove, loosen
center screw (one screw) and remove access cover. The
terminal block will then be accessible (See Fig. 25).
Remove |
Access Rear
Cover to install of Range
Power Cord.
Replace after
installation.
Fig. 25
See serial plate on range for Diameter (inches)
kilowatt (kw) rating of range conenction
opening
120/240 Volts | 120/208 Volts | Cord Kit | Cord kit | Perma-
Ampere nent
Rating wiring
8.8-16.5 kw 7.9-12.5 kw 40/50 1-3/8 in | 1-1/8 in
Amp
16.6-22.5 kw | 12.6-18.5 kw | 50 Amp | 1-3/8 in | 1-3/8 in
Fig. 27
Power -
Cord Strain
Relief Bushing
Separate Power Cord
Strain Relief Bushing
before installation
Install Strain “=.
Relief Bushing—~
with Power
Cord as shown

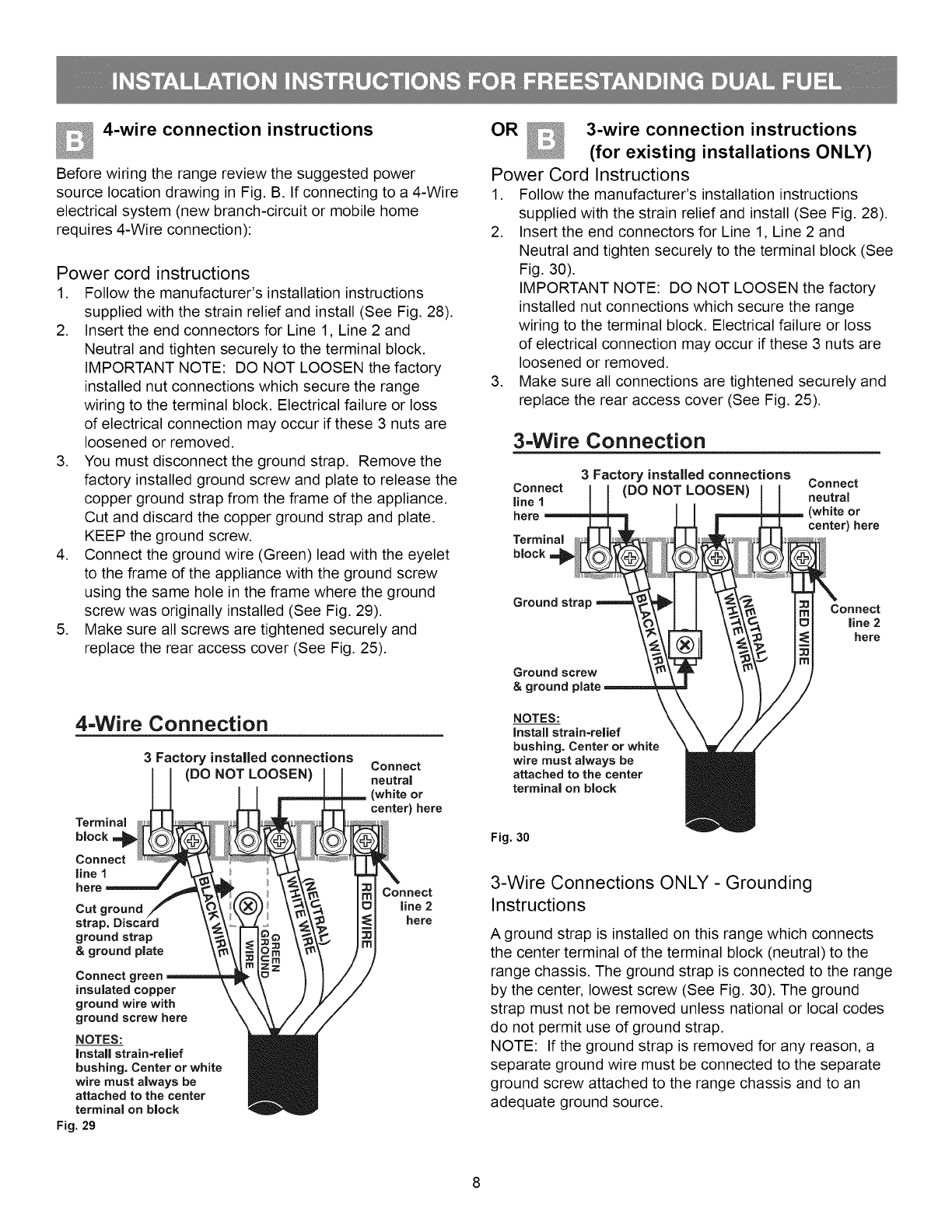

4-wire connection instructions
Before wiring the range review the suggested power
source location drawing in Fig. B. If connecting to a 4-Wire
electrical system (new branch-circuit or mobile home
requires 4-Wire connection):
Power cord instructions
1. Follow the manufacturer’s installation instructions
supplied with the strain relief and install (See Fig. 28).
2. Insert the end connectors for Line 1, Line 2 and
Neutral and tighten securely to the terminal block.
IMPORTANT NOTE: DO NOT LOOSEN the factory
installed nut connections which secure the range
wiring to the terminal block. Electrical failure or loss
of electrical connection may occur if these 3 nuts are
loosened or removed.
3. You must disconnect the ground strap. Remove the
factory installed ground screw and plate to release the
copper ground strap from the frame of the appliance.
Cut and discard the copper ground strap and plate.
KEEP the ground screw.
4. Connect the ground wire (Green) lead with the eyelet
to the frame of the appliance with the ground screw
using the same hole in the frame where the ground
screw was originally installed (See Fig. 29).
5. Make sure all screws are tightened securely and
replace the rear access cover (See Fig. 25).
4-Wire Connection
3 Factory installed connections
(DO NOT LOOSEN) Connect
neutral
(white or
center) here
Terminal
ve
ogg
"
a
block
Connect
line 7
here Connect
Cut ground line 2
strap. Discard here
ground strap
& ground plate
Connect green
insulated copper
ground wire with
ground screw here
NOTES:
install strain-relief
bushing. Center or white
wire must always be
attached to the center
terminal on block
Fig. 29
3-wire connection instructions
(for existing installations ONLY)
Power Cord Instructions
1. Follow the manufacturer’s installation instructions
supplied with the strain relief and install (See Fig. 28).
2. Insert the end connectors for Line 1, Line 2 and
Neutral and tighten securely to the terminal block (See
Fig. 30).
IMPORTANT NOTE: DO NOT LOOSEN the factory
installed nut connections which secure the range
wiring to the terminal block. Electrical failure or loss
of electrical connection may occur if these 3 nuts are
loosened or removed.
Make sure all connections are tightened securely and
replace the rear access cover (See Fig. 25).
3-Wire Connection
3 Factory installed connections
Connect
hornet (DO NOT LOOSEN) neutral
here (white or
center) here
Terminal @4 1 ig ory) 1 bes Feng hos
viok POE (CO) (Oe
on OE tssenitia | Chenega 39)
Ground strap S a2 2} Connect
Q AS o line 2
# 2 Bs] = here
2\| ®| 2\> |=
a B\C rit
Ground screw ™ m
& ground plate
NOTES:
Install strain-relief
bushing. Center or white
wire must always be
attached to the center
terminal on block
Fig. 30
3-Wire Connections ONLY - Grounding
Instructions
A ground strap is installed on this range which connects
the center terminal of the terminal block (neutral) to the
range chassis. The ground strap is connected to the range
by the center, lowest screw (See Fig. 30). The ground
strap must not be removed unless national or local codes
do not permit use of ground strap.
NOTE: lf the ground strap is removed for any reason, a
separate ground wire must be connected to the separate
ground screw attached to the range chassis and to an
adequate ground source.

3 & 4-Wire permanent connections ONLY
IMPORTANT: 3 - Wire permanent connection - follow
Steps 1, 2 and 5 below.
IMPORTANT: 4 - Wire permanent connection - follow
Steps 1 thru 5 below.
Before wiring the range, review the suggested power
source location drawings in Fig. Aand B on page 4. If
connecting to a 4-Wire electrical system (new branch-
circuit or mobile home requires 4-Wire connection):
1. 3 and 4- Wire Permanent Connections - Follow the
manufacturer’s installation instructions supplied with
the strain relief and install (See Figre 28).
2. 3 and 4 - Wire Permanent Connections - Strip
insulation away from the ends of the permanent wiring
for Line 1, Line 2, Neutral (also strip ground wire on
4-Wire Connections). Tighten all 3 wire leads to the
terminal block (follow wire locations shown in Fig. 31).
FOR 3 & 4-Wire Permanent Connections
Terminal
Tighten all 3
block
wire leads
Ground plate
Ground screw
Ground strap
Fig. 31
NOTE: Non-terminated field wire compression
connections must be set at approximately 22in./lbs.
Always use 10 ga. wire or larger.
IMPORTANT NOTE: DO NOT LOOSEN the factory
installed nut connections which secure the range
wiring to the terminal block. Electrical failure or loss
of electrical connection may occur if these 3 nuts are
loosened or removed.
NOTE: For 3-Wire Permanent Connections skip Steps
3 and 4 and continue with Step 5.
3. 4-Wire Permanent Connection ONLY - Disconnect
the ground strap. Remove the factory installed ground
screw & plate to release the factory installed copper
ground strap from frame of the appliance. Cut and
discard the copper strap from the terminal block. KEEP
the ground screw, ground plate and go to Step 4.
PROPER
GROUND @—
PLATE —> r G
, °
- GROUND FOR
4-WIRE
x PERMANENT
GROUND CONNECTION
GROUND WIRE LEAD
SCREW
Fig. 32
4. 4-Wire Permanent Connection ONLY - Connect the
ground wire lead (Green) to the frame of the appliance
using the ground screw & plate as shown in Fig. 32.
Be sure to install using the same hole in the frame
where the ground screw was originally installed.
5. 3 and 4 - Wire Permanent Connections - Make sure
all connections are tightened securely and replace the
rear access cover (See Fig. 25).
Provide an adequate gas supply.
This range is pre-set to operate on 4” natural gas manifold
pressure. The Pressure Regulator is connected to the
manifold and MUST be connected in series with the gas
supply line (See Fig. 33 on page 10).
Care must be taken during installation of range not to
obstruct the flow of combustion and ventilation air. The gas
supply line should be 1/2” or 3/4” LD.
For proper operation, the maximum inlet pressure to the
regulator should be no more than 14 inches of water
column pressure. The inlet pressure to the regulator must
be at least 1 inch greater than regulator manifold pressure.
Examples: If regulator is set for natural gas 4 inch manifold
pressure, inlet pressure must be at least 5 inches;
if regulator has been converted for LP/Propane gas
10 inch manifold pressure, inlet pressure must be at least
11 inches. Leak testing of the appliance shall be conducted
according to the instructions in Step E.

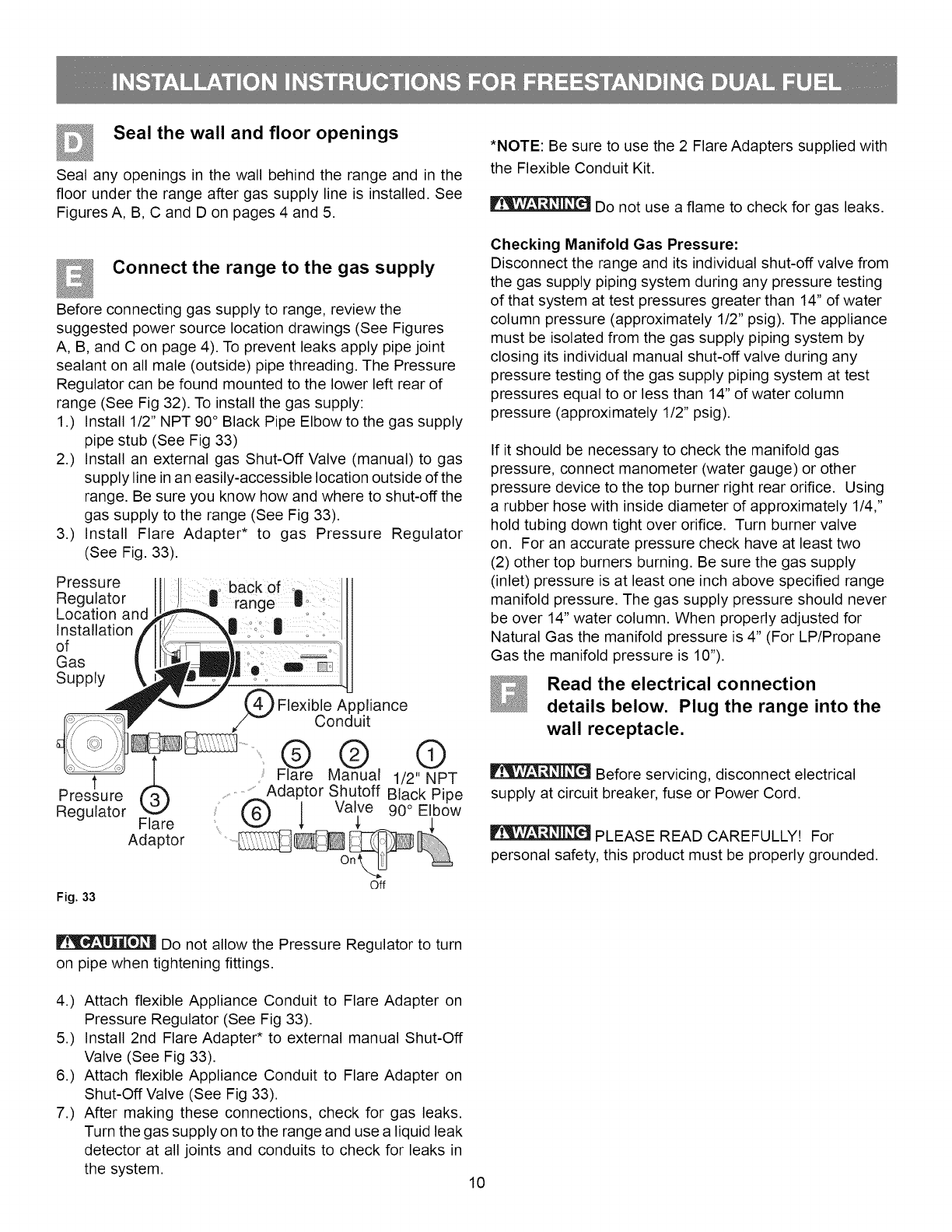

Seal the wall and floor openings
Seal any openings in the wall behind the range and in the
floor under the range after gas supply line is installed. See
Figures A, B, C and D on pages 4 and 5.
Connect the range to the gas supply
Before connecting gas supply to range, review the
suggested power source location drawings (See Figures
A, B, and C on page 4). To prevent leaks apply pipe joint
sealant on all male (outside) pipe threading. The Pressure
Regulator can be found mounted to the lower left rear of
range (See Fig 32). To install the gas supply:
1.) Install 1/2” NPT 90° Black Pipe Elbow to the gas supply
pipe stub (See Fig 33)
2.) Install an external gas Shut-Off Valve (manual) to gas
supply line in an easily-accessible location outside of the
range. Be sure you know how and where to shut-off the
gas supply to the range (See Fig 33).
3.) Install Flare Adapter* to gas Pressure Regulator
(See Fig. 33).
Pressure
Regulator
Location and
Installation
of
Gas
Supply
Flexible Appliance
Conduit
Flare Manual 1/0" NPT
Pressure _--, Adaptor Shutoff Black Pipe
Regulator | Valve 90° Elbow
Flare ‘ {
Adaptor ave
Fig. 33
ONT NOWTe ST Do not allow the Pressure Regulator to turn
on pipe when tightening fittings.
4.) Attach flexible Appliance Conduit to Flare Adapter on
Pressure Regulator (See Fig 33).
Install 2nd Flare Adapter* to external manual Shut-Off
Valve (See Fig 33).
6.) Attach flexible Appliance Conduit to Flare Adapter on
Shut-Off Valve (See Fig 33).
7.) After making these connections, check for gas leaks.
Turn the gas supply on to the range and use a liquid leak
detector at all joints and conduits to check for leaks in
the system.
5.)
10
*NOTE: Be sure to use the 2 Flare Adapters supplied with
the Flexible Conduit Kit.
PNUTEGTIIE! Do not use a flame to check for gas leaks.
Checking Manifold Gas Pressure:
Disconnect the range and its individual shut-off valve from
the gas supply piping system during any pressure testing
of that system at test pressures greater than 14” of water
column pressure (approximately 1/2” psig). The appliance
must be isolated from the gas supply piping system by
closing its individual manual shut-off valve during any
pressure testing of the gas supply piping system at test
pressures equal to or less than 14” of water column
pressure (approximately 1/2” psig).
If it should be necessary to check the manifold gas
pressure, connect manometer (water gauge) or other
pressure device to the top burner right rear orifice. Using
a rubber hose with inside diameter of approximately 1/4,”
hold tubing down tight over orifice. Turn burner valve
on. For an accurate pressure check have at least two
(2) other top burners burning. Be sure the gas supply
(inlet) pressure is at least one inch above specified range
manifold pressure. The gas supply pressure should never
be over 14” water column. When properly adjusted for
Natural Gas the manifold pressure is 4” (For LP/Propane
Gas the manifold pressure is 10”).
we
Read the electrical connection
details below. Plug the range into the
wall receptacle.
PNUTEGTIINE] Before servicing, disconnect electrical
supply at circuit breaker, fuse or Power Cord.
PATI] PLEASE READ CAREFULLY! For
personal safety, this product must be properly grounded.

Carefully slide range into cabinet
opening.
Carefully slide range into cabinet opening while inserting
rear leveling leg into and FULLY ENGAGING THE ANTI-
TIP BRACKET (See Fig. 22 on page 6). Make sure that
the flexible appliance conduit and the power cord folds into
the remaining open floor area behind the range warmer
or storage drawer. Make sure that the flexible appliance
conduit does not become pinched or kinked. Pre-shape the
flexible appliance conduit and power cord if necessary to
insure that the range slides into cabinet opening properly.
Be sure to check level of the range by placing a level
horizontally on an oven rack (See Fig. 23 on page 6).
moyen
Surface burner heads, cap & grates
It is very important to make sure that all of the surface
burner heads, surface burner caps and surface burner
grates are installed correctly.
Your appliance was shipped with the burner heads and
burner caps assembled in the correct locations (See
Fig. 34).
Should you need to re-install the burner caps please refer
to the Use & Care guide for more information.
REMEMBER—DONOTALLOW SPILLS, FOOD, CLEANING
AGENTS ORANY OTHER MATERIAL TO ENTER THE GAS
ORIFICE HOLDER OPENING.
Always keep the Burner Caps and Burner Heads in place
whenever the surface burners are in use.
14. 5,000 BTU Simmer Burner.
2. 10,000 BTU Bridge Burner.
3. 9,500 BTU Power Burner.
4. 12,000 or 14,200 BTU Power Burner.
5
Fig. 34 18,000 BTU Double Burner (some models).
Check electric ignition of surface burners
Operation of electric igniters should be checked after range
and supply line connectors have been carefully checked for
leaks and range has been connected to electric power.
a. To check for proper ignition, push in and turn a surface
burner knob counterclockwise to the LITE position
(see Fig. 35). You will hear the igniter sparking.
b. The surface burner should ignite when gas is available
to the burner. Purge air from supply lines by leaving
knob in the LITE position until burner ignites. Each
burner should light within four (4) seconds in normal
operation after air has been purged from supply lines.
c. Visually check that burner has a flame. Once the
burner ignites, the control knob should be turned out of
the LITE position.
d. Try each surface control knob separately until all
surface burners have been checked. Each burner
location is equipped with a separate electrode.
Fig. 35

Adjust the “LOW” setting of surface
burner valve (for linear flow valves only)
1. Push in and turn knob to (lite) until burner ignites.
Push in and quickly turn knob to LOWEST
POSITION.
3. If burner goes out, reset control to OFF and set to
low flame again.
Remove the burner control knob.
Insert a thin-bladed screwdriver into the hollow
valve stem and engage the slotted screw inside
(See Fig. 36). Flame size can be increased or
decreased with the turn of the screw. Turn coun-
terclockwise to increase flame size. Turn clockwise
to decrease flame size.
Fig. 36
After installation is complete, make all
controls are left in the OFF position.
12
Care, cleaning and maintenance
Refer to the Use & Care Guide for cleaning instructions.
If removing the range is necessary for cleaning or
maintenance, shut off the gas supply. Disconnect the
gas and electrical supply. If the gas or electrical supply
is inaccessible, lift the range slightly at the front and pull
out away from the wall. Pull only as far as necessary to
disconnect the gas and electrical supply. Finish removing
the range for servicing and cleaning. Reinstall in reverse
order making sure to level the range and check gas
connections for leaks. See anti-tip instructions for proper
anti-tip anchoring instructions.
Before you call for service
Refer to the Use & Care Guide for cleaning instructions.
If removing the range is necessary for cleaning or
maintenance, shut off the gas supply. Disconnect the
gas and electrical supply. If the gas or electrical supply
is inaccessible, lift the range slightly at the front and pull
out away from the wall. Pull only as far as necessary to
disconnect the gas and electrical supply. Finish removing
the range for servicing and cleaning. Reinstall in reverse
order making sure to level the range and check gas
connections for leaks. See page 5 and 6 of this document
for proper anti-tip anchoring instructions.
Model and serial number location
The Serial Plate is located on the right-hand surface of the
oven front frame at the storage or warmer drawer; or the
lower panel area (See Fig. 37).
Fig. 37
When ordering parts for or making inquires about your
range, always be sure to include the model and serial
numbers and a lot number or letter from the Serial Plate
on your range. The Serial Plate will also inform you of the
rating of the burners, the type of fuel and the pressure the
range was adjusted for when it left the factory.

LA INSTALACION Y EL SERVICIO DEBEN SER EFECTUADOS POR UN INSTALADOR CALIFICADO.
IMPORTANTE: CONSERVE ESTAS INSTRUCCIONES PARA USO DEL INSPECTOR LOCAL DE ELECTRICIDAD.
LEA Y CONSERVE ESTAS INSTRUCCIONES PARA REFERENCIA FUTURA.
Consulte la placa de serie
para las certificaciones de las
agencias correspondientes
VU Si no se sigue estrictamente
la informaci6n de este manual, se puede
producir un incendio o una explosi6n
causando dafios materiales, lesiones
corporales o fatales.
PARA SU SEGURIDAD:
— No almacene ni use gasolina u
otros liquidos o vapores inflam-
ables cerca de este o cualquier
otro artefacto.
— SI SIENTE OLORA GAS:
¢ No trate de encender el artefacto.
¢ No toque ningun interruptor eléc-
trico; no use ningun teléfono en
su edificio.
¢« Llame inmediatamente a su prov-
eedor de gas desde un teléfono
vecino. Siga las instrucciones del
proveedor de gas.
¢ Sino puede comunicarse con su
proveedor de gas, Ilame al depar-
tamento de bomberos.
— Lainstalacion y el servicio deben
ser efectuados por un instalador o
técnico calificado o por el provee-
dor de gas.
Proporcione el tipo de combustible adecuado
Antes de proceder: Su estufa fue ajustada en la fabrica para
utilizar gas natural. Si necesita realizar una conversién a
gas LP, llame a su distribuidor local de gas LP para obtener
asistencia.
Es posible que el kit de conversién a gas LP se encuentre
en el panel inferior trasero de la estufa. Si no se incluye un
kit de gas LP, p6ngase en contacto con su distribuidor de
electrodomésticos para obtener el kit de conversi6n a gas
LP adecuado.
PO el
Riesgo de volcamiento
¥
y « Unnifio oadulto puede volcar la estufa y
acabar muerto.
« Verifique que se haya instalado el
dispositivo antivuelco en el pisooentla
pared.
e Asegurese de que el dispositivo antivuelco se haya reacoplado
cuando mueva la estufa sobre el piso o a la pared.
* No utilice la estufa sin el dispositivo antivuelco instalado y
acoplado.
» Sino se siguen estas instrucciones, se puede provocar la muerte
O quemaduras graves en nifios y adultos.
la estufa Ne.
en
Le
Para verificar si el soporte antivuelco esta instalado
correctamente, sostenga el borde trasero de la parte
trasera de la estufa usando ambos brazos. Intente inclinar
la estufa hacia adelante con cuidado. Si esta instalada
correctamente, la estufa no deberia inclinarse hacia
adelante.
Tornillo
nivelador de
Soporte
antivuelco
Consulte las instrucciones de instalacion del soporte
antivueico proporcionadas con la estufa para instalarlo
adecuadamente.
Espacios Libres y Dimensiones
Ubicacién — Revise el lugar donde sera instalada la estufa.
Verifique el suministro de energia eléctrica y la estabilidad
del piso.
Es esencial que se usen las dimensiones que se
muestran. Las dimensiones indicadas proveen los
espacios libres minimos. La superficie de contacto debe
ser firme y nivelada.
+ 30!
i
“i
a _. 25-3/4" |
ao " 4, 48-1/2"
— || maximum
p81 3/32"
vo _ ~# maximum
door
closed 3671/8”
44-5/8"
maximum
door
PN 316454928 RevA (1206)

AVISO IMPORTANTE AL CONSUMIDOR
Mantenga estas instrucciones con su Guia de Uso y
Cuidado para referencia futura.
* Al igual que con cualquier electrodoméstico que
genere calor, existen ciertas precauciones de
seguridad que usted debe seguir. Tales precauciones
se encuentran en la Guia de Uso y Cuidado, léala
atentamente.
* Asegurese de que la estufa esté bien instalada y
puesta a tierra en forma debida por un instalador
calificado o un técnico de servicio.
* Asegurese de que el revestimiento de la pared
alrededor de la estufa puede resistir el calor generado
por la estufa.
* Para eliminar la necesidad de tener que pasar
sobre los elementos o quemadores superiores, se
recomienda no instalar armarios directamente arriba
de la cubierta de la estufa.
NOTAS IMPORTANTES PARA EL
INSTALADOR
Lea todas las instrucciones indicadas en estas
instrucciones de instalacién antes de instalar la estufa.
* Saque todo el material de empaque del
compartimiento del horno antes de conectar el
suministro de gas y de electricidad a la estufa.
* Observe todos los cédigos y reglamentos pertinentes.
* Asegurese de dejar estas instrucciones con el usuario.
INSTRUCCIONES IMPORTANTES DE
SEGURIDAD
* Lainstalaci6n de esta estufa debe ser de acuerdo con
los cédigos locales 0, en ausencia de cddigos locales,
con el Cédigo Nacional de Gas Combustible ANSI
2223.1 - ultima edici6n cuando sea instalado en los
Estados Unidos.
« Cuando la estufa sea instalada en una casa movil
(prefabricada), lainstalaci6n debe cumplir con las normas
vigentes de Manufactured Home Construction and Safety
Standard (Normas de Construccién y Seguridad de Casas
Prefabricadas, Titulo 24 CFR, Parte 3280 (anteriormente
denominada Normas Federales para la Construcci6n y
Seguridad de Viviendas Méviles, Titulo 24, HUD (Parte
280) 0, cuando tales normas no corresponden, se
deben cumplir las Normas para Instalaciones en Casas
Prefabricadas, ANSI/NCSBCS A225.1 0 los cédigos
locales.
« El disefio de esta estufa ha sido certificado por la CSA
International. Aligual que con cualquier artefacto que use
gas y genere calor, se deben seguir ciertas precauciones
de seguridad. Las encontrara en la Guia de Uso y
Cuidado, léala atentamenie.
* Asegurese de que su estufa sea instalada y puesta a
tierra en forma debida por un instalador calificado o un
técnico de servicio.
« Esta estufa debe ser puesta a tierra eléctricamente
de acuerdo con los cédigos locales 0, en ausencia de
ellos, con el Cédigo Eléctrico Nacional ANSI/NFPA No.
70 - ultima ediciédn cuando es instalada en jos Estados
Unidos. Vea las “Instrucciones para la Puesta a Tierra”
en la pagina 20 y 21 de los Pasos de la Instalaci6én de
la Estufa.
Antes de instalar la estufa en un area que esté cubierta
con lindédleo o con cualquier otro revestimiento sintético de
piso, asegurese de que el revestimiento del piso pueda
soportar calor de porlo menos 90°F sobre la temperatura
ambiente sin encogerse, combarse o descolorarse.
No instale la estufa sobre una alfombra a menos que
usted coloque un cojin aislante o una hoja de madera
contrachapada de 1/4” de grosor entre la estufa y la
alfombra.
Asegurese de que los revestimientos de la pared alrededor
de la estufa puedan soportar el calor generado por la
estufa.
No obstruya el flujo del aire de combustidn enla ventilacién
del horno ni alrededor de la base ni debajo del panel
delantero inferior de la estufa. Evite tocar las aberturas
de ventilacién o las superficies cercanas pues pueden
calentarse cuando el horno esta en funcionamiento.
Esta estufa necesita aire fresco para una combustién
adecuada de los quemadores.
No guarde articulos que interesen a los nifios en los
armarios que estén arriba de la estufa. Los nifios pueden
quemarse seriamente si se trepan a la estufa para
alcanzar articulos.
Para eliminarlanecesidad de alcanzar articulos pasando
sobre los quemadores, se debe evitar colocar armarios
de almacenamiento sobre los quemadores.
Ajuste el tamafio de la llama del quemador superior
de manera que no se extienda mas alla del borde del
utensilio de cocina. Una llama excesiva es peligrosa.
No use el horno como espacio para almacenamiento.
Esto crea una situacién potencialmente peligrosa.
Nunca use este artefacto para calentar o calefaccionar la
habitaci6n. El uso prolongado de la estufa sin ventilacién
adecuada puede ser peligroso.
No almacene ni use gasolina ni otros vapores o liquidos
inflamables cerca de este o de cualquier otro artefacto.
Se pueden producir explosiones o incendios.
Vuelva a colocar todos los controles en la posicién
“OFF” después de usar una operacién programable con
temporizador.
PARA LOS MODELOS CON LA
CARACTERISTICA DE AUTOLIMPIEZA:
Saque la asadera, los alimentos y otros utensilios
antes de efectuar la autolimpieza del horno. Limpie
los derrames. Siga las instrucciones de limpieza
indicadas en la Gufa de Uso y Cuidado.
A diferencia de una estufa a gas convencional, ESTA
CUBIERTA NO SE PUEDE SACAR. No trate de sacar
la cubierta.

Herramientas y Materiales Necesarios
(Cuando trabaje con herramientas use lentes protec-
tores):
Para los tornillos niveladores y soporte antivuelco:
Llave ajustable o pinzas ajustabies (Fig. 1).
* Llave de tuerca de 1/4” y 5/16” o destornillador de
punta plana (Fig. 2).
* Taladro eléctrico y broca de 1/8” de diam. (broca para
taladro de mamposteria de 5/32” si esta instalando
en concreto) (Fig. 3).
« Nivel (Fig. 4)
Para la conexién al suministro del gas:
* Llave de tubo (Fig. 5).
Para ajustar la llama del quemador:
*« Destornillador Phillips y destornilladores de punta
plana (Figs. 6 y 7).
Para conversién del gas (Gas propano/G.L.P.):
* Llave de boca abierta - 1/2” (Fig. 8).
Materiales adicionales que usted necesitara:
* Plantilla del soporte antivuelco (Fig. 9), 2 tornillos de
montaje (el soporte y los tornillos son suministrados
con la estufa - Fig. 10) y cinta adhesiva (Fig. 11).
* Compuesto sellador de juntas resistente al gas G.L.P./
Propano (Fig. 12).
* Llave de cierre de la tuberia del gas (Fig. 13).
* Codo de tuberia negro de %” NPT 90° (Fig. 14).
*« Un conducto nuevo para artefacto de metal flexible
(1/2” NPT x 3/4” 0 1/2” de D.L.) certificado por CSA
International. Debido a que la tuberia sdlida restringe
la movilidad de la estufa, recomendamos que use un
conducto nuevo flexible (LARGO MAXIMO: 48”) para
cada nueva instalacién y reinstalaciones adicionales.
*« Siempre use los (2) adaptadores de unién abocinados
nuevos (1/2” NPT x 3/4” o 1/2” de D.I.) suministrados
con el nuevo conducto flexible de artefacto para con-
exién de la estufa (Fig. 16).
* Cable eléctrico (Juego de Cable para 40/50 amperios -
LARGO MAXIMO: 48” - Fig. 17).
* Tomacorriente mural y placa de montaje, tetra o trifilar,
para 40/50 amperios (Fig. 18).
« Alambre eléctrico de cobre y tubo de metal (para in-
stalacién con cables permanentes solamente).
Herramientas
le, ed) >)
Lis] Lic Le
a | ny ee
Fig. 4
Materiales
Fig. 16
LARGO MAXIMO: 48”
Fig. 17

Dimensiones del gabinete y de la cubierta:
* Verifique el espacio libre entre las paredes y el gabinete del lugar donde se
instalara la estufa.
* Verifique la estabilidad del piso donde se instalara la estufa.
* Verifique el suministro electrico y de gas.
Nota: Todas las dimensiones estan en la minima longitud, esto si no se
menciona alguna excepcidn.
A fin de eliminar el riesgo de
quemaduras o incendio cuando
se pasa sobre los elementos
superiors calientes para
alcanzar los armarios, se debe
evitar instalar armarios arriba
de la cubierta. Si se provee
espacio para almacenamiento
en tal lugar, se puede reducer
el riesgo instalando una
campana extractora que A " 30"
ia hori | 3" 13 Altura minima
proteja horizontalmente un Minis en Profundidad maxima de desde la
minimo de 5” mas alla de la cualquier lado de la los armariog arriba de — cubierta a los
estula.
parte
inferior
de
los
armarios.
°°
ese
AL
|
i
30”
Ta
|
Ancho
ose
SS
=
fp
sce
aT
25"
.
ard
a
dabinete
36"
Pared
Trasera
Suministro
eléctrico
g
uf
Ubicaciones sugeridas para la
alimentacion eléctrica
it#— gn 2-1/4"
TN
NX
Pated
Trasera
[}
fe 1
En esta area rayaka
instale un
tomacorriente elétrico
mural embutido de
Fig _B 240V 40/50 amperios. En esta area rayada
en el piso es para la
instalaci én a trav és
* No selle la estufa a los armarios laterals. del piso del tubo
No apriete el cable el éctrico entre la estufa y la pared, | Cote del gas de lab
alvula de cierre.
*« Sila profundidad del gabinete es superior a 25”,
Agregue un codo de
tuberia negro de 42”
NPT 90 al tubo corto
del suministro del gas
y dirija el codo como bk
el marco delantero del horo debe extenderse por se muestra. ;
lo menos %’ m as all a de la parte delantera del Fig. C
gabinete. Nota: La linea central del conjunto del tubo corto del
Se deben sellar todas las aberturas de la pared o del gas y del codo no dibe estar a m as de 4: de altura
piso donde se instale la estufa. desde el suelo.

ae
Wh
Instalaci6n con armarios y pared
Distancia minima ala
pared lateral a ambos
lados de la estufa: 5”.
Fig. D
Instalaci6n del Soporte Antivuelco
jADVERTENCIA DE SEGURIDAD
IMPORTANTE!
Para reducir el riesgo de que la estufa se vuelque,
es necesario asegurarla al piso instalando el soporte
antivuelco y los tornillos suministrados con la estufa. Si no
se instala el soporte antivueico, la estufa se puede volcar
si un nifio se sube a ella. Se pueden ocasionar lesiones
graves causadas por los liquidos calientes derramados o
por la estufa misma.
Si la estufa es movida a otro lugar, el soporte antivuelco
debe también ser movido e instalado en la estufa.
Las instrucciones son adecuadas para instalacién en
pisos de madera o cemento sujeto ya sea al piso o la
pared. Cuando se instala en la pared, asegurese de
que los tornillos penetren completamente en el drywall
y que estén asegurados en madera o metal. Cuando
se asegura al piso o en la pared, asegurese de que los
tornillos no penetren ningun cableado eléctrico o plomeria.
Instrucciones de Instalacion para el
Soporte Antivuelco
1. Ubique el soporte utilizando la plantilla - El soporte
puede ser instalado ya sea en el lado izq uierdo o
derecho de la estufa. Consulte desde la Fig. 19, 20,
y 22 para colocar el soporte si no se dispone de la
plantilla.
2. Marque el piso o la pared donde se co
lado izquierdo o derecho de la estufa.
locara el
« Sila parte trasera de la estufa sera colocada contra la
pared o ano mas de 1-1/4’de la pared cuando ya esté
instalada, usted puede usar el método de instalacién
en el piso o en la pared (Fig. 19).
* Para montaje en la pared (Fig. 19), ubique la plantilla
colocando el borde trasero de la plantilla contra la
pared trasera y el borde lateral de la plantilla en la
marca hecha indicando el lado de la estu fa. Coloque
el soporte sobre la plantilla y marque la ubicacién de
los agujeros de los tornillos en la pared. Si la parte
trasera de la estufa esta a mas de 1-1/4” de la pared
cuando ya esta instalada, instale el soporte en el piso.
SOPORTE DE FIJACION
(INSTALACION EN LA PARED 0 EL PISO)
—P|
Pata
niveladora
Parte
posterior
de
la
estufa
¢@— 1 1/4" (3 cm)
max.
NN
; - Instalacion
: en la pared
wy
J
“tp Larguero
co~N SN
\ we et
instalacion ——¥ —
en el piso .
Fig 19
* Para montaje en el piso (Fig. 20), ubique
colocando el borde trasero de la plantilla
[
L Soporte antivuelco
el soporte
donde
quedara ubicada la parte trasera de la estufa. Marque
la ubicacién de los agujeros de los tornillos mostrados
en la plantilla.
* Si tiene moldura instalada y ésta no permite que el
soporte quede a ras contra la pared, retire la moldura
o instale el soporte en el piso (Fig 20).
SOPORTE DE FIJACION _
(UNICAMENTE PARA INSTALACION EN EL PISO)
>|
Pata
niveladora
posterior
de
la
estufa
Parte
— Mas
™ det 1/4"
(3 cm)
4
i
Instalacisn ——¥ | L Soporte antivu
en el piso ,
Fig 20
elco

3. Taladre agujeros pilotos e instale el soporte -
Taladre un agujero piloto de 1/8” donde se van a
instalar los tornillos (Fig. 21). Si el soporte va a ser
instalado en la pared, taladre un agujero piloto en
un angulo descente de aproximadamente 20°. Si el
soporte va a ser instalado en pisos de mamposteria
o de ceramica, taladre un agujero piloto de 3/16” y
1-3/4” de profundidad. Los tornillos provistos pueden
ser usados en materiales de madera 0 concreto. Use
una llave de tuerca de 5/16” o un destornillador de
punta plana para asegurar el soporte en su lugar.
Fig 21
4. Nivele y ubique la estufa — Nivele la estufa ajustando
los cuatro (4) tornillos niveladores con una ilave. Nota:
Se debe dejar un espacio libre minimo de 1/8” entre
la parte inferior de la estufa y los tornillos niveladores
a fin de dejar espacio para instalar el soporte (Fig.
22). Deslice la estufa de nuevo a su lugar. Retire el
panel inferior o la gaveta de almacenamiento para
verificar visualmente si el tornillo nivelador trasero
esta insertado y firmemente asegurado por el soporte.
Para los modelos con un compartimiento calefactor
oO compartimiento de asador, sujete la estufa desde
el borde superior trasero y trate de inclinarla hacia
adelante cuidadosamente.
a
Range Side” ~
Fig 22
5. Use un nivel para verificar sus ajustes (Fig. 23).
Fig 23
Requerimientos Eléctricos
Tipos de tomacorrientes murales eléctricos trifilares o
tetrafilares y orientacién recomendada de montaje en la pared
Requerido para instalaciones
3 nuevas y remodeladas
“i °| x Tomacorriente Mural Tetrafilar
AyD (14-50R)
Permitido para instalaciones
i existentes
Tomacorriente Mural Tetrafilar
(10-50R)
Fig. 24
Este artefacto debe ser instalado y puesto a tierra en
forma correcta por un técnico calificado de acuerdo con
el Cédigo Nacional de Electricidad ANSI/NFPA No. 70 —
ultima edicién — y los requerimientos del cddigo local de
electricidad.
Este artefacto debe ser conectado mediante “cableado
permanente” o el “Juego de Cable de Alimentacién
Eléctrica.”
Cuando use cable, no deje el exceso de cable en el
compartimiento de la estufa. El exceso de alambre en el
compartimiento de la estufa puede impedir que la tapa de
acceso sea reinstalada en forma debida y podria crear un
riesgo eléctrico potencial si los alambres son apretados.
Conecte solamente como se indica en la seccién
“INSTRUCCIONES PARA EL CABLEADO” en el Paso B
de los Pasos de la Instalaci6én. Cuando use tubo flexible
o cable de estufa, use sujetacable de estufa o conector
flexible (Ver Fig. 27 en la pagina 7).
NOTA: Use solamente alambre de cobre en la conexién al
tablero de bornes.
Modelos que requieren el Juego de Cable
de Alimentacion Eléctrica
PUEDE OCURRIR RIESGO DE INCENDIO O CHOQUE
ELECTRICO SI SE USA UN JUEGO DE CABLE DE
ESTUFA DE CALIBRE INCORRECTO, SI NO SE SIGUEN
LAS INSTRUCCIONES DE INSTALACION O SI NO SE
USA EL SOPORTE DEL SUJETACABLES.
Este artefacto puede ser conectado mediante un cable de
alimentacién eléctrica. Se debe usar solamente un juego
de cable de alimentacién eléctrica para 125/250 voltios
minimo y marcado para uso con estufas. Vea la tabla
(Figura 29) para la informacién sobre la intensidad nominal
del juego de cable. El cable debe tener ya sea cuatro (4)
o tres (3) conductores (Ver Fig. 28). Los bornes en los
extremos de los cables deben ser ya sea en bucle cerrado
o terminales de horquilla con los extremos girados hacia
arriba. El cable debe tener abrazadera para sujetacable.
Ver Paso B en los Pasos de la Instalacién para conexiones
con cables tetrafilares o trifilares.

NO INTENTE USAR EL HORNO
DE ENCENDIDO ELECTRICO DURANTE UNA
INTERRUPCION DE LA CORRIENTE ELECTRICA.
COLOQUE TODOS LOS CONTROLES EN LA
POSICION “OFF” (APAGADO) EN CASO DE UNA
INTERRUPCION DE LA CORRIENTE ELECTRICA.
El encendedor eléctrico volvera a encender
automaticamente el quemador del horno cuando se
restaure la corriente eléctrica si es que el control del
termostato del horno se dejé en la posicién “ON”
(ENCENDIDO).
Cuando ocurre una interrupcién de la corriente
eléctrica durante el uso, los querradores superiores
continuan funcionando.
Durante una interrupcién de la corriente eléctrica,
los quemadores superiores pueden ser encendidos
con un fésforo. Sujete un fésforo encendido cerca
del quemador, luego gire lentamente la perilla a
la posicién “LITE”. Tenga mucho cuidado cuando
Disco removible Agujero de
de 1-1/8" de diam. 7/8" de diam.
(Ver Tabla) (Ver Tabla)
Placa de
Agujero de Cavidad para la
1-3/8" de diam: placa de montaje l-
(Ver Tabla) del cable
Fig. 26
Tabla del Tamafia de la Abertura de la
Conexion de la Estufa
Informacién sobre la intensidad nominal del Juego de Cable de
Alimentacién.
encienda los quemadores de esta manera.
PASOS DE INSTALACION DE LA
ESTUFA
Como accesar al bloque de terminales
Se debe retirar la cubierta de acceso trasera. Para retirar,
afloje el tornillo central (un tornillo) y retire la cubierta de
acceso. De este modo tendra acceso al tablero de bornes.
(Ver Fig. 25).
Retire la cubierta |
de acceso para instalar Parte trasera
el cable de alimentacion. de la estufa
Vuelva a colocar la
cubierta después
de la instalacion.
Fig. 25
Ver la placa de serie en la es- Inten- | Diametra (pulga-
tufa para la potencia nominal sidad | das) de la abertura
el kilovatios. Nomi- | de conexién de la
nal del | estufa.
120/240 120/208 Juego | juego | Alambra-
Voltios Voltios de de | do Perma-
cable cable
| nente
8,8-16,5 kw 7,9-12,5 kw 40/50 1-3/8 1-1/8
Amp pulg. pulg.
16,6-22,5 kw | 12,6-18,5 kw |50Amp | 1-3/8 1-3/8
pulg. pulg.
Fig. 27
Sujetacable
Separe el
sujetacable antes
de la instalaci6n
~
MS
Wy

Antes del cableado de la estufa, revise los dibujos de las
ubicaciones sugeridas para la fuente de alimentacién en la
Fig. 2. Si se va a conectar a un sistema eléctrico tetrafilar
(los circuitos de derivacién nuevos o las casas rodantes
requieren conexi6n tetrafilar):
Instrucciones para el Cableado
1. Siga las instrucciones de instalacién del fabricante
suministradas con el sujetacable e instale (Ademas
vea las Fig. 28).
2. Inserte los conectores de extremo para la Linea 1,
Linea 2 y Neutro y apriete firmemente en el tablero de
bornes.
NOTA IMPORTANTE: NO AFLOJE las conexiones
de tuerca instaladas en la fabrica que aseguran el
cableadco de la estufa en el tablero de bornes. Se
puede producir una falla eléctrica o pérdida de la
conexién eléctrica si estas 3 tuercas son aflojadas o
retiradas.
3. Usted debe desconectar la cinta de conexién a
tierra. Retire el tornillo y placa de tierra instalada en
la fabrica para soltar la cinta de conexién a tierra de
cobre del marco del electrodoméstico. CONSERVE el
tornillo de tierra.
4. Conecte el alambre de puesta a tierra (Verde) con el
ojal en el marco del electrodoméstico con e! tornillo
de tierra usando el mismo agujero del marco donde
estaba originalmente instalado el tornillo de tierra (Ver
Fig. 29).
5. Asegurese de que todas las tuercas estén firmemente
apretadas y vuelva a colocar la cubierta de acceso
trasera (Ver Fig. 25).
Conexion Tetrafilar
Conexiones instaladas en la fabrica
(NO AFLOJAR)
Conecte aqui el
alambre neutro
{blanco o central}
Tablero de
bornes
Conecte
Linea 1
aqui
Corte la cinta de’conexién
a tierra. Descarte la cinta y
la placa de conexi6n a
tierra
Conecte aqui
el alambre de cobre verde
aislado de puesta a tierra con
el tornillo de tierra
Instale el buje sujetacable. El
alambre central o blanco debe
estar siempre instalado en el
borne central del tablero de
bornes.
Fig. 29
Instrucciones para conexion trifilar
(para instalaciones existentes
SOLAMENTE)
Instrucciones para el Cableado
1. Siga las instrucciones de instalacién del fabricante
suministradas con el sujetacable e instale (Ver Fig.
28).
2. Inserte los conectores de extremo para la Linea 1,
Linea 2 y Neutro y apriete firmemente en el tablero de
bornes (Ver Fig. 30).
NOTA IMPORTANTE: NO AFLOJE las conexiones
de tuerca instaladas en la fabrica que aseguran el
cableado de la estufa en el tablero de bornes. Se
puede producir una falla eléctrica o pérdida de la
conexién eléctrica si estas 3 tuercas son aflojadas o
retiradas.
3. Asegurese de que todas las conexiones estén
firmemente apretadas y vuelva a colocar la cubierta de
acceso trasera (Ver Fig. 25).
Conexion Trifilar
Conexiones instaladas en la fabrica
(NO AFLOJAR)
Gonecte el
alambre
neutro (blanco
o central}
Conecte
Linea 1
aqui
Tablero de
bornes
Conecte
Linea 2 aqui
Sua
Ty
TORNILLOY
PLACA DE TIERRA
Instale el buje sujetacable. El
alambre central o blanco debe
estar siempre instalado en el
borne central del tablero de
bornes.
Fig. 30
Conexiones Trifilares SOLAMENTE -
Instrucciones para la Puesta a Tierra
Esta estufa tiene instalada una cinta de conexién a tierra
que conecta el borne central del tablero de bornes (neutro)
al chasis de la estufa. La cinta de conexién a tierra esta
conectada a la estufa mediante el tornillo central mas
inferior (Ver Fig. 30). La cinta de conexién de tierra no
debe retirarse a menos que el cdédigo nacional, estatal o
local no permitan el uso de una cinta de conexi6n a tierra.
NOTA: Si por cualquier motivo se retira la cinta de
conexi6on a tierra, se debe conectar un alambre de tierra
separado al tornillo de tierra instalado en el chasis de la
estufa y a una tierra adecuada.
