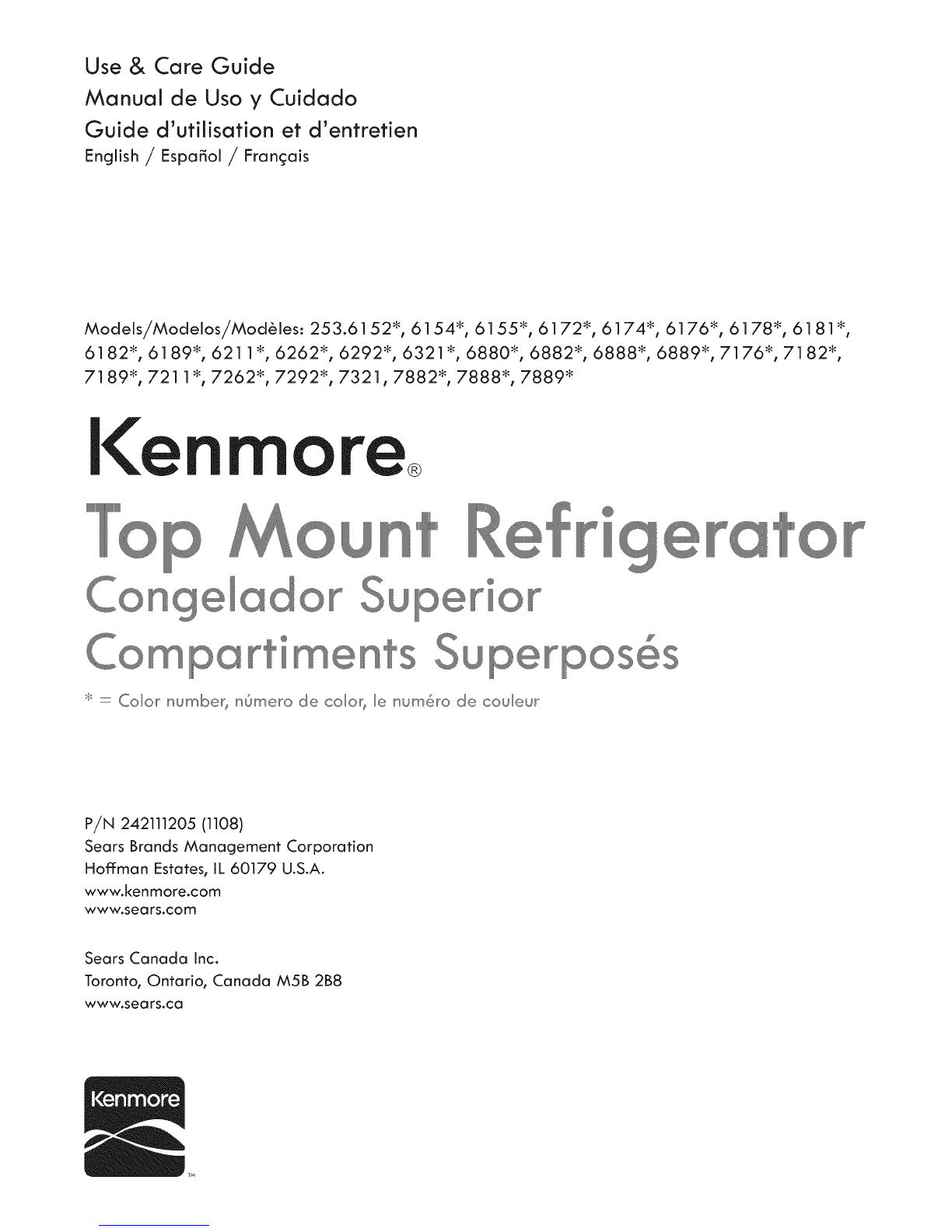

Kenmore 253.6152 Series User manual

Use & Care Guide
Manual de Uso y Cuidado
Guide d_utiJisation et d_entretien
English /Espa_ol /FrancFais
Models/Modelos/Mod_les: 253.6152*, 6154*, 6155*, 6172*, 6174*, 6176*, 6178", 6181 *,
6182", 6189", 6211", 6262 :_, 6292*, 6321", 6880*, 6882*, 6888*, 6889*, 7176 :_, 7182*,
7189*, 7211", 7262*, 7292*, 7321,7882*, 7888*, 7889 :_
®
@
Cong laSor Sup rior
part° nts rpos6s
,_'_:z Color numbe_ n0mero de colo_ le num@o de couleur
P/N 242111205 (1108)
Sears Brands Management Corporation
Hofl:man Estates, IL 60179 U.S.A.
www.kenmore.com
www.sears.com
Sears Canada Inc°
Toronto, Ontario, Canada M5B 2B8
www.sears.ca

Record Model/Serial Numbers Important Safety Instructions
Please read and save these instructions
This Owner's Guide provides specific operating instructions
for your model. Use your unit only as instructed in this
guide. These instructions are not meant to cover every
possible condition and situation that may occur. Common
sense and caution must be practiced when installing,
operating, and maintaining any appliance.
Please record your model and serlal numbers below for
future reference. This information is found on the serial
plate located inside the refrigerator compartment.
Model Number: 253.
Serial Number:
Purchase Date:
Safety Precautions
Do not attempt to install or operate your unit until you
have read the safety precautions in this manual. Safety
items throughout this manual are labeled with a Danger,
Warning, or Caution based on the risk type.
Definitions
_This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
_DANGER
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
IMPORTANT
Use only soap and water to clean serial plate.
Table of Contents
RecordModel/Serial Numbers................................. 2
Important Safety Instructions ................................ 2-3
Warranty Information ............................................. 4
Master ProtectionAgreements................................. 5
Featuresat a Glance............................................... 6
FirstSteps........................................................ 7-11
Connectingthe Water Supply.................................. 12
Settingthe Temperature Control ............................. 13
0ptional Features............................................. 14-15
FoodStorageand Energy-SavingIdeas.................... 16
iceService........................................................... 17
Normal OperatingSounds..................................... 18
Care&Cleaning ............................................... 19-20
BeforeYouCall ................................................ 21-23
_WARNING
WARNING indicates apotentially hazardous situation
which, if not avoided, could result in death or serious injury.
_b CAUTION
CAUTION indicates apotentially hazardous situation which,
if not avoided, may result in minor or moderate injury.
IMPORTANT
Indicates installation, operation, or maintenance
information which is important but not hazard-related.

important Safety instructions
WARNING
Please read all safety instructions before using your
new appliance.
For Your Safety
°Do not store or use gasoline or other flammable liquids
in the vicinity of this or any other appliance. Read
product labels for warnings regarding flammability
and other hazards.
°Do not operate the unit in the presence of explosive fumes.
°Avoid contact with any moving parts of automatic ice maker.
°Remove all staples from the carton. Staples can cause
severe cuts and also destroy finishes if they come in
contact with other appliances or furniture.
Child Safety
Destroy or recycle the carton, plastic bags, and any
exterior wrapping material immediately after the unit is
unpacked. Children should NEVER use these items to play.
Cartons covered with rugs, bedspreads, plastic sheets or
stretch wrap may become airtight chambers and can
quicidy cause suffocation.
Proper disposal of your appliance
Risk of child entrapment
Child entrapment and suffocation are not problems of the
past. Junked or abandoned appliances are still dangerous
- even if they will sit for "just a few days." If you are
getting rid of your appliance, please follow the instructions
below to help prevent accidents.
Before you throw away your old unit:
*Remove doors.
" Leave shelves in place so children may not easily climb inside.
°Have refrigerant removed by a qualified service technician.
WARNING
These guidelines must be followed to ensure that safety
mechanisms in fhls unlf will operate properly.
Electrical information
• The refrigerator must be plugged into its own
dedicated 11.5Volt, 60 Hz., AC only electric outlet.
The power cord of the appliance is equipped with
a three-prong grounding plug for your protection
against shock hazards. It must be plugged directly
into a properly grounded three-prong receptacle. The
receptacle must be installed in accordance with local
codes and ordinances. Consult a qualified electrician.
Do not use an extension cord or adapter plug.
°Immediately repair or replace any power cord that
becomes frayed or damaged.
°Never unplug the refrigerator by pulling on the power
cord. Always grip the plug firmly, and pull straight out
from the receptacle to prevent damaging the power cord.
°Unplug the refrigerator before cleaning and before
replacing a light bulb to avoid electrical shock.
°Performance may be affected if the voltage varies
by 10% or more. Operating the unit with insumcient
power can damage the motor. Such damage is not
covered under the warranty. If you suspect your
household voltage is high or low, consult your power
company for testing.
°Do not plug the unit into an outlet controlled by a waft
switch or pull cord to prevent the refrigerator from
being turned off accidentally.
°Avoid connecting refrigerator to a Ground Fault Circuit
Interruptor (GFCI).
Grounding type
wall receptacle
Do not, under any
circumstances, cut,
remove, or bypass the
grounding prong
Power cord with
3-prong grounded plug

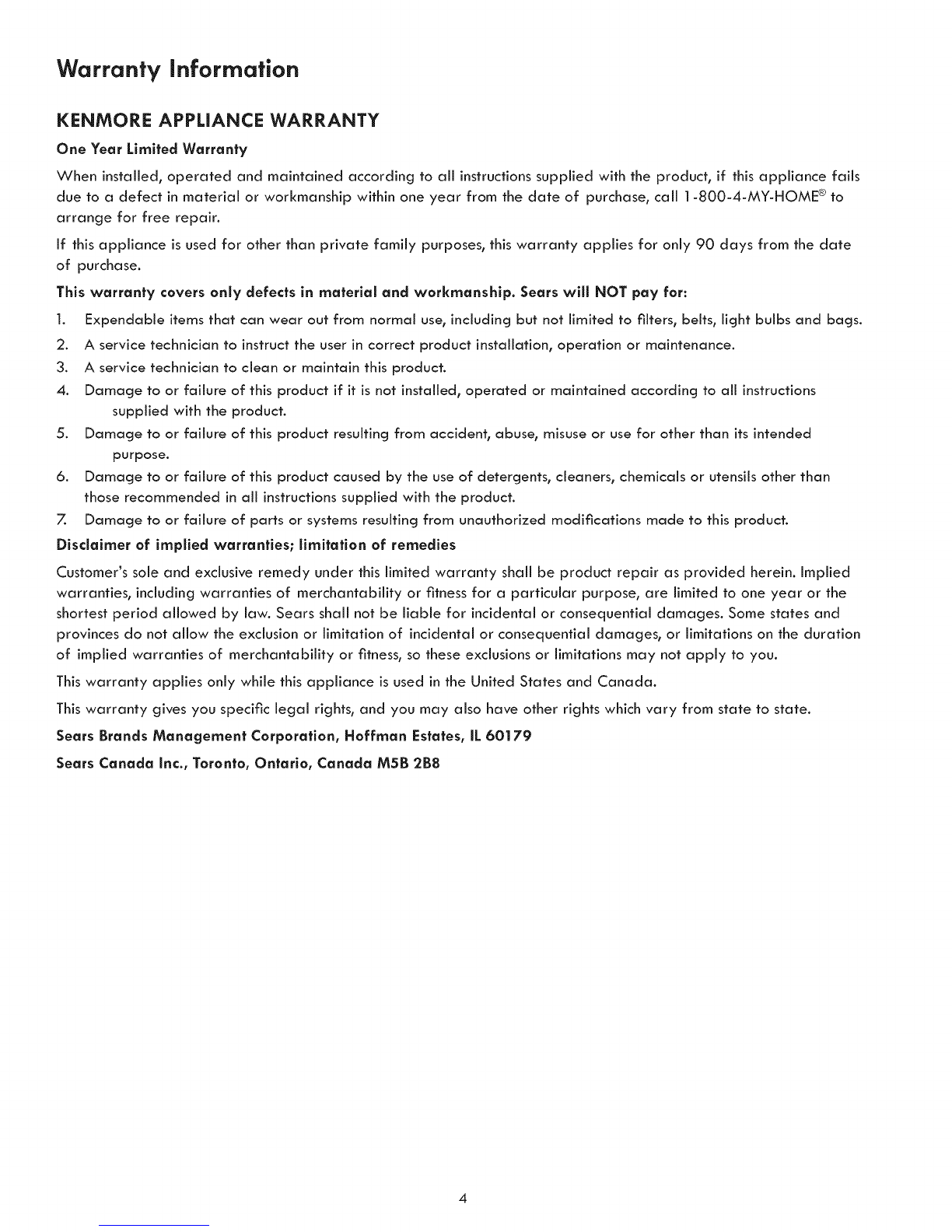

Warranty information
KENMORE APPLIANCE WARRANTY
One Year Limited Warranty
When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails
due to a defect in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME ® to
arrange for free repair.
If this appliance is used for other than private family purposes, this warranty applies for only 90 days from the date
of purchase.
This warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs and bags.
2. A service technician to instruct the user in correct product installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions
supplied with the product.
5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended
purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than
those recommended in all instructions supplied with the product.
7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied
warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the
shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and
provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the duration
of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States and Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
Sears Canada inc., Toronto, Ontario, Canada MSB 2B8

Master Protection Agreements
Congratulations on making a smart purchase. Your new Kenmore ® product is designed and manufactured for years of
dependable operation. But like aJJ products, it may require preventive maintenance or repair from time to time. That's
when having a Master Protection Agreement can save you money and aggravation.
The Master Protection Agreement also helps extend the life of your new product. Here's what the Agreement _ includes:
*Parts and labor needed to help keep products operating properly under normal use, not iust defects. Our
coverage goes well beyond the product warranty. No deductibles, no functionaJ failure excluded from coverage -
real protection.
* Expert service by a force of more than 10,000 authorized Sears service technicians, which means someone you
can trust will be working on your product.
*Unlimited service calJs and nationwide service, as often as you want us, whenever you want us.
*"No-Jemon" guarantee - replacement of your covered product if four or more product failures occur within twelve
months.
*Product replacement if your covered product can not be fixed.
*Annual Preventive Maintenance Check at your request -no extra charge.
* Fast help by phone - we call it Rapid Resolution -phone support from a Sears representative on all products.
Think of us as a "talking owner's manual".
Power surge protection against eJectricaJ damage due to power fluctuations.
$250 Food Loss Protection annually for any food spoilage that is the result of mechanicaJ failure of any covered
refrigerator or freezer.
Rental reimbursement if repair of your covered product takes longer than promised.
*10% discount off: the regular price of any non-covered repair service and related installed parts.
Once you purchase the Agreement, a simple phone caJJis aJJthat it takes for you to schedule service. You can caJJ
anytime day or night, or schedule aservice appointment online.
The Master Protection Agreement is a risk free purchase. If you canceJ for any reason during the product warranty
period, we wiJJ provide a full refund. Or, a prorated refund anytime after the product warranty period expires.
Purchase your Master Protection Agreement today!
Some limitations and exclusions apply. For prices and additional information in the U.S.A. call 1-800-827-6655.
Coverage in Canada varies on some items. For full details call Sears Canada at 1-800-361-6665.
Sears Installation Service
For Sears professional installation of home appliances, garage door openers, water heaters, and other maior home
items, in the U.S.A. or Canada call 1-800-4-MY-HOME ®.

Features At A Glance
ice Maker _
ice Bucket
Freezer Shelf --_
Freezer
Control --_
Refrigerator
Control
Dell Drawer
Cover
Dell Drawer _
Half Shelf_
Wine Rack_
Full €
Special
Item Rack
Mid-level
Light
Crisper Cover
Crisper Drawers \
jm
jm
.............................................................................. _j
Toe Grille
Fixed Door Bin
Door Rack
Dairy Door
Snugger
Door Bin
Fixed
Door Bin
Door Rack
Features may vary according fo model

First Steps
This Owner's Guide provides specific operating instructionsfor
your model. Use the unit only as instructedin this Owner's Guide.
Before starting the appliance, follow these important first steps.
Installation
°Choose a place that isnear a grounded electrical outlet. Do
Not use an extension cord or an adapter plug.
*If possible, place the refrigerator out of direct sunlight and
away from the range, dishwasher or other heat sources.
°The refrigerator must be installed on a floor that islevel
and strong enough to support a fully loaded refrigerator.
°Consider water supply availability for models
equipped with an automatic icemaker.
_CAUTION
DO NOT install the refrigerator where the temperature
will drop below 55°F (13°C) or rise above |IO°F (43°C).
The compressor will not be able to maintain proper
temperatures inside the refrigerator.
DO NOT block the foe grille on the lower front of your
refrigerator. Sufficient air circulation is essenflal for the
proper operation of your refrigerator.
Door Opening
Your refrigerator should be positioned to allow easy access
to a counter when removing food. To make this possible,
the direction in which the doors open can be reversed. See
Door Removal & Reversal Instructions.
NOTE
If your refrigerator is placed with the door hinge side
against a wall, you may have to allow additional space
so the door can be opened wider.
Leveling
All four corners of your refrigerator must rest firmly on a
solid fioon Your refrigerator is equipped with adjustable
front rollers or front leveling screws to help level your unit.
To Level Your Refrigerator:
1. Remove toe grille. _ e °
2. Usefiat-blade .
screwdriver or 3/8
socketwrenchto ...................
adjustableadjustfront wrenchrollers, toUse
adjust leveling screws.
IMPORTANT
If you install your refrigerator in a garage or other
unheated area, you may experience freezer temperature
problems during the winter months when temperatures
dip below 55 ° F.
Upgrading your refrigerator with a Garage Kit will lower
the minimum operating temperature of your unit to 34°F.
This kit can be ordered through Sears stores or Sears
Parts & Repair at an additional cost.
Installation Clearances
°Allow the following clearances for ease of installation,proper
air circulation, and plumbing and electrical connections:
Sides & Top 3/8"
Back 1"
NOTE
Raise the front of the refrigerator enough so the doors
close freely when opened halfway. The refrigerator
should slope 1/4" to 1/2" from front to back. Then level the
refrigerator from side to side.
Adjustable Front Roller
(some models)
Raise
Stationary Front Roller
with Leveling Screw
(some models)
NOTE
If you see black coils/tubing on the back of your
refrigerator (air-cooled condenser) leave 3" clearance at
top of refrigerator.
7

First Steps
Door Removal/Reversal
Door Stop Handle
Top Hinge _J Center _-_ Hinge
s_rew _-- Hinge s_rew
Screw
Tools Necessary:
Phillips Head
Quadrex Head
Screwdriver Wrench Set
Plastic
Pliers
Awl
16.
17.
18.
19.
Top Hinge
Cover
NOTE
The direction in which your refrigerator doors open (door swing) can be
reversed, from left to right or right to left, by moving the door hinges from one
side to the other. Reversing the door swing should be performed by a qualified
person.
Doo_ StoF
Washer
DoorStop Stop
iMPORTANT
Before you begin, turn the refrigerator temperature control to "0" (OFF) and
remove the electrical power cord from the wail outlet. Remove any food from
door shelves.
1. Remove toe grille.
2. Remove top hinge coven Trace around the hinge with a soft lead pencil.
This makes reinstallation easier. Remove top hinge and lift door off center
hinge pin. Set door aside.
3. Unscrew center hinge pin using adjustable wrench and save for
reassembly. Ensure plastic washer stays on hinge pin.
4. Lift refrigerator door off of bottom hinge and set aside.
5. Remove center hinge and shim by removing inside screw and loosening two
outside screws enough to allow hinge and shim to slide out. Tighten screws.
6. Loosen two outside screws on opposite side of refrigerator, remove inside
screw and install center hinge.
7. Remove two screws on bottom hinge with 3/8" socket wrench.
8. Install bottom hinge on opposite side with the two screws removed from step 7.
9. Unscrew bottom hinge pin using adjustable wrench. Move hinge pin to
other hole in hinge and tighten with adjustable wrench.
Reverse door handles (see instructions on next page).
Move freezer and refrigerator door stops to opposite side. Before starting
screws, use an awl to puncture the foam.
Position refrigerator door onto bottom hinge pin and screw center hinge
pin through center hinge into top of door. Close refrigerator door to help
align hinge hole.
Tighten center hinge pin with adjustable wrench.
14. Remove cabinet and hinge hole plugs and move to opposite side.
15. Lower freezer door onto center hinge pin.
Close freezer door. Have an assistant lift up on opposite side of door while tightening screws to install top hinge.
Flip toe grille and reinstall.
Plug in electrical power cord and turn refrigerator temperature control to center position. Adjust setting as necessary.
Ensure that all gaskets seal properly and doors are level.

First Steps
Handle Style ]
To remove refrigerator handle:
(Handles may be easier to reverse while doors are off:.)
1. Remove two screws attaching handle to top of
refrigerator door.
2. Slide handle straight up and pull handle off:
mounting screw on door.
3. Remove mounting screw from door and install on
other side, moving hole plugs from corresponding
holes to opposite side.
To attach refrigerator handle:
1. Place top of handle over mounting screw, pull handle
straight down until handle is aligned with screw holes
on top of door.
2. Secure top of handle with two screws removed earlier.
To remove freezer handle:
(Handles may be easier to reverse while doors are off:.)
1. Remove two screws attaching handle to bottom of
freezer door.
2. Slide handle straight down and pull handle off:
mounting screw on door.
3. Remove mounting screw from door and install on
other side, moving hole plugs from corresponding
holes to opposite side.
4. Self-Adhesive Nameplate Models: Use plastic putty
knife to gently peel off: nameplate from door and
reapply over old holes.
To attach freezer handle:
1. Place top of handle over mounting screw, pull handle
straight up until handle is aligned with screw holes on
bottom of door.
2. Secure bottom of handle with two screws removed earlier.
z
7 /"
J
Mounting
/Screw
/
Screw ----_
Lock Handle
Mounting Screw
To reverse refrigerator/freezer handles:
Handles may be easier to reverse while doors are off:.
Reverse freezer and refrigerator handles as shown.

First Steps
_CAUTION
Wear gloves and use extreme CAUTION when
insfalllng these handles. The rounded end of the
handles may be sharp.
IMPORTANT
To ensure proper installation of handies_ please review
these instructions and pictures thoroughly prior to
installing the handles.
Additionally, before installing the door handles, make
sure the door swing is correct. Follow instructions in the
Use & Care Guide to reverse the doors° if necessary.
Handle Style 2
To attach refrigerator metal handle:
1. Place rounded part of handle onto mounting screw
on face of door and align the 2 holes in top of
handle with the 2 holes in top of door. Handle should
be mounted with set screw facing towards center of
door. Do not tighten the set screw yet.
2. Install the 2 screws into the top of the handle.
3. Tighten the set screw on the rounded part of the
handle until the handle is flush with the door° and
then tighten another 1/2turn.
To attach freezer handle:
1. Place rounded part of handle onto mounting screw
on face of door and align the 2 holes in bottom of
handle with the 2 holes in bottom of door. Handle
should be mounted with set screw facing towards
center of door. Do not tighten the set screw yet.
2. Install the 2 screws into the bottom of the handle.
3. Tighten the set screw on the rounded part of the
handle until the handle is flush with the door_ and
then tighten another 1/2turn.
To reverse refrigerator/freezer handles:
Handles may be easier to reverse while doors are off:.
Reverse freezer and refrigerator handles as shown.
_j,f
10

First Steps
Handle Style 3
To remove refrigerator handle:
(Handles may be easier to reverse while doors are off:.)
1. Remove two screws attaching handle to top of
refrigerator door.
2. Slide handle straight up and pull handle off:
mounting screw on door.
3. Remove mounting screw from door and install on
other side, moving hole plugs from corresponding
holes to opposite side.
To attach refrigerator handle:
1. Place top of handle over mounting screw; pull handle
straight down until handle is aligned with screw holes
on top of door.
2. Secure top of handle with two screws removed earlier.
To attach freezer handle:
1. Place top of handle over mounting screw; puii handle
straight up until handle is aligned with screw holes on
bottom of door.
2. Secure bottom of handle with two screws removed earlier.
To remove freezer handle:
(Handles may be easier to reverse while doors are off:.)
1. Remove two screws attaching handle to bottom of
freezer door.
2. Slide handle straight down and pull handle off:
mounting screw on door.
3. Remove mounting screw from door and install on
other side, moving hole plugs from corresponding
holes to opposite side.
4. Self-Adhesive Nameplate Models: Use plastic putty
knife to gently peel off: nameplate from door and
reapply over old holes.
To reverse refrigerator/freezer handles:
Handles may be easier to reverse while doors are off:.
Reverse freezer and refrigerator handles as shown.
11

Connecting Household Water Supply To Refrigerator
WARNING
To avoid electric shock, which can cause death or
severe personal injury, dlsconnect the refrigerator from
electrical power before connecting awater supply llne
to the refrlgeratar.
_CAUTION
To Avoid Property Damage:
* Copper tubing is recommended for the water supply
llne. Water supply tubing made of IA" plastic is
nat recommended since if greatly increases the
potentlal far wafer leaks. Manufacturer will not be
responsible for any damage if plastic tublng is used
for supply llne.
• DO NOT install water supply tubing in areas where
temperatures fall below freezing.
* Chemicals from a malfunctioning softener can
damage the icemaker, if the icemaker is connec|ed to
soft water, ensure thai the softener is maintained and
working properly.
iMPORTANT
Ensure that your water supply line connections comply
with all local plumbing codes.
Before Installing The Water Supply Line, You
Will Need:
°Basic Tools: adjustable wrench, flat-blade screwdriver,
and Phillips screwdriver
*Access to a household cold water line with water
pressure between 30 and 100 psi.
°A water supply line made of ]/4" (6.4 ram) OD, copper
tubing. To determine the length of copper tubing
needed, you wiii need to measure the distance from
the ice maker inlet valve at the back of the refrigerator
to your cold water pipe. Then add approximately 7
feet (2.1 meters), so the refrigerator can be moved out
for cleaning (as shown).
°A shutoff valve to connect the water supply line to
your household water system. DO NOT use a self-
piercing type shutoff valve.
°A compression nut and ferrule (sleeve) for connecting
the water supply line to the icemaker inlet valve.
NOTE
A water line kit is available from Sears stores or Sears
Parts & Repair at an additional cost.
To Connect Water Supply Line To Icemaker
Inlet Valve:
1. Disconnect refrigerator from electric power source.
2. Place end of water supply line into sink or bucket. Turn
ON water supply and flush supply line until water is
clean Turn OFF water supply at shutoff valve.
3. Unscrew plastic cap from water valve inlet and
discard cap.
4. Slide brass compression nut, and then ferrule (sleeve)
onto water supply line, as shown.
5. Push water supply line into water valve inlet as far as
it will go (VZ'). Slide ferrule (sleeve) into valve inlet
and finger tighten compression nut onto valve. Tighten
another half turn with a wrench; DO NOT overtighten.
6. With steel clamp and screw, secure water supply line
to rear panel of refrigerator as shown.
7. Coil excess water supply line (about 21/2 turns) behind
refrigerator as shown and arrange coils so they do not
vibrate or wear against any other surface.
8. Turn ON water supply at shutoff valve and tighten
any connections that leak.
9. Reconnect refrigerator to electrical power source.
10. To turn icemaker on, lower wire signal arm (see ice
maker front cover for ON/OFF position of arm).
J
Steel
Clamp
Brass
Compresslon
Nut
__ Ferrule
(Sleeve)
Copper
W_re Line
Water Valve
\ Bracket
Valve inlet
Water Valve
rLine from
Household Water Supply
(Include enough tublng in loop to allow
moving refrigerator out for cleanlng.)
12

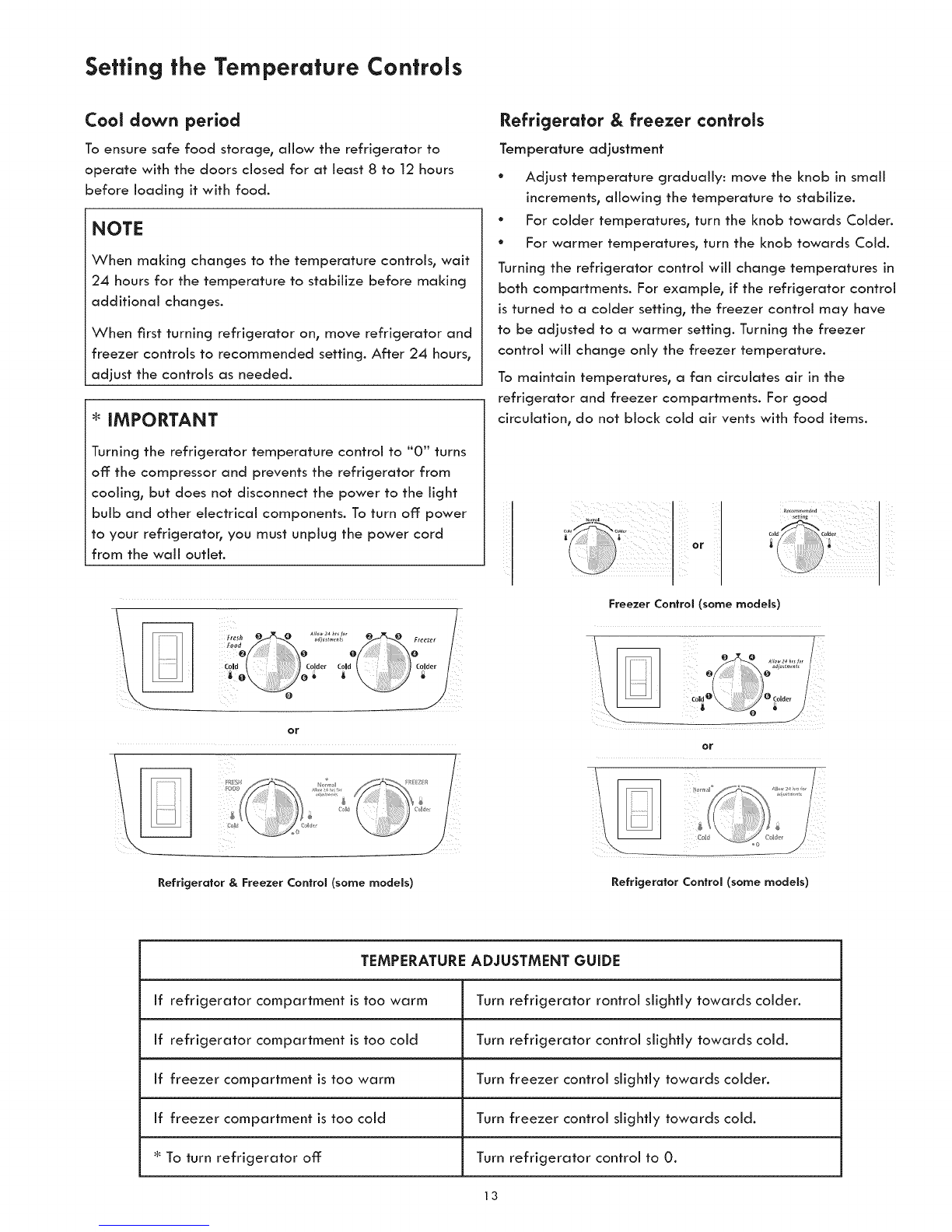

Setting the Temperature Controls
Cool down period
To ensure safe food storage, allow the refrigerator to
operate with the doors closed for at least 8 to 12 hours
before loading it with food.
NOTE
When making changes to the temperature controls, wait
24 hours for the temperature to stabilize before making
additional changes.
When first turning refrigerator on, move refrigerator and
freezer controls to recommended setting. After 24 hours,
adjust the controls as needed.
IMPORTANT
Turning the refrigerator temperature control to "0" turns
off: the compressor and prevents the refrigerator from
cooling, but does not disconnect the power to the light
bulb and other electrical components. To turn off power
to your refrigerato b you must unplug the power cord
from the wall outlet.
or
Refrigerator &Freezer Control (some models)
Refrigerator & freezer controls
Temperature adjustment
° Adjust temperature gradually: move the knob in small
increments, allowing the temperature to stabilize.
° For colder temperatures, turn the knob towards Colder.
° For warmer temperatures, turn the knob towards Cold.
Turning the refrigerator control will change temperatures in
both compartments. For example, if the refrigerator control
is turned to a colder setting, the freezer control may have
to be adjusted to a warmer setting. Turning the freezer
control will change only the freezer temperature.
To maintain temperatures, a fan circulates air in the
refrigerator and freezer compartments. For good
circulation, do not block cold air vents with food items.
or
Freezer Control (some models)
or
Refrigerator Control (some models)
TEMPERATURE ADJUSTMENT GUIDE
If refrigerator compartment is too warm Turn refrigerator rontrol slightly towards colder.
If refrigerator compartment is too cold Turn refrigerator control slightly towards cold.
If freezer compartment is too warm Turn freezer control slightly towards colder.
If freezer compartment is too cold Turn freezer control slightly towards cold.
To turn refrigerator off Turn refrigerator control to 0.
13

Optional Features
_CAUTION
To avoid personal injury or property damage, handle
tempered glass shelves carefully. Shelves may break
suddenly if nicked, scratched, or exposed to sudden
temperature change.
Shelf Adjustment
Refrigerator shelves are easily adjusted to suit individual
needs. Before adjusting the shelves, remove all food.
To adjust sliding shelves:
1. Remove shelf by pulling forward to stop position.
2. Lift front edge up and puii out.
To replace shelf, rest side edges on any pair of shelf rails
and carefully push shelf back into position.
Sliding Glass Shelf Sliding Wire Shelf
Door storage
Door bins, shelves, and racks are provided for convenient
storage of jars, bottles, and cans. Frequently used items
can be quickly selected.
Some models have door racks or bins that can
accommodate gallon-sized plastic drink containers and
economy-sized jars and containers. Some racks are
adjustable for maximum storage capacity.
The dairy compartment_ which is warmer than the general
food storage section, is intended for short term storage of
cheese, spreads, or butter.
Door Rack
NOTE
Cantilever shelves are supported at the back of the
refrigerator. Cantilever shelves are available in either
glass or wire.
To adjust cantilever shelves:
1. Lift front edge up.
2. Puii shelf out.
Replace the shelf by inserting the hooks at rear of the shelf
into the waft bracket. Lower the shelf into the desired slots
and lock into position.
SpiliProof TM glass shelves (some models) catch and hold
accidental spills. In some models, the SpiliProof TM shelves
slide out for easy access to food and for fast cleaning. The
shelves slide out independently of the cantilever brackets.
Just puii the front of the shelf forward. The shelf can be
extended as far as the stopper wiii allow, but it is not
removable from the cantilever bracket.
Full-width Cantilever
GlassShelf
Adjustable door bins
Cantilever Glass Shelf
Fixed and SEding
Some models have adjustable door bins that can be
moved to suit individual needs.
To move door bins:
1. Lift bin straight up.
2. Remove bin.
3. Place bin in
desired position.
4. Lower bin
onto supports
until locked in place.
14

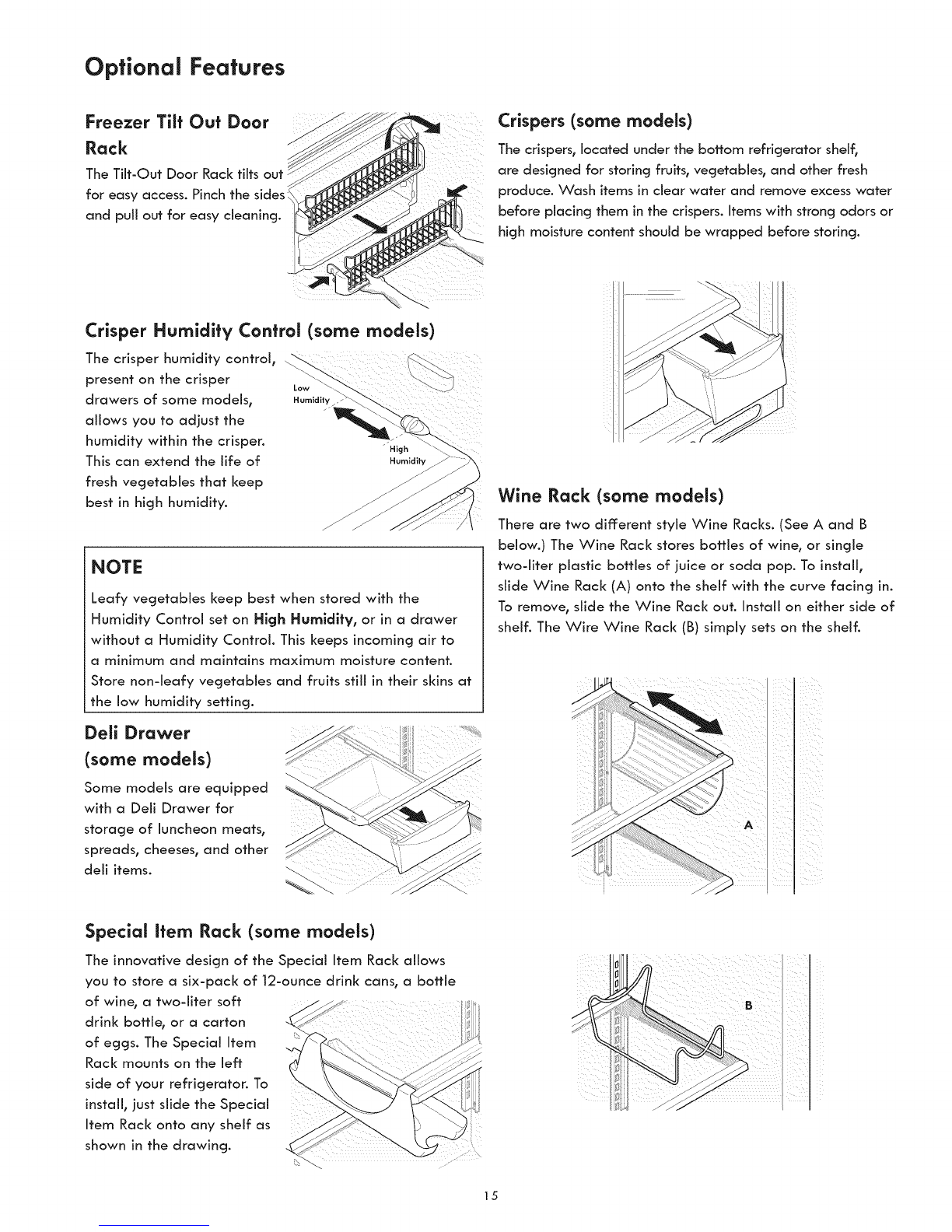

Optional Features
Freezer Tilt Out Door
Rack
The Tilt-Out Door Rack tilts out
for easy access. Pinch the sides!
and pull out for easy cleaning.
Crispers (some models)
The crispers, located under the boffom refrigerator shelf,
are designed for storing fruits, vegetables, and other fresh
produce. Wash items in clear water and remove excess water
before placing them in the crispers. Items with strong odors or
high moisture content should be wrapped before storing.
Crisper Humidity Control (some models)
The crisper humidity control,
present on the crisper
drawers of some models,
allows you to adjust the
humidity within the crisper.
This can extend the life of
fresh vegetables that keep
best in high humidity.
High
Humidity
NOTE
Leafy vegetables keep best when stored with the
Humidity Control set on High Humidity, or in a drawer
without a Humidity Control. This keeps incoming air to
a minimum and maintains maximum moisture content.
Store non-leafy vegetables and fruits still in their skins at
the low humidity setting.
Dell Drawer
(some models)
Some models are equipped
with a Dell Drawer for
storage of luncheon meats,
spreads, cheeses, and other
dell items.
i
Wine Rack (some models)
There are two different style Wine Racks. (See A and B
below.) The Wine Rack stores bottles of wine, or single
twoditer plastic bottles of juice or soda pop. To install,
slide Wine Rack (A) onto the shelf with the curve facing in.
To remove, slide the Wine Rack out. Install on either side of
shelf. The Wire Wine Rack (B) simply sets on the shelf.
illii
i_i ii
iii
Special Item Rack (some models)
The innovative design of the Special Item Rack allows
you to store a six-pack of 12-ounce drink cans, a bottle
of wine, a two-liter soft
drink bottle, or a carton
of eggs. The Special Item
Rack mounts on the left
side of your refrigerator. To
install, just slide the Special
Item Rack onto any shelf as
shown in the drawing.
15

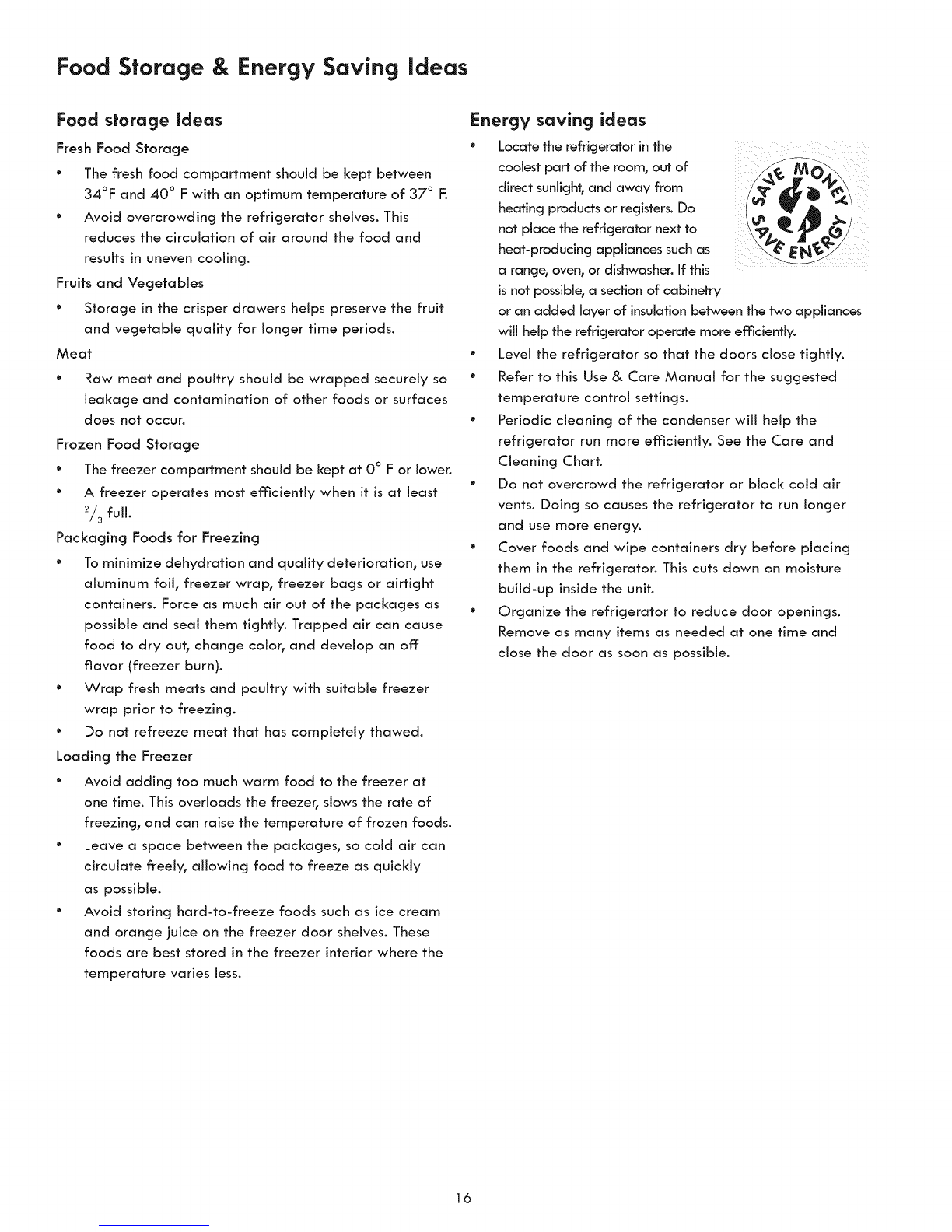

Food Storage & Energy Saving ideas
Food storage ideas
Fresh Food Storage
°The fresh food compartment should be kept between
34°F and 40 ° F with an optimum temperature of 37 ° F.
°Avoid overcrowding the refrigerator shelves. This
reduces the circulation of air around the food and
results in uneven cooling.
Fruits and Vegetables
°Storage in the crisper drawers helps preserve the fruit
and vegetable quality for longer time periods.
Meat
°Raw meat and poultry should be wrapped securely so
leakage and contamination of other foods or surfaces
does not occur.
Frozen Food Storage
°The freezer compartment should be kept at 0° F or lower.
°A freezer operates most emcienfly when it is at least
2/3 full.
Packaging Foods for Freezing
°To minimize dehydration and quality deterioration, use
aluminum foil, freezer wrap, freezer bags or airtight
containers. Force as much air out of the packages as
possible and seal them tightly. Trapped air can cause
food to dry out, change color, and develop an off:
flavor (freezer burn).
°Wrap fresh meats and poultry with suitable freezer
wrap prior to freezing.
°Do not refreeze meat that has completely thawed.
Loading the Freezer
°Avoid adding too much warm food to the freezer at
one time. This overloads the freezer, slows the rate of
freezing, and can raise the temperature of frozen foods.
°Leave a space between the packages, so cold air can
circulate freely, allowing food to freeze as quickly
as possible.
°Avoid storing hard-to-freeze foods such as ice cream
and orange juice on the freezer door shelves. These
foods are best stored in the freezer interior where the
temperature varies less.
Energy saving ideas
°Locate the refrigerator in the
coolest part of the room, out of
direct sunJighh and away from
heating products or registers. Do
not place the refrigerator next to
heat-producing appliances such as
a range, oven, or dishwasher. If this
isnot possible, a section of cabinetry
or an added layer of insulationbetween the two appliances
wiii help the refrigerator operate more emcientiy.
°Level the refrigerator so that the doors close tightly.
°Refer to this Use & Care Manual for the suggested
temperature control settings.
°Periodic cleaning of the condenser will help the
refrigerator run more emcienfly. See the Care and
Cleaning Chart.
°Do not overcrowd the refrigerator or block cold air
vents. Doing so causes the refrigerator to run longer
and use more energy.
°Cover foods and wipe containers dry before placing
them in the refrigerator. This cuts down on moisture
build-up inside the unit.
°Organize the refrigerator to reduce door openings.
Remove as many items as needed at one time and
close the door as soon as possible.
16

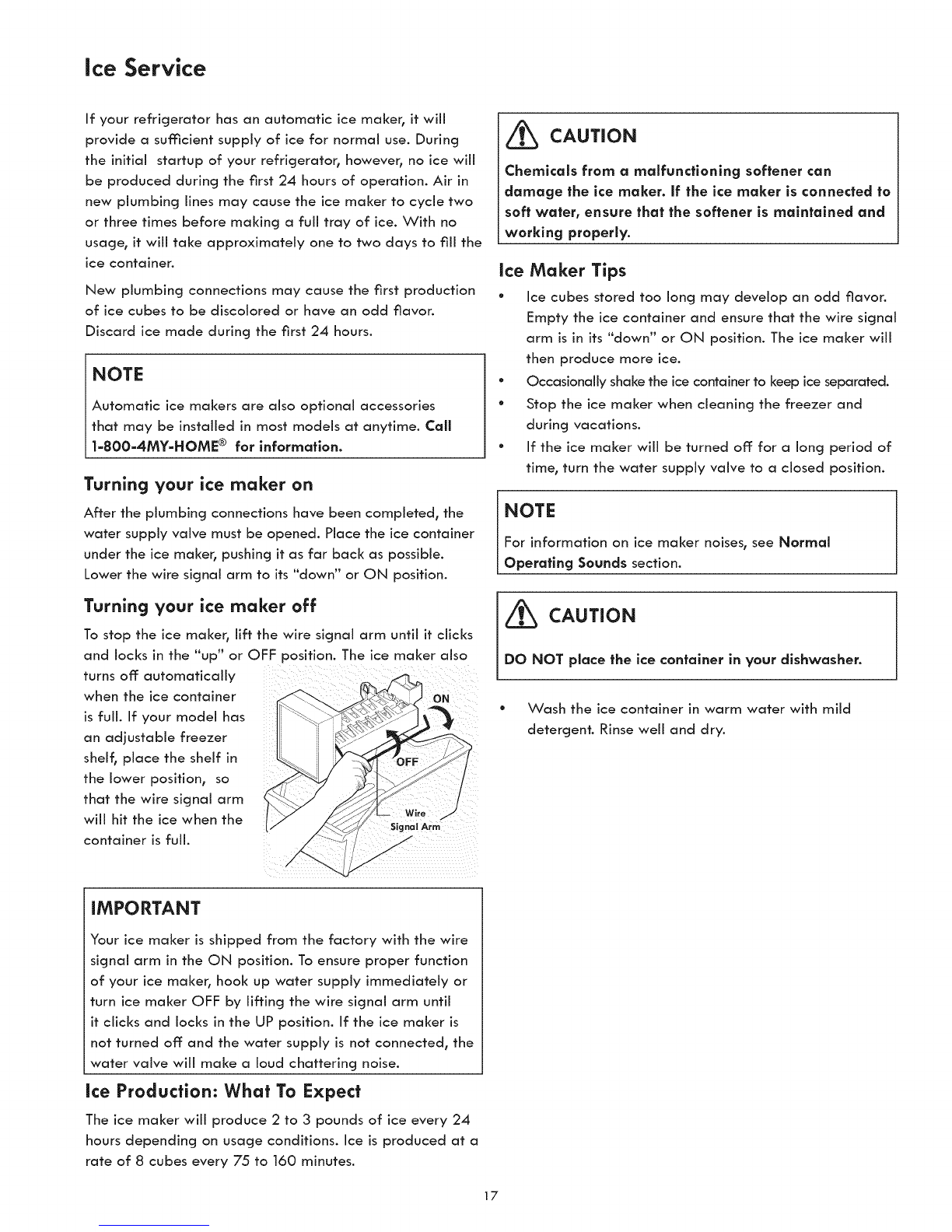

ice Service
If your refrigerator has an automatic ice maker_ it wiii
provide a sumcient supply of ice for normal use. During
the initial startup of your refrigerator, however, no ice wili
be produced during the first 24 hours of operation. Air in
new plumbing lines may cause the ice maker to cycle two
or three times before making a full tray of ice. With no
usage, it will take approximately one to two days to fill the
ice container.
New plumbing connections may cause the first production
of ice cubes to be discolored or have an odd flavor.
Discard ice made during the first 24 hours.
NOTE
Automatic ice makers are also optional accessories
that may be installed in most models at anytime. CaJJ
1-800-4MY-HOME ® for information.
Turning your ice maker on
After the plumbing connections have been completed, the
water supply valve must be opened. Place the ice container
under the ice maker, pushing it as far back as possible.
Lower the wire signal arm to its "down" or ON position.
Turning your ice maker off
To stop the ice maker, lift the wire signal arm until it clicks
and locks in the "up" or OFF position. The ice maker also
turns off automatically
when the ice container
is full. If your model has
an adjustable freezer
shelf, place the shelf in
the lower position, so
that the wire signal arm
will hit the ice when the
container is full.
_CAUTION
Chemicals from a malfunctioning softener can
damage the ice maker, if the ice maker is connected to
soft water, ensure that the softener is maintained and
working properly.
Ice Maker Tips
°Ice cubes stored too long may develop an odd flavor.
Empty the ice container and ensure that the wire signal
arm is in its "down" or ON position. The ice maker will
then produce more ice.
°Occasionally shake the ice container to keep ice separated.
°Stop the ice maker when cleaning the freezer and
during vacations.
°If the ice maker will be turned off for a long period of
time, turn the water supply valve to a closed position.
NOTE
For information on ice maker noises, see Normal
Operating Sounds section.
_CAUTION
DO NOT place the ice container in your dishwasher.
*Wash the ice container in warm water with mild
detergent. Rinse well and dry.
IMPORTANT
Your ice maker is shipped from the factory with the wire
signal arm in the ON position. To ensure proper function
of your ice maker, hook up water supply immediately or
turn ice maker OFF by lifting the wire signal arm until
it clicks and locks in the UP position. If the ice maker is
not turned off and the water supply is not connected, the
water valve will make a loud chattering noise.
Ice Production: What To Expect
The ice maker will produce 2 to 3 pounds of ice every 24
hours depending on usage conditions. Ice is produced at a
rate of 8 cubes every 75 to 160 minutes.
17

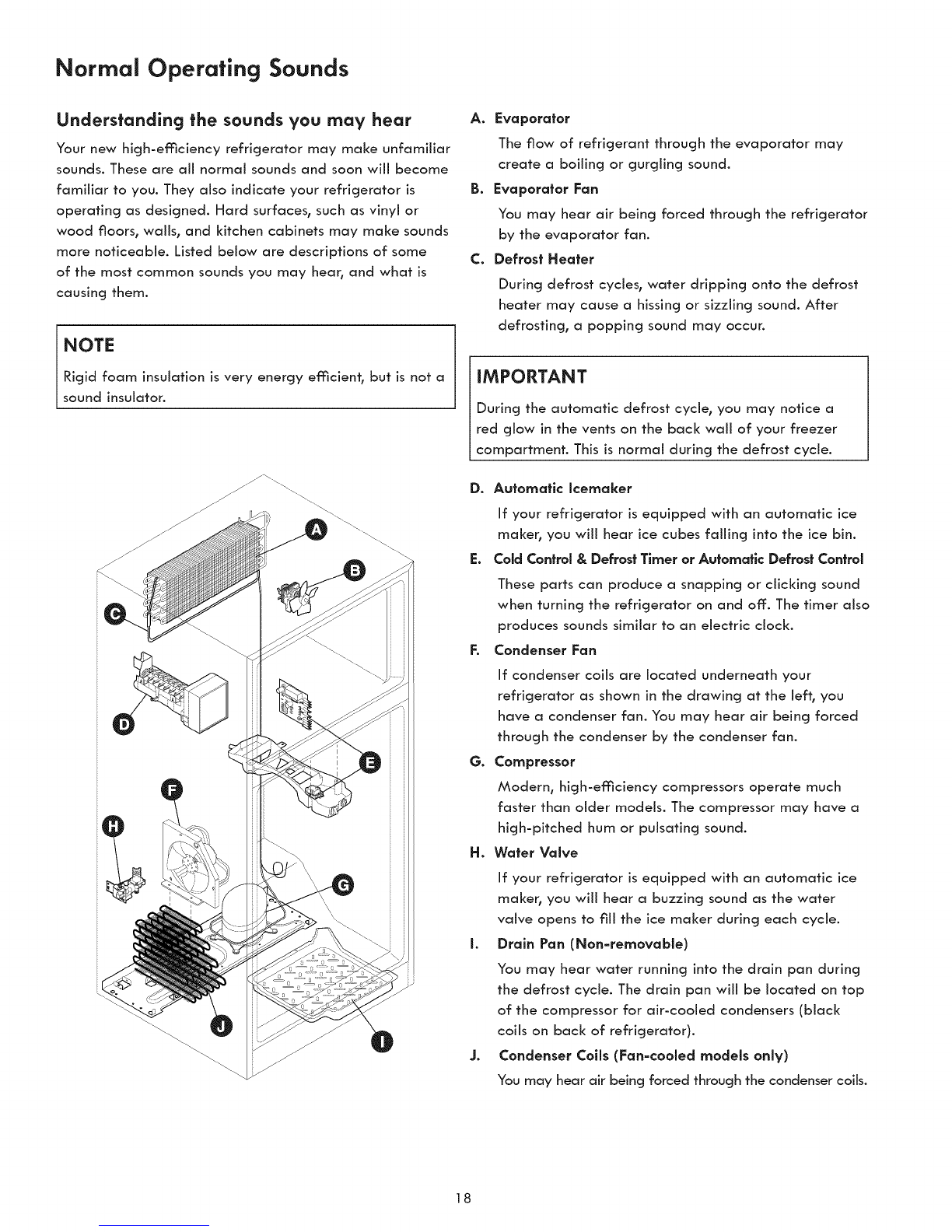

Normal Operating Sounds
Understanding the sounds you may hear
Your new high-efficiency refrigerator may make unfamiliar
sounds. These are ail normal sounds and soon will become
familiar to you. They also indicate your refrigerator is
operating as designed. Hard surfaces, such as vinyl or
wood floors, wafts, and kitchen cabinets may make sounds
more noticeable. Listed below are descriptions of some
of the most common sounds you may hear, and what is
causing them.
NOTE
Rigid foam insulation is very energy efficient, but is not a
sound insulaton
A. Evaporator
The flow of refrigerant through the evaporator may
create a boiling or gurgling sound.
B. Evaporator Fan
You may hear air being forced through the refrigerator
by the evaporator fan.
C. Defrost Heater
During defrost cycles, water dripping onto the defrost
heater may cause a hissing or sizzling sound. After
defrosting, a popping sound may occur.
IMPORTANT
During the automatic defrost cycle, you may notice a
red glow in the vents on the back wail of your freezer
compartment. This isnormal during the defrost cycle.
D. Automatic Icemaker
If your refrigerator is equipped with an automatic ice
maker, you will hear ice cubes falling into the ice bin.
E. Cold Control & Defrost Timer or Automatic Defrost Control
These parts can produce a snapping or clicking sound
when turning the refrigerator on and off. The timer also
produces sounds similar to an electric clock.
F. Condenser Fan
If condenser coils are located underneath your
refrigerator as shown in the drawing at the left, you
have a condenser fan. You may hear air being forced
through the condenser by the condenser fan.
G. Compressor
Modern, high-efficiency compressors operate much
faster than older models. The compressor may have a
high-pitched hum or pulsating sound.
H. Water Valve
If your refrigerator is equipped with an automatic ice
maker, you will hear a buzzing sound as the water
valve opens to fill the ice maker during each cycle.
I. Drain Pan (Non-removable)
You may hear water running into the drain pan during
the defrost cycle. The drain pan will be located on top
of the compressor for air-cooled condensers (black
coils on back of refrigerator).
J. Condenser Coils (Fan-cooled models only)
You may hear air being forced through the condenser coils.
18

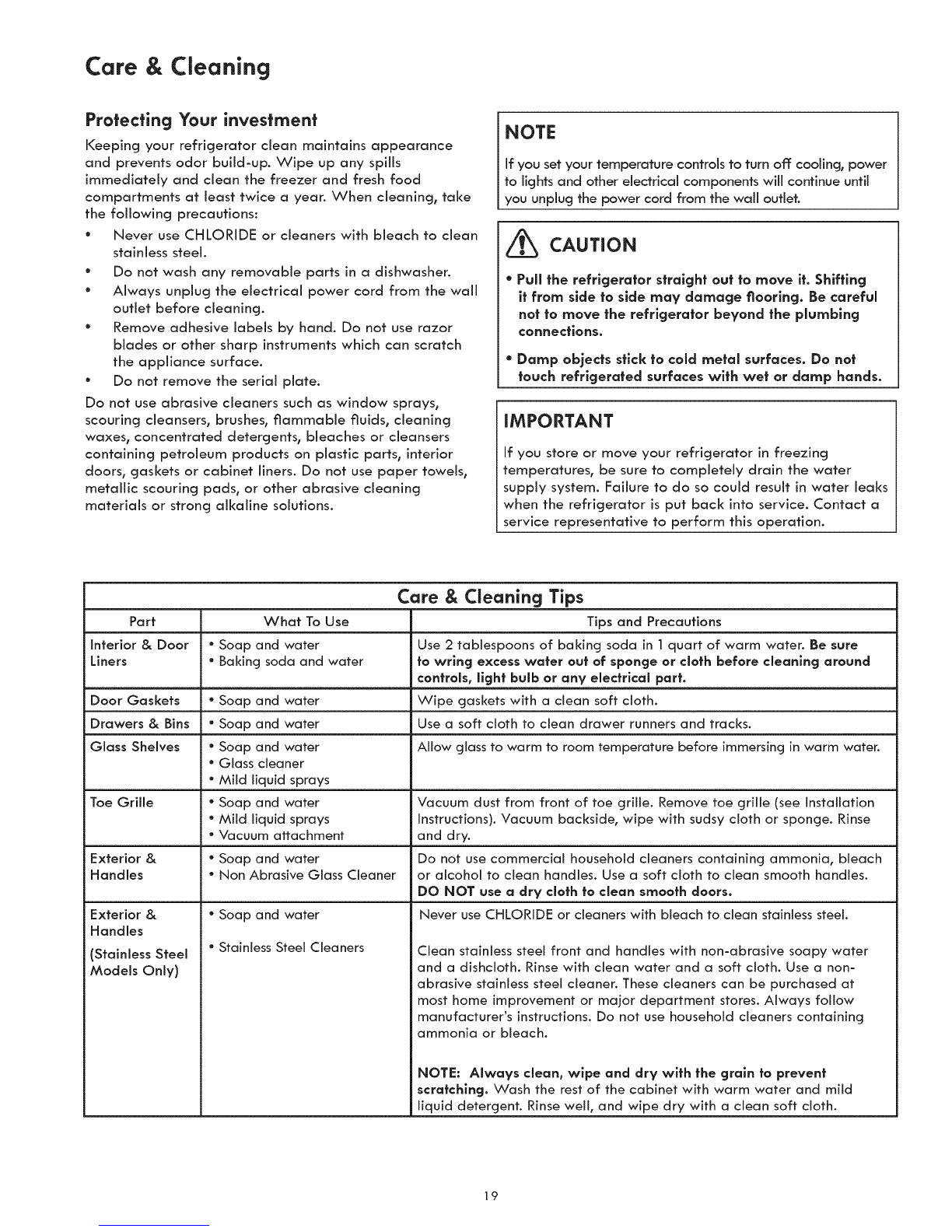

Care & Cleaning
Protecting Your investment
Keeping your refrigerator clean maintains appearance
and prevents odor build-up. Wipe up any spills
immediately and clean the freezer and fresh food
compartments at least twice a year. When cleaning, take
the following precautions:
°Never use CHLORIDE or cleaners with bleach to clean
stainless steek
°Do not wash any removable parts in a dishwasher.
° Always unplug the electrical power cord from the wall
outlet before cleaning.
°Remove adhesive labels by hand. Do not use razor
blades or other sharp instruments which can scratch
the appliance surface.
°Do not remove the serial plate.
Do not use abrasive cleaners such as window sprays,
scouring cleansers, brushes, flammable fluids, cleaning
waxes, concentrated detergents, bleaches or cleansers
containing petroleum products on plastic parts, interior
doors, gaskets or cabinet liners. Do not use paper towels,
metallic scouring pads, or other abrasive cleaning
materials or strong alkaline solutions.
NOTE
If you set your temperature controls to turn off cooling, power
to lights and other electrical components will continue until
you unplug the power cord from the wall outlet.
_CAUTION
*Puff the refrigerator straight out to move it. Shifting
it from side to side may damage flooring. Be careful
not to move the refrigerator beyond the plumblng
connections.
* Damp objects stick to cold metal surfaces. Do not
touch refrigerated surfaces with wet or damp hands.
IMPORTANT
If you store or move your refrigerator in freezing
temperatures, be sure to completely drain the water
supply system. Failure to do so could result in water leaks
when the refrigerator is put back into service. Contact a
service representative to perform this operation.
Care &Cleaning Tips
Part What To Use Tips and Precautions
Interior & Door •Soap and water Use 2 tablespoons of baking soda in 1 quart of warm water. Be sure
Liners •Baking soda and water to wring excess water out of sponge or cloth before cJeanlng around
controls, light bulb or any electrlcaJ part.
Door Gaskets •Soap and water Wipe gaskets with a clean soft cloth.
Drawers & Bins •Soap and water Use a soft cloth to clean drawer runners and tracks.
Glass Shelves •Soap and water Allow glass to warm to room temperature before immersing in warm water.
•Glass cleaner
•Mild liquid sprays
Toe Grille •Soap and water Vacuum dust from front of toe grille. Remove toe grille (see Installation
•Mild liquid sprays Instructions). Vacuum backside, wipe with sudsy cloth or sponge. Rinse
•Vacuum attachment and dry.
Exterior & •Soap and water Do not use commercial household cleaners containing ammonia, bleach
Handles •Non Abrasive Glass Cleaner or alcohol to clean handles. Use a soft cloth to clean smooth handles.
DO NOT use a dry cloth to clean smooth doors.
Never use CHLORIDE or cleaners with bleach to clean stainless steel.Exterior &
Handles
(Stainless Steel
Models Only)
*Soap and water
"Stainless Steel Cleaners Clean stainless steel front and handles with non-abrasive soapy water
and a dishcloth. Rinse with clean water and a soft cloth. Use a non-
abrasive stainless steel cleaner. These cleaners can be purchased at
most home improvement or major department stores. Always follow
manufacturer's instructions. Do not use household cleaners containing
ammonia or bleach.
NOTE: Always clean, wipe and dry with the grain to prevent
scratching. Wash the rest of the cabinet with warm water and mild
liquid detergent. Rinse well, and wipe dry with a clean soft cloth.
19

Care & Cleaning
Never Clean Condenser (some models)
If your refrigerator is equipped with a Never Clean
condenser, there's no need to clean the condenser
under normal operating conditions. If the refrigerator is
operated under particularly dusty or greasy conditions,
or if there is significant pet traffic in your home, it may
be necessary to periodically clean the condenser for
maximum efficiency.
Replacing the freezer light bulb (some models)
1. Unplug refrigerator.
2. Wear gloves as protection against possible broken glass.
3. Unsnap iicjht cover as shown.
4. Unscrew and replace old bulb with an appliance
bulb of the same wattage.
5. Replace light shield.
6. Remember to plug the refrigerator back in.
Replacing mid-level refrigerator light bulb
(some models)
1. Unplug refrigerator.
2. Wear gloves as protection against possible broken glass.
3. Unsnap iicjht cover.
4. Unscrew and replace old bulb(s) with an appliance
bulb of the same wattage.
5. Replace light cover.
6. Remember to plug the refrigerator back in.
_CAUTION
Wear gloves to avoid cuts when replacing light bulbs.
_J
FreezerLightCoverRemoval
Refrigerator Mid-Level Light Cover Removal
Short Vacations
Long Vacations
Moving
Vacation and Moving Tips
°Leave refrigerator operating during vacations of 3 weeks or less.
°Use all perishable items from refrigerator compartment.
°Turn automatic Icemaker off and empty ice buckeh even if you will only be gone for a few days.
°Remove all food and ice if you will be gone one month or more.
°Turn off automatic Icemaker and turn water supply valve to closed position.
°Turning refrigerator controls to "OFF" by pressing and holding the On/Off button for 3 seconds
(electronic) or turning control knobs to "0" (manual) on the mechanical controls only controls your
refrigerator's coolincj system. To turn off power to your refrigerator you must unplug the power cord
from the wall outlet.
°Clean interior thoroughly.
°Leave both doors open to prevent odors and mold build-up. Block doors open if necessary.
°Remove all food and ice.
°If using handcart, load from side.
°Adjust rollers all the way up to protect them during sliding or moving.
°Pad cabinet exterior to avoid scratching surface.
20
