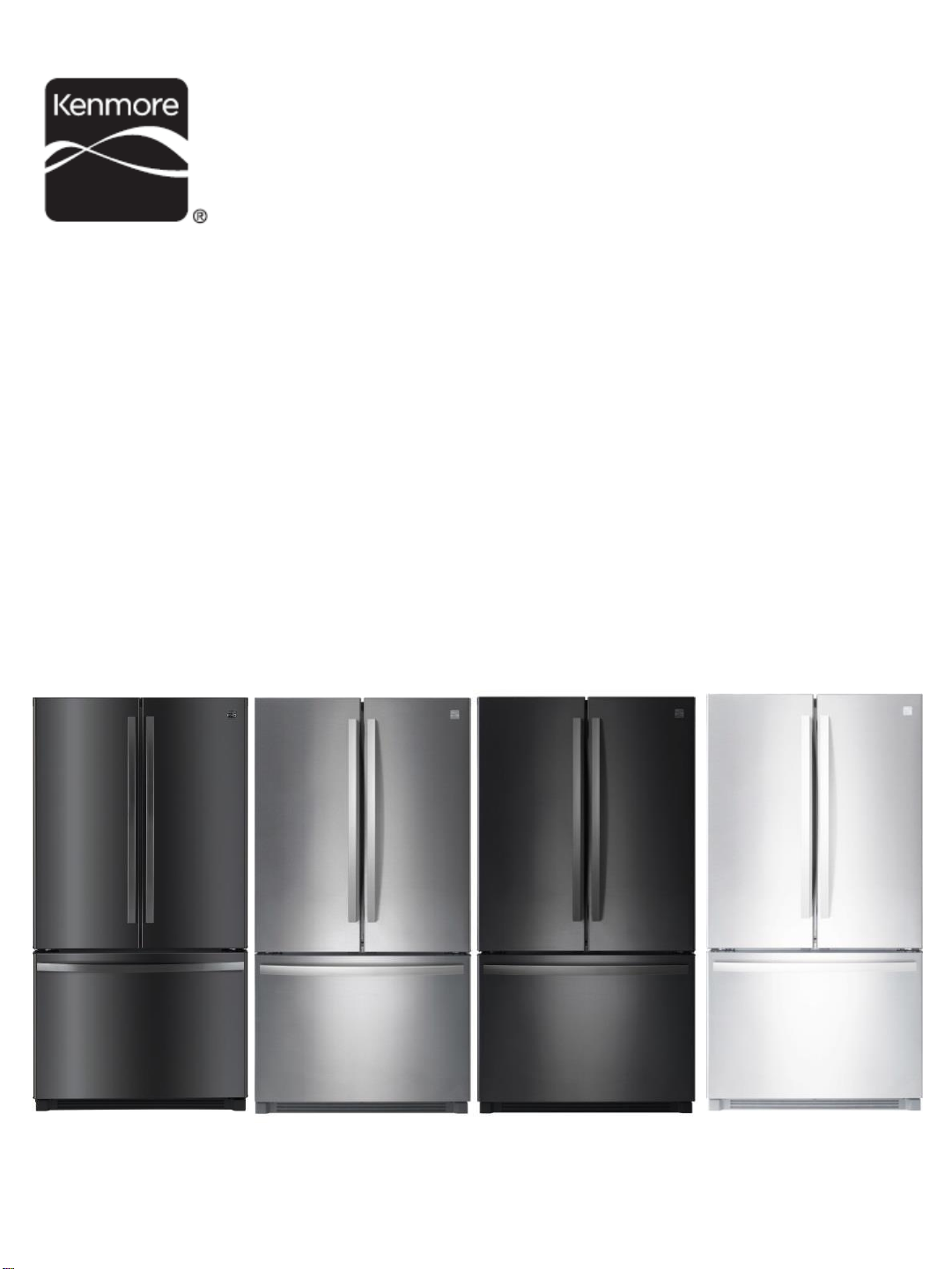

Kenmore RFP74KB Series User manual

Model/Modelo: 111.7302****
* Color number, número de color
REFRIGERATOR
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE UNIT,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
BLACK SUS SUS BLACK PCM WHITE PCM
S/M No. RFP7402000
√Caution
In this manual, some parts can be changed for improving their performance without notice. So, If you need the latest parts
information, please visit and refer to PPL (Parts Price List) in Service Information Center.(http://webportal.winiadaewoo.com/sic)
July .2020

Content
1. Warnings and
Precautions for Safety…………………........ 4
2. Specifications ……………………..…........... 5
4. External Dimensions ………………...…..... 9
5. Features ……….………………..…........... 10
6. Flow Diagram
8. Operation and Function
8-1. Display ……….….... 17
8-2. Defrost Mode ……………………... 19
8-3. Forced Defrosting Mode ……….... 20
8-4. Fan Voltage of Control Mode ……….. 20
8-5. DV Heater ………………….. 21
8-6. Water Pipe Heater Control ….. 21
8-8 Control of Interior Light …………….. 22
…………….……..… 22
8-10. Compensation of R-sensor ON/OFF
Temp
9. How to Service
9-1. Faulty Start
(F/R lights Off, F-PCB Power Off) …... 28
9-2. Freezing Failure
(Foods are not frozen/cold.) ……..…... 29
9-3. Ice Formation on F-Louver ……..…... 30
9-4. Disconnection / Breaking
of Freezer Lights Ass’y
……..…... 31
9-5. Refrigeration Failure
(Foods does not get cool or cold soon)
……..…... 32
11. Cooling Cycle Heavy Repair
9-7. Dews on Refrigerator Compartment ... 34
9-8. Comp. Operation Noise ……………... 35
9-9. Refrigerant Flow Sound ……………... 36
9-10. Fan Noise ………………….………... 38
9-11. Pipe Noise ………………….……... 39
9-12. Door opening alarm continues
though the door is closed. ……. 40
11-1. Summary of Heavy Repair ………….. 49
11-2. Precautions During Heavy Repair .... 50
11-3. Practical Work for Heavy Repair .... 51
11-4. Standard Regulations
for Heavy Repair …………….... 53
10. Disassemble/Assemble Procedures
10-1. F Door As …………... 41
10-2. F Louver As …….. 42
10-3. F Fan As ……….. 42
10-5. Eva As …………………………….. 43
10-6. R Door as ……………….. 44
10-7. Cover Multi Duct As …………...….. 44
10-8. Icemaker As …………...….. 46
10-10. Main PCB ….... 48
8-7. Buzzer of Alarm Control ………….... 21
8-9. Demonstration
……..…... 33
10-9. Icemaker & Hose Ice Maker Tube as . 47
3. Sensor / Voltage ………………...…..... 7
……………………..…........... 14
7. Wiring Diagram ……….……………............ 16
10-4. R Fan As ………... 43
………………….…….……..… 23
…………….……..… 24
8-11. Error Display
…………….……..… 27
8-12. Summary of Function
9-6. Disconnection / Breaking
of Refrigerator Lights Ass’y

Content
12. Service Part List
12-1. Cabinet ……………….………..….. 54
Document History
Version
(S/M No.) Date Author Description
RFP7402000 20.07.22 Park Cheolhwan Register a document.
※Refer to user manual for installation
12-2. Machine Room ………………..….. 55
12-3. F-Room ……………………..…..….. 56
12-4. R-Room ……………………..…..….. 57
12-5. R-Door & Handles
………………….……...….. 58
12-6. F-Door ………………. 59

4 / 59
! WARNING To avoid risk of electrical shock that can cause death or severe personal injury,
disconnect unit from power before servicing unless tests require power.
Please observe the following safety precautions in order to use safely and correctly the
refrigerator and to prevent accident and danger during repair.
1. Be care of an electric shock. Disconnect power cord from wall outlet and wait for more
than three minutes before replacing PCB parts.
Shut off the power whenever replacing and repairing electric components.
2. When connecting power cord, please wait for more than five minutes after power cord
was disconnected from the wall outlet.
3. Please check if the power plug is pressed down by the refrigerator against the wall.
If the power plug was damaged, it may cause fire or electric shock.
4. If the wall outlet is over loaded, it may cause fire.
Please use its own individual electrical outlet for the refrigerator.
5. Please make sure the outlet is properly earthed, particularly in wet or damp area.
6. Use standard electrical components when replacing them.
7. Make sure the hook is correctly engaged.
Remove dust and foreign materials from the housing and connecting parts.
8. Do not fray, damage, machine, heavily bend, pull out or twist the power cord.
9. Please check the evidence of moisture intrusion in the electrical components.
Replace the parts or mask it with insulation tapes if moisture intrusion was confirmed.
10. Do not touch the icemaker with hands or tools to confirm the operation of geared motor.
11. Do not let the customers repair, disassemble and reconstruct the refrigerator for
themselves.
It may cause accident, electric shock, or fire.
12. Do not store flammable materials such as ether, benzene, alcohol, chemicals, gas,
or medicine in the refrigerator.
13. Do not put flower vase, cup, cosmetics, chemicals, etc., or container with full of water
on the top of the refrigerator.
14. Do not put glass bottles with full of water into the freezer.
The contents shall freeze and break the glass bottles.
15. When you scrap the refrigerator, please disconnect the door gasket first and scrap it
where children are not accessible.
1. Warnings and Precautions for Safety

5 / 59
!WARNING To avoid risk of electrical shock that can cause death or severe personal injury,
disconnect unit from power before servicing unless tests require power.
2. Specifications
Item Specification
Model Name RFP74KB* (111.7302****)
Gross
Volume
(Li)
Total 26.1 ft3
Freezer 7.8 ft3
Refrigerator 18.3 ft3

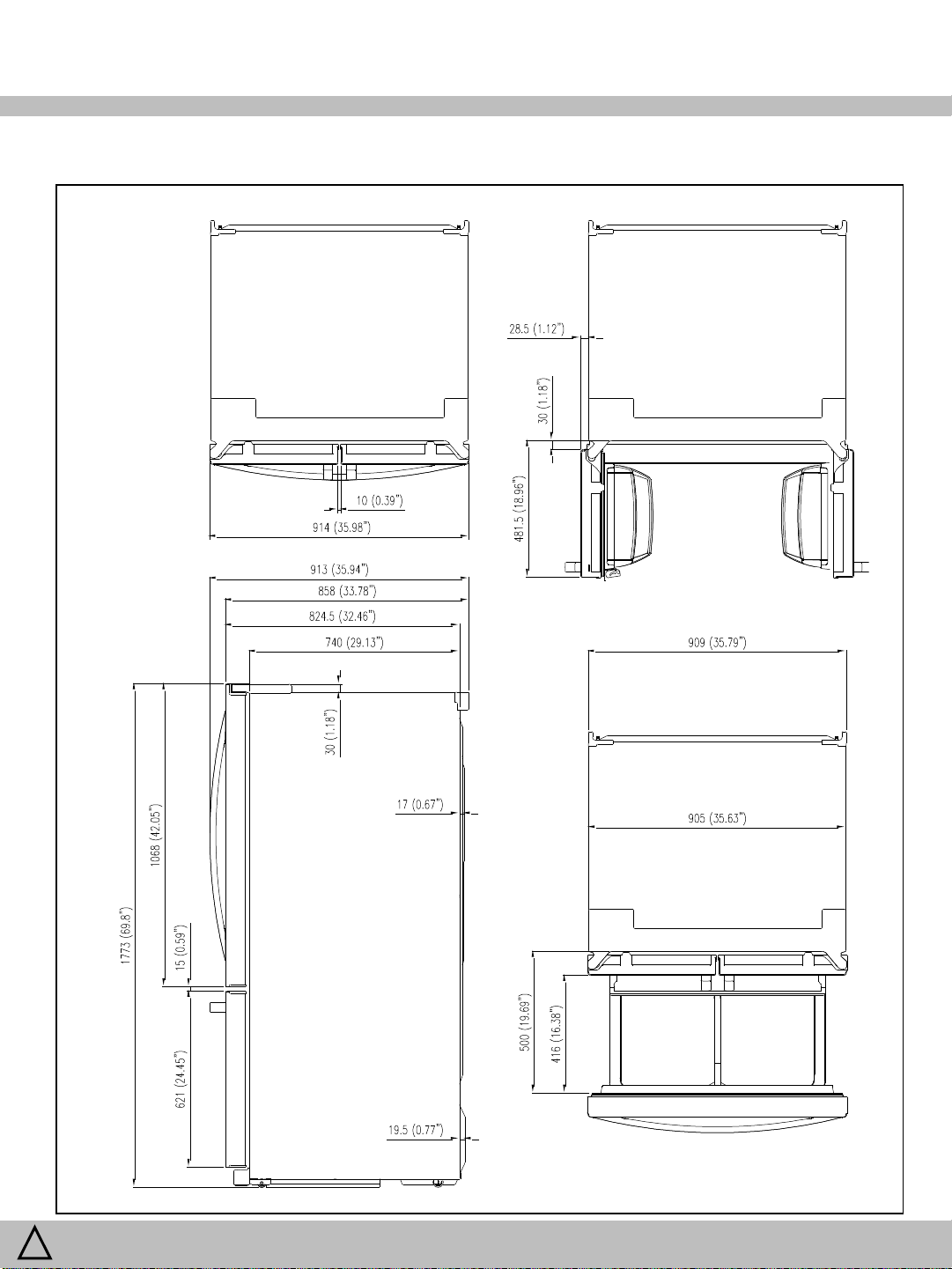

External Dimension
(Width * Depth * Height) 35.98 inch * 69.81 inch * 33.79 inch (w/o Handle)
Rated Voltage 115~120V (60Hz)
Weight 145kg
C
O
O
L
I
N
G
Comp
Model CMA110NHUM
Motor Type RSCR
Motor Protection 4TM314TFB
Running Capacitor 250VAC/12㎌
Starting Device Type E-PTC
Starting Device LPC322D-01
Refrigerant R600a
Quantity 90g
Evaporator Fin Type
Condenser Fan Cooling System
Dryer Molecular Sieve XH-9
Capillary Tube ID0.7 * T0.55 * L1951

6 / 59
!WARNING To avoid risk of electrical shock that can cause death or severe personal injury,
disconnect unit from power before servicing unless tests require power.
2. Specifications
Item Specification
Model Name RFP74KB* (111.7302****)
S
E
N
S
O
R
Defrost A3J-41A
Freezer A3R-32D
Refrigerator A3J-41A
Ice Maker A3R-35D
RT A3J-41A
H
E
A
T
E
R
Sheath F AS 200W / 115V
Sheath R AS 200W / 120V
R Motor AS(In URT) 10W / 115V
R Motor AS(Behind EVA) NA
R Return Duct AS 7W / 115V
W/Tank AS NA
Hose AS 5.5W / 115V
DV AS 8W / 115V
Dispenser AS NA
I/Flap AS NA
E
L
E
C
T
R
I
C
A
L
P
A
R
T
S
Fuse Temp (Defrost) AC250V , 10A , 77℃
Freezer-Fan Motor D4612AAA29 / DC13V / 1850±150 rpm
Refrigerator-Fan Motor D4612AAA36 / DC13V / 2100±200 rpm
Condenser-Fan Motor D4612AAA28 / DC13V / 1100±150 rpm
Freezer-Lamp 5-LED
Refrigerator-Lamp 9-LED
Dispenser-Lamp NA
Door Switch(Freezer / Refrigerator) SP201R-7DR/SP101B-201(G)

7 / 59
! WARNING To avoid risk of electrical shock that can cause death or severe personal injury,
disconnect unit from power before servicing unless tests require power.
3. Sensor / Voltage
Temp(℉)Temp(℃) Resistance(kΩ) DC Volts Temp( ℉)Temp(℃) Resistance(kΩ) DC Volts
-22.0 -30.0 129.30 4.02 32.9 0.5 29.34 2.42
-21.1 -29.5 125.90 4.00 33.8 1.0 28.71 2.39
-20.2 -29.0 122.50 3.98 34.7 1.5 28.08 2.36
-19.3 -28.5 119.30 3.96 35.6 2.0 27.47 2.33
-18.4 -28.0 116.20 3.94 36.5 2.5 26.88 2.31
-17.5 -27.5 113.20 3.91 37.4 3.0 26.30 2.28
-16.6 -27.0 110.20 3.89 38.3 3.5 25.74 2.25
-15.7 -26.5 107.40 3.87 39.2 4.0 25.19 2.23
-14.8 -26.0 101.60 3.82 40.1 4.5 24.65 2.20
-13.9 -25.5 101.90 3.82 41.0 5.0 24.13 2.17
-13.0 -25.0 99.30 3.80 41.9 5.5 23.62 2.15
-12.1 -24.5 96.70 3.77 42.8 6.0 23.12 2.12
-11.2 -24.0 94.30 3.75 43.7 6.5 22.63 2.09
-10.3 -23.5 91.90 3.73 44.6 7.0 22.15 2.07
-9.4 -23.0 89.60 3.70 45.5 7.5 21.69 2.04
-8.5 -22.5 87.30 3.68 46.4 8.0 21.24 2.02
-7.6 -22.0 85.10 3.65 47.3 8.5 20.80 1.99
-6.7 -21.5 83.00 3.63 48.2 9.0 20.36 1.97
-5.8 -21.0 80.90 3.60 49.1 9.5 19.94 1.94
-4.9 -20.5 78.90 3.58 50.0 10.0 19.53 1.92
-4.0 -20.0 76.90 3.55 50.9 10.5 19.13 1.89
-3.1 -19.5 75.00 3.52 51.8 11.0 18.74 1.87
-2.2 -19.0 78.20 3.57 52.7 11.5 18.35 1.84
-1.3 -18.5 71.40 3.47 53.6 12.0 17.98 1.82
-0.4 -18.0 69.60 3.45 54.5 12.5 17.61 1.80
0.5 -17.5 67.90 3.42 55.4 13.0 17.26 1.77
1.4 -17.0 66.30 3.39 56.3 13.5 16.91 1.75
2.3 -16.5 64.70 3.37 57.2 14.0 16.37 1.71
3.2 -16.0 63.10 3.34 58.1 14.5 16.26 1.71
4.1 -15.5 61.60 3.31 59.0 15.0 15.91 1.68
5.0 -15.0 60.10 3.28 59.9 15.5 15.59 1.66
5.9 -14.5 58.60 3.26 60.8 16.0 15.28 1.64
6.8 -14.0 57.20 3.23 61.7 16.5 14.98 1.61
7.7 -13.5 55.90 3.20 62.6 17.0 14.66 1.59
8.6 -13.0 54.60 3.17 63.5 17.5 14.39 1.57
9.5 -12.5 53.30 3.15 64.4 18.0 14.10 1.55
10.4 -12.0 52.00 3.12 65.3 18.5 13.83 1.53
11.3 -11.5 50.80 3.09 66.2 19.0 13.56 1.51
12.2 -11.0 49.60 3.06 67.1 19.5 13.29 1.49
13.1 -10.5 48.70 3.04 68.0 20.0 13.03 1.47
14.0 -10.0 47.30 3.01 68.9 20.5 12.78 1.45
14.9 -9.5 46.20 2.98 69.8 21.0 12.53 1.43
15.8 -9.0 45.10 2.95 70.7 21.5 12.29 1.41
16.7 -8.5 44.10 2.92 71.6 22.0 12.05 1.39
17.6 -8.0 43.10 2.89 72.5 22.5 11.82 1.37
18.5 -7.5 42.10 2.86 73.4 23.0 11.60 1.35
19.4 -7.0 41.10 2.83 74.3 23.5 11.37 1.33
20.3 -6.5 40.30 2.81 75.2 24.0 11.16 1.31
21.2 -6.0 39.30 2.78 76.1 24.5 10.95 1.29
22.1 -5.5 37.90 2.73 77.0 25.0 10.74 1.27
23.0 -5.0 37.50 2.72 77.9 25.5 10.54 1.26
23.9 -4.5 36.70 2.69 78.8 26.0 10.34 1.24
24.8 -4.0 35.80 2.66 79.7 26.5 10.14 1.22
25.7 -3.5 35.00 2.64 80.6 27.0 9.945 1.20
26.6 -3.0 34.30 2.61 81.5 27.5 9.768 1.19
27.5 -2.5 33.50 2.58 82.4 28.0 9.586 1.17
28.4 -2.0 32.70 2.55 83.3 28.5 9.408 1.15
29.3 -1.5 32.00 2.52 84.2 29.0 9.234 1.14
30.2 -1.0 31.30 2.50 85.1 29.5 9.063 1.12
31.1 -0.5 30.60 2.47 86.0 30.0 8.896 1.10
32.0 0.0 30.00 2.44
R,F Defrost, R Defrost, RT SENSOR

8 / 59
! WARNING To avoid risk of electrical shock that can cause death or severe personal injury,
disconnect unit from power before servicing unless tests require power.
3. Sensor / Voltage
Temp(℉)Temp(℃) Resistance(kΩ) DC Volts Temp(℉)Temp(℃) Resistance( kΩ) DC Volts
-22.0 -30.0 39.652 3.04 32.9 0.5 7.692 1.16
-21.1 -29.5 38.495 3.01 33.8 1.0 7.508 1.14
-20.2 -29.0 37.375 2.97 34.7 1.5 7.328 1.12
-19.3 -28.5 36.291 2.94 35.6 2.0 7.153 1.10
-18.4 -28.0 35.242 2.90 36.5 2.5 6.983 1.07
-17.5 -27.5 34.227 2.87 37.4 3.0 6.818 1.05
-16.6 -27.0 33.240 2.83 38.3 3.5 6.656 1.03
-15.7 -26.5 31.372 2.76 39.2 4.0 6.500 1.02
-14.8 -26.0 30.926 2.74 40.1 4.5 6.347 1.00
-13.9 -25.5 30.480 2.72 41.0 5.0 6.198 0.98
-13.0 -25.0 29.616 2.69 41.9 5.5 6.054 0.96
-12.1 -24.5 28.780 2.65 42.8 6.0 5.913 0.94
-11.2 -24.0 27.970 2.62 43.7 6.5 5.776 0.92
-10.3 -23.5 27.185 2.58 44.6 7.0 5.642 0.91
-9.4 -23.0 26.425 2.54 45.5 7.5 5.512 0.89
-8.5 -22.5 25.686 2.51 46.4 8.0 5.386 0.87
-7.6 -22.0 24.974 2.47 47.3 8.5 5.262 0.86
-6.7 -21.5 24.283 2.44 48.2 9.0 5.142 0.84
-5.8 -21.0 23.612 2.40 49.1 9.5 5.025 0.82
-4.9 -20.5 22.963 2.37 50.0 10.0 4.911 0.81
-4.0 -20.0 22.333 2.33 50.9 10.5 4.800 0.79
-3.1 -19.5 21.722 2.30 51.8 11.0 4.691 0.78
-2.2 -19.0 21.130 2.27 52.7 11.5 4.586 0.76
-1.3 -18.5 20.557 2.23 53.6 12.0 4.483 0.75
-0.4 -18.0 20.000 2.20 54.5 12.5 4.383 0.73
0.5 -17.5 19.460 2.16 55.4 13.0 4.285 0.72
1.4 -17.0 18.937 2.13 56.3 13.5 4.190 0.71
2.3 -16.5 18.429 2.10 57.2 14.0 4.097 0.69
3.2 -16.0 17.937 2.06 58.1 14.5 4.007 0.68
4.1 -15.5 17.459 2.03 59.0 15.0 3.918 0.67
5.0 -15.0 16.995 2.00 59.9 15.5 3.832 0.65
5.9 -14.5 16.545 1.97 60.8 16.0 3.749 0.64
6.8 -14.0 16.109 1.94 61.7 16.5 3.668 0.63
7.7 -13.5 15.635 1.90 62.6 17.0 3.587 0.62
8.6 -13.0 15.274 1.87 63.5 17.5 3.509 0.60
9.5 -12.5 14.875 1.84 64.4 18.0 3.433 0.59
10.4 -12.0 14.487 1.81 65.3 18.5 3.350 0.58
11.3 -11.5 14.111 1.78 66.2 19.0 3.287 0.57
12.2 -11.0 13.746 1.75 67.1 19.5 3.217 0.56
13.1 -10.5 13.391 1.72 68.0 20.0 3.148 0.55
14.0 -10.0 13.047 1.69 68.9 20.5 3.081 0.54
14.9 -9.5 14.712 1.83 69.8 21.0 3.015 0.53
15.8 -9.0 12.387 1.63 70.7 21.5 2.927 0.51
16.7 -8.5 12.072 1.61 71.6 22.0 2.839 0.50
17.6 -8.0 11.765 1.58 72.5 22.5 2.829 0.50
18.5 -7.5 11.467 1.55 73.4 23.0 2.769 0.49
19.4 -7.0 11.176 1.52 74.3 23.5 2.711 0.48
20.3 -6.5 10.897 1.50 75.2 24.0 2.655 0.47
21.2 -6.0 10.624 1.47 76.1 24.5 2.600 0.46
22.1 -5.5 10.358 1.44 77.0 25.0 2.546 0.45
23.0 -5.0 10.109 1.42 77.9 25.5 2.493 0.45
23.9 -4.5 9.849 1.39 78.8 26.0 2.442 0.44
24.8 -4.0 9.605 1.37 79.7 26.5 2.392 0.43
25.7 -3.5 9.368 1.34 80.6 27.0 2.343 0.42
26.6 -3.0 9.138 1.32 81.5 27.5 2.295 0.41
27.5 -2.5 8.913 1.30 82.4 28.0 2.246 0.40
28.4 -2.0 8.696 1.27 83.3 28.5 2.202 0.40
29.3 -1.5 8.484 1.25 84.2 29.0 2.158 0.39
30.2 -1.0 8.277 1.23 85.1 29.5 2.114 0.38
31.1 -0.5 8.077 1.20 86.0 30.0 2.072 0.38
32.0 0.0 7.882 1.18
F, Icemaker S ensor

9 / 59
! WARNING To avoid risk of electrical shock that can cause death or severe personal injury,
disconnect unit from power before servicing unless tests require power.
4. External Dimensions

10 / 59
! WARNING To avoid risk of electrical shock that can cause death or severe personal injury,
disconnect unit from power before servicing unless tests require power.
REFRIGERATOR COMPARMENT FREEZER COMPARTMENT
1. SHELF R SM 6. POCKET GALLON 10. FREEZER LAMP
2. REFRIGERATOR LAMP 7. CASE VEGETABLE 11. CASE F DRAW
3. DISPLAY 8. CASE WIDE 12. CASE F
4. POCKET DAIRY 9. ICE MAKER
5. POCKET SM
7
10
5
4
6
9
12
5-1. Name of Each Parts 21 3
5
6
8
11
4
5. Features

11 / 59
! WARNING To avoid risk of electrical shock that can cause death or severe personal injury,
disconnect unit from power before servicing unless tests require power.
CASE VEGETABLE CASE WIDE
R DR *R SWITCH
R DR *L SWITCH R LAMP
R SENSOR
18

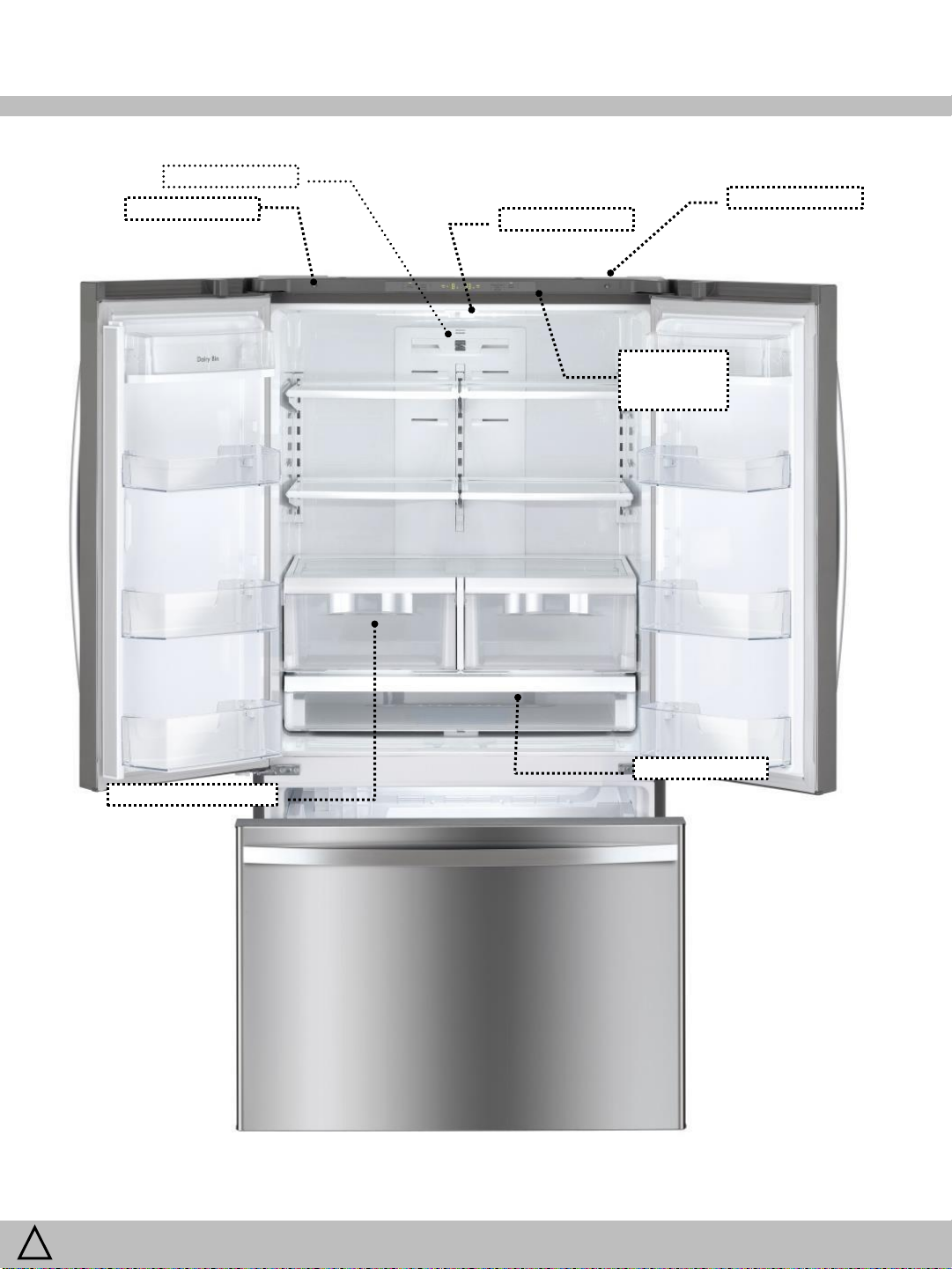

5-2. Refrigerator Compartment
FRONT
CONTROL
PANEL
5. Features

12 / 59
! WARNING To avoid risk of electrical shock that can cause death or severe personal injury,
disconnect unit from power before servicing unless tests require power.
19

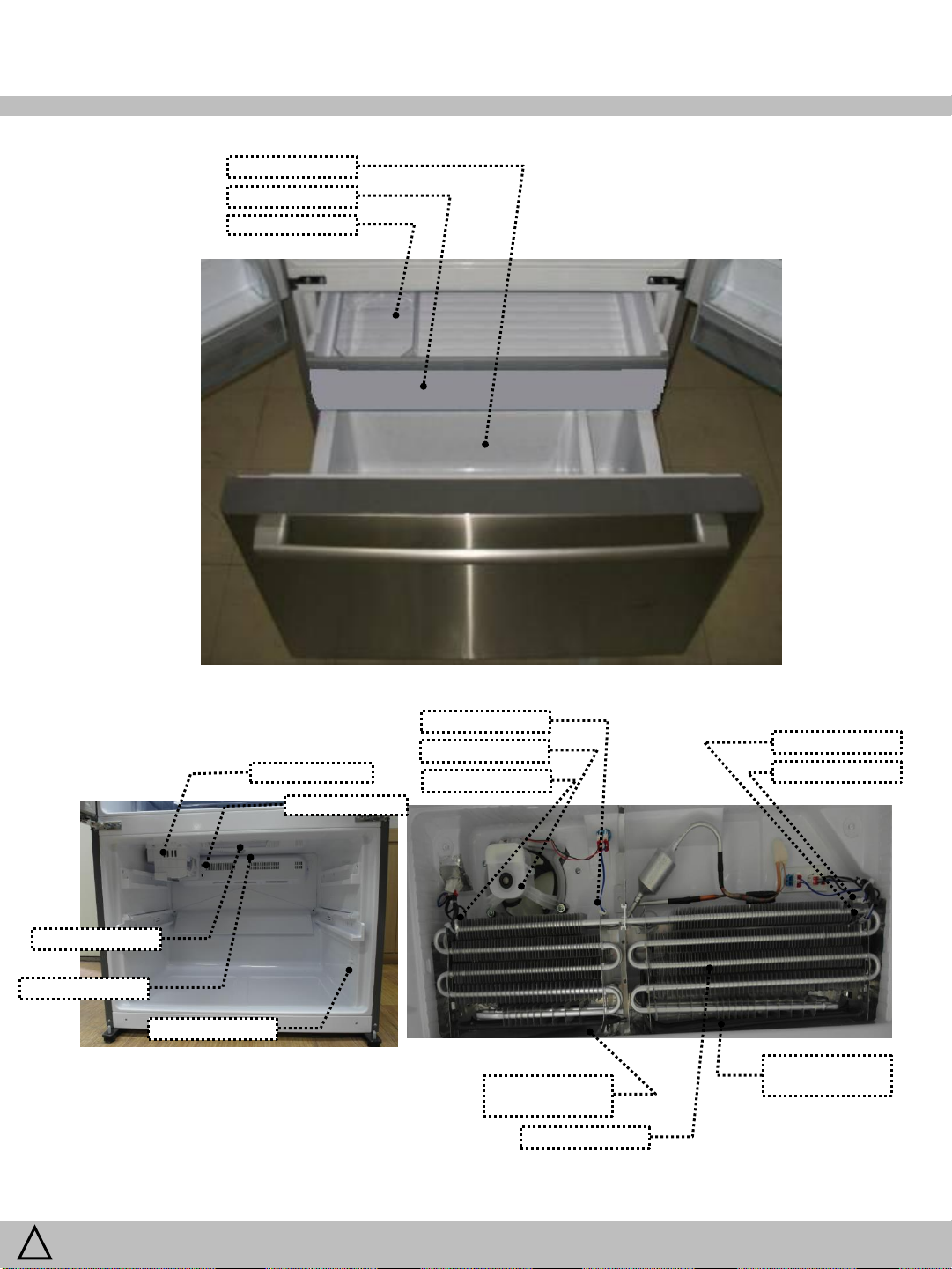

5-3. Freezer Compartment
F SENSOR
F FAN
F DR SWITCH
F LAMP
R TEMP FUSE
EVAPORATOR
R FAN
R D SENSOR
R DEFROST
HEATER
F DEFROST
HEATER
F D SENSOR
F TEMP FUSE
CASE ICE
F CASE
F DRAW CASE
ICE MAKER
5. Features

13 / 59
!WARNING To avoid risk of electrical shock that can cause death or severe personal injury,
disconnect unit from power before servicing unless tests require power.
20
5-6. Machine Compartment
RELAY CLAMP
& RELAY DRYER
C FAN MOTOR
CONDENSER
TRAY DRIP
WATER VALVE
COMPRESSOR
POWER CORD

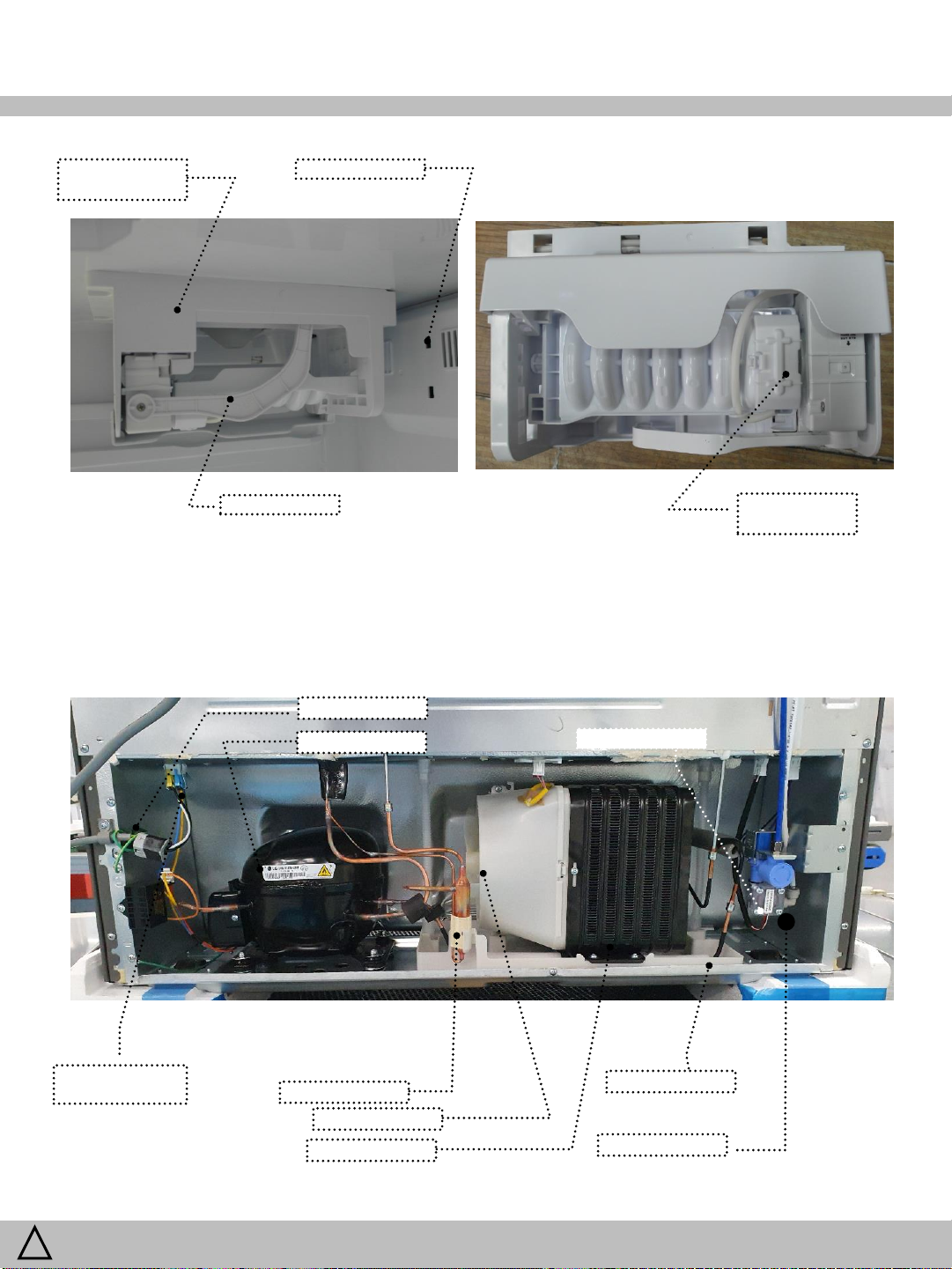

5-4. Automatic Ice Maker Compartment
AUTOMATIC ICE
MAKER
LEVER ICE
FAN COVER
ICE MAKER
SENSOR
FLOW SENSOR
5. Features

14 / 59
! WARNING To avoid risk of electrical shock that can cause death or severe personal injury,
disconnect unit from power before servicing unless tests require power.
Freezer
Compartment
Refrigerator
Compartment
6-1. Cold Air Circulation
6. Flow Diagram

15 / 59
! WARNING To avoid risk of electrical shock that can cause death or severe personal injury,
disconnect unit from power before servicing unless tests require power.
42

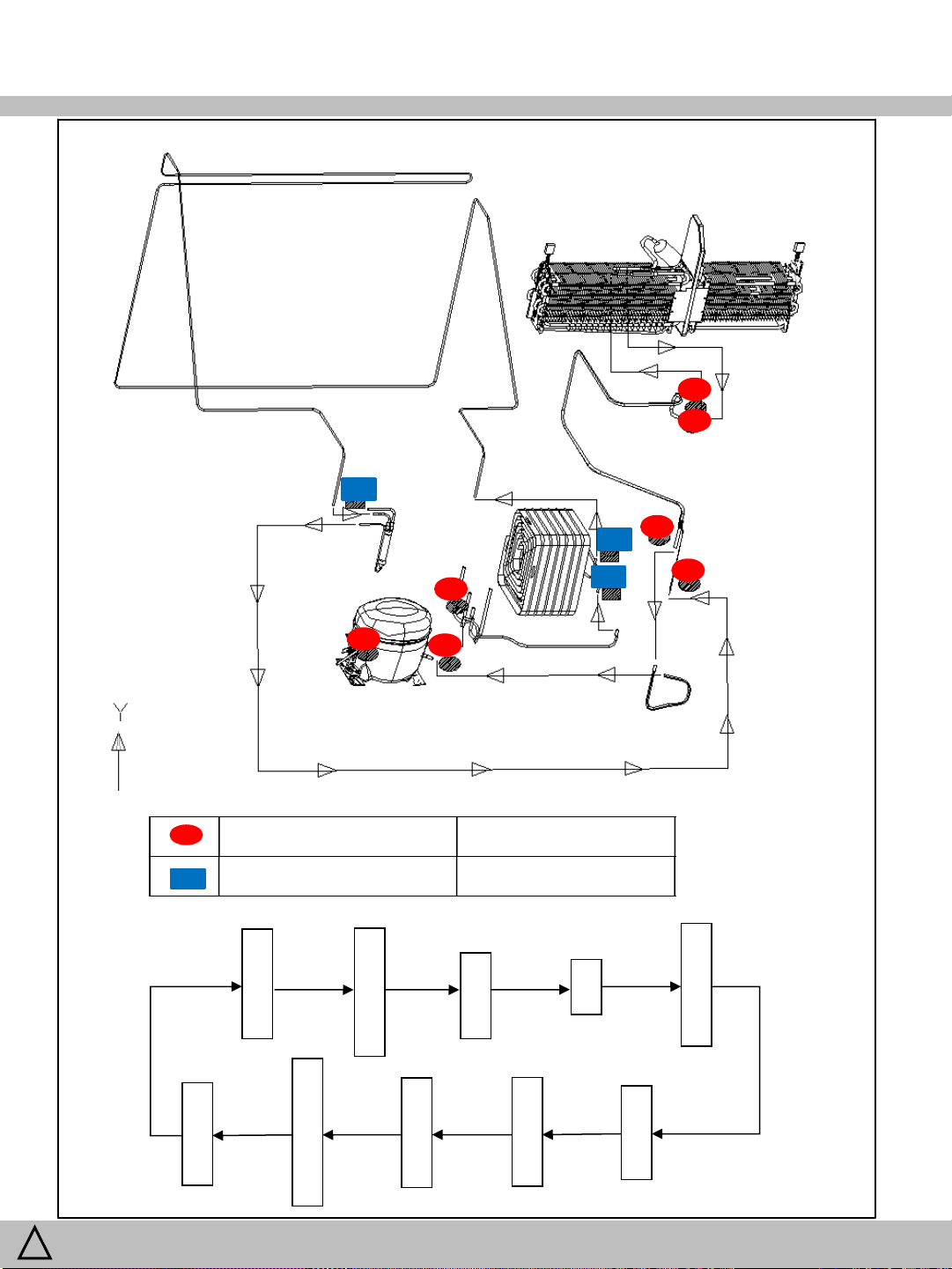

6-2. Refrigerant Flow and Welding Point
▶Welding Point
Copper Welding (Ag 5%) 7 Points
3 PointsLokring
▶Flow of Refrigeration Cycle
Compressor
Pipe Conn. B
Hot. Pipe
Wire con. Pipe
Dryer
Capillary Tube
Evaporator
Accumulator
Pipe Suction Conn
Suction Pipe
High Low
6. Flow Diagram

16 / 59
! WARNING To avoid risk of electrical shock that can cause death or severe personal injury,
disconnect unit from power before servicing unless tests require power.
17
7. Wiring Diagram

17 / 59
! WARNING To avoid risk of electrical shock that can cause death or severe personal injury,
disconnect unit from power before servicing unless tests require power.
7
Temperature adjustment button
for freezer compartment.
Ice Maker
Temperature adjustment button
for Refrigerator compartment.
Door Alarm
Accela Chill Accela Chill
1. Display control
2. “Freezer Set” Button
1) Temperature control of freezer compartment
2) 9 step mode of successive temperature mode.
3) Initial mode by power input : 0℉
※Whenever touch button, setting is repeated in the order of
(0℉)→ (- 2℉)→ (-4℉)→ (-6℉)→(-8℉)→(6℉)→(4℉)→ (2℉)→ (0℉).
4) Press the "Freezer" button for 3 seconds to operate the Accela Chill mode (LED On)
Press the “Freezer”button one time to cancel the Accela Chill mode (LED Off)
INPUT CONTROL OBJECT
CONTENTS REMARKS
FCP C-LED
FCP-LED Control
88 Display (Set Temp.) Initial mode
(Normal)
Freezer Refrigerator
0℉37℉
Accela Chill (Freezer, Refrigerator) On/Off
Ice Maker On/Off
Door Alarm On/Off
Temperature
Change
power
input
(normal)
1st
Press
2nd
Press
3th
Press
4th
Press
(max)
5th
Press
(min)
6th
Press
7th
Press
Temp
indication -18℃-19℃-20℃-21℃-22℃-15℃-16℃-17℃
0℉-2℉-4℉-6℉-8℉6℉4℉2℉
Letters are indicated on 88 Display LED
8-1. Display
Front PCB button
Freezer Set
Fridge Set
Ice Maker
Door Alarm
8. Operation and Functions

18 / 59
! WARNING To avoid risk of electrical shock that can cause death or severe personal injury,
disconnect unit from power before servicing unless tests require power.
7
8. Operation and Functions
18
CONTENTS REMARKS
3. “Refrigerator ” button.
1) Temperature control of Refrigerator compartment
2) 8 step mode of successive temperature mode.
3) Initial mode by power input : 37 ℉
※Whenever Touch button, setting is repeated in the order of
(37℉) →(35℉) →(33℉) →(45℉) → (43℉) → (41℉) →. (39℉)
4) Press the "Freezer" button for 3 seconds to operate the Accela Chill mode (LED On)
Letters are indicated on 88 Display LED
Temperature
Change
power
input
(normal)
1st
Press
2nd
Press
(max)
4th
Press
(min)
5th
Press
6th
Press
7th
Press
Temp
indication 3℃2℃1℃7℃6℃5℃4℃
37℉35℉33℉45℉43℉41℉39℉
8. Switching temperature display
1) If you touch “Freezer set” with “ Refrigerator set “ button hold for 5 sec on the lock
status.
Temperature in the display switches between ℃↔ ℉
2) Temperature is reset to ℉when the power off and on.
9. Power save function.
All icons in the display lights off when neither button input, nor door open last for 20 sec.

19 / 59
! WARNING To avoid risk of electrical shock that can cause death or severe personal injury,
disconnect unit from power before servicing unless tests require power.
7
8. Operation and Functions
8
8-2. Defrost Mode
1. Defrost Mode
INPUT CONTROL OBJECT
CONTENTS REMARKS
1. Defrosting Cycle 1. Comp
2. F/R/C Fan
3. FD/RD Heater
Pause
Fan-Delay
Heater
Defrosting
Heater
Defrosting
1) Comp, F/R/C Fan : OFF
R Damper : CLOSE
FD/RD Heater : ON
Pause
- Comp, F/C fan, Damper, Heater etc. : OFF, R-fan : 30sec On
Fan-Delay
- Comp C Fan : ON
- F/R fan, Damper, Heater : OFF

20 / 59
! WARNING To avoid risk of electrical shock that can cause death or severe personal injury,
disconnect unit from power before servicing unless tests require power.
7
8. Operation and Functions
1. A/S Defrosting Mode (Heater defrost → Pause → Fan Delay)
INPUT CONTROL OBJECT
CONTENTS REMARKS
1. Defrosting Cycle
Heater
Defrosting
1) Comp, F/R/C Fan : OFF
R Damper : CLOSE
FD/RD-Heater : ON
Pause
- Comp, F/R/C Fan, Damper, Heater etc. : OFF, R-fan :
30sec On
Fan-Delay
- Comp, C Fan : ON
- F/R Fan, Damper, Heater : OFF
Pause
Fan-Delay
Heater
Defrosting
2. How to start
Push “Door Alarm” button 5 times while pushing “Refrigerator Set” button simultaneously.
3. How to proceed
1) Same as normal defrosting
2) Heater is ON regardless of FD/RD-sensor temp. at first 30 seconds.
(Check of defrosting current)
8-3. Forced Defrosting Mode
1. Fan voltage of control mode
INPUT CONTROL OBJECT
CONTENTS REMARKS
1. F-Sensor
2. R-Sensor 1. F FAN, R FAN, C FAN
FAN Freezer Fan Refrigerator Fan Condenser Fan
Voltage ≒13 V ≒13 V ≒13 V
8-4. Fan Voltage of Control Mode
1. Comp
2. F/R/C Fan
3. FD/RD Heater
