Kenmore 4048 - Pro 29.5 cu. Ft User manual

TM Nlodel/Modeio/Mod_le
401.40483800
SIDE-BY-SIDE REFRIGERATOR
REFRIGERADOR DE DOS PUERTAS
RI::FRIGI::RATEUR CbTI_ A CbTI_
BEFORE YOU BEGIN
Read these instructions completely
and carefully.
iMPORTANT -Observea,governing
codes and ordinances.
Note to Installer = Be sure to leave these
instructions for the consumer's and local
inspector's use.
Note to Consumer - Keep these instructions
with your Owner's Manual for future reference.
Skill Level - Installation of this refrigerator
requires basic mechanical, carpentry and
plumbing skills. Proper installation is the
responsibility of the installer. Product failure
due to improper installation is not covered
under the Kenmore Warranty. See warranty
information in the Use & Care Guide.
_WARNING:
,,This refrigerator is top=heavy and must
be secured to prevent the possibility of
tipping forward. Anti=Tip protection is
required. See page 6 for details.
,, Use this appliance only for its intended
purpose.
• Immediately repair or replace electric
power supply cords that become
frayed or damaged.
,, Set the Master Power switch to the O
(OFF) position before cleaning
or making repairs. U
,, Repairs should be made by a
qualified service technician.
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.
m
Z
r =
m
cn
z
m
cn
Z_
O
"11
Z
<3
m
cn
86001-2008
085 JR
Printed in Korea Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. sears.corn

Installation Preparation
Hardware Supplied ......................... 2
Hardware Not Supplied ...................... 2
Tools You Will Need ........................ 2
Installation Space .......................... 3
Dimensions and Clearances .................. 3
Installation Instructions
Flooring .................................. 4
Grounding the Refrigerator ................... 4
1. Remove Packaging ....................... 4
2. Connect Water Dispenser Line ............. 5
3. Install Water Filter ......................... 5
4. Install Anti-Tip Brackets .................... 6
(Alternate Anti-Tip Instructions) .............. 6
5. Connect Power ........................... 7
6. Move Into Installation Space ................ 7
7. Level Refrigerator ......................... 7
8. Connect Refrigerator to House Water Supply .... 8
9. Turn on Power ............................ 9
10. Start Icemaker .......................... 9
11. Install Kickplate .......................... 9
12. Door Alignment .......................... 9
HARDWARE SUPPLIED TOOLS YOU WiLL NEED
Anti=Tip Bracket
Water
Filter
Compression
Fitting
Cap=Support Filter
Supplied PlasticTubing
Supplied
Compression Nut
Drill and Bits
3/32" Alien Wrench
Tubing Cutter
7/32" and 1/2"
Sockets
Flathead
Screwdriver
Safety Glasses
HARDWARE NOT SUPPLIED
Copper Tubing Ferrule
Compression Nut A
Level
Pliers
1/2" Open=End
Wrench
Bucket
#2 Philips Head
Screwdriver
2" x 4" Wood Block
(36" long)
2Step Ladder
Tin Snips
Appliance Doily

iNSTALLATiON SPACE
1_ *Finished Width
84-1/2" max.
83-1/2" min.
Finished
Opening
3"
74" From
Floor to
Bottom of
Electrical
3-1/2"
*The finished cutout width must be 47=1/2"
for 48" models.
Water and Electrical Locations
The opening must be prepared with the electrical
and water supply located as shown.
Cutout Depth
The cutout depth for the refrigerator must be at
least 24 inches so that the refrigerator will be flush
with the adjacent cabinets, countertops or wails.
Additional Specifications
,, A 115 volt, 60Hz, 15 amp power supply is
required. An individual properly grounded branch
circuit or circuit breaker is recommended. Install a
properly grounded 3-prong electrical receptacle
recessed into the back wall. Electrical must be
located on rear wall as shown.
NOTE: GFI (ground fault interrupter) is not
recommended.
,, The refrigerator should always be plugged into
its own individual electrical outlet which has a
voltage rating that matches the rating plate.
,, Water line can enter the opening through the
floor or rear wall. The water line should be used
to connect the cold water line and the water
connection location. The line should be long
enough to extend to the front of the refrigerator.
Installation of an easily accessible shutoff valve
in the water line is required.
• It is recommended that you use a mat to
prevent the floor from any possible damage.
DIMENSIONS AND CLEARANCES
25-3/8" CaseDepth
**Case Width
84" From
"81-3/4" Floorto
at Rear TopFrame
Frameto Framefor 48" Models
Depth Including
Handles 26-7/8"
*Shipping Height: front height may be adjusted
from 83-1/2" to 84-1/2" by adjusting front and
rear leveling legs a maximum of 1 inch.
**Case Width: must be 47" for 48" models.
Product Clearances
This refrigerator is equipped with a 2-position door
stop. The factory set 130 ° door swing can be
adjusted to 90 ° if clearance to adjacent cabinets
or walls is restricted.
130° Door Swing 90° Door Swing
I
II: tt
LI.....
I_D4
23-7/8"
Behind
Frame
C
I-D*!
A B C D
13-7/16" 18-9/16" 28" 4"
Allow minimum clearances for Freezer door
(Dimension A) and Fresh Food door (Dimension B)
for a full 130 ° door swing and to allow for drawer
removal.
Four inch (4") minimum clearance is required when
door swing is adjusted to 90 °. If the 90 ° door stop
position is used, drawer access is maintained, but
drawer removal is restricted.
3

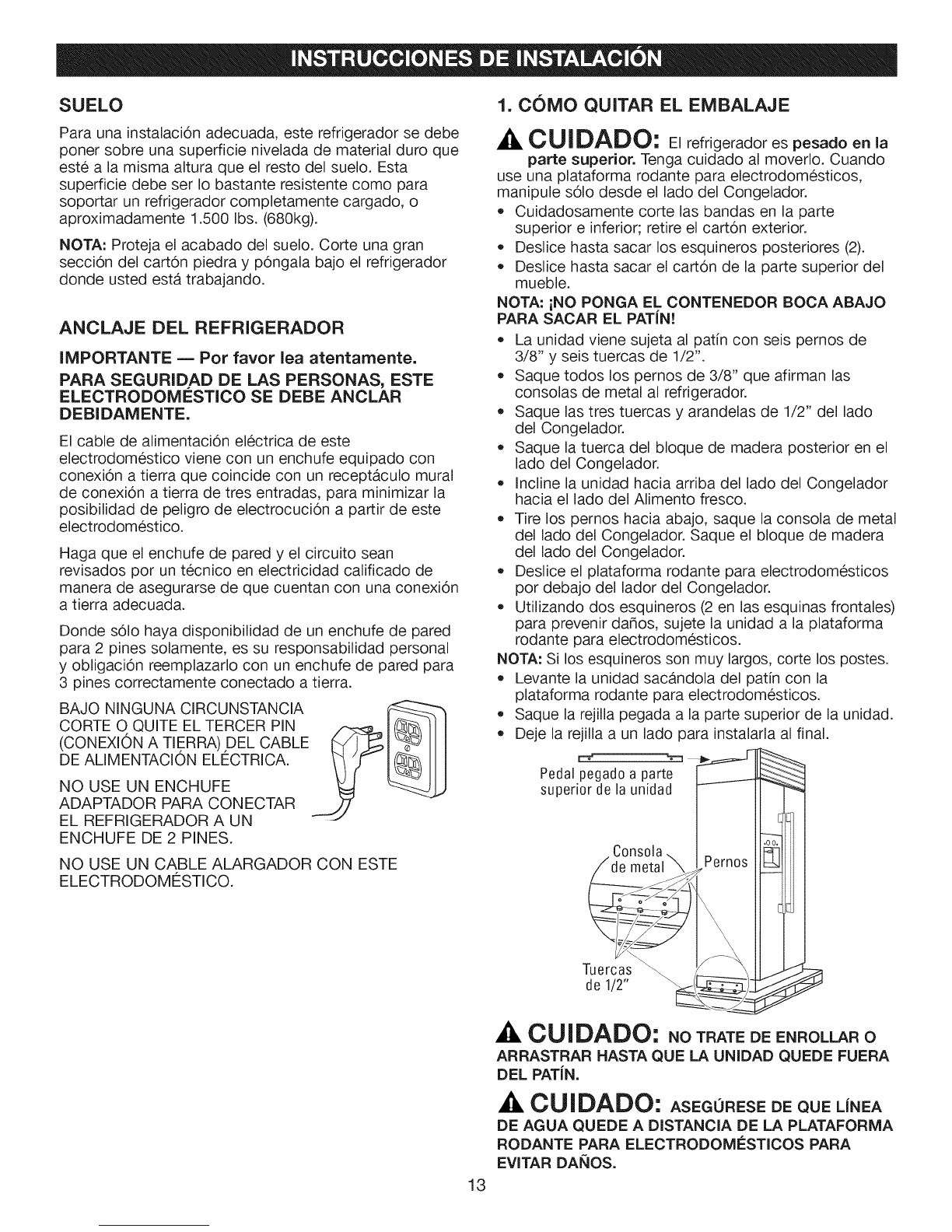

FLOORING
For proper installation, this refrigerator must be
placed on a level surface of hard material that is
the same height as the rest of the flooring. This
surface should be strong enough to support a
fully loaded refrigerator, or approximately 1,500 Ibs.
(680kg).
NOTE: Protect the finish of the flooring. Cut a
large section of the cardboard carton and place
under the refrigerator where you are working.
GROUNDING THE REFRIGERATOR
IMPORTANT m Please read carefully.
FOR PERSONAL SAFETY, THIS APPLIANCE
MUST BE PROPERLY GROUNDED.
The power supply cord of this appliance is
equipped with a three-pin grounding plug which
mates with a standard three-pin grounding wall
receptacle to minimize the possibility of electric
shock hazard from this appliance.
Have the wall outlet and circuit checked by a
qualified electrician to make sure the outlet is
properly grounded.
Where a standard 2-pin wall outlet is encountered,
it is your personal responsibility and obligation to
have it replaced with a properly grounded 3-pin
wall outlet.
DO NOT, UNDER ANY
CIRCUMSTANCES, CUT
OR REMOVE THE
THIRD (GROUNDING)
PIN FROM THE
POWER CORD.
DO NOT USE AN ADAPTER PLUG TO CONNECT
THE REFRIGERATOR TO A 2-PIN OUTLET.
DO NOT USE AN EXTENSION CORD WITH THIS
APPLIANCE.
1. REMOVE PACKAGING
ACAUTION: Refrigerator is Top-Heavy.
Be careful when moving. When using an appliance
dolly, handle from Freezer side only.
,, Carefully cut banding at the top and bottom;
remove outer carton.
,, Slide out rear corner posts (2).
,, Slide carton off top of cabinet.
NOTE: DO NOT LAY CABINET DOWN IN
ORDER TO REMOVE SKID!
• The unit is secured to the skid with six 3/8" bolts
and six 1/2" nuts.
Remove all six 3/8" bolts that secure metal
brackets to the refrigerator.
Remove the three 1/2" nuts and washers from the
Freezer side.
Remove nut from rear wood block on Freezer side.
Tilt unit up on Freezer side toward Fresh Food side.
Push bolts down, remove metal bracket from
Freezer side. Remove wood block from Freezer side.
Slide the appliance dolly underneath the Freezer side.
Using corner posts (2 on front corners) to prevent
damage, secure unit to appliance dolly.
NOTE: If corner posts are too long, cut the posts
to a shorter length.
,, Lift the unit off the skid with the appliance dolly.
,, Remove kickplate taped to the top of the unit.
,, Set kickplate aside for final installation.
Kickplate Taped
to Topof Unit
1/2"
Nuts \
CAUTION: DONOTATTEMPTTO
ROLL OR DRAG UNTIL UNIT IS OFF SKID.
4
CAUTION: MAKE SURE THE
WATER LINE IS CLEAR OF APPLIANCE
DOLLY TO AVOID DAMAGE.

2. CONNECT WATER DISPENSER LINE
A water dispenser is just one of the helpful features
on your new Kenmore Refrigerator. To help promote
better health, the Kenmore water filter removes
unwanted particles from your water. However,
it does not sterilize or destroy microorganisms.
You may need to purchase a water purifying
system to do that.
In order for the icemaker to operate properly, a
water pressure of 20-125 psi (pound per square
inch) is required.
Under normal conditions, a 6-ounce cup can be
filled in 10 seconds.
If the Refrigerator is installed in an area with low
water pressure (below 20 psi), install a booster
pump to compensate for the low pressure.
Make sure the water storage tank inside the
Refrigerator is properly filled. To do this, press the
water dispenser lever until the water runs from the
water outlet.
NOTE: Water line installation kits are available at
extra cost from Sears. We recommend using
awater supply kit that contains copper tubing.
Connecting to the water supply line:
1. First, shut off the main water supply line and turn
the icemaker off.
2. Locate the nearest cold drinking water line.
3. After connecting the water supply to the water
filter, turn your main water supply back on and
flush 4 or more gallons into a bucket to clear and
prime the water filter.
/F,oor
d
Water Supply Hose
CAUTION: It is recommended that a
pressure valve be installed by the plumber
(350 kpa).
ColdWater Line
Shutoff
Supplied water line and valve fitting must be
connected to water pipe.
3. INSTALL WATER FILTER
,, The water supply is bypassed automatically if
water filter is removed.
,, To remove or change the water filter, open the
top grille.
Master Power Switch Water Filter
Rotate Counterclockwise to Remove
,, Rotate the water filter to the left
(counterclockwise) until removed.
,, Insert new water filter and rotate the filter to the
right (clockwise) until tightly secured in place.
