Kenmore 51672 User manual

®
VL.
Side-by-Side Refrigerator
Use & Care Guide
Refrigerador DUplex
Guia para el Uso y Cuidado
R_frig_rateur a Compartiments Juxtaposes
Guide D'utilisation et D'entretien
Models/Modelos/ModUles: 51672, 51673, 51674, 51679
!11
m
II
12591302 Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S,A www, sears, com
Sears Canada, Inc., Toronto, Ontario, Canada M5B 2B8 Au Canada, www.sears.ca

,d_ Recognize this symbol as a safety alert indicator.
[WARNING
To avoid electrical shock which can cause severe personal injury or death, do not cut or remove the round grounding
prong from the plug. Refrigerator must be grounded at all times. Do not remove warning tag from cord. Do not use a two-
prong adaptor. Do not use an extension cord.
Electrical Grounding Instructions-This refrigerator is equipped with a three-prong (grounding) plug for protection "_
against possible shook hazards, if you encounter a two-prong receptacle, contact a qualified electrician and have i_/_z_,
the two-prong wall receptacle replaced with a properly grounded three-prong wall receptacle in accordance with the
National Electrical Code. Refrigerator is designed to operate on a separate 103 to 126 volt, 15 amp., 60 cycle line.
tDANGER J
IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned
refrigerators are still dangerous--even if they will sit for "just a few days". If you discard an old refrigerator,
please follow the instructions below to help prevent accidents.
BEFORE YOU THROW AWAY YOUR OLD REFRIGERATOR OR FREEZER:
Take off the doors.
Leave the shelves in place so children may not easily climb inside.
We Service What We Sell
Your purchase has added value because you can depend on Sears HomeCentral® for service. With over 12,000 trained
repair specialists and access to over 4.2 million parts and accessories, we have the tools, parts, and knowledge and skills
to ensure our pledge: We Service What We Sell.
Sears Maintenance Agreements
Your Kenmore appliance is designed, manufactured and tested to provide years of dependable operation. Yet any major
appliance may require service from time to time. The Sears Maintenance Agreement offers you an outstanding service
program, affordably priced.
The Sears Maintenance Agreement
ls your way to buy tomorrow's service at today's price.
Eliminates repair bills resulting from normal wear and tear.
Provides for nontechnical and instructional assistance.
Even if you don't need repairs, provides an annual Preventative
Maintenance Check, at your request, to ensure that your appliance
Some limitations apply. For more information,
call 1-800-361-6665.
For information concerning Sears Canada
Maintenance Agreements, call 1-800-361-6665.
is in proper running condition.
Full One Year Warranty on Refrigerator
For one year from the date of purchase, when this refrigerator is operated and maintained according to instructions
attached to or furnished with it, Sears will repair it, free of charge, if defective in material or workmanship.
Full Five Year Warranty on Sealed Refrigeration System
For five years from the date of purchase, when this refrigerator is operated and maintained according to instructions
attached to or furnished with it, Sears will repair the sealed system (consisting of refrigerator, connecting tubing and
compressor motor) free of charge, if defective in material or workmanship.
The above warranty coverage applies only to refrigerators which are used for storage of food for private household
purposes. It excludes original and replacement Kenmore Filtered Ice & Water filter cartridges (if equipped with the filter
system). Original and replacement cartridges are warranted for 30 days, parts only. against defects of material or
workmanship.
Warranty service is available by contacting 1-800-4-MY-HOME (1-800-469-5811).
This warranty applies only while this product is in use in the United States.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, iL 60179

tnthespacebelowrecordthemodelandserialnumbersand
purchasedateofyourrefrigerator.Youwillfindthemodeland
serialnumberstickerinsidetheunitontherightwallof
refrigeratorsection.
ModelNumber:
SerialNumber:
PurchaseDate:
Keepthisbookletand your Sears sales receipt in asafe place
for future reference.
Recognize Safety Symbols, Words, Labels
tDANGER
DANGER--Immediate hazards which WILL result in severe personal injury or
death.
1WARNING t
WARNING--Hazards or unsafe practices which COULD result in severe personal
injury or death.
t CAUTION t
CAUTION--Hazards or unsafe practices which COULD result in minor personal
injury or product or property damage,
What You Need to Know
about Safety Instructions
Warning and Important Safety
Instructions appearing in this manual
are not meant to cover all possible
conditions and situations that may
occur. Common sense, caution, and
care must be exercised when installing,
maintaining, or operating refrigerator.
Always contact your dealer, distributor,
service agent, or manufacturer about
problems or conditions you do not
understand,
m
Electrical Requirements ........................................................ 2
Maintenance Agreement ...................................................... 2
Warranty ............................................................................... 2
Product Record .................................................................... 3
Important Safety Information ................................................ 3
Installing Your Refrigerator .................................................. 4
How to Transport Your Unit ............................................. 4
How to Select the Best Location ..................................... 4
How to Remove the Doors and Hinges ........................... 4
How to Replace the Doors .............................................. 5
How to Instatt the Handles ............................................... 5
How to Connect the Water Supply .................................. 6
How to Level Your Refrigerator ...................................... 7
How to Adjust the Temperature Controls ........................ 7
About Your Fittration System ............................................... 8
Refrigerator Features ........................................................... 9
Shelves ............................................................................ 9
Door Storage .................................................................... 9
Drawers ........................................................................... 9
Freezer Features ............................................................... 11
Primary Features ............................................................ 11
Shetves .......................................................................... 11
Door Storage .................................................................. 11
Dispenser Features ............................................................ 12
Primary Features ............................................................ 12
Water Dispenser Operation ........................................... 12
ControI Features ............................................................ 13

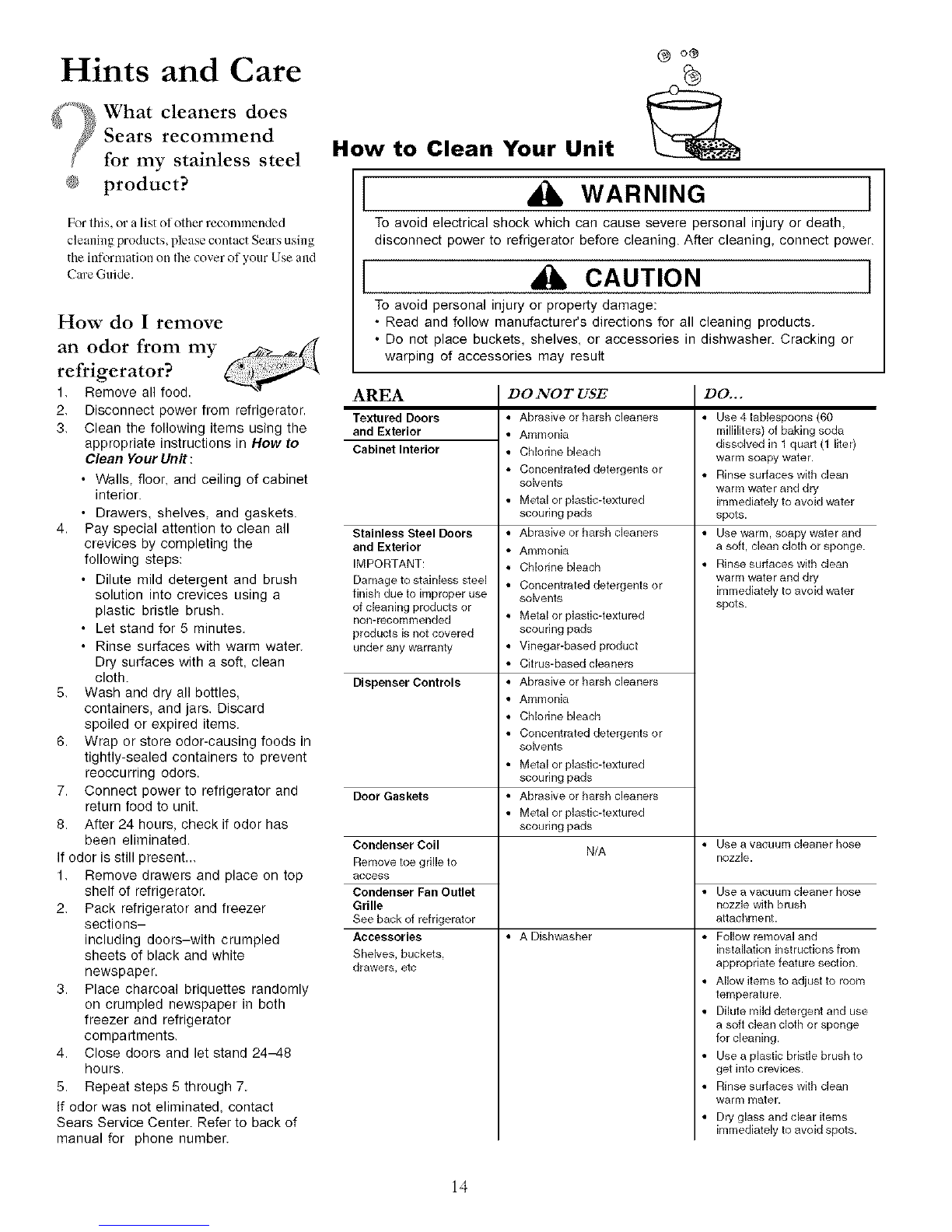

Hints and Care .................................................................... 14
Howto Clean Your Unit .................................................. 14
How to Remove and Replace Light Bulbs ..................... 15
Troubleshooting .................................................................. 16
Water Filter Data ................................................................. 20
Service ................................................................ Back Cover
1. Temperature controls pg. 7
2. SpitlproofShelves pg. 9
3. Temperature-Controlled
Meat Drawer pg. t0
4. Humidity-Controlled
Crisper drawer pg. 9
5. Dairy center pg. 9
6. Doorbuckets pg. 9
7. Ice storage bin pg. 11
3
8. Icemaker-notshown pg. tt
9. IceCreamShetf pg. 11
t0. Fixed freezer sheIf pg. tt
10a. Clip-mountedstyIe pg. 11
10b. RaiI-mountedstyIe pg. 12
tl. Freezer bin pg. 11
t2. Water fitter-not shown pg. 8
t3. Lights-not shown pg. t5

Installing Your Refrigerator
These instructions were provided to aid you in the installation of your unit. Sears cannot be responsible for
improper installation.
How do I measure an
opening to insure proper fit?
This refrigerator was designed to fit a 69"
tall opening to allow for proper ventilation,
leveling, and door adjustments,
Subflooring or floor coverings (i.e. carpet, tile,.
wood floors, rugs) may make your opening
smaller than anticipated.
Some clearance may be gained by using the "
leveling procedure under How to Level Your
Refrigerator:
IMPORTANT: If unit is to be installed into a
recess where top of unit is completely
covered, use dimensions from floor to top
of hinge cap to verify proper clearance.
A= Floor to top
of cabinet
(68 ¾")
B = Floor to top
,_ of top hinge
assembly
(70 Vs")
C= Back of unit
with _¼"tilt to
back (68 ½")
How to Transport Your Unit
Follow these tips when moving the unit to final location:
NEVER transport unit on its side. tf an upright position is not possible, lay
unit on its back. Allow unit to sit upright for approximately 30 minutes prior to
plugging unit in to assure oil return to the compressor. Plugging unit in
immediately may cause damage to internal parts.
Use an appliance dolly when moving unit. ALWAYS truck unit from its side-
NEVER from its front or back.
Protect outside finish of unit during transport by wrapping cabinet in blankets
or inserting padding between the unit and dolly.
Secure unit to dolly firmly with straps or bungee cords. Thread straps
through handles when possible. DO NOT overtighten. Overtightening
restraints may
dent or damage outside finish.
How to Select the Best Location
Observe these points when choosing the final location for your unit:
DO NOT install refrigerator near oven, radiator, or other heat source. Ifthat is
not possible, shield refrigerator with cabinet material.
DO NOT install where temperature falls below 55°F (13°C). Malfunction may
occur at this temperature.
Make sure floor is level. If floor is not level, shim rear wheels of unit with a
piece of plywood or other shim material.
Allow a minimum of ½" clearance along top and back of unit for proper
ventilation.
To assure proper door closure, verify that the unit is leveled with a %" tilt to
the back.
How to Remove the Doors and Hinges
Some installations require door removal to get refrigerator to final location.
IWARNING ]
To avoid electrical shock which can cause severe personal injury or death, observe the following:
• Disconnect power to refrigerator before removing doors. Connect power only after replacing doors.
• Green ground wire must be attached to top hinge while performing door removal and replacement.
I CAUTION ]
To avoid damage to walls and flooring, protect soft vinyl or other flooring with cardboard, rugs, or other protective material.
1Remove Toe GrZ]'le ,_nd _:jj/i
Bottom Hinge Covers __
•both doors 180° wide-- q#"_'_&'_"
Open , or as as [_1
possible, to remove. |_/
I _ Unscrew Hnion ntlt
_g_ to detach water tobe
3 .en, tophingecoverbS
removing Phillips screw.____
5f¢ +
Unscrew "/16 hex head screws
qr from top hinges.
DO NOT remove either green ground
wire or ground wire connecting screw.
I
4

Installing Your Refrigerator
How to Remove the Doors and Hinges ,,+,z,,:,_1_,_
"_ Detach main wire connector harness.
r'l_J (dJspensillgt m°dels °nly) _, ,I,
• Use a flat blade screwdriver ,X,_!_I__
or fingernail to press junction __
point between two connectors _'_f
to release. _- -
Detach red wire harness
(some modeIs).
Press tab on underside of
connector to release,
Remove top hinges along . _../f_ _;:' ]
with doors. --_=/ U_>I
)
z 3/, ,, hex head driver. /Z
How to Replace the Doors
• To replace doors, reconnect wiring harnesses and attach parts in reverse order from removal steps.
How to Install and Remove Handles
Handles are located within refrigerator section of refrigerator. Trim is located within the literature pack.
"-'°11,'- q
screws from bottom of I[I, i l
To r_mo*e"_ after initi_d" installation...,
Snap off trim from handle bottoms and unscrew exposed
screws.
NOTE: Fit may be tight. When removing handle, pull up and
out.

Installing Your Refrigerator
How to Connect the Water Supply
t _k WARNING
To avoid electrical shock which can cause severe personal injury or death_ disconnect power to refrigerator before
connecting water supply. After connecting water supply, connect power.
1 _[k CAUTION
To avoid property damage, observe the following:
• Consult a plumber to connect copper tubing to household plumbing to assure compliance with local codes and
ordinances.
• Confirm water pressure to water valve is between 20 and 100 pounds per square inch. If water filter is installed, water
pressure to water valve must be a minimum of 35 pounds per square inch.
• DO NOT use a self piercing, or 31_6'(48 mm) saddle valve Both reduce water flow, become clogged with time, and may
cause leaks if repair is attempted
• Tighten nuts by hand to prevent cross threading Finish tightening nuts with pliers and wrenches Do not overtighten
• Wait 24 hours before placing unit into final position to check and correct any water leaks
Materials Nccdcd
• 1/4"(6 mm) outer diameter flexible copper tubing
NOTE: Add 8 (2 m) to tubing length needed to reach water
supply for creation of service loop
1Remove plastic cap (14) f?om
water valve inlet port (B).
f2 Place brass not and sleeve on copper robe |
end and insert robe into valve inlet port. J
Attach nut on copper tubing to valve inlet port.
• Brass nut and sleeve (included in literature pack)
• Shut-off valve (requires a 1/4"or 6 mm hole to be drilled
into water supply before valve attachment)
• Adjustable wrench
I3 onfirm secure attachment by pzdling on l
tubing, J
4 m°nwat''pP"ao" III. ',]
_orrectanal,a# I I1_ il
Create service loop with remaining]_-_l_C_q i/
tubing and attach to unit with P I I_JA )..liI
_, campas ustrated. Avod knks. _LT _
d

Installing Your Refrigerator
How to Level Your Refrigerator
14_ CAUTION J
•To avoid damage to walls and flooring, protect soft vinyl or other flooring with cardboard, rugs, or other protective material
•To avoid damage or breakage to adjusting bolt, do not use power tools to correct leveling
• DO NOT adjust unit to be any shorter than 68 14, inches tall (minus hinge and cap) Doing so may damage underside
components.
Materials Needed
•s/8"hex head driver •Level
(j -
Remove toe grille and bottom hinge covers
(see previous instructions).
What if my doors are not aligned?
Locate the higher door, and turn front adjustment screw
counterclockwise. Continue until doors are level,
tf bottom of adjustment range is reached, and doors are
not level-raise opposite door by turning front adjustment
screw clockwise.
Replace toe grille.
I
Chec*levelto t,ltto,he }
back for proper door closure.
• If unit is aligned and stable, replace toe grille.
What if my unit rocks?
Turn rear adjustment screw clockwise to raise rocking
corner
Replace toe grille.
How to Adjust the Temperature Controls
This refrigerator is designed to operate at a household temperature of 55° to 110°F (13° to 43 ° C)
upper left wall of refrigerator section, and Iis 38 °to 40 ° F (3 °to 4 ° C).
set both controls to 4. I•Turn control to next highest number if too warm
l•Turn control to next lowest number if too cold
/IMPORTANT: Neither section will cool if freezer control is L • Allow 5 to 8 hours for adjustments to take effect
_set to Qff
(2Affow 24 hours for temperatures to stabilize.) i5 Repeat process; as necessary. )
How do I perform a temperature test?
1' 2°F(-17°to-16°C). 2 thermometers measuring -5° to 50°F
| Turn control to next highest number if too warm (21 ° to 10°C)
| Turn control to next lowest number if too cold 2 drinking glasses
L Allow 5 to 8 hours for adjustments to take effect IMPORTANT: Due to design of unit, always start temperature
adjustments with freezer section
For Freezer
Place thermometer in glass
of vegetable oil in middle
of freezer and continue
with step 3 of How to Adjust
the Temperature Controls
section
For Refrigerator
Place thermometer in
glass of water in middle
of unit and continue with
step 3 of How to Adjust
the Temperature
Controls section

About Your Filtration System...
Water Filter Removal and Installation
[WARNING 1
To avoid serious illness or death, do not use unit where water is unsafe or of unknown quality without adequate
disinfection before or after use of filter.
1 a'k CAUTION
•Bypass cartridge DOES NOT filter water. Be sure to have replacement cartridge available when filter change is required.
• If water filtration system has been allowed to freeze, replace filter cartridge.
• if system has not been used for several months, and water has an unpleasant taste or odor, flush system by dispensing
2-3 glasses of water. If unpleasant taste or odor persists, change filter cartridge.
Initial Install of Water Filter Replacing Water Filter
IMPORTANT: Air trapped in system may cause water and
cartridge to eject. Use caution when removing,
[1?'e,Ss tTrj°onz£ °,:'/d7"e,,,,ti,,t ]
Remove seal. iT_: label from _ _3 +
end of Fdter and insert into
• Rotate gently clockwise until filter stops _ '1/
and snap filter cover closed.
Reduce _rater sp.rts by tlushing air from
system. Run water continuously for 2
minutes through dispenser until _tter runs
8te_d_;
Additional flushing may be required in some households
_, where water is of poor quality, ,_
I'm trying to dispense water to
flush the system. Where's the water?
During initial use, allow about a1 to 2 minute delay in water
dispersal to allow internal water tank to fill.
What if I choose not to use the water
filtration system?
Dispenser feature may be used without water filter
cartridge, tf you choose this option, replace filter with blue
bypass cap,
rg Drain water from Hlter into sink, and ]
dispose in normM household garbage. )
3Wipe 11p excess water in 171ter cover and Icontinue _Jth installation steps 2 and 3. J
When do I change the water filter?
Select dispenser models feature a water filter change
indicator. For instructions on how to operate and reset this
feature, refer to the dispenser features section in your
manual.
IMPORTANT: Condition of water and amount used
determines life span of water filter cartridge. If water use is
high, or if water is of poor quality, replacement may need to
take place more often.
How do I order a replacement filter
cartridge?
Kenmore ® Replacement Water Filter cartridge model 9005
is available through Sears dealers and servicers. You may
also order through Sears by using the information on the
back cover of your manual.
8

Refrigerator Features
I& CAUTION ]
To avoid property damage or injury, observe the following:
• Confirm shelf is secure before placing items on shelf.
• Handle tempered glass shelves carefully. Shelves may break suddenly if
nicked, scratched, or exposed to sudden temperature change.
Door Storage
Door Buckets i A
Door buckets adjust to meet individual _/'_'_w" m
storage needs. _1
To remove and install buckets: _ _11
• To remove, slide bucket up and pull dUE
• To install, slide bucket in above desired door "_
liner slot and push down until bucket stops.
Dairy Center
The dairy center provides convenient storage for items
such as butter, yogurt, cheese, etc.
This compartment is an adjustable feature located in the
door, It can be moved to several different locations to
accommodate storage needs.
To remove and install bin:
To remove, slide dairy center up
and pull out.
To install, slide assembly in
above desired door liner slot
and push down until it stops.
To remove and install dairy door:
To remove, press in sides of dairy door and pull out,
To install, slide sides of dairy door inside dairy center
until hinge points snap into place.
Shelves
)roof Shelves
Spillproof stationary shelves hold
simple spills for easier cleaning.
To remove and install shelves:
To remove shelves, lift front of shelf to
release shelf hooks from metal track
and pull out to remove.
To install shelves, select point in metal track for
replacement and insert shelf hooks. Raise front of
shelf until hooks lock into place. Lower shelf front.
Drawers
Iumidity-Controlled Crisper
The humidity-controlled crisper keeps produce fresh
longer by providing an environment with adjustable
humidity.
Controls
The humidity-controlled crisper controls regulate the
amount of humidity in the crisper drawer. Use the low
setting for produce with outer skins. Use the high setting
for leafy produce.
To remove and install drawer:
To remove, pull drawer out
to full extension. Tilt up front of
drawer and pull straight out,
To install, guide drawer into
frame and push back until drawer \
is flush with rear wall.
To remove and install shelf:
To remove, lift shelf from wall supports.
//
_4
To install shelf, lower shelf onto wall supports and
push in until shelf is flush with rear wall.
m
What setting should I use for items in
my humidity-controlled drawers?
• cauliflower • oranges • cucumbers
LOW • apples • zucchini • tomatoes
• corn • grapes
HIGH • lettuce • cabbage • fresh • asparagus • celery • sprouts
• spinach ° broccoli • fresh herbs
What can I do to prolong the life of nay
produce?
Please observe the following rules when storing produce in
humidity-controlled drawers:
DO NOT wash produce before placing in crispers. Any
additional moisture added to the drawers may cause
produce to prematurely spoil.
DO NOT line crispers with paper towels. Towels will
retain moisture.
Follow control instructions carefully. Incorrect control
settings may damage produce.

Refrigerator Features
Drawers colltblued
What setting should Iuse for items in
my temperature-controlled drawer?
You should not store lettuce or other leafy produce in this
drawer
•cauliflower
COLD •cucumbers COLDEST
• tomatoes
• zucchini
• apples
• corn
• oranges
• grapes
• steaks
• hard cheeses
• cold cuts
• bacon
• hot dogs
Temperature-Controlled Meat
Drawer
The temperature-controlled meat drawer provides a drawe
with a variable temperature control that keeps the
compartment up to 5°F (3°C) colder than refrigerator
temperature This drawer can be used for deli storage or
additional produce storage,
NOTE: Cold air directed to the temperature-controlled
meat drawer can lower refrigerator temperature
Refrigerator control may need to be adjusted
Controls
Located on the wall to the left of the drawer, the climate
controls regulate the air temperature in the temperature-
controlled meat drawer Set control level to cold to provide
normal refrigerator temperature for produce with outer
skins Use the coldest setting for meats
or other deli items
To remove and install drawer:
• To remove, pull drawer out
to full extension Tilt up front of
drawer and pull straight out
• To install guide drawer into
frame and push back until drawer
is flush with rear wall
1o

Freezer Features
CAUTION ]
To avoid property damage, observe the following:
• Do not force ice maker arm down or up.
• Do not place or store anything in ice storage bin.
WARNING I
To avoid possible injury, including death, do not place glass
items in ice cream shelf. Glass objects may shatter or
explode if exposed to extreme cold.
Automatic Dispensing Ice Maker
This ice maker creates the ice used in the dispensing
system.
Using Ice Maker for the First Time
Confirm ice bin is in place
and ice maker arm is down.
After freezer section reaches
between 0° to 2°F (-18 ° to
-17° C), ice maker fills with
water and begins operating.
Allow approximately 24 hours after installation to
receive first harvest of ice.
Discard ice created within first 12 hours of operation to
verify system is flushed of impurities.
Operating Instructions
Confirm ice bin is in place and ice maker arm is down,
After freezer section reaches 0 ° to 2°F (-18 ° to -17 ° C),
ice maker fills with water and
begins operating. You will have a
complete harvest of ice
approximately every 3 hours.
Stop ice production by raising ice
maker arm until click is heard.
Drawers
Ice maker will remain in the off position until arm is
pushed down.
Freezer Bin L
To remove and install bin:
• To remove, lift front of bin
and pull out to its full
extension. Lift up front of
bin and remove.
• To install, slide bin into rails at bottom of freezer
section. Lift up front of bin, and slide to the back of unit.
, •
Ice Cream Shelf
Ice cream shelf provides a space for items to be
chilled or frozen quickly.
• To remove, lift ice cream shelf
from ice bin rails and pull
straight out.
• To install, fit shelf over top of
ice maker and lower onto ice
bucket rails.
Ice Storage Bin
The ice storage bin is located below the automatic
dispensing ice maker.
To remove and install ice storage bin:
• To remove bin. remove ice cream shelf.
Raise ice maker arm to deactivate ice
maker. Lift front of bin and pull out
to its full extension. Lift up front of
bin and remove.
• To install, slide bin into rails below ice maker until bin
locks into place. Drop ice maker arm to activate ice
maker, and replace ice cream shelf.
IMPORTANT: Ice bin must be
locked in proper place for proper _ _
ice dispensing. If freezer door ..
does not close, bin is not in proper
location. Turn auger driver counterclockwise (as shown)
to properly align ice bin with back of unit.
Shelves
Fixed Freezer Shelf
To remove and install clip-mounted shelves:
To remove, pull shelf from wall
mounting clips and pull left side
of shelf out of wall mounting
holes.
To install, place shelf in mounting hole and attach to
wall mounting clips.
To remove and install rail-mounted shelves:
• To remove, snap right side of L _ _ _.
shelf from cabinet railing and _l_,_/
remove from wall mounting ////f_F_-!ii_
• clips. _ L__'
To install, replace shelf in L_ii_//_°°_!;I
wall mounting clips. Be sure back edge of shelf is
flush with back of cabinet and snap shelf into cabinet
railing.
m
Door Storage
IDoor Buckets
• Refer to refrigerator section for instructions. )11

Dispenser Features
Dispenser Light _ot_l_o_,,_
A light activates within the dispenser area at full power when dispensing ice or water.
Dispenser Pad
The dispenser pad is located on the back wall of the dispensing area. When the dispenser
pad is pressed, the selection chosen on your dispenser control panel will dispense.
Removable Tray
The removable tray at the bottom of the dispense[ area is designed to collect small spills
and may be easily removed for cleaning and emptying purposes.
IMPORTANT: Removable tray does not drain. Continuous water running into tray will cause tray to overflow
Water Dispenser Operation
JCAUTION
To avoid personal injury or property danlage_ observe following instructions:
• Do not put fingers, hands, or any foreign object into dispenser opening.
• Do not use sharp objects to break ice.
• Do not dispense ice directly into thin glass, fine china, or delicate crystal.
NOTE: During initial use of water dispenser, there will be a 1 to 2 minute delay while water tank fills before water
dispenser. Discard first 10-14 containers of water after initially connecting refrigerator to household water supply and
after extended periods of nonuse.
To use dispenser pad:
Choose water selection from dispenser control panel.
Press sturdy, wide-mouthed container against dispenser pad.
Release pressure on dispenser pad to stop water from dispensing. A small amount of water may
continue to dispense, and collect in dispenser tray. Large spills should be wiped dry.
NOTE: If water dispenser is continuously active for more than 3 minutes, an automatic lock out sensor
will shut down power to dispenser area,
12

Control Features Dispenser Features
o OOOOO
SENSOR
cha_
FILTER DISPENSER FILTERED ICE & WATER LIGHT
Dispe.serOperatio.
To dispense:
Select CUBE, CRUSH, or WATER mode by pushing button on dispenser control panel. A green indicator light above
button shows mode selection.
Press container against dispenser pad, When dispensing crushed ice, hold container as close to chute as possible
to reduce spraying. Selection mode may not be changed while ice dispenser is in operation.
NOTE: tf water dispenser is continuously active for more than 3 minutes, an automatic lock out sensor will shut down
power to dispenser area.
i
Dispenser Lock
This feature prevents ice or water from being dispensed.
To lock and unlock dispenser:
• To lock dispenser, press and hold LOCK/UNLOCK button for 3 seconds. A green indicator light above button confirms
dispenser is locked.
• To unlock dispenser, hold LOCK/UNLOCK button for 3 seconds. Green indicator light above button will go out.
i
I11
m
Filter Status Indicator Light
The Filter Status Indicator Light serves as a reminder to replace the water filter. A green light indicates that the
filter is in good condition. A red light indicates the filter should be changed. Once light turns red, it will remain o Good
red until function is reset, o Cho.go
TOreset indicator:
Press and hold both LOCK/UNLOCK and ON/OFF buttons simultaneously for 4 seconds. The green Filter FILTER
Status Indicator Light will flash 3 times when the function has successfully reset.
Auto LightThe Auto Light function offers the ability to activate the dispenser light at half-power when the _ _'_
LIGHT SENSOR detects that the light levels in room are low. LIGHT
To activate and deactivate Auto Light:
• To activate, press ON/OFF button located on control panel. A green
indicator light above button displays to show that sensor is active. NOTE: Dispenser light will operate whether
• To deactivate, press ON/OFF button. Green indicator light will go out. or not Auto Light is selected.
13

Hints and Care
What cleaners does
Sears recommend
for my stainless steel
product?
For this, or a list of other recommended
cleaning products, please contact Sears using
the infl_rmation oil the cover of your Use and
Care Guide.
How do I remove
an odor from my _>____(
f,refrigerat°r?Removeall food.
2, Disconnect power from refrigerator.
3, Clean the following items using the
appropriate instructions in How to
Clean Your Unit:
• Walls, floor, and ceiling of cabinet
interior.
• Drawers, shelves, and gaskets.
4. Pay special attention to clean all
crevices by completing the
following steps:
• Dilute mild detergent and brush
solution into crevices using a
plastic bristle brush.
• Let stand for 5 minutes,
• Rinse surfaces with warm water
Dry surfaces with a soft, clean
cloth
5 Wash and dry all bottles,
containers, and jars Discard
spoiled or expired items
6 Wrap or store odor-causing foods in
tightly-sealed containers to prevent
reoccurring odors.
7. Connect power to refrigerator and
return food to unit.
8. After 24 hours, check if odor has
been eliminated.
if odor is still present...
1. Remove drawers and place on top
shelf of refrigerator.
2. Pack refrigerator and freezer
sections-
including doors-with crumpled
sheets of black and white
newspaper.
3. Place charcoal briquettes randomly
on crumpled newspaper in both
freezer and refrigerator
compartments.
4. Close doors and let stand 24_J,8
hours.
5. Repeat steps 5 through 7.
if odor was not eliminated, contact
Sears Service Center. Refer to back of
manual for phone number.
0o@
How to Clean Your Unit
IWARNING I
To avoid electrical shock which can cause severe personal injury or death,
disconnect power to refrigerator before cleaning After cleaning, connect power
I CAUTION I
To avoid personal injury or property damage:
• Read and follow manufacturer's directions for all cleaning products
• Do not place buckets+ shelves, or accessories in dishwasher Cracking or
warping of accessories may result
DO..,
AREA
TexturedDoors
and Exterior
Cabinet Interior
Stainless Steel Doors
and Exterior
IMPORTANT:
Damage to stainless steel
finish due to improper use
of cleaning products or
non-recomrr_ended
products is not covered
under any warranty
Dispenser Controls
Door Gaskets
Condenser Coil
Removetoe grilleto
access
CondenserFanOutlet
Grille
See backofrefrigerator
Accessories
Shelves, buckets,
drawers,etc
DO NOT USE
Abrasive or harsh cleaners
Ammonia
Chlorine bleach
Concentrated detergents or
solvents
Metal or plastic-textured
scouring pads
Abrasive or harsh cleaners
Ammonia
Chlorine bleach
Concentrated detergents or
solvents
Metal or plastic-textured
scouring pads
Vinegar-based product
Citrus-based cleaners
Abrasive or harsh cleaners
Ammonia
Chlorine bleach
Concentrated detergents or
solvents
Metal or plastic-textured
scouring pads
• Abrasive or harsh cleaners
• Metal or plastic-textured
scouring pads
N/A
• A Dishwasher
•Use 4 tablespoons (60
milliliters) of baking soda
dissolved in 1 quart (1 liter)
warm soapy water.
• Rinse surfaces with clean
warm water and dry
immediately to avoid water
spots.
• Use warm, soapy water and
a soft, clean cloth or sponge.
• Rinse surfaces with clean
warm water and dry
immediately to aw_id water
spots.
• Usea vacuumcleanerhose
nozzle.
• Use a vacuum cleaner hose
nozzle with brush
attachment.
• Follow removal and
installation instructionsfrom
appropriate feature section.
• Allow items to adjust to room
temperature.
• Dilute mild detergent and use
a soft clean cloth or sponge
for cleaning.
• Use a plastic bristle brush to
get intocrevices.
• Rinse surfaces with clean
warm mater.
• Dry glass and clear items
immediately to avoid spots.
14

Hints and Care
How to Remove and Replace Light Bulbs /
] _ [ /_-_!uJ/ How to Get the
WARNING Most Out of
To avoid electrical shock which can cause severe personal injury or death, \"r S
disconnect power to refrigerator before replacing light bulb. After replacing light _Your Energy
bulb, connect power. Dollar
• When placing refrigerator into final
I A CAUTION [position, allow for 1" clearance
around the top and sides of unit to
To avoid personal injury or property damage, observe the following: supply ample ventilation for m
• Allow light bulb to cool. optimum energy efficiency.
• Wear gloves when replacing light bulb. • Avoid overcrowding refrigerator
shelves. This reduces effectivity of
........... air circulation around food and
Upper refrigerator section causes refrigerator to run longer. iiiiiiiiii
1. Locate finger gaps on each side of clear light [_-_-_-_-'--]_ • Avoid adding too much warm food 'A
shield, insert fingers and press in on each side _L___mJm to unit at one time, This overloads
of shield. Pull shield down and remove, compartments and slows rate of
2. Remove light bulbs. _ cooling.
3. Replace with appliance bulbs no greater than _ • Do not use aluminum foil, wax
40 watts. _ paper, or paper toweling as shelf
liners. This decreases air flow and
4. Replace light bulb cover by inserting front tabs of f_7 _ "l _ causes unit to run less efficiently.
light shield into slots directly in front of light assembly.
............................................................................................................................................................................•A freezer that is 2/3full runs most
efficiently,
1. Pinch bottom tabs (A) on light cover and pull straight
out.
2. Remove light bulb.
3. Replace bulb with appliance bulb no greater than 40
watts.
4. Insert top tabs (B) of light cover into liner slots and
snap bottom portion over light assembly.
B
A
Freezer section A
1. Remove ice bin by lifting front of bin and pulling out.
2. Remove light bulb cover by pinching top tab (A) and I/_ _'* _1
pulling cover out. l(_t_ _,' !!f:_ _[
3. Remove light bulb. Replace with appliance bulb l_ .... _'_
no greater than 40 watts
4, Insert bottom tab (B) of light cover into liner slots and snap B
top portion over light assembly.
5, Replace ice bin by sliding in until bin locks into place.
Ice and Water dispenser ........................................................... 1
1. Locate light bulb inside top edge of dispenser frame. Unscrew II
to remove. _
_2. Replace light bulb with a 6-watt, 120 volt bulb. "/,,,_
Locate refrigerator in coolest part of
room. Avoid areas of direct sunlight,
or near heating ducts, registers, or
other heat producing appliances. If
this is not possible, isolate exterior
by using a section of cabinet or an
added layer of insulation.
Refer to this Use and Care Guide
section on temperature controls for
recommended control settings
Clean door gaskets every three
months according to this Use and
Care Guide's cleaning instructions.
This will assure that door seals
properly and unit runs efficiently.
Take time to organize items in
refrigerator to reduce time that door
is open.
Be sure your doors are closing
securely by leveling unit as
instructed in this Use and Care
Guide.
Clean condenser coils as indicated
in the Use and Care Guide every 3
months, This will increase energy
efficiency and cooling performance.
15

Troubleshooting
Today's refrigerators have new features, such as foam insulation, and are more energy efficient than past refrigerators.
.... Foam insulation is very energy efficient and has exceltent insulating capabilities; however, it is not as sound absorbent as
NOISE )))_" former insulating materials. As a resutt, certain sounds may be unfamiliar. In time, these sounds wilI become familiar. Please
refer to this information before catting service.
TOPIC POSSIBLE CAUSE SOLUTION
Clicking Freezer control (.4) clicks when starting Normal operation
or stopping compressor.
Defrost timer (B) sounds like an electric Normal operation
clock and snaps in and out of defrost
cycle.
Air rushing or Freezer fan (C) and condenser fan (D) Normal operation
whirring make this noise while operating.
Gurgling or Evaporator (E) and heat exchanger (F) Normal operation
boiling sound refrigerant make this noise when
flowing.
Thumping Ice cubes from ice maker(some models) Normal operation
drop into ice bucket (G).
Dispenser ice chute (H) closing. Normal operation
Vibrating noise Compressor (I) makes a pulsating sound Normal operation
while running.
Refrigerator is not level. See Installing Your
Refrigerator for details on
how to level your unit.
Buzzing Ice maker water valve (J) hookup (some Normal operation
models) buzzes when ice maker fills with
water.
Humming Ice maker (K) is in the 'on' position Stop sound by raising ice
without water connection, maker arm to 'off' position.
See Automatic Dispensing
Ice Maker in Freezer
Features section of this Use
and Care Guide for details.
Ice auger (L) (some models) hums as Normal operation
auger agitates ice during dispensing.
Compresser (I) can make a high pitched Normal operation
hum while operating.
Solenoid valve (M) operating ice chute Normal operation
door.
J
OPERATION _
Freezer control Refrigerator is in defrost mode. Normal operation. Wait 40 minutes to see if refrigerator
and lights are on, restarts.
but compressors
are not operating.
Dell/Crisper Control settings are too low.
system Freezer controls are set too low.
temperature is
too warm Drawer is improperly positioned.
Refrigerator does Refrigerator is not plugged in.
not operate Freezer control is not on.
Fuse is blown, or circuit breaker needs
to be reset.
Power outage has occurred
Refrigerator still Unit is malfunctioning.
won't operate
Food temperature
is too cold Condenser coils are dirty.
Refrigerator or freezer controls are set
too high.
See section on Dell/Crisper system to adjust controls.
See controls section in Use and Care Guide on how to
adjust your controls.
See section on Dell/Crisper system to verify drawer
positioning.
Plug in unit.
See section on controls in this Use and Care Guide.
Replace any blown fuses. Check circuit breaker and reset if
necessary.
Call local power company listing to report outage.
Unplug refrigerator and transfer food to another unit. If
another unit is not available, place dry ice in freezer section
to preserve food. Warranty does not cover food loss.
Contact service for assistance.
Clean according to cleaning instructions in this Use and
Care Guide.
See controls section in Use and Care Guide on how to
adjust your controls.
16

Troubleshooting
TOPIC POSSIBLE CAUSE SOLUTION
Food temperature
appears too warm
Refrigerator has an odor
Water droplets form on
outside of refrigerator
Water droplets form on
inside of refrigerator
Door is not closing properly.
Controls need to be adjusted,
Condenser coils are dirty,
Rear air grille is blocked.
Door has been opened frequently, or
has been opened for long periods of
time.
Food has recently been added,
Compartment is dirty or has odor-
causing food.
Check gaskets for proper seal.
Humidity levels are high.
Controls require adjustment
Humidity levels are high or door has
been opened frequently.
Check gaskets for proper seal.
Refrigerator is not level. See Installing YourRefrigeratorfor
details on how to level your unit.
Check gaskets for proper seal. Clean, if necessary, according to
cleaning instructions in This Use and Care Guide.
Check for internal obstructions that are keeping door from
closing properly (i,e. improperly closed drawers, ice buckets,
oversized or improperly stored containers or foodstuffs, etc,),
See the controls section in this Use and Care Guide for
assistance in how to adjust your controls.
Clean according to cleaning instructions in this Use and Care
Guide.
Check the positioning of food items in refrigerator to make sure
grille is not blocked. Rear air grille is located behind crisper
drawers.
Reduce time door is open. Organize food items efficiently to
assure door is open for as short a time as possible.
Allow interior environment to adjust for period the door has been
open.
Allow time for recently-added food to reach refrigerator or
freezer temperature.
Refer to odor removal instructions in this Use and Care Guide,
Clean, if necessary, according to cleaning instructions in this
Use and Care Guide,
Normal during times of high humidity.
See the controls section in this Use and Care Guide for
assistance in how to adjust your controls.
See the controls section in this Use and Care Guide for
assistance in how to adjust your controls.
Reduce time door is open. Organize food items efficiently to
assure door is open for as short a time as possible.
Clean, if necessary, according to cleaning instructions in this
Use and Care Guide.
Refer to noise section of troubleshooting guide in this Use and
Care Guide.
Refrigerator or ice maker Normal operation
make unfamiliar sounds or
seems too loud
Temperature-Controlled Contents of drawer, or positioning of Reposition food items and containers to avoid interference with
Meat drawer and!or crisper items in the surrounding compartment the drawers.
drawer do not close freely could be obstructing drawer
Drawer is not in proper position
Refrigerator is not level,
Drawer channels are dirty or need
treatment,
Doors have been opened frequently or
have been opened for long periods of
time,
Refrigerator runs too
frequently
See section on Temperature-Controlled Meat or Crisper drawer
sections for proper placement.
See Installing Your Refrigerator for details on how to level your
unit,
Clean drawer channels with warm, soapy water. Rinse and dry
thoroughly.
Apply a thin layer of petroleum jelly to drawer channels.
Reduce time door is open. Organize food items efficiently to
assure door is open for as short a time as possible.
Allow interior environment to adjust for period the door has been
open.
Humidity or heat in surrounding area is Normal operation
high.
Food has recently been added. Allow time for recently-added food to reach refrigerator or
freezer temperature.
Unit is exposed to heat by Evaluate your unit's environment. Unit may need to be moved to
environment or by appliances nearby, run more efficiently,
Condenser coils are dirty, Clean according to cleaning instructions in this Use and Care
Guide.
!11
mini=
m
17

Troubleshooting
0 PERATlON_(continued)
TOPIC POSSIBLE CAUSE SOLUTION
Refrigerator runs too Controls need to be adjusted.
frequently (continued)
Door is not closing properly
See the controls section in this Use and Care Guide for
assistance in how to adjust your controls.
Refrigerator is not level. See Installing Your Refrigerator for
details on how to level your unit
Check for internal obstructions that are keeping door from
closing properly (i.e. improperly closed drawers, ice
buckets, oversized or improperly stored containers or
foodstuffs, etc.).
Check gaskets for proper seal. Clean, if necessary,
according to cleaning instructions in this Use and Care
Guide.
ICE
Water appears cloudy Air or air bubbles in water. This is normal when first using dispenser and will
disappear with use.
Particles in water and/or ice Carbon dust from water filter cartridge. Initial water ejected through cartridge may contain
cubes, harmless carbon dust flushed from cartridge. Particles are
safe for consumption. Will disappear after the first few
uses,
Concentrations of minerals in water will form Particles are not harmful and naturally occur in water
particles when water becomes frozen and supplies.
melts.
No indicator lights are lit on Freezer door is not closed. Verify that freezer door is closed. Power is removed from
dispenser the control when freezer door is opened.
Refrigerator is not plugged in. Plug in unit.
Fuse is blown, or circuit breaker needs to be Replace any blown fuses. Check circuit breakers for any
reset, tripped circuits.
Power outage has occurred. Call local power company listing to report outage.
Neither ice nor water is Freezer door is not closed. Verify that freezer door is closed. Power is removed from
dispensed when pads are the control when freezer door is opened.
pushed Controls are in lock mode. See Dispenser control instructions.
Water tank is filling. At initial use, there is an approximate 45-second delay in
dispensing while the internal water tank is filling.
Ice maker or ice maker-equipped unit has Wait 24 hours for ice production to begin and for ice maker
just recently been installed or a large amount to restock after emptied.
of ice has just been used.
Water filter is clogged or needs to be Change water filter.
changed.
Ice maker is not producing Ice maker has just recently been installed or Wait 24 hours for ice production to begin and for ice maker
enough ice or ice is a large amount of ice has just been used. to restock after emptied.
malformed Water pressure is too low. Low water pressure can cause valve to leak. Water
_ressure must be between 20 to 100 pounds per square
inch to function properly. A minimum pressure of 35
pounds per square inch is recommended for units with
water filters.
Water filter is clogged or needs to be Change water filter.
changed.
Ice maker is not producing Household water supply is not reaching Check water connection procedure in your Installing Your
ice water valve Refrigerator.
Copper or plastic tubing has kinks. Turn off water supply and remove kinks. If kinks cannot be
removed, replace tubing.
Water pressure is too low. Water pressure must be between 20 to 100 pounds per
square inch to function properly. A minimum pressure of 35
pounds per square inch is recommended for units with
water filters.
Check freezer temperature. See the controls section in this Use and Care Guide for
assistance on how to adjust your controls. Freezer must be
between 0 to 2°F (-18 to -17°C) to produce ice.
Ice bin is not installed properly See ice bin section for proper installation and alignment.

Troubleshooting
ICE &
TOPIC POSSIBLE CAUSE SOLUTION
Ice maker is not producing Improper water vah/e was installed. Check water connection procedure inyour Installing Your
ice (continued) Refrgerator. Self-piercing and 3/_s"saddle valves cause low
water pressure and may clog the line over time. Sears is not
responsible for property damage due to improper
installation or water connection.
Unit is leaking water Plastic tubing was used to complete water Sears recommends using copper tubing for installation.
connection. Plastic is less durable and can cause leakage. Sears is
not responsible for property damage due to improper
installation or water connection.
Improper water valve was installed, Check water connection procedure in your Installing Your
Refrigerator. Self-piercing and 3/_6"saddle valves cause
low water pressure and may clog the line over time. Sears
is not responsible for property damage due to
improper installation or water connection.
Ice forms in inlet tube to ice Water pressure is low. Water pressure must be between 20 to 100 pounds per
maker square inch to function properly. A minimum pressure of 35
pounds per square inch is recommended for units with
water filters.
Freezer temperature is too high. See the controls section in this Use and Care Guide for
assistance on how to adjust your controls, Freezer is
recommended to be between Oto 2°F (-18 to -17°C).
Water flow is slower than Water pressure is low. Water pressure must be between 20 to 100 pounds per
normal square inch to function properly. A minimum pressure of 35
pounds per square inch is recommended for units with
water filters.
Improper water valve was installed. Check water connection procedure in your Installing Your
Refrigerator. Self-piercing and 3/_8"saddle valves cause
low water pressure and and may clog the line over time.
Sears is not responsible for property damage due to
improper installation or water connection.
Copper or plastic tubing has kinks. Turn off water supply and remove kinks. If kinks cannot be
removed, replace tubing.
Water filter is clogged or needs to be Change water filter.
changed.
Dispenser water is not cold Allow approximately 12 hours for water in holding tank to
chill.
Refrigerator has been recently installed
Water supply in holding tank has been
depleted.
Water has settled into water lines outside
holding tank and has warmed to room
temperature.
Discard first glass of water and refill.
I11
m
19

Water Filter Data
System Specification and Performance Data Sheet
®Refrigerator Water Filter Cartridge Model 9005
Specifications
Service Flow Rate (Maximum) ............................................. 075 GPM (283 L/min)
Rated Service Life Model 9005 (Maximum) ......................... 500 gallons/ 1892 liters
Maximum Operating Temperature ........................................ 100 ° F/38 ° C
Minimum Pressure Requirement .......................................... 35 psi/ 138 kPa
Maximum Operating Pressure .............................................. 120 psi/827 kPa ]
General Use Conditions: Read this Performance Data Sheet and compare the capabilities of this unit with your actual
water treatment needs.
DO NOT use this product where water is microbiologically unsafe or of unknown quality without adequate disinfection
before or after the system. System certified for cyst reduction may be used on disinfected water that may contain
filterable cysts.
The retractable water filtration system uses a 9005 replacement cartridge (see Sears contact information at the front of your
manual to order). Timely replacement of filter cartridge is essential for performance satisfaction from this filtration system.
Please refer to the applicable section in this Use and Care Guide for general operation, maintenance requirements and
troubleshooting.
This system has been tested according to ANSI/NSF 42 and 53 for reduction of the substances listed
below. The concentration of the indicated substances in water entering the system was reduced to a
concentration less than or equal to the permissible limit for water leaving the system, as specified in
ANSl/NSF 42 and 53.
Performance Data*
Substance
Lead
Lead
Cyst
Turbidity
Lindane
Atrazine
Chlorine
Particulate**
2,4-D
Asbestos
Influent
Water
0.15 mg/L
O.15 mg/L
25000 count/mL
11.8 NTU
0.00063 mg/L
0.0097 mg/L
1,9 mg/L
286667 count/mL
291.6667 ug/L
458 MFL/mL
Effluent
Average
0.001 mg/L
0.002 mg/L
lcount/mL
0,12 NTU
0.00005 mg/L
0.0002 mg/L
0,09 mg/L
900 count/mL
45.45 ug/L
0,16 MFL/mL
Average
%
Reduction
99.33%
96.66%
99.99%
98,98%
92.06%
97.93%
95.26%
99.68%
84.42%
99.96%
Maximum
Effluent
0.001 mg/L
0.003 mg/L
3 count/mL
0,18 NTU
0.00005 mg/L
0.0006 mg/L
0,17 mg/L
2400 count/mL
1OOug/L
0,16 MFL/mL
Min. Required Inlet
Reduction pH
0.010 mg/L 6,5
0.010 mg/L 8.5
> 99.95% NA
0.5 NTU NA
0.00001 mg/L NA
0.003 mg/L NA
->75% NA
->85% NA
0.0017 mg/L NA
99% NA
." Tested using a flow rate of 0.75 GPM (2.83 L/min,) and a maximum pressure of 120 psi (827 kPa)
under standard laboratory conditions; however, actual performance may vary. Health Claim
Performance tested and certified by NSF International.
Particle size range classification of test. Particles used were 0.5 -1 microns.
Cafifomia Certificate number01-1486
20
