Kenmore 795.7305 series User manual

Use & Care Guide
Manual de Usa y Cuidado
Guide d'Utisaton et d'EnJreten
English/Espa_ol /Fran_:ais
Models/Modelos/Mod_les: 795.7305*
i<enmore
@
®
@
P/No.: MFL63264288
Sears Brands Management Corporation
Hoffman Estates,IL 60179 U.S.A.
www.kenmore.com
www.sears.com
Sears Canada Inc.
Toronto, Ontario, Canada MSB 2B8
wwwosears.ca

English Version 2
Spanish Version 48
French Version 94
Warranty 3
Protection Agreements 4
Safety Instructions 5=7
Grounding Requirements 7
Parts And Features 8
Refrigerator installation 9-17
Unpacking Your Refrigerator 9
Installation 10
Removing And Replacing
Your Refrigerator Handles And Doors 11-16
Leveling And Door Alignment 17
Base Cover 17
Using Your Refrigerator 18-27
Setting The Controls 18-19
In-Door Ice Bin 20
Adjusting Control Settings 21
Food Storage Guide 22
Storing Frozen Food 22-23
Refrigerator Section
Water Dispenser 23
Refrigerator Shelves 24
Humidity Controlled Crisper 25
Removing Humidity Controlled Crisper 25
Temperature Controlled Pantry Drawer 25
Modular Door Bin 26
Dairy Bin 26
Replacing the Air filter 26
I_ Freezer Section
Extra Ice Bin 26
Durabase 27
Durabase Divider 27
PullOut Drawer 27
Filter 28-31
Care And Cleaning 32=33
General Cleaning Tips 32
Outside 32
Inside Walls 32
Door Liner And Gaskets 32
Plastic Parts 32
Condenser Coils 32
LED Replacement 32-33
Power Interruptions 33
When You Go On Vacation 33
When You Move 33
About The Automatic Icemaker 34-35
Connecting The Water Line 36=38
Troubleshooting Guide 39=45
Kenmore Connect 46

BOTTOM FREEZER REFRIGERATOR WARRANTY
TM
Kenmore Emite Limited Warranty
When installed, operated and maintained according to all instructions supplied with the product, if any
non-consumable part of this appliance other than the sealed refrigerant system fails due to a defect in
material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME ®to arrange
for free repair.
This coverage applies for only 90 days from the date of purchase if this appliance is ever used for other
than private family purposes.
If the sealed refrigerant system is defective within five years from the purchase date,
call 1-800-4-MY-HOME ®to arrange for free repair. This coverage applies for only one year from the date
of purchase if this appliance is ever used for other than private family purposes.
This warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light
bulbs, and bags.
2. A service technician to instruct the user in correct product installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. of this product if it is not installed, operated or maintained according to the all
with the product.
5. of this product resulting from accident, abuse, misuse or use for other than its
Damage to or failure
instructions supplied
Damage to or failure
intended purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils
other than those recommended in all instructions supplied with the product.
7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this
product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided
herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are
limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or
consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental
or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness,
so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to
state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8 J
3

Master Protection Agreements
Congratulations on making a smart purchase.
Your new Kenmore® product is designed and
manufactured for years of dependable opera-tion.
But Jike all products, it may require preventive
maintenance or repair from time to time. That's when
having a Master Protection Agreement can save you
money and aggravation.
The Master Protection Agreement also helps extend
the life of your new product. Here's what the
Agreement* includes:
Parts and labor needed to help keep products
operating properly under normal use, not just
defects. Our coverage goes well beyond the
product warranty. No deductibles, no functional
failure excluded from coverage-- real protection.
Expert service by a force of more than 10,000
authorized Sears service technicians, which
means someone you can trust will be working on
your product.
Unlimited service calls and nationwide service,
as often as you want us, whenever you want us.
"No-lemon" guarantee - replacement of your
covered product if four or more product failures
occur within twelve months.
Product replacement ifyour covered product can't be
fixed.
Annual Preventive Maintenance Check at your
request -no extra charge.
Fast help by phone = we calJ it Rapid
Resolution - phone sup-port from a Sears
representative on all products. Think of us as a
"talking owner's manual."
Power surge protection against eJectncaJ
damage due to power fluctuations.
$250 Food Loss Protection annually for any food
spoilage that is the result of mechanical failure of
any covered refrigerator or freezer.
Rental reimbursement if repair of your covered
product takes longer than promised.
10% discount off the regular price of any non-
covered repair service and related installed parts.
Once you purchase the Agreement, a simple phone
cal! is all that it takes for you to schedule service.
You can call anytime day or night, or schedule a
service appointment online.
The Master Protection Agreement is a risk free
purchase. If you can-cel for any reason during the
product warranty period, we wiJJprovide a full refund.
Or, a prorated refund anytime after the product
warranty period expires.
Purchase your Master Protection Agreement today!
Some limitations and exclusions apply.
For prices and additional information in the
U.S.A. call 1-800-827=6655
*Coverage in Canada varies on some items. For
full details call Sears Canada at 1-800-361-6665.
Sears Installation Service
For Sears professional installation of home
appliances, garage door openers, water heaters, and
other major home items, in the U.S.A. or Canada
call 1-800-4-MY-HOME ®.
in the space below, record the date of purchase, model and serial number of your product. You will find the
modeJ and serial number printed on an identification label located on the right-hand side of the refrigerator
compartment. Have these items of information available whenever you contact Sears concerning your product.
Model No. Date of Purchase
Serial No.
Save these instructions and attach your sales receipt for future reference.

BASIC SAFETY PRECAUTIONS
This guide contains many important safety messages. Always read and obey all safety messages.
This is the safety alert symbol, it alerts you to safety messages that inform you
of hazards that can kill or hurt you or others, or cause damage to the product.
All safety messages will be preceded by the safety alert symbol and the hazard
signal word DANGER, WARNING, or CAUTION. These words mean:
You will be killed or seriously injured if you do not follow instructions.
You can be killed or seriously injured if you do not follow instructions.
Indicates an imminently hazardous situation which, if not avoided,
result in minor or moderate injury, or product damage only.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
,A WARNING: This product contains chemicals known to the State of California
to cause cancer and birth defects or other reproductive harm. Wash hands after handling.
To reduce the risk of fire, electric shock, or
personal injury when using your product, basic
safety precautions should be followed, including
the following.
Read all instructions before using this appliance.
• NEVER unplug your refrigerator by pulling on the
power cord. Always grip the plug firmly and pull it
straight out from the outlet.
- Do not modify or extend the power cord length. It
could cause electric shock or fire.
• When moving your refrigerator away from the wall,
be careful not to roll over or damage the power
cord.
•Ifthe supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
Do not use a cord that shows cracks or
abrasion damage along its length or at either the
plug or connector end.
• DO NOT store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
- DO NOT allow children to climb, stand, or hang on
the refrigerator doors or shelves in the refrigerator.
They could damage the refrigerator and seriously
injure themselves.
• Keep fingers out of pinch point areas; clearances
between the doors and cabinet are necessarily
small. Be careful closing doors when children are in
the area.
Unplug your refrigerator before cleaning or making
any repairs.
NOTE:We strongly recommend that any servicing
be performed by a qualified individual.
SAVE THESE INSTRUCTIONS
5

• Beforereplacinga burned-outlightbulb,unplug
therefrigeratororturnoffpoweratthecircuit
breakerorfuseboxinorderto avoidcontactwitha
livewirefilament.(Aburned-outlightbulbmay
breakwhenbeingreplaced.)
NOTE:SomemodelshaveLEDinteriorlighting
andserviceshouldbe performedbyaqualified
technician.
•Whenyouarefinished,reconnecttherefrigeratorto
theelectricalsourceandresetthecontrols.
(Thermostat,RefrigeratorControl,andorFreezer
Control,dependingonthemodel)tothedesired
setting.
•Thisrefrigeratormustbeproperlyinstalledin
accordancewiththeAttention Installer
Instructions thatweretapedtothefrontofthe
refrigerator.
•Afteryourrefrigeratoris inoperation,do nottouch
thecoldsurfacesinthefreezercompartmentwhen
handsaredamporwet.Skinmayadheretothe
extremelycoldsurfaces.
Inrefrigeratorswithautomaticicemakers,avoid
contactwiththemovingpartsoftheejector
mechanism,orwiththeheatingelementthat
releasesthecubes.DONOTplacefingersor
handsontheautomaticicemakingmechanism
whiletherefrigeratorispluggedin.
DONOTrefreezefrozenfoodswhichhavethawed
completely.TheUnitedStatesDepartmentof
Agriculturein HomeandGardenBulletinNo.69
says:
...Youmaysafelyrefreezefrozenfoodsthathave
thawediftheystillcontainicecrystalsoriftheyare
stillcold--below4°C.
...Thawedgroundmeats,poultryorfishthathave
anyoff-odororoff-colorshouldnotbe refrozenand
shouldnotbe eaten.Thawedicecreamshouldbe
discarded.Iftheodororcolorof anyfoodispoor
orquestionable,disposeofit.Thefoodmaybe
dangerousto eat.
Evenpartialthawingandrefreezingreducesthe
eatingqualityoffoods,particularlyfruits,
vegetablesandpreparedfoods.Theeatingquality
of redmeatsis affectedlessthanthatof many
otherfoods.Userefrozenfoodsassoonas
possibletosaveasmuchoftheirqualityasyou
can.
SAVE THESE INSTRUCTIONS
•This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
Junked or abandoned refrigerators are
dangerous...even if they will sit for just a few days. If
you are getting rid of your old refrigerator, please
follow the instructions at right to help prevent
accidents (Child entrapment and suffocation).
BEFORE YOU THROW AWAY
YOUR OLD REFRIGERATOR
OR FREEZER
•Take off the doors.
•Leave the shelves in place so that
children may not easily climb inside.

Your old refrigerator may have a cooling system that
used CFCs (chlorofluorocarbons). CFCs are
believed to harm stratospheric ozone.
If you are throwing away your old refrigerator, make
sure the CFC refrigerant is removed for proper
disposal by a qualified servicer. If you intentionally
release this CFC refrigerant, you can be subject to
fines and imprisonment under provisions of
environmental legislation.
IMPORTANT: Please read carefully.
TO CONNECT ELECTRICITY
Electrical Shock Hazard
FOR PERSONAL SAFETY, this appliance must
be properly grounded. Have the wall outlet and
the circuit checked by a qualified electrician to
make sure the outlet is properly grounded.
3-prong
grounding type
wall receptacle _.
3-prong_
groundingplug
Ensure proper
ground exists
before use.
RECOMMENDED GROUNDING METHOD
The refrigerator should always be plugged into its
own individual properly grounded electrical outlet
rated for 115 Volts, 60 Hz, AC only, and fused at 15
or 20 amperes. This provides the best performance
and also prevents overloading house wiring circuits
which could cause a fire hazard from overheated
wires. It is recommended that a separate circuit
serving only this appliance be provided.
Use a receptacle which cannot be turned off with a
switch or pull chain. Do not use an extension cord.
Where a standard two-prong wall outlet is
encountered, it is your personal responsibility and
obligation to have it replaced with a properly
grounded three-prong wall outlet.
Do not, under any circumstances, cut or remove
the third (ground) prong from the power cord.
Do not use an adapter plug.
NOTE: Before performing any type of installation,
cleaning, or removing a light bulb, disconnect the
refrigerator from the electrical source.
NOTE: Some models have LED interior lighting and
service should be performed by a qualified
technician.
When you are are finished, reconnect the refrigerator
to the electrical source and reset the control
(Thermostat, Refrigerator Control, or Freezer
Control, depending on the model) to the desired
setting.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain
conditions, we strongly recommend against the use
of an extension cord. However, if you still elect to use
an extension cord, it is absolutely necessary that it
be a UL-listed (USA), 3-wire grounding type
appliance extension cord having a grounding type
plug and outlet, and that the electrical rating of the
cord be 15 amperes (minimum) and 120 volts.
Use of an extension cord will increase the clearance
needed for the back of the refrigerator.
7

Usethispageto becomemorefamiliarwiththepartsandfeatures.Pagereferencesareincludedforyour
convenience.
NOTE:Thisguidecoversseveraldifferentmodels.Therefrigeratoryouhavepurchasedmayhavesomeorall
oftheitemslistedbelow.Thelocationsofthefeaturesshownbelowmaynotmatchyourmodel.
Q RefrigeratorLight(p.32)
_) Filter(Inside)(p.28)
_) ModularDoorBins(p.26)
_) FixedDoorBin
FixedDoorBin
RefrigeratorShelves(p.24)
(_ IceRoom(p.20)
riceMakerand IceBin)
_) HumidityControlledCrisper(p.25)
q[_TemperatureControlled
PantryDrawer(p.25)
ExtraIceBin(p.26)
PulloutDrawer(p.27)
Durabase(p.27)
_) Divider(p.27)
DoorBins
_) DairyBin(p.26)
WaterTankCover
(_ Air Filter
O Kenmore Connect
Ice Bin
Ice Compartment
Door

Excessive Weight Hazard
Use two or more people to move and install
refrigerator. Failure to do so can result in back or
other injury.
UNPACKING YOUR REFRIGERATOR
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any
warning-type labels, the model and serial number
label, or the Tech Sheet that is located under the
front of the refrigerator, behind the base cover.
To remove any remaining tape or glue, rub the area
briskly with your thumb. Tape or glue residue can
also be easily removed by rubbing a small amount of
liquid dish soap over the adhesive with your fingers.
Wipe with warm water and dry.
Do not use sharp instruments, rubbing alcohol,
flammable fluids, or abrasive cleaners to remove
tape or glue. These products can damage the
surface of your refrigerator. For more information,
see the Important Safety Instructions section.
Refrigerator shelves are installed in the shipping
position.
Please reinstall shelves according to your individual
storage needs.
When Moving Your Refrigerator:
Your refrigerator is heavy. When moving the
refrigerator for cleaning or service, be sure to
protect the floor. Always pull the refrigerator
straight out when moving it. Do not wiggle or
walk the refrigerator when trying to move it, as
floor damage could occur.
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion, or
fire.
•To reduce the risk of electric shock, do not install
the refrigerator in a wet or damp area.
• Select a place where a water supply can be easily
connected for the automatic icemaker.
&CAUTION: Avoid placing the unit near heat
sources, direct sunlight or moisture.
9

INSTALLATION
•To minimize noise and vibration, the refrigerator
MUST be installed on a solidly constructed floor.
• Carpeting and soft tile surfaces are not
recommended.
• Never install the refrigerator on a platform or
weakly supported structure.
1. To avoid vibration, the unit must be leveled.
If required, adjust the leveling legs to compensate
for unevenness of the floor. The front should be
slightly higher than the rear to aid in door closing.
Leveling legs can be turned easily by tipping the
cabinet slightly. Turn the leveling legs clockwise
( ""._ ) to raise the unit, counterclockwise ( _.'_" )
to lower it.
(See Leveling and Alignment: on page 17.)
2. Install this appliance in an area where the
temperature is between 55°F (13°C) and 110°F
(43°C.) If the temperature around the appliance is
too low or high, cooling ability may be adversely
affected.
3. Too small a distance from adjacent items may
result in lowered freezing capability and increased
electricity consumption charges. Allow at least 24
inches (61 cm) in front of the refrigerator to open
the doors.
PRIOR TO USE
1. Clean your refrigerator thoroughly and wipe off all
dust accumulated during shipping.
2. Install accessories such as ice cube bin, drawers,
shelves, etc., in their proper places. They are
packed together to prevent possible damage
during shipment.
3. Let your refrigerator run for at least 2 or 3 hours
before putting food in it. Check the flow of cold air
in the freezer compartment to ensure proper
cooling. Your refrigerator is now ready for use.
l
U
m
2" (5.08 cm) --_
10

NOTE:Removingthedoorsisalwaysrecommendedwhenitisnecessaryto movetherefrigeratorthrougha
narrowopening.Ifit isnecessaryto removethehandles,followthe directionsbelow.
HOW TO REMOVE DOOR HANDLES
NOTE: Handle appearance may vary from
illustrations on this page.
1. Removing Refrigerator Handle
•Loosen the set screws with a 3/32"
(2.5mm) Allen wrench and remove the
handle.
NOTE: If the handle mounting fasteners
need to be tightened or removed, use a
1/4" (6.4mm) Allen wrench.
Set Screw
Mounting
Fasteners
Allen
Wrench
2. Removing Freezer Drawer Handle
• Loosen the set screws located on
the lower side of the handle with a 1/8"
(3.1 mm) Allen wrench and remove
the handle.
NOTE: If the handle mounting fasteners
need to be tightened or removed, use
a 1/4" (6.4mm) Allen wrench.
11

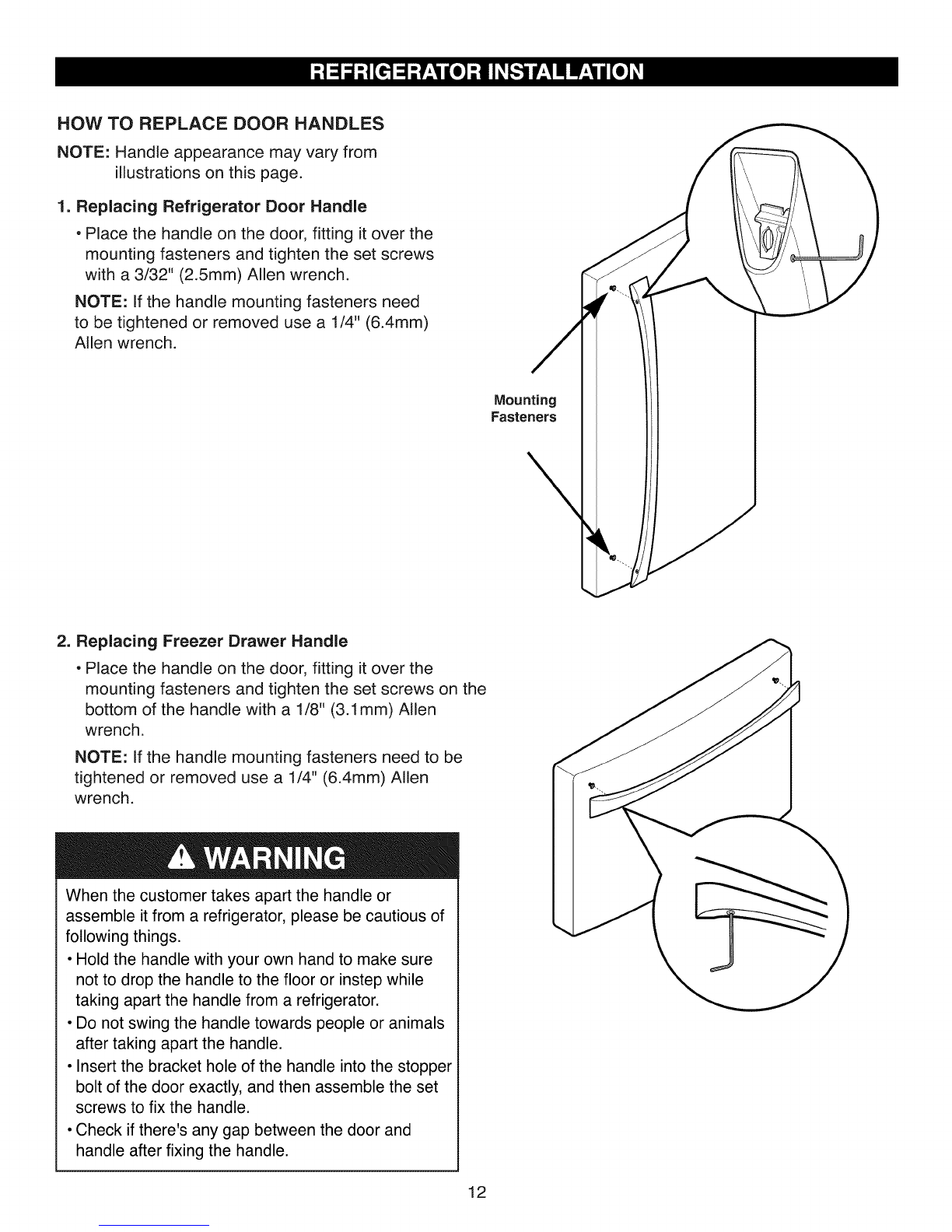

HOW TO REPLACE DOOR HANDLES
NOTE: Handle appearance may vary from
illustrations on this page.
1. Replacing Refrigerator Door Handle
• Place the handle on the door, fitting it over the
mounting fasteners and tighten the set screws
with a 3/32" (2.5mm) Allen wrench.
NOTE: If the handle mounting fasteners need
to be tightened or removed use a 1/4" (6.4mm)
Allen wrench.
Mounting
Fasteners
2. Replacing Freezer Drawer Handle
•Place the handle on the door, fitting it over the
mounting fasteners and tighten the set screws on the
bottom of the handle with a 1/8" (3.1ram) Allen
wrench.
NOTE: If the handle mounting fasteners need to be
tightened or removed use a 1/4" (6.4mm) Allen
wrench.
When the customer takes apart the handle or
assemble it from a refrigerator, please be cautious of
following things.
• Hold the handle with your own hand to make sure
not to drop the handle to the floor or instep while
taking apart the handle from a refrigerator.
• Do not swing the handle towards people or animals
after taking apart the handle.
• Insert the bracket hole of the handle into the stopper
bolt of the door exactly, and then assemble the set
screws to fix the handle.
•Check if there's any gap between the door and
handle after fixing the handle.
12

REMOVING AND REPLACING
REFRIGERATOR DOORS
To remove the left refrigerator door:
On the back of the refrigerator, press back on the
release ring of the fitting (see 3 in figure below) and
pull out the water tube in the direction of the arrow.
6. Rotate hinge lever (6) counterclockwise. Lift the
top hinge (7) free of the hinge lever latch (8).
• , CAUTION: When lifting the hinge free of the latch,
be careful that the door does not fall forward.
7. Lift the door from the middle hinge pin and remove
the door.
8. Place the door, inside facing up, on a
nonscratching surface.
CAUTION: Before you begin, remove food and
bins from the doors.
(3).
/
(7)J /
(8)
1. Open the door.
Remove the top hinge cover screw (1).
2. Use a flat-head screwdriver to pry back the hooks
(not shown) on the front underside of the cover
(2). Lift up the cover.
3. Remove the cover. Pull out the tube (3).
4. Disconnect all the wire harnesses (4).
5. Remove the grounding screw(5).
To remove the right refrigerator door:
(1)_ (2)
)
1. Open the door. Remove the top hinge cover
screw (1). Lift up the cover (2).
2. Remove the cover.
3. Rotate the hinge lever (3) clockwise. Lift the top
hinge (4) free of the hinge lever latch (5).
A CAUTION: When lifting the hinge free of the latch,
be careful that the door does not fall forward.
Electrical Shock Hazard
• Disconnect electrical supply to the refrigerator
before installing. Failure to do so could result in
death or serious injury.
,Do not put hands or feet or other objects into the
air vents, base cover, or bottom of the
refrigerator. You may be injured or receive an
electrical shock.
oBe careful when you work with the hinge, base
cover, and stopper. You may be injured.
13

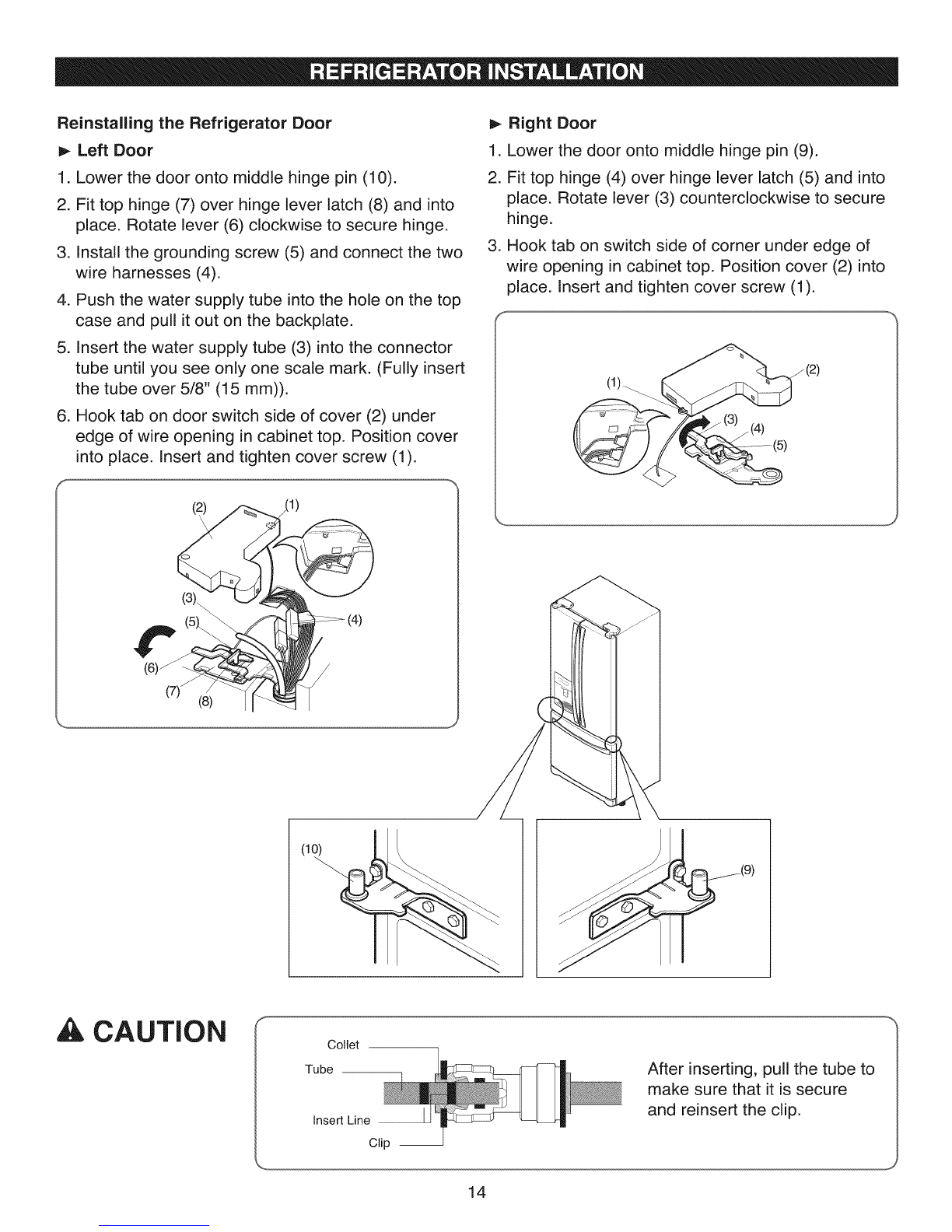

Reinstalling the Refrigerator Door
m,-Left Door
1. Lower the door onto middle hinge pin (10).
2. Fit top hinge (7) over hinge lever latch (8) and into
place. Rotate lever (6) clockwise to secure hinge.
3. Install the grounding screw (5) and connect the two
wire harnesses (4).
4. Push the water supply tube into the hole on the top
case and pull it out on the backplate.
5. Insert the water supply tube (3) into the connector
tube until you see only one scale mark. (Fully insert
the tube over 5/8" (15 ram)).
6. Hook tab on door switch side of cover (2) under
edge of wire opening in cabinet top. Position cover
into place. Insert and tighten cover screw (1).
(2) 11)
(3).
(7)j (8)
D,-Right Door
1. Lower the door onto middle hinge pin (9).
2. Fit top hinge (4) over hinge lever latch (5) and into
place. Rotate lever (3) counterclockwise to secure
hinge.
3. Hook tab on switch side of corner under edge of
wire opening in cabinet top. Position cover (2) into
place. Insert and tighten cover screw (1).
(1)__/(2)
(10)
_(9)
CAUTION Collet
Tube
Insert Line
Clip --
After inserting, pull the tube to
make sure that it is secure
and reinsert the clip.
14

HOW TO REMOVE AND iNSTALL THE
FREEZER DRAWER
iMPORTANT: To avoid possible injury or product or
property damage, you will need two people to
perform the following instructions.
•With both hands, hold both sides of the door and
pull it up to separate it from the rails.
1, Removing Freezer Drawer
oPull the drawer open to full extension. Remove the
lower basket (_3 by lifting basket from rail system.
ACAUTION: When you remove the drawer, do not
hold the handle. The handle may come off and it
could cause personal injury.
• Remove the screws (_) of the rail on both sides.
. With both hands, hold each rail and push it in
to allow both rails to slide in simultaneously.
15

HOW TO REMOVE AND INSTALL THE
FREEZER DRAWER (cont.)
2. Installing Freezer Drawer
•With both hands, pull out each rail simultaneously
until both rails are fully extended.
• Lower door into final position and tighten the
screws Q.
•With the drawer pulled out to full extension, insert
the lower basket (_ in the rail assembly.
• Hook door supports O into rail tabs @.
_i, WARNING: If the Durabase divider is removed,
there is enough open space for children or pets to
crawl inside.
_, WARNING: To prevent accidental child and pet
entrapment or suffocation risk, DO NOT allow
them to touch or go near the freezer drawer.
WARNING: DO NOT step or sit down on freezer
drawer.
16

LEVELING AND DOOR ALIGNMENT
Leveling
After installing, secure the stability of the product
with the leveling legs.
Your refrigerator has two front leveling legs--one on
the right and one on the left. Adjust legs to alter tilt
from front-to-back or side-to-side. If your refrigerator
seems unsteady or you want the doors to close
easier, adjust the refrigerator's tilt using the
instructions below:
1. Plug the refrigerator's power cord into a 3-prong
grounded outlet. Move the refrigerator into its final
position. Remove the base cover.
To remove the base cover
1) Open the Freezer Drawer. (Drawer not shown
for clarity.)
2) Once the drawer is open and there is sufficient
clearance, remove screws on the top of the
cover.
To replace base cover:
•Place cover into position and insert and tighten
the screws.
2. Turn the leveling leg clockwise to raise that side of
the refrigerator or counterclockwise to lower it. It
may take several turns of the leveling leg to adjust
the tilt of the refrigerator.
NOTE: Having someone push backward against
the top of the refrigerator takes some weight off
the leveling legs. This makes it easier to adiust the
legs.
\//'
r-,
17
.
=
5.
Open both doors again and check to make sure
that they close easily. If not, tilt the refrigerator
slightly more to the rear by turning both leveling
legs clockwise. It may take several more turns,
and you should turn both leveling legs the same
amount.
Re-adjust if necessary.
Replace the base cover.
NOTE: Your new refrigerator is uniquely designed
with two fresh food doors. Either door can be
opened or closed independently of one another.
You may have to exert slight pressure on doors to
get them to close completely.
Door Alignment
If the space between your doors is uneven, follow
the instructions below to align the doors:
Use the wrench (Included with the Use & Care
Guide) to adjust the nut in the door hinge to adjust
the height. (counterclockwise to raise or clockwise to
lower the height.)
Level the refrigerator by using an 11/16 inch
(18mm) wrench or a flat blade screwdriver.
Turn the leveling legs (counterclockwise) to raise
or (clockwise) to lower the height of the front of the
refrigerator.
NOTE: The front of the refrigerator should be
slightly higher than the back.

SETTING THE CONTROLS
Temperature
•The refrigerator control is preset at 37°F (3°C) and
the freezer control is preset at 0°F (-18°C). These
are the recommended temperature settings for
normal use and conditions. Wait 24 hours for the
refrigerator and freezer to reach these
temperatures.
.The Refrigerator Temp Control range is from
33°F to 46°F (1°0 to 8°0). The lower the number
setting, the colder the refrigerator compartment will
become.
• The Freezer Temp Control range is from -6°F to
8°F (-21°0 to -13°0). The lower the number
setting, the colder the freezer compartment will
become.
NOTE: When changing control settings, wait 24
hours before making additional adjustments.
After 24 hours, adjust the compartments
temperatures as desired.
Dispenser
•When you press the Water
button, the Water icon will light
up.
,When you press the Ice Select
button, either the cube or
crushed ice icon will light up.
• Some dripping may occur after
dispensing. It is recommended
to hotd your cup beneath the
dispenser for a few seconds
after dispensing to catch all of
the drops.
_, CAUTION: The control display is operated by
touch. Excessive moisture on the display may
cause a malfunction. Please keep display clean
and dry.
,_ WARNING: The dispenser will not work if any
door is left open.
Ultra Ice
When you touch the Ultra Ice button, the graphic
[ ,_ ] will light up in the display and will remain on
for 24 hours. It will automatically shut off after
24 hours have passed.
You can stop this function manually by touching the
button one more time.
• This function increases both icemaking and
freezing capabilities.
Filter Reset
oWhen the water filter indicator ( oH,_,,,,_) turns on,
you have to change the water filter. After changing
the filter, press and hold the Ultra Ice (Filter Reset)
button for 3 seconds to turn the indicator light off.
You need to change the water filter approximately
every 6 months.
Light
• When you press light button, the dispenser light
will turn on.
Air Filter _Ax
C_ANG_AIRFI_TE_
The Air Filter helps remove odors
from the refrigerator. The Air Filter
has two settings, Auto and MAX. In
Auto mode, the Air Filter will cycle
on and off in increments of ten
minutes on and one hundred and
ten minutes off:. If set to the MAX
mode, the Air Filter will stay on
continuously for four hours, cycling
on and off in increments of ten
minutes on and five minutes of]:. After four hours, the
Air Filter will switch to Auto mode.
•Auto mode is the default mode.
• Press the Air Filter button once for MAX mode _M,x
Air Filter Reset _ M_x
C_ANG AIRFILIE_
" When the CHANGE AIR FILTER icon turns on, the air
filter needs to be replaced. After replacing the air
filter, press and hold the Air Filter button for three
seconds to turn the icon light off. it is recommended
to change the air filter approximately every 6months.
18

Door Alarm
When power is connected to the refrigerator, the
door alarm is initially set to (c_) (ON) and the door
alarm display will show (c_) (ON).
When you press the I _:::, button, the display will
change to .,_ (OFF) and the door alarm function
will be deactivated.
- When either the refrigerator or the freezer door is
left open for more than 60 seconds, the alarm tone
will sound to let you know the door is open.
*When you close the door, the door alarm will stop.
Lock
* When power is initially connected to the
refrigerator, the Lock function is off.
o If you want to activate the Lock function to lock
other buttons, press and hold the _::: button for
3 seconds or more. The _,,_,,_sign will be displayed
and the Lock function is now enabled.
*When the Lock function is activated no other
buttons will work. The dispenser pad is also
deactivated.
• To disable the Lock function, press and hold
the I button for 3 seconds or more.
,_CAUTiON
Demo Mode (Retail Stores)
The Demo Mode disables all cooling in the refrigerator
and freezer sections to conserve enegy while on
display in a retail store.
1. To activate:
With the refrigerator door opened, press and hold
the Refrigerator Temp and Ultra Ice buttons at the
same time for 5 seconds. The control panel will beep
to confirm that the Demo Mode is activated.
2. To deactivate:
With the refrigerator door opened, press and hold
the Refrigerator Temp and Ultra Ice buttons at the
same time for 5 seconds. The control panel will beep
to confirm that the Demo Mode is deavtivated.
Caution When Closing the Door
Temperature Mode (°F <->°C)
. If you want to convert °F to °C or vice versa, press
and hold the ';::_;' button and J"°';o_;'°'Jbutton at the
same time for 5 seconds or more.
_,CAUTION
To reduce the risk of door scratches and breaking the
door mullion, please make sure that the refrigerator
door mullion is always folded in.
If moisture gathers on the refrigerator door mullion at
any point, turn off the Energy Saver mode until the
issue is resolved.
19

IN-DOOR iCE BiN
_, CAUTION
Keep hands and tools out of the ice compartment
door and dispenser chute. Damage or personal
injury may result.
The icemaker will stop producing ice when the ice
bin is full. If you need more ice, empty the ice bin
into the extra ice bin in the freezer compartment.
During use, the ice can become uneven causing the
icemaker to misread the amount of ice cubes and
stop producing ice. Shaking the ice bin to level the
ice within it can reduce this problem.
NOTE: Storing cans or other items in the ice bin will
damage the icemaker.
Keep the ice compartment door closed tightly. If the
ice compartment door is not closed tightly, the cold
air in the ice bin will freeze food in the refrigerator
compartment. This could also cause the icemaker to
not produce ice.
NOTE: If the On/Off switch on the icemaker is set to
Off (O) for an extended time, the ice compartment
will gradually warm up to the temperature of the
refrigerator compartment. To prevent ice cubes from
melting and leaking from the dispenser, ALWAYS
empty the ice bin when the icemaker is set to Off (O)
for more than a few hours.
_, CAUTION
When handling the
ice bin, keep hands
away from the blade
area to avoid
personal injury.
1. Pull or push the door handle to open or close the
Ice Compartment.
\__
20
2. To remove the in-door ice bin, grip the front
handle, slightly lift the lower part, and slowly pull
out the bin as shown.
3. To reinstall the in-door ice bin, slightly slant the bin
during replacement to avoid contact with the
icemaker.
4. Avoid touching the Ace-detecting sensor when
replacing the ice bin. See the label on the ice
compartment door for details.
.Q_ Ice-de e " g_l
sensor _S_#l
J _
