Kenmore 796.31412310 User manual

Use & Care Guide
Manual de Uso y Cuidado
English /Espafiol
For best results_ alow suds ng, HE Hglh EMc ency
Detergent [Yade fo_hgh eft:lc:e_(:y washers _'Y(xs8
be used
Pitao /xne _,'s _e}oes es_ a@'s,de>e_
s
u zase ceeg _ e HEp;;_;;_;w;;do ;;_sde
Model/Modelo: 796.3141#31#
I(enmore Elite°
@
®uto®@ti
..............co/or numb÷r_ numero de co/or carga @
superior
P/N MFL68019708
Sears Brand Management Corporation
Hofl:man Estates, IL 60179 U.S.A.
www.kenmore.com
www.sears.com
®

IMPORTANT SAFETY INSTRUCTIONS ................... 3-5
GROUNDING REQUIREMENTS .................................. 5
FEATURES AND BENEFITS
Key Parts and Components ....................................... 6
Optional Accessories .................................................. 6
Included Accessories .................................................. 6
INSTALLATION REQUIREMENTS
Key Dimensions and Specifications ......................... 7
Choose the Proper Location ...................................... 7
Flooring ........................................................................ 7
Clearances .................................................................. 7
INSTALLATION INSTRUCTIONS
Unpacking and Removing Shipping Material .........8
Connecting the Water Lines...................................... 9
Connecting the Drain Hose ...................................... 10
Connect to the Power Supply .................................. 10
Leveling the Washer ................................................. 11
HOW TO USE
Control Panel Features .............................................. 12
Operating the Washer ............................................... 13
Cycle Guide ........................................................... 14-15
Sorting Wash Loads .................................................. 16
About the Dispensers ................................................ 17
Detergent and Dispenser Use .................................. 18
Time and Status Display .......................................... 19
Cycle Modifier Buttons ............................................ 20
Option Buttons ..................................................... 21-22
CARE AND CLEANING
Regular Cleaning ................................................... 23
Maintenance .......................................................... 24
Cleaning the Washer ........................................... 25
KENMORE CONNECT TM SYSTEM ........................... 26
Using the Kenmore Connect TM System ................. 26
TROUBLESHOOTING GUIDE
Normal Sounds You May Hear .............................. 27
Before Calling for Service ................................. 27-32
Error Codes .......................................................... 31-32
WARRAN TY ................................................................. 33
SERVICE ......................................................... Back Cover
In the space below, record the date of purchase, model,
and serial number of your product. You will find the
model and serial number printed on an identification
plate located inside the washer lid. Have these items of
information available whenever you contact Sears
concerning your product.
Model No.
Date of Purchase
Serial No.
Save these instructions and your sales receipt for
future reference.
Master ProtectionAgreements
Congratu_tions on making a smart purchase. Your new
I<enmore'_' product is designed and manufactured for years
of dependable operation. But like all products, it may require
preventive maintenance or repair from time to time. That's
when having a Master Protection
Agreement can save you money and aggravation.
TheMaster Protection Agreement also helps extend the life of
your new product. Here'swhat the
Agreement* includes:
•Partsand labor needed to help keep products operating
properly under normal use, not just defects. Our coverage
goes well beyond the productwarranty. No deductible, no
functional failure excluded from coverage - real protection.
•Expert service by a force of more than 10,000 authorized
Searsservice technicians, which means someoneyou can trust
will be working on your product.
• Unlimited service calls and nationwide service, as often as
you want us,wheneveryou want us.
• "No-lemon" guarantee - replacement of your covered
product if four or more product failures occur within twelve
months.
•Productreplacement if your covered product can not
be fixed.
•Annual Preventive Maintenance Check at your request - no
extra charge.
•Fasthelp by phone - we call it Rapid Resolution.Phone
supportfrom aSears representativeon all products. Thinkof us
as a "talking owner'smanual."
• Power surge protection against electric damage clue to
power fluctuations.
• $250 food loss protectionannually for any food spoilage that
is the result of mechanical failure of any covered refrigerator
or freezer.
Rental reimbursement if repair of your covered product takes
longer than promised.
•25°/odiscountoff the regular price of any non-covered repair
service and related installed parts.
Once you purchase the Agreement, a simple phone call is all
that it takes for you to schedule service. You can call at any
time clay or night or schedule a service appointment online.
TheMaster Protection Agreement is a risk-free purchase.
If you cancel for any reason during the product warranty
period, we will provide a full refund, or a prorated refund any
time after the product warranty period expires. Purchase your
Master Protection Agreement today!
Some limitations and exclusionsapply.
Forprices and additional information in the U.S.A.
call 1-800-827-6655.
*Coverage in Canada varies on some items.
Forfull details call SearsCanada at 1-800-361-6665.
Sears Installation Service
For Sears professional installation of home appliances, garage
door openers, water heaters, and other major _me items, in
the U.S.A. or Canada call: 1-800-4-MY-HOME '_.
2

There are many important safety messages in this manual and on your appliance. Always read and obey
all safety messages.
This is the safety alert symbol. This symbol alerts you to potential hazards that can result in property
damage and/or serious bodily harm or death.
All safety messages will follow the safety alert symbol and either the word DANGER, WARNING or
CAUTION. These words mean:
Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
Indicates a hazardous situation which, if not avoided, could result in minor or moderate
injury.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell
you what can happen if the instructions are not followed.
To reduce the risk of fire, electric shock, or injury to
persons when using this appliance, follow basic pre-
cautions, including the following.
•Use this appliance only for its intended purpose as
described in this Use & Care Guide.
• Before use, the washer must be properly installed as
described in this manual.
• Do not wash articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry cleaning solvents, or other flammable
or explosive substances, as they give off vapors that
could ignite or explode.
• Do not add gasoline, dry cleaning solvents, or other
flammable or explosive substances to the wash water.
These substances give off vapors that could ignite or
explode.
• Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot water system has not been used
for such a period, before using the washer, turn ON
all hot water faucets and let the water flow from each
for several minutes. This will release any accumulated
hydrogen gas. As the gas is flammable, do not smoke
or use an open flame during this time.
• Do not allow children to play on or in the washer.
Close supervision of children is necessary when the
washer is used near children.
• Before your washer is removed from service or
discarded, remove the lid to the washing compartment
to avoid the danger of children or small animals
getting trapped inside. Failure to do so can result in
serious personal injury or death.
• Do not install or store the washer where it will be
exposed to the weather or freezing temperatures.
• Do not tamper with controls.
• Keep the area underneath and around your appliance
free of combustible materials (lint, paper, rags, etc.),
gasoline, chemicals and other flammable vapors and
liquids.
• Do not repair or replace any part of the washer or
attempt any servicing other than as described in this
manual. We strongly recommend that any service be
performed by a qualified technician.
•See Installation Instructions for grounding
requirements.
•ALWAYS follow the fabric care instructions supplied by
the garment manufacturer.
• Do not place items exposed to cooking oil in your
washer. Items contaminated with cooking oils may
contribute to a chemical reaction that could cause a
load to catch fire.
• Use fabric softeners or products to eliminate static
only as recommended by the manufacturer.
•This washer is not designed for maritime use or for
mobile installations such as in RVs, aircraft, etc.
•Turn OFF the water faucets and unplug the washer if
the machine is to be left for an extended period of
time, such as during vacations.
• Packaging material can be dangerous for children.
There is a risk of suffocation. Keep all packaging
from children.
•Always check the inside of the washer for foreign
objects before loading laundry. Keep the lid closed
when not in use.
WARNING: This product contains chemicals known
to the State of California to cause cancer and birth
defects or other reproductive harm. Wash hands after
handling.

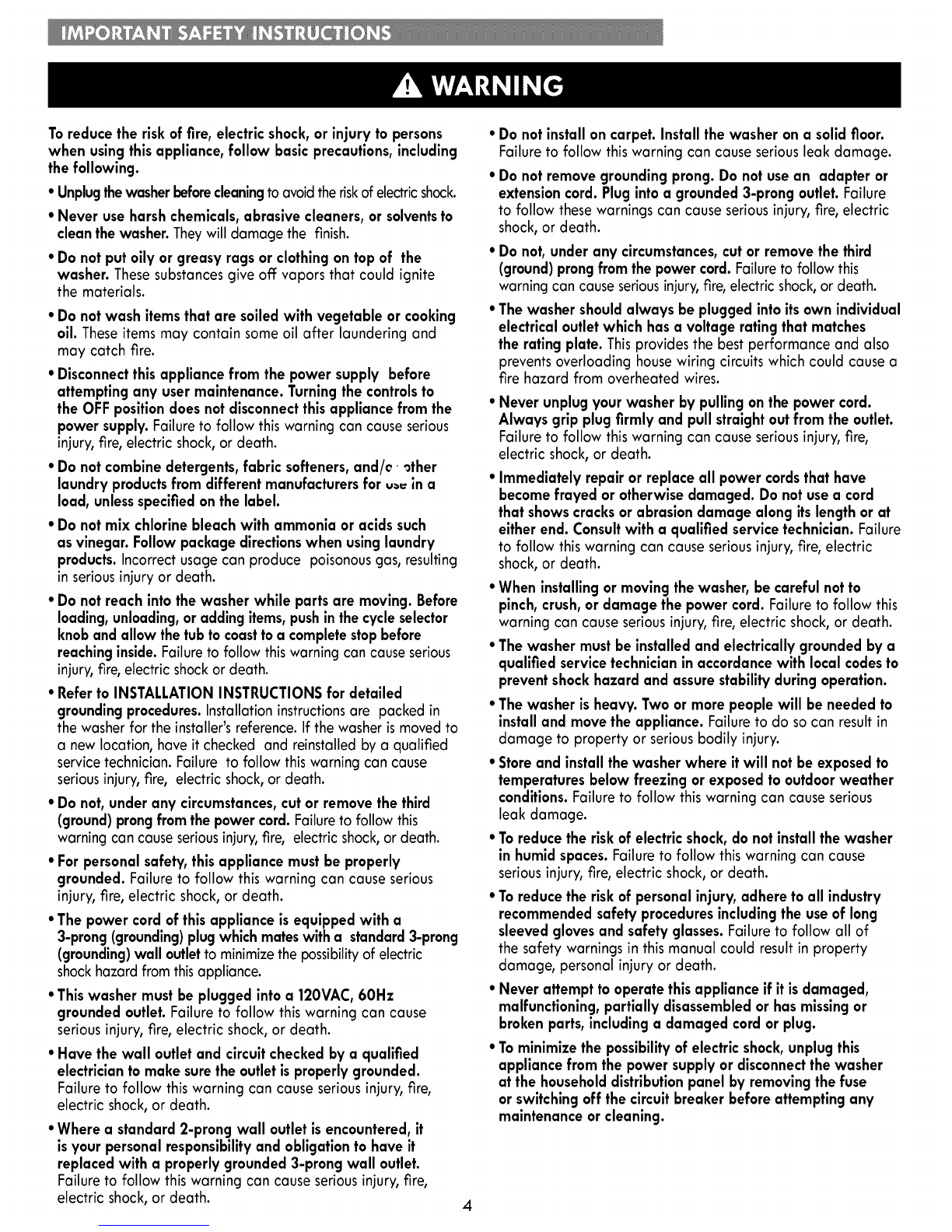

Toreduce the riskof fire, electricshock,or injury to persons
when usingthisappliance, follow basic precautions,including
the following.
•Unplugthewasherbeforecleaningto avoidtheriskofelectricshock.
•Never useharshchemicals,abrasive cleaners, or solventsto
clean thewasher.Theywilldamage the finish.
•Do not put oily or greasy rags or clothing on top of the
washer. Thesesubstancesgive off vaporsthat could ignite
the materials.
•Do notwash itemsthat are soiledwith vegetable or cooking
oil. Theseitemsmay contain someoil after laundering and
may catch fire.
•Disconnectthisappliance from the power supply before
attempting any user maintenance. Turningthe controlsto
the OFF positiondoes not disconnectthisappliance from the
power supply.Failureto follow thiswarningcan cause serious
injury,fire, electric shock,or death.
•Do not combine detergents,fabric softeners,and/e _ther
laundry productsfrom different manufacturersfor u_uin a
load, unlessspecifiedon the label.
•Do not mix chlorine bleach with ammonia or acids such
as vinegar. Follow package directionswhen usinglaundry
products.Incorrectusagecan produce poisonousgas, resulting
in seriousinjuryor death.
•Do not reach into thewasher while parts are moving. Before
loading,unloading,or adding items,pushinthe cycleselector
knoband allow thetubto coasttoa completestopbefore
reachinginside.Failureto followthiswarningcan cause serious
injury,fire, electric shockor death.
•Refer to INSTALLATIONINSTRUCTIONS for detailed
groundingprocedures.Installationinstructionsare packed in
the washer for theinstaller'sreference. If thewasher ismoved to
a new location, have itchecked and reinstalled by a qualified
servicetechnician. Failure to follow this warning can cause
seriousinjury, fire, electric shock,or death.
•Do not, under any circumstances,cut or remove the third
(ground)prongfrom thepower cord.Failureto followthis
warning can cause seriousinjury,fire, electric shock,or death.
•Forpersonalsafety, thisappliance mustbe properly
grounded. Failureto follow thiswarning can cause serious
injury,fire, electric shock,or death.
•The power cordof this appliance isequipped with a
3-prong(grounding)plugwhich mateswith a standard3-prong
(grounding)wall outletto minimizethepossibilityofelectric
shockhazardfrom thisappliance.
•Thiswasher mustbe plugged intoa 120VAC, 60Hz
grounded outlet. Failureto follow thiswarning can cause
seriousinjury,fire, electric shock, or death.
•Have the wall outlet and circuitchecked by a qualified
electricianto make surethe outlet isproperlygrounded.
Failure to follow this warning can cause seriousinjury, fire,
electric shock,or death.
•Where a standard 2-prong wall outlet isencountered,it
isyour personalresponsibilityand obligationto have it
replaced with a properly grounded3-prong wall outlet.
Failure to follow this warning can cause seriousinjury, fire,
electric shock,or death.
•Do not installon carpet. Install the washer on a solidfioor.
Failureto follow thiswarning can cause seriousleak damage.
•Do not remove groundingprong. Do not usean adapter or
extensioncord. Plugintoa grounded3-prong outlet. Failure
to follow thesewarnings can cause seriousinjury,fire, electric
shock,or death.
•Do not,under any circumstances,cutor remove the third
(ground)prongfromthe powercord.Failuretofollowthis
warning can causeseriousinjury,fire, electric shock,ordeath.
•The washer shouldalways be plugged intoitsown individual
electrical outletwhich hasa voltage rating that matches
the rating plate. Thisprovides the best performance and also
prevents overloadinghousewiring circuits which could cause a
fire hazard from overheated wires.
•Never unplugyour washer by pullingon the power cord.
Always grip plug firmly and pull straightout from the outlet.
Failure to follow this warning can cause serious injury, fire,
electric shock, or death.
•Immediately repair or replace all power cordsthat have
become frayed or otherwise damaged. Do not usea cord
that showscracksor abrasiondamage along itslength or at
either end. Consultwith a qualified service technician.Failure
to follow this warning can cause seriousinjury, fire, electric
shock, or death.
•When installingor movingthe washer, be careful not to
pinch,crush,or damage the power cord. Failuretofollow this
warning can cause seriousinjury, fire, electric shock,or death.
•The washer mustbe installedand electricallygroundedby a
qualified servicetechnicianin accordancewith localcodesto
preventshockhazard and assurestabilityduring operation.
•The washer isheavy. Two or more people will be needed to
installand move the appliance. Failuretodo socan result in
damage to property or seriousbodily injury.
•Storeand installthe washer where it will notbe exposedto
temperaturesbelow freezing or exposedto outdoorweather
conditions.Failureto follow thiswarning can cause serious
leak damage.
•Toreduce the risk of electricshock,do not installthe washer
in humidspaces.Failureto follow thiswarning can cause
seriousinjury,fire, electric shock,or death.
•Toreducethe risk of personalinjury, adhere toall industry
recommended safety proceduresincludingthe useof long
sleeved glovesand safety glasses.Failureto follow all of
the safetywarnings in thismanual could result in property
damage, personal injuryor death.
•Never attempt tooperate thisappliance if it isdamaged,
malfunctioning,partially disassembledor hasmissingor
broken parts,includinga damaged cordor plug.
•Tominimize the possibilityof electricshock,unplug this
appliance from the power supplyor disconnectthewasher
at the householddistributionpanel by removingthe fuse
or switchingoff thecircuitbreaker beforeattempting any
maintenance or cleaning.
4

•Do not allow children to play on or in the washer.
Close supervision of children is necessary when the
washer is used near children. As children grow, teach
them the proper, safe use of all appliances. Failure
to comply with these warnings could result in serious
personal injury.
• Destroy the carton, plastic bag, and other packing
materials after the washer is unpacked. Children
might use them for play. Cartons covered with rugs,
bedspreads, or plastic sheets can become airtight
chambers. Failure to comply with these warnings could
result in serious personal injury.
• Keep laundry products out of children's reach. To
prevent personal injury, observe all warnings on
product labels. Failure to comply with these warnings
could result in serious personal injury.
• Before your washer is removed from service or
discarded, remove the lid to the washing compartment to
avoid the danger of children or small animals getting
trapped inside. Failure to do so can result in serious
personal injury or death.
[€'_o]l_€.] I_luJ I :t:f_v_!:1_,kLL"]
IMPORTANT: Please read carefully.
TO CONNECT ELECTRICITY
Improper connection of the equipment-grounding
conductor can result in risk of electric shock. Check
with a qualified electrician or service technician
if you are in doubt as to whether the appliance
is properly grounded. Do not modify the plug
provided with the appliance. If it does not fit the
outlet, have a proper outlet installed by a qualified
electrician. Failure to follow these warnings can
cause serious injury, fire, electric shock, or death.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of
malfunction or breakdown, grounding will reduce
the risk of electric shock by providing a path of least
resistance for electric current. This appliance is equipped
with a cord having an equipment-grounding conductor
and grounding plug. The plug must be plugged into
an appropriate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances.
3-prong
grounding type
wall receptacle
3-prong
grounding
plug
Ensure proper
ground exists
before use.
5

Id:T___iIlia"] W_5_ID]I:):1_1:1dbi[,,"]
KEY PARTS AND COMPONENTS
O ID LOCI{
The washer lid is locked during operation. The lid
can be unlocked by pressing the START/PAUSE
button to stop the washer.
O LTRA-CAPACITY STAINLESS STEEL TUB
The ultra-large stainless steel tub offers extreme
durability.
OOFT CLOSE, TEMPERED GLASS LID
The soft close hinges allow the lid to close gently
and quietly. The tempered glass isdurable and
makes it easy to observe the washer.
ORONT TOUCH PANEL
The front touch panel isspecially designed to
be water resistant and provides easy access to
controls, eliminating the need to reach for rear
controls. The soft-surface touch buttons add a
premium touch.
O SMARTRINSE
This washer is designed to save rinse water by
using a jet spray rinse system in NORMAL and
HEAVY DUTY cycles.
O{ENMORE CONNECT TM
Should you experience any problems with
your washing machine, it has the capability
of transmitting data via your telephone to the
Kenmore Connect Team. This gives you the
capability of speaking directly to our specially
trained technicians. The technician records the
data transmitted from your machine and uses it to
analyze the issue,providing a fast and effective
diagnosis.
OLEACH DISPENSER
The Bleach Dispenser compartment holds liquid
bleach, that is dispensed automatically at the
proper time during the wash cycle.
1 ISPENSER DRAWER
Add detergent or softener to the main wash
compartment of the dispenser drawer. Cleaning
products are dispensed automatically at the proper
time during the wash cycle.
Drain Hose
Hot Water
Inlet valve Cold Water Inlet valve
Power
Cord
Optional Accessory
Hot and cold water hoses (with 2 seals per
hose, 1 at each end/
Included Accessory
Cable tie (for securing drain hose)
6 '_ J

IKEY DIMENSIONS AND SPECIFICATIONS
Description Top-Loading Washer
Rated Voltage/Frequency 120VAC, 60Hz
Dimensions 27"(W) X 28 3/8"(D) X 40 1/8"(H), 55 1/8"(H with lid open)
68.6 cm (W) X 72.1 cm (D) X 102 cm (H), 140 cm (H with lid open)
Net Weight 137.3 Ibs. (62.3 kg)
1CHOOSE THE PROPER LOCATION
WARNING
•Washer is heaw/. Two or more people are required
when moving and unpacking the washer. Failure
to do so may result in damage to property or serious
bodily harm.
•Store and install the washer where it will nat be
exposed to temperatures below freezing or exposed
to outdoor weather conditions. Failure to follow this
warning can cause serious injury, fire, electric shock, or
death.
•Properly ground washer to conform with all electric
governing codes and ordinances. Failure to follow this
warning can cause serious injury, fire, electric shock, or
death.
•To reduce the risk of electric shock, do not install
the washer in humid spaces. Failure to follow this
warning can cause serious injury, fire, electric shock, or
death.
•To ensure proper air flow, do not block the large
opening on the bottom of the washer with carpeting
or other materials.
•Do not remove ground prong. Do not use an adapter
or extension cord. Plug into a grounded 3-prong
outlet. Failure to follow this warning can cause serious
injury, fire, electric shock, or death.
Power Outlet
•The power outlet must be within 60 in. (1.5 m) of either
side of the washer.
• The appliance and outlet must be positioned so that
the plug is easily accessible.
• Do not overload the outlet with more than
one appliance.
• The outlet must be grounded in accordance with
current wiring electric codes and regulations.
• Time-delay fuse or circuit breaker is recommended.
NOTE: It is the personal responsibility and obligation of
the product owner to have a proper outlet installed by a
qualified service technician.
1FLOORING
• To minimize noise and vibration, the washer MUST be
installed on a solidly constructed floor. See the NOTE
to your right.
• Allowable slope under the entire washer is a maximum
1 in. difference from side to side or from front to back.
7
• Installing on carpeting and soft tile surfaces is
not recommended.
• Never install the washer on a platform or weakly
supported structure.
1CLEARANCES
40 I/8"
(102 cm)
1" 27" 1"
(2.5cm) (68.6 cm)
To ensure sufficient clearance for water lines and airflow,
allow minimum clearances of at least 1 in. (2.5 cm) at the
sides and 4 in. (10 cm) behind the unit. Be sure to allow
for wall, door, or floor moldings that may increase the
required clearances.
32 "
-_ (81 .I cm)
28 3/8" I
(72.1 cm)
I-" -I
55 1/8"
(140 cm)
(with open lid)
_ii!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i_
F263,4,,_1(68 cm)
3 2/4"
(g cm)
Minimum vertical space from floor to overhead shelves,
cabinets, ceilings, etc., is 56 in.
NOTE: The washer must be installed on firm flooring to
minimize vibration during the spin cycle. Concrete flooring
is best, but a wood floor is sufficient, provided it is built
to FHA standards. The washer should not be installed on
rugs or exposed to weather.

II_[,,_o_ I _,'_]lj_mI1]Ull[O]_ff,,_
UNPACKING AND REMOVING SHIPPING MATERIAL
When removing the washer from the carton base, be
sure the plastic tub support comes off: with the base.
If you must lay the washer down to remove the base
packaging materials, always protect the side of the
washer and lay it carefully on its side. DO NOT lay the
washer on its front or back.
r
I.
Tub support
Carton Base J
After removing the carton and shipping material,
lift the washer off: the foam base. Make sure the
plastic tub support comes off: with the base and is
not stuck to the bottom of the washer.
f
f
Pad
3. Carefully remove the two foam pads which cover
the top sides of the tub guide, making sure not to
leave behind any pieces of the foam.
4. Unfasten the power cord from the back of the
washer.
f
'TOOLS YOU WILL NEED
• Adjustable Pliers
• Carpenter's Level
2. Save the foam block for future use. If the washer
must be moved in the future, this will help prevent
damage to the washer during transportation.
NOTE: To prevent damage, do not remove the foam
block until the washer is at the final location.
8

CONNECTING THE WATER LINES
•IMPORTANT: Use new hoses when installing the
washer. Do NOT reuse old hoses.
•IMPORTANT: Use ONLY the inlet hoses provided by
Kenmore. Aftermarket hosesare not guaranteed to fit or
function correctly. Other hosesmay not tighten correctly
and could cause leaks. Subsequent damage to product
or property will not be covered under the terms of the
product warranty.
• Water supply pressure must be between 14.5 psi and
116 psi (100-800 kPa). If the water supply pressure is
more than 116psi, a pressure reducing valve must be
installed.
• Periodically check the hose for cracks, leaks, and
wear, and replace the hose if necessary.
• Make sure that the water lines are not stretched,
pinched, crushed, or kinked.
• The washer should never be installed or stored in a
location subject to freezing temperatures. Damage to the
water lines and internal mechanisms of the washer can
result. If the washer was exposed to freezing temperatures
prior to installation, allow it to stand at room temperature
for several hours before use and check for leaks prior to
operation.
1.
Water Hose
(to water inlet
on washer)
Rubber Seal Rubber Seal
Water Hose
(to tap) J
Inspect the threaded fitting on each hose and make
sure there is a rubber seal in place in both ends.
Water
2. Connect the water supply hoses to the HOT and
COLD water faucets tightly by hand and then tighten
another 2/3turn with pliers.
o
3. Always run a gallon or two of water through each inlet
hose to flush dirt, scale and other debris out of the
water lines. Doing so will help prevent future problems
with clogged filter screens, and will also allow you to
verify which hose is hot and which is cold.
Hot water inlet
\
Attach the (red) hot water line to the hot water inlet on
the back of the washer. Attach the (blue) cold water
line to the cold water inlet on the back of the washer.
Tighten the fittings securely. Turn ON both faucets
all the way and check for leaks at both ends of the
hoses.
NOTE: Be careful not to cross-thread the hose
fittings. This will damage the valve and could result in
property damage from leaks.

CONNECTING THE DRAIN HOSE
•The drain hose should always be properly secured.
Failure to properly secure the drain hose can result in
flooding and property damage.
• The drain must be installed in accordance with any
applicable local codes and regulations.
• Make sure that the drain hose is not stretched,
pinched, crushed, or kinked.
Option 1: Standpipe
f
/2
i,
Drain Line
Standpipe
%
Bend the outlet end of the drain hose to form a U
shape. Inset the end of the drain hose into the drain. If
the drain is large enough for the flange on the hose to
fit inside, then do not insert the flange more than 1-2
inches into the drain. Use the tie strap included with the
installation materials in the foam block in the tub to
secure the drain hose to the drain.
If the water valves and drain are built into the wall,
fasten the drain hose to one of the water hoses with the
cable tie (ribbed side on inside).
35"~47"
Option 2: Laundry Tub
Tub
Tie Strap
Drain Hose
Bend the end of the drain hose to the desired shape
and support it on the edge of the laundry tub. Use a tie
strap to secure the drain hose in place.
CONNECT TO THE POWER SUPPLY
Washer should be plugged into a 120-VAC, 60-Hz
grounded 3-prong outlet. Plug in the washer.
f
Improper connection of the equipment-grounding
conductor can result in risk of electric shock. Check
with a qualified electrician or service technician
if you are in doubt as to whether the appliance
is properly grounded. Do not modify the plug
provided with the appliance. If it does not fit the
outlet, have a proper outlet installed by a qualified
electrician. Failure to follow these warnings can
cause serious injury, fire, electrical shock, or death.
Cable Tie
If your drain is a standpipe, fasten the drain hose to the
standpipe with the cable tie provided.
NOTE:
• Normal height of the end of the hose should be
approximately 35"_47" (0.9_1.2 m) from the floor.
• Do not install the end of the drain hose higher than 96 in.
(243.8 cm) above the bottom of the washer or more than
60 in. (152.4 cm) away from the washer.
• Never seal the drain hose to the drain. If no air gap is
present, water can be siphoned out of the tub resulting in
poor wash/rinse performance or clothing damage. 10

LEVELING THE WASHER
The tub of your new washer spins at very high speeds.
To minimize vibration, noise, and unwanted movement,
the floor must be a level, solid surface.
NOTE: Adjust the leveling feet only as far as necessary
to level the washer. Extending the
leveling feet more than necessary
can cause the washer to vibrate.
NOTE: Before installing the washer,
make sure that the floor is clean,
dry and free of dust, dirt, water and
oils so the washer feet cannot slide
easily. Leveling feet that move or
slide on the floor can contribute to
excess vibration and noise due to poor contact with the
floor.
All four leveling feet must rest solidly on the floor.
Attempt to rock the washer from corner to corner to
make sure that all four leveling feet are in firm contact
with the floor.
1. Position the washer in its final location, taking
special care not to pinch, strain, or crush the water
and drain lines. Place a level across the top of the
washer.
2. Adjust the leveling feet. Turn clockwise to raise the
washer or counterclockwise to lower it.
• To check if the washer is level from side to side, place
a level on the back edge of the lid.
• To check if the washer is level front to back, place a
level at the side of the washer on the edge where the
cabinet side meets the top cover. Do not place the
level on the top or the lid. Using these surfaces will
result in the washer being unlevel.
to Side
"Front to Back
Raise
k_. Wrong Right J
3. To make sure that the washer is properly level,
open the lid and look from above to see if the tub
is centered. If the tub is NOT centered (as shown
in the drawing, on the left), readjust the feet. If you
have a level, check your washer with the level.
11

I: [o_ _o_ _1_,_
WARNING: To reduce the risk of fire, electric shock, or injury to persons, read and follow this
entire Use & Care Guide, including the Important Safety Instructions, before operating this washer.
CONTROL PANEL FEATURES
OPOWER (ON/OFF) BUTTON
Pressto turn the washer ON. Press again to turn
the washer OFF. Pressingthe POWER button dur-
ing a cycle will cancel that cycle and any load
settings will be lost. The lid will unlock after a brief
pause.
NOTE: If the washer remains idle for four minutes
after turning the washer off:, any water left in
the tub will automatically be drained. An alarm
will sound one minute prior to draining, and 'dr'
will appear on the display. You may restart the
washer at this time. However, once the washer
initiates draining, all functions will be suspended
and cycle settings lost, and 'dr' will be displayed
until draining is complete.
OCYCLE SELECTOR BUTTON
Pressthe Cycle Button repeatedly until the desired cycle
isselected. Once the desired cycle has been selected,
the standard presets will appear in the display. These
settings can be adjusted using the cycle setting but-
tons anytime before starting the cycle.
OSTART/PAUSE BUTTON
Press this button to start the selected cycle.
If the washer is running, use this button to pause the
cycle without losing the current
settings.
NOTE: If you do not press the START/PAUSE button
within four minutes of selecting a cycle, the washer
automatically turns OFF. If the washer is paused
during a cycle for more than four minutes, the cycle
will be cancelled and any water remaining in the
tub will be drained. An alarm will sound at three
minutes to warn you that the tub is about to drain.
OCYCLE MODIFIER BUTTONS
Use these buttons to adjust the settings for the se-
lected cycle. The settings light up above the
buttons to show the current selection.
OSPECIAL CYCLE AND OPTION BUTTONS
These buttons allow your to select special cycles or
options.
OTIME AND STATUS DISPLAY
The display shows the cycle status and estimated
time remaining.
NOTE: To protect your clothing, not all settings are available on all cycle selections.
12

OPERATING THE WASHER
Bleach
POWER
_%Kenmore Connect
[Cyc,el)[Cyc,e2)
O
O
O
SORT LAUNDRY AND LOAD WASHER
Sort laundry by fabric type, soil level, color and load size, as
needed. Open the door and load the items into the washer.
ADD CLEANING PRODUCT
Add High-Efficiency (HE) detergent to the detergent dispenser
drawer. For proper wash performance, always measure the
detergent using the measurements provided by the detergent
manufacturer.
TURN ON THE WASHER
Press the POWER button to turn ON the washer. The lights
above the cycle buttons will illuminate and a chime will sound.
CYCLE SELECTOR BUTTON
Press the Cycle Button repeatedly until the desired cycle is
selected. The preset Wash Temp, Spin Speed, Soil Level, and
Option settings for that cycle will be shown.
--OPTIONS--
[° "1
Delay Fabric
Wash Softener J
/ol o}
My Water
Cycle Plus
€.1 xtra g,
coV,/c_ m Med_urr
Cdd Low
Aii Coi_RT_
@
R iS,,&_,p ¢
N ,, _} D,,nSSp
_ig_,t 5oak
_Co_oi _oc_
STARTI PAUSE
OSELECT CYCLE MODIFIERS & OPTIONS (optional)
Default settings for the selected cycle can now be changed if
desired. Use the cycle modifier buttons.
NOTE: To protect your fabrics, not all modifiers are
available on all cycles. A different chime will sound and the
LED will not come on if the selection is not allowed. Cycle op-
tions can also be added by using the option buttons.
OBEGIN CYCLE
Press the START/PAUSE button to begin the cycle. The door will
lock, and the washer will briefly tumble the load without water
to measure its weight. Once the weight of the load is measure,
the washer will begin the selected wash cycle.
AddGarments
@ADD GARMENTS LIGHT
The ADD GARMENTS light will illuminate near the
beginning of the wash cycle to indicate when it is safe to add
items to the load. Pressthe START/PAUSE button to pause the
cycle and add garments to the load.
NOTE: It is not recommended to add items unless the ADD
GARMENTS light is illuminated, as this could result in poor
performance.
ORESUME CYCLE
Press the START/PAUSE button to resume the wash cycle.
13

CYCLE GUIDE
The cycle guide below shows the default settings, available options and recommended fabric types _ -- Available Option
for each cycle. Allowable modifier adjustments are shown below the default setting for each cycle. Default Setting
Normal
Whitest
Whites
Heavy
Duty
Sanitize
w/Oxi _
Bulky/
Bedding
Clean
Washer
Cotton, shirts,jeans,
socks, pants
Heavily to normally
soiled white cottons
Heavy soiled cotton
fabrics
Cotton, underwear,
pillow covers,
bed, sheets, baby
wear(less than 11
Ibs).
Large items such
as blankets and
comforters
Hot Extra High
EcoWarm Medium Heavy
Cold Low Light
Tap Cold No Spin
Extra High
Warm High Normal
EcoWarm Low Light
No Spin
Hot Extra High
EcoWarm Medium Normal
Cold Low Light
Tap Cold No Spin
Extra High
Medium Normal
Low Light
No Spin
Hot Extra High
EcoWarm Medium Heavy
Cold Low Light
Tap Cold No Spin
0
0
0
0
_CERTIFIED BY NSF: NSF International (formerly the National Sanitation
o_ Protocol P172
Foundation), certifies that the Sanitize w/Oxi cycle reduces 99.9 _ of bacteria SanitJzationPerformanceofResidentialand
on laundry, and none of the bacteria will carry over onto the next laundry load _ Commercial,FamilySized Clothes Washers
when used in conjunction with Oxi products.
Follow the product manufacturer's instructions for using Oxi products with this cycle. Never load powdered products
into the liquid bleach dispenser. Doing so can result in the product not being dispensed or being dispensed incorrectly.
Powders can clog the bleach dispenser, resulting in leaks or damage to the washer or your clothing.
NOTE:
To protect your garments, not every wash temperature, spin speed, soil level, or option is available with every cycle.
A chime will sound and the LED will not light if the selection is not allowed.
_When a cycle is selected, the default time for that cycle is displayed. This time will change as modifiers or options
are selected. Once the START/PAUSE button is pressed, the washer will measure the size of the load. The estimated
time may change once the load size has been measured. The washer automatically adjusts the wash time for the
amount of laundry, water pressure, water and other operating conditions.
These cycles use various wash motions to enhance cleaning and/or fabric care performance. The wash motions may
sound difi:erent at difi:erent stages of the wash cycle. This is normal.
14

CYCLE GUIDE
The cycle guide below showsthe default seffings,available optionsand recommended fabric types
for each cycle. Allowable modifier adjustments are shown below the default setting for each cycle. = Available Option
Default Setting
Express
Wash
Casual
Towels
Delicates
Handwash/
Wool
Lightly soiled
clothing and small
loads
Dressshirts/pants,
wrinkle-free clothing,
poly/cotton blend
clothing, table-cloths
Towels
Towels,shirts, sheets,
jeans, mixed loads
Dressshirts/blouses,
nylons, sheer or
lacy garments
Items labeled
"hand washable"
Extra High
EcoWarm Medium Heavy
Cold Low Normal
TapCold No Spin
EcoWarm
Cold
TapCold
Hot
EcoWarm
Cold
TapCold
High
Low Heavy
No Spin Light
Extra High
Medium Heavy
Low Light
No Spin
EcoWarm
Hot
Cold
Warm
EcoWarm
Cold
EcoWarm
Cold
TapCold
Extra High
High Heavy
Low Light
No Spin
High
Medium Heavy
No Spin Normal
Medium Heavy
No Spin Normal
0
0
NOTE:
To protect your garments, not every wash temperature, spin speed, soil level, or option is available with every cycle.
A chime will sound and the LED will not light if the selection is not allowed.
_When a cycle is selected, the default time for that cycle is displayed. This time will change as modifiers or options
are selected. Once the START/PAUSE button is pressed, the washer will measure the size of the load. The estimated
time may change once the load size has been measured. The washer automatically adjusts the wash time for the
amount of laundry, water pressure, water and other operating conditions.
_Deep Wash: This cycle adds water to the wash cycle and raises the water temperature for efficient wash
performance.
These cycles use various wash motions to enhance cleaning and/or fabric care performance. The wash motions may
sound different at different stages of the wash cycle. This is normal.
15

ISORTING WASH LOADS
_, CAUTION
•Do not load items higher than the top edge of the
tub. Failure to follow this caution can result in leakage
or damage to fabrics.
• Use the BULl<Y/BEDDING cycle for buoyant or
nonabsorbent items such as pillows or comforters.
Failure to follow this caution can result in leakage.
• If possible, do not wash any water-resistant items.
If you must, please select the Bulky/Bedding cycle.
- Examples of water-proof or water-resistant items
include certain mattress pads, mattress covers, rain
gear, camping gear, skiing apparel, outdoor gear and
similar items.
Grouping Similar Items
For the best washing results, and to reduce the possibility
of damage to clothing, care should be taken to sort the
clothing into loads that are made up of similar items.
Mixing different fabric types and/or soil levels can result
in poor wash performance, color transfer or discoloration,
fabric damage or linting. Fabrics should be sorted into
groups as described below.
Colors
Sort articles by color. Wash dark clothes together in
aseparate load from light colors or whites. Mixing dark
clothes with light clothes can result in dye transfer or
discoloration of the lighter clothes.
Soil Level
Wash heavily soiled clothing together. Washing lightly
soiled clothing in the same load with heavily soiled
clothing could result in poor wash performance for the
lightly soiled clothing.
Fabric Type
Delicate articles should not be mixed with heavier or
sturdier fabric types. Washing delicates in a load
with heavy fabrics can result in damage to the more
delicate fabrics. Washing heavier fabrics in a delicate
load can result in poor wash performance for the
heavier fabrics and possible damage to the delicates.
Lint Type
Some fabrics attract and bind lint to them while others
give off lint in the laundry process. Avoid mixing these
lint collectors and lint producers in the same load. Mixing
these fabrics will result in pilling and linting on the lint
collectors. (For example, lint collector - knit sweater; lint
producer - terrycloth towels.)
Sort Laundry...
by Colors
Whites
Lights
Darks
by Soil
Heavy
Normal
Light
by Fabric
Delicates
Easy Care
Sturdy
by Lint
Lint Producer
Lint Collector 1
Fabric Care Labels
Many articles of clothing include a fabric care label.
Using the chart below, adjust the cycle and option
selections to care for your clothing according to the
manufacturer's recommendations.
Fabric Care Labels
Machine
w sh C1Ci Ci
cycle Normal Permanentpress/ Gentle/
wdnklereslstant delicate
HI1 Donotwash Donotwring
Water •• • O0 •
temperature Hot Warm Cold/cool
Bleach
symbols A //_ ._
Any bleach Only non-chlorine bleach Do not bleach
(when needed) (when needed)
Loading the Washer
• Check all pockets to make sure that they are empty.
Items such as clips, matches, pens, coins, and keys can
damage both your washer and your clothes.
• Close zippers, hooks, and drawstrings to prevent these
items from snagging or tangling on other clothes.
• Pretreat heavily stained areas for best results.
• Combine large and small items in a load. Load large
items first.
• Large items should not be more than half of the total
wash load.
• The washer can be fully loaded, but the tub should
not be tightly packed with items. The lid of the washer
should close easily.
•To prevent an out-of-balance load, do not wash
single items. Add one or two similar items to the load.
Large, bulky items, such as a blanket, comforter, or
bedspread, should be washed individually.
• The washer will not fill or operate with the lid open.
NOTE: Use the BULl<Y/BEDDING cycle for large or
bulky items such as poly-filled jackets, comforters,
pillows, etc. These items may not be as absorbent
as other laundry items and should be sorted into a
separate wash load for optimal results.
Bulky items should be placed as far down in the tub as
possible for optimal results. Always place buoyant items
at the bottom of the tub.
The washer will automatically detect the load size.
Because of the high-efficiency wash system, the
waterlevel may not completely cover the load.
16

ABOUT THE DISPENSERS
The automatic dispenser consists of two compartments
which hold:
• Liquid fabric softener.
• Liquid or powdered detergent for main wash.
Main Wash
Main Wash
Powder Detergent Liquid Detergent
Compartment Compartment
Liquid Fabric
Softener
Compartment
Insert
\,,_. Dispenser Drawer o.../
Main Wash Detergent Compartment
This compartment holds laundry detergent for the main
wash cycle. The detergent is added to the load at the
beginning of the cycle. Always use High-Efficiency (HE)
detergent with your washing machine. Either powdered
or liquid detergent may be used.
Never exceed the manufacturer's recommendations
when adding detergent. Using too much detergent can
result in detergent buildup in clothing and the washer.
When using liquid detergent, make sure the liquid
detergent cup and insert are in place. Do not exceed
the maximum fill line.
When using powdered detergent, remove the liquid
detergent cup from the compartment. Powdered
detergent will not dispense with the liquid detergent
cup in place.
Fabric Softener Compartment
This compartment holds liquid fabric softener, which is
automatically dispensed during the final rinse cycle.
Never exceed the manufacturer's recommendations
whenadding softener. Using too much fabric softener can
result in buildup in clothing and the washer.
•Always follow the manufacturer's recommendations
when adding fabric softener. Do not exceed the
maximum fill line. Using too much fabric softener may
stain clothes.
• Dilute concentrated fabric softeners with warm water.
Do not exceed the maximum fill line.
• Never pour fabric softener directly onto the load or
into the tub.
_ Liquid Bleach
Compartment
Liquid Bleach Compartment
The bleach dispenser is a separate compartment at
the left front of the tub opening. This compartment
holds liquid bleach, which is dispensed automatically
at the proper time during the wash cycle. Any liquid
remaining in the dispenser at the end of the cycle is
water, not bleach.
• Do not add powdered bleach or Oxi products to this
compartment. The bleach compartment is designed to
dispense liquid bleach only. Powdered or liquid color-
safe bleach will not dispense properly.
•Always follow the manufacturer's recommendations
when adding bleach. Never add more than one cup
and do not exceed the maximum fill line since this can
cause the bleach to be dispensed immediately, resulting in
damage to fabrics. Using too much bleach can damage
fabrics.
• Never pour undiluted liquid chlorine bleach directly
onto the load or into the tub. Fabric damage can occur.
• Do not use color-safe bleach or Oxi products in the
same cycle with liquid chlorine bleach.
Do NOT mix chlorine bleach with ammonia or
acids, such as vinegar or rust/scale remover.
Mixing chemicals like these can produce a lethal
gas, resulting in severe injury or death.
17

DETERGENT AND DISPENSER USE
A Word About Detergents
High-Efficiency (HE) detergents produce fewer suds,
dissolve more efficiently to improve washing and
rinsing performance, and help to keep the interior of
your washer clean. Using detergent that is not HE may
cause oversudsing and unsatisfactory performance
which could result in error codes, cycle failure, and
machine damage.
'_ Maximum __[__s
ormal Load Amount
Liquid Powdered
Detergent Detergent
For proper wash performance, always measure the
detergent using the measurements provided by the
detergent manufacturer.
The normal amount of HE detergent needed, for aver-
age loads, is less than 1/2of the recommended maxi-
mum. Use less detergent for soft water, light soil or
smaller loads. Never use more than the maximum
amount recommended by the detergent
manufacturer.
Designed to use only
High-Efficiency (HE) detergent
IMPORTANT: Your washing machine is designed for use
with only High-Efficiency (HE)detergents. HE detergents
are formulated specifically for High-Efficiency washers
and contain suds-reducing agents. Always look for the
HE symbol when purchasing detergent.
IMPORTANT: Not all detergents are the same. Pay
careful attention to the amount of detergent used to avoid
overusing, poor rinsing and detergent buildup in clothing,
and residue buildup that can contribute to odors in the
machine. NEVER use a cup or scoop other than the one
supplied by the manufacturer of the detergent you
are using. Never use more than the maximum amount of
detergent recommended by the manufacturer.
Always measure the detergent amount. While HE
detergents are designed for this type of washing
machine, be careful when measuring the detergent. For
most normal loads, no more than 1/4to 1/2 of cap or
scoop of HE detergent should be used.
NOTE: Extra care must be exercised when using 2X and
3X concentrated detergents because even a little bit extra
can contribute to the problems mentioned above.
NOTE: Detergents designated as HE compatible may not
provide optimal results.
Using the Softener and Detergent Dispenser
To add detergent, bleach, and fabric softener to the
automatic dispenser:
Open the dispenser drawer.
Load the laundry products into the
appropriate compartments.
Close the drawer before starting the cycle.
NOTE: It is normal for a small amount of water to
remain in the bleach and softener compartments at the
end of the cycle.
IMPORTANT: Do not place or store laundry products,
such as detergent, bleach, or liquid fabric softener, on
top of your washer or dryer. Wipe up any spills immedi-
ately. These products can damage the finish and controls.
Using the Liquid Bleach Dispenser
The bleach dispenser automatically dilutes and
dispenses liquid bleach at the proper time in the
wash cycle.
Check clothing care special
labels for
instructions.
Measure liquid bleach carefully, following
instructions on the bottle. High-efficiency washers
use less water, so less bleach is needed. One half
cup is enough for most loads.
0Carefully pour the pre-measured amount of
bleach directly into the bleach dispenser. If you
are using powdered bleach of any kind, pour it
directly into the tub before adding the laundry.
Never add powdered bleach to the liquid bleach
dispenser.
•Never pour undiluted liquid chlorine bleach directly
onto clothes or into the tub.
• Do not pour powdered bleach into bleach dispenser.
• Do not place laundry items on top of the bleach
dispenser when loading and unloading the washer.
•Always measure and pour bleach carefully. Avoid
overfilling or splashing when adding bleach to the
dispenser. The maximum capacity of the bleach
dispenser is one cup of bleach per wash cycle.
Overfilling could result in bleach being dispensed
immediately.
18

TIME AND STATUS DISPLAY
The time and status display shows the estimated time remaining and cycle progress.
STATUS
O @@@@@
LOAD SOAK WASH RINSE SPIN
SENSING
OCYCLE STATUS INDICATOR
These LEDs will illuminate when a cycle is selected
to indicate which stages will run. When a cycle
is running, the LED will blink for the active stage.
Once a stage is complete, the LED will turn off. If a
cycle is paused, the active LED will stop blinking.
OESTIMATED TIME REMAINING
When a cycle is selected, the default time for
that cycle is displayed. This time will change as
modifiers or options are selected. Once the START/
PAUSE button is pressed, the washer will measure
the size of the load. The estimated time may
change once the load size has been measured.
NOTE: The time shown is only an estimate. This
time is based on normal operating conditions. Sev-
eral external factors (load size, room temperature,
incoming water temperature, etc.) can affect the
actual time.
19

CYCLE MODIFIER BUTTONS
Each cycle has default settings that are selected
automatically. You may also customize these settings
using the cycle modifier buttons. Press the button for
the desired modifier until the indicator light for the
desired setting is lit. The washer automatically adjusts
the water level for the type and size of wash load for
best results and maximum efficiency.
Due to the high-efficiency nature of this product,
water levels may be much lower than expected. This is
normal and cleaning/rinsing performance will not be
compromised.
NOTE: To protect your garments, not every wash/rinse
temperature, spin speed, soil level, or option is available
with every cycle. A chime will sound and the LED will
not light if a selection is not allowed.
Hot Extra High
Warm
Eco_?@_rm Med ium
Cold Low
Tap Cold No Spin
Wash Speed
All Cold Rinses
Normal
[ SoilLevel
*Control Lock )
OWASH TEMP
WASH TEMP selects the wash and rinse temperature
combination for the selected cycle. Press the WASH
TEMP button until the indicator light for the desired
setting is lit.
• Select the wash temperature suitable for the type
of load you are washing. Follow the garment
fabric care labels for best results.
• Cold rinses use less energy. The actual cold rinse
temperature depends on the temperature of the
cold water at the faucet.
O SPIN SPEED
Higher spin speeds extract more water from clothes,
reducing drying time and saving energy.
G
Press the SPIN SPEED button until the desired speed
is selected. Some fabrics, such as delicates, require
a slower spin speed. To protect your clothing, not all
spin speeds are available for all cycles.
SOIL LEVEL
Adjusting the soil level setting will modify the cycle
times and/or wash actions. Press the SOIL LEVEL
button until the desired soil level is selected.
2O
