Kenmore POWER MISER 153.339610HA User manual

Owner's Manual
POWER MISER TM9
GAS WATER HEATER
FOR POTABLE WATER HEATING ONLY.
NOT SUITABLE FOR SPACE HEATING.
NOT FOR USE IN MOBILE HOMES.
MODELNO.
153.339610HA
153.339660
153.339860
65 Gallon High Altitude
65 Gallon
65 Gallon High Recovery
•Safety Instruction
•Installation
•Operation
•Care and Maintenance
•Troubleshooting
•Parts List
For Your Safety
AN ODORANT IS ADDED TO THE GAS
USED BY THIS WATER HEATER.
Read and understand instruction
manual and safety messages
before installing, operating or
servicing this water heater.
Failure to follow instructions and
safety messages could result in
death or serious injury.
Instruction manual must remain
with water heater,
Si no puede leer o entender el ingles y necesita el manual instructive
y/o etiquetas eo espaSol puede obtenerlos IIamando aI
1-800-821-2017. NO TRATE DE INSTALAR O OPERAR ESTE
CALENTADOR DE AGUA si no entiende la informacion en las etiquetas
o en el manual iestructivo. No hacer case de esta adver[eecia podria
resultar en la MU ERTE O GRAVES LESION ES CORPORALES.
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury or death.
-- Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this orany other appliance.
-- WHAT TO DO IF YOU SMELL GAS:
•Do nottryto light anyappliance,
•Do not touch any electrical switch; do
not use any phone in your building.
•Immediately call your gas supplier
from a neighbor's phone. Follow the
gas supplier's instructions.
• If you cannot reach your gas supplier,
call the fire department.
--Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A
PRINTED IN THE U.S.A 0204 www.sears.com PART NO. 184811-000

Your safety and the safety of others is extremely important in the installation, use and servicing of this water heater.
Many safety-related messages and instructions have been provided in this manual and on your own water heater to warn you and
others of apotential injury hazard. Read and obey all safety messages and instructions throughout this manual. It is very
important that the meaning of each safety message is understood by you and others who install, use or service this water heater.
This is the safety alert symbol. It is used to alert you
to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible
injury or death.
DANGER indicates an imminently
hazardous situation which, if not avoided,
could result in death or injury.
WARNING indicates a potentially hazardous
situation which, if not avoided, could result
in death or injury.
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result
in minor or moderate injury.
CAUTION used without the safety alert
symbol indicates a potentially hazardous
situation which, if not avoided, could result
in property damage.
All safety messages will generally tell you about the type of hazard, what can happen if you do not follow the safety message and
how to avoid the risk of injury.
IMPORTANT DEFINITIONS
Gas Supplier: The natural gas or propane utility or service who supplies gas for utilization by the gas burning
appliances within this application. The gas supplier typically has responsibility for the inspection and code approval of
gas piping up to and including the natural gas meter or propane storage tank of a building. Many gas suppliers also
offer service and inspection of appliances within the building.
© Sears, Roebuck and Co. 2

Readandunderstandinstruction
manualandsafetymessages
beforeinstalling,operatingor
servicingthiswaterheater
Failure to follow instructions and
safety messages could result in
death or serious injury
Instruction manual must remain
with water heater,
Fire Hazard
For continued protection against
risk of fire:
• Do not install water heater on
carpeted floor
• Do not operate water heater if
flood damaged.
Water temperature over 125°F
(52°0) can cause severe burns
instantly resulting in severe injury
or death.
Children, the elderly, and the
physically or mentally disabled
are at highest risk for scald injury
Feel water before bathing or
showering.
Temperature limiting valves are
available.
Read instruction manual for safe
temperature setting.
Fire or Explosion Hazard
•Do not expose water heater control to excessive gas
pressure.
• Use only gas shown on rating plate.
• Maintain required clearances to combustibles
• Keep ignition sources away from faucets after
extended period of non-use.
Read instruction manual before
installing, using or servicing
water heater
Fire or Explosion Hazard
• Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
Explosion Hazard
• Overheated water can cause
water tank explosion.
• Properly sized temperature
and pressure relief valve must
be installed in opening
provided
Breathing Hazard - Carbon Monoxide Gas
thstall vent system in accordance with
codes.
Do not operate water heater if flood
damaged,
High altitude orifice must be installed for
operation above 3,300 feet (1,006 m)
(or above 5,500 (1,676 m) feet for high
altitude models)
Do not operate if soot buildup
Do not obstruct water heater air intake
with insulating jacket
Do not place chemical vapor emitting
produsts near water heater
Gas and carbon monoxide detectors
are available.
Breathing carbon monoxide can cause brain damage or
death. Always read and understand instruction manual.
Improper installation and use may result
in property damage.
Do not operate water heater if flood damaged
• Inspect and replace anode.
• Install in location with drainage.
• Fill tank with water before operation.
• Be alert for thermal expansion.
Refer to instruction manual for installation and service

SAFE INSTALLATION, USE AND SERVICE ................................................................................................. 2
SAFETY PRECAUTIONS .............................................................................................................................. 3
TABLE OF CONTENTS ................................................................................................................................ 4
CUSTOMER RESPONSIBILITIES ................................................................................................................ 5
PRODUCT SPECIFICATIONS ...................................................................................................................... 5
MATERIALS AND BASIC TOOLS NEEDED ................................................................................................. 6
Material Needed ...................................................................................................................................................... 6
Basic Tools ............................................................................................................................................................. 6
TYPICAL INSTALLATION ............................................................................................................................... 7
INSTALLATION INSTRUCTIONS ............................................................................................................... 8-16
Removing the Old Water Heater .............................................................................................................................. 8
Facts to Consider About the Location ................................................................................................................ 9-10
Insulation Jackets ................................................................................................................................................. 10
Combustion Air and Ventilation Appliances
in Unconfined Spaces ............................................................................................................................................ 10
Combustion Air and Ventilation Appliances
in Confined Spaces ........................................................................................................................................... 11-12
Water Piping .................................................................................................................................................... 12-13
T & P Valve and Pipe Insulation .......................................................................................................................... 13
Temperature Pressure Relief Valve .................................................................................................................... 13-14
Filling the Water Heater ......................................................................................................................................... 14
Venting ............................................................................................................................................................. 14-15
Gas Piping ....................................................................................................................................................... 15-16
Sediment Trap .................................................................................................................................................. 16-17
OPERATING INSTRUCTIONS ................................................................................................................ 18-19
Lighting & Operating Label .................................................................................................................................... 18
Temperature Regulation ......................................................................................................................................... 19
SERVICE AND ADJUSTMENT ............................................................................................................... 20-22
Tank (Sediment) Cleaning ...................................................................................................................................... 20
Venting System Inspection .................................................................................................................................... 20
Burner Inspection .................................................................................................................................................. 20
Burner Cleaning ..................................................................................................................................................... 20
Housekeeping .................................................................................................................................................. 20-21
Anode Rod Inspection ........................................................................................................................................... 21
Temperature-Pressure Relief Valve Operation ........................................................................................................ 21
Draining ............................................................................................................................................................ 21-22
Drain Valve Washer Replacement .......................................................................................................................... 22
Service .................................................................................................................................................................. _
TROUBLESHOOTING GUIDE ................................................................................................................ 23-26
Start Up Conditions .............................................................................................................................................................23-24
Thermal Expansion .......................................................................................................................................... 23
Strange Sounds ............................................................................................................................................... 23
Draft Hood Operation .................................................................................................................................. 23-24
Condensation .................................................................................................................................................. 24
Smoke/Odor .................................................................................................................................................... 24
Operational Conditions ..................................................................................................................................... 24-25
Smelly Odor .................................................................................................................................................... 24
Air in Hot Water Faucets ................................................................................................................................. 25
High Temperature Shut-Off System .................................................................................................................. 24
Leakage Checkpoints ...................................................................................................................................... 25
Troubleshooting Guide ........................................................................................................................................... 26
PARTS ORDER LIST ................................................................................................................................. 27
WARRANTY ................................................................................................................................................ 28

Thank You for purchasing a Kenmore water heater. Properly
installed and maintained, it should give you years of trouble
free service. If you should decide that you want the new water
heater professionally installed by Sears call 1-800-4-MY-HOME ®.
They will arrange for prompt, quality installation by Sears
authorized contractors.
Abbreviations Found In This Instruction Manual:
• CSA - Canadian Standards Association
• ANSI - American National Standards Institute
NFPA - National Fire Protection Association
• ASME - American Society of Mechanical Engineers
GAMA - Gas Appliance Manufacturers Association
• This gas-fired water heater is design certified by CSA
INTERNATIONAL under American National Standard/CSA
Standard for Gas Water Heaters ANSI Z21.10.1 • CSA 4.1
(current edition).
• Read the"Safety Precautions" section, page 3 of this manual
first and then the entire manual carefully. If you don't follow
the safety rules, the water heater will not operate properly. It
could cause DEATH, SERIOUS BODILY INJURY AND/OR
PROPERTY DAMAGE.
This manual contains instructions for the installation,
operation, and maintenance of the gas-fired water heater. It
also contains warnings through out the manual that you must
read and be aware of. All warnings and all instructions are
essential to the proper operation of the water heater and
your safety. Since we cannot put everything on the first few
pages, READ THE ENTIRE MANUAL BEFORE A'n'EMPTING
TO INSTALL OR OPERATE THE WATER HEATER.
The installation must conform with these instructions and
the local code authority having jurisdiction. In the absence of
local codes, installations shall comply with the following:
In the United States: The National Fuel Gas Code ANSI
Z223.1/NFPA 54. This publication is available from the
Canadian Standards Association, 8501 East Pleasant Valley
Rd, Cleveland Ohio 44131, or The National Fire Protection
Association, 1 Batterymarch Park, Quincy, MA 02269.
If after reading this manual you have any questions or do not
understand any portion of the instructions, call the Sears
Service Center.
Carefully plan the place where you are going to put the water
heater. Correct combustion, vent action, and vent pipe
installation are very important in preventing death from
possible carbon monoxide poisoning and fires. See
figure 1.
Examine the location to ensure the water heater complies
with the Facts to Consider About the Location section in this
manual.
For California installation this water heater must be braced,
anchored, or strapped to avoid falling or moving during an
earthquake. See instructions for correct installation
procedures. Instructions may be obtained from your local
dealer, wholesaler, public utilities or California Office of the
State Architect, 400 P Street, Sacramento, CA 95814.
Massachusetts Code requires this water heater to be
installed in accordance with Massachusetts 248-CMR 2.00:
State Plumbing Code and 248-CMR 5.00.
Complies with SCAQMD rule #1121 and districts having
equivalent NOx requirements.
RECOVERY MINIMUM DIMENSIONS
TANK 'TYPE RATE GALS, VENTPIPE DIAMETER IN INCHES (mm)
CAPACITY OF BllJ PERHOUR INCHES INCHES HEIGHTTO
MODEL NUMBER IN GALS (LTRS) GAS RATE @ 90°F RISE (mm) (mm) JACKETTOP
153 339610HA 65 (246) NATURAL 40,000 40.9 3" (76) or 4" (102) 22" (559) 59 1/2" (1,511)
153.339660 65 (246) NATURAL 40,000 40.9 3" (76) or 4" (102) 22" (559) 59 1/2" (1,511)
153.339860 65 (246) NATURAL 50,000 51.2 4" (102) 22" (559) 59 1/2" (1,511)

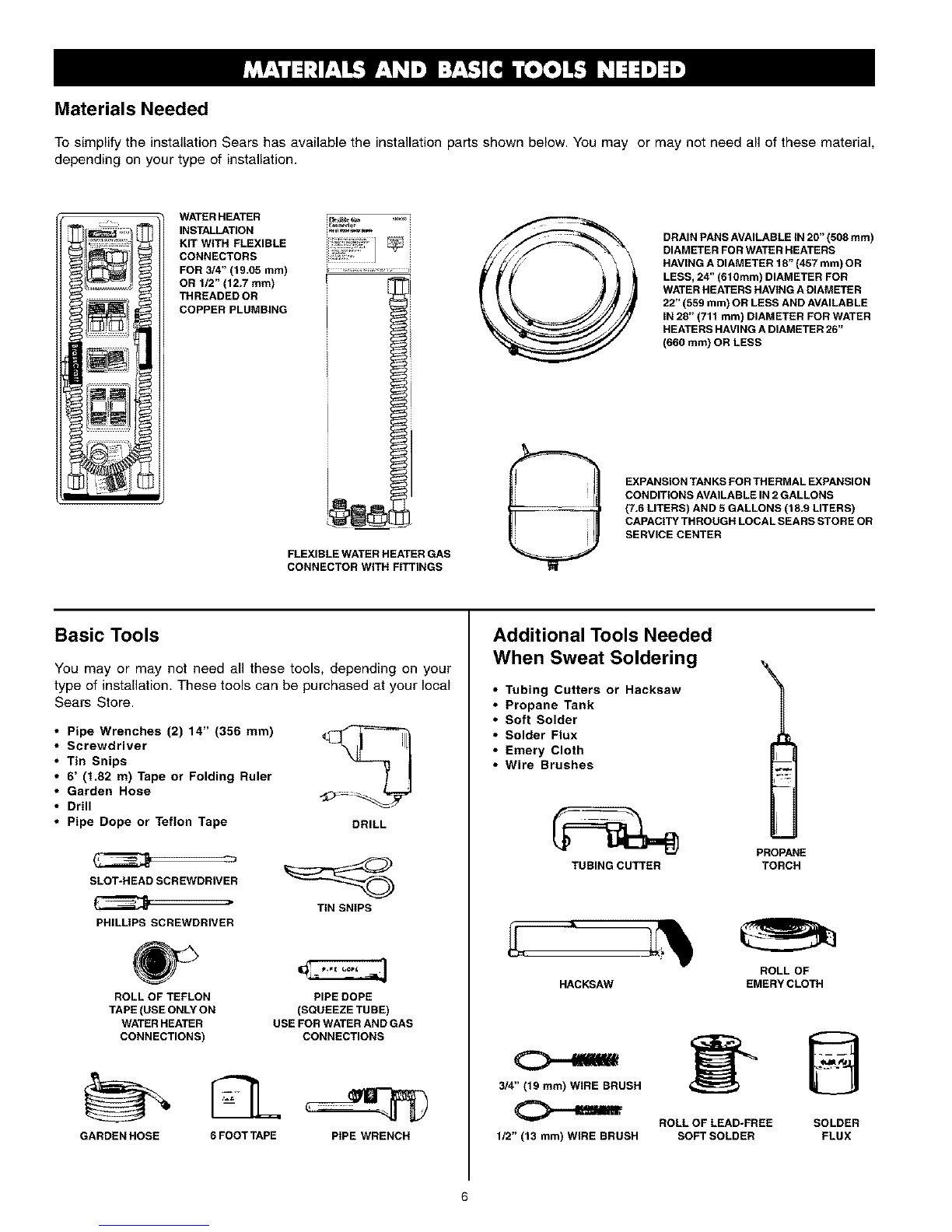

Materials Needed
To simplify the installation Sears has available the installation parts shown below. You may or may not need all of these material,
depending on your type of installation.
WATER HEATER
INSTALLATION
KIT WITH FLEXIBLE
CONNECTORS
FOR 3/4" (19.05 ram)
OR 1/2" (12.7 ram)
THREADED OR
COPPER PLUMBING
FLEXIBLE WATER HEATER GAS
CONNECTOR WITH FITTINGS
(DRAIN PANS AVAILABLE IN 20" (508 ram)
DIAMETER FOR WATER HEATERS
HAVING A DIAMETER 18" (457 ram) OR
LESS, 24" (610ram) DIAMETER FOR
WATER HEATERS HAVING A DIAMETER
22" (559 ram) OR LESS AND AVAILABLE
IN 28" (711 ram) DIAMETER FOR WATER
HEATERS HAVING A DIAMETER 26"
(660 mm) OR LESS
EXPANSION TAN KS FOR THERMAL EXPANSION
CON DITIONS AVAILABLE IN 2 GALLONS
(7.6 LITERS) AND 5 GALLONS (18.9 LITERS)
CAPACITY THROUGH LOCAL SEARS STORE OR
SERVICE CENTER
Basic Tools
You may or may not need all these tools, depending on your
type of installation. These tools can be purchased at your local
Sears Store.
Pipe Wrenches (2) 14" (356 mm) _FIF_===_
Screwdriver
Tin Snips
6' (1.82 m) Tape or Folding Ruler
Garden Hose
Drill
Pipe Dope or Teflon Tape DRILL
SLOT-HEAD SCREWDRIVER
PHILLIPS SCREWDRIVER
ROLL OF TEFLON
TAPE (USE ONLY ON
WATER HEATER
CONNECTIONS)
TIN SNIPS
PIPE DOPE
(SQUEEZE TUBE)
USE FOR WATER AND GAS
CONNECTIONS
GARDEN HOSE 6 FOOTTAPE PIPE WRENCH
Additional Tools Needed
When Sweat Soldering
Tubing Cutters or Hacksaw
Propane Tank
Soft Solder
Solder Flux
Emery Cloth
Wire Brushes
TUBING CUTTER PROPANE TORCH
HACKSAW
ROLL OF
EMERY CLOTH
3/4" (19 ram) WIRE BRUSH
1/2" (13 mm) WIRE BRUSH ROLL OF LEAD-FREE SOLDER
SOFT SOLDER FLUX

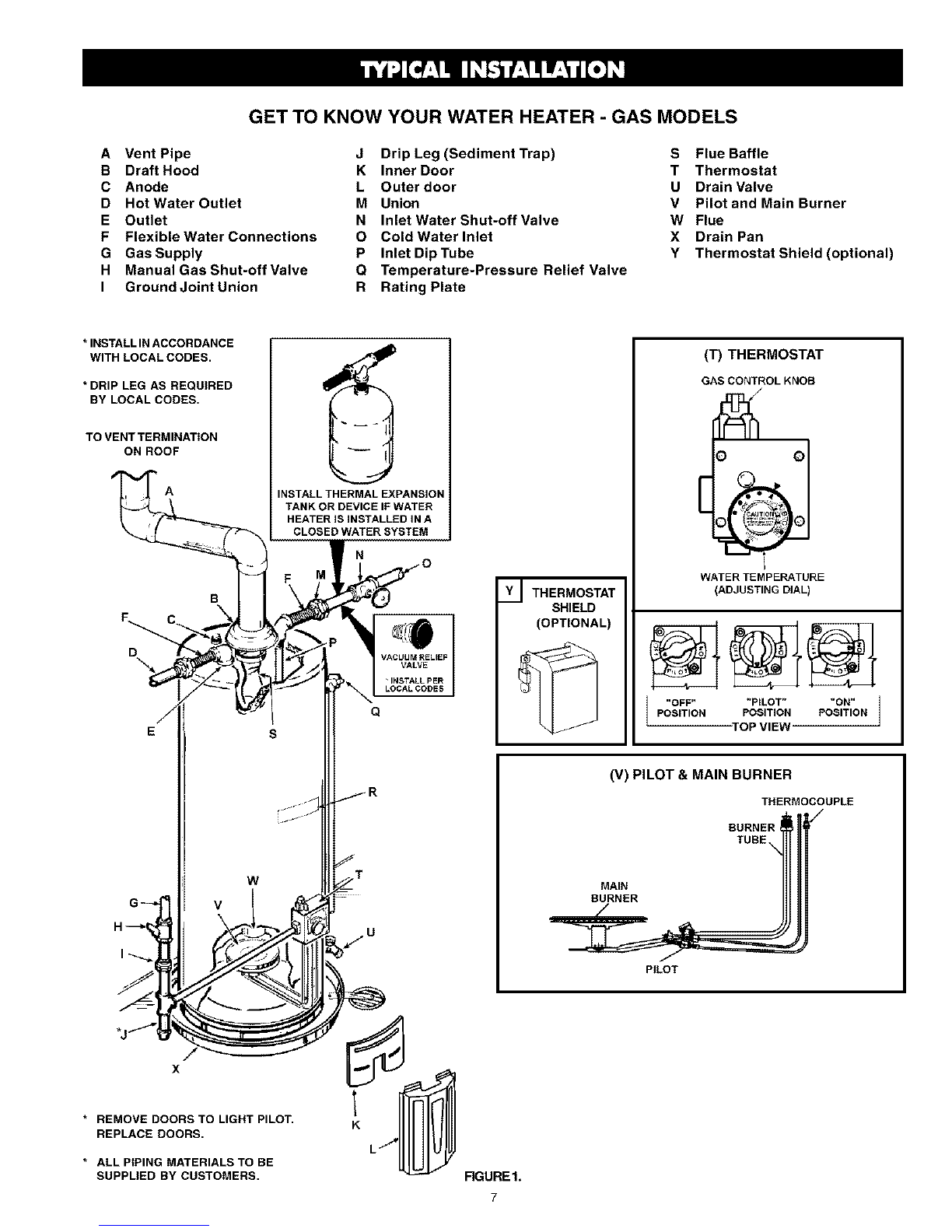

GET TO KNOW YOUR WATER HEATER - GAS MODELS
A Vent Pipe
B Draft Hood
C Anode
D Hot Water Outlet
E Outlet
F Flexible Water Connections
G Gas Supply
H Manual Gas Shut-off Valve
I Ground Joint Union
J Drip Leg (Sediment Trap) S Flue Baffle
K Inner Door T Thermostat
L Outer door U Drain Valve
M Union V Pilot and Main Burner
N Inlet Water Shut-off Valve W Flue
O Cold Water Inlet X Drain PaR
P Inlet DipTube Y Thermostat Shield (optional)
Q Temperature-Pressure Relief Valve
R Rating Plate
* INSTALL INACCORDANCE
WITH LOCAL CODES.
* DRIP LEG AS REQUIRED
BY LOCAL CODES.
TO VENT TERMINATION
ON ROOF
INSTALL THERMAL EXPANSION
TANK OR DEVICE IF WATER
HEATER iS iNSTALLED iN A
CLOSED WATER SYSTEM
VACUUM RELIEF
1 '
- _L LOCALCODES
-% Q
THERMOSTAT
SHIELD
(OPTIONAL)
(T) THERMOSTAT
GAS CONTROL KNOB
I
WATER TEMPERATURE
(ADJUSTING DIALI
l "OFF .... PILOT .... ON" I
POSITION POSiTiON POSITION
"TOPVIEW
(V) PILOT & MAIN BURNER
THERMOCOUPLE
BURNER,
TUBE
MAIN
BURNER
PILOT
x
* REMOVE DOORS TO LIGHT PILOT.
REPLACE DOORS. K
* ALL PIPING MATERIALS TO BE
SUPPLIED BY CUSTOMERS. RGUREt,
7

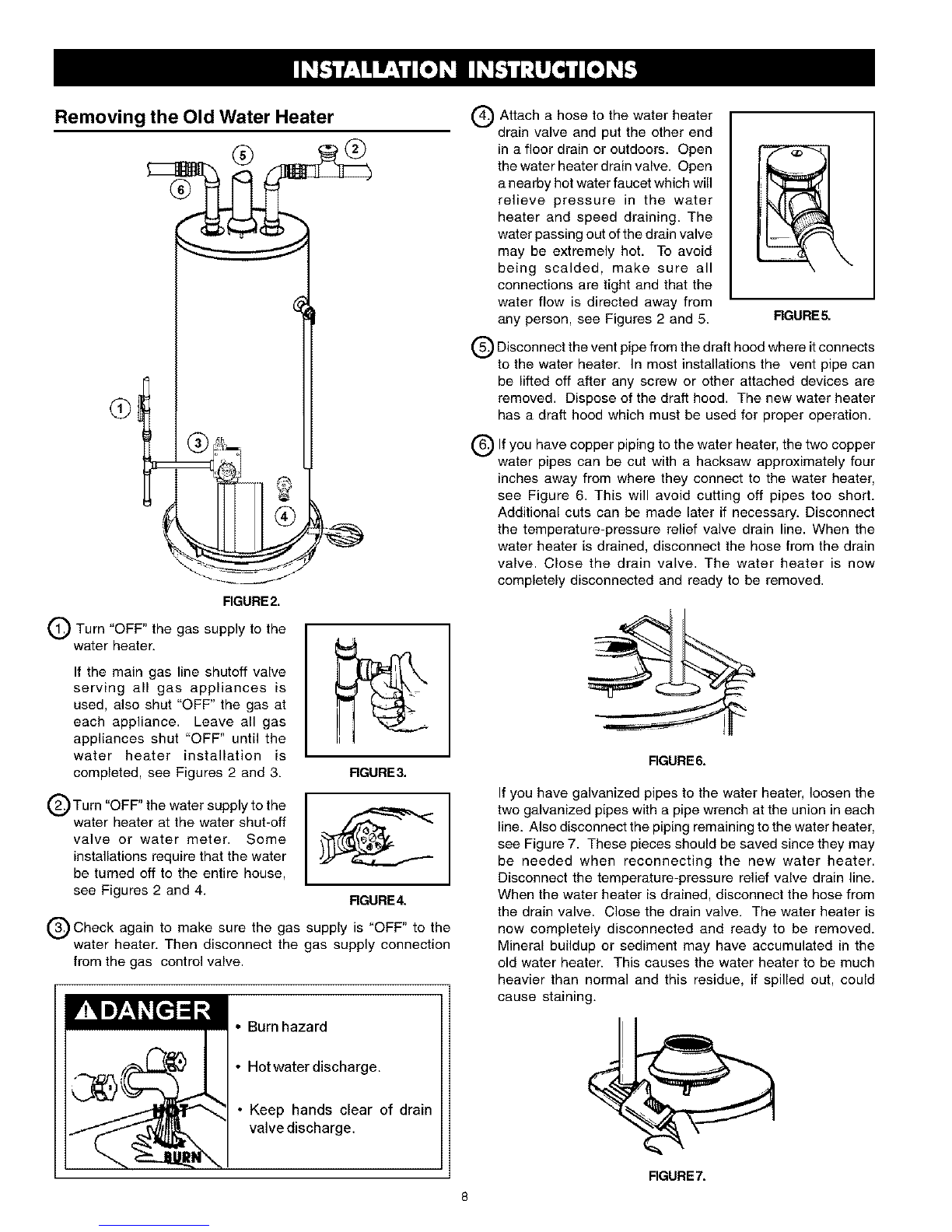

Removing the Old Water Heater
® ® ®
FIGURE2,
QTum "OFF" the gas supply to the
water heater.
If the main gas line shutoff valve
serving all gas appliances is
used, also shut "OFF" the gas at
each appliance. Leave all gas
appliances shut "OFF" until the
water heater installation is
completed, see Figures 2 and 3. RGURE3,
Turn water supply to
"OFF' the the
water heater at the water shut-off
valve or water meter. Some
installations require that the water
be turned off to the entire house,
see Figures 2 and 4. RGURE4.
(_ Check to make the is "OFF" to the
again sure gas supply
water heater. Then disconnect the gas supply connection
from the gas control valve.
• Burn hazard
• Hot water discharge.
• Keep hands clear of drain
valvedischarge.
(_) Attach hose to the water heater
a
drain valve and put the other end
in a floor drain or outdoors. Open
the water heater drain valve. Open
a nearby hot water faucet which will
relieve pressure in the water
heater and speed draining. The
water passing out of the drain valve
may be extremely hot. To avoid
being scalded, make sure all
connections are tight and that the
water flow is directed away from
any person, see Figures 2 and 5. RGURE5,
(_) Disconnect the vent from the draft hood where itconnectspipe
to the water heater. In most installations the vent pipe can
be lifted off after any screw or other attached devices are
removed. Dispose of the draft hood. The new water heater
has a draft hood which must be used for proper operation.
Q If have to the water heater, the two
you copper piping copper
water pipes can be cut with a hacksaw approximately four
inches away from where they connect to the water heater,
see Figure 6. This will avoid cutting off pipes too short.
Additional cuts can be made later if necessary. Disconnect
the temperature-pressure relief valve drain line. When the
water heater is drained, disconnect the hose from the drain
valve. Close the drain valve. The water heater is now
completely disconnected and ready to be removed.
FIGURE&
If you have galvanized pipes to the water heater, loosen the
two galvanized pipes with a pipe wrench at the union in each
line. Also disconnect the piping remaining to the water heater,
see Figure 7. These pieces should be saved since they may
be needed when reconnecting the new water heater.
Disconnect the temperature-pressure relief valve drain line.
When the water heater is drained, disconnect the hose from
the drain valve. Close the drain valve. The water heater is
now completely disconnected and ready to be removed.
Mineral buildup or sediment may have accumulated in the
old water heater. This causes the water heater to be much
heavier than normal and this residue, if spilled out, could
cause staining.
4
FIGURE7.
8

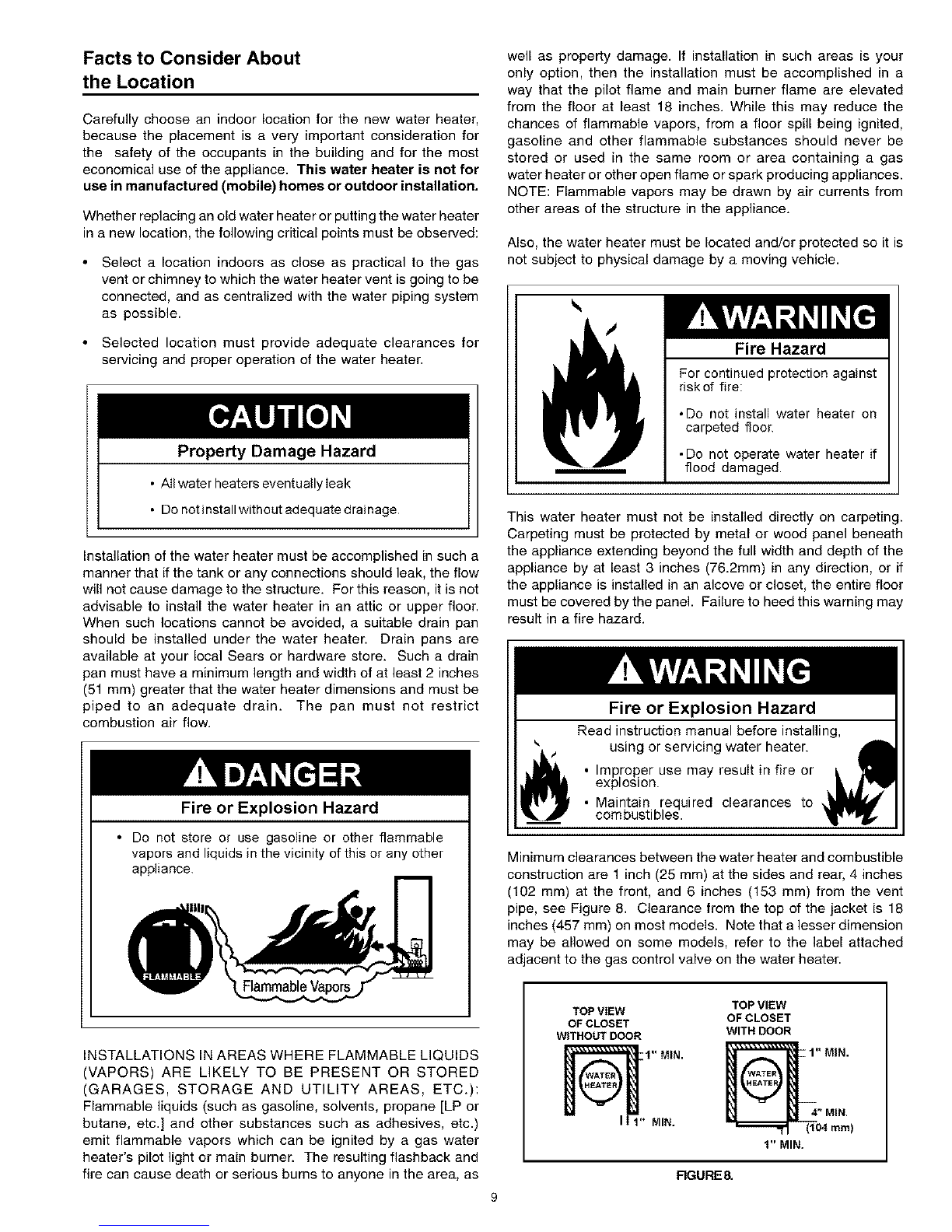

Facts to Consider About
the Location
Carefully choose an indoor location for the new water heater,
because the placement is a very important consideration for
the safety of the occupants in the building and for the most
economical use of the appliance. This water heater is not for
use in manufactured (mobile) homes or outdoor installation,
Whether replacing an old water heater or putting the water heater
in a new location, the following critical points must be observed:
Select a location indoors as close as practical to the gas
vent or chimney to which the water heater vent is going to be
connected, and as centralized with the water piping system
as possible.
Selected location must provide adequate clearances for
servicing and proper operation of the water heater.
Property Damage Hazard
•Allwaterheaterseventuallyleak
• Denotinstallwithoutadequatedrainage
Installation of the water heater must be accomplished in such a
manner that if the tank or any connections should leak, the flow
will not cause damage to the structure. For this reason, it is not
advisable to install the water heater in an attic or upper floor.
When such locations cannot be avoided, a suitable drain pan
should be installed under the water heater. Drain pans are
available at your local Sears or hardware store. Such a drain
pan must have a minimum length and width of at least 2 inches
(51 mm) greater that the water heater dimensions and must be
piped to an adequate drain. The pan must not restrict
combustion air flow.
Fire or Explosion Hazard
•Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
INSTALLATIONS IN AREAS WHERE FLAMMABLE LIQUIDS
(VAPORS) ARE LIKELY TO BE PRESENT OR STORED
(GARAGES, STORAGE AND UTILITY AREAS, ETC.):
Flammable liquids (such as gasoline, solvents, propane [LP or
butane, etc.] and other substances such as adhesives, etc.)
emit flammable vapors which can be ignited by a gas water
heater's pilot light or main burner. The resulting flashback and
fire can cause death or serious bums to anyone in the area, as
well as property damage. If installation in such areas is your
only option, then the installation must be accomplished in a
way that the pilot flame and main burner flame are elevated
from the floor at least 18 inches. While this may reduce the
chances of flammable vapors, from a floor spill being ignited,
gasoline and other flammable substances should never be
stored or used in the same room or area containing a gas
water heater or other open flame or spark producing appliances.
NOTE: Flammable vapors may be drawn by air currents from
other areas of the structure in the appliance.
Also, the water heater must be located and/or protected so it is
not subject to physical damage by a moving vehicle.
FreHzr
For continued protection against
risk of fire:
•Do not install water heater on
carpeted floor.
•Do not operate water heater if
flood damaged.
This water heater must not be installed directly on carpeting.
Carpeting must be protected by metal or wood panel beneath
the appliance extending beyond the full width and depth of the
appliance by at least 3 inches (76.2mm) in any direction, or if
the appliance is installed in an alcove or closet, the entire floor
must be covered by the panel. Failure to heed this warning may
result in a fire hazard.
Fire or Explosion Hazard
• using or servicing water heater.
l_ • Improper use may resuIt in fire or
explosion.
• Maintain required clearances to
combustibles.
Minimum clearances between the water heater and combustible
construction are 1 inch (25 mm) at the sides and rear, 4 inches
(102 mm) at the front, and 6 inches (153 mm) from the vent
pipe, see Figure 8. Clearance from the top of the jacket is 18
inches (457 mm) on most models. Note that a lesser dimension
may be allowed on some models, refer to the label attached
adjacent to the gas control valve on the water heater.
TOP VIEW
TOP VIEW
OF CLOSET OF CLOSET
WITHOUT DOOR WITH DOOR
_1 i 1,1" MIN. 1_4'MIN.
"MIN.
MIN. """""""""_ (104 mm)
1" MIN.
RGURE8,
9

Breathing Hazard - Carbon Monoxide Gas
Install water heater in accordance
with the instruction manual and
NFPA 54.
To avoid injury, combustion and
ventilation air must be taken from
outdoors.
Do not place chemical vapor
emitting products near water
heater.
Breathing carbon monoxide can cause brain damage or
death. Always read and understand instruction manual.
A gas water heater cannot operate properly without the correct
amount of air for combustion, see Figure 9. Do not install in a
confined area such as a closet, unless you provide air as shown
in the Locating The New Water Heatersectien. Never obstruct
the flew of ventilation air. If you have any doubts or questions at
all, call your gas supplier. Failure to provide the proper amount
of combustion air can result in a fire or explosion and cause
death, serious bodily injury, or property damage.
12" MAX. (30 crn)
1
VENTILATION
AIR
OPENING O
FRONT VIEW
OF DOOR
J_ 12" MAX.
. (30_)
AIR DUCT
FIGURE9.
If this water heater will be used in beauty shops, barber shops,
cleaning establishments, or self-service laundries with dry
cleaning equipment, it is imperative that the water heater or
water heaters be installed so that combustion and ventilation
air be taken from outside these areas.
Propellants of aerosol sprays and volatile compounds,
(cleaners, chlorine based chemicals, refrigerants, etc.) in
addition to being highly flammable in many cases, will also
change to corrosive hydrochloric acid when exposed to the
combustion products of the water heater. The results can be
hazardous, and also cause product failure.
Insulation Blankets
Insulation blankets available to the general public for external
use on gas water heaters are net necessary with Kenmere
products. The purpose of an insulation blanket is to reduce the
standby heat less encountered with storage tank heaters. Your
Kenmere water heater meets or exceeds the National Appliance
Energy Conservation Act standards with respect to insulation
and standby loss requirements, making an insulation blanket
unnecessary.
Breathing Hazard - Carbon Monoxide Gas
•":_'-_ o(__:;'_;._,•Do not obstruct water heater air
,,. ,,,.,. intake with insulating blanket.
_"ii_i _i_: ° Gas and carbon monoxide
•"*',_;'--;.._I._,_ _ detectors are available.
•" • Install water heater in accordance
_Z_.:_l with the instruction manual.
Breathing carbon monoxide can cause brain damage or
death. Always read and understand instruction manual
_' WARNING
Should you choose to apply an insulation blanket to this heater,
you should follow these instructions (See Figure 1 for
identification of components mentioned below). Failure to fellow
these instructions can restrict the air flew required for proper
combustion, potentially resulting in fire, asphyxiation, serious
personal injury or death.
Do not apply insulation to the top of the water heater, as this
will interfere with safe operation of the draft hood.
Do not cover the outer door, thermostat or temperature &
pressure relief valve.
Do not allow insulation to come within 2" (50.8 mm) of the
fleer to prevent blockage of combustion air flow to the burner.
Do not cover the instruction manual. Keep it on the side of
the water heater or nearby for future reference.
Do obtain new warning and instruction labels from Sears
for placement on the blanket directly over the existing labels.
Do inspect the insulation blanket frequently to make certain
it does net sag, thereby obstructing combustion air flow.
10
Combustion Air and Ventilation for
Appliances Located in Unconfined Spaces
UNCONFINED SPACE is space whose volume is not less than
50 cubic feet per 1,000 Btu per hour (4.8 ms per kW) of the
aggregate input rating of all appliances installed in that space.
Rooms communicating directly with the space in which the
appliances are installed, through openings net furnished with
doors, are considered a part of the unconfined space.
In unconfined spaces in buildings, infiltration may be adequate
to provide air for combustion, ventilation and dilution of flue
gases. However, in buildings of tight construction (for example,
weather stripping, heavily insulated, caulked, vapor barrier, etc.),
additional air may need to be provided using the methods
described in Combustion Air and Ventilation for Appliances
Located in Confined Spaces.

Combustion Air and Ventilation for •
Appliances Located in Confined Spaces
CONFINED SPACE is a space whose volume is less than
50 cubic feet per 1,000 Btu per hour (4.8 m3 per kW) of the
aggregate input rating of all appliances installed in that space•
A. ALL AIR FROM INSIDE BUILDINGS:
(See Figure 9 on page 10 and Figure 10 below)
The confined space shall be provided with two permanent
openings communicating directly with an additional room(s)
of sufficient volume so that the combined volume of all spaces
meets the criteria for an unconfined space. The total input of
all gas utilization equipment installed in the combined space
shall be considered in making this determination. Each
opening shall have a minimum free area of one square inch
per 1,000 Btu per hour (22 cm2/kW) of the total input rating of all
gas utilization equipment in the confined space, but not less
than 100 square inches (645 cm2). One opening shall
commence within 12 inches (30 cm) of the top and one
commencing within 12 inches (30 cm) of the bottom of the
enclosures.
NT
FURNACE WATER INGS
ER
FIGURE10.
B. ALL AIR FROM OUTDOORS: (See Figures 9, 11,12 and 13)
The confined space shall be provided with two permanent
openings, one commencing within 12 inches (30 cm) of the
top and one commencing within 12 inches (30 cm) from the
bottom of the enclosure. The openings shall communicate
directly, or by ducts, with the outdoors or spaces (crawl or attic)
that freely communicate with the outdoors.
CHIMNEY OR
GAS VENT VENTILATION LOUVERS
_" (EACH END OFATTIC)
When directly communicating with the outdoors, each opening
shall have a minimum free area of 1 square inch per 4,000 Btu
per hour (5.5 cm2/kW)of total input rating of all equipment in the
enclosure. See Figure 12.
When communicating with the outdoors through vertical
ducts, each opening shall have a minimum free area of
f square inch per 4,0go BTU per hour (5.5 cm2/kW) of total
input rating of all equipment in the enclosure. See
Figure 12.
VENTILATION LOUVERS
•(EACH END OF ATTIC)
FURNACE INLET AIR DUCT
(ENDS 1' OR 30 crn
ABOVE FLOOR)
RGURE12,
When communicating with the outdoors through horizontal
ducts, each opening shall have a minimum free area of 1
square inch per 2,000 BTU per hour (11 cm2/kW) of total
input rating of all equipment in the enclosure. See
Figure 13.
When ducts are used, they shall be of the same cross-
sectional area as the free area of the openings to which
they connect. The minimum short side dimension of
rectangular air ducts shall not be less than 3 inches
(76.2 mm). See Figure 13.
_II_WATER HEATER
IJJlFo
:,.
P I f
I_ OUTLET AIR DUCT
I_INLET AIR DUCT
RGURE13.
OUTLET AIR
'WATERHEATER
FURNACE
• INLET AIR DUCT
ALT. INLET AIR VENTILATION LOWERS
RGURE11.
11
Louvers and Grilles: In calculating free area, consideration
shall be given to the blocking effect of louvers, grilles or
screens protecting openings. Screens used shall not be
smaller than 1/4 inch (6.4 ram) mesh. If the free area through
a design of louver or grille is known, it should be used in
calculating the size opening required to provide the free
area specified. If the design and free area is not known, it
may be assumed that wood louvers will be 20-25 percent
free area and metal louvers and grilles will have 60-75
percent free area. Louvers and grilles shall be fixed in the
open position or interlocked with the equipment so that they
are opened automatically during equipment operation.

SpecialConditionsCreatedbyMechanicalExhaustingor
Fireplaces:operationofexhaustfans,ventilationsystems,
clothesdryersorfireplacesmaycreateconditionsrequiring
specialattentiontoavoidunsatisfactoryoperationofinstalled
gasutilizationequipment.
Water Piping
Water temperature over 125°F
(52°C) can cause severe burns
instantly resulting in severe injury
or death.
Children, elderly, and the
physically or mentally disabled
are at highest risk for scald injury.
Feel water before bathing or
showering.
Temperature limiting valves are
available.
Read instruction manual for safe
temperature setting
HOTTER WATER CAN SCALD:
Water heaters are intended to produce hot water. Water heated
to a temperature which will satisfy space heating, clothes
washing, dish washing, cleaning and other sanitizing needs
can scald and permanently injure you upon contact. Some
people are more likely to be permanently injured by hot water
than others. These include the elderly, children, the infirm, or
physically/mentally handicapped. If anyone using hot water in
your home fits into one of these groups or if there is a local
code or state law requiring a certain temperature water at the
hot water tap, then you must take special precautions. In
addition to using the lowest possible temperature setting that
satisfies your hot water needs, a means such as a *mixing
valve, shall be used at the hot water taps used by these people
or at the water heater. Mixing valves are available at plumbing
supply or hardware stores. See Figu re 14. Valves for reducing
point of use temperature by mixing cold and hot water are also
available. Follow manufacturer's instructions for installation
of the valves. Before changing the factory setting on the
thermostat, read the Temperature Regulation section in this
manual.
SOT WATER
OUTLET
=
*MIXIN
VALVE
COLD WATER
Jo. ,oc% ,,ER
WATER HEATER
HOT WATER
OUTLET ON
WATER HEATER
F_URE14.
Toxic Chemical Hazard
• Do notconnectto non-potablewater system.
This water heater shall not be connected to any heating systems
or component(s) used with a non-potable water heating
appliance.
All piping components connected to this unit for space heating
applications shall be suitable for use with potable water.
Toxic chemicals, such as those used for boiler treatment shall
not be introduced into this system.
Water supply systems may, because of such events as high
line pressure, frequent cut-offs or the effects of water hammer
among others, have installed devices such as pressure
reducing valves, check valves, back flow preventers, etc. to
control these types of problems. When these devices are not
equipped with an internal by-pass, and no other measures are
taken, the devices cause the water system to be closed. As
water is heated, it expands (thermal expansion) and closed
systems do not allow for the expansion of heated water.
The water within the water heater tank expands as it is heated
and increases the pressure of the water system. If the relieving
point of the water heater's temperature-pressure relief valve is
reached, the valve will relieve the excess pressure. The
temperature-pressure relief valve is not intended for the
constant relief of thermal expansion. This is an unacceptable
condition and must be corrected. It is recommended that any
devices installed which could create a closed system have a
by-pass and/or the system have an expansion tank to relieve
the pressure built by thermal expansion in the water system.
Refer to the Thermal Expansion section under Troubleshooting
Guide or contact local plumbing authority or local Sears Service
Center on how to control this situation.
NOTE: To protect against untimely corrosion of hot and cold
water fittings, it is strongly recommended that di-electric
unions or couplings be installed on this water heater when
connected to copper pipe.
Property Damage Hazard
• Avoid water heater damage.
• Install thermal expansion tank if necessary.
• Do not apply heat to cold water inlet.
• Contact qualified installer or Sears Service Center.
12
Figure 15 shows the typical attachment of the water piping to
the water heater. The water heater is equipped with 3/4" NPT
water connections.
NOTE: If using copper tubing, solder tubing to an adapter
before attaching the adapter to the cold water inlet
connection. Do not solder the cold water supply line directly
to the cold water inlet. It will harm the dip tube and damage
the tank.
• Look at the top cover of the water heater. The water outlet is
marked "HOT". Put two or three turns of teflon tape around
the threaded end of the threaded-to-sweat coupling and
around both ends of the 3/4" NPT threaded nipple. Using
flexible connectors, connect the hot water pipe to the hot
water outlet on the water heater.

Lookatthetopofthewaterheater.Thecoldwaterinletis
marked"COLD".Puttwoorthreeturnsofteflontapearound
thethreadedendofthethreaded-to-sweatcouplingand
aroundbothendsofthe3/4"NPTthreadednipple.Using
flexibleconnectors,connectthecoldwaterpipetothecold
waterinletofthewaterheater.
NOTE: This water heater is super insulated to minimize
heat loss from the tank. Further reduction in heat loss
can be accomplished by insulating the hot water lines
from the water heater.
INSTALLATION COMPLETED USING INSTALLATION KIT
FLEXIBLE
WATER
CONNECTORS
OUTLET INLET
TNREADEDT_G _ _ S THREADEDTo
SWEAT COUPLI WEAT COUPLING
3_"THREADED 3/4"THREADED
Fit T & P valve insulation over valve. Make sure that the insulation
does not interfere with the lever of the T & P valve.
Secure all insulation using tape.
Temperature-Pressure Relief Valve
/
Explosion Hazard
• Temperature-pressure relief valve
must comply with ANSI Z21.22
and ASME code.
• Properly sized temperature-
pressure relief valve must be
installed in opening provided.
• Can result in overheating and
excessive tank pressure.
• Can cause serious injury or death.
DRAFTHOOD
TEMPERATURE-
RELIEFVALVE
(Do not cap or plug)
FLOORDRAIN
FIGURE l&
T& P Valve and Pipe Insulation
Remove insulation for T & Pvalve and pipe connections from
carton.
PIPE
INSULATION FLUEPIPE
T&P )
RGURE 15A.
Fit pipe insulation over the incoming cold water line and the hot
water line. Make sure that the insulation is against the top
cover of the heater.
This heater is provided with a properly certified combination
temperature - pressure relief valve by the manufacturer.
The valve is certified by a nationally recognized testing
laboratory that maintains periodic inspection of production of
listed equipment of materials as meeting the requirements for
Relief Valves and Automatic Gas Shutoff Devices for Hot Water
Supply Systems, ANSI Z21.22 and the code requirements of
ASME.
13
Ifreplaced, the valve must meet the requirements of local codes,
but not less than a combination temperature and pressure
relief valve certified as indicated in the above paragraph.
The valve must be marked with a maximum set pressure not to
exceed the marked hydrostatic working pressure of the water
heater (150 psi = 1,035 kPa) and a discharge capacity not less
than the water heater input rate as shown on the model rating
plate.
For safe operation of the water heater, the relief valve must not
be removed from its designated opening nor plugged.
The temperature-pressure relief valve must be installed directly
into the fitting of the water heater designed for the relief valve.
Position the valve downward and provide tubing so that any
discharge will exit only within 6 inches (153 mm) above, or at
any distance below the structural floor, see Figure 16. Be certain
that no contact is made with any live electrical part. The
discharge opening must not be blocked or reduced in size
under any circumstances. Excessive length, over 30 feet
(9.14 m), or use of more than four elbows can cause restriction
and reduce the discharge capacity of the valve.
No valve or other obstruction is to be placed between the relief
valve and the tank. Do not connect tubing directly to discharge
drain unless a 6 inch air gap is provided. To prevent bodily
injury, hazard to life, or property damage, the relief valve must
be allowed to discharge water in quantities should
circumstances demand. If the discharge pipe is not connected
to a drain or other suitable means, the water flow may cause
property damage.

HOT WATER
OUTLET
DRAFT HOOD
ATEe
INLET
SHUTOFF
VALVE
(OPTIONA L TOP T&P RELIEF
VALVE NOT SHOWN)
DISCHARGE PIPE
(DO NOT CAP OR PLUG)
FIGURE16,
Water Damage Hazard
•Temperature-pressure relief valve discharge
pipe must terminate at adequate drain.
The Discharge Pipe:
• Shall not be smaller in size than the outlet pipe size of the
valve, or have any reducing couplings or other restrictions.
• Shall not be plugged or blocked.
• Shall be of material listed for hot water distribution.
• Shall be installed so as to allow complete drainage of both
the temperature-pressure relief valve, and the discharge
pipe.
• Shall terminate at an adequate drain.
• Shall not have any valve between the relief valve and tank.
Water temperature over 125°F
(52°C) can cause severe burns
instantly resulting in severe injury
ordeath.
Children, the elderly, and the
physically or mentally disabled
are at highest riskfor scald injury.
Feel water before bathing or
showering.
Temperature limiting valves are
available.
Read instruction manual for safe
temperature setting.
The temperature-pressure relief valve must be manually
operated at least once a year. Caution should be taken to
ensure that (1) no one is in front of or around the outlet of the
temperature-pressure relief valve discharge line, and (2) the
water manually discharged will not cause any bodily injury or
property damage because the water may be extremely hot.
Ifafter manually operating the valve, it fails to completely reset
and continues to release water, immediately close the cold
water inlet to the water heater, follow the draining instructions,
and replace the temperature-pressure relief valve with a new
one.
Filling the Water Heater
Property Damage Hazard
• Avoid water heater damage.
•Fili tank with water before operating.
14
Never use this water heater unless it is completely full of water.
To prevent damage to the tank, the tank must be filled with
water. Water must flow from the hot water faucet before turning
"ON" gas to the water heater.
To fill the water heater with water:
• Close the water heater drain valve by turning the handle to
the right (clockwise). The drain valve is on the lower front of
the water heater.
• Open the cold water supply valve to the water heater.
NOTE: The cold water supply valve must be left open when
the water heater is in use.
To insure complete filling of the tank, allow air to exit by
opening the nearest hot water faucet. Allow water to run
until a constant flow is obtained. This will let air out of the
water heater and the piping.
Check all water piping and connections for leaks. Repair
as needed.
Venting
VENT DAMPERS - Any vent damper, whether it is operated
thermally or otherwise must be removed if its use inhibits proper
drafting of the water heater.
Thermally Operated Vent Dampers: Gas-fired water heaters
having thermal efficiency in excess of 80% may produce a
relatively low flue gas temperature. Such temperatures may
not be high enough to properly open thermally operated vent
dampers. This would cause spillage of the flue gases and
may cause carbon monoxide poisoning.
Vent dampers must bear evidence of certification as complying
with the current edition of the American National Standard
ANSI Z21.68 (ANSI Z21.66 & 67, respectively, cover electrically

andmechanicallyactuatedventdampers).Beforeinstallation
ofanyventdamper,consultyourlocalSearsServiceCenteror
thelocalgassupplierforfurtherinformation.
Breathing Hazard - Carbon Monoxide Gas
• Vent dampers must be certified
inaccordance with ANSI Z21.6&
• Vent damper must permit proper
drafting of water heater.
• Install properly sized venting.
• Do not install without venting
outdoors.
• Do not install without drafthood.
• If common vented install in
accordance with NFPA 54.
• Be alert for obstructed or deterio-
rated vent system to avoid
serious injury or death.
Breathing carbon monoxide can cause brain damage or
death, Always read and understand instruction manual,
To insure proper venting of this gas-fired water heater, the
correct vent pipe diameter must be utilized. Any additions or
deletions of other gas appliances on a common vent with this
water heater may adversely affect the operation of the water
heater. Consult your gas supplier if any such changes are
planned.
For proper venting in certain installations, a larger diameter
vent pipe may be necessary. Consult your local Sears Service
Center or gas supplier to aid you in determining the proper
venting for your water heater from the vent tables in the current
edition of the National Fuel Gas Code ANSI Z223.1/NFPA 54.
Periodically check the venting system for signs of obstruction
or deterioration and replace if needed.
The combustion and ventilation air flow must not be obstructed.
e_T Nooe _ VENT4 $
'_ I SCRE_| DRAFTaOOe
,a LT. VENT TO OUTDOORS
DRAFT HOOD _ )R CHIMNEY
RGURE 17.
The vent pipe from the water heater must be no less than the
diameter of the draft hood outlet on the water heater and must
slope upward at least 1/4 inch per linear foot (21 mm per meter).
See Figure 18.
CHIMNEY
i m i
RGUREI&
All vent gases must be completely vented to the outdoors of the
structure (dwelling). Install only the draft hood provided with
the new water heater and no other draft hood.
Vent pipes must be secured at each joint with sheet metal
screws.
There must be a minimum of 6 inches (153 mm) clearance
between single wall vent pipe and any combustible material.
Fill and seal any clearance between single wall vent pipe and
combustible material with mortar mix, cement, or other
noncombustible substance. For other than single wall, fellow
vent pipe manufacturer's clearance specifications. To insure
a tight fit of the vent pipe in a brick chimney, seal around the
vent pipe with mortar mix cement.
The water heater with draft hood installed must be connected
to a chimney or listed vent pipe system, which terminates to
the outdoors. Never operate the water heater unless it isvented
to the outdoors and has adequate air supply to avoid risks of
improper operation, explosion or asphyxiation.
For proper draft hood attachment, the draft hood legs may
be angled slightly inward.
Place the draft hood legs in the receiving holes on the top of
the water heater. The legs will snap in the holes to give a
tight fit.
Place the vent pipe over the draft hood. With the vent pipe in
position, drill a small hole through both the vent pipe and
draft hood. Secure them together with a sheet metal screw.
See Figure 17.
Breathing Hazard - Carbon Monoxide Gas
• Flue gases may escape if vent
pipe is not connected.
• Do not store corrosive chemicals
in vicinity ofwater heater
• Chemical corrosion of flue and
vent system can cause serious
injury or death.
• Contact a qualified installer or
service agency.
Breathing carbon monoxide can cause brain damage
or death Always read and understand instruction manual.
Obstructed or deteriorated vent systems may present serious Failure to have required clearances between vent piping and
health risk or asphyxiation, combustible material will result in a fire hazard.
15

Besureventpipeisproperlyconnectedtopreventescapeof
dangerousfluegaseswhichcouldcausedeadlyasphyxiation.
Chemicalvaporcorrosionoftheflueandventsystemmay
occurif airforcombustioncontainscertainchemicalvapors.
Spraycanpropellants,cleaningsolvents,refrigeratorandair
conditionerrefrigerants,swimmingpoolchemicals,calcium
andsodiumchloride,waxes,bleachandprocesschemicals
aretypicalcompoundswhicharepotentiallycorrosive.
Gas Piping
Breathing Hazard - Carbon Monoxide Gas
•High altitude orifice must be installed
for operation above 3,300 ft. (1,006 m)
or 5,500 ft (1,676 m) for a high altitude
models.
• Contact a qualified installer or service
agency.
Breathing carbon monoxide can cause brain damage or
death. Always read and understand instruction manual.
Fire and Explosion Hazard
• Do not use water heater with
any gas other than the gas
shown onthe rating plate.
• Excessive pressure to gas
control valve can cause serious
injury or death.
• Turn off gas lines during
installation.
•Contact qualified installer or
service agency
Make sure the gas supplied is the same type listed on the
model rating plate. The inlet gas pressure must not exceed
14 inch water column (3.5kPa) for natural and propane gas
(L.P.) gas. The minimum inlet gas pressure listed on the rating
plate is for the purpose of input adjustment. If the gas control
valve is subjected to pressures exceeding 1/2 pound per square
inch (3.5kPa), the damage to the gas control valve could result
in a fire or explosion from leaking gas.
If the main gas line shutoff serving all gas appliances is used,
also turn "OFF" the gas at each appliance. Leave all gas
appliances shut "OFF" until the water heater installation is
complete.
A gas line of sufficient size must be run to the water heater.
Consult the current edition of National Fuel Gas Code ANSI
Z223.1/NFPA 54 and your gas supplier concerning pipe size.
Ifa standard model is installed above 3,300 feet (1,006 m) or a
high altitude model is installed above 5,500 feet (1,676 m) the
input rating should be reduced at the rate of 4 percent for each
1,000 feet (305 m ) above sea level which requires replacement
of the burner odfice in accordance with National Fuel Gas Code
ANSI Z223.1/NFPA 54. Contact your local Sears Service Center
or local gas supplier for further information.
Failure to replace the standard orifice with a high altitude orifice
when installed at elevations above 3,300 feet (1,006 m) or
above 5,500 feet (1,676 m) for high altitude model) could result
in improper and inefficient operation of the appliance, producing
carbon monoxide gas in excess of safe limits, which could
result in serious injury or death. Contact your local Sears Service
Center or local gas supplier for any specific changes which
may be required in your area.
Fire and Explosion Hazard
•Use joint compound or tape
compatible with propane
• Leak test before operating
heater
• Disconnect gas piping and
shut-off valve before pressure
testing system.
There must be:
• A readily accessible manual shut off valve in the gas supply
line serving the water heater, and
• A ddp leg (sediment trap) ahead of the gas control valve to
help prevent dirt and foreign materials from entering the
gas control valve.
• A flexible gas connector or a ground joint union between the
shut off valve and control valve to permit servicing of the unit.
Be sure to check all the gas piping for leaks before lighting the
water heater. Use a soapy water solution, not a match or open
flame. Rinse off soapy solution and wipe dry.
The minimum inlet gas pressure shown on the rating plate is
that which will permit firing at the rated input. 16
Use pipe joint compound or teflon tape marked as being
resistant to the action of petroleum (Propane [L.P.]) gases.
The appliance and its gas connection must be leak tested
before placing the appliance in operation.
The appliance and its individual shutoff valve shall be
disconnected from the gas supply piping system during any
pressure testing of that system at test pressures in excess of
1/2 pound per square inch (3.5kPa). It shall be isolated from
the gas supply piping system by closing its individual manual
shutoff valve during any pressure testing of the gas supply
piping system at test pressures equal to or less than 1/2 pound
per square inch (3.5kPa).
Connecting the gas piping to the gas control valve of the water
heater can be accomplished by either of the two methods
shown in Figures 19 and 20.

Sediment Traps
Contaminants in gas lines can
cause fire or explosion.
• Clean all gas piping before
installation.
• Install drip leg in accordance
, _ , with NFPA 54.
UNION GAS CONTROL
(OPTIONAL) VALVE
(
T
3" MIN. TJI (SEDIMENT TRAP)
CAP
Contaminants in the gas lines may cause improper operation
of the gas control valve that may result in fire or explosion.
Before attaching the gas line be sure that all gas pipe is clean
on the inside. To trap any dirt or foreign material in the gas
supply line, a drip leg (sometimes called a sediment trap)
must be incorporated in the piping. The drip leg must be readily
accessible. Install in accordance with the Gas Piping section.
Refer to the current edition of the National Fuel Gas Code,
ANSI Z223.1/NFPA 54.
A sediment trap shall be installed as close to the inlet of the
water heater as practical at the time of water heater installation.
The sediment trap shall be either a tee fitting with a capped
nipple in the bottom outlet or other device recognized as an
effective sediment trap. Ifa tee fitting is used, it shall be installed
in conformance with one of the methods of installation, shown
in Figures 19 and 20.
FIGURE 19. GAS PIPING WITH FLEXIBLE CONNECTOR.
UNION BLACK PIPE
(OPTIONAL)
GAS
CONTROL
VALVE
CAP
FIGURE 20. GAS PIPING WITH ALL
BLACK IRON PIPE TO GAS CONTROL,
17

Lighting label as it appears above the thermostat on the water heater
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: If you do net fellew these instructions exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
A. This appliance hasa pilotwhich must be lightedbyhand
When lighting the pilot,follow these instructions exactly. •If you cannot reach your gas supplier, call the fire department.
B. BEFORE LIGHTING smell all around the appliance area
for gas. Be sure to smell next to the floor because some
gas is heavier than air and will settle on the floor.
WHATTO DOIF YOU SMELL GAS:
Do nottry to lightany appliance
Do not touch any electric switch; do not use any phone
in your building.
Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
C.
E_
Use only your hand to push in or turn the gas control
knob. Never use tools. If the knob will not push in or turn
by hand, don't try to repair it, call a qualified service
technician. Force or attempted repair may result in a fire
or explosion.
Do not use this appliance if any part has been under
water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the
control system and any gas control which has been
underwater
LIGHTING INSTRUCTIONS
1. _'t_ STOP! Readthesafetyinformation
above on this label.
2. Remove outer door.
3. Set the thermostat to lowest setting by turning the water
temperature dial clockwise (('_) to its lowest temperature
setting (with arrow on dial) as shown.
4_
5.
6
7
8_
Turn gas control knob clockwise ((_) to "OFF" position.
Knobcannot beturned from "PILOT"to"OFF" unlessknob
isdepressed slightly.DO NOTFORCE.
Wait five (5) minutes to clear out any gas. If you then
smell gas, (_ STOP! Follow "B" in the safety information
above on this label Ifyou don't smell gas, go tonext step.
Remove (or open) inner THERMOCOUPLE
door located below gas
control unit
Find pilot -follow metal tube
from gas control. The pilot
is located in front of the
burner.
if you don't smell gas, turn knob on gas control counter
clockwise (_("N) to "PILOT" position.
9. Pushthe controlknoballthe way andholddown Immediately
lightthe pilotwith a match. Continue to hold control knob in
for about (1) minute after the pilotis lit. Release knoband it
willpop back up. Pilotshould remainlit. If itgoesout, repeat
Steps 3through 8.
If knob does not pop up when released, stop and
immediately call your service technician or gas
supplier.
Ifthe pilot will not stay lit after several tries, depress
and turn the gas control knob clockwise (('_) to
"OFF"and call your service technicianor gas supplier.
10. Replace (or close) innerdoor. Replace outer door if door
does not cover gas control on/off knob or temperature
adjustment knob.
11. At arms length away, turn gas control knob
counterclockwise ((%) tothe full "ON" position.
WARNING: Do net use gas control knob to regulate
gas flow.
12. Atarms length away, setthe thermostat to desired setting.
The mark (• ) indicative ofapproximate 120°Fis preferred
starting point. If hotter water is desired, see instruction
manual and "warning" below.
13. Reptace the outer door if not replaced in Step 10.
Hotter water increases the risk of scald
injury. Before changing temperature setting
see instruction manual.
TO TURN OFF GAS TO APPLIANCE
Set the thermostat to lowest setting by turning the water
temperature dial clockwise (('_) to its lowest
temperature setting (with arrow on dial) as shown.
Turn gascontrol knob clockwise ((_) to"OFF" position.
Knob cannot beturned from "PILOT" to "OFF" unless
knobisdepressed slightly.DO NOT FORCE.
3. Replace outer door (if removed).
18

Temperature Regulation
Short repeated heating cycles caused by small hot water uses
can cause temperatures at the point of use to exceed the
thermostat setting by up to 30°F (16.70C). If you experience this
type of use you should consider using lower temperature
settings to reduce scald hazards.
Any water heater's intended purpose is to heat water. Hot
water is needed for cleansing, cleaning, and sanitizing (bodies,
dishes, clothing). Untempered hot water can present a scald
hazard. Depending on the time element, and the people
involved (adults, children, elderly, infirm, etc.) scalding may occur
at different temperatures.
Water temperature over 125°F
(52°C) can cause severe burns
instantly resulting in severe injury
or death.
Children, the elderly, and the
physically or mentally disabled
are at highest risk for scald injury,
Feel water before bathing or
showering.
Temperature limiting valves are
available.
Read instruction manual for safe
temperature setting.
HOTTER WATER CAN SCALD: Water heaters are intended to
produce hot water. Water heated to a temperature which will
satisfy space heating, clothes washing, dish washing, and
other sanitizing needs can scald and permanently injure you
upon contact. Some people are more likely to be permanently
injured by hot water than others. These include the elderly,
children, the infirm, or physically/mentally handicapped. If
anyone using hot water in your home fits into one of these
groups or if there is a local code or state law requiring a certain
temperature water at the hot water tap, then you must take
special precautions. In addition to using the lowest possible
temperature setting that satisfies your hot water needs, a
means such as a mixing valve, shall be used at the hot water
taps used by these people or at the water heater. Mixing valves
are available at plumbing supply or hardware stores. Follow
manufacturer's instructions for installation of the valves. Before
changing the factory setting on the thermostat, read the
Temperature Regulation section in this manual. See Figures
21 and 22.
Never allow small children to use a hot water tap, or to draw
their own bath water. Never leave a child or handicapped person
unattended in a bathtub or shower.
NOTE: A water temperature range of 120°F-140°F (49°C-60°C)
is recommended by most dishwasher manufacturers.
The thermostat of this water heater has been factory set at its
lowest position (PILOT LIGHTING). It is adjustable and must
be reset to the desired temperature setting to reduce the risk of
scald injury. The mark (A) indicative of approximately 120°F
(490C) is preferred starting point. Some states have a
requirement for a lower setting.
Turn the water temperature dial clockwise ( _ ) to decrease
the temperature, or counterclockwise (('_) to increase the
temperature.
Should overheating occur or the gas supply fail to shut off, turn
off the manual gas control valve to the appliance.
_GASCONTROL KNOB
(_) Q THERMOSTAT
DIAL
RGURE21,
VERY HOT=approx. 160°F(71°C)
C = approx. 150°F (66°C)
B = approx. 140°F (60°C)
A = approx. 130°F (54°C)
• = approx. 120°F (49°C)
LOW = approx. 80°F (27°C)
About 1/2 second
About 1-1/2 seconds
Less than 5 seconds
About 30 seconds
More than 5 minutes
RGURE22,
19

Tank (Sediment) Cleaning Burner Inspection
Sediment build-up on the tank bottom may create varying
amount of noise, and if left in the tank will cause permanent
tank failure. In some water areas, you may not be able to drain
all sediment deposits by simply draining the tank. In these
cases Mag-Erad (part no. 23600) can be used to help remove
the sediment deposits. This may be ordered from the Sears
Service Center. For ordering, refer to the Parts Order List
section.
Vent System Inspection
Carbon Monoxide and Fire Hazard
• Flue gases may escape if vent pipe
is not connected.
• Be alert for obstructed, sooted or
deteriorated vent system to avoid
serious injury or death,
• Do not store corrosive chemicals
in vicinity of water heater,
• Chemical corrosion of flue and vent
system can cause serious injury or
death
Breathing carbon monoxide can cause brain damage or
death. A_vays read and understand instruction manual
At least once a year a visual inspection should be made of the
venting system. You should look for:
• Obstructions which could cause improper venting. The
combustion and ventilation air flow must not be obstructed.
Damage or deterioration which could cause improper
venting or leakage of combustion products.
Rusted flakes around top of water heater.
Be sure the vent piping is properly connected to prevent escape
of dangerous flue gasses which could cause deadly
asphyxiation.
Obstructions and deteriorated vent systems may present
serious health risk or asphyxiation.
Chemical vapor corrosion of the flue and vent system may
occur if air for combustion contains certain chemical vapors.
Spray can propellants, cleaning solvents, refrigerator and air
conditioner refrigerants, swimming pool chemicals, calcium
and sodium chloride, waxes, bleach and process chemicals
are typical compounds which are potentially corrosive.
If when inspecting the vent system you find sooting or
deterioration, something is wrong. Call the local gas supplier
to correct the problem and clean or replace the flue and venting
before resuming operation of the water heater.
Flood damage to a water heater may not be readily visible or
immediately detectable. However, over a period of time a
flooded water heater will create dangerous conditions which
can cause DEATH, SERIOUS BODILY INJURY, OR PROPERTY
DAMAGE. Contact a Sears Service Center to replace aflooded
water heater. Do not attempt to repair the unit! It must be
replaced!
At least once a year a visual inspection should be made of the
main bumer and pilot burner. See Figure 23.
You should check for sooting. Soot is not normal and will
impair proper combustion.
Soot build-up indicates aproblem that requires correction
before further use. Turn "OFF" gas to water heater and
leave off until repairs are made, because failure to correct the
cause of the sooting can result in a fire causing death, serious
injury, or property damage.
RGURE23.
Burner Cleaning
In the event your burner needs cleaning, following these
instructions:
If inspection of the burner shows that cleaning is required, tum
the gas control knob clockwise ( _ ) to the "OFF" position,
depressing slightly.
NOTE: The knob cannot be turned from "PILOT" to "OFF"
unless knob is depressed slightly. DO NOT FORCE.
Loose deposits on or around the bumer can be removed by
carefully using the hose of a vacuum cleaner inserted through
the access door of the water heater. If the burner needs to be
removed for additional cleaning, call the Sears Service Center
to remove and clean the burner and correct the problem that
required the burner to be cleaned.
2O
Housekeeping
Vacuum around base of water heater for dust, dirt, and lint on a
regular basis.
INSTALLED IN SUITABLE AREA: To insure sufficient ventilation
and combustion air supply, proper clearances from the water
heater must be maintained. See Facts to Consider About the
Location section. Combustible materials such as clothing,
cleaning materials, or flammable liquids, etc. must not be
placed against or adjacent to the water heater because they
could catch on fire.
