Kensence S-Mix-Pro 80*80 User manual

S-Mix-Pro 9*9/18*18/40*40/80*80
Professional Modular Matrix Switcher
Operation manual
Shenzhen Avctime Technology Co.,Ltd
Version：V1.01.01
2015-12

Contents
S-Mix-Pro 9*9/18*18/40*40/80*80.................................................................................................1
1.Introduction.....................................................................................................................................4
2. Product Features..........................................................................................................................4
3. Connection and operation.......................................................................................................... 5
4. Standard configuration................................................................................................................6
5.Specification...................................................................................................................................7
6.Description of operation and function........................................................................................9
6.1 Description of front panel................................................................................................. 9
6.2 Touch screen control instructions..................................................................................11
6.3 PC control software operation instructions................................................................. 16
6.4 Video switching operation.............................................................................................. 18
6.5 Operation of control, resolution, name change etc. of input / output cards.......... 19
6.6 Scene save operation.....................................................................................................20
6.7 Scene load........................................................................................................................21
6.8 External serial port command sending........................................................................ 22
7.Communication protocol and control instruction code......................................................... 23
Examples of some codes......................................................................................................23
8.Version and manufacture information..................................................................................... 24

3
To protect the device and operating personnel from electrostatic discharge, you need to
check and ensure that the device is grounding good before the device is powered on.
Please observe the following when you install, use, maintain this equipment.
Make sure the device ground connection.
Please use single-phase three wire system AC 220V power supply, and ensure all
transmission system is grounding good.
To protect operating personnel and the device ，please turn off all power supplies and
pull the plug before moving the device or doing some specific works witch need to be
done when the electricity is turned off . Please turn off the main power switch on rainy
days or when not in use for a long time.
Please do not put anything upon the cables, or tread the cables .
To avoid damaging the device , please turn off power supply before plugging cable into
the device or pulling cable from device. The damage caused by plugging/ pulling cables
without turning off power supply is outside the scope of the warranty.
The power of the device gives out heat when it works, so it’s necessary to keep the
work environment ventilated to protect the device from the damage caused by
overtemperature.
Do not place the device in very cold or very hot places. Do not sprinkle any corrosive
chemicals or liquid on or around the device.
To avoid accident or any further damage ,non-professionals please do not dismantle or
maintain the device without permission.
Do not sprinkle any corrosive chemicals or liquid on or around the device.
Safety Reminder

4
1.Introduction
S-Mix-Pro series is a kind of professional enhanced HD modular matrix. The plug-in
design can realize the flexible configuration of various signal. Supports common video
signal input, such as HDMI, DVI, VGA, YPBPR, DP, CVBS, 3G/HD/SD-SDI, IP streaming
media, etc., supports powerful audio embedding and demultiplexing function. This series
matrix integrated control signal (RS232/IP) transmission and control functions, support
system state input/output signal intelligent monitoring, intelligent signal automatic backup,
dual control backup, dual power backup.
2.Product Features
Modular structure design--single and dual card design is flexible for configuration of
signal type for input and output channels
support CVBS, YPbPr, VGA, HDMI, DVI, audio, 3GSDI, HDBaseT, fiber signal and
H.323, SIP protocol, seamless connect to Distributed Network Matrix System, IP
surveillance system;
Each card support RS-232 control through transmitting signal, which can realize the
centralized control of the peripheral equipment;
support fast seamless switching technology
Support intelligent EDID switching technology and HDCP management
Every channel support color, brightness, resolution, scaling and other image
adjustment
Support Deep Color 48/36/30/24-bit，YUV4:2:2/4:4:4
Each output channel can fix output by 16 kinds of common resolutions;
Supports TCP, UDP, IP, HTTP, NTP, RTP, IGMP, RTSP, RTCP network protocol;
Support H.264 Baseline, Main High, support Profile encoding, advanced video
preprocessing algorithm MBAFF
Supports fiber transmission technology, the maximum transmission distance is 80
kilometers
Support intelligent video port backup;
Support POC function (HDBaseT);
Support equipment temperature monitoring, video port state monitoring;
Support software testing and adjusting function of input / output port ;
Support touch screen control and double RS-232, double TCP/IP control;
The front panel 7 inch high-definition color touch screen can show real-time state
feedback;
Adopt the design of double power supply, support 7*24 hours of uninterrupted
operation;

5
3.Connection and operation
Note: do not operate on the matrix within 2 minutes of the start of the matrix!!!
1.Connect signal source such as blu-ray player、game controller、A/V receiver、cables、
satellite receiver etc. to the HDMI input port of the matrix.
2.Connect the output port of the matrix to HD display or HD projector with HDMI input
port.Notice:It’s better to use High-Speed HDMI Cable when the transmission distance is
too long.
3.Firstly power on the signal source，then the matrix(with power supply)，finally devices
connected to the output port .
4.Plug in power to each device in the same order .
5.If all devices are connected properly,every display device should display the specified
signal to make sure the devices are normal.If one of the displays failed to receive signal
correctly,enter the menu of display,adjust the resolution from MIN to MAX until the signal
is displayed normally.A 24 Hz vertical refresh rate may work better than 60 Hz or higher.
The following diagram is S-Mix-Pro matrix switching system application:

6
4.Standard configuration
Please check the outer package before using this product. Please contact us
if the product is faulted or not intact. We will sincerely serve you according to
relevant provisions.
NO.
Name
Quantity
Unit
1
S-Mix-Pro Matrix Host
1
pcs
2
Dryer 50g
1
pcs
3
AC power adapter
2
pcs
4
Certification
1
pcs
5
Warranty card
1
pcs
6
User manual
1
pcs

7
5.Specification
Model
S-Mix-Pro 9x9
S-Mix-Pro 18x18
S-Mix-Pro 40x40
S-Mix-Pro 80x80
Description
9 ways enhanced
HD modular matrix
18 ways enhanced
HD modular matrix
40 ways enhanced
HD modular matrix
80 ways enhanced
HD modular matrix
Input/Output
9/9
18/18
40/20
80/40
Input / output
mode
Support CVBS、YPbPr、VGA、HDMI、DVI、AUDIO、3GSDI、HDBaseT、Fiber、IPstreaming
media
Bandwidth
10.2 Gbps
Serial control
protocol
RS-232 (Baud rate: 115200 data bits: 8 stop bit:1: no parity)
Serial port
connector
9 pin D-sub(DE9F) jack 3=TX 2=RX 5=GND
Network
control
protocol
TCP/IP
Network
connector
RJ45 connector 10/100Base-T Ethernet
Color Space
Supports RGB444, YUV444, YUV422 color space, supports x.v.Color extended gamut
standard
Transmission
Distance
HDBaseT technology transmitting 70M-100M (CATS6), H.264 technology transmitting
more than 160 meters (CATS6), 2-80 km (single core single mode fiber); 30 meters (digital
cable)
Electrostatic
protection
Human body discharge mode: 8kV (air gap discharge) + 4kV (contact discharge)
Input voltage
100VAC~260VAC,50/60 Hz

8
Operating
temperature
0ºC~40ºC
Storage
Temperature
−20ºC~60ºC

9
6.Description of operation and function
6.1 Description of front panel

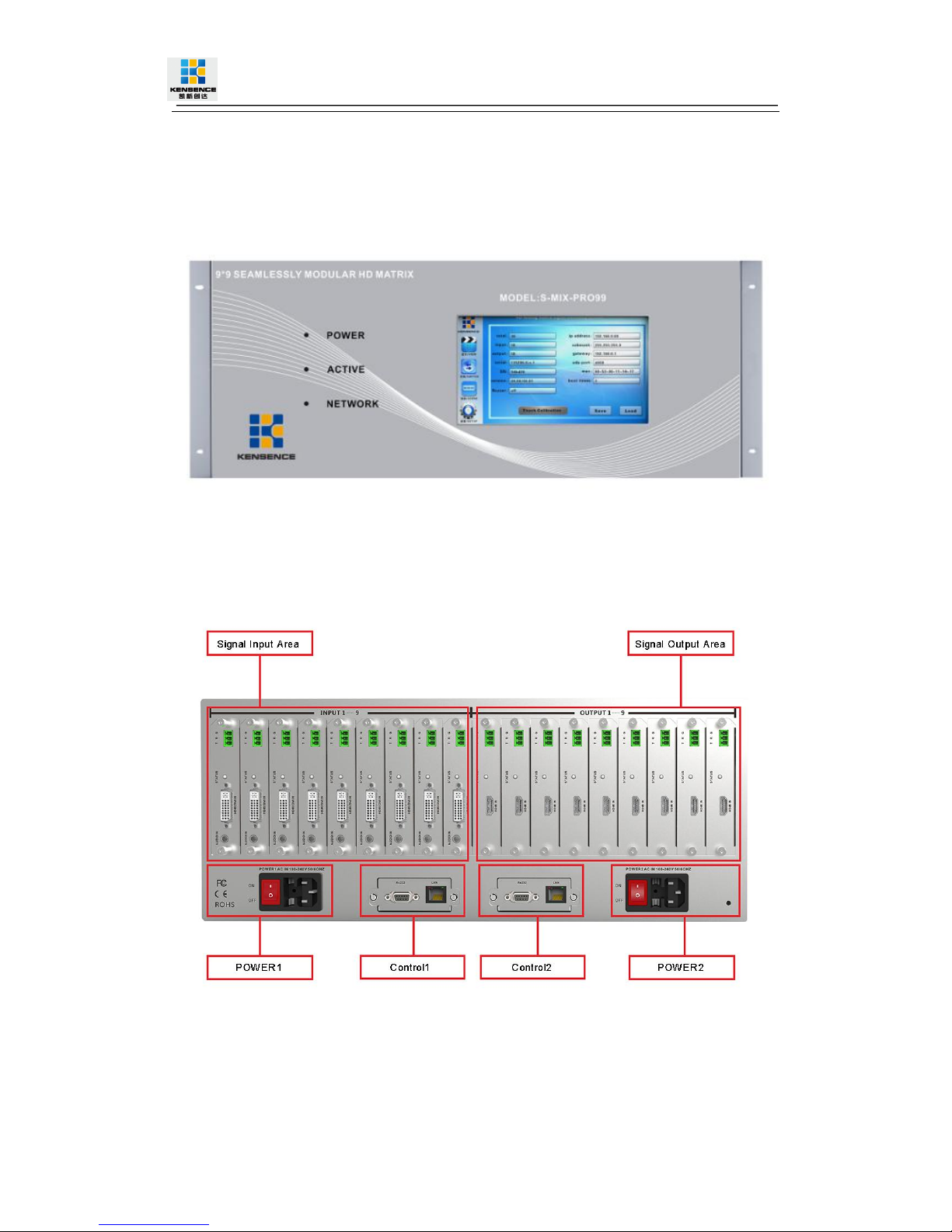

Figure 6.1.1 S-MIX-PRO99 front panel
Figure 6.1.2 S-MIX-PRO-99 rear panel

10
Figure 6.1.3 S-MIX-PRO-1818 front panel
Figure 6.1.4 S-MIX-PRO-1818 rear panel

11
6.2 Touch screen control instructions
S-MIX-PRO series matrix can control the matrix through the front panel HD touch
screen, which contains four operating interface,that is VIEW , SWITCH, SCENE, SETUP .

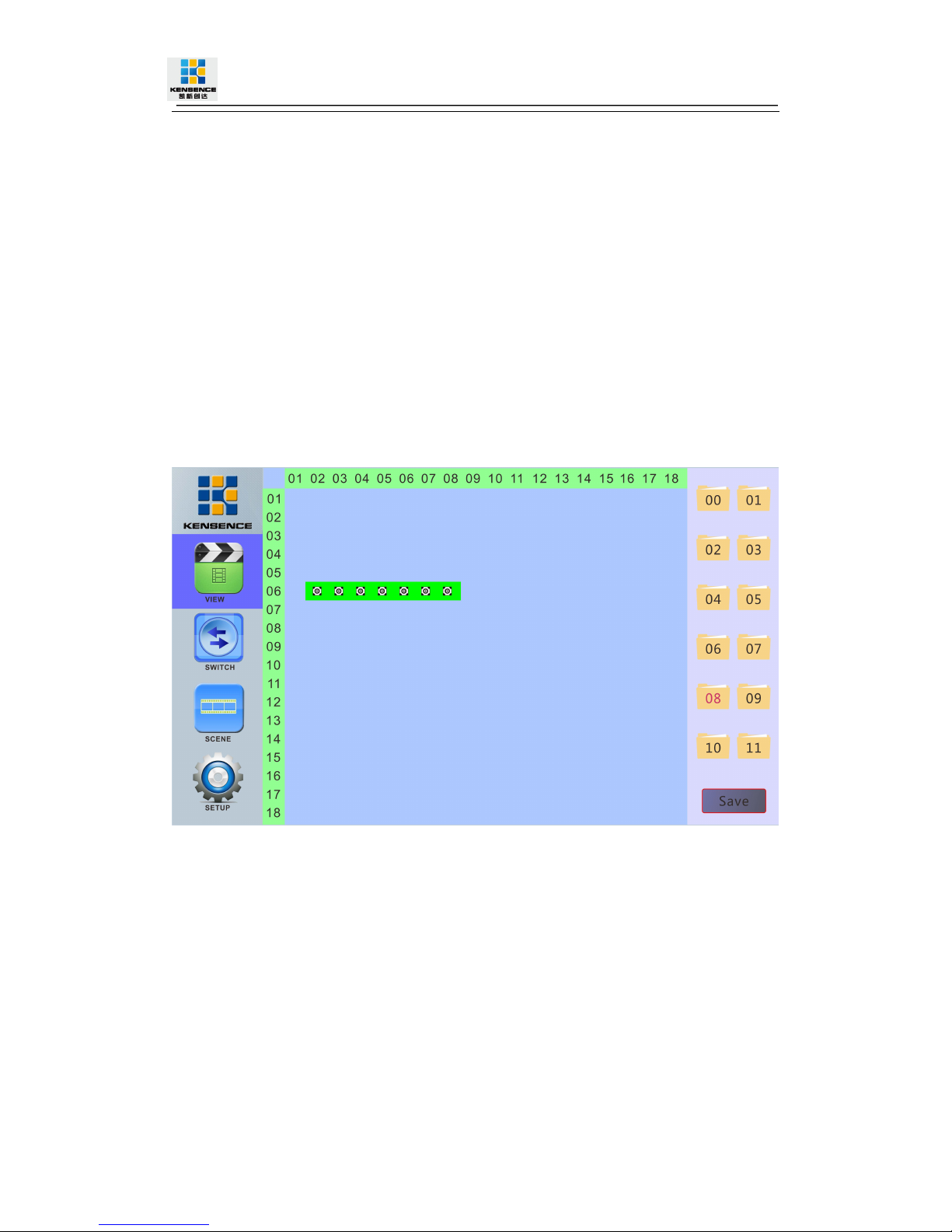

1.VIEW interface: as shown in Figure 6.2.1,this interface can show current input and
output status of the matrix, the figure 6.2.1 says the current sixth input signal switching to
output signal 02, 03, 04, 06, 07, 08, while the current input and output can be saved in the
right side of the interface, it has 13 scenarios from 01 to 13 for users, select any number
from 01 to 13 , click "SAVE" to save the scene (00 is the current real-time state of matrix ,
not optional).
Figure 6.2.1 VIEW interface

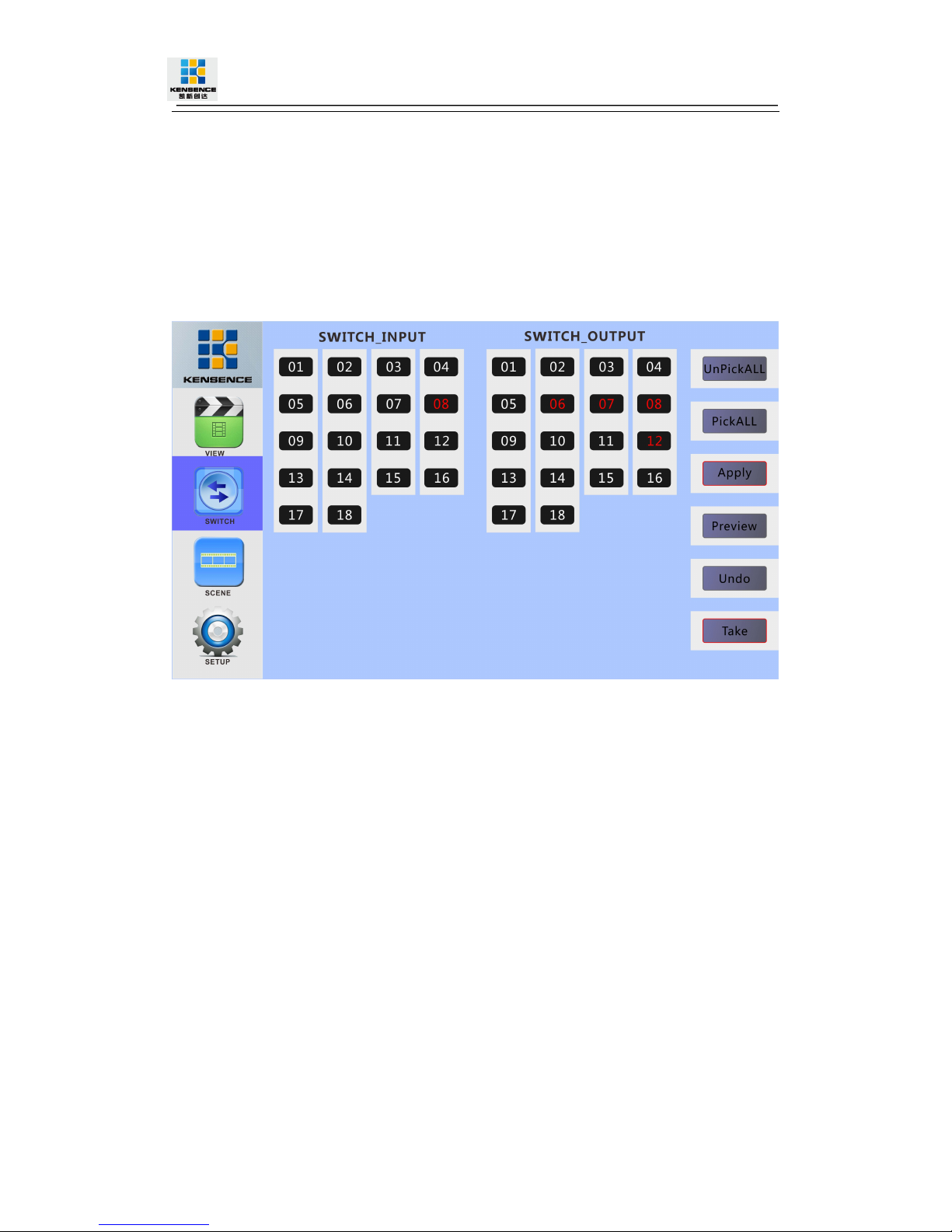

2.SWITCH interface：As shown in Figure 6.2.2. this interface mainly to switch video
signals, figures below SWITCH-INPUT is the input signal selection area,
SWITCH-OUTPUT is digital signal output selection region, the button on right side from
top to bottom respectively is UnPickALL (choose all options), PickALL (cancel all options),
Apply, Preview, Undo, Take, the specific switching steps are as follows:
First select the input signal, as shown in Figure 6.2.2 select the input signal "08",
after selection the number is red, the input can only choose one, the output signal can be

12
selected more, as shown in Figure 6.2.2 it selected "06, 07, 08, 12"output signal, and then
click "Apply ", and then click "Take" to complete the switch. As mentioned above, the "08"
input signal can be switched to 08, 06,, 08, 12,, output signal.
When operation, click "UnPickALL (choose all options)", you can select all the
output ports, click "PickALL (cancel all options), click" Preview "the current state of input
and output, click" Undo "to undo the application.
Figure 6.2.2 SWITCH interface

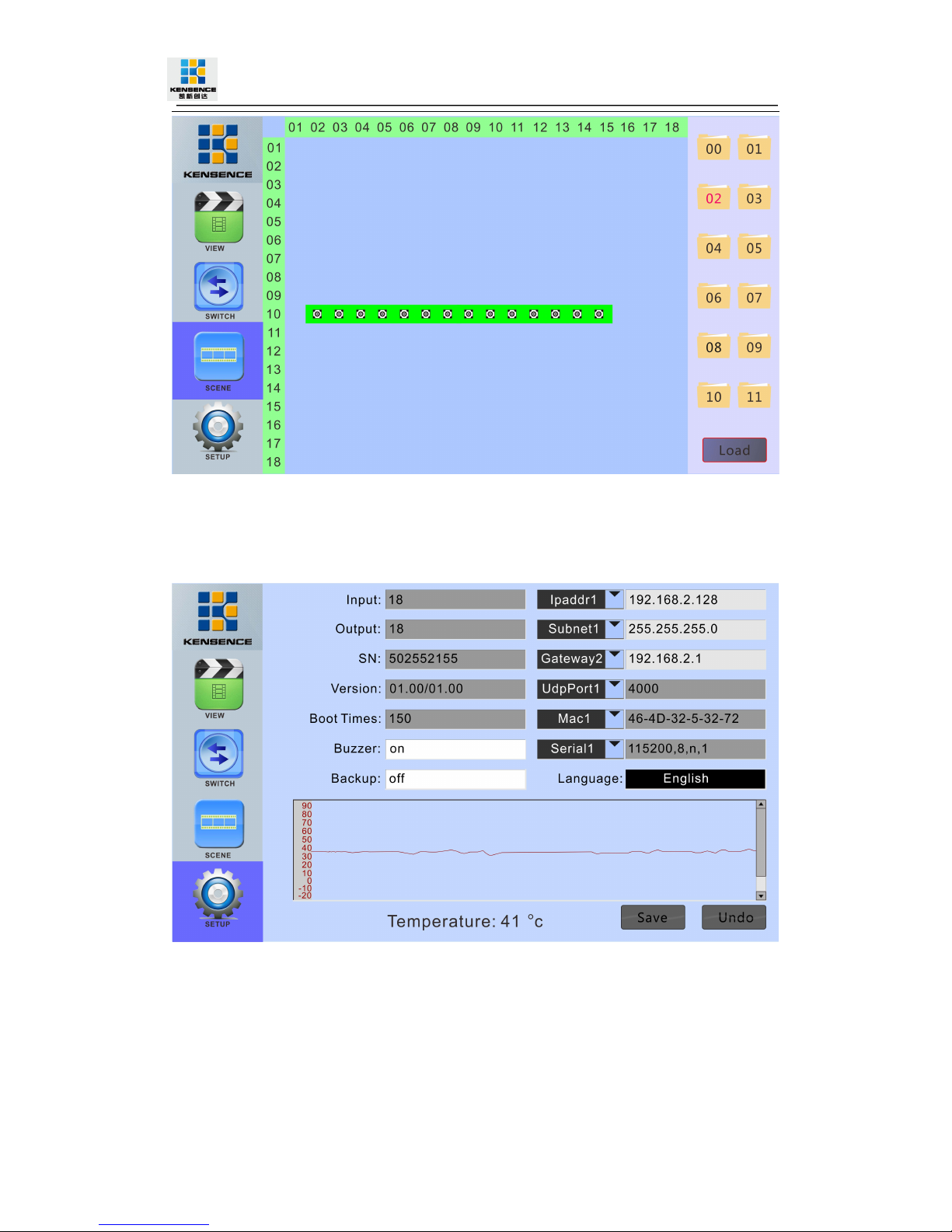

3.SCENE interface：As shown in figure 6.2.3, the interface can call all the scene saved
before, select the 01~13 to call the scene, after selection, the screen will display the
configuration of the current scene, click "Load" to call the selected scene (00 is the current
input and output status of matrix, can not be selected), as shown below in the "Scene 2",
click "Load" to call.

13
Figure 6.2.3 SCENE interface

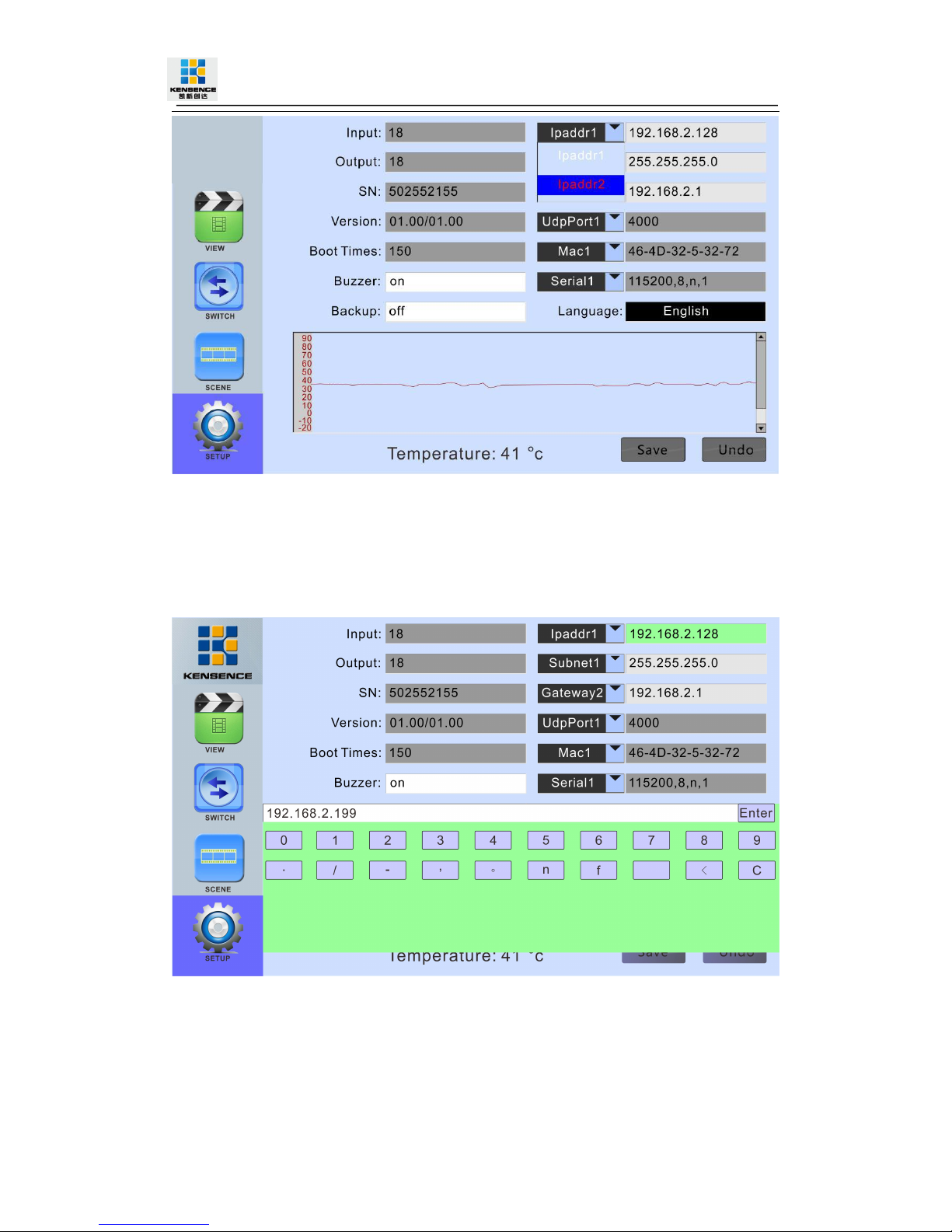

4.SETUP interface:As shown in figure 6.2.4: this interface can set up buzzer on or off,
video backup switch, IP address change, Chinese and English interface switching, etc.
Figure 6.2.4 SETUP interface
Buzzer switch: click the white box next to the "Buzzer" , pop-up digital keyboard, enter
the on/off, click "ENTER" and then "Save", you can close or open the buzzer, as shown
below:

14
Figure 6.2.4.1 Turn on / off the buzzer
Video backup switch:the operation is similar with buzzer switch, click the white box next
to the "Backup" , pop-up digital keyboard, enter the on/off, click "ENTER" and then click
"Save" to save.
Video backup function: backup function exists in the input signal 1 with 2, 3 and 4 , the
input signal 2 and 4 is the backup signal.
LAN port selection: matrix provides two LAN ports to control the matrix , click left arrow
on"IPaddr1", you can choose "IPaddr1" or "IPaddr2" to control the matrix, after selection
click "Save" to save, as shown in figure 6.2.4.2

15
Figure 6.2.4.2 LAN port selection interface
IP address change: click the white box on the right side of "IPaddr1" , pop-up digital
keyboard, you can change the IP address, after the completion of the change, click
"ENTER" and then click "Save" to save, as shown in figure 6.2.4.3
Figure 6.2.4.3: IP change

16
6.3 PC control software operation instructions
MIX- control software is a green software, do not need to install, double-click the main
program to use. Through RS232 serial line or cable to connect to matrix and computer,
through the MIX control software to control the matrix.

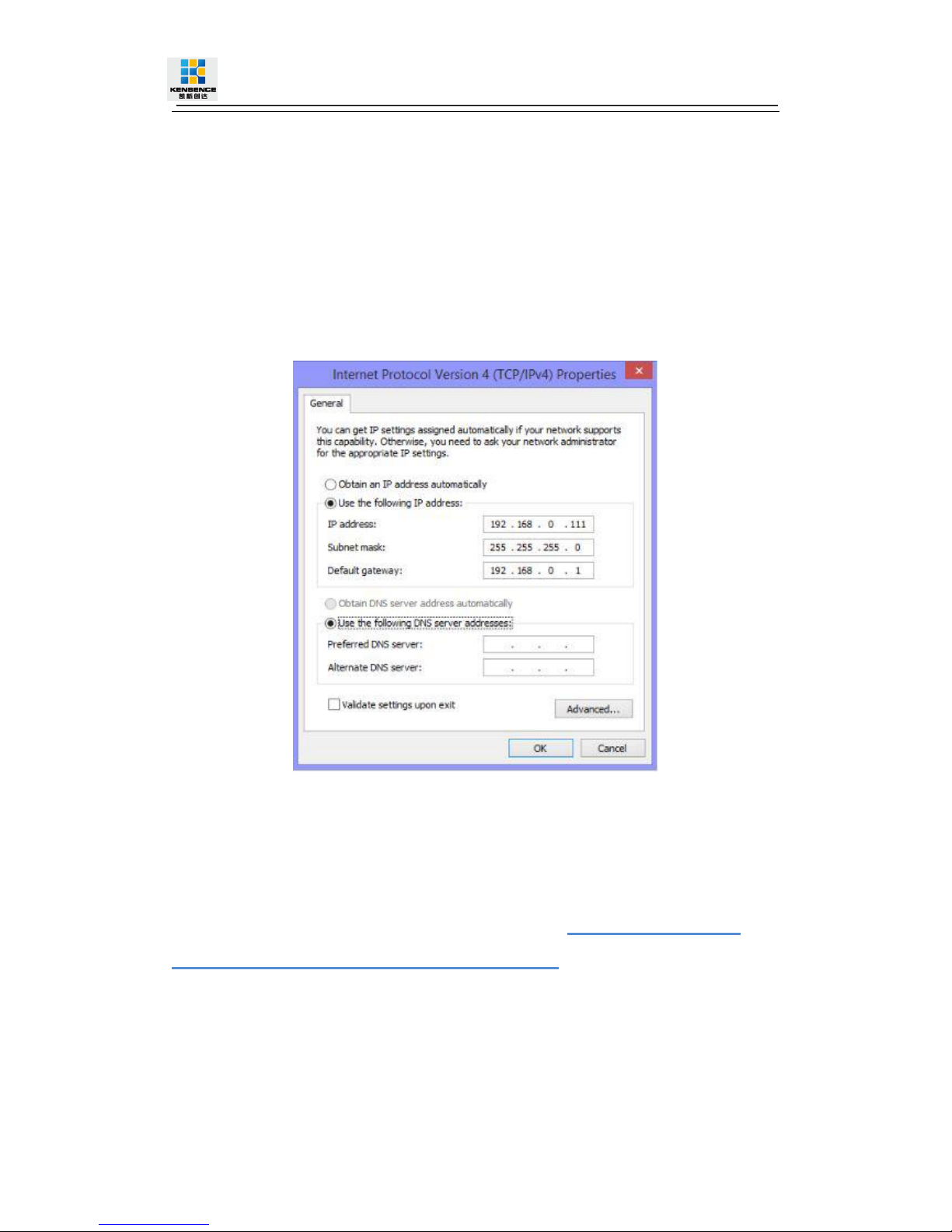

Note: please set the computer's IP and matrix's IP in the same segment. As follows:
Figure 6.3.0 Computer IP changes

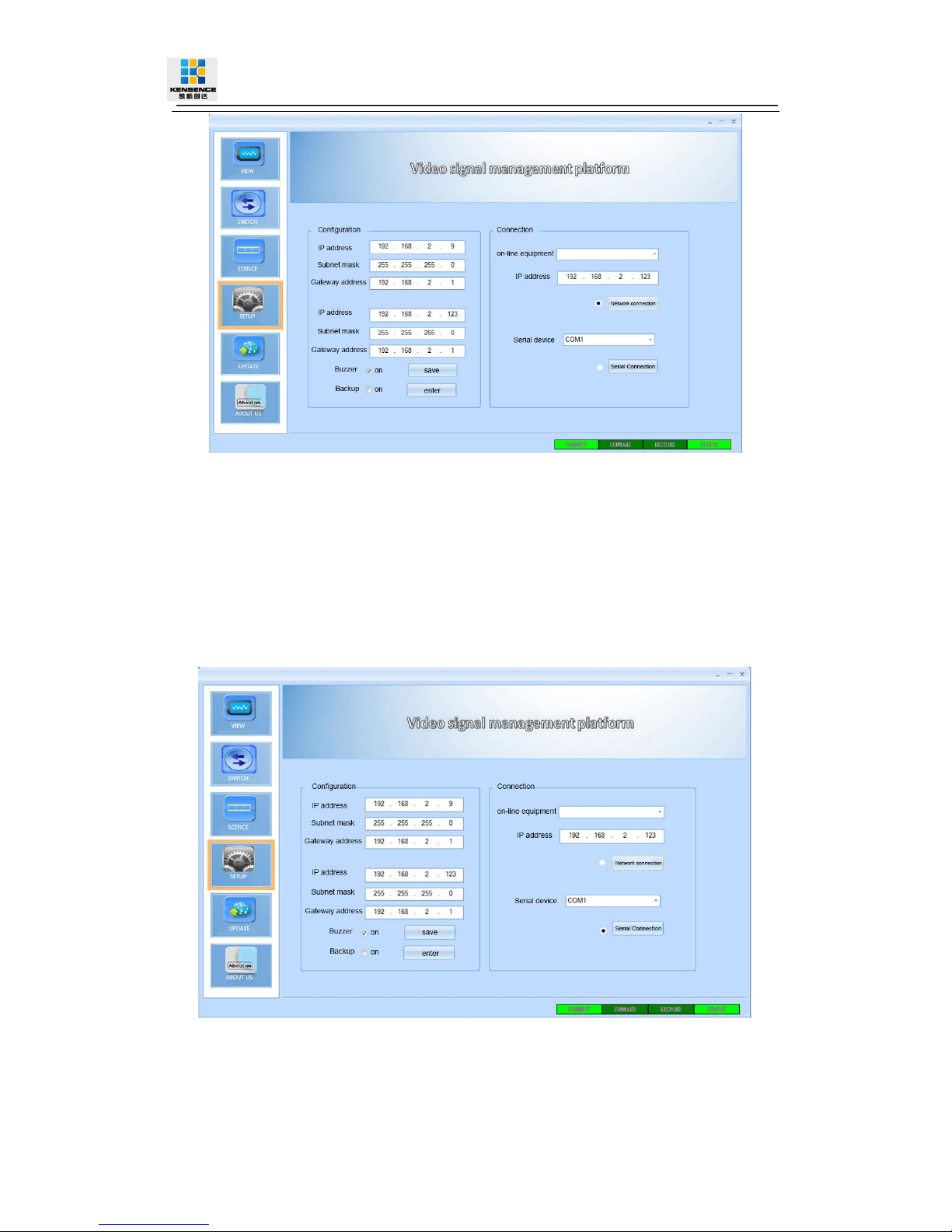

1) Network connection: use network cable to connect computer and matrix,
double-click to open the control software, click "SETUP" button, input network address in
the white box on the right side of the network address (click on the touch screen
"SETUP" button of matrix to view matrix network address), then click the "network
connection" button, when all the buttons at the bottom right corner are green, the
connection is successful. At this point, click the "load" button on the interface to display
some of the configuration of the matrix, as shown in Figure 6.3.1

17
Figure 6.3.1 Network connection
2) serial connection: use direct serial lines to connect computer and matrix, double-click
to open the control software, click "SETUP" button to determine COM ports, such as
COM1, select "COM1" in serial device, click "serial connection", when the lower right
corner of all the buttons shown in green, the connection is successful. At this point, click
the "load" will display some of the matrix configuration,as shown in Figure 6.3.2
Figure 6.3.2 serial connection

18
3) change IP: when serial port or ethernet control connection is normal, enter the IP
changed in the network address in configuration bar , click Save to change IP.
4 Buzzer on / off:when serial port or network port control connection is normal, click
"open" button next to the buzzer can close or open it.
5)Open / close video backup: when serial port or network port control connection is
normal,click the "open" button next to the video backup can close or open it.
6.4 Video switching operation
Click "SWITCH" to the switch interface, first select the input port, the selected input port
will be displayed in the interface in the lower left corner, such as figure 6.4.1 selected input
signal "18", the output can select multiple ports (selected port will be orange) as shown in
the following selected "3, 4, 5, 6. After selection, click "APPLY" button, then click "TAKE"
to achieve the corresponding switching operation.
Through the above steps, we can switch inputted signal "18" to the output port "3, 4, 5, 6"
to output.
Figure 6.4.1 SWITCH interface

19
6.5 Operation of control, resolution, name change etc. of input / output
cards.
1) Input card:double click the input signal in "SWITCH " interface, pop-up interface in
figure 6.5.1 , in "control" column in which we can control the camera and other equipment
connected to the card(this function needs to ask suppliers for relevant information,
command sent form see table 1). The video control column can adjust the brightness
and contrast of the input card, and the operation of the card reset. In the name column, we
can enter a new name, and click "name" to change the name of the current input signal.

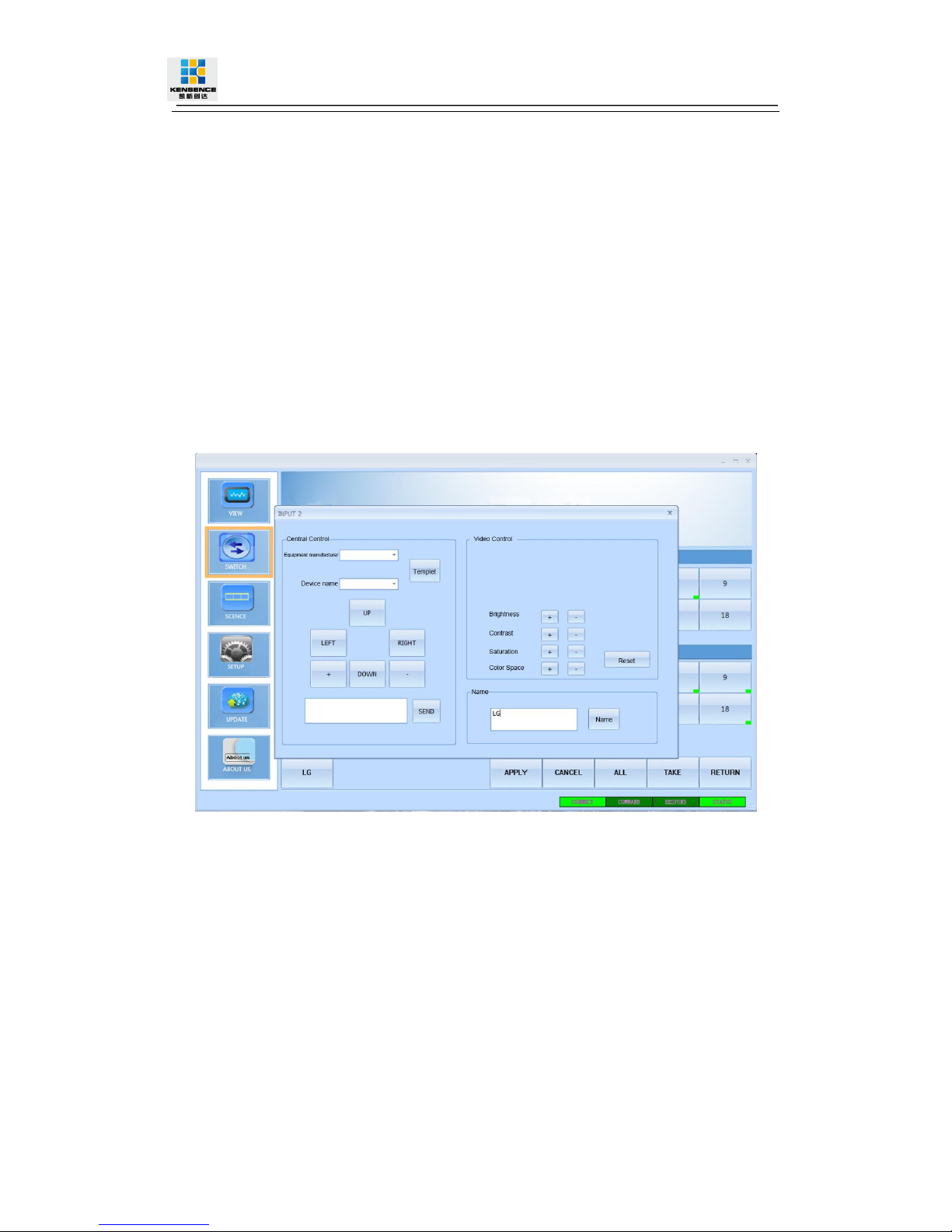

Figure 6.5.1 Input card central control, video control, name operation interface
2)Output card:double click the output signal in "SWITCH " interface, pop-up interface in
figure 6.5.2 , in "control" column in which we can control the camera and other equipment
connected to the card(this function needs to ask suppliers for relevant information,
command sent form see table 1).In video control column we can choose various
resolutions of the output card, adjust the brightness, contrast and saturation of the
image.In the name column, we can enter a new name, and click "name" to change the
name of the current input signal.

20
Figure 6.5.2 Output card central control, video control, name operation interface
6.6 Scene save operation
Click "VIEW" button, pop up interface as shown in figure 6.6.1, click on the right side
the scene 1 ~ 12 you want to preserve in this interface , press "SAVE" button to save the
current scene.
Figure 6.6.1Scene save
