Kensington 424/1360 User manual

MADE IN
BRITAIN
Dimensions
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: [e-mail] (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
Important - Please read these instructions fully before starting assembly
Kensington - 1 Drawer 2 Door Robe
Assembly Instructions - Please keep for future reference
ALR3175
424/1360
404/4275
Issue 1 - 18/06/15
Width - 85.9cm
Depth - 49.5cm
Height - 198.8cm

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 54kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.

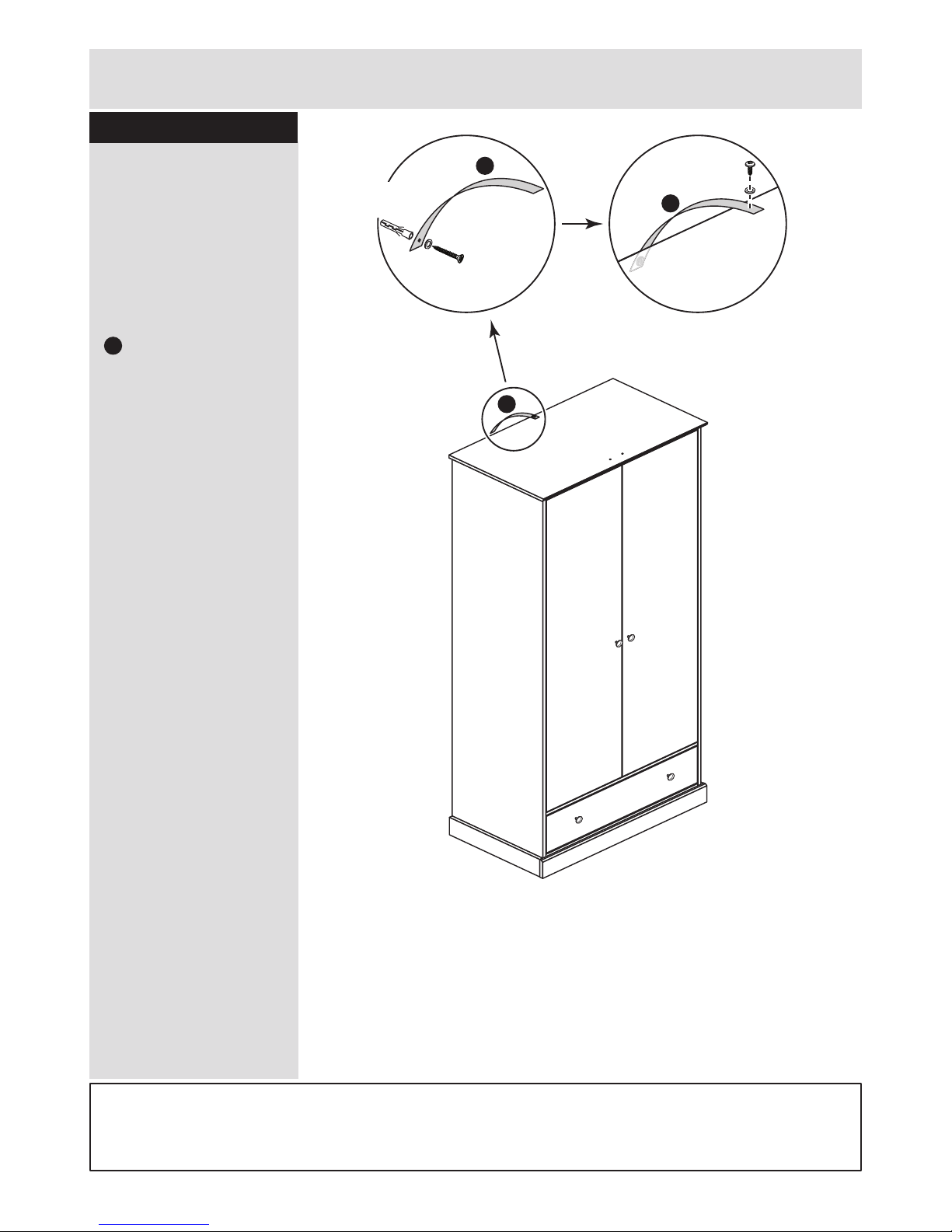

• Safety note: It is
recommended that this unit is
secured to a wall using the
overbalance protector kit
supplied or, an alternative fixing
method of your choice.
• Dispose of all packaging
carefully and responsibly.
Drawer Front (DF2414)
(79.1 x 19.2cm)
Drawer Back (W765-124)
(76.5 x 12.4cm)
Left Drawer Side (W370-124LH)
(37 x 12.4cm)
Drawer Base (T776-367)
(77.6 x 36.7cm)
Right Drawer Side (W370-124RH)
(37 x 12.4cm)

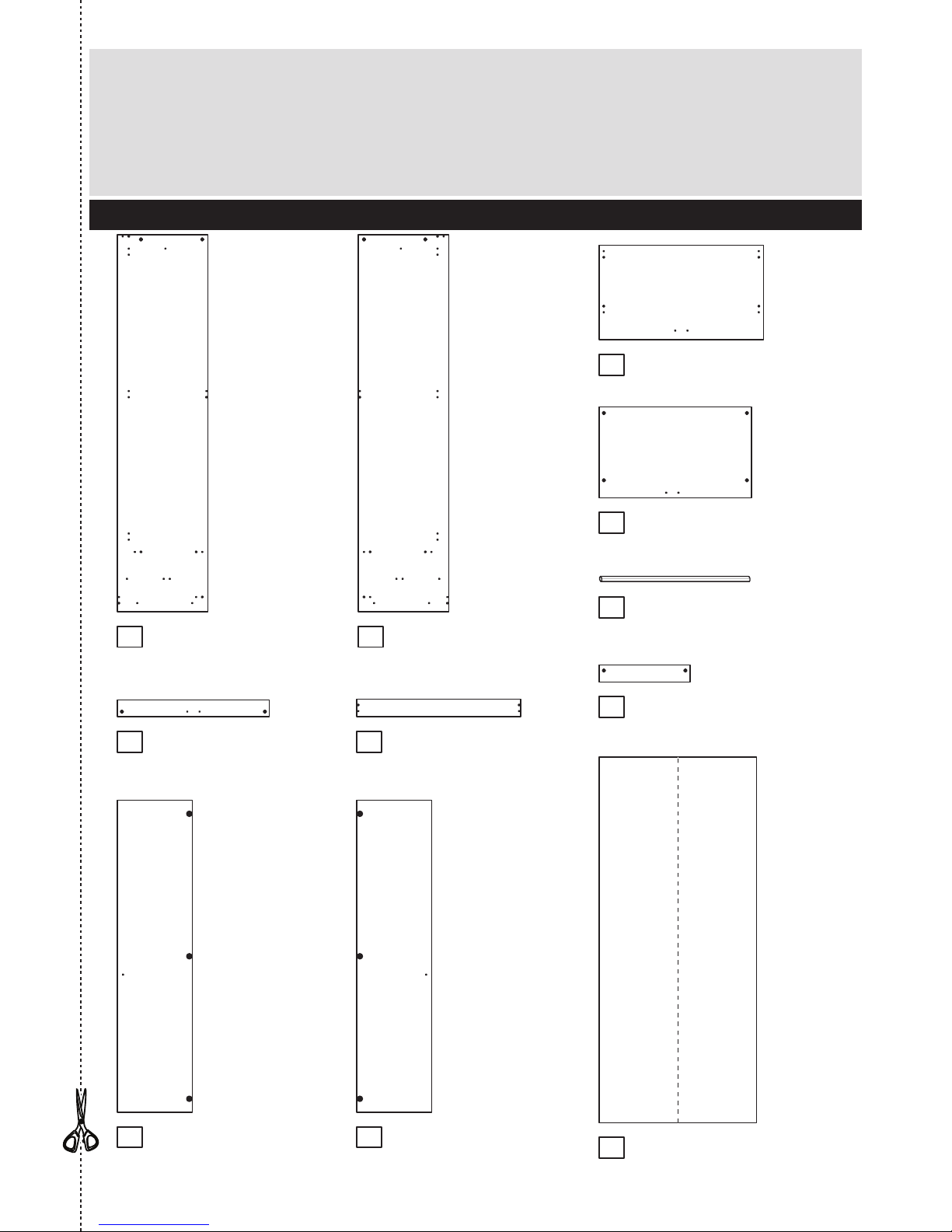

Components - Panels
Please check you have all the panels listed below
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: [e-mail] (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
1 2 3
4 5
Tools required
Scissors / Rule / Hammer / Cross-head screwdriver / Square / Spirit level / Step ladder
Eye protection (when using a hammer or drill) / Electric drill (only use when drilling into walls)

Components - Panels
Please check you have all the panels listed below
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: [e-mail] (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
2
67
9
80% 8
11 12
Left Side (DF4501)
(197.3 X 47.5cm)
Right Side (DF4502)
(197.3 X 47.5cm)
Top (DF2409)
(85.9 x 49.5cm)
Shelf (DF2413)
(79.7 x 47.4cm)
Rail (DF2412)
(79.7 x 8.9cm) x 4
Front Plinth (DF2417)
(85.9 x 9.2cm)
Side Plinth (DF2431)
(47.5 x 9.1cm) x 2
Left Door (DF3740)
(163.2 x 39.4cm)
Right Door (DF4504)
(163.2 x 39.4cm) Back (X1914-823)
(191.4 x 82.3cm)
13
14 15 16
Hanging Rail (FHR791)
(79.1cm long)
10

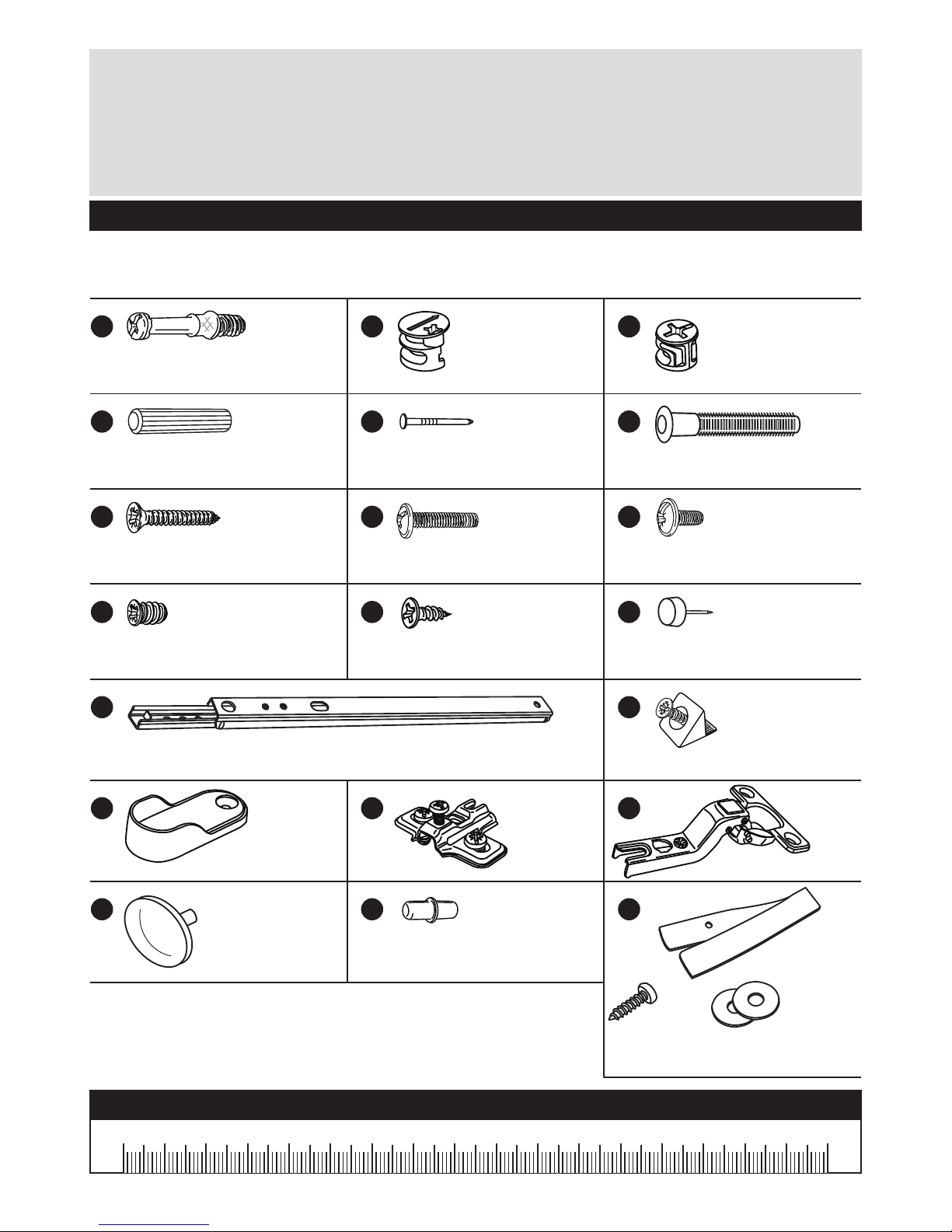

Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
Components - Fittings
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: [e-mail] (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
3
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
A B
D E F
G H I
L
N
Small locking
nut (F3) x 2
C
Nail (F51) x 34
M
J K
O
Drawer runner (F1004) x 2
Knock-in Peg (F171GY) x 4
Large locking
nut (F900) x 18
Metal dowel (F901) x 20
Wooden dowel (F22) x 18
25mm Screw (F50) x 6 19mm Screw (F461) x 4 9mm Screw (F74) x 2
9mm Screw (F73) x 4 Plastic Nail (F91) x 4
Handle (F220) x 4
P Q
Hinge plate
(F523) x 6 Hinge (F522) x 6
S
Shelf stud (F110) x 2
Rail Holder
(F891) x 2
13mm Screw (F63) x 16
Wedgefix (F639) x 4
R T Strap
Screw Washer x 2
Overbalance protector kit (F269) x 1

1
Assembly Instructions
4

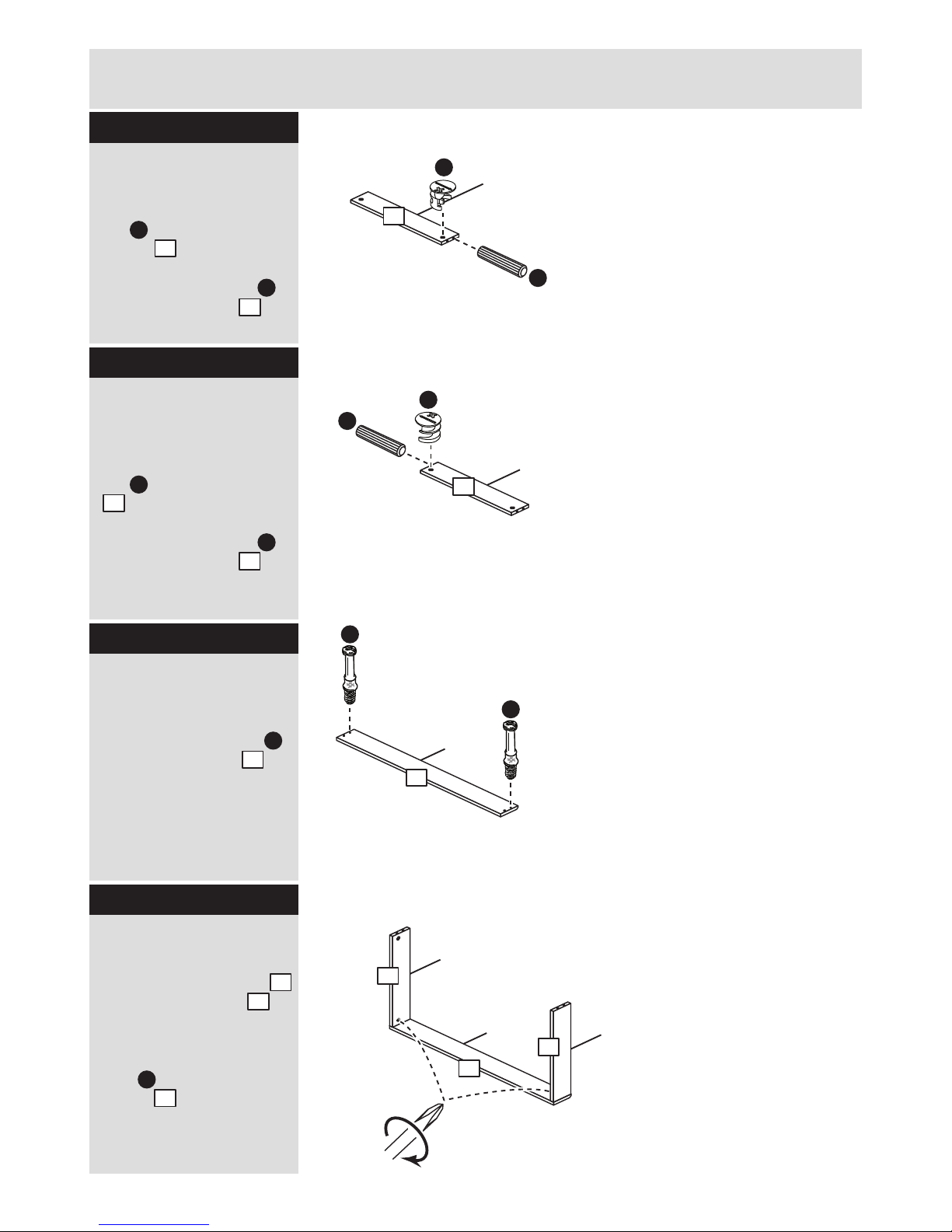

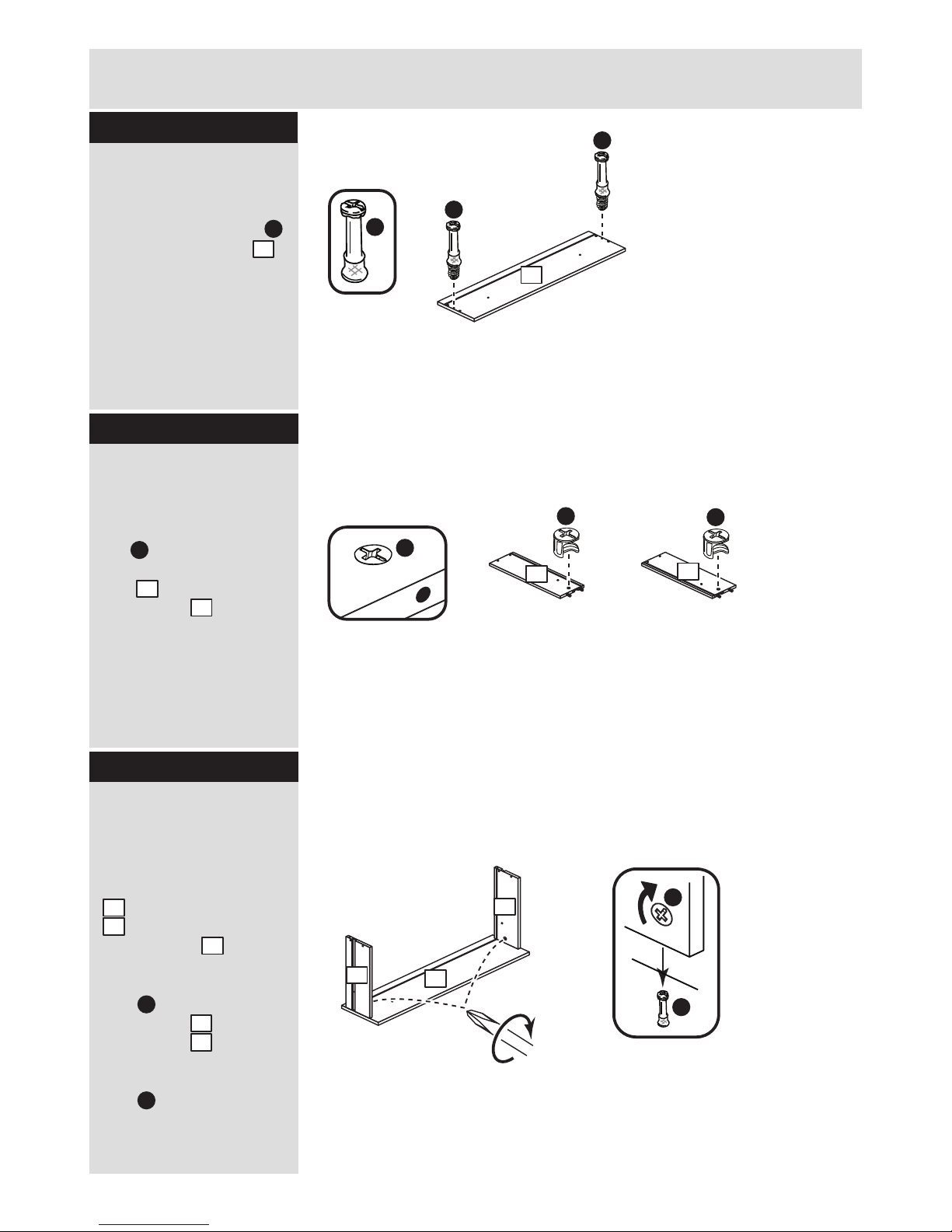

Step 1
A
A
C
C
C
C
23
Step 2
Prepare the drawer
front
Screw 2 metal dowels
into the drawer front .
Note: Tighten the metal
dowels up fully against
the panels.
A
1
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and the right
drawer side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Step 3
C
2
3
Attach the drawer
sides to the drawer
fronts
Push the left drawer sides
. and right drawer sides
. onto the back of the
drawer fronts .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
2
3
1
C
C
2
3
A
A
80% x 3
90% x 1 1
2
3

1
Assembly Instructions
5

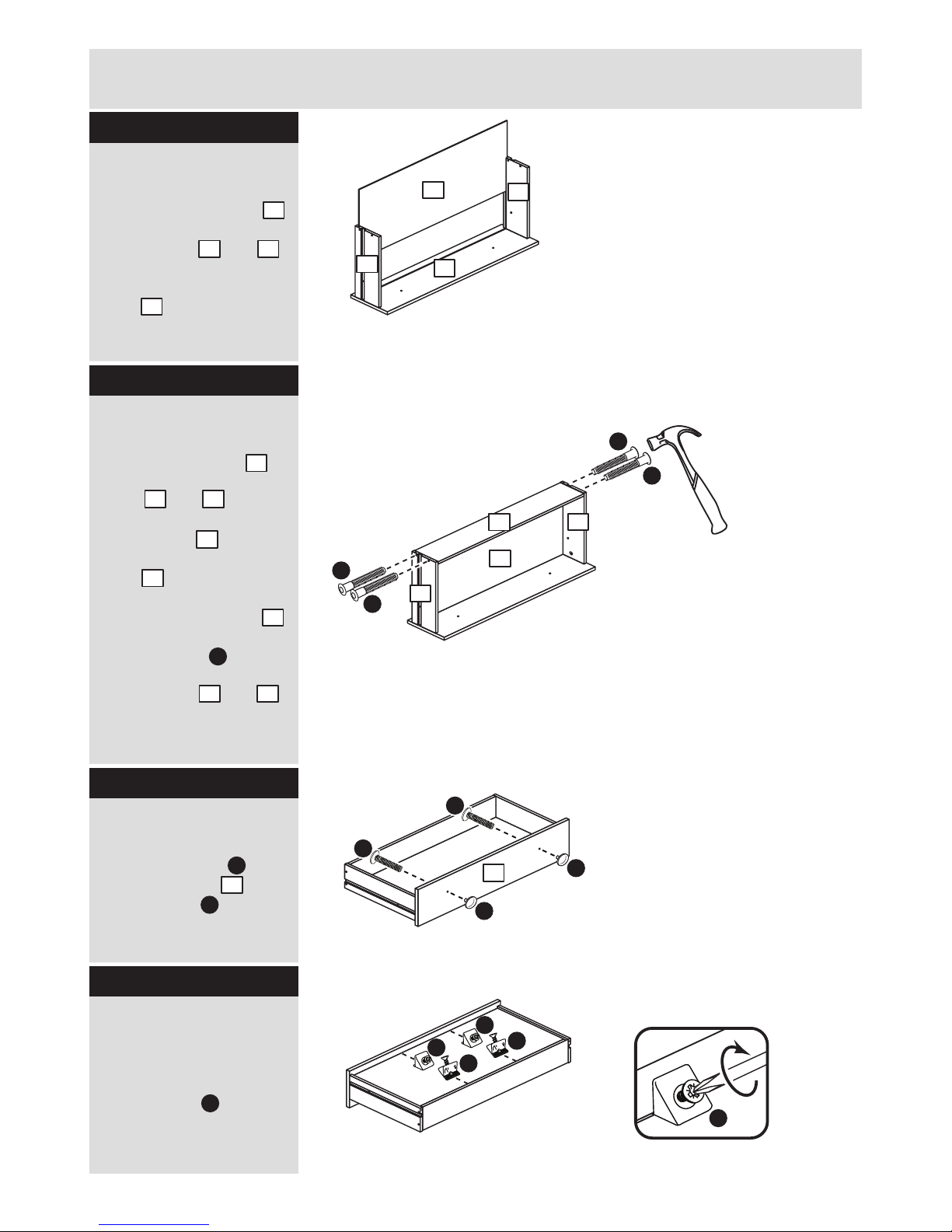

Step 4
F
F
Fit the drawer base
Slide the drawer base
down the grooves in the
drawer sides and
and down into the
groove in the drawer
front .
Step 5
Fit the drawer back
Fit the drawer back
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
Step 6
5
2 3
1
4
2 3
5
4
4
F
2 3
Step 7
Fit the wedgefixes
Turn the drawer
assembly over and slide
4 wedgefixes into the
front and back grooves,
as shown, and tighten up
the screws.
N
F
F
N
N
N
N
N
5
2
3
4
2
3
5
Attach the handles
Attach 2 handles to
the drawer front
using screws .
H
1
R
H
H
R
R
1

Finished
front edge
Finished
front edge
Finished
front edge
D
D
Assembly Instructions
6

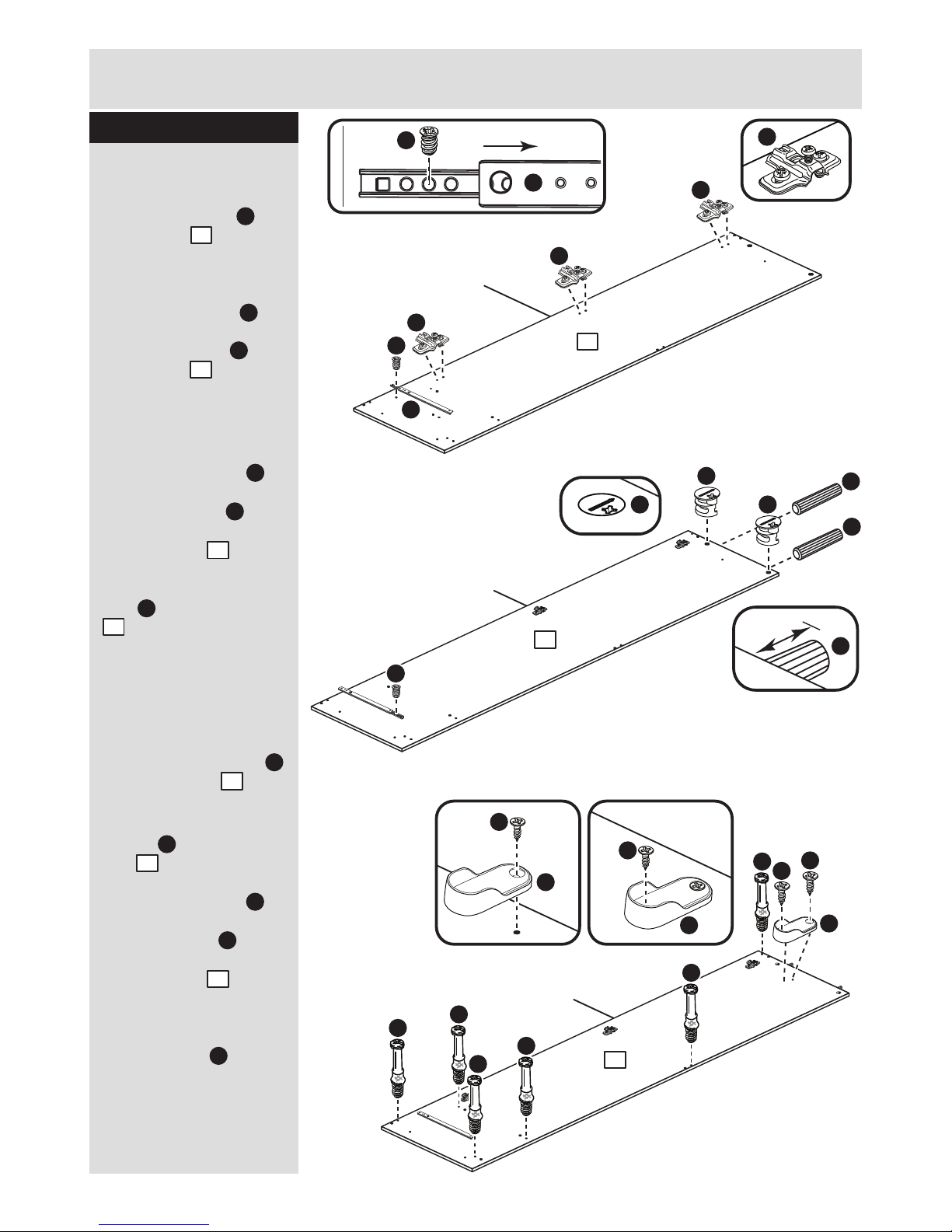

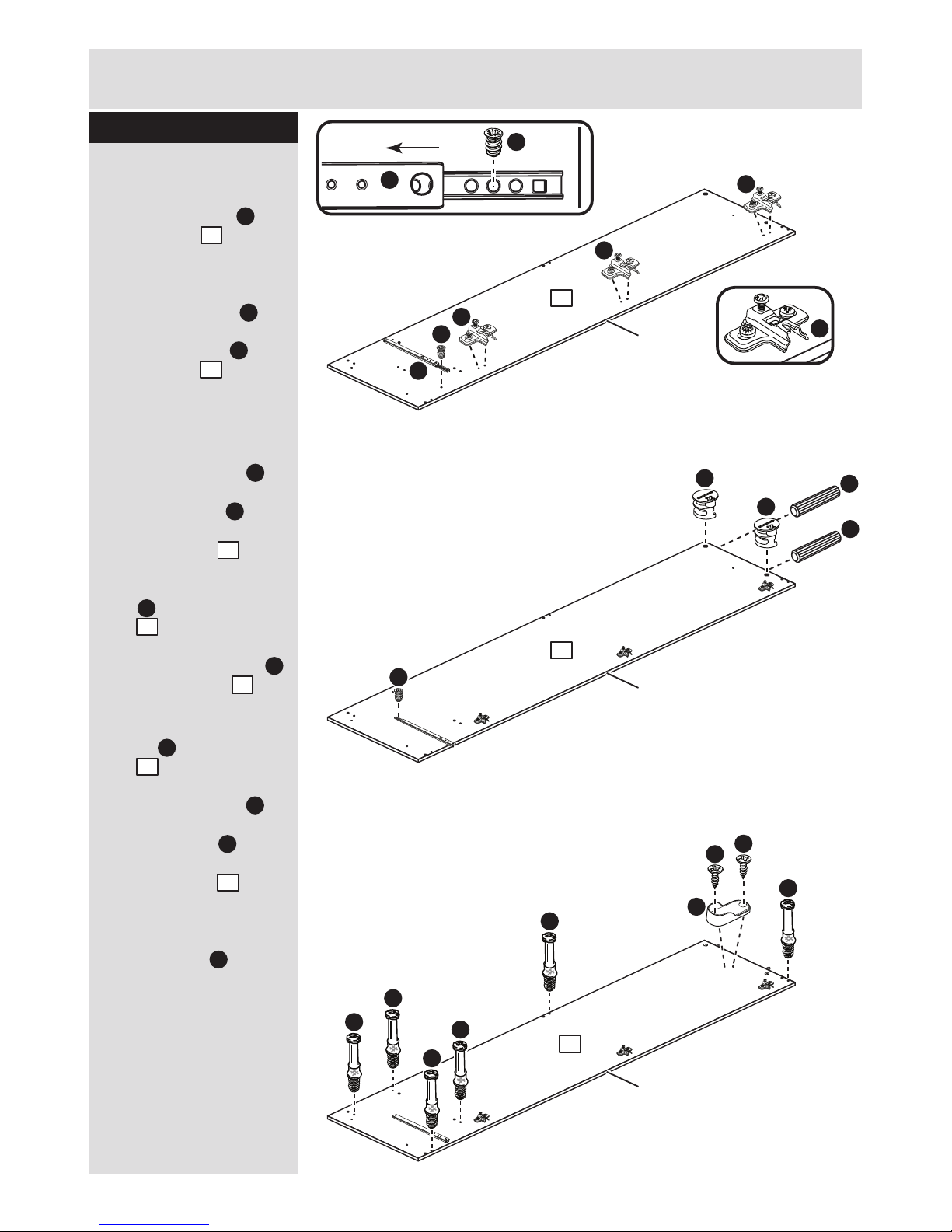

Step 8
Prepare the left side
a: Place a runner on
the left side as
shown. Slide back the
top of runner and use the
2nd hole from the front
to fit the 1st screw .
Fit 3 hinge plates onto
the left side , making
sure that the slot is
facing towards the
finished front edge.
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the left side .
Insert 2 large locking
nuts into the left side
. .
Note: The arrow on the
locking nuts must point
towards the hole in the
edge of the panel.
Tap 2 wooden dowels
into the left side .
c: Screw 6 metal
dowels into the left
side .
To fit the rail holder
screw through the top
hole with screw and
into the mark hole drilled
in the left side . Make
sure that it is fitted
straight, in line with the
panel edges and then fit
another screw using
the lower hole.
6
J
J
B
6
6
M
M
A
6
D
6
a:
b:
c:
J
M
J
M
A
A
A
A
A
K
O
K
O
K
K
O
P
A
P
P
P
J
B
B
B
10mm
D
P
6
O
K
6
K
6
6
6

D
D
Assembly Instructions
7
Step 9
Prepare the right side
a: Place a runner on
the right side as
shown. Slide back the
top of runner and use the
2nd hole from the front
to fit the 1st screw .
Fit 3 hinge plates onto
the right side , making
sure that the slot is
facing towards the
finished front edge.
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the right side .
Insert 2 large locking
nuts into the right
side .
Tap 2 wooden dowels
into the right side .
c: Screw 6 metal
dowels into the right
side .
To fit the rail holder
screw through the top
hole with screw and
into the mark hole drilled
in the right side .
Make sure that it is fitted
straight, in line with the
panel edges and then fit
another screw using
the lower hole.
7
J
J
B
7
7
M
M
A
7
D
7
P
7
O
K
7
K
J
M
Finished
front edge
Finished
front edge
P
P
P
P
J
M
J
Finished
front edge
B
B
A
A
A
A
A
A
K
K
O
7
7
7
a:
b:
c:

D
Finished
front edge
Finished
front edge
D
D
Assembly Instructions
8

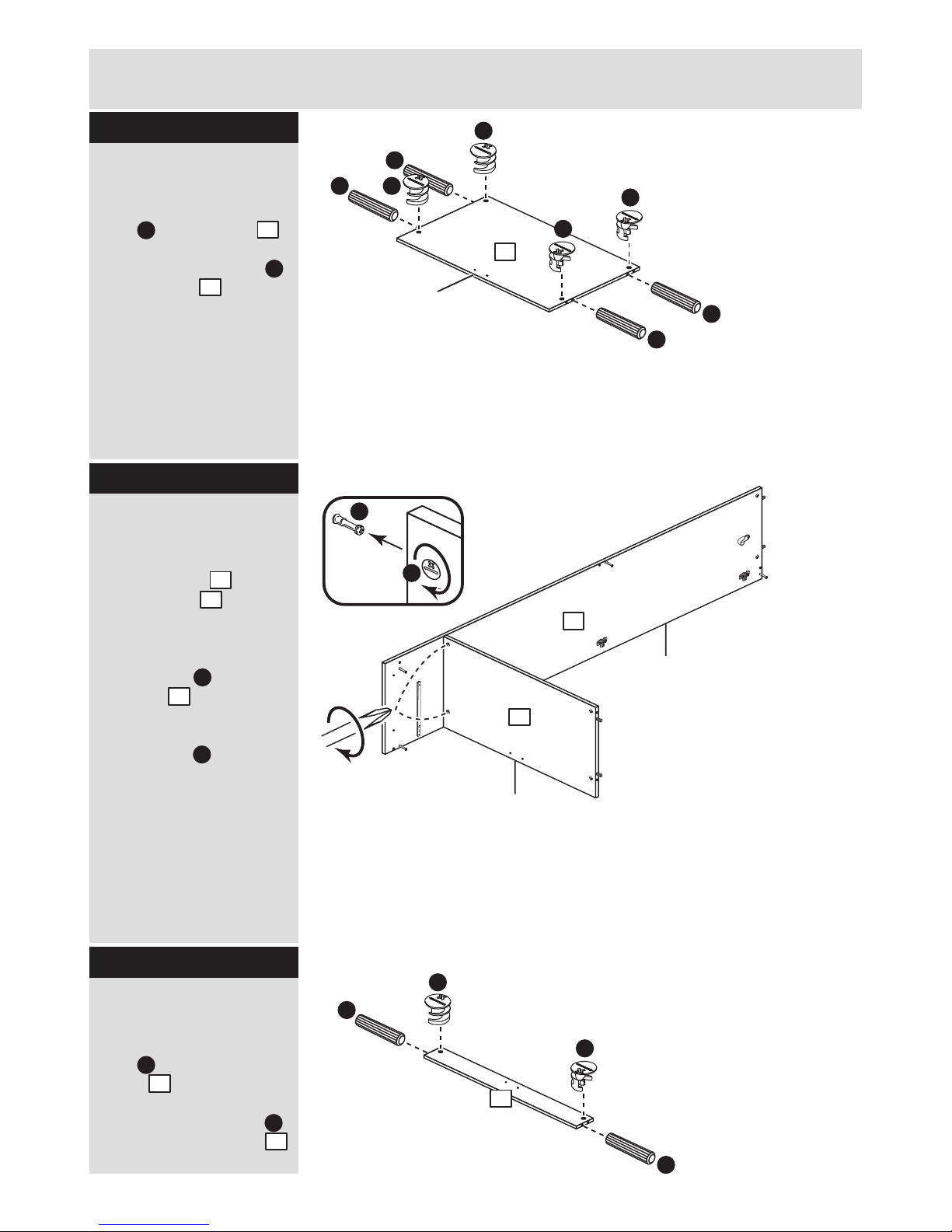

Step 10
Prepare the shelf
Insert 4 large locking
nuts into the shelf .
Tap 4 wooden dowels
into the shelf .
9
D
9
B
B
B
D
D
B
B
Finished
front edge
9
Step 11
Fit the shelf to the
right side
Push the shelf onto
the right side .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the shelf .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
Step 12
9
7
B
B
9
9
7
B
D
B
Prepare the 4 rails
Insert 2 large locking
nuts into each of the
4 rails .
Tap 2 wooden dowels
into each of the 4 rails .
11
D
11
B
x 4
A
B
11

Assembly Instructions
9

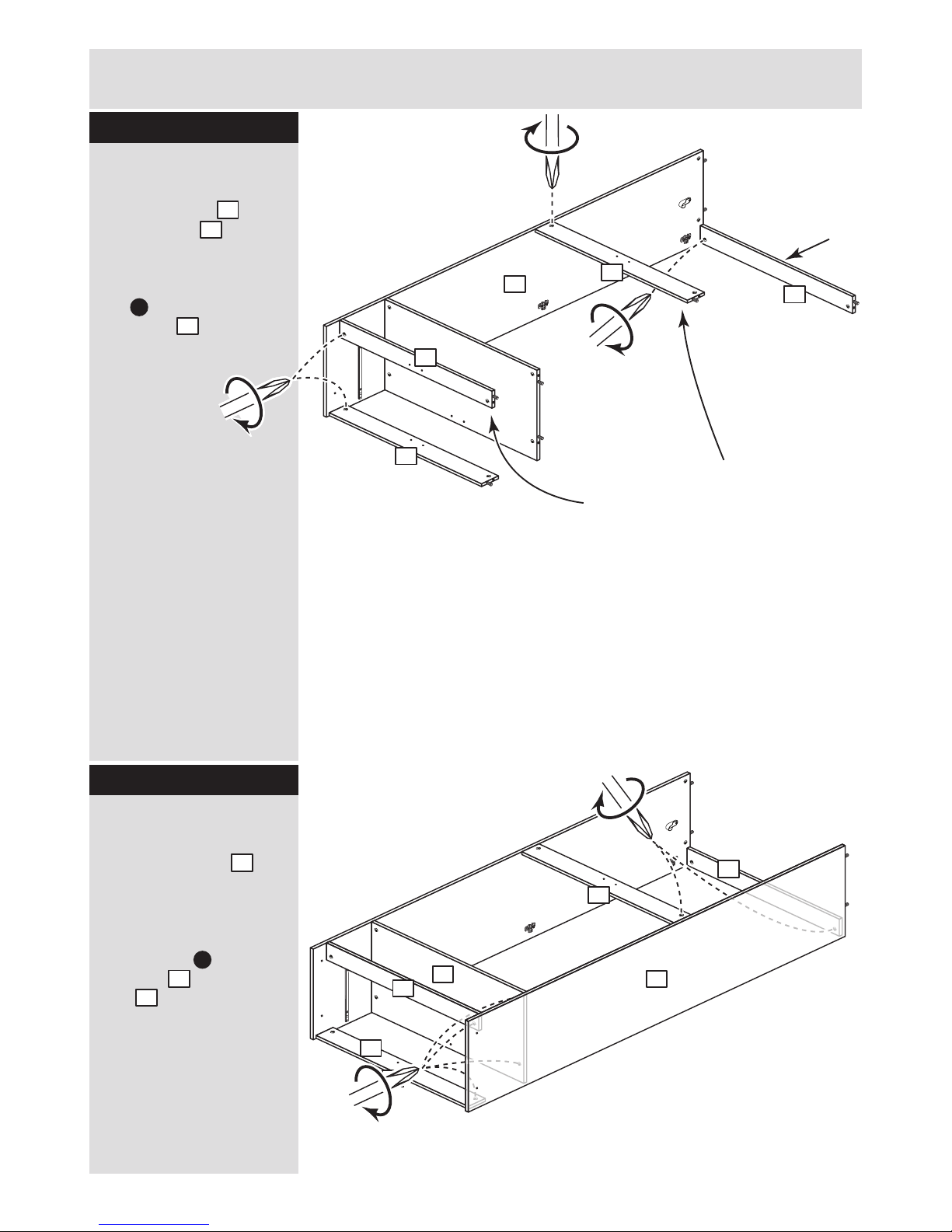

Step 13
7
11
11
11
11
11
11
Fit the 4 rails
Push the 4 rails onto
the right side .
Use a screwdriver to
tighten the large locking
nut fitted to each of
the 4 rails .
11
7
B
11
Note: Fit the rails at the
back last and support
them until the left side has
been fitted in the next step.
Note: The holes
for this rail must
be on this side
Step 14
Fit the left side
Push the left side
onto the assembly.
Use a screwdriver to
tighten the 6 large
locking nuts fitted to
the shelf and the 4
rails .
6
B
9
11
6
9
11
11
11

Polystyrene
block
Polystyrene
block

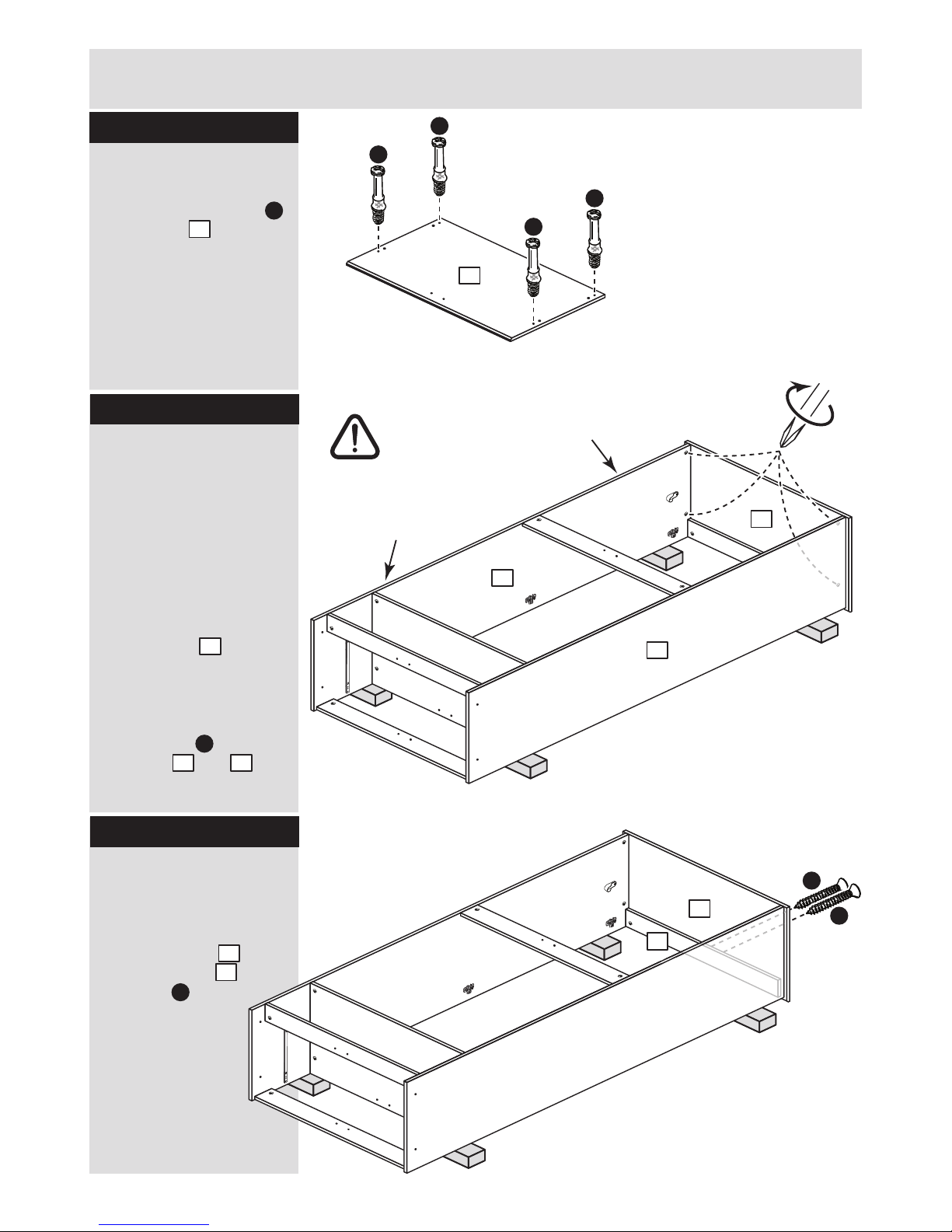

Fit the top
Note: To make it easier
to fit the top and plinths,
place polystyrene blocks
from the packaging
underneath the side
panels to raise the
assembly.
Push the top onto
the assembly.
Use a screwdriver to
tighten the 4 large
locking nuts fitted to
the sides and .
B
6 7
8
Polystyrene
block
Polystyrene
block
Assembly Instructions
10
Step 15
Prepare the top
Screw 4 metal dowels
into the top .
A
8
8
A
A
A
A
Step 16
Secure the top rail to
the top
Screw through the 2
holes in the top and
into the top rail using
2 screws .
Step 17
6
7
8
Warning: The
unit is heavy.
Lift with care.
8
11
8
G
11
G
G

yy
yy
xx
xx
Assembly Instructions
11

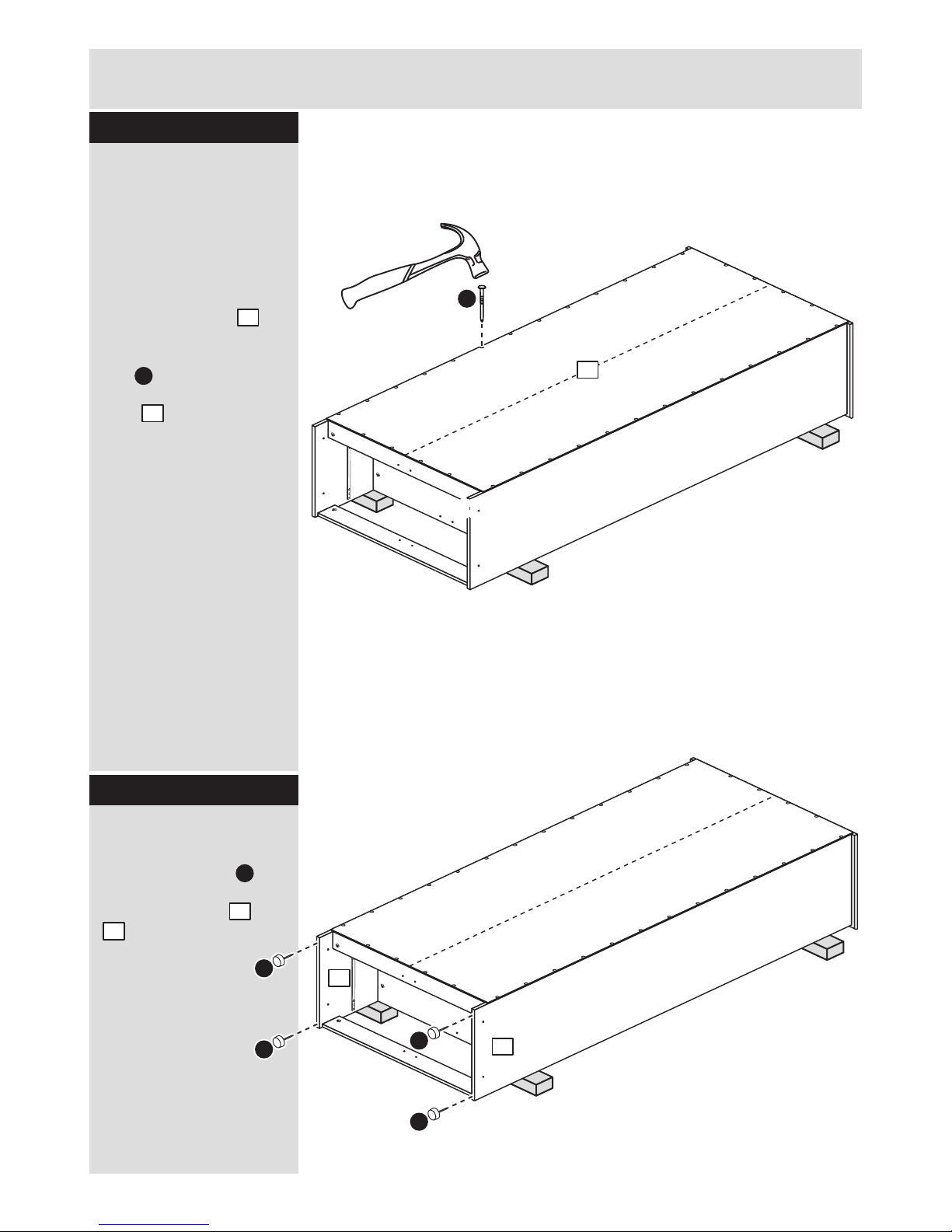

Step 18
Step 19
b:
E
Fit the back
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
onto the unit.
Nail around the
outside edges of the
back .
Note: Nails should be
spaced about 150mm
apart.
16
E
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
16
Fit the 4 plastic nails
Tap 4 plastic nails
into the bottom edge of
each of the sides and
. .
L
6
7
L
LL
L
6
7
16

Assembly Instructions
12
Step 20
D
Prepare a side plinth
Insert a large locking
nut into 1 of the side
plinths .
Tap a wooden dowel
into the side plinth .
13
B
13
D
Step 21
Prepare the other side
plinth
Insert a large locking
nut into the side plinth
. .
Tap a wooden dowel
into the side plinth .
13
B
13
D
B
D
Finished
top edge
13
Finished
top edge
13
B
Finished
top edge
Profiled
top edge
Finished
top edge
Profiled
top edge
Prepare the front
plinth
Screw 2 metal dowels
into the front plinth .
Step 23
A
12
Fit the plinths together
Push the 2 side plinths
onto the front plinth .
Use a screwdriver to
tighten the large locking
nuts fitted to the side
plinths .
13
12
B
13
A
A
12
12
13
13
Step 22

G
G
Assembly Instructions
13
Step 24
6
7
Fit the plinths
Position the 3 plinths
around the outside of the
assembly, ensuring that
the bottom edge of the
plinths are flush with the
bottom edge of the
sides, as shown.
Secure the 2 side
plinths through the
left end and right
end using screws .
Carefully stand the
unit up for the next
step.
13
G
G
13
13
13
6
7G
Warning: The
unit is heavy.
Lift with care.
Step 25
Fit the drawer
Slide both the runners
forward and locate the
drawer sides and
between them, lining up
the holes in the drawer
wrap with the 2nd
'threaded' holes in the
runners .
Working from the inside
of the drawer, insert 2
screws through the
drawer sides and out into
the 2nd threaded hole in
the runner.
Note: Do not overtighten
the screws .
If they catch on the
runner you may need to
loosen them slightly.
I
M
M
I
2nd threaded
hole
M
I
2 3
I
I
2
3

Assembly Instructions
14

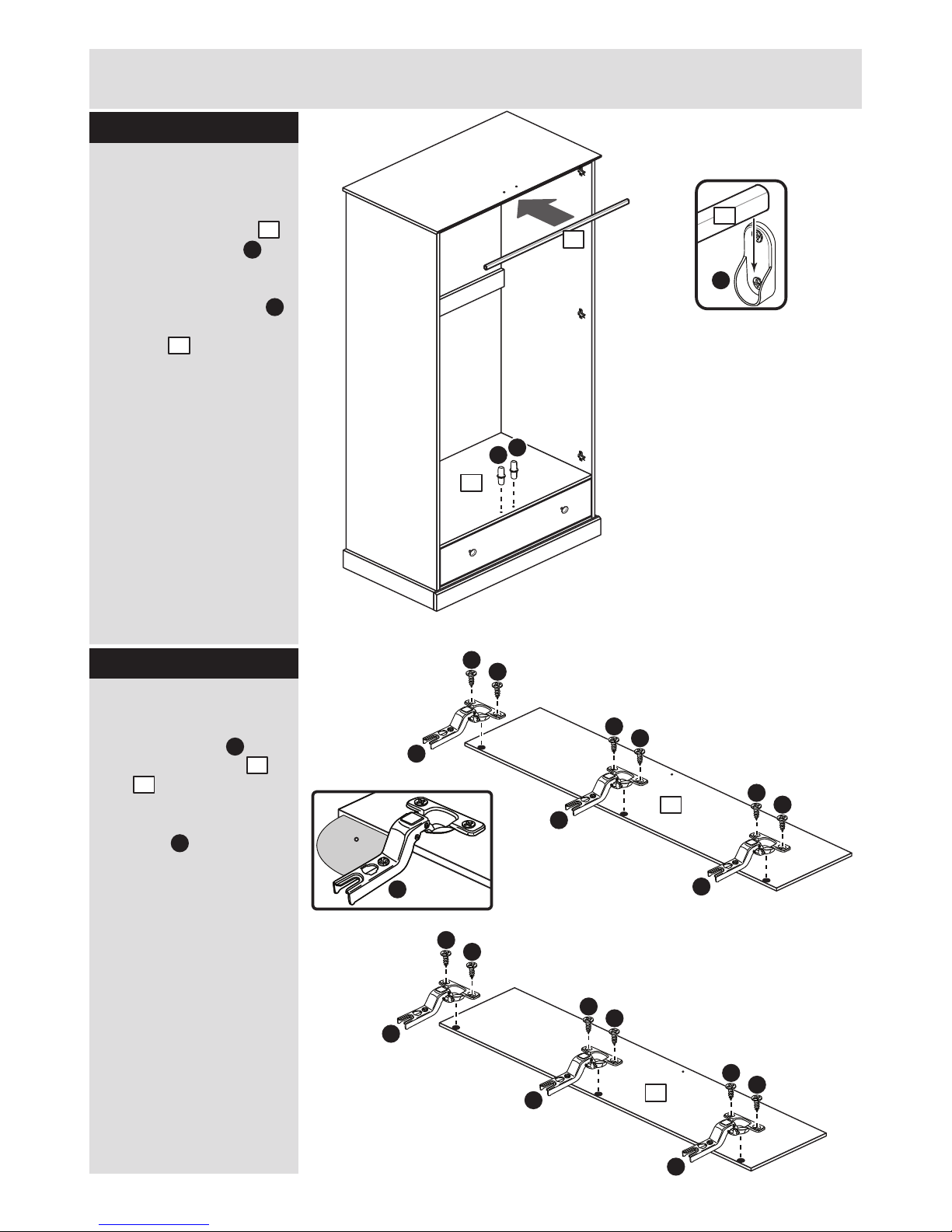

Step 26
Step 27
10
O
Fit the hanging rail
and shelf studs
Push the hanging rail
into the rail holders
fitted to the side panels.
Push the 2 shelf studs
down into the holes in
the shelf to act as
door buffers.
S
9
10
O
10
S
S
9
Prepare the 2 doors
Push fit 3 hinges into
each of the 2 doors
and .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
K
Q
15
14
90
Q
Q
K
K
Q
K
K
Q
K
K
14
Q
K
K
Q
K
K
Q
K
K
15

Assembly Instructions
15

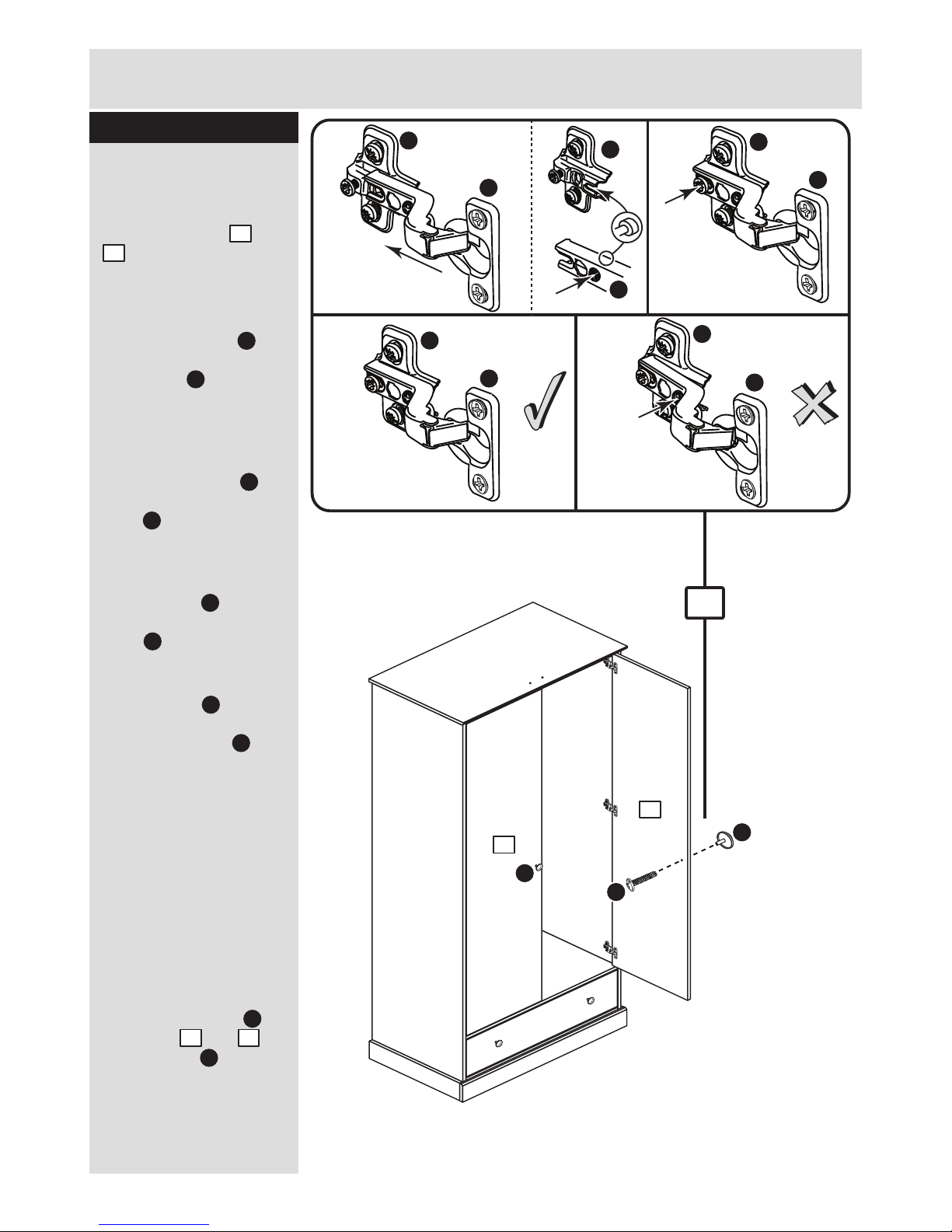

Step 28
Fit doors and handles
Note: The easiest way to
attach each door and
. is to fit the top hinge
first, then align and fit the
other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle to
each door and
using screws .
Q
Q
Q
P
P
P
Q
P
R
H
14
15
14 15
a: b:
c: d:
P
Q
P
P
B
P
Q
Q
Q
A
Q
P
B
e:
R
R
H
14
15

Assembly Instructions
16

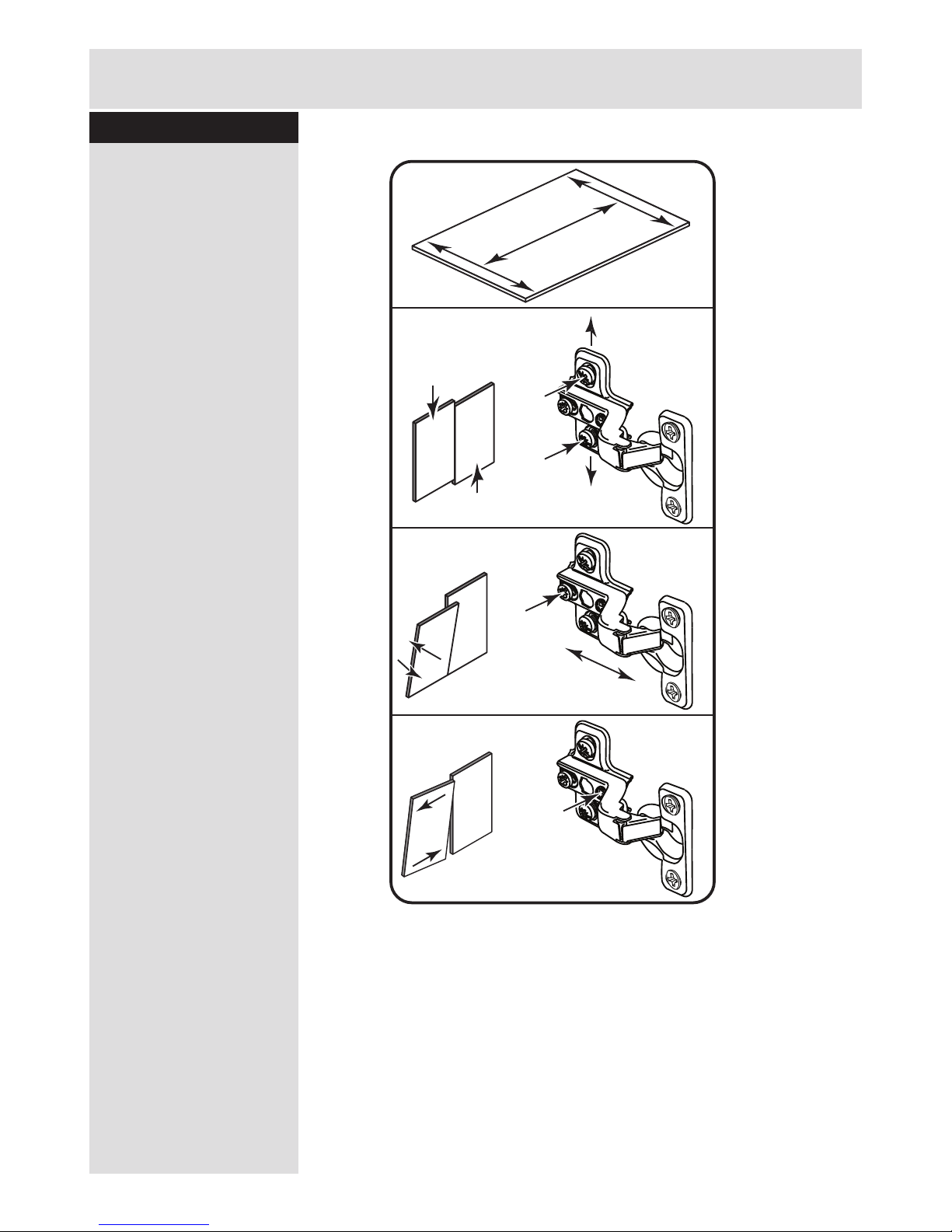

Step 29
b:
c:
d:
a:
Adjust the doors if
needed
a: Before adjusting the
doors, use a spirit level
to check the base (or
top) of the unit is level,
front-to-back and
side-to-side in the 3
positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level
BEFORE making any
adjustment to the hinges,
as shown.
b: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
c: Forward and Back
adjustment.
Loosen screw B on hinge
plate and move door in
or out as required.
Retighten screw B.
d: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C.
A
A
B
C

Assembly Instructions
17
Step 30
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: [e-mail] (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
Fit the overbalance
protector
To prevent possible
overbalancing we
recommend that this unit
is secured to a suitable
wall by fitting of the
overbalance protector kit
. to the unit, or an
alternative fixing method
of your choice.
Wall fixings are not
supplied as they will
need to suit the wall
type.
Note: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc.
If in doubt, consult an
expert.
Assembly is complete
T
T
WALL
Wall fixing
(not supplied)
Screw
(not supplied)
Washer
Strap
T
Strap
Washer
Screw
TOP OF UNIT
T

ALR3175
