Thank you very much for purchasing our air conditioner,
Before using your air conditioner , please read this manual carefully and keep it for future reference.
OPERATION MANUAL
SPLIT DUCT AIR CONDITIONER
MODELS:
(R410A) KSTU440HFAN1/KSUR440HFAN3
KSTU560HFAN1/KSUR560HFAN3
DK14-02.02.29

1
owner’s manual
1. IMPORTANT SAFETY INFORMATION
To prevent injury to the user or other people and property
damage, the following instructions must be followed. Incorrect
operation due to ignoring of instructions may cause harm or
damage.
Ask your dealer for installation of the air conditioner.
Incomplete installation performed by yourself may result in a
water leakage, electric shock, and fire.
Ask your dealer for improvement, repair, and
maintenance.
Incomplete improvement, repair, and maintenance may result
in a water leakage, electric shock, and fire.
In order to avoid electric shock, fire or injury, or if you
detect any abnormality such as smell of fire, turn off the
power supply and call your dealer for instructions.
Never let the indoor unit or the remote controller get wet.
It may cause an electric shock or a fire.
Never press the button of the remote controller with a
hard, pointed object.
The remote controller may be damaged.
Never replace a fuse with that of wrong rated current or
other wires when a fuse blows out.
Use of wire or copper wire may cause the unit to break down
or cause a fire.
It is not good for your health to expose your body to the
air flow for a long time.
Do not insert fingers, rods or other objects into the air
inlet or outlet.
When the fan is rotating at high speed, it will cause injury.
Never use a flammable spray such as hair spray, lacquer
or paint near the unit.
It may cause a fire.
Never touch the air outlet or the horizontal blades while
the swing flap is in operation.
Fingers may become caught or the unit may break down.
Never put any objects into the air inlet or outlet.
Objects touching the fan at high speed can be dangerous.
Never inspect or service the unit by yourself.
Ask a qualified service person to perform this work.
Do not dispose this product as unsorted municipal
waste. Collection of such waste separately for special
treatment is necessary.
Do not dispose of electrical appliances as unsorted
municipal waste, use separate collection facilities.
Contact you local government for information regarding the
connection systems available.
If electrical appliances are disposed of in landfills or
dumps, hazardous substances can leak into the
groundeater and get into the food chain, damaging your
health and well-being.
To prevent refrigerant leak, contact your dealer.
When the system is installed and runs in a small room, it is
required to keep the concentration of the refrigerant, if by any
chance coming out, below the limit. Otherwise, oxygen in the
room may be affected, resulting in a serious accident.
The refrigerant in the air conditioner is safe and normally
does not leak.
If the refrigerant leaks in the room, contact with a fire of a
burner, a heater or a cooker may result in a harmful gas.
Turn off any combustible heating devices, ventilate the
room, and contact the dealer where you purchased the
unit.
Do not use the air conditioner until a service person confirms
that the portion where the refrigerant leaks is repaired.
Do not use the air conditioner for other purposes.
In order to avoid any quality deterioration, do not use the unit
for cooling precision instruments, food, plants, animals or
works of art.
Before cleaning, be sure to stop the operation, turn the
breaker off or pull out the supply cord.
Otherwise, an electric shock and injury may result.
In order to avoid electric shock or fire, make sure that an
earth leak detector is installed.
Be sure the air conditioner is grounded.
In order to avoid electric shock, make sure that the unit is
grounded and that the earth wire is not connected to gas or
water pipe, lightning conductor or telephone earth wire.
In order to avoid injury, do not remove the fan guard of
the outdoor unit.
WARNING
The safety precautions listed are divided into two categories. In either
case, important safety information is listed which must be read.
CAUTION
Failure to observe a caution may result in injury or damage
to the equipment.
Failure to observe a warning may result in death. The
appliance shall be installed in accordance with national
wiring regulations.
WARNING
CAUTION
CONTENTS PAGE
PRECAUTIONS...........................................................................................1
ELECTRIC SCAFETY REQUIREMENT..........................................................2
FUNCTIONS & FEATURES.........................................................................2
MODEL, SPECIFICATION & PARAMETERS ............. ........................... ......... 3
NAMES AND FUNCTIONS OF AIR CONDITIONER COMPONENTS ............... 3
OPERATION PRECAUTIONS.......................................................................3
BEAT OPERATION......................................................................................4
MAINTENANCE & UPKEEP.........................................................................4
PHENOMENA NOT ATTRIBUTABLE TO FAULTS OF AIR CONDITIONER.....5
FAULTS OF AIR CONDITIONER AND CAUSE.............................................6
FAULTS OF REMOTE CONTROLLER AND CAUSE......................................7
REPAIR......................................................................................................7
TROUBLE SHOOTING.................................................................................7

owner’s manual
2
Do not operate the air conditioner with a wet hand.
An electric shock may happen.
Do not touch the heat exchanger fins.
These fins are sharp and could result in cutting injuries.
Do not place items which might be damaged by moisture
under the indoor unit.
Condensation may form if the humidity is above 80%, the
drain outlet is blocked or the filter is polluted.
After a long use, check the unit stand and fitting for
damage.
If damaged, the unit may fall and result in injury.
To avoid oxygen deficiency, ventilate the room
sufficiently if equipment with burner is used together
with the air conditioner.
Arrange the drain hose to ensure smooth drainage.
Incomplete drainage may cause wetting of the building,
furniture etc.
Never touch the internal parts of the controller.
Do not remove the front panel. Some parts inside are
dangerous to touch, and a machine trouble may happen.
Never expose little children, plants or animals directly to
the air flow.
Adverse influence to little children, animals and plants may
result.
Do not allow a child to mount on the outdoor unit or
avoid placing any object on it.
Falling or tumbling may result in injury.
Do not operate the air conditioner when using a room
fumigation - type insecticide.
Failure to observe could cause the chemicals to become
deposited in the unit, which could endanger the health of
those who are hypersensitive to chemicals.
Do not place appliances which produce open fire in
places exposed to the air flow from the unit or under the
indoor unit.
It may cause incomplete combustion or deformation of the
unit due to the heat.
Do not install the air conditioner at any place where
flammable gas may leak out.
If the gas leaks out and stays around the air conditioner, a
fire may break out.
The appliance is not intended for use by young children
or infirm persons without supervision.
DISPOSAL：Do not dispose this product as unsor-
ted municipal waste. Collection of such waste sepa-
rately for special treatment is necessary.
2. ELECTRIC SCAFETY REQUIREMENT
NOTE
Do not cut off the ground wire of the main power switch in any
circumstance.
Do not use damaged power wires. Change the damaged power
wires once they are detected.
Connect the power supply of the air conditioner for preheating it
for at least 12 hours before using the air conditioner. Besides
that, please be keep in mind that do not cut off the power supply
immediately, for the unit completely shut down needs to spend a
day-night.( In order to prevent the compressor drive-up by
forced, then heating the crankcase.)
Do not block the air inlet and outlet, if that so the performance
would reduce and the unit couldn’t be start for which protect
device is on service.
Wire distribution must be performed by duly qualified electri-
cians.
All wire distribution must comply with electric safety specifica-
tions.
Ensure that the air coditioner is grounded properly. Namely, the
main switch of the air conditioner must have reliable ground
wires.
Provide the air conditioner with a separate power supply compli-
ant with the nominal parameter values.
Electric performance requirements:
3. FUNCTIONS & FEATURES
Nested in the ceiling, space-saving and noble.
High capacity of cooling/heating, efficient, and energy-saving.
Innovative air supply, which provides homogeneous condition-
ing of the room temperature.
Remote control or wire control function.
Low noise design.
The air outlet is laid out in the way you desire.
Use refrigerant to transmit cool/heat directly, which provides a
high transmitting efficiency.
It is suitable be used for office, hospital, commerical place and
home, the air conditioner will creat the comfortable and
elegance enviroment for you.
Table.2-1
Mid. static pressure
Type Power supply
The main switch
specification
Indoor unit
Outdoor unit
70A 50A
12A
20A
380 -415V 3N~ 50Hz
220-240V ~ 50Hz
Fuse
specification

3
owner’s manual
4. MODEL, SPECIFICATION & PARAMETERS
In case any parameters in the following table are changed, no
other notice will be given. The parameters specified on the
nameplate shall prevail. Table.4-1

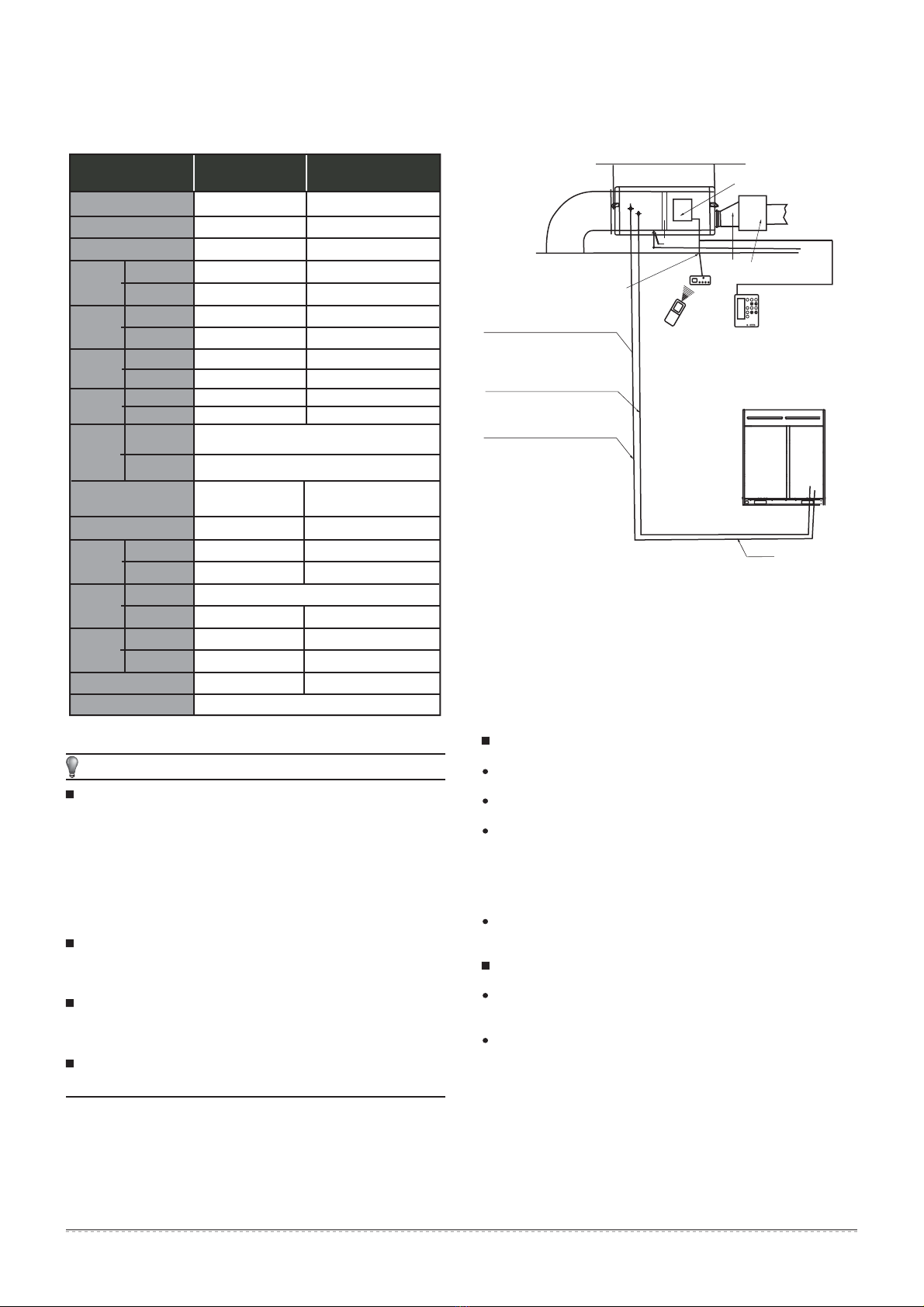

Fig.5-1
5. NAMES AND FUNCTIONS OF AIR
CONDITIONER COMPONENTS
6. OPERATION PRECAUTIONS
NOTE
The cooling capacity of the air conditioner is measured in a
standard environment where the indoor dry/wet bulb tempera-
ture is 27°C/19°C and the outdoor dry/wet bulb temperature is
35°C/24°C; the heating capacity is measured in a standard
environment where the indoor dry/wet bulb temperature is
20°C/15°C and the outdoor dry/wet bulb temperature is
7°C/6°C; and the actual cooling/heating capacity changes with
the rise/fall of the indoor/outdoor environment temperature and
relative humidity.
The noise of the unit is measured in the semi noise suppression
lab according to the national standards, and the accuracy extent
is ±3dB(A).
During the actual service, the noise will be changed according
by ducts, and the practical noise value is
about 45dB(A) or lower.(after be installed the mute device.)
External static pressure range of the air conditioner under
experiment is 0 Pa.
Read this operation manual carefully before operating the unit.
Grasp the key points in the manual, and seek help from the con
distributor for any question.
This air conditioner is designed to provide a comfortable room
environment, and is applicable to the purposes described in the
manual only.
outdoor unit
Refrigerant pipe
Indoor unit Electrical control box
Remote controller
Air outlet pipe,
mute box(option)
Air return duct(option)
φ16(Refrigerant connective pipe)
Drain orifice
Remote controls signal
reciving board
Fixed rated wire controller
(Option, used it before install
the remote controller .)
Inspection before operation
Check whether the ground wire is broken or disconnected.
Check whether the air filter is installed properly.
If the air conditioner has been out of service for a long period,
be sure to clean the filter before resuming the service of the air
conditioner. Cleanse it biweekly during continuous service of
the air conditioner. For details, see the chapter headed “Mainte-
nance and Upkeep”.
Check that the air inlet and outlet of the indoor/outdoor unit are
not blocked.
Safety precautions
Do not let the indoor unit or remote controller moistened.
Otherwise, electric short-circuit or fire may occur.
Do not use or store flammable gases or liquids near the air
conditioner, e.g., hair styling jelly, paint and gasoline. Otherwise,
fire may occur.
MHA1-150H(C)R
MHA1-192H(C)R
MHA-192HWN1
φ35(Refrigerant connective pipe)
MHA1-192H(C)R
φ32(Refrigerant connective pipe)
MHA1-150H(C)R
MHA-192HWN1
Model
Outdoor unit
Indoor unit
Outdoor unit
Indoor unit
Outdoor unit
Indoor unit
Outdoor unit
Indoor unit
Standard cooling capacity (Btu/h)
Type Cooling&heating
Standard heating capacity (Btu/h)
Cooling
Heating
Cooling
Heating
Standard
power (kW)
Standard
current (A)
Power
supply
Circulating air volume(m
3
/h)
(Indoor)
Static pressure (Pa)
Noise value
dB(A)
Outline
dimensions
(mm)
Weight
(kg)
Applicable area (m
2
)
Control mode
70
36.3
31.9
22
19.3
200000
220-240V~ 50Hz
380-415V 3N~ 50Hz
10800
63 73 65
196 196
1828×668×858
1250×1615×765 1390×1615×765
Remote control or wire control (option)
188 235
320
Cooling&heating
288
190-240 240-300
8500
MHA-150HWN1
MOV-150HN1-R
MHA-192HWN1
MOV-192HN1-R
Indoor unit
Indoor unit
Outdoor unit
Outdoor unit
Rated input
power (kW)
Rated input
current (A)
150100 192000
2.73 4.69
53.847.9
29.7
26.4
17.6
15.7
160300
20.9
12.1 32.2
26.9
