Kenwood KDC-3025 User manual

KDC-3025
KDC-325
CD-RECEIVER
INSTRUCTION MANUAL
AMPLI-TUNER LECTEUR DE CD
MODE D’EMPLOI
REPRODUCTOR DE DISCOS COMPACTOS RECEPTOR DE FM/AM
MANUAL DE INSTRUCCIONES
© B64-2694-00/00 (KW/KN)
Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will help you
obtain the best performance from your new CD-receiver.
For your records
Record the serial number, found on the back of the unit, in the spaces
designated on the warranty card, and in the space provided below. Refer to the
model and serial numbers whenever you call upon your KENWOOD dealer for
information or service on the product.
Model KDC-3025/KDC-325 Serial number
KDC-3025K2694U.Sr2.Indd1 03.10.2,3:30:47PM

2|English
Contents
2Warning 3
Safety precautions 4
Notes 6
About CDs 7
General features 8
Power
Selecting the Source
Volume
System Q
Audio Control
Speaker Setting
Switching Display
Station/Disc Naming (SNPS/DNPS)
Auxiliary Input Display Setting
Theft Deterrent Faceplate
Tuner features 12
Tuning Mode
Tuning
Direct Access Tuning
Station Preset Memory
Auto Memory Entry
Preset Tuning
CD/External disc control features 14
Playing CD
Playing External Disc
Fast Forwarding and Reversing
Track Search
Disc Search
Direct Track Search
Direct Disc Search
Track/Disc Repeat
Scan Play
Random Play
Magazine Random Play
Text/Title Scroll
DNPP (Disc Name Preset Play)
Menu system 17
Menu System
Security Code
Touch Sensor Tone
Manual Clock Adjustment
DSI (Disabled System Indicator)
Switching Display Type
Contrast Adjustment
CRSC (Clean Reception System Circuit)
Text Scroll
Basic Operations of remote 20
Loading and Replacing the battery
Basic operations
In Tuner source
In Disc source
Accessories/ Installation Procedure 22
Connecting Wires to Terminals 23
Installation 24
Removing the Unit 26
Troubleshooting Guide 27
Specifications 29
KDC-3025K2694U.Sr2.Indd2 03.10.2,3:30:51PM

English |3
2Warning
2CAUTION
Use of controls or adjustments or performance of
procedures other than those specified herein may
result in hazardous radiation exposure.
In compliance with Federal Regulations, following
are reproductions of labels on, or inside the product
relating to laser product safety.
KENWOOD CORPORATION
2967-3, ISHIKAWA-CHO,
HACHIOJI-SHI
TOKYO, JAPAN
KENWOOD CORP. CERTIFIES THIS EQUIPMENT
CONFORMS TO DHHS REGULATIONS N0.21 CFR
1040. 10, CHAPTER 1, SUBCHAPTER J.
Location : Bottom Panel
FCC WARNING
This equipment may generate or use radio
frequency energy. Changes or modifications to
this equipment may cause harmful interference
unless the modifications are expressly approved
in the instruction manual. The user could lose
the authority to operate this equipment if an
unauthorized change or modification is made.
NOTE
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment may cause harmful
interference to radio communications, if it is
not installed and used in accordance with the
instructions. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which
can be determined by turning the equipment off
and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
KDC-3025K2694U.Sr2.Indd3 03.10.2,3:30:53PM

4|English
Safety precautions
2CAUTION
To prevent damage to the machine, take
the following precautions:
• Make sure to ground the unit to a negative 12V
DC power supply.
• Do not open the top or bottom covers of the unit.
• Do not install the unit in a spot exposed to direct
sunlight or excessive heat or humidity. Also avoid
places with too much dust or the possibility of
water splashing.
• Do not set the removed faceplate or the faceplate
case in areas exposed to direct sunlight, excessive
heat or humidity. Also avoid places with too much
dust or the possibility of water splashing.
• To prevent deterioration, do not touch the
terminals of the unit or faceplate with your
fingers.
• Do not subject the faceplate to excessive shock,
as it is a piece of precision equipment.
• When replacing a fuse, only use a new one with
the prescribed rating. Using a fuse with the wrong
rating may cause your unit to malfunction.
• To prevent a short circuit when replacing a fuse,
first disconnect the wiring harness.
• Do not place any object between the faceplate
and the unit.
• Do not apply excessive force to the open
faceplate or place objects on it. Doing so will
cause damage or breakdown.
• Do not use your own screws. Use only the screws
provided. If you use the wrong screws, you could
damage the unit.
2WARNING
To prevent injury or fire, take the
following precautions:
• Insert the unit all the way in until it is fully locked
in place. Otherwise it may fall out of place when
jolted.
• When extending the ignition, battery, or ground
wires, make sure to use automotive-grade wires
or other wires with a 0.75mm² (AWG18) or more
to prevent wire deterioration and damage to the
wire coating.
• To prevent a short circuit, never put or leave any
metallic objects (such as coins or metal tools)
inside the unit.
• If the unit starts to emit smoke or strange smells,
turn off the power immediately and consult your
Kenwood dealer.
• Make sure not to get your fingers caught between
the faceplate and the unit.
• Be careful not to drop the unit or subject it to
strong shock.
The unit may break or crack because it contains
glass parts.
• Do not touch the liquid crystal fluid if the LCD
is damaged or broken due to shock. The liquid
crystal fluid may be dangerous to your health or
even fatal.
If the liquid crystal fluid from the LCD contacts
your body or clothing, wash it off with soap
immediately.
KDC-3025K2694U.Sr2.Indd4 03.10.2,3:30:54PM

English |5
About CD players/disc changers
connected to this unit
KENWOOD disc changers/ CD players released in
1998 or later can be connected to this unit.
Refer to the catalog or consult your Kenwood
dealer for connectable models of disc changers/
CD players.
Note that any KENWOOD disc changers/ CD players
released in 1997 or earlier and disc changers made
by other makers cannot be connected to this unit.
Unsupported connection may result in damage.
Setting the "O-N" Switch to the "N" position for the
applicable KENWOOD disc changers/ CD players.
The functions that can be used and the information
that can be displayed will differ depending on the
models being connected.
• You can damage both your unit and the CD changer if
you connect them incorrectly.
Do Not Load 3-in. CDs in the CD slot
If you try to load a 3 in. CD with its adapter into the
unit, the adapter might separate from the CD and
damage the unit.
NOTE
• If you experience problems during installation,
consult your Kenwood dealer.
• If the unit fails to operate properly, press the Reset
button. The unit returns to factory settings when
the Reset button is pressed. If the unit still fails to
operate properly after the Reset button has been
pressed, contact your local KENWOOD dealer for
assistance.
• Press the reset button if the disc auto changer fails
to operate correctly. Normal operation should be
restored.
• Characters in the LCD may become difficult to
read in temperatures below 41 ˚F (5 ˚C).
• The illustrations of the display and the panel
appearing in this manual are examples used to
explain more clearly how the controls are used.
Therefore, what appears on the display in the
illustrations may differ from what appears on
the display on the actual equipment, and some
of the illustrations on the display may represent
something impossible in actual operation.
Lens Fogging
Right after you turn on the car heater in cold
weather, dew or condensation may form on
the lens in the CD player of the unit. Called lens
fogging, CDs may be impossible to play. In such
a situation, remove the disc and wait for the
condensation to evaporate. If the unit still does
not operate normally after a while, consult your
Kenwood dealer.
FM
SCAN RDM REP M.RDM
AM
Reset button
KDC-3025K2694U.Sr2.Indd5 03.10.2,3:30:56PM

6|English
Notes
Cleaning the Unit
If the faceplate of this unit is stained, wipe it with a
dry soft cloth such as a silicon cloth.
If the faceplate is stained badly, wipe the stain off
with a cloth moistened with neutral cleaner, then
wipe neutral detergent off.
• Applying spray cleaner directly to the unit may affect its
mechanical parts. Wiping the faceplate with a hard cloth
or using a volatile liquid such as thinner or alcohol may
scratch the surface or erases characters.
Cleaning the Faceplate Terminals
If the terminals on the unit or faceplate get dirty,
wipe them with a dry, soft cloth.

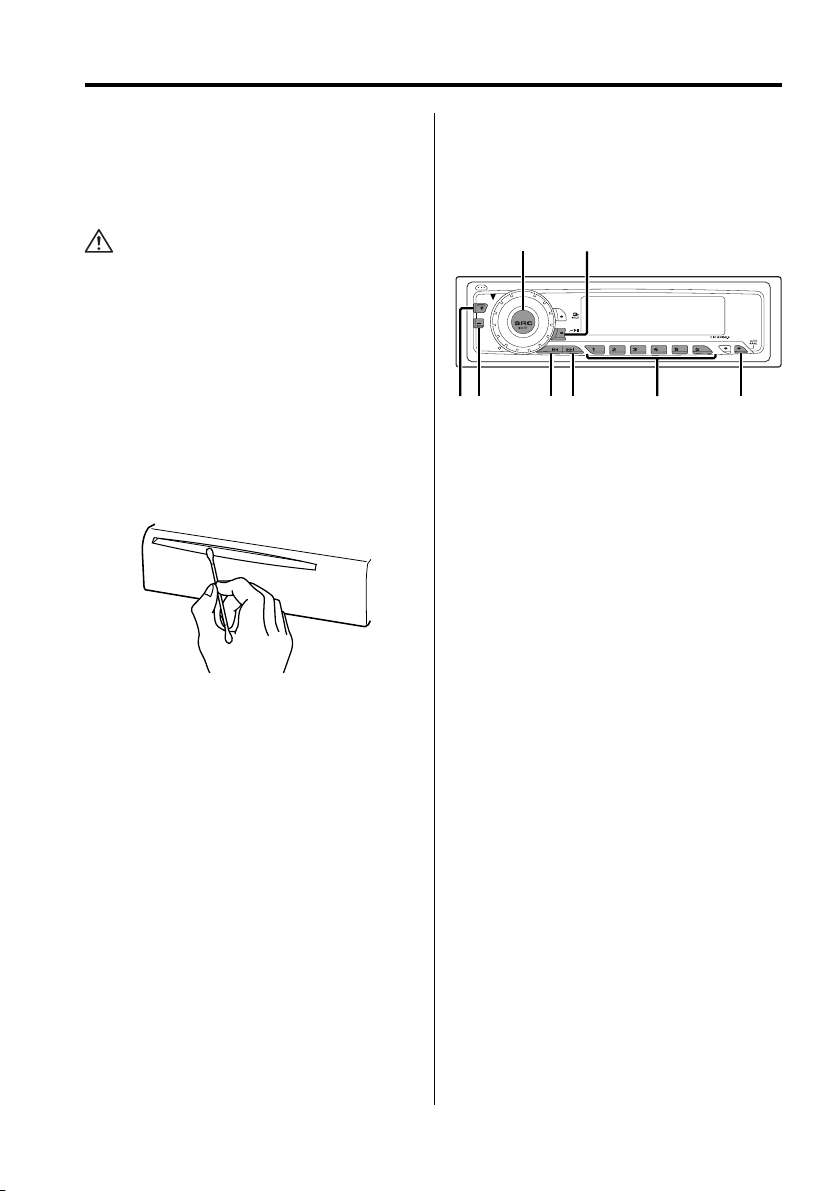

Cleaning the CD Slot
As dust tends to accumulate in the CD slot, clean it
every once in a while. Your CDs can get scratched if
you put them in a dusty CD slot.
NOTE
This Class B digital apparatus complies with
Canadian ICES-003.
About SIRIUS Satellite radio tuner
Refer to the instruction manual of SIRIUS Satellite
radio tuner KTC-SR901/SR902 (optional accessory),
when connected, for the operation method.
• KDC-3025/325
Refer to the sections of A models for operations.
FM
SCAN RDM REP M.RDM
AM
38
1 – 6
¢4
FM AM
SRC
AUTO
KDC-3025K2694U.Sr2.Indd6 03.10.2,3:31:01PM

English |7
Handling CDs
• Don’t touch the recording surface of the CD.
• CD-R and CD-RW are easier to damage than a
normal music CD. Use a CD-R or a CD-RW after
reading the caution items on the package etc.
• Don’t stick tape etc. on the CD.
Also, don’t use a CD with tape stuck on it.
When using a new CD
If the CD center hole or outside rim has burrs, use it
after removing them with a ball pen etc.
CD accessories
Don’t use disc type accessories.
CD cleaning
Clean from the center of the disc and move
outward.
About CDs
Burrs
Burrs
Removing CDs
When removing CDs from this unit pull them out
horizontally.
CDs that can’t be used
• CDs that aren’t round can’t be used.
• CDs with coloring on the recording surface or that
are dirty can’t be used.
• This unit can only play the CDs with
.
It may not correctly play discs which do not have
the mark.
• A CD-R or CD-RW that hasn’t been finalized can’t
be played. (For the finalization process refer to
your CD-R/CD-RW writing software, and your CD-
R/CD-RW recorder instruction manual.)
CD storage
• Don’t place them in direct sunlight (On the seat
or dashboard etc.) and where the temperature is
high.
• Store CDs in their cases.
KDC-3025K2694U.Sr2.Indd7 03.10.2,3:31:06PM

8|English

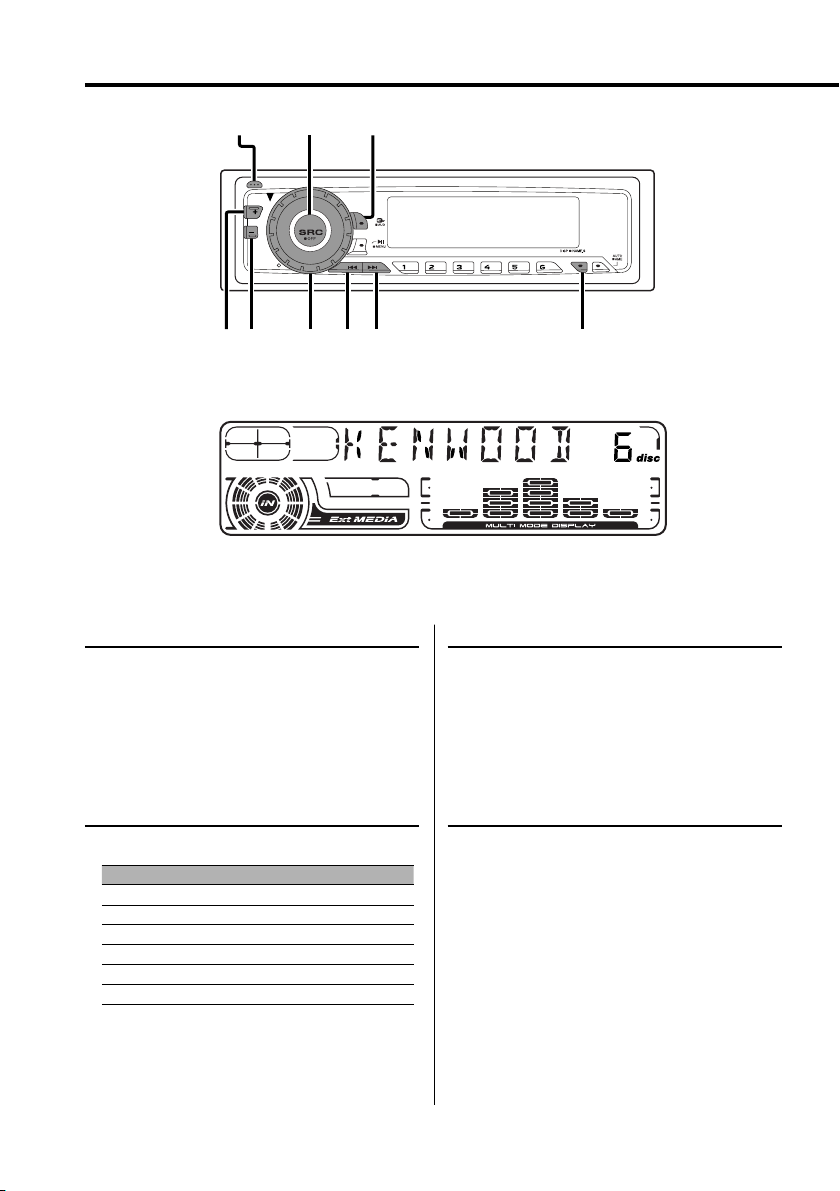

General features
Power
Turning ON the Power
Press the [SRC] button.
Turning OFF the Power
Press the [SRC] button for at least 1 second.
Selecting the Source
Press the [SRC] button.
Source required Display
SIRIUS tuner (Optional accessory) "SIRIUS"
Tuner "TUNER"
CD "CD"
External disc (Optional accessory) "DISC CH"/ "CD2"
Auxiliary input (Optional accessory) "AUX1"
Standby (Illumination only mode) "ALL OFF"
Volume
Increasing Volume
Turn the [VOL] knob clockwise.
Decreasing Volume
Turn the [VOL] knob counterclockwise.
System Q
You can recall the best sound setting preset for
different types of music.
1Select the source to set
Press the [SRC] button.
2Select the Sound type
Press the [Q] button.
Each time the button is pressed the sound
setting switches.
FM
SCAN RDM REP M.RDM
AM
¢4
FM AM DISP/NAME.S
Q/AUD
SRC
VOL
Release button
KDC-3025K2694U.Sr2.Indd8 03.10.2,3:31:08PM

English |9
Sound setting Display
Flat "FLAT"
User memory "USER"
Rock "ROCK"
Pops "POPS"
Easy "EASY"
Top 40 "TOP 40"
Jazz "JAZZ"
• User memory: The values set on the 'Audio Control'
(page 9).
• Each setting value is changed with the 'Speaker
Setting' (page 9).
First, select the speaker type with the Speaker setting.
Audio Control
1Select the source for adjustment
Press the [SRC] button.
2Enter Audio Control mode
Press the [AUD] button for at least 1 second.
3Select the Audio item for adjustment
Press the [FM] or [AM] button.
Each time the button is pressed the items that
can be adjusted switch as shown below.
4Adjust the Audio item
Press the [4] or [¢] button.
Adjustment Item Display Range
Bass level "BAS" –8 — +8
Middle level "MID" –8 — +8
Treble level "TRE" –8 — +8
Balance "BAL" Left 15 — Right 15
Fader "FAD" Rear 15 — Front 15
Volume offset "V-OFF" –8 — ±0
Loudness "LOUD" ON/OFF
• Volume offset: Each source's volume can be set as a
difference from the basic volume.
• Loudness: Compensating for low and high tones
during low volume.
5Exit Audio Control mode
Press the [AUD] button.
Speaker Setting
Fine-tuning so that the System Q value is optimal
when setting the speaker type.
1Enter Standby
Press the [SRC] button.
Select the "ALL OFF" display.
2Enter Speaker Setting mode
Press the [Q] button.
3Select the Speaker type
Press the [4] or [¢] button.
Each time the button is pressed the setting
switches as shown below.
Speaker type Display
OFF "SP OFF"
For 5 & 4 in. speaker "SP 5/4"
For 6 & 6x9 in. speaker "SP 6*9/6"
For the OEM speaker "SP OEM"
4Exit Speaker Setting mode
Press the [Q] button.
KDC-3025K2694U.Sr2.Indd9 03.10.2,3:31:15PM

10 |English
General features
Switching Display
Switching the information displayed.
Press the [DISP] button.
Each time the button is pressed the display
switches as shown below.
In Tuner source
Information Display
Station name "SNPS"
Frequency "BAND+F"
Clock
In CD & External disc source
Information Display
Disc title (In External disc source) "D-TITLE"
Track title (In External disc source) "T-TITLE"
Track number & Play time "P-TIME"
Disc name "DNPS"
Clock
In Auxiliary input source
Information
Auxiliary input name
Clock
•If the Disc title or Track title is selected when the disc
which does not have Disc title or Track title is played,
track number and play time are displayed.
Station/Disc Naming (SNPS/DNPS)
Attaching a title to a Station or CD.
1Receive/play the station/disc you want to
attach a title to
• A title can't be attached to an MD.
• Refer to the 'Switching Display' (page 10) and select
either "DNPS" or "SNPS".
2Enter name set mode
Press the [NAME.S] button for at least 2
seconds.
"NAME SET" is displayed.
3Move the cursor to the enter character
position
Press the [4] or [¢] button.
4Select the characters
Press the [FM] or [AM] button.
•Characters can be entered by using a remote with a
number buttons.
Example: If "DANCE" is entered.
Character Button Times pressed
"D" [3] 1
"A" [2] 1
"N" [6] 2
"C" [2] 3
"E" [3] 2
5Repeat steps 3 through 4 and enter the name.
6Exit name set mode
Press the [NAME.S] button.
• When operation stops for 10 seconds the name at
that time is registered, and Name Set mode closes.
• Memory numbers
- FM: 28 stations
- AM: 10 stations
- Internal CD player: 10 discs
- External CD changer/ player: Varies according to the
CD changer/ player. Refer to the CD changer/ player
manual.
• The title of station/CD can be changed by the same
operation used to name it.
Auxiliary Input Display Setting
Selecting the display when this device is switched
to Auxiliary input source.
1Select Auxiliary input source
Press the [SRC] button.
Select the "AUX1" display.
2Enter Auxiliary input display setting mode
Press the [DISP] button for at least 2 seconds.
The presently selected AUX Name is blinks.
3Select the Auxiliary input display
Press the [4] or [¢] button.
Each time the button is pressed it switches
through the below displays.
• "AUX1"
KDC-3025K2694U.Sr2.Indd10 03.10.2,3:31:20PM

English |11
• "TV"
• "VIDEO"
• "GAME"
• "PORTABLE"
• "DVD"
4Exit Auxiliary input display setting mode
Press the [DISP] button.
• When operation stops for 10 seconds, the name
at that time is selected, and Auxiliary input display
setting mode closes.
Theft Deterrent Faceplate
The faceplate of the unit can be detached and
taken with you, helping to deter theft.
Removing the Faceplate
1Press the Release button.
Drop open the faceplate.
2Drawing the faceplate to left side pull it to
the front and remove it.
• The faceplate is a precision piece of equipment and
can be damaged by shocks or jolts. For that reason,
keep the faceplate in its special storage case while
detached.
• Do not expose the faceplate or its storage case to
direct sunlight or excessive heat or humidity. Also
avoid places with too much dust or the possibility of
water splashing.
Reattaching the Faceplate
1Align the shaft on the unit with the
depression on the faceplate.
2Push the faceplate in until it clicks.
The faceplate is locked in place, allowing you to
use the unit.
KDC-3025K2694U.Sr2.Indd11 03.10.2,3:31:22PM

12 |English
Tuner features
Tuning Mode
Choose the tuning mode.
Press the [AUTO] button.
Each time the button is pressed the Tuning
mode switches as shown below.
Tuning mode Display Operation
Auto seek "AUTO 1" Automatic search for a station.
Preset station seek "AUTO 2" Search in order of the stations
in the Preset memory.
Manual "MANUAL" Normal manual tuning control.
Tuning
Selecting the station.
1Select tuner source
Press the [SRC] button.
Select the "TUNER" display.
2Select the band
Press the [FM] or [AM] button.
Each time the [FM] button is pressed it switches
between the FM1, FM2, and FM3 bands.
3Tune up or down band
Press the [4] or [¢] button.
• During reception of stereo stations the "ST" indicator

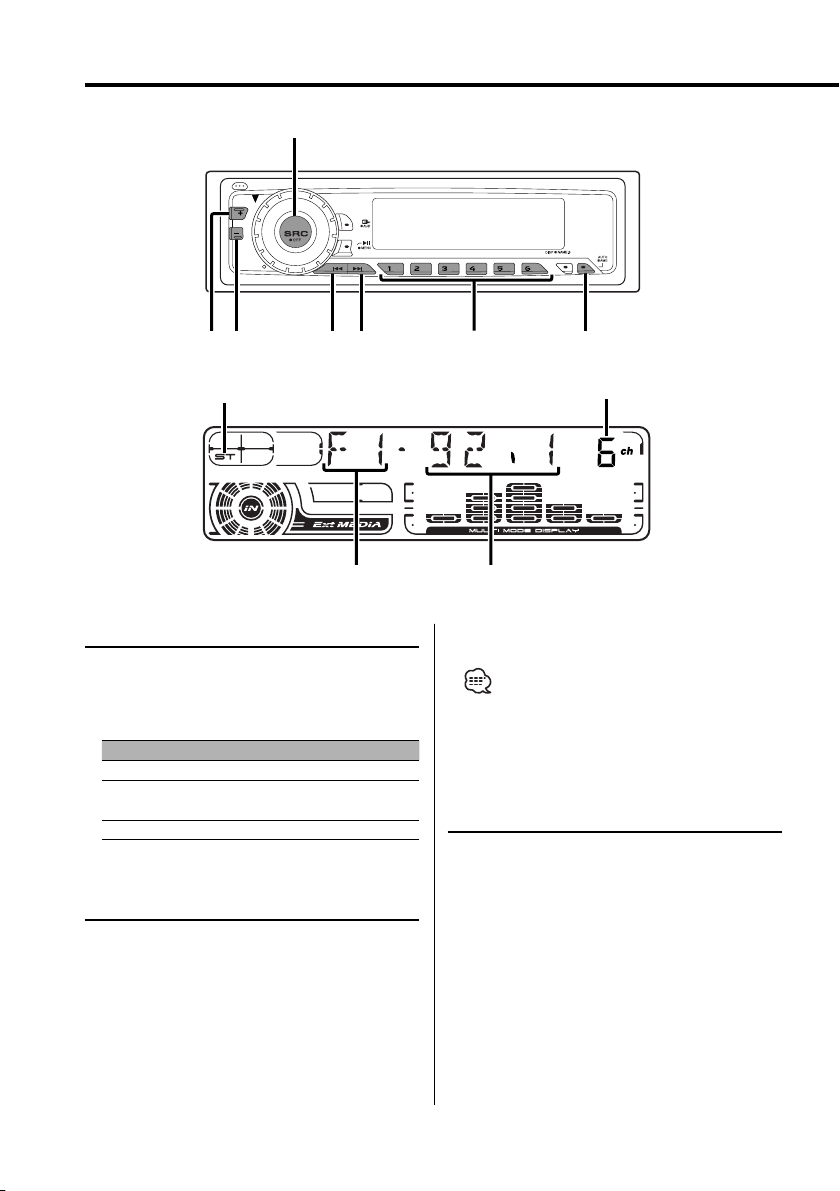

is ON.
Function of remote
Direct Access Tuning
Entering the frequency and tuning.
1Select the band
Press the [FM] or [AM] button.
2Enter Direct Access Tuning mode
Press the [DIRECT] button on the remote.
"– – – –" is displayed.
3Enter the frequency
Press the number buttons on the remote.
FM
SCAN RDM REP M.RDM
AM
1–6
¢4
FM AM
SRC
AUTO/AME
ST indicator
Frequency display
Preset station number
Band display
KDC-3025K2694U.Sr2.Indd12 03.10.2,3:31:24PM

English |13
Example:
Desired frequency Press button
92.1 MHz (FM) [0], [9], [2], [1]
810 kHz (AM) [0], [8], [1], [0]
Canceling Direct Access Tuning
Press the [DIRECT] button on the remote.
Station Preset Memory
Putting the station in the memory.
1Select the band
Press the [FM] or [AM] button.
2Select the frequency to put in the memory
Press the [4] or [¢] button.
3Put the frequency in the memory
Press the desired [1] — [6] button for at least
2 seconds.
The preset number display blinks 1 time.
On each band, 1 station can be put in the
memory on each [1] — [6] button.
Auto Memory Entry
Putting stations with good reception in the
memory automatically.
1Select the band for Auto Memory Entry
Press the [FM] or [AM] button.
2Open Auto Memory Entry
Press the [AME] button for at least 2 seconds.
When 6 stations that can be received are put in
the memory Auto Memory Entry closes.
Preset Tuning
Calling up the stations in the memory.
1Select the band
Press the [FM] or [AM] button.
2Call up the station
Press the desired [1] — [6] button.
KDC-3025K2694U.Sr2.Indd13 03.10.2,3:31:29PM

14 |English
CD/External disc control features

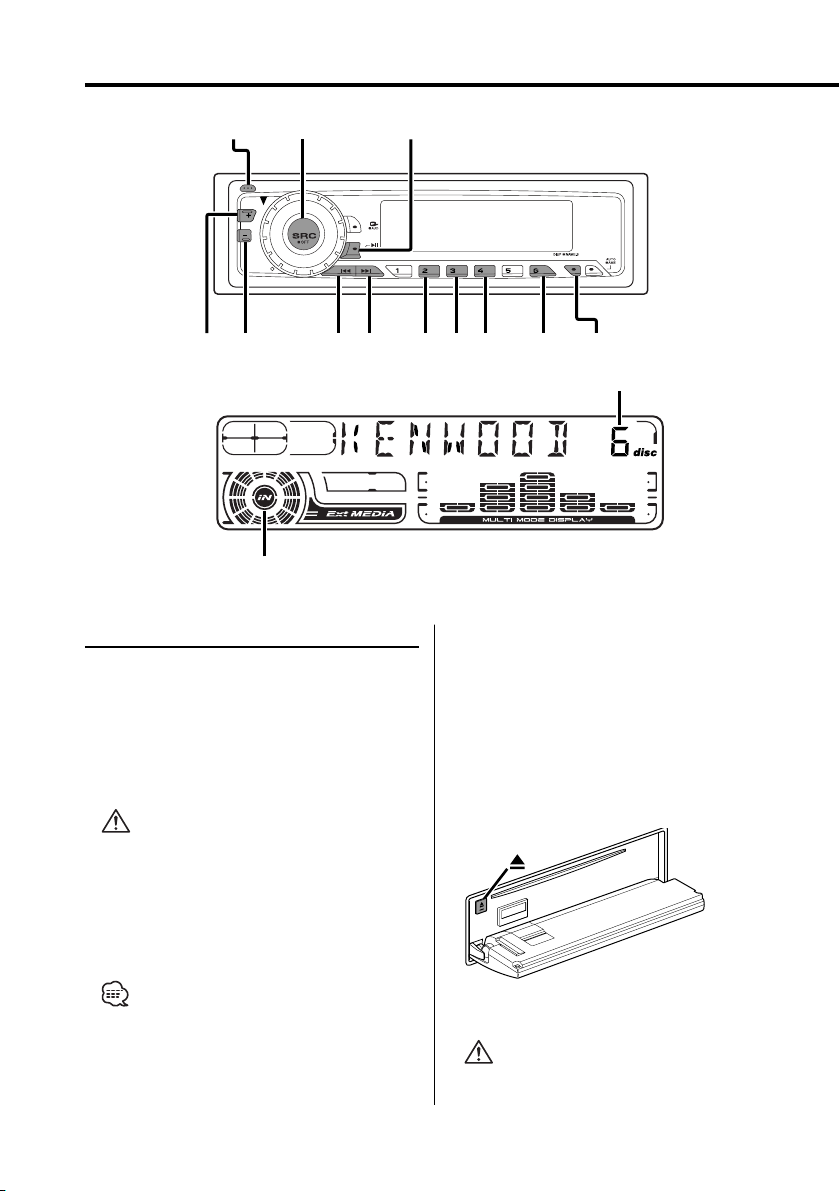

Playing CD
When there is no disc inserted
1Drop open the faceplate
Press the Release button.
2Insert a disc.
3Press the faceplate on the left side, and
return it to its former position.
• When the faceplate has been dropped open, it might
interfere with the shift lever or something else. If this
happens, pay attention to safety and move the shift
lever or take an appropriate action, then operate the
unit.
• Do not use the unit with the faceplate in the open
condition. If it's used in the open position dust can
enter the inside part and cause damage.
• When a disc is inserted, the "IN" indicator is ON.
When a disc is inserted
Press the [SRC] button.
Select the "CD" display.
Pause and play
Press the [38] button.
Each time the button is pressed it pauses and
plays.
Eject the disc
1Drop open the faceplate
Press the Release button.
2Eject the disc
Press the [0] button.
3Press the faceplate on the left side, and
return it to its former position.
• 3 in. (8cm) disc can't be played. Using an adapter and
inserting them into this unit can cause damage.
FM
SCAN RDM REP M.RDM
AM
DISP
SCAN M.RDMRDM REP
38
DISC–DISC+ ¢
4
SRC
Release button
Disc number
IN indicator
KDC-3025K2694U.Sr2.Indd14 03.10.2,3:31:33PM

English |15
Playing External Disc
Playing discs set in the optional accessory disc
player connected to this unit.
Press the [SRC] button.
Select the display for the disc player you want.
Display examples:
Display Disc player
"CD2" CD player
"DISC CH" CD changer/ MD changer
Pause and play
Press the [38] button.
Each time the button is pressed it pauses and
plays.
• Disc 10 is displayed as "0".
• The functions that can be used and the information
that can be displayed will differ depending on the
external disc players being connected.
Fast Forwarding and Reversing
Fast Forwarding
Hold down on the [¢] button.
Release your finger to play the disc at that point.
Reversing
Hold down on the [4] button.
Release your finger to play the disc at that point.
Track Search
Selecting the song you want to hear.
Press the [4] or [¢] button.
Function of disc changer
Disc Search
Selecting the disc you want to hear.
Press the [DISC–] or [DISC+] button.
Function of remote
Direct Track Search
Doing Track Search by entering the track number.
1Enter the track number
Press the number buttons on the remote.
2Do Track Search
Press the [4] or [¢] button.
Canceling Direct Track Search
Press the [38] button.
Function of disc changers with remote
Direct Disc Search
Doing Disc Search by entering the disc number.
1Enter the disc number
Press the number buttons on the remote.
2Do Disc Search
Press the [DISC+] or [DISC–] button.
Canceling Direct Disc Search
Press the [38] button.
• Input "0" to select disc 10.
KDC-3025K2694U.Sr2.Indd15 03.10.2,3:31:38PM

16 |English
CD/External disc control features
Track/Disc Repeat
Replaying the track/disc you're listening to.
Press the [REP] button.
Each time the button is pressed the Repeat Play
switches as shown below.
Repeat play Display
Track Repeat "(T-)REP ON"
Disc Repeat (Function of disc changer) "D-REP ON"
OFF "REP OFF"
Function of CD/MD
Scan Play
Playing the first part of each song on the disc you
are listening to and searching for the song you
want to listen to.
1Start Scan Play
Press the [SCAN] button.
"SCAN ON" is displayed.
2Release it when the song you want to listen
to is played
Press the [SCAN] button.
Random Play
Playing all the songs on the disc in random order.
Press the [RDM] button.
Each time the button is pressed Random Play
turns ON or OFF.
When it's ON, "RDM ON" is displayed.
• When the [¢] button is pressed, the next song
select starts.
Function of disc changer
Magazine Random Play
Play the songs on all the discs in the disc changer
in random order.
Press the [M.RDM] button.
Each time the button is pressed the Magazine
Random Play turns ON or OFF.
When it's ON, "MRDM ON" is displayed.
• When the [¢] button is pressed, the next song
select starts.
Text/Title Scroll
Scrolling the displayed CD text or MD title.
Press the [DISP] button for at least 1 second.
Function of disc changers with remote
DNPP (Disc Name Preset Play)
Selecting the CD displayed in the DNPS of the
CDs set in the Disc changer.
1Enter DNPP mode
Press the [DNPP] button on the remote.
When "DNPP" is displayed the DNPS display in
order.
Forward / Reverse display
Press the [DISC–] or [DISC+] button.
2When the disc you want is displayed
Press the [OK] button on the remote.
The disc being displayed is played.
Canceling the DNPP mode
Press the [DNPP] button on the remote.
KDC-3025K2694U.Sr2.Indd16 03.10.2,3:31:41PM

English |17

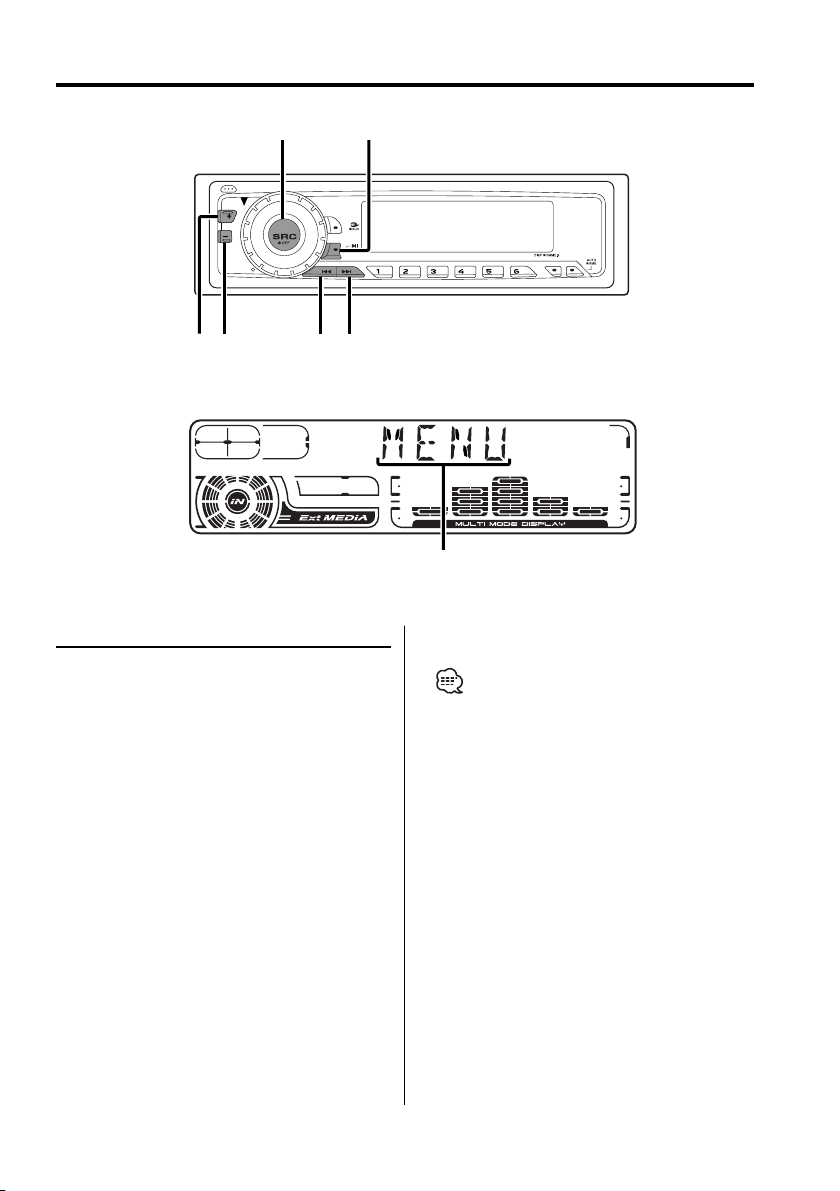

Menu system
Menu System
Setting during operation beep sound etc.
functions.
The Menu system basic operation method is
explained here. The reference for the Menu items
and their setting content is after this operation
explanation.
1Enter Menu mode
Press the [MENU] button for at least 1 second.
"MENU" is displayed.
2Select the menu item
Press the [FM] or [AM] button.
Example: When you want to set the beep sound
select the "BEEP" display.
3Set the menu item
Press the [4] or [¢] button.
Example: When "BEEP" is selected, each time the
button is pressed it switches "BEEP ON"
or "BEEP OFF". Select 1 of them as the
setting.
You can continue by returning to step 2 and
setting other items.
4Exit Menu mode
Press the [MENU] button.
• When other items that are applicable to the basic
operation method above are displayed afterwards
their setting content chart is entered. (Normally the
uppermost setting in the chart is the original setting.)
Also, the explanation for items that aren't applicable
('Manual Clock Adjustment' etc.) are entered step by
step.
Menu display
FM
SCAN RDM REP M.RDM
AM
MENU
¢4
FM AM
SRC
KDC-3025K2694U.Sr2.Indd17 03.10.2,3:31:43PM

18 |English
Menu system
In Standby mode
Security Code
Because authorization by the Security Code is
required when it's removed from the vehicle,
personalizing this unit is by using the Security
Code is a help in preventing theft.
• When the Security Code function is activated, the code
can't be changed and the function can't be released.
Note, the Security Code can be set as the 4 digit number
of your choice.
1Enter Standby
Press the [SRC] button.
Select the "ALL OFF" display.
2Enter Menu mode
Press the [MENU] button for at least 1 second.
When "MENU" is displayed, "SECURITY" is
displayed.
3Enter Security Code mode
Press the [4] or [¢] button for at least 1
second.
When "ENTER" is displayed, "CODE" is displayed.
4Select the digits to enter
Press the [4] or [¢] button.
5Select the Security Code numbers
Press the [FM] or [AM] button.
6Repeat steps 4 and 5, and complete the
Security Code.
7Confirm the Security Code
Press the [¢] button for at least 3 seconds.
When "RE-ENTER" is displayed, "CODE" is
displayed.
8Do the step 4 through 7 operation, and
reenter the Security Code.
"APPROVED" is displayed.
The Security Code function activates.
• When the wrong Code is entered in steps 4 through 6,
repeat from step 4.
Press the Reset button and when it's removed
from the battery power source
1Turn the power ON.
2Do the step 4 through 7 operation, and enter
the Security Code.
"APPROVED" is displayed.
The unit can be used.
Touch Sensor Tone
Setting the operation check sound (beep sound)
ON/OFF.
Display Setting
"BEEP ON" Beep is heard.
"BEEP OFF" Beep canceled.
Manual Clock Adjustment
1Select Clock Adjustment mode
Press the [FM] or [AM] button.
Select the "CLK ADJ" display.
2Enter Clock Adjust mode
Press the [4] or [¢] button for at least 1
second.
The clock display blinks.
3Adjust the hours
Press the [FM] or [AM] button.
Adjust the minutes
Press the [4] or [¢] button.
4Exit Clock adjustment mode
Press the [MENU] button.
DSI (Disabled System Indicator)
A red indicator will blink on the unit after the
faceplate is removed, warning potential thieves.
Display Setting
"DSI ON" LED flashes.
"DSI OFF" LED OFF.
KDC-3025K2694U.Sr2.Indd18 03.10.2,3:31:47PM

English |19
Switching Display Type
Setting the Display type.
Display Setting
"DISP C" Demonstration.
"DISP A" Normal display type.
"DISP B" Silent display type.
Contrast Adjustment
Adjusting the display contrast.
Display and Setting
"CONT 0"
…
"CONT 7" (Original setting)
In FM reception
CRSC (Clean Reception System
Circuit)
Temporarily have reception switched from
stereo to mono to reduce multi-path noise when
listening to the FM station.
Display Setting
"CRSC ON" The CRSC is ON.
"CRSC OFF" The CRSC is OFF.
• Strong electrical fields (such as from power lines) may
cause unstable sound quality when CRSC is turned
ON. In such a situation, turn it OFF.
Text Scroll
Setting the displayed text scroll.
Display Setting
"SCL AUTO" Repeats scroll.
"SCL MANU" Scrolls when the display changes.
• The text scrolled is shown below.
- CD text
- MD title
- Text for the SIRIUS tuner source, including Channel
name, etc.
KDC-3025K2694U.Sr2.Indd19 03.10.2,3:31:52PM

20 |English
Basic Operations of remote
Loading and Replacing the battery
Use two "AA"-size batteries.
Slide the cover while pressing downwards to
remove it as illustrated.
Insert the batteries with the + and – poles aligned
properly, following the illustration inside the case.
2WARNING
• Store unused batteries out of the reach of children.
Contact a doctor immediately if the battery is
accidentally swallowed.
• Do not set the remote on hot places such as above
the dashboard.
Basic operations
[VOL.] buttons
Adjusting the volume.
[SRC] button
Each time the button is pressed the source
switches.
For the source switching order refer to 'Selecting
the Source' (page 8).
[ATT] button
Turning the volume down quickly.
When it is pressed again it returns to the previous
level.
ATT
DIRECT/OK
[0] — [9]
SRC
4/¢
38
FM/AM/DISC + /DISC–
DNPP
VOL.
SRC
DIRECT
/OK
DNPP
/SBF
ABC DEF
JKLGHI MNO
TUV
QZ
PRS WXY
VOL.
AT T
DISC
FM+
AM–
38
¢4
Not Used
KDC-3025K2694U.Sr2.Indd20 03.10.2,3:31:53PM
