Kenwood KDC-334SA/SG User manual

CD-RECEIVER
KDC-334SA
KDC-334SG
INSTRUCTION MANUAL
© B64-3240-00/00 (EW/E2W)
B64-3240-00Englishr2.inddSec1:1B64-3240-00Englishr2.inddSec1:1 05.8.82:06:24PM05.8.82:06:24PM

2|English
Contents
Safety precautions 3
Notes 4
About CDs 5
General features 6
Power
Selecting the Source
Volume
Attenuator
System Q
Audio Control
Audio Setup
Speaker Setting
Switching Clock Display
Theft Deterrent Faceplate
TEL Mute
Tuner features 10
Tuning
Station Preset Memory
Auto Memory Entry
Preset Tuning
RDS features 12
Traffic Information
PTY (Program Type)
Program Type preset
Changing Language for PTY Function
CD player features 15
Playing CD
Fast Forwarding and Reversing
Track Search
Track Repeat
Scan Play
Random Play
Menu system 17
Menu System
Touch Sensor Tone
Manual Clock Adjustment
Synchronize Clock
Power OFF Timer
News Bulletin with Timeout Setting
Local Seek
Tuning Mode
AF (Alternative Frequency)
Restricting RDS Region (Region Restrict
Function)
Auto TP Seek
Monaural Reception
Accessories/
Installation Procedure 20
Connecting Wires to Terminals 21
Installation 23
Removing the Unit 24
Troubleshooting Guide 25
Specifications 27
B64-3240-00Englishr2.indd2B64-3240-00Englishr2.indd2 05.8.82:06:25PM05.8.82:06:25PM

English |3
Safety precautions
2WARNING
To prevent injury or fire, take the
following precautions:
• To prevent a short circuit, never put or leave any
metallic objects (such as coins or metal tools)
inside the unit.
2CAUTION
To prevent damage to the machine, take
the following precautions:
• Make sure to ground the unit to a negative 12V
DC power supply.
• Do not install the unit in a spot exposed to direct
sunlight or excessive heat or humidity. Also avoid
places with too much dust or the possibility of
water splashing.
• Do not place the faceplate in areas exposed to
direct sunlight, excessive heat or humidity. Also
avoid places with too much dust or the possibility
of water splashing.
• To prevent deterioration, do not touch the
terminals of the unit or faceplate with your
fingers.
• Do not subject the faceplate to excessive shock,
as it is a piece of precision equipment.
• When replacing a fuse, only use a new fuse with
the prescribed rating. Using a fuse with the wrong
rating may cause your unit to malfunction.
• Do not use your own screws. Use only the screws
provided. If you use the wrong screws, you could
damage the unit.
Do Not Load 3-in. CDs in the CD slot
If you try to load a 3 in. CD with its adapter into the
unit, the adapter might separate from the CD and
damage the unit.
Lens Fogging
When you turn on the car heater in cold weather,
dew or condensation may form on the lens in the
CD player of the unit. Called lens fogging, this
condesnation on the lens may not allow CDs to
play. In such a situation, remove the disc and wait
for the condensation to evaporate. If the unit still
does not operate normally after a while, consult
your Kenwood dealer.
B64-3240-00Englishr2.indd3B64-3240-00Englishr2.indd3 05.8.82:06:25PM05.8.82:06:25PM

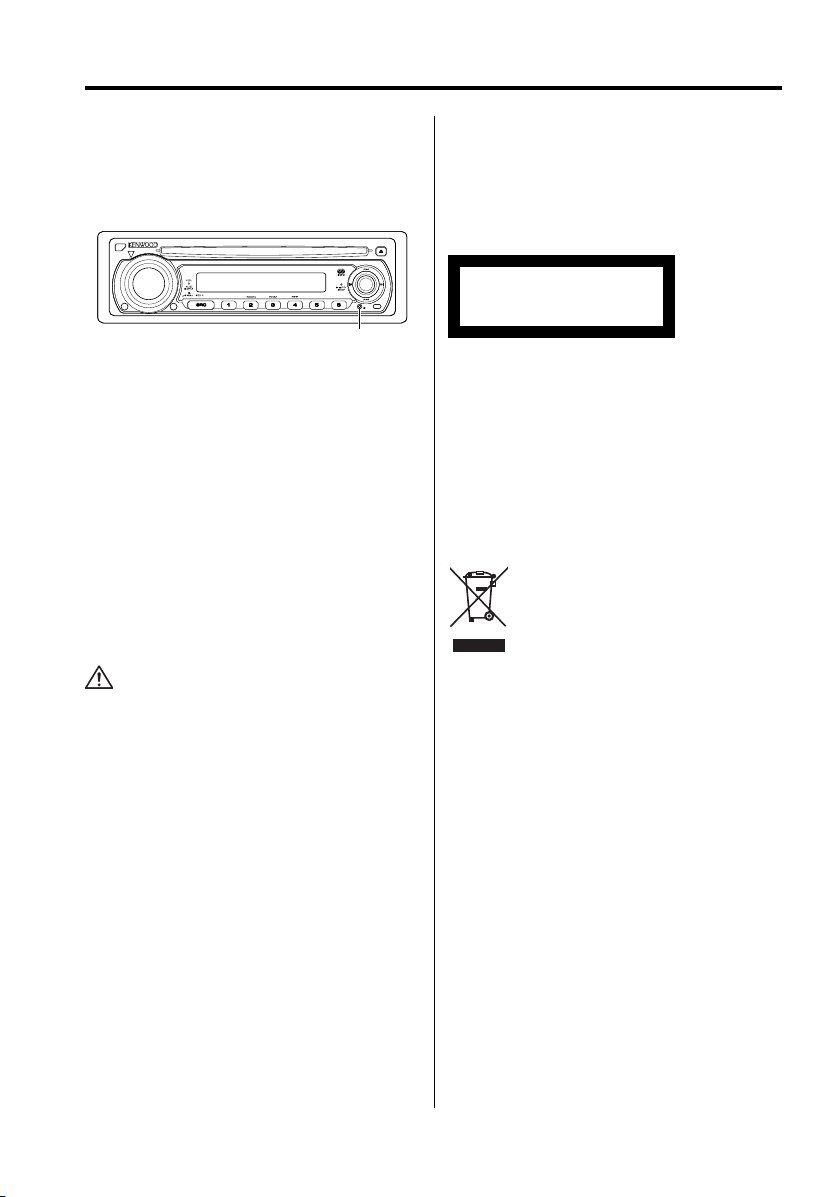

4|English
Notes
• If you experience problems during installation,
consult your Kenwood dealer.
• If the unit fails to operate properly, press the Reset
button. The unit returns to factory settings when
the Reset button is pressed.
• Characters in the LCD may become difficult to
read in temperatures below 5 ˚C (41 ˚F).
• The illustrations of the display and the panel
appearing in this manual are examples used to
explain more clearly how the controls are used.
Therefore, what appears on the display in the
illustrations may differ from what appears on the
display on the actual equipment, and some of the
illustrations on the display may be inapplicable.
Cleaning the Unit
If the faceplate of this unit is stained, wipe it with a
dry soft cloth such as a silicon cloth.
If the faceplate is stained badly, wipe the stain off
with a cloth moistened with neutral cleaner, then
wipe it again with a clean soft dry cloth.
• Applying spray cleaner directly to the unit may affect its
mechanical parts. Wiping the faceplate with a hard cloth
or using a volatile liquid such as thinner or alcohol may
scratch the surface or erases characters.
Cleaning the Faceplate Terminals
If the terminals on the unit or faceplate get dirty,
wipe them with a clean soft dry cloth.
This Product is not installed by the manufacturer
of a vehicle on the production line, nor by the
professional importer of a vehicle into an EU
Member State.
The marking of products using lasers
(Except for some areas)
CLASS 1
LASER PRODUCT
The label is attached to the chassis/case and says
that the component uses laser beams that have
been classified as Class 1. This means that the unit
is utilizing laser beams that are of a weaker class.
There is no danger of hazardous radiation outside
the unit.
Information on Disposal of Old Electrical
and Electronic Equipment (applicable for
EU countries that have adopted separate
waste collection systems)
Products with the symbol (crossed-out
wheeled bin) cannot be disposed as
household waste.
Old electrical and electronic equipment
should be recycled at a facility capable
of handling these items and their
waste byproducts. Contact your local
authority for details in locating a
recycle facility nearest to you. Proper
recycling and waste disposal will help
conserve resources whilst preventing
detrimental effects on our health and the
environment.
Reset button
ATT
TI
AME
B64-3240-00Englishr2.indd4B64-3240-00Englishr2.indd4 05.8.82:06:25PM05.8.82:06:25PM

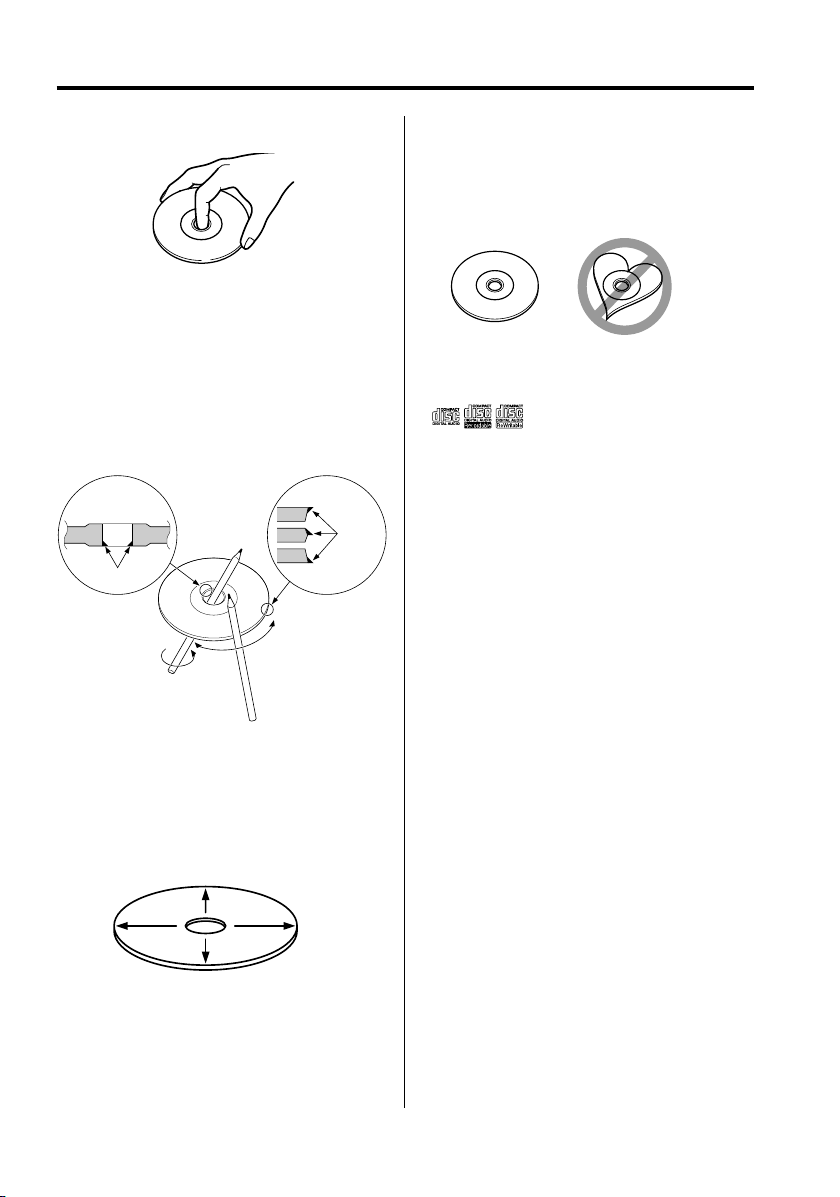

English |5
Handling CDs
• Do not touch the recording surface of the CD.
• CD-R and CD-RW are easier to damage than a
normal music CD. Use a CD-R or a CD-RW after
reading the caution items on the package etc.
• Do not stick tape etc. on the CD, or use a CD with
tape stuck on it.
When using a new CD
If the CD center hole or outside rim has burrs,
use the CD only after removing the burrs with a
ballpoint pen etc.
Burrs
Burrs
CD accessories
Do not use disc type accessories.
CD cleaning
Clean from the center of the disc and move
outward.
About CDs
Removing CDs
When removing CDs from this unit pull them out
horizontally.
CDs that can’t be used
• CDs that are not round cannot be used.
• CDs with coloring on the recording surface or that
are dirty cannot be used.
• This unit can only play the CDs with
.
This unit may not correctly play discs which do
not have the mark.
• You cannot play A CD-R or CD-RW that has not
been finalized. (For the finalization process refer to
your CD-R/CD-RW writing software, and your CD-
R/CD-RW recorder instruction manual.)
CD storage
• Do not place CDs in direct sunlight (On the seat
or dashboard etc.) or where the temperature is
high.
• Store CDs in their cases.
B64-3240-00Englishr2.indd5B64-3240-00Englishr2.indd5 05.8.82:06:26PM05.8.82:06:26PM

6|English
General features
Power
Turning ON the Power
Press the [SRC] button.
Turning OFF the Power
Press the [SRC] button for at least 1 second.
Selecting the Source
Press the [SRC] button.
Source required Display
Tuner "TUNER"
CD "CD"
Standby (Illumination only mode) "STANDBY"
• This unit automatically turns full power OFF after 20
minutes lapses in Standby mode in order to save the
vehicle's battery.
The time until full power OFF can be set in <Power
OFF Timer> (page 18).
Volume
Increasing Volume
Turn the [VOL] knob clockwise.
Decreasing Volume
Turn the [VOL] knob counterclockwise.
Attenuator
Turning the volume down quickly.
Press the [ATT] button.
Each time you press the button, the Attenuator
turns ON and OFF.
When the Attenuator is ON, the "ATT" indicator
blinks.
SRCQATT VOL
ATT
TI
AME
GeneralGeneral
Release button Control knob
LOUD indicator
ATT indicatorClock display
B64-3240-00Englishr2.indd6B64-3240-00Englishr2.indd6 05.8.82:06:26PM05.8.82:06:26PM

English |7
System Q
Selecting the best sound setting preset for
different types of music.
1Select the source to set
Press the [SRC] button.
2Select the Sound type
Press the [Q] button.
Each time you press the button, the sound
setting alternates.
Sound setting Display
Natural "NATURAL"
Rock "ROCK"
Pops "POPS"
Easy "EASY"
Top 40 "TOP 40"
Jazz "JAZZ"
• "USER": The values set on the <Audio Control> (page
7).
• Change each setting value with the <Speaker
Setting> (page 8).
First, select the speaker type with the Speaker setting.
Audio Control
1Select the source to adjust
Press the [SRC] button.
2Enter Audio Control mode
Press the [VOL] knob.
3Select the Audio item to adjust
Press the [VOL] knob.
Each time you press the knob, the item to be
adjusted alternates between the items shown in
the table below.
4Adjust the Audio item
Turn the [VOL] knob.
Adjustment Item Display Range
Bass level "BAS L" –8 — +8
Middle level "MID L" –8 — +8
Treble level "TRE L" –8 — +8
Balance "BAL" Left 15 — Right 15
Fader "FAD" Rear 15 — Front 15
Exit Audio Control mode (Volume control mode)
5Exit Audio Control mode
Press any button.
Press a button other than the [VOL] knob, [SRC],
[0] and [ATT] button.
B64-3240-00Englishr2.indd7B64-3240-00Englishr2.indd7 05.8.82:06:27PM05.8.82:06:27PM

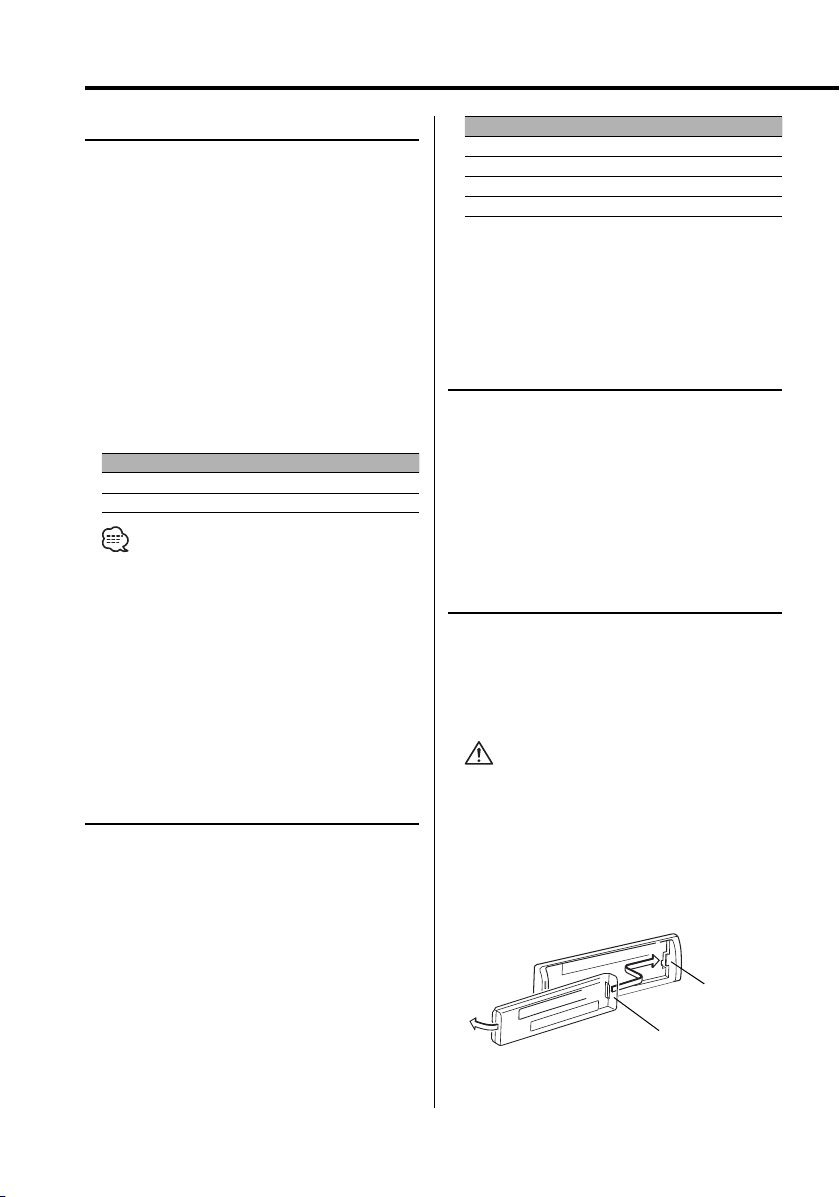

8|English
General features
Audio Setup
Setting the Sound system, such as Volume offset
and Loudness.
1Select the source to adjust
Press the [SRC] button.
2Enter Audio Setup mode
Press the [VOL] knob for at least 1 second.
3Select the Audio Setup item to adjust
Press the [VOL] knob.
Each time you press the knob, the item to be
adjusted alternates between the items shown in
the table below.
4Adjust the Audio setup item
Turn the [VOL] knob.
Adjustment Item Display Range
Volume offset "V-OFF" –8 — ±0
Loudness "LOUD" ON/OFF
• Volume offset: Sets each source’s volume as a
difference from the basic volume.
• Loudness: Compensates for low and high tones
during low volume.
When Loudness is ON, "LOUD" indicator
is ON.
5Exit Audio Setup mode
Press the [VOL] knob for at least 1 second.
Speaker Setting
Fine-tuning so that the System Q value is optimal
when setting the speaker type.
1Enter Standby
Press the [SRC] button.
Select the "STANDBY" display.
2Enter Speaker Setting mode
Press the [VOL] knob.
3Select the Speaker type
Turn the [VOL] knob.
Each time you turn the knob, the setting
alternates between the settings shown in the
table below.
Speaker type Display
OFF "SP OFF"
For 5 & 4 in. speaker "SP 5/4"
For 6 & 6x9 in. speaker "SP 6x9/6"
For the OEM speaker "SP OEM"
4Exit Speaker Setting mode
Press the [VOL] knob.
Switching Clock Display
Changing the displayed information.
Press the control knob for at least 1 second.
Each time you press the button, the display
alternates between clock display and current
source.
Theft Deterrent Faceplate
The faceplate of the unit can be detached and
taken with you, helping to deter theft.
Removing the Faceplate
Press the Release button.
The faceplate unlocks, allowing you to detach it.
• The faceplate is a precision piece of equipment and
can be damaged by shocks or jolts.
• Do not expose the faceplate to direct sunlight or
excessive heat or humidity. Also avoid places with too
much dust or the possibility of water splashing.
Reattaching the Faceplate
1Align the projections on the unit with the
grooves on the faceplate.
Projections
Grooves
B64-3240-00Englishr2.indd8B64-3240-00Englishr2.indd8 05.8.82:06:28PM05.8.82:06:28PM

English |9
2Push the faceplate in until it clicks.
The faceplate is locked in place, allowing you to
use the unit.
TEL Mute
The audio system automatically mutes when a
call comes in.
When a call comes in
"CALL" is displayed.
The audio system pauses.
Listening to the audio during a call
Press the [SRC] button.
The "CALL" display disappears and the audio
system comes back ON.
When the call ends
Hang up the phone.
The "CALL" display disappears and the audio
system comes back ON.
B64-3240-00Englishr2.indd9B64-3240-00Englishr2.indd9 05.8.82:06:29PM05.8.82:06:29PM

10 |English
Tuner features
Tuning
Selecting the station.
1Select tuner source
Press the [SRC] button.
Select the "TUNER" display.
2Select the band
Push the Control knob towards [FM] or [AM].
Each time you push the knob toward [FM], it
switches between the FM I, FM II, and FM III
bands.
3Tune up or down band
Push the Control knob towards [4] or
[¢].
• During reception of stereo stations the "ST" indicator
is ON.
Station Preset Memory
Putting a station in the memory.
1Select the band
Push the Control knob towards [FM] or [AM].
2Select the frequency to put in the memory
Push the Control knob towards [4] or
[¢].
3Put the frequency in the memory
Press the desired [1] — [6] button for at least
2 seconds.
The preset number display blinks 1 time.
On each band, 1 station can be put in the
memory on each [1] — [6] button.
SRC 1-6 AME
ATT
TI
AME
Control knob
ST indicator Frequency display
Band display Preset station number
B64-3240-00Englishr2.indd10B64-3240-00Englishr2.indd10 05.8.82:06:29PM05.8.82:06:29PM

English |11
Auto Memory Entry
Putting stations with good reception in the
memory automatically.
1Select the band for Auto Memory Entry
Push the Control knob towards [FM] or [AM].
2Open Auto Memory Entry
Press the [AME] button for at least 2 seconds.
"A-MEMORY" is displayed.
When 6 stations that can be received are put in
the memory Auto Memory Entry closes.
• When the <AF (Alternative Frequency)> (page 19) is
ON, only RDS stations are put in the memory.
• When Auto Memory Entry is done in the FM II band,
the RDS stations preset in the FM I band are not put in
the memory.
Likewise, when Auto Memory Entry is done in the FM
III band, RDS stations preset in FM I or FM II are not put
in the memory.
Preset Tuning
Recalling the stations in the memory.
1Select the band
Push the Control knob towards [FM] or [AM].
2Recall the station
Press the desired [1] — [6] button.
B64-3240-00Englishr2.indd11B64-3240-00Englishr2.indd11 05.8.82:06:30PM05.8.82:06:30PM

12 |English

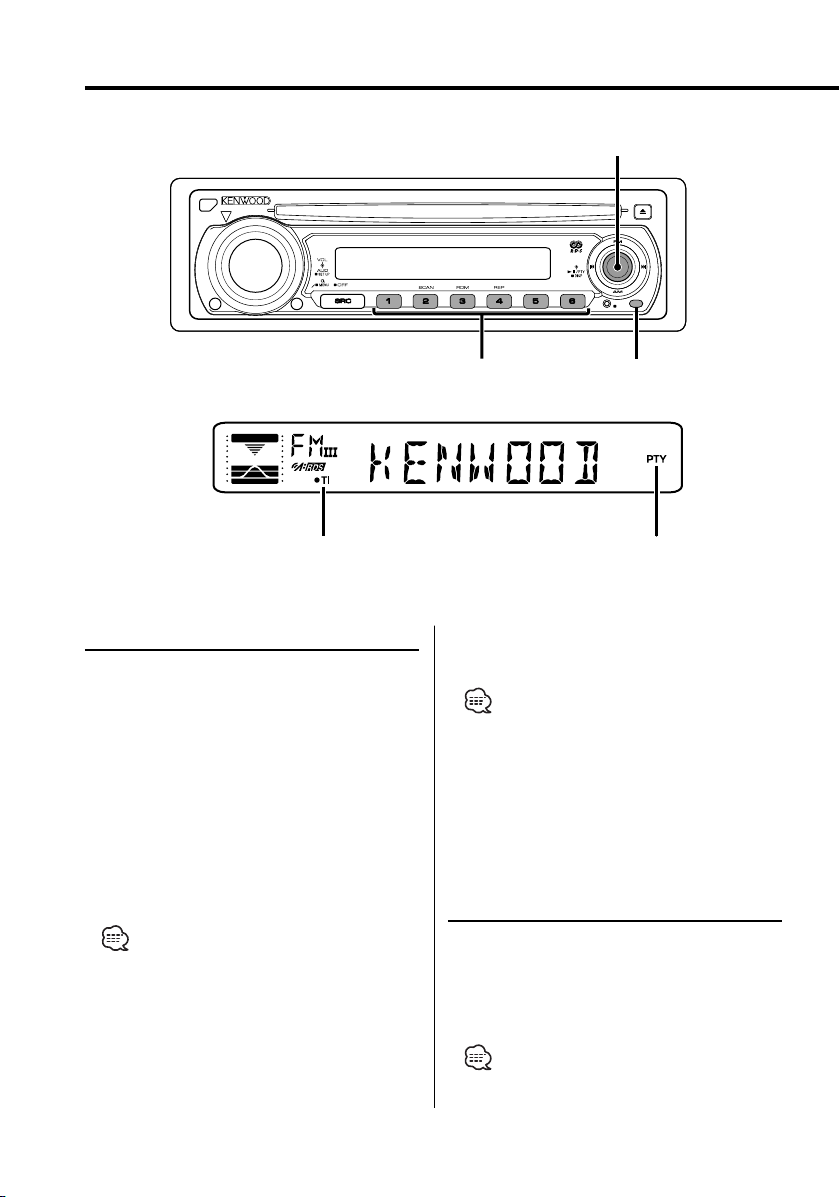

RDS features
Traffic Information
Changing to traffic information automatically
when a traffic bulletin starts even when you are
not listening to the radio.
Press the [TI] button.
Each time you press the button, the Traffic
information function turns ON and OFF.
When traffic information is ON, "TI" indicator is
ON.
When a traffic information station is not being
received the "TI" indicator blinks.
When a traffic bulletin starts, "TRAFFIC" is
displayed and the audio changes to traffic
information.
• During reception of an AM station when the Traffic
Information function is turned ON, the frequency
changes to an FM station.
• During reception of traffic information the adjusted
volume is automatically remembered, and the next
time the audio changes to traffic information, the
volume automatically becomes the remembered
volume.
Receiving other traffic information stations
Push the Control knob towards [4] or
[¢].
• Traffic information can be switched when it is on the
Tuner Source. However, you cannot switch the Traffic
information during reception of the Traffic bulletin
switched from the source other than the Tuner.
PTY (Program Type)
Selecting the Program Type and searching for a
station.
1Enter PTY mode
Press the Control knob.
During PTY mode the "PTY" indicator is ON.
• This function cannot be used during a traffic bulletin
or AM reception.
TI1-6
ATT
TI
AME
Control knob
PTY indicatorTI indicator
B64-3240-00Englishr2.indd12B64-3240-00Englishr2.indd12 05.8.82:06:30PM05.8.82:06:30PM

English |13
2Select the Program Type
Push the Control knob towards [FM] or [AM].
Each time you push the knob, the Program Type
alternates between the program types shown in
the table below.
No. Program Type Display
1. Speech "SPEECH"
2. News "NEWS"
3. Current Affairs "AFFAIRS"
4. Information "INFO"
5. Sport "SPORT"
6. Education "EDUCATE"
7. Drama "DRAMA"
8. Culture "CULTURE"
9. Science "SCIENCE"
10. Varied "VARIED"
11. Pop Music "POP M"
12. Rock Music "ROCK M"
13. Easy Listening Music "EASY M"
14. Light Classical "LIGHT M"
15. Serious Classical "CLASSICS"
16. Other Music "OTHER M"
17. Weather "WEATHER"
18. Finance "FINANCE"
19. Children’s programs "CHILDREN"
20. Social Affairs "SOCIAL"
21. Religion "RELIGION"
22. Phone In "PHONE IN"
23. Travel "TRAVEL"
24. Leisure "LEISURE"
25. Jazz Music "JAZZ"
26. Country Music "COUNTRY"
27. National Music "NATION M"
28. Oldies Music "OLDIES"
29. Folk Music "FOLK M"
30. Documentary "DOCUMENT"
31. Music "MUSIC"
• Speech and Music include the Program type shown
below.
Music: No.11 —16, 25 —29
Speech: No.2 —10, 17 —24, 30
• You can put the Program Type in the [1] — [6] button
memory and for quick recall. Refer to the <Program
Type preset> (page 13).
• You can change the display language. Refer to
<Changing Language for PTY Function> (page 14).
3Search for the selected Program Type
station
Push the Control knob towards [4] or
[¢].
When you want to search for other stations, push
[4] or [¢] of the Control knob again.
• When the selected Program Type is not found, "NO
PTY" is displayed. Select another Program Type.
4Exit PTY mode
Press the Control knob.
Program Type preset
Putting the Program Type in the Preset button
memory and quick recall.
Presetting the Program Type
1Select the Program Type to preset
Refer to <PTY (Program Type)> (page 12).
2Preset the Program Type
Press the desired [1] —[6] button for at least
2 seconds.
Recalling the preset Program Type
1Enter PTY mode
Refer to <PTY (Program Type)> (page 12).
2Recall the Program Type
Press the desired [1] —[6] button.
B64-3240-00Englishr2.indd13B64-3240-00Englishr2.indd13 05.8.82:06:31PM05.8.82:06:31PM

14 |English
RDS features
Changing Language for PTY
Function
Selecting the Program Type display language.
1Enter PTY mode
Refer to <PTY (Program Type)> (page 12).
2Enter Changing Language mode
Press the [TI] button.
3Select the language
Push the Control knob towards [FM] or [AM].
Each time you push the knob, the language
alternates between the languages shown in the
table below.
Language Display
English "ENGLISH"
French "FRENCH"
German "GERMAN"
4Exit Changing Language mode
Press the [TI] button.
B64-3240-00Englishr2.indd14B64-3240-00Englishr2.indd14 05.8.82:06:31PM05.8.82:06:31PM

English |15
CD player features
Playing CD
When a disc is inserted
Press the [SRC] button.
Select the "CD" display.
• When a CD is inserted, the "IN" indicator is ON.
Pause and play
Press the Control knob.
Each time you press the knob, the audio pauses
or plays.
Eject the CD
Press the [0] button.
Fast Forwarding and Reversing
Fast Forwarding
Hold down toward [¢] with the Control
knob.
Release your finger to play the disc at that point.
Reversing
Hold down toward [4] with the Control
knob.
Release your finger to play the disc at that point.
SRC SCAN REP
RDM
0
ATT
TI
AME
Control knob
Track number Track timeIN indicator
B64-3240-00Englishr2.indd15B64-3240-00Englishr2.indd15 05.8.82:06:32PM05.8.82:06:32PM

16 |English
CD player features
Track Search
Selecting the song you want to hear.
Push the Control knob towards [4] or
[¢].
Track Repeat
Replaying the song you are listening to.
Press the [REP] button.
Each time you press the button, the Track Repeat
turns ON or OFF.
When the Track Repeat is ON, "TRAC REP" is
displayed.
Scan Play
Playing the first part of each song on the disc you
are listening to and searching for the song you
want to hear.
1Start Scan Play
Press the [SCAN] button.
"TRAC SCN" is displayed.
2Release it when the song you want to listen
to is played
Press the [SCAN] button.
Random Play
Playing all the songs on the disc in random order.
Press the [RDM] button.
Each time you press the button, Random Play
turns ON or OFF.
When the Random mode is ON, "DISC RDM" is
displayed.
• When you push the Control knob toward [¢], the
next random song starts.
B64-3240-00Englishr2.indd16B64-3240-00Englishr2.indd16 05.8.82:06:32PM05.8.82:06:32PM

English |17
You can continue by returning to step 2 and
setting other items.
4Exit Menu mode
Press the [MENU] button.
• When other items those applicable to the basic
operation method above are displayed, their setting
content chart is entered. (Normally the setting listed at
the top of the chart is the original setting.)
Also, the explanation for items that are not applicable
(<Manual Clock Adjustment> etc.) are entered step
by step.
Menu System
Setting beep sound during operation, etc.
functions.
The Menu system basic operation method is
explained here. The reference for the Menu items
and their setting content is after this operation
explanation.
1Enter Menu mode
Press the [MENU] button for at least 1 second.
"MENU" is displayed.
2Select the menu item
Push the Control knob towards [FM] or [AM].
Example: When you want to set the beep sound
select the "BEEP" display.
3Set the menu item
Push the Control knob towards [4] or
[¢].
Example: When you select "BEEP", each time you
push the knob it alternates between
"BEEP ON" or "BEEP OFF". Select 1 of
them as the setting.
Menu system
MENU
ATT
TI
AME
Control knob
RDS indicator Menu display
B64-3240-00Englishr2.indd17B64-3240-00Englishr2.indd17 05.8.82:06:33PM05.8.82:06:33PM

18 |English
News Bulletin with Timeout Setting
The tuner automatically changes when a news
bulletin starts even if the radio is not being
listened to. Also, you can set the time interval
when interruption is prohibited.
Display and Setting
"NEWS OFF"
"NEWS 00M"
…
"NEWS 90M"
When you set "NEWS 00M" — "NEWS 90M", the
News Bulletin Interrupt function is ON.
When the news bulletin starts, "NEWS" is
displayed, and the tuner changes to the news
bulletin.
• If you choose the "20MIN" setting, further news
bulletins will not be received for 20 minutes once the
first news bulletin is received.
• The news bulletin volume is the same level that was
set for <Traffic Information> (page 12).
• This news bulletin function is only available if the
desired station sends PTY-code for news bulletin or
belongs to <Enhanced Other Network>-Network
sending PTY-code for news bulletin.
• When the News Bulletin Interrupt function is ON, the
tuner changes to an FM station.
In Standby mode
Power OFF Timer
Setting the timer to turn this unit’s power OFF
automatically when Standby mode continues.
Using this setting can save the vehicle’s battery
power.
Display Setting
"OFF – – –" Power OFF Timer function is OFF.
"OFF 20M"
(Original setting)
Turns the power OFF after 20 minutes.
"OFF 40M" Turns the power OFF after 40 minutes.
"OFF 60M" Turns the power OFF after 60 minutes.
In Standby mode
Synchronize Clock
Synchronizing the RDS station time data and this
unit’s clock.
Display Setting
"SYNC ON" Synchronizes the time.
"SYNC OFF" Adjust the time manually.
• It takes 3 to 4 minutes to synchronize the clock.
In Standby mode
Manual Clock Adjustment
• You can do this adjustment when the <Synchronize
Clock> (page 18) is set as OFF.
1Select Clock Adjustment mode
Push the Control knob towards [FM] or [AM].
Select the "CLK ADJ" display.
2Enter Clock Adjust mode
Push the Control knob towards [4] or [¢]
for at least 2 seconds.
The clock display blinks.
3Adjust the hours
Push the Control knob towards [FM] or [AM].
Adjust the minutes
Push the Control knob towards [4] or
[¢].
4Exit Clock adjustment mode
Press the [MENU] button.
In Standby mode
Touch Sensor Tone
Setting the operation check sound (beep sound)
ON/OFF.
Display Setting
"BEEP ON" Beep is heard.
"BEEP OFF" Beep canceled.
Menu system
B64-3240-00Englishr2.indd18B64-3240-00Englishr2.indd18 05.8.82:06:33PM05.8.82:06:33PM

English |19
In FM reception
Monaural Reception
You can reduce the noise when stereo broadcasts
are received as monaural.
Display Setting
"MONO OFF" The monaural reception is OFF.
"MONO ON" The monaural reception is ON.
Auto TP Seek
When the TI function is ON and the reception
is poor when listening to a traffic information
station, another traffic information station
with better reception will be searched for
automatically.
Display Setting
"ATPS ON" The Auto TP Seek Function is ON.
"ATPS OFF" The Auto TP Seek Function is OFF.
Restricting RDS Region (Region
Restrict Function)
You can choose whether or not to restrict the
RDS channels, received with the AF function for a
particular network, to a specific region.
Display Setting
"REG ON" The Region Restrict Function is ON.
"REG OFF" The Region Restrict Function is OFF.
• If AF function is not restricted to the specified region
and network, the AF function sets up to search the
station with good reception in the same RDS network.
AF (Alternative Frequency)
When the reception is poor, automatically
alternate to another frequency broadcasting the
same program in the same RDS network with
better reception.
Display Setting
"AF ON" The AF function is ON.
"AF OFF" The AF function is OFF.
When the AF function is ON, the "RDS" indicator
is ON.
• When no other stations with stronger reception are
available for the same program in the RDS network,
you may hear the incoming broadcast in bits and
snatches. Turn OFF the AF function in such a case.
In Tuner mode
Tuning Mode
Sets the tuning mode.
Tuning mode Display Operation
Auto seek "AUTO 1" Automatic search for a station.
Preset station seek "AUTO 2" Search in order of the stations
in the Preset memory.
Manual "MANUAL" Normal manual tuning control.
In Tuner mode
Local Seek
Only stations whose reception is good are
searched in auto seek tuning.
Display Setting
"LO.S OFF" The local seek function is OFF.
"LO.S ON" The local seek function is ON.
B64-3240-00Englishr2.indd19B64-3240-00Englishr2.indd19 05.8.82:06:34PM05.8.82:06:34PM

20 |English
Accessories/ Installation Procedure
Accessories
1
..........1
2
..........2
3
..........1
Installation Procedure
1. To prevent short circuits, remove the key from
the ignition and disconnect the -terminal of
the battery.
2. Make the proper input and output wire
connections for each unit.
3. Connect the wire on the wiring harness.
4. Take Connector B on the wiring harness and
connect it to the speaker connector in your
vehicle.
5. Take Connector A on the wiring harness and
connect it to the external power connector on
your vehicle.
6. Connect the wiring harness connector to the
unit.
7. Install the unit in your car.
8. Reconnect the -terminal of the battery.
9. Press the reset button.
• If the power is not turned ON (or it is ON, but will be OFF
immediately), the speaker wire may have a short-circuit
or touched the chasis of the vehicle and the protection
function may have been activated. Therefore, the speaker
wire should be checked.
• If your car is not prepared for this special connection-
system, consult your Kenwood dealer.
• Only use antenna conversion adapters (ISO-JASO) when
the antenna cord has an ISO plug.
• Make sure that all wire connections are securely made by
inserting jacks until they lock completely.
• If your vehicle’s ignition does not have an ACC position,
or if the ignition wire is connected to a power source
with constant voltage such as a battery wire, the power
will not be linked with the ignition (i.e., it will not turn on
and off along with the ignition). If you want to link the
unit’s power with the ignition, connect the ignition wire
to a power source that can be turned on and off with the
ignition key.
• If the fuse blows, first make sure that the wires have not
caused a short circuit, then replace the old fuse with one
with the same rating.
• Insulate unconnected wires with vinyl tape or other
similar material. To prevent short circuits, also do not
remove the caps on the ends of the unconnected wires
or the terminals.
• Connect the speaker wires correctly to the terminals to
which they correspond. The unit may receive damage or
fail to work if you share the -wires and/or ground them
to any metal part in the car.
• After the unit is installed, check whether the brake lamps,
indicators, wipers, etc. on the car are working properly.
• If the console has a lid, make sure to install the unit so
that the faceplate does not hit the lid when closing and
opening.
• Mount the unit so that the mounting angle is 30° or less.
B64-3240-00Englishr2.indd20B64-3240-00Englishr2.indd20 05.8.82:06:34PM05.8.82:06:34PM
