Kenwood KRC-855R User manual

UUU/ANA I

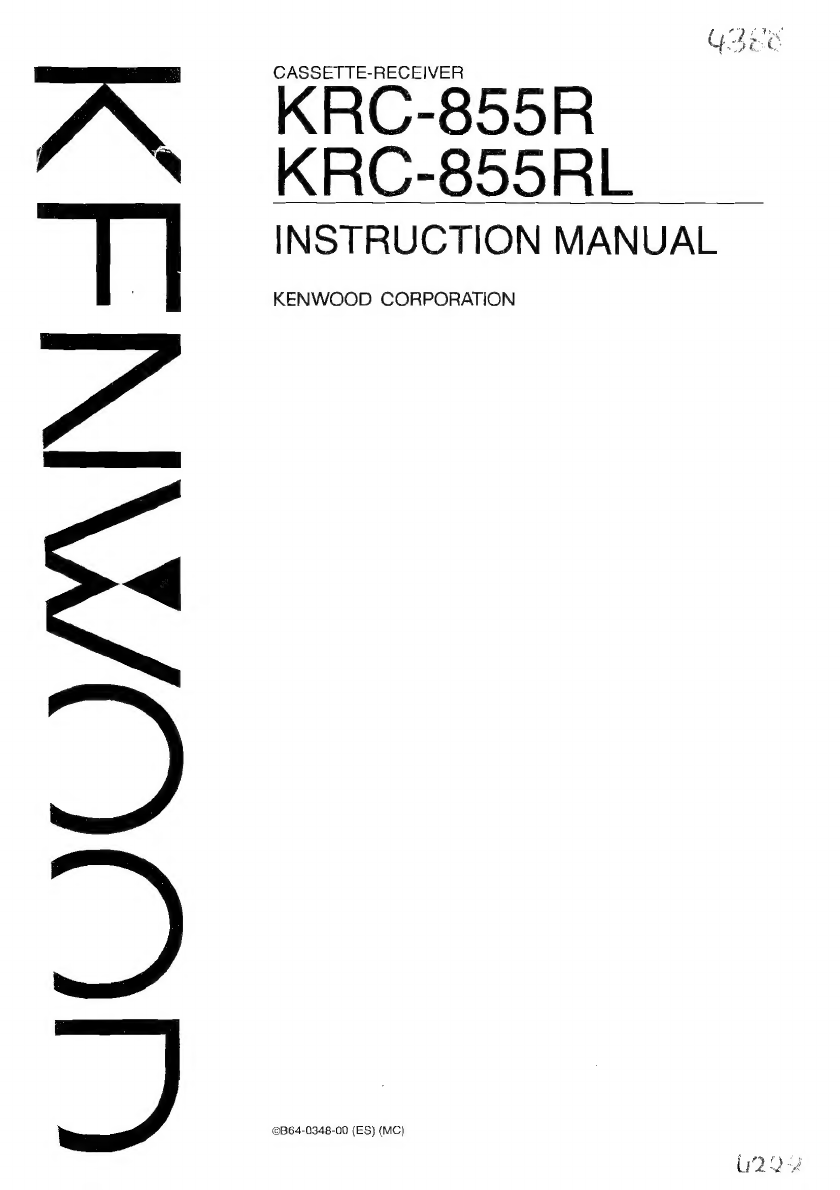

CASSETTE-RECEIVER
KRC-855R
KRC-855RL
INSTRUCTION MANUAL
KENWOOD CORPORATION

Contents
Before use
Safety precautions occ eesti 3
Care and Maintenance. ...........ceeeeees 4
FO QUIS icicccissteitisstvi cetadoe teed cssetessssteieveteeasss 5
Basic operations

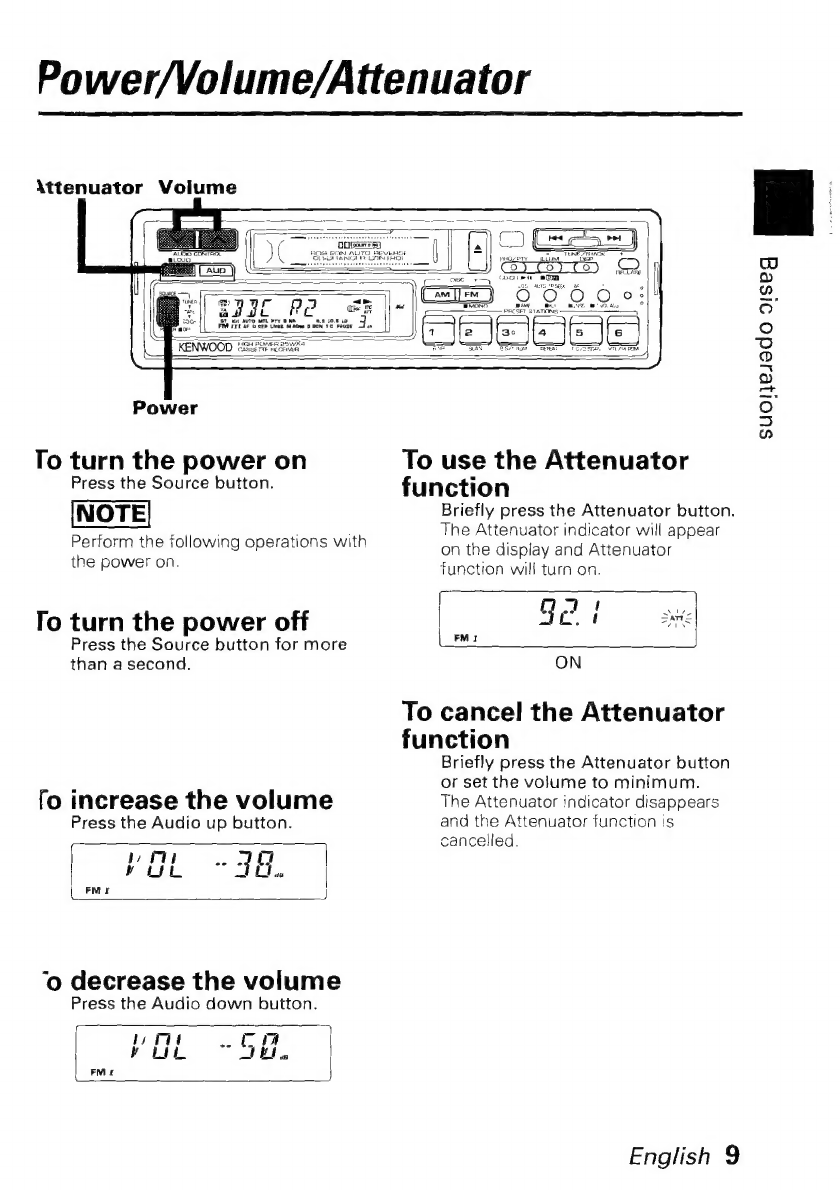

Power/Volume/Attenuator... eee 9

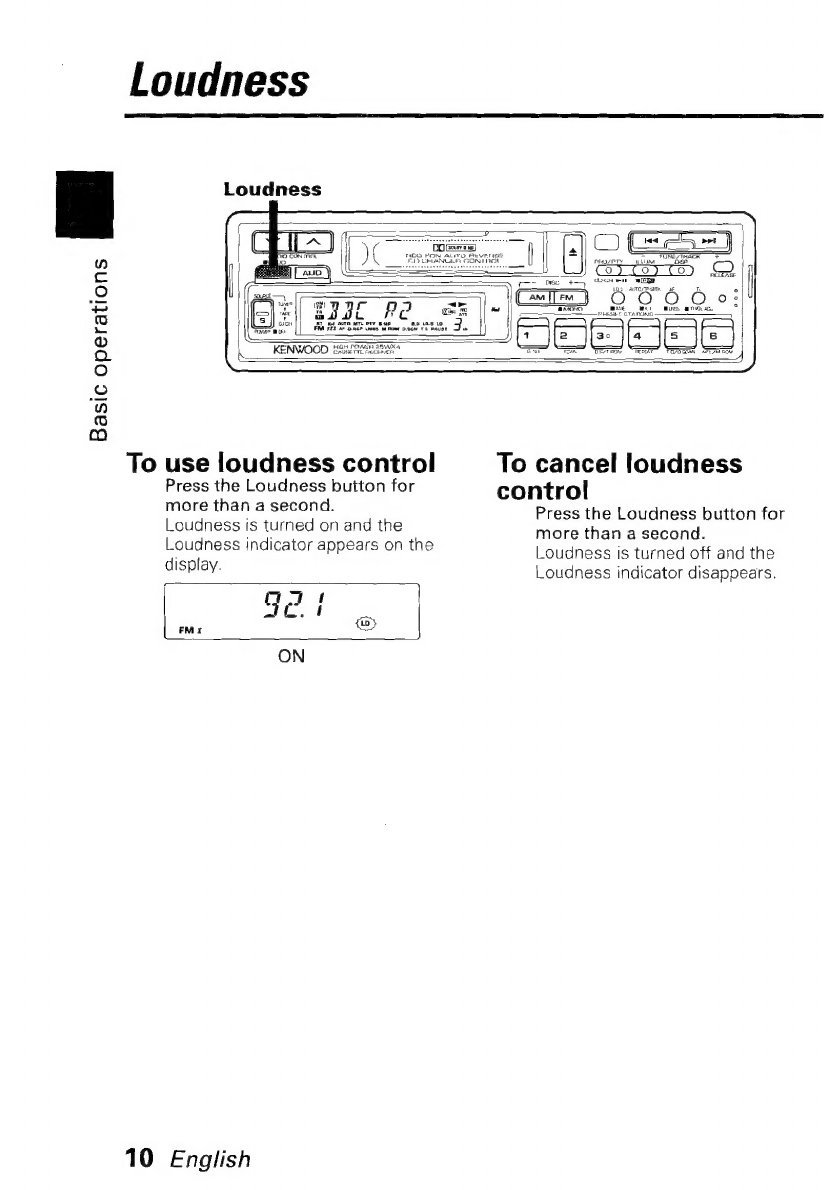

LOUdRESSisi heen eatiniiivesactaiatacd 10
Auto seek tuning ......c cee eeceeeeeeeceeeeeereees 11
Manual tuning .....0....e cece eesecenteeeeeeeee 12

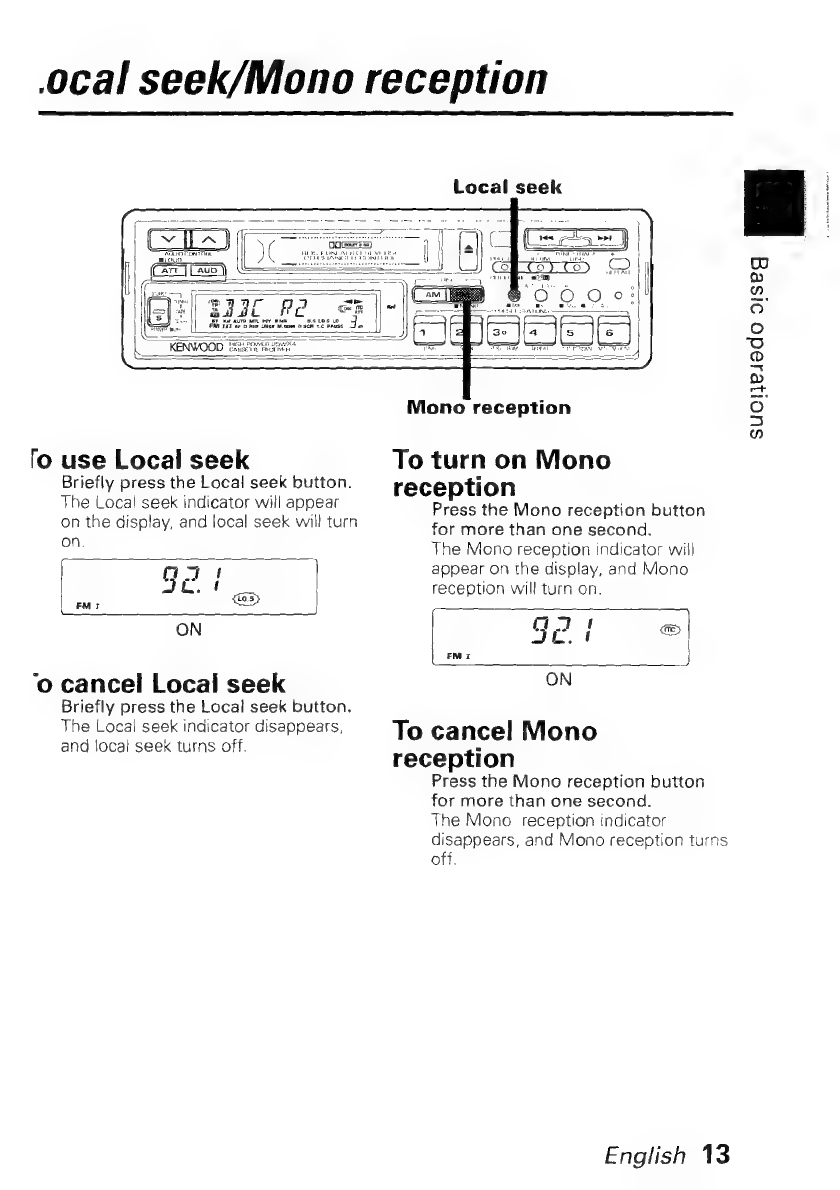

Local seek/Mono reception ........... 13

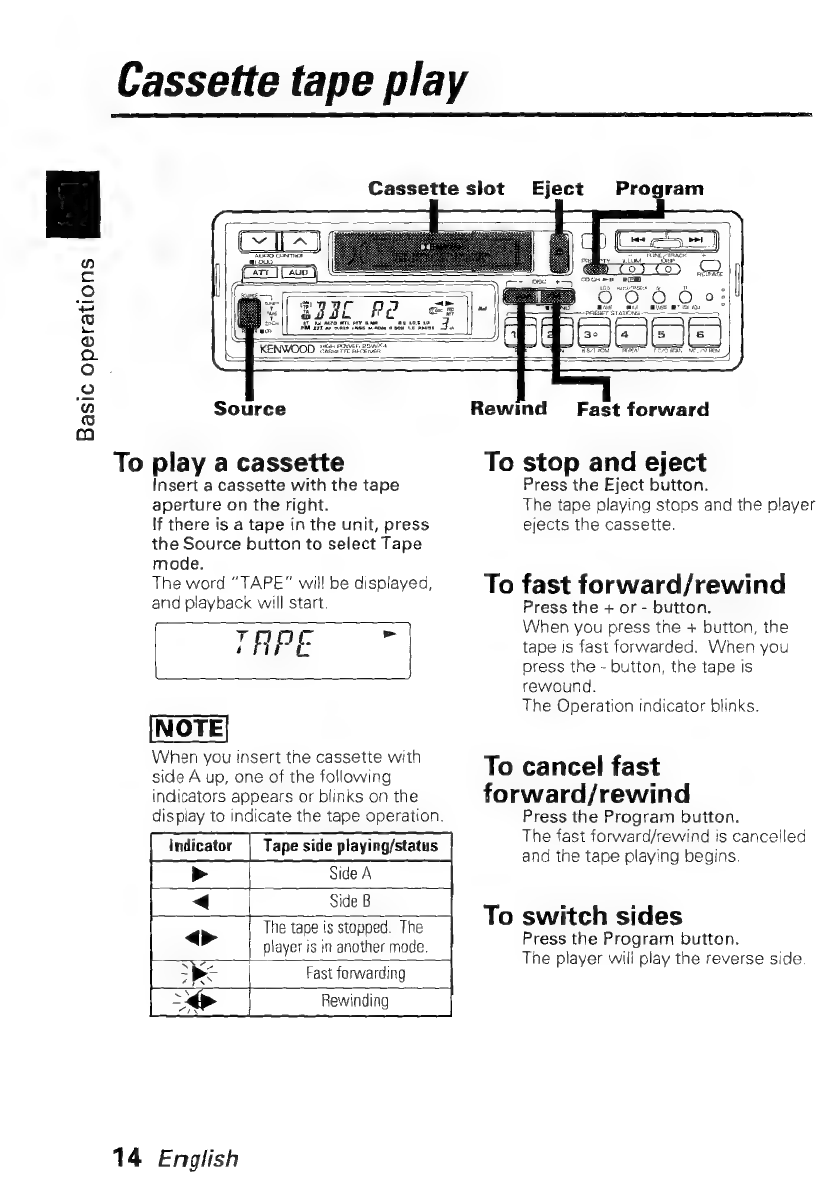

Cassette tape Play... ccc ereneeseeecsneees 14
Dolby B NR/Tape type selection ............. 15
Tuner features
Station preset MEMOTY........ ce eee eee 16
Auto MeEMOTY ENTLY... etree 17
Kali i avates tit seveelte tie ede ttc 18
RDS features
AF(Alternative Frequency)... 19
LNSSj(Local Network Search System)....20
Traffic information ..c..cccccceserseecesenees 21
To set the volume level
for traffic information oo... eee 22
Traffic information while playing
cassettes or CDs
ProGramMmMe ty Pe ....... eee cceeeeeeecseeeeeeerteeee
To change programme type
dis play l€NQUage.......eeeeeeeeereeee
Clock setting by RDS station
2 English
DPSSasasasanestAescne hatin ot eee 28
INGOXiSCaNs a0 nk eas Sees este 29
MUSIC repeat... eescecseeeeeeeetetteeeeneaeees 30
BI@MK SKID ss cceeetesstaienscasttecesassaresseestsvtginsceve 31
TURGCall eitivaresictet ld cas these ead, Deateelias 32
CD auto-changer control features
CD play with CD auto-changer................ 33
Track/DiSc S@aIch ..... eee eee eeeereeeeee 34
Track/Disc repeat......cscceeeeseeeteeeeneeeees 35
MACK SCAN siestss me arasnthig esha cease tare 36
DISC SCAM wisticerssncs-wdcveasvessenenstaneteseceaseveantes 37
Random play .0......-.:cceecceeeeeeeseeeseeeeseeeeees 38
Magazine random play.......ccccccccceereeees 39
Other features
Audio CONTIONS eee eececeeeeeeeeeteseeteeereeneee 40
Selectable illumination/Display type...... 42
Theft deterrent faceplate... esis 43
Disabled system indicator... ee 44
Installation
ACCOSSOTIES oo. .ee ees cececseeteeeeestatensereceeeenseeeae 45
Installation Procedure..........ceseeeeseereeee 46
Connectlonss nwitviie a ntacls 47
USCA ATION 50313 xia cvcesesares tanh cacdocdenpeeanesvdae 48
Troubleshooting guide ........000....... 50
Specifications... eee 52
Dolby noise reduction manufactured under
license from Dolby Laboratories Licensing
Corporation,
"DOLBY" and the double-D symbol! are
trademarks of Dolby Laboratories Licensing
Corporation.

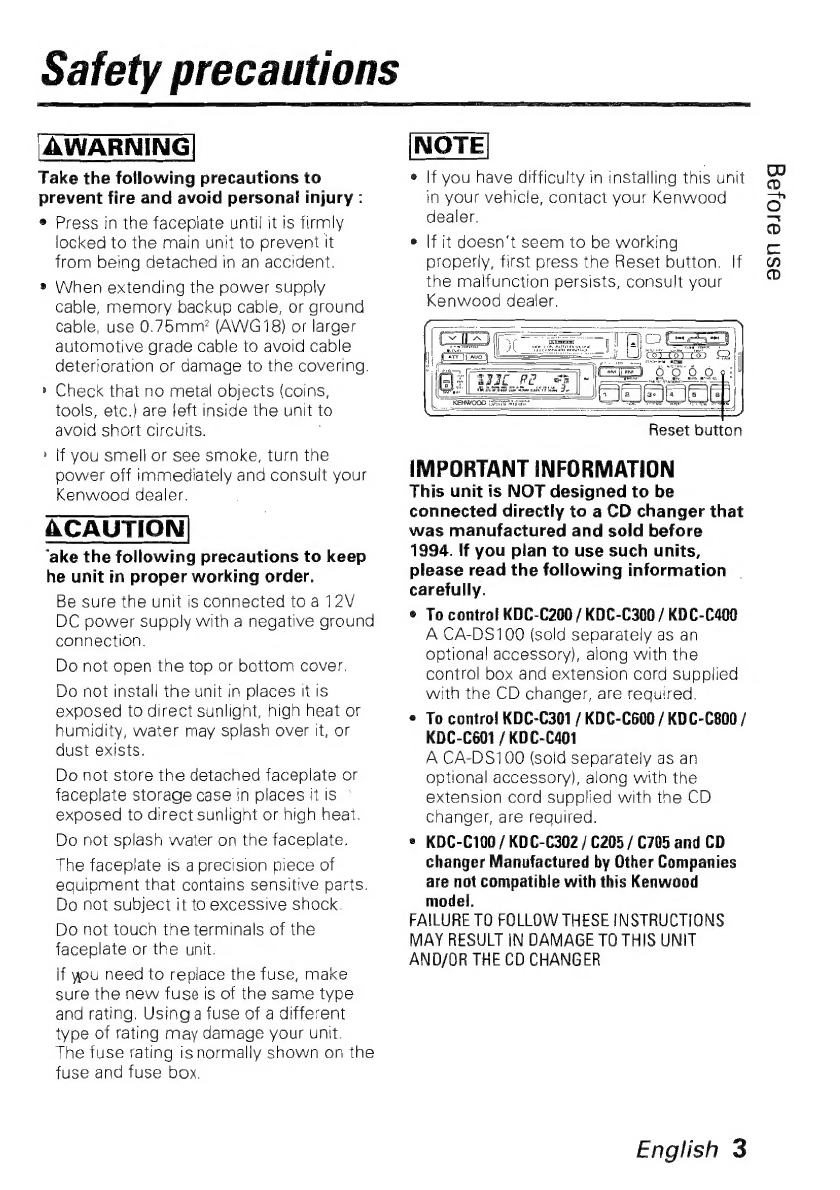

Safety precautions
AWARNING|
Take the following precautions to
prevent fire and avoid personal injury :
e Press in the faceplate until it Is firmly
locked to the main unit to prevent it
from being detached in an accident.
2 When extending the power supply
cable, memory backup cable, or ground
cable, use 0.75mm? (AWG18) or larger
automotive grade cable to avoid cable
deterioration or damage to the covering.
Check that no metal objects (coins,
tools, etc.) are left inside the unit to
avoid short circuits. ?
If you smell or see smoke, turn the
power off immediately and consuit your
Kenwood dealer.
A CAUTION]
“ake the following precautions to keep
he unit in proper working order.
Be sure the unit is connected to a 12V
DC power supply with a negative ground
connection.
Do not open the top or bottom cover.
Do not install the unit in places It is
exposed to direct sunlight, high heat or
humidity, water may splash over it, or
dust exists.
Do not store the detached faceplate or
aceplate storage case in places it Is ~
exposed to direct sunlight or high heat.
Do not splash water on the faceplate.
The faceplate is a precision piece of
equipment that contains sensitive parts.
Do not subject it to excessive shock.
Do not touch the terminals of the
faceplate or the unit.
f you need to replace the fuse, make
sure the new fuse is of the same type
and rating. Usinga fuse of a different
type of rating may damage your unit.
The fuse rating isnormaliy shown on the
fuse and fuse box.
® If you have difficulty in installing this unit
in your vehicle, contact your Kenwood
dealer.
® If it doesn’t seem to be working
properly, first press the Reset button. If
the malfunction persists, consult your
Kenwood dealer,
IMPORTANT INFORMATION
This unit is NOT designed to be
connected directly to a CD changer that
was manufactured and sold before
1994. If you plan to use such units,
please read the following information |
carefully.
® To control KDC-C200 / KDC-C300 / KDC-C400
A CA-DS100 (sold separately as an
optional accessory), along with the
control box and extension cord supplied
with the CD changer, are required.
e To control KDC-C301 / KDC-C600 / KDC-C800 /
KDC-C601 / KDC-C401
A CA-DS100 (sold separately as an
optional accessory), along with the
extension cord supplied with the CD
changer, are required.
® KDC-C100 / KDC-C302 / C205 / C705 and CD
changer Manufactured by Other Companies
are not compatible with this Kenwood
model.
FAILURE TO FOLLOW THESE INSTRUCTIONS
MAY RESULT IN DAMAGE TO THIS UNIT
AND/OR THE CD CHANGER
English 3
asn aiojag

Before use

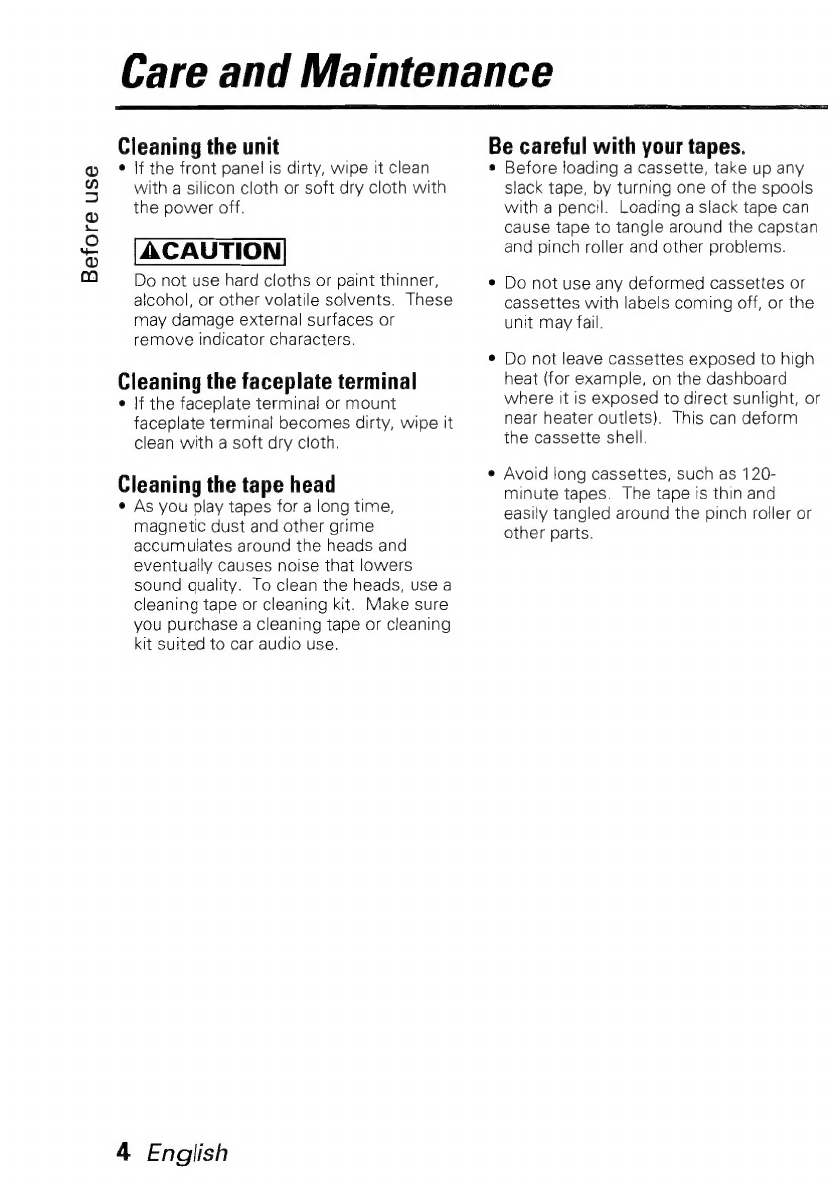

Care and Maintenance
Cleaning the unit
¢ If the front panel is dirty, wipe it clean
with a silicon cloth or soft dry cloth with
the power off.
ACAUTION
Do not use hard cloths or paint thinner,
alcohol, or other volatile solvents. These
may damage external surfaces or
remove indicator characters.
Cleaning the faceplate terminal
e If the faceplate terminal or mount
faceplate terminal becomes dirty, wipe it
clean with a soft dry cloth.
Cleaning the tape head
* As you play tapes for a long time,
magnetic dust and other grime
accumulates around the heads and
eventually causes noise that lowers
sound quality. To clean the heads, use a
cleaning tape or cleaning kit. Make sure
you purchase a cleaning tape or cleaning
kit Suited to car audio use.
4 English
Be careful with your tapes.
Before loading a cassette, take up any
slack tape, by turning one of the spools
with a pencil. Loading a slack tape can
cause tape to tangle around the capstan
and pinch roller and other problems.
Do not use any deformed cassettes or
cassettes with labels coming off, or the
unit may fail.
Do not leave cassettes exposed to high
heat (for example, on the dashboard
where it is exposed to direct sunlight, or
near heater outlets). This can deform
the cassette shell.
Avoid long cassettes, such as 120-
minute tapes. The tape is thin and
easily tangled around the pinch roller or
other parts.

Features
Tuner section

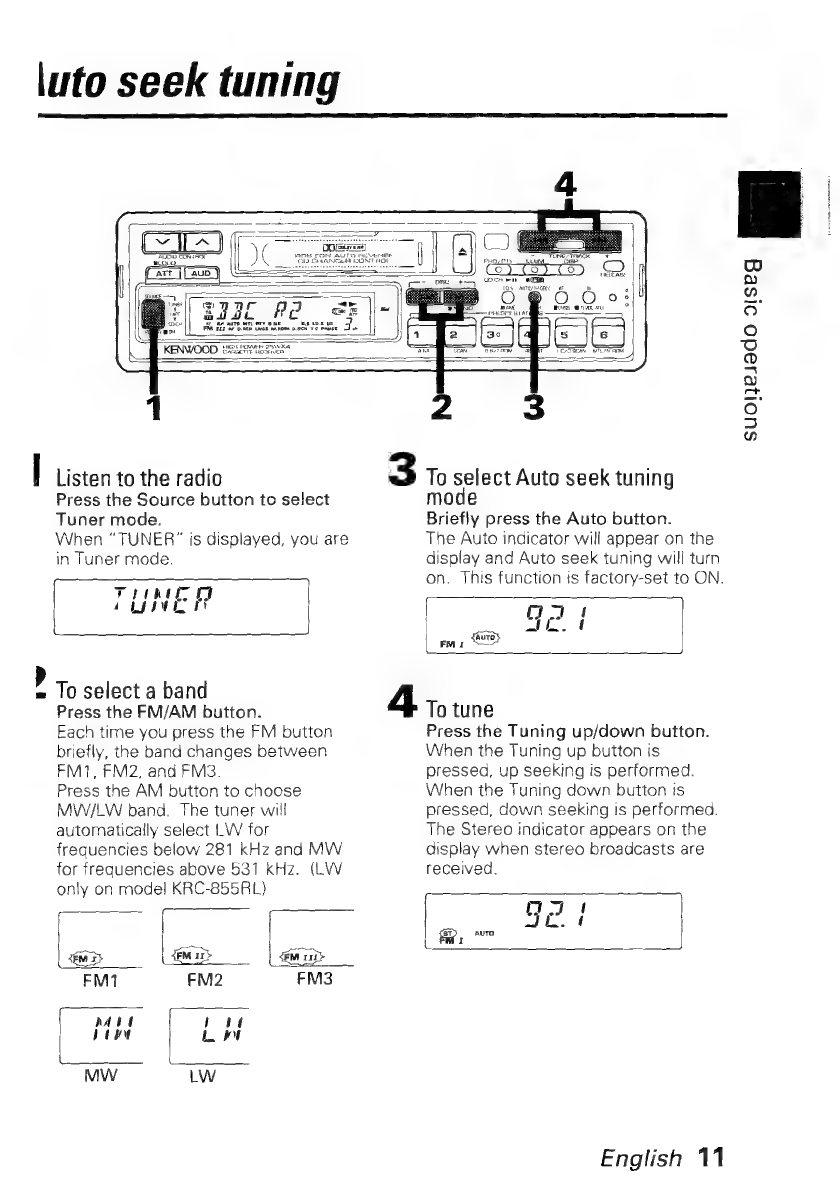

Auto seek tuning (Page 11)
Automatically searches for stations you
can receive.
Local seek (Page 13)
When this feature is turned on, the
tuner scans only the stations offering
good reception during Auto seek tuning
and Auto memory entry.
Mono reception (Page 13)
When stereo reception conditions are
poor, turning on this function switches
reception to mono, improving sound
quality by reducing noise.
Station preset memory (Page 16)
Stores the frequencies of your favourite
Stations in memory. The frequencies
stored in memory can be recalled by a
single touch of a button.

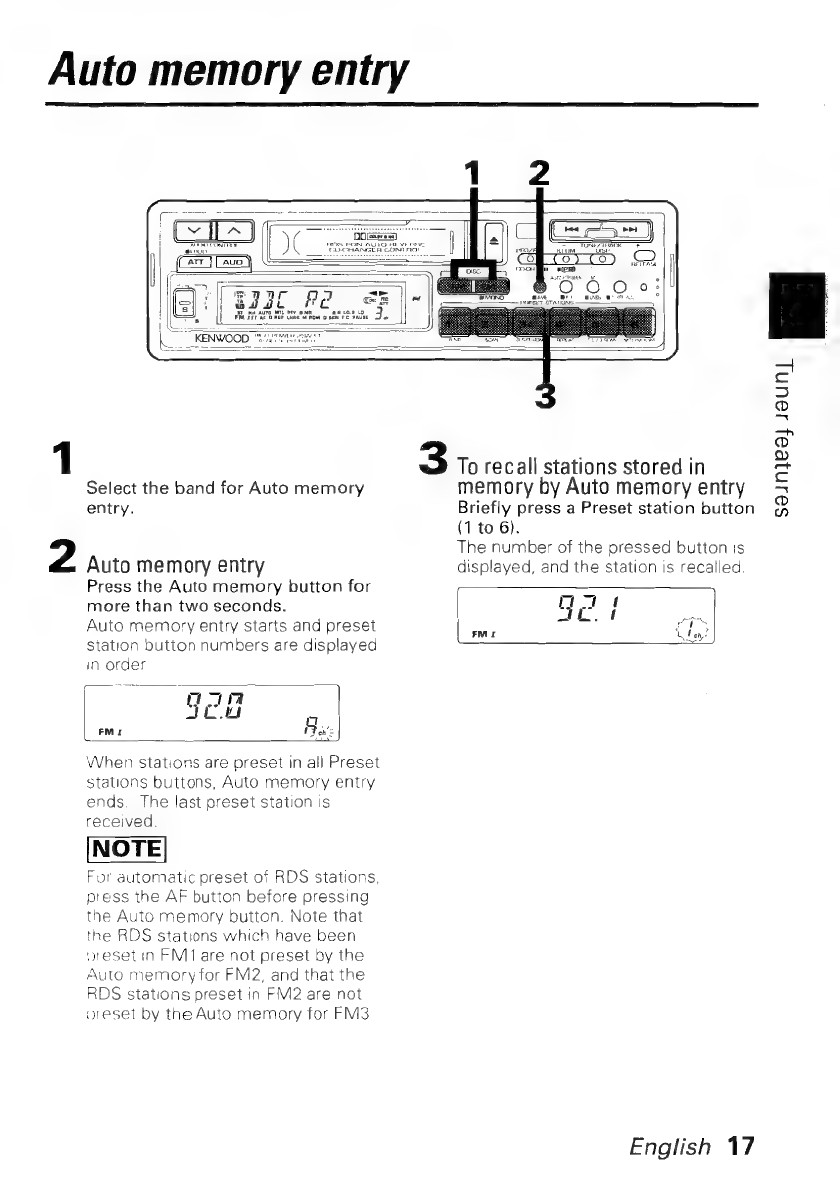

Auto memory entry (Page 17)
Automatically stores the stations in the
band you are listening to in memory.
You can tune to the stations stored in
memory by a single touch of a butten in
the same way as for the Stations preset
memory function. lf you use this
function when you drive a long way and
do not know what stations are available
there, you can check the programmes
broadcast by local stations by recalling
them by a single touch of a button.

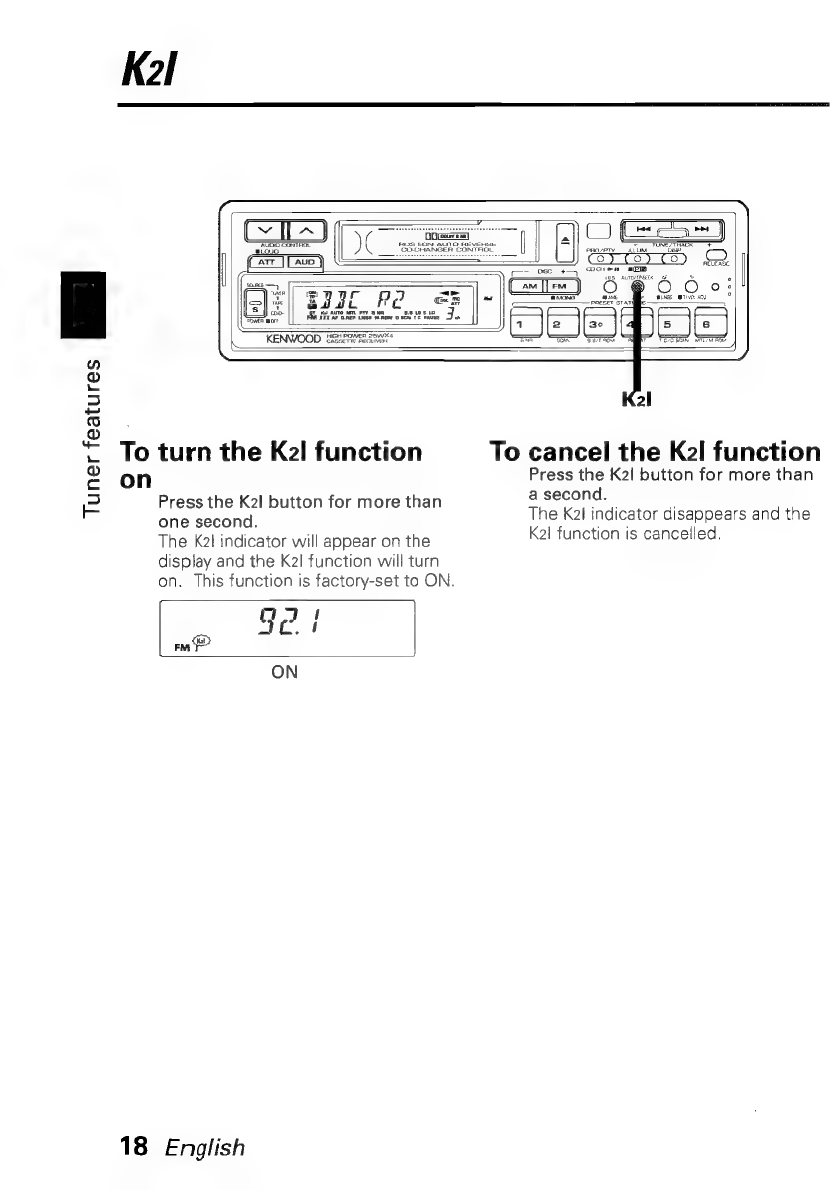

¢ Kal (Kenwood intelligent Twin IF)
(Page 18)
When this feature is turned on, your
tuner automatically narrows the
frequency band it receives to prevent
interference from stations broadcasting
on frequencies close to the one you are
listening to.
English 5
asn as0jeq

Before use
Features
RDS section
RDS is a digital information system that
transmits radio programme and station
network information.
When the tuner receives an RDS station,
the frequency and then the station
name is displayed so that you see the
programme easily.
The RDS stations transmit frequency
data of the same national network
stations. You can set your tuner to
automatically switch to a station with
stronger signals in the same national
network stations. Since this data for
preset RDS stations is stored
automatically, you can switch to
another station offering the same
programme more quickly by presetting
your favourite RDS station.

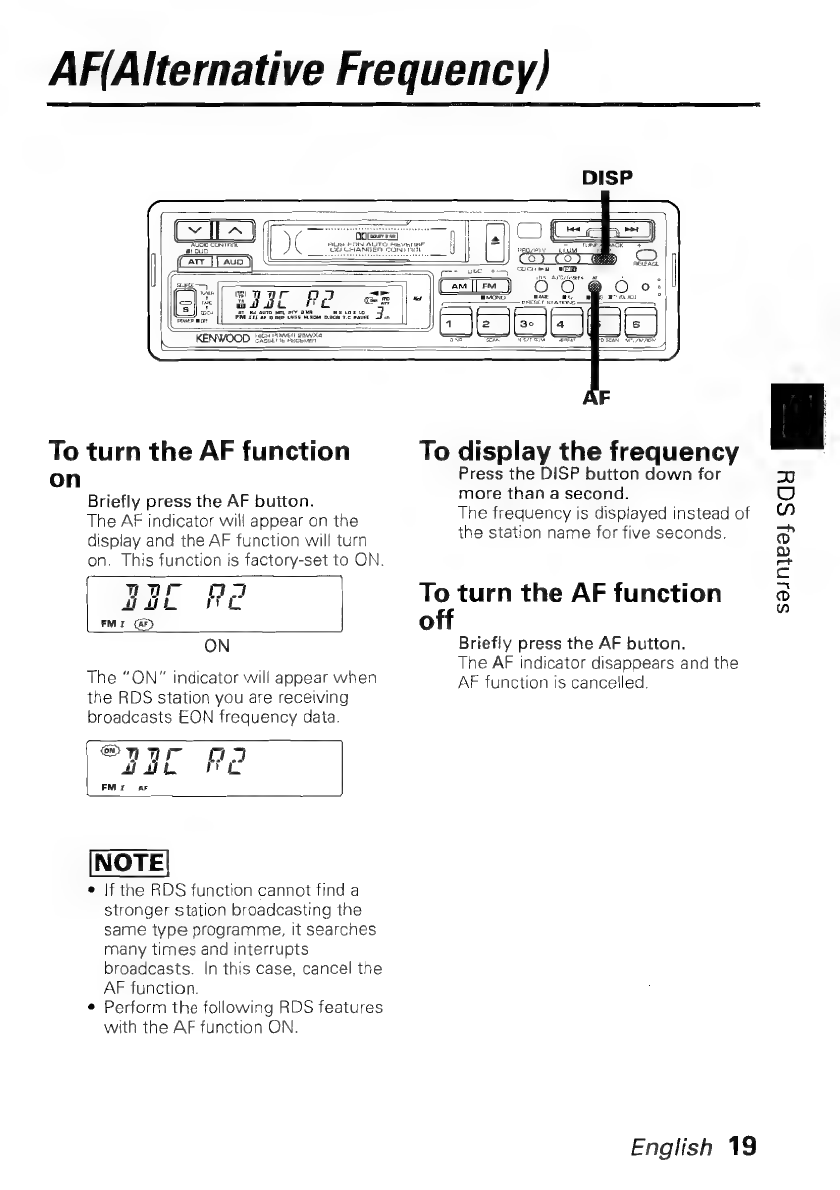

« AF (Alternative Frequency) (Page 19)
When this feature is turned on, the
tuner searches for RDS stations only
during Auto seek tuning. If the signal
conditions become poor, the tuner
automatically switches to the station
with good reception in the same national
network.
- LNSS (Local Network Search System)
(Page 20)
You may not find a national network
station offering good reception even if
the RDS function has been turned on.
When this feature is turned on, LNSS
will search for a national network
station, including a local station offering
the same programme.
6 English
Traffic information (Page 21)
When you turn on this function, your
uner automatically picks up signals only
rom traffic information stations during
Auto seek tuning. When traffic
information broadcasting starts, the
volume is automatically set to the preset
evel because you can preset the
volume level. If it detects a traffic
information signal while you are playing
a cassette or CD, it automatically
switches to the traffic information
broadcast.
EON (Enhanced Other Network)
(Page 21)
Stations in the RDS EON system carry
information about other stations which
broadcast traffic news. If you are tuned
to an EON station, your receiver can
retune automatically to a local station to
receive a traffic bulletin.
Programme type (Page 24)
This feature enables your tuner to
perform Auto seek tuning to the type of
programme you wish to hear.
Programme types can be displayed in
either English, French, or German.
Clock setting by RDS station (Page
27)
Some RDS stations broadcast time
signals that let the built-in clock in the
unit set itself to the correct local time.
Alarm
When an emergency broadcast from a
station is received, all of the current
functions are interrupted and the unit is
switched to the emergency broadcast
reception, :

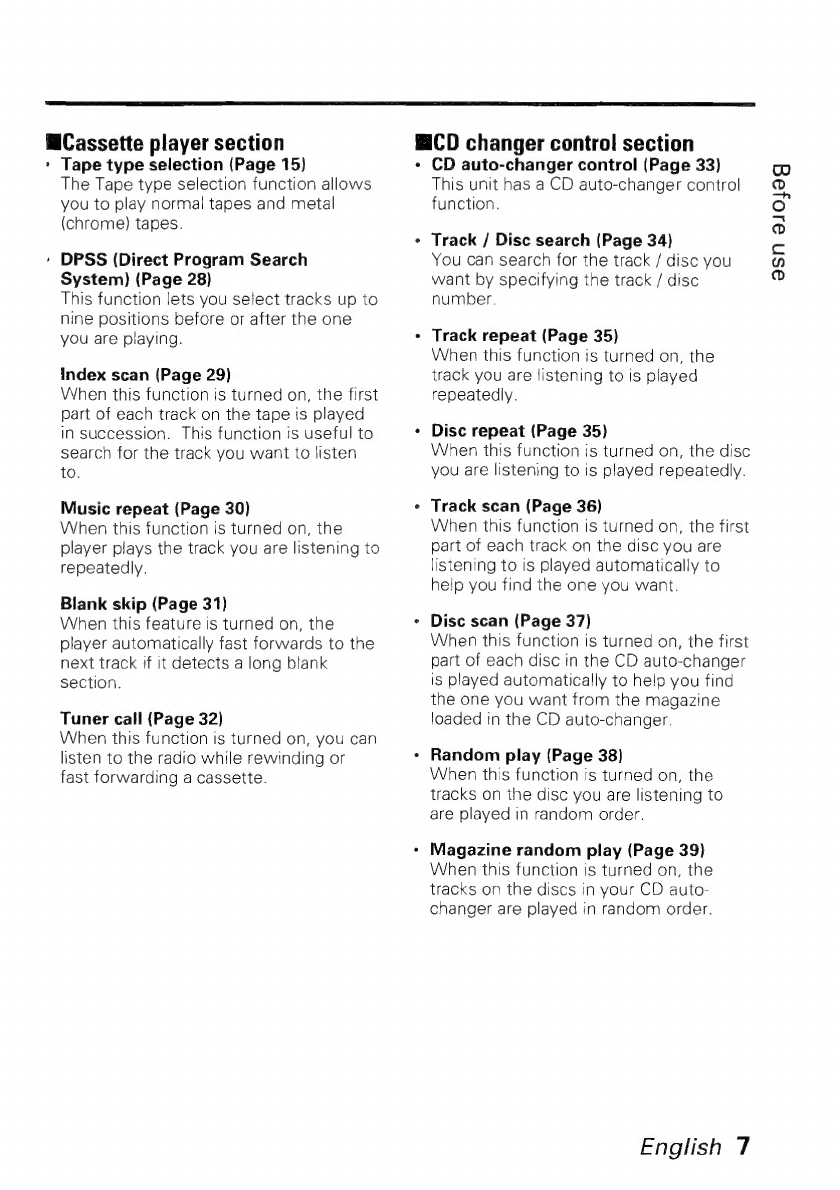

Cassette player section
: Tape type selection (Page 15)
The Tape type selection function allows
you to play normal tapes and metal
(chrome) tapes.
DPSS (Direct Program Search
System) (Page 28)
This function lets you select tracks up to
nine positions before or after the one
you are playing.
Index scan (Page 29)
When this function is turned on, the first
part of each track on the tape is played
in succession. This function is useful to
search for the track you want to listen
to.
Music repeat (Page 30)
When this function is turned on, the
player plays the track you are listening to
repeatedly.
Blank skip (Page 31)
When this feature is turned on, the
player automatically fast forwards to the
next track if it detects a long blank
section.
Tuner call (Page 32)
When this function is turned on, you can
listen to the radio while rewinding or
fast forwarding a cassette.
ICD changer control section
CD auto-changer control (Page 33)
This unit has a CD auto-changer control
function.
Track / Disc search (Page 34)
You can search for the track / disc you
want by specifying the track / disc
number.
asn quojag
Track repeat (Page 35)
When this function is turned on, the
track you are listening to is played
repeatedly.
Disc repeat (Page 35)
When this function is turned on, the disc
you are listening to is played repeatedly.
Track scan (Page 36)
When this function is turned on, the first
part of each track on the disc you are
listening to is played automatically to
help you find the one you want.
Disc scan (Page 37)
When this function is turned on, the first
part of each disc in the CD auto-changer
is played automatically to help you find
the one you want from the magazine
loaded in the CD auto-changer.
Random play (Page 38)
When this function is turned on, the
tracks on the disc you are listening to
are played in random order.
Magazine random play (Page 39)
When this function is turned on, the
tracks on the discs in your CD auto-
changer are played in random order.
English 7

Before use
Features
General section
Attenuator (Page 9)
This function allows you to lower the
volume quickly. The fade-in function is
provided to restore the original volume
gradually.
Loudness control (Page 10)
When this function is turned on when
the volume level is low, sound is made
clear by emphasizing bass and treble.
Audio controls (Page 40)
Adjust the bass, treble, balance, and
fader.
Selectable iliumination (Page 42)
Allows illumination colour to be
switched between green and orange.
Selectable display type (Page 42)
Allows the display type to change
between negative and positive.
Theft deterrent faceplate (Page 43)
The faceplate is detachable. When you
leave the vehicle, you can take the
faceplate with you to help prevent theft.
Disabled system indicator (Page 44)
When the faceplate is detached from
the unit, the LED blinks.
8 English
- TEL mute
When the TEL mute cable is connected
to the car telephone, and a call come in,
the functions of this unit are interrupted.
When you hang up, the unit returns to
the original mode automatically.

Power/Volume/Attenuator
Attenuator Volume
Power
To turn the power on
Press the Source button.
[NOTE]
Perform the following operations with
the power on.
To turn the power off
Press the Source button for more
than a second.
fo increase the volume
Press the Audio up button.
oI |
{| FMer J
| ae
‘o decrease the volume
Press the Audio down button.
. TA
To use the Attenuator
function
Briefly press the Attenuator button.
The Attenuator indicator will appear
on the display and Attenuator
function will turn on.
|
FMI
| ea
ON
me Seok
Sante
Vs
To cancel the Attenuator
function
Briefly press the Attenuator button
or set the volume to minimum.
The Attenuator indicator disappears
and the Attenuator function is
cancelled.
English 9
suoljeiado oiseg =

Loudness
Loudness
Basic operations i
To use loudness control
Press the Loudness button for
more than a second.
Loudness is turned on and the
Loudness indicator appears on the
display.
Ge |
FM ir ; @
ON
10 English
To cancel loudness
control
Press the Loudness button for
more than a second.
Loudness is turned off and the
Loudness indicator disappears.

luto seek tuning
I Listen to the radio
Press the Source button to select
Tuner mode.
When “TUNER”
in Tuner mode.
TUNER |
L |
is displayed, you are
PA
?
= lo select a band
Press the FM/AM button.
Each time you press the FM button
briefly, the band changes between
FM1, FM2, and FM3.
Press the AM button to choose
MVWV/LW band. The tuner will
automatically select LVW for
frequencies below 281 kHz and MW
or frequencies above 531 kHz. (LW
only on model KRC-855RL)
ff
FM1 FM2 FM3
{ wAGE you
Al Loe
Ac
MW LW
3 To select Auto seek tuning
mode
Briefly press the Auto button.
The Auto indicator will appear on the
display and Auto seek tuning will turn
on. This function is factory-set to ON.
| 9a} |
| m1 fare |
4 To tune
Press the Tuning up/down button.
When the Tuning up button is
pressed, up seeking is performed.
When the Tuning down button !s
pressed, down seeking Is performed.
The Stereo indicator appears on the
display when stereo broadcasts are
received.
a7 f |
f
a
L Ss, AUTO
English 11
w
ie)
ie
oO
°
Do
2)
ma
se]
ct
fs)
3
an

Basic operations
Manual tuning
=a nel
1 Listen to the radio
Press the Source button to select
Tuner mode.
When “TUNER”
in Tuner mode.
See
2 To select a band
Press the FM/AM button.
Each time you press the FM button
briefly, the band changes between
FM1, FM2, and FMS.
Press the AM button to choose
MW/LW band. The tuner will
automatically select LW for
frequencies below 281 kHz and MW
for frequencies above 531 KHz. (LW
only on model KRC-855RL)
a a
eco
fra? Baa <EM ui>
FM 1 FM2 FM3
f opat | port
| pen Lm
MW LW
12 English
is displayed, you are
3 To select Manual tuning mode
Briefly press the Auto button.
The Auto indicator disappears and the
Auto seek tuning is cancelled.
}
gai
|
44 tune
Press the Tuning up/down button.
When you press the button once, the
received frequency changes by one
step. The frequency will continue to
change as long as you hold the button
down.
The Stereo indicator appears on the
display when stereo broadcasts are
received.
.
| |
JK.
fir
Ls

.ocal seek/Mono reception
Local seek
fo use Local seek
Briefly press the Local seek button.
The Local seek indicator will appear
on the display, and local seek wil! turn
on.
ays
| 52 |
FMT
ios
ON
o cancel Local seek
Briefly press the Local seek button.
The Local seek indicator disappears,
and local seex turns off.
Mono reception
To turn on Mono
reception
Press the Mono reception button
for more than one second.
The Mono reception indicator wiil
appear on the display, and Mono
reception will turn on,
| oa fe
pe 9 oa «|
i FM IT 4
ON
To cancel Mono
reception
Press the Mono reception button
for more than one second.
The Mono reception indicator
disappears, and Mono reception turns
off.
English 13
oO
®
ee
io)
eo)
ae)
19)
eal
fed)
as
Oo
3
ie2)

Basic operations
Cassette tape play
Cassette slot Eject Program
($330 Pe =F
Source Rewind = Fast forward
To play a cassette To stop and eject
Insert a cassette with the tape Press the Eject button.
aperture on the right. The tape playing stops and the player
lf there is a tape in the unit, press ejects the cassette.
the Source button to select Tape
mode.
The word “TAPE” will be displayed, To fast forward/rewind
and playback will start. Press the + or - button.
Tv
‘
ava ra When you press the + button, the
Ai tC tape is fast forwarded. When you
press the - button, the tape is
NOTE
When you insert the cassette with
side A up, one of the following
rewound.
The Operation indicator blinks.
To cancel fast
indicators appears or blinks on the forward/rewind
dispiay to indicate the tape operation. Press the Program button.
: : : The fast forward/rewind is cancelled
Indicator | Tape side playing/status and the tape playing begins.
Side A
Side B
To switch sides
Press the Program button.
The player will play the reverse side.
| The tape is stopped. The
player is in another mode.
Fast forwarding
14 English
Rewinding

Dolby B NR/Tape type selection
ise)
ry
o.
ro)
fo)
co)
@
oD
S.
Dolby B NR Metal o
77)
fo use Dolby B NR To listen to
The Dolby B NR indicator will appear
: : P the Metal button.
on the display and Dolby B NR will Reser era euon
The Metal indicator will appear on the
turn on. display and the unit will be set to the
7 Ap r ai metal/chrome tape position.
r LC =
: 4 lARE f-
ON
es
Metal/chrome tape position
o cancel Dolby B NR
preesthe Dolby Neen on, To listen to normal tapes
The Dolby B NR indicator will
disappear and Dolby B NR will turn
off.
Press the Metal button.
The Metal indicator will disappear and
the unit will be set to the normal tape
position. The unit is factory-set to the
normal tape position.
TAPE >
an
Normal tape position
English 15

Tuner features
Station preset memory
HC fe SF
Select the band and station
(frequency) you want to preset.
To preset
Press the Preset station button (1 to
6) you want to use for more than
two seconds.
When the station is entered in
memory, the number of the button to
which you've assigned it will be
displayed
| — =<
Le ee |
pa ae
: ta
i Fmt y
Youcan preset each button for one
station each from the FM1, FM2,
FM3, and AM (MW/LVW) bands. (Only
the KRC-855RL can receive the LW
band.)
To change preset frequencies
Tune in a station you want to preset
and press the Preset station button
you want to change for more than
two seconds
16 English
3 To recall a preset station
Briefly press the Preset station
button (1 to 6) you want.
The number of the button that you
pressed will be displayed, and the
preset station will be recalled.

Auto memory entry
Select the band for Auto memory
entry.
Auto memory entry
Press the Auto memory button for
more than two seconds.
Auto memory entry starts and preset
station button numbers are displayed
inorder
oan
raed 2
FMI Fas
When stations are preset in all Preset
stations buttons, Auto memory entry
ends. The last preset station is
received.
For automatic preset of RDS stations,
press the AF button before pressing
the Auto memory button. Note that
the RDS stations which have been
»yresetin FM1 are not preset by the
Auto memory for FM2, and that the
RDS stations preset in FM2 are not
oreset by the Auto memory for FM3
3 To recall stations stored in
memory by Auto memory entry
Briefly press a Preset station button
(1 to 6).
The number of the pressed button is
displayed, and the station is recalled.
17 1
£
ae ae
ox
t
| FMI fen?
English 17
—
Cc
a)
@
_
s+
ie?)
ped)
—
c
mal
9)
an

Tuner features
Kal
souace —
ner
7
Tae
+
oo
TOWER MOF
To turn the Kal function To cancel the Kal function
on Press the K2l button for more than
Press the K2l button for more than a second.
The Kal indicator disappears and the
one second. Kol f nee iled
The Kal indicator will appear on the 2| function Is cancelled.
display and the K2I function will turn
on. This function is factory-set to ON.
77
Ue
FM
ON
18 English

AF(Alternative Frequency)
To turn the AF function To display the frequency
on Press the DISP button down for aD
Briefly press the AF button. ee oe are Weaeh Gt 7
Tne Si ineicaot wl Peapaqt en lie the sien anne for Fveise sone oo
display and the AF function will turn conds. ®
on. This function is factory-set to ON. ct
= = ) .
yer fe | To turn the AF function ®
FM 1 GF) off
ON Briefly press the AF button.
soe The AF indicator disappears and the
The “ON” indicator will appear when AF function is cancelled.
the RDS station you are receiving
broadcasts EON frequency data.
AML L
FM 7 oar
| 0 Ti fe) |
[NOTE|
@ If the RDS function cannot find a
stronger station broadcasting the
same type programme, it searches
many times and interrupts
broadcasts. In this case, cancel the
AF function.
Perform the following RDS features
with the AF function ON.
English 19

RDS features |
LNSS(Local Network Search System)
To turn the LNSS To cancel the LNSS
function on function
Press the LNSS button for more Press the LNSS button for more
than one second. than a second.
The LNSS indicator will appear on the The LNSS indicator disappears and
display and the LNSS function will the LNSS function is cancelled.
turn on.
War i
AML WEL
FM oar <inss)>
ON
When the LNSS function finds a local
Station, it may not be broadcasting
the same programme as broadcast by
a national network station.
20 English
