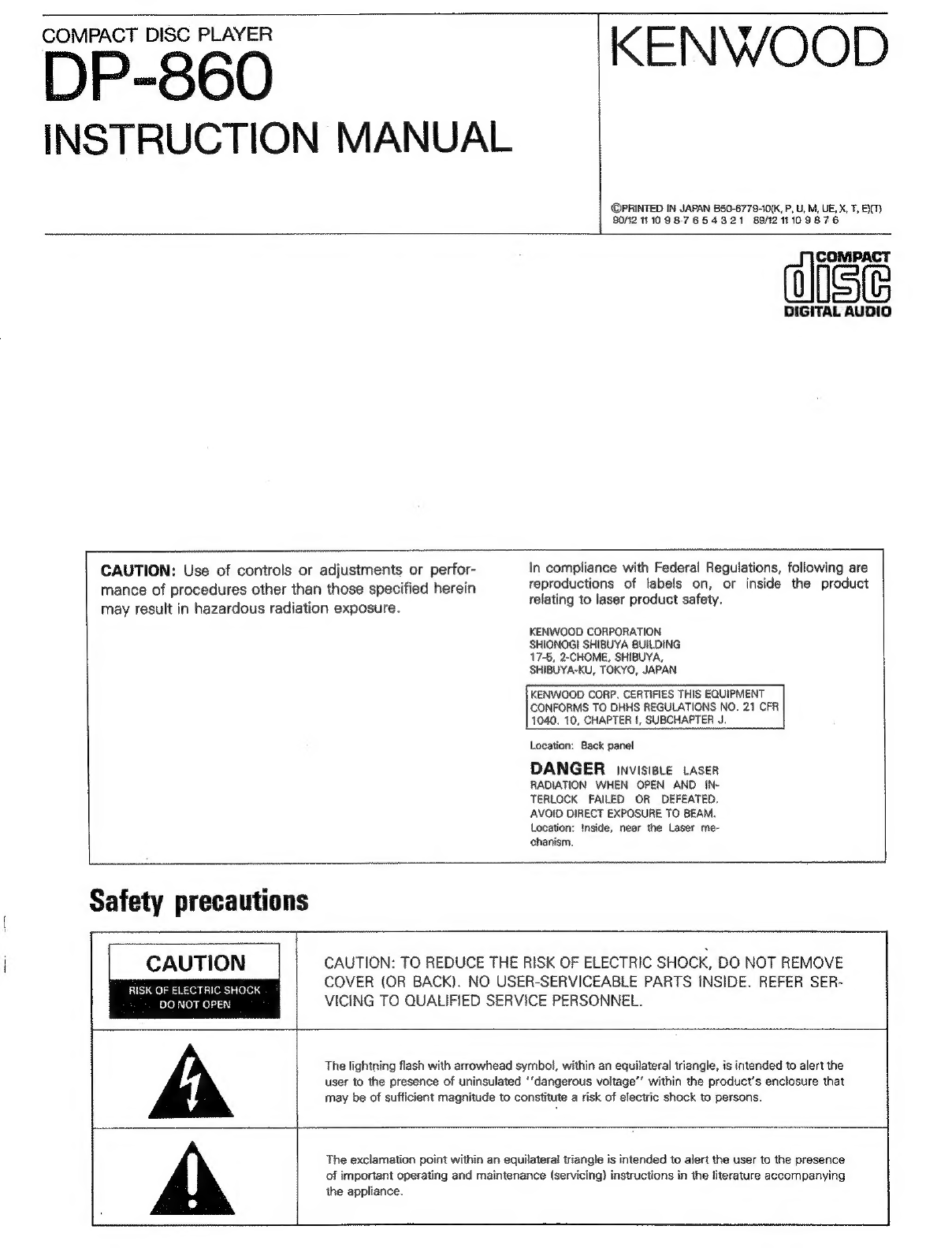

Kenwood DP-860 User manual

DP-_860
KENWOOD
INSTRUCTION
MANUAL
©PRINTED IN JAPAN B50-6779-10(K, P, U, M, UE, X, T, ED)
90/12 1110987654321 89/121 109876
COMPACT
DIGITAL AUDIO
CAUTION: Use of controls or adjustments or perfor- In compliance with Federal Regulations, following are
mance
of
procedures
other
than
those
specified
herein
reproductions
of
labels
on,
or
inside
the
product
‘ aur elating to i
may result in hazardous radiation exposure. " g to laser product safety
KENWOOD CORPORATION
SHIONOG! SHIBUYA BUILDING
17-6, 2-CHOME, SHIBUYA,
SHIBUYA-KU, TOKYO, JAPAN
KENWOOD CORP. CERTIFIES THIS EQUIPMENT
CONFORMS TO DHHS REGULATIONS NO. 21 CFR
1040. 10, CHAPTER !, SUBCHAPTER J.
Location: Back panel
DANGER invisiste taser
RADIATION WHEN OPEN AND IN-
TERLOCK FAILED OR DEFEATED.
AVOID DIRECT EXPOSURE TO BEAM.
Location: Inside, near the Laser me-
chanism.
Safety precautions
CAUTION
CAUTION:
TO
REDUCE
THE
RISK
OF
ELECTRIC
SHOCK,
DO
NOT
REMOVE
Rsk OF ELECTRIC SHOCK COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SER-
00 NOT OPEN VICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the
user to the presence of uninsulated '‘dangerous voitage’’ within the product's enclosure that
may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence
of important operating and maintenance (servicing) instructions in the literature accompanying
the appliance.

For your records
Record the serial number, found on the back of the
unit, in the spaces designated on the warranty card,
and in the space provided below. Refer to the model
and serial numbers whenever you call upon your dealer
for information or service on this product.
Model... Serialnumber
After unpacking
After unpacking, we recommend that you inspect the
unit for any possible shipping damage. If your unit is
damaged or fails to operate, notify your dealer im-
mediately. lf your unit was shipped to you directly,
notify the shipping company without delay. Only the
consignee (the person or company receiving the unit)
can file a claim against the carrier for shipping damage.
We recommend that you retain the original carton and
packing materials to prevent any damage should you
transport or ship your unit in the future.
Before applying power
Important!
USA, Canada, Australia, U.K and Europe
Unit shipped to the above are not equipped with an AC
voltage selector switch and the discussion of such a
switch that follows should be disregarded.
All other countries
Units shipped to countries other than the above are
equipped
with
an
AC
voltage
selector
switch
on
the
rear
panel. Refer to the following paragraph for the proper
setting of this switch.
WARNING:
TO PREVENT FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
AC voltage selection
This unit operates on 120 volts or 220-240 volts AC.
The AC voltage selector switch on the rear panel is set
to the voltage that prevails in the area to which the unit
is
shipped.
Before
connecting
the
power
cord
to
your
AC
outlet,
make
sure
that
the
setting
position
of
this
switch
matches
your
line
voltage.
If
not,
it
must
be
set
to
your
voltage
in
accordance
with
the
following
direc-
tion.
Note:
Our
warranty
does
not
cover
damage
caused
by
excessive
line
voltage due to improper setting of the AC voltage selector switch.
L AC voltage selector switch
AC120V~ <> AC220—240V~ ACI20V~ «» AC220—240V~
Switch lever
ore
This shows switch
fever is locked in AC
120V~ position.
This shows switch
lever is locked in AC
220-240V~ position.
Move switch lever to match your line
voltage with a small screwdriver or other
pointed tool.
For United Kingdom
The mains plug must be removed from the wall
socket prior to any internal examination.
Important
The wires in this mains lead are coloured in accor-
dance with the following code:
Blue . Neutral
. Live
The wires in this mains lead must be connected to
the terminals in the plug as follows:
Wire colour Plug terminal marking
BIG: fescccasevas Ae eyewad edocs tonnes N or Black
BROWN winstate. Asee Rivet ena L or Red
OE:
Brown to
Live
Blue to —
Neutral
Plug
Notes:.
1) Ifa 13-amp plug is used, this must be fitted with a 5-amp
fuse.
2) If a 3-pin plug with earthing contact is used, no wire must
be connected to the E terminal.

Before operation
Transportation screw
Before
operation,
remove
the
two
red
screws
attached
to
the
bottom
of
the
unit
used
during
transport
from
the
factory.
Remove
both
screws
using
a
coin,
etc.
and,
after
removing,
retain
them
together
with
the
Warranty
card
and
other
documents.
When
the
unit
is
to
be
transported
again,
be
sure
replace
the
two
screws
to
their
original
position:
*
For the
procedure
of
attaching
the
transport
screws,
refer
to page 12.
Beware of condensation
Water
vapor
in
the
air
may
condense
on
cold
parts,
forming
“‘dew’' on its surface.
For
example,
when
a
bottle
is
taken
out
of
the
refrigerator
and
brought
into
a
warm
room,
droplets
of
water
will
form
on
the
bottle
surface.
This
phenomenon
is
called
‘’condensation’’.
If
this
occurs
of
the
unit
internally,
the
player
may
operate
in-
correctly or may not function at all.
This
is
not
a
malfunction,
however,
the
player
should
be
left
until
it
is
dry.
(Turn
the
power
of
this
unit
ON
and
leave
the
player
for a
while.
After
several
hours,
even
in
the
worst
case,
the
player
will
stabilize
and
correct
playback
will
be
possible.)
Be especially careful in the following cases:
e
When
the
unit
is
suddenly
brought
from
a
cold
place
to
a
warm
place
(causing
rapid
temperature
change).
e
When
the
temperature
of
the
room
is
raised
suddenly
us-
ing
a
heater,
etc.
©
When
the
unit
is
brought
from
a
well-cooled
(aircondition-
ed)
room
to
a
damp
and
hot
room.
*
in
conditions
where
the
temperature
difference
between
the
surroundings
and
this
unit
might
cause
condensation.
Notes on installation
1.
Do
not
place
the
unit
in
a
place
which
is
exposed
to
direct
sunlight,
near
a
heating
appliance,
etc.
2.
Do
not
place
a
vase
containing
water,
makeup,
etc.
on
the
unit.
Do
not
use
in
a
humid
place.
3.
To
maintain
good
ventilation,
place
the
unit
at
least
10
cm
away
from
the
walis.
A.
Choose
a
location
that
is
relatively
free
from
vibration
or
excessive
dust.
5.
Keep
the
unit
away
from
a
source
of
magnetic
fields
such
as
TV
sets,
motorized
toys,
etc.
Safety precautions
Never remove the case. If the internal parts are touched ac-
cidentally, a serious electric shock might occur.
Never touch intemal parts.
Touching
the
power
plug
when
your
hands
are
wet
may
result
in
a
serious
electric
shock.
SS
=
o
JOp A Never touch with wet hands.
6 6
Never pull, bend or extend the power cord. This could
damage
the
power
cord,
resulting
in
a
broken
cord
or
short-
circuit.
Always grasp the plug.
In case of abnormal smell
If an abnormal smell or smoke is detected, immediately turn
the power OFF and pull out the power cord. Contact your
dealer or nearest Service Station.
Cleaning
Do not use volatile solvents such as aicohol, paint thinner,
gasoline, benzine, etc. to clean the cabinet. Use a silicone
cloth or a clean dry cloth.
XS
Silicone cloth Thinner Benzine

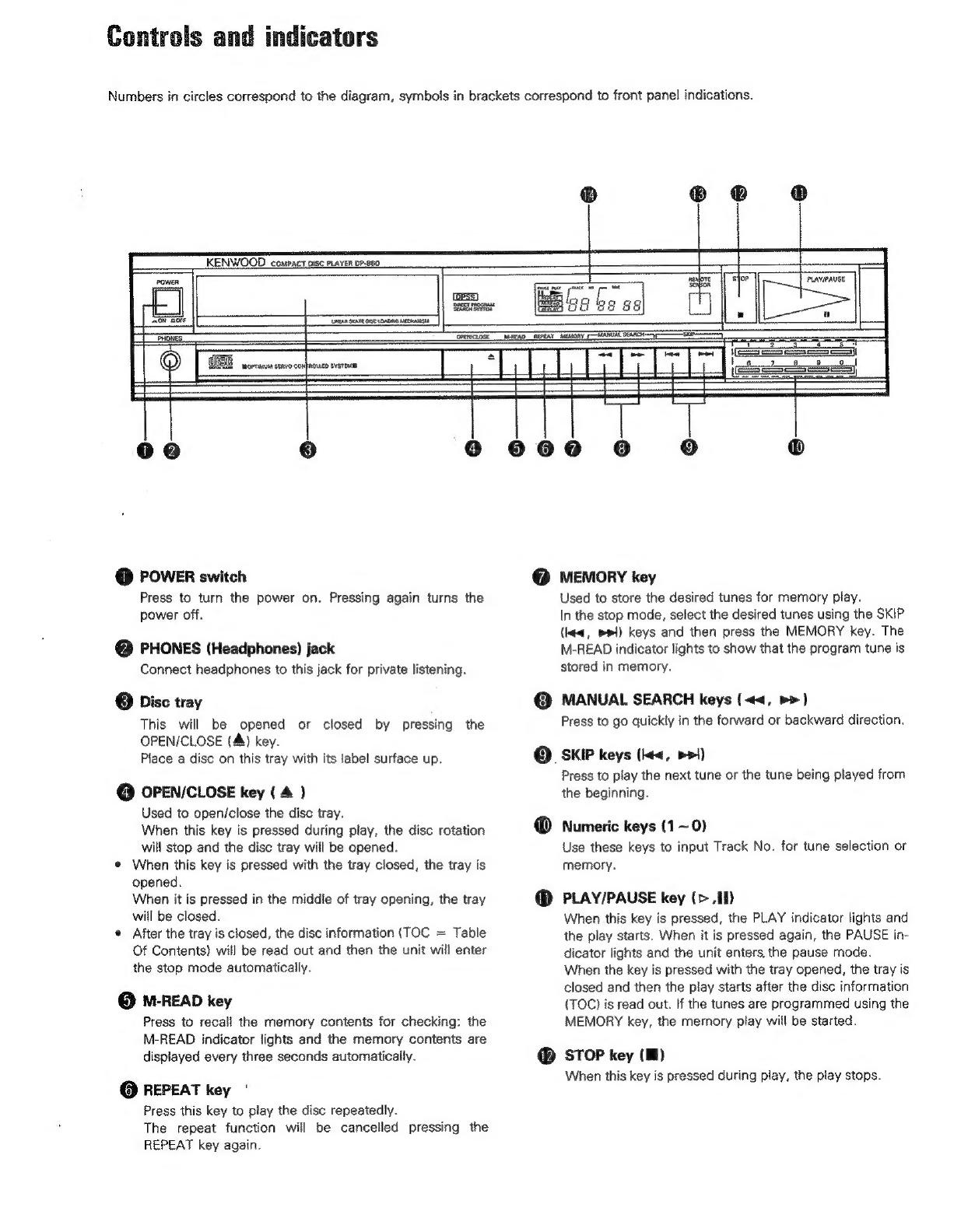

Controls and indicators
Numbers in circles correspond to the diagram, symbols in brackets correspond to front panel indications.
KENWOOD compact isc PLAYER DP.860
(PSS)
ACCT Pancrase
Bestia
[UNGAR SKATE OE LOADING MECRANSH,
PLAYIPAUSE,
=
_?
2
cian
beets
=e
ip
fn
nn
Hi
|-====
@ POWER switch
Press to turn the power on. Pressing again turns the
power off.
@ PHONES (Headphones) jack
Connect headphones to this jack for private listening.
@ Disc tray
This will be opened or closed by pressing the
OPEN/CLOSE (A) key.
Piace a disc on this tray with its label surface up.
(4) OPEN/CLOSE key ( 4 }
Used to open/close the disc tray.
When this key is pressed during play, the disc rotation
will stop and the disc tray will be opened.
e When this key is pressed with the tray closed, the tray is
opened.
When it is pressed in the middle of tray opening, the tray
will be closed.
e After the tray is closed, the disc information (TOC = Table
Of Contents) will be read out and then the unit will enter
the stop mode automatically.
@ N-READ key
Press to recall the memory contents for checking: the
M-READ indicator lights and the memory contents are
displayed every three seconds automatically.
@ REPEAT key |
Press this key to play the disc repeatedly.
The repeat function will be cancelled pressing the
REPEAT key again.
@ MEMORY key
Used to store the desired tunes for memory play.
In the stop mode, select the desired tunes using the SKIP
(lk, pe!) keys and then press the MEMORY key. The
M-READ indicator lights to show that the program tune is
stored in memory.
@ MANUAL SEARCH keys (<<, p>)
Press to go quickly in the forward or backward direction.
@. SKIP keys (le¢, Pp!)
Press to play the next tune or the tune being played from
the beginning.
@ Numeric keys (1~0)
Use these keys to input Track No. for tune selection or
memory.
@ PLAY/PAUSE key (> 1)
When this key is pressed, the PLAY indicator lights and
the play starts. When it is pressed again, the PAUSE in-
dicator lights and the unit enters, the pause mode.
When the key is pressed with the tray opened, the tray is
closed and then the play starts after the disc information
(TOC) is read out. If the tunes are programmed using the
MEMORY key, the memory play will be started.
@ STOP key ()
When this key is pressed during play, the play stops.

@ REMOTE SENSOR window

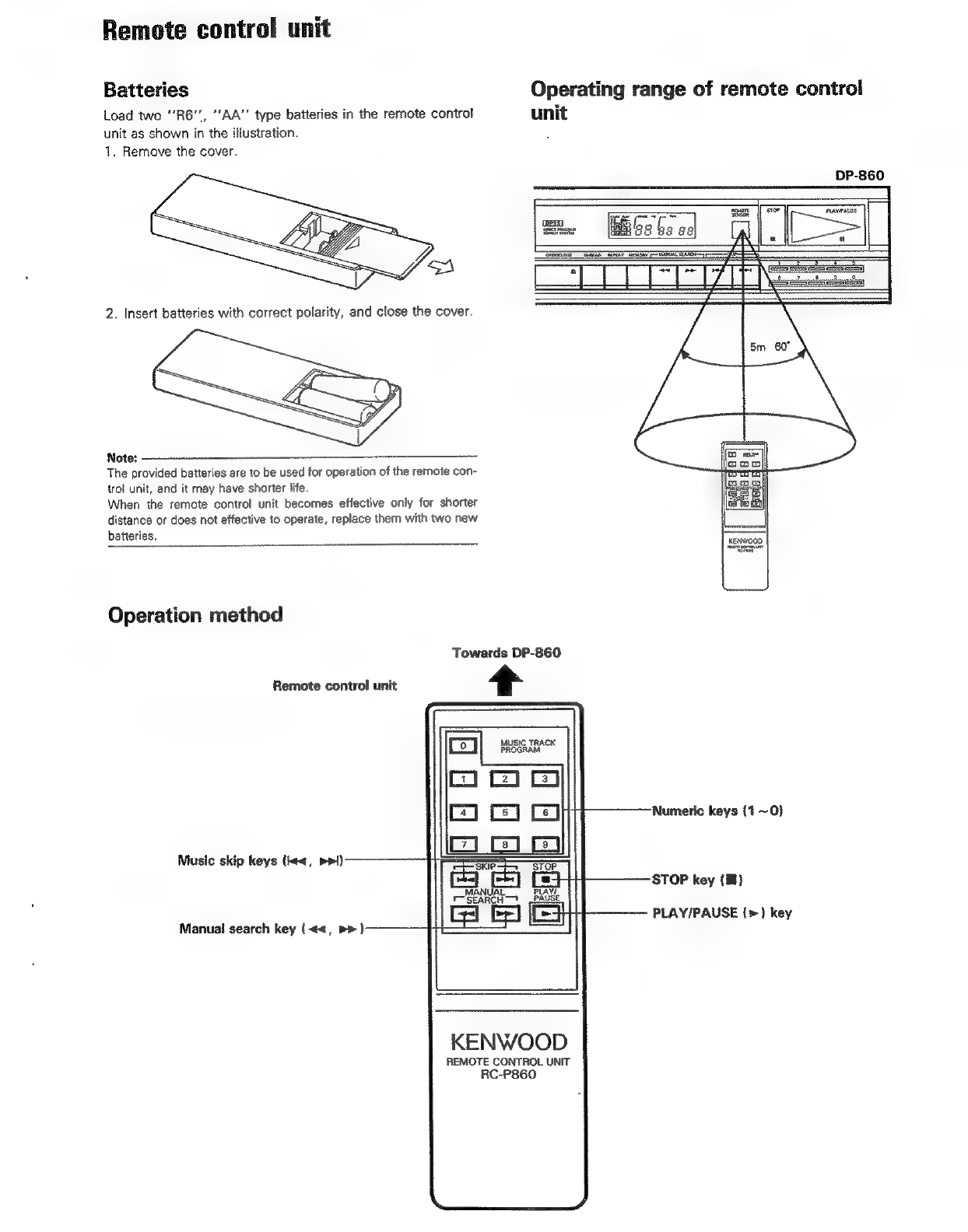

The signal from the supplied remote control unit is receiv-
ed through this window.
@ Display window
ine
M:PLAY.
O® ®
@® REPEAT indicator
Lights in the repeat mode.
@ M-READ indicator
Lights when the M-READ key is pressed.
@® M-PLAY indicator
Lights when the tunes are programming.
@® TIME display
¢ When a disc is loaded and the unit is set to stop
mode, the total playing time of the disc is
displayed.
© During play, the elapsed time of the tune being
played is displayed.
© In the stop mode, when the tunes are program-
ming, the total playing time of the programmed
tunes is displayed.
® TRACK NO. display
This shows the number of the track.:
PLAY indicator (>)
Lights during play.
@ PAUSE indicator (iH)
Lights when the unit is in the pause mode.

System connections
® Make system connections with the power turned off.
"When connected to a receiver 3
|
Receiver
Speaker
systems
Turntable t
‘ H Oo lec ?
A
i
TE=00
OOS
=
n=
|” When connected to an integrated amplifier
| Pre-main amp
2 600 sO ;
To AC outlet
Power cord connection
Connect the power cord to a convenient AC outlet.
Connection to the amplifier
Connect the OUTPUT jacks to the right and left CD, TUNER,
TAPE IN or AUX jacks of the amplifier.
Note:
Do not connect the OUTPUT jacks to the PHONO jacks of the
amoplifier.
System control

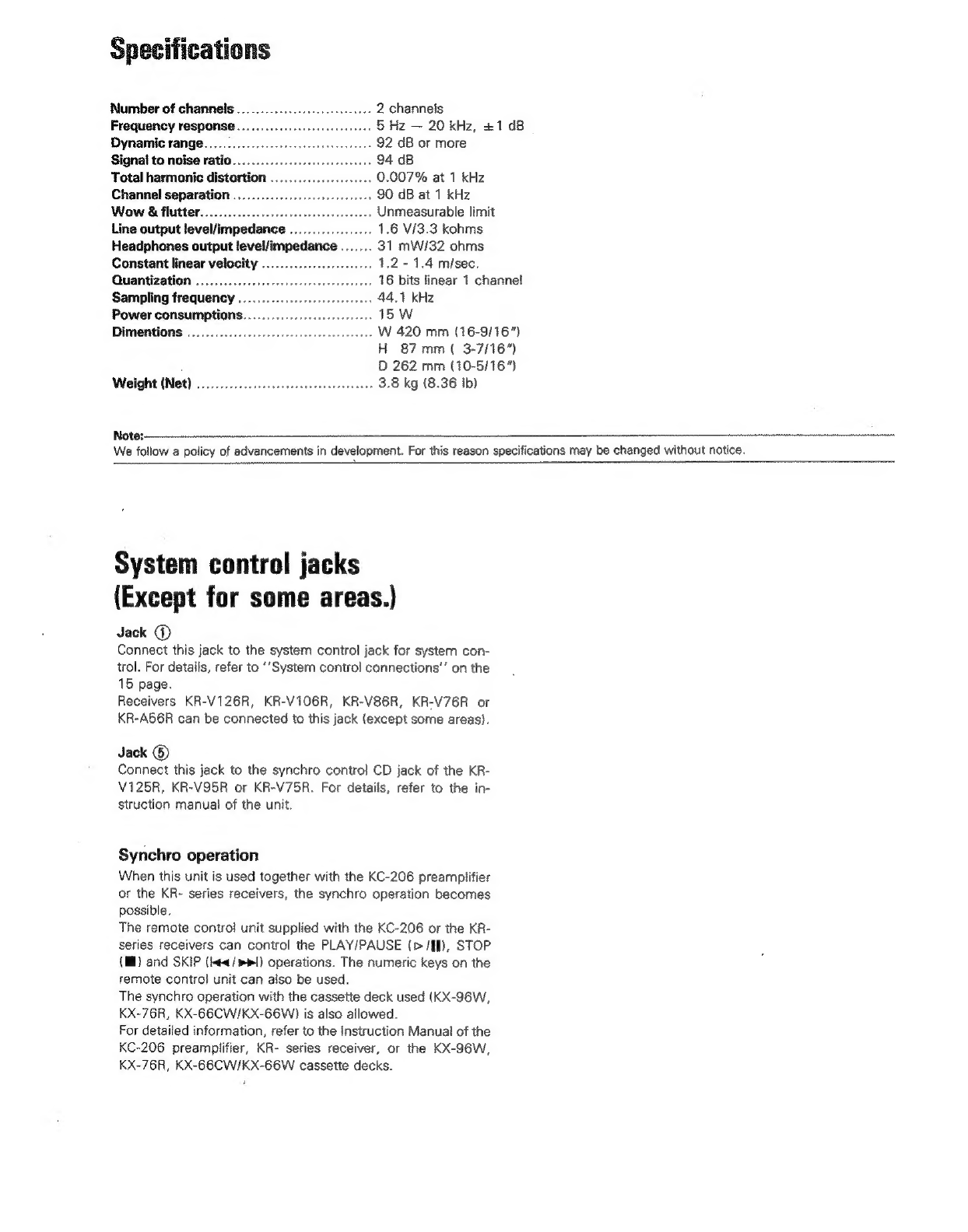

Refer to ‘’System control jacks’’ on the page 14. (Except for
some areas.)

Operating instructions
How to load a compact disc
Disc tray
Press
the
OPEN/CLOSE
(4) key
to
open
or
close
the
tray.
The
tray
can
also
be
closed
by
pressing
the
front
of
the
tray
lightly.
The
disc
is
inserted
with
the
labeled
side
up.
Notes:.
1. Make sure of the side of the disc. The disc cannot be played if it is
placed upside down.
2.
Do
not
place
objects
other
than
disc
on
the
disc
tray.
3. Be sure to place a disc correctly.
Labeled side
When the disc tray is closed with the OPEN/CLOSE (A) key or
the
front
panel
of
the
tray
is
pressed,
the
display
window
shows the total playing time of the disc.
i w Te
H E jo a oa
!
ni
Manual playback
& To play a disc
@ Turn the POWER switch ON.
@) Press the OPEN/CLOSE (4) key to open the disc tray.
® Place the disc on the tray with the label facing up.
(@ Press the PLAY/PAUSE (>, If) key.
¢ After the final selection has been played, the player will go
into the stop mode.
Bebe be ee a
RR near
=e
ess
&% To use the pause mode
Press the PLAY/PAUSE (>, 18) key.
© The PAUSE indicator will light up and the pickup will stop
at that point.
® Press the PLAY/PAUSE (>, ff} key again to restart playing
from the point.
mie [ Gebsosl []
——————
easy
BE
el
el
el
% To stop disc play
Press the STOP (i) key.
Play will stop, the pickup will return to the beginning of the
first selection.
To play a particular track
@ Select the desired Track No. using the numeric keys
(1~0) or SKIP (hea, mel) keys.
@ Press the PLAY/PAUSE (>, If) key within about 3
seconds after selection.
e The Track No. and the PLAY indicator will light up. After
the pickup has moved to the beginning of the tune, the
player will begin play.
© After the final selection has been played, the pickup will
automatically return to the beginning of the first selection.

Ei To select another selection during play
@ Press the SKIP (pel) key. The pickup will search the
beginning of the next selection.
e When it is done during play of the final selection, the
pickup will return to the beginning of the first selection.
@ Apress of the SKIP (ke«) key will move the pickup to the
beginning of the selection being played.
® When the numeric key is pressed, the player will stop
playing and move the pickup to the beginning of the
selected track. (When pressing two numeric keys, press
within 4 seconds.)
(The piayer will start play in about 4 seconds after keying
in the Track No. with these keys.)
e When the numeric key is pressed during pause, the pickup
will come to the beginning of the selected track while re-
maining in the pause mode.
@ Even with the disc tray open, a press of a numeric key or
the SKIP (k¢, pei) keys, will display the selected track. A
subsequent press of the PLAY/PAUSE (p>, 9B) key will
automatically close the tray and start play from the selec-
tion. If the PLAY/PAUSE (>, §) key is pressed again so
that the PAUSE indicator, the pickup will go into the pause
mode at the beginning of the selection.
@/\® @
Ei To play from the desired position
¢ Fast forward and fast backward operations
During playing or in the pause mode, press the MANUAL
SEARCH (m®) key for fast forward play and press the
MANUAL SEARCH (<1) key for fast reverse play.
« When one of the keys is pressed during play and held, a
small sound is heard during fast movement. To start the
play from the desired position, listen to the sound and
release the key at the desired point. If the fast forward
movement exceeds the end of the fast tune or if the fast
reverse movement exceeds the beginning of the first tune,
the CD player enters the stop mode {as fong as the
REPEAT key has not been pressed).
Be Ge Ge ae
EE OME SME DO pe PO
Memory play
The memory play allows the desired tunes to be played in the
desired order. The maximum of 20 selections can be put into
memory.
E To program the selection
@ Press the STOP (8) key.
@ Select the desired Track No. using the numeric keys
(1 ~0) or SKIP (ea, pl) keys.
@ Press the MEMORY key.
e The Track No. will be back lit, and the selected track will
be memorized in Channel 1.
© Unless the MEMORY key is pressed within 3 seconds after
selecting the Track No., the programming will be aborted.
@) To continue to program further selections, repeat the pro-
cedures in 2, and 3. The maximum number of selections
for memory is 20. More than 20 selections cannot be
memorized. Any attempt to program tunes exceeding the
number will be cancelled.
© To program quickly without waiting 2 or 3 seconds, select
the next Track No. When the next Track No. is selected,
the current memory operation is completed.
Ei To confirm a memorized selection
Press the M-READ key.
¢ The Track No. and Channel No. of the memorized selec-
tions can be confirmed beginning at the Channel 1. Each
channel contents will be displayed for about 3 seconds.
Memory indications will not appear when the selections are
not in memory.
a co
Bp, lamba bs gal es
PPLE
® ee G

& To erase the memory
Press the OPEN/CLOSE (4) key.
° The memory will be erased when the disc tray is opened
with the OPEN/CLOSE (4) key or the power is turned off.
B To stop memory play
Press the STOP (EB) key.
* Play is discontinued, the pickup returns to the beginning of
the first selection of the disc, and the disc will stop.
oro sex
ibe
be
os
j
|
L
PAVPAUBE
"
SRS ADT GRY RR Rp
cs
=
=== =
PB Re eo i a = =
setae teaten
i To play the memorized selections
@ Program the desired selections in accordance with the
‘procedures in ‘‘To program the selection’’ on page 8.
@ Press the PLAY/PAUSE (>, HI) key.
¢ The M-PLAY indicator will light to show that the player is in
the memory play mode.
e The player will play only memorized channels,
@ In the memory play mode, a blank of more than 4 seconds
will automatically be placed between selections.
=< oes
emo 7G
l@ To use the pause mode
Press the PLAY/PAUSE (>, ##) key once.
® The PAUSE indicator will light to stop play at the point
where the PLAY/PAUSE (>, If) key was pressed.
*® To resume play, press the PLAY/(>, if) PAUSE key again.
ee
suse
PAROS earng AT aay
es i ad Dd ed
& To play from a specific selection
@ Press the SKIP (ka, bel) keys to call on the desired
channel.
@ Press the PLAY/PAUSE (b>, EI) key.
PE
1
& To select another selection during play
Press the SKIP (pb) key. Play will then be discontinued and
the pickup will advance to the next selection on the disc.
(O) When the key is pressed during play of the final selection,
the pickup will return to the first channel of the memory.
@ if the SKIP (hea) is pressed, play will also be discon-
tinued, and the pickup will return to the beginning of the
selection under play.
e Acontinuous press of the key will reverse the pickup to the
beginning of the previous selection.
*® When the player is in the pause mode, the pickup will
move to the beginning of the selected track.
PUAYPAUSE
i w
F |
ae bu bs o5
RGR RIS Fea En

Ei Repeat playback
Repeat playback can be activated or canceled any time, i.e.
when the tray is open, during memory or normal playback.
When the REPEAT key is pressed, the indicator will light.
® During memory playback, repeat playback is activated on-
ly from the tracks programmed in memory.
¢ During normal playback, all tracks are repeated.
° To cancel repeat playback, press the REPEAT key again,
press the STOP key, or open the tray.
Note:
Repeat playback is also cancelled when TOC has been read.
Hae pm og be ga
BeOS aed RE aD RTA
