Kenwood DPC-X337 User manual

POTABLE CD PLAYER
DPC-X337
SERVICE MANUAL
© 2004-8 B51-5932-00 (K/K) PDF
Format System Compact disc digital audio system
Laser .....................................................................................
..........................................................
Semiconductor laser
Audio Frequency response ......................................................... 20 Hz to 20 kHz, – 3 dB
PHONES output level (32 Ω, 1 kHz ) ............................................... 9 mW + 9 mW
Line output/impedance (BASS BOOST on) ............................. 0.48 Vrms/47 kΩ
Power supply
External DC supply ................................................................................ DC 4.5 V
Rechargeable batteries (NB-3A70) x 2 ................................................. DC 2.4 V
Commercially-available alkaline batteries (LR03) x 2 ....................... DC 3.0 V
Battery life (Fully charge)
÷At 0.1mW+0.1mW output (32Ωload).
÷Standard value during continuous use/charging in an temperature of 20˚C.
÷Time of use may vary depending on battery maker, battery type, use environ-
ment, and temperatute.
Dimensions (W x H x D) ................. 137 mm x 20.5 mm x 137 mm (5- 3/8" x 13/16" x 5-3/8")
Weight (net) ....................................................................................................... 171 g (6.0 oz)
Note:
KENWOOD follows a policy of continuous advancements in development. For this reason
specifications may be changed without notice.
D.A.S.C. On D.A.S.C. Off
Approx. 6.5 Hours Approx. 5 Hours
Approx. 10 Hours Approx. 6.5 Hours
Rechargeable batteries (NB-3A70)
Commercially-available alkaline
batteries (LR03)
In compliance with Federal Regulations, following are reproductions
of labels on, or inside the product relating to laser product safety.
KENWOOD-Corp. certifies this equipment conforms to DHHS Regu-
lations No. 21 CFR 1040. 10, Chapter 1, Subchapter J.
DANGER : Laser radiation when open and interlock defeated.
AVOID DIRECT EXPOSURE TO BEAM.
SPECIFICATIONS
Door
(A53-2438-08)
DC jack
(E63-1006-08)
Top cover
(B07-2704-08)
Stereo jack
(E11-0965-08)
Open knob
(K29-8403-08)
Hold/DBBS knob
(K29-8404-08)x2
Rotary vol.
(R31-0113-08)
Stereo jack
(E11-0988-08)

DPC-X337
2
CONTENTS/ACCESSORIES / CAUTIONS
SPECIFICATIONS ............................................COVER
CONTENTS / ACCESSORIES / CAUTIONS...............2
SCHEMATIC DIAGRAM ..............................................3
EXPLODED VIEW .......................................................5
PARTS LIST.................................................................6

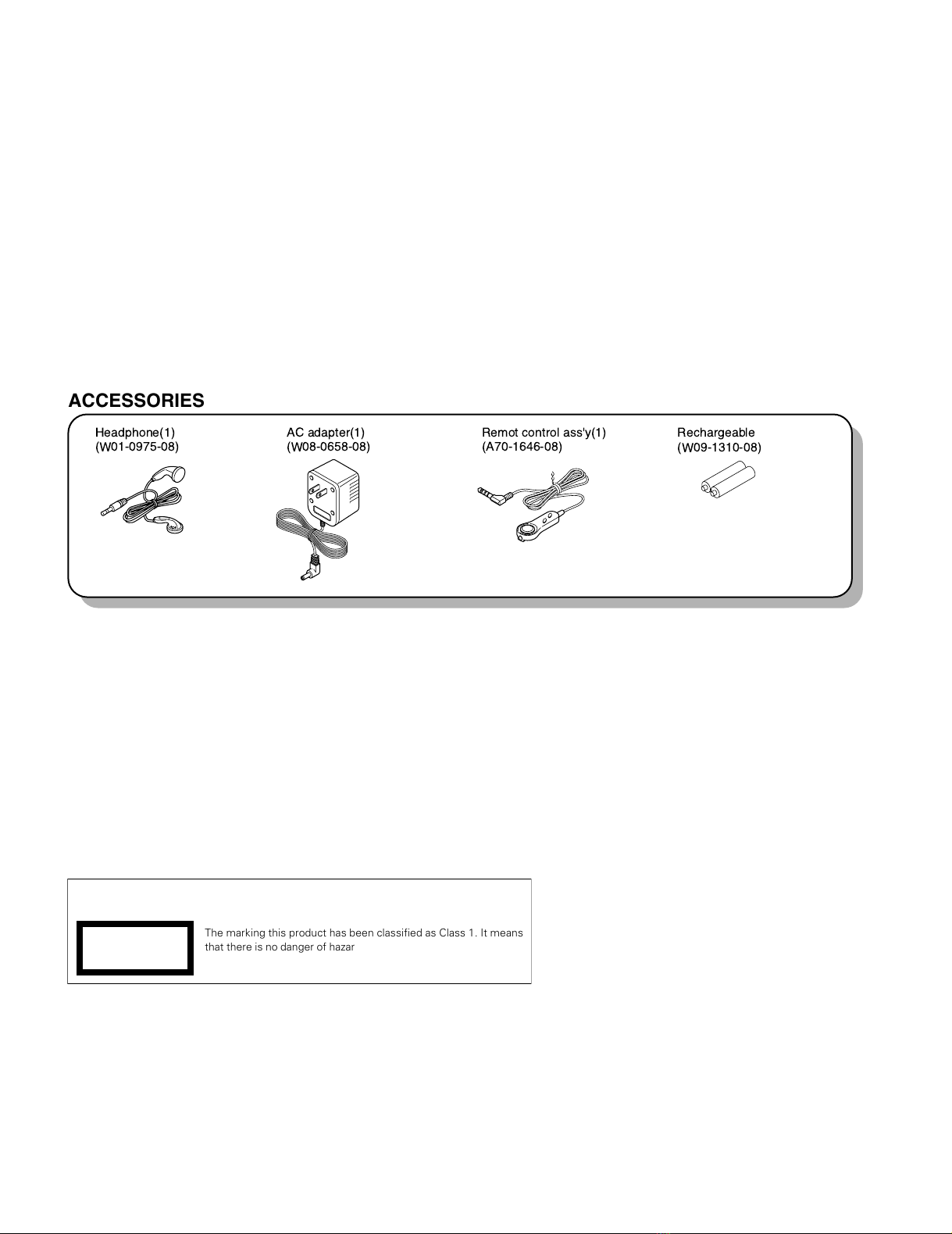

Headphone(1)
(W01-0975-08) AC adapter(1) (W08-0658-08) Remot control ass'y(1) (A70-1646-08) Rechargeable
(W09-1310-08)
ACCESSORIES
The marking this product has been classified as Class 1. It means
that there is no danger of hazardous radiation outside the product.
Location: Back panel
CLASS 1
LASER PRODUCT
The marking of products using lasers (For countries other than U.S.A.,
U.S.-Military and Canada)
CAUTIONS
CONTENTS

ACEBD
2
1
3
5
7
4
6
CN101
CN102
Q102A
Q101A
D700
D603AD604A
Q702A
Q704A
D703A
D702A Q701A
Q700A
D704A
J601
DC IN
BATT
CHARGE
Q602A
Q603A
SW512
LID
SW511
HOLD
D501A
D502A
SW502 STOP
ANTI
SW505
P-MODE
SW506
PROG
SW507
FR
SW504
PLAY
FF
SW503
SW501
100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
26
27
28 29
30
31
32
33
34
35
36
37
38 39
40
41
42
43
44
45
46
47
48 49
50
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
EQO
RFI
CACG
TEN
TEO
SC
TZCRFM
RFRPRFM
DGND3
XPLCK
MONI1
MONI0
DFDIN
DFLRCK
DFDCK
XBUFO
DVDD3
AGND3
RDACO
VCDAC
LDACO
AVDD3
DGND2
XO
XI
DVDD2
DCK
LRCK
DOUTA
DQ08
DQ09
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ00
DQ01
DQ02
DQ03
DQ04
DQ05
DQ06
DQ07
WEX
CASX
RASX
A00
A01
CLK88 LON CLK SUBSYQ MCK DIN DOUT R/W RESETX BUSY DVDD1 RCLK RCKE A13 A12 A11 A10 A09 A08 A07 A06 A05 A04 A03 A02
AVDD1
AC
BD
VBIAS
E
F
AGND1
FEN
FEO
PKC
BTC
PD
LD
ASY
AVDD2
PCO
FCO
AGND2
FDOUT
JUMPO
TDOUT
SDIN
SDOUT
CLVOUT
DGND1
56
1
57
58
59
60
61
62
63
64
COM0
COM2
COM3
COM1
BATT-
TEST
WREM
PLAY
GND
49
50
51
52
53
54
55 B.BOOS
KEY1
KEY0
DC-IN
BATT+
NC
VDD
OSC1
48
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
PVCC
SLED(-)
SLED(+)
SPIND(-)
SPIND(+)
DPG2
SPRT
SOFT
CT
DC IN
REGB
REGO
PRGND
PGND
LG
VG
SW
VSYS
EI
EO
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
TRK(+)
TRK(-)
FO(+)
FO(-)
DPG1
FIL4
FIL3
FIL2
FIL1
VREF
FOCUS
TRK
SLED
CLV
RESET
MUTE1
MUTE34
CLK
OFF
WP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
2
3
4
5
6
1
C124A
+
6800P
C125A
R122A
82K
C123A 150P
150P
C122A
R121A 18K
C121A 2200P
TP104
TE
89
90
16.9344MHz
X101
R120A 1M
R2A 470
100u4
C133
0.1
+
C134A
10uH
L102
0.1
C128A
C1A
100u4
C127
0.1
C126A
0.022
+
4.7
R1A
10uH
L103
0.1
C129A
82
80
A01
A00
DQ05
WE
CAS
RAS
DQ07
DQ06
DQ04
DQ03
DQ01
DQ02
DQ00
DQ10
DQ13
DQ14
DQ15
DQ12
DQ11
DQ09
DQ08
CLK
CKE
A13
A12
A10
A11
A07
A08 A09 A06
A05
A03
A04
A02
C104
100u4
C105A 0.1
C109A 470P
C110A 0.1
C111A 0.1
C112A 120P
150K
R112A
FE
TP103
C113 R114A
0.22
C114A
+
3.3u50 470
C115A
0.1
10K
R123A
R113A
1M
C117A 0.1
R118A 22K
22u6.3
C118
+
C130A
0.1
R117A
330K
4.7K
R119A
R127A
470
1.5K
R126A
0.1
C135A
100u4
C120
C119A
0.1
+
35
34
33
32
31
30
29 28
SD
TP108
JUMPO
TP106
TP102
RF
SP
TP109
27
26
24
R106A 22K
C106A 1
R104A 1K
220u6.3
C101
R103A
4.7
R105A
15
+
100K
R110A 120K
R111A 120K
100u4
C102
+
0.01
C103A
R101A
100
18
20
19
17
R102A
10uH
L101
68K
R116A
39K
R115A
FD
TP107
R108A 22K
TP105
TDOUT
23
22
25
24
25
24
23
22
C615A 0.1
1
C614A
C611A 470P
C612A 0.1
C617
220u6.3
+
0.1
C616A
C610
+
100u4
R607A
22K
C607A
3300P
27K
R605A R606A
62K
+
C609
L603 330uH
10u10
R712A 33R715A 33
750
R700A
R706A
270
R713A 33 R717A 33
R714A 33 R718A 33
R707A
1K
2.2K
R708A
10K
R709A
1K
R716A
100u6.3
C622
+
L601
2
3
1
10
R604A 47P
C603A
0.1
C604A
10uH
L602
R603A 1K
220u6.3
C601
C602
+
220u6.3
+
R609A 4.7K
C606A
0.1
EV
DV
SV
CV
AV
SG
AG
EG 0
CG
18
17
20
19
35
27
26
37
47
62K
R616A
0
R618A
24
20
19
0.022
C618A
C619A
0.022
C620A
0.022
C621A
0.022
R615A
33K
19
20
COM3
COM1
COM2
COM0
C502 C503A
C501A
0.1
R514A 100K
+
47u6.3 0.1
37
C504A 0.1
R505A 100K
C505A 0.1 C507A 0.1
R507A 10K R506A 10K
C506A 0.1
C509A 0.01
R509A 27K R508A 10K
C508A 0.1
R501A 10K
1
C520A
R520A 1M
OPEN CLOSE ON OFF
R515A
6.8K4.7K
R516A
8.2K
R517A
22K
R518A
R510AR511A
4.7K 6.8K
R504A 91K
28
SV
AV
CV
EV
AV
SV
EV
AV
SV
AV SV AV
AV
SV SV
SVSV
AV AV
CV
CV
CV
CV
CV
EV EV
EV
EV
EV
6
5
4
3
2
1
13
16
15
14
10
12
11
9
8
4
7
6
5
3
2
1
SLED+
LID SW
LID SW
SPIND+
SPIND-
SLED-
F(+)
F(-)
T(-)
T(+)
VC
F
GND
MD
PD1
PD2
VR
GND
LD+
GND
VCC
E
100uH
L501
TP603
TP604
TP605
1000P
C608A
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
IC101A
IC601A
CD MECHA
3
DPC-X337

FGIHJ
SW511
HOLD
OP
TI
MODE
OG
J301
Q303A
Q304A
Q305A
Q306A
J302
PHONES
SW301
B.B.S
Q307A
Q401A
LCD501
LINE
OUT
IC101A : BU9534KV
IC301A : PT2308L-S
IC501A : BU24590-8W
IC601A : BH6575FV
Q101A : 2SA1576A
Q102A : DTA124EUA
Q303A,304A,401A,704A
: DTC114TUA
Q305A,306A : DTC323TU
Q307A : DTA144TUA
Q602A,603A : 2SD2150R
Q700A : 2SC4081R
Q701A : 2SD2153(V,W)
Q702A : 2SB1386
D501A,502A : DAN222
D603A : UDZS3.3B
D604A : MA111
D700 : B30-2677-08
D702A : RB161M-20TR
D703A : UDZS8.2B
D704A : UDZS6.2B
SIGNAL LINE
B LINE
GND LINE
EARPHONE
JK901
PLAY/
PAUSE
SW901
STOP
SW902
REW
SW904
FF
SW903
REMOTE
IC402A 81F641642D-102F:
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50 XO
XI
DVDD2
DCK
LRCK
DOUTA
DQ08
DQ09
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ00
DQ01
DQ02
DQ03
DQ04
DQ05
DQ06
DQ07
WEX
CASX
RASX
A00
A01
A02
2556
4
15
SEG15 SEG14
16
XRESET
AMUTE
CHG-CTL
B-LIGHT
18
17
20
19
STOP
EVR-SEL
RLCD-SEL
23
22
21
NC
24
SEG13 SEG12 SEG11 SEG10 SEG09 SEG08 SEG07 SEG06 SEG05 SEG04 SEG03
12
14
13
10
11
9 8
7
6
5
SEG02 SEG01 SEG00
1
3
2
57
58
59
60
61
62
63
64
COM0
COM2
COM3
COM1
BATT-
TEST
WREM
PLAY
45 34
ESP-S3
DEF-SEL
ESP-S2
ESP-S1
SDA-R
SCL-R
JOG-SEL
27
26
29
28
SLD-SEL 32
SDA
SCL
31
30
33
P.OFF
M SEL
MMUTE
RW
SUBQ
COMMAND
MCK
SUBSYQ
BUSY
HOLD
INNNER
37 35 36 38 39 40 41 42 43 44
RESET
LID
GND
49
50
51
52
53
54
55 B.BOOST
KEY1
KEY0
DC-IN
BATT+
NC
VDD
OSC1
48 46 47
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
VDD
DQ0
VCCQ
DQ1
DQ2
VSSQ
DQ3
DQ4
VCCQ
DQ5
DQ6
VSSQ
DQ7
VCC
DQML
WE
CAS
RAS
CS
A13
A12
A10/AP
A0
A1
A2
A3
VCC
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
VSS
DQ15
VSSQ
DQ14
DQ13
VCCQ
DQ12
DQ11
VSSQ
DQ10
DQ9
VCCQ
DQ8
VSS
N.C.
DQMU
CLK
CKE
N.C.
A11
A9
A8
A7
A6
A5
A4
VSS
4 3 2 1
GND
I1+
I1-
O1
5
6
7
8
I2+ I2- O2 VCC
16.9344MHz
X101
R120A 1M
100u4
C133
0.1
+
C134A
10uH
L102
100u4
C127
0.022
+
4.7
R1A
10uH
L103
0.1
C129A
A01
A00
DQ05
WE
CAS
RAS
DQ07
DQ06
DQ04
DQ03
DQ01
DQ02
DQ00
DQ10
DQ13
DQ14
DQ15
DQ12
DQ11
DQ09
DQ08
A02
RAS
WE
A06
A04
A05
A08
A07
A09
DQ00
DQ01
DQ02
DQ03
DQ04
DQ05
DQ06
DQ07
CAS
A01
A10
A00
A02
A03
A12
A13
DQ09
DQ10
DQ15
DQ14
DQ12
DQ11
DQ13
DQ08
CKE
CLK
A11
C401A 0.1
100u4
+
C402
SEG01
SEG06
SEG04
SEG02
SEG03
SEG05
SEG07
SEG08 SEG09
SEG10
SEG13
SEG12
SEG11
SEG14
COM3
COM1
COM2
COM0
R524A 4.7K
R523A 4.7K
R519A 10K
R513A
0
C502 C503A
C501A
0.1
R514A 100K
+
47u6.3 0.1
10K
R502A
37
47
35
C504A 0.1
R505A 100K
C505A 0.1 C507A 0.1
R507A 10K
ON OFF
R515A
6.8K4.7K
R516A
8.2K
R517A
22K
R518A
32
29
35
31
30
33
28
34
2.75T
12K
R310A
+
4.7u25
C310
+
560P
C306A
100K
R308A R309A
100K
C307A
560P
+
4.7u25
+
C309
C308
4.7u25
100
R307A
R306A
100
560P 560P
C304A C305A R305A
100
R304A
100
50K(A)x2
VR301
R360A 1.5K
R362A 180K
R364A 3.6K
R361A 1.5K R365A 3.6K
R363A 180K
22K
R326A
R327A
22K
18
R323A
220u6.3
C334
+
100u4
+
C322
220u6.3
+
C335
18
R324A
1
C337A
1
C336A
L304
2.75T
L303
L301
2.75T
2.75T
L302
R316A
1K
L305
2.75T
R311A
12K 4.7u25
C311
R315A
1K
C317A 0.1
C318A 0.1
4.3K
R317A
R318A
4.3K
100u4
C330
+80
82
R402A
3.3u50
C403
+
10K
R401A
10K 90
89
16
10
12
11
14
13
15
SEG06
SEG01
SEG05
SEG02
SEG03
SEG04
SEG10
SEG07
SEG08 SEG09
SEG14
SEG12
SEG13
SEG11
SEG06
3
COM0 SEG01
2
1
SEG05 SEG02 SEG03 SEG04
5
4 7
6
SEG10 SEG07 SEG08 SEG09
9 8
SEG14 SEG13 SEG11 SEG12 COM1 COM2 COM3
18
17
COM3
COM2
COM1
COM0
AV
AV
CV
CV
CV
CV
EV EV
EV
EV
EV
EV
EV
EV
EV
EV
EV
EV
EV
EV +B
VR901
500
R901AR902A
8.2K8.2K
R904A R903A
39K 15K
RED BLK
1
TEL
2
3
WHT
4
L300
2.75T
R3A
2.2
R521A
1K
R01A 0 R02A 0 R03A 0 R04A 0 R05A 0 R06A 0 R07A 0 R08A 0 R09A 0 R10A 0 R11A 0 R12A 0 R13A 0 R14A 0 R15A 0 R16A 0 R17A 0 R18A 0
C107A
0.1
100u4
+
C108
+B
IC501A
IC402A
IC301A
DPC-X337
REMOTE CONTROL
12
34 65
S1
COL
4
DPC-X337
CAUTION: For continued safe-
ty, replace safety critical com-
ponents only with manufactur-
er's recommended parts (refer
to parts list). indicates safety
critical components. For contin-
ued protection against risk of
fire, replace only with same
type and rating fuse(s). To
reduce the risk of electric
shock, leakage-current or
resistance measurements shall
be carried out (exposed parts
are acceptably insulated from
the supply circuit) before the
appliance is returned to the
customer.
The DC voltage is an actual
reading measured with a high
impedance type voltmeter. The
measurement value may vary
depending on the measuring
instruments used or on the
product. Refer to the voltage
during PLAY with DASC OFF
(at the normal speed) unless
otherwise specified; The value
shown in ( ) is the voltage
measured at the moment of
STOP.

DPC-X337
5
Parts with exploded numbers larger than 700 are not supplied.
PLAY/PAUSE
SW501
STOP
SW502
HOLD
SW511 LINE OUT
J301
VOLUME
VR301
PHONES
J302
DC IN
J601
PROGRAM
SW507
LID
SW512
P.MODE
SW506
D.A.S.C
SW505
LCD501
SKIP/SEARCH
SW504 SW503 B.BOOST
SW301
DPC-X337
642
641
643
644
728
627 626
613
624
629
615
615 615
611
612
605
603
614
602
601
607
630
613
A
A
A
Ax2
A : N09-5517-08φ2x6
1
2
3
AB
EXPLODED VIEW

DPC-X337
6
PARTS LIST
Ref. No Add-
ress
New
Parts
Parts No. Description Desti-
nation Re-
marks
C134A,5A CK73GB1H104K CHIP C 0.10UF K
C304A-7A CK73GB1H561K CHIP C 560PF K
C308-311 CE04KW1E4R7M ELECTRO 4.7UF 25WV
C317A,8A CK73GB1H104K CHIP C 0.10UF K
C322 CE04KW0G101M ELECTRO 100UF 4.0WV
C330 CE04KW0G101M ELECTRO 100UF 4.0WV
C334,5 CE04KW0J221M ELECTRO 220UF 6.3WV
C336A,7A CK73GB1C105K CHIP C 1.0UF K
C401A CK73GB1H104K CHIP C 0.10UF K
C402 CE04KW0G101M ELECTRO 100UF 4.0WV
C403 CE04KW1H3R3M ELECTRO 3.3UF 50WV
C501A CK73GB1H104K CHIP C 0.10UF K
C502 CE04KW0J470M ELECTRO 47UF 6.3WV
C503A-8A CK73GB1H104K CHIP C 0.10UF K
C509A CK73GB1E103K CHIP C 0.010UF K
C520A CK73GB1C105K CHIP C 1.0UF K
C601,2 CE04KW0J221M ELECTRO 220UF 6.3WV
C603A CC73GCH1H470J CHIP C 47PF J
C604A CK73GB1H104K CHIP C 0.10UF K
C606A CK73GB1H104K CHIP C 0.10UF K
C607A CK73GB1E332K CHIP C 3300PF K
C608A CK73GB1E102K CHIP C 1000PF K
C609 CE04KW1A100M ELECTRO 10UF 10WV
C610 CE04KW0G101M ELECTRO 100UF 4.0WV
C611A CK73GB1H471K CHIP C 470PF K
C612A CK73GB1H104K CHIP C 0.10UF K
C614A CK73GB1C105K CHIP C 1.0UF K
C615A,6A CK73GB1H104K CHIP C 0.10UF K
C617 CE04KW0J221M ELECTRO 220UF 6.3WV
C618A-21A CK73GB1E223K CHIP C 0.022UF K
C622 CE04KW0J101M ELECTRO 100UF 6.3WV
CN101 ✻E41-1352-08 16P ZIF R/A CON 025-20016-303
CN102 E41-0897-08 6P WAFER H-TYPE 025-20006-105
J301 E11-0965-08 STEREO JACK EJS 021-23505-101
J302 ✻E11-0988-08 STEREO JACK EJS 021-23505-102
J601 E63-1006-08 DC JACK 3PINS ( 021-34503-101
L101,2 ✻L33-1705-08 AXIAL INDUCTOR 015-00100-107
L103 ✻L33-1709-08 CHOKE COIL 10 U 015-00100-006
L300-304 ✻L33-1707-08 CHOCK COIL 2 3 015-00003-101
L501 L33-0547-08 CHOKE COILS 100 015-00101-000
L601 ✻L33-1708-08 CHOCK COIL 130 015-00131-006
L602 ✻L33-1709-08 CHOKE COIL 10 U 015-00100-006
L603 ✻L33-1710-08 CHOCK COIL 330 015-00331-106
X101 L77-2407-08 CERAMIC RESONAT 052-16930-104
R01-18A RK73GB2A000J CHIP R 0 J 1/10W
R1A RK73GB2A4R7J CHIP R 4.7 J 1/10W
R2A RK73GB2A471J CHIP R 470 J 1/10W
R3A RK73GB2A2R2J CHIP R 2.2 J 1/10W
R101A RK73GB2A101J CHIP R 100 J 1/10W
R102A RK73GB2A150J CHIP R 15 J 1/10W
R103A RK73GB2A104J CHIP R 100K J 1/10W
R104A RK73GB2A102J CHIP R 1.0K J 1/10W
R105A RK73GB2A4R7J CHIP R 4.7 J 1/10W
R106A RK73GB2A223J CHIP R 22K J 1/10W
✽ New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert. 2
L : Scandinavia K : USA P : Canada R : Mexico C : China I : Malaysia
Y : PX(Far East,Hawaii) T : England E : Europe G : Germany V : China(Shanghai)
Y : AAFES(Europe) X : Australia Q : Russia H : Korea M : Other Areas indicates safety critical components .
Ref. No Add-
ress
New
Parts
Parts No. Description Desti-
nation
Re-
marks
-✻B60-5389-08 INST. BOOK(EN) 152-53373-0266
-✻B60-5390-08 INST. BOOK(IT) 152-53374-0266
601 1B ✻A53-2438-08 DPC-X337 DOOR 113-03281-0266
602 2B ✻G01-4365-08 T328 DOOR SPRI 162-03281-306
603 2B ✻B07-2704-08 DPC-X337 TOP C 103-03280-002
605 2B ✻D10-5078-08 T328E DOOR ADA 130-03284-000
607 2B ✻B10-5545-08 T328 DISPLAY L 117-03280-000
611 2B ✻K29-8403-08 T328E OPEN KNO 127-03286-113
612 2B ✻G01-4366-08 T328E OPEN SPR 162-03282-306
613 2A ✻K29-8404-08 T328 HOLD/DBBS 127-03286-0974
614 3B ✻D40-1821-15 SONY CD MECHAN 160-01000-001
615 3B ✻J02-1569-08 T328 CD CUSHIO 161-03281-001
624 3A ✻E23-1902-08 T328 BATTERY S 041-03283-002
626 2A ✻E23-1903-08 T328 BATTERY S 041-03281-002
627 2A ✻E23-1904-08 T328 BATTERY S 041-03282-002
629 3A ✻A09-1306-08 T328 BATTERY D 111-03280-0895
630 3A ✻A02-3104-08 T328 BOTTOM CA 104-03280-0895
641 1A W01-0975-08 ST.EAR PHONE K 053-21532-303
642 1A W08-0658-08 AC-DC ADAPTOR 059-96184-202
643 1A W09-1310-08 RECHAGEABLE BAT 998-00000-041
644 1A ✻A70-1646-08 REMOTE CONTROL
A✻N09-5517-08 SCREW 2 X 6 ST 144-52006-112
D700 ✻B30-2677-08 L.E.D. 3MM(RED) 019-12000-304
LCD501 ✻B38-0273-08 LCD DISPLAY ISO 049-63661-001
C1A CK73GB1E223K CHIP C 0.022UF K
C101 CE04KW0J221M ELECTRO 220UF 6.3WV
C102 CE04KW0G101M ELECTRO 100UF 4.0WV
C103A CK73GB1E103K CHIP C 0.010UF K
C104 CE04KW0G101M ELECTRO 100UF 4.0WV
C105A CK73GB1H104K CHIP C 0.10UF K
C106A CK73GB1C105K CHIP C 1.0UF K
C107A CK73GB1H104K CHIP C 0.10UF K
C108 CE04KW0G101M ELECTRO 100UF 4.0WV
C109A CK73GB1H471K CHIP C 470PF K
C110A,1A CK73GB1H104K CHIP C 0.10UF K
C112A CC73GCH1H121J CHIP C 120PF J
C113 CE04KW1H3R3M ELECTRO 3.3UF 50WV
C114A CK73GB1E224K CHIP C 0.22UF K
C115A CK73GB1H104K CHIP C 0.10UF K
C117A CK73GB1H104K CHIP C 0.10UF K
C118 CE04KW0J220M ELECTRO 22UF 6.3WV
C119A CK73GB1H104K CHIP C 0.10UF K
C120 CE04KW0G101M ELECTRO 100UF 4.0WV
C121A CK73GB1H222K CHIP C 2200PF K
C122A,3A CK73GB1H151J CHIP C 150PF J
C124A CK73GB1C105K CHIP C 1.0UF K
C125A CK73GB1E682K CHIP C 6800PF K
C126A CK73GB1H104K CHIP C 0.10UF K
C127 CE04KW0G101M ELECTRO 100UF 4.0WV
C128A-30A CK73GB1H104K CHIP C 0.10UF K
C133 CE04KW0G101M ELECTRO 100UF 4.0WV
✽ New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert. 1
L:Scandinavia K : USA P : Canada R : Mexico C : China I : Malaysia
Y : PX(Far East,Hawaii) T : England E : Europe G : Germany V : China(Shanghai)
Y : AAFES(Europe) X : Australia Q : Russia H : Korea M : Other Areas indicates safety critical components .
DPC-X337
ELECTRONICS PARTS

DPC-X337
PARTS LIST
Ref. No Add-
ress
New
Parts
Parts No. Description Desti-
nation Re-
marks
R708A RK73GB2A222J CHIP R 2.2K J 1/10W
R709A RK73GB2A103J CHIP R 10K J 1/10W
R712A-5A RK73GB2A330J CHIP R 33 J 1/10W
R716A RK73GB2A102J CHIP R 1.0K J 1/10W
R717A,8A RK73GB2A330J CHIP R 33 J 1/10W
RA506A-8A RK73GB2A103J CHIP R 10K J 1/10W
REG RK73GB2A000J CHIP R 0 J 1/10W
VR301 R31-0113-08 ROTARY VOL. R10010-21503-161
SW301 ✻S62-0123-08 SWITCH SK-22D03020-12203-105
SW501-507 S70-0103-08 TACT SWITCH TC-020-31100-171
SW511 S62-0064-08 SWITCH SK12D02G020-11203-103
SW512 S74-0093-18 TACT SWITCH MPU020-31100-056
D501A,2A DAN222 CHIP DIODE DAN 2004-80222-400
D603A UDZS3.3B CHIP ZENER DIOD 004-80033-215
D604A MA111 SW. DIODE MA 111004-80111-400
D702A ✻RB161M-20TR CHIP MSCHOTTKY 004-80161-400
D703A UDZS8.2B UDZS8.2B (SMT) 004-80082-215
D704A UDZS6.2B UDZS6.2B (SMT) 004-80062-215
IC101A ✻BU9534KV IC BU9534KV (RH002-09534-140
IC301A ✻PT2308L-S IC PT2308L-S (P002-02308-151
IC402A ✻81F641642D-102F IC 81F641642D-1002-41642-230
IC501A ✻BU24590-8W IC BU24590-8W (002-24590-141
IC601A ✻BH6575FV IC BH6575FV (RH002-06575-140
Q101A 2SA1576A CHIP TRANSISTOR 003-21576-148
Q102A DTA124EUA CHIP TRANSISTOR 003-20124-140
Q303A,4A DTC114TUA CHIP TRANSISTOR 003-20114-141-01
Q305A,6A DTC323TU CHIP TRANSISTOR 003-20323-140
Q307A DTA144TUA CHIP TRANSISTOR 003-20144-141-02
Q401A DTC114TUA CHIP TRANSISTOR 003-20114-141-01
Q602A,3A ✻2SD2150R CHIP TRANSISTOR 003-22150-148
Q700A 2SC4081R CHIP TRANSISTOR 003-24081-148
Q701A 2SD2153(V,W) CHIP TRANSISTOR 003-22153-142
Q702A 2SB1386 CHIP TRANSISTOR 003-21386-147
Q704A DTC114TUA CHIP TRANSISTOR 003-20114-141-01
✽ New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert. 4
L:Scandinavia K : USA P : Canada R : Mexico C : China I : Malaysia
Y : PX(Far East,Hawaii) T : England E : Europe G : Germany V : China(Shanghai)
Y : AAFES(Europe) X : Australia Q : Russia H : Korea M : Other Areas indicates safety critical components .
Ref. No Add-
ress
New
Parts
Parts No. Description Desti-
nation
Re-
marks
R108A RK73GB2A223J CHIP R 22K J 1/10W
R110A,1A RK73GB2A124J CHIP R 120K J 1/10W
R112A RK73GB2A154J CHIP R 150K J 1/10W
R113A RK73GB2A105J CHIP R 1.0M J 1/10W
R114A RK73GB2A471J CHIP R 470 J 1/10W
R115A RK73GB2A393J CHIP R 39K J 1/10W
R116A RK73GB2A683J CHIP R 68K J 1/10W
R117A RK73GB2A334J CHIP R 330K J 1/10W
R118A RK73GB2A223J CHIP R 22K J 1/10W
R119A RK73GB2A472J CHIP R 4.7K J 1/10W
R120A RK73GB2A105J CHIP R 1.0M J 1/10W
R121A RK73GB2A183J CHIP R 18K J 1/10W
R122A RK73GB2A823J CHIP R 82K J 1/10W
R123A RK73GB2A103J CHIP R 10K J 1/10W
R126A RK73GB2A152J CHIP R 1.5K J 1/10W
R127A RK73GB2A471J CHIP R 470 J 1/10W
R304A-7A RK73GB2A101J CHIP R 100 J 1/10W
R308A,9A RK73GB2A104J CHIP R 100K J 1/10W
R310A,1A RK73GB2A123J CHIP R 12K J 1/10W
R315A,6A RK73GB2A102J CHIP R 1.0K J 1/10W
R317A,8A RK73GB2A432J CHIP R 4.3K J 1/10W
R323A,4A RK73GB2A180J CHIP R 18 J 1/10W
R326A,7A RK73GB2A223J CHIP R 22K J 1/10W
R360A,1A RK73GB2A152J CHIP R 1.5K J 1/10W
R362A,3A RK73GB2A184J CHIP R 180K J 1/10W
R364A,5A RK73GB2A362J CHIP R 3.6K J 1/10W
R401A,2A RK73GB2A103J CHIP R 10K J 1/10W
R501A,2A RK73GB2A103J CHIP R 10K J 1/10W
R504A RK73GB2A913J CHIP R 91K J 1/10W
R505A RK73GB2A104J CHIP R 100K J 1/10W
R509A RK73GB2A273J CHIP R 27K J 1/10W
R510A RK73GB2A682J CHIP R 6.8K J 1/10W
R511A RK73GB2A472J CHIP R 4.7K J 1/10W
R513A RK73GB2A000J CHIP R 0 J 1/10W
R514A RK73GB2A104J CHIP R 100K J 1/10W
R515A RK73GB2A682J CHIP R 6.8K J 1/10W
R516A RK73GB2A472J CHIP R 4.7K J 1/10W
R517A RK73GB2A822J CHIP R 8.2K J 1/10W
R518A RK73GB2A223J CHIP R 22K J 1/10W
R519A RK73GB2A103J CHIP R 10K J 1/10W
R520A RK73GB2A105J CHIP R 1.0M J 1/10W
R521A RK73GB2A102J CHIP R 1.0K J 1/10W
R523A,4A RK73GB2A472J CHIP R 4.7K J 1/10W
R603A RK73GB2A102J CHIP R 1.0K J 1/10W
R604A RK73GB2A100J CHIP R 10 J 1/10W
R605A RK73GB2A273J CHIP R 27K J 1/10W
R606A RK73GB2A623J CHIP R 62K J 1/10W
R607A RK73GB2A223J CHIP R 22K J 1/10W
R609A RK73GB2A472J CHIP R 4.7K J 1/10W
R615A RK73GB2A333J CHIP R 33K J 1/10W
R616A RK73GB2A623J CHIP R 62K J 1/10W
R618A RK73GB2A000J CHIP R 0 J 1/10W
R700A RK73FB2B751J CHIP R 750 J 1/8W
R706A RK73FB2B271J CHIP R 270 J 1/8W
R707A RK73GB2A102J CHIP R 1.0K J 1/10W
✽ New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert. 3
L:Scandinavia K : USA P : Canada R : Mexico C : China I : Malaysia
Y : PX(Far East,Hawaii) T : England E : Europe G : Germany V : China(Shanghai)
Y : AAFES(Europe) X : Australia Q : Russia H : Korea M : Other Areas indicates safety critical components .
