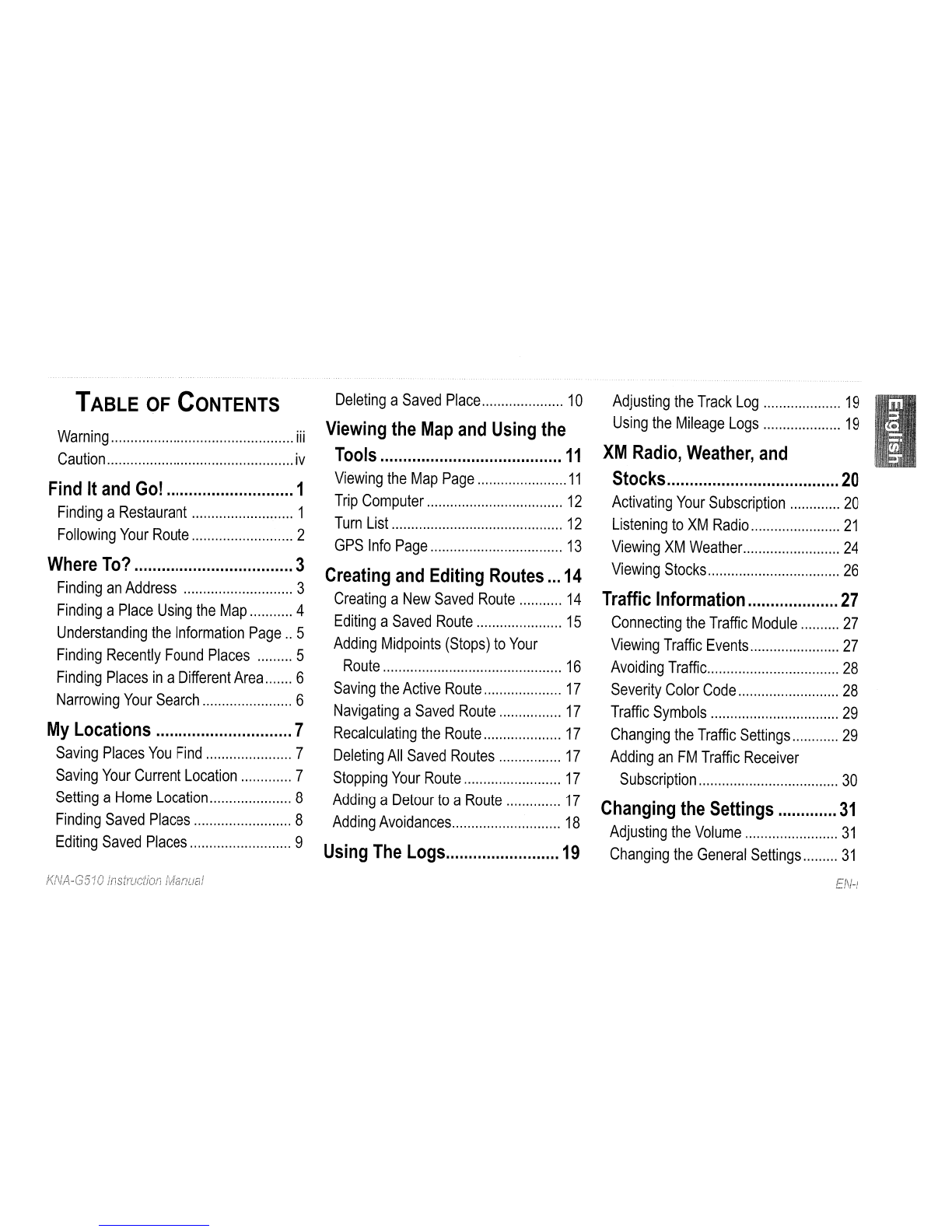

TABLE OF CONTENTS
Warning iii
Caution IV
Find It and Go! 1
Finding a Restaurant 1
Following Your Route 2
Where To? 3
Finding an Address 3
Finding a Place Using the Map 4
Understanding the Information Page .. 5
Finding Recently Found Places 5
Finding Places in a Different Area 6
Narrowing Your Search 6
My Locations 7
Saving Places You Find 7
Saving Your Current Location 7
Setting a Home Location 8
Finding Saved Places 8
Editing Saved Places 9
KNA-G510 Instruction Manual
Deleting a Saved Place 10
Viewing the Map and Using the
Tools 11
Viewing the Map Page 11
Trip Computer 12
Turn List 12
GPS Info Page 13
Creating and Editing Routes 14
Creating a New Saved Route 14
Editing a Saved Route 15
Adding Midpoints (Stops) to Your
Route 16
Saving the Active Route 17
Navigating a Saved Route 17
Recalculating the Route 17
Deleting All Saved Routes 17
Stopping Your Route 17
Adding a Detour to a Route 17
Adding Avoidances 18
Using The Logs 19
Adjusting the Track Log 19
Using the Mileage Logs 19
XM Radio, Weather, and
Stocks 20
Activating Your Subscription 20
Listening to XM Radio 21
Viewing XM Weather 24
Viewing Stocks 26
Traffic Information 27
Connecting the Traffic Module 27
Viewing Traffic Events 27
Avoiding Traffic 28
Severity Color Code 28
Traffic Symbols 29
Changing the Traffic Settings 29
Adding an FM Traffic Receiver
Subscription 30
Changing the Settings 31
Adjusting the Volume 31
Changing the General Settings 31

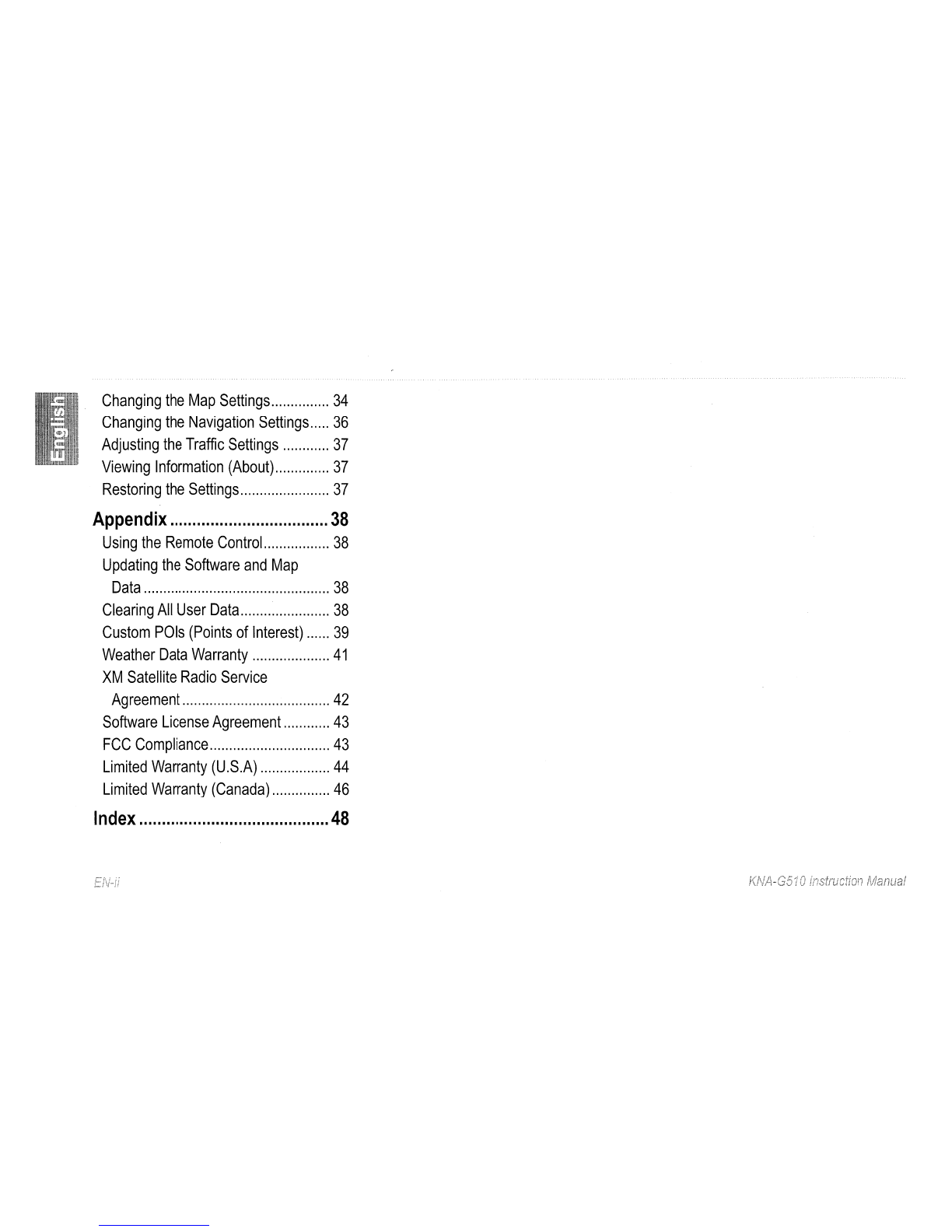

EN-i

Changing the Map Settings 34
Changing the Navigation Settings, 36
Adjusting the Traffic Settings 37
Viewing Information (About) 37
Restoring the Settings 37
Appendix a •••••••••••••••••••••••••••• 38
Using the Remote Control 38
Updating the Software and Map
Data 38
Clearing All User Data 38
Custom POls (Points of Interest) 39
Weather Data Warranty 41
XM Satellite Radio Service
Agreement 42
Software License Agreement 43
FCC Compliance 43
Limited Warranty (U.S.A) 44
Limited Warranty (Canada) 46
Index 48
1</11 A- G51 0 Instruction Manual

•Warning
This manual uses the term Warning to indicate a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
Failure to avoid the following potentially hazardous situations could
result in an accident or collision resulting in death or serious injury.
When navigating, carefully compare information displayed on the
navigation system to all available navigation sources, including
information from street signs, visual sightings, and maps. For safety,
always resolve any discrepancies or questions before continuing
navigation.
Always operate the vehicle in a safe manner. Do not become distracted
by the navigation system while driving, and always be fully aware of
all driving conditions. Minimize the amount of time spent viewing the
screen of the navigation system while driving and use voice prompts
when possible.
Do not enter destinations, change settings, or access any functions
requiring prolonged use of the navigation system's controls while
driving. Pull over in a safe and legal manner before attempting such
operations.
Keep the system's volume at a low enough level to be able to hear
outside noises while driving. If you can no longer hear outside noises,
you may be unable to react adequately to the traffic situation. This may
cause accidents.
This navigation system can be used when the ignition key is turned to
ON or ACe. However, to preserve the battery, it should be used with
the engine running whenever possible. Using the navigation system for
a long time with the engine switched off can cause the battery to run
down.
The navigation system will not display the correct current position of the
vehicle the first time it is used after purchase, or if the battery has been
removed for a long time. GPS satellite signals will soon be received,
however, and the correct position will be displayed.
Be careful of the surrounding temperature. Using the navigation system
at extremely high or low temperatures can lead to malfunction or
damage. Also note that the unit can be damaged by strong vibration or
metal objects or by water getting inside.
WARNING: This product, its packaging, and its components contain chemicals known to the State of California to cause cancer, birth defects, or
reproductive harm. This Notice is being provided in accordance with California's Proposition 65. If you have any questions or would like additional
information, refer to the Garmin Web site at http://www.garmin.com/prop65.
KNA-G510 Instruction IVlanual

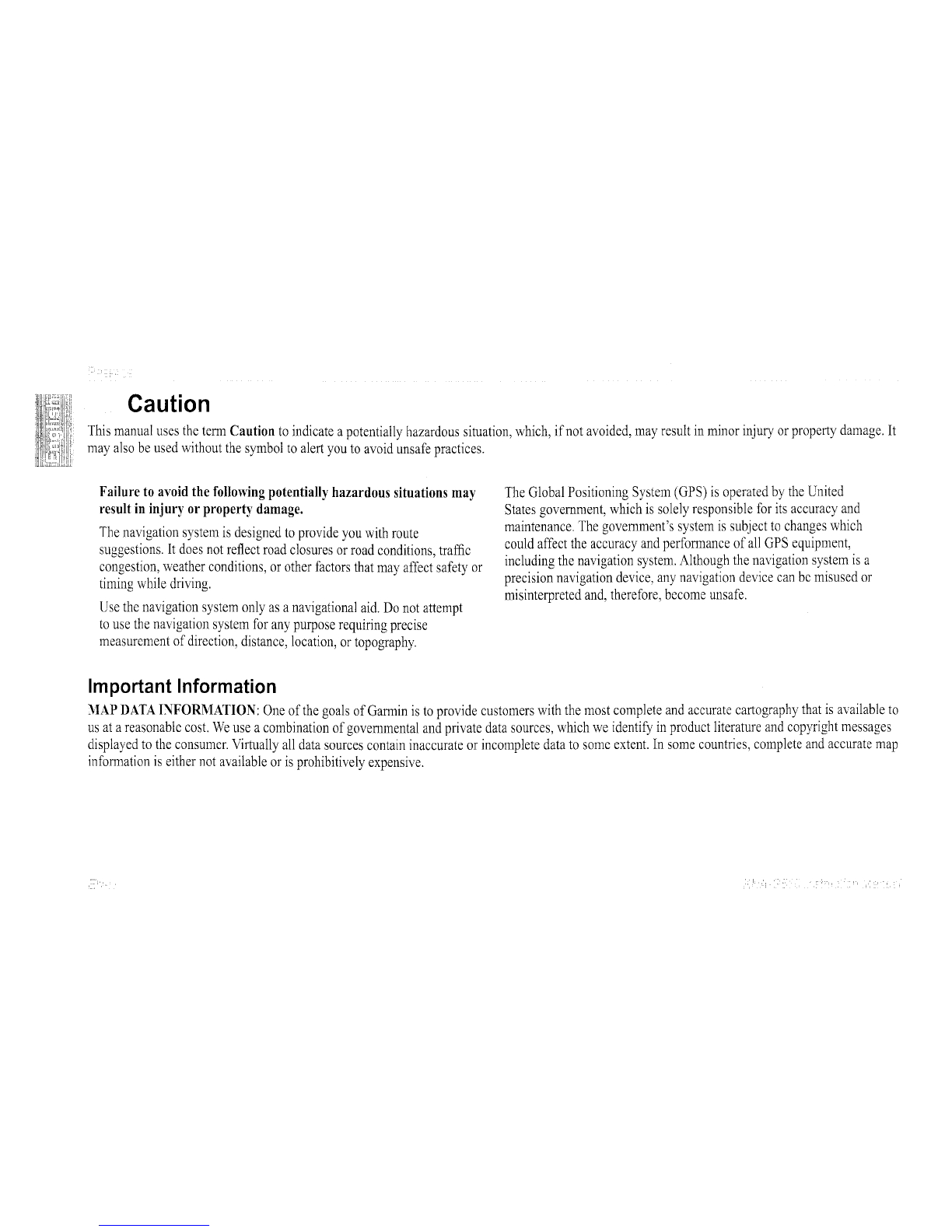

Caution
This manual uses the term Caution to indicate a potentially hazardous situation, which, if not avoided, may result in minor injury or property damage. It
may also be used without the symbol to alert you to avoid unsafe practices.
Failure to avoid the following potentially hazardous situations may
result in injury or property damage.
The navigation system is designed to provide you with route
suggestions. It does not reflect road closures or road conditions, traffic
congestion, weather conditions, or other factors that may affect safety or
timing while driving.
Use the navigation system only as a navigational aid. Do not attempt
to use the navigation system for any purpose requiring precise
measurement of direction, distance, location, or topography.
The Global Positioning System (GPS) is operated by the United
States government, which is solely responsible for its accuracy and
maintenance. The government's system is subject to changes which
could affect the accuracy and performance of all GPS equipment,
including the navigation system. Although the navigation system is a
precision navigation device, any navigation device can bc misused or
misinterpreted and, therefore, become unsafe.
Important Information
:\IAP DATA I~FORMATION: One of the goals of Garmin is to provide customers with the most complete and accurate cartography that is available to
us at a reasonable cost. We use a combination of governmental and private data sources, which we identify in product literature and copyright messages
displayed to the consumer. Virtually all data sources contain inaccurate or incomplete data to somc extent. In some countries, complete and accurate map
information is either not available or is prohibitively expensive.
: ~. ,I, ,!.. _

FIND IT AND GO!
Follow the instructions on the next two pages to find a place and go to it!
FiND IT Ai'lD Go!
American

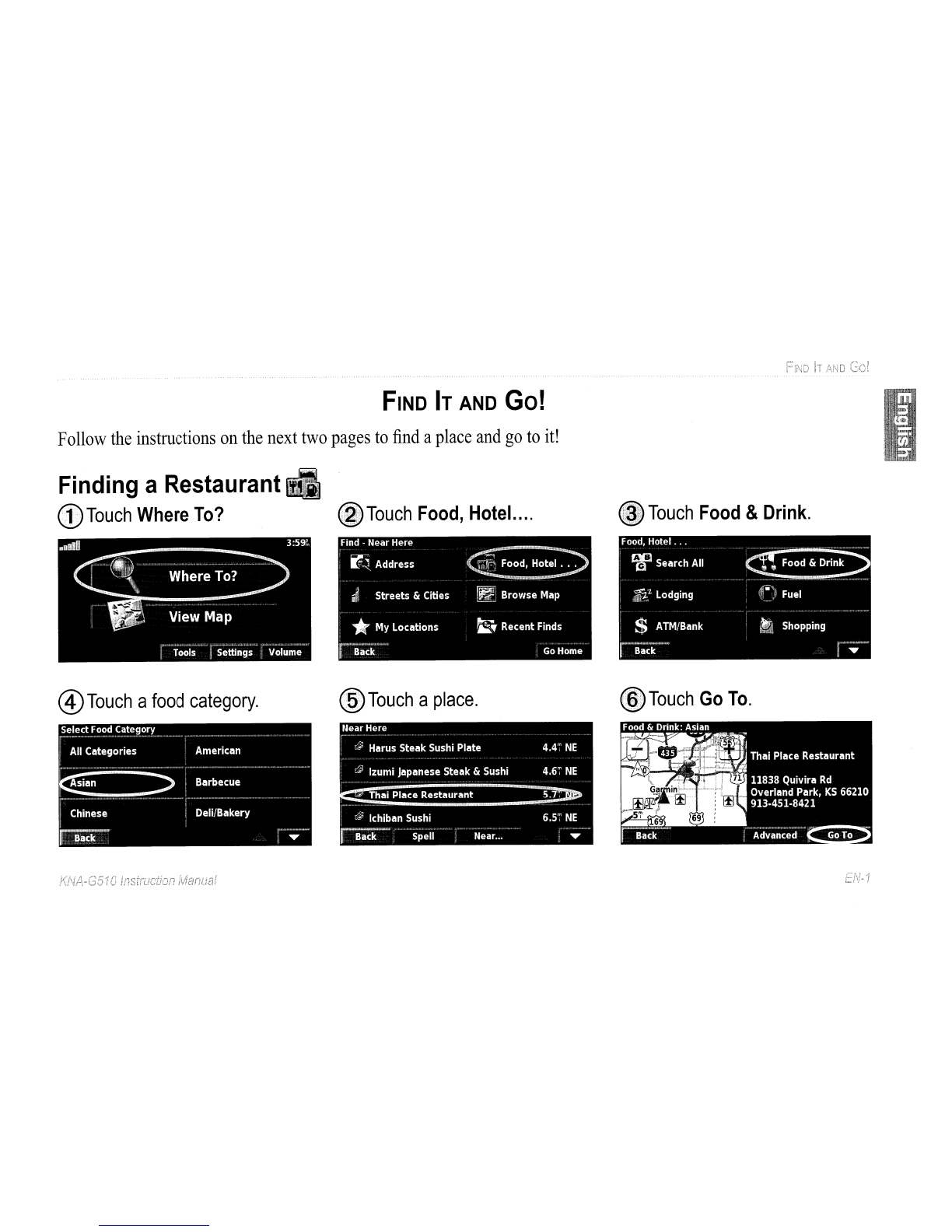

Finding a Restaurant
CD Touch Where To?
@Touch a food category.
Selectfood Category
I' . __ .... _..... .-.-
! All Categories
r"'--- ,. .._ ----
~ Barbecue
r-'c~~~ese i ~~;i/~~k~;~'
~-
KNA-G510 Instruction Manual
(fIDTouch Food, Hotel ....
@Touch a place.
@ Touch Food & Drink.
~Touch Go To.

FIND iT At;JD GO!

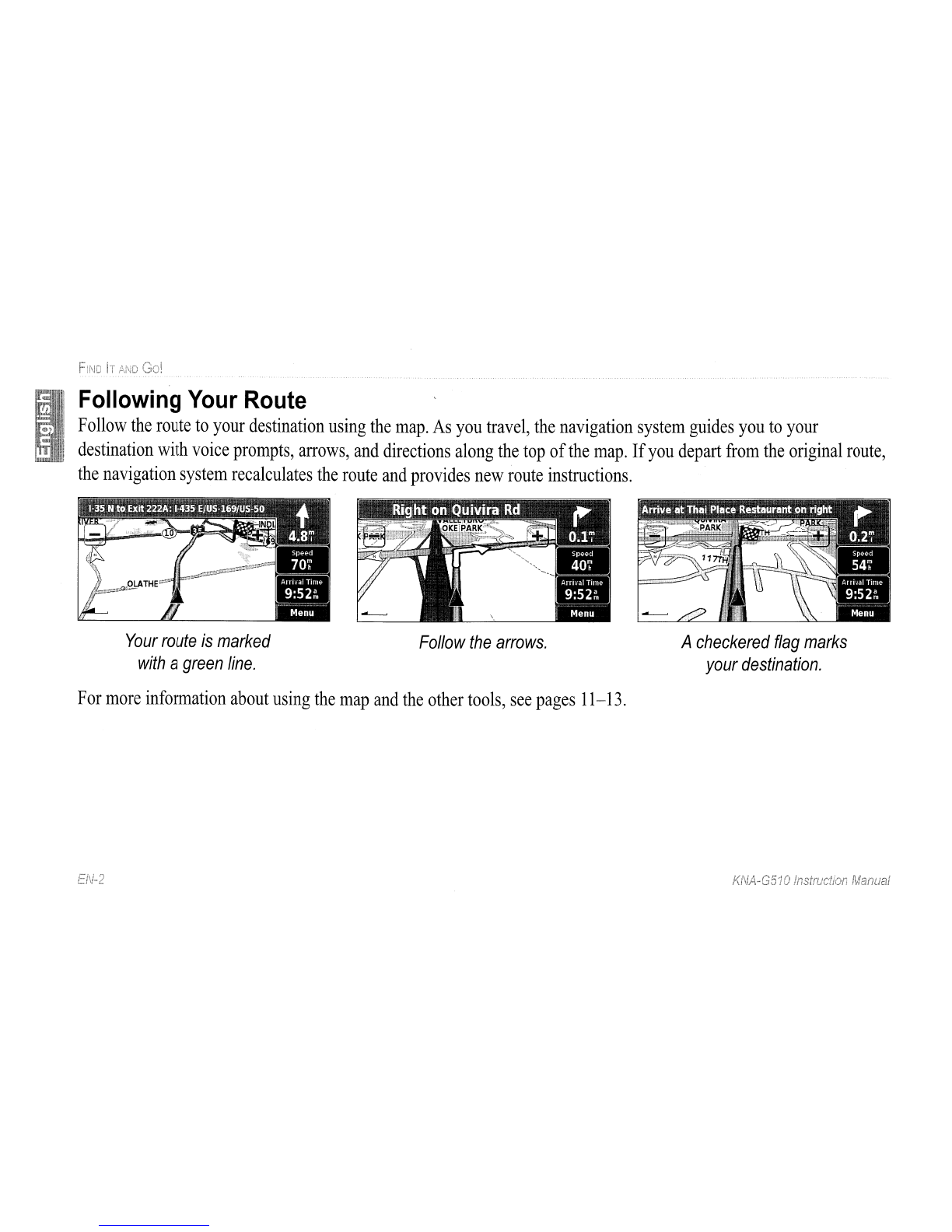

Following Your Route
Follow the route to your destination using the map. As you travel, the navigation system guides you to your
! destination with voice prompts, arrows, and directions along the top of the map. If you depart from the original route,
the navigation system recalculates the route and provides new route instructions.
I "
Follow the arrows.
Your route is marked
with a green line.
F or more information about using the map and the other tools, see pages 11-13.
A checkered flag marks
your destination.
fCNA-G5'IO Instruction 1\4anua/

WHERE TO?
Finding an Address Lit
® From the Menu page, touch
Where To? Touch Address.
WHERE To?
@ Select a state. Touch Search
All Cities or select a city.
® Enter the address number
and touch Done.
® Select the address, if
necessary. Touch Go To.
@9 Select the street. Select the
city, if necessary.
E nte r Street
~~N1"p. FED
I
"ol
ABCDE F GHI
JKLMN0pQR
STUVW X Y Z
Back i
123 Done
<i Enter the street name and
touch Done.
KNA-G510 Instruction Manual
EN-3

I
WHERE TO?
Finding aPlace us; the Map
From the Menupage, touch ;.~ View Map. You
can also touch·~ Where to? > Browse Map. Touch
anywhere on the map to recenter the map on that
location.
Touch any object on the map. Touch Review.
Touch Go To or Advanced.
EN-if
Tips for Browsing the Map
• Use the + and -I icons to zoom in and out.
• Touch an object on the map. The map recenters on
that location, and an arrow appears, pointing at the
object you selected.
• Touch Review to open the location's information
page; for more information, see the next page.
• Touch Save As Favorite to save the location
selected by the pointer to your Favorites.
• Touch Back to return to the previous screen.
KNA-G5'fO Instruction Manual

Understanding the Information Page
When you find a location, select it in the search results
list to open the item's information page.
Information Page
Touch Go To to create and follow a route to this location.
Touch Advanced to view other options for this location:
•Insert in Current Route-add this point as the next
stop in your route.
• Add As Favorite-add this location to your
Favorites. For more information, see page 7.
• Find Near Point-find a location near this point.
• Browse Map-view this location on the map.
KNA -G 510 Instruction Manual
WHERE TO?
Finding Recently Found Places
The last 50 places you have found are stored in Recent
Finds.
• Touch Where To? > Recent Finds.
~ Select an item from the search results list.
Touch Category to display recent finds from a certain
category, such as Food, HoteI. ...
EN-5

\tVHERE TO?
Finding Places in a Different Area
You can search for locations in a different area, such as a
different city or near your destination.
@) From the search results list, touch Near ....

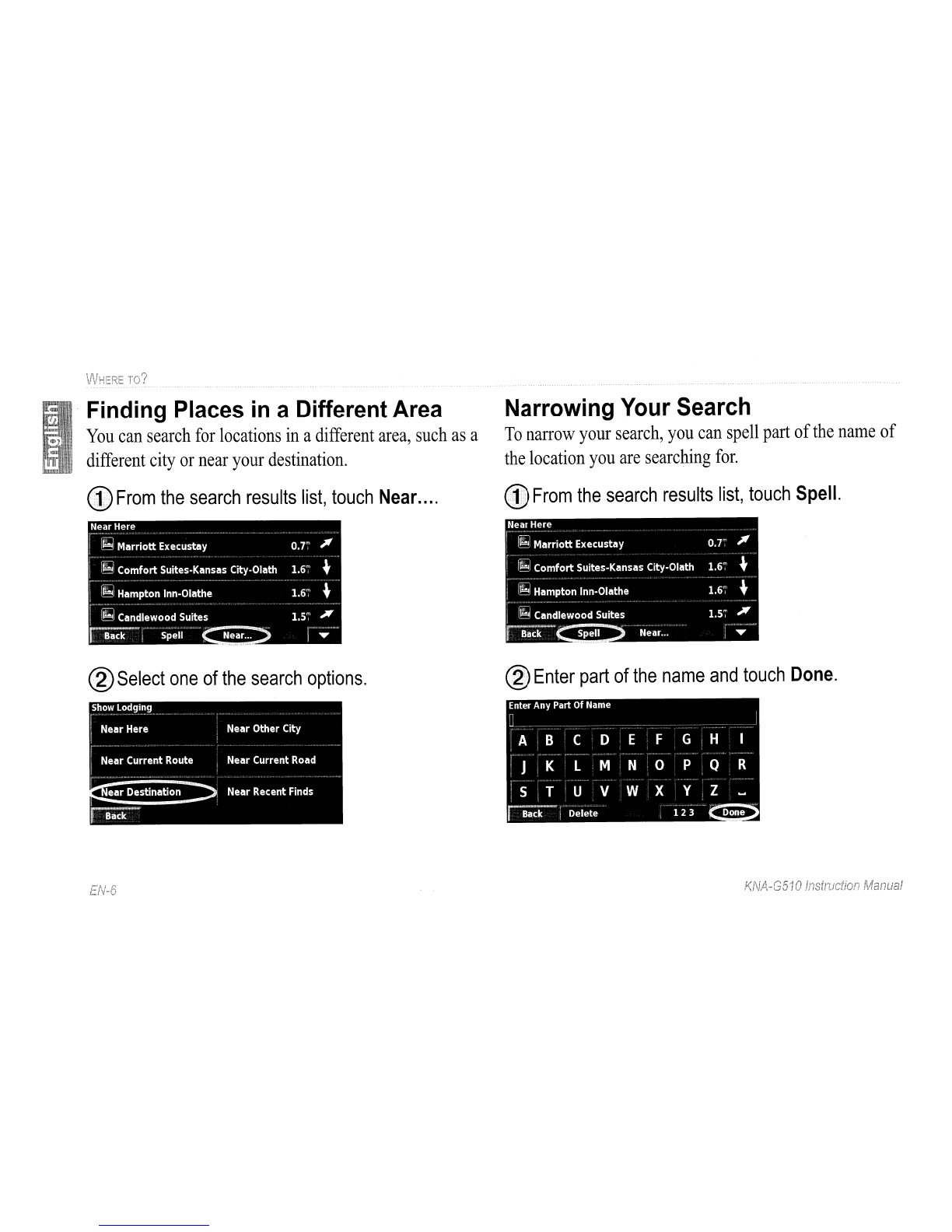

Narrowing Your Search
To narrow your search, you can spell part of the name of
the location you are searching for.
eD From the search results list, touch Spell.
Near Here
~ Marriott Execustay
I~ Comfort Suites-Kansas City-Orath
,.
i ~I Hampton Inn-Olathe
I~ Candlewood Suites
r .... B-;~k-· Near ...
O.7~
;tf
1.6~
~
1.6~
..
1.ST
,
.....
® Select one of the search options.
EN-6
® Enter part of the name and touch Done.
KNA-G51 0 Instruction Manual

My LOCATIONS ~
My LOCATIONS
Saving Your Current Location
From the Menu page, touch \:1\ View Map.
@Touch anywhere on the map.
Saving Places You Find
After you have found a place you want to save, select it
on the results list.
(00) Touch Advanced.
® Touch Add As Favorite.
I<NA-G510 Instruction Manual
EN-7

My . OCATIONS
Setting a Home Location
You can set a Horne Location for the place you return to most often. From the Menu page, touch Where To?
CD Touch Go Home. ® Select an option. ® Touch Save Home.
After you set your Horne Location, touch Where To? and then touch Go Home.
Finding Saved Places
From the Menu page, touch Where To?
CD Touch My Locations. (lID Touch Favorites.
@Touch a saved place.
Find· Near Here
f"
i ~ Address
I
r
! ~. Streets &Cities
~
rB';;k .
EN-8
.",.,
m~ Food, Hotel •.•
~ Browse Map
~ Recent Finds
Go Home
KNA-G51 0 Instruction Manual

My LOCATIONS

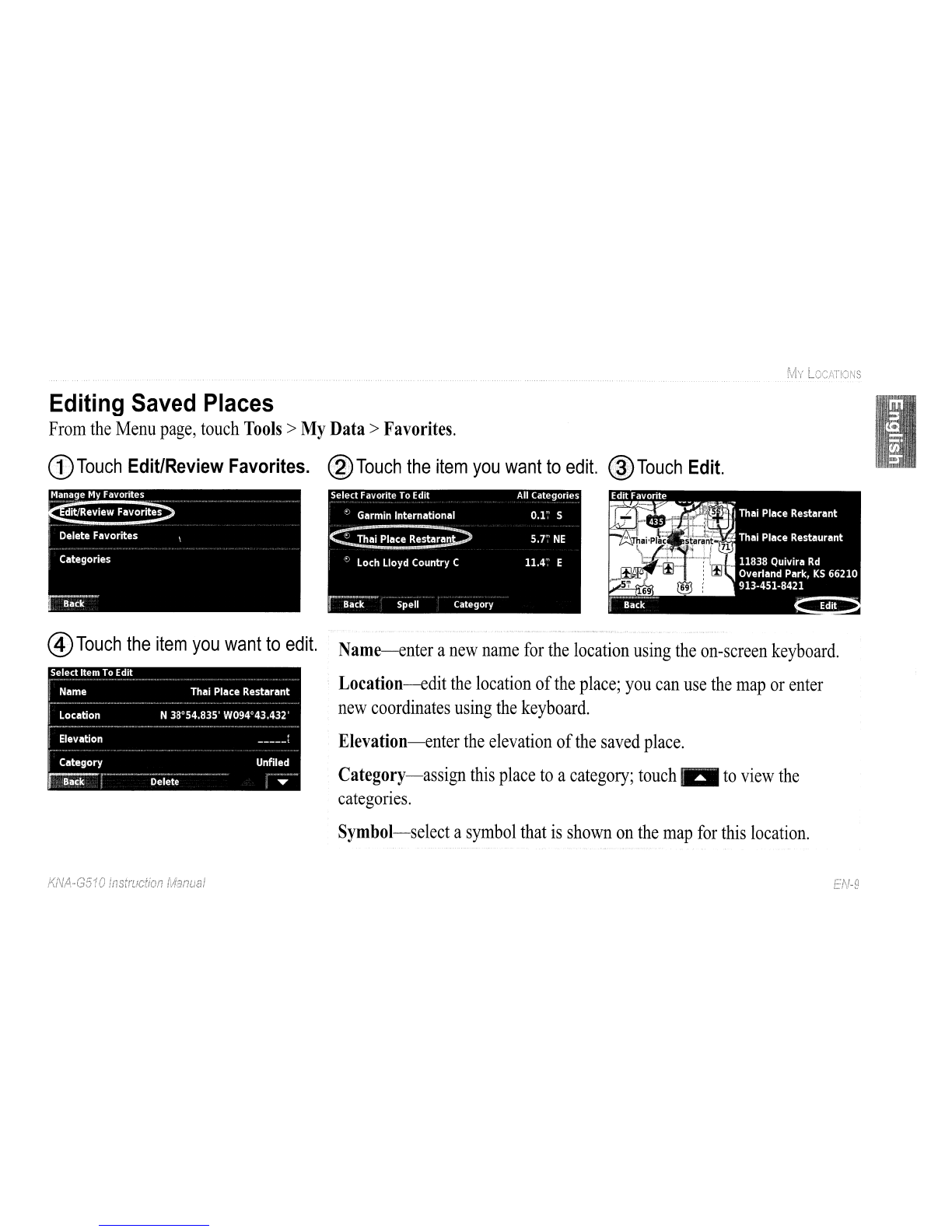

Editing Saved Places
From the Menu page, touch Tools> My Data> Favorites.
CD Touch Edit/Review Favorites. ® Touch the item you want to edit. (ID Touch Edit.
Select Favorite To Edit
I
If;· Garmin International
~
I ~
:; loch lloyd Country C
r"B-;~k···"
Spell Category
All Categories
O.l~ 5
5.7~ NE
11.4~ E
f
_____ t
Unfiled
Thai Place Restarant
N38°54.835' W094°43.432,
ICategory
~- ----------D-;Iete
@Touch the item you want to edit. Name-enter a new name for the location using the on-screen keyboard.
,Location-edit the location of the place; you can use the map or enter
new coordinates using the keyboard.
Elevation-enter the elevation of the saved place.
Category-assign this place to a category; touch to view the
categories.
Symbol-select a symbol that is shown on the map for this location.
Select Item To Edit
r--"--" .----. ----- ..
!Name
[. ~·~~·~ti~~-·
r- E;~-~~ti~~--'
KNA-G5i:O instruction Manual
E.,\'·9

My LOCAT!O S

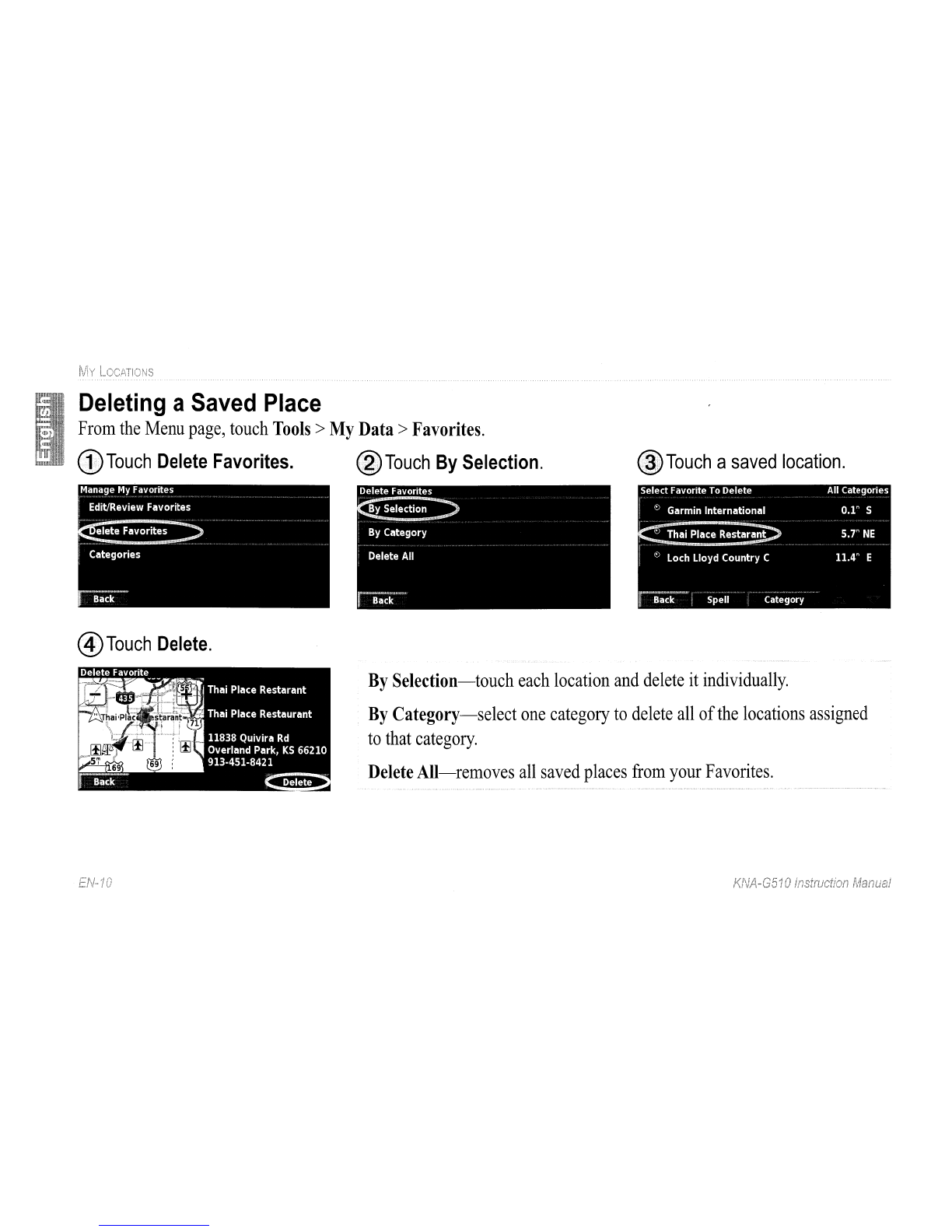

Deleting a Saved Place
From the Menu page, touch Tools> My Data> Favorites.
G)Touch
Delete Favorites. @Touch By Selection.
@Touch a saved location.
@ Touch Delete.
EN-10
By Selection-touch each location and delete it individually.
By Category-select one category to delete all of the locations assigned
to that category.
Delete All-removes all saved places from your Favorites.
KNA-G510 Instruction Manual

VIEINING T'-iE ~viAP AND USING THE TOOLS
..................
VIEWING THE MAP AND USING THE TOOLS
Viewing the Map Page
From the Menu page, touch View Map to open the map. Touch an area of the map to see additional information, as
shown below. The position icon ... shows your current location.
While navigating a route, touch the green
text bar to open the Turn List. See page 12.
Touch -I to zoom out.
Touch the map to view and
browse a 2-D map.
.....
\
Speed
40h
Arrival Time
9:52~
Touch +i to zoom in.
Touch the Speed or Arrival
data field to open the Trip
Computer. See page 12.
KNA-G510 Instruction Manual
Map Page while Navigating aRoute
EN-11

VIEWING THE MAP AND USING THE TGOlS
Touch Reset Trip to reset all infonnation on the Trip
Computer. To reset the Maximum Speed, touch Reset
Max.
Direction of this turn
Distance to this turn
Turn directions'
Touch View All to see all the turns in the route. Touch
and to scroll through the list.
Touch a tum to see the tum on a map (the Next Tum
page). Touch a and a to scroll through all the
turns in the route. Touch .±J and -I to zoom in and out
of the tum on the map.
Turn List
The Tum List displays a list of tum-by-tum instructions
for your entire route as well as arrival infonnation.
While navigating a route, touch the green text bar on the
map page to open the Tum List. Or, from the Menu page,
touch Tools> Navigation> Turn List.
Total
distance
traveled
(odometer)
Current !lJ!li~!,.
direction
of travel

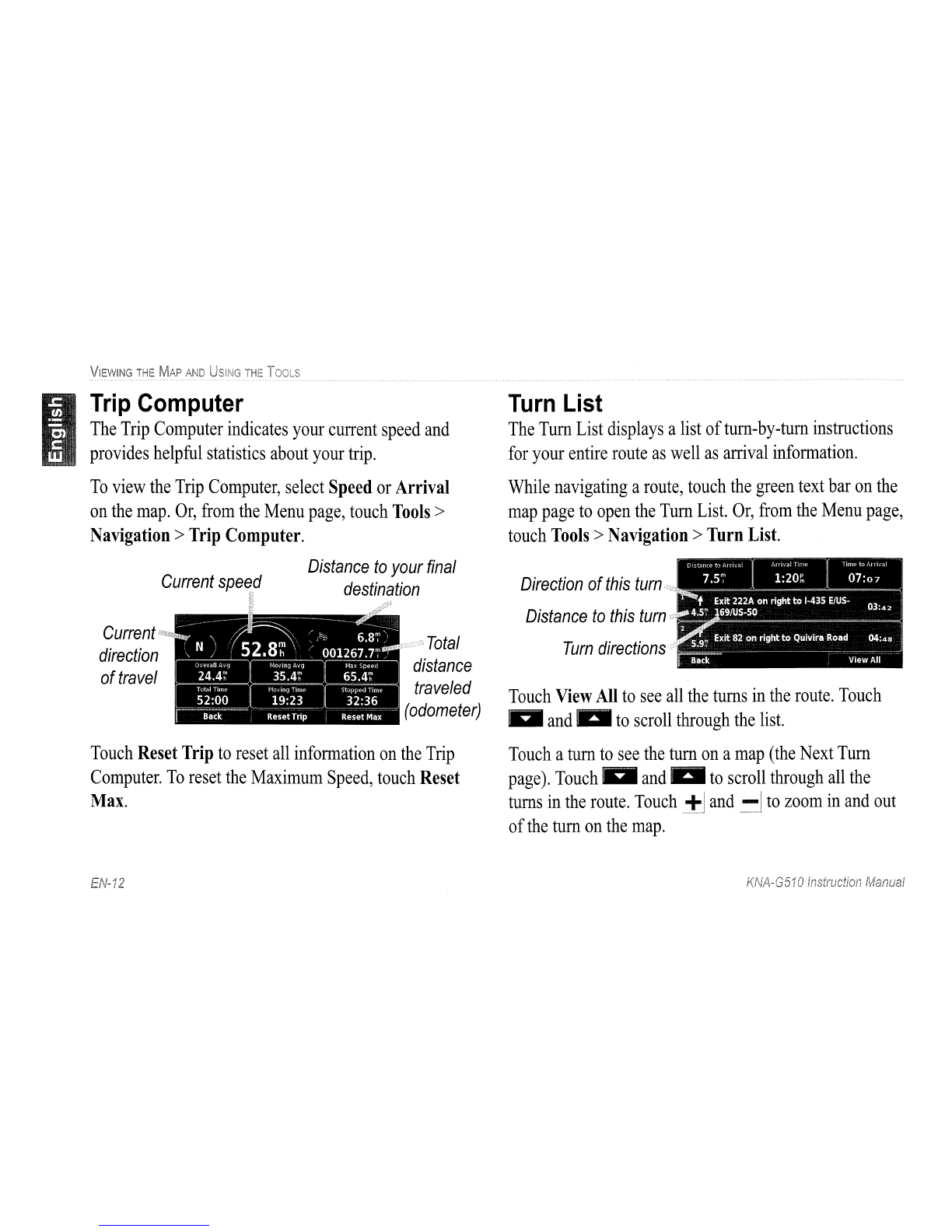

Trip Computer
The Trip Computer indicates your current speed and
provides helpful statistics about your trip.
To view the Trip Computer, select Speed or Arrival
on the map. Or, from the Menu page, touch Tools>
Navigation> Trip Computer.
Distance to your final
CUffentspeed destination
EN-'f2
I<NA-G51O Instruction Manual

GPS Info Page
From the Menu page, touch the signal strength bars in
the upper left comer to view the GPS Info page. Or, from
the Menu page, touch Tools> Navigation > GPS Info.
Sky view
·Og· ,
Satellite signal,;; C0~~ I ''', ,,,w ."
strength bars
The sky view shows the satellites you are receiving. The
satellite signal strength bars indicate the strength of each
satellite you are receiving. A solid bar indicates the GPS
satellite is ready for use.
KNA-G510 Instruction Manual
\!IE\i\'!~G T'-lE MAP AND USING THE Too S
GPS Settings
From the Menu page, touch Settings> General> GPS.
You can also access the GPS Settings by touching the
GPS Settings button on the GPS Info page.
Use Indoors-touch Yes to tum the GPS receiver off.
Set Position-set your position, if Use Indoors is
enabled. Select your location on the map and touch OK.
WAAS/EGNOS-disable and enable WAASIEGNOS.
WAAS and EGNOS are systems of satellites and ground
stations that provide GPS signal corrections, giving you
even better position accuracy. To learn about WAAS and
EGNOS, visit http://www.garmin.com/aboutGPS/waas
.html.
EN-13

<j Select an option and touch
Next. Select the ending point.
CREATING AND EDITING ROUTES
Creating aNew Saved Route
From the Menu page, touch Tools> My Data> Routes.
CD Touch Create New @Select an option and touch
Saved Route. Next. Select the starting point.
@To add a stop, touch Yes, then @Select your preference
touch Next. Select the point. and touch Next.
® Touch Finish.
K/IIA-G5'J 0 instruction IVranual
