Kenwood KDGC66S19 Service manual

Free-Standing Double Oven
Dual Fuel Cooker
KDGC66S19
installation / instructions manual
Kenwood Free Standing Dual Fuel Double Oven KDGC66S19 Manual.indd 1 27/01/2020 11:12

Contents
Safety Warnings............................................................................................................................ 4
Unpacking..................................................................................................................................... 7
Product Overview......................................................................................................................... 8
Front View ...................................................................................................................................................................8
Top View.......................................................................................................................................................................8
Control Panel..............................................................................................................................................................9
Gas Burners.................................................................................................................................................................9
Touch Control Display..........................................................................................................................................10

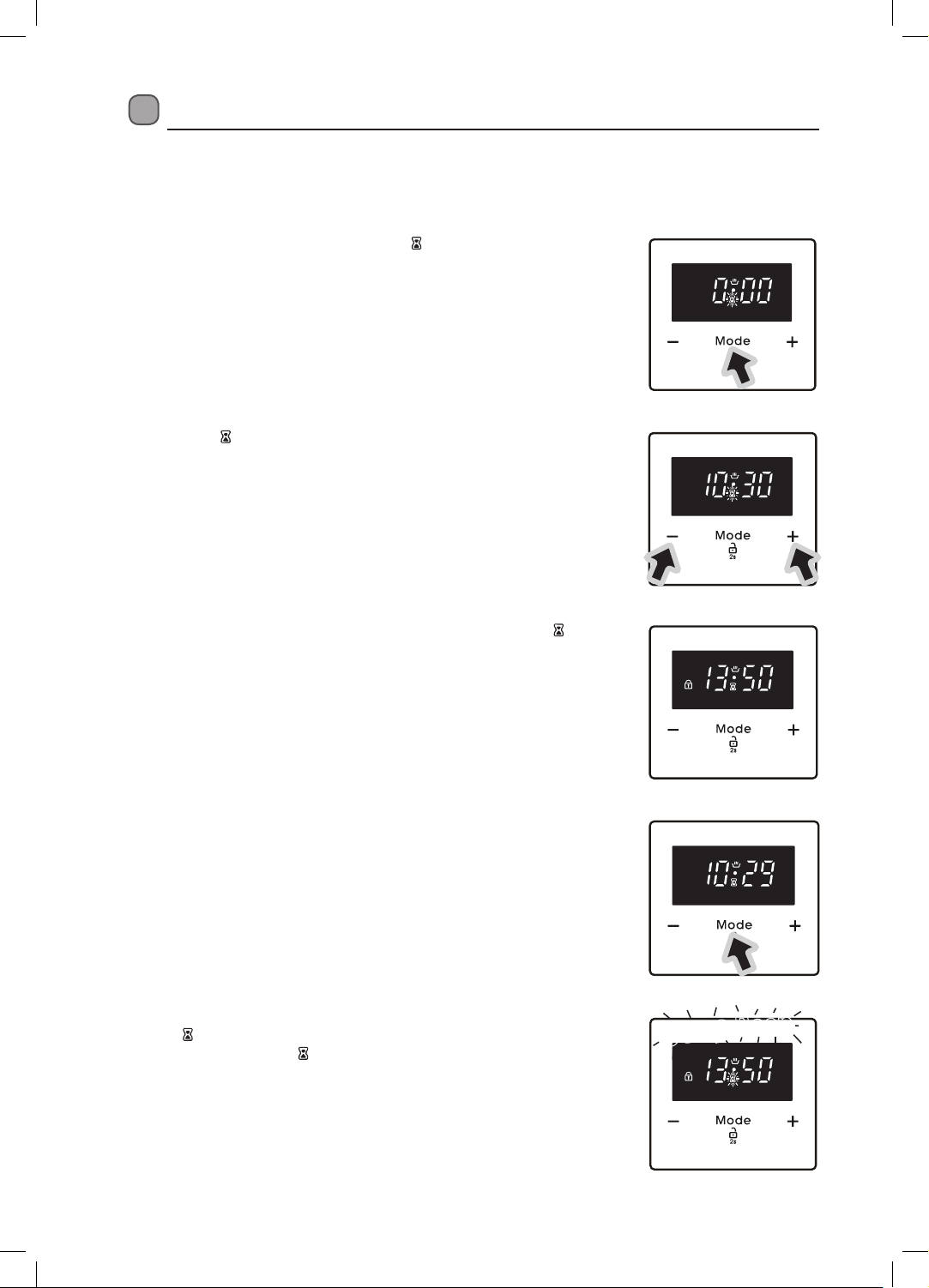

Setting the Clock ........................................................................................................................ 10
Before Using Your Cooker .......................................................................................................... 11
Lighting the Hob Burners .......................................................................................................... 11
Flame Failure Safety Feature ..................................................................................................... 11

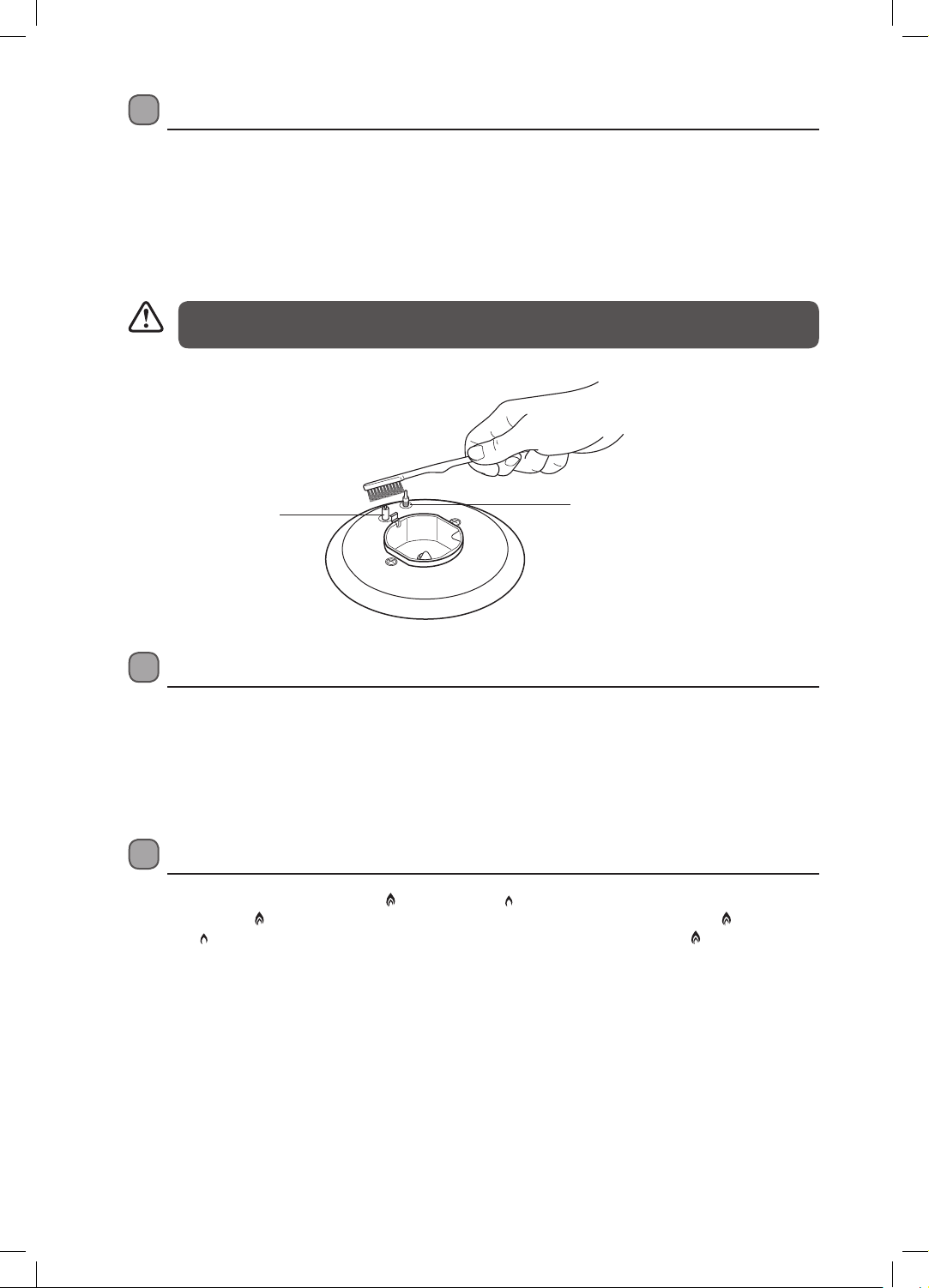

If the Burner Does Not Light...................................................................................................... 12
If the Flame Is Irregular .............................................................................................................. 12

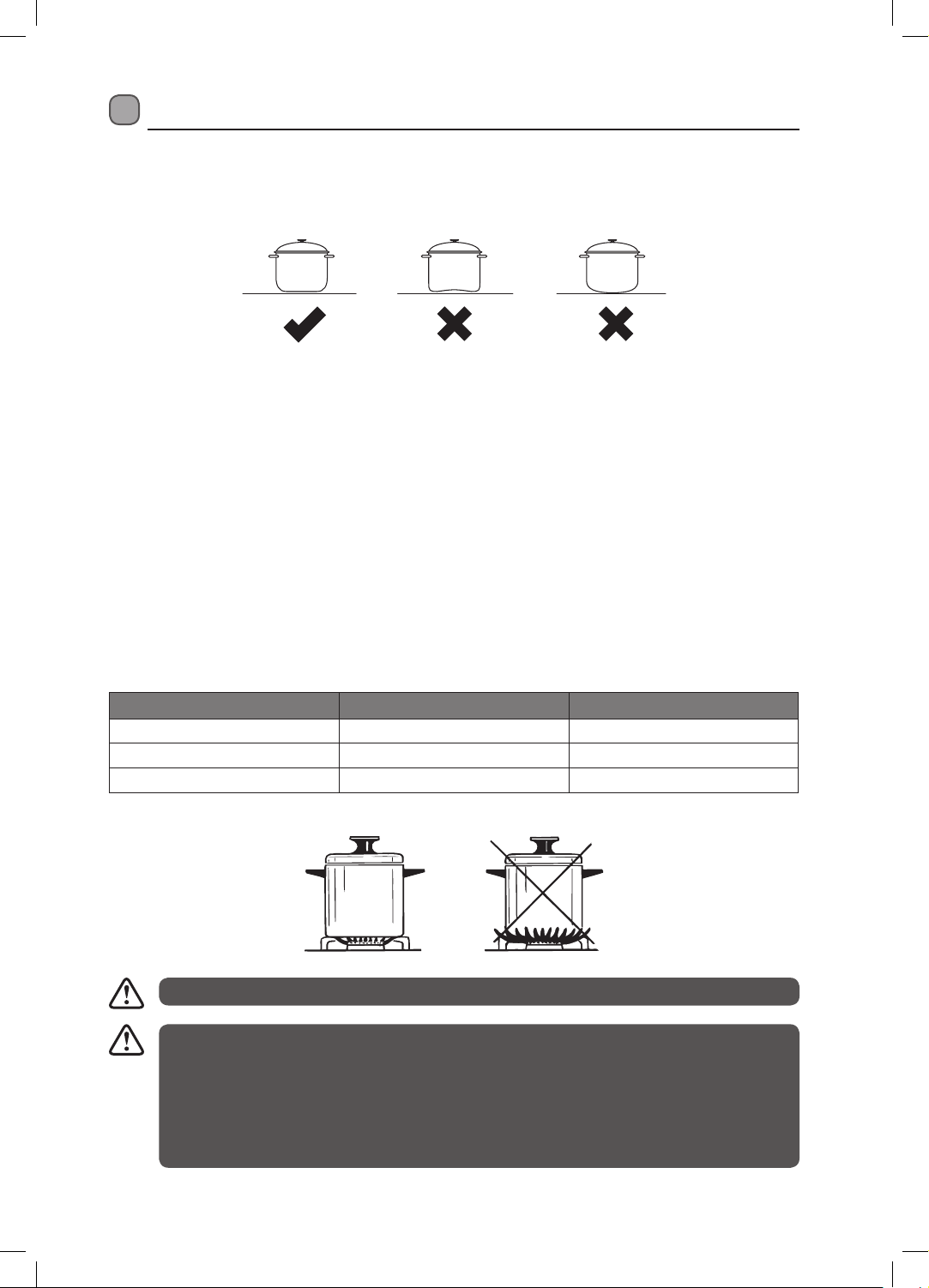

Using the Hob ............................................................................................................................. 12
General Guidelines..................................................................................................................... 13
First Time Use of the Oven ......................................................................................................... 14

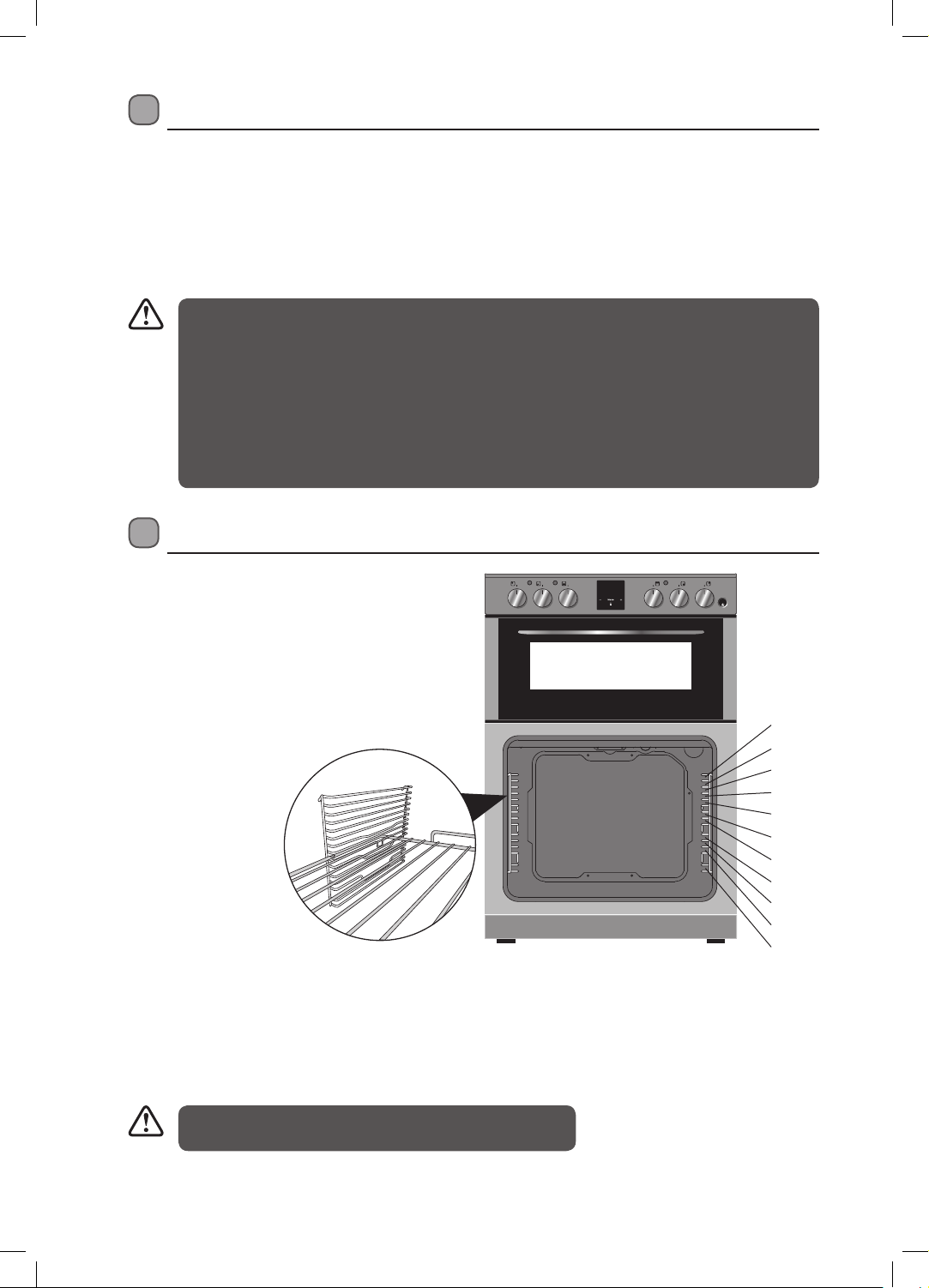

Using the Oven ........................................................................................................................... 14
Replacing the Anti-tilting Oven Shelf....................................................................................... 15

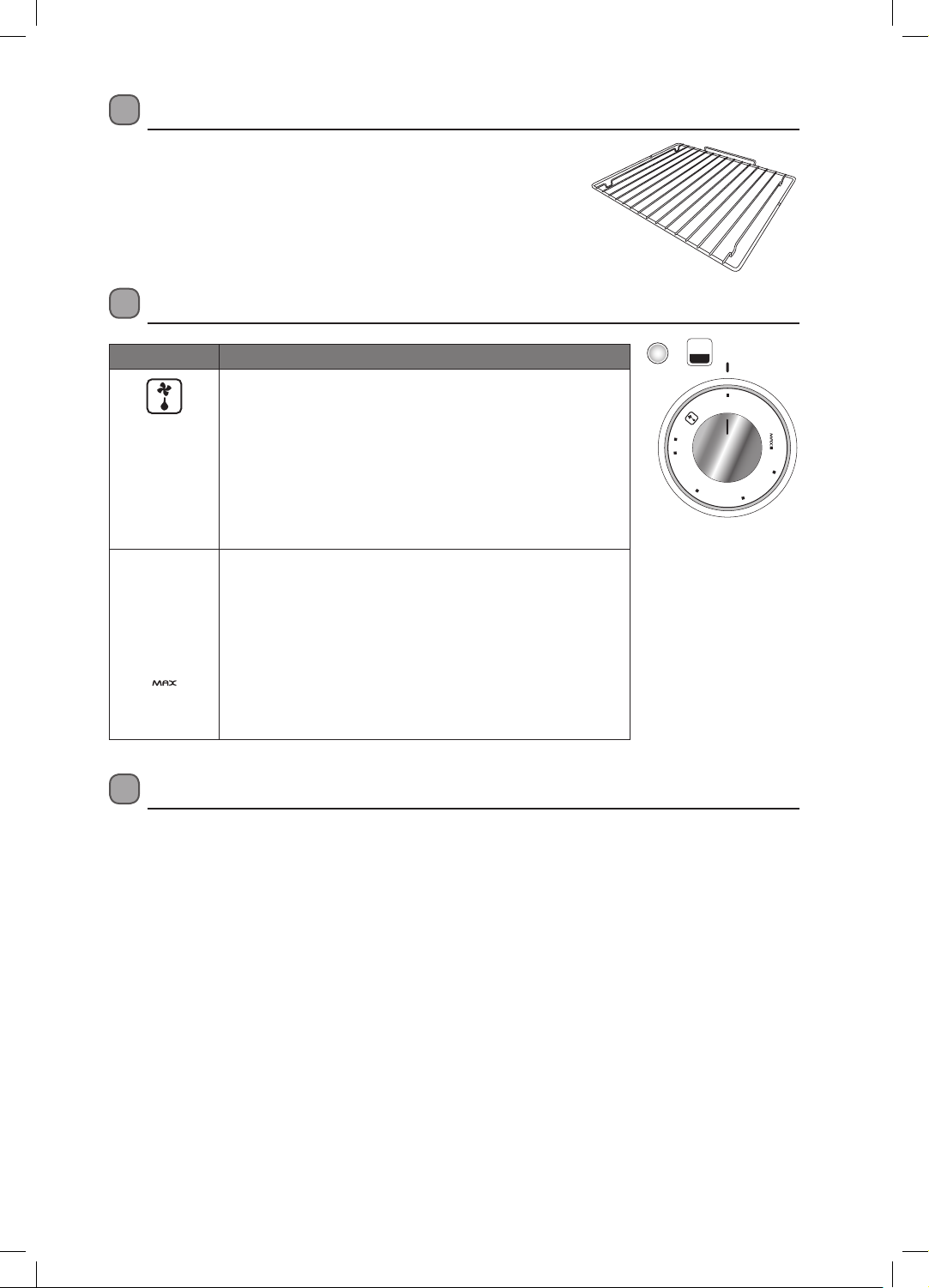

Using the Oven Control.............................................................................................................. 15
Energy Saving ............................................................................................................................. 15
Using the Grill/Top Oven............................................................................................................ 16
Using the Minute Minder Timer................................................................................................. 18
Using the Cooking Timer............................................................................................................ 19
Using the Automatic Cooking Timer......................................................................................... 20
Adjusting the Tone of the Timer Alarm..................................................................................... 22
Adjusting the Display Brightness.............................................................................................. 23
General Advice............................................................................................................................ 24
Cleaning the Outside of the Cooker.......................................................................................... 24
Cleaning the Cooker Door Glass................................................................................................ 24
Cleaning the Inside of Your Cooker........................................................................................... 25
Cleaning the Enamel Parts Inside Your Oven ........................................................................... 25
Cleaning the Catalytic liners Inside Your Oven ........................................................................ 26
Removing and replacing the catalytic liners ...............................................................................................26
Cleaning the Gas Hob................................................................................................................. 27
Burner Parts and Pan Supports ................................................................................................. 27
Kenwood Free Standing Dual Fuel Double Oven KDGC66S19 Manual.indd 2 27/01/2020 11:12

Replacing the Burners................................................................................................................ 28
Hob Controls (Gas Taps) ............................................................................................................. 28
Removing the Grill Door ............................................................................................................ 29
Replacing the Oven Lamp.......................................................................................................... 30
Hints and Tips ............................................................................................................................. 30
Product Fiche and Specications .............................................................................................. 33
Energy Saving Tips and Energy Label....................................................................................... 35
- Main Oven..................................................................................................................................................... 35
- Hob ..................................................................................................................................................................35
Installation .................................................................................................................................. 36
Adjusting the Feet ...................................................................................................................... 37
Moving the Cooker ..................................................................................................................... 37
Stability Bracket ......................................................................................................................... 38
Electrical Connection ................................................................................................................. 39
Ventilation Requirements.......................................................................................................... 40
Gas Installation........................................................................................................................... 40
Installation and Service Regulations ........................................................................................ 40
Gas Connection........................................................................................................................... 41
Installation Relevant to Natural Gas ............................................................................................................... 41
Installation Relevant to Liquid Petroleum Gas (LPG)................................................................................ 41
To Connect the Gas Supply................................................................................................................................41
Replacement of Burner Injectors .............................................................................................. 42
To Replace the Hob Injectors ............................................................................................................................42
Adjusting the Reduced Flame Position ......................................................................................................... 42
Table for the Choice of the Injectors ......................................................................................... 43
Kenwood Free Standing Dual Fuel Double Oven KDGC66S19 Manual.indd 3 27/01/2020 11:12

4
Safety Warnings
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
• It is recommended that this appliance is installed by a Gas Safe
registered engineer and qualied electrical engineer. The manufacturer
is not responsible for any damage caused by incorrect installation.
• Check whether there is any damage to the appliance after you have
unpacked it. If any damage is found, do not use the appliance and
contact the store where you purchased it.
• This appliance is for indoor domestic use only.
• This appliance is for cooking purposes only. It must not be used for other
purposes, for example room heating.
• For disconnection from the mains supply you must have a switch with a
contact separation of at least 3.0 mm in all poles and rated 32 Amp that
provides full disconnection, this must be incorporated in the xed wiring
in accordance with the local wiring rules.
• If the mains cable gets damaged, it should be replaced by an authorized
service agent or qualied electrician in order to avoid a hazard.
• The cooker must be used in a well ventilated location and installed on
at / level surface. Do not install your appliance on a carpeted surface it
will restrict the products ventilation.
• Only operate your appliance in a dry atmosphere.
• Keep the electrical cables of your other appliances away from hot areas;
do not let them touch the appliance.
• Ensure that the appliance is switched o at the mains supply switch
and allowed to completely cool down before cleaning, replacing the
oven lamp or performing any maintenance to avoid the possibility of an
electric shock or burns.
• The use of a gas cooking appliance results in the production of heat,
moisture and products of combustion in the room in which it is installed.
Ensure that the kitchen is well ventilated especially when the appliance
is in use. Keep natural ventilation holes open or install a mechanical
ventilation device (mechanical extractor hood).
Kenwood Free Standing Dual Fuel Double Oven KDGC66S19 Manual.indd 4 27/01/2020 11:12

5
• Prolonged intensive use of the appliance may call for additional ventilation,
for example opening of a window, or more eective ventilation, for
example increasing the level of mechanical ventilation where present.
• Cleaning and user maintenance shall not be made by children without
supervision.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Cleaning and user maintenance shall
not be made by children without supervision.
• Children should be supervised to ensure that they do not play with
the appliance.
• During use the appliance becomes hot. Care should be taken to avoid
touching the parts inside the oven or hob burners/pan stands.
• The appliance and its accessible parts become hot during use. Young
children should be kept away.
• Unattended cooking on a hob with fat or oil can be dangerous and may
result in re. NEVER try to extinguish a re with water, but switch o the
appliance and then cover the ame e.g. with a lid or a re blanket.
• Danger of re: Do not store items on the cooking surfaces.
• When the oven is hot never touch the oven glass or any other parts that
get hot. Allow the oven to cool before touching these parts.
• Do not use harsh abrasives cleaners or sharp metal scrapers to clean the
oven door glass since they can scratch the surface, which may result in
the glass shattering.
• Before starting to use your appliance, keep curtains, tulle, paper
or ammable materials away from your appliance. Do not keep
combustible or ammable things in or on the appliance.
• Do not use steam cleaners for cleaning the appliance.
• Do not rest any items on the open door and do not let children climb on
or stand on it.
• Take care when handling parts with glass, knocks, chips, heavy handling
and dropping could cause the glass to shatter.
Kenwood Free Standing Dual Fuel Double Oven KDGC66S19 Manual.indd 5 27/01/2020 11:12

6
• The glass oven door uses toughened glass and is designed to break into
many‘nugget’ size pieces if it breaks. These pieces will still have sharp
edges, please handle broken glass with care.
• The appliance is not intended to be operated by means of an external
timer or separate remote-control system.
• This appliance is not designed to be used with hob guards. Use of
inappropriate hob guards can cause accidents.
• To prevent the appliance tipping, the stabilizing
bracket must be installed.
Kenwood Free Standing Dual Fuel Double Oven KDGC66S19 Manual.indd 6 27/01/2020 11:12

7
Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according
to local regulations.
The following items are included:
Thank you for purchasing your new Kenwood Free Standing Dual Fuel Double Oven.
You must read this manual in order to fully understand how to operate it correctly.
This cooker must be installed by a competent engineer. Please allow the installer to view the
installation section of this manual.
Read all the safety instructions carefully before use and keep this manual for future reference.
If items are missing, or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
* All images are for indication only; please refer to your individual unit for actual item.
The Main Unit
Grill Rack x 1
Grill Tray x 1
Grill Pan Handle x 1
Oven Shelf x 2
Pan Supports (Left/Right) × 2
Large Burner Ring × 1
Large Burner Cap × 1
Standard Burner Ring × 2
Standard Burner Cap × 2
Small Burner Ring × 1
Small Burner Cap × 1
Stability Bracket x 1
LPG Conversion Kit:
LPG nozzles x 4
LPG Replacement Rating
Plate Sticker x 1
Large Burner
Standard Burner x 2
Small Burner Telescopic runners (not supplied) can be
purchased separately from Partmaster. They
can be clipped on to the shelve runners.
Telescopic runners (not supplied)
Kenwood Free Standing Dual Fuel Double Oven KDGC66S19 Manual.indd 7 27/01/2020 11:12

8
Product Overview
Front View
* All images are for indication only; please refer to your individual unit for actual item.
1
2
3
5
4
6
7
1. Gas Hob
2. Control Panel and Touch Control Display
3. Top Oven Door Handle
4. Top Oven Door
5. Oven Door Handle
6. Oven Door
7. Adjustable Feet
Top View
1. Large Burner (Fast)
2. Standard Burners
3. Small Burner (Simmer)
2
1
3
Kenwood Free Standing Dual Fuel Double Oven KDGC66S19 Manual.indd 8 27/01/2020 11:12

9
Control Panel
1. Back Left Hob Control
2. Front Left Hob Control
3. Bottom Oven Thermostat Indicator
4. Bottom Oven Control
5. Top Oven Thermostat Indicator
6. Top Oven Control
7. Front Right Hob Control
8. Back Right Hob Control
* All images are for indication only; please refer to your individual unit for actual item.
1 2 4 6 7 8
53
O
O
O
O
O
O
Gas Burners
The relevant controls adjust the flow of
gas through each of the burners.
• = OFF
• = Minimum Flame
• = Maximum Flame
You can cook at any heat setting
between and , but never between
and the 0position.
Kenwood Free Standing Dual Fuel Double Oven KDGC66S19 Manual.indd 9 27/01/2020 11:12

10
Touch Control Display
1 2
4
3
5
8
7
1. - Auto Cooking Symbol
2. Manual Cooking Symbol
3. Clock / Timer Count down
4. - Minute Minder Symbol - Shows a
timer is active
5. + control - Press to increase the time
6. Mode - Press to scroll Timer modes or
press and hold for 2 seconds to unlock
the display
7. - control - Press to decrease the time
8. Symbol - Shows the display is
currently locked
Setting the Clock
Before using your new cooker you must set the clock to the correct time.
1. When the power is first switched on the clock display will be
flashing, the display will show and the time will show as 12:00.
2. Press the ‘+’ and ‘-” buttons at the same time, the number will stop
flashing but the dot will flash and the Manual cooking symbol
will appear.
3. While the dot is still flashing press the ‘+” or ‘-’ buttons to adjust the
time. Pressing and holding the buttons will quickly adjust the time.
4. Once you have set the correct time just wait for a few seconds.
When the dot stops flashing the time is then set. The Symbol will
appear after 30 second.
Press +and -together
Press +or -to adjust the time
6
Kenwood Free Standing Dual Fuel Double Oven KDGC66S19 Manual.indd 10 27/01/2020 11:12
