Kenwood VR Series User manual

AUDIO VIDEO SURROUND RECEIVER
VR/KRF-V SERIES
VR-306 KRF-V6020
VR-305 KRF-V5020
VR-355
INSTRUCTION MANUAL
KENWOOD CORPORATION
This instruction manual is for some models.
Model availability and features (functions) may differ depending on the country and sales area.
About the supplied remote control (RC-R06Q8 )...
Compared to standard remote controls, the remote control supplied with this receiver has several operation
modes. These modes enable the remote control to control other audio/video components. In order to
effectively use the remote control it is important to read the operating instructions and obtain a proper
understanding of the remote control and howto switch its operation modes (etc.)
Using the remote control without completely understandihg its design and how to switch the operation
modes may result in incorrect operations.
9809 B60-4152-00 02 (£§) (K, P, Y, M, X, l)[OQ

VR/KRF-V SERIES (En/KM>
Before applying the power _
Units are designed for operation as follows.
U.S.A. and Canada
Australia.
China.
•Other countries ...
.AC 120 V only
.AC 240 V only
”.AC 220 V only
AC 110-120 / 220-240 V swltchable
* AC voltage selection
The AC voltage selector switch on the rear panel is set to the voltage
that prevails in the area to which the unit is shipped. Before
connecting the power cord to your AC outlet, make sure that the
setting position of this switch matches your line voltage. If not. it must
be set to your voltage in accordance with the following direction.
AC voltage selector switch
Move switch lever to
match your line
voltage with a small
screwdriver or other
pointed tool.
Note:
Our warranty does not cover damage caused by excessive line
voltage due to improper setting of the AC voltage selector switch.
Safety precautions . ..
WARNING :
TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOIS¬
TURE.
A
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
A THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL,
WITHIN AN EQUILATERAL THIANGLE, IS INTENDED TO
ALERTTHE USER TO THE PRESENCE OF UNINSULATED
"DANGEROUS VOLTAGE” WITHIN THE PRODUCTS EN¬
CLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE
TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PER¬
SONS.
A THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRI¬
ANGLE IS INTENDED TO ALERT THE USER TO THE PRES¬
ENCE OP IMPORTANT OPERATING AND MAINTENANCE
(SERVICING) INSTRUCTIONS IN THE LITERATURE AC¬
COMPANYING THE APPLIANCE.
Unpacking _
Unpack the unit carefully and make sure that all accessories are put aside
so they will not be lost.
Examine the unit for any possibility of shipping damage. If your unit is
damaged or fails to operate, notify your dealer immediately. If your unit
was shipped to youdirectly. notify the shipping company without delay.
Only the consignee (the person or company receiving the unit) can file a
claim against the carrier for shipping damage.
We recommend that you retain the original carton and packing materials
for use should you transport or ship the unit in the future.
Keep this manual handy for future reference.
Cleaning
Do not use volatile solvents such as alcohol, paint thinner, gasoline,
or benzine, etc. to clean the cabinet. Use a clean dry cloth.
Do not use contact cleaners because it could cause a malfunction.
Be specially careful against contact cleaners containing oil, for they
may deform the plastic components.
-v-s
i

VR/KRF-V SERIES (En/KM)
FortheU.S.A. _
FCC WARNING
This equipment may generate or use radio frequency energy. Changes
or modifications to this equipment may cause harmful interference
unless the modifications are expressly approved in the instruction
manual The user could lose the authority to operate this equipment
if an unauthorized change or modification is made.
NOTE:
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment may
cause harmful interference to radio communications, if it is not
installed and used in accordance with the instructions. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- - Reorient or relocate the receiving antenna.
- - Increase the separation between the equipment and receiver.
- - Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- - Consult the dealer or an experienced radio / TV technician for
help.
Contents _
Caution : Read the pages marked A carefully to ensure
safe operation.
i
Getting started .
A\ Before applying the power.
A Safety precautions.
Unpacking.
How to use this manual.
Special features.
Names and functions of parts .
Setting up the system .
Connecting audio components.
Connecting video components.
Connecting DVD 6-channel jack..
Connecting the antennas.
Connecting the system control.
Connectingthespeakers.
Channel space switching.
Preparing the remote control
(RC-R0608,).
Preparing the remote control (RC-R0711)
Preparing tor surround sound .
Speaker settings:.
2
2
2
2
4
4
5
8
..8
..9
..9
..9
10
11
12
12
13
13
13
For the U.S.A. _
Note to CA TV system installer:
Thi s rem inder is provided to call the CATV system installer's attention to
Article 820-40 of the NEC that provides guidelines for proper grounding
and, in particular, specifies that the cable ground shall be connected to
the grounding system of the building, as close to the point of cable entry
as practical.
As an ENERGY Star® Partner, Kenwood
Corporation has determined that this products meets
the ENERGY Star® guidelinesfor energy efficiency.
This product can save energy. Saving energy reduces air pollution and
lowers utility bills.
Normal playback . 1 4
Preparing for playback.14
Listening to a source component.15
Adjusting the sound.15
Recording . I B
Recording audio.16
Recording video.16
Listening to radio broadcasts . 1 7
Tuning radio stations. 17
Presetting radio stations manually.17
Receiving preset stations.17

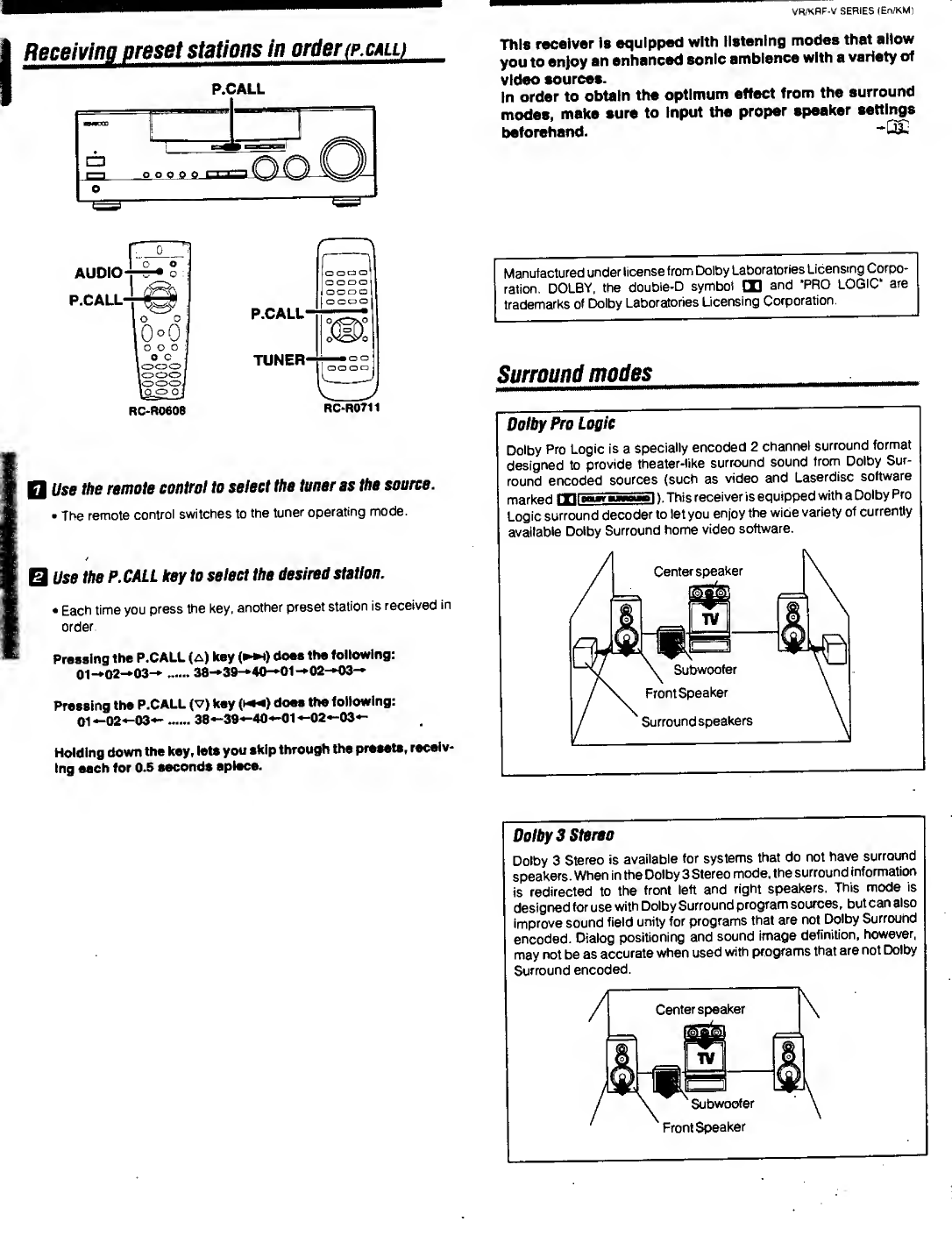

Receiving preset stations in order (P.CALL).18
Ambience effects . 1 8
Surround modes.,.10
Surround play..19
DVD 6-channel playback.20
Convenient functions.20
In case of difficulty . i. 22
A Specifications . 2 3
Quick start guide . 1
Getting the most
from your remote control . 3
Setup code chart . 7
In case of difficulty . 1 3
Remote operation of other components .... 14

VR/KRF-V SERIES (En/KM)
How to use this manual __
The manual covers the VR-306. VR-305, VR-355, KRF-V6020, and
KRF-V5020. Items such as functions, number of jacks, and remote
control details differ somewhat between these models. To confirm the
functions available on the model you have purchased, refer to the table
below.
Model name
Remote
Control
Terminal j
Preout
VR-306
RC-R0711
1 system
SUBWOOFER
Not equipped
VR-305
RC-R0711
1 system
SUBWOOFER
Not equipped
VR-355
RC-R0608
1 system
SUBWOOFER
Not equipped
KRF-V6020
RC-R0711 2
systems
<A,B)
CENTER,
SURROUND,
SUBWOOFER
Not equipped
KRF-V5020
RC-R0711
1 system
SUBWOOFER
Not equipped
This manual is divided in to four sections, Preparations, Operations, Other,
and Remote Control.
Preparations
Shows you how to connect your audio and video components to the
receiver and prepare the surround processor.
We've tried to make setting up your system as easy as possible. However,
since this receiver works with all of your audio and video components,
connecting the system can be fairly complex.
Operations
Shows you howto operate the various functions available from the receiver
Other
Shows you additional information such as “In case of difficulty" (trouble¬
shooting) and "Specifications".
Remote Control (Separate booklet) (RC-R0608only)
Includes the "Quick Start Guide," which shows you how to operate other
components using the remote control, as well as a detailed explanation of
all remote control operations. Once you have registered your components
with the proper setup codes, you’ll be able to operate both this receiver and
your other AV components (TV, VCR. LD player, CD player, etc.) using the
remote control suppl ied with this receiver
Special features __
True home theater sound
This receiver incorporates a wide variety of surround modes to bring you
maximum enjoyment from your video software. Select a surround mode
according to your equipment or the software you are going to play and
enjoy’
Dolby Pro Logic & Dolby 3 Stereo
This surround system repr oduces theate r-like surround sound from
video software marked iu ipwwwI
The PRO LOG 1C mode uses the buiIt-in adaptive matrix circuit to steer
the Left, Center, Right and Surround channel audio signals.
The 3 STEREO mode will redirect the Surround signal to the front left
and right speakers when only the front and center speakers are used.
New DSP surround modes
The DSP (Digital Signal Processor) used for this receiver incorporates
a variety of high qual ity adjustable sound fields, like ‘LIVE* and 'HALL'.
It is compatible with almost any kind of program source.
DVD 6-channel input
If you own a DVD player equi pped with 6-channel output, this receiver
allows you to obtain the full surround sound impact of DVD source
material featuring multi-channel encoding. Since the source signals are
digital and each channel is input independently, the resulting ambience
is far superior to what can be achieved with conventional surround
sound systems.
Universal IR (InfraRed) remote control
(RC-R0S08only)
In addition to the basic receiver, the remote control supplied with this
receiver can also operate almost all of your remote controllable audio and
video components. Just follow the simple setup procedure to register the
components you have connected
MACRO play (RC-R0608only)
The MACRO function lets you perform a seriesirf operations automati¬
cally, like turning ON the power of the receiver and connected compo¬
nents, switching the input selectors, and starting playback. (Be sure to
register your components before starting the macro set up procedure.

VR/KRF-V SERIES (En/KM)
For VR-305, VR-306, VR-355,
and KRF-V5020 '
Frequency display,
Input display,
Preset channel display.
Surround mode display
Speaker indicator
MUTE indicator -J"
S.DIRECT indicator
AUTO indicator
MEMO, indicator
ST. indicator
I
Speaker selection indicators
Output channel indicators
TUNED indicator
MONITOR indicator
DSP indicator
3 STEREO indicator
STEREO indicator
O O
For KRF-V6020
O POWER key -Q£]
(For U.S.A. and Canada)
Use to turn the power ON/OFF.
STANDBY indicator
O ON/STANDBY ( ■ / <!)) key -QB
(Except for U.S.A. and Canada)
Use to switch the power ON/STANDBY
when the POWER is turned ON.
STANDBY indicator
0 POWER key
(Except for U.S.A. and Canada)
0 DIMMER key -W
Use to adjust the brightness of the display.
O P.CALL keys -QB
Use to call up previously registered radio
stations.
0 BAND key -QB
Use to select the broadcast band.
0 AUTO key -QB
Use to select the auto tuning mode.
0 MEMORY key -GB
Use to store radio stations in the preset
memory.
0 VOLUME CONTROL knob -QS
0 PHONES lack -QS
Use for headphone listening.
0 SPEAKERS A key (KRF-6020) -QS
Use to turn speaker system A on and off.
SPEAKERSkey
(VR-305, VR-306, VR-355, and
KRF-V5020) -BB
Use to turn the speakers on and off.
0 SPEAKERS B key (KRF-6020)
Use to turn speaker system B on and off.
MUTE key
(VR-305, VR-306, VR-355, and
KRF-V5020) -QS
Use to temporarily mute the sound.
0 BASS BOOST key -QB
Use to select the maximum adjustment
setting for the low frequency range.
0 VIDEO 2/MONITOR key -Qfi
0 SOURCE OIRECT key ~QB
• LISTEN MODE toy -PS
Use to select the listening mode.
0 SOUND key .-3Q
Use to adjust the sound quality and ambi¬
ence effects.
0 SETUP key -Q8
Use to select the surround sound settings.
0 MULTI CONTROL knob
Used to make a variety of settings.
0 INPUT SELECTOR knob -Q0
Use to select the input sources.
About the STANDB Y indicator
This unit has a STANDBY indicator. When the STANDBY indicator is lit. the unit consumes a small amount of power to preserve the memory. This is called
STANDBY mode. This mode also lets you turn the power ON using the remote control.
I

Remote control unit (RC-R0608)
VR/KRF-V SERIES <En/KM}
There are some cases in which keys (or
knobs) that have the same function on
the receiver and on the remote control
have different names. In the instruc¬
tions of this manual, If the names of
corresponding keys (or knobs) on the
receiver and remote control are differ¬
ent, the name off the remote control key
is indicated in parentheses.
O POWER key -Q£
Use to turn the receiver on and off.
Use in combination with the input selector
(AUDIO, VIDEO, or TV) keys and SHIFT
key to turn various components on and off.
© MACRO key RC-C£
Use in combination with the AUDIO, VIDEO,
or TV keys to execute a series of com¬
mands automatically (MACRO PLAY).
G VIDEO selector key
Selects the video inputs and sets the re¬
mote control to operate the component
registered at the respective input.
O Multi control keys RC-G2
Use to operate the selected component.
G REC key RC-U5J
Use to operate the selected component.
G TUNING/SKIP key
Use during the setup procedure to specify
various settings. Use to operate the tuner
or selected component.
O SUBWOOFER key -QE
Use in combination with the VOLUME +/-
keys to adjust the vol ume of the subwoofer.
o FUNCTION SHIFT key RC-Q£
Use in combination with the numeric keys
to execute alternate commands.
G Numeric keys RC-Q£
Provide functions identical to those of the
original remote control supplied with the
component you are controlling.
To access the functions printed above the
keys, press within 3 seconds of pressing
the FUNCTION SHIFT key. Function avail¬
ability varies for each component.
© SHIFT key RC-lX)
Use in combination with the AUDIO and
VIDEO keys to change the remote control
mode without changing the input selector
or in combination with the POWER key to
turn on and off components programmed
into the remote control.
G TV selector key
Sets the remote control to operate a TV or
cable box. This key does not change the
input selector on the receiver.
G AUDIO selector key
Selects the audio inputs and sets the re¬
mote control to operate the respective
KENWOOD audio component.
If you connect audio components from
KENWOOD and other makers to the MD/
TAPE or CD jacks, you can set the remote
control to operate these components by
registering the appropriate setup code at
the respective input.
G GUIDE key RC~{3£
Use to activate the OSD menu functions of
registered components.
© VOLUME key -SB
Use to adjust the receiver volume.
0 MUTE key -QS
Use to temporarily mute the sound.
G SOUND key -08
Use to adjust the sound quality and ambi¬
ence effects.
G LISTEN MODE key -08
Use to select the listening mode.
G SETUP key -08
Use to select the surround sound settings.

VR/KRF-V SERIES {En/KMl
O Numeric keys
If CD or MD is selected as the input source,
these keys function as numeric keys. If tuner
is selected as the input source, these keys
are used to call up station presets.
G Component operation keys
Use these keys to operate other compo¬
nents with system control connections to
the receiver.
<4 key
If tape is selected as the input source, this
key functions as the play key for side B of the
cassette (the side facing away from the front
of the deck).
BAND ( ► /«) key -Q2
If tuner is selected as the input source, this
key functions as the band selector key.
If CD is selected as the input source, this key
functions as the play/pause key.
If MD is selected as the input source, this
key functions as the play key.
DISC SKIP, A/B, ^100 key
If CD is selected as the input source, this key
functions as the multi-CD player disc skip key.
If TAPE is selected as the input source, this
(A and B) of a double cassette deck.
AUTO (B)key -Q3
If tuner is selected as the input source, this
key functions as the AUTO key.
If CD or MD is selected as the input source,
this key functions as the stop key.
TUNING («** ►► ) keys -Q£
If tuner is selected as the input source, these
keys function as tuning keys.
If CD or MD is selected as the input source,
these keys function as search keys.
P.CALL (h# 4 ► M) keys ~[j£)
If tuner is selected as the input source, these
keys function as P.CALL keys.
If C D or MD i s selected as the input source,
these keys function as skip keys.
O LISTEN MODE, TITLE key -QB
Use to select the listening mode.
G MUTE, ENTER key
Use to temporarily mute the sound
0 SOUND key -QB
Use to adjust the sound quality and ambi¬
ence effects.
G MULTI CONTROL key
Used to make a variety of settings.
G DVD CONT keys
Used to operate DVD player.
While holding this key depressed, press
any of the keys masked in gray inthe
above illustration to operate the
corresponding function of a DVD player
from KENWOOD.
Keys O. G, G, G and G are given the
following functions during the DVD player
control operation.
G : TITLE
G :ENTER
O :SUB TITLE
G :MENU
G :OSD
For details, refer to the instruction manual
of your DVD player.
O POWER key -QB
Use to switch the power ON/STANDBY
when the POWER is turned ON.
0 SOURCE DIRECT key -QB
G VOLUME CONTROL key
G SETUP key -QB
Use to select the surround sound settings.
G Input selector keys -QB
Use to select the receiver’s input source.

Connecting audio components
VR/KRF-V SERIES (En/KM)
Make connections as shown below.
When connecting the related system components, be sure
to also refer to the instruction manuals supplied with the
components you are connecting.
Do not connect the power cord to a wall outlet until all
connections are completed.
Microcomputer malfunction
If operation is not possible or an erroneous display appears, even
though all connections have been made properly, reset the micro¬
computer referring to "In case of difficulty". —HS
Caution regarding placement (Except for U.S.A . and Canada)
To maintain proper ventilation, be sure to leave a space around the
unit (from the largest outer dimensions, including projections) equal
to, or greater than shown below:
Left and right panels: 10 cm, Rear panel: 10 cm, Top panel: 50 cm
VIDEO 2/MONITOR jacks
The receiver's VIDEO 2/MONITOR jacks can be used in two different
ways. Make the appropriate setting for the component connected to
the jack when the receiver is turned on.
Use as a VIDEO 2 jack
You can connect a video deck or the like to these jacks and perform
video playback and recording. The initial factory setting is "VIDEO 2."
Use aa a MONITOR jack
You can connect a cassette deck or the like to these jacks and make
use of the deck’s monitoring function during recording. Alternately,
you can connect a graphic equalizer to these jacks to apply compen¬
sation to the music signal.
To use the VIDEO 2/MONITOR jacks as MONITOR jacks, hold down
the VIDEO 2/MONITOR key of the main unit for more two seconds so
that the indication shown below appears.
srjjpi yDliiTTD Q
o li lumj, MJ it
• At the same time the setting is switched to “MONITOR," the audio input
source switches to tuner and the video input source switches to VIDEO
1 ,
• To switch the setting back to "VIDEO 2," once again hold down the
VIDEO 2/MONITOR key for two seconds or more.
• If you decide to use the VIDEO 2/MONITOR jacks as MONITOR
jacks, make sure to delete the “VIDEO 2 (VCR2)” input from the preset
remote control (RC-R0608). RC—QQ
Notes
1 .Be sure to insert all connection cords securely. If their connections are
imperfect, the sound may not be produced or noise may interfere.
2. Be sure to remove the power cord from the AC outlet before plugging or
unplugging any connection cords. Plugging / unplugging connection
cords without disconnecting the power cord can cause malfunctions and
may damage the unit.
3. Do not connect power cords from components whose power consump¬
tion is larger than what is indicated on the AC outlet at the rear of this unit.
Shape of AC outlets
SYSTEM CONTROL
Jacks
U S A. and Canada
1771,2
Australia
Other countries
1 _
hn.
c
1
5
1
m
e
M
k
To AC wall outlet
t
mu ■
ED
03
To use these jacks as MONITOR
jacks, you must change the
appropriate setting.
|OUT
IN
Cassette deck or
MD recorder
OUT
o li _1
V_
•-a n b1. - - -
—a—a
i
f
CD player
To use the receiver for video recording, connect a video deck to
the VIDEO 2/MONITOR jacks.

Video Inputs
(Yellow RCA
pin cord)
VIDEO IN
MuM-chmn»J surround
processor
DVD player or LD player
Audio inputs and outputs Video inputs and outputs
(Red and white RCA pin cords) (Yellow RCA pin cords)
Connecting DVD 6-channel jack
[ FRO NT
SUBWOOFER 1
CENTER
[surround I VIDEO OUT
DVD player equipped with
six channel output jacks, etc.
The sound Input to DVD 9CH. INPUT is paired with the video
signal input to 6CH. INPUT.
Connecting the antennas
AM loop antenna
The supplied loop antenna is for use indoors. Place it as far as possible from
the receiver, TV set, speaker cords and power cord, and adjust the direction
for best reception.
FM Indoor antenna
The supplied indoor antenna is for temporary use only. For stable signal
reception we recommend using an outdoor antenna. Disconnect the indoor
antenna when you connect one outdoors.
FM outdoor antenna
Lead the 75fl coaxial cable connected to the FM outdoor antenna into the
room and connect it to the FM 75i) terminal.
r
i
wm
^ l
Use an antenna
adaptor
(Commercially
available)

VR/KRF-V SERIES (En/KM)
Connecting the system control
Connecting system control cords after connecting a KENWOOD
audio component system lets you take advantage of convenient
system control operations.
There are two KENWOOD system control modes. Make connec¬
tions according to the groups of terminal symbols shown below.
DOS Mode lets you combine DSj, DOS, and DCC terminals
(5L1EJ Mode : for (SUE) terminals only
This unit is compatible with both [XS8] and [SL16] modes. It comes
from the factory set to the [SL16] mode. To switch to the [XSSJ mode,
followthe instructions in "SWITCHING FROM [SL16] TO [XS8]” below.
SYSTEM CONTROL
cord l
SYSTEM CONTROL
cord $
SYSTEM CONTROL
switch
Except for KRF-V602Q
SYSTEM CONTROL
switch
KRF-V6020
EXAMPLE: [XS8] mode connections
The underlined portion represents the setting of the system control
mode.
[SL16] [XS81
1. [SL16] equipment cannot be combined with [XR], [XSJ. and [XS8]
equipment for system operations. If your equipment consists of this
kind of combination, please do not connect any system control
cords Even without system control cords, normal operations can
be carried out without effecting performance.
2. Do not connect system control cords to any components other than
those specified by KENWOOD. It may cause a malfunction and
damage your equipment.
3. Be sure the system control plugs are inserted all the way in to the
system control terminals.
Do not connect a system control cord to a cassette deck con¬
nected to the MONITOR Jacks.
SYSTEM CONTROL OPERATIONS
Remote Control
Lets you operate this unit with the system remote supplied with the
receiver.
Automatic Operation (except [XR] equipment)
When you start playback from a source component, the input selector
on this unit switches to that component automatically.
Synchronized Recording (except [XR] equipment)
Lets you synchronize recording with the start of playback when
recording from CD, MD or analog discs.
[SL16] [XSJ [XSSI [XELJ
[SL16] [XSJ [XS8]
MD recorder
rieoftr SYSTEM
ceseetteoeck U con trol
CO player
SWITCHING FROM [SL16J TO [XS8]
You can easily change the system control mode by adjusting the
position of the SYSTEM CONTROL switch on the rear panel.
Do this operation after completing all connections.
Record player
EXAMPLE: [SL16] mode connections
The underlined portion represents the setting of the system control
mode.
For [SL16]
[SL16] [XS8]
FSL161 [XSJ [XS8] [XRJ
[SL161 [XS] [XS8]
Receiver
Cassette dedT
or MD recorder
CD player
Record player
SYSTEM
CONTROL
cord
► In order to take advantage of the system control operations, the
components must be connected to the correct jacks. To use a CD
player it must be connected to the CD jacks. To use a cassette deck
(or MD recorder) it must be connected to the MD/TAPE jacks. When
using more than one CD player (etc.) only the one connected to the
specified jacks may be connected for system control.
»Some CD players and cassette decks are not compatible with the
[SL16J system control mode. Be sure to use the [XS8J system
control mode when making system connections with equipment
that is not [SL16] compatible.
* Some MD players are not system control compatible. You cannot
make system control connections to this kind of equipment.
M
For [XS8] For [SL16J
£
For [XS8J
SL1S -' (XSS) SL10 - ■ I
(XS6) — 1
Except for KRF-V6020 KRF-V6020
• This operation will not effect items stored in the memory.
• After switching the system control mode, turn the power off and
unplug the power cord from the wall outlet, then plug it back.
Registering setup codes for KENWOOD audio components
(RC-RQ608only)
• Once you finish making the system connections, be sure to register the
appropriate setup code for each component. RC-QQ
• If you own remote controllable KENWOOD audio components that are
not compatible with system control (or cannot be combined with your
other system control components), registering the setup codeenables
you to control those components using the remote control supplied
with this unit (without connecting system control cords). To register
setup codes for your remote controllable KENWOOD audio compo-
nents, see 'Registering setup codes for other components'.
RC-Q£]

Connecting the speakers
VR/KRF-V SERIES (En/KM)
Front Speakers A
Right Left
O
# w
Center Speaker
X
IIS
-• |
KRF-V6020
Except for The KRF-
V6020 is equipped with
one-touch speaker ter¬
minals. Theyare arranged
in the same manner as
the speaker terminals of
the KRF-6020. Refer to
the instructions on
making connections to
the KRF-6020 when
making connections to
the VR-306/ VR-305/VR-
355 and KRF-V5020.
0 0 0
Except for KRF-V6020
Use the FRONT
SPEAKERSB
terminals if you
want to connect a
second front
speaker system.
(VR-306, VR-305,
VR-355 and KRF-
Powered VM ?° " e
subwoofer ®<l ui PP^ with
SPEAKERSB
terminal.)
♦ 0 - -s +
tUMWUHD tPIAKM*
Right Left
Surround Speakers
(Be sure to connect both
surround speakers)
• Never short circuit the + and - speaker cords.
• If the left and right speakers are connected inversely or the speaker
cords are connected with reversed polarity, the sound will be
unnatural with ambiguous acoustic imaging. Be sure to connect
the speakers correctly.
Speaker impedance
After confirming the speaker impedance indications printed on the
rear panel of the receiver, connect speakers with matching imped¬
ance ratings. Using speakers with a rated impedance other than that
indicated on the rear panel of the receiver could result in malfunctions
or damage to the speakers or receiver.
FRONT SPEAKERS.8-16 Q
CENTER SPEAKER.8-16 Q
SURROUND SPEAKERS. 8 -16 «
PRE OUT connections
This receiver has additional preout jacks. These can be used for
various purposes, but will need to be connected to an external power
amplifier as shown in the example below.
no
Speaker*
Powered
♦ The VR-305. VR-306, VR-355 and KRF-V5020 is equipped with a
SUBWOOFER terminal only.
* Connecting a speaker cord directly to a PRE OUT jack will not
produce any sound from the speaker. •
• To use the PRE OUT jacks, press the SPEAKERS A key to the on
position (the SPEAKERS key in the case of the VR-305, VR-306, VR-
355 and KRF-V5020).

VR/KRF-V SERIES (EfVKM)
Pr8paringtheremotecontrol(RC-R0608)
Speaker placement
Front speakers : Place to the front left and right of the listening
position. Front speakers are required for all surround modes.
Center speaker : Place front and center. This speaker stabilizes the
sound image and helps recreate sound motion. Be sure to connect
a center speaker when using the Dolby 3 Stereo mode.
Surround speakers : Place to the direct left and right, or slightly
behind, the listening position at even heights, approximately 1 meter
above the ears of the listeners. These speakers recreate sound
motion and atmosphere. Required for surround playback.
Subwoofer : Reproduces powerful deep bass sounds.
• Although the ideal surround system consists of all the speakers
listed above, if you don't have a center speaker or a subwoofer, you
can divide those signals between the available speakers in the
speaker settings steps to obtain the best possible surround repro¬
duction from the speakers you have available. -PB
Channel space switching
(Except for the USA, Canada, UK, Europe and Auxtratia)
The space between radio channels has been set to the one that
prevails in the area to which the system is shipped. However, if the
current channel space setting does not match the setting in the area
where the system is to be used, for instance when you move from area
1 or area 2 shown in the following table or vice versa, proper reception
of AM/FM broadcasts cannot be expected. In this case, change the
channel space setting in accordance with your area by referring to
the following table.
USA, Canada and South
American countries
CHANNEL
Space Frequency
FM: 100 kHz
AM: 10 kHz
Loading the batteries
O Remove the cover.
0 Insert the batteries.
0 Close the cover.
* Insert four AAA-size (LR03) batteries as indicated by the polarity
markings.
Operation
When the STANDBY indicator is lit. the power turns ON when you press
the POWER key on the remote control. When the power comes ON,
press the key you want to operate.
Operating range
(Approx.) Remote sensor
Model: RC-R06O8
Infrared ray ayatem
* When pressing more than one remote control key successively,
press the keys securely by leaving an interval of 1 second or more
between keys.
O Turn power off.
0 Hold down the BAND key of the main unit for more than 2
seconds.
Perform each of the following steps within 5 seconds.
0 Select the mode by using the MULTI CONTROL knob of the
main unit.
Each press switches the apace frequency alternately.
r-O H F50/A9" (f=M 50 kHz, AM 9 kHz)
L 0 "FIOO/AIO- (FM 100 kHz, AM 10 kHz)
F5Q/R9
1. The supplied batteries may have shorter lives than ordinary batteries
due to use during operation checks.
2. Replace all four batteries with new ones when you notice a shortening
of the distance from which the remote control will operate or if the
remote control blinks 5 times when you press a key. The remote control
is designed to retain set up codes in memory while you change
batteries.
3. Placing the remote sensor in direct sunlight, or in direct light from a
high frequency fluorescent lamp may cause a malfunction.
In such a case, change the location of the system installation to
prevent malfunction.
O Establish the selection by pressing the BAND key.

VR/KRF-V SERIES {EulKM)
Preparing the remote control (RC-R0711)
Operation
When the gTANDBY indicator is lit, the power turns ON when you press
the POWER key on the remote control. When the power comes ON,
press the key you want to operate.
Operating range
• When pressing more than one remote control key successively,
press the keys securely by leaving an interval of t second or more
between keys.
Notes
1. The supplied batteries may have shorter lives than ordinary batteries
due to use during operation checks.
2. When the remote-controllable distance gets shorter than before,
replace both batteries with new ones.
3. Placing the remote sensor in direct sunlight, or in direct light from a
high frequency fluorescent lamp may cause a malfunction.
In such a case, change the location of the system installation to
prevent malfunction.
Speaker settings
To enable you to obtain optimum enjoyment from the receiver’s
listening modes, make sure to complete the speaker settings as
described below. QFTUP
ML 5
8
o r
j
1
2
ioCk
□
[- » O O O O O 1-1 -LI
J
VIDEO
TUNING/SKIP
Turn on the receiver.
-02
Q Select a speaker system.
O Press the SETUP key to make the subwoofer setting Indica¬
tion (SUBW) appear.
Q Use the MULTI CONTROL (TUNING/SKIP) to select the appro¬
priate subwoofer setting.
C O SUBW YES: A subwoofer is connected to the receiver.
O SUBW NO: No subwoofer is connected to the receiver.
O Press the SETUP key to accept the setting.
• The center speaker setting indication (CNTR) appears.
riuTG til Ml
L Ml 1 M
HI 1 IL r " >0
O Use the MULTI CONTROL (TUNING/SKIP) to select the appro¬
priate center speaker setting.
r- O CNTR NML (normal):
O CNTR LRQ (large):
^ O CNTR NO:
An average size center speaker is
connected to the receiver.
A large center speaker is con¬
nected to the receiver.
No center speaker is connected to
the receiver.
0 Press the SETUP key to accept the setting.
• The surround speaker setting indication (SURR) appears.
0 Use the MULTI CONTROL (TUNING/SKIP) to select the appro¬
priate surround speaker setting.
C O SURR YES: Surround speakers are connected to the
receiver.
0 SURR NO: No surround speakers are connected to the
receiver.
O Press the SETUP key to accept the setting.
• The receiver enters the speaker volume level adjustment mode.
• In steps Q and O, indications appear only for the selected
channels of the speakers that require adjusting.
Continued to next page

VR/KRF-V SERIES (En/KM)
Q Jrf/jfsf /A® volume le vels for the speakers.
Sit in your normal listening position and listen to the test tone. Adjust the
volume levels for the speakers unti I al I speakers seem to be equally loud
O Use the MULTI CONTROL (TUNING/SKIP) to adjust the volume
when the test tone is being output from the speaker channel to
be adjusted.
The channel indication blinks while the test tone is being output.
*fiLch + idS
The test tone Issues from the speakers for 2 seconds at a time
in the following sequence:
Lch — Cch Rch — Sch — Lch
• If you change the volume level settings for the speakers while
listening to music, the settings referred to on this page are also
♦ If the speaker setting selects are changed, the speaker level settings
are reset.
O Press the SETUP key.
• The receiver enters the mode for inputting the distance to the
speakers.
Q Input the distance to the speakers.
O Measure the distance from the listening position to each of the
speakers.
Jot down the distance to each of the speakers.
Distance to front speakers: - feets (meters)
Distance to surround speakers: - feets (meters)
q Use , h e MULTI CONTROL (TUNING/SKIP) to select the dls-
tance to the front speakers.
The speaker indicator to be adjusted blinks
p I x f j f |
| ^‘Tiur i luii _I
Indication in feet Indication in meters
• The allowable setting range is f to 30 feet (0.3 to 9.0 m). adjustable
in 1 foot (0.3 m) increments.
G Press the SETUP key.
o Repeat steps G and G to input the distance for the surround
speaker.
G Setup is complete when the input indication reappears.
sp>o)o so® r
sw 1
□ 1 1
Display when all speakers have been selected.
• The speakers you selected appear on the display. Confirm that all the
speakers have been correctly selected.
* tf you used the remote control (RC-R0608) to perform the settings,
press the VIDEO key at this point to turn off the remote control’s own
adjustment mode. In this case, the input source is not switched.
Preparing for playback
Some preparatory steps are needed before starting playback.
VIDEO 2/MONITOR
ON/STANDBY AUTO
i— __JJ ^
T * ^
POWER I INPUT SELECTOR
SPEAKERS A/B (KRF-6020)
SPEAKERS, MUTE (except for KRF-6020)
POWER
INPUT SELECTOR
Turning on the receiver
O Turn on the power to the related component*.
G Turn on the power to this receiver by pressing POWER (and ON/
STANDBY) key(a).
Selecting TAPE/MD
Select the source name corresponding to the component connected to
the MD/TAPE jacks. The initial factory setting is "TAPE" To change the
source name associated with the MD/TAPE jacks to 'MD, follow the
steps below;
O Use the INPUT SELECTOR knob to select “TAPE”.
G Hold down the AUTO key for more than 2 second*.
• The source indication changes to “MD”
• To return to the original indication, repeat the above procedure.
• You also will need to change the name input to the remote control
(RC-R0608) to "MD”. RC-UJ
"selecting the speaker system
Pres* the SPEAKERS A or B key to select the speaker system to be
used.
A ON : Sound from the speakers connected to the SPEAKERS A
term inals on the rear panel.
B ON : Sound from the speakers connected to the SPEAKERS B
terminals on the rear panel.
A+BON : Sound from both the speakers connected to the SPEAKERS
A and B terminals on the rear panel.
A+BOFF : No sound from the speakers . Use this setting when listening
with headphones for stereo sound in all playback modes.
• Activating a surround mode or selecting “DVD 6ch as the input
source causes speaker system Ato be selected automatically.
On the VR-305, VR-306, VR-355 and KRF-V5020, press the
SPEAKERS key to switch the speakers on and off.
The indicator for the speakers
you want to use should be lit.
O
Models other than VR-305,
VR-306, VR-355, KRF-V5020
Speaker indicator lights.
VR-305, VR-306, VR-355
and KRF-V5020
Selecting VIDEO 2/MONITOR
Depending on the component connected to the VIDEO 2/MONITOR
jacks, select either the “VIDEO 2” setting or the “MONITOR” setting^

Listening to a source component
Adjusting the sound
VR/KRF-V SERIES (En/KM)
VOLUME CONTROL
Q Use the input selector (INPUT SELECTOR (AUDIO, VIDEO))
to select the source you want to listen to.
The input sources change as shown below:
Selecting a source using the INPUT SELECTOR knob
O TUNER
© -CD" ("CD"*)
6 "TAPE" or "MD" ("TAPE"*)
O "PHONOTPHONO"*)
O "VIDEOI" ("VCR1 "*)
G "VIDE02" ("VCR2"*)
o "DVD 6ch"
SOURCE DIRECT VOLUME CONTROL
BASS BOO
ST
SO UND
FDT'i'X
□
m
T
\
o
1 o
oil
T
I
1 «
PHONES
MULTI CONTROL
SPEAKERS A/B (KRF-6020)
SPEAKERS, MUTE (except tor KRF-6020)
VIDEO
VOLUME
TUNING/SKIP
MUTE
SOUND
VOLUME
MUTE
sound~|21| j
MULTI CONTROL n
o o a o j
RC-R0711
Adjusting the tone
The following adjustments are possible if the receiver is in the stereo
mode.
O Press the SOUND key to select the tone mode to be adjusted.
BASS: Select this to adjust the low frequency range.
(Press the SOUND key once.)
TREB: Select this to adjust the high frequency range.
(Press the SOUND key twice.)
Selecting a source using the AUDIO key
on the remote control (RC-R0608)
O "CD" ("CD"*)
G "TAPE" or "MD" ("TAPE"*)
© TUNER
© "PHONOTPHONO"*)
Selecting a source using the VIDEO key
on the remote control (RC-R0608)
O "VIDEOI "(“VCR1"*)
© "VIDE02" ("VCR2"*)
© "DVD 6ch"
♦ When selecting an input source by using the remote control (RC-
R0711), press the desired input selector key.
• "VIDEO 2" can be selected as an input source only if the VIDEO 2/
MONITOR setting is "VIDEO 2”. - □ £
* Once setup codes are registered in the remote control (RC-R0608),
the input name display changes according to the name of the
registered component.
Example: if you register a VCR at the VIDEO 1 jacks. 'VCR* appears
instead of 'VIDEO IV RC-1X
• When using the remote control (RC-R0608) after initial setup, any
inputs that have not been registered with a setup code are deleted
from the cyclic list. RC-QQ
♦ The INPUT SELECTOR on the front panel of the receiver always
cycles through all inputs.
ur
i—
•£ 3
I +w -
© Use the MULTI CONTROL (TUNING/SKIP) to adjust the sound
quality.
• The bass and treble levels are adjustable from -10 to +10 in 2 step
increments.
• The adjustment item is displayed for approximately 8 seconds.
• If you used the remote control (RC-R0608) to perform the above
setting, press the VIDEO key at this point to turn off the remote
control’s own adjustment mode. In this case, the input source is not
switched.
Once-touch low frequency emphasis (bass boost)
The following adjustments are possible if the receiver is in the stereo
mode.
Press the BASS BOOST key.
• Press the key once to select the maximum (+10) low frequency
emphasis setting.
• This key does not function when the receiver is in the sound quality
or ambience effects adjustment mode.
g Start playback from the selected source. Switching back to the previous setting
Press the BASS BOOST key again.
B Use the VOLUME CONTROL (VOLUME) to adjust the
volume.

VR/KRF-V SERIES (ErVKMl
l Muting the sound
MUTE lets you mute the sound of the speakers.
Press the MUTE key.
Blinks
• On the VR-306, VR-305, VR-355 and KRF-V5020,.this selection can
be made using the control on the receiver as well.
To cancel _ ^ m „
Press the MUTE key again so that the “MUTE Indicator goes off.
♦ Muting can also be cancelled by adjusting the volume.
SOURCE DIRECT playback (analog sources only)
Use this function to pass the source material direct to the amplifier,
bypassing any audio processing.
Press the SOURCE DIRECT key.
• Either press the LISTEN MODE. SOUND, and SETUP keys, or
switch to another input source to cancel SOURCE DIRECT play¬
back.
To cancel
Press again.
• If SOURCE DIRECT playback was activated when using a sur¬
round mode, cancelling it reactivates the previous surround mode.
Listening with headphones
O Press the SPEAKERS A or B key (or the SPEAKERS key) so that
• If you turn off all of the speakers when in the surround mode, the
mode is cancelled as well, resulting in stereo playback.
G Connect headphones to the PHONES jack.
G Use the VOLUME CONTROL (VOLUME) to adjuet the volume.
To adjust the balance
Recording audio
VIDEO 2/MONITOR
Recording a music source
When recording a music source, switch the VIDE02/M0NIT0R
setting to “MONITOR”.
O Use the Input selector to select the source (other than “TAPE”)
you want to record.
G Set the cassette deck to record.
G Start playback, then start recording.
Copying tapes
When copying tepee, switch the VIDE02/MONJTOR setting to
“MONITOR”.
MONITOR -» TAPE copying |
O Press the VIDE02/M0NIT0R
key.
G Use the Input selector to select a source other than “TAPE”.
G Start playback on the cassette deck connected to the VIDE02/
MONITOR jacks and start recording on the cassette deck con¬
nected to the MD/TAPE jacks.
I TAPE -» MONITOR copying
O Use the Input selector to select “TAPE”.
G Start playback on the cassette deck connected to the MD/TAPE
jacks and start recording on the cassette deck connected to the
V1DE02/M0NIT0R jocks.
• To copy tapes using a double cassette deck, refer to the instruc¬
tion manual of the double cassette deck.
MONITOR function
You can connect a cassette deck or graphic equalizer to the VIDE02/
MONITOR jacks of the receiver. If a graphic equalizer is connected, the
VIDE02/M0NIT0R key should be left in the on position. Alternately, if a
cassette deck equipped with a 3-head system is connected to the
VIDE02/M0NIT0R jacks, you will be able to monitor the just-recorded
signal while making recordings on the cassette deck. By switching the
VIDE02/MONITOR key on and off, you can compare the sound of the
source signal and the just-recorded signal. For more information, referto
the instruction manual of the connected component.
To adjust the input level when the monitor function is turned on, u se ^
SOUND key and the MULTI CONTROL key.
Recording video _
Whan recording video, switch the VIDE02/MONITOR eetdngto
“VIDE02”. ^
O Use the Input selector to select the video source (other then
“VIDE02”) you went to record.
G Set the video deck connected to V1DE02/MONITOR to record.
Ih start nlAvbark. then start reeordlna.

VR/KRF-V SERIES (En/KM)
Tuning radio stations
AUTO
Presetting radio stations manually
MEMORY
D Tune to the station you want to store.
Q Press the MEMORY key while receiving the station.
Q Use the input selector to select the tuner.
' 'AM' or ‘FM’ indicator
Q Use the BAND key to select the desired broadcast band.
Each press switches the band
as follows:
[*• OFM
L- © AM
ten®
l. JU“ 1
El Use the AUTO key to select the desired tuning method.
Each press switches the tuning method as follows:
• Normally, set to ’AUTO' {auto tuning). If the radio waves are weak
and there is a lot of interference, switch to manual tuning. (With
manual tuning, stereo broadcasts will be received in monaural.)
□ Use the MULTI CONTROL {TUNING/SKIP) to select the
station.
Frequency Lights when a broadcast is
display being received in stereo.
DO nrr
—
OJ.uu-
'TUNED' is displayed
when a station is received
Auto tuning : The next station is tuned automatically.
Manual tuning : Turn the knob (press the key) to select the
desired station.
• You can also use the TUNING key on the remote control (RC-R0711)
to make the selection.
B Use the MUL Tl CONTROL to select one of the station
presets (1 -40).
Q Press the MEMORY key to accept the setting.
•Repeat steps D, H B and B to store as many stations as
necessary.
• If you store a station at a previously used preset, the old station will
be replaced by the new one.
Receiving preset stations _
Q Use the remote control to select the tuner as the source.
• The remote control switches to the tuner operating mode.
B Enter the number of the preset you want to receive (up to
H 40").
Preaa the numeric keye In the following order:
For "15“, press . 1 +101 . [ 5]
For "20", press. l+lol . f +TOl . f ol
• If you make a mistake entering a two digit number, press the +10
key several times to return to the original display and start again.

VR/KRF-V SERIES (En/KM)
Receiving preset stations in order ( p.call)
D Use the remote control to select the tuner as the source.
• The remote control switches to the tuner operating mode.
B Use the P.CALL key to select the desired station.
• Each time you press the Key. another preset station is received in
order.
Pressing the P.CALL (a) key ( ► w) does the following:
0i -*02-*03-*.38-*39-*40—01- ► 02-*O3-*
Pressing the P.CALL (v) key does the following:
01 *-02-*-03-*-.38*-39*-40*-01 «-02<—03«-
Holdlng down the key, lets you skip through the presets, receiv¬
ing each for 0.5 seconds apiece.
This receiver is equipped with listening modes that allow
you to enjoy an enhanced sonic ambience with a variety of
video sources.
In order to obtain the optimum effect from the surround
modes, make sure to Input the proper speaker settings
beforehand.
Manufactured under license from Dolby Laboratories Licensing Corpo*
ration. DOLBY, the doubie-D symbol d] and ’PRO LOGIC* are
trademarks of Dolby Laboratories Licensing Corporation
Surround modes
Dolby Pro Logic
Dolby Pro Logic is a specially encoded 2 channel surround format
designed to provide theater-like surround sound from Dolby Sur¬
round encoded sources {such as video and Laserdisc software
marked TT\[ommmmSSm ] ) . This receiver is equipped with a Dolby Pro
Logic surround decoder to let you enjoy the wioe variety of currently
available Dolby Surround home video software.
Dolby 3 Stereo
Dolby 3 Stereo is available for systems that do not have surround
speakers. When in the Dolby 3 Stereo mode, the surround information
is redirected to the front left and right speakers. This mode is
designed for use with Dolby Surround program sources, but can also
improve sound field unity for programs that are not Dolby Surround
encoded. Dialog positioning and sound image definition, however,
may not be as accurate when used with programs that are not Dolby
Surround encoded.

VR/KRF-V SERIES (En/KM)
DSP mode
The DSP mode lets you add the atmosphere of a live concert or hall
to almost any type of program source. These modes are particularly
effective when used with stereo program sources, like CD, television,
and FM radio. You might enjoy trying the LIVE or HALL mode the next
time you watch a concert or sporting event!
WhaVs DSP?
DSP stands for Digital Signal Processor.
The way a sound is heard in an actual environment depends on a
variety of different factors. One of the most important is reverberation
(the act of decaying elements of sound echoing in various places).
The DSP modes produce the feeling of presence by using the DSP
to create reverberation, without spoiling the sound quality of the
original signal.
DVD 6-channel mode
Using a DVD player or the like equipped with six (5.1) output
channels and the receiver, you can enjoy multi-channel encoded
DVD source material in all its splendor. Since the source signals are
digital and each channel is input independently, the resulting sound
quality, sense of spaciousness, and dynamic range are superb.
Surround Play
DOLBY PRO LOGIC and DOLBY 3 STEREO can be used when playing
video, DVD, or LD software bearing the min— m ark. DSP
modes can be used with any source.
LISTEN MODE
RC-R0608
LISTEN MODE
cd ooo
oooo
CD O CD CD
CD CD CD CD
O CD O CD
1®:
oooo
RC-R0711
Preparations
• Turn ON related components.
• Complete ’Preparing for surround sound’. - □ £]
• Set the INPUT SELECTOR to the component you wish to play back
with surround sound.
Q Start playing the video software.
Q Press the LISTEN MODE key to select the listening mode.
Listening mode settings are stored separately for each input.
Each press of the LISTEN MODE Kay switches the setting as
listed below.
Note that the only listening mode settings that can be used for
playback with the current speaker settings are available.
• DOLBY PRO LOGIC
• DOLBY 3 STEREO
• LIVE (DSP)
• HALL (DSP)
• STEREO
Example with the DOLBY PRO LOGIC mode selected
The channels from which sound will issue are displayed.
igpf?
n i n r t
li l u U i
Adjust the volume.

VR/KRF-V SERIES (En/KM)
DVD 6-channel playback
Using a DVD player or the like equipped with six (5. 1 ) output channels and
the receiver, you can enjoy surround sound playback.
When you try to play a disc other than Dolby Digital (AC-3) such as DTS
CD.no sound is produced or,noise may be heard.To avoid this
situation, make sure that you connect the component to the receivers DVD
6CH.INPUT jacks through a surround processor which can decode the
surround signal you wont to listen to.
Connecting a DVD player which can decode the surround signal itself is
also acceptable.
VIDEO -
' 0 r
i
oo oo
oo o o
o oo o
□ ooo
oo oo
o o
-m O 0
@
o o
0°0
1 O O o :
\
oooo
looo;
DVD/6CH INPUT - "
Q Oj
V J
BC-R0608 RC-R0711
Preparations
• Connect your DVD player to the DVD 6ch jacks of the receiver.
• Turn on all other components that will be used.
• Complete “Preparing for surround sound.”
D Select “DVD 6ch " as the input source.
• If speaker system B is on when "DVD 6ch” is selected as the input
source, it switches off and speaker system A turns on automatically
(models other than VR-305, VR-306, VR-355 and KRF-V5020)
Q Start playback of the DVD software.
Convenient functions
DIMMER
VOLUME
TUNING/SKIP
o o
o ° o
(f!)
r \
MULTI CONTROL-
ooool
oooo
o ooo
o 1
^1- 1=> 1
SOUND"
OO O O
OOOO
L - J
RC-R0711
Adjusting the sound
You can make further adjustments to the sound while listening to
playback in the surround mode
O Press the SOUND key to select the Item you want to adjust.
Each press switches the selection as listed below.
Note that some Items are not displayed in certain modes.
BASS (low frequency range sound quality adjustment) -20
TREB (high frequency range sound quality adjustment) -20
Cch (center speaker level adjustment)
Sch (surround speaker level adjustment)
SW (subwoofer level adjustment)
— INPUT (input level adjustment)
• The adjustment item for input level is displayed only when the
monitor function is activated.
0 Use the MULTI CONTROL (TUNING/SKIP) to adjust the setting
as desired.
• The adjustment item is displayed for approximately 8 seconds.
• If you used the remote control (RC-R0608) to perform the above
setting, press the VIDEO key at this point to turn off the remote
control’s own adjustment mode. In this case, the input source is not
switched.
□ Adjust the volume.
• It is not possible individually to adjust the volume level or sound
quality (SETUP, SOUND) of the separate channels when the
receiver is in the DVD 6ch mode. Adjust the volume with the
controls of the DVD player.
For the powered subwoofer, you can adjust the volume of the
subwoofer using the subwoofer’s own volume control.
• When in the DVD 6ch mode, you can still use the volume control,
mute, SPEAKERS (A) key, and dimmer functions.
Input level adjustment (when using the monitor function)
If the input level while using the monitor function is too high, adjust the
input level as described below.
O Turn on the monitor function. ~(40
G Press the SOUND key several times until the “INPUT’ indication
appears.
0 Use the MULTI CONTROL (TUNING/SKIP) to adjust the Input
level.
wmm
_Q_
1-1
OUT _i
U 1 1
B —
• The adjustment mode is displayed for approximately 8seconds.
• The input level may be adjusted to any one of two settings: 0 and -
6. (The initial setting is 0.)
O Press the SOUND key to return to the Input Indication.
tA rtovf nflflfl
