COMPACT HI-FI COMPONENT SYSTEM
HM-636
INSTRUCTION MANUAL
KENWOOD CORPORATION
B60-5377-00 00 MA (M, X, E) KW 0303
5377/01-05/EN 03.4.24, 3:33 PM1

Before applying power
2EN
Units are designed for operation as follows.
U.S.A. and Canada ............................... AC 120 V only
Australia .............................................. AC 240 V only
Europe and U.K.................................... AC 230 V only
For the United Kingdom
Factory fitted moulded mains plug
1. The mains plug contains a fuse. For replacement, use
only a 13-Amp ASTA-approved (BS1362) fuse.
2. The fuse cover must be refitted when replacing the
fuse in the moulded plug.
3. Do not cut off the mains plug from this equipment. If
the plug fitted is not suitable for the power points in
your home or the cable is too short to reach a power
point, then obtain an appropriate safety approved ex-
tension lead or adapter, or consult your dealer.
If nonetheless the mains plug is cut off, remove the
fuse and dispose of the plug immediately, to avoid a
possible shock hazard by inadvertent connection to
the mains supply.
IMPORTANT : The wires in the mains lead are coloured
in accordance with the following code:
Blue : Neutral
Brown : Live
Do not connect those leads to the earth terminal of a
three-pin plug.
China and Russia ................................. AC 220 V only
Other countries ................... AC 110-120 / 220-240 V
switchable*
Safety precautions
WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EX-
POSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT RE-
MOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS IN-
TENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED "DANGEROUS VOLTAGE" WITHIN
THE PRODUCT’S ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF
ELECTRIC SHOCK TO PERSONS.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE
USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUC-
TIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.
CAUTION
Before applying power
Caution : Read this page carefully to ensure safe operation.
* AC voltage selection
The AC voltage selector switches on the rear panel are
set to the voltage that prevails in the area to which the
unit is shipped. Before connecting the power cord to
your AC outlet, make sure that the setting positions of
these switches match your line voltage. If not, they
must be set to your voltage in accordance with the fol-
lowing direction.
AC voltage selector switches
Move switch lever to match your line voltage
with a small screwdriver or other pointed tool.
Note : Our warranty does not cover damage caused by
excessive line voltage due to improper setting of the AC
voltage selector switch.
The marking of products using lasers (For countries other than U.S.A., U.S.-Military)
The marking of this product has been classified as Class 1. It means
that there is no danger of hazardous radiation outside the product.
Location: Back panel
CLASS 1
LASER PRODUCT
AC 110 -
120V ~
AC 220 -
240V ~
CAUTION
INVISIBLE LASER RADIATION
WHEN OPEN. DO NOT STARE
INTO BEAM OR VIEW DIRECTLY
WITH OPTICAL INSTRUMENTS.
Inside this laser product, a laser diode classified as Class 3A laser
radiation is contained as alerted by the internal caution label shown
above. Do not stare into beam or view directly with optical instruments.
Location: CD laser pick-up unit cover inside this product
5377/01-05/EN 03.4.24, 3:11 PM2

Before applying power
3EN
Versatile timer features
÷Timer playback, timer recording :
Two timer programs (PROG 1, PROG 2) are available for timer playback (AI timer playback) or timer
recording. (With the AI timer playback, the playback volume increases gradually after the start of timer
playback.)
÷Sleep timer :
This timer turns the unit off automatically when the set time has elapsed. It is convenient for example,
falling asleep while listening to music in the night time, etc.
This unit is equipped with a demonstration function (only display). The demonstration consists of se-
quential change of display and indicators showing the operations, but the audio itself does not change.
The demonstration function can be canceled as follows.
÷This operates automatically when a power failure
has occurred or the plug of the power cable has
been pulled while the power was ON.
In regard to demonstration
"DEMO ON" (To execute demonstration):
After turning power ON, press and hold the set/
demo key (for more than 2 seconds).
"DEMO OFF" (To cancel demonstration):
Press the set/demo key during demonstration.
Convenient recording features
Versatile recording features are provided, allowing the user to select the desired one for each purpose.
÷One-touch recording :
Pressing a single key starts the recording of all tracks or a single track in a CD.
÷Program recording :
Your favorite tracks can be recorded in any desired order.
Special features
Playback capability of CD-R and CD-RW discs.
This unit can playback music data recorded in CD-R (Compact Disc Recordable) and CD-RW (Compact Disc
Rewritable).
However, some CD-R and CD-RW discs may not be playable on the CD player depending on the recording
characteristics of the recording equipment (including the pick-up), properties of the CD-R or CD-RW in use,
its recording condition and so on. Also note that a CD-R or CD-RW disc which has not been finalized cannot
be played back.
5377/01-05/EN 03.4.24, 3:11 PM3

Before applying power
4EN
Unpacking
Unpack the unit carefully and make sure that all the accessories are present.
If any accessories are missing, or if the unit is damaged or fails to operate, notify your dealer immediately. If the unit was
shipped to you directly, notify your shipper immediately. Kenwood recommends that you retain the original carton and
packing materials in case you need to move or ship the unit in the future.
Keep this manual handy for future reference.

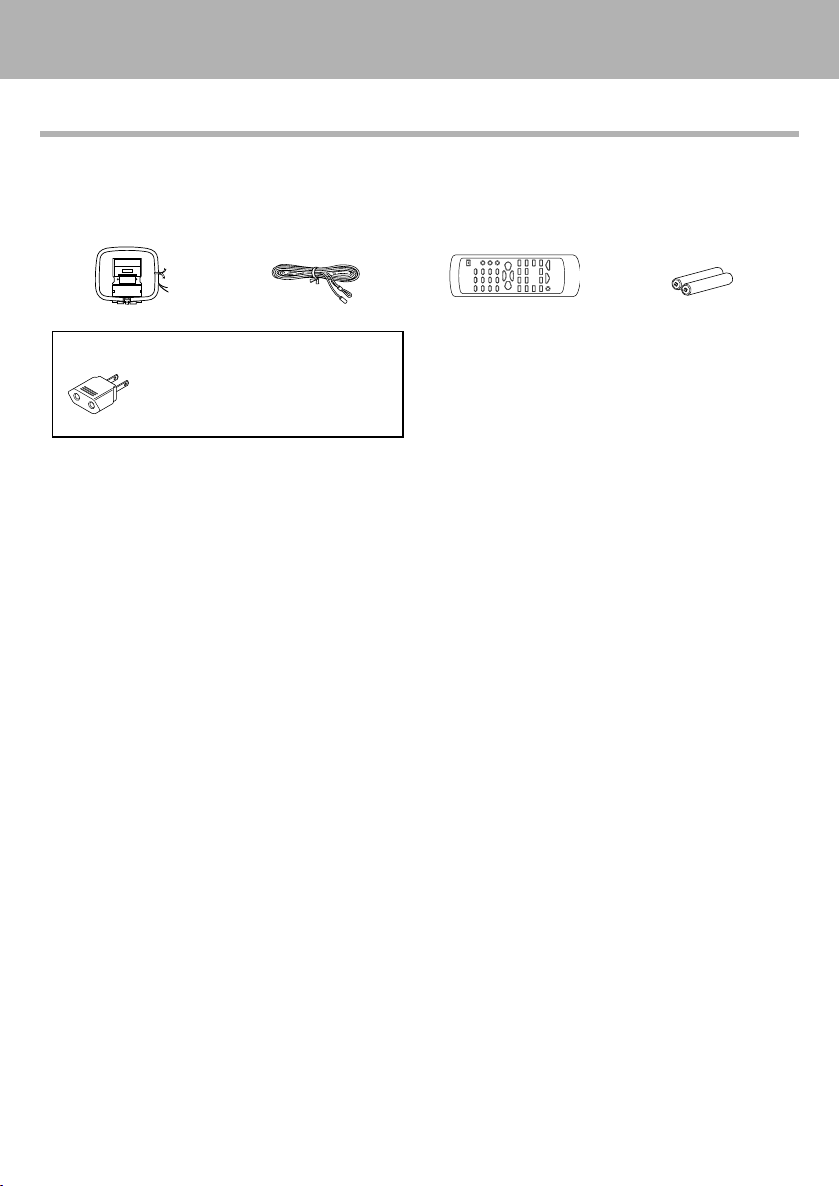

FM indoor antenna (1)AM loop antenna (1) Remote control unit (1) Batteries (R6/AA) (2)
AC plug adaptor (1)
Use to adapt the plug on the power
cord to the shape of the wall outlet.
(Accessory only for regions where use
is necessary.)
Accessories
5377/01-05/EN 03.4.24, 3:11 PM4

Before applying power
5EN
Contents
Before applying power .......................................2
Safety precautions ......................................................... 2
Special features ..................................................................... 3
Accessories ............................................................................ 4
System connection ....................................................6
Connection of the System Accessories ............................. 6

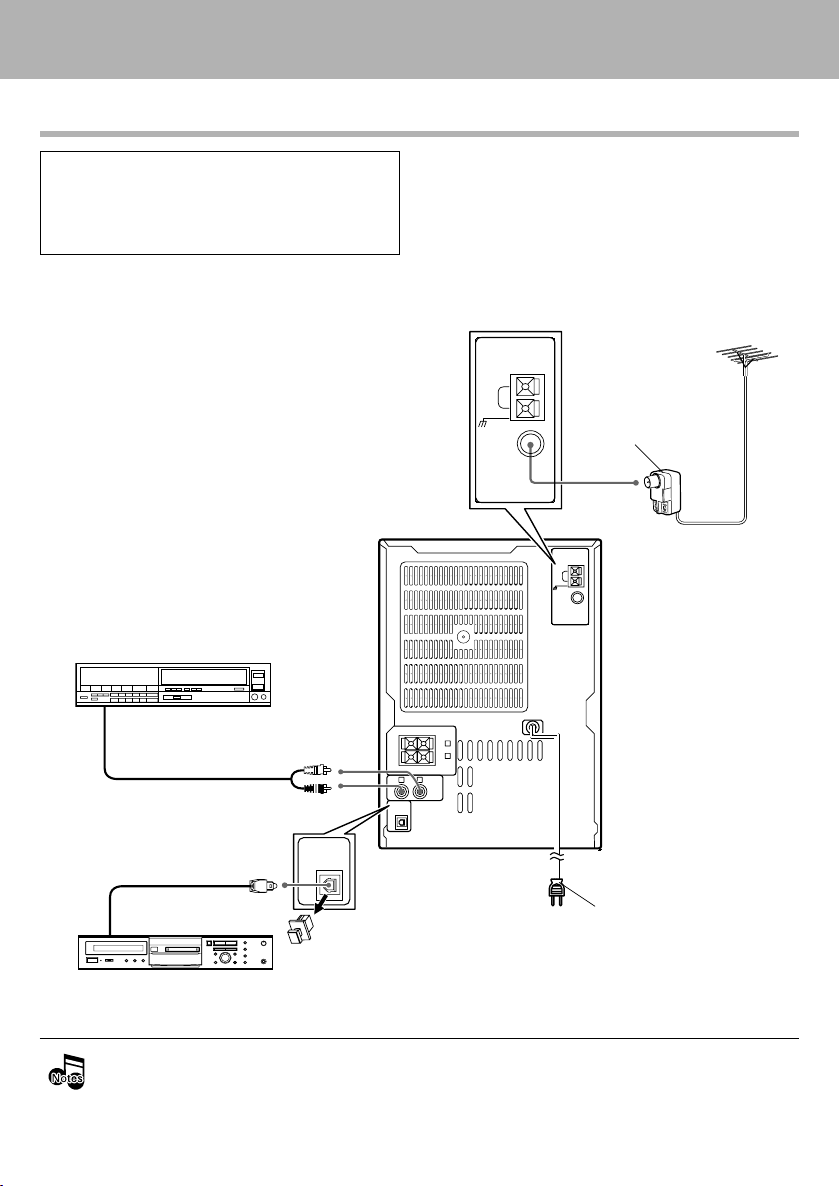

Connection of Other Accessories
(Commercially Available Parts) ..................................... 8
Controls and indicators.............................................9
Display ..................................................................................... 9
Main unit ............................................................................... 10

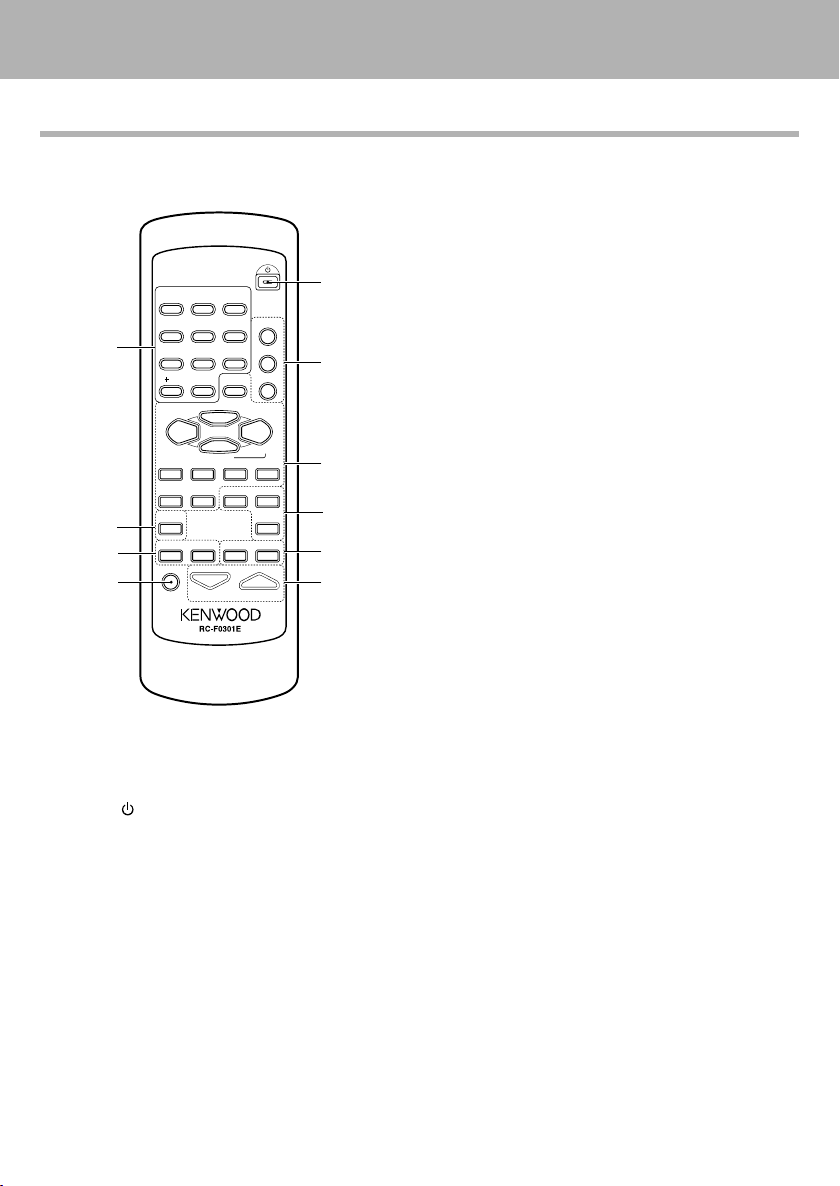

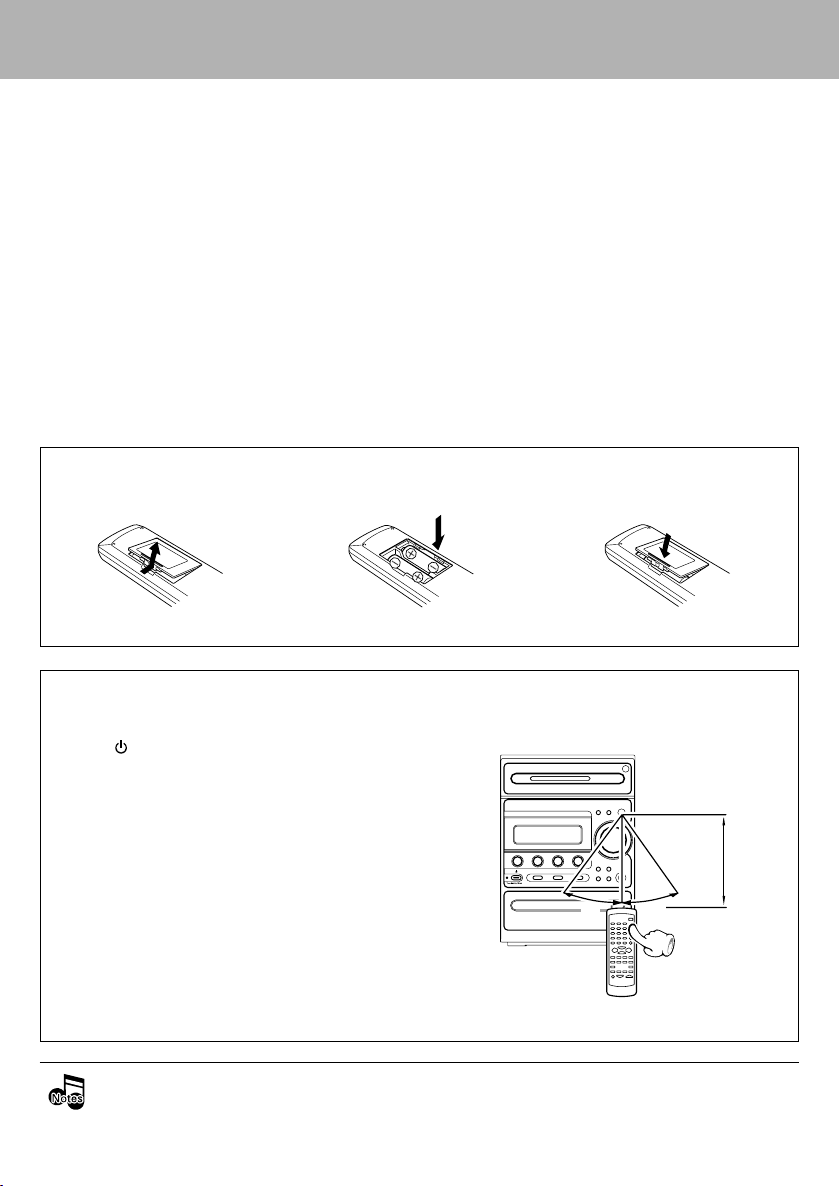

Operation of remote control unit ...................................... 12

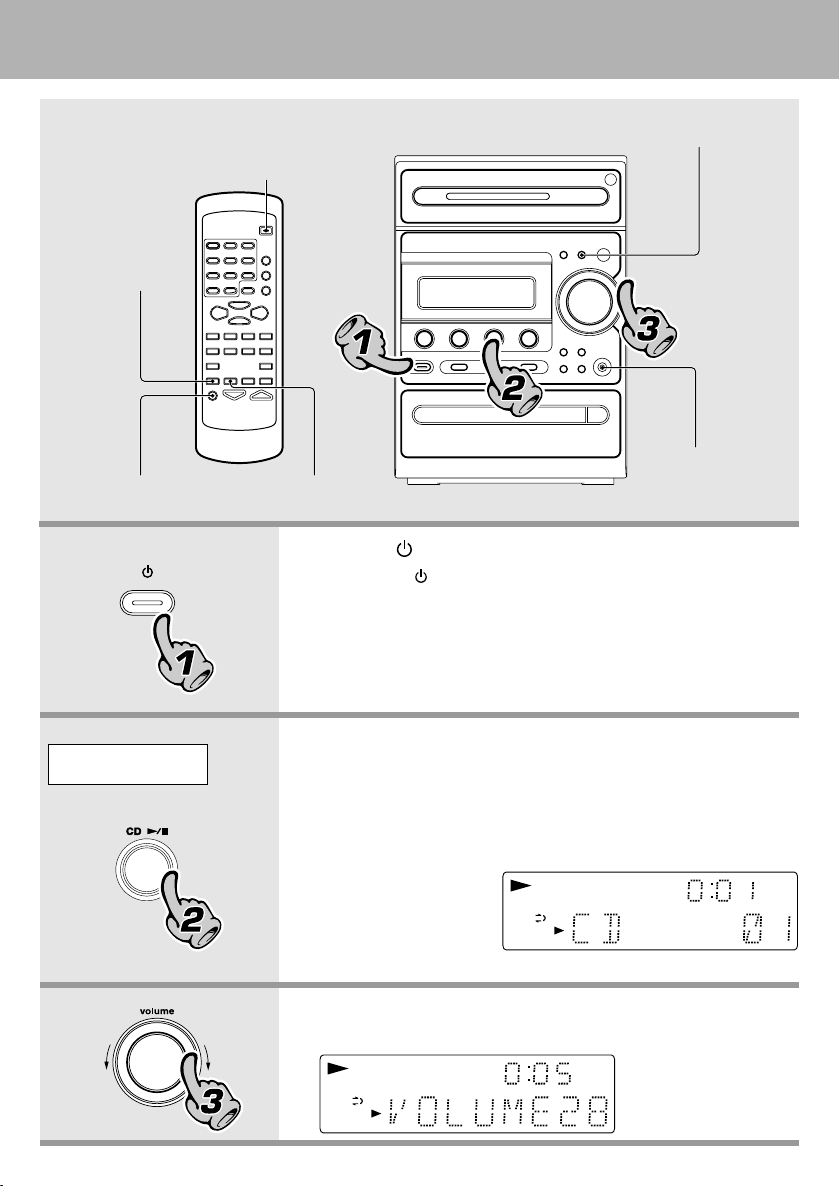

Basic use method.....................................................14
Playback of CD .........................................................16
Playback of TAPE ..................................................... 18
Receiving broadcast station ..................................20
Collective presetting of stations ....................................... 21
Channel space setting ........................................................ 21
Tuning to a non-preset radio station
(Auto tuning, Manual tuning) ....................................... 22
One-by-one presetting (Manual preset)..........................22
RDS (Radio Data System) (For Europe) ........................ 23
Searching for a desired program type (PTY search) ....24
Recording on TAPE ..................................................26
Caution : Read the pages marked carefully to ensure safe operation.
Various CD playback features ...............................29
Listening to the desired sequence (program playback) .. 29
Repeated playback .............................................................. 31
Playing tracks in a random order (random playback) ..... 32
Convenient recording methods ............................. 33
One-touch edit recording (CD = TAPE) .......................... 34
Program recording (CD
= TAPE) ...................................... 35
Listening to an AUX input source..........................36
Clock adjustment .....................................................37
Timer operation ........................................................38
Sleep timer (SLEEP) ............................................................. 38
Setting the timer program
(PROG. TIMER) ................................................................. 39
Important Items.........................................................43
Maintenance ........................................................................ 43
Reference .............................................................................. 43
In case of difficulty ..................................................45
Specifications...........................................................48
Preparation section
Basic section
Application section
Knowledge sections
5377/01-05/EN 03.4.24, 3:11 PM5

System connection
6EN
R
System connection
This figure shows the method of connection between the main unit and provided accessories.
AM loop antenna
The supplied antenna is for indoor use. Place it as
far as possible from the main system, TV set,
speaker cords and power cord, and set it to a direc-
tion which provides the best reception.
Connect the components as shown in the diagram.
Only plug the power cord into a power outlet once
connections are completed.
The magnet in the speaker may cause color irregu-
larity to the TV or PC monitor. Place the speaker
farther away from the TV set or PC monitor.
CAUTION Note on Connection
Connection of the System Accessories
Speaker (Right)
÷Never short-circuit the "+" and "–" speaker cords.
÷If the "+" and "–" polarity are inverted, the sound will be unnatural with unclear positioning of musical instru-
ments, etc.
÷Be sure to insert all connection cords securely. If their connections are imperfect, the sound may not be
produced or noise may interfere.
÷Before plugging or unplugging a connection cord, be sure to unplug the power cord from the wall AC outlet. If
connection cords are plugged or unplugged with the power cord left plugged in, malfunction or damage may result.
AM loop antenna
Assemble
Be sure to adhere to the following, or proper ventila-
tion will be blocked causing damage or fire hazard.
÷Do not place any objects impairing heat radiation
onto the top of the unit.
÷Leave some space around the unit (from the largest
outside dimension including projection) equal to or
greater than, shown below.
Top panel : 50 cm
Back panel : 10 cm
CAUTION
\
\
CAUTION
5377/06-13/EN 03.4.24, 3:10 PM6

System connection
7EN
DIGITAL
OUT
OPTICAL
AUX
INPUT
L
R
GND
AM
ANTENNA
FRONT
SPEAKERS
(6-16
Ω)
L
- +
R
FM
75
Ω
GND
AM
ANTENNA
FM
75
Ω
FRONT
SPEAKERS
(6-16
Ω)
L
- +
R
L
FM indoor antenna
The supplied antenna is for temporary indoor use
only. For stable signal reception, we recommend
to use an outdoor antenna. Remove the indoor an-
tenna if you connect to an outdoor antenna.
Speaker cord
FM indoor antenna
Speaker (Left)
POWER cord
TO WALL AC OUTLET
1Connect the antenna to the antenna terminal.
2Locate the position providing good recep-
tion condition.
3Fix the antenna.
12 3
How to connect speaker cords to the main unit
Malfunction of microcomputer
If operation is not possible or erroneous display
appears even though all connections have been
made properly, reset the microcomputer by
referring to "In case of difficulty". t
12 3
How to connect AM antenna cord to the main unit
5377/06-13/EN 03.4.24, 3:10 PM7

System connection
8EN
DIGITAL
OUT
OPTICAL
AUX
INPUT
L
R
GND
AM
ANTENNA
FRONT
SPEAKERS
(6-16
Ω)
L
- +
R
FM
75
Ω
DIGITAL
OUT
OPTICAL
GND
AM
ANTENNA
FM
75
Ω
÷In case an associated system component is connected, also read the instruction manual of the component.
÷Be sure to insert all connection cords securely. If their connections are imperfect, the sound may not be
produced or noise may interfere.
÷Before plugging or unplugging a connection cord, be sure to unplug the power cord from the wall AC outlet. If
connection cords are plugged or unplugged with the power cord left plugged in, malfunction or damage may result.
Connection of Other Accessories (Commercially Available Parts)
Lead the 75Ωcoaxial cable connected to the FM out-
door antenna into the room and connect it to the
FM 75Ωterminal. Please remove the indoor an-
tenna after an outdoor antenna has been installed.
Connect the components as shown in the dia-
gram. Only plug the power cord into a power
outlet once connections are completed.
CAUTION Note on Connection
Audio cord
Audio output
VCR, Analog turntable with built-in
RIAA equalizer (optional P-110), etc.
POWER cord
TO WALL AC OUTLET
Antenna adaptor
(Commercially
Available Parts)
FM outdoor antenna
FM outdoor antenna
* DIGITAL OUT jack (OPTICAL)
cap
Optical fiber cable
The DIGITAL OUT jack (OPTICAL) outputs the CD
signal.
The CD signal can be recorded in digital format by
connecting a recorder to the DIGITAL IN jack
(OPTICAL).
MD recorder or DAT etc.
*
Digital input
5377/06-13/EN 03.4.24, 3:10 PM8

System connection
9EN
1TAPE EQ. indicator
2CD-related indicators
3MUTE indicator, APS indicator
4Tuner-related indicators/Numeric
information display
5Timer-related indicators
6Character information display
The displays given in this manual are approximations only. They may differ from what actually appears on
the display.
Controls and indicators
7Time display indicators
8RDS-related indicators
(For Europe)
9EX.BASS indicator, LOUD
(Loudness) indicator
0O.T.E. (One-Touch Edit) indicator
!Tape-related indicators
1Select "APS ?".
AUTO POWER SAVE function
When the unit is ON and the unit is left for 30 minutes with CD or TAPE not operating, the unit is switched off
automatically by this function. This is convenient when you forgot to switch off the unit. This function can be
activated or deactivated by the following operation.
÷When the TUNER or AUX input is selected, APS op-
erates only when the volume is set to zero or when
MUTE is on.
(Press the set/demo key while the "?" mark is
blinking.)
2Select "APS ON" or "APS OFF".
3Set it.
Display
\
\\
\
12 5
789
0
6
!
3
34
5377/06-13/EN 03.4.24, 3:10 PM9

System connection
10 EN
1Cassette holder *
To load or eject a cassette tape, press the area marked
)push open on the cassette holder to open it.
2repeat key ⁄
Press for setting repeated playback.
3sound key %
Press to select EX. BASS or LOUD sound effect.
4Remote sensor #
This window receives signals from the remote control
unit.
5volume knob $
Turn this knob for volume adjustment.
6mode key 9
Press to switch the function of the 4and ¢keys to
menu select mode. Press again to reset the function of
the 4and ¢keys to normal mode.
7set/demo key 39
Press to set or enter an item selected with the 4and
¢keys.
This key is also used for switching demonstration on/
off and the beat cancel function on while recording the
radio broadcast.
8Headphone jack %
Connect headphone with a stereo mini-plug
(optionally available).
About the one-touch operation function
This unit incorporates the one-touch operation function for the user's convenience.
With this function, pressing any key enclosed in while the unit is in standby mode immediately start
playback (or reception).

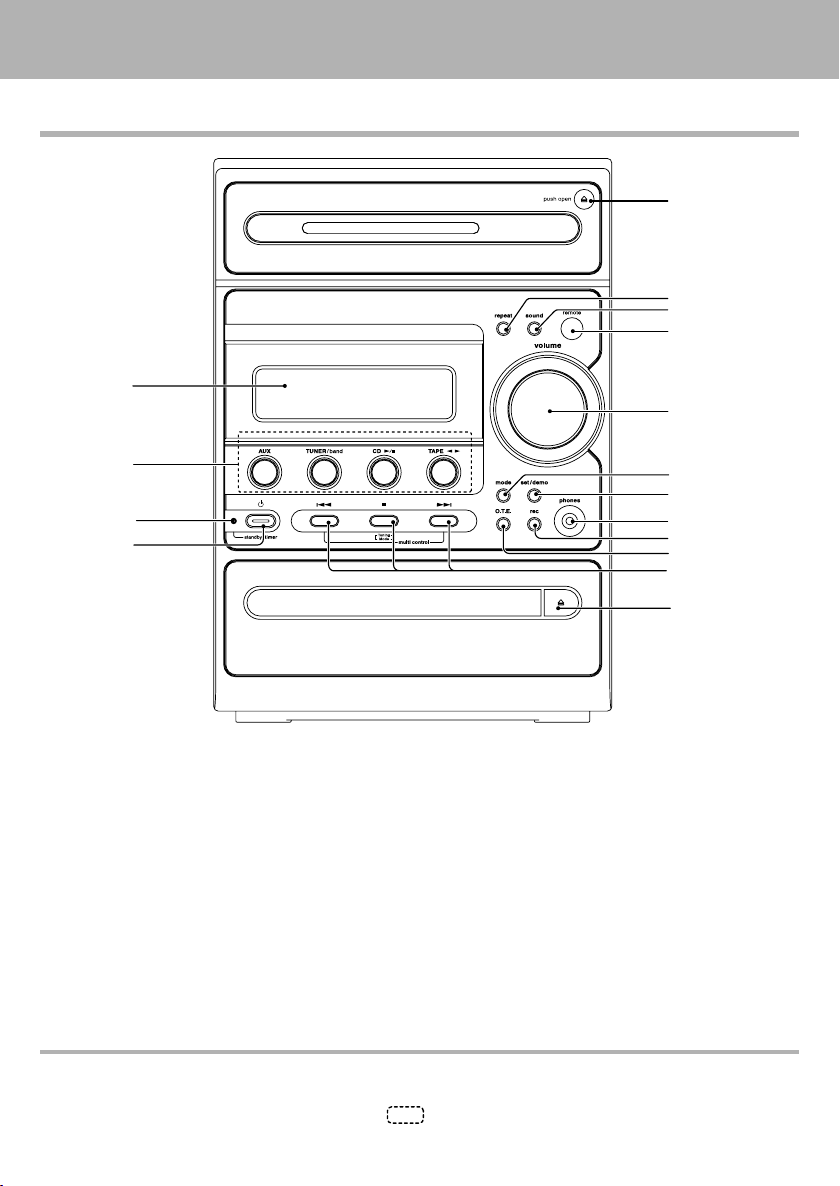

Main unit
Controls and indicators
!
@
0
%
#
^
3
2
4
1
5
6
7
8
9
$
5377/06-13/EN 03.4.24, 3:10 PM10

System connection
11 EN
9rec key ¶
Press to start tape recording. Pressing this key during
recording initiates record-pause after leaving a no-
sound blank of about 4 seconds.
0O.T.E. key ›
Press to start recording CD onto a tape with one-touch
operation.
Pressing this key during CD playback records only the
track being played onto tape. Pressing it while CD is in
stop state will record all the CD tracks onto tape.
!4and ¢multi control keys
In the normal mode, these are used to
– skip CD tracks &
– fast forward or rewind tape (
– select a preset radio station )
In the menu mode (selected by pressing the mode key),
press these buttons to select the desired menu item. To
set or enter setting of the menu item, press the set/demo
key.
• Pressing these multi control keys switches the dis-
play contents.
"TAPE RVS" (
"AUTO PRESET ?" or "AUTO MEMORY ?" ¡
(Only when the TUNER input is selected)
"INPUT ?" fl
(Only when the AUX input is selected)
"TIMER ?" ·
"TIME ADJUST ?" ‡
"APS ?" 9
• The function of these keys returns to the normal mode
when they have not been operated for 20 seconds.
7Tuning Mode key
CD, TAPE : &(
Press to stop a disc or tape operation.
TUNER : ™
Press to switch between the AUTO (auto tuning,
stereo reception) and MONO (manual tuning,
monaural reception) modes.
Standby mode: ‡
Press to display the clock.
@) CD open/close key ^
Press to open or close the CD tray.
#Display panel
$Basic operation keys
AUX key fl
Press to reproduce the external source component
connected to the AUX (analog auxiliary input) jacks.
TUNER /band key )
Press to select the TUNER input.
This key is also used to select the received broadcast
band.
CD 6key ^
Press to select the CD input and start playback. During
CD playback, press to pause.
TAPE 23key *
Press to select the TAPE (cassette deck) input and
start playback of a tape. Pressing this key during tape
playback switches the tape transport direction.
%standby/timer indicator
Lights up when the unit is set to the Standby mode of
power.
Red : Ordinary standby.
Green : Timer standby.
Off : The unit is On.
^key $
Press to set the unit to On or Standby.
Standby mode
While the standby indicator is lit, a small amount of power is supplied to the system to back up the memory.
This is called standby mode. Under the condition, the system can be turned ON by the remote control
unit.
Controls and indicators
\
\\
\
5377/06-13/EN 03.4.24, 3:10 PM11

System connection
12 EN
Infrared ray system
Model : RC-F0301E (For Europe)
: RC-F0301 (For other countries)
1POWER key $
Press to set the unit to On or Standby.
2SLEEP key °
Press to set the sleep timer.
PGM key (CD) ª
Press to program tracks in the desired sequence.
CLEAR key (CD) º
Press to clear a programed track(s).
The keys on the remote control unit with the same names as on the main unit have the same function as
the keys on the main unit.
3Basic operation keys
SET key
Press to set or enter an item selected with the 44
44
4and
¢¢
¢¢
¢keys.
TUNER/ BAND key )
CD 6key ^
STOP 7/AUTO/MONO key &™
TAPE 23key *
4P.CALL ¢keys
CD : &
Used to skip CD tracks.
TAPE : (
Used to fast forward or rewind tape.
TUNER : )
Used to receive a preset radio station.
1TUNING ¡keys
CD, TAPE : &(
Used to fast-forward or fast-reverse the played
audio.
TUNER : ™
Used to select a radio station.
AUX key fl
Press to reproduce the external source component
connected to the AUX (analog auxiliary input) jacks.
ENTER key ™
Press to enter a radio station in the preset memory of
the tuner.
4O.T.E. key fi
REC key ¶
TAPE EQ. key (
5REPEAT key (CD) ⁄
Press for setting repeated playback.
Controls and indicators
Operation of remote control unit
TAPE 23
SLEEP
CLEAR
TAPE EQ.
ENTER REC O.T.E.
VOLUME
STOP 7
TUNER / BAND
AUTO/MONO
POWER
PGM
MUTE
AUX
CD 6
SET
SOUND TONE REPEAT
5
2
8
0
6
3
9
4
1
7
10
RANDOM
1 TUNING ¡
4
P.CALL ¢
RC-F0300
1
2
3
5
6
8
7
9
0
4
TIME DISPLA Y
•
PTY
•
5377/06-13/EN 03.4.24, 3:10 PM12

System connection
13 EN
30˚ 30˚
After plugging the power cord of this unit, press the
POWER ( ) key of the remote control unit to turn
the system ON. When the system is turned ON,
press the key of the function to be operated.
Operation
÷When pressing more than one remote control keys
successively, press the keys securely by leaving an in-
terval of 1 second or more between keys.
÷The provided batteries are intended for use in operation checking, and their service life may be short.
÷When the remote controllable distance becomes short, replace both of the batteries with new ones.
÷If direct sunlight or the light of a high-frequency fluorescent lamp (inverter type, etc.) is incident to the remote
sensor, malfunction may occur. In such a case, change the installation position to avoid malfunction.
Operating range (approx.)
Remote sensor
Loading batteries
1Remove the cover. 2Insert batteries. 3Close the cover.
÷Insert two R6 ("AA"-size) batteries following the polarity indications.
6 m
Controls and indicators
RANDOM key (CD) ¤
Press for setting playback of tracks in a random order.
6VOLUME keys $
Press to adjust the volume.
7Numeric keys &™
Used to select a CD track number or recall a preset
station of the tuner.
8÷PTY ÷TIME DISPLAY key (For Europe)
&¢
Used at the time of program type detection.
Press to switch the displayed time information on CD.
TIME DISPLAY key (For other countries)
&
Press to switch the displayed time information on CD.
9SOUND key %
Press to switch the sound effect to EX.BASS or
LOUD.
TONE key %
Press to adjust the tone.
0MUTE key %
Press to mute the audio temporarily.
5377/06-13/EN 03.4.24, 3:10 PM13

14 EN
Basic use method
The volume
decreases
The volume
increases
Example:
To select the CD input

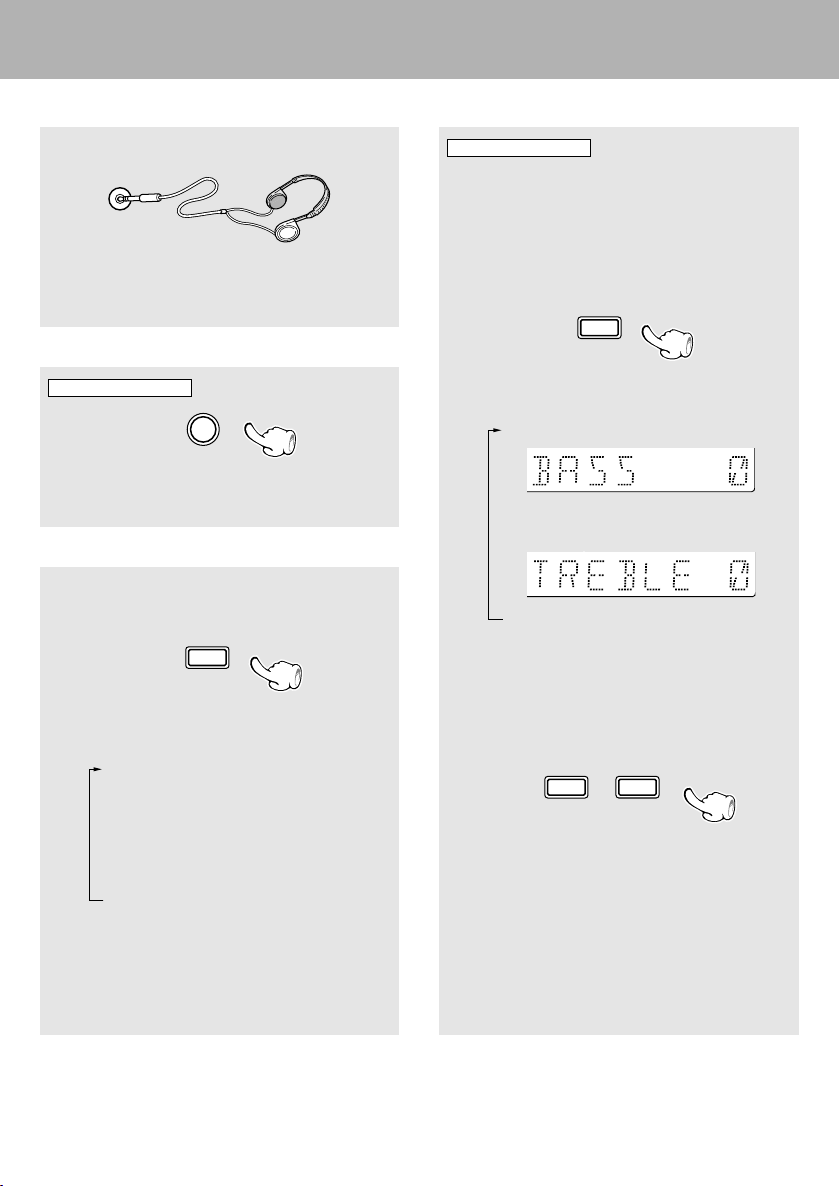

Basic use method
Enhancement of bass
Enhancement
of bass
Muting the sound temporarily
Listening through
headphone
The system is switched ON
or STANDBY
Tone adjustment
1. Set the key to ON.
Pressing the key when the unit is ON turns it off (Standby mode
of power).
÷Pressing the TUNER/band, CD 6, TAPE 23or AUX key also turns
power on and starts playback (reception) of the corresponding input.
(One-touch operation)
÷When the CD or TAPE input is selected while the corresponding disc or
tape has been loaded, it immediately starts to play.
2. Selecting the desired output.
÷Pressing the TUNER/
band, CD 6, TAPE
23or AUX key se-
lects the correspond-
ing input.
CD ^
TAPE *
TUNER (Broadcasts) )
AUX (External input) [Adjusting the AUX input level fl]
When CD has been selected.
Volume display
3. Volume adjustment.
÷The display shows a reference value.
5377/14-17/EN 03.4.24, 3:12 PM14

15 EN
Basic use method
Muting the sound temporarily
÷Press again to resume the original volume.
÷This is also canceled when the volume is changed.
Enhancement of bass
Each press switches the modes as follows.
1"EX.BASS" lights.
The low frequencies are enhanced regardless
of the current volume level.
2"LOUD" (Loudness) lights.
The low frequencies are enhanced according
to the current volume level. (Effective during
low-volume listening.)
3Both indicators off.
Canceled.
÷Headphone with a stereo mini plug can be con-
nected.
÷The sound from all speakers are cut off.
Listening through headphone
Insert the headphone plug into the headphone jack.
The lowest and highest frequency bands can be
adjusted independently.
Tone adjustment
÷The levels of both "BASS" and "TREBLE" can be ad-
justed in 2 steps in the range between – 8 and +8.
÷Adjusting the tone while the "LOUD" or "EX.BASS"
indicator is lit turns it off and cancels the sound en-
hancement mode.
(To adjust the other frequency band, repeat steps
1and 2for it.)
÷Adjusting the tone while the "LOUD" or "EX.BASS"
indicator is lit turns it off and cancels the sound en-
hancement mode.
1Select the frequency band.
2Adjust.
Each press switches the operation.
1"BASS" (low frequency) adjustment
2"TREBLE" (high frequency) adjust-
ment
3Normal mode
(Go to step 2within 8 seconds.)
Remote control unit only
MUTE
SOUND
TONE
4
4
P.CALL
Remote control unit only
5377/14-17/EN 03.4.24, 3:12 PM15

16 EN
Basic use method
1. Load a disc.
The label side
facing up.
Playback of CD
1Press the )key.
2Place a disc.
3Press the )key.
2. Start playback.
÷After a few seconds,
play starts from track
No.1.
Track No. being played
Elapsed time of
track being played
When a disc is placed into the CD player in advance, the unit will be switched on automatically by pressing
the CD 6key, and playback will start.
Skipping tracks
Playback from desired track
Skipping tracks
To stop playback
To stop
playback
Start playback/ To pause playback
To fast forward and
backward
÷Do not touch the played side of
disc.
÷Be sure to place a disc horizontally.
Placing it with an inclination will re-
sult in malfunction.
5377/14-17/EN 03.4.24, 3:12 PM16

17 EN
Basic use method
÷Each press pauses and plays the CD alternately.
Start playback/ To pause playback
÷Press and hold one of the keys during playback.
Normal playback resumes at the point where the
key is released.
To fast forward and backward
Skipping tracks
÷The track in the direction of the key pressed is
skipped, and the selected track will be played from
the beginning.
÷When the 4key is pressed once during playback, the
track being played will be played from the beginning.
÷To skip further to a track located before the current
track, press the 4key quickly.
÷Tracks can be skipped by pressing the 4or ¢ key
even when the CD is in stop mode. In this case, play-
back starts automatically from the point reached by
skipping.
To skip
backward
To skip
forward
Forward
search
Backward
search
Press the numeric keys as shown below....
To select track No. 23 : +10
X 2, 3
To select track No. 40 : +10
X 4, 0
Playback from desired track
Select the desired track No.
To stop playback
Eject the CD
÷The CD tray will open. (Pressing the key again
closes the CD tray.)
Playback of CD
Each press of the TIME DISPLAY key changes the
displayed contents.
1Elapsed time of track being played
2Remaining time of track being played
("REMAIN" lights up)
3Elapsed time of entire disc
("TOTAL" lights up)
4Remaining time on entire disc
("TOTAL REMAIN" lights up)
Time display on CD player
÷Only time information 1and 2can be displayed dur-
ing single-track repeated playback or random playback.
÷In the program mode, display 3shows the elapsed
time of the entire program and display 4shows the
remaining time of the entire program.
÷When the displayed time is 200 minutes or more,
the display shows "– – : – –".
or
(For Europe) (For other countries)
6
CD
STOP 7
AUTO/MONO
5
2
8
0
6
3
9
4
1
7
10
TIME DISPLA
Y
÷
PTY
÷
TIME DISPLAY
1
1
TUNING
4
4
P.CALL
Remote control unit only
Remote control unit only
Remote control unit only
5377/14-17/EN 03.4.24, 3:12 PM17

Playback of TAPE
18 EN
1. Load a cassette tape.
2. Start playback.
Press the TAPE 23key.
To stop playback
Selection of TAPE equalizer (TAPE EQ.)
To wind tape
at high speed
Start playback
To wind tape at high speed
Playback of TAPE
÷The tape deck of the unit can play Normal (Type ) tapes.
÷When there is a tape slack, wind the tape before loading. r
If you load a tape in the cassette deck in advance while the power is off, pressing the TAPE 23key will
turns the power on automatically and starts the tape playback.
Displayed when the deck is loaded with a tape.
Reverse mode
indication
Transport direction indicators
Tape
counter
Do not use a cassette with more than 90-minute recording time, for the
tape used with such a cassette is very thin and tends to cause troubles
such as entanglement around the pinch roller or cutting off tape.
Transport direction indicators:
Indicates the tape transport direction during playback or recording by lighting
of 2or 3. This direction is the direction stored in memory when the tape was
last stopped.
Start playback
To stop playback
1Press the area marked )push open to open the cassette holder.
2Insert a tape.
3Press the area marked )push open to close the cassette holder.
5377/18-25/EN 03.4.24, 3:15 PM18

Playback of TAPE
19 EN

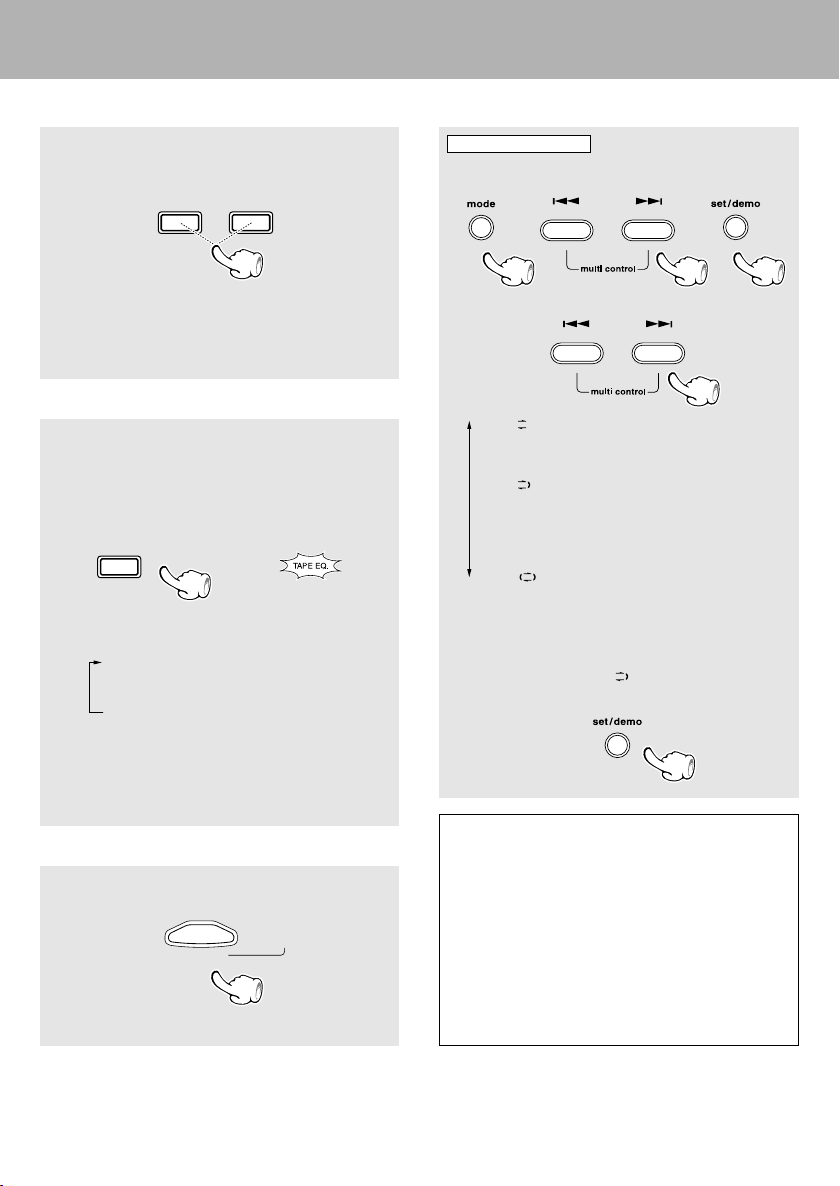

To wind tape at high speed
÷Press the STOP 7key to stop fast winding.
÷The same operation is also available with the 4
and ¢keys on the main unit.
Selection of TAPE equalizer (TAPE EQ.)
When playing a tape prerecorded with Noise Re-
duction system (such as the DOLBY NR) ON, be
sure to set the "TAPE EQ." ON for playback.
Each press switches the modes as follows.
1"TAPE EQ." ON
(TAPE equalizer is used)
2"TAPE EQ." OFF
(TAPE equalizer is not used)
Lit when "TAPE EQ." is ON
÷Select the "TAPE EQ." ON mode according to the
recording condition of the tape.
Selection of reverse mode
To stop playback
The tape counter is set to "0000" when a cassette
tape is loaded. By writing down the counter read-
ing in case you want to interrupt recording (play-
back) in the middle of the tape, the memo will be
helpful as a reference for locating the same posi-
tion when continuing the recording (playback) the
next time. The tape counter figure decreases dur-
ing recording or playback of the back side (while
the 2tape transport indicator is lit). To set the tape
counter to "0000", open the cassette holder once.
Then the counter will be reset.
A tip for use of the tape counter
1Select "TAPE RVS".
2Select.
3Set it.
1" " : (ONE-WAY)
Only one side is played back (recorded), and
then the tape stops.
2" " : (REVERSE)
Both sides are played back (recorded), and
then the tape stops. When the tape transport
direction is "2", the tape stops after one side
has been played (recorded).)
3" " : (ENDLESS)
Both sides are played back endlessly. (The
tape stops after recording onto both sides.
When the tape transport direction is "2", the
tape stops after one side has been recorded.)
(The initial setting is " "(REVERSE))
Main unit only
\
\\ \
To fast wind in
direction \
To fast wind in
direction |
1
1
TUNING
TAPE EQ.
STOP 7
AUTO/MONO
5377/18-25/EN 03.4.24, 3:15 PM19

Playback of TAPE
20 EN
1. Select the tuner input.
Each press of the TUNER/band key switches the band as follows.
FM
AM
Tuning to a non-
preset radio
station (1) ™
2. Preset a radio station in memory.
One-by-one presetting (3) ™
Collective presetting of stations ¡
Follow the procedure in "Collective presetting of stations" to preset auto-
matically the tunable radio stations in your area.
3. Tuning (Preset Call)
÷If radio stations have al-
ready been stored with
auto presetting or manu-
al presetting, select a sta-
tion using the 4, ¢
key. Each press of the
same key switches the
preset stations in se-
quence.
÷When a key is held depressed, preset stations will be skipped at an inter-
val of about 0.5 second.
÷To select a preset station from the remote, use the 4P.CALL ¢key
or numeric keys.
The "TUNED" indicator lights
when a station is received
Collective presetting
of stations
One-by-one presetting (Manual preset) ™
A station can also be tuned even when it is not preset. For details, read
"Tuning to a non-preset radio station (Auto tuning, Manual tuning)".
÷Once the stations are stored by auto presetting, you are not required to
repeat this procedure the next time you listen to radio. However when
you shift to another location whereby the broadcast station frequencies
are different, you will have to re-execute the presetting of stations.
When the TUNER/band key is pressed, the unit will automatically be switched on and reception status will be reached.
When ¢is pressed : 1=2=3 ... 28=29=30=1...
When 4is pressed : 30 =29 =28 ..... 3 =2 =1 =30.....
Receiving broadcast station
Tuning to a
non-preset
radio station
(2) ™
Frequency display
One-by-one preset-
ting (2,4) ™
5377/18-25/EN 03.4.24, 3:15 PM20
