SERVICE MANUAL
DATA
COMPACT DISC STEREO SYSTEM BASIC TAPE MECHANISM : 6ZM-3 / ZZM-3
BASIC CD MECHANISM : AZG-1
NSX-VC28
NSX-VC38
NSX-VC43
HR
HC, HT
HR
S/M Code No. 09-008-430-3S1
SUPPLEMENT
• This Service Manual contains information about the difference between
NSX-VC28 (HR) / NSX-VC38 (HC,HT) / NSX-VC43 (HR) and NSX-VC38 (HR).
If requiring other information, see Service Manual of NSX-VC38 (HR,HS)
(S/M Code No. 09-006-430-3R1).
• If requiring information about the CD mechanism, see Service Manual of AZG-1,
(S/M Code No. 09-001-335-3NG).
NSX–VC28 (HR)
RC–ZAS07
SYSTEM CD
CASSEIVER REMOTE
CONTROLLER
SPEAKER
SX–NBL25
NSX–VC38 (HC)
NSX–VC38 (HT)
NSX–VC43 (HR)
TAPE
MECHANISM CD
MECHANISM
CX–NVC28
CX–NVC38
CX–NVC38
CX–NVC43
SX–NBL25
SX–NSZ53
ZZM–3 YPR1NM
6ZM–3 YPR2NC
AZG–1 VZD3RDM
AZG–1 VEZD3RNDM
AZG–1 VEZD4RNDC
SX–NBL25 6ZM–3 PR2NM
6ZM–3 PR2NM AZG–1 VZD3RDM
– 2 –
<Compact disc player section>
Laser Semiconductor laser (λ =780 nm)
D/A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
Video signal NTSC/PAL color format (selectable)
Video data MPEG 1
Audio data MPEG 1, LAYER 2
<General>
Power requirements 120 V/220–230 V/240 V AC
switchable, 50/60 Hz
Power consumption 75 W
Power consumption in standby mode
28HR:
23 W with power-economizing mode off
0.9 W with power-economizing mode on
38HC, 38HT, 43HR:
14 W with power-economizing mode off
0.9 W with power-economizing mode on
Dimensions (W xH xD) 260 x 328 x 335 mm
Weight 28HR, 43HR : 6.3 kg
38HC, 38HT : 7.7 kg
Front speakers SX-NBL25 <NSX-VC28/38>
Speaker system 3 way, bass reflex
(magnetic shielded type)
Speaker units Woofer: 140 mm cone type
Tweeter: 60 mm cone type
Super tweeter: 20 mm ceramic type
Impedance 6 ohms
Sensitivity 87 dB/W/m
Dimensions (W xH xD) 202 x 324 x 219 mm
Weight 3.8 kg
Front speakers SX-NSZ53 <NSX-VC43>
Speaker system 3 way, bass reflex
(magnetic shielded type)
Speaker units Woofer: 140 mm cone type
Tweeter: 60 mm cone type
Super tweeter: 20 mm ceramic type
Impedance 6 ohms
Sensitivity 87 dB/W/m
Dimensions (W xH xD) 240 x 324 x 270 mm
Weight 4.0 kg
SPECIFICATIONS
Main unit CX-NVC28/38/43
<FM Tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminal 75 ohms (unbalanced)
<MW Tuner section>
Tuning range 531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step)
Usable sensitivity 350 μV/m
Antenna Loop antenna
<SW Tuner section>
Tuning range 5.730 MHz to 17.900 MHz
Usable sensitivity 40 μV (IEC)
Antenna Wire antenna
<Amplifier section>
Power output 28HR:
Rated: 24 W + 24 W
(6 ohms, T.H.D. 1 %, 1 kHz)
Reference: 30 W + 30 W
(6 ohms, T.H.D. 10 %, 1 kHz)
38HC, 38HT, 43HR:
Rated: 40 W + 40 W
(6 ohms, T.H.D. 1 %, 1 kHz)
Reference: 50 W + 50 W
(6 ohms, T.H.D. 10 %, 1 kHz)
Total harmonic distortion 28HR:
0.08 %
(15 W, 1 kHz, 6 ohms, DIN AUDIO)
38HC, 38HT, 43HR:
0.08 %
(25 W, 1 kHz, 6 ohms, DIN AUDIO)
Inputs VIDEO/AUX: 300 mV (adjustable)
MIC: 1.0 mV (10 kohms)
Outputs VIDEO OUT: 1.0 Vp-p (75 ohms)
SPEAKERS:
accepts speakers of 6 ohms or more
PHONES (stereo jack): accepts
headphones of 32 ohms or more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz – 15 kHz
Recording system AC bias
Heads DECK 1: Playback head x 1
DECK 2: Recording/playback head x 1,
erase head x 1
• Design and specifications are subject to change without notice.
• The word "BBE"and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.
– 3 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
87-020-454-010 IC,DN6851<38HC>
87-A21-269-010 IC,EW732<EXCEPT 38HC>
87-A21-396-010 IC,STK490-040<28HR>
87-A21-398-010 IC,STK490-110<EXCEPT 28HR>
87-A20-783-040 C-IC,BA7762AFS
87-A21-018-040 C-IC,M65849BFP631D
87-A21-452-030 C-IC,BD3876KS2

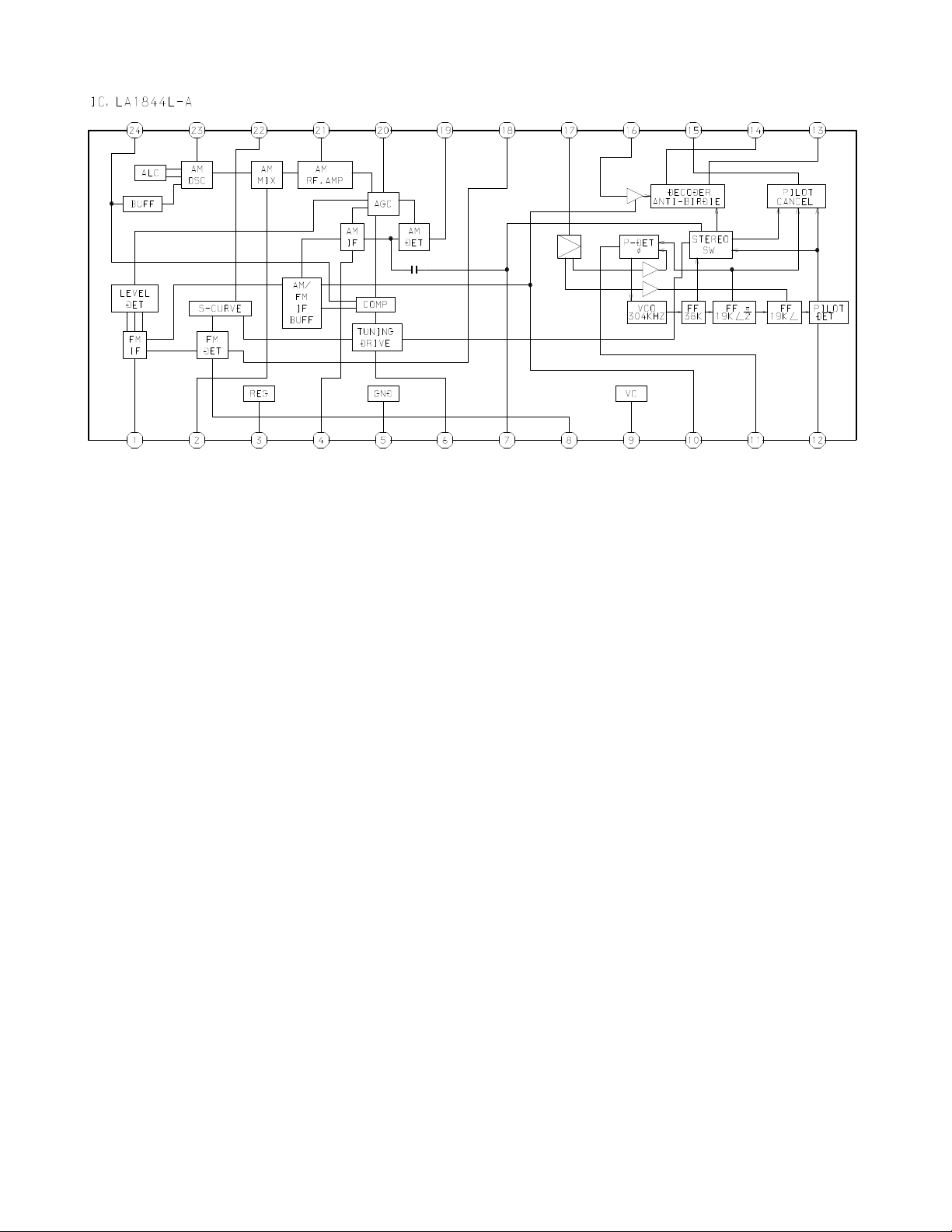

87-A21-560-010 IC,LA1844L-A
8A-NH9-601-010 C-IC,UPD780226GF-017-3BA
87-A21-482-010 IC,RPM6938-H4
87-070-127-110 IC,LC72131D
TRANSISTOR
87-026-245-080 TR,DTC114ES
87-026-609-080 TR,KTA1266GR
87-A30-198-080 TR,KTC3199GR
89-213-702-010 TR,2SB1370
87-026-610-080 TR,KTC3198GR
87-A30-076-080 C-TR,2SC3052F
87-A30-075-080 C-TR,2SA1235F
87-A30-318-080 TR,CSA952K
87-A30-107-070 C-TR,CMBT5401
87-A30-074-080 C-TR,RT1P141C
87-A30-468-080 C-TR,KRC102S-RTK
87-A30-086-040 C-TR,CSD1306E
87-A30-106-080 C-TR,CMBT5551
87-A30-087-080 C-FET,2SK2158
87-A30-063-080 C-TR,KRA104S
87-A30-329-080 TR,CD1585BC
89-327-143-080 C-TR,2SC2714
87-A30-072-080 C-TR,RT1P144C
87-A30-495-080 TR,2SA1981Y
89-503-602-080 C-FET,2SK360E
87-A30-234-080 TR,CSC4115BC
DIODE
87-A40-548-090 DIODE,D3SBA20
87-017-447-010 DIODE,GBU4DL-6419
87-020-465-080 DIODE,1SS133(110MA)
87-A40-553-080 DIODE,1N4003 LES
87-A40-776-080 ZENER,UZ27BSD
87-A40-764-080 ZENER,UZ10BSC
87-070-274-080 DIODE,1N4003 SEM
87-A40-313-080 C-DIODE,MC2840
87-A40-270-080 C-DIODE,MC2838
87-A40-269-080 C-DIODE,MC2836
87-A40-854-080 ZENER,UZ15BSA
87-A40-752-080 ZENER,UZ6.2BSC
87-A40-747-080 ZENER,UZ5.1BSB
87-A40-745-080 ZENER,UZ4.7BSA
87-017-149-080 ZENER,HZS6A2L

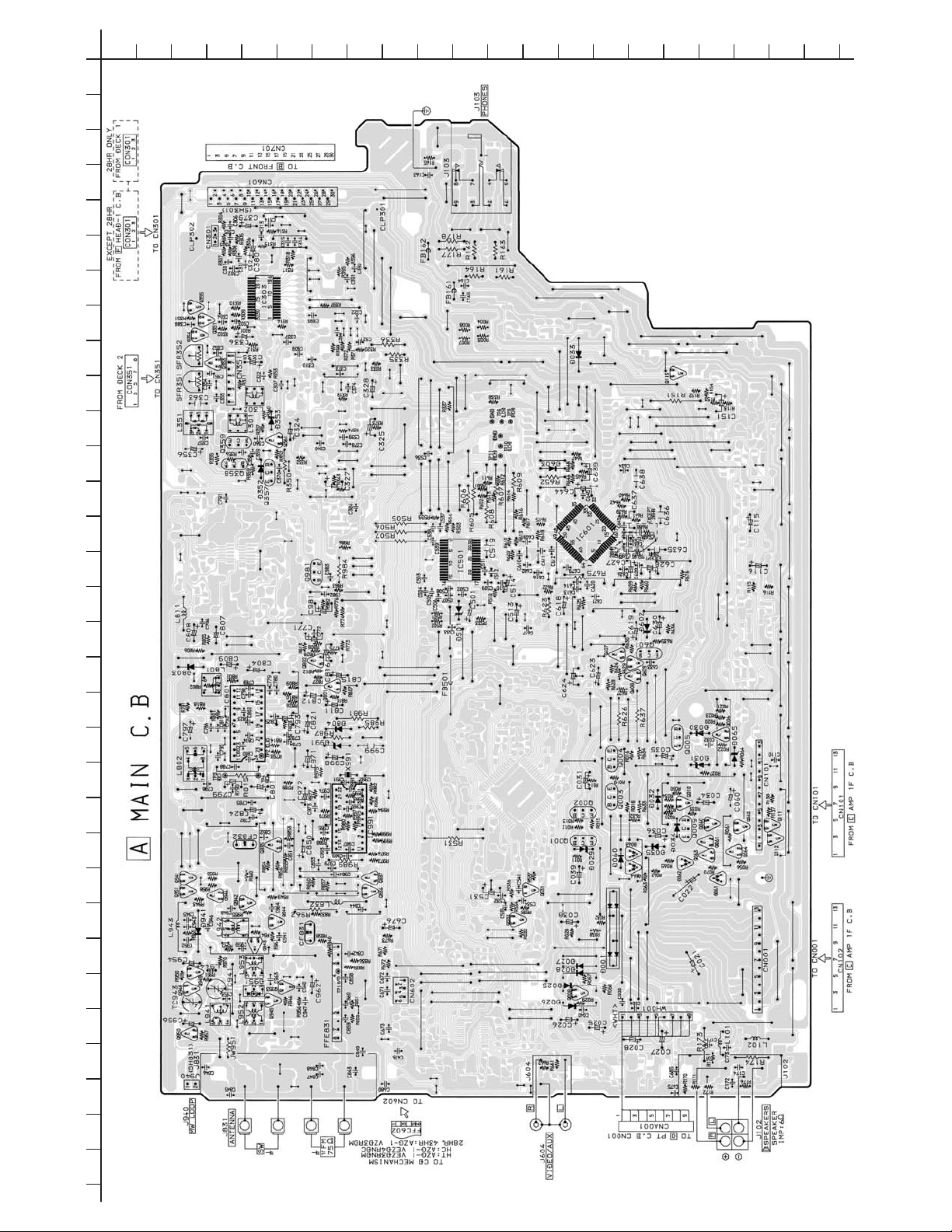

MAIN C.B
C3 87-012-368-080 C-CAP,S 0.1-50 F
C4 87-012-368-080 C-CAP,S 0.1-50 F
C21 87-016-495-000 CAP,E 3300-25 M SMG<28HR>
C21 87-010-928-000 CAP,E 4700-25 M SMG<EXCEPT 28HR>
C22 87-016-495-000 CAP,E 3300-25 M SMG<28HR>
C22 87-010-928-000 CAP,E 4700-25 M SMG<EXCEPT 28HR>
C25 87-010-382-080 CAP,ELECT 22-25V
C26 87-010-382-080 CAP,ELECT 22-25V
C27 87-010-382-080 CAP,ELECT 22-25V
C28 87-010-382-080 CAP,ELECT 22-25V
C31 87-010-263-080 CAP,ELECT 100-10V
C32 87-010-197-080 CAP,CHIP 0.01 DM
C34 87-010-260-080 CAP,ELECT 47-25V
C35 87-010-406-080 CAP,ELECT 22-50
C36 87-010-381-080 CAP,ELECT 330-16V
C38 87-010-384-080 CAP,ELECT 100-25V
C39 87-010-384-080 CAP,ELECT 100-25V
C40 87-010-197-080 CAP,CHIP 0.01 DM
C60 87-010-403-080 CAP,ELECT 3.3-50V
C110 87-010-196-080 CHIP CAPACITOR,0.1-25
C115 87-010-404-080 CAP,E 4.7-50 M 11L SME
C116 87-010-404-080 CAP,E 4.7-50 M 11L SME
C151 87-010-382-080 CAP,E 22-50 M 11L SME
C163 87-012-368-080 C-CAP,S 0.1-50 F
C164 87-010-196-080 CHIP CAPACITOR,0.1-25
C165 87-010-196-080 CHIP CAPACITOR,0.1-25
C171 87-012-368-080 C-CAP,S 0.1-50 F
C172 87-012-368-080 C-CAP,S 0.1-50 F
C173 87-012-368-080 C-CAP,S 0.1-50 F
C174 87-012-368-080 C-CAP,S 0.1-50 F
C301 87-010-318-080 C-CAP,S 47P-50 CH
C302 87-010-318-080 C-CAP,S 47P-50 CH
C303 87-012-157-080 C-CAP,S 330P-50 CH
C304 87-012-157-080 C-CAP,S 330P-50 CH
C305 87-012-157-080 C-CAP,S 330P-50 CH
C306 87-012-157-080 C-CAP,S 330P-50 CH
C307 87-010-196-080 CHIP CAPACITOR,0.1-25
C309 87-010-196-080 CHIP CAPACITOR,0.1-25
C310 87-010-196-080 CHIP CAPACITOR,0.1-25
C311 87-010-198-080 CAP,CHIP 0.022
C312 87-010-198-080 CAP,CHIP 0.022
C313 87-010-180-080 C-CAP,CER 1500P
C314 87-010-180-080 C-CAP,CER 1500P
C315 87-010-182-080 C-CAP,S 2200P-50 B
C316 87-010-182-080 C-CAP,S 2200P-50 B
C321 87-012-142-080 CAP,S 0.33-16
C322 87-012-142-080 CAP,S 0.33-16
C324 87-010-260-080 CAP,ELECT 47-25V
C325 87-010-370-080 CAP,E 330-6.3 SME
C327 87-010-404-080 CAP,ELECT 4.7-50V
C328 87-010-404-080 CAP,ELECT 4.7-50V
C332 87-010-196-080 CHIP CAPACITOR,0.1-25
C335 87-010-401-080 CAP,ELECT 1-50V
C336 87-010-401-080 CAP,ELECT 1-50V
C337 87-010-196-080 CHIP CAPACITOR,0.1-25
C339 87-010-196-080 CHIP CAPACITOR,0.1-25
C340 87-010-196-080 CHIP CAPACITOR,0.1-25
C351 87-012-140-080 CAP,470P
C352 87-012-140-080 CAP,470P
C354 87-010-175-080 CAP,560P
C355 87-012-349-080 C-CAP,S 1000P-50 CH
C356 87-010-260-080 CAP,ELECT 47-25V
C357 87-010-197-080 CAP,CHIP 0.01 DM
C358 87-010-183-080 C-CAP,S 2700P-50 B
C359 87-010-183-080 C-CAP,S 2700P-50 B
C360 87-010-183-080 C-CAP,S 2700P-50 B
C363 87-A12-361-080 CAP,M 5600P-100 J CP
C370 87-010-196-080 CHIP CAPACITOR,0.1-25
C373 87-016-083-080 C-CAP,S 0.15-16 RK
C374 87-016-083-080 C-CAP,S 0.15-16 RK
C378 87-010-196-080 CHIP CAPACITOR,0.1-25
C379 87-010-382-080 CAP,ELECT 22-25V
C380 87-010-382-080 CAP,ELECT 22-25V
C386 87-010-196-080 CHIP CAPACITOR,0.1-25
C388 87-012-156-080 C-CAP,S 220P-50 CH
C391 87-010-319-080 C-CAP,S 56P-50 CH
C392 87-010-319-080 C-CAP,S 56P-50 CH
C393 87-010-319-080 C-CAP,S 56P-50 CH
C394 87-010-319-080 C-CAP,S 56P-50 CH
C501 87-010-263-080 CAP,ELECT 100-10V
C502 87-010-196-080 CHIP CAPACITOR,0.1-25
C503 87-012-393-080 C-CAP,S 0.22-16 R K
– 4 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C504 87-012-393-080 C-CAP,S 0.22-16 R K
C505 87-012-393-080 C-CAP,S 0.22-16 R K
C506 87-010-184-080 CHIP CAPACITOR,3300P(K)
C507 87-010-177-080 C-CAP,S 820P-50 SL
C508 87-016-669-080 C-CAP,S 0.1-25 K B
C509 87-016-669-080 C-CAP,S 0.1-25 K B
C510 87-010-184-080 CHIP CAPACITOR,3300P(K)
C511 87-010-177-080 C-CAP,S 820P-50 SL
C512 87-012-393-080 C-CAP,S 0.22-16 R K
C513 87-010-544-080 CAP,ELECT 0.1-50V
C514 87-010-374-080 CAP,ELECT 47-10V
C519 87-A12-380-080 CAP,M 0.22-100 J CP
C531 87-010-560-080 CAP,E 10-50 GAS
C532 87-010-196-080 CHIP CAPACITOR,0.1-25
C533 87-010-196-080 CHIP CAPACITOR,0.1-25
C534 87-012-156-080 C-CAP,S 220P-50 CH
C535 87-010-178-080 CHIP CAP,1000P
C536 87-010-196-080 CHIP CAPACITOR,0.1-25
C537 87-010-318-080 C-CAP,S 47P-50 CH
C538 87-010-318-080 C-CAP,S 47P-50 CH
C539 87-010-318-080 C-CAP,S 47P-50 CH
C541 87-010-178-080 CHIP CAP,1000P
C609 87-010-181-080 CAP,CHIP S 1800P
C610 87-010-181-080 CAP,CHIP S 1800P
C611 87-010-956-080 CHIP-CAP,S 0.068-25B
C612 87-016-369-080 C-CAP,S 0.033-25 B K
C613 87-010-197-080 CAP,CHIP 0.01 DM
C614 87-016-669-080 C-CAP,S 0.1-25 K B
C616 87-010-181-080 CAP,CHIP S 1800P
C617 87-012-369-080 C-CAP,S 0.047-50F
C618 87-010-401-080 CAP,ELECT 1-50V
C619 87-010-263-080 CAP,ELECT 100-10V
C620 87-016-669-080 C-CAP,S 0.1-25 K B
C621 87-010-197-080 CAP,CHIP 0.01 DM
C623 87-010-401-080 CAP,ELECT 1-50V
C624 87-010-401-080 CAP,ELECT 1-50V
C626 87-010-596-080 CAP,S 0.047-16
C627 87-010-400-080 CAP,ELECT 0.47-50V
C628 87-010-400-080 CAP,ELECT 0.47-50V
C629 87-010-596-080 CAP,S 0.047-16
C630 87-010-263-080 CAP,ELECT 100-10V
C631 87-010-185-080 C-CAP,S 3900P-50 KB<28HR>
C632 87-010-185-080 C-CAP,S 3900P-50 KB<28HR>
C633 87-010-178-080 C-CAP,S 1000P-50 KB
C634 87-010-196-080 CHIP CAPACITOR,0.1-25
C635 87-A12-376-080 CAP,M 0.1-100 J
C636 87-A12-376-080 CAP,M 0.1-100 J
C637 87-A12-376-080 CAP,M 0.1-100 J
C638 87-A12-376-080 CAP,M 0.1-100 J
C639 87-010-405-080 CAP,ELECT 10-50V
C643 87-010-196-080 CHIP CAPACITOR,0.1-25
C644 87-010-401-080 CAP,ELECT 1-50V
C645 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C671 87-010-322-080 C-CAP,S 100P-50 CH
C672 87-010-322-080 C-CAP,S 100P-50 CH
C673 87-010-197-080 CAP,CHIP 0.01 DM
C675 87-016-669-080 C-CAP,S 0.1-25 K B
C676 87-010-382-080 CAP,E 22-25 M 11L SME
C679 87-010-196-080 CHIP CAPACITOR,0.1-25
C680 87-010-197-080 CAP,CHIP 0.01 DM
C682 87-010-196-080 CHIP CAPACITOR,0.1-25
C685 87-010-196-080 CHIP CAPACITOR,0.1-25
C771 87-010-263-080 CAP,ELECT 100-10V
C772 87-010-197-080 CAP,CHIP 0.01 DM
C779 87-010-182-080 C-CAP,S 2200P-50 B
C780 87-010-182-080 C-CAP,S 2200P-50 B
C782 87-010-197-080 CAP,CHIP 0.01 DM
C783 87-010-197-080 CAP,CHIP 0.01 DM
C784 87-010-197-080 CAP,CHIP 0.01 DM
C785 87-010-197-080 CAP,CHIP 0.01 DM
C786 87-010-197-080 CAP,CHIP 0.01 DM
C788 87-010-149-080 C-CAP,S 5P-50 CH
C789 87-A10-592-080 C-CAP,S 0.015-50 J B
C790 87-A10-592-080 C-CAP,S 0.015-50 J B
C791 87-010-196-080 CHIP CAPACITOR,0.1-25
C792 87-010-197-080 CAP,CHIP 0.01 DM
C793 87-010-404-080 CAP,ELECT 4.7-50V
C795 87-010-197-080 CAP,CHIP 0.01 DM
C796 87-010-197-080 CAP,CHIP 0.01 DM
C797 87-010-405-080 CAP,ELECT 10-50V
C798 87-010-197-080 CAP,CHIP 0.01 DM
C799 87-010-407-080 CAP,ELECT 33-50V
C800 87-010-194-080 CAP,CHIP 0.047
C801 87-010-403-080 CAP,ELECT 3.3-50V
C802 87-010-194-080 CAP,CHIP 0.047
C803 87-010-198-080 CAP,CHIP 0.022
C804 87-010-263-080 CAP,ELECT 100-10V
C807 87-010-400-080 CAP,ELECT 0.47-50V
C808 87-010-401-080 CAP,ELECT 1-50V
C809 87-010-401-080 CAP,ELECT 1-50V
C810 87-010-196-080 CHIP CAPACITOR,0.1-25
C811 87-010-403-080 CAP,ELECT 3.3-50V
C812 87-010-403-080 CAP,ELECT 3.3-50V
C814 87-010-197-080 CAP,CHIP 0.01 DM
C815 87-010-400-080 CAP,ELECT 0.47-50V
C816 87-010-400-080 CAP,ELECT 0.47-50V
C821 87-010-405-080 CAP,ELECT 10-50V
C823 87-010-177-080 C-CAP,S 820P-50 SL
C824 87-010-404-080 CAP,ELECT 4.7-50V
C825 87-010-596-080 CAP,S 0.047-16
C842 87-010-197-080 CAP,CHIP 0.01 DM
C843 87-010-197-080 CAP,CHIP 0.01 DM
C844 87-010-197-080 CAP,CHIP 0.01 DM
C845 87-010-197-080 CAP,CHIP 0.01 DM
C846 87-010-197-080 CAP,CHIP 0.01 DM
C847 87-010-197-080 CAP,CHIP 0.01 DM
C848 87-010-197-080 CAP,CHIP 0.01 DM
C849 87-010-197-080 CAP,CHIP 0.01 DM
C850 87-010-260-080 CAP,ELECT 47-25V
C851 87-010-197-080 CAP,CHIP 0.01 DM
C852 87-010-197-080 CAP,CHIP 0.01 DM
C853 87-010-197-080 CAP,CHIP 0.01 DM
C858 87-010-196-080 CHIP CAPACITOR,0.1-25
C859 87-010-196-080 CHIP CAPACITOR,0.1-25
C860 87-010-197-080 CAP,CHIP 0.01 DM
C940 87-010-197-080 CAP,CHIP 0.01 DM
C941 87-010-314-080 C-CAP,S 22P-50V
C943 87-010-197-080 CAP,CHIP 0.01 DM
C945 87-010-197-080 CAP,CHIP 0.01 DM
C946 87-010-971-080 C-CAP,S 4700P-50 B J
C947 87-010-197-080 CAP,CHIP 0.01 DM
C948 87-010-148-080 C-CAP,S 4P-50 C CH GRM
C952 87-010-197-080 CAP,CHIP 0.01 DM
C953 87-010-197-080 CAP,CHIP 0.01 DM
C954 87-010-400-080 CAP,ELECT 0.47-50V
C956 87-010-263-080 CAP,ELECT 100-10V
C959 87-010-196-080 CHIP CAPACITOR,0.1-25
C962 87-010-401-080 CAP,ELECT 1-50V
C963 87-015-785-080 CHIP CAPACITOR,0.1FZ-25Z
C964 87-010-854-080 C-CAP,S 560PCH
C971 87-010-381-080 CAP,ELECT 330-16V
C972 87-010-404-080 CAP,ELECT 4.7-50V
C973 87-010-197-080 CAP,CHIP 0.01 DM
C974 87-010-197-080 CAP,CHIP 0.01 DM
C979 87-010-322-080 C-CAP,S 100P-50 CH
C981 87-010-260-080 CAP,ELECT 47-25V
C982 87-010-196-080 CHIP CAPACITOR,0.1-25
C983 87-010-197-080 CAP,CHIP 0.01 DM
C984 87-010-197-080 CAP,CHIP 0.01 DM
C987 87-010-197-080 CAP,CHIP 0.01 DM
– 5 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C989 87-010-197-080 CAP,CHIP 0.01 DM
C991 87-010-312-080 C-CAP,S 15P-50 CH
C992 87-010-312-080 C-CAP,S 15P-50 CH
C993 87-010-178-080 CHIP CAP,1000P
C995 87-010-178-080 CHIP CAP,1000P
C997 87-010-196-080 CHIP CAPACITOR,0.1-25
C998 87-010-260-080 CAP,ELECT 47-25V
C999 87-A11-155-080 CAP,TC U 0.01-16 Z F
CF831 87-008-261-010 FILTER,SFE10.7MA5-A
CF832 87-008-261-010 FILTER,SFE10.7MA5-A
CN1 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3
CN101 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3
CN301 87-099-827-010 CONN,3P S2M-3W
CN351 87-099-832-010 CONN,8P S2M-8W
CN601 87-099-719-010 CONN,30P TYK-B(X)
CN602 87-A60-131-010 CONN,6P V FE
CNA1 8A-NF8-653-010 CONN ASSY,9P TID-A(480)
CON351 86-ZM3-605-110 CONN ASSY,8P-RPB
D951 87-A40-618-080 VARI-CAP,SVC348(S/T)
FB161 87-008-474-080 F-BEAD,EMI BL02RN1
FB162 87-008-474-080 F-BEAD,EMI BL02RN1
FB501 87-008-372-080 FILTER, EMI BL OIRNI
FFC602 88-906-251-110 FF-CABLE,6P 1.25
FFE831 A8-8ZA-190-030 8ZA-1 FEUNM<28HR,38HT>
FFE831 A8-8ZA-192-070 8ZA-1 FEUNC<38HC>
FFE831 A8-8ZA-194-030 8ZA-1 FEMUNM<43HR>
J102 87-A60-238-010 TERMINAL,SP 4P(MSC)
J103 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM
J604 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN
J831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02
J940 81-754-629-010 CONNECTOR,2P
L101 87-A50-610-010 COIL,1UH K(MDEC)
L102 87-A50-610-010 COIL,1UH K(MDEC)
L301 87-A50-625-010 COIL,TRAP 85KHZ(SANWA)
L302 87-A50-625-010 COIL,TRAP 85KHZ(SANWA)
L351 87-007-342-010 COIL,OSC 85K BIAS
L801 87-A50-608-010 COIL,FM DET-N(TOK)
L802 87-A91-552-010 FLTR,CFMT-450AL(TOK)
L811 87-005-847-080 COIL,2.2UH(CECS)
L832 87-005-847-080 COIL,2.2UH(CECS)
L941 87-A50-022-010 COIL,ANT SW(COI)7.96MHZ
L942 87-A50-550-010 COIL,OSC SW-2N(COI)
L943 87-A50-522-080 COIL,1MH K CEC
L944 87-A50-159-010 COIL,10MH K C2B
L952 87-A50-430-010 COIL,ANT MW(3BSW)
L953 87-A50-431-010 COIL,OSC MW(3BSW)
R161 87-A00-440-050 RES,220-1/2W J RP
R162 87-A00-440-050 RES,220-1/2W J RP
R163 87-A00-440-050 RES,220-1/2W J RP
R164 87-A00-440-050 RES,220-1/2W J RP
R790 87-010-197-080 CAP,CHIP 0.01 DM
R991 87-010-322-080 C-CAP,S 100P-50 CH
R993 87-010-322-080 C-CAP,S 100P-50 CH
R995 87-010-322-080 C-CAP,S 100P-50 CH
SFR351 87-A90-433-080 SFR,50K H NVZ6TLTA
SFR352 87-A90-433-080 SFR,50K H NVZ6TLTA
TC941 87-A91-773-080 TRIMER,PLY 20P 6.8X5.4 CDYL<43HR>
TC941 87-011-254-080 TRIMER,20P LAR<EXCEPT 43HR>
TC943 87-A91-774-080 TRIMER,PLY 30P 6.8X5.4 CDYL<43HR>
TC943 87-011-253-080 TRIMER,30P LAR<EXCEPT 43HR>
WH1 87-A90-510-010 HLDR,WIRE 2.5-9P
X991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309

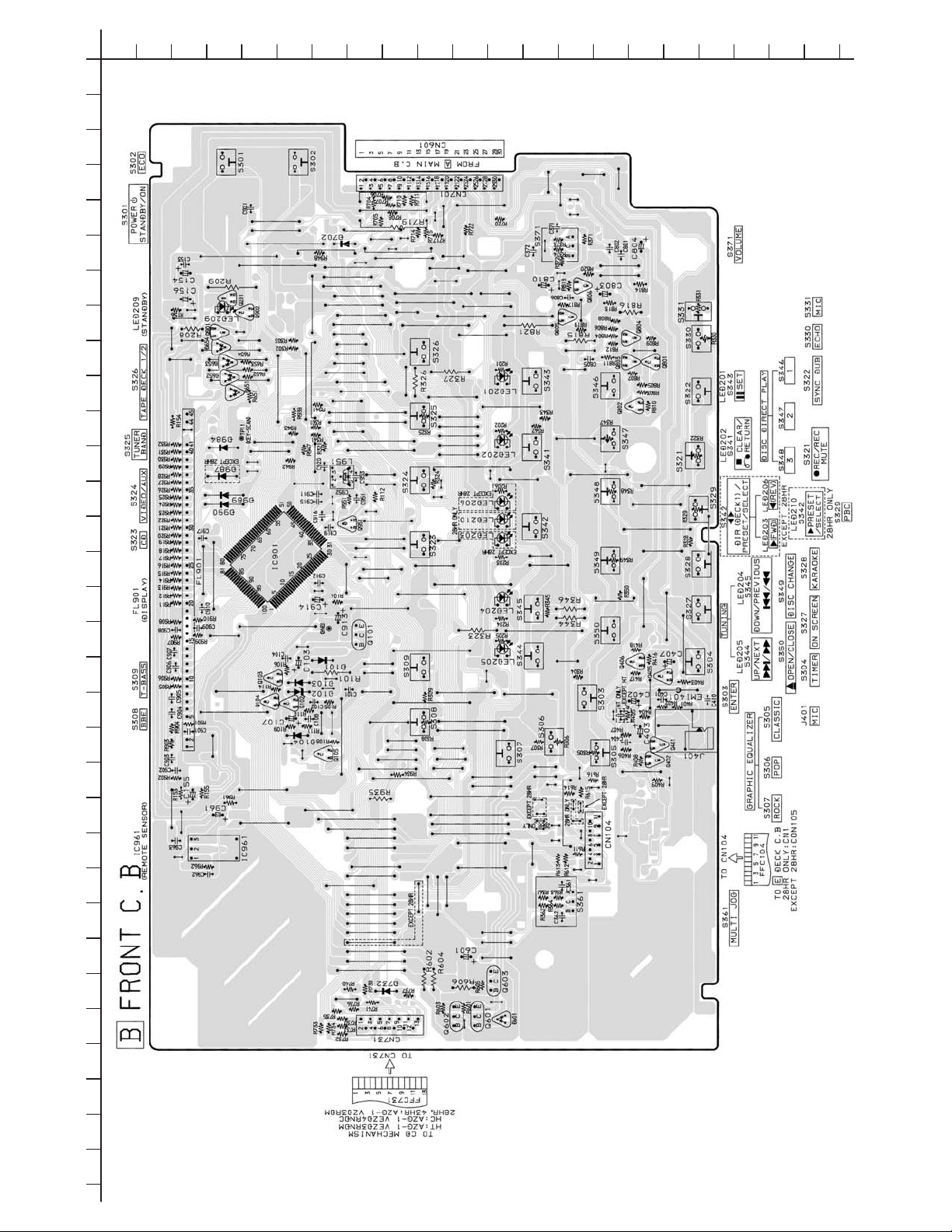

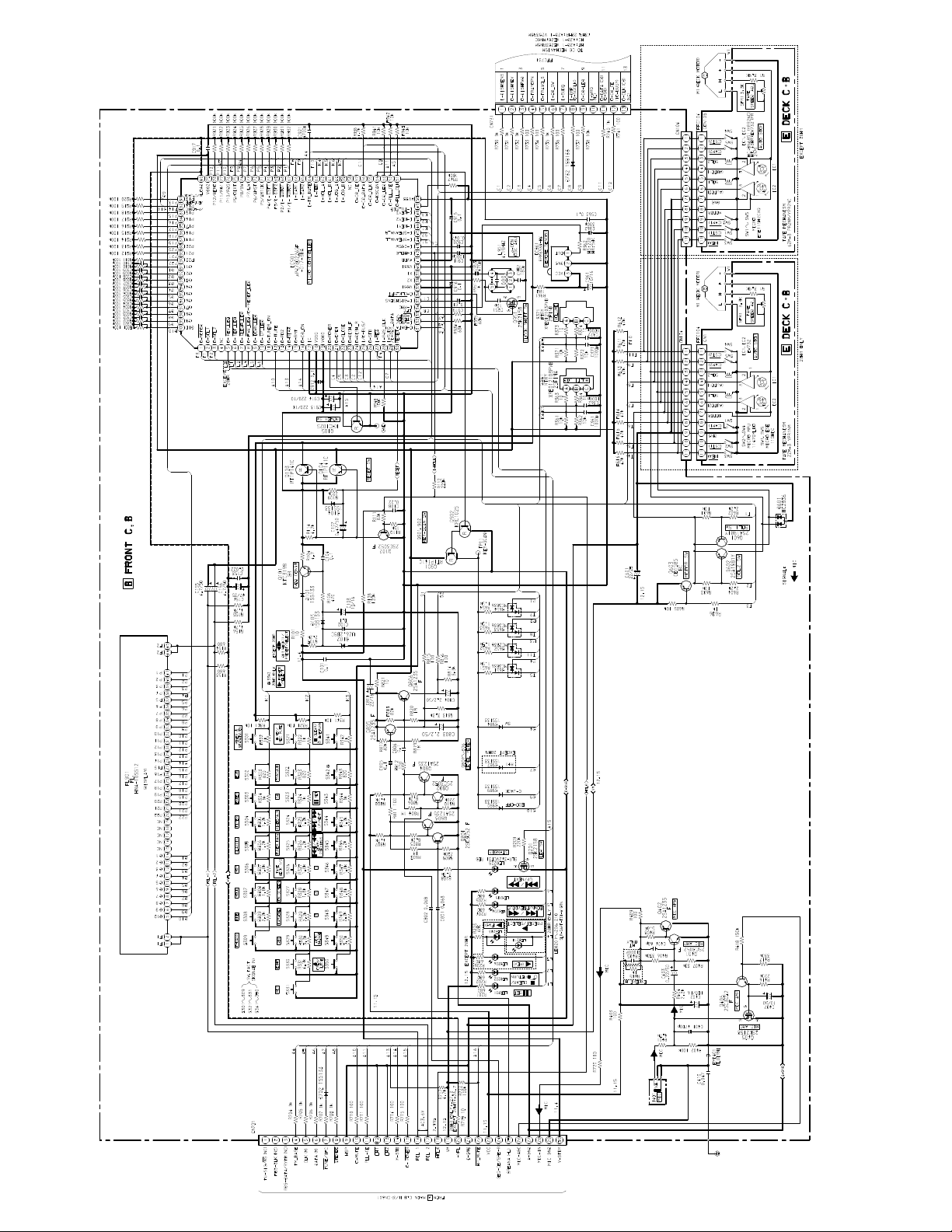

FRONT C.B
C101 87-010-196-080 CHIP CAPACITOR,0.1-25
C102 87-010-196-080 CHIP CAPACITOR,0.1-25
C103 87-010-498-040 CAP,E 10-16 GAS
C104 87-010-196-080 CHIP CAPACITOR,0.1-25
C107 87-010-493-040 CAP,E 0.47-50 GAS
C108 87-012-393-080 C-CAP,S 0.22-16 R K
C153 87-010-198-080 CAP,CHIP 0.022
C154 87-010-246-040 CAP,E 47-35 SME
C155 87-010-404-040 CAP,E 4.7-50 SME
C156 87-010-404-040 CAP,E 4.7-50 SME
C361 87-010-178-080 CHIP CAP,1000P
C362 87-010-178-080 CHIP CAP,1000P
C371 87-010-178-080 CHIP CAP,1000P
C372 87-010-178-080 CHIP CAP,1000P
C401 87-010-186-080 CAP,CHIP 4700P
C402 87-010-112-040 CAP,E 100-16
C403 87-010-545-040 CAP,E 0.22-50 SME
C404 87-010-320-080 CHIP CAP,68P
C407 87-010-405-040 CAP,E 10-50
C410 87-012-369-080 C-CAP,S 0.047-50F
C601 87-010-382-040 CAP,E 22-25 SME
C801 87-010-195-080 C-CAP,S 0.068-25 F
C802 87-010-195-080 C-CAP,S 0.068-25 F
C803 87-010-402-040 CAP,E 2.2-50 SME
C804 87-010-402-040 CAP,E 2.2-50 SME
C805 87-010-196-080 CHIP CAPACITOR,0.1-25
C806 87-010-196-080 CHIP CAPACITOR,0.1-25
C810 87-010-379-040 CAP,E 22-16 M 11L SME
C901 87-010-322-080 C-CAP,S 100P-50 CH
C902 87-010-322-080 C-CAP,S 100P-50 CH
C903 87-010-322-080 C-CAP,S 100P-50 CH
C904 87-010-322-080 C-CAP,S 100P-50 CH
C905 87-010-322-080 C-CAP,S 100P-50 CH
C906 87-010-322-080 C-CAP,S 100P-50 CH
C907 87-010-322-080 C-CAP,S 100P-50 CH
C908 87-010-322-080 C-CAP,S 100P-50 CH
C909 87-010-322-080 C-CAP,S 100P-50 CH
C910 87-010-322-080 C-CAP,S 100P-50 CH
C911 87-010-178-080 CHIP CAP,1000P
C912 87-010-196-080 CHIP CAPACITOR,0.1-25
C913 87-010-248-040 CAP,E 220-10 SME
C914 87-010-248-040 CAP,E 220-10 SME
C915 87-010-196-080 CHIP CAPACITOR,0.1-25
C916 87-010-196-080 CHIP CAPACITOR,0.1-25
C917 87-010-196-080 CHIP CAPACITOR,0.1-25
C919 87-010-197-080 CAP,CHIP 0.01 DM
C920 87-012-369-080 C-CAP,S 0.047-50F
C921 87-010-186-080 CAP,CHIP 4700P
C951 87-010-312-080 C-CAP,S 15P-50 CH
C952 87-012-155-080 C-CAP,180P-50 CH
C953 87-012-140-080 CAP,470P
C961 87-010-378-040 CAP,E 10-16
C962 87-012-157-080 C-CAP,S 330P-50 CH
C963 87-010-196-080 CHIP CAPACITOR,0.1-25
CN104 87-A60-057-010 CONN,11P V 9604S-11C
CN701 87-099-720-010 CONN,30P TYK-B(P)
CN731 87-099-015-010 CONN,13P 6216V
EMI401 87-008-372-080 FILTER,EMI BL OIRNI
FFC104 88-911-101-110 FF-CABLE,11P 1.25
FFC731 88-913-301-110 FF-CABLE,13P-1.25
FL901 8A-NF9-605-010 FL,HNA-10SS12
J401 87-A61-243-010 JACK,6.3 BLK MONO W/SW V MSC
L951 87-A50-434-010 COIL,CLK 4.19M(TOKO)
LED201 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED202 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED203 87-A40-619-040 LED,SLR-56PT-T31-W GRN<EXCEPT 28HR>
LED204 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED205 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED206 87-A40-619-040 LED,SLR-56PT-T31-W GRN<EXCEPT 28HR>
LED209 87-A40-317-080 LED,SLR-342VCT31 RED
LED210 87-A40-619-040 LED,SLR-56PT-T31-W GRN<28HR>
R405 87-010-178-080 C-CAP,S 1000P-50 KB<38HT>
S301 87-A90-164-080 SW,TACT SKNQAB(N)
S302 87-A90-164-080 SW,TACT SKNQAB(N)
S303 87-A90-164-080 SW,TACT SKNQAB(N)
– 6 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
S304 87-A90-164-080 SW,TACT SKNQAB(N)
S305 87-A90-164-080 SW,TACT SKNQAB(N)
S306 87-A90-164-080 SW,TACT SKNQAB(N)
S307 87-A90-164-080 SW,TACT SKNQAB(N)
S308 87-A90-164-080 SW,TACT SKNQAB(N)
S309 87-A90-164-080 SW,TACT SKNQAB(N)
S321 87-A90-164-080 SW,TACT SKNQAB(N)
S322 87-A90-164-080 SW,TACT SKNQAB(N)
S323 87-A90-164-080 SW,TACT SKNQAB(N)
S324 87-A90-164-080 SW,TACT SKNQAB(N)
S325 87-A90-164-080 SW,TACT SKNQAB(N)
S326 87-A90-164-080 SW,TACT SKNQAB(N)
S327 87-A90-164-080 SW,TACT SKNQAB(N)
S328 87-A90-164-080 SW,TACT SKNQAB(N)
S329 87-A90-164-080 SW,TACT SKNQAB(N)
S330 87-A90-164-080 SW,TACT SKNQAB(N)
S331 87-A90-164-080 SW,TACT SKNQAB(N)
S341 87-A90-164-080 SW,TACT SKNQAB(N)
S342 87-A90-164-080 SW,TACT SKNQAB(N)
S343 87-A90-164-080 SW,TACT SKNQAB(N)
S344 87-A90-164-080 SW,TACT SKNQAB(N)
S345 87-A90-164-080 SW,TACT SKNQAB(N)
S346 87-A90-164-080 SW,TACT SKNQAB(N)
S347 87-A90-164-080 SW,TACT SKNQAB(N)
S348 87-A90-164-080 SW,TACT SKNQAB(N)
S349 87-A90-164-080 SW,TACT SKNQAB(N)
S350 87-A90-164-080 SW,TACT SKNQAB(N)
S361 87-A91-633-010 SW,RTRY XRE012103PVB25FINA 1-2
S371 87-A91-632-010 SW,RTRY XRE012103PVB25FINB 1-2

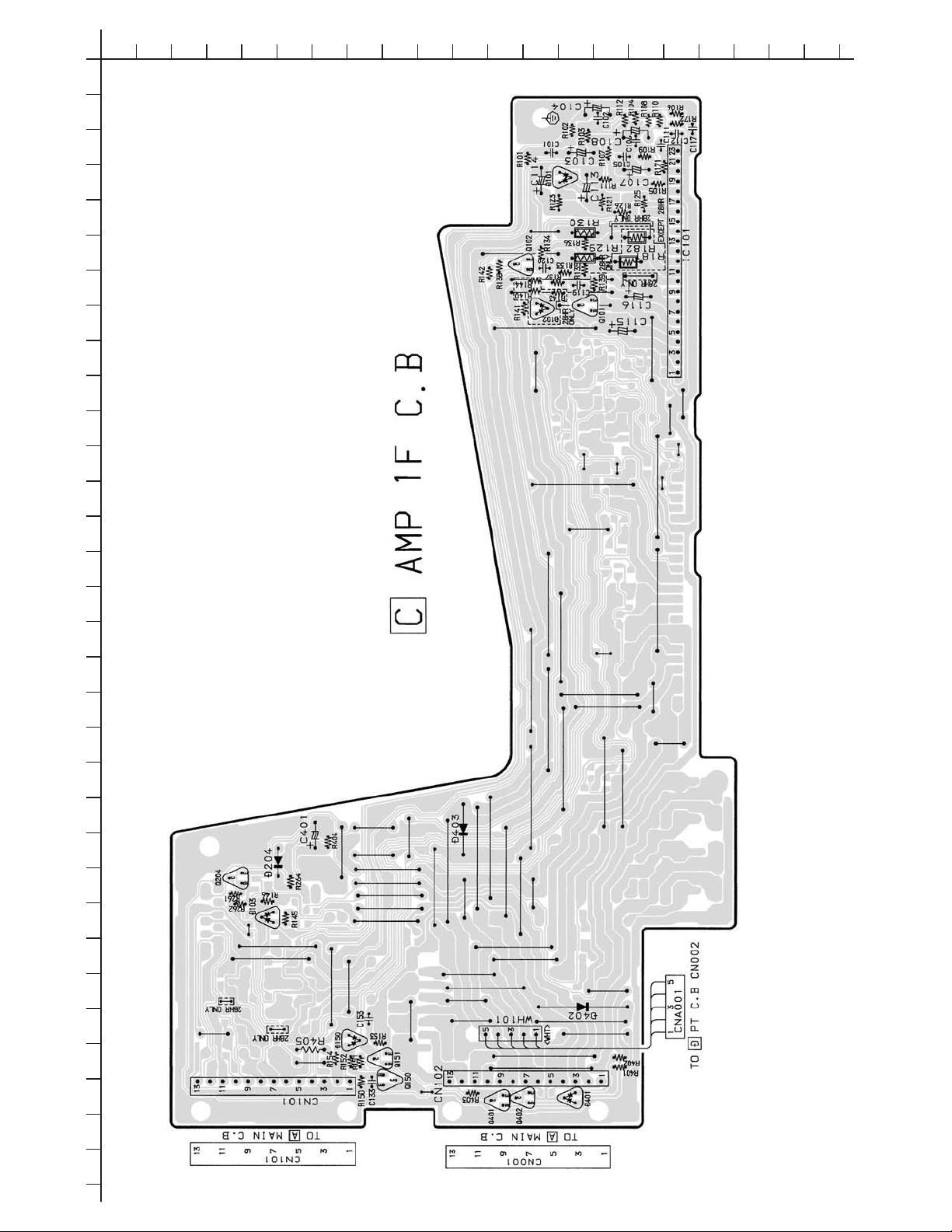

AMP 1F C.B
C101 87-010-188-080 C-CAP,S 6800P-50 KB<28HR>
C101 87-010-185-080 C-CAP,S 3900P-50 B<EXCEPT 28HR>
C102 87-010-188-080 C-CAP,S 6800P-50 KB<28HR>
C102 87-010-185-080 C-CAP,S 3900P-50 B<EXCEPT 28HR>
C103 87-010-400-080 CAP,E 0.47-50 M 11L SME<28HR>
C103 87-010-545-080 CAP,ELECT 0.22-50V<EXCEPT 28HR>
C104 87-010-400-080 CAP,E 0.47-50 M 11L SME<28HR>
C104 87-010-545-080 CAP,ELECT 0.22-50V<EXCEPT 28HR>
C105 87-010-197-080 CAP,CHIP 0.01 DM<28HR>
C105 87-010-188-080 CAP,CHIP 6800P<EXCEPT 28HR>
C106 87-010-197-080 CAP,CHIP 0.01 DM<28HR>
C106 87-010-188-080 CAP,CHIP 6800P<EXCEPT 28HR>
C107 87-010-404-080 CAP,ELECT 4.7-50V
C108 87-010-404-080 CAP,ELECT 4.7-50V
C111 87-010-179-080 CAP,CHIP S B1200P
C112 87-010-179-080 CAP,CHIP S B1200P
C113 87-010-405-080 CAP,ELECT 10-50V
C114 87-010-405-080 CAP,ELECT 10-50V
C115 87-010-405-080 CAP,ELECT 10-50V
C116 87-010-405-080 CAP,ELECT 10-50V
C117 87-010-196-080 CHIP CAPACITOR,0.1-25
C119 87-010-197-080 CAP,CHIP 0.01 DM
C120 87-010-197-080 CAP,CHIP 0.01 DM
C133 87-010-197-080 CAP,CHIP 0.01 DM
C153 87-010-188-080 CAP,CHIP 6800P
C401 87-010-260-080 CAP,ELECT 47-25V
CN101 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3
CN102 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3
CNA101 8A-NF8-656-010 CONN ASSY,5P TID-A 400
R129 87-A00-258-080 RES,M/F 0.22-1W J<28HR>
R129 87-A00-669-080 RES,M/F 0.22-2W J RA<EXCEPT 28HR>
R130 87-A00-258-080 RES,M/F 0.22-1W J<28HR>
R130 87-A00-669-080 RES,M/F 0.22-2W J RA<EXCEPT 28HR>
R181 87-A00-669-080 RES,M/F 0.22-2W J RA<EXCEPT 28HR>
R182 87-A00-669-080 RES,M/F 0.22-2W J RA<EXCEPT 28HR>
WH101 87-A90-459-010 HLDR,WIRE 2.5-5P
PT C.B
C1 87-010-387-080 CAP,E 470-25 SME
C8 87-A11-148-080 CAP,TC U 0.1-50 Z F
C9 87-A11-148-080 CAP,TC U 0.1-50 Z F
C10 87-A11-148-080 CAP,TC U 0.1-50 Z F
C11 87-A11-148-080 CAP,TC U 0.1-50 Z F
C12 87-010-917-010 CAP,E 3300-50 M SMG<28HR>
C12 87-016-520-000 CAP,E 3300-65 M SMG<EXCEPT 28HR>
C13 87-010-917-010 CAP,E 3300-50 M SMG<28HR>
C13 87-016-520-000 CAP,E 3300-65 M SMG<EXCEPT 28HR>
C16 87-010-403-080 CAP,ELECT 3.3-50V
CN1 87-A61-110-010 CONN,9P V TID-A
CN2 87-A61-108-010 CONN,5P V TID-A
PT1 8A-NH0-613-010 PT,ANH-0 HR-LOW<28HR>
PT1 8A-NH9-613-010 PT,ANH-9 HR<EXCEPT 28HR>
PT2 8A-NF8-673-010 PT,SUB ANF-8(H)KAMI
RY1 87-A91-339-010 RELAY,AC DC12V G5PA-2
S1 87-A90-165-010 SW,SL 1-2-3 SWS2301
T1 87-A60-317-010 TERMINAL,1P MSC
T2 87-A60-317-010 TERMINAL,1P MSC
DECK C.B
CN105 87-099-753-010 CONN,11P 9604
SFR1 87-024-581-010 SFR,3.3K DIA 6H
SOL1 82-ZM3-627-010 SOL ASSY,27 SO
SOL2 82-ZM3-627-010 SOL ASSY,27 SO
SW1 87-A90-673-010 SW,MICRO ESE11SH1C<28HR>
SW1 87-A90-248-010 SW,MICRO ESE11SH2CXQ<EXCEPT 28HR>
SW2 87-A91-500-010 SW,MICRO MPU11470MLB0<28HR>
SW2 87-A90-248-010 SW,MICRO ESE11SH2CXQ<EXCEPT 28HR>
SW3 87-A91-500-010 SW,MICRO MPU11470MLB0<28HR>
SW3 87-A90-248-010 SW,MICRO ESE11SH2CXQ<EXCEPT 28HR>
SW4 87-A91-500-010 SW,MICRO MPU11470MLB0<28HR>
SW4 87-A90-248-010 SW,MICRO ESE11SH2CXQ<EXCEPT 28HR>
SW5 87-A90-673-010 SW,MICRO ESE11SH1C<28HR>
SW5 87-A90-248-010 SW,MICRO ESE11SH2CXQ<EXCEPT 28HR>
HEAD-1 C.B<EXCEPT 28HR>
CON301 85-MA2-615-010 CONN ASSY,3P-PH
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
!
!
!
!
!
!
!
– 7 –
TRANSISTOR ILLUSTRATION
E C B
CD1585
CSA952
CSC4115
KTA1266
KTC3198
B
C
E
2SA1235
2SC2714
2SC3052
CMBT5401
CMBT5551
2SK360
B C E
2SB1370
G
D
S
2SK2158
E C B
DTC114ES
KTC3199
D
S
G
CSD1306
KRA104S
KRC102S
RT1P141C
RT1P144C
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
E C B
2SA1981
– 8 –
WIRING – 1 (MAIN) 101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132
– 9 –
SCHEMATIC DIAGRAM – 1 (MAIN : 1 / 3)
– 10 –
SCHEMATIC DIAGRAM – 2 (MAIN : 2 / 3 <DECK SECTION> / HEAD – 1)
– 11 –
SCHEMATIC DIAGRAM – 3 (MAIN : 3 / 3 <TUNER SECTION>)
– 12 –
WIRING – 2 (FRONT) 101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132
– 13 –
SCHEMATIC DIAGRAM – 4 (FRONT / DECK)
– 14 –
WIRING – 3 (AMP 1F) 101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132
– 15 –
SCHEMATIC DIAGRAM – 5 (AMP 1F)

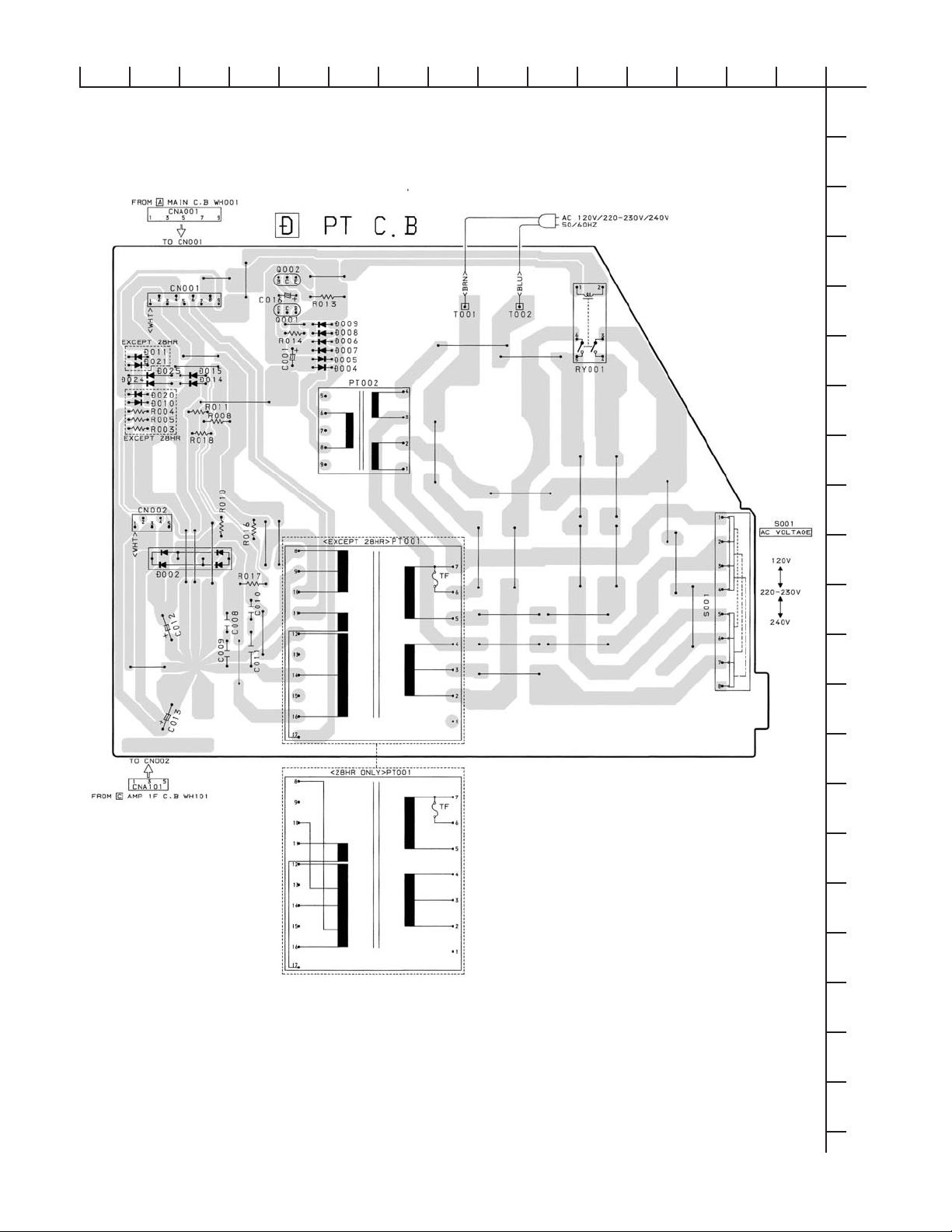

WIRING – 4 (PT)
– 16 –
123456789101112131415
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
– 17 –

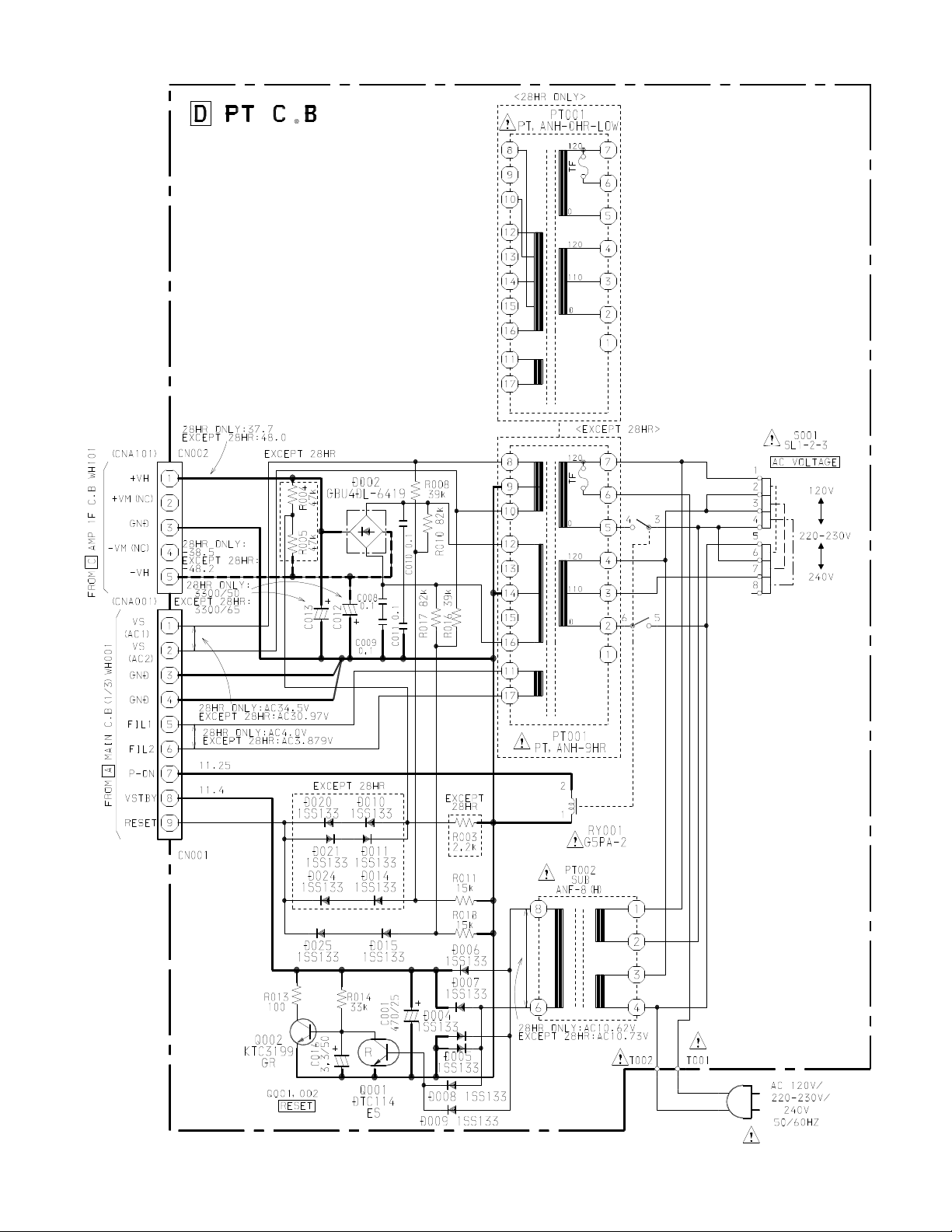

SCHEMATIC DIAGRAM – 6 (PT)

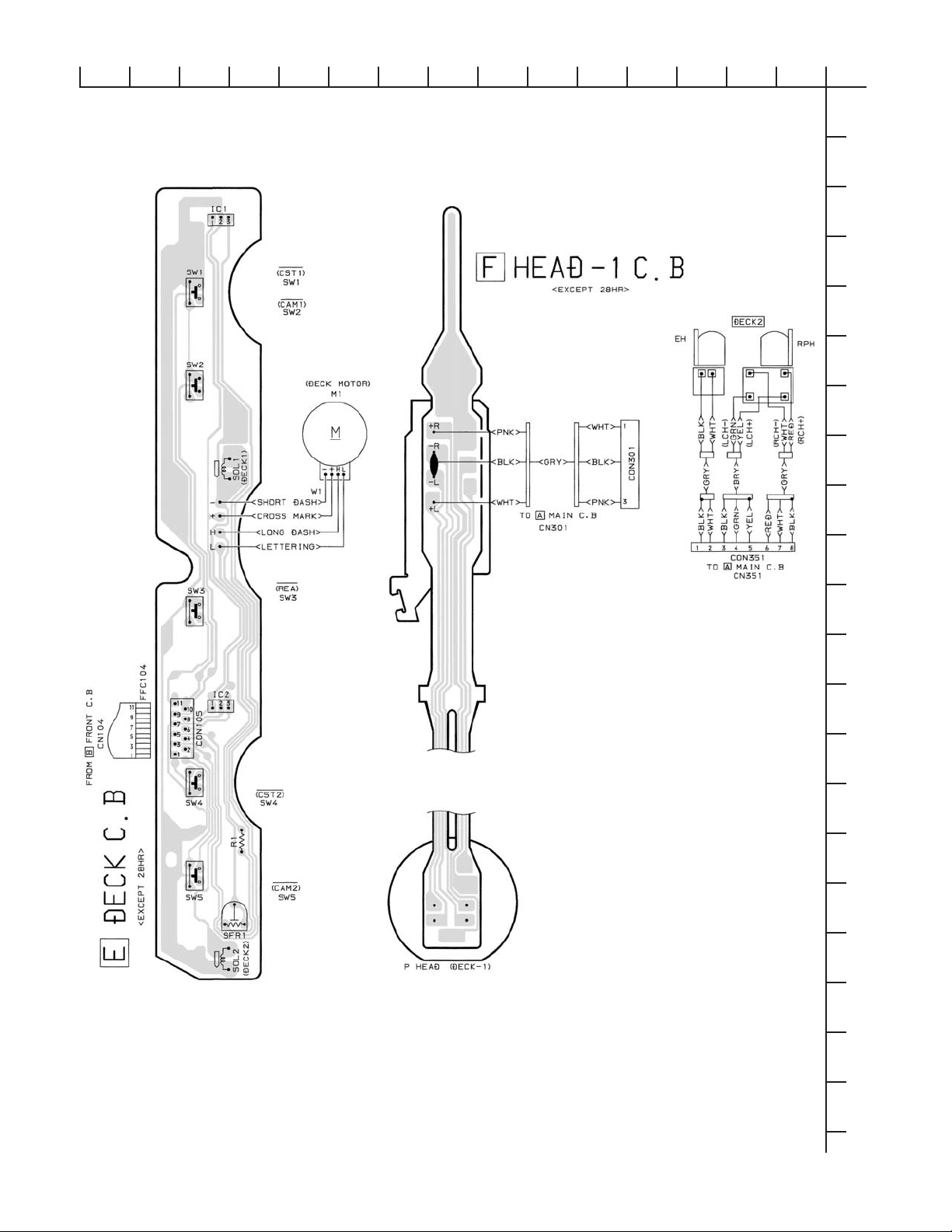

WIRING – 5 (DECK / HEAD – 1) <EXCEPT 28HR>
– 18 –
123456789101112131415
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
– 19 –
E DECK C . B <28HR ONLY>
1 3 5 7 9 11
2 4 6 8 10
1 357911
FFC104
FROM
BFRONT C. B CN104
W1
M1
DECK
MOTOR
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132
WIRING – 6 (DECK) <28HR ONLY>
– 20 –
IC BLOCK DIAGRAM
This manual suits for next models
6
Table of contents
Other Aiwa Stereo System manuals
