Kenwood HM-383MD User manual

MICRO HI-FI COMPONENT SYSTEM
INSTRUCTION MANUAL
KENWOOD CORPORATION
B60-4931-00 (EN)
HM-383MD
DIGITAL AUDIODIGITAL AUDIO
COMPACTCOMPACT
TEXTTEXT

2
Before applying power
Preparation section
Caution : Read this page carefully to ensure safe operation.
Units are designed for operation as follows.
Europe and U.K................................ AC 230 V only
The marking is located on the rear panel and says this prod-
uct has been classified as Class 1. It means that there is no
danger of hazardous radiation outside the product
CLASS 1
LASER PRODUCT
The marking of products using lasers (Except for some areas)
Safety precautions
WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS IN-
SIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRI-
ANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED
“DANGEROUS VOLTAGE” WITHIN THE PRODUCT’S ENCLOSURE THAT MAY BE OF
SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO
ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAIN-
TENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE
APPLIANCE.
CAUTION
Beforeapplyingpower
Inside this laser product, a laser diode(s) exceeding Class 1
laser radiation is/are contained as alerted by the internal
caution label shown above. To avoid exposure to laser
beams, do not open the cover.
CAUTION
INVISIBLE LASER RADIATION
WHEN OPEN. AVOID EXPOSURE
TO BEAM.

3
Before applying power
Preparation section
CD = MD high-speed dubbing
This convenient feature enables simple, quick dubbing from a CD to an MD (either single track or all
tracks in a CD).
MD Long Play modes
With the long-hour recording/playback modes (LP2, LP4) based on ATRAC3 (MDLP), digital long-hour re-
cording/playback for twice (about 160 minutes*) or 4 times (about 320 minutes*) the normal recording/
playback time is now available. (* Data using a 80-minute disc.)
Versatile timer features
÷O.T.T. (Operate easy To use Timer) :
This timer setting is executed only for an hour (and for once) when the set start time comes.
÷Timer playback, timer recording :
Two timer programs (PROG.1, PROG.2) are available for timer playback (AI timer playback) or timer recording.
(With the AI timer playback, the playback volume increases gradually after the start of timer playback.)
÷Sleep timer :
This timer turns the unit off automatically when the set time has elapsed. It is convenient for example for
falling asleep while listening to music in the night time, etc.
This unit is equipped with a demonstration function (only display). The demonstration consists of se-
quentialchangeofdisplayandindicatorsshowingtheoperations, but the audioitselfdoesnotchange.
The demonstration function can be cancelled as follows.
÷This operates automatically when a power failure
has occurred or the plug of the power cable has
been pulled while the power was ON.
In regard to demonstration
"DEMO ON" (To execute demonstration):
After turning power ON, press and hold the set/
demo key (for more than 2 seconds).
"DEMO OFF" (To cancel demonstration):
Press the set/demo key during demonstration.
Convenient recording features
Versatile recording features are provided, allowing the user to select desired one for each purpose.
÷One-touch recording :
Pressing a single key starts recording of all tracks or a single track in a CD.
÷TWIN recording :
Simultaneous recording of CD playback onto both MD and tape.
÷Program recording :
Your favorite tracks can be recorded in any desired order.
set / demo
Special features

4
Before applying power
Preparation section
FM indoor antenna (1)
Accessories
AM loop antenna (1) Remote control unit (1) Batteries (R6/AA) (2)
Unpacking
Unpack the unit carefully and make sure that all the accessories are present.
If any accessories are missing, or if the unit is damaged or fails to operate, notify your dealer immediately. If the unit was
shipped to you directly, notify your shipper immediately. Kenwood recommends that you retain the original carton and
packing materials in case you need to move or ship the unit in the future.
Keep this manual handy for future reference.
Please confirm that the following accessories are present.

5
Before applying power
Preparation section
Before applying power.......................................2
Safety precautions ........................................................2
Special features ....................................................................3
System connection ....................................................6
Connection of the System Accessories ............................6
Connection of Other Accessories
(Commercially Available Parts).....................................8
Controls and indicators.............................................9
Display .....................................................................................9
Main unit ...............................................................................10
Operation of remote control unit......................................12
Basic use method.....................................................14
Playback of CD .........................................................16
Playback of Mini Disc .............................................19
Playback of tape.......................................................22
Receiving broadcast station ..................................24
Collective presetting of stations ......................................25
Channel space setting........................................................25
Tuning a non-preset radio station
(Auto tuning, Manual tuning) .......................................26
One-by-one presetting
(Manual preset) ...............................................................26
R.D.S. (Radio Data System).....................................27
Searching for a desired program type
(PTY search).....................................................................28
Recording on MD .....................................................30
Stereo long play recording/playback of MD .................33
Recording on TAPE ..................................................34
Various CD/MD playback features .......................37
Listening to the desired sequence
(program playback) ........................................................37
Repeated playback .............................................................39
Playing tracks in a random order
(random playback)..........................................................40
Caution : Read this pages marked carefully to ensure safe operation.
Convenient recording methods .............................41
High-speed recording (CD = MD) ..................................42
One-touch edit recording
(CD
= MD/ CD = TAPE) .................................................44
Twin recording onto MD and tape
(TWIN REC).......................................................................46
Program recording
(CD
= MD / CD = TAPE / TWIN REC)..........................48
Program recording (MD
= TAPE) ....................................50
MD Edit Functions ....................................................51
Moving multiple tracks (QUICK MOVE) ..........................52
Moving a single track (MOVE)..........................................54
Erasing multiple tracks (QUICK ERASE) or erasing all
tracks in disc (ALL ERASE) ................................................56
Erasing a single track (ERASE) ........................................58
Combining two tracks (COMBINE) ..................................59
Dividing a track (DIVIDE) ...................................................60
Assigning a title to a disc or track ..................................62
Entering characters in Title Memo (TITLE MEMO) ......66
Copying a title (TITLE COPY) .............................................67
To delete the edited contents (EDIT CANCEL)...............68
Listening to an AUX input source..........................69
Clock adjustment .....................................................70
Timer operation ........................................................71
Sleep timer (SLEEP) ............................................................71
Setting the O.T.T. timer.......................................................72
Setting an everyday timer program
(PROG. TIMER) .................................................................74
Important Items.........................................................77
Maintenance ........................................................................77
Reference..............................................................................77
In case of difficulty ..................................................80
Specifications...........................................................84
Preparation section
Basic section
Knowledge sections
Contents
Application section
Application section
Basic section Knowledge sections

System connection
6
Preparation section
Systemconnection

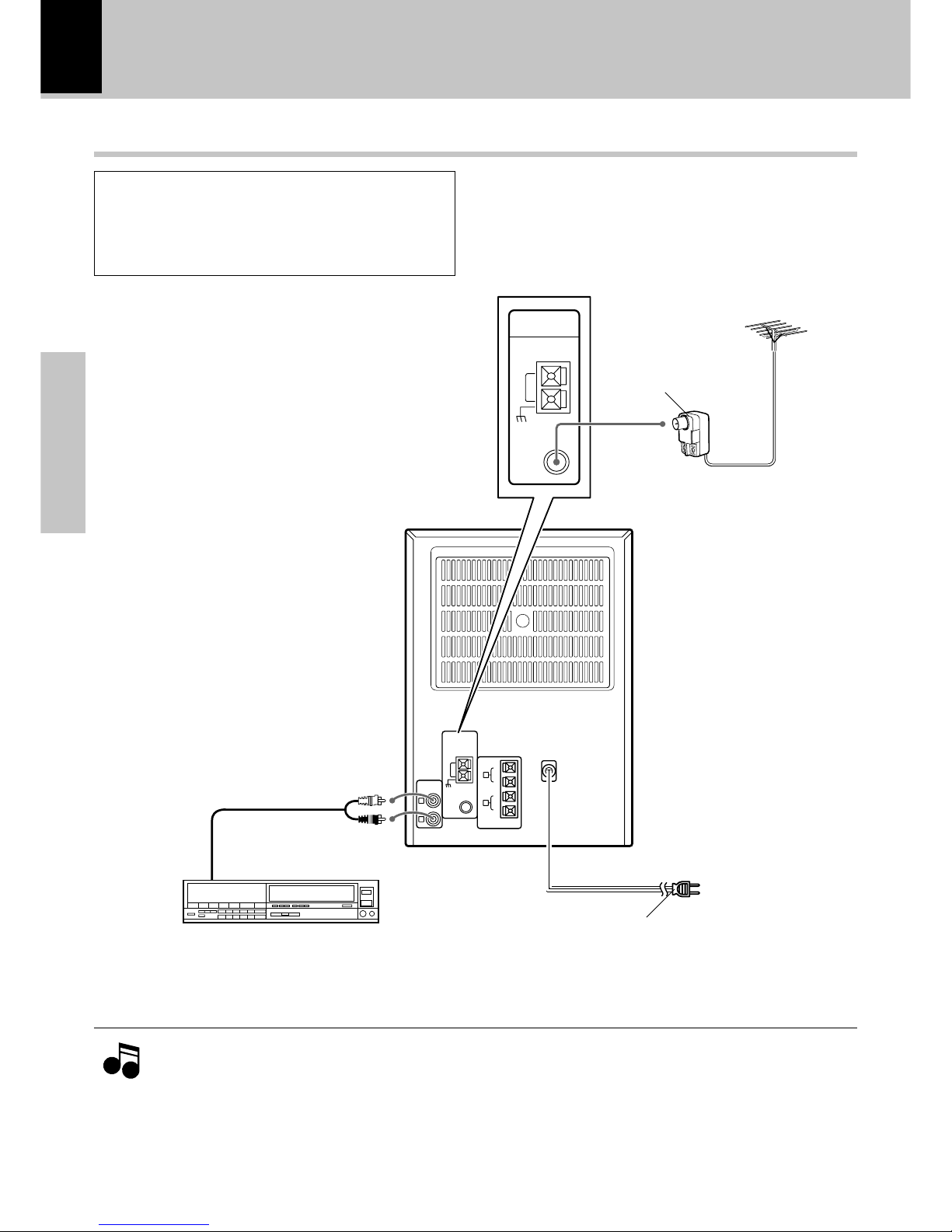

This figure shows the method of connection between the main unit and provided accessories.
AM loop antenna
The supplied antenna is for indoor use. Place it as
far as possible from the main system, TV set,
speaker cords and power cord, and set it to a di-
rection which provides the best reception.
Connect the components as shown in the diagram.
Only plug the power cord into a power outlet once
connections are completed.
1. If a speaker is installed near a TV, color irregularities
may be observed on the TV screen. To avoid this, in-
stall the speakers apart from a TV.
2. Color irregularities on the TV screen may also be pro-
duced depending on the method how the speakers are
installed. When color irregularities are observed after
the speaker installation, first turn the TV off, wait for 15
to 30 minutes and turn it on again: The interference
may be improved by the self-demagnetizing function of
the TV. If the color irregularities still remain, install the
speakers more apart from the TV.
3. Due to induction by the electromagnetic waves pro-
duced by a TV, the speakers may produce sound even
when the stereo unit is turned off. In this case also,
install the speakers more apart from the TV.
Installation of speakers and positioning of TV
AM loop antenna
CAUTION Note on Connection
Speaker (Right)
÷Never short-circuit the "+" and " - " speaker cords.
÷If the "+" and "
- " polarity are inverted, the sound will be unnatural with unclear positioning of musical instru-
ments, etc.
÷Be sure to insert all connection cords securely. If their connections are imperfect, the sound may not be
produced or noise may interfere.
÷Before plugging or unplugging a connection cord, be sure to unplug the power cord from the wall AC outlet. If
connection cords are plugged or unplugged with the power cord left plugged in, malfunction or damage may result.
Notes
Notes
Assemble
\
\
Be sure to adhere followings. Or proper ventilation
will be blocked causing damage or fire hazard.
÷Do not place any objects impairing heat radiation
onto the top of unit.
÷Leave a space around the unit (from the largest out-
side dimension including projection) equal or
greater than, shown below.
Top panel : 50 cm
Back panel : 10 cm
CAUTION
Connection of the System Accessories

System connection
7
Preparation section
FM indoor antenna
Theaccessory antenna is for temporary indoor use
only. For stable signal reception we recommend
using an outdoor antenna. Remove the indoor an-
tenna if you connect one outdoors.
Speaker cord
FM indoor antenna
ANTENNA
AM
GND
FM
75
Ω
AUX
INPUT
L
R
AM
GND
FM
75
Ω
ANTENNA
+
-
L
-
+
R
FRONT
SPEAKERS
(6-16
Ω)
+
-
L
-
+
R
FRONT
SPEAKERS
(6-16
W)
Speaker (Left)
POWER cord
TO WALL AC OUTLET
1Connect the antenna to the antenna terminal.
2Locate the position providing good reception
condition.
3Fix the antenna.
12 3
How to connect speaker cords to the main unit
12 3
How to connect AM antenna cord to the main unit
Malfunction of microcomputer
If operation is not possible or erroneous display
appears even though all connections have been
made properly, reset the microcomputer refer-
ring to "In case of difficulty". ;

System connection
8
Preparation section
ANTENNA
AM
GND
FM
75
Ω
AUX
INPUT
L
R
AM
GND
FM
75
Ω
ANTENNA
+
-
L
-
+
R
FRONT
SPEAKERS
(6-16
W)
÷In case an associated system component is connected, also read the instruction manual of the component.
÷Be sure to insert all connection cords securely. If their connections are imperfect, the sound may not be
produced or noise may interfere.
÷Before plugging or unplugging a connection cord, be sure to unplug the power cord from the wall AC outlet. If
connection cords are plugged or unplugged with the power cord left plugged in, malfunction or damage may
result.
Leadthe75ΩcoaxialcableconnectedtotheFMout-
door antenna into the room and connect it to the
FM 75Ωterminal. Please remove the indoor an-
tennaafter an outdoor antenna has been installed.
Connect the components as shown in the dia-
gram. Only plug the power cord into a power
outlet once connections are completed.
CAUTION Note on Connection
Audio cord
Audio output
VCR, Analog turntable with built-in
RIAA equalizer (optional P-110), etc.
POWER cord
TO WALL AC OUTLET
Antenna adaptor
(Commercially
Available Parts)
FM outdoor antenna
FM outdoor antenna
Notes
Notes
Connection of Other Accessories (Commercially Available Parts)

System connection
9
Preparation section
1Tape-related indicators
2CD and MD-related indicators
3Character information display/tuner-
related indicators
4RDS-related indicators (For Europe
and U.K.)
5Timer-related indicators
6MD/tape record/record-pause indi-
cators
The displays given in this manual are approximations only. They may differ from what actually appears on
the display.
Controlsandindicators
7MD LP mode indicators
8O.T.E. (One-Touch Edit) indicator
9MD-EDIT indicator
0MONO indicator
!HIGH-SPEED indicator
@TAPE EQ. indicator
#Character information display (Dot
display)
$EX.BASS indicator, LOUD indicator
1Select "A.P.S. SET?".
AUTO POWER SAVE function
When the unit is ON and the unit is left for 30 minutes with CD, MD and TAPE not operating, the unit is switched
off automatically by this function. This is convenient when you forgot to switch off the unit. This function can be
activated or deactivated by the following operation.
÷When the TUNER or AUX input is selected, APS op-
erates only when the volume is set to zero or when
MUTE is on.
(Press the set/demo key while the "?" mark is
blinking.)
set / demo
00000000000
12 35
467
8
90@#!$
volume / multi control
2Select "A.P.S. ON" or "A.P.S. OFF".
3Set it.
menu set / demo
volume / multi control
\
\\ \
Display

System connection
10
Preparation section
10CD key ^
Press to open or close the CD tray.
2Remote sensor #
3Display panel
4volume/multi control knob !$
Normally, this is used for volume adjustment.
54and ¢keys
CD, MD : &)‰
Used to skip tracks as well as for MD editing, char-
acter selection, etc.
TAPE : £
Used to fast forward or rewind tape.
TUNER : ¢
Used to receive a preset radio station.
7stop/ Tuning Mode key
CD, MD, TAPE: &)£
Press to stop a disc or tape operation.
TUNER: §
Press to switch between the AUTO (auto tuning,
stereo reception) and MONO (manual tuning,
manual reception) modes.
On STANDBY mode: ∏
Press to display the clock.
6set/demo key
Press to set or enter an item selected with the vol-
ume/multi control knob.
This key is also used for switching demonstration on/
off. 3
About the one-touch operation function
This unit incorporates the one-touch operation function for the user's convenience.
With this function, pressing any key enclosed in while the unit is in standby mode immediately start
playback (or reception).
0 MD
0
menu set / demo
push open
MD rec TAPE recrepeatsound
AUX 47
stop
¢
Tuning
Mode
FM/AM
TUNER
FM/AM
TUNER
Power
remote
standby
/ timer
6
CD
6
MD TAPE
6 2 3
volume / multi control
0 CD
2
3
4
5
6
7
8
9
(
*
&
^
%
$
!
01
#
@
Controls and indicators
*

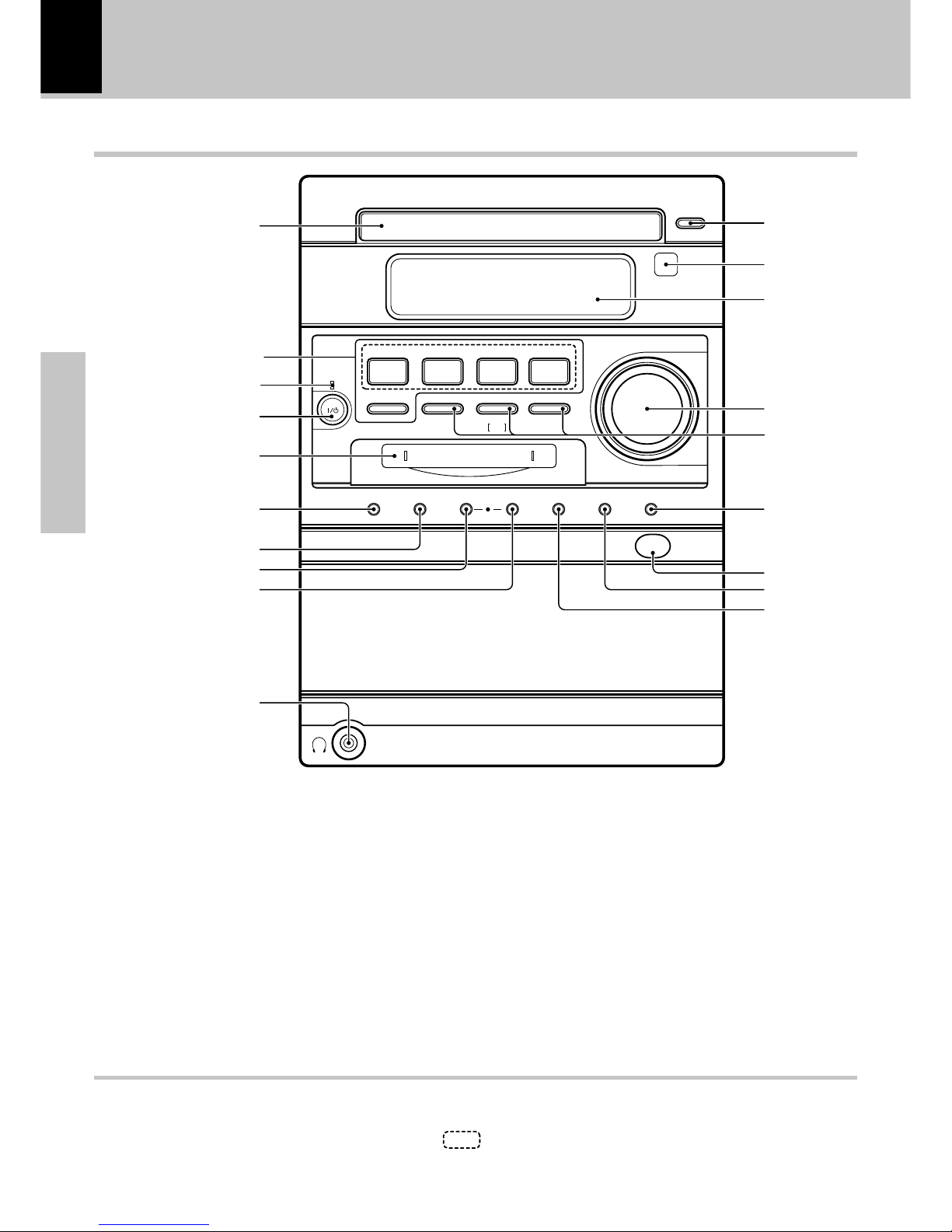

Mainunit

System connection
11
Preparation section
Turning the knob switches the display contents.
"TAPE RVS. ?" £
"MD REC MODE" ⁄‹w
"REC SPEED ?" w
"REC OPTIONS" w
"AUTOPRESET"or "AUTO MEMORY" ∞
(Only when the TUNER input is selected)
"AUX INPUT ?" Ø
(Only when the AUX input is selected)
"TIMER SET ?" sf
"A.P.S. SET ?" 9
Afterpressing the menukeytoselect the menuse-
lect mode, turn the volume/multi control knob to
select the desired menu item.
To set or enter the setting of the menu item, press
the set/demo key.
*
About the volume/multi control knob
7Cassette holder ™
To load or eject a cassette tape, press the area marked
0push open on the cassette holder to open it.
8menu key !∏
Press to switch the function of the volume/multi
control knob to the menu select mode.
This key is also used when setting the time of the day.
90MD key )
Press to eject the MD.
0CD tray ^
Press the 0CD key to open or close CD tray.
!Basic operation keys
TUNER FM/AM key ¢
Press to select the TUNER input.
This key is also used to select the received broadcast
band.
CD 6key ^
Press to select the CD input and start playback. Press-
ing this key during CD playback initiates pause.
MD 6key (
Press to select the MD input and start playback. Press-
ing this key during MD playback let it pause, and press-
ing it during MD recording initiates record-pause.
TAPE 23key ™
Press to select the TAPE (cassette deck) input and
start playback of a tape. Pressing this key during tape
playback switches the tape transport direction.
AUX key Ø
Press to reproduce the external source component
connected to the AUX (analog auxiliary input) jacks.
Pressing this key while the unit is off turns it on at the
same time as selecting the AUX input.
@standby/timer indicator
Lights up when the unit is set to the Standby mode of
power.
Red : Ordinary standby.
Green : Timer standby.
Off : The unit is ON.
#key $
Press to set the unit to On or Standby.
$Mini Disc insertion slot
%sound key %
Press to switch the sound effect to EX.BASS or
LOUD.
^repeat key (CD, MD) ·
Press for setting repeated playback.
&MD rec key ⁄
Press to start MD recording.
*TAPE rec key fi
Press to start tape recording. Pressing this key during
recording initiates record-pause after leaving a no-
sound blank of about 4 seconds.
(Headphone jack %
Connect headphones with a stereo mini-plug (option-
ally available).
÷The function of the control knob returns to the normal
mode when it has not been operated for 20 seconds.
÷"MD REC MODE" and "REC SPEED ?" are not dis-
played during MD recording.
Standby mode
While the standby indicator of the unit is lit, a small amount of current is flowing into the unit’s internal
circuitry to back up the memory. This condition is referred to as the standby mode of the unit. While the
unit is in the standby mode, it can be turned ON from the remote control unit.
menu set / demo
volume / multi control
\
\\ \
Controls and indicators

System connection
12
Preparation section

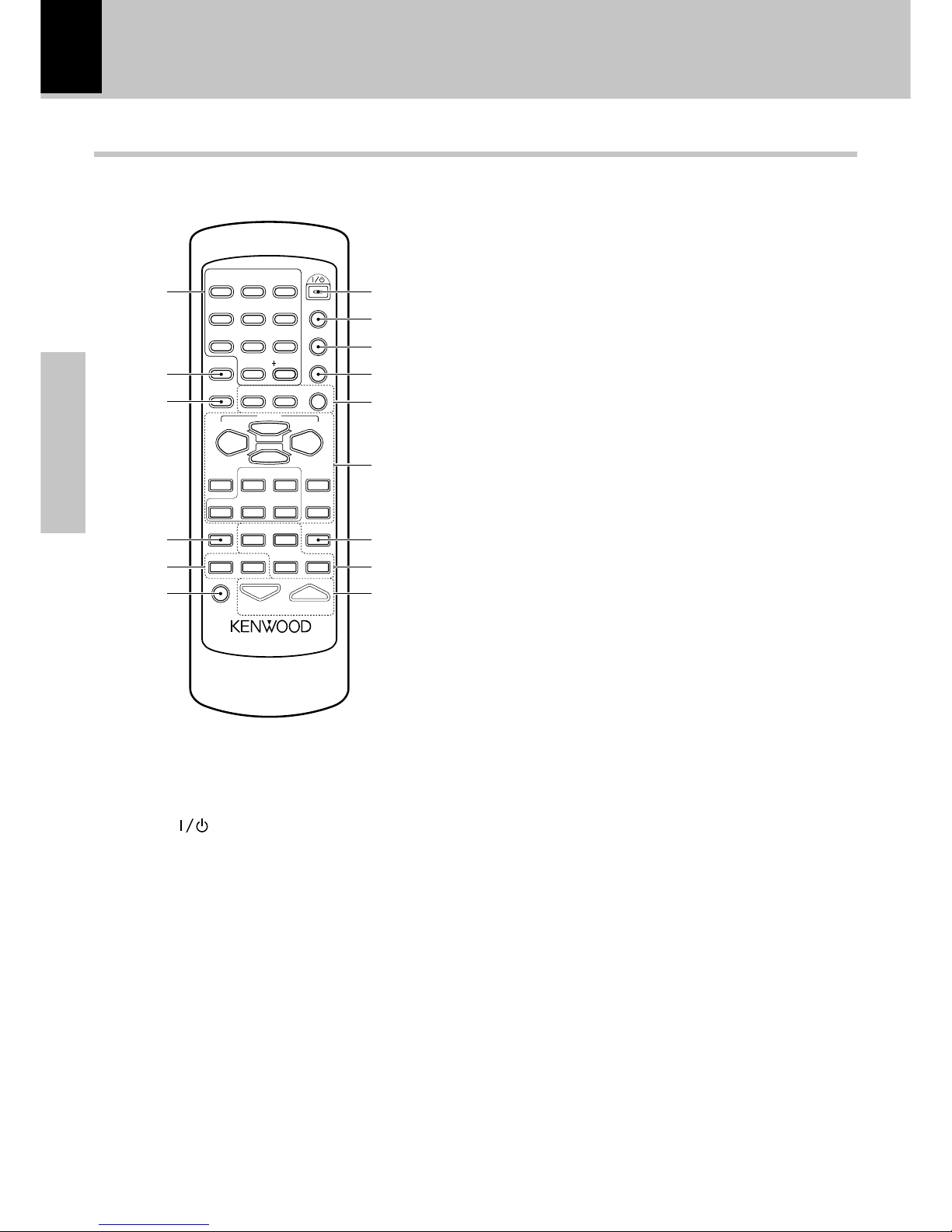

Infrared ray system
Model : RC-M0303E (For U.K. and Europe)
: RC-M0303E(For other countries)
1POWER ( ) key $
Press to set the unit to On or Standby.
2TITLE INPUT key „
Used in MD title input operation.
3TRACK EDIT key W
Used in MD track editing operations such as
track moving and track erasure.
4PGM key (CD, MD) ‡
Used in programming CD or MD tracks in the desired
sequence.
5SPACE key ´
Press to input a space in MD title input operation.
CHARAC. key ´
Press to switch the character types in MD title input
operation.
CLEAR/DELETE key (CD, MD) ‡´
Press to clear a programmed track(s).
Pressing this key during MD title input operation de-
letes a character.
The keys on the remote control unit with the same names as on the main unit have the same function as
the keys on the main unit.
6Basic operation keys
(Common keys shared by CD and MD function for CD or
MD according to the input selection.)
4P.CALL ¢keys
CD, MD : &)
Used to skip tracks as well as for MD editing, char-
acter selection, etc.
TAPE :
Used to fast forward or rewind tape.
TUNER : ¢
Used to receive a preset radio station.
SET key W
Press to set an MD editing operation or to set or enter
an item selected with the volume/multi control
knob.
ENTER key §Eˇ
Press to execute an MD editing operation or to enter
an input title, etc.
This key is also used to enter a radio station in the pre-
set memory of the tuner.
TUNING UP/ DOWN (1, ¡) keys
CD, MD, TAPE : &)£´
Used to fast forward or rewind tape or to fast for-
ward or fast reverse a CD or MD.
This key is also used to move the cursor during MD
title input.
TUNER : ¢
Used to select a radio station.
CD 6key ^
TUNER/ BAND key ¢
STOP 7/ AUTO/MONO key &§
MD 6key (
TAPE 23key ™
TAPE EQ. key £
Press to turn the tape equalizer on.
7TAPE O.T.E. key t
Press to start recording CD onto a tape with one-touch
operation.
Pressing this key during CD playback records only the
track being played onto tape. Pressing it during CD
stop records all the CD tracks onto tape.
8DISPLAY key *¡
Press to switch the display mode of the display panel.
PTY/ TIME DISPLAY key (For Europe and U.K.)
*¡£•
Used at the time of program type detection.
Press to switch the displayed time information on CD
or MD.
TIME DISPLAY key (For other countries)
*¡£
Press to switch the displayed time information on CD
or MD.
Controls and indicators
Operation of remote control unit
¢
TRACK EDIT
REPEAT
4
6
TAPE TAPE EQ.
VOLUME
ENTER
TITLE INPUT
POWER
PGM
CLEAR/DELETE
MUTE
CHARAC. SPACE
MDSTOP
MD O.T.E.
AUTO/MONO
TUNING
DOWN TUNING UP
TAPE O.T.E. DISPLAY TIME DISPLAY
P.CALL
SET
SOUND TONE TIMER
2 3
RANDOM
SLEEP
7
6
TUNER/BAND CD
1
2
3
4
5
6
7
8
9
0
!
@
#
$
%
1 1
5
JKL
2
ABC
8
TUV
0
QZ
6
MNO
3
DEF
9
WXY
4
GHI
1
7
PRS
10
&( ) -
•
PTY
•

System connection
13
Preparation section
Afterpluggingthepower cordofthis unit,pressthe
POWER( ) key of theremotecontrolunit to turn
the system ON. When the system is turned ON,
press the key of the function to be operated.
Operation
÷When pressing more than one remote control keys
successively, press the keys securely by leaving an in-
terval of 1 second or more between keys.
÷The provided batteries are intended for use in operation checking, and their service life may be short.
÷When the remote controllable distance becomes short, replace both of the batteries with new ones.
÷If direct sunlight or the light of a high- frequency fluorescent lamp (inverter type, etc.) is incident to the remote
sensor, malfunction may occur. In such a case, change the installation position to avoid malfunction.
Operating range (approx.)
Remote sensor
Loading batteries
1 Remove the cover. 2 Insert batteries. 3Close the cover.
÷Insert two R6 (“AA”-size) batteries following the polarity indications.
6 m
TIMER key dh
Press to reserve the timer operation.
SLEEP key a
Press to set the sleep timer.
9VOLUME keys $%
Press to adjust the volume.
These key are also used to adjust the tone.
0Character/numeric keys
As the numeric keys, these are used to select a CD or
MD track and as the preset call keys for the tuner.
&)¢
During MD title input, these keys function as the char-
acter key for use in inputting alphabets, numeric and
symbol characters. ´
!RANDOM key (CD, MD) ‚
Press for setting playback of tracks in a random order.
@REPEAT key (CD, MD) ·
Press for setting repeated playback.
#MD O.T.E. key t
Press to start recording CD onto an MD with one-
touch operation.
Pressing this key during CD playback records only the
track being played onto MD. Pressing it during CD stop
records all the CD tracks onto MD.
$SOUND key %
Press to switch the sound effect to EX.BASS or
LOUD.
TONE key %
Press to adjust the tone.
%MUTE key %
Press to mute the audio temporarily.
FM/AM 6
30˚ 30˚
NotesNotes
Notes
Controls and indicators

14
Basic use method
Basic section
Volume display
1.Set the key to ON.
Basicusemethod
3.Volume adjustment.
2.Selecting the desired output.
Pressingthe key when the unit is ONturnsitoff(Standby mode
of power).
÷Pressing the TUNER FM/AM, CD 6, MD 6, TAPE 23or AUX key
also turns power on and starts playback (reception) of the corresponding
input. (One-touch operation)
÷When the CD, MD or TAPE input is selected while the corresponding disc
or tape has been loaded, it immediately starts to play.
÷The display shows a reference value.
÷Pressing the TUNER FM/AM, CD 6,
MD 6, TAPE23or AUX key selects
the corresponding input.
VOLUME 12
The volume
decreases The volume increases
Example:
To select the CD input
Bass and treble compensation
Bass and treble
compensation
Muting the sound temporarily Listeningthroughheadphones
The system is switched ON and
STANDBY
33
22
11
CD ^
MD (
TAPE ™
TUNER (Broadcasts) ¢
AUX (External input) [Adjusting the AUX input level Ø]
When CD has been selected.
CD
11
6
CD
22
volume / multi control
Tone adjustment
33

15
Basic section
Basic use method
Muting the sound temporarily
÷Press again to resume the original volume.
÷This is also cancelled when the volume is changed.
Bass and treble compensation
Each press switches the modes as follows.
1"EX.BASS" lights.
The lowest and highest frequencies are
enhanced regardless of the current
volume level.
2"LOUD" (Loudness) lights.
The lowest and highest frequencies are
enhancedaccordingtothe current volume
level. (Effective during low-volume
listening.)
3Both indicators off.
Cancelled.

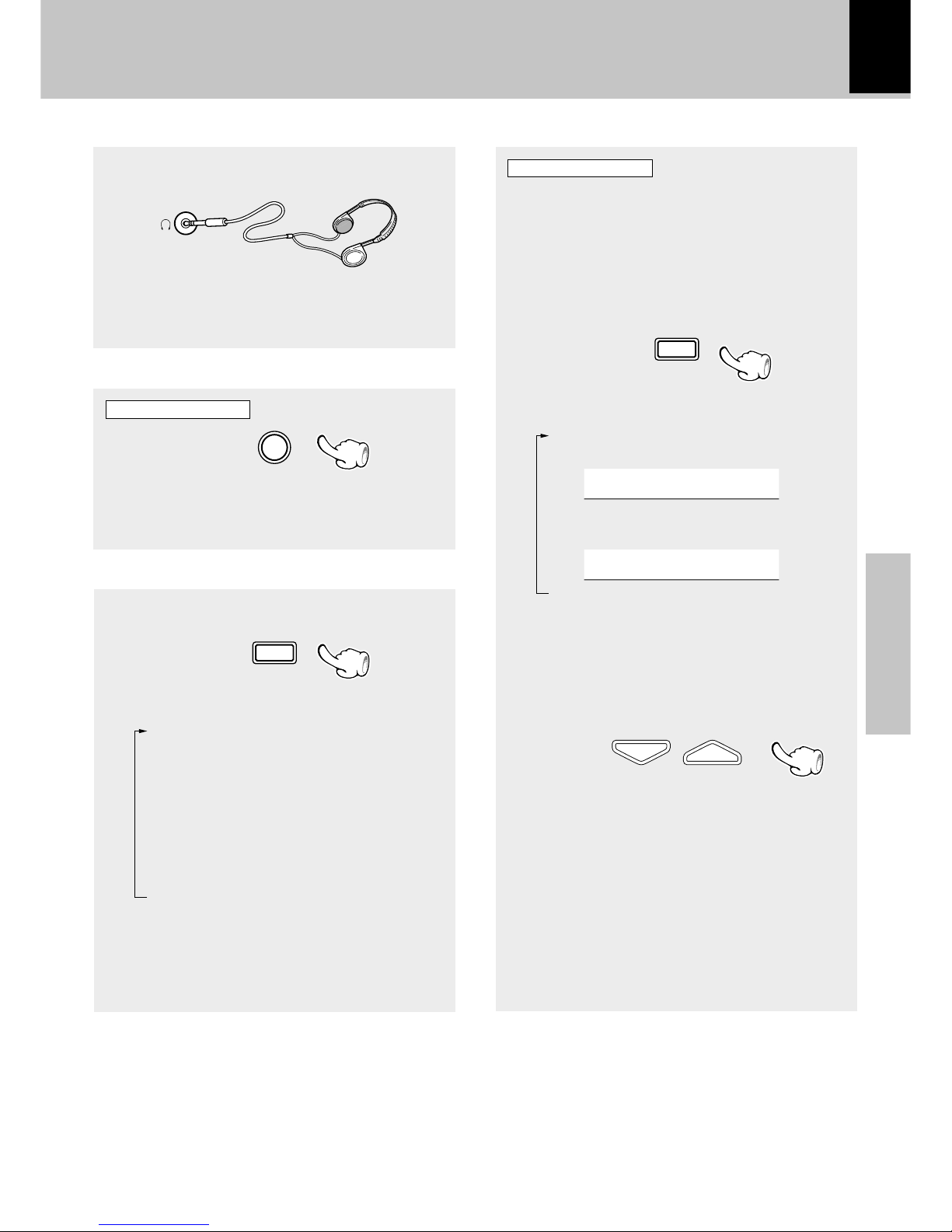

÷Headphones with a stereo mini plug can be con-
nected.
÷The sounds from all speakers are cut off.
Listening through headphones
Insert the headphone plug into the headphone jack.
The lowest and highest frequency bands can be
adjusted independently.
Tone adjustment
÷The levels of both "BASS" and "TREBLE" can be ad-
justed in 2 steps in the range between -8 and +8.
÷Adjusting the tone while the "LOUD" or "EX.BASS"
indicator is lit turns it off and cancels the sound en-
hancement mode.
(Toadjust theother frequency band, repeat steps
1and 2for it.)
÷Adjusting the tone while the "LOUD" or "EX.BASS"
indicator is lit turns it off and cancels the sound en-
hancement mode.
1Select the frequency band.
2Adjust.
TONE
VOLUME
MUTE
SOUND
Each press switches the operation.
1"BASS" (low frequency) adjust-
ment
2"TREBLE" (high frequency) adjust-
ment
3Normal mode
(Go to step 2within 8 seconds.)
BASS +0
TREBLE +0
Remote control unit only
Remote control unit only

16
Basic use method
Basic section
1.Load a disc.
PlaybackofCD
1Press the 0CD key.
2Place a disc.
3Press the 0CD key.
2.Start playback.
÷After a few seconds, play starts
from track No.1.
÷Titles are displayed for discs con-
forming to CD-TEXT.
Track No. being played
Elapsed time of track being
played
CD
When a disc is placed into the CD player in advance, the unit will be switched on automatically by pressing
the CD 6key, and playback will start.
Skipping tracks
Playback from desired track
Start playback/ To pause playback
To stop playback
To stop playback
Start playback/ To pause playback
22
To fast
forward and
backward
11
0 CD
11
6
CD
22
÷Do not touch the played side of
disc.
÷Be sure to place a disc horizontally.
Placing it with an inclination will re-
sult in malfunction.
The label side must be on top.

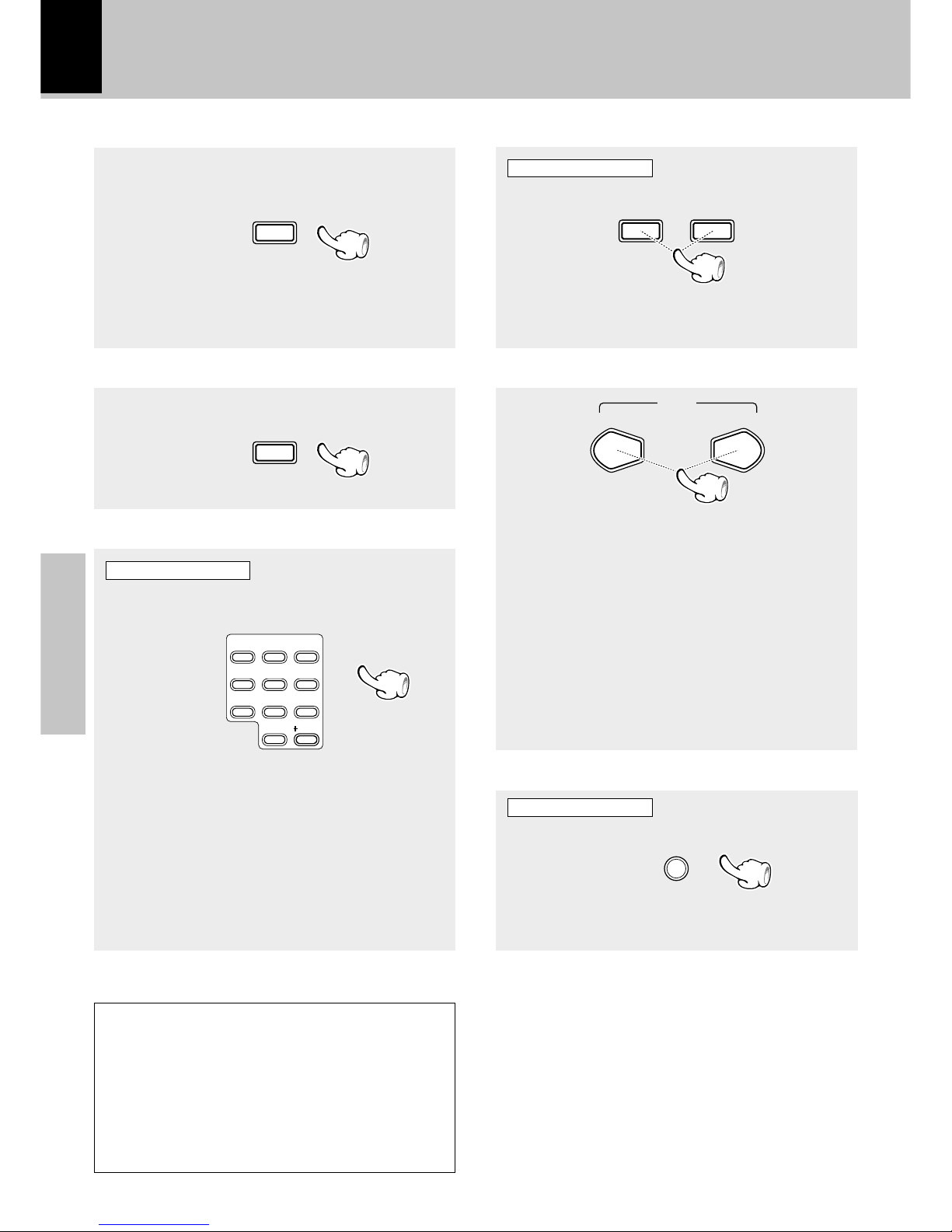

Skipping tracks

17
Basic section
Basic use method
6
CD
÷Each press pauses and plays the CD alternately.
Start playback/ To pause playback
÷Press and hold one of the keys during playback. Nor-
mal playback resumes at the point where the key is
released.
To fast forward and backward
Skipping tracks
÷The track in the direction of the key pressed is
skipped, and the selected track will be played from
the beginning.
÷When the 4key is pressed once during playback,
the track being played will be played from the begin-
ning.
÷To skip further to a track located before the current
track, press the 4key quickly.
÷Tracks can be skipped by pressing the 4or ¢key
even when the CD is in stop mode. In this case, playback
starts automatically from the point reached by skipping.
To skip
backward
To skip
forward
Forward
search
Backward
search
Press the numeric keys as shown below....
To select track No. 23 :+10
X 2, 3
To select track No. 40 :+10
X 4, 0
Playback from desired track
Select the desired track No.
To stop playback
Eject the CD
÷The CD tray will open. (Pressing the key again closes
the CD tray.)
STOP
AUTO/MONO
7
1
TUNING
UP
1
TUNING
DOWN
¢4
P.CALL
0 CD
Remote control unit only
Remote control unit only
Playback of CD
5
JKL
2
ABC
8
TUV
0
QZ
6
MNO
3
DEF
9
WXY
4
GHI
1
7
PRS
10
&( ) -
Main unit only

18
Basic use method
Basic section

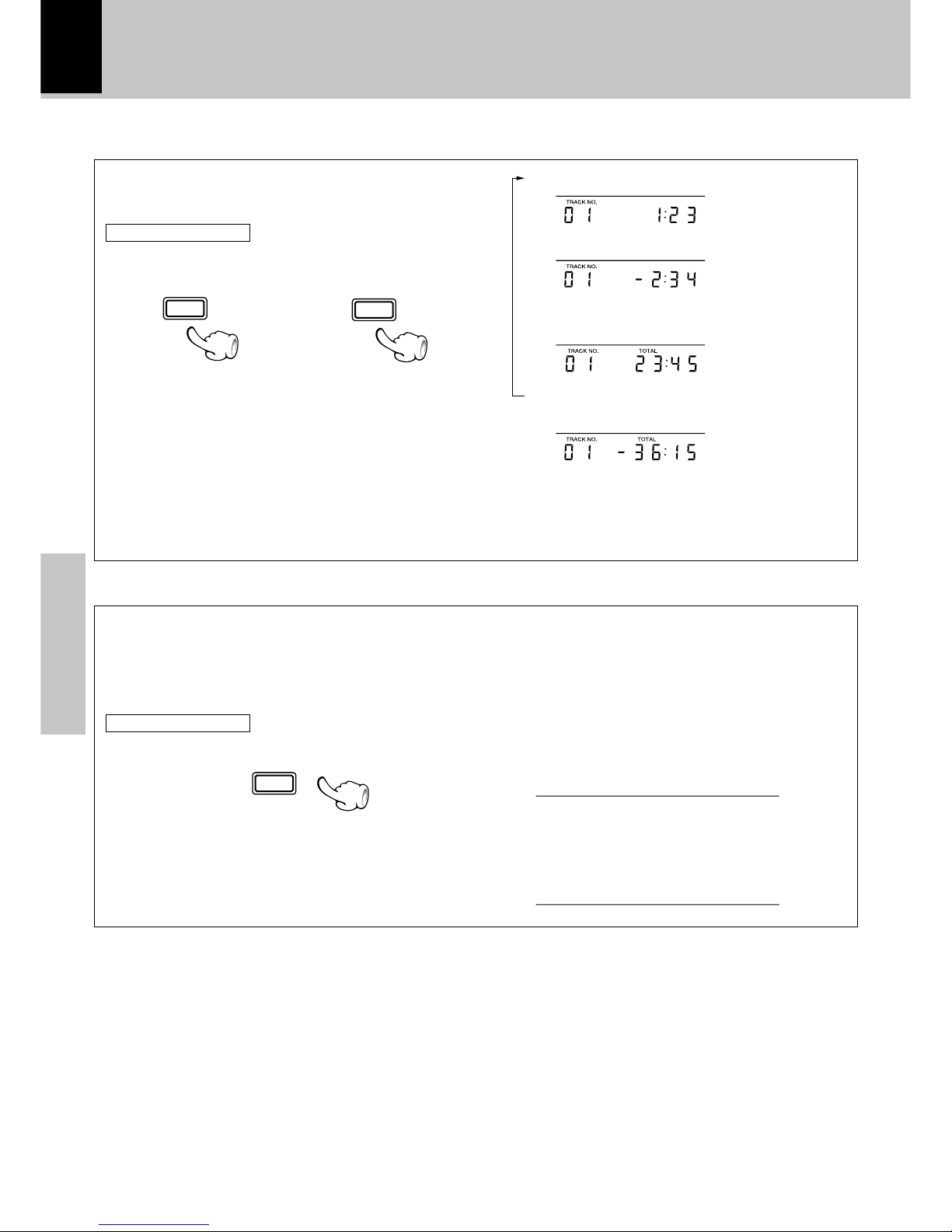

Each press of the TIME DISPLAY key changes the
displayed contents.
1Elapsed time of track being played
2Remaining time of track being played
3Elapsed time of entire disc
("TOTAL" lights up)
4Remaining time on entire disc
("TOTAL" lights up)
Time display on CD player
÷Only time information 1and 2can be displayed dur-
ing single-track repeated playback or random playback.
÷In the program mode, display 3shows the elapsed
time of the entire program and display 4shows the
remaining time of the entire program.
÷When the displayed time is 256 minutes or more,
the display shows "
- - : - - ".
When a CD-TEXT compatible disc is played on this unit, the disc and track titles recorded in the disc are
displayed automatically provided that they use alphanumeric characters.
When a title is too long to be accommodated in the display, press the DISPLAY key to scroll the dis-
played title so that the previously hidden characters be viewed.
Title display with CD-TEXT compatible discs
(When pressed during stop)
Scrolled disc title display
÷It may sometimes be unable to display the recorded char-
acters even when the loaded disc is a CD-TEXT compat-
ible disc. When the number of characters recorded in a
disc is 1000 or more, the display will show "TEXT FULL".
BACH:Solo V
(When pressed during play)
Scrolled track title display
BACH:Partit
TIME DISPLAY
÷
PTY
÷
DISPLAY
Remote control unit only
Remote control unit only
Playback of CD
TIME DISPLAY
or
(For other countries)(For U.K. and Europe)

19
Basic section
Basic use method
titBACH:Par

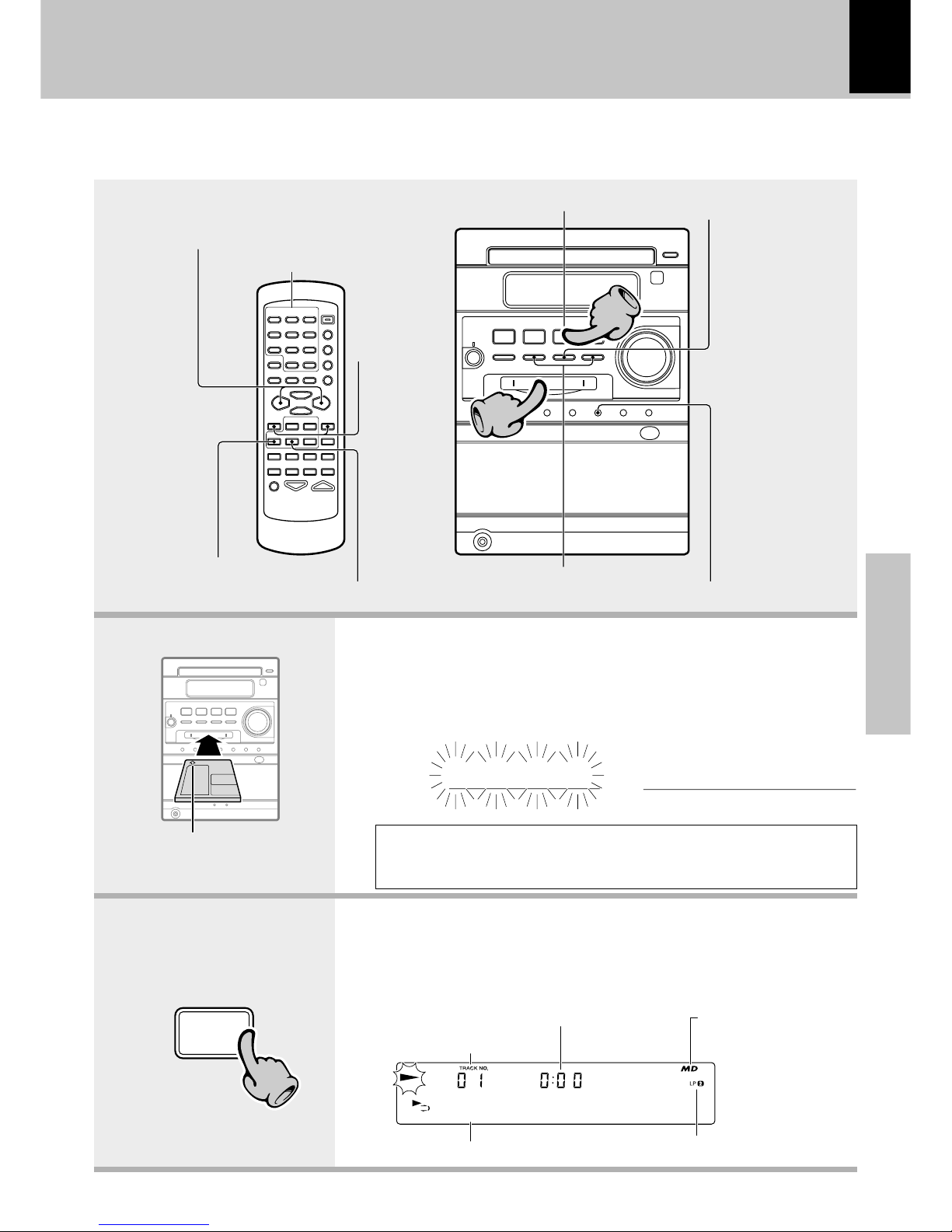

1.Load a Mini Disc.
To stop playback
Start playback/ To pause playback Skipping tracks
To fast forward
and backward
PlaybackofMiniDisc
2.Start playback.
÷After a few seconds, play starts from track No.1.
÷If the MD being played contains recording of track titles, the track title is
displayed at the beginning of each track during playback.
Insert the minidisc correctly into the slot of this unit.
÷When a title has been recorded for the disc, the title is displayed.
Start playback/ To pause playback
To stop playback
Playback from desired track
The MD cannot be loaded or ejected while the unit is in standby mode.
Do not force load a MD in standby mode, otherwise malfunction will
result.
Eject the Mini Disc
Track No. being played
The display changes.
Disc title
Track title
Elapsed time of track being played
When a disc is placed into the MD recorder in advance, the unit will be switched on automatically by pressing
the MD 6key, and playback will start. Tracks in MD are played according to the record mode used in recording
(MDLP2 recording, etc.)
READING
BACH:Solo V
Displayed when an MD
is loaded
\
\
Play mode
22
11
In the direction of the arrow
Skipping tracks
MD
6
22

20
Basic use method
Basic section
÷Each press pauses and plays the MD alternately.
Start playback/ To pause playback
÷Press and hold one of the keys during playback.
Normal playback resumes at the point where the
key is released.
To fast forward and backward
Skipping tracks
÷The track in the direction of the key pressed is
skipped, and the selected track will be played from
the beginning.
÷When the 4key is pressed once during playback,
the track being played will be played from the begin-
ning.
÷To skip further to a track located before the current
track, press the 4key quickly.
÷Tracks can be skipped by pressing the 4or ¢key
even when the MD is in stop mode. In this case, playback
starts automatically from the point reached by skipping.
To skip
backward
To skip
forward
Forward
search
Backward
search
Press the numeric keys as shown below....
To select track No. 23 : +10
X 2, 3
To select track No. 40 : +10
X 4, 0
To select track No. 102 : +10
X 10, 2
Playback from desired track
To stop playback
Eject the Mini Disc
÷Do not leave an ejected Mini Disc in the insertion
slot.
÷Track No. 100 or more can be selected only with MD.
÷When a track number which does not exist in the
disc is selected while "READING" is blinking, the
last track in the disc will be played back.
Select the desired track No.
6
MD
1
TUNING
UP
1
TUNING
DOWN
¢4
P.CALL
STOP
AUTO/MONO
7
0 MD
Remote control unit only
Remote control unit only
Playback of Mini Disc
MDLP modes
MD media recorded with an MD recorder incorporating
the stereo 2x-length (or 4x-length) recording/playback
function based on ATRAC3, which is a new audio com-
pression method in compliance with the MD standard,
or MD media recorded using ATRAC3 (playback-only
MD) carry the MDLP logo on them.
5
JKL
2
ABC
8
TUV
0
QZ
6
MNO
3
DEF
9
WXY
4
GHI
1
7
PRS
10
&( ) -
Main unit only
