Kenyon 120 V User manual

Lite-Touch™ Q Cooktops
Use & Care Guide - Installation Manual
120, 208, and 240 V Models
Kenyon International, Inc.
P.O. Box 925
8 Heritage Park Road
Clinton, CT 06413 USA
Phone: [phone]
Fax: [phone]
www.kenyonappliances.com
Part # 143719
Created: October 20, 2010
Revised: December 28, 2011
KENYON
Custom®

Table of Contents
Section Page
Important Safeguards ................................................................................................................
Product Specications ..............................................................................................................
Installation Instructions
Step # 1 - Unpacking the Cooktop ....................................................................................
Step # 2 - Checking the Electrical Supply Requirements .................................................
Step # 3 - Countertop Preparation ....................................................................................
Step # 4 - Installing the Cooktop .......................................................................................
Step # 5 - Electrical Connection ........................................................................................
Step # 6 - Final Preparations Prior to Use .......................................................................
Operation of Lite-Touch™ Q Cooktop
Cookware ..........................................................................................................................
Lock Mode.........................................................................................................................
Initial Start-up ...................................................................................................................
Controls of Lite-Touch™ Q Cooktop .................................................................................
Hot Surface Indicator .......................................................................................................
Safety Thermal Cutout ......................................................................................................
Master Off ........................................................................................................................
Temperature Setting Guide ..............................................................................................
Cleaning ...........................................................................................................................
Maintenance ....................................................................................................................
Warranty Information ...............................................................................................................
1
3
5
6
6
9
9
10
11
11
12
12
13
13
13
13
14
14
15

This cooktop, like all appliances, has the potential to create safety problems
through careless and improper use. Please observe all of the following safety
precautions.
Please read these instructions in their entirety before
installation and use. The following information applies to all
KENYON Electric Cooktops.
Proper Installation.
Be sure your appliance is properly installed and grounded by a qualied technician.
Never use your appliance for warming or heating the room.
CAUTION
Do not leave children alone.
Children should never be left alone or unattended in the area where the appliance is in use. They
should never be allowed to sit or stand on any part of the appliance. Do not let children play with
cooktop. Do not store items of interest to a child in cabinets above the cooktop, children
climbing on the cooktop to reach such items could be seriously injured.
Wear proper clothing/apparel.
Loose tting or hanging garments should never be worn while using the appliance. Fabric or other
ammable materials may contact hot surfaces during operation and may ignite and result in personal
injury.
User Servicing
Do not repair or replace any part of the appliance. If service ever becomes necessary, this
appliance should be serviced by AUTHORIZED PERSONNEL ONLY or call KENYON Customer
Care at [phone].
Storage in or on Appliance
Flammable materials should not be stored above, under or near surface cooking units.
Keep ammable materials away from cooktop.
Do not store plastic material (such as plastic utensils) in storage areas beneath cooktop.
Plastic items with low melting temperatures should not be stored under/over or near the cooktop.
Do not use water on grease res.
Smother re or ame or use dry chemical or foam-type extinguisher.
IMPORTANT SAFEGUARDS
1

Use only dry pot holders.
Moist or damp pot holders on hot surfaces may result in burns from steam. Do not let pot holders
touch the elements on the appliance. Do not use a towel or other bulky cloth in place of a pot holder.
Do not cook on broken cooktop.
If cooktop should break, cleaning solutions and spillovers may penetrate the broken cooktop and
create a risk of electric shock. Contact an authorized service center or KENYON Customer Care
immediately at [phone].
Clean cooktop with caution.
Do not clean the cooktop while it is still hot. If a wet sponge or cloth is used to wipe spills on a hot
cooking surface, be careful to avoid steam burns. Some cleaners produce noxious fumes if applied to
a hot surface. Read the cleaner label for details prior to using.
Use proper pan size.
This appliance is equipped with one or more surface units of different size. Select cookware
having at bottoms large enough to cover the surface unit heating element. The use of undersized
utensils will expose a portion of the heating element to direct contact and may result in ignition of
clothing. Proper relationship of cookware to burner size will also improve efciency.
Never leave surface units unattended at high heat settings.
Boilover may cause smoking and greasy spillovers may ignite.
Glazed cooking utensils
Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable
for range-tip service without breaking due to sudden change in temperature.
Utensil handles should be turned inward and not extend over adjacent surface units.
To reduce the risk of burns, ignition of ammable materials, and spillage due to unintentional
contact with the utensil, the handle of a utensil should be positioned so that it is turned inward, and
does not extend over adjacent surface units.
Do not use aluminum foil on the surface of the cooktop.
Cookware should always be dry.
Do not heat cookware with excess water droplets on the outside of the pan. The droplets may begin
to boil and splatter.
Do not touch surface units or areas near units.
Surface units may be hot even though they are dark in color. Areas near surface may become hot
enough to cause burns. During and after use, do not touch, or let clothing or other ammable
materials contact surface units or areas near units until they have had sufcient time to cool. Among
these areas are the heating elements and surrounding glass surface.
DO NOT DISCARD THESE INSTRUCTIONS, KEEP THEM
WITH THE KENYON COOKTOP FOR FUTURE REFERENCE.
2

Lite-Touch™ Q Series 2-Burner Large Models
B41540 - 120V AC - one 6.5” (165mm) @ 1200 watts
one 8” (200mm) @ 1400 watts
B41549 - 208V AC- one 6.5” (165mm) @ 1200 watts
one 8” (200mm) @ 1800 watts
B41541 - 240V AC - one 6.5” (165mm) @ 1200 watts
one 8” (200mm) @ 1800 watts
B41540L - 120V AC - one 6.5” (165mm) @ 1200 watts
one 8” (200mm) @ 1400 watts
B41549L - 208V AC - one 6.5” (165mm) @ 1200 watts
one 8” (200mm) @ 1800 watts
B41541L - 240V AC - one 6.5” (165mm) @ 1200 watts
one 8” (200mm) @ 1800 watts
Overall dimensions: 23 1/4” x 14 1/4” x 3 1/4”
590.6mm x 362mm x 82.6mm
Cutout dimensions: 21 3/4” x 12 3/4” with 1/4” radius
552.5mm x 323.9mm with 6.4mm radius
PRODUCT SPECIFICATIONS
3

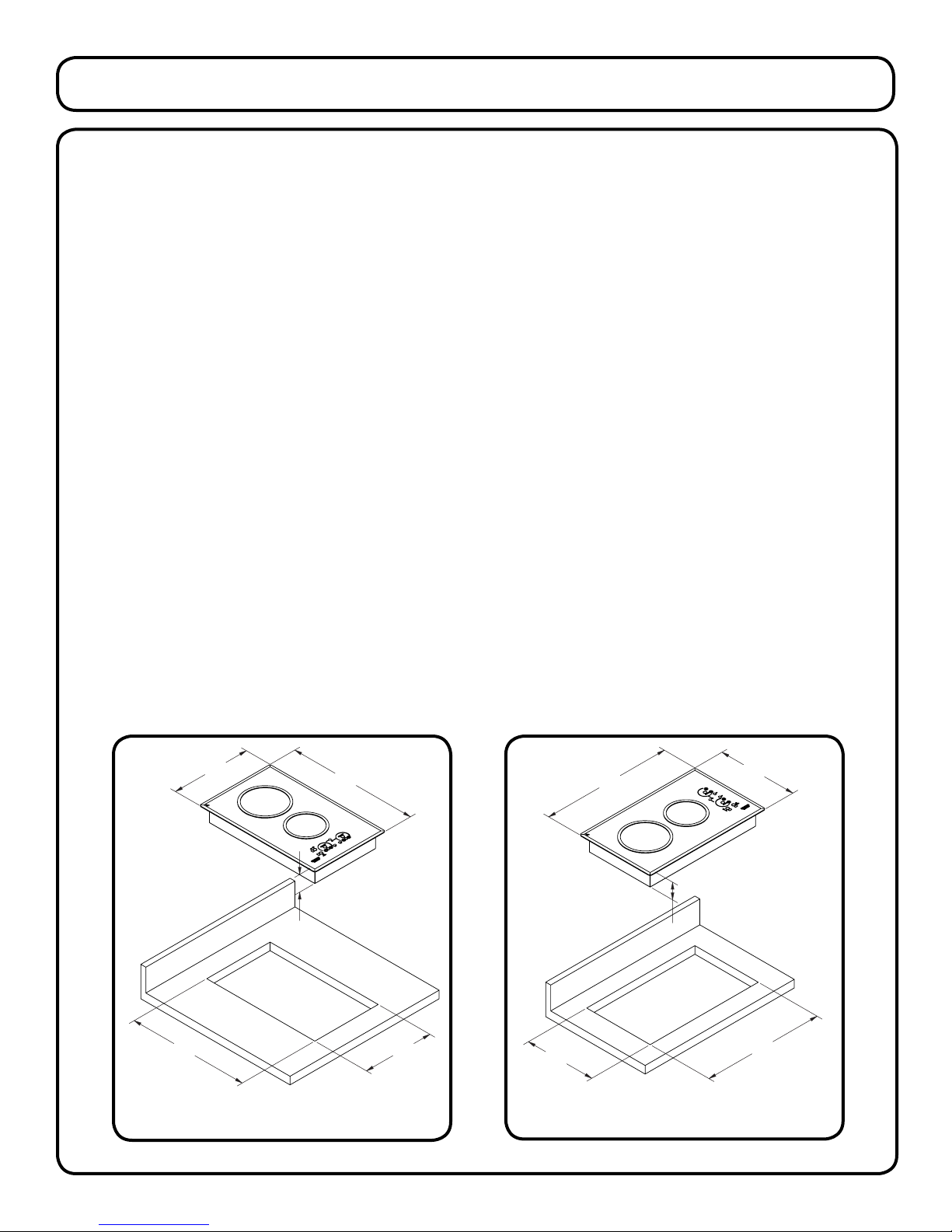

12 3/4"21 3/4"
14 1/4"
23 1/4"
3 1/4"
B41540, B41549, & B41541
12 3/4"
21 3/4"
14 1/4"
23 1/4"
3 1/4"
B41540L, B41549L, & B41541L

Lite-Touch™ Q Series 2-Burner Trimline Models
B41575 - 120V AC - two 6.5” (165mm) @ 1200 watts
B41579 - 208V AC- two 6.5” (165mm) @ 1200 watts
B41576 - 240V AC - two 6.5” (165mm) @ 1200 watts
B41575L - 120V AC - two 6.5” (165mm) @ 1200 watts
B41579L - 208V AC - two 6.5” (165mm) @ 1200 watts
B41576L - 240V AC - two 6.5” (165mm) @ 1200 watts
Overall dimensions: 21” x 12” x 3 1/4”
533.4mm x 304.8mm x 82.6mm
Cutout dimensions: 20” x 10 3/4” with 1/4” radius
508mm x 273.1mm with 6.4mm radius
4
21”
12”
3 1/4”
20"
10 3/4"
Models B41575L, B41576L, & B41579L
B41575L, B41579L, & B41576L
10 3/4"
20"
12” 21”
3 1/4”
Models B41575, B41576, & B41579
B41575, B41579, & B41576

INSTALLATION GUIDE
STEP # 1
Unpacking the Cooktop
Carefully unpack the cooktop from its shipping container. If possible, retain the original shipping
carton and protective packaging in the event the unit ever has to be returned for service.
Verify and identify the package contents. The following items should be included in the carton. If
any components are missing or damaged, call KENYON immediately.
Lite-Touch™ Q Cooktop •(2) Mounting brackets
(1) Package of mounting screws • (1) Ceramic cooktop cleaner
Important: Do not remove the clear plastic covering lm on the
ceramic glass until cooktop is ready to be used.
!
Important: Save this document for review by local inspector.
Important: This appliance must be properly installed and grounded
by a qualied technician.
!
5

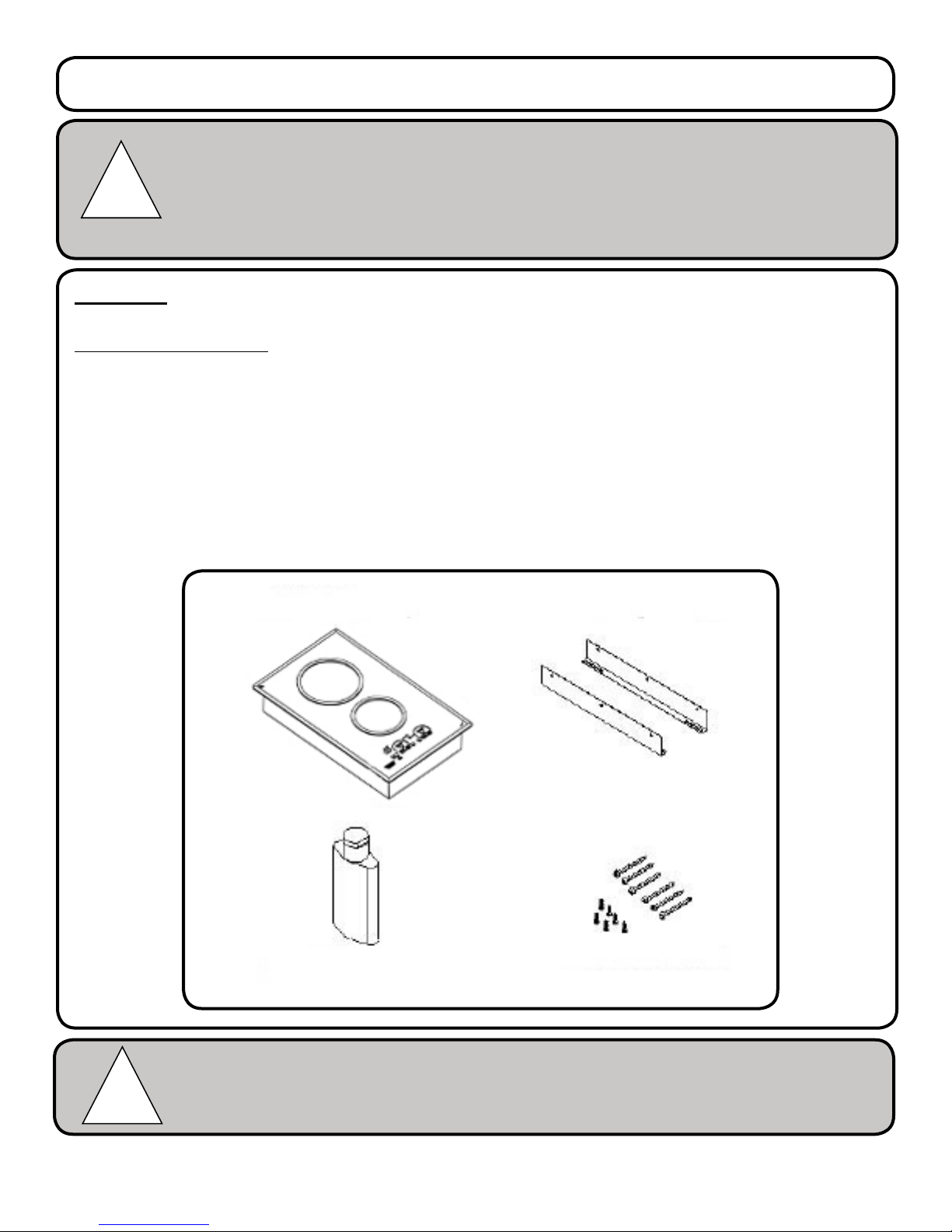

Lite-Touch™ Q Cooktop Mounting Brackets
Cerama Bryte
Ceramic Cooktop Cleaner
Mounting Screws Package

For future reference, please record the serial number of your
cooktop here:
STEP #2
Check the Electrical Supply Requirements
This product must be installed in accordance with national, state and local electric codes. The
following table provides the correct voltage, amperage and frequency that must be supplied to the
cooktop.
The supply must be from an individual grounded circuit that is protected by a circuit breaker and
rated per the specications for the various models as shown in the table above.
Max Connected Required Power Minimum
Kenyon Part # Model # Load Supply Input Wire Size
B41540 Med2QTCP 2600 Watts 120VAC/22A/50/60Hz #12 AWG
B41549 Med2QTCP 3000 Watts 208VAC/14.5A/50/60Hz #12 AWG
B41541 Med2QTCP 3000 Watts 240VAC/12.5A/50/60Hz #12 AWG
B41540L Med2QTCL 2600 Watts 120VAC/22A/50/60Hz #12 AWG
B41549L Med2QTCL 3000 Watts 208VAC/14.5A/50/60Hz #12 AWG
B41541L Med2QTCL 3000 Watts 240VAC/12.5A/50/60Hz #12 AWG
B41575 Med2QTCTP 2400 Watts 120VAC/20A/50/60Hz #12 AWG
B41579 Med2QTCTP 2400 Watts 208VAC/11.5A/50/60Hz #12 AWG
B41576 Med2QTCTP 2400 Watts 240VAC/10A/50/60Hz #12 AWG
B41575L Med2QTCTL 2400 Watts 120VAC/20A/50/60Hz #12 AWG
B41579L Med2QTCTL 2400 Watts 208VAC/11.5A/50/60Hz #12 AWG
B41576L Med2QTCTL 2400 Watts 240VAC/10A/50/60Hz #12 AWG
STEP #3
Countertop Preparation
Please read this section prior to making cutout for cooktop.
It is important to plan ahead for installation of the cooktop, keeping the following dimensions in
mind (please refer to Figure A).
Warning: If the electric power supply does not meet the product
specications, consult with a licensed electrician before proceeding
with installation.
!
6

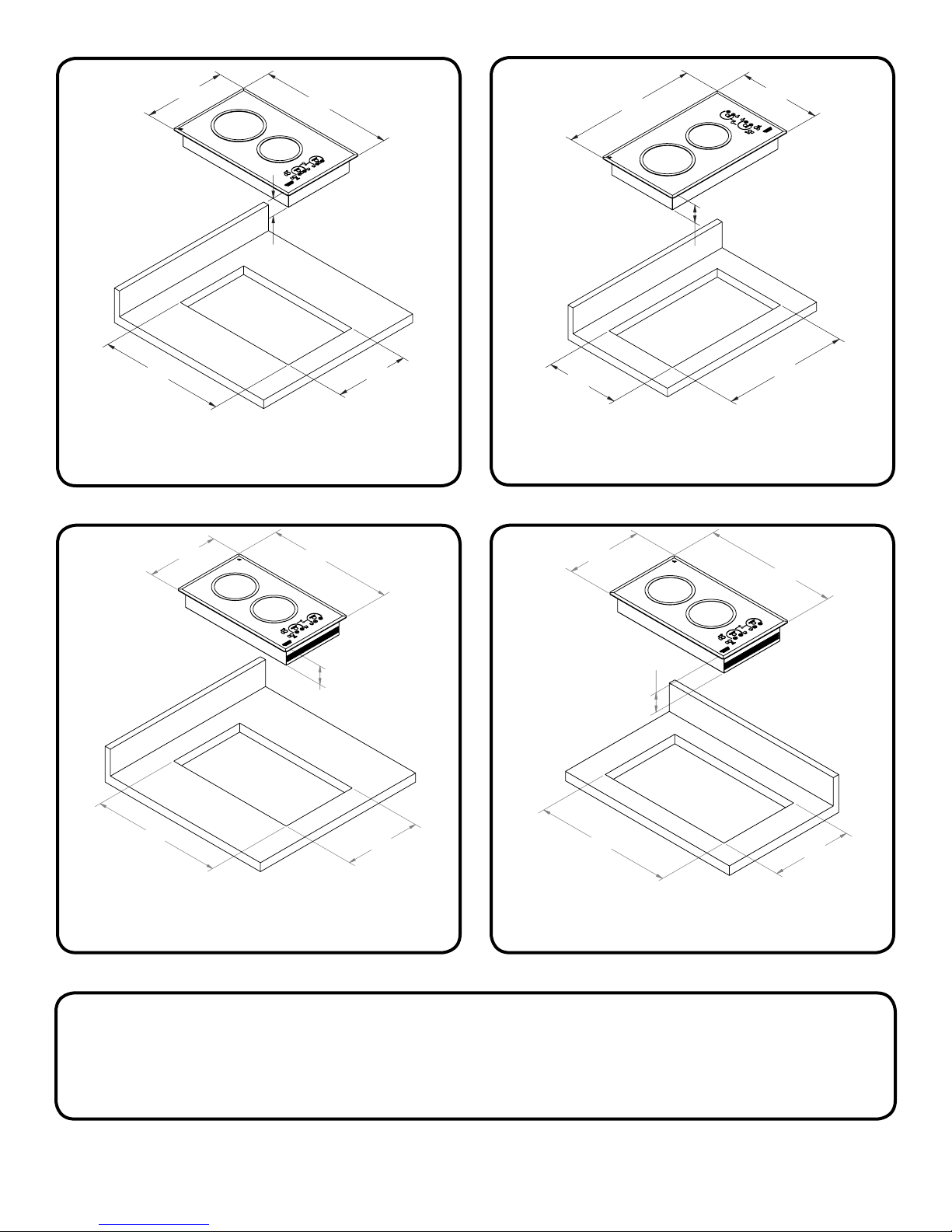

A - 13 inches maximum depth of overhead cabinets
B - 36 inches is minimum height of countertop above oor
C - The minimum at countertop surface that the cooktop will rest
upon must be equal to or greater than the overall cooktop
dimensions (refer to the following page for overall cooktop
dimensions).
D - 30 inches minimum clearance between the top of the cooking
surface and the bottom of an unprotected wood or metal cabinet or
24 inch minimum clearance when the bottom of the wood or metal
cabinet is protected by not less than 1/4-inch-thick ame retardant
millboard covered with not less than No. 28 MSG sheet steel,
0.015-inch-think stainless steel, 0.024-inch-thick aluminum or
0.020-inch-thick-copper.
E - 1-inch minimum from backsplash of countertop to edge of glass
(refer to the following page for overall cooktop dimensions).
FOR INSTALLATIONS IN CANADA: “Do Not Install Closer Than 1/2 Inch
(12mm) From Any Adjacent Surface”, and NE PAS INSTALLER A’MDINS DE 12MM
DETOUTE SURFACE ADJACENTE.
Warning: To eliminate the risk of burns by reaching over heated
surface units, cabinet storage space located above surface units
should be avoided. If cabinet storage is to be provided, the risk can
be reduced by installing a range hood that projects horizontally a
minimum of 5” beyond the bottom of the cabinets.
!
Before making the countertop cutout, check for clearance. Check to see if the cooktop will clear
the front and side walls of the base cabinet. It is also important to provide enough ventilation.
Adequate ventilation of the space below the
countertop must be provided to ensure
proper operation of the cooktop. Heat
transferred from the cooktop bottom pan
during operation will overheat an improperly
ventilated area.
Allow a 2” minimum clearance between the bottom of the metal pan of the cooktop and any
combustible surface located below, ie: the upper edge of a drawer installed below the cooktop
(see Fig. B). Failure to provide proper clearance and ventilation may result in a re hazard.
7
Fig. A
2 INCH (51mm) MINIMUM
Fig. B

12 3/4"
21 3/4"
14 1/4"
23 1/4"
3 1/4"
COUNTERTOP CUTOUT DIMENSIONS
B41540L, B41549L, and B41541L
12 3/4"21 3/4"
14 1/4"
23 1/4"
3 1/4"
COUNTERTOP CUTOUT DIMENSIONS
B41540, B41549, and B41541
NOTE:
When making countertop cutout, radius the corner of the cutout (1/4” radius is typical). This will
prevent cracking of the countertop. Follow the countertop manufacturer’s instructions regarding
the minimum corner radius and reinforcement of corners.
8
21”
12”
3 1/4”
20"
10 3/4"
Models B41575L, B41576L, & B41579L
COUNTERTOP CUTOUT DIMENSIONS
B41575L, B41579L, and B41576L
10 3/4"
20"
12” 21”
3 1/4”
Models B41575, B41576, & B41579
COUNTERTOP CUTOUT DIMENSIONS
B41575, B41579, and B41576

STEP #4
Installing the Cooktop
There are two mounting brackets supplied with the glass ceramic cooktop. These brackets are
designed to hold the cooktop rmly in place. The cooktop does not have a metal frame and
should be bedded to the countertop using a soft bedding compound that will prevent damage if
later removal for service is necessary. We recommend a very small bead of silicone sealant. If
mounting in granite countertop use only 100% silicone sealant.
Attach the two mounting brackets supplied with the KENYON cooktop (please refer to the gure
C on page 8) to the inside vertical surface of the cutout. The brackets are to be mounted on op-
posing sides. Center the bracket in the opening, ush with the countertop and secure with long
self-tapping screws that are provided. Position the cooktop in the cutout opening and press rmly
on all sides to seal the frame into the bedding compound. Secure the cooktop to the
brackets from underneath with the small sheet metal screws that are supplied.
BE CAREFUL NOT TO OVERTIGHTEN THE SCREWS.
STEP #5
Electrical Connection
Before proceeding further, verify that the power
supply is disconnected. Verify that the
appropriate electrical supply requirements have
been met. Please refer to the table on page
5 for appropriate electrical requirements. The
cooktop is supplied with a 36-inch long
conduit for a connection to an accessible
junction box. The 240V and 208V conduit
consists of three insulated wires. There are
two insulated hot lead conductors (red and
black) and one insulated ground conductor
(green). The 120V conduit consists of three
insulated wires. There is the hot lead
conductor (black), the nuetral conductor (white)
and one insulated ground conductor (green).
Attach conductor wires to residence wiring in
accordance with national, state and local
electric codes.

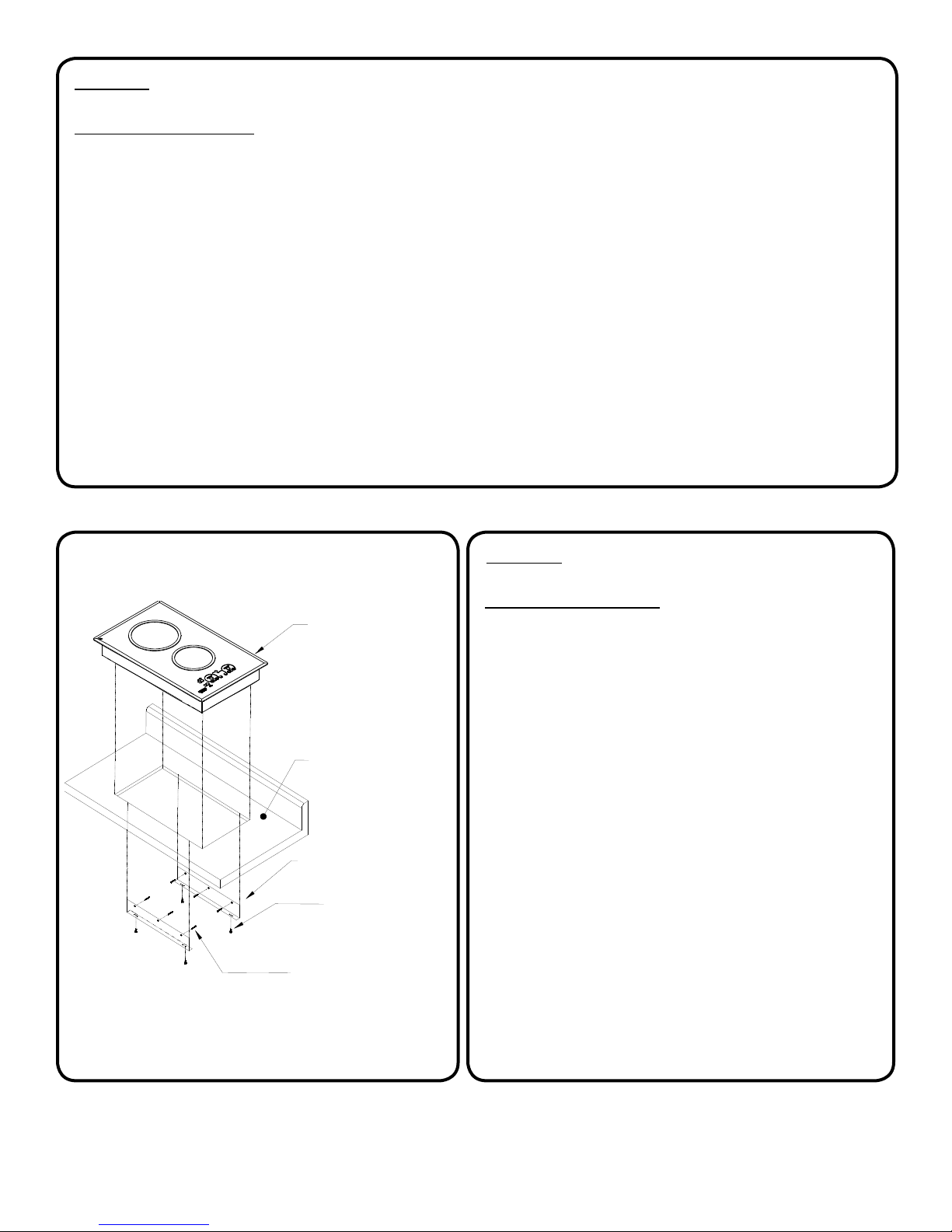

Lite-Touch™ Q COOKTOP
# 8 X 1/4" SCREW
# 6 X 1 1/4" S/S SCREW
MOUNTING BRACKET
COUNTER SURFACE
Fig. C
9

STEP #6
Final Preparations Prior to Use
Remove the plastic lm from the cooktop. Clean
the cooktop before you use it for the rst time. A
thorough cleaning with a recommended cooktop
cleaner (Cerama Bryte Ceramic Cooktop
Cleaner) will provide a clean, shiny coating on
the cooktop surface.
The next section of the manual covers cooktop
use, maintenance and service information.
Please keep these instructions with the
KENYON cooktop for future reference.

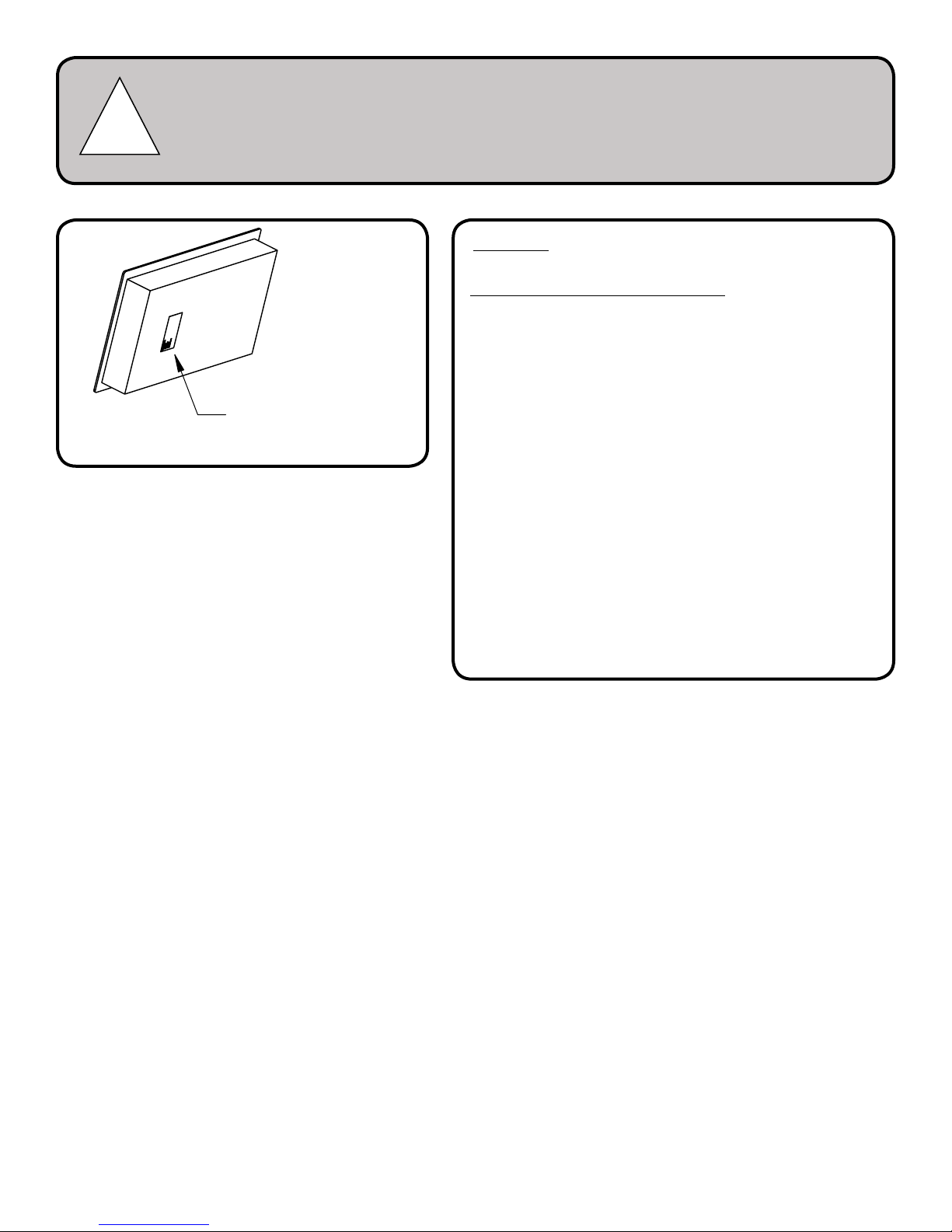

Name Plate
Label Location
10
Warning - Grounding
The entire appliance must be grounded at all times when the
electrical power supply is on. Do not ground the appliance with the
neutral house supply wire (white). A separate ground must be used.
!

OPERATION
READ SAFETY INSTRUCTIONS BEFORE OPERATING YOUR APPLIANCE
The cooking surface and control areas of your Lite-Touch™ Q cooktop are identied by
permanent patterns in the cooktop. The appliance is easy to maintain and easy to clean.
Keeping the cooktop in top performance can be achieved by following the simple guidelines for
use and cleaning below:
COOKWARE
Chances are that your existing cookware will work just ne with your glass ceramic cooktop.
Cooking on a glass ceramic cooktop does not require special pots or pans. Since cookware
plays an important role in cooking efciency and convenience, keep in mind the following
information when selecting your cookware.
The cookware should have a at bottom. Although glass and other types of cookware can be
used, metal cookware with thick, smooth, at bottoms will generally conduct the heat well.
Aluminum and stainless steel cookware usually works best. Avoid cookware with shaped and
rounded bottoms as well as utensils that warp when heated.
Use cookware of the correct diameter only. The base of the pot or pan should be about as wide
as the cooking zone on which it is used - not much wider or much narrower. By using utensils
with the correct diameter, you should achieve maximum heating efciency with the shortest pos-
sible boiling times.
Be certain that both the cooktop panel and the bottom of your pots and pans are clean and dry
before use. By doing so, you will help prevent scratches and stains.
LOCK MODE
1. In lock mode the heat setting cannot be raised, but can be lowered and the off function for
both elements and master power will still function for safety reasons. A light next to the “key”
graphic will indicate that the cooktop is locked and will remain illuminated while lock is activated.
Refer to gure D on Page 10.
2. To lock the cooktop, place nger on the circular area next to the key graphic and hold for 3
seconds. An audible beep will be heard and the light next to the key graphic will illuminate. The
cooktop is now locked.
3. To unlock the cooktop, touch the circular area next to the key graphic and hold for 3
seconds. An audible beep will be heard and the light next to the key graphic will go out. The
cooktop is now unlocked and all functions operate.
4. Lock mode is independent of all other functions and can be activated at any time, even if the
cooktop is in standby mode. Standby mode is when power is available to the cooktop but the
master power button is not activated. 11

INITIAL START-UP
The cooktop is designed with a 2 step ON, and 1 step OFF for safety reasons,
requiring at least 2 different touches of the controls to activate an element, but only one touch to
deactivate an element or the entire unit.
Clean the cooktop before you use it for the rst time. A thorough cleaning with our
recommended cooktop cleaner (Cerama Bryte Ceramic Cooktop Cleaner) will provide a
coating on the cooktop prior to its rst use. A sample is included with your Kenyon cooktop.
The cooktop surface should be free of any foreign substances before use.
CONTROLS OF LITE-TOUCH™ Q COOKTOP
To activate a heating element, rst the master power must be turned on by placing and holding a
nger over the circular area next to the master power graphic. An audible beep will be heard and
a light next to the master power graphic will illuminate. Then the desired element must be turned
on, by placing a nger over the circular area marked ON/OFF for that element. The same beep
will sound and a light will illuminate. Then the heat level is chosen, by
holding a nger over the circular areas marked with + or -. Touching the + rst will incrementally
set the heat level from settings 1 thru 8 with a beep and corresponding number of lights
illuminated. Touching the - rst will incrementally set the level from settings 8 thru 1 with a beep
and corresponding number of lights illuminated. When the desired heat level is reached the n-
ger is removed and the cooktop remains at that heat level. If an element is activated, but no heat
level chosen, the element will automatically turn off in 10 seconds.
To change the heat level place nger on + or - graphic of desired element to change heat level
incrementally up or down.
To deactivate an element, touch circular area marked ON/OFF to turn the element off. Also the
master power ON/OFF can be touched and the entire cooktop will be deactivated.
12
Key graphic
for lock function
Lock function LED
Master power LED
Lock function button
Master power button
Master power graphic
Element indicator
graphic
Element heat level indicator
Hot surface
indicator LEDs
- button decreases
heat setting
+ button increases
heat setting
Element ON/OFF button
Element activation LED
Fig. D

HOT SURFACE INDICATOR
A hot surface indicator light will illuminate when an element is energized and has been activated
for enough time to produce unsafe to touch temperatures of the cooking surface. The light will
remain illuminated until the surface is cool.
SAFETY THERMAL CUTOUT
Another safety feature of the Lite-Touch™ Q cooktop is the thermal cutout. If the temperature of
an element reaches unsafe levels, the thermal cutout will open and power to that element will be
turned off. This is an important safety feature designed to reduce the risk of runaway
temperatures and possible risk of re if a pot is boiled dry or unintentionally put on the cooktop
empty. When the element has cooled to a safe temperature the power will be restored
automatically.
MASTER OFF
To power off both elements simultaneously, touch the circular area next to the master power ON/
OFF graphic. Refer to gure D on page 10. This can be done without deactivation of the
elements if any are in operation, and is an important safety feature allowing the user a “one touch
off” in case of emergencies. All functions will no longer operate until the master power is turned
on again.
TEMPERATURE SETTING GUIDE
SETTING USES
1 Bar Melting butter and chocolate
Heating delicate sauces
Warming food
2 Bars Simmering sauces
Steaming rice
Melting large quantities
3-5 Bars Steaming vegetables
Heating soups, puddings and milk
Simmering
Frying
5-7 Bars Sauteing
Quick frying
Browning
Fast boiling of large quantities
8 Bars Boiling water
Heating soups
Deep frying
13

CLEANING
To help ensure that the KENYON cooktop stays clean, follow these easy-care tips:
Lock the cooktop before cleaning by touching and holding the key symbol for 3 seconds.
Always remove food spills, grease spatters and metal rub-off from cookware. A razor blade
scraper or the equivalent works well to remove spillovers.
Clean the cooktop with a paper towel or a clean, soft cloth and a recommended cleaner. After
cleaning, always wipe the cooktop with a clean, damp cloth to avoid cooked-on cleaner residue.
Wipe the cooktop dry.
Do not use a dish towel or sponge to wipe off the cooktop as a lm may be left by the detergent
and may cause discoloration of the cooktop surface.
Avoid abrasive scouring cleaners of any kind. Also avoid using plastic, nylon or metal cleaning
pads. They may scratch or melt onto the cooktop.
Avoid chemical cleaners such as chlorine bleach, ammonia, hydrouoric acid or chemical oven
cleaners. They can etch or discolor the surface.
Do not let anything that melts - plastic, aluminum foil, sugar, etc. come into contact with the
cooktop surface when it is hot. Should something melt onto the surface, immediately move it to a
cool area of the cooktop with a razor blade scraper and then remove it from the cooktop as soon
as possible.
Lite-Touch™ Q Maintenance
The Kenyon cooktop is a sealed unit that does not require regular maintenance. Please follow
our operating instructions as mentioned above. If your Lite-Touch™ Q requires service, this must
be preformed by Authorized Personnel only. Please call Kenyon Customer Care at
860-664-4906.
14

Warranty
Kenyon International, Inc (the “Company”) warrants its products in normal usage to be free of defects in
materials and workmanship subject to the conditions and limitations below.
Any part, which proves to be defective in normal usage during the warranty period will be repaired or replaced
by the Company.
This warranty covers certain products built by the Company and is subject to the following conditions and
limitations:
1. The Company’s liability shall be limited to repair or replacement (choice of remedy at Company’s
option) of goods or parts as may be defective in materials or workmanship. This liability is limited to
three years from the date of original installation or 42 months from invoice date, whichever comes rst;
this warranty covers parts and labor at approved Company rates, $75 per hour.
2. Determination of suitability of the product for the use contemplated by the buyer is the sole
responsibility of the Buyer and the Company shall have no responsibility in connection with such
suitability.
3. The Company shall not be liable for any damage resulting from:
• failures due to use of the product in applications for which they are not intended;
• failures due to corrosion, wear and tear, abuse or improper installation or maintenance.
4. The Company shall be responsible for ground shipping charges to the location of the appliance (home)
within the Continental United States and Canada. Any duties, express or special shipping charges are
at the expense of the Buyer.
5. All labor allowed by the Company under this warranty must be performed by an Authorized Kenyon
International Service Center, unless otherwise specied in writing by the Company.
6. This warranty does not cover the cost of repair or replacement due to damage of any glass surface,
cooking grates or cooking griddles.
THERE ARE NO OTHER WARRANTIES OF MERCHANTABILITY, FITNESS FOR PURPOSE OR ANY
OTHER KIND, EXPRESSED OR IMPLIED AND NONE SHALL BE IMPLIED BY LAW. The duration of any
such warranties that are nevertheless implied by law for the benet of a consumer, shall be limited to a period
of three years from original purchase by the user. Some countries do not allow limitations on how long an
implied warranty lasts, so this limitation may not apply to you.
THE COMPANY SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING
FROM THE BREACH OF THIS WARRANTY, WHETHER EXPRESSED, IMPLIED OR STATUTORY. Some
countries or states do not allow exclusion or limitation of consequential or incidental damages so this limitation
or exclusion may not apply to you.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER LEGAL
RIGHTS THAT MAY VARY FROM COUNTRY TO COUNTRY AND STATE TO STATE.
Kenyon International, Inc.
P.O. Box 925 • 8 Heritage Park Road • Clinton, CT 06413 USA
Phone [phone] FAX: [phone]
