KEY POWER KP100 User manual
POWERKE Y
MANUAL PORTUGUÊS | ENGLISH
ELECTRONIC KEYBOARD STANDARD
KP100

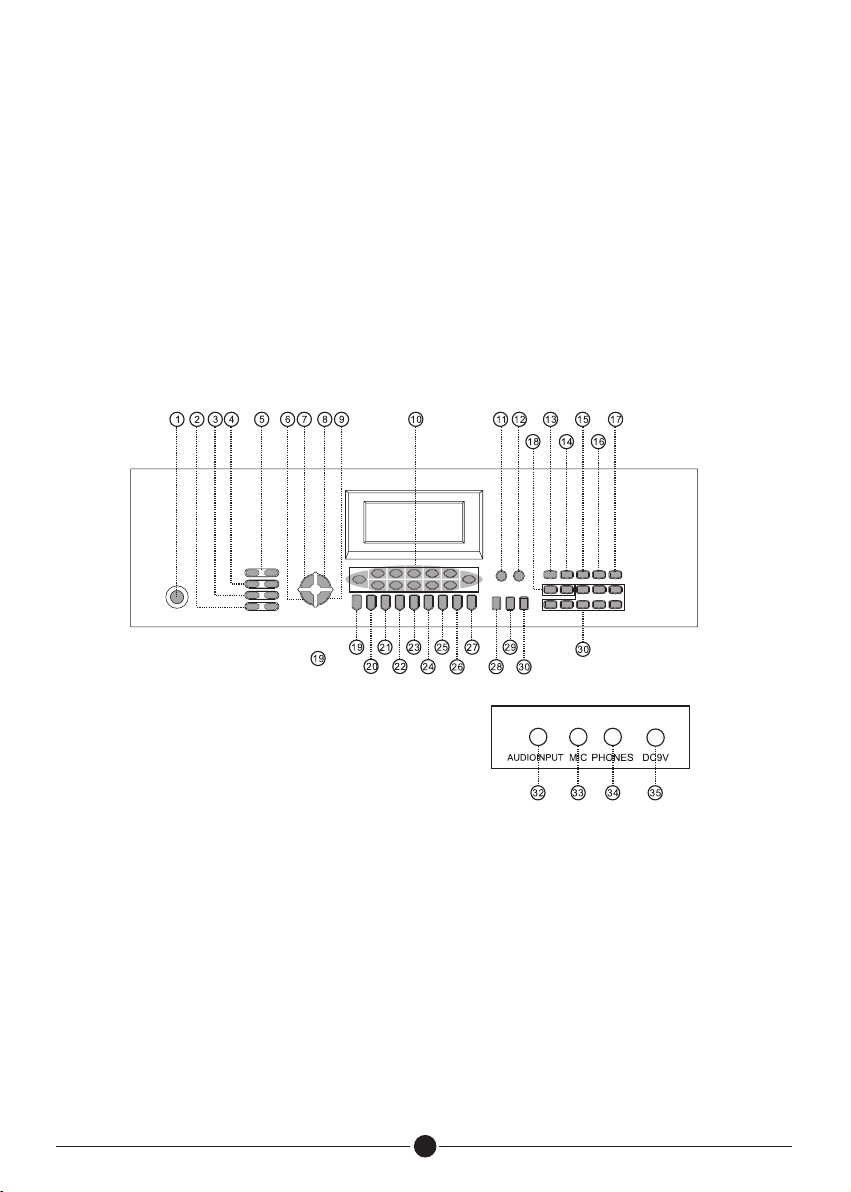

4. The usage of external terminal ports
Audio Input:The keyboard with stereo function, it support the phone, USB music player or
computer input the audio into the keyboard to play. Firstly turn o the keyboard,plug the audio
plug into the facility and the other end plug into the keyboard and then turn on the keyboard.
External Earphone:The plug of the earphone is inserted into the keyboard body (33) in order to
avoid inuencing other people while the keyboard is learned.
External Microphone: Plug the microphone plug into the port, than you can use
while playing the keyboard.
II FUNCTION OPERATION
1. Power on
Put the power switch up to turn on the electricity, you can start playing when the indicator light is
lit.
2. Master volume control
Press the volume button [+] or [-] to turn up or turn down the volume, and the 4 grades is the
default opening volume, 8 grades is in all.
3. Accompaniment volume control
When accompaniment function is in service, press the button [+]/[-] to turn up or turn down the
accompaniment volume.Press the button [+]/[-] at the same time and it will be back to the original
value,6 grades is the opening default value,8 grades in all. No 0 when it is at the lowest grade
accompaniment.
4. Tempo control
Press the button [+] or [-] to quicken or slow down, long press the button [+]/[-] to quicken or slow
down the tempo continuously, press the button [+]/[-] at the same time and it will be back to the
original value when it plays, it can take eect.
5. Chord volume control
Press the button [+]/[-] to turn on or turn down the chord volume, press the button[+]/[-] at the
same time it will back to the original value.
6. Timbre select
In usual mode, press the button [timbre], than you can choose the timbre, 350 timbres in all,e.g.
you press the number [0] and [5] into 005synth Bass.
Timbres form in attachment 2.
When chord function is in service, 19 keys on the left of keyboard are chord timbres, but no the
corresponding scale key, the number 000 piano is the opening default timbre.
7. Rhythm select
Press the button [rhythm] to go into the rhythm select mode, 350 rhythms in all for your
selection.Press the button [start/stop] to play the corresponding rhythm, When rhythm is playing.
press the number button to reselect the rhythm e.g.
press the button [0] [0] [5] to select and play the number 005 rhythm Rock.

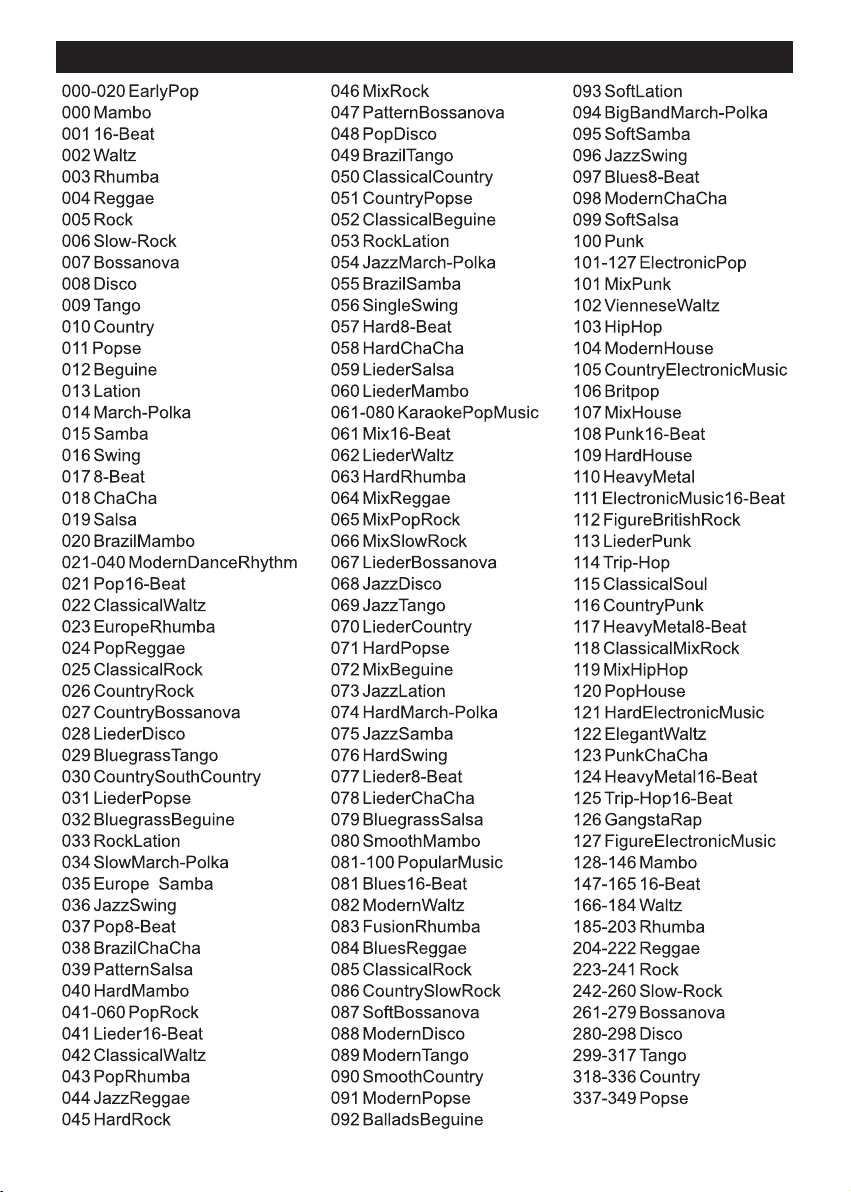

Rhythm from attachment 3.
8. Percussion
Panel Percussion: 8 kinds in all are shown on the keyboard's panel.
Percussion:Press the button [percussion], 61 keys correspond 61 kinds
percussion.
9. Record
Press the button [record] to go into the record mode. When record is in service, the notes played
will be recorded. Only one note can be recorded at a time, and the notes recorded about 45 notes.
press [playback1 to play the record notes one by one; after the recorded notes are being
played,new notes can be added till the room is full;when recording or playing is under way, press
[record] to end the recording or playing function.
10. Program
Press the button [program] to go into the program mode, you can edit drums into the keyboard,
only one drum can be edited at a time, and the drums edited should not exceed the maximum
number 32.
Press [playback] to end the programming mode and start to play the drums edited cyclically,
forming a rhythm of self-edited style. With a quarter of the rhythm to let the drum played cyclically
press button [playback] again will stop playing ,in the stop mode it will go on the new program-
ming.
In the programming mode, press the button [programming] again it can quit the programming.(If
it's playing, it will quit together at the same time)
11. Transposition
You can play other tune use C Major ngering with transposition function.Press the button [-] the
keyboard lower a semitone,at this time C Major keyboard area turn into B Major; Press the button
[+] the keyboard raise a semitone , at this time C Major keyboard area turn into#C Major or bD
Major. Press the button [-] for two time C Major turn into Bb Major,press the button[+]for ve times
C Major turn into F Major. Press the button [+] and [-] at the same time will turn into C Major“00”
Press the button [+] or [-] to transpose,the adjustment scope is between "-6" and“+6”
12. Demo song
Press the button [demo one] go into the demo mode,the chose song will be play again and again
automatically. Press the button [demo one] or [start/stop] to quit this function.
Press the button [demo all] to play all the demo songs continuously, after the current song is
played, the keyboard will play the following one automatically.
When the last song ends, the keyboard will revolve back to the rst song, press the button [demo
all] or [start/stop] will stop the all playing.When the playing mode is under way, press number or
[+/-] to choose the song to play.
Demo song from attachment 1(20 pieces in all)
13. Teaching
TTeaching1:single key
The [single key] button is pressed and the white button is pressed to select the suitable music.
After the music is selected, any single-button is pressed to play the main note and repeat the
accompaniment. Which is one-button and one-sound mode. No require the pitch or correctness
about the corresponding song is learned.Whether or not you play the right key, you will get the
right sound.
Press the button [teaching1] again to quit this function.
Teaching2: follow
Only you play the main note correctly, the keyboard give out the correct sound. you can press the
button [+/-] or the number button to choose the song to play.
Press the button [teaching 2] again to quit the function.
Teaching3 concert
You can play the keyboard with the main notes were shielded, you need to play the song
correctly.If you do not play the keyboard for 3 seconds, the main notes will renew.
Press the button [teaching 3] to quit the function.
14. Sustain & vibrato
Sustain:the endnotes played are lengthened.
Vibrato: the pitch of the notes vibrates within a limited range.
Sustain and vibrato only takes eect to the note played, not to demo songs.
15. Metronome
Press the button [metronome] continuously, 1/4,2/4, 3/4,4/4 and stop, four metronomes for
selection. Press the button [metronome] again to quit the function.
16. Chord
Accompaniment type selection:including single nger chord and multi-nger chord; manual
playing and chord playing within rhythm, automatic accompaniment chord exists only with
rhythm.
Singer nger chord: press the button [single-nger] to start the chord function. when rhythm is in
service, and at this time the 19 note keys on the left will be used as the single nger chord with
automatic chord accompaniment, without starting rhythm you play with manual chord accompa-
niment,press the button [single-nger] or [normal] again to quit the function.
SINGER FINGER CHORD:
MAJOR TRAID CHORD: root chord playing
MINOR TRAID CHORD: root chord playing at the same time and a black key on the left.
DOMINANT SEVENTH CHORD: root chord playing at the same time and a white key and a black key
on the left.
MULTI-FINGER CHORD: press the button [multi-nger chord] to start this function,when rhythm is
in service, press the button (19 keys in the left of the keyboard) to start the auto chord accompani-
ment function according the ngering, without starting rhythm you can play with manual chord
accompaniment.

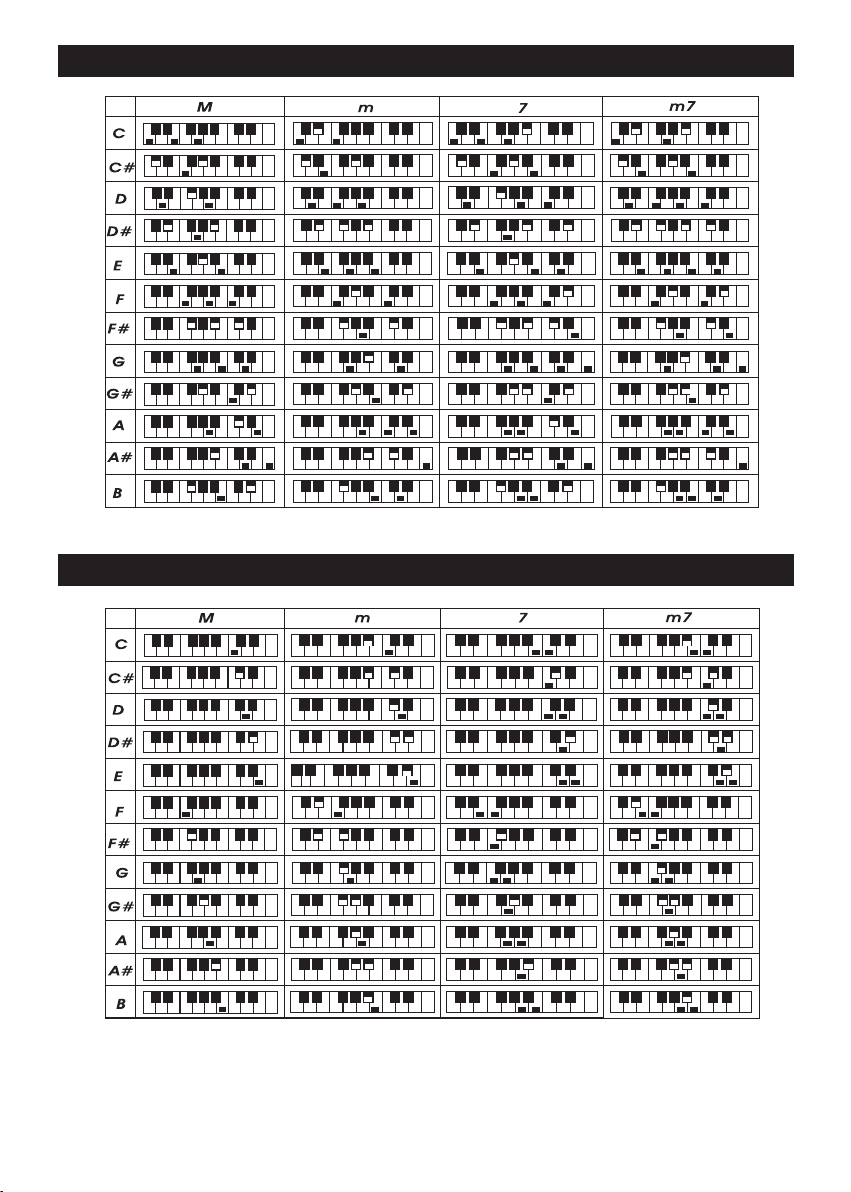

C、Cm、C7、Cm7,the ngering for the corresponding C root showed as follow :
Remarks: supports the reducible and recognized ngering types;
When rhythm is in service, press the button [ll in] a rhythm will be lled in the rhythm,and turn
into the corresponding normal rhythm.If you press the button long no loosen, the rhythm will
goes into circulating.
Press the button [sync] it goes into sync function, when rst press the key in the accompaniment
keyboard to start automatic rhythm or accompaniment,when rhythm is in service, press [sync]
button will stop the rhythm going to the sync function.
17. Double keyboard
Press the button [double keyboard] to start this function, at this time the 24 keys on the left of the
keyboard will separated with original keyboard and the pitch goes up an octave and keep the
original timbre. The keyboard on the right will go down an octave,according the need to choose
dierent timbre.
ATTACHMENT 1: DEMO SONGS
