Keys Fitness CardioMax 707 Stepper CM707S User manual

CAUTION!
Please read the precautions and instructions in this manual before
using this equipment. Please save this manual for future reference.
QUESTIONS?
Call Our Toll Free
Keys Fitness Helpline
1-888-340-0482
OWNER’S MANUAL
s

Keys Fitness is committed to quality products
that demonstrate our commitment to excellence!
CARDIOMAX 707 STEPPER
Model: CM707S
Questions?
Please call if:
• you need assistance about operating your exercise unit
• parts are missing
• parts become worn or need to be replaced
1-888-340-0482
Monday-Friday
8:30am-5:30pm Central Time
Please have the following information available:
• Name
• Model
• Part Number
• Description

Before You Start
Thank you for purchasing a CardioMax exercise unit! This quality product you have chosen was
designed to meet your needs for cardiovascular exercise.

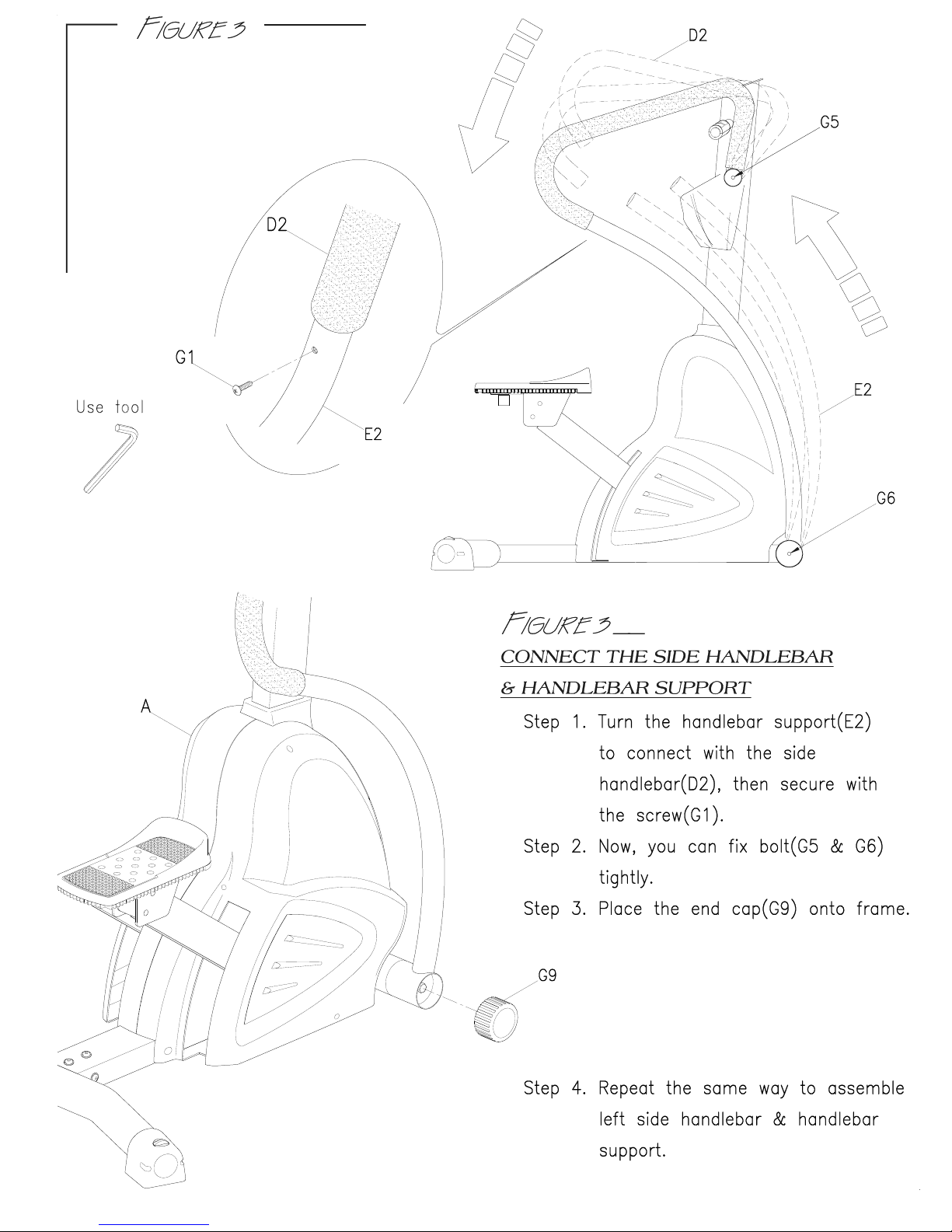

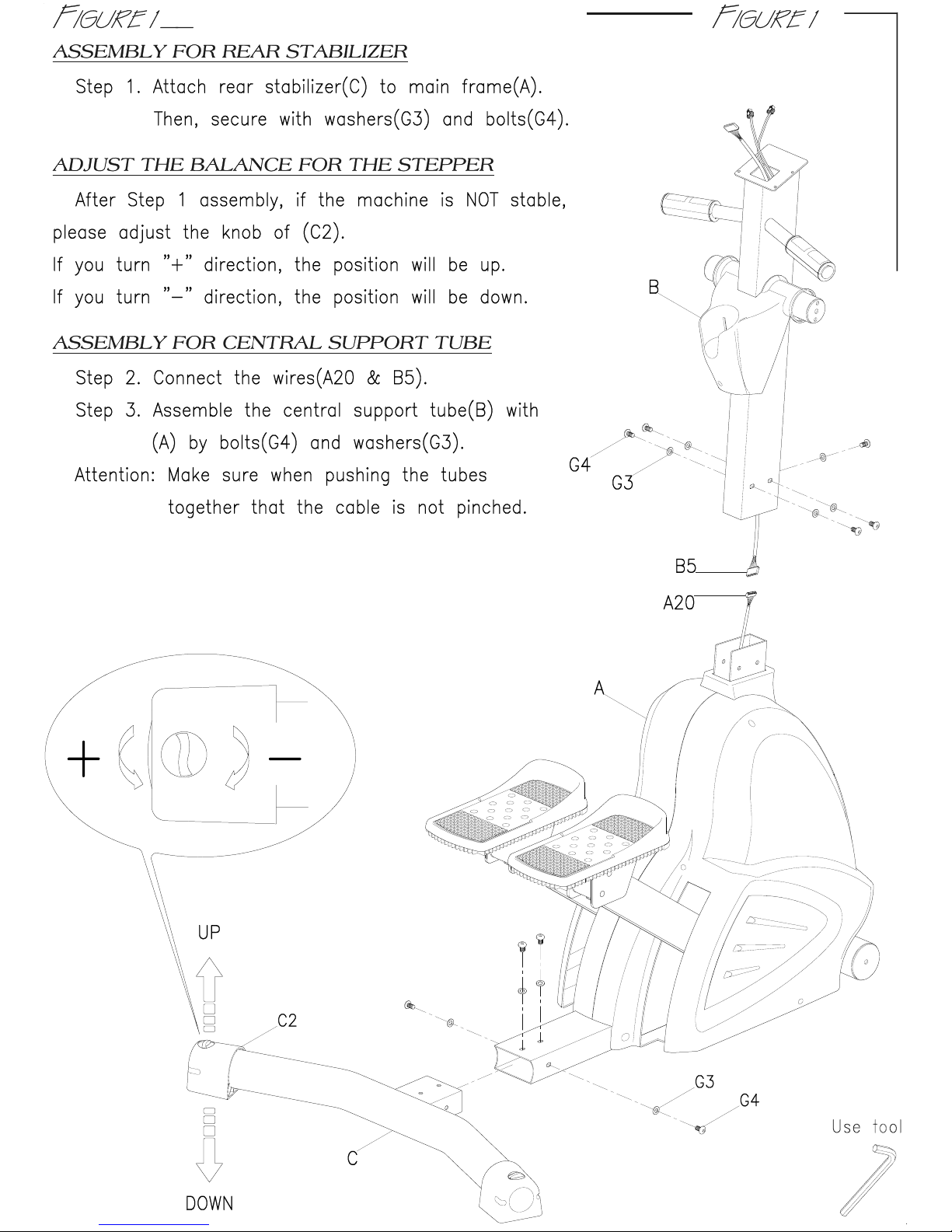

Prior to assembly, remove components from the box and verify that all the listed parts were sup-
plied. Assembly instructions are described in the following steps and illustrations.
Important Safety Information
WARNING!
1) Before using this exercise unit or starting any exercise program, consult your physician. This is
especially important for persons over the age of 35 and/or persons with pre-existing health prob
-
lems. Keys Fitness Products LP assumes no responsibility for personal injury or property damage
sustained by or through the use of this product.
2) To reduce the risk of electrical shock, burns, fire or other possible injuries to the user, it is impor-
tant to review this manual and the following precautions before operation.
Safety Precautions and Tips
It is the owner's responsibility to ensure that all users of this exercise unit have read the Owner's
Manual and are familiar with warnings and safety precautions.
• This exercise unit has a maximum user capacity of 275 pounds.
• This exercise unit should only be used on a level surface and is intended for indoor use only. It
should not be placed in a garage, patio or near water. Keys recommends an equipment mat be
placed under the unit to the protect the floor or carpet and for easier cleaning.
•
Wear comfortable, good-quality walking or running shoes and appropriate clothing. Do not use this
exercise unit with bare feet, sandals, socks or stockings!
• Always examine your exercise unit before using to ensure all parts are in working order.
• Do not leave children unsupervised near or on the exercise unit.
•
Never operate the exercise unit where oxygen is being administered or where aerosol products are
being used.
• Never insert any object or body parts into any opening.
• Service to your exercise unit should only be performed by an authorized service representative,
unless authorized and/or instructed by a Keys technician. Failure to follow these instructions will
void the warranty.

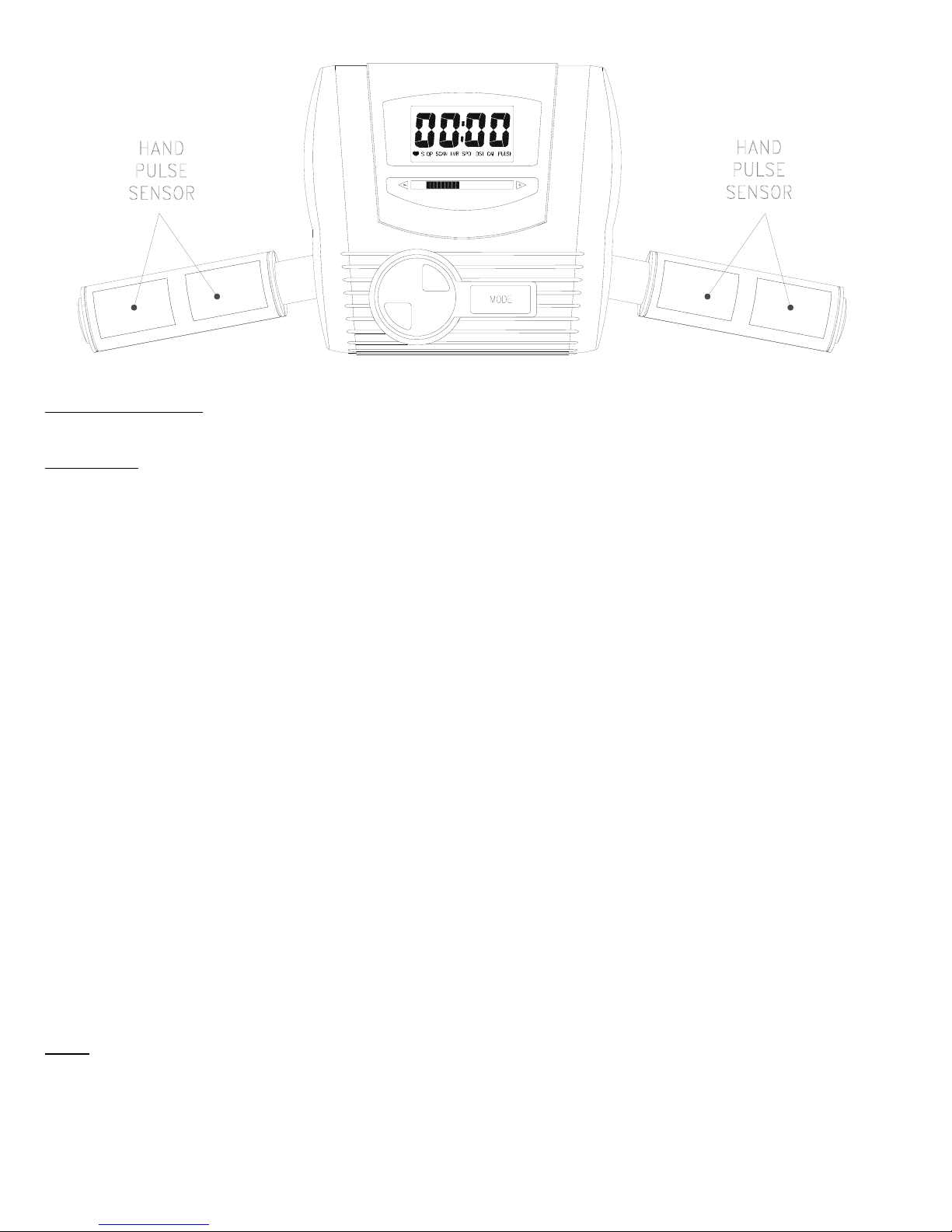

EXER CISE COMPUTER
FUNCTION BUTTON
MODE PRESS TO SELECT FUNCTIONS BETWEEN TIME, PULSE, DISTANCE, AND CALORIE.
FUNCTIONS
LOAD THERE IS A LED BAR INDICATOR BELOW THE MONITOR DISPLAY TO SHOW YOUR CURRENT TRAINING
LEVEL DIFFICULTY. WHEN YOU TURN THE ROUND BUTTN TO ADJUST LEVEL, TURN TO CLOCKWISE
DIRECTION IS TO INCREASE TRAINING LEVEL, TURN TO ANTI-CLOCKWISE TO DECREASE TRAINING LEVEL.
THE TRAINING LEVEL IS GETTING HIGHER AND HIGHER WHEN THE LED BAR INDICATOR RUNS FROM
LEFT TO RIGHT SIDE.
SCAN
AUTOMATICALLY SCAN THROUGH EACH FUNCTION BETWEEN TIME, SPEED, DISTANCE, and CALORIE
IN SEQUENCE FOR EVERY 6 SECONDS.
TIME ACCUMULATES TOTAL WORKING TIME UP TO 99:59.
COUNT DISPLAYS CURRENT WORKING NUMBERS.
TOTAL COUNT ACCUMULATES TOTAL WORKOUT NUMBERS FROM DIFFERENT EXERCISE SECTIONS. THIS DATA IS NOT
ABLE TO BE RESET UNLESS ADAPTOR PLUG AND PLUG IN AGAIN.
CALORIE ACCUMULATES CALORIES CONSUPMTION DURING EXERCISE, MAX VALUE IS 9999 CAL.
(THIS DATA IS A ROUGH GUIDE FOR COMPARISON OF DIFFERENT EXERCISE SESSIONS WHICH CAN
NOT BE USED IN MEDICAL TREATMENT.)
PULSE THE MONITOR WILL DISPLAY THE USER
'
S HEART RATE WHILE EXERICING. YOU WILL SEE YOUR CURRENT
HEART RATE
(
BPM
)
DISPLAY ON THE LCD DURING EXERCISING. WHEN YOU START TO EXERCISE, YOU
HAVE TO HOLD ON GRIPS WITH BOTH HANDS, AFTER 30 SECONDS TO MAX. 1 MINUTE, THE PULSE
FIGURE WILL DISPLAY ON THE LCD. IF YOU HOLD ON THE GRIP WITH ONLY ONE HAND, THE PULSE
FIGURE DISPLAY WILL BECOME UNSTABLE. FOR THE PULSE FIGURE ACCURACY REASON, WE
'
LL SUGGEST
YOU TO HOLD ON BOTH HANDS DURING EXERCISING.
NOTE
1. WITHOUT ANY SIGNAL IN FOR A PERIOD OF 4 MINUTES, THE LCD DISPLAY WILL SHUT OFF AUTOMATICALLY.
ALL FUNCTION DATAS ARE RESET TO ZERO.
2. TUNR ON THE MONITOR BY PRESING MODE BUTTON OR START TRAINING.
3. MODE FUNCTION WORKS AVAILABLE ONLY IN STOP TRAINING MODE.
4. IF IMPROPER DISPLAY ON MONITER, PLEASE TAKE OFF THE ADAPTOR PLUG AND PLUG IN AGAIN.

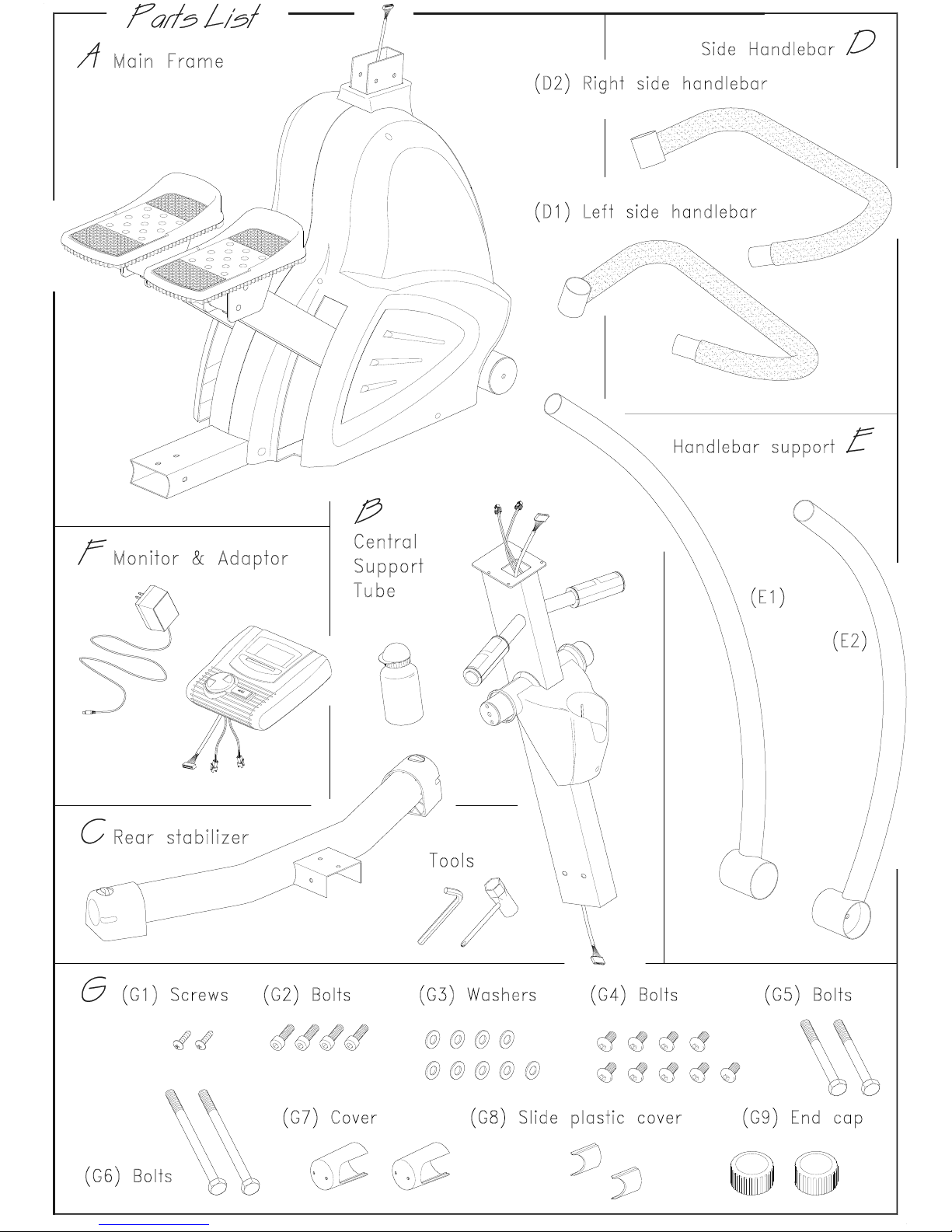

P/NO. DESCRIPT ION Q'TY P/NO. DESCRIPTION Q'TY
A1 MAIN FRAME 1 A53 SCREW 4
A2 MAGNETIC FLYWHEEL 1 A54 PEDAL 2
A3 FLAT WASHER 1 A55 SCREW 8
A4 BELT 1 A56 COVER
(
L
)
1
A5 CRANE 1 A57 COVER
(
R
)
1
A6 PRESSING WHEEL 2 A58 DECORTATION COVER
(
L
)
1
A7 SCREW 2 A59 DECORTATION COVER
(
R
)
1
A8 SPRING 1 A60 SCREW
A9 NUT 1 A61 SCREW COVER 6
A10 NUT 1 A62 SCREW 6
A11 DRIVING PLATE 1 A63 ELECTRONIC WIRE 1
A12 CRANE 1 A64 MOTOR 1
A13 SPACER PIPE 1 A65 SCREW 4
A14 NUT 1
A15 SPRING 1 B1 MAIN SUPPORT TUBE 1
A16 DRIVING PLATE 1 B2 HAND PULSE COVER 2
A17 BELT 1 B3 SCREW 4
A18 NUT 4 B4 END CAP 2
A19 FLAT WASHER 4 B5 SENSOR WIRE
(
UPPER
)
1
A20 SENSOR WIRE 1 B6 HAND PULSE 2
A21 SCREW 4 B7 SCREW 1
A22 CHAIN 2 B8 DECORTATION COVER FOR BOTTLE HOUSING
(
L
)
1
A23 BEARING 4 B9 DECORTATION COVER FOR BOTTLE HOUSING
(
R
)
1
A24 SPACER PIPE 2 B10 SCREW 4
A25 C CLIP 2 B11 BOTTLE HOUSING 1
A26 SPRING 2 B12 WATER BOTTLE 1
A27 C CLIP 4
A28 METAL BUSHING 4 C1 REAR STABILIZER 1
A29 CHAIN CONNECT BRACKET 4 C2 ADJUSTED END CAP 2
A30 PIPE 2 C3 SCREW 2
A31 ONE WAY GEAR 2
A32 TENSION CABLE 1 D1 HANDLE BAR TUBE
(
L
)
1
A33 BUSHING HOUSING 2 D2 HANDLE BAR TUBE
(
R
)
1
A34 SPACER PLATE 1 D3 SPONGE 2
A35 AXLE 1
A36 TRANSPORTATION WHEEL 2 E1 HANDLE BAR SUPPORTING TUBE
(
L
)
A37 SCREW 4 E2 HANDLE BAR SUPPORTING TUBE
(
R
)
A38 BUSHING 2
A39 PIPE 4
1
1
F1 COMPUTER 1
A40 PEDAL TUBE
(
L
)
F2 SCREW 4
A41 PEDAL TUBE
(
R
)
F3 ADAPTOR 1
A42 BUSHING 2
A43 TAPPING SCREW 4 G1 SCREW 2
A44 METAL BUSHING 8 G2 SCREW 4
A45 C CLIP 4 G3 FLAT WASHER 9
A46 NUT 2 G4 SCREW 9
A47 SCREW 2
1
1
G5 SCREW 2
A48 CONNECTION TUBE
(
L
)
G6 SCREW 2
A49 CONNECTION TUBE
(
R
)
G7 PLASTIC COVER 2
A50 PEDAL HOUSING 2 G8 SLIDE COVER 2
A51 BUSHING 2 G9 END CAP 2
A52 NUT 4

Monitoring Your Heart Rate
To obtain the greatest cardiovascular benefits from your exercise workout, it is important to work
within your target heart rate zone. The American Heart Association (AHA) defines this target as
60%-75% percent of your maximum heart rate.
Your maximum heart rate may be roughly calculated by subtracting your age from 220. Your maxi-
mum heart rate and aerobic capacity naturally decreases as you age. This may vary from one per-
son to another, but use this number to find your approximate effective target zone. For example, the
maximum heart rate for an average 40 year-old is 180 bpm. The target heart rate zone is 60%-75%
of 180 or 108-135 bpm. See Fitness Safety below.
Before beginning your workout, check your normal resting heart rate. Place your fingers lightly
against your neck, or against your wrist over the main artery. After finding your pulse, count the
number of beats in 10 seconds. Multiply the number of beats by six to determine your pulse rate per
minute. We recommend taking your heart rate at these times; at rest, after warming up, during your
workout and two minutes into your cool down, to accurately track your progress as it relates to better
fitness.
During your first several months of exercising, the AHA recommends aiming for the lower part of the
target heart rate zone-60%, then gradually progressing up to 75%.
According to the AHA, exercising above 75% of your maximum heart rate may be too strenuous
unless you are in top physical condition. Exercising below 60% of your maximum will result in mini-
mal cardiovascular conditioning.
Check your pulse recovery rate – If your pulse is over 100 bpm five minutes after you stop exercis-
ing, or if it’s higher than normal the morning after exercising, your exertion may have been too stren
-
uous for your current fitness level. Rest and reduce the intensity next time.
Fitness Safety The target heart rate chart indicates average rate zones for different ages. A
variety of different factors (including medication, emotional state, temperature and other conditions)
can affect the target heart rate zone that is best for you. Your physician or health care professional
can help you determine the exercise intensity that is appropriate for your age and condition.
(MHR) = Maximum Heart Rate (THR) = Target Heart Rate
220 - age = maximum heart rate (MHR)
MHR x .60 = 60% of your maximum heart rate.
MHR x .75 = 75% of your maximum heart rate.
For example, if you are 30 years old, your calculations will be as follows:
220 - 30 = 190
190 x .60 = 114 (low end or 60% of MHR)
190 x .75 = 142 (high end or 75% of MHR)
30 year-old (THR) Target Heart Rate would be 114-142
See Heart Rate Table for additional calculations.

100%
85%
75%
60%
Serious
athletic
training range
Cardiovascular
conditioning
range
Fat burning
range
20 25 30 35 40 45 50 55 60 65
AGE
200
195
190 185 180 175
170
165 160 155
170 166 162 157
153 149
145
140
136 132
150 146 143
139 135 131 128 124 120 116
120
117 114 111 108 105 102 99 96
93
TARGET HEART RATE ZONE

KEYS FITNESS PRODUCTS, LP -
LIMITED WARRANTY
PRODUCT: CARDIOMAX 708 STEPPER
HOME USE WARRANTY: Frame: Liftetime, Parts: 2 Years
This Limited Warranty applies in the United States and Canada to products manufactured or distributed by Keys Fitness
Products, LP (“Keys”) under the KEYS brand name. The warranty period to the original purchaser is listed above in the
table.
Keys warrants that the Product you have purchased for use from Keys or from an authorized Keys reseller is free from
defects in materials or workmanship under normal use during the warranty period. Your sales receipt, showing the date
of purchase of the Product, is your proof of purchase. This warranty only extends to you, the original purchaser. It is not
transferable to anyone who subsequently purchases the Product from you. It excludes expendable parts (wear items).
Wear items pertain to components that might need to be replaced due to normal wear and tear. These items vary per
product but will include computer overlays, pedal straps, rope cords, seats, grips, chains, bottom bracket assemblies,
pads, upholstery, pulleys, bearings, etc. Please contact a Keys Fitness customer service representative for specifics on
wear items. This Limited Warranty becomes VALID ONLY if the product is purchased through a Keys Fitness authorized
dealer unless otherwise authorized by Keys Fitness in writing.
During the warranty period Keys will repair or replace (at Keys' option) the product if it becomes defective, malfunctions,
or otherwise fails to conform with this Limited Warranty under normal use. In repairing the Product, Keys may replace
defective parts, or at the option of Keys, serviceable used parts that are equivalent to new parts in performance. All
exchanged parts and Products replaced under this warranty will become the property of Keys. Keys reserves the right to
change manufacturers of any part to cover any existing warranty.
This warranty DOES NOT COVER shipping charges, export taxes, custom duties and taxes, or any other charges asso
-
ciated with transportation of the parts or Product.
To obtain warranty service, you must contact a Keys authorized retailer, service technician or Keys Fitness at our phone
numbers located in this manual. Any parts determined to be defective must be returned to Keys to obtain warranty serv-
ice. You must prepay any shipping charges, export taxes, custom duties and taxes, or any other charges associated with
transportation of the parts or Product. In addition, you are responsible for insuring any parts or Product shipped or
returned. You assume the risk of loss during shipment. You must present Keys with proof-of-purchase documents
(including the date of purchase). Any evidence of alteration, erasing or forgery of proof-of-purchase documents will be
cause to void this Limited Warranty.
This warranty does not extend to any product not purchased from Keys or from an authorized Keys reseller. This Limited
Warranty does not extend to any Product that has been damaged or rendered defective; (a) as a result of accident, mis
-
use, or abuse; (b) by the use of parts not manufactured or sold by Keys; (c) by modification of the Product or normal
wear and tear; (d) operation on incorrect power supplies; or (e) as a result of service by anyone other than Keys, or an
authorized Keys warranty service provider. Product on which the serial number has been defaced or removed is not eli-
gible for warranty service. Should any Product submitted for warranty service be found ineligible, an estimate of repair
cost will be furnished and the repair will be made if requested by you upon Keys' receipt of payment or acceptable
arrangements for payment.
EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY, KEYS MAKES NO OTHER WARRANTIES, EXPRESSED
OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. KEYS EXPRESSLY DISCLAIMS ALL WARRANTIES NOT STATED IN THIS LIMITED WARRANTY. ANY
IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO THE TERMS OF THIS LIMITED WAR-
RANTY. NEITHER KEYS NOR ANY OF ITS AFFILIATES SHALL BE RESPONSIBLE FOR INCIDENTAL OR CONSE-
QUENTIAL DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATIONS OR EXCLUSION MAY NOT APPLY TO YOU. This Limited Warranty gives you specific legal rights and
you may also have other rights that may vary from state to state. This is the only express warranty applicable to Keys-
branded products. Keys neither assumes nor authorizes anyone to assume for it any other express warranty.
PLEASE SEND IN THE ATTACHED WARRANTY CARD WITHIN TEN (10) DAYS OF PURCHASE TO REGISTER
YOUR UNIT WITH KEYS FITNESS PRODUCTS, LP.
MAIL WARRANTY CARD TO:
KEYS FITNESS PRODUCTS, PO BOX 551239, DALLAS, TX 75355
