FOREWORD
Thank you for choosing a Kia vehicle.
When you require service, remember that your authorized Kia
dealer knows your vehicle best. Your dealer has factory-trained
technicians, recommended special tools, genuine Kia replacement
parts, and is dedicated to your complete satisfaction.
Because subsequent owners require this important information as
well, this publication should remain with the vehicle if it is sold.
This manual covers all OPTIMA/MAGENTIS models and will
familiarize you with operation, maintenance and safety
information about your new vehicle. It is supplemented by a
Warranty Information Booklet that provides important
information on all warranties regarding your vehicle. We urge
you to read these publications carefully and follow the
recommendations to help assure enjoyable and safe operation of
your new vehicle.
Kia offers a great variety of options, components and features for
its various models.
Therefore, the equipment described in this manual, along with the
various illustrations, may not all be applicable to your particular
vehicle. The information and specifications included in this
manual were accurate at the time of printing.
Kia Motors reserves the right to discontinue or change
specifications or design at any time without notice and without
incurring any obligation. If you have questions, always check
with your Kia Dealer.
We assure you of our continuing interest in your motoring
pleasure and satisfaction in your Kia vehicle.
© 2004 Kia Motors Corp.
All rights reserved. Reproduction by any means, electronic or
mechanical, including photocopying, recording, or by any
information storage and retrieval system or translation in whole or
part is not permitted without written authorization from Kia
Motors Corporation.
Printed in Korea
CAUTION:
Severe engine and transaxle damage may result from the use
of poor quality fuels and lubricants that do not meet Kia
specification. You must always use high quality fuels and
lubricants that meet the specifications listed on page 7- 37 in
the Maintenance section and page 5-2 in the Driving tips
section of the Owner’s Manual.
i

TABLE OF CONTENTS
Introduction ..........................................................................................................................................................................Section 1
Your Vehicle At A Glance ...................................................................................................................................................Section 2
Knowing Your Vehicle.........................................................................................................................................................Section 3
Driving Your Vehicle ...........................................................................................................................................................Section 4
Driving Tips ..........................................................................................................................................................................Section 5
In Case Of An Emergency ...................................................................................................................................................Section 6
Maintenance..........................................................................................................................................................................Section 7
Specifications ........................................................................................................................................................................Section 8
Index ......................................................................................................................................................................................Section 9
ii

How To Use This Manual ................................................................................................................................................................1-2
Vehicle Break-In Process .................................................................................................................................................................1-3
INTRODUCTION
1-1

1-2
HOW TO USE THIS MANUAL
We want to help you get the greatest
possible driving pleasure from your
vehicle. Your Owner’s Manual can assist
you in many ways. We strongly urge you
to review the entire manual. However, in
order to prevent death or injuries, at the
very least, you must review the
WARNING and CAUTION sections
spread throughout the manual, which are
easily recognized by their special
markings indicated below.
Illustrations complement the words in
this manual to help explain the better
way to enjoy your vehicle. By reading
your manual, you can find out about
features, important safety information,
and driving under various road
conditions.
Layout of the manual is provided in the
Table of Contents.
Index: A good place to start is the
index; it has an alphabetical listing of
all information in your manual.
Sections: This manual has eight
sections plus an index. Each begins
with a brief list of contents so you can
tell at a glance if that section has the
information you want.
You’ll find various WARNINGs,
CAUTIONs, and NOTICEs in this
manual. These WARNINGs,
CAUTIONs and NOTICEs were
prepared to enhance your personal
safety and continued satisfaction with
your Kia vehicle. You should carefully
read and follow ALL procedures and
recommendations provided in these
WARNINGs, CAUTIONs and
NOTICEs.
WARNING :
A WARNING indicates a situation
in which serious bodily injury or
death could result if the warning
is ignored.
CAUTION :
A CAUTION indicates a situation in
which personal injury, perhaps
severe, could result if the caution is
ignored.
NOTICE :
A NOTICE indicates a situation in
which damage to your vehicle could
result if the notice is ignored.
INTRODUCTION

1-3
VEHICLE BREAK-IN
PROCESS
No special break-in period is needed.
By following a few simple precautions
for the first 600 miles (1,000 km) you
may add to the performance, economy
and life of your vehicle.
• Do not race the engine.
• Do not maintain a single speed for
long periods of time, either fast or
slow. Varying engine speeds are
beneficial for proper engine break-
in.
• Avoid hard stops, except in
emergencies, to allow the brakes to
seat properly.
• Avoid full-throttle starts.

Interior and Exterior Overview .....................................................................................................................................................2-2
Instrument Panel Overview............................................................................................................................................................2-3
YOUR VEHICLE AT A GLANCE
2-1

YOUR VEHICLE AT A GLANCE
2-2
INTERIOR AND EXTERIOR OVERVIEW
1. Rearview mirror
2. Sunvisor
3. Sunroof (If equipped)
4. Seat
5. Spare tire
6. Lights
7. Fuel filler lid
8. Parking brake
9. Rear door child safety lock
10. Power window switches(If equipped)
11. Door
12. Outside rearview mirror
13. Air bags (If equipped)
4
5
6
7
8
9
10
11
12 13
1
23
EMSA2001

2-3

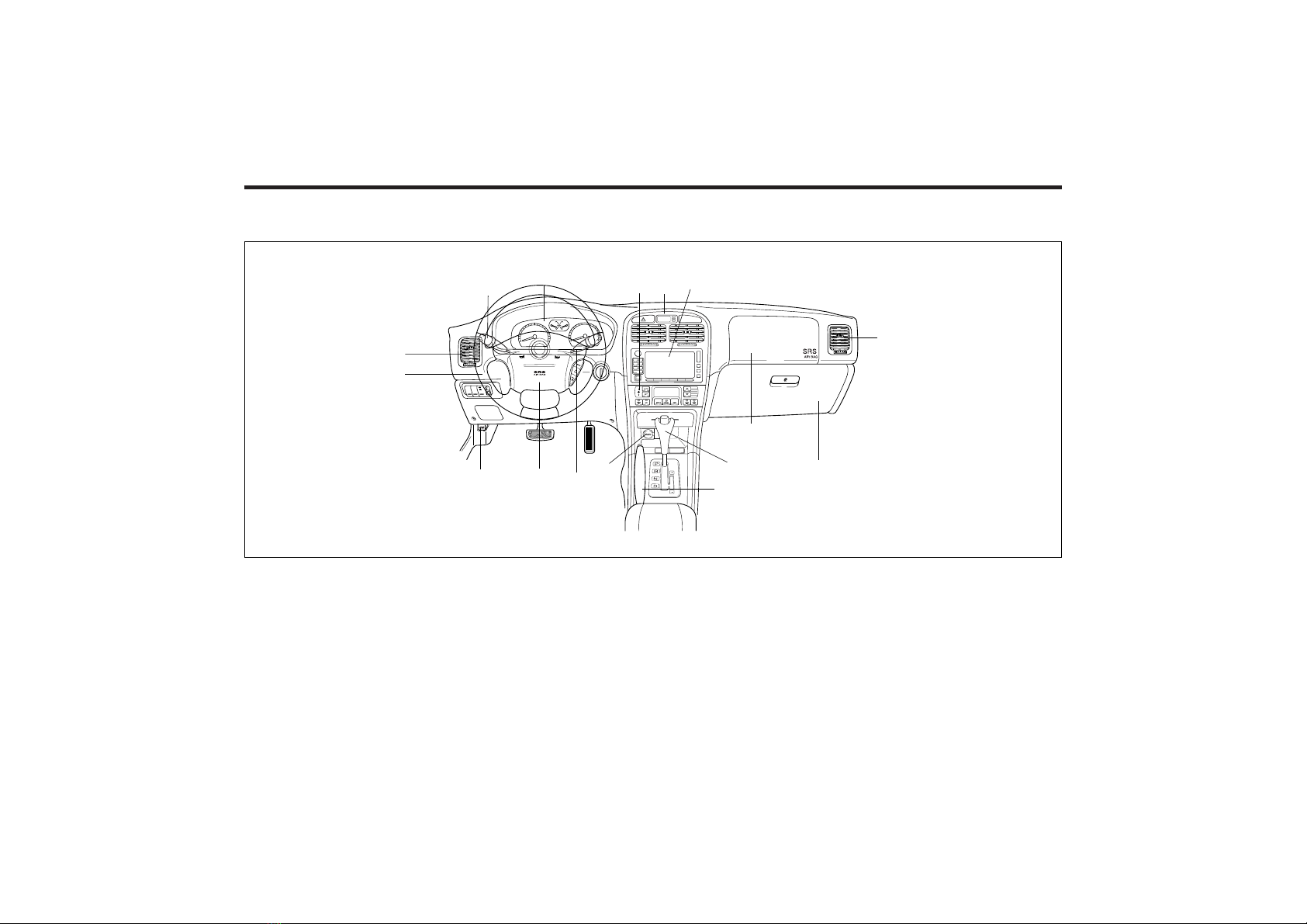

INSTRUMENT PANEL OVERVIEW
1. Instrument cluster
2. Air bag(If equipped)
3. Climate control
4. Clock
5. Radio (If equipped)
6. Air bag(If equipped)
7. Vent
8. Glove box
9. Shift lever (Automatic)
10. Parking brake
11. Wiper/Washer
12. Power outlet
13. Hood release
14. Light control/Turn signals
15. Steering wheel
TCS
ON OFF
SPORT
AUTO
ECS
45
6
7
8
9
10
11
12
13
7
15
1
14
2
3
EMSA2002

Keys ..............................................................................................................................................................................................................3-3
Keyless Entry System.................................................................................................................................................................................3-4
Theft-alarm System....................................................................................................................................................................................3-6
Immobilizer System ...................................................................................................................................................................................3-7
Illumimated Door Key Cylinder ..............................................................................................................................................................3-9
Door Locks ..................................................................................................................................................................................................3-9
Windows ......................................................................................................................................................................................................3-12
Seats..............................................................................................................................................................................................................3-15
Safety Belts ..................................................................................................................................................................................................3-23
Air Bag.........................................................................................................................................................................................................3-49
Trunk Lid ....................................................................................................................................................................................................3-58
Hood .............................................................................................................................................................................................................3-60
Fuel Filler Lid .............................................................................................................................................................................................3-62
Steering Wheel............................................................................................................................................................................................3-64
Mirrors.........................................................................................................................................................................................................3-64
Interior Lights.............................................................................................................................................................................................3-67
Cup Holders and Console Storage Compartment.................................................................................................................................3-69
KNOWING YOUR VEHICLE
3-1

KNOWING YOUR VEHICLE
3-2
Sunglass Holder ..........................................................................................................................................................................................3-70
Sunroof.........................................................................................................................................................................................................3-70
Antenna........................................................................................................................................................................................................3-73
Luggage Net ................................................................................................................................................................................................3-75

KEYS
The key number is stamped into the plate
attached to the key set. If you should lose
your keys, this number will enable an
Authorized Kia Dealer to duplicate the
keys easily. Remove the plate and store it
in a safe place. Also, record the number
and keep it in a safe and handy place, but
not in the vehicle.

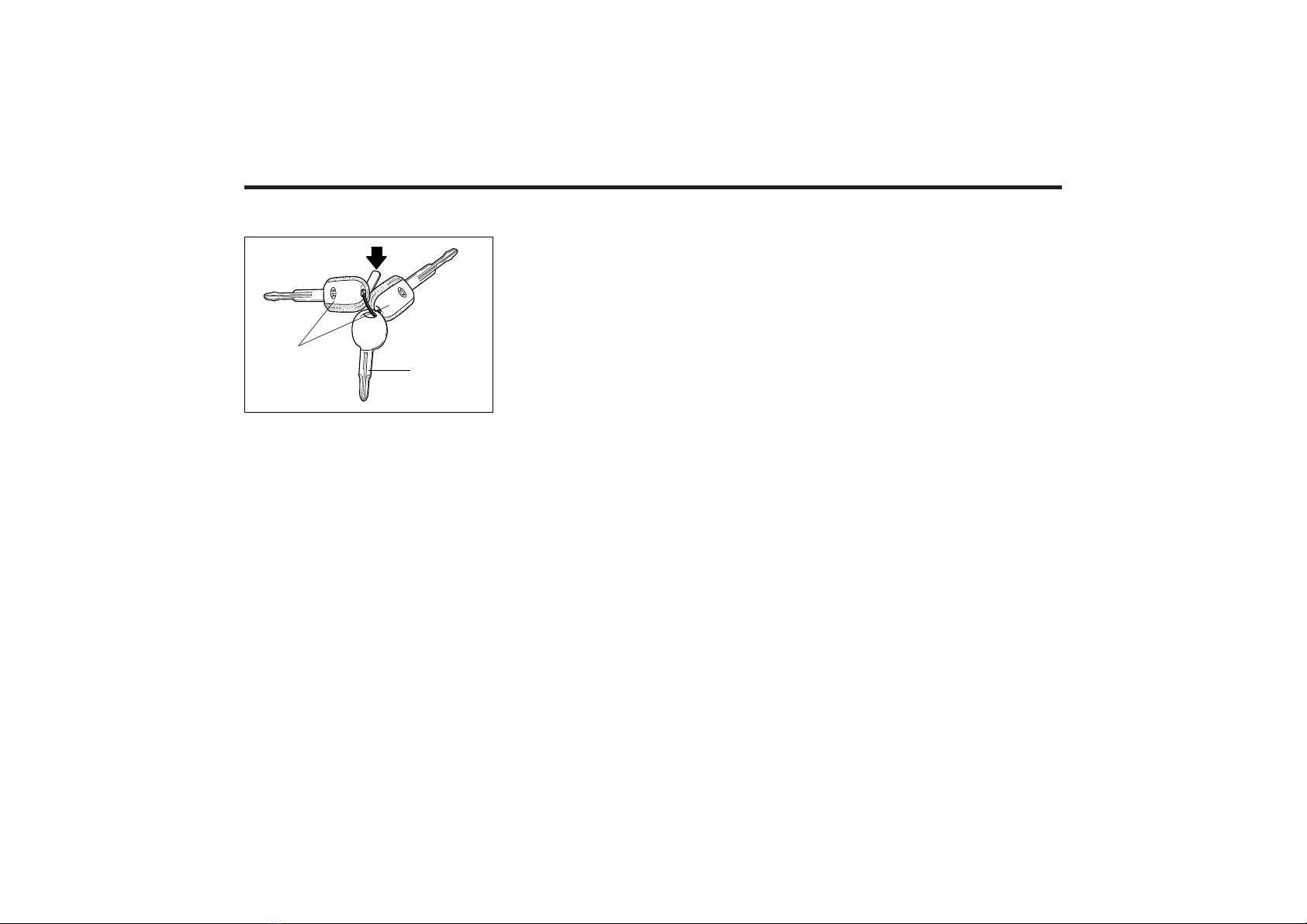

Your vehicle has two master keys and a
sub key. The master key will open all
locks on your vehicle.
The sub key will only function in the
ignition and the door locks.
WARNING - IGNITION KEY
Leaving children unattended in a
vehicle with the ignition key is
dangerous even if the key is not in
the ignition. Children copy adults
and they could place the key in the
ignition. The ignition key would
enable children to operate power
windows or other controls, or
even make the vehicle move
which could result in serious
bodily injury or even death. Never
leave the keys in your vehicle with
unsupervised children.
Leaving your sub key with a parking
attendant will ensure that your vehicle’s
trunk, trunk lid release, glove box
compartment and rear trunk access may
not be unlocked in your absence.
CAUTION:
Use only Kia original parts for the
ignition key in your vehicle. If an
aftermarket key is used, the ignition
switch may not return to ON after
START. If this happens, the starter
will continue to operate causing
damage to the starter motor and
possible fire due to excessive current
in the wiring.
3-3
50063
EMSA3070A
Sub Key
Master Keys

KEYLESS ENTRY
SYSTEM (IF EQUIPPED)
You can also lock or unlock the door and
open the trunk from outside with
transmitter.
NOTICE:
• Transmitter does not work as
described below.
- Ignition key is in the ignition key
hole.
- The battery of transmitter is
discharged.
• The operational distance(5m) is
exceeded.
• The transmitter may not operate
when the weather is very cold or
when there are other vehicles or
objects around the vehicle.
When the transmitter does not
work correctly, open and close the
door with the ignition key.
• If you have a problem with the
transmitter, contact an Authorized
Kia Dealer.
KNOWING YOUR VEHICLE
3-4
EMSA3067

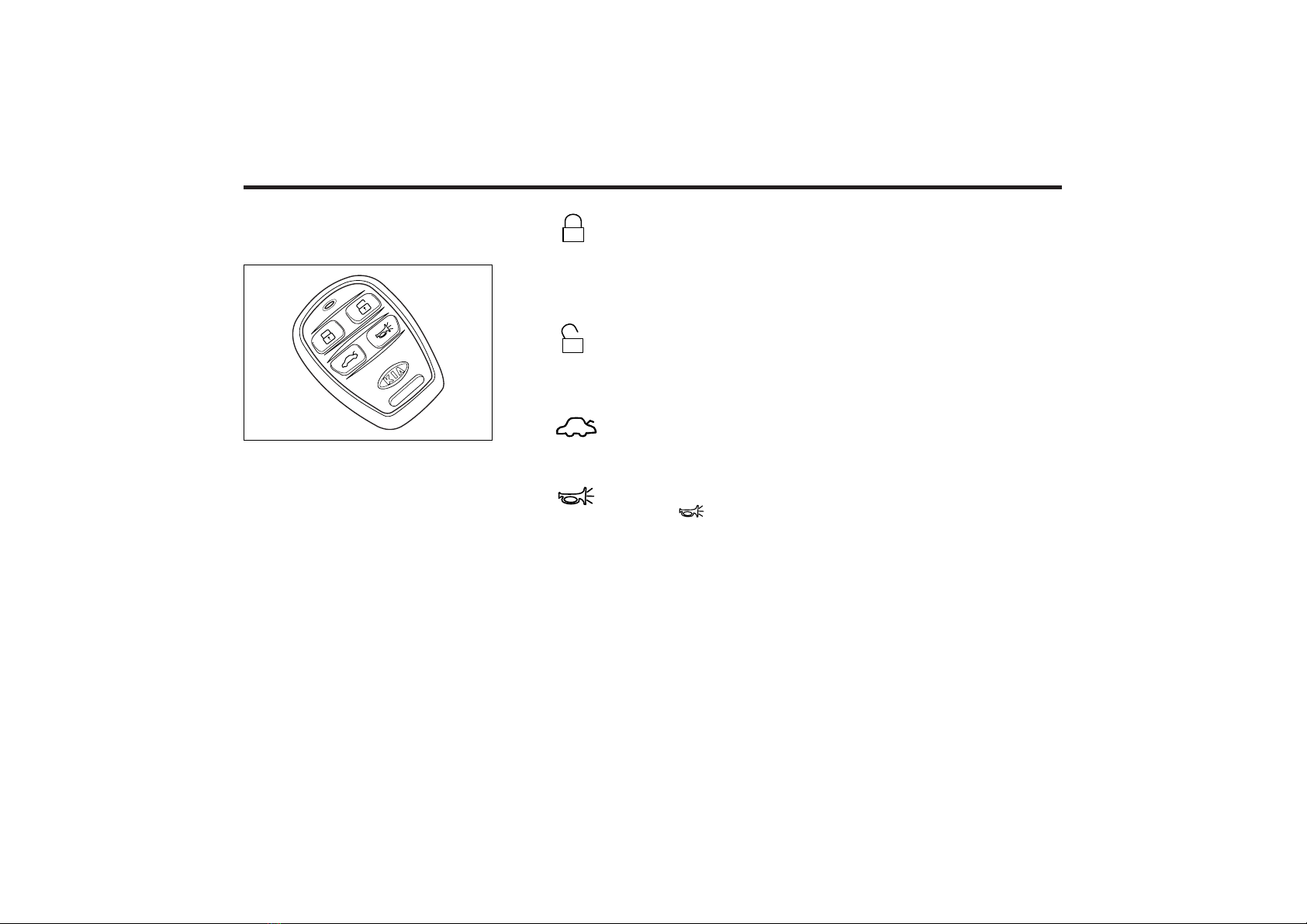

• To lock the door, depress
this button. (Hazard
warning light is turned on
and turned off for about
1second)
• To unlock the door,
depress this button.
(Hazard warning light
flickers for two times)
• To open the trunk, depress
this button.
• If you depress the panic
button ( ) on the
transmitter, the horn will
sounds and hazard lamp
will flash.

BATTERY REPLACEMENT
Transmitter uses a battery of 3Volt
lithium type. Normally the battery in
your transmitter is used for several years,
but replace it according to operation
condition.
1. Using the screwdriver, loosen the
screw on the transmitter backside and
use a thin tool to pry open the
transmitter.
2. Disassemble the transmitter and
remove the battery in the backside.
3. Make sure the battery “Plus (+)”
faces up.
CAUTION:
Using the wrong specified battery can
cause the malfunction of the
transmitter. Be sure to use the
standardized goods.
3-5
EMSA3068

THEFT-ALARM SYSTEM
(IF EQUIPPED)

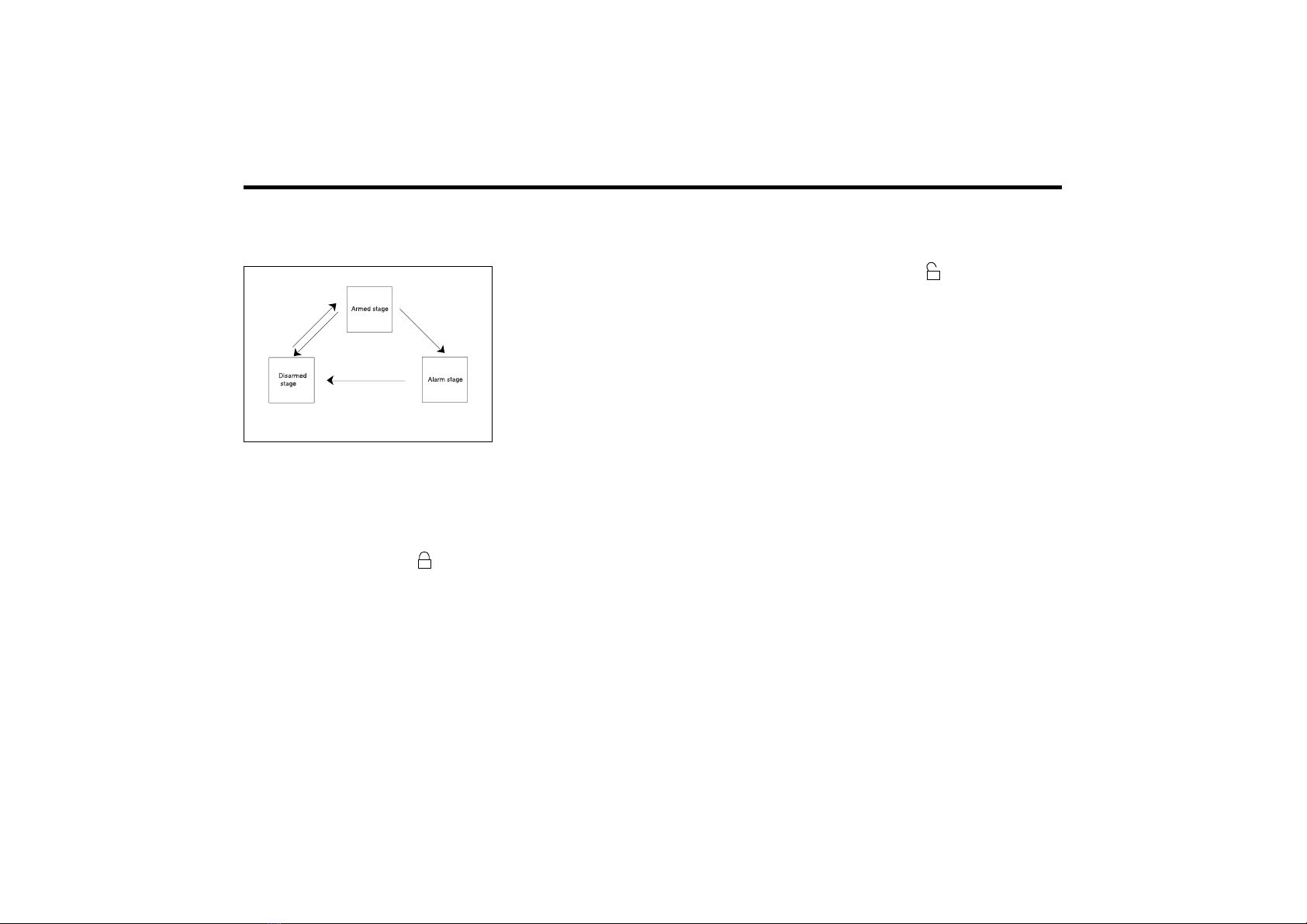

ARMED STAGE
The system is alarmed as described
below.
• After all doors such as engine hood,
trunk, doors are locked, if the
transmitter is pressed “ ” button,
the turn signal lamp blinks one time
and two times in releasing.(At this
time, the alarm does not sound in
making or releasing alarm.)
Alarm stage
The alarm will be activated as described
below under the armed stage
• The door is opened without using the
key or the transmitter.
• The trunk lid is opened without using
the key.
• The engine hood is opened.
The siren will sound ON for 30 seconds
and OFF for 10 seconds which continues
to be repeated three times. At the same
time, the engine does not start.
Withheld alarm
When the alarm is armed, the alarm will
not sound if the trunk lid is opened with
either the key or the transmitter.
However, if the trunk lid is not opened
completely within two seconds after
unlocking with the key or transmitter.
Also, if any of the doors or hood is
opened while the trunk lid is open and
the alarm armed, the alarm will sound.
DISARMED STAGE
The alarm will be released as described
below
• When the “ ” button in the
transmitter is depressed.
• When the ignition key is in the “ON”
position for 30 seconds or more.
• Unlock or lock the doors with the
transmitter or ignition key.
CAUTION:
If the ignition key is in the ignition
keyhole, the transmitter is not
operated.
Avoid trying to start the engine with
the alarm activated.
KNOWING YOUR VEHICLE
3-6
HMR082

IMMOBILIZER SYSTEM
(IF EQUIPPED)
The immobilizer system is an anti-theft
device, designed to deter automobile
theft.

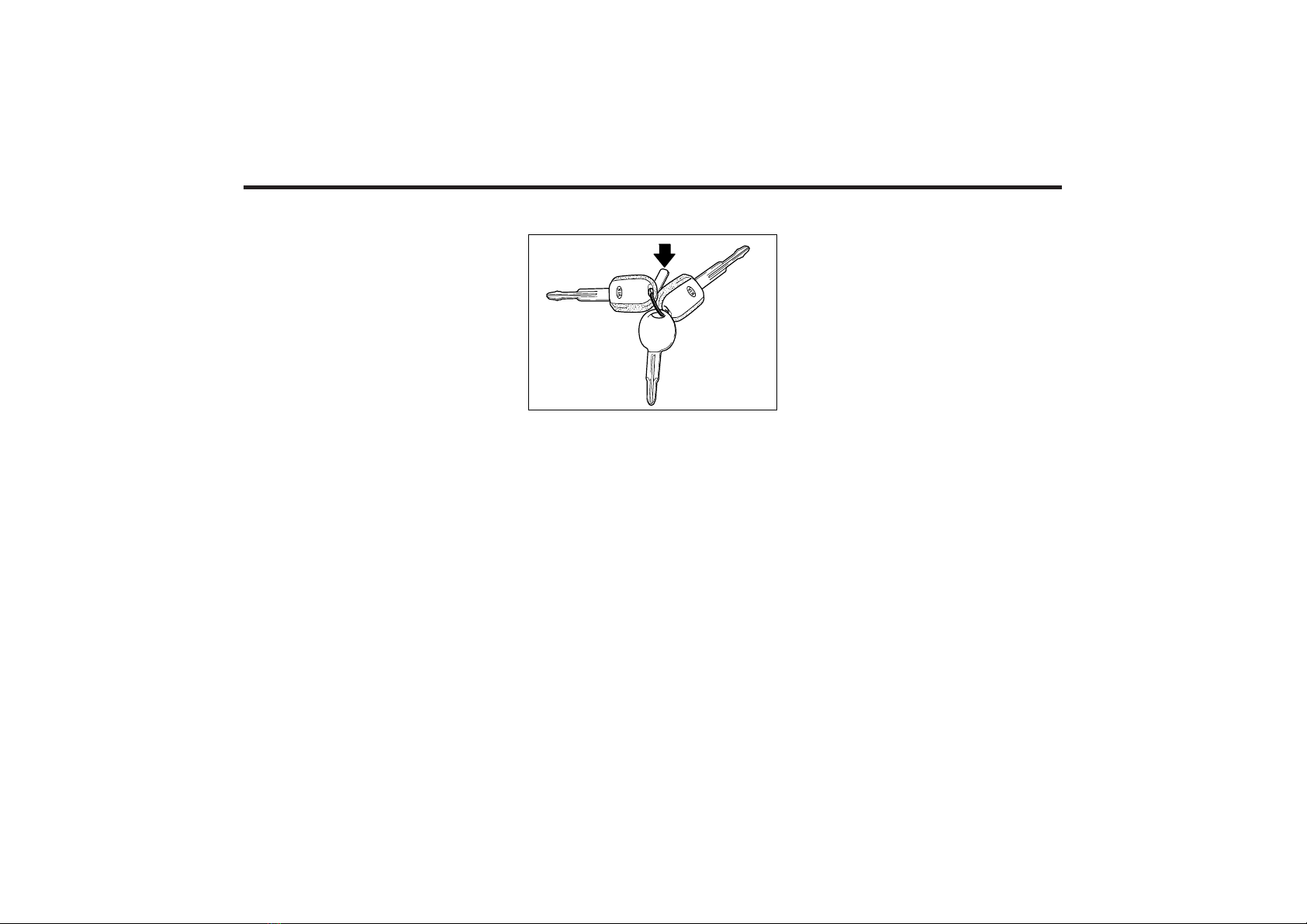

THREE TYPES OF KEYS
For greater convenience, your vehicle
has three types of keys as shown in the
illustration.
1) ID key
This key must be used first to
register a unique ID code in the
ICM.
2) Master key
This key is for general use. It will
open all locks on your vehicle. One
side of the key has the Kia logo and
the other side has the “M” symbol.
3) Sub key
Similar to the master key, this key
will only function in the ignition
and the door locks, but it will not
operate the trunk and the glove
box.
One side of the key has the Kia
logo and the other side has the “S”
symbol.
4) Leaving your sub key with a
parking attendant will ensure that
your vehicle’s trunk, trunk lid
release, glove box compartment
and rear trunk access may not be
unlocked in your absence.
NOTICE:
Before leaving your sub key with a
parking attendant, make sure that the
lock levers of the seat back lock and
the trunk lid lock are switched to the
“LOCK” position.
CAUTION:
Don’t lose your ID key or forget the
password.
Always keep your ID key in a place
where you remember and record your
password. If you don’t have both the
password and ID key, consult your
authorized Kia dealer.
3-7
SM
2MS103027
ID Key Sub Key Master Key

5) If you need additional keys or if
you should lose your keys, your
authorized Kia dealer can make
new keys if you can supply the key
number and ID key.
NOTICE:
If you make your own duplicate
key, you will not be able to cancel
the system or start the engine.
KEY NUMBERS
The vehicle key number is recorded
upon a metal tag attached to the keys
when the vehicle is first delivered to you.
The key number should be recorded and
kept in a safe place in case the need to
order further keys arises. New keys are
available from any Kia dealer by quoting
the relevant key number.
In the interest of security, the metal tag
attached to the keys which bears the key
number should be removed from the key
ring after you receive your new vehicle.
In addition, key numbers cannot be
provided by Kia for security reasons.
If you need additional keys or if you
should lose your keys, your authorized
Kia dealer can make new keys if you can
supply the key number and ID key.
KNOWING YOUR VEHICLE
3-8
50063
EMSA3070A

ILLUMINATED DOOR KEY
CYLINDER (IF EQUIPPED)
Whenever the driver’s door handle is
pulled, the key cylinder of the door
handle will be illuminated for your
convenience.
The light will go off 10 seconds after
pulling the door handle.
DOOR LOCKS
MANUAL DOOR LOCKS
Operating Door locks - With
Key
• Both front doors can be locked and
unlocked with the key.
• Turn the key to the left to lock and to
the right to unlock the door.
• Once a door is unlocked, it may be
opened by pulling the door handle.
Operating Door Locks -
Without Key
To lock a door without the key, push the
inside door lock button to the “LOCK”
position and close the door.
NOTICE:
Always remove the ignition key,
engage the parking brake,close all
windows and lock all doors when
leaving your vehicle unattended.
3-9
2MS103001
EMSA3001
EMSA3002
LOCK UNLOCK

Operating Door Locks from
Inside the Vehicle
• To lock a door, push the door lock
button to the “LOCK” position.
• To unlock a door, push the door lock
button to the “UNLOCK” position.
• To open a door, pull the door handle
towards the middle of your vehicle.
The door ajar warning light will
illuminate if a door is not fully closed.
Close the door completely and the light
will go out.
WARNING:
Never leave children or animals
unattended in the vehicle. An
enclosed vehicle can become
extremely hot or oxygen get rare,
causing death or severe injury to
children or to animals who cannot
escape the vehicle.
CAUTION:
The doors should always be fully
closed and locked while the vehicle is
in motion to prevent accidental
opening of the doors. Locked doors
will also discourage potential
intruders when the vehicle stops or
slows.
NOTICE:
When the door is locked, the red mark
on the switch is not visible.
KNOWING YOUR VEHICLE
3-10
EMSA3003
UNLOCK
RED MARK
LOCK

3-11
AUTOMATIC DOOR LOCKS
(IF EQUIPPED)
When the driver’s door is locked or
unlocked with a key or with the door
lock button, all the other doors will lock
or unlock automatically.
REAR DOOR CHILD SAFETY
LOCK
The child safety lock is provided to help
prevent children from accidentally
opening the rear doors from inside the
vehicle.
• To lock a rear door so that it cannot
be opened from the inside, push the
child safety lock located on the rear
edge of the door to the “LOCKED”
position (toward rear of vehicle)
before closing the door.
• To open a rear door while the child
safety lock is engaged, push the door
lock knob to the “UNLOCK”
position then pull the outside door
handle.
WARNING :
REAR DOOR LOCKS
If children accidentally open the
rear doors while the vehicle is in
motion, they could fall out and be
seriously or fatally injured. To
prevent children from opening the
rear doors from the inside, the
rear door safety locks should be
used whenever children are in the
vehicle.
EMSA3005
EMSA3004
FREE
LOCKED
