Kibano R1 Digireader User manual

Page 1
Kibano AS
R1 digireader
R1

Page 2
Revision History
Version Author Date Notes
0.1 EW 2011-09-30 Initial version

Page 3
Table of Contents
1Introduction...........................................................................................................................................6
1.1 Technical Specification.................................................................................................................6
1.2 Control Placement.........................................................................................................................7
2About R1 DIGIREADER .....................................................................................................................9
2.1 Design concept..............................................................................................................................9
2.2 Controls.........................................................................................................................................9
2.2.1 Physical Buttons.....................................................................................................................9
2.2.2 Touch Gesture........................................................................................................................9
2.3 Input Method / On-screen Keyboard ..........................................................................................10
2.3.1 On-screen Keyboard for English Input Method...................................................................11
2.3.2 Google Pinyin Input Method................................................................................................12
2.4 Cards...........................................................................................................................................13
2.4.1 SD Card................................................................................................................................13
2.4.2 Menca Card..........................................................................................................................14
2.4.3 Access cards.........................................................................................................................14
3Power ON/OFF...................................................................................................................................16

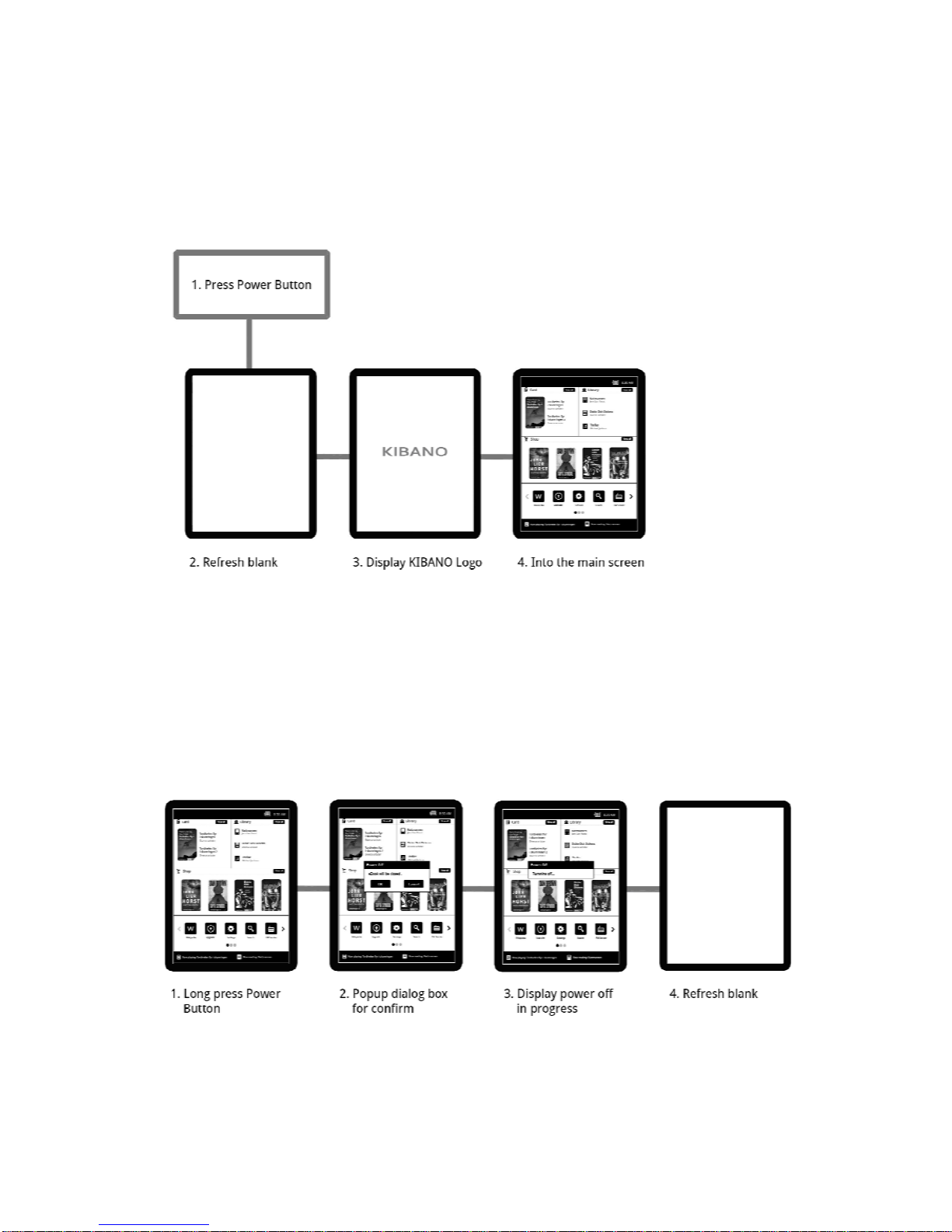

3.1 Steps to power on........................................................................................................................16
3.2 Steps to power off.......................................................................................................................16
4Interface ..............................................................................................................................................18
4.1 Home Screen...............................................................................................................................18
4.2 Status Bar....................................................................................................................................18
4.2.1 Battery status........................................................................................................................18
4.2.2 Wireless network status........................................................................................................19
4.2.3 Bluetooth status....................................................................................................................19
4.2.4 SD card status.......................................................................................................................19
4.3 Card Area....................................................................................................................................19
4.4 Library Area................................................................................................................................20
4.5 Shop Area....................................................................................................................................20
4.6 Application Area.........................................................................................................................20
4.7 Footer..........................................................................................................................................20
5Features...............................................................................................................................................21
5.1 Card view....................................................................................................................................21

Page 4
5.1.1 Plug in Menca Card..............................................................................................................21
5.1.2 Content Browse....................................................................................................................22
5.1.3 eBooks..................................................................................................................................24
5.1.4 Audio Books ........................................................................................................................25
5.1.5 Music....................................................................................................................................26
5.1.6 Backup .................................................................................................................................27
5.2 Library.........................................................................................................................................30
5.2.1 Browse Structure:.................................................................................................................30
5.2.2 Browse Modes......................................................................................................................31
5.2.3 Location Filter......................................................................................................................32
5.2.4 eBooks..................................................................................................................................33
5.2.5 Audiobooks..........................................................................................................................35
5.2.6 Music....................................................................................................................................37
5.2.7 Other.....................................................................................................................................39
5.2.8 Search...................................................................................................................................40
5.3 zReader .......................................................................................................................................42
5.3.1 Supported Format.................................................................................................................42
5.3.2 How to open a book .............................................................................................................42
5.3.3 Function Menu.....................................................................................................................42
5.3.4 Turn Page.............................................................................................................................42
5.3.5 Search words in book...........................................................................................................43
5.3.6 Bookmark.............................................................................................................................44
5.3.7 Highlights & Notes ..............................................................................................................46
5.3.8 TOC......................................................................................................................................52
5.3.9 Reading history ....................................................................................................................52
5.3.10 Go to page............................................................................................................................52
5.3.11 Settings.................................................................................................................................53
5.3.12 Reading PDF in zoom-in mode............................................................................................56
5.3.13 Standby mode.......................................................................................................................56
5.4 Audio Player ...............................................................................................................................56
5.4.1 Supported audio formats......................................................................................................56
5.4.2 How to play a track..............................................................................................................56
5.4.3 Playing screen......................................................................................................................56
5.4.4 Play modes...........................................................................................................................57

Page 5
5.4.5 Play controls.........................................................................................................................57
5.5 AudioBook Player.......................................................................................................................58
5.5.1 Supported audio formats......................................................................................................58
5.5.2 How to play a AudioBook....................................................................................................58
5.5.3 Playing screen......................................................................................................................58
5.5.4 Play controls.........................................................................................................................59
5.5.5 Bookmark.............................................................................................................................59
5.6 Search..........................................................................................................................................60
5.7 FM sender ...................................................................................................................................60
5.8 WikiPedia....................................................................................................................................62
5.9 Settings........................................................................................................................................63

Page 6
1Introduction
This manual is to introduce the user interface of R1 digireader, giving you an idea on how to use R1
DIGIREADER.
1.1 Technical Specification
CPU Marvell PXA 166e, 800 MHz
Memory 256MB SLC NAND FLASH for boot code
256MB LP-DDR1-200 for working memory
Buttons &Navigation
Controls 6” Capacitive Single Touch screen
Home, Menu, Back, Power, Reset, Volume up/down keys, < , >
G-sensor
Display 6” e-INK EPD, 800 x 600, 16 Level Grey Scale
Battery&Adapter 3.7V, 1,530 mAh, rechargeable Lithium-Polymer
AC-DC power adapter, 5V/1A, USB Type-B connector
Connectivity USB 2.0 device and power connection
SD memory card slot X1
Menca Card slot X1
WiFi 802.11 b/g/n
Bluetooth 2.1+EDR
FM Transmitter: SILICON LABS Si4710
Audio Speaker Internal 1.0W x1
3.5mm headphone jack X1
Dimension 170x118x11.7mm
Weight 205 +- 5 gm
Operating System Android 2.1
Content formats eBook: ePUB, PDF
Music: MP3, AAC, OGG, WAV, WMA
Audio Book: MP3, WMA
3rd Party Integration
Required Danish, Finnish, Norwegian, Swedish, Germany, English software keyboard
apk. files
Localization for
build-in applications English, German, Danish, Finish, Norwegian, Swedish, French, Spanish

Page 7
1.2 Control Placement
Front view:

Page 8

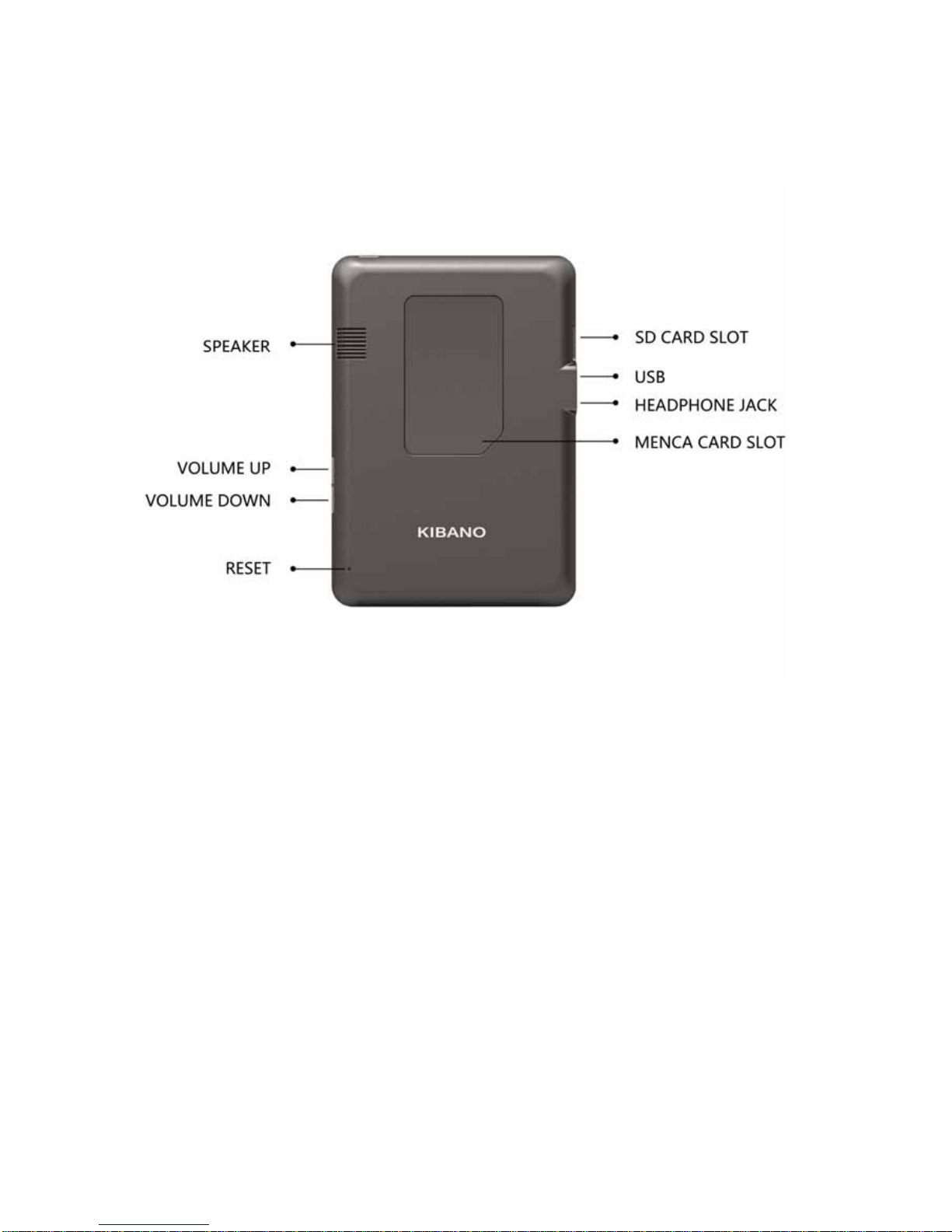

Back view：

Page 9
2About R1 digireader
2.1 Design concept
The R1 digireader is an eBook reader running on Android 2.1.
2.2 Controls
2.2.1 Physical Buttons
The R1 digireader provides seven control buttons, which are “POWER”, “HOME”, “BACK”, “MENU”,
“VOLUME UP”, “VOLUME DOWN”, “RESET”, “ARROW<” and “ARROW>”
POWER: Pressing and holding this button for two (2) seconds will open a dialog box prompting
you if you want to shut down the system. And used to wake up system when system in Standby
mode.
HOME: Pressing this button whenever you want to switch back to the home screen. Press and
hold will show running processes.
MENU: Pressing this button will open the function menu of the active application.
BACK: Pressing this button during any operation will send you back to the previous menu.
VOLUME UP: Pressing this button can tune up the audio volume.
VOLUME DOWN: Pressing this button can tune down the audio volume.
RESET: Pressing this button will reboot the system.
ARROW<: Pressing this button will go to next page when reading or view. Press and hold will
turn back page by page.
ARROW>:Pressing this button will go to previous page when reading or view. Press and hold
will turn forward page one by one.
2.2.2 Touch Gesture
The R1 digireader can detect and recognize following touch gestures as shown below:

Page 10
Press：This is the most useful gesture, requires only a single tap on the touch panel, and is frequently
used to select an option. The detectible minimum area for an effective press is 1.0 cm x1.0 cm.
Long-press: Press and hold your finger on the panel for 2 to 3 seconds – this is one long-press gesture.
The detectible minimum area for this gesture is 1.0 cm x1.0 cm.
Slide-down：Put your fingers on the panel softly, slide it down at least 2cm, and lift it from the panel –
this is one slide-down gesture.
Slide-up: Put your fingers on the panel softly, slide it up at least 2cm, and lift it from the panel – this is
one slide-up gesture.
Slide-left：Put your fingers on the panel softly, slide it to left at least 2cm, and lift it from the panel –
this is one slide-left gesture.
Slide-right：Put your fingers on the panel softly, slide it to right at least 2cm, and lift it from the panel –
this is one slide-right gesture.
2.3 Input Method / On-screen Keyboard

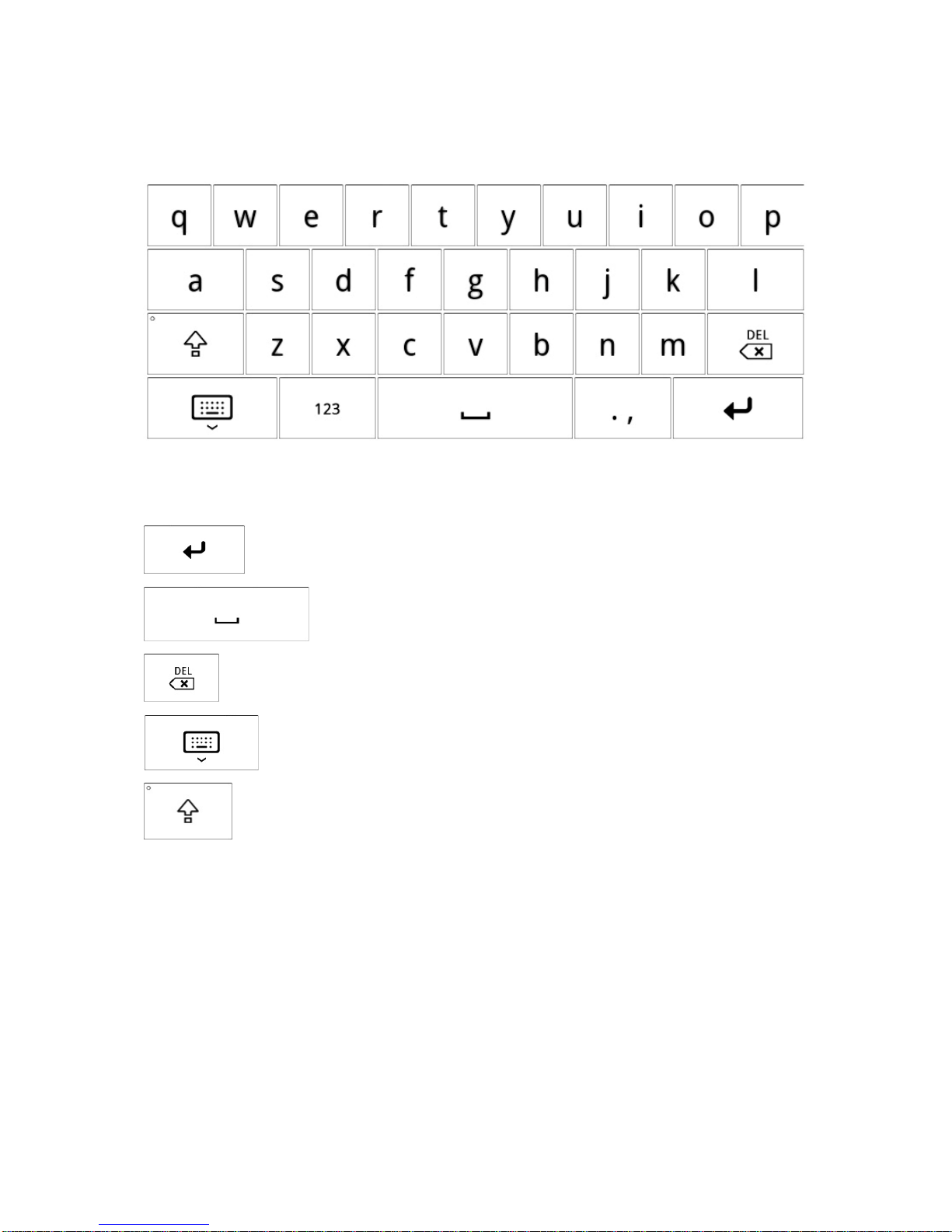

The R1 digireader provides in default two kinds of input methods – English and Google Pinyin -- with
their corresponding on-screen keyboard. You can specify your favorite input method as default through
setting menus.
Note: Press an input area can bring up the on-screen keyboard.
