Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Customer Service.
Cetra®
Assembly Instructions
Recommended Tools
Phillips Screwdriver
Package
Contents Qty.
Floor Power Entry 1
Assembly (AEF1U)
Phillips Head #10 X
5
/ 8 ″2
Thread Forming Screws
Power Entry Cover 1
Phillips Head #6 X 1
1
/ 4 ″4
Shoulder Screws
Standard
8-Wire Floor
Power Entry
Installation
(AEF1U)
Figure A
Note:
Power entry connections must be
made by a licensed electrician only.
Installation must be in accordance
with the National Electrical Code and
Local Codes. See the following pages
for eight-wire wiring schematic
instructions for circuit connection
options.
Locate floor power entry according
to electical plan. Insert floor power
entry (AEF1U) into receptable
location on either side of the power
distribution assembly (AED) and
secure with two #10 x 5/8″screws
(Figure A).
Floor power entry will plug into
either side of the power distribution
assembly (AED). Cord direction can
be changed by rotating the cord
(Figure B).
Extend power cable through wireway
cover. This must be done before the
power connections are made to
building supply (Figure A).
AED
Screw Location
Printed in U.S.A.
© Kimball International, Inc. 1995
Form #AISYCE005B-96
#1133799
Telephone [phone]
Fax [phone]
1
2
Secure wireway cover to panel.
Rotate floor power entry cord, if
necessary (Figure B). Install floor
power entry cover and four screws
(Figure C & D).
Connect power leads to building
branch circuit according to wiring
schematic installation sheets.
Warning:
Do not interconnect panels powered
from different feed units. This can
cause shock and fire hazard.
This panel system may be connected
to more than one source of supply. All
sources must be disconnected prior to
any servicing. No single circuit may
be powered by more than one source.
Figure B
Figure C
Figure D
3
4

SYSTEMS
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Customer Service.
Cetra®
Assembly Instructions

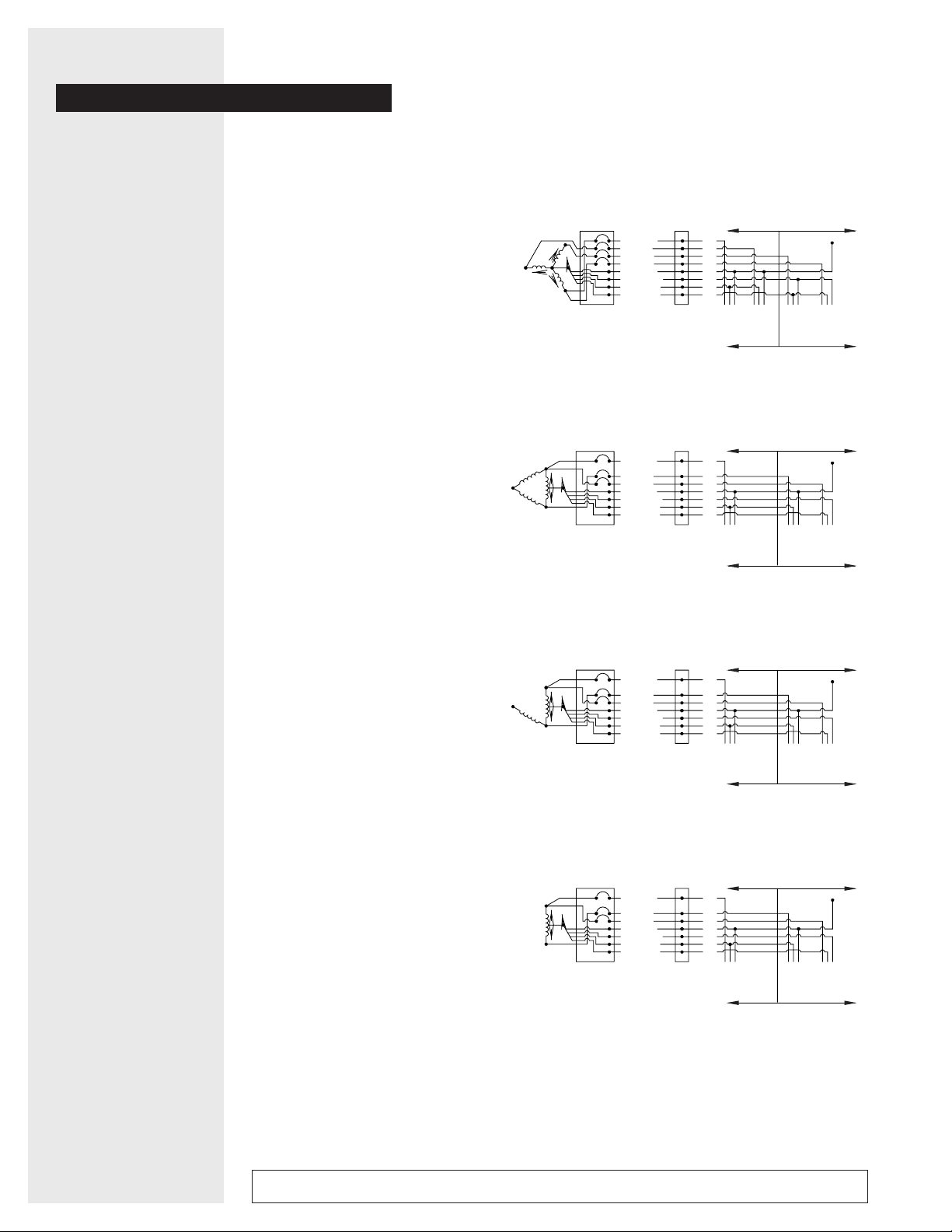

Standard
8-Wire
Schematic
2 & 2
Configuration
and 1 & 2
Configuration
2 & 2 CONFIGURATION
Receptacles 1, 2, 4, and 5
1 & 2 CONFIGURATION
Receptacles 1, 4, and 5
Note:
Receptacle number 3 can not be used
in these configurations.
The Cetra standard eight-wire
electrical system provides up to four
circuits using four hot wires, two
increased size neutrals, a system
ground and an isolated ground for
circuits four and five.
Ideally, a four-wire, WYE, 208 volt
service provides the best utilzation.
Circuits 1 & 2 can be wired for
general use. Circuits 4 & 5 can be
reserved for data and communications
requirements.
Other power supplies such as
120/240 volt delta, 120/240 volt open
delta and 120/240 volt single phase
will use circuits 1,4 and 5 with
L2 (red) circuit taped off.
Single phase 120 volt, two-wire
sytems will use L1 (black) paired
with N1 (white/black) and L4 (pink)
paired with N2 (white/red). L2 (red)
and L5 (blue) should not be used.
120/208V WYE 3 Phase 4 Wire
4 Circuit, 20 AMP, Isolated Ground
120/240V Delta Single Phase
3 Circuit, 20 AMP, Isolated Ground
120/240V Open Delta Single Phase
3 Circuit, 20 AMP, Isolated Ground
120/240V Single Phase
3 Circuit, 20 AMP, Isolated Ground
120
120
120
120
120
Building
Service
Panel
System
Power Entry
Connection
BLACK
RED
BLUE
PINK
GREEN
GRN/YLW
WH/BLK
WH/RED
L1
L2
L5
L4
G1
G2
N1
N2
BLACK
RED DO NOT USE
BLUE
PINK
GREEN
GRN/YLW
WH/BLK
WH/RED
L1
L5
L4
G1
G2
N1
N2
Designated
Utility Designated
Computer
HNG
1
Building
Service
Panel
System
Power Entry
Connection Designated
Utility
HNG
1
HNG
2HNG
5HNG
4
Designated
Computer
HNG
5HNG
4
Dead
Metal
Dead
Metal
120
120
BLACK
RED DO NOT USE
BLUE
PINK
GREEN
GRN/YLW
WH/BLK
WH/RED
L1
L5
L4
G1
G2
N1
N2
Building
Service
Panel
System
Power Entry
Connection Designated
Utility
HNG
1Designated
Computer
HNG
5HNG
4
Dead
Metal
120
120
BLACK
RED DO NOT USE
BLUE
PINK
GREEN
GRN/YLW
WH/BLK
WH/RED
L1
L5
L4
G1
G2
N1
N2
Building
Service
Panel
System
Power Entry
Connection Designated
Utility
HNG
1Designated
Computer
HNG
5HNG
4
Dead
Metal
2 & 2 Configuration
1 & 2 Configuration
1 & 2 Configuration
1 & 2 Configuration

SYSTEMS
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Customer Service.
Cetra®
Assembly Instructions
Standard
8-Wire
Schematic
3 & 1
Configuration
and 2 & 1
Configuration
3 & 1 CONFIGURATION
Receptacles 1, 2, 3, and 4
2 & 1 CONFIGURATION
Receptacles 1, 3 and 4
Note:
Receptacle number 5 can not be used
in these configurations.
The Cetra standard eight-wire
electrical system provides up to four
circuits using four hot wires, two
increased size neutrals, a system
ground and an isolated ground for the
fourth circuit.
Ideally, a four-wire, WYE, 208 volt
service provides the best utilization.
Circuits 1, 2, and 3 can be wired for
general use. Circuit 4 which has its
own increased size neutral and an
isolated ground, can be reserved
for data and communications
requirements.
Other power supplies such as
120/240 volt delta, 120/240 volt open
delta and 120/240 volt single phase
will use circuits 1, 3 and 4 with
L2 (red) circuit taped off.
Single phase 120 volt, two-wire
sytems will use L1 (black) paired
with N1 (white/black) and L4 (pink)
paired with N2 (white/red). L2 (red)
and L3 (blue) should not be used.
120/208V WYE 3 Phase 4 Wire
4 Circuit, 20 AMP, Isolated Ground
120
120
120
120
120
Building
Service
Panel
System
Power Entry
Connection
BLACK
RED
BLUE
PINK
GREEN
GRN/YLW
WH/BLK
WH/RED
L1
L2
L3
L4
G1
G2
N1
N2
BLACK
RED DO NOT USE
BLUE
PINK
GREEN
GRN/YLW
WH/BLK
WH/RED
L1
L3
L4
G1
G2
N1
N2
Designated
Utility Dedicated
Computer
HNG
1HNG 2HNG
3HNG
4
Building
Service
Panel
System
Power Entry
Connection Designated
Utility Dedicated
Computer
HNG
1HNG
3HNG
4
Building
Service
Panel
System
Power Entry
Connection Designated
Utility Dedicated
Computer
HNG
1HNG
3HNG
4
Building
Service
Panel
System
Power Entry
Connection Designated
Utility Dedicated
Computer
HNG
1HNG
3HNG
4
Dead
Metal
Dead
Metal
120
120
BLACK
RED DO NOT USE
BLUE
PINK
GREEN
GRN/YLW
WH/BLK
WH/RED
L1
L3
L4
G1
G2
N1
N2
120
120 BLACK
RED DO NOT USE
BLUE
PINK
GREEN
GRN/YLW
WH/BLK
WH/RED
L1
L3
L4
G1
G2
N1
N2
Dead
Metal
Dead
Metal
120/240V Delta Single Phase
3 Circuit, 20 AMP, Isolated Ground
120/240V Open Delta Single Phase
3 Circuit, 20 AMP, Isolated Ground
120/240V Single Phase
3 Circuit, 20 AMP, Isolated Ground
3 & 1 Configuration
2 & 1 Configuration
2 & 1 Configuration
2 & 1 Configuration
